Article

Polymorphism, Halogen Bonding, and Chalcogen Bonding in the Diiodine Adducts of 1,3- and 1,4-Dithiane

by
Andrew J. Peloquin
1,
Srikar Alapati
2,
Colin D. McMillen
1,
Timothy W. Hanks
2 and
William T. Pennington
1,*
1
Department of Chemistry, Clemson University, Clemson, SC 29634, USA
2
Department of Chemistry, Furman University, Greenville, SC 29613, USA
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(16), 4985; https://doi.org/10.3390/molecules26164985
Submission received: 26 July 2021 / Revised: 11 August 2021 / Accepted: 12 August 2021 / Published: 17 August 2021
(This article belongs to the Special Issue Halogen Bond in Crystalline Systems)
Browse Figures
Versions Notes

Abstract

:
Through variations in reaction solvent and stoichiometry, a series of S-diiodine adducts of 1,3- and 1,4-dithiane were isolated by direct reaction of the dithianes with molecular diiodine in solution. In the case of 1,3-dithiane, variations in reaction solvent yielded both the equatorial and the axial isomers of S-diiodo-1,3-dithiane, and their solution thermodynamics were further studied via DFT. Additionally, S,S’-bis(diiodo)-1,3-dithiane was also isolated. The 1:1 cocrystal, (1,4-dithiane)·(I2) was further isolated, as well as a new polymorph of S,S’-bis(diiodo)-1,4-dithiane. Each structure showed significant S···I halogen and chalcogen bonding interactions. Further, the product of the diiodine-promoted oxidative addition of acetone to 1,4-dithiane, as well as two new cocrystals of 1,4-dithiane-1,4-dioxide involving hydronium, bromide, and tribromide ions, was isolated.

1. Introduction

Halogen bonding, and the related chalcogen bonding, interactions occur due to an interaction between the electrophilic region on a halogen or chalcogen atom within a molecule and a nucleophilic region on a different atom [1,2,3,4]. Due to their strength [5] and directionality [6], these interactions have emerged as useful tools in crystal engineering [7,8], pharmaceutical design [9,10,11], and in the understanding of synthetic transformations [12,13,14].
The reaction of diiodine, one of the simplest halogen bond donors, with thioethers allows the concomitant study of halogen and chalcogen bonding, as well as the competition between the two. Several notable examples of reaction products from diiodine with cyclic polythioethers exist in the literature, ranging from simple examples such as 1,4-dithaine [15] and 1,3,5-trithiane [16] to larger macrocycles [17,18,19]. A common structural motif that emerges is the presence of an S···I halogen bond of varying strength, with a combination of halogen and chalcogen bonding to consolidate packing in the crystalline state. The charge transfer component of these interactions has also been extensively characterized, with the interaction primarily attributed to an n→σ type interaction that increases in strength in the order of O < S < Se [20,21,22].
Herein, we report the isolation of a variety of crystalline polymorphs from the reaction of 1,3- and 1,4-dithiane with diiodine. In the case of 1,3-dithiane, two geometric isomers of S-diiodo-1,3-dithiane were isolated, with their solution behavior further studied via DFT computations, as well as S,S’-bis(diiodo)-1,3-dithiane. For 1,4-dithiane, the previously reported 1:1 cocrystal with I2 was isolated [15,23], as well as a new polymorph of S,S’-bis(diiodo)-1,4-dithiane. Each of these structures reveals an interplay between S···I halogen and chalcogen bonding. In the course of our investigations, we found that diiodine promoted oxidative addition of acetone to 1,4-dithiane, and we isolated two structures from the direct oxidation of the compound to dioxides, revealing alternative reaction pathways in these halogen-containing systems.

2. Results and Discussion

2.1. Reaction of 1,3-Dithiane with I2

While the product of the reaction of 1,4-dithiane and I2 was first reported in the literature in 1960 [15,23], the analogous reaction of 1,3-dithiane has not been reported in the intervening 6 decades. Through variations in stoichiometry and solvent utilized for the reaction, we obtained three distinct products: S-diiodo-1,3-dithiane in both the equatorial (1) and axial (2) orientation of the diiodo pendant, as well as S,S’-bis(diiodo)-1,3-dithiane (3) (Figure 1 and Figure 2 and Figures S10–S12). When the reaction was conducted at a 1:1 stoichiometry in methanol, crystalline 1 was obtained, with the S-I-I group in a pseudo-equatorial position, with an angle of 52.29(3)° between I-I and the RMS ring plane (Table 1). The position of this substituent significantly deviates from the typical equatorial position (though not to the degree of the axial conformer 2 described below). For example, the analogous angle for an equatorial C-H in this molecule is only 8.43(16)°. Individual molecules pack in pairs in the solid-state via two C-H···S hydrogen bonds (dH···S = 2.8840(17) Å, R = 0.93). These crystallographic dimers further interact to form sheets in the bc plane by an S···S contact involving an unsubstituted sulfur atom on one ring and the diiodo-substituted sulfur atom on a neighboring ring (dS···S = 3.3571(6) Å, R = 0.89). Alternating dimers are rotated by approximately 72° to one another. The sheets stack in the a direction by a type I halogen interaction between terminal iodine atoms (dI···I = 3.8019(3) Å, θC-H···S = 128.64(15)°).
When the 1:1 reaction of I2 and 1,3-dithiane was conducted in ethyl acetate, the axial isomer of S-diiodo-1,3-dithiane (2) was obtained. In this case, the S-I-I group is in a typical axial position, with an angle of 85.45(4)° between I-I and the RMS ring plane. The geometric change in the resulting molecule drastically affects the packing of the molecules in the solid-state. Chains are formed by weak C-H···S hydrogen bonds (dH···S = 2.992(2) Å, R = 0.97), propagating in the b direction. Neighboring chains interact within the ab plane by S···S close contacts (dS···S = 3.6110(8) Å, R = 0.96). The packing is further reinforced in the c direction by a bifurcated halogen bonding interaction, involving both a weak I···I (dI···I = 3.9808(2) Å, R = 0.98) and I···S (dI···S = 3.8928(5) Å, R = 0.99) contact. With the primary intermolecular interaction being of the weak C-H···S type, the decomposition temperature of 2, 107 °C, is significantly lower than in 1, 148 °C, where stronger S···S interactions are involved (Figures S1 and S2).
The product of the I2 addition to both sulfur atoms, S,S’-bis(diiodo)-1,3-dithiane (3), was obtained by reaction of 1,3-dithiane with two equivalents of I2 in methanol. In 3, both S-I-I moieties are in pseudo-equatorial positions, with angles of 40.70(6)° and 49.07(7) between each I-I and the RMS ring plane. Double-stranded chains propagate in the a direction, formed by a cooperative series of S···I chalcogen bonds (dS···I = 3.8445(8) Å and 3.8712(8) Å, R = 0.98 and 0.99).

2.2. Computational Investigation of S-Diiodo-1,3-Dithiane Ring Flip

The electrostatic potential map of 1,3-dithiane, generated by DFT calculations, shows distinct regions of negative electrostatic potential around sulfur, as would be expected from a sp3 hybridized atom. These are localized both above and below the ring plane (Figure 3a). Either region could potentially serve as a hydrogen or halogen bond acceptor. This is seen in structures 1–3, with 1 having a pseudo equatorial halogen bond to diiodine, while 2 and 3 have axial halogen bonds.
The conformations and inversion pathways of 1,3- and 1,4-dithiane have previously been examined by gas-phase DFT calculations [24,25,26]. In general, the energetics of these processes were found to be similar to those of cyclohexane, which has been thoroughly studied both experimentally and computationally. The inversion of the 1,3-dithiane ring was reported to proceed through twisted boat intermediates, lying 4.72 kcal/mol above the chair confirmation (slightly lower than the equivalent cyclohexane intermediates). The calculated transition states for this process were found to be 9.87 kcal/mol above the chair state, while the boat transition state between the two intermediate structures was only 0.80 kcal/mol higher in energy. The interconversion of the equatorial and axial isomers of 1,3-dithiane/I2 can proceed through multiple pathways since the addition of I2 at only one sulfur breaks the symmetry of the system. Gas-phase calculations of one of the inversion pathways of the S-diiodo substituted system indicate a ΔE‡ of 11.23 kcal/mol between 1 and its respective half-chair conformer. Conformer 2 lies only slightly higher in energy than 1 (ΔE = 1.24 kcal/mol), with a ΔE‡ of 9.02 kcal/mol between 2 and its respective half chair. The S-I binding energy remains relatively consistent throughout the ring inversion, at approximately 11 kcal/mol. The calculated energy differences remain consistent relative to the gas-phase when solvation in methanol or ethyl acetate was included via SMD. These results indicate the preferential formation of 1 or 2 is not driven by conformational equilibrium in solution.

2.3. Reaction of 1,4-Dithiane with I2

Through variations in solvent and stoichiometry, three new structures resulting from the reaction of I2 and 1,4-dithiane were obtained. The first, (1,4-dithiane)(I2) (4), is a 1:1 cocrystal obtained when the reaction is conducted in perfluoropyridine, and it possesses a significantly longer S···I distance than any of the other products observed in this study (Figure 4a and Supplementary Figure S13), such that the S···I interactions in 4 distinguish themselves from the more covalently bonded adducts of the other structures (1–3, 5, 6). Each iodine atom is involved in both a strong halogen bond (dS···I = 3.0813(7) Å, R = 0.78) and much weaker chalcogen bond (dS···I = 3.8728(7) Å, R = 0.99). The two types of interactions can be easily distinguished by the orientation of the interaction relative to the I-I bond. For the halogen bond, the S···I-I angle of 179.074(12)° indicates involvement of the σ hole on the iodine atom [27,28,29]. The chalcogen bond shows a distinctly different orientation, with an S···I-I angle of 77.077(14)°, as well as a C-S···I angle of 177.17(8)°. These two angles taken together demonstrate an interaction between the band of increased electrostatic potential on the iodine atom, located normal to the I-I bond, as well as the σ hole of the sulfur atom, located along the elongation of the C-S bond.
While increasing the iodine available for reaction to 2:1 diiodine:dithiane, variations in reaction solvent again produced polymorphic structures with 1,4-dithiane (Figure 4b,c and Figures S14 and S15) however, in this case, the polymorphic structures are of S,S’-bis(diiodo)-1,4-dithiane. When the reaction was conducted in methanol, structure 5 formed. This is isostructural to the IBr adduct, with an elongation of the S-I bond from 2.687(2) Å in the IBr compound to 2.7891(6) Å in 5 [30]. The packing is dominated by S···I chalcogen bonds (dS···I = 3.7591(6) Å, R = 0.96, θC–S···I = 176.81(9)°), which contribute to the formation of ribbons in the ab plane. Neighboring ribbons interact through a weak type I interaction between terminal iodine atoms. To provide the most accurate comparison to the McCollough (1,4-dithiane)(I2)2 polymorph, the reaction was also conducted in dichloromethane, yielding polymorph 6, with the same reduced unit cell parameters as those previously reported [15]. While the overall packing arrangement remains consistent, the reduction in data collection temperature causes a noticeable reduction in intermolecular contact distances. The S···I distance is 2.8036(7) in 6, reduced from 2.87 Å in the room temperature structure. A network of chalcogen bonds (dS···I = 3.6692(7) Å, R = 0.93, θC-S···I = 166.55(9)°) promotes the formation of sheets within the (1 0 1) plane. This distance is again reduced from the room temperature structure (3.78 Å). Neighboring sheets stack by weak S···I halogen bonds (dS···I = 3.9907(7) Å, R = 1.02). The arrangement of S-I-I moiety is pseudo in both 5 and 6, with an angle from the dithiane RMS ring plane of 47.22(5)° and 42.60(5)° respectively. Surprisingly, despite significant differences in the primary halogen bonding interactions between 4, 5, and 6, the decomposition temperatures are within 7 °C of one another (Figures S4–S6).

2.4. Other Dihalogen Promoted Reactions of 1,4-Dithiane

Throughout this investigation, several other interesting products that involve the formation of new covalent bonds to sulfur were obtained by the reaction of 1,4-dithiane with both I2 and Br2. If the 2:1 I2:1,4-dithiane reaction is conducted in acetone, a sulfonium cation is formed from the addition of acetone to one of the sulfur atoms of the dithiane ring (7) (Figure 5a and Figure S16). A triiodide anion is also present to balance the charge. A chalcogen bond is present between the disubstituted sulfur atom and the central atom of the triiodide anion (dS···I = 3.8586(7) Å, R = 0.98, θC-S···I = 177.55(10)°). The bromide salt of this compound has been prepared previously by the reaction of bromoacetone and 1,4-dithiane in ethanol [31].
First reported in 1927, the reaction of 1,4-dithiane with Br2 provides 1,4-dithiane-S,S’-dioxide [32]. The crystalline structure of this molecule in isolation has been further reported twice in the literature [33,34]. While our attempts to investigate the halogen bonding of Br2 with 1,4-dithiane were unsuccessful, resulting in the dioxide due to the increased oxidizing power of Br2 relative to I2, two new structures containing 1,4-dithiane-S,S’-dioxide were obtained. The first, (O=S(CH2CH2)2S=O)(H3O)(Br) (8), was obtained by the reaction of 1,4-dithiane with Br2 in a 5:1 mixture of methanol:acetone (Figure 5b). Acetone is required to resolubilize the dioxide which immediately precipitates from the solution upon Br2 addition. The resulting crystalline material showcases chains formed by hydrogen bonding between oxygen atoms on two separate 1,4-dithiane-S,S’-dioxide molecules and two hydrogen atoms of a hydronium ion. The third hydronium hydrogen atom participates in a hydrogen bond to a bromide anion. In contrast to 8, the reaction of 1,4-dithiane with Br2 in acetonitrile produced crystalline (O=S(CH2CH2)2S=O-H)(Br3) (9). Resulting from the single protonation of a S=O oxygen atom, likely from HBr formed from water contamination of Br2, the mixed sulfoxide/sulfoxonium cations form 1-D chains along the b axis (Figure 5c and Figure S18). The single −OH hydrogen atom is equally shared between two oxygen atoms. Four neighboring chains are consolidated through a series of C-H···Br hydrogen bonds to the tribromide anion.

3. Materials and Methods

3.1. Materials

1,3-dithiane (>97%, CAS registry no. 505-23-7) was obtained from Oakwood Chemical (Estill, SC, USA). 1,4-dithiane (>97%, CAS registry no. 505-29-3) was obtained from Millipore Sigma (St. Louis, MO, USA). Iodine (>99.8%, resublimed, CAS registry number 7553-56-2), bromine (>99.8%, CAS registry no. 7726-95-6), methanol (100%, CAS registry no. 64-56-1), and ethyl acetate (>99.5%, CAS registry no. 141-78-6) were obtained from Fisher Scientific (Waltham, MA, USA). Pentafluoropyridine (99%, CAS registry no. 700-16-3) was obtained from Synquest Laboratoires (Alachua, FL, USA). All materials were used as received.

3.2. Thermal Analysis

Simultaneous thermal gravimetric analysis (TGA) and differential scanning calorimetry (DSC) measurements were made using a TA Instruments Q600 or Discovery 650 (New Castle, DE, USA). Samples were heated from room temperature to 500 °C in air (100 mL/min) at a rate of 10 °C/min.

3.3. Single-Crystal X-ray Analysis

Single crystal X-ray diffraction data were collected using a Bruker D8 Venture diffractometer (Madison, WI, USA) equipped with Mo Kα radiation (λ = 0.71073 Å) and a Photon 100 detector. Data were collected in 0.5° oscillations of phi and/or omega at a temperature of 100 K. Data were processed and corrected for absorption using the SAINT and SADABS routines in the Apex 3 software suite (v2017.3, Madison, WI, USA, 2017) [35]. The structures were solved by intrinsic phasing (SHELXT) [36] and subsequently refined within Olex2 [37,38]. Non-hydrogen atoms were refined anisotropically, and hydrogen atoms attached to carbon atoms were refined in calculated positions using riding models. Hydrogen atoms attached to oxygen atoms in 8 and 9 were located in the electron difference map and freely refined. Appropriate DFIX constraints were used in 9. Crystallographic data are reported in Table S1.

3.4. Computational Study of 1 and 2

All DFT calculations were conducted using the Gaussian 09 package (B.01, Wallingford, CT, USA, 2010) [39]. Structures 1, 2, and their respective twisted boat conformations were optimized using the M06-2X functional and cc-pVTZ basis set with the LANL2DZ pseudopotential [40,41,42,43]. These optimized structures were used as starting points in the qst3 method to find the transition states. Frequency calculations were performed using M06-2X/cc-pVTZ with LANL2DZ pseudopotential at 298.15 K and 1 atm of pressure. Each optimized transition state structure had one imaginary frequency and was used in intrinsic reaction coordinate (IRC) calculations to examine the reaction path of the transition state.

3.5. Synthesis of Cocrystals

The synthesis of all cocrystals was scaled for a maximum yield of 100 to 200 mg of the desired product. Reagents were dissolved at the indicated ratios in a minimum amount of solvent and allowed to evaporate slowly at room temperature. Vials were sealed to halt evaporation as soon as crystals were observed to ensure sample purity.
S-diiodo-1,3-dithiane (equatorial) (1). 1,3-dithiane (44 mg, 0.37 mmol) and diiodine (93 mg, 0.37 mmol) were dissolved in methanol (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tdecomp 148 °C. Anal Calcd for C4H8I2S2 (374.0): C, 12.84; H, 2.16; S, 17.15; Found: C, 12.65; H, 2.13; S, 16.88.
S-diiodo-1,3-dithiane (axial) (2). 1,3-dithiane (37 mg, 0.31 mmol) and diiodine (78 mg, 0.31 mmol) were dissolved in ethyl acetate (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tdecomp 107 °C. Anal Calcd for C4H8I2S2 (374.0): C, 12.84; H, 2.16; S, 17.15; Found: C, 13.10; H, 2.36; S, 17.12.
S,S′-bis(diiodo)-1,3-dithiane (3). 1,3-dithiane (26 mg, 0.22 mmol) and diiodine (110 mg, 0.44 mmol) were dissolved in methanol (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tdecomp 115 °C. Anal Calcd for C4H8I4S2 (627.9): C, 7.65; H, 1.28; S, 10.21; Found: C, 7.80; H, 1.04; S, 10.40.
1,4-dithiane·I2 (4). 1,4-dithiane (34 mg, 0.28 mmol) and diiodine (72 mg, 0.28 mmol) were dissolved in perfluoropyridine (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tdecomp 126 °C. Anal Calcd for C4H8I2S2 (374.0): C, 12.84; H, 2.16; S, 17.15; Found: C, 12.65; H, 2.46; S, 16.81.
S,S′-bis(diiodo)-1,4-dithiane (5). 1,4-dithiane (28 mg, 0.23 mmol) and diiodine (118 mg, 0.27 mmol) were dissolved in methanol (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tdecomp 129 °C. Anal Calcd for C4H8I4S2 (627.9): C, 7.65; H, 1.28; S, 10.21; Found: C, 7.71; H, 1.14; S, 10.46.
S,S′-bis(diiodo)-1,4-dithiane (6). 1,4-dithiane (31 mg, 0.26 mmol) and diiodine (131 mg, 0.52 mmol) were dissolved in methanol (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tmelt 62 °C. Tdecomp 122 °C. Anal Calcd for C4H8I4S2 (627.9): C, 7.65; H, 1.28; S, 10.21; Found: C, 7.77; H, 1.29; S, 10.45.
1-(2-oxopropyl)-1,4-dithianium triiodide (7). 1,4-dithiane (34 mg, 0.28 mmol) and diiodine (144 mg, 0.57 mmol) were dissolved in acetone (10 mL) and the solvent was allowed to slowly evaporate at room temperature. Tdecomp 126 °C. Anal Calcd for C7H13I3OS2 (558.0): C, 15.07; H, 2.35; S, 11.49; Found: C, 14.72; H, 2.05; S, 11.34.
1,4-dithiane-S,S′-dioxide hydronium bromide (8). 1,4-dithiane (112 mg, 0.93 mmol) was dissolved in methanol (10 mL) and bromine was added (0.25 mL, 4.6 mmol), resulting in immediate precipitation of a white solid. Acetone (5 mL) was added to resolubilize the precipitate and the resulting solvent mixture was allowed to slowly evaporate at room temperature. Tdecomp 96 °C. Anal Calcd for C4H11BrO3S2 (251.2): C, 19.13; H, 4.41; S, 25.53; Found: C, 19.26; H, 4.40; S, 25.92.
1,4-dithiane-S-oxide-S′-oxonium tribromide (9). 1,4-dithiane (141 mg, 0. 17 mmol) was dissolved in acetonitrile (10 mL) and bromine was added (0.31 mL, 5.9 mmol). The solvent was then allowed to slowly evaporate at room temperature. Tdecomp 98 °C. Anal Calcd for C4H9Br3O2S2 (393.0): C, 12.23; H, 2.31; S, 16.32; Found: C, 11.99; H, 1.98; S, 16.37.

Supplementary Materials

The following are available online. Figures S1–S9, Simultaneous differential scanning calorimetry and thermal gravimetric analysis (SDT) of 1–9, Figures S10–S18, Unit cell packing diagrams of 1–9, Table S1, Crystallographic data and selected data collection parameters.

Author Contributions

A.J.P.: methodology, formal analysis, investigation, data curation, writing—original draft preparation; S.A.: methodology, formal analysis, investigation, writing—review and editing; C.D.M.: writing—review and editing; T.W.H.: formal analysis, writing—review and editing, funding acquisition; W.T.P.: writing—review and editing, project administration, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by the National Science Foundation EPSCoR Program under NSF Award #OIA-1655740. Computational resources were provided by the Research Corporation for Science Advancement, Award # 27446, and the NSF through the MERCURY consortium, CHE-122935. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect those of the National Science Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Crystal data for 1–9 were deposited with the Cambridge Crystallographic Data Center (CCDC) (https://www.ccdc.cam.ac.uk, accessed on 17 august 2021) with deposition numbers 2097610–2097618.

Acknowledgments

AJP thanks the US Air Force Institute of Technology Civilian Institutions Program for fellowship support.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compoundsare not available from the authors.

References

  1. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The halogen bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
  2. Vogel, L.; Wonner, P.; Huber, S.M. Chalcogen Bonding: An Overview. Angew. Chem. Int. Ed. 2019, 58, 1880–1891. [Google Scholar] [CrossRef]
  3. Aakeroy, C.B.; Bryce, D.L.; Desiraju, G.R.; Frontera, A.; Legon, A.C.; Nicotra, F.; Rissanen, K.; Schneiner, S.; Terraneo, G.; Metrangolo, P.; et al. Definition of the chalcogen bond. Pure Appl. Chem. 2018, 91, 4–13. [Google Scholar]
  4. Desiraju, G.R.; Shing Ho, P.; Kloo, L.; Legon, A.C.; Marquardt, R.; Metrangolo, P.; Politzer, P.; Resnati, G.; Rissanen, K. Definition of the halogen bond (IUPAC recommendations 2013). Pure Appl. Chem. 2013, 85, 1711–1713. [Google Scholar] [CrossRef]
  5. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding: An electrostatically-driven highly directional noncovalent interaction. Phys. Chem. Chem. Phys. 2010, 12, 7748–7757. [Google Scholar] [CrossRef]
  6. Kolář, M.; Hostaš, J.; Hobza, P. The strength and directionality of a halogen bond are co-determined by the magnitude and size of the σ-hole. Phys. Chem. Chem. Phys. 2014, 16, 9987–9996. [Google Scholar] [CrossRef]
  7. Knight, F.R.; Fuller, A.L.; Bühl, M.; Slawin, A.M.Z.; Woollins, J.D. Hypervalent adducts of chalcogen-containing peri -substituted naphthalenes; Reactions of sulfur, selenium, and tellurium with dihalogens. Inorg. Chem. 2010, 49, 7577–7596. [Google Scholar] [CrossRef] [Green Version]
  8. Brezgunova, M.E.; Aubert, E.; Dahaoui, S.; Fertey, P.; Lebègue, S.; Jelsch, C.; Ángyán, J.G.; Espinosa, E. Charge density analysis and topological properties of Hal 3-synthons and their comparison with competing hydrogen bonds. Cryst. Growth Des. 2012, 12, 5373–5386. [Google Scholar] [CrossRef]
  9. Lu, Y.; Shi, T.; Wang, Y.; Yang, H.; Yan, X.; Luo, X.; Jiang, H.; Zhu, W. Halogen bonding—A novel interaction for rational drug design? J. Med. Chem. 2009, 52, 2854–2862. [Google Scholar] [CrossRef]
  10. Bhattacharya, A.A.; Curry, S.; Franks, N.P. Binding of the general anesthetics propofol and halothane to human serum albumin: High resolution crystal structures. J. Biol. Chem. 2000, 275, 38731–38738. [Google Scholar] [CrossRef] [Green Version]
  11. Rowlinson, S.W.; Kiefer, J.R.; Prusakiewicz, J.J.; Pawlitz, J.L.; Kozak, K.R.; Kalgutkar, A.S.; Stallings, W.C.; Kurumbail, R.G.; Marnett, L.J. A Novel Mechanism of Cyclooxygenase-2 Inhibition Involving Interactions with Ser-530 and Tyr-385. J. Biol. Chem. 2003, 278, 45763–45769. [Google Scholar] [CrossRef] [Green Version]
  12. Peloquin, A.J.; Kobra, K.; McMillen, C.D.; Iacono, S.T.; Pennington, W.T. Isolation of hydrazine oxidation products via halogen bonding: C–I bond scission and crystal polymorphism. CrystEngComm 2021, 23, 419–426. [Google Scholar] [CrossRef]
  13. Peloquin, A.; McMillen, C.D.; Iacono, S.T.; Pennington, W.T. Crystal Engineering Using Polyiodide Halogen and Chalcogen Bonding to Isolate the Phenothiazinium Radical Cation and its Rare Dimer, 10-(3-phenothiazinylidene)phenothiazinium. Chem. A Eur. J. 2021, 27, 8398–8405. [Google Scholar] [CrossRef] [PubMed]
  14. Benz, S.; López-Andarias, J.; Mareda, J.; Sakai, N.; Matile, S. Catalysis with Chalcogen Bonds. Angew. Chem. Int. Ed. 2017, 56, 812–815. [Google Scholar] [CrossRef]
  15. Chao, G.Y.; McCullough, J.D. The refinement of the structure of the complex of iodine with 1,4 dithiane, C4H8S2.2I2. Acta Crystallogr. 1960, 13, 727–732. [Google Scholar] [CrossRef]
  16. Arca, M.; Cristiani, F.; Devillanova, F.A.; Garau, A.; Isaia, F.; Lippolis, V.; Verani, G.; Demartin, F. Reactivity of 1,3,5-trithiacyclohexane and 1,3,5- triselenacyclohexane towards molecular diiodine. Crystal structures of the diiodine adducts. Polyhedron 1997, 16, 1983–1991. [Google Scholar] [CrossRef]
  17. Blake, A.J.; Devillanova, F.A.; Garau, A.; Gilby, L.M.; Gould, R.O.; Isaia, F.; Lippolis, V.; Parsons, S.; Radek, C.; Schröder, M. Thioether-iodine charge-transfer complexes. Synthesis and low-temperature single-crystal structures of complexes of penta-, hexa-and octa-dentate homoleptic thioether macrocycles. J. Chem. Soc. Dalt. Trans. 1998, 12, 2037–2046. [Google Scholar] [CrossRef]
  18. Blake, A.J.; Li, W.S.; Lippolis, V.; Schröder, M. 1,4,8,11-Tetrakis(diiodine)-1,4,8,11-tetrathiacyclotetradecane. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 1997, 53, 886–888. [Google Scholar] [CrossRef]
  19. Blake, A.J.; Cristiani, F.; Devillanova, F.A.; Garau, A.; Gilby, L.M.; Gould, R.O.; Isaia, F.; Lippolis, V.; Parsons, S.; Radek, C.; et al. Structural and solution studies of diiodine charge-transfer complexes of thioether crowns. Dalt. Trans. 1997, 8, 1337–1346. [Google Scholar] [CrossRef]
  20. Hamed, M.M.A.; Mohamed, M.B.; Mahmoud, M.R. Charge-Transfer Molecular Complexes of Thianes with σ and π Electron Acceptors. Bull. Chem. Soc. Jpn. 1994, 67, 2006–2010. [Google Scholar] [CrossRef]
  21. Klaboe, P. The Raman Spectra of Some Iodine, Bromine, and Iodine Monochloride Charge-Transfer Complexes in Solution. J. Am. Chem. Soc. 1967, 89, 3667–3676. [Google Scholar] [CrossRef]
  22. Hendra, P.J.; Sadasivan, N. The far infra-red spectra of iodine complexes of 1:4-diselenan and 1:4-dithian. Spectrochim. Acta 1965, 21, 1127–1133. [Google Scholar] [CrossRef]
  23. McCullough, J.D.; Chao, Y.; Zuccaro, D.E. The structure of the compounds of iodine with 1,4 diselenane and 1,4 dithiane. Acta Crystallogr. 1959, 12, 815–816. [Google Scholar] [CrossRef]
  24. Freeman, F.; Le, K.T. A computational study of conformations and conformers of 1,3-dithiane (1,3-dithiacyclohexane). J. Phys. Chem. A 2003, 107, 2908–2918. [Google Scholar] [CrossRef]
  25. Freeman, F.; Derek, E. A computational study of conformational interconversions in 1,4-dithiacyclohexane (1,4-dithiane). J. Comput. Chem. 2003, 24, 909–919. [Google Scholar] [CrossRef]
  26. Notario, R.; Roux, M.V.; Cuevas, G.; Cárdenas, J.; Leyva, V.; Juaristi, E. Computational study of 1,3-dithiane 1,1-dioxide (1,3-dithiane sulfone). Description of the inversion process and manifestation of stereoelectronic effects on 1JC-H coupling constants. J. Phys. Chem. A 2006, 110, 7703–7712. [Google Scholar] [CrossRef]
  27. Murray, J.S.; Lane, P.; Politzer, P. Expansion of the σ-hole concept. J. Mol. Model. 2009, 15, 723–729. [Google Scholar] [CrossRef]
  28. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding and other σ-hole interactions: A perspective. Phys. Chem. Chem. Phys. 2013, 15, 11178–11189. [Google Scholar] [CrossRef]
  29. Politzer, P.; Murray, J.S. σ-Hole interactions: Perspectives and misconceptions. Crystals 2017, 7, 212. [Google Scholar] [CrossRef] [Green Version]
  30. Mccullough, J.D. Knobler, C.; Baker, C.; Hope, H. The Crystal and Molecular Structure of the Iodine Monobromide Complex of 1,4-Dithiane, C4H8S2-2IBr. Inorg. Chem. 1971, 10, 697–700. [Google Scholar] [CrossRef]
  31. Krivenchuk, V.E. Oximes of dialkyl- and alkyleneacetonylsulfonium bromides. Khimiko-Farmatsevticheskii Zhurnal 1970, 4, 18–22. [Google Scholar]
  32. Bell, E.V.; Bennet, G.M. s-trans-Isomerism of Disulphoxides. J. Chem. Soc. 1927, 1798–1803. [Google Scholar] [CrossRef]
  33. Takemura, A.; McAllister, L.J.; Karadakov, P.B.; Pridmore, N.E.; Whitwood, A.C.; Bruce, D.W. Competition and cooperation: Hydrogen and halogen bonding in co-crystals involving 4-iodotetrafluorobenzoic acid, 4-iodotetrafluorophenol and 4-bromotetrafluorophenol. CrystEngComm 2014, 16, 4254–4264. [Google Scholar] [CrossRef]
  34. Shearer, H.M.M. The Structure of the a-Modification of 1:4-Dithiane-1:4-Dioxide. J. Chem. Soc. 1959, 1394–1397. [Google Scholar] [CrossRef]
  35. APEX3; Bruker AXS: Madison, WI, USA, 2015.
  36. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  37. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  38. Bourhis, L.J.; Dolomanov, O.V.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment—Olex2 dissected. Acta Crystallogr. Sect. A 2015, 71, 59–75. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09 B.01; Gaussian Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  40. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other function. Theor. Chem. Acc. 2008, 120, 215–241. [Google Scholar] [CrossRef] [Green Version]
  41. Woon, D.E.; Dunning, T.H. Gaussian basis sets for use in correlated molecular calculations. V. Core-valence basis sets for boron through neon. J. Chem. Phys. 1995, 103, 4572–4585. [Google Scholar] [CrossRef] [Green Version]
  42. Dunning, T.H. Gaussian basis sets for use in correlated molecular calculations. V. Core-valence basis sets for neon through hydrogen. J. Chem. Phys. 1989, 90, 1007–1023. [Google Scholar] [CrossRef]
  43. Wadt, W.R.; Hay, P.J. Ab initio effective core potentials for molecular calculations. Potentials for main group elements Na to Bi. J. Chem. Phys. 1985, 82, 284–298. [Google Scholar] [CrossRef]
Molecules 26 04985 g001 550

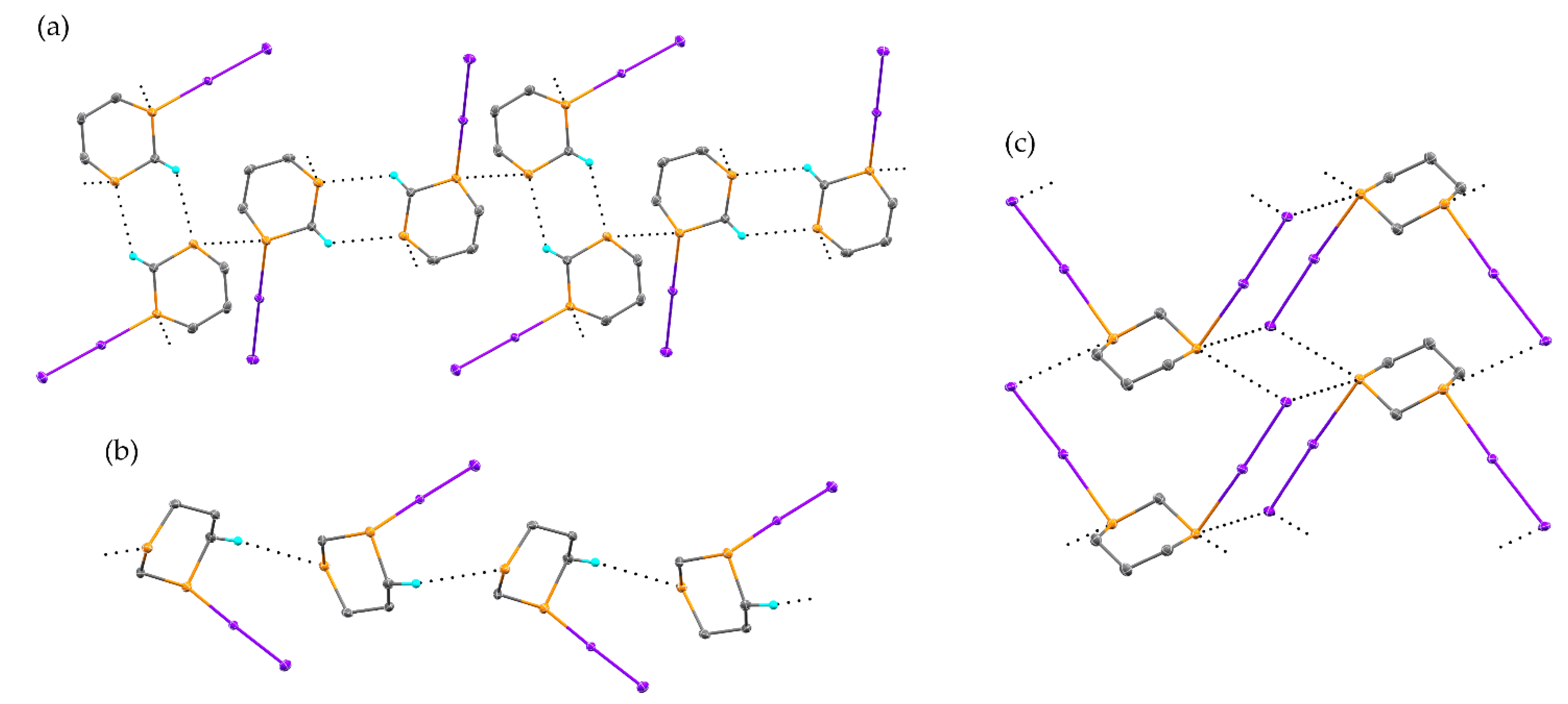

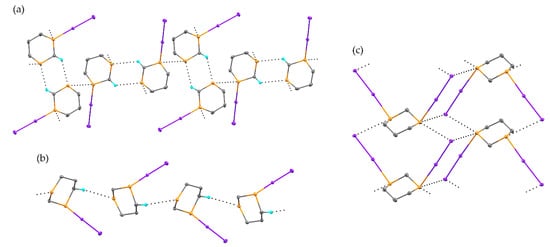

Figure 1. The solid-state structure of 1 (a), 2 (b), and 3 (c). Carbon atoms are gray. Sulfur atoms are yellow. Iodine atoms are purple. Hydrogen atoms are cyan. Intermolecular interactions are shown as black dotted lines. Only hydrogen atoms involved in the indicated intermolecular interactions are shown for clarity. Atomic displacement ellipsoids are shown at the 50% probability level.
Figure 1. The solid-state structure of 1 (a), 2 (b), and 3 (c). Carbon atoms are gray. Sulfur atoms are yellow. Iodine atoms are purple. Hydrogen atoms are cyan. Intermolecular interactions are shown as black dotted lines. Only hydrogen atoms involved in the indicated intermolecular interactions are shown for clarity. Atomic displacement ellipsoids are shown at the 50% probability level.
Molecules 26 04985 g001
Molecules 26 04985 g002 550

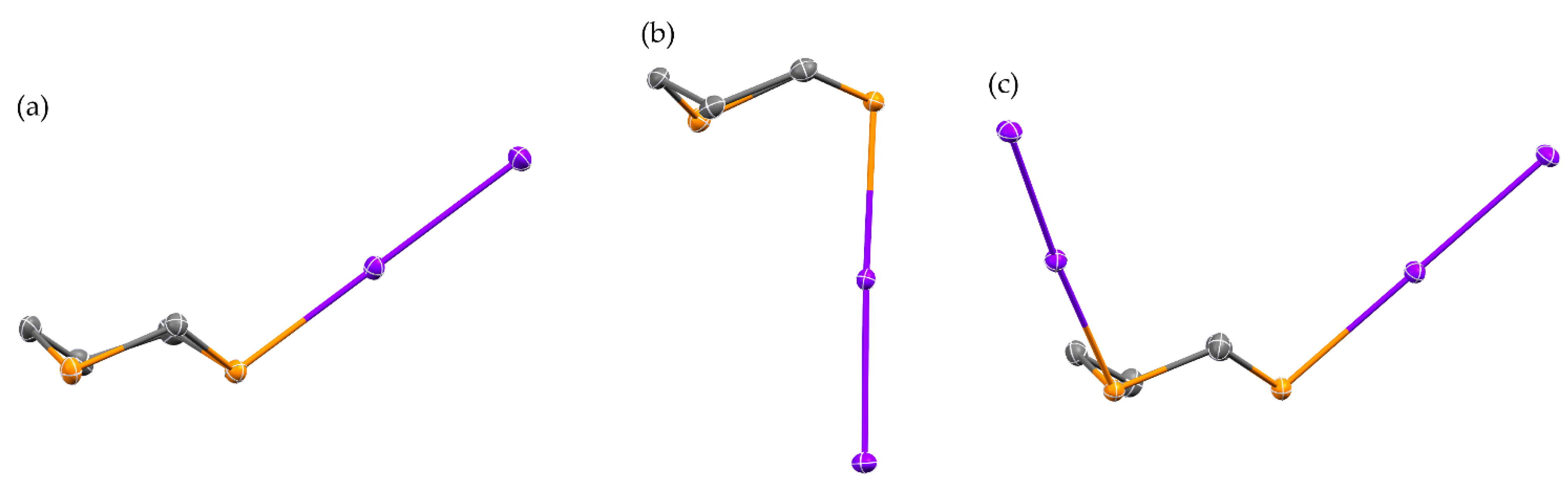

Figure 2. Single molecules of 1 (a), 2 (b), and 3 (c), arranged to show position of S-I-I relative to dithiane ring plane. Hydrogen atoms have been omitted for clarity. Atomic displacement ellipsoids are shown at the 50% probability level.
Figure 2. Single molecules of 1 (a), 2 (b), and 3 (c), arranged to show position of S-I-I relative to dithiane ring plane. Hydrogen atoms have been omitted for clarity. Atomic displacement ellipsoids are shown at the 50% probability level.
Molecules 26 04985 g002
Molecules 26 04985 g003 550

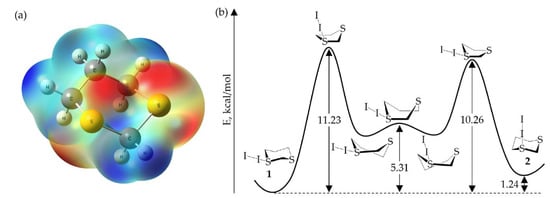

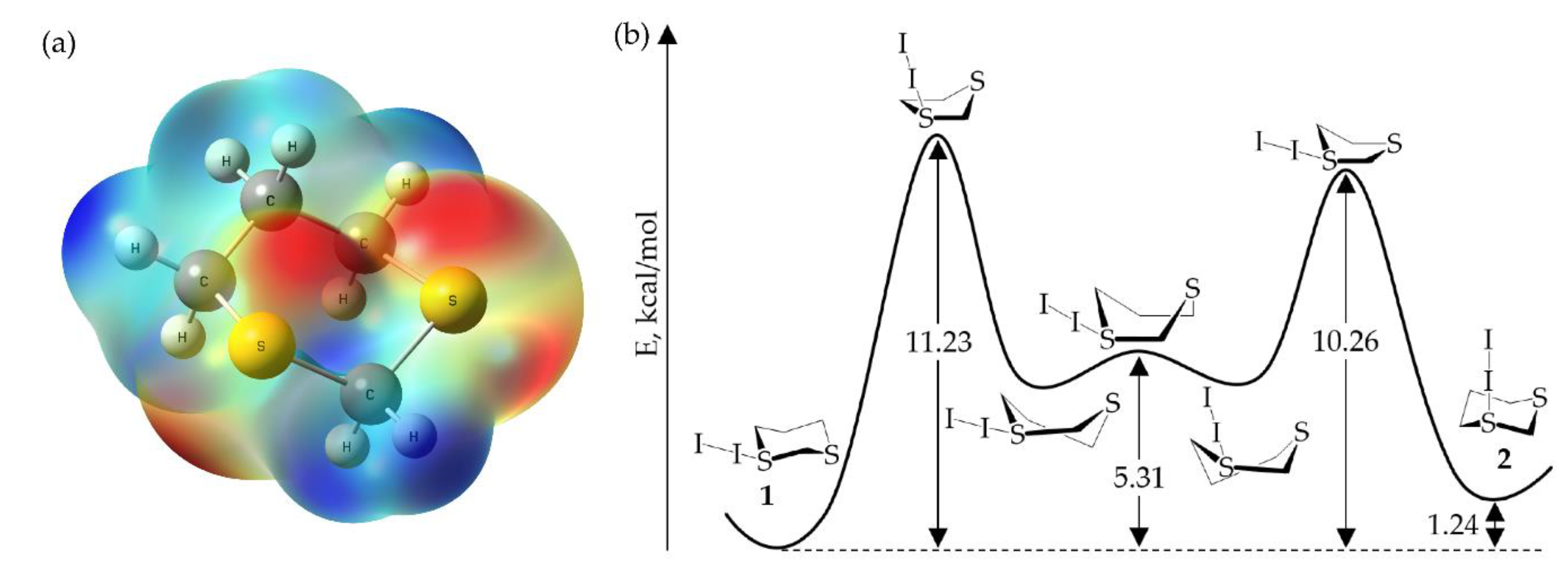

Figure 3. Electrostatic potential (ESP) map of 1,3-dithiane (a) and reaction coordinate of the ring flip from 1 to 2 (b). The electrostatic potential is calculated at the 0.005 au isodensity surface and ranges from −25 kcal/mol (red) to 38 kcal/mol (blue).
Figure 3. Electrostatic potential (ESP) map of 1,3-dithiane (a) and reaction coordinate of the ring flip from 1 to 2 (b). The electrostatic potential is calculated at the 0.005 au isodensity surface and ranges from −25 kcal/mol (red) to 38 kcal/mol (blue).
Molecules 26 04985 g003
Molecules 26 04985 g004 550

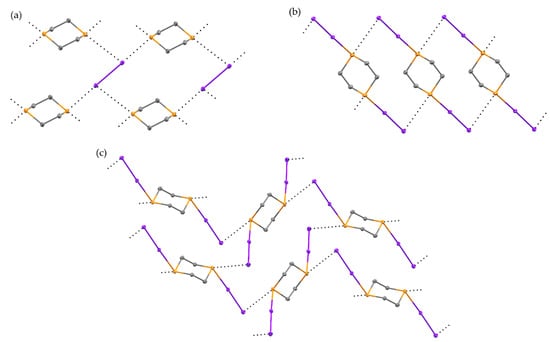

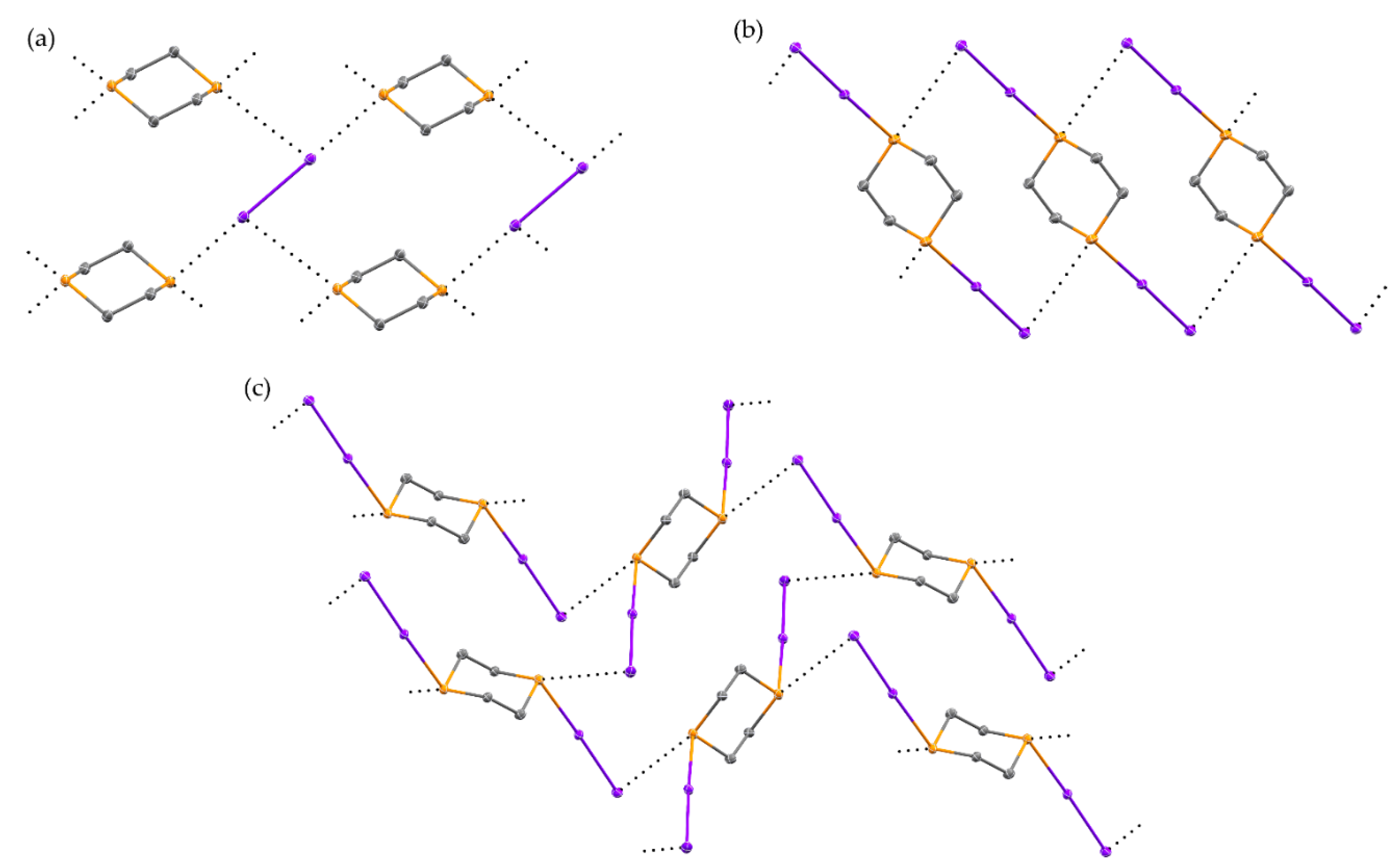

Figure 4. The solid-state structure of 4 (a), 5 (b), and 6 (c). Intermolecular interactions are shown as black dotted lines. Hydrogen atoms have been omitted for clarity. Atomic displacement ellipsoids are shown at the 50% probability level.
Figure 4. The solid-state structure of 4 (a), 5 (b), and 6 (c). Intermolecular interactions are shown as black dotted lines. Hydrogen atoms have been omitted for clarity. Atomic displacement ellipsoids are shown at the 50% probability level.
Molecules 26 04985 g004
Molecules 26 04985 g005 550

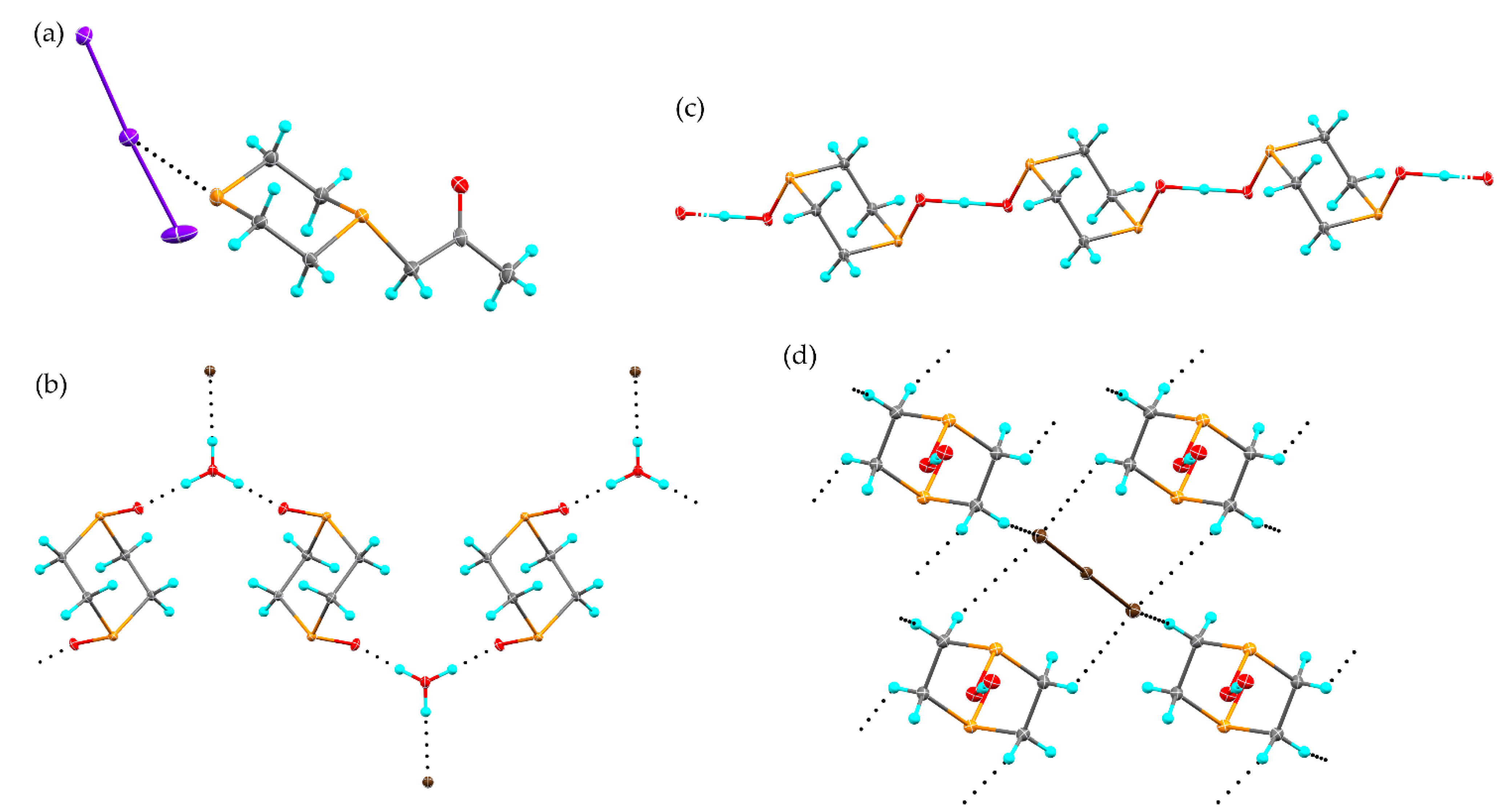

Figure 5. The solid-state structure of 7 (a), 8 (b), and 9 (c,d). Both the O···H···O hydrogen-bonded chains (c) and connection of neighboring chains by C-H···Br hydrogen bonding (d) are shown. Bromine atoms are brown. Oxygen atoms are red. Intermolecular interactions are shown as black dotted lines. Atomic displacement ellipsoids are shown at the 50% probability level.
