UPLC-MS/MS Identification and Quantification of Withanolides from Six Parts of the Medicinal Plant Datura Metel L.
by
Shi Hui Yang
1,†,
Yan Liu
1,†,
Qi Wang
2,
Yan Ping Sun
1,
Wei Guan
1,
Yuan Liu
1,
Bing You Yang
1,* and
Hai Xue Kuang
1,* 1
Key Laboratory of Chinese Materia, Heilongjiang University of Chinese Medicine, Ministry of Education, Harbin 150040, China
2
Department of Medicinal Chemistry and Natural Medicine Chemistry, College of Pharmacy, Harbin Medical University, Harbin 150040, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2020, 25(6), 1260; https://doi.org/10.3390/molecules25061260
Submission received: 5 February 2020
/
Revised: 28 February 2020
/
Accepted: 4 March 2020
/
Published: 11 March 2020
Abstract
Withanolides from six parts (flower, leaf, stem, root, seed, and peel) of Datura metel L. (D metel L.) obtained from ten production areas in China were identified and quantified by UPLC-MS/MS. A total of 85 withanolides were characterized for the first time using the UPLC-Q-TOF-MS/MS system. Additionally, a simultaneous, rapid and accurate measurement method was developed for the determination of 22 bioactive withanolides from ten production areas with the UPLC-Q-TRAP-MS/MS system. The results show the total withanolide content is highest in the leaves (155640.0 ng/g) and lowest in the roots (14839.8 ng/g). Compared with other production areas, the total content of plants from Dujiangyan was the highest at 82013.9 ng/g (value range of ten areas: 82013.9–42278.5 ng/g). The results also show significant differences in the distribution of withanolides in the different plant parts, as well as across different production areas. This is a breakthrough report providing a simultaneous qualitative and quantitative analysis of 22 withanolides in D. metel L. It could be the basis for the more rational use of various parts of D. metel L., and the expansion of medicinal resources. This work also lays a solid foundation for research on the quality control of D. metel L.
1. Introduction
Withanolides are highly oxygenated natural products, often occurring in Solanaceae. These C28 steroids with ergostane based skeletons are functionalized at C-22 and C-26, forming six-membered δ-lactone heterocycles. The complex structural features and excellent biological activities of withanolides have attracted the attention of numerous researchers [1,2].
Datura metel L. (D. metel L.) has abundant withanolides, therefore testing its main pharmacological activities is promising in terms of the potential results. The daturafolisides A, B, F, and I show anti-inflammatory activity. Baimantuoluoside H has significant antiproliferative activity against SGC-7901, Hepg2, and MCF-7 cells [3,4]. Daturafoliside K shows a pronounced effect against NO production [5]. Daturataturin A exhibits cytotoxic activity against SW-620 and MDA-MB-435 cell lines, and potential immunosuppressive activity [6,7].
Though the flower is typically used as the medicinal part of D. metel L., it is limited because of the short flowering season and low yield [8]. The factor of different production areas also plays an important role in the diversity and quality of the chemical components of D. metel L. Recent research has reported that a large number of withanolides are also found in other parts of D. metel L. [9,10]. Given that withanolides possess good physiological activity and are distributed in different parts of the plant, we are very interested in discovering the best parts and the best production areas for D. metel L. The non-flowering parts of the plants could potentially be used as other natural sources of withanolides compounds, rather than being treated as waste. However, distribution information regarding the content of different plant parts and species is extremely scarce in relation to the withanolides in D. metel L.
Many examples from recent research using qualitative analysis are supported by ultra-performance liquid chromatography tandem time of flight mass spectrometry (UPLC-Q-TOF-MS/MS), including determination of the chemical constituents in herbs [11], antibiotic residue of fruits and vegetables [12,13], and more. Its high sensitivity and fast scanning speed make it a preferred analytical method. To eliminate the effects of the matrix effect in quantitative analysis, the multiple reaction monitoring (MRM) mode in triple quadrupole mass spectrometry (UPLC-QQQ-MS/MS) is frequently employed [14,15]. This method does not require complete separation of the chromatographic peaks of multiple components, as long as the target analysis is non-interfering with each other.
In this experiment, UPLC-Q-TOF-MS/MS and UPLC-QQQ-MS/MS technologies are employed to collect information about the withanolides in six parts (flower, leaf, stem, root, seed, and peel) of D. metel L. from ten production areas in China. The objectives of this research are to (1) identify the withanolides from six different parts of D. metel L., and (2) explore the content and species differences of 22 withanolides in different parts of D. metel L. from 10 different production areas.
This research explores alternative uses of the non-flowering parts of D. metel L., and further expands the herb source of this plant. It also provides a basis for the sustainable development and utilization of this resource. Furthermore, a trustworthy, rapid, and accurate quality evaluation system is established in this paper for the control of the medicinal material production areas of D. metel L.
2. Results and Discussion
2.1. Qualitative Analysis of Different Parts of D. metel L.
Base peak chromatogram (BPC) graphs of extracts from six parts of D. metel L. present obvious withanolides chemical composition differences with the developed UPLC-Q-TOF-MS/MS method (see Electronic Supplementary Material Figure S1). A total of 85 withanolides compounds were characterized on the basis of accurate molecular mass, generating molecular ions and fragment ions from UPLC-Q-TOF-MS/MS, and/or by matching this data with our in-house databases and standards. These 85 compounds can be more finely divided into glucosides and non-glucosides, and all of these withanolides have common characteristic fragment ions at m/z 46, corresponding to formic acid (HCOOH), and m/z 18 (H2O). m/z 179 [C12H20O]− is also a distinct characteristic fragment used to demonstrate the presence of withanolides. For example, peak 3 shows a molecular formula of C30H44O9 (m/z 547.29388 [M–H]−). Its fragment ions are at m/z 501 [M–H+-HCOOH]–, m/z 483 [M–H+-HCOOH-H2O]–, and m/z 179 [M–H+-HCOOH-H2O-C17H20O5]–, tentatively identified as Baimantuoluoside J according to the in-house databases and standard [16]. Peak 23 shows [M+COOH]– (m/z 681.34883), demonstrating a molecular formula characterized as C34H52O11. In the MS2 spectrum of peak 23, m/z 470 [M–H+-Glc]–, 455 [M–H+-Glc-H2O]–, and 179 [M–H+-Glc -H2O-C16H20O4]– are clearly observed in the negative ion mode. Based on this information, peak 23 is identified as Daturafoliside A [4]. The fragmentation spectrum of peak 26 displays its plus formic acid at m/z 531.26023 (C28H38O7), m/z 485 [M–H+]–, and a series of common fragment ions at 373 (loss of C6H8O2, 112 Da) and 355 (loss of H2O, 18 Da). It is tentatively characterized as 5α,12α,27-trihydroxy-(20S,22R)-6α,7α-epoxy-1-oxowitha-2,24-dienolide according to its MS data (Figure 1). The identification data of other compounds are shown in detail in Table 1.
The BPC results show many qualitative differences in the six parts of D. metel L. As we can see from the figures, only eight withanolides (compounds 20, 22, 24, 47, 48, 50, 57, and 80) are present in all parts of D. metel L. (Figure S1). The amount of compound 80 (Daturametelin A) is influenced by the production area, ranging from 1671 (Dujiangyan) to 10,538 (Baotou) ng/g (Table S1). It was first obtained from a methanol extract of the whole plant of D. metel L. in 1987. Subsequently, the literature reports that this compound can also be isolated from the seeds of D. metel L. [17,18]. The quantitative parts of our experiment also show that the content of compound 80 is generally high in seeds. This result is similar to those reported by several authors for this compound. Compounds 28, 75, and 79 are also distributed in all parts except the seeds. Unfortunately, except for compound 80, because of the scarcity of the standards, none of the remaining compounds (20, 22, 24, 47, 48, 50, 57, 28, 75 and 79) were analyzed for content in this experiment.
2.2. Quantitative Analysis of 22 Withanolides by UPLC-Q-TRAP-MS
In previous research, our group isolated a variety of withanolides from different parts of D. metel L. From the large amount of isolated withanolides, 22 withanolides were selected as indicators to be tested because of their clear content advantage and better biological activities. The MRM mode of UPLC-Q-TRAP-MS/MS was applied for content determination, and the contents of the analyte were calculated using the constructed calibration curves. Taking the content of the 22 withanolides as the total content, in terms of parts, the total withanolide content of the leaves (x = 155640.0 ng/g) was highest, followed by flowers (x = 93279.0 ng/g), and the lowest was in the roots (x = 14839.8 ng/g) (Figure 2, Table S1). These results are similar to those reported by several authors for D. metel L.; the main antifungal activity found in D. metel L. is in the leaves and fruits, whereas the activity in the other parts is very low. The roots are generally less active than the leaves, fruits, and stems [25]. Slight differences may be due to differences in geographical origin and treatment of the parts. In accordance with the literature, this provides us with very convincing data support for the antifungal action of the leaves being mainly related to their withanolide content.
For the total content of withanolides from each production area, the samples were divided into three groups by cluster analysis (Figure 2). S1 (Fuyang), S2 (Haikou), and S7 (Zhaotong) make up one group. S3 (Xingtai), S4 (Dujiangyan), and S5 (Harbin) are another group, and the final group is S6 (Ganzhou), S8 (Baotou), S9 (Baoji), and S10 (Jinhua). Dujiangyan (S4, x = 81,789 ng/g), Jinhua (S10, x = 67,177 ng/g). and Fuyang (S1, x = 41,607 ng/g) are three areas with the top, second, and bottom total withanolide amounts, and they are also evenly distributed in three branch groups. According to Euclidean distances, there are clearly more pronounced differences by region than by plant part (Figure 2). This suggests that Dujiangyan, Jinhua and Ganzhou will be better choices when these withanolides are required for further research (Figure 3). However, because of the influence of plant part differences in each area, although the region difference was visible, there was no significant differences between the areas (p < 0.05) according to a one-way analysis of variance (ANOVA) (Figure 3).
Figure S2 shows the content distribution of 22 withanolides in various plant parts; the amount of these in different parts is significantly different. For the content of 22 withanolides, the top five accumulations are in the order: compounds 32 (x = 91190.2 ng/g), 63 (x = 41644.6 ng/g), 64 (x = 40943.8 ng/g), 65 (x = 33093.8 ng/g), and 69 (x = 23999.5 ng/g). Interestingly, the trends of the contents of these five compounds (except 69) in the six parts of D. metel L. are similar to the total content (22 kinds of withanolides) in the plant parts (Table S1, Figure S2). From this, we can speculate that withanolide content differences between parts of D. metel L. may have a relationship with the different amounts of these five substances. Among the other compounds, 49, 88, 59, 55, and 13 are the most abundant in the leaves. However, compound 16 has the highest level in flowers, while compounds 46, 78, and 9 are richest in the peels, and 30 and 26 in the stems. Seeds and roots also contain some higher content of the compounds. For the seeds these are 23, 12, and 80, and for the roots these are 36, 72, and 53 (Figure S2).
Meanwhile, although Dujiangyan is the area with the highest total amount, the yield of compound 32 in this area is not abundant, with only 97178.8 ng/g (value range: 43332.8–175155.8 ng/g). Compounds 69 and 63 are the most abundant in Dujiangyan, but both of them are about 13 (value range: 76612.8–5978.5 ng/g) and 25.2 (value range: 108603.1–4312.1 ng/g) times more abundant than in the lowest production area (Haikou and Ganzhou). This finding also applies to lower levels of some compounds, such as 30, 55, and 26 (three of the lowest of the 22 compounds). The value ranges of these three compounds are 102.1 to 203.0 ng/g, 110.4 to 237.9 ng/g, and 574.3 to 1756.0 ng/g. Further, these three ingredients are not all present in all production areas (Table S1). These results suggest that the geographical area is also an important factor for differences in these compound contents. Some research has confirmed the role of Daturametelin I (64), Daturametelin J (32), and Daturataturin A (65) as a fungicide of charcoal rot fungus, revealing the antiproliferative activity towards the human colorectal carcinoma (HCT-116) cell line of 7α,27-dihydroxy-1-oxowitha-2,5,24-trienolide (69). Daturafoliside O (30), Daturataturin B (55), and 5α,12α,27-trihydroxy-(20S,22R)-6α,7α-epoxy-1-oxowitha-2,24-dienolide (26) also display significant inhibition of nitrite production [5,9]. This gives us some hints that geo-distribution can be an important evaluation indicator when these compounds are required.
On the other hand, we harvested the different plant parts based on the optimal harvesting period, in order to obtain more of the ingredients. The flowers were measured during their flourishing florescence, and the leaves, stems, and roots collected in the vegetative growth stage. The peel and seed were harvested at fruit maturity [8,26]. Additionally, because of the wide geographical differences in the areas of harvest, there were some differences in harvest time (Table S3). Whether seasonal effects are also an important factor that interferes with withanolide content in different parts of the plants will be the topic of our future research.
3. Materials and Methods
3.1. Plant Materials and Sample Preparation
Four factors were studied to optimize the extraction procedure, including: extraction methods (heat-reflux, cold-maceration, and ultrasonic extraction), extraction solvents (ethanol:water at 60:40, 70:30, 80:20, and 95:0), extraction times (60 min, 90 min, and 120 min), and extraction repeats (0, 1, and 2). The total withanolide content of the extracts were compared using ultraviolet spectrophotometry. The flower of D. metel L. was used to investigate the optimum extraction process. Considering the work efficiency, the optimized extraction procedure was 80% ethanol (ethanol:water at 80:20) for 90 min with heat-reflux, two times (Figure S3 and Table S2).
Six samples were investigated for each production area, and thus a total of 60 batches of D. metel L. samples were purchased from ten production areas of China (Table S3). The herbs were authenticated by Prof. Rui-feng Fan. Voucher specimens were retained in the Chinese Medicine Chemistry Laboratory of Heilongjiang University of Chinese Medicine.
Ten gram samples of each batch from ten production areas were accurately weighed in a mortar with liquid nitrogen. The sample was extracted with 100 mL of ethanol (ethanol:water at 80:20) under heating circumfluence extraction for 90 min, a total of two times. We combined the extracts and then centrifuged at 5000 r/min for 10 min. The supernatant was dried at a low temperature vacuum, then accurately weighed. The sample was dissolved in methanol at 0.5 mg/mL and then stored at –20 °C after sealing.
3.2. Chemical, Reagents, Equipment, and Standard Solutions
All the standard substances were isolated and purified by our laboratory [4,5,21,27,28,29] (Figure 4). UPLC analysis determined that the purity of all target compounds was above 98%. HPLC-grade methanol and acetonitrile were supplied from Fisher Chemical (Thermo Fisher Scientific, Waltham, MA, USA). Deionized water was collected from a Milli-Q water purification system (Merck KGaA, Darmstadt, Germany). The rotavapor (N-1300D-W) tandem cold trap (UT-3000A) was from EYELA (EYELA, Tokyo, Japan). An ultrasonic cleaner (B5510E-DTH), high-speed freezing centrifuge (TGL-16M), and electric heater (ZNHW-500) were obtained from Branson (Emerson, MO, USA.), Bioridge (Lu Xiangyi Centrifuge Instrument, Shanghai, China), and Keer (Keer, Shanghai, China) respectively.
Each standard was dispersed in methanol, and the mother liquor, with a concentration of 1 mg/mL, was prepared and sealed in a dark place at 4 °C for one month.
3.3. Qualitative UPLC-Q-TOF-MS/MS Analysis
An ACQUITY UPLCTM (Waters Corp., Milford, MA, USA) system in tandem with a Triple TOFTM 5600+ mass spectrometer (ABsciex, Framingham, MA, USA.) was acquired for qualitative analysis using a UPLC C18 analytical column (2.1 mm × 100 mm, I. D. 1.7 μm, ACQUITY UPLC CSH, Waters Corp., Milford, MA, USA.). The chromatography separation was carried out at an ambient temperature of 25 °C. The mobile phase included water with 0.1% formic acid (A), and acetonitrile with 0.1% formic acid (B). The linear gradient elution was as follows: 0–1 min, 5% B; 1–8 min, 5–30% B; 8–12 min, 30–50% B; 12–25 min, 50–60% B, 25–35 min, 60–95% B; 35–36 min, 95–5% B. The flow rate was set at 0.3 mL/min, with a 5-μL injection volume. The MS/MS parameters were optimized as follows: Scan Type: Positive TOF-MS, TEM: 550, InoSpray Voltage Floating: 4000, DP: 80, CE: 10; Positive Product Ion, TEM: 550, InoSpray Voltage Floating: 4000, DP: 100, CE: 30. Scan Type: Negative TOF-MS, TEM: 550, InoSpray Voltage Floating: 4000, DP: 80, CE: 10; Negative Product Ion, TEM: 550, InoSpray Voltage Floating: 4000, DP: 100, CE: 30.
3.4. Method Review
The method validation of the quantitative UPLC-Q-TRAP-MS/MS analysis included linearity, precision (intra- and inter-day), limits of detection (LODs), limits of quantitation (LOQs), repeatability, stability, and recovery. Calibration curves for 22 standards were built by quantitatively diluting the standard solution with methanol in six different multiples. The intra- and inter-day precision were estimated through analysis with six replicates of each standard solution within the same day, and additionally on three consecutive days. The LODs and LOQs were experimentally applied as the minimum concentration, with a detector signal clearly discernable with an S/N of 3 and 10. The flowers were used to evaluate the repeatability, stability, and recovery. Six sample solutions were prepared in parallel for analysis of repeatability. To assess stability, the extract was placed at room temperature for 0, 2, 4, 6, 12, 24, and 48 h for analysis. Recovery tests were performed by adding approximately 50%, 100%, and 150% of the known chemical markers to the sample, accomplishing six independent spiked analyses. The formula of recoveries is: Recovery (%) = (Measured value of the spiked sample – Measured value of the sample)/(Amount spiked) × 100%.
All analytes with linearity were better than r2 = 0.994, indicating a good linear relationship between the analyte concentrations and their peak area within the test ranges. The RSDs of intra- and inter-day variations were within 0.37–4.03% and 0.83–4.11% for the 22 analytes, respectively. The repeatability was less than 4.98% (RSDs), and stability lower than 3.49% (RSDs) (Table 2). These results distinctly demonstrate that determination of the 22 reference compounds in different parts of D. metel L. can undoubtedly be achieved with the developed quantitative UPLC-Q-TRAP-MS/MS method, with good linearity, precision, stability, sensitivity, repeatability, and accuracy.
3.5. Quantitation for UPLC-Q-TRAP-MS/MS Analysis
The target analytes were found using the MRM method (negative ionization mode). Using the direct infusion mode, [M–H]– was selected as the precursor ion of all withanolides to determine the cone energy (CE) and declustering potential (DP) (Figure S4 and Table S4). At the same time, different elution conditions were further investigated to achieve good resolution of the 22 withanolides. Ultimately, the best elution system was acetonitrile (0.1% formic acid) and water (0.1% formic acid) at 54:46 (v/v).
The quantitation analysis was done using an ACQUITY UPLCTM (Waters Corp., Milford, MA, U.S.A.) system tandem 4000 Q-TRAP mass spectrometer (ABsciex, Framingham, MA, U.S.A.) with the same analytical column. The column temperature was 25 °C. Although the mobile phase was the same as in the qualitative analysis, isocratic elution was performed as follows: 0–6 min, 54% B, with 3 μL injection volume. Detection was performed in the negative electrospray ionization mode (ESI−) in the MRM. Table S4 shows the mass spectrometer conditions.
3.6. Analysis of UPLC-MS/MS Data
Analyst 1.6.4 (ABsciex, Framingham, MA, U.S.A.) software controlled the UPLC-Q-TOF-MS/MS and UPLC-Q-TRAP-MS/MS systems. The qualitative data were processed using Peakview 2.1 (ABsciex, Framingham, MA, USA.) software. Group differences were determined using a one-way analysis of variance (ANOVA), performed in GraphPad Prism 7 (GraphPad, San Diego, CA, USA.), and p < 0.05 was considered statistically significant. Hierarchical clustering and the correlation heat-map were constructed using the R language package of the OmicsShare platform (https://www.omicshare.com/tools/).
4. Conclusions
In this study, all parts (flower, leaf, peel, stem, seed and root) of the herb D. metel L. were subjected to a detailed withanolide qualification using a newly developed UPLC-Q-TOF-MS/MS method. A total of 85 withanolides were characterized for the first time, and a simultaneous, rapid, and accurate measurement method was developed for the determination of 22 bioactive withanolides from ten production areas with the UPLC-Q-TRAP-MS/MS system. The results show the significant differences in the distribution of withanolides in different parts of the plant, as well in plants from different production areas. The total content of withanolides is the highest in the leaves, followed by the flowers and peel. Overall, in terms of the withanolide content of each production area, Dujiangyan and Jinhua stand out among the ten production areas. This is a breakthrough report featuring a simultaneous qualitative and quantitative analysis of 22 withanolides in D. metel L. It provides a basis for the more rational use of the various parts of D. metel L. and the expansion of medicinal resources. This work also lays a solid foundation for future research on the quality control of D. metel L.
Supplementary Materials
The following are available online, Figure S1: The BPC graphs of six parts of Datura metel L. (D. metel L.): 1A for ESC+, 1B for ESC–. Figure S2: The distribution of 22 withanolides in six parts of D. metel L. Figure S3: The total withanolides contents of different extraction conditions: extraction methods (A), extraction solvents (B), extraction times (C), and extraction repeats (D). Figure S4: The MRM chromatograms of 22 bioactive withanolides. Table S1: The contents of 22 bioactive withanolides in Datura metel L. (D. metel L.). Table S2: The total withanolides contents of different extraction conditions for D. metel L. Table S3: Information of D. metel L. materials. Table S4: UPLC-Q-TRAP-MS/MS detection parameters for 22 bioactive withanolides in D. metel L.
Author Contributions
B.Y.Y. and H.X.K. designed the experiments and provided funding support. S.H.Y. and Y.L. (Yan Liu) performed the experiments and wrote the manuscript. Q.W. and Y.P.S. adjusted the paper. Y.L. (Yuan Liu) and W.G. carried out the statistical analysis. All authors read and approved the manuscript.
Funding
This work was financially supported by the National Natural Science Foundation of China (NSFC) (81773883; 81903781); China Postdoctoral Science Foundation (2018M631978); Excellent Youth Project of Heilongjiang Natural Science Foundation (YQ2019H029); Heilongjiang Postdoctoral Science Foundation (LBH-Z18245); and Heilongjiang University of Chinese Medicine Founds (2018pt01, 2018bs03).
Conflicts of Interest
The authors declare that there are no conflicts of interest.
References
- Chen, L.-X.; He, H.; Qiu, F. Natural withanolides: An overview. Nat. Prod. Rep. 2011, 28, 705–740. [Google Scholar] [CrossRef] [PubMed]
- Yang, B.-Y.; Xia, Y.-G.; Pan, J.; Liu, Y.; Wang, Q.-H.; Kuang, H.-X. Phytochemistry and biosynthesis of δ-lactone withanolides. Phytochem. Rev. 2016, 15, 771–797. [Google Scholar] [CrossRef]
- Chen, P.-H.; Zheng, F.-C.; Zhang, Y.-M.; Gao, F.-F.; Chen, Y.-C.; Shi, G.-G. Ethnobotanical study of medicinal plants on arthritis used by Chaoshan in Guangdong. Med. Chem. 2016, 6, 715–723. [Google Scholar] [CrossRef]
- Yang, B.-Y.; Guo, R.; Li, T.; Wu, J.-J.; Zhang, J.; Liu, Y.; Wang, Q.-H.; Kuang, H.-X. New anti-inflammatory withanolides from the leaves of Datura metel L. Steroids 2014, 87, 26–34. [Google Scholar] [CrossRef] [PubMed]
- Guo, R.; Liu, Y.; Xu, Z.-P.; Xia, Y.-G.; Yang, B.-Y.; Kuang, H.-X. Withanolides from the leaves of Datura metel L. Phytochemistry 2018, 155, 136–146. [Google Scholar] [CrossRef] [PubMed]
- Alali, F.Q.; Amrine, C.S.M.; EI-Elimat, T.; Alkofahi, A.; Tawaha, K.; Gharaibah, M.; Swanson, S.M.; Falkinham III, J.O.; Cabeza, M.; Sánchez, A.; et al. Bioactive withanolides from Withania obtusifolia. Phytochem. Lett. 2014, 9, 96–101. [Google Scholar] [CrossRef]
- Xu, S.; Liu, Y.; Xiang, L.; Zhou, F.; Li, H.-Y.; Su, Y.-J.; Xu, X.-Y.; Wang, Q. Metabolites identification of bioactive compounds daturataturin A, daturametelin I, n-trans-feruloyltyramine, and cannabisin F from the seeds of Datura metel in rats. Front. Pharmacol. 2018, 9, 731. [Google Scholar] [CrossRef]
- Chinese Pharmacopoeia Commission. Chinese Pharmacopoeia, 2015 ed.; China Medical Science Press: Beijing, China, 2015; p. 267. [Google Scholar]
- Ma, L.; Xie, C.-M.; Li, J.; Luo, F.-C.; Hu, L.-H. Daturametelins H, I, and J: Three new withanolide glycosides from Datura metel L. Chem. Biodivers. 2006, 3, 180–186. [Google Scholar] [CrossRef]
- Gupta, M.; Manickam, M.; Sinha, S.C.; Sinha-Bagchi, A.; Ray, A.B. Withanolides of Datura metel. Phytochemistry 1992, 31, 2423–2425. [Google Scholar] [CrossRef]
- Li, L.; Luo, G.-A.; Liang, Q.-L.; Hu, P.; Wang, Y.-M. Rapid qualitative and quantitative analyses of Asian ginseng in adulterated American ginseng preparations by UPLC/Q-TOF-MS. J. Pharm. Biomed. Anal. 2010, 52, 66–72. [Google Scholar] [CrossRef]
- Barreca, S.; Busetto, M.; Colzani, L.; Clerici, L.; Daverio, D.; Dellavedova, P.; Balzamo, S.; Calabrette, E.; Ubaldi, V. Determination of estrogenic endocrine disruptors in water at sub-ng L−1 levels in compliance with Decision 2015/495/EU using offline-online solid phase extraction concentration coupled with high performance liquid chromatography-tandem mass spectrometry. Microchem. J. 2019, 147, 1186–1191. [Google Scholar] [CrossRef]
- Wang, H.-X.; Ren, L.-S.; Yu, X.; Hu, J.; Chen, Y.; He, G.-S.; Jiang, Q.-W. Antibiotic residues in meat, milk and aquatic products in Shanghai and human exposure assessment. Food Control 2017, 80, 217–225. [Google Scholar] [CrossRef]
- Barreca, S.; Busetto, M.; Vitelli, M.; Colzani, L.; Clerici, L.; Dellavedova, P. Online solid-phase extraction LC-MS/MS: A rapid and valid method for the determination of perfluorinated compounds at sub ng·L−1 Level in natural water. J. Chem. 2018, 2018, 9. [Google Scholar] [CrossRef]
- Chan, C.-O.; Xie, X.-J.; Wan, S.-W.; Zhou, G.-L.; Yuen, C.A.; Mok, D.K.; Chen, S.-B. Qualitative and quantitative analysis of sesquiterpene lactones in Centipeda minima by UPLC–Orbitrap–MS & UPLC-QQQ-MS. J. Pharm. Biomed. Anal. 2019, 174, 360–366. [Google Scholar]
- Yang, B.-Y.; Xia, Y.-G.; Wang, Y.-Y.; Wang, Q.-H.; Kuang, H.-X. Two Novel Norwithasteroids with Unusual Six- and Seven-Membered Ether Rings in Side Chain from Flos Daturae. Evid-Based. Compl. Alt. 2013, 2013, 1. [Google Scholar] [CrossRef]
- Shingu, K.; Kajimoto, T.; Furusawa, Y.; Nohara, T. The structures of daturametelin A and B. Chem. Pharm. Bull. 1987, 35, 4359–4361. [Google Scholar] [CrossRef][Green Version]
- Xia, C.; Liu, Y.; Qi, H.; Niu, L.-L.; Zhu, Y.-X.; Lu, W.-Y.; Xu, X.-Y.; Su, Y.-J.; Yang, B.-Y.; Wang, Q. Characterization of the metabolic fate of Datura metel seed extract and its main constituents in rats. Front. Pharmacol. 2019, 10, 571. [Google Scholar] [CrossRef]
- Shingu, K.; Furusawa, Y.; Nohara, T. New Withanolides, Daturametelins C, D, E, F and G-Ac from Datura metel L. (Solanaceous Studies. XIV). Chem. Pharm. Bull. 1989, 37, 2132–2135. [Google Scholar] [CrossRef]
- Yang, B.-Y. Studies on Chemical Constituents and Pharmacological Action of Effective Parts for Psoriasis in Datura metel L. Ph.D. Thesis, Heilongjiang University of Chinese Medicine, Harbin, China, 2005. [Google Scholar]
- Yang, B.-Y.; Zhou, Y.-Q.; Liu, Y.; Lu, Z.-K.; Kuang, H.-X. Withanolides as potential immunosuppressive agents against RAW264. 7 cells from the pericarps of Datura metel. Nat. Prod. Commun. 2017, 12. [Google Scholar] [CrossRef]
- Tang, L. Antipsoriatic Properties of the Active Fraction from Flos Datura and Their Pharmacological Mechanisms. Master’s Thesis, Heilongjiang University of Chinese Medicine, Harbin, China, 2006. [Google Scholar]
- Liu, Y.; Guan, W.; Yang, C.-L.; Luo, Y.-M.; Liu, Y.; Zhou, Y.-Y.; Liu, L.-N.; Yang, B.-Y.; Kuang, H.-X. Steroids with potential anti-inflammatory activity from the roots of Datura metel L. Can. J. Chem. 2020, 98, 74–78. [Google Scholar] [CrossRef]
- Liu, Y.; Wang, X.; Xia, Y.-G.; Wang, Q.-H.; Kuang, H.-X. Chemical constituents from seeds of Datura metel (I). Chin. Tradit. Herbal. Drugs. 2013, 44, 1877–1880. [Google Scholar]
- Javaid, A.; Saddique, A. Control of charcoal rot fungus Macrophomina phaseolina by extracts of Datura metel. Nat. Prod. Res. 2012, 26, 1715–1720. [Google Scholar] [CrossRef] [PubMed]
- Nanjing University of Chinese Medicine. Great Dictionary of Chinese Medicine, 2nd ed.; Shanghai Scientific & Technical Publishers: Shanghai, China, 2006; p. 1719. [Google Scholar]
- Yang, B.-Y.; Guo, R.; Li, T.; Liu, Y.; Wang, C.-F.; Shu, Z.-P.; Wang, Z.-B.; Zhang, J.; Xia, Y.-G.; Jiang, H.; et al. Five withanolides from the leaves of Datura metel L. and their inhibitory effects on nitric oxide production. Molecules 2014, 19, 4548–4559. [Google Scholar] [CrossRef] [PubMed]
- Yang, B.-Y.; Lu, Z.-K.; Liu, Y.; Guo, H.-W.; Kuang, H.-X. Isolation and Identification of Chemical Constituents from Stems of Datura metel. Chin. J. Exp. Tradit. Med. Formulae 2017, 23, 34–40. [Google Scholar]
- Yang, B.-Y.; Jiang, H.-B.; Liu, Y.; Xu, Z.-P.; Kuang, H.-X. Chemical Constituents from Seeds of Datura metel (IV). J. Chin. Med. Mater. 2018, 41, 93–98. [Google Scholar]
Sample Availability: Samples of the compounds are available from the authors. |
Figure 1.

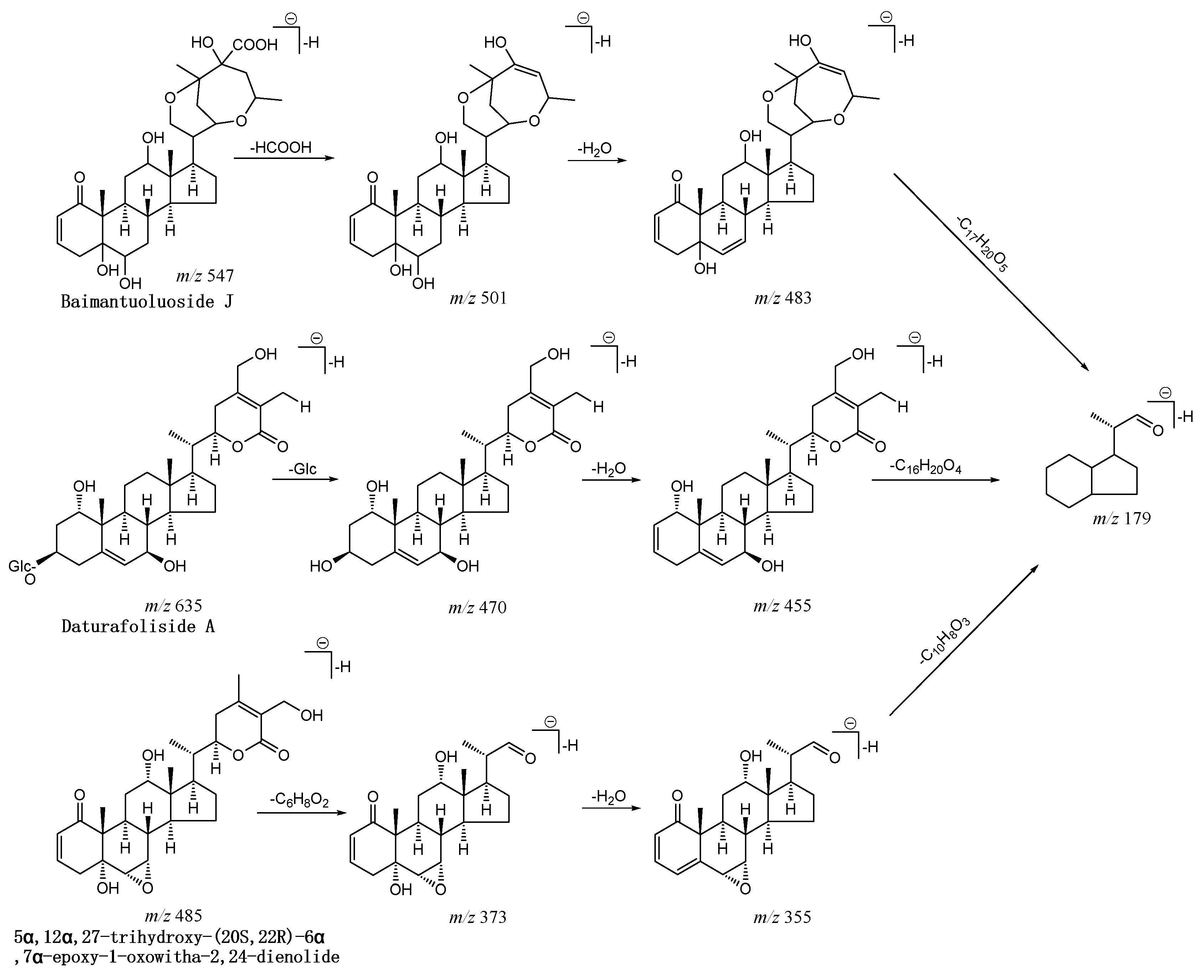

The proposed fragmentation pathways of three example withanolides from Datura metel L. (D. metel L.).
Figure 1.
The proposed fragmentation pathways of three example withanolides from Datura metel L. (D. metel L.).
Figure 2.

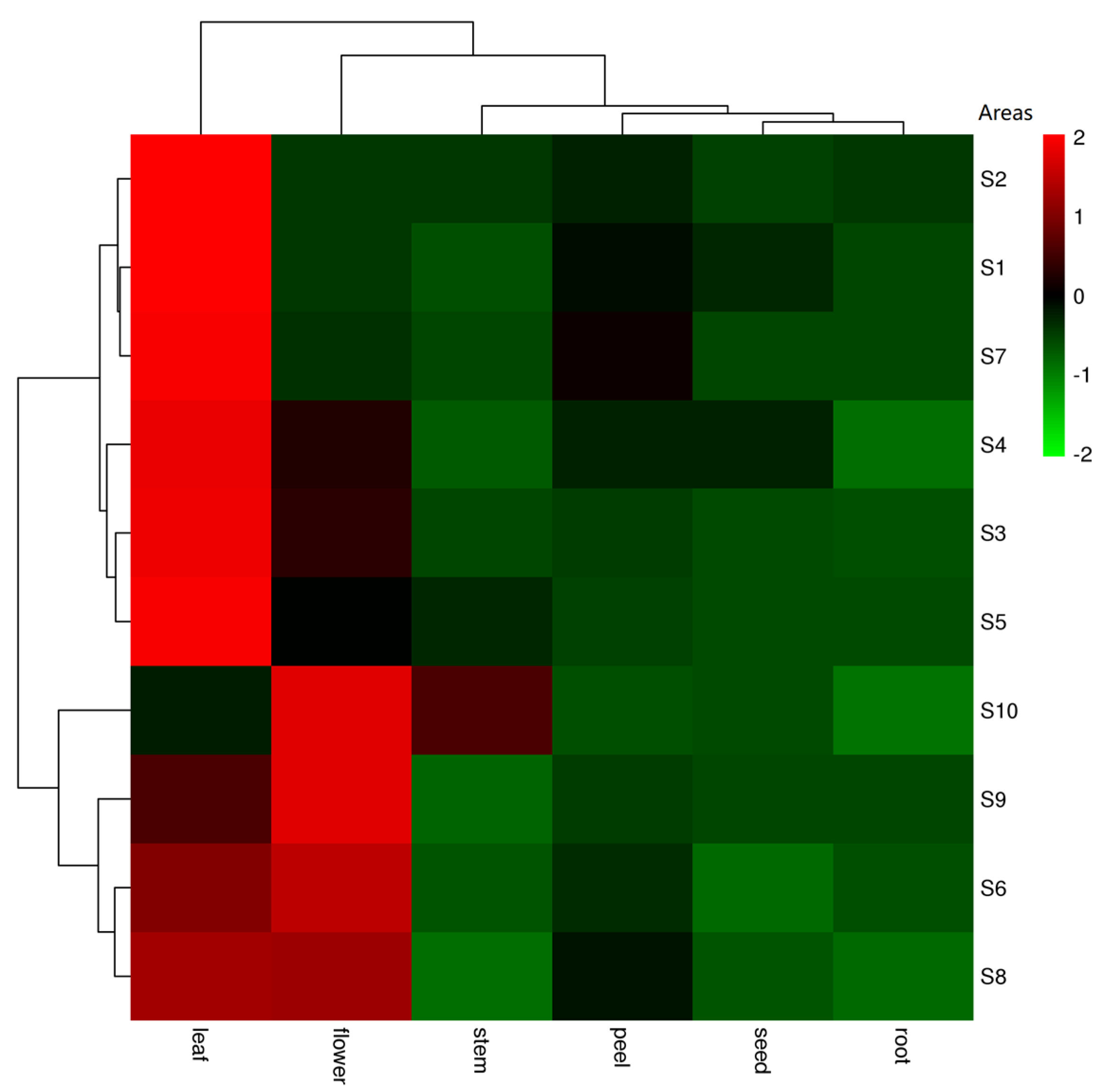

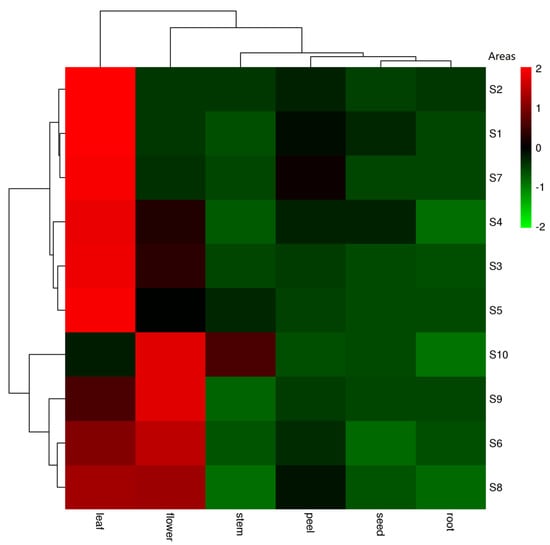

The heat-map of total withanolide content in each part of D. metel L.
Figure 3.

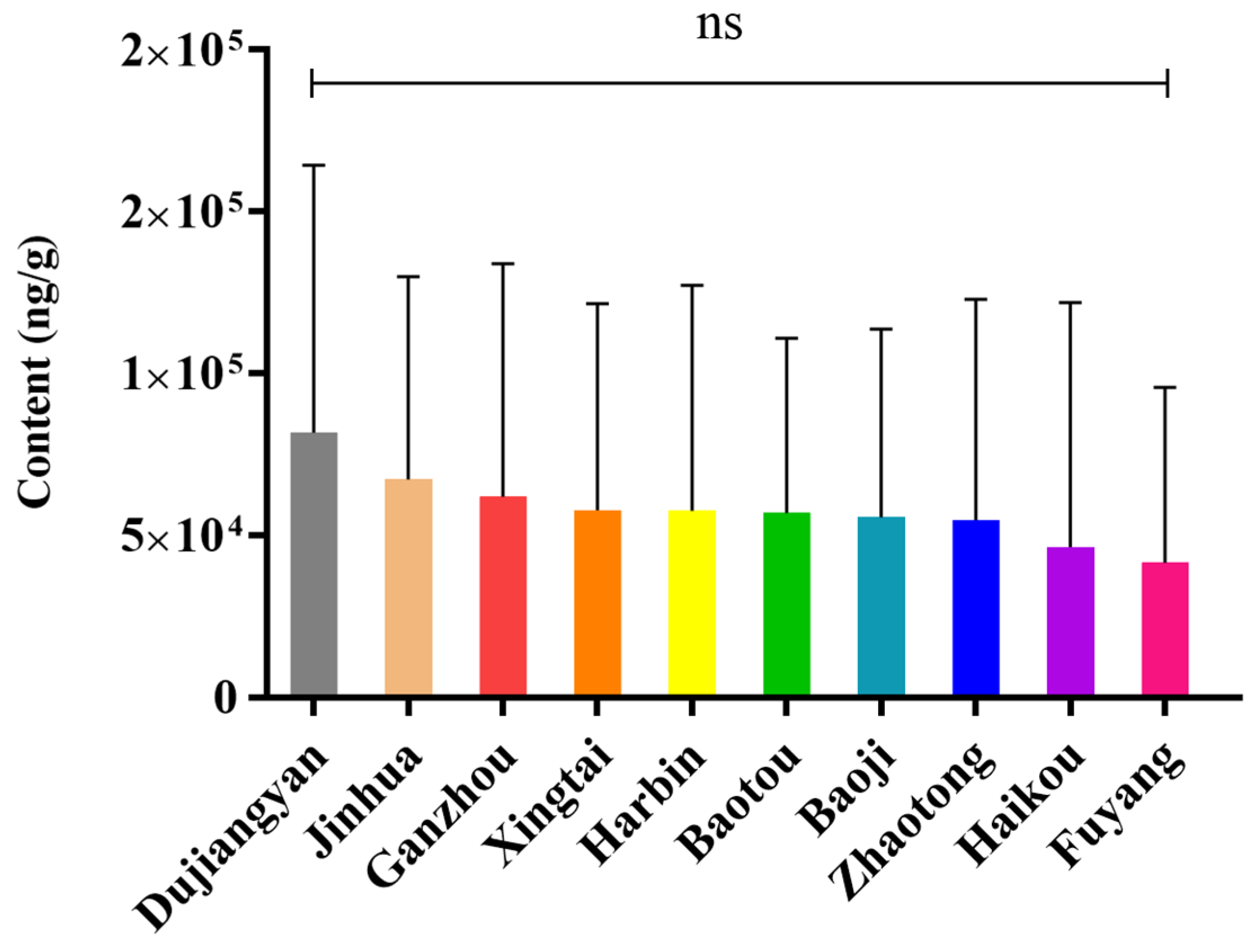

Total withanolide content in each production area of D. metel L. (ns no significance).
Figure 4.

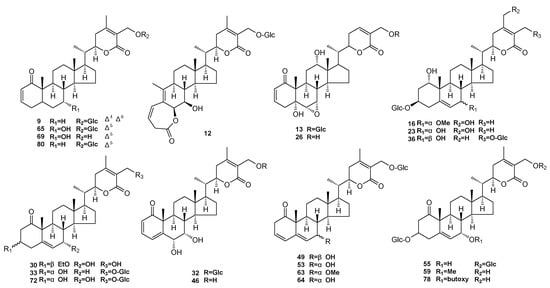

Chemical structures of the 22 withanolides.
Table 1.
Withanolide identification data of Datura metel L. (D. metel L.) by ultra-performance liquid chromatography tandem time of flight mass spectrometry (UPLC-Q-TOF-MS/MS).
Table 1.
Withanolide identification data of Datura metel L. (D. metel L.) by ultra-performance liquid chromatography tandem time of flight mass spectrometry (UPLC-Q-TOF-MS/MS).
| Peak No. | tR (min) | m/z [M ± H]+/– | Formula | Compound [Ref.] | Fragment ions | Adduct | Error (ppm) |
|---|---|---|---|---|---|---|---|
| 1 | 3.6 | 547.7 | C29H40O8S | Daturametelin E [19] | 565, 519, 501 | +OH– | 4.3 |
| 2 | 4.3 | 469.6 | C29H42O5 | 1α,3β,27-trihydroxy-(20S,22R)-3-methoxywitha-4,6,24-trienolide | 487, 397 | +OH– | 1.9 |
| 3 | 4.4 | 547.6 | C30H44O9 | Baimantuoluoside J [16] | 547, 501, 483 | –H+ | 4.8 |
| 4 | 4.7 | 469.6 | C28H38O6 | 5α,27-dihydroxy-6α,7α-epoxy-1-oxowitha-2,24-dienolide | 487, 441, 397 | +OH– | 1.6 |
| 5 | 4.7 | 505.6 | C28H40O8 | 5α,6β,12β,21,27-pentahydroxy-(22R)-1-oxowitha-2,24-dienolide [20] | 543, 497, 479 | +K+ | 1.6 |
| 6 | 5.0 | 797.9 | C40H62O16 | Daturafoliside V [21] | 833, 773 | +Cl– | 0.2 |
| 7 | 5.0 | 799.9 | C40H62O16 | Daturafoliside W [21] | 837, 791 | +K+ | 0.2 |
| 8 | 5.1 | 665.7 | C34H50O13 | Baimantuoluoside F [20] | 701, 655 | +Cl– | –0.1 |
| 9 | 5.1 | 599.7 | C34H46O9 | Baimantuoluoside H [20] | 621, 575 | +Na+ | –0.1 |
| 10 | 5.1 | 635.7 | C34H52O11 | 1α,3β,7α,12α,27-pentahydroxy-(20S,22R)-witha-5,24-dienolide-3-O-β-d-glucopyranoside [5] | 635, 545 | –H+ | 4.7 |
| 11 | 5.2 | 631.7 | C34H48O11 | 5α,27-dihydroxy-(20S,22R)-6α,7α-epoxy-1-oxowitha-2,24-dienolide-27-O-β-d-glucopyranosy | 649, 631 | +OH– | 1.3 |
| 12 | 5.2 | 631.7 | C34H48O11 | Daturafoliside K [5] | 649, 603 | +OH– | 1.3 |
| 13 | 5.2 | 647.7 | C34H48O12 | Baimantuoluoside B [20] | 647, 601 | –H+ | –3 |
| 14 | 5.6 | 633.7 | C34H50O11 | Baimantuoluoside G [20] | 633, 587, 543 | –H+ | 2.3 |
| 15 | 5.6 | 615.7 | C34H48O10 | Daturametelin B | 633, 543, 179 | +OH– | 3.2 |
| 16 | 5.7 | 649.8 | C35H54O11 | Daturafoliside B [4] | 649, 631, 179 | –H+ | –3.4 |
| 17 | 5.8 | 635.7 | C34H52O11 | 1α,3β,7α,28-tetrahydroxy-(20S,22R)-witha-5,24-dienolide-3-O-β-d-glucopyranoside | 653, 607, 428 | +OH– | –4.1 |
| 18 | 5.8 | 651.7 | C34H52O12 | Daturameteloside J | 697, 679, 633 | +COOH– | –3.4 |
| 19 | 6.3 | 533.7 | C30H44O8 | Baimantuoluoline I [16] | 555, 509 | +Na+ | 2.4 |
| 20 | 6.5 | 631.7 | C34H48O11 | 1,10-seco-6β,7α,27-trihydroxy-(20S,22R)-witha-3,5,24-trienolide-1-oicacid-ε-lactone-3-O-β-d-glucopyranoside | 667, 621 | +Cl– | –2.2 |
| 21 | 6.5 | 781.9 | C40H62O15 | Daturafoliside U [5] | 781, 735 | –H+ | –2.2 |
| 22 | 6.6 | 631.7 | C34H48O11 | Daturafoliside M [5] | 677, 631, 525 | +COOH– | –0.1 |
| 23 | 6.7 | 635.7 | C34H52O11 | Daturafoliside A [4] | 681, 635, 179 | +COOH– | 0.3 |
| 24 | 6.7 | 635.7 | C34H52O11 | Daturafoliside T [5] | 681, 663 | +COOH– | –2.3 |
| 25 | 6.7 | 485.6 | C28H38O7 | Baimantuoluoline A [20] | 531, 471 | +COOH– | 4.4 |
| 26 | 6.7 | 485.6 | C28H38O7 | 5α,12α,27-trihydroxy-(20S,22R)-6α,7α-epoxy-1-oxowitha-2,24-dienolide | 531, 485, 355 | +COOH– | 1.5 |
| 27 | 6.7 | 635.7 | C34H52O11 | Daturameteloside I [22] | 681, 635, 617 | +COOH– | –0.4 |
| 28 | 6.8 | 690.8 | C38H59O11 | Daturafoliside H [4] | 690, 644 | –H+ | –0.8 |
| 29 | 6.8 | 689.8 | C38H58O11 | 3β,7α,27-trihydroxy-3-Obutyl-(20S,22R)-1-oxowitha-5,24-dienolide-27-O-β-d-glucopyranoside | 689, 643, 179 | –H+ | 4.2 |
| 30 | 6.8 | 689.8 | C38H58O11 | Daturafoliside O [5] | 689, 643,599 | –H+ | 4.2 |
| 31 | 7.7 | 649.7 | C34H50O12 | Baimantuoluoside D [20] | 649, 631, 585 | –H+ | 2.2 |
| 32 | 7.7 | 631.7 | C34H48O11 | Daturametelin J [21] | 649, 631, 587 | +OH– | 3 |
| 33 | 8.5 | 617.7 | C34H50O10 | Daturafoliside Q [5] | 635, 545 | +OH– | –1.1 |
| 34 | 8.8 | 635.7 | C34H52O11 | 1α,3β,7β,27-tetrahydroxy-(20S,22R)-witha-5,24-dienolide-3-O-β-d-glucopyranoside | 635, 589, 179 | –H+ | –2.4 |
| 35 | 8.8 | 633.7 | C34H50O11 | 3β,7α,27-trihydroxy-(20S,22R)-1-oxowitha-5,24-dienolide-27-O-β-d-glucopyranoside | 633, 543 | –H+ | –3.3 |
| 36 | 8.8 | 615.7 | C34H48O10 | Daturafoliside D [4] | 633, 587 | +OH– | –2.4 |
| 37 | 8.8 | 633.7 | C34H50O11 | Daturafoliside N [5] | 633, 615 | –H+ | –1.3 |
| 38 | 9.2 | 473.6 | C28H42O6 | Baimantuluodine K [23] | 519, 473, 455 | +COOH– | –1.9 |
| 39 | 9.2 | 473.6 | C28H42O6 | Baimantuoluoline K | 519, 501 | +COOH– | –0.1 |
| 40 | 10.0 | 469.6 | C28H38O6 | Baimantuoluoline G [20] | 487, 441 | +OH– | –0.8 |
| 41 | 10.0 | 487.6 | C28H40O7 | Daturameteline H | 487, 441 | –H+ | –1.9 |
| 42 | 10.6 | 469.6 | C28H38O6 | 5α,6β-dihydroxy-21,24-epoxy-1-oxowitha- 2,25(27)-dienolide | 469, 423 | –H+ | –3.4 |
| 43 | 10.6 | 517.6 | C29H42O8 | Baimantuoluoline C [20] | 517, 471 | –H+ | –2.2 |
| 44 | 10.6 | 647.7 | C34H48O12 | 5α,12α,27-trihydroxy-(20S,22R)-6α,7α-epoxy-1-oxowitha-2,24-dienolide-27-O-β-d-glucopyranosy | 647, 601 | –H+ | 0.4 |
| 45 | 10.6 | 647.7 | C34H48O12 | Baimantuoluoside A [20] | 647, 601 | –H+ | 0.4 |
| 46 | 10.9 | 469.6 | C28H38O6 | Daturafoliside S [5] | 469, 423 | –H+ | –3.4 |
| 47 | 11.2 | 647.7 | C35H52O11 | 3β,7α,27-trihydroxy-3-methoxy-(20S,22R)-1-oxowitha-5,24-dienolide-27-O-β-d-glucopyranoside | 693, 647, 629 | +COOH– | –0.3 |
| 48 | 11.3 | 647.7 | C35H52O11 | Daturafoliside G [4] | 665, 619 | +OH– | –2.6 |
| 49 | 11.3 | 615.7 | C34H48O10 | Daturafoliside I [4] | 615, 597, 551 | –H+ | –2.6 |
| 50 | 11.4 | 619.7 | C34H52O10 | Daturametelin N | 619, 573 | –H+ | –2.1 |
| 51 | 11.4 | 473.6 | C28H40O6 | Acnistoferin | 473, 427 | +H+ | –0.3 |
| 52 | 11.4 | 547.6 | C30H44O9 | Baimantuoluoline J [20] | 547, 501, 483 | –H+ | –3.1 |
| 53 | 12.1 | 617.7 | C34H48O10 | 7α,27-dihydroxy-(20S,22R)-1-oxowitha-2,5,24-trienolide-27-O-β-d-glucopyranosy | 634, 588 | +NH4+ | 2.8 |
| 54 | 12.1 | 783.8 | C42H56O14 | Daturameteline G-Ac [19] | 829, 783, 739 | +COOH– | 3.7 |
| 55 | 12.2 | 635.7 | C34H52O11 | Daturataturin B [21] | 635, 589, 571 | –H+ | –1.6 |
| 56 | 12.2 | 691.8 | C38H60O11 | 1α,3β,7β,27-tetrahydroxy-(20S,22R)-7-butoxywitha-5,24-dienolide-3-O-β-d-glucopyranoside | 727, 681, 637 | +Cl– | –3.3 |
| 57 | 12.2 | 691.8 | C38H60O11 | Daturafoliside E [4] | 727, 681, 663 | +Cl– | –3.3 |
| 58 | 12.3 | 649.8 | C35H54O11 | 1α,3β,7α,2-tetrahydroxy-7-methoxy-(20S,22R)-witha-5,24-dienolide-3-O-β-d-glucopyranoside | 649, 603, 585 | –H+ | –3.2 |
| 59 | 12.3 | 649.8 | C35H54O11 | daturafoliside Y [23] | 649, 631, 587 | –H+ | –4.4 |
| 60 | 12.6 | 757.8 | C40H54O14 | (20S,22R)-witha-1,3,5,6,8,24-hexaenolide-3,27-O-β-d-diglucopyranoside | 757, 711, 667 | –H+ | –3.7 |
| 61 | 12.6 | 469.6 | C29H40O5 | Daturametelin C [19] | 491, 445, 401 | +Na+ | –3.7 |
| 62 | 12.6 | 505.6 | C28H42O8 | Baimantuoluoline D [20] | 523, 477 | +OH– | –2.4 |
| 63 | 13.0 | 615.7 | C34H48O10 | 7α,27-dihydroxy-(20S,22R)-7-methoxy-1-oxowitha-3,5,24-trienolide-27-O-β-d-glucopyranosy | 615, 569, 551 | –H+ | –0.8 |
| 64 | 13.0 | 615.7 | C34H48O10 | Daturametelin I [23] | 615, 597, 551 | –H+ | –4.7 |
| 65 | 13.0 | 615.7 | C34H48O10 | Daturataturin A [21] | 651, 605 | +Cl– | –4.3 |
| 66 | 13.2 | 631.7 | C34H48O11 | Baimantuoluoside C [20] | 631, 585 | –H+ | –1.2 |
| 67 | 13.2 | 635.7 | C34H50O11 | Daturafoliside P [5] | 652, 635, 589 | +NH4+ | –1.2 |
| 68 | 13.4 | 631.7 | C34H48O11 | 6α,7α,27-trihydroxy-(20S,22R)-1-oxowitha-2,4,24-trienolide-27-O-β-d-glucopyranosy | 667, 621, 603 | +Cl– | –1.3 |
| 69 | 13.4 | 455.6 | C28H38O5 | 7α,27-dihydroxy-1-oxowitha-2,5,24-trienolide | 493, 455, 409 | +K+ | –1.3 |
| 70 | 14.0 | 629.7 | C35H50O10 | (22R)-27-hydroxy-7α-methoxy-1-oxowitha-3,5,24-trienolide | 647, 601, 583 | +OH– | –3.9 |
| 71 | 15.2 | 471.6 | C28H40O6 | Hyoscyamilactol [24] | 471, 425 | –H+ | –1.2 |
| 72 | 15.3 | 633.7 | C34H50O11 | Daturafoliside F [4] | 633, 587 | –H+ | –2.9 |
| 73 | 15.3 | 629.7 | C35H50O10 | Daturafoliside R [5] | 629, 569 | –H+ | –2.9 |
| 74 | 16.2 | 649.7 | C34H50O12 | Baimantuoluoside E [20] | 649, 603 | –H+ | –4.1 |
| 75 | 16.2 | 597.7 | C34H46O9 | Daturametelin K [22] | 597, 551, 533 | –H+ | –4.1 |
| 76 | 16.3 | 629.7 | C35H50O10 | Daturametelins L [22] | 629, 585, 539 | –H+ | –3.2 |
| 77 | 17.9 | 637.8 | C34H52O11 | Daturafoliside C [4] | 637, 591 | +H+ | –4.5 |
| 78 | 17.9 | 599.7 | C34H48O9 | Daturafoliside X [23] | 599, 553, 535 | –H+ | –4.5 |
| 79 | 19.2 | 473.6 | C28H40O6 | 5α,6β,21,27-tetrahydroxy-1-oxowitha-2,24-dienolide | 473, 427, 409 | +H+ | –2.5 |
| 80 | 19.2 | 599.7 | C34H48O9 | Daturametelin A [4] | 599, 553,509 | –H+ | –2.5 |
| 81 | 20.8 | 469.6 | C29H40O5 | Daturametelin D [19] | 469, 423, 405 | +H+ | –3.3 |
| 82 | 21.1 | 533.6 | C28H38O8S | Daturametelin F [19] | 533, 473 | –H+ | –0.7 |
| 83 | 25.5 | 503.6 | C28H40O8 | Baimantuoluoline E [20] | 521, 503 | +OH– | –4.7 |
| 84 | 30.2 | 473.6 | C28H42O6 | Daturametelin M [22] | 473, 427 | –H+ | –4.9 |
| 85 | 34.1 | 619.7 | C33H46O11 | Daturafoliside L [5] | 619, 601, 555 | +H+ | 3.7 |
Table 2.
Calibration curves and method validation data of the 22 bioactive withanolides by UPLC-Q-TRAP-MS/MS.
Table 2.
Calibration curves and method validation data of the 22 bioactive withanolides by UPLC-Q-TRAP-MS/MS.
| Peak No. | Compound | Calibration Curve | r2 | Linear Range a | LOD a | LOQ a | Precision b | Stability c | Repeatability b | Recovery d | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Intraday | Interday | 50% | 100% | 150% | |||||||||
| 9 | Baimantuoluoside H | y = 32.588x – 814.6 | 0.9928 | 100–3200 | 33 | 100 | 3.6 | 0.9 | 2.6 | 1.6 | 49.8 | 101.4 | 152.4 |
| 12 | Daturafoliside K | y = 1.6259x – 1462 | 0.9952 | 500–16000 | 165 | 500 | 2.9 | 2.1 | 3.2 | 1.3 | 50.9 | 101.2 | 151.4 |
| 13 | Baimantuoluoside B | y = 2.6717x + 316.35 | 0.9957 | 100–3200 | 33 | 100 | 1.3 | 2.5 | 3.5 | 2.2 | 51.1 | 101.3 | 150.7 |
| 16 | Daturafoliside B | y = 110.99x – 10552 | 0.9979 | 150–4800 | 50 | 150 | 3.5 | 3.0 | 1.1 | 1.9 | 50.2 | 103.2 | 151.5 |
| 23 | Daturafoliside A | y = 1.0974x + 111.17 | 0.9962 | 100–3200 | 33 | 100 | 2.3 | 2.1 | 2.3 | 3.7 | 49.9 | 100.4 | 150.4 |
| 26 | 5α,12α,27-trihydroxy-(20S,22R)-6α,7α-epoxy-1- oxowitha-2,24-dienolide | y = 1.5217x – 243.83 | 0.9967 | 200–1000 | 67 | 200 | 2.0 | 3.9 | 0.8 | 4.1 | 49.0 | 100.5 | 149.7 |
| 30 | Daturafoliside O | y = 657.86x – 57031 | 0.9973 | 100–3200 | 33 | 100 | 2.6 | 2.2 | 2.5 | 4.4 | 50.1 | 99.5 | 149.7 |
| 32 | Daturametelin J | y = 2.4051x – 2739.4 | 0.9955 | 700–22400 | 234 | 700 | 3.3 | 3.1 | 1.6 | 3.5 | 50.3 | 99.7 | 150.4 |
| 33 | Daturafoliside Q | y = 15.05x + 421.69 | 0.9949 | 150–4800 | 50 | 150 | 2.5 | 1.6 | 1.8 | 5.0 | 50.5 | 100.3 | 150.5 |
| 36 | Daturafoliside D | y = 0.3519x + 65.662 | 0.9982 | 100–3200 | 33 | 100 | 2.8 | 1.6 | 0.9 | 3.3 | 49.0 | 100.4 | 150.1 |
| 46 | Daturafoliside S | y = 0.3792x – 565.79 | 0.9935 | 2000–10000 | 667 | 2000 | 1.9 | 1.4 | 1.6 | 1.5 | 48.2 | 99.9 | 151.3 |
| 49 | Daturafoliside I | y = 0.4324x + 98.775 | 0.994 | 100–3200 | 33 | 100 | 0.7 | 1.2 | 1.0 | 4.7 | 48.9 | 99.9 | 150.0 |
| 53 | 7α,27-dihydroxy-(20S,22R)-1-oxowitha-2,5,24- trienolide-27-O-β-d-glucopyranosy | y = 0.1799x + 57.304 | 0.9959 | 200–6400 | 67 | 200 | 4.0 | 2.8 | 1.3 | 2.8 | 50.4 | 101.6 | 149.5 |
| 55 | Daturataturin B | y = 139.02x – 6747.7 | 0.9951 | 100–3200 | 33 | 100 | 1.5 | 2.0 | 1.5 | 4.0 | 49.8 | 100.6 | 151.2 |
| 59 | Daturafoliside Y | y = 20.538x – 8567.2 | 0.9974 | 600–19200 | 2000 | 6000 | 1.7 | 1.1 | 2.2 | 1.9 | 49.6 | 101.7 | 149.9 |
| 63 | 7α,27-dihydroxy-(20S,22R)-7-methoxy-1-oxo- witha-3,5,24-trienolide-27-O-β-d-glucopyranosy | y = 28.565x – 15872 | 0.9982 | 400–12800 | 134 | 400 | 0.9 | 1.6 | 1.5 | 3.1 | 50.7 | 100.3 | 150.2 |
| 64 | Daturametelin I | y = 192.09x – 106108 | 0.9946 | 1400–44800 | 467 | 1400 | 3.7 | 2.7 | 3.4 | 2.3 | 50.3 | 101.3 | 150.0 |
| 65 | Daturataturin A | y = 193.45x + 12937 | 0.9946 | 1400–44800 | 467 | 1400 | 3.4 | 2.5 | 2.4 | 2.7 | 52.0 | 98.4 | 150.5 |
| 69 | 7α,27-dihydroxy-1-oxowitha-2,5,24-trienolide | y = 18.916x – 8803 | 0.9955 | 1000–32000 | 334 | 1000 | 1.7 | 0.8 | 2.5 | 1.4 | 50.9 | 99.8 | 151.2 |
| 72 | Daturafoliside F | y = 5.8692x – 157.78 | 0.9972 | 100–3200 | 33 | 100 | 1.9 | 2.4 | 2.3 | 4.5 | 49.6 | 100.5 | 151.4 |
| 78 | Daturafoliside X | y = 0.2666x + 72.031 | 0.9953 | 400–12800 | 133 | 400 | 3.7 | 4.1 | 3.3 | 4.0 | 49.6 | 102.6 | 151.6 |
| 80 | Daturametelin A | y = 3.0847x + 775.02 | 0.9974 | 300–9600 | 100 | 300 | 0.4 | 1.4 | 0.8 | 1.2 | 50.3 | 99.9 | 150.9 |
a ng/mL; b n = 6, RSD, %; c 48 h, RSD, %; d n = 6, %.
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Yang, S.H.; Liu, Y.; Wang, Q.; Sun, Y.P.; Guan, W.; Liu, Y.; Yang, B.Y.; Kuang, H.X. UPLC-MS/MS Identification and Quantification of Withanolides from Six Parts of the Medicinal Plant Datura Metel L. Molecules 2020, 25, 1260. https://doi.org/10.3390/molecules25061260
AMA Style
Yang SH, Liu Y, Wang Q, Sun YP, Guan W, Liu Y, Yang BY, Kuang HX. UPLC-MS/MS Identification and Quantification of Withanolides from Six Parts of the Medicinal Plant Datura Metel L. Molecules. 2020; 25(6):1260. https://doi.org/10.3390/molecules25061260
Chicago/Turabian StyleYang, Shi Hui, Yan Liu, Qi Wang, Yan Ping Sun, Wei Guan, Yuan Liu, Bing You Yang, and Hai Xue Kuang. 2020. "UPLC-MS/MS Identification and Quantification of Withanolides from Six Parts of the Medicinal Plant Datura Metel L." Molecules 25, no. 6: 1260. https://doi.org/10.3390/molecules25061260
APA StyleYang, S. H., Liu, Y., Wang, Q., Sun, Y. P., Guan, W., Liu, Y., Yang, B. Y., & Kuang, H. X. (2020). UPLC-MS/MS Identification and Quantification of Withanolides from Six Parts of the Medicinal Plant Datura Metel L. Molecules, 25(6), 1260. https://doi.org/10.3390/molecules25061260
