Structural Crystalline Characterization of Sakuranetin — An Antimicrobial Flavanone from Twigs of Baccharis retusa (Asteraceae)
Abstract
:1. Introduction
2. Results and Discussion
2.1. Chemical Characterization of Sakuranetin by NMR and MS

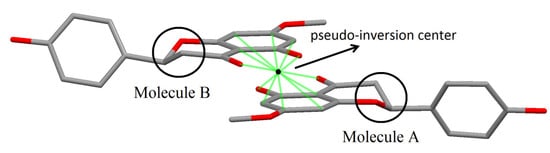

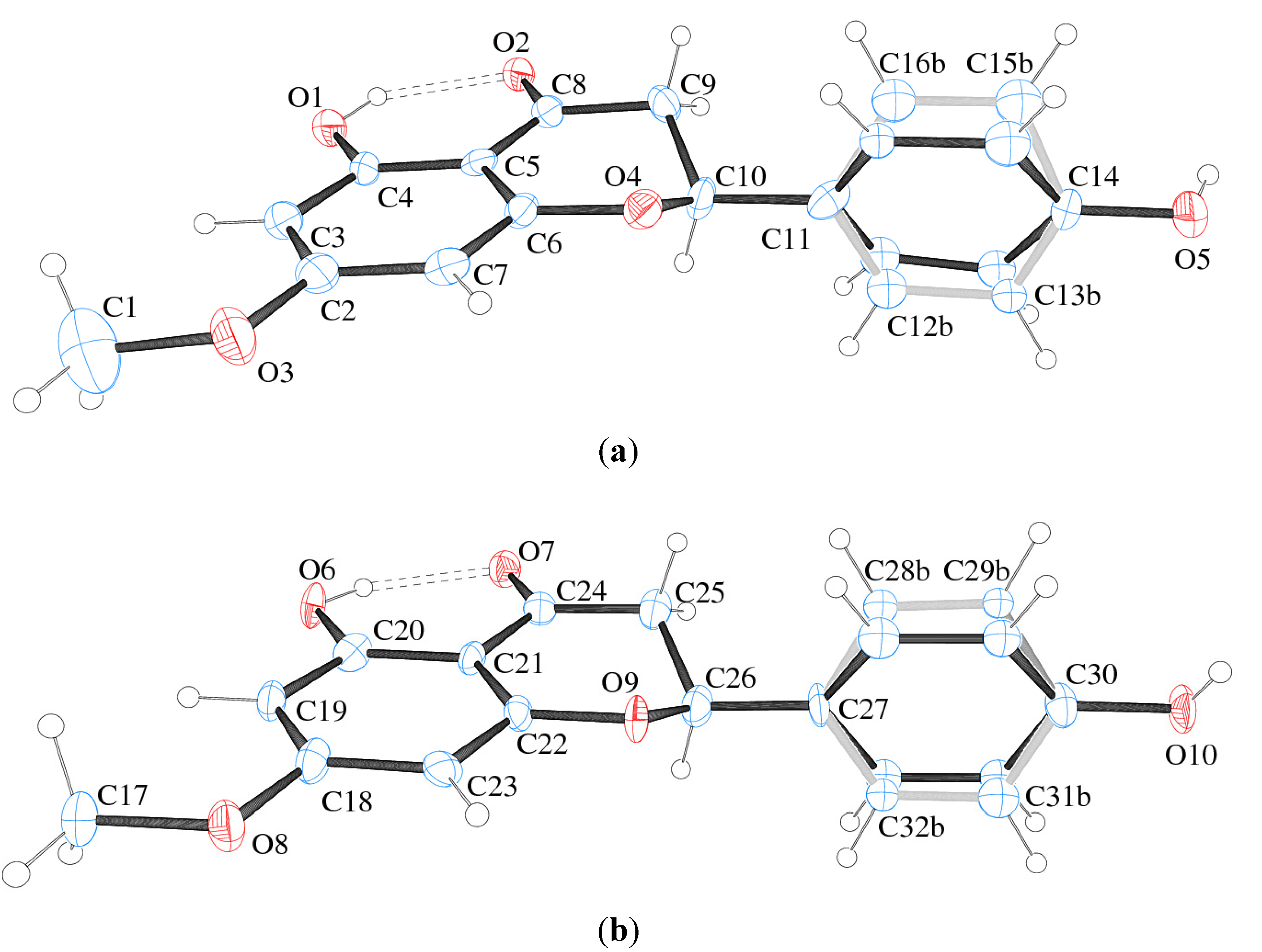

2.2. Structural Crystalline Characterization of Sakuranetin
Empirical Formula | 2 (C16H14O5·H2O) |
---|---|
Formula weight | 602.53 |
Temperature/K | 120(1) K |
Wavelength/Å | 1.54180 |
Crystal system | Monoclinic |
Space group | P21 |
Unit cell dimensions/Å and ° | a = 4.825(5), b = 13.978(5), c = 21.077(5) |
β = 91.091(5) | |
Volume/Å3 | 1421.3(16) |
Z/Z' | 4/2 |
Density (calculated)/Mg.m−3 | 1.422 |
Absorption coefficient/mm−1 | 0.921 |
F(000) | 640 |
Crystal size | 0.28 × 0.14 × 0.02 mm3 |
Theta range for data collection | 4.20 to 63.27° |
Index ranges | −5 d h d 3, −15 d k d 15, −24 d l d 23 |
Reflections collected | 4538 |
Independent reflections | 3241 [R(int) = 0.0269] |
Completeness to theta = 63.27° | 84.1% |
Refinement method | Full-matrix least-squares on F2 |
Data/restraints/parameters | 3241/1/395 |
Goodness-of-fit on F2 | 1.040 |
Final R index [I > 2 sigma(I)] | R1 = 0.0609, wR2 = 0.1601 |
R index (all data) | R1 = 0.0917, wR2 = 0.1816 |
Largest diff. peak and hole/e.Å−3 | 0.547 and −0.248 |

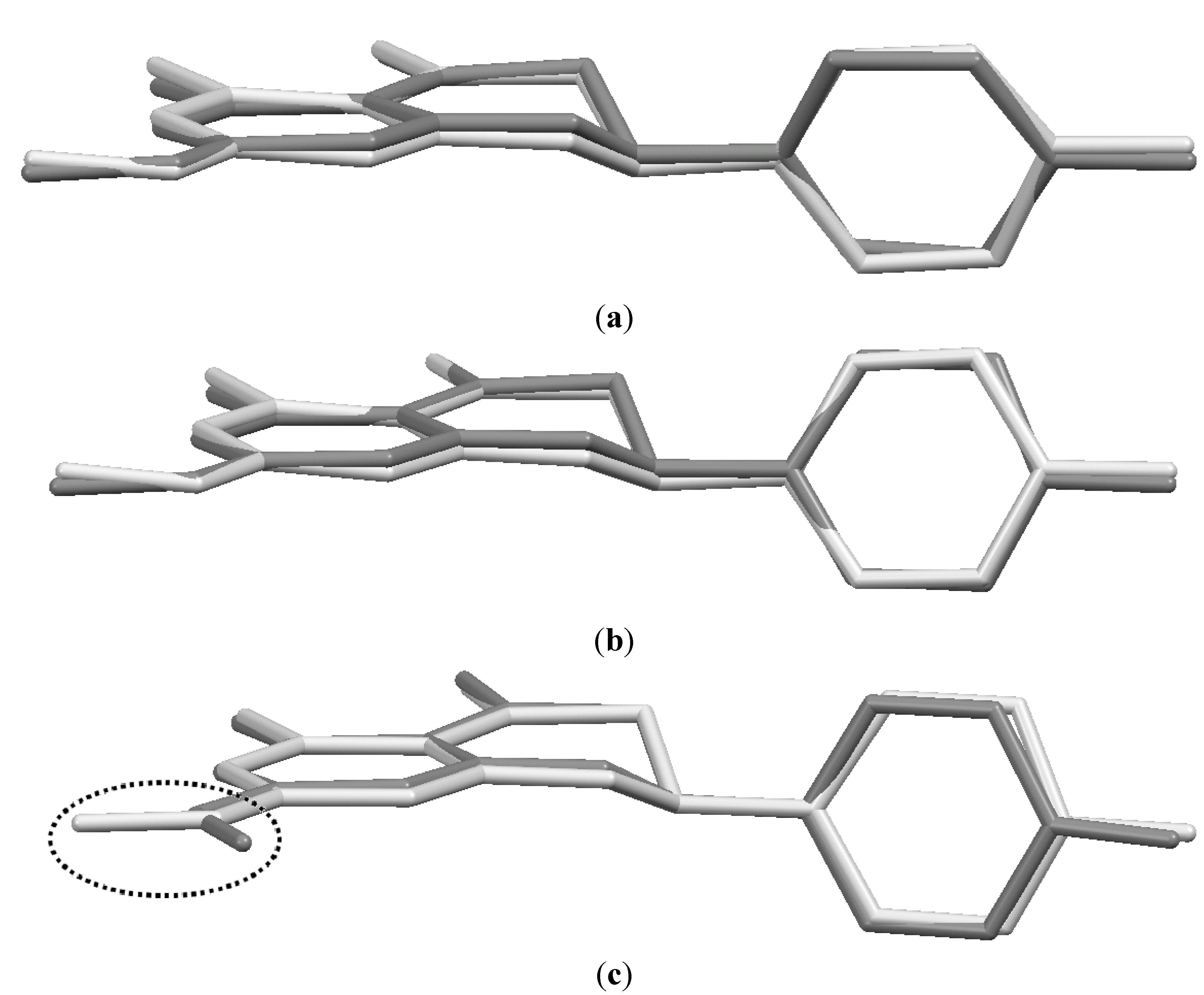

Torsion Angle | (I)-Anhydrous † | (I)-Dihydrate † | (I)-MonohydrateMolecule A | (I)-MonohydrateMolecule B | ||
---|---|---|---|---|---|---|
conformer a | conformer b | conformer a | conformer b | |||
φ1 | −66.43 | −66.13 | −41.04 | −82.46 | −46.04 | −78.78 |
φ2 | 111.35 | 112.62 | 137.70 | 106.53 | 126.89 | 100.64 |
φ3 | 56.27 | 56.07 | 85.38 | 43.96 | 76.62 | 43.89 |
φ4 | −125.94 | −125.19 | −95.89 | −127.05 | −110.45 | −136.69 |

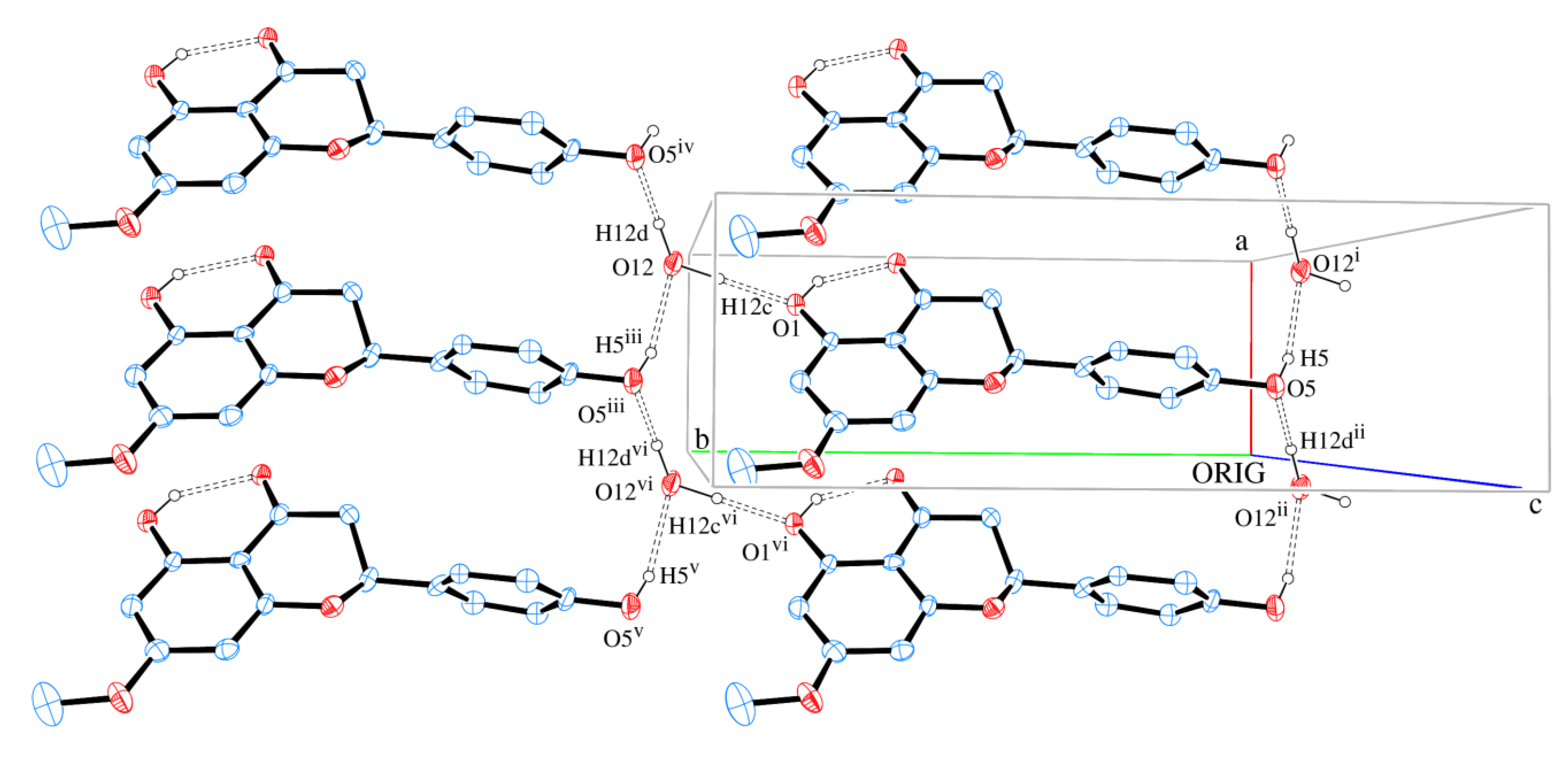

D–H–A | d (D–H) | d (H–A) | d (D–A) | <(DHA) |
---|---|---|---|---|
O1-H1...O2 | 0.82 | 1.90 | 2.632(9) | 147.7 |
O6-H6...O7 | 0.82 | 1.89 | 2.622(9) | 148.8 |
O5-H5...O12 i | 0.82 | 2.18 | 2.97(1) | 161.5 |
O10-H10a...O11 iv | 0.82 | 2.18 | 2.97(1) | 161.5 |
O12-H12c...O1 | 1.056(6) | 1.783(6) | 2.839(9) | 179.5(5) |
O12-H12d...O5 iv | 0.993(6) | 1.632(7) | 2.625(9) | 179.6(5) |
O11-H11b...O6 | 1.096(5) | 1.830(6) | 2.926(8) | 179.6(4) |
O11-H11a...O10 i | 1.105(6) | 1.826(7) | 2.93(1) | 179.9(4) |

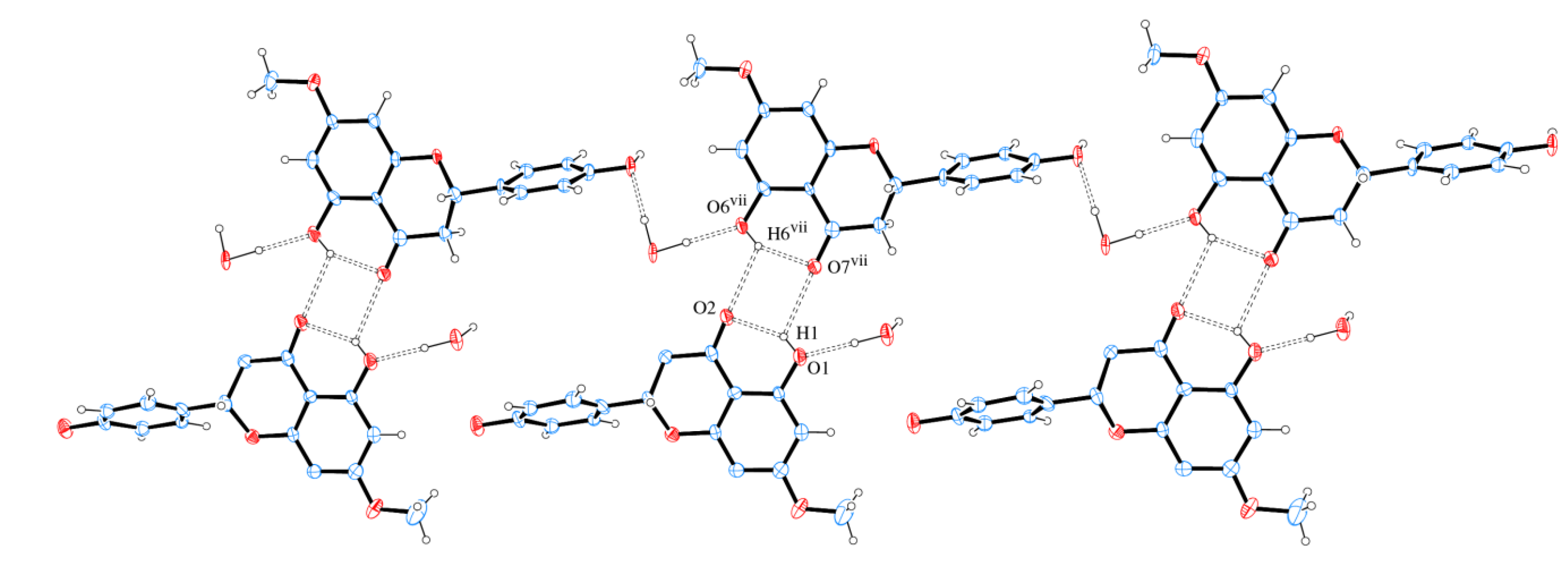

O1-H1...O7 vii | 0.82 | 2.41 | 2.87(1) | 116.3 |
O6 vii-H6...O2 | 0.82 | 2.41 | 2.87(1) | 116.3 |
2.3. Antifungal Sensibility Test
Species | Designation | Source * | MIC (µg/µL) Sakuranetin ** |
---|---|---|---|
Candida dubliniensis | ATCC 7978 | ATCC | 0.63 (99%) |
Candida tropicalis | ATCC 13803 | ATCC | 0.63 (98%) |
Candida glabrata | ATCC 90030 | ATCC | 0.63 (99%) |
Candida parapsilosis | Clinical isolate 68 | CBMAI | 0.63 (98%) |
Candida krusei | Clinical isolate 9602 | CBMAI | 0.63 (99%) |
Candida albicans | CBMAI 560 | CBMAI | 0.32 (99%) |
Cryptococcus neoformans | KN99α (serotype A) | LIMIc | 0.32 (99%) |
Cryptococcus gattii | R265 (serotype B) | LIMIc | 0.32 (97%) |
Cryptococcus gattii | NIH312 (serotype C) | LIMIc | 0.32 (97%) |
Cryptococcus neoformans | JEC21 (serotype D) | LIMIc | 0.08 (98%) |
Saccharomyces cerevisiae | BY4742 | LIMIc | 0.32 (99%) |
3. Experimental
3.1. General Experimental Procedures
3.2. Plant Material
3.3. Extraction and Isolation

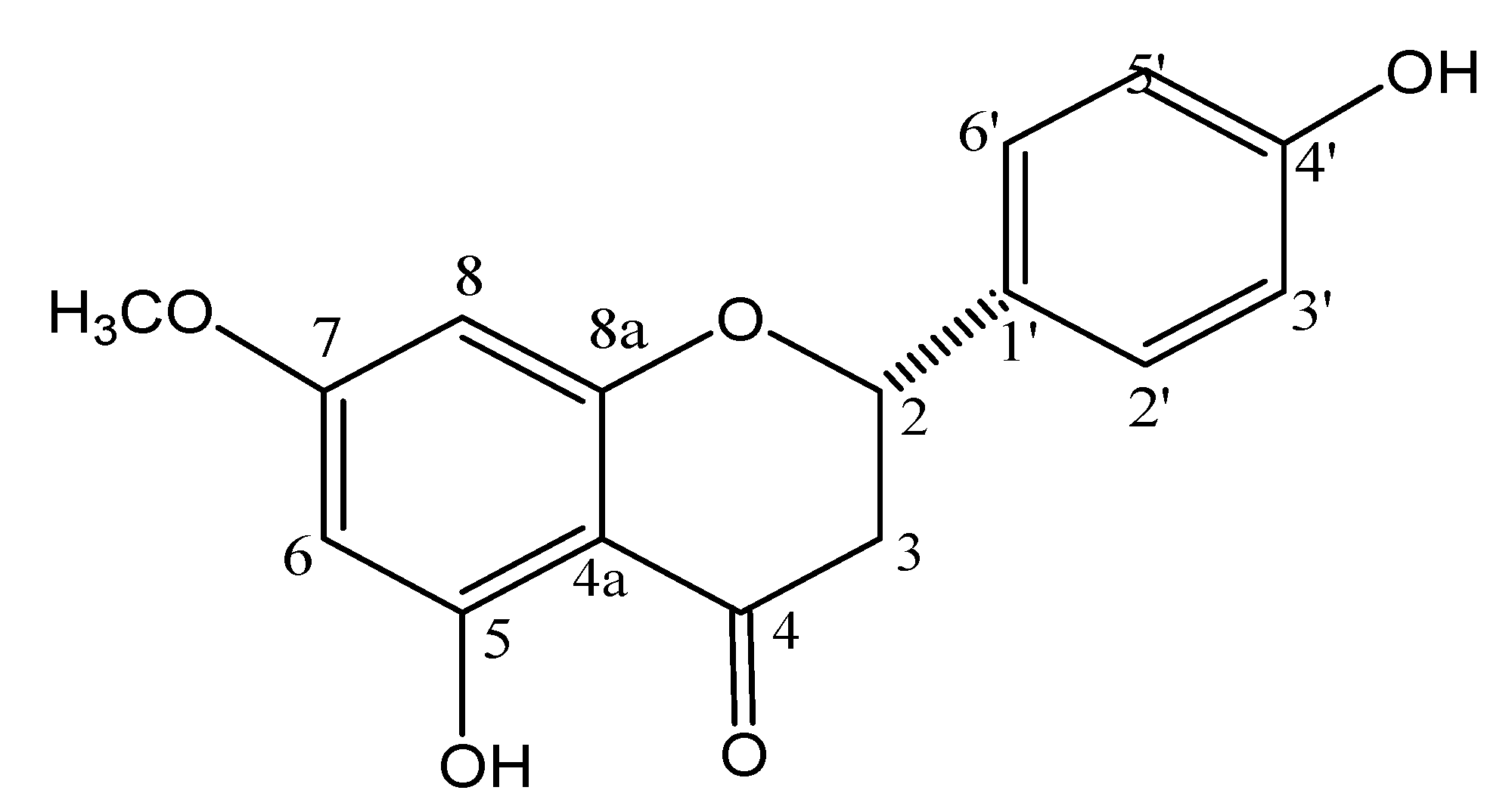

3.4. 5,4'-Dihydroxy-7-methoxyflavanone (sakuranetin)
3.5. X-ray Crystallography
3.6. Disk Diffusion Assay
3.7. Minimum Inhibitory Concentration
4. Conclusions
