Search Results (48)

The characteristics of litter combustion have a significant impact on the spread of surface fires in the central Yunnan Province, a high-risk forest fire zone. The burning behavior of individual and mixed-species litter samples from five dominant tree species (Pinus yunnanensis Franch., Keteleeria evelyniana Mast., Quercus variabilis Blume., Quercus aliena var. acutiserrata, and Alnus nepalensis D. Don.) was assessed in this study using cone calorimeter tests. Fern fronds and fine branches were included in additional tests to evaluate their effects on specific combustion parameters, such as Fire Performance Index (FPI), Flame Duration (FD), Time to Ignition (TTI), Mass Loss Rate (MLR), Residual Mass Fraction (RMF), Peak Heat Release Rate (PHRR), and Total Heat Release (THR). There were remarkable differences in the burning properties of the three types of litter (broadleaf, pine needles, and short pine needles). The THR and PHRR values of P. yunnanensis were the highest, whereas the PHRR of the other species varied very little. Short pine needle litter showed incomplete combustion and a long flame duration. When measured against pure pine needle litter, mixtures of P. yunnanensis and broadleaf litter showed lower PHRR. When set side by side to pure pine needle litter, P. yunnanensis and broadleaf litter showed lower PHRR. THR rose when fine branches were included, underlining the significance of fine woody fuels in fire behavior. The insertion of ferns increases the percentage of unburned biomass, prolongs TTI, and dramatically reduces PHRR. Full article

This study investigates the impact of aging on the thermal runaway behavior of lithium-ion batteries. By combining external heating tests, cone calorimetry experiments, and numerical simulations, the thermal runaway characteristics of LFP and NMC batteries at different SOH levels (100%, 90%, 80%) were systematically evaluated. Experimental results show a non-monotonic effect of aging on thermal runaway: mildly aged batteries (90% SOH) exhibited the earliest TR trigger and highest risk due to unstable SEI film growth, while new batteries (100% SOH) released the most energy. Significant differences were observed between battery chemistries: LFP batteries displayed fluctuating temperature curves indicating a staged buffering mechanism, whereas NMC batteries had smooth heating but abrupt energy release. Cone calorimeter tests revealed that aged LFP batteries had multi-stage HRR curves, while NMC batteries showed consistent HRR profiles; mass loss data confirmed reduced active material consumption with aging. Numerical simulations integrating SEI decomposition and other reactions validated the impact of aging on internal processes. The study recommends prioritizing monitoring of moderately aged batteries, optimizing early-warning systems for NMC batteries, and preventing secondary explosions, providing support for safety assessments of aged batteries. Full article

Wood is a renewable and sustainable environmentally friendly building material. With proper design, it can help buildings achieve lower carbon emissions. However, since wood is a flammable material, its combustion performance in fires has attracted attention. In modern timber structures, glulam is a widely used engineered wood product. Thus, in this paper, glulam specimens made of four kinds of commonly used soft-wood species were used to compare their combustion performance, and the cone calorimeter method was employed. The indicators including time to ignition, heat release rate per unit area, total heat release per unit area, specific extinction area per unit mass, mass of residue, yield of CO and yield of CO₂ were evaluated and compared. The results showed that all the glulam specimens would experience cracking wood and adhesive layer. The time to ignition and peak mass loss rate of the four softwood species in the study was positively correlated with their density. Among these species, Spruce exhibited the highest peak heat release rate and the highest peak CO₂ yield but lowest smoke production, while Douglas fir had a relatively late CO production time and the lowest mass loss percentage, Larch had the lowest heat release rate and total heat release. This study provides fundamental data for the selection of wood structural materials and for future research on wood flame-retardant treatments. Full article

Melamine formaldehyde particle boards (MFPBs), commonly utilized as a wooden decorative material in traditional architecture, demonstrate considerable performance deterioration with extended age, with reductions in essential flame retardancy and structural integrity presenting substantial risks to fire safety in structures. This research examines the impact of thermo-oxidative aging on the flame retardancy of MFPBs. The morphological evolution, surface composition, and flame-retardant characteristics of aged MFPBs were examined via scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FTIR), thermogravimetric analysis (TG), limiting oxygen index (LOI), and cone calorimeter (CCT). The results indicate that thermo-oxidative aging (60 °C, 1440 h) markedly reduces the activation energy (E, by 17.05%), pre-exponential factor (A, by 68.52%), LOI value (by 4%, from 27.5 to 26.4), and time to ignition (TTI, by 17.1%, from 41 s to 34 s) while augmenting the peak mass loss rate (MHRR, by 4.7%) and peak heat release rate (pHRR, by 20.1%). Subsequent investigation indicates that aging impairs the char layer structure on MFPB surfaces, hastens the migration and degradation of melamine formaldehyde resin (MFR), and alters the dynamic equilibrium between “MFR surface enrichment” and “thermal decomposition”. The identified degradation thresholds and failure mechanisms provide essential parameters for developing aging-resistant fireproof composites, meeting the pressing demands of building safety requirements and sustainable material design. Full article

Scots pine (Pinus sylvestris L.) sapwood was modified using maleic anhydride (MA) and sodium hypophosphite (SHP) to improve its durability against wood-deteriorating fungi, mechanical strength, and fire retardancy (thermal stability). The modification significantly reduced mass loss caused by wood-decaying fungi (Trametes versicolor, Rhodonia placenta, and soft rot fungi) due to the formation of cross-links between wood, MA, and SHP, which limited the moisture uptake and altered the chemical structure of wood. On the other hand, the modification did not provide improved resistance to fungi growth on the wood surface, which indicated that the modification had little impact on the accessibility of nutrients on the surface. A bending test showed that the modulus of elasticity (MOE) was not affected by the treatment, whilst the modulus of rupture (MOR) decreased to half the value of untreated wood. Thermal resistance was improved, as demonstrated by micro-scale combustion calorimeter testing, where the total heat release was halved, and the residue percentage nearly doubled. These results indicate that phosphonate protects the modified wood via the formation of a protective char layer on the surface and the formation of radical moieties. Based on the results, wood modified with MA and SHP shows potential for possible use in outdoor, non-loadbearing structures. Full article

The intumescent flame retardant (IFR) technique is an alternative to halogen-based flame retardants for reducing fire hazards in polymers. However, IFR has drawbacks like unsatisfactory flame-retardant efficiency and high loading requirements. In this study, MIL-125 (Ti-based metal–organic framework) is added to ABS/IFR composites to improve flame retardancy and reduce smoke emissions. Thermogravimetric analysis (TGA) results indicate that combining ammonium polyphosphate (APP) and expandable graphite (EG) increases charred residue and slows mass loss compared with the original ABS resin. The ABS/IFR/MIL-125 system stabilizes the char layer, serving as a protective shield against combustible gases during combustion. Additionally, MIL-125 enhances performance in microscale combustion calorimetry (MCC) flammability testing. In fire tests (UL-94, limiting oxygen index (LOI), and cone calorimeter), the ABS/IFR/MIL-125 system achieves a UL-94 V0 rating and the highest LOI value of 31.5% ± 0.1%. Peak heat lease rate (PHRR) values in the cone calorimeter are reduced by 72% with 20 wt.% of additives, and smoke production decreases by 53% compared with neat ABS. These results demonstrate the efficient synergistic effects of MIL-125 and IFR additives in improving the formation and stability of the intumescent char layer, thereby protecting ABS from intense burning. Full article

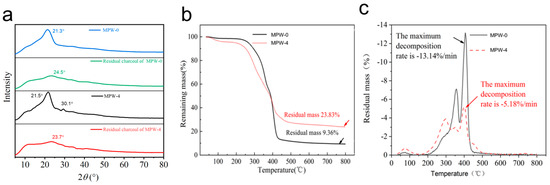

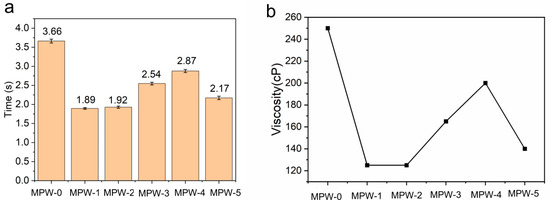

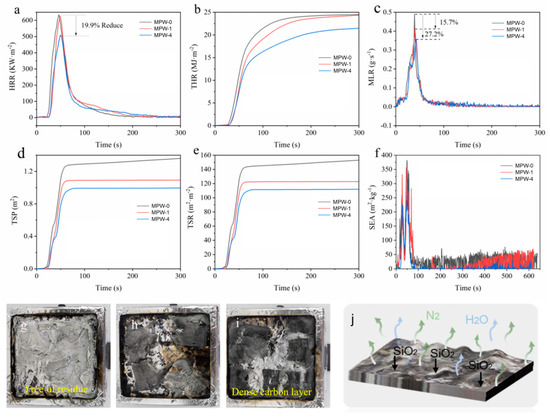

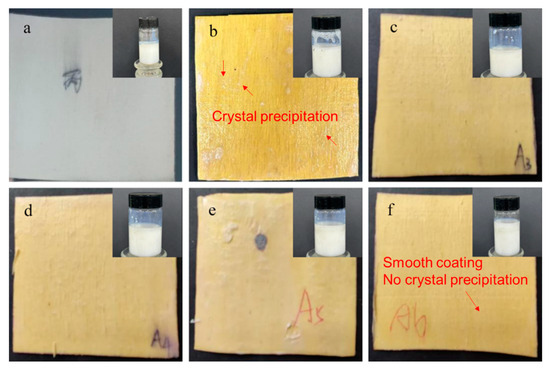

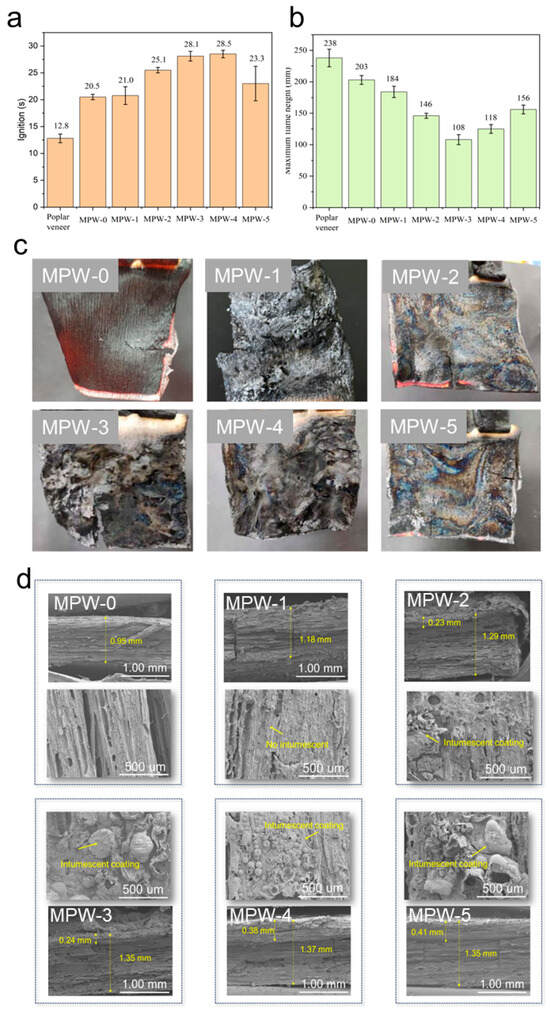

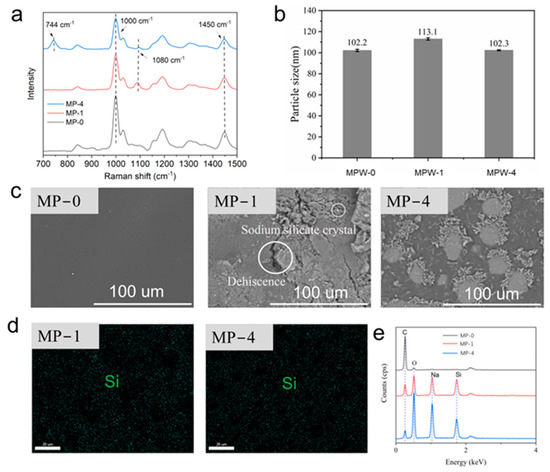

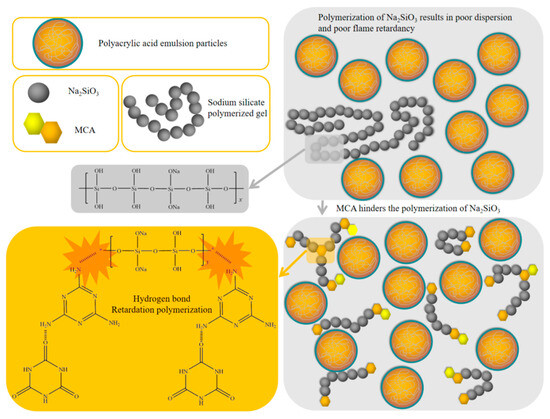

The incompatibility between inorganic flame retardants and organic acrylic coatings represents a significant challenge that requires resolution. This work selected environmentally friendly organic aqueous acrylic coatings as the substrate, sodium silicate hydrate as the inorganic flame retardant, and melamine cyanurate (MCA) as the flame-retardant modifier and the flame-retardant co-modifier, with the objective of improving the dispersion and flame-retardant properties of sodium silicate hydrate in the aqueous acrylic coatings. Subsequently, the sodium silicate/MCA/waterborne acrylic acid flame-retardant coating was prepared. The flame-retardant treatment was then applied to poplar veneer in order to create a flame-retardant poplar veneer. The dispersion of the flame-retardant coating was characterized by scanning electron microscopy (SEM), energy-dispersive spectroscopy (EDX), and X-ray diffractometry (XRD). Furthermore, the flame-retardant properties of the flame-retardant poplar veneer were analyzed by thermogravimetry (TG), limiting oxygen index (LOI), and cone calorimeter. The results demonstrated that the MCA-modified sodium silicate flame retardant was well dispersed in aqueous acrylic coatings. The results of the flame-retardant properties of the poplar veneer indicated that the ignition time of the 9% flame retardant-treated poplar veneer was increased by 122.7%, the limiting oxygen index value was increased by 43.0%, and the peak heat release rate (pHRR), the peak total heat release rate (pTHR), and the peak mass loss rate were decreased by 19.9%, 10.8%, and 27.2%, respectively, in comparison to the non-flame retardant-treated poplar veneer. Furthermore, the residual char mass increased by 14.4%, and the residual char exhibited enhanced thickness, density, and regularity. The results demonstrated that MCA was an effective promoter of sodium silicate dispersion in acrylic coatings. Furthermore, the sodium silicate/MCA/waterborne acrylic flame-retardant coating significantly enhance the flame retardancy of wood, and its flame retardant mechanism was consistent with the synergistic silicone–nitrogen expansion flame-retardant mechanism. This work presents a novel approach to enhancing the dispersion of inorganic flame retardants in organic coatings, offering a valuable contribution to the advancement of research and application in the domains of innovative flame retardant coatings and flame retardant wood. Full article

This article presents the results of flame-retardancy tests conducted on cellulose sheets produced using a Rapid Köthen apparatus treated with retardants. The agents used were potassium carbonate (PC) K₂CO₃ (concentrations of 20; 33.3; and 50% wt/wt), monoammonium phosphate (MAP) NH₄H₂PO₄ (concentrations of 35% wt/wt), diammonium phosphate (DAP) (NH₄)₂HPO₄ (concentrations of 42.9% wt/wt), and bisguanidal phosphate (FOS) C₂H₁₀N₆ (concentrations of 22.5% wt/wt). The agents were used to improve Kraft cellulose-based sheets’ flame-retardant properties and compare their performances. As part of the study, the flammability of the materials was determined by the following methods: an oxygen index (OI) test, a mass loss calorimeter (MLC) test, and a mini fire tube (MFT) test. All formulations showed an increase in flame retardancy compared to the control test. All protected samples were non-flammable for OI determinations, and DAP-protected samples showed the highest OI index. For the MLC test, DAP-protected and MAP-protected samples showed the best heat-release rate (HRR), total heat release (THR), and average heat-release rate (ARHE) (samples did not ignite for 600 s). In the MFT test, all treated samples had comparably reduced weight loss. The best parameter was achieved for MAP and DAP (15% weight loss). Full article

Larch is a strong timber, which grows rapidly in the UK climate, but can contain abundant resin pockets. To address the resin exudation issue, a mild thermal modification process has been developed, promoting the curing of the resin. This paper reports a series of studies which characterised the chemical profile of larch oleoresin before and after the mild thermal treatment, explaining the changes which occur when resin is dried. Further experiments were used to simulate specific points in time during the mild treatment process. The non-polar components of the fresh (untreated) and treated larch oleoresin were profiled using gas chromatography mass spectrometry (GC-MS). Fresh larch oleoresin was also subjected to isothermal experiments at different temperatures in a thermogravimetric analyser–differential scanning calorimeter (TGA/DSC), followed by re-analysing the resin composition. This demonstrated the loss of monoterpenes at temperatures of 120 °C and above, with complete loss by isothermal conditions of 150 °C and 60 min. The partial loss of sesquiterpene alkanes and alkenes were also observed at all temperatures, although completeness of this loss was achieved at isothermal temperatures of 150 °C and above. The diterpene composition was seen to change for isothermal experiments conducted at 150 °C and above, with a dehydration of terpenols to form the equivalent terpene alkenes. The observed physical changes in the TGA/DSC experiment were in good agreement with observations of the oleoresin sampled from thermally modified larch planks. Full article

To improve our understanding of flaming, smoldering, or self-extinction in the burning of wood, it is necessary to quantify the conditions that lead to self-extinguished and self-sustained smoldering combustion. Experiments were performed in a cone calorimeter under an external irradiation of 10 to 25 kW/m² to analyze the temperature and mass loss of self-extinguished and self-sustained smoldering. The smoldering front depth was the significant parameter used to capture the smoldering characteristic, and it was defined as the axial thickness that reaches the smoldering characteristic temperature. The critical smoldering front depth of self-extinguished smoldering was lower than 10–15 mm for 30 mm thick wood at 15.5 kW/m² irradiation. This critical depth decreased with the increase in heat flux, from 26.5 ± 1.5 mm at 10 kW/m² to 11 ± 1 mm at 25 kW/m². A simple theoretical analysis is proposed to explain the smoldering thickness threshold of self-sustained smoldering propagation based on the local heat balance. The equation predicts that the critical depth decreases as the heat flux increases, from 23.9 mm at 8 kW/m² to 7.3 mm at 25 kW/m². The predicted critical depth and heating duration were consistent with the experimental results. This study proposes a feasible parameter to help understand the threshold of smoldering propagation and the development of biomass burners. Full article

Phosphorylated cellulose can be an intrinsic flame retardant and a promising alternative for halogenated fire inhibitors. In this study, the mixture of di-ammonium hydrogen phosphate (DAP) and urea (U), containing phosphate and nitrogen groups, was applied to attain fire inhibitor properties. Functional groups of cellulose were grafted with phosphorous by keeping the constant molar ratio of 1/1.2/4.9 between anhydroglucose units of cellulose/DAP/U in different concentrations of bleached kraft pulp. Phosphorus concentrations were determined using the ICP hrOES method, and paper sheets were made using the Rapid Köthen apparatus. The tensile strength of phosphorylated cellulose increased twice compared with unmodified cellulose when the phosphorous concentration increased to 10,000 g/kg. An increase in the tensile index comes from the higher freeness of pulp and cross-linking of the phosphorous group between cellulose fibers. Remarkable fire retardancy effects were achieved in cellulose concentrations above 5 wt%. The raised phosphorous concentration above 10,000 g/kg due to the phosphorylation process caused the formation of a char layer on a cellulose surface and the nonflammable gas emission. That effect was indirectly confirmed by reducing the combustion temperature and HRR by 50 and 45%, respectively. Due to increasing phosphorus concentration in cellulose sheets, cellulose’s fire and strength properties increased significantly. Full article

Polyurethane is widely used on the surface of composite materials for rotor blades as sand erosion protection materials. The failure mechanism investigation of polyurethane film under service conditions is useful for developing the optimal polyurethane film for rotor blades. In this article, the sand erosion test parameters were ascertained according to the service environment of the polyurethane film. The sand erosion resistance and failure mechanism of polyurethane film at different impact angles were analyzed by an infrared thermometer, a Fourier transform infrared spectrometer (FTIR), a differential scanning calorimeter (DSC), a field emission scanning electron microscope (FESEM), and a laser confocal microscope (CLSM). The results show that the direct measurement method of volume loss can better characterize the sand erosion resistance of the polyurethane film compared to traditional mass loss methods, which avoids the influence of sand particles embedded in the polyurethane film. The sand erosion resistance of polyurethane film at low-angle impact is much lower than that at high-angle impact. At an impact rate of 220 m/s, the volume loss after sand erosion for 15 min at the impact angle of 30° is 57.8 mm³, while that at the impact angle of 90° is only 2.6 mm³. The volume loss prediction equation was established according to the experimental data. During low-angle erosion, the polyurethane film damage is mainly caused by sand cutting, which leads to wrinkling and accumulation of surface materials, a rapid increase in roughness, and the generation of long cracks. The linking of developing cracks would lead to large-scale shedding of polyurethane film. During high-angle erosion, the polyurethane film damage is mainly caused by impact. The connection of small cracks caused by impact leads to the shedding of small pieces of polyurethane, while the change in the roughness of the film is not as significant as that during low-angle erosion. The disordered arrangement of the soft and hard blocks becomes locally ordered under the action of impact and cutting loads. Then, the disordered state is restored after the erosion test finishes. The erosion of sand particles leads to an increase in the temperature of the erosion zone of the polyurethane film, and the maximum temperature rise is 6 °C, which does not result in a significant change in the molecular structure of the polyurethane film. The erosion failure mechanism is cracking caused by sand cutting and impact. Full article

The volatilization of asphalt fumes not only affects the health of construction workers, but also damages the environment. It even affects the construction quality of asphalt pavement in tunnels. This article focuses on solving the emission of asphalt fumes to better protect human health and the environment, while satisfying the use of asphalt pavement. A flame retardant and smoke suppressant (compound) with Mg(OH)₂ as the main component was developed, and flame retardant asphalt mixture and asphalt mastics were prepared to evaluate the flame retardant and smoke suppressant properties and performance effects. Firstly, its low- and high-temperature performances were investigated with BBR and DSR, respectively. Then, the indoor combustion test and the cone calorimeter test were used to evaluate the fire retardant smoke suppression effect of the asphalt mastic. Thirdly, the flame retardant effect of asphalt mastic mixed with the compound was further analyzed by the TG test and SEM. The pyrolysis temperature, mass loss, and microscopic state of the asphalt surface were used to verify and explain the flame retardant reaction effect and process of the compound. Finally, the asphalt mixture performance was evaluated, as well as the flame retardant smoke suppression effect by asphalt mixture combustion tests. The results showed that the flame retardant smoke suppression time of the flame retardant asphalt mixture was reduced by 66%, and the smoke emission area was reduced by 20%. The flame retardant smoke suppression effect of the asphalt mixture was improved by 44%. It is proven that this kind of fire retardant and smoke suppressing asphalt mastic and mixture met performance needs in use, and the fire retardant and smoke suppressing effect was obvious. This solution addresses the issue of asphalt smoke generated during the construction of asphalt pavement, providing better support for the construction of asphalt pavement in tunnels. Full article

The fire reaction of various types of flammable lightweight materials is investigated using a cone calorimeter. The influences of parameters such as sample density, sample mass, effective heat of combustion and heat flux on the mass loss after exposition are discussed. Interpretations of the hemp fibers’ tests results lead us to propose a phenomenological model able to calculate the peak of heat release rate (pHRR) of such thermally thin materials, with or without flame retardant. A database gathering the whole results of tests performed on a large set of materials including fibers, bio-resources panels, bio-based concretes and fabrics is used to validate the proposed model. Interestingly, the model is found to be relevant also for denser wood specimens. The model is based on the distinction of the contributions of the exposed top layer and the deeper layer to the combustion. Indeed, in such materials, the heat conduction is limited (either by the intrinsic properties of the material or by the formation of an insulating char) and therefore the pHRR only depends on a limited volume of materials directly absorbing the heat flux from the radiant cone. Accuracy and limitations of the model are discussed. Full article

In this experimental investigation, we studied the safety and thermal runaway behavior of commercial lithium-ion batteries of type 21700. The different cathode materials NMC, NCA and LFP were compared, as well as high power and high energy cells. After characterization of all relevant components of the batteries to assure comparability, two abuse methods were applied: thermal abuse by the heat-wait-seek test and mechanical abuse by nail penetration, both in an accelerating rate calorimeter. Several critical temperatures and temperature rates, as well as exothermal data, were determined. Furthermore, the grade of destruction, mass loss and, for the thermal abuse scenario, activation energy and enthalpy, were calculated for critical points. It was found that NMC cells reacted first, but NCA cells went into thermal runaway a little earlier than NMC cells. LFP cells reacted, as expected, more slowly and at significantly higher temperatures, making the cell chemistry considerably safer. For mechanical abuse, no thermal runaway was observed for LFP cells, as well as at state of charge (SOC) zero for the other chemistries tested. For thermal abuse, at SOC 0 and SOC 30 for LFP cells and at SOC 0 for the other cell chemistries, no thermal runaway occurred until 350 °C. In this study, the experimental data are provided for further simulation approaches and system safety design. Full article
