Search Results (1,044)

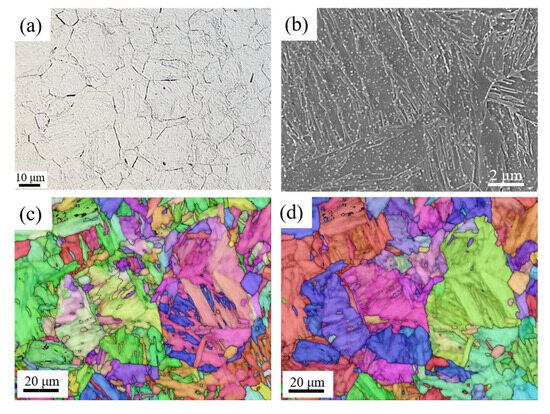

A novel stainless steel with high Mn and Mo content (much higher than traditional stainless steel), designated CH241SS, was developed as a potential replacement for Cr-Mo-V alloy steel in the cold forging applications of precision industry. Through carbon reduction in an environmentally friendly manner and a two-stage heat treatment process, the hardness of as-cast CH241 was tailored from HRC 37 to HRC 29, thereby meeting the industrial specifications of cold-forged steel (≤HRC 30). X-ray diffraction analysis of the as-cast microstructure revealed the presence of a small amount of ferrite, martensite, austenite, and alloy carbides. After heat treatment, CH241 exhibited a dual-phase microstructure consisting of ferrite and martensite with dispersed Cr(Ni-Mo) alloy carbides. The CH241 alloy demonstrated excellent high-temperature stability. No noticeable softening occurred after 72 h for the second-stage heat treatment. Based on the mechanical and room-temperature tensile fatigue properties of CH241-F (forging material) and CH241-ST (soft-tough heat treatment), it was demonstrated that the CH241 stainless steel was superior to the traditional stainless steel 4xx in terms of strength and fatigue life. Therefore, CH241 stainless steel can be introduced into cold forging and can be used in precision fatigue application. The relevant data include composition design and heat treatment properties. This study is an important milestone in assisting the upgrading of the vehicle and aerospace industries. Full article

Non-uniform temperature fields are developed during the welding of studs in steel–concrete composite bridges. Due to uneven thermal expansion and reversible solid-state phase transformations between ferrite/martensite and austenite structures within the materials, residual stresses are induced, which ultimately degrades the mechanical performance of the structure. For a better understanding of the influence on steel–concrete composite bridges’ structural behavior by residual stress, accurate simulation of the spatio-temporal temperature distribution during stud welding under practical engineering conditions is critical. This study introduces a precise simulation method for temperature evolution during stud welding, in which the Gaussian heat source model was applied. The simulated results were validated by real welding temperature fields measured by the infrared thermography technique. The maximum error between the measured and simulated peak temperatures was 5%, demonstrating good agreement between the measured and simulated temperature distributions. Sensitivity analyses on input current and plate thickness were conducted. The results showed a positive correlation between peak temperature and input current. With lower input current, flatter temperature gradients were observed in both the transverse and thickness directions of the steel plate. Additionally, plate thickness exhibited minimal influence on radial peak temperature, with a maximum observed difference of 130 °C. However, its effect on peak temperature in the thickness direction was significant, yielding a maximum difference of approximately 1000 °C. The thermal influence of group studs was also investigated in this study. The results demonstrated that welding a new stud adjacent to existing ones introduced only minor disturbances to the established temperature field. The maximum peak temperature difference before and after welding was approximately 100 °C. Full article

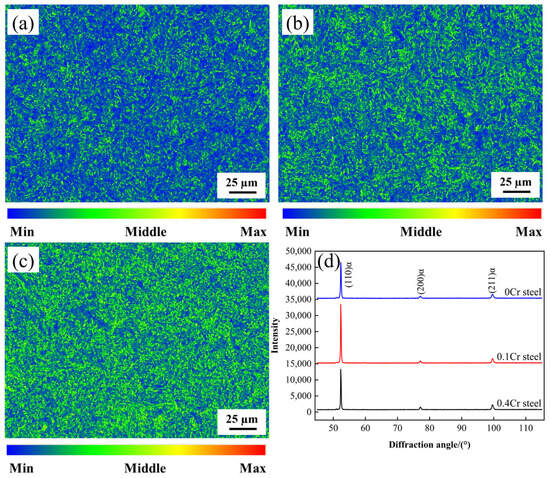

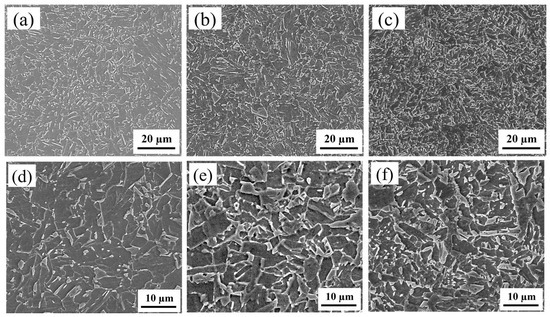

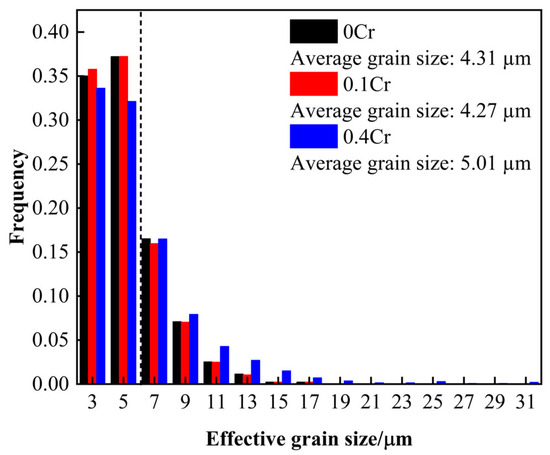

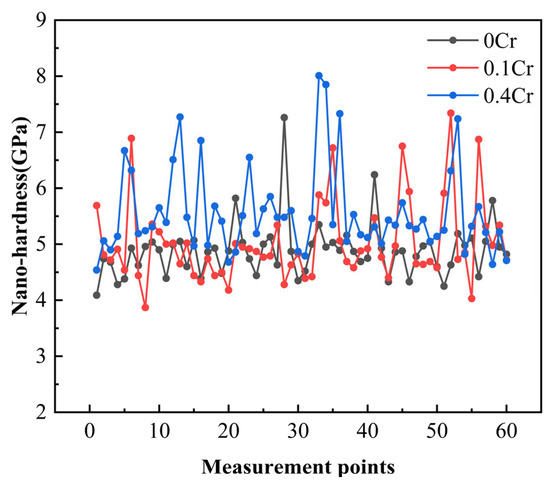

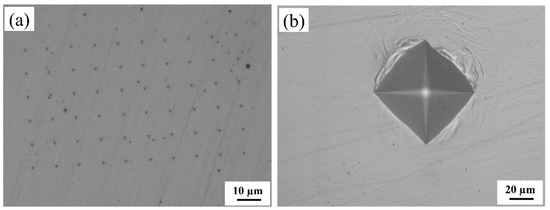

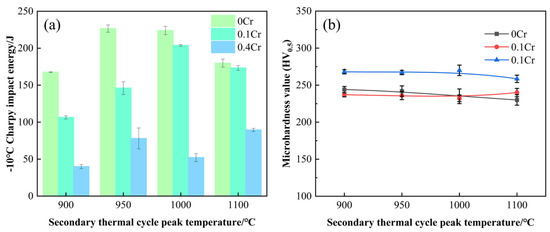

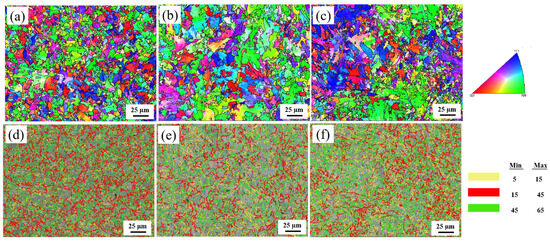

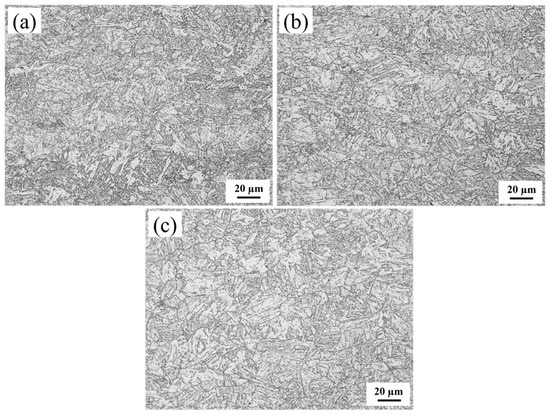

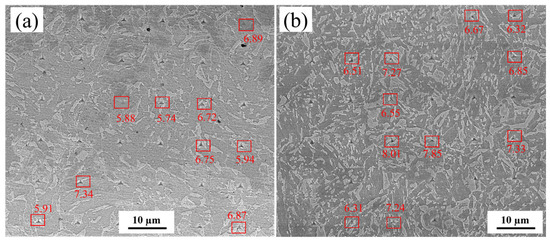

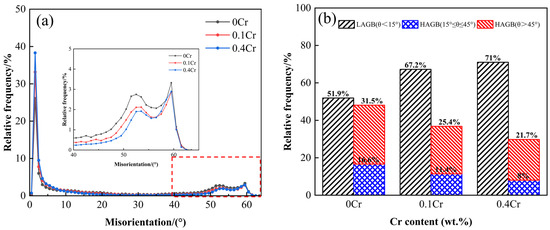

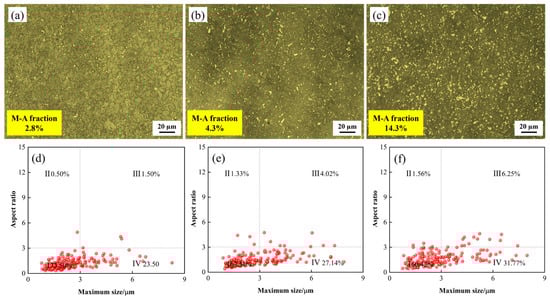

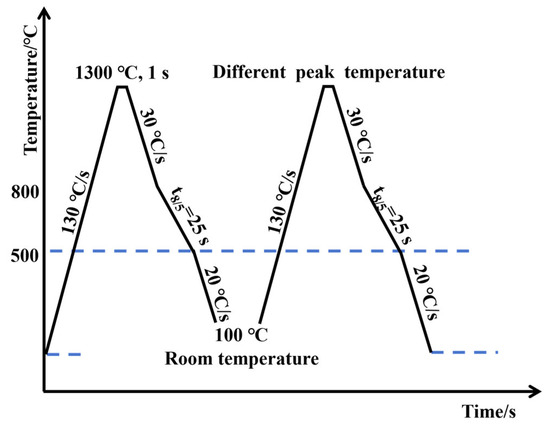

The existing studies mainly focus on the coarse-grained heat-affected zone and the inter-critically reheated coarse-grained heat-affected zone, while the studies on other sub-zones are relatively low. Meanwhile, the studies on the Cr element in steel mainly focus on the influence of the Cr element on strength and hardness; however, its mechanism is not very clear. Therefore, three kinds of X80 experimental steels with different Cr contents (0 wt.%, 0.13 wt.%, and 0.40 wt.%) were designed in this paper. The thermal simulation experiments on the supercritically coarse-grained heat-affected zone (SCCGHAZ) were carried out using a Gleeble-3500 thermal simulator. The effects of Cr on the microstructure and toughness of SCCGHAZ were systematically investigated through Charpy impact tests and microstructural characterization techniques. The results indicate that the microstructures of the three Cr-containing X80 experimental steels in SCCGHAZ are predominantly composed of fine granular bainite. However, impact tests at −10 °C show that the SCCGHAZs of 0 wt.% and 0.13 wt.% Cr steel exhibit higher impact energy, while that of the 0.40 wt.% Cr steel demonstrates significantly reduced energy impact (<100 J). Microstructural characterization reveals that the impact toughness of the SCCGHAZ in X80 steel is correlated with microstructural features, including effective grain size, grain boundary angles, and the volume fraction and shape of martensite–austenite (M-A) constituents. Among these factors, the volume fraction of M-A constituents substantially influences toughness. It was found that island-shaped M-A constituents inhibit crack propagation, whereas blocky M-A constituents impair toughness. Full article

The microstructure and mechanical properties of welded joints of API 5L X-52 steel plates cladded with AISI 316L-Si austenitic stainless steel were evaluated. The gas metal arc welding process with pulsed arc (GMAW-P) and controlled arc oscillation were used to join the bimetallic plates. After the root welding pass, buttering with an ERNiCrMo-3 filler wire was performed and multi-pass welding followed using an ER70S-6 electrode. The results obtained by optical and scanning electron microscopy indicated that the shielding atmosphere, welding parameters, and electric arc oscillation enabled good arc stability and proper molten metal transfer from the filler wire to the sidewalls of the joint during welding. Vickers microhardness (HV) and tensile tests were performed for correlating microstructural and mechanical properties. The mixture of ERNiCrMo-3 and ER70S-6 filler materials presented fine interlocked grains with a honeycomb network shape of the Ni–Fe mixture with Ni-rich grain boundaries and a cellular-dendritic and equiaxed solidification. Variation of microhardness at the weld metal (WM) in the middle zone of the bimetallic welded joints (BWJ) is associated with the manipulation of the welding parameters, promoting precipitation of carbides in the austenitic matrix and formation of martensite during solidification of the weld pool and cooling of the WM. The BWJ exhibited a mechanical strength of 380 and 520 MPa for the yield stress and ultimate tensile strength, respectively. These values are close to those of the as-received API 5L X-52 steel. Full article

In this study, deep cryogenic treatment (DCT) was applied to cold work tool steels with different vanadium weights (Vanadis 4 and Vanadis 10) for 12, 24 and 36 h, and the changes in their mechanical properties and microstructures were examined. Compression, tensile, hardness, SEM–EDS, carbide size, XRD and Rietveld analyses were performed to examine the mechanical and microstructural properties of the cryogenically treated samples. In this study, increasing the cryogenic treatment time and vanadium weight ratio did not have a positive effect on the hardness, and it was determined that the most positive result in terms of tensile and compressive strength was obtained in the V4_DCT-24 sample. The results of this study showed that the cryogenic treatment formed secondary carbides, vanadium carbide (VC) and chromium carbide (Cr₇C₃), in vanadium cold work tool steels and reduced the amount of retained austenite (γ-Fe), transformed into martensite (α’-Fe) structures. Additionally, cryogenically treated Vanadis steels are thought to be usable in the metal processing industry, especially for cutting tools and molds. Full article

The phase transformations of Crucible Particle Metallurgy (CPM) American Iron and Steel Institute (AISI) M4 steel were studied during heat treatments using a CALPHAD-based method. The calculated results were compared with experimental observations. The optimum austenitizing temperature was determined to be about 1120 °C using Thermo-Calc software (2024b). Air-cooling and quenching treatments led to the formation of martensite with a hardness of 63–65 Rockwell C (HRC). The annealing treatment promoted the formation of the equilibrium ferrite and carbide phases and resulted in a hardness of 24 HRC. These findings with regard to phases and microconstituents are in agreement with the predictions derived from a Thermo-Calc-calculated time–temperature–transformation diagram at 1120 °C. Additionally, the primary carbides, MC and M₆C, which formed prior to the heat treatment and had a minor influence on the quenched hardness. In contrast, the tempering process primarily led to the formation of fine secondary M₆C carbides, which hardened the tempered martensite to 57 HRC. The present work demonstrates the application of a CALPHAD-based methodology to the design and microstructural analysis of tool steels. Full article

Austenitic stainless steel inevitably undergoes deformation during application, and it is necessary to study the properties of deformed steel. This article investigates the evolution of microstructure, mechanical properties, and corrosion resistance of plastic-deformed 304 steel, the evolution law of structure and properties of steel is revealed. As a result, it was found that with the increase in deformation, the grains of 304 steel were destroyed, and many small subgrains were generated internally, resulting in a significant decrease in grain size. At the same time, the content of martensitic transformation in stainless steel increased significantly. The characteristics of the surface passivation film of stainless steel also change during the deformation process. Meanwhile, with the increase in deformation, the nanohardness and wear resistance of 304 steel gradually increase, but its corrosion resistance gradually decreases. Analysis suggests that microstructural changes such as grain size and phase transformation in stainless steel lead to an improvement in its mechanical properties, while the generation of defects during deformation and changes in surface passivation film characteristics result in a deterioration of its corrosion resistance. This study can provide a reference for the forming and performance optimization of metals and has high theoretical significance and practical value. Full article

This study investigates the influence of plastic deformation and temperature on the formation of mechanically induced martensite and the associated changes in hardness in AISI 304 austenitic stainless steel. Cold rolling was performed at three temperatures (20 °C, 0 °C, and −196 °C) and various degrees of deformation (10–70%). Microstructural changes, including the formation of ε and α′ martensite, were characterized using X-ray diffraction (XRD) and electron backscatter diffraction (EBSD). The results confirm that martensitic transformation proceeds via the γ → ε → α′ sequence, with transformation rates and martensite fractions increasing at lower temperatures and higher strains. The stacking fault energy of 25.9 mJ/m² favors this transformation pathway. Transformation rates of α′ martensite fractions significantly increased at lower temperatures and higher strains, 91.8% α′ martensite was observed at just 30% deformation at −196 °C. Hardness measurements revealed a strong correlation with martensite content: strain hardening dominated at lower deformations, while martensite formation became the primary hardening mechanism at higher deformations, especially at cryogenic temperatures. The highest hardness (551 HV) was observed in samples deformed to 70% at −196 °C. The findings provide insights into optimizing the mechanical properties of AISI 304 stainless steel through controlled deformation and temperature conditions. Full article

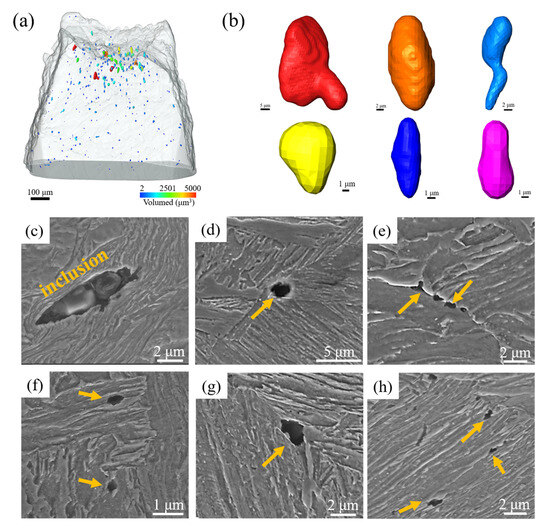

This study systematically explores the synergistic effects of direct aging treatment (480 °C for 6 h) combined with cryogenic treatment (−196 °C for 8 h) on the mechanical properties and microstructural evolution of 18Ni300 maraging steel fabricated via selective laser melting (SLM). Three conditions were investigated: as-built, direct aging (AT6), and direct aging plus cryogenic treatment (AT6C8). Microstructural characterization was performed using optical microscopy (OM), scanning electron microscopy (SEM), transmission electron microscopy (TEM), and X-ray diffraction (XRD), while the mechanical properties were evaluated via microhardness and tensile testing. The results show that the AT6C8 sample achieved the highest microhardness (635 HV_0.5) and tensile strength (2180 MPa), significantly exceeding the as-built (311 HV_0.5, 1182 MPa) and AT6 (580 HV_0.5, 2012 MPa) samples. Cryogenic treatment induced a notable phase transformation from retained austenite (γ phase) to martensite (α phase), with the peak relative intensity ratio ranging from 1.42 (AT6) to 1.58 (AT6C8) in the XRD results. TEM observations revealed that cryogenic treatment refined lath martensite from 0.75 μm (AT6) to 0.24 μm (AT6C8) and transformed reversed austenite into thin linear structures at the martensite boundaries. The combination of direct aging and cryogenic treatment effectively enhances the mechanical properties of SLM-fabricated 18Ni300 maraging steel through martensite transformation, microstructural refinement, and increased dislocation density. This approach addresses the challenge of balancing strength improvement and residual stress relaxation. Full article

The direct energy deposition (DED) metal additive manufacturing process enables rapid deposition and repair, providing an efficient approach to producing durable tool steel components. Here, 5 wt% Cr cold-work tool steel (Caldie) was developed by reducing carbon and chromium to suppress coarse carbide formation and by increasing molybdenum and vanadium to enhance dimensional stability. In this study, Caldie tool steel was fabricated via DED for the first time, and the effects of post-heat treatment on its hierarchical microstructure and mechanical properties were investigated and compared with those of wrought (reference) material. The as-built sample exhibited a mixed microstructure comprising lath martensite, retained austenite, polygonal ferrite, and carbide networks, which transformed into full martensite with fine carbides after heat treatment (DED-HT). The tensile strength of the DED Caldie material increased from 1340 MPa to 1949 MPa after heat treatment, demonstrating superior strength compared to other heat-treated, DED-processed high-carbon tool steels. Compared to DED-HT, the wrought material exhibited finer martensite, a more uniform Bain group distribution, and finer carbides, resulting in higher strength. This study provides insights into the effects of heat treatment on the hierarchical microstructure and mechanical behavior of Caldie tool steel manufactured by DED. Full article

Laser surface treatment (LST) has been employed on ductile cast iron (DCI) parts to obtain a good performance and a long service life. There is a need to understand the laser surface-treated microstructure and hardening ability of DCIs with different matrix structures to facilitate the scientific selection of DCI for specific applications. In this study, a Laserline-LDF3000 fiber-coupled semiconductor laser with a rectangular spot was used to harden the surface of ductile cast irons (DCIs) with different pearlite contents. The hardened surface layer having been solid state transformed (SST) and with or without being melted–solidified (MS) was obtained under various process parameters. The microstructure, hardened layer depth, hardness and hardening ability were analyzed and compared as functions of pearlite contents and laser processing parameters. The results show that the MS layers on the DCIs with varied pearlite contents have similar microstructures consisting of fine transformed ledeburite, martensite and residual austenite. The microstructure of the SST layer includes martensite, residual austenite and ferrite, whose contents vary with the pearlite content of DCI. In the pearlite DCI, martensite and residual austenite are found, while in ferrite DCI, there is only a small amount of martensite around the graphite nodule, with a large amount of unaltered ferrite remaining. There exists no significant difference in the hardness of MS layers among DCIs with different pearlite contents. Within the SST layer, the variation in the hardness value in the pearlite DCI is relatively small, but it gradually decreases along the depth in the ferrite DCI. In the transition region between the SST layer and the base metal (BM), there is a steep decrease in hardness in the pearlite DCI, but it decreases gently in the ferrite DCI. The depth of the hardened layer increases slightly with the increase in the pearlite content in the DCI; however, the effective hardened depth and the hardening ability increase significantly. When the pearlite content of DCI increases from 10% to 95%, its hardening ability increases by 1.1 times. Full article

This study presents a phenomenological model for predicting the thermomechanical behaviour of spring-type actuators made of shape memory alloys (SMAs). The model incorporates the kinetics of martensite–austenite phase transitions as a function of temperature and applied stress. The primary innovation is the inclusion of a scalar internal variable that represents the evolution of the phase transformation within a phenomenological macroscopic model. This approach enables the deformation–force–temperature behaviour of SMA-based spring elements under cyclic loading to be accurately described. A set of constitutive equations was derived to describe reversible and residual strains, along with transformation start and finish conditions. Model parameters were calibrated using experimental data from VSP-1 and TN-1K SMA springs that were subjected to thermal cycling. The validation results show a high correlation between the theoretical predictions and the experimental data, with deviation margins of less than 6.5%. The model was then applied to designing and analysing thermosensitive actuator mechanisms for temperature control systems. This yielded accurate deformation–force characteristics, demonstrating low inertia and high repeatability. This approach enables the efficient prediction and improvement of the performance of SMA-based spring elements in actuators, making it relevant for adaptive systems in marine and aerospace applications. Full article

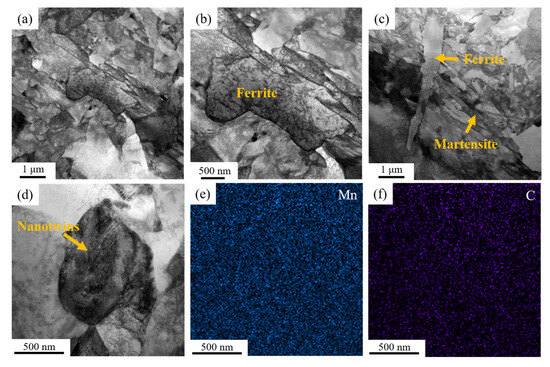

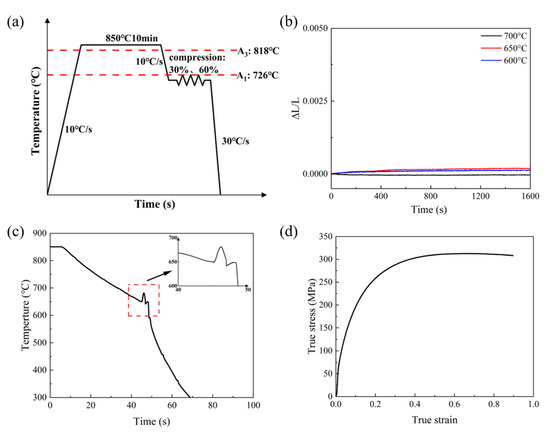

In this study, we have explored the thermomechanical processing on 0.1C3Mn steel to produce an ultrafine-grained (UFG) dual-phase (DP) microstructure. The composition was designed to allow a decrease in temperature for the warm deformation of austenite. It was found that the warm deformation of austenite induced a dramatic ferrite transformation, in contrast to the absence of the formation of ferrite in the well-annealed state. Compression by 60% at 650 °C resulted in the generation of a UFG-DP microstructure with a ferrite grain size of 1.4 μm and a ferrite volume fraction of 62%. The UFG-DP 0.1C3Mn steel presents a good combination of strength, ductility and fracture resistance, and the fracture strain of the UFG-DP is higher than the as-quenched low-carbon martensite. The high fracture strain of the UFG-DP could be attributed to delayed void nucleation and constrained void growth, as revealed by the quantitative X-ray tomography. Full article

To solve the problem of inadequate plasticity of traditional processing routes in improving the plasticity of novel Co-saving 18Ni (300) maraging steel, a cold deformation-cycle solution treatment process was developed. Through systematic characterization and tensile property testing, the study focuses on elucidating the impact of the number of solution treatments on the microstructure and mechanical behavior. The results showed that with a 30% cold deformation, three times of solution treatment at 860 °C for 10 min refined the original austenite grains (equivalent circle radius: 3.3 μm) and martensite structure (length and width: 7 μm and 1.3 μm, respectively) to the utmost extent. The grains became uniformly equiaxed, and the texture was eliminated, and a moderate content (4.5%) of retained austenite was formed. At this time, the material achieves the best match between strength (tensile strength of 1240 MPa) and plasticity (elongation of 9.93%), which are increased by 15.3% and 94.3%, respectively, compared with the traditional process. Mechanistic analysis revealed that grain refinement and uniform equiaxialization were the primary drivers for enhancing strength and plasticity. This study has demonstrated that the cold deformation-cyclic solution treatment process is an effective methodology for tailoring the microstructure and mechanical properties of maraging steel. Full article

In order to reduce the density and alloy cost of austenitic stainless steel, this study designed Fe-0.35C-12Cr-5Ni-(0,2,4)Al-(6,10)Mn (wt.%) stainless steels with different Al and Mn contents. The effects of Al and Mn contents on the microstructure, deformation behavior, and mechanical properties were investigated using microstructural analyses, quasi-static tensile tests, and Charpy impact tests. The results showed that an increase in Al content led to the formation of austeniteferrite duplex microstructure, while an increase in Mn content reduced the ferrite fraction. In the Al-free steel, the deformation mechanism was deformation-induced α′-martensitic transformation. When the Al content increased to 2 wt.%, the deformation mechanism was primarily mechanical twinning due to the increased stacking fault energy caused by Al. This resulted in a lower tensile strength but better toughness. When the Al content was further increased to 4 wt.%, the proportion of mechanical twinning decreased. The presence of ferrite led to cleavage at the fracture surface. The cleavage fracture explained the low elongation and toughness of duplex stainless steels. However, the elongation and toughness were enhanced with the increase in Mn content. Full article
