Search Results (28)

Iridescent iron oxides known as rainbow hematite and turgite are found in a variety of localities worldwide and display a variety of beautiful interference colors. Usually, there is a thin layer of nanocrystals containing aluminum and phosphorous coats, such as with hematite, although one example of aluminum with arsenic is presented. Infrared spectra of samples with thicker layers of these nanocrystals show absorption in the phosphate region. The thin films that range from tens to hundreds of nanometers thick are believed to cause the color. High-resolution secondary electron imaging shows that the thin film consists of nanocrystals arranged in three directions (120° apart). The rod-shaped crystals have a width from 5 to 35 nm and display the same morphology on all samples, irrespective of if they contain phosphorus or arsenic. The minute crystals have failed to produce either an X-ray powder diffraction pattern, an electron back-scatter diffraction pattern in SEM, or an electron diffraction ring pattern under TEM. Raman spectra are dominated by hematite features. Infrared ATR spectra of the bulk material show mostly hematite with occasional minor amounts of goethite and phosphate. Full article

The crystalline morphology and glaze color of Jian Kiln oil-spot glaze porcelain exhibit artistic beauty, making it one of the typical representatives of iron-based crystallized black porcelain from the Song Dynasty in China. This study sampled a series of specimens from key temperature points during simulation experiments, employing rapid air quenching to preserve the high-temperature state, capturing the formation process of oil-spot glaze crystals in Jian kiln ceramics. Key samples were subjected to microscopic structure and phase analysis using scanning electron microscopy (SEM), laser Raman spectroscopy (LRS), and X-ray photoelectron spectroscopy (XPS), revealing the formation mechanism of oil-spot glaze crystals in Jian kiln ceramics. The results indicate that the bubbles generated from the decomposition of iron oxide at high temperatures facilitate the migration and enrichment of iron-rich particles towards the glaze surface, laying a crucial material foundation for the subsequent crystallization process. The high-temperature reducing atmosphere accelerates the decomposition reaction of iron oxide, altering the concentration of Fe²⁺ in the glaze, the viscosity of the melt, and the surface tension, all of which are critical conditions that promote the formation of oil-spot glaze crystals. During the cooling phase, Fe₃O₄ nanocrystals oxidize into ε-Fe₂O₃ crystals, with external iron sources migrating inward to support ε-Fe₂O₃ crystal growth. This process gradually leads to the formation of micrometer-scale, leaf-shaped ε-Fe₂O₃ crystals that fully occupy the crystalline spots. The coloration of crystalline spots is closely tied to the size of the crystals. Thus, by adjusting the cooling regime, it is possible to create iron-based crystallization glazes with innovative color effects. Furthermore, this study offers significant insights for understanding the crystallization mechanisms of other ancient Chinese high-temperature iron-based crystallization glazes. Full article

Grazing incidence small angle X-ray scattering (GISAXS) was used to study the structure and interparticle spacing of monolayers of organic ligand-stabilized iron oxide nanocrystals floating at the air–water interface on a Langmuir trough, and after transfer to a solid support via the Langmuir–Blodgett technique. GISAXS measurements of the nanocrystal arrangement at the air–water interface showed that lateral compression decreased the interparticle spacing of continuous films. GISAXS also revealed that Langmuir–Blodgett transfer of the nanocrystal layers to a silicon substrate led to a stretching of the film, with a significant increase in interparticle spacing. Full article

This research developed a low-cost nano-bio-adsorbent using sugar cane bagasse-based nanocrystals incorporated with magnetic iron oxide nanoparticles (CNCs-MIONPs). The adsorbent demonstrated excellent Cr(VI) adsorption efficiency at an optimal pH of 2.0, an initial concentration of 0.5 mg/L, and a contact time of 90 min with a shaking rate of 250 rpm, achieving a removal efficiency of 91.78%. The increased surface area, smaller particle size, and the nanocomposite’s active sites facilitated chromium species’ immobilisation, enhancing chromate ion removal. The adsorption process involved chemisorption, where valence forces such as electron sharing or exchange occur between the adsorbate and sorbent. The modified CNCs-MIONPs showed improved sorption efficiency, suggesting potential applications in water treatment plants, both for domestic and industrial wastewater. Full article

Superparamagnetic iron oxide (SPIO) nanocrystals have been extensively studied as theranostic nanoparticles to increase transverse (T₂) relaxivity and enhance contrast in magnetic resonance imaging (MRI). To improve the blood circulation time and enhance the diagnostic sensitivity of MRI contrast agents, we developed an amphiphilic copolymer, PCPZL, to effectively encapsulate SPIO nanocrystals. PCPZL was synthesized by crosslinking a polyethylene glycol (PEG)-based homobifunctional linker with a hydrophobic star-like poly(ε-benzyloxycarbonyl-L-lysine) segment. Consequently, it could self-assemble into shell-crosslinked micelles with enhanced colloidal stability in bloodstream circulation. Notably, PCPZL could effectively load SPIO nanocrystals with a high loading capacity of 66.0 ± 0.9%, forming SPIO nanoclusters with a diameter of approximately 100 nm, a high cluster density, and an impressive T₂ relaxivity value 5.5 times higher than that of Resovist^®. In vivo MRI measurements highlighted the rapid accumulation and contrast effects of SPIO-loaded PCPZL micelles in the livers of both healthy mice and nude mice with an orthotopic hepatocellular carcinoma tumor model. Moreover, the magnetic micelles remarkably enhanced the relative MRI signal difference between the tumor and normal liver tissues. Overall, our findings demonstrate that PCPZL significantly improves the stability and magnetic properties of SPIO nanocrystals, making SPIO-loaded PCPZL micelles promising MRI contrast agents for diagnosing liver diseases and cancers. Full article

In this report, the synergetic sonoelectrochemical method was utilized to produce magnetite nanoparticles was doped with MnO₂ with the assistance of ultrasound to form nanoarchitectonic magnetic crystals with a mesoporous magnetite @ manganese dioxide (m-Fe₃O₄@MnO₂) hybrid nanostructure. The hybrid nanocomposite was rapidly produced based on the nucleation and growth of pure iron-oxide nanocrystals in the electrochemical system. The nanocomposite was pure, highly amorphous, and mesoporous in nature; the magnetite was spherical in shape, with an average diameter of 45 ± 10 nm and a MnO₂-plane length of 420 ± 30 nm. The stability of the pure m-Fe₃O₄ was enhanced from 89.61 to 94.04% with negligible weight loss after adding manganese dioxide and the stable formation of the hybrid nanostructure. Based on the superior results of the material, it was utilized as an anode material in Li-ion batteries. The m-Fe₃O₄@MnO₂ hybrid nanostructure had a highly active surface area, which enhanced the interfacial interaction between the Li-ion and the metal surface; it delivered 1513 mAh g⁻¹ and 1290 mAh g⁻¹ as the first specific discharge and charge capacity, respectively, with 85% coulombic efficiency, and it showed an excellent cyclic reversibility of 660 mAh g⁻¹ with a coulombic efficiency of almost 99% at current density of 1.0 A g⁻¹. Full article

Phosphates in high concentrations are harmful pollutants for the environment, and new and cheap solutions are currently needed for phosphate removal from polluted liquid media. Iron oxide nanoparticles show a promising capacity for removing phosphates from polluted media and can be easily separated from polluted media under an external magnetic field. However, they have to display a high surface area allowing high removal pollutant capacity while preserving their magnetic properties. In that context, the reproducible synthesis of magnetic iron oxide raspberry-shaped nanostructures (RSNs) by a modified polyol solvothermal method has been optimized, and the conditions to dope the latter with cobalt, zinc, and aluminum to improve the phosphate adsorption have been determined. These RSNs consist of oriented aggregates of iron oxide nanocrystals, providing a very high saturation magnetization and a superparamagnetic behavior that favor colloidal stability. Finally, the adsorption of phosphates as a function of pH, time, and phosphate concentration has been studied. The undoped and especially aluminum-doped RSNs were demonstrated to be very effective phosphate adsorbents, and they can be extracted from the media by applying a magnet. Full article

We propose here a novel green synthesis route of core-shell magnetic nanomaterials based on the polyol method, which uses bio-based substances (BBS) derived from biowaste, as stabilizer and directing agent. First, we studied the effect of BBS concentration on the size, morphology, and composition of magnetic iron oxides nanoparticles obtained in the presence of BBS via the polyol synthesis method (MBBS). Then, as a proof of concept, we further coated MBBS with mesoporous silica (MBBS@mSiO₂) or titanium dioxide (MBBS@TiO₂) to obtain magnetic nanostructured core-shell materials. All the materials were deeply characterized with diverse physicochemical techniques. Results showed that both the size of the nanocrystals and their aggregation strongly depend on the BBS concentration used in the synthesis: the higher the concentration of BBS, the smaller the sizes of the iron oxide nanoparticles. On the other hand, the as-prepared magnetic core-shell nanomaterials were applied with good performance in different systems. In particular, MBBS@SiO₂ showed to be an excellent nanocarrier of ibuprofen and successful adsorbent of methylene blue (MB) from aqueous solution. MBBS@TiO₂ was capable of degrading MB with the same efficiency of pristine TiO₂. These excellent results encourage the use of bio-based substances in different types of synthesis methods since they could reduce the fabrication costs and the environmental impact. Full article

This work reports on the structural modification of cellulosic materials with magnetic iron oxide nanoparticles through the co-precipitation method. Cellulose is one of the most abundant natural polymers with chemical variability brought about by the presence of several hydroxyl groups, allowing its surface modifications through the insertion of several chemical groups to impact its cellulosic characteristics. Thus, the objective of this study was to synthesize magnetic iron oxide nanoparticles (MNPs) through co-precipitation, followed by in situ incorporation of MNPs onto chemically purified cellulose (CPC) and cellulose nanocrystals (CNC). The composites were characterized for thermal properties using TGA, molecular structure using FTIR, surface morphology using SEM, elemental composition using electron dispersion spectroscopy (EDS), and crystallinity using XRD. The prepared composites presented improved crystal, thermal, and surface properties. CNC-MNPs and CPC-MNPs bore particle sizes of 26.94 and 37.72 nm, respectively, whereas MNPs’ particle size was 10.3 nm. EDS analysis indicated that Fe, C, and Cl were the main elements present in the composites. Surface modification of the cellulosic materials presented excellent sorption surface properties and can be used in several industrial processes, such as wastewater purification, air filtration, and various environmental remediation processes. Full article

Heterostructured magnetic nanoparticles show great potential for numerous applications in biomedicine due to their ability to express multiple functionalities in a single structure. Magnetic properties are generally determined by the morphological characteristics of nanoparticles, such as the size/shape, and composition of the nanocrystals. These in turn are highly dependent on the synthetic conditions applied. Additionally, incorporation of a non-magnetic heterometal influences the final magnetic behavior. Therefore, construction of multifunctional hybrid nanoparticles with preserved magnetic properties represents a certain nanotechnological challenge. Here, we focus on palladium/iron oxide nanoparticles designed for combined brachytherapy, the internal form of radiotherapy, and MRI-guided hyperthermia of tumors. The choice of palladium forming the nanoparticle core is envisioned for the eventual radiolabeling with ¹⁰³Pd to enable the combination of hyperthermia with brachytherapy, the latter being beyond the scope of the present study. At this stage, we investigated the synthetic mechanisms and their effects on the final magnetic properties of the hybrid nanoparticles. Thermal decomposition was applied for the synthesis of Pd/Fe-oxide nanoparticles via both, one-pot and seed-mediated processes. The latter method was found to provide better control over morphology of the nanoparticles and was therefore examined closely by varying reaction conditions. This resulted in several batches of Pd/Fe-oxide nanoparticles, whose magnetic properties were evaluated, revealing the most relevant synthetic parameters leading to promising performance in hyperthermia and MRI. Full article

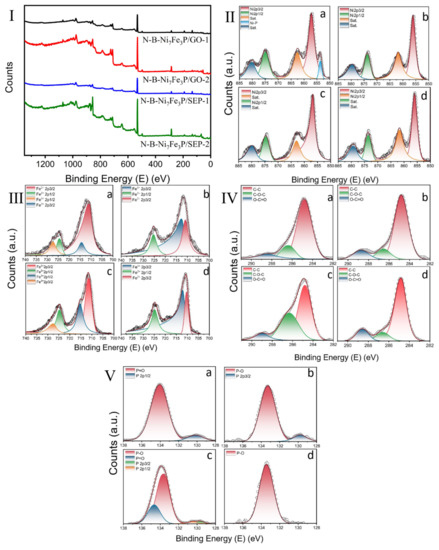

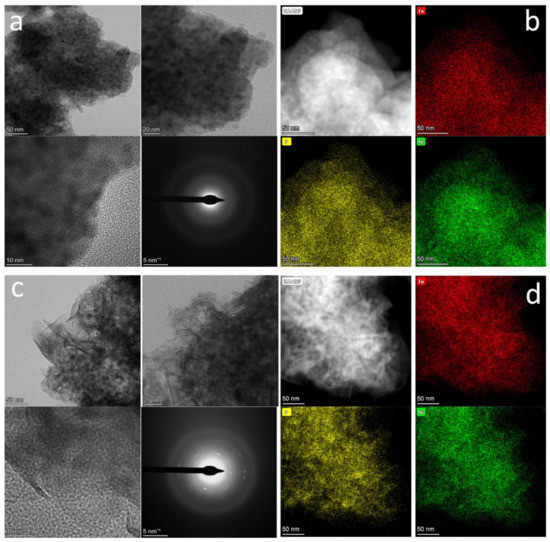

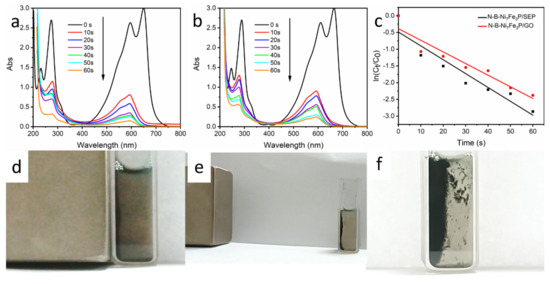

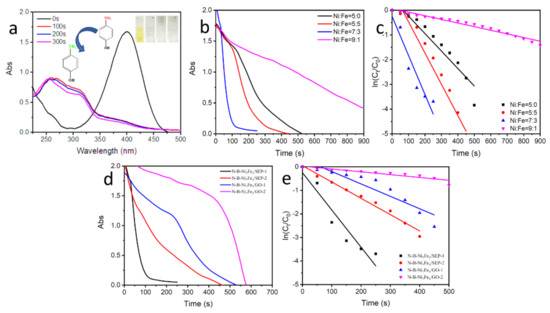

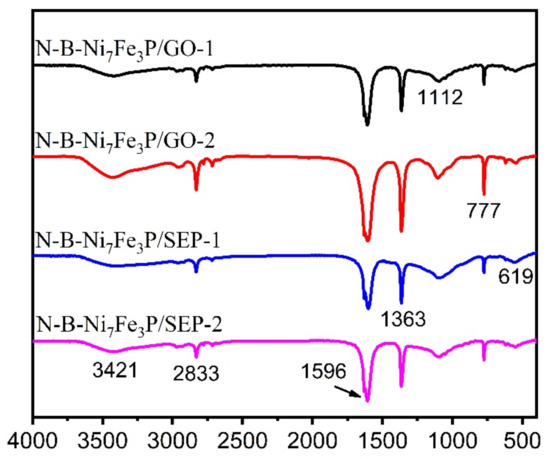

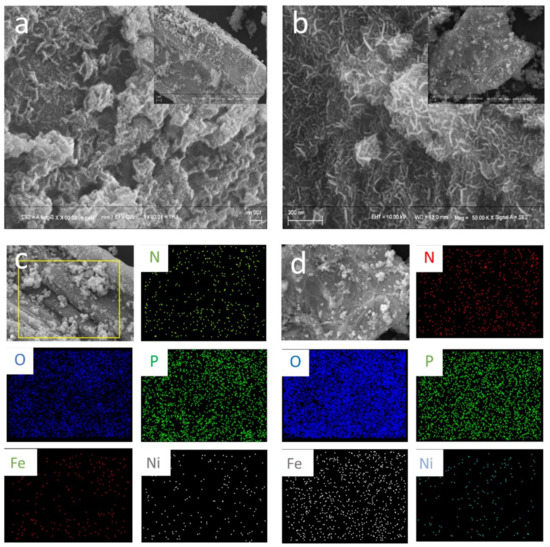

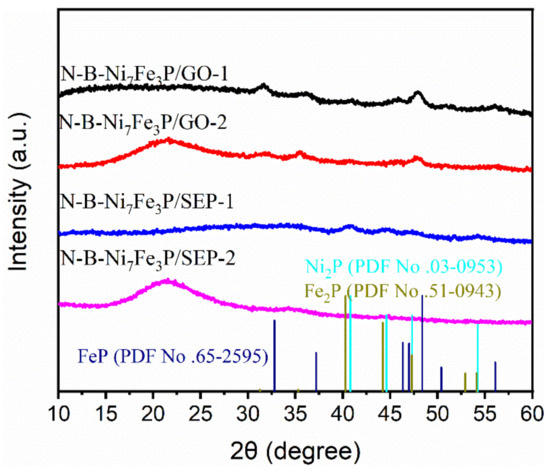

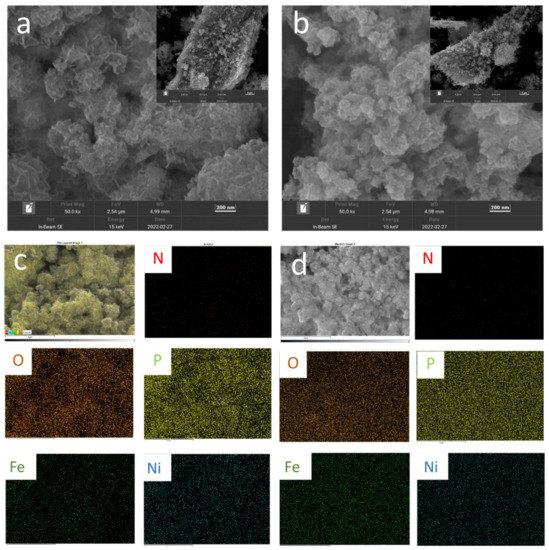

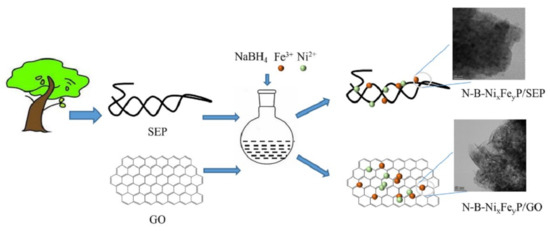

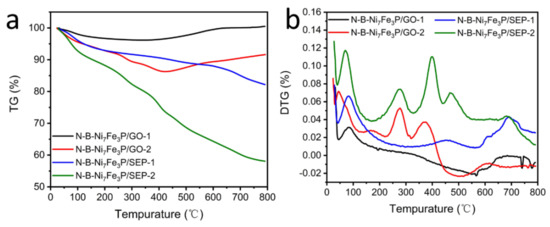

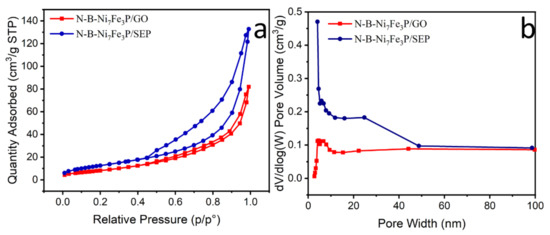

The search for a simple and effective method to remove organic dyes and color intermediates that threaten human safety from the water environment is urgent. Herein, we report a simple method for constructing iron/nickel phosphide nanocrystals anchored on N-B-doped carbon-based composites, using steam-exploded poplar (SEP) and graphene oxide (GO) as a carrier. The stability and catalytic activity of N-B-Ni_xFe_yP/SEP and GO were achieved by thermal conversion in a N₂ atmosphere and modifying the Fe/Ni ratio in gel precursors. N-B-Ni₇Fe₃P/SEP was employed for the catalytic hydrogenation of 4-nitrophenol (4-NP) and methylene blue (MB), using sodium borohydride in aqueous media at room temperature. This showed much better catalytic performances in terms of reaction rate constant (0.016 S⁻¹ and 0.041 S⁻¹, respectively) and the activity factor, K (1.6 S⁻¹·g⁻¹ and 8.2 S⁻¹·g⁻¹, respectively) compared to the GO carrier (0.0053 S⁻¹ and 0.035 S⁻¹ for 4-NP and MB, respectively). The strong interaction between the carrier’s morphology and structure, and the vertically grown bimetallic phosphide nanoclusters on its surface, enhances charge transfer, electron transfer kinetics at the interface and Ni-Fe phosphide dispersion on the nanoclusters, and prevents dissolution of the nanoparticles during catalysis, thereby improving stability and achieving catalysis durability. These findings provide a green and simple route to efficient catalyst preparation and provide guidance for the rational selection of catalyst carriers. Full article

Theranostic radioisotope pairs such as Gallium-68 (⁶⁸Ga) for Positron Emission Tomography (PET) and Lutetium-177 (¹⁷⁷Lu) for radioisotopic therapy, in conjunction with nanoparticles (NPs), are an emerging field in the treatment of cancer. The present work aims to demonstrate the ability of condensed colloidal nanocrystal clusters (co-CNCs) comprised of iron oxide nanoparticles, coated with alginic acid (MA) and stabilized by a layer of polyethylene glycol (MAPEG) to be directly radiolabeled with ⁶⁸Ga and its therapeutic analog ¹⁷⁷Lu. ⁶⁸Ga/¹⁷⁷Lu- MA and MAPEG were investigated for their in vitro stability. The biocompatibility of the non-radiolabeled nanoparticles, as well as the cytotoxicity of MA, MAPEG, and [¹⁷⁷Lu]Lu-MAPEG were assessed on 4T1 cells. Finally, the ex vivo biodistribution of the ⁶⁸Ga-labeled NPs as well as [¹⁷⁷Lu]Lu-MAPEG was investigated in normal mice. Radiolabeling with both radioisotopes took place via a simple and direct labelling method without further purification. Hemocompatibility was verified for both NPs, while MTT studies demonstrated the non-cytotoxic profile of the nanocarriers and the dose-dependent toxicity for [¹⁷⁷Lu]Lu-MAPEG. The radiolabeled nanoparticles mainly accumulated in RES organs. Based on our preliminary results, we conclude that MAPEG could be further investigated as a theranostic agent for PET diagnosis and therapy of cancer. Full article

Inorganic nanocrystals, such as gold, iron oxide and semiconductor quantum dots, offer promising prospects for cancer diagnostics, imaging and therapy, due to their specific plasmonic, magnetic or fluorescent properties. The organic coating, or surface ligands, of these nanoparticles ensures their colloidal stability in complex biological fluids and enables their functionalization with targeting functions. It also controls the interactions of the nanoparticle with biomolecules in their environment. It therefore plays a crucial role in determining nanoparticle biodistribution and, ultimately, the imaging or therapeutic efficiency. This review summarizes the various strategies used to develop optimal surface chemistries for the in vivo preclinical and clinical application of inorganic nanocrystals. It discusses the current understanding of the influence of the nanoparticle surface chemistry on its colloidal stability, interaction with proteins, biodistribution and tumor uptake, and the requirements to develop an optimal surface chemistry. Full article

Many magnetotactic bacteria (MTB) biomineralize magnetite crystals that nucleate and grow inside intracellular membranous vesicles originating from invaginations of the cytoplasmic membrane. The crystals together with their surrounding membranes are referred to as magnetosomes. Magnetosome magnetite crystals nucleate and grow using iron transported inside the vesicle by specific proteins. Here, we tackle the question of the organization of magnetosomes, which are always described as constituted by linear chains of nanocrystals. In addition, it is commonly accepted that the iron oxide nanocrystals are in the magnetite-based phase. We show, in the case of a wild species of coccus-type bacterium, that there is a double organization of the magnetosomes, relatively perpendicular to each other, and that the nanocrystals are in fact maghemite. These findings were obtained, respectively, by using electron tomography of whole mounts of cells directly from the environment and high-resolution transmission electron microscopy and diffraction. Structure simulations were performed with the MacTempas software. This study opens new perspectives on the diversity of phenotypes within MTBs and allows to envisage other mechanisms of nucleation and formation of biogenic iron oxide crystals. Full article

Solution-processed iron selenide nanocrystals (NCs) have recently attracted considerable attention in electrocatalysis water splitting. Nevertheless, a primary challenge in current iron-based NCs chemical synthesis is controlling phase purities between each chalcogen (monochalcogenide, dichalcogenides, and oxides), which requires a comprehensive understanding of the reaction mechanisms at the early stages of nucleation. Herein, we investigate the fundamental steps in transforming molecular organoiron and organoselenium precursors to iron selenides NCs with the view of developing universal synthesis protocols for phase pure metal selenium and metal oxides NCs. The main intermediate species and volatile by-products are identified by high-resolution electron microscopy and Nuclear Magnetic Resonance (NMR) spectroscopy (¹H, ¹³C, and ³¹P). Experimental evidence suggests that the phase determining factor is the coordinating reactivity difference between olefins (1-octadecene, oleylamine), tributylphosphine and trioctylphosphine associated with their corresponding Se bond cleavage. This work proposes organoselenium interconversion reaction mechanisms during iron selenides synthesis, offering a universal synthetic strategy for other electrocatalytically or photocatalytically active layered metal selenides materials. Full article
