Search Results (67)

This article deals with the effect of Kr¹⁵⁺ ion irradiation on the structure and properties of partially stabilized zirconium dioxide (ZrO₂ + 3 mol. % Y₂O₃) ceramics. Ion irradiation is used to simulate radiation damage typical of operating conditions in nuclear reactors and space technology. It is shown that with an increase in the irradiation fluence, point defects are formed, dislocations accumulate, and the crystal lattice parameters change. At high fluences (>10¹³ ions/cm²), a phase transition of the monoclinic (m-ZrO₂) phase to the tetragonal (t-ZrO₂) and cubic (c-ZrO₂) modifications is observed, which is accompanied by a decrease in the crystallite size and an increase in internal stresses. Changes in the mechanical properties of the material were also observed: at moderate irradiation fluences, strengthening is observed due to the formation of dislocation structures, whereas at high fluences (>10¹⁴ ions/cm²), a decrease in strength and a potential amorphization of the structure begins. The change in the phase composition was confirmed by X-ray phase analysis and Raman spectroscopy. The results obtained allow a deeper understanding of the mechanisms of radiation-induced phase transformations in stabilized ZrO₂ and can be used in the development of ceramic materials with increased radiation resistance. Full article

The impact of 230-MeV Xe¹³² ion irradiation on the structural, optical, and luminescent properties of YAG:Ce single crystals is investigated over a fluence range of 10¹¹–10¹⁴ ions/cm². Optical absorption; cathodo-, X-ray, and photoluminescence; and X-ray diffraction are employed to analyze radiation-induced changes. Irradiation leads to the formation of Frenkel (F, F⁺) and antisite defects and attenuates Ce³⁺ emission (via enhanced nonradiative processes and Ce³⁺ → Ce⁴⁺ recharging). A redistribution between the fast and slow components of the Ce³⁺-emission is considered. Excitation spectra show the suppression of exciton-related emission bands, as well as a shift of the excitation onset due to increased lattice disorder. XRD data confirm partial amorphization and a high level of local lattice disordering, both increasing with irradiation fluence. These findings provide insight into radiation-induced processes in YAG:Ce, which are relevant for its application in radiation–hard scintillation detectors. Full article

Body-centered cubic (BCC) refractory high-entropy alloys (RHEAs) demonstrate significant potential as nuclear structural materials due to their exceptional mechanical properties and radiation tolerance. While Zr-containing RHEAs often develop multiphase structures through Zr-rich phase precipitation to enhance high-temperature mechanical performance, their irradiation response mechanisms remain poorly understood. This study investigated the microstructure evolution and radiation damage behavior in equiatomic MoNbTiVZr RHEA under Au-ion irradiation at fluences of 2 × 10¹⁵, 4 × 10¹⁵, and 1 × 10¹⁶ ions/cm². Microstructural characterization revealed that the annealed alloy primarily consisted of near-equiatomic BCC1 phase, Zr-rich BCC2 phase, (Mo,V)Zr Laves phase, and ordered Zr₂C phase. Post-irradiation analysis showed distinct defect evolution patterns: the BCC1 phase developed fine dislocation loops, while the Zr-rich BCC2 and Zr₂C phases exhibited dislocation clusters and dense dislocation networks, respectively. BCC1 phase exhibited the most pronounced irradiation hardening corresponding to its fine, dispersed dislocation loop characteristics. Phase separation induced by Zr precipitation reduced chemical complexity, accelerating irradiation defect evolution. These findings demonstrated that Zr-rich phase precipitation detrimentally impacted the radiation resistance of BCC-structured RHEAs, suggesting that single-phase stability should be prioritized in nuclear material design. Full article

This study presents a comprehensive analysis of the modifications in electronic structure and magnetism resulting from electronic excitation in pulsed laser-deposited Ba_0.7Sr_0.3Fe_xTi_(1−x)O₃ thin films, specifically for compositions with x = 0, 0.1, and 0.2. To investigate the effects of electronic energy loss (S_e) within the lattice, we performed 120 MeV Ag ion irradiation at varying fluences (1 × 10¹² ions/cm² and 5 × 10¹² ions/cm²) and compared the results with those of the pristine sample. The S_e induces lattice damage by generating ion tracks along its trajectory, which subsequently leads to a reduction in peak intensity observed in X-ray diffraction patterns. Atomic force microscopy micrographs indicate that irradiation resulted in a decrease in average grain height, accompanied by a more homogeneous grain distribution. X-ray photoelectron spectroscopy reveals a significant increase in oxygen vacancy (V_O) concentration as ion fluence increases. Ferromagnetism exhibits progressive deterioration with rising irradiation fluence. Due to the high S_e and multiple ion impact processes, cation interstitial defects are highly likely, which may overshadow the influence of V_O in inducing ferromagnetism, thereby contributing to an overall decline in magnetic properties. Furthermore, the elevated S_e potentially disrupts bound magnetic polarons, leading to a degradation of long-range ferromagnetism. Collectively, this investigation elucidates the electronic excitation-induced modulation of ferromagnetism, employing Fe impurity incorporation and irradiation techniques for precise defect engineering. Full article

The dependence of polyethylene deformation on applied mechanical stress under varying load conditions and radiation doses was investigated experimentally. Obtained results reveal significant alterations in the mechanical properties of polyethylene following irradiation with krypton ions at doses of 1.5 × 10⁶, 1.6 × 10⁷, 5.0 × 10⁸, and 1.0 × 10⁹ ions/s. The stress–strain curves obtained for both the unirradiated and irradiated samples are numerically modeled using frameworks developed by the authors. The findings indicate that irradiation with krypton ions at an energy level of 147 MeV exerts a pronounced impact on the deformation and strength characteristics of polyethylene. Notably, increasing the radiation dose to 10⁹ particles/s results in a 2.5-fold increase in the rate of mechanical stress. Furthermore, the degree of deformation distortions in molecular chains induced by high-energy Kr¹⁵⁺ ion irradiation has been quantified as a function of irradiation fluence. Increasing the irradiation fluence from 10⁶ ion/cm² to 10⁷ ion/cm² causes only minor variations in deformation distortions, which are attributed to the localized isolation of latent tracks and associated changes in electron density. A comparative analysis of the mechanical behavior of irradiated polymer materials further revealed differences between ion and electron irradiation effects. It was observed that Teflon films lose their plasticity after irradiation, whereas polyethylene films exhibit enhanced elongation and tearing performance at higher strain values relative to their non-irradiated counterparts. This behavior was consistently observed for films irradiated with both ions and electrons. However, an important distinction was identified: high-energy electron irradiation degrades the strength of polyethylene, whereas krypton ion irradiation at 147 MeV does not result in strength reduction. Full article

In the present work, we present the process of preparing CdS nanostructures based on templating synthesis using chemical deposition (CD) on a SiO₂/Si substrate. A 0.7 μm thick silicon dioxide film was thermally prepared on the surface of an n-type conduction Si wafer, followed by the creation of latent ion tracks on the film by irradiating them with swift heavy Xe ions with an energy of 231 MeV and a fluence of 10⁸ cm⁻². As a result of etching in hydrofluoric acid solution (4%), pores in the form of truncated cones with different diameters were formed. The filling of the nanopores with cadmium sulfide was carried out via templated synthesis using CD methods on a SiO_2 nanopores/Si substrate for 20–40 min. After CdS synthesis, the surfaces of nanoporous SiO_2 nanopores/Si were examined using a scanning electron microscope to determine the pore sizes and the degree of pore filling. The crystal structure of the filled silica nanopores was investigated using X-ray diffraction, which showed CdS nanocrystals with an orthorhombic structure with symmetry group 59 Pmmn observed at 2θ angles of 61. 48° and 69.25°. Photoluminescence spectra were recorded at room temperature in the spectral range of 300–800 nm at an excitation wavelength of 240 nm, where emission bands centered around 2.53 eV, 2.45 eV, and 2.37 eV were detected. The study of the CVCs showed that, with increasing forward bias voltage, there was a significant increase in the forward current in the samples with a high degree of occupancy of CdS nanoparticles, which showed the one-way electronic conductivity of CdS/SiO₂/Si nanostructures. For the first time, CdS nanostructures with orthorhombic crystal structure were obtained using track templating synthesis, and the density of electronic states was modeled using quantum–chemical calculations. Comparative analysis of experimental and calculated data of nanostructure parameters showed good agreement and are confirmed by the results of other authors. Full article

This work studied the effect of sequential irradiation by krypton and helium ions at room temperature on the composition and structure of CoCrFeNi and CoCrFeMnNi high-entropy alloys (HEAs). Irradiation of the HEAs by 280 keV Kr¹⁴⁺ ions up to a fluence of 5 × 10¹⁵ cm^–2 and 40 keV He²⁺ ions up to a fluence of 2 × 10¹⁷ cm^–2 did not alter their elemental distribution and constituent phases. Blisters formed on the nickel surface after sequential irradiation, where large blisters had an average diameter of 3.8 μm. The lattice parameter of the (Co, Cr, Fe and Ni) and (Co, Cr, Fe, Mn and Ni) solid solutions increased by 0.17% and 0.37% after sequential irradiation, respectively. Irradiation by Kr ions led to a decrease in tensile macrostresses in the HEAs in the region of krypton ion implantation (Region I) and the formation of compressive macrostresses in the region behind the peak of implanted krypton (Region II). Sequential irradiation formed large compressive stresses in Ni and HEAs equal to −131.5 MPa, −300 MPa and −613.5 MPa in Ni, CoCrFeNi and CoCrFeMnNi, respectively, in the Region II. Irradiation by krypton ions decreased the dislocation density by 1.6–2.3 times, and irradiation with helium ions increased it by 11–15 times relative to unirradiated samples for CoCrFeNi and CoCrFeMnNi, respectively. Sequentially irradiated CoCrFeMnNi HEA had higher macrostresses and dislocation density than CoCrFeNi. Full article

Time-dependent deformation in nuclear graphite is influenced by the creation and migration of radiation-induced defects in the reactor environment. This study investigates the role of pre-existing defects such as point defect clusters and Mrozowski cracks in nuclear graphite IG-110. Separate specimens were irradiated with a 2.8 MeV Au²⁺ beam with a fluence of 4.38 × 10¹⁴ cm⁻² and an 8 MeV C²⁺ beam with a fluence of 1.24 × 10¹⁶ cm⁻². Microscopic specimens were either mechanically loaded inside a transmission electron microscope (TEM) or subjected to ex situ indentation-based creep loading. In situ TEM tests showed significant plasticity in regions highly localized around the Mrozowski cracks, resembling slip or ripplocation bands. Slip bands were also seen near regions without pre-existing defects but at very high stresses. Ex situ self-ion irradiation embrittled the specimens and decreased the creep displacement and rate, while heavy ion irradiation resulted in the opposite behavior. We hypothesize that the large-sized gold ions (compared to the carbon atoms) induced interplanar swelling as well as cross-plane channels for increased defect mobility. These findings illustrate the role of pre-existing defects in the dynamic relaxation of stresses during irradiation and the need for more studies into the radiation environment’s impact on the mechanical response of nuclear graphite. Full article

In recent years, revolutionary improvements in the properties of certain FCC metals have been achieved by increasing the proportion of twin-related, highly symmetric grain boundaries. Various thermomechanical routes of grain boundary engineering (GBE) processing have been employed to enhance the fraction of low ΣCSL grain boundaries, thereby improving the radiation tolerance of many polycrystalline materials. This improvement is due to symmetric twin boundaries acting as effective sinks for defects caused by radiation, thus enhancing the material’s performance. In this study, the LPBF AlSi10Mg alloy was post-processed via the KOBO extrusion method. Subsequently, the samples were subjected to irradiation with Ar+ ions at an ion fluence of 5 × 10¹⁷ cm⁻². The microstructures of the samples were thoroughly investigated using electron backscatter diffraction (EBSD), transmission electron microscopy (TEM), and high-resolution TEM (HRTEM). The results showed that KOBO processing led to the formation of an ultrafine-grained microstructure with a mean grain size of 0.8 µm. Moreover, it was revealed that the microstructure of the KOBO-processed sample exhibited an increased fraction of low-ΣCSL boundaries. Specifically, the fraction of Σ11 boundaries increased from approximately 2% to 8%. Post-irradiation microstructural analysis revealed improved radiation tolerance in the KOBO-processed sample, indicating a beneficial influence of the increased grain boundary fraction and low-ΣCSL boundary fraction on the irradiation resistance of the AlSi10Mg alloy. This research provides valuable insights for the development of customized microstructures with enhanced radiation tolerance, which has significant implications for the advancement of materials in nuclear and aerospace applications. Full article

Silicon carbide has been considered a material for use in the construction of advanced high-temperature nuclear reactors. However, one of the most important design issues for future reactors is the development of structural defects in SiC under a strong irradiation field at high temperatures. To understand how high temperatures affect radiation damage, SiC single crystals were irradiated at room temperature and after being heated to 800 °C with carbon and silicon ions of energies ranging between 0.5 and 21 MeV. The number of displaced atoms and the disorder parameters have been estimated by using the channeling Rutherford backscattering spectrometry. The experimentally determined depth profiles of induced defects at room temperature agree very well with theoretical calculations assuming its proportionality to the electronic and nuclear-stopping power values. On the other hand, a significant reduction in the number of crystal defects was observed for irradiations performed at high temperatures or for samples annealed after irradiation. Additionally, indications of saturation of the crystal defect concentration were observed for higher fluences and the irradiation of previously defected samples. Full article

The paper presents the results of studies of the resistance of lithium ceramics to helium swelling during its accumulation in the structure of the near-surface layer, and the identification of the three types of lithium ceramics most resistant to radiation degradation: Li₄SiO₄, Li₂TiO₃, and Li₂ZrO₃. The simulation of helium swelling under high-dose irradiation was carried out by irradiation with He²⁺ ions with fluences of 1 × 10¹⁶ ion/cm²–5 × 10¹⁷ ion/cm², which allows for simulating the implanted helium accumulation with a high concentration in the damaged surface layer (about 500 nm thick). The samples were irradiated at a temperature of 1000 K, the choice of which was determined by the possibility of simulating radiation damage as close as possible to real operating conditions. Such accumulation can result in the formation of gas-filled bubbles. Through the application of X-ray phase analysis, indentation testing, and thermophysical parameter assessments, it was ascertained that among the three ceramic types, Li₄SiO₄ ceramics exhibit the highest resistance to helium-induced swelling. These ceramics experienced less significant alterations in their properties compared to the other two types. An analysis of the correlation between the structural and strength parameters of lithium-containing ceramics revealed that the most significant changes occur when the volumetric swelling of the crystal lattice becomes the dominant factor in structural alterations. This phenomenon is manifested as an accelerated degradation of strength characteristics, exceeding 10%. At the same time, analysis of these alterations in the stability of thermophysical parameters to the accumulation of structural distortions revealed that, regardless of the type of ceramics, the degradation of thermophysical properties is most pronounced under high-dose irradiation (above 10¹⁷ ion/cm²). Full article

Background: This study aims to present the feasibility of developing a synchrotron-based proton ultra-high dose rate (UHDR) pencil beam scanning (PBS) system. Methods: The RF extraction power in the synchrotron system was increased to generate 142.4 MeV pulsed proton beams for UHDR irradiation at ~100 nA beam current. The charge per spill was measured using a Faraday cup. The spill length and microscopic time structure of each spill was measured with a 2D strip transmission ion chamber. The measured UHDR beam fluence was used to derive the spot dwell time for pencil beam scanning. Absolute dose distributions at various depths and spot spacings were measured using Gafchromic films in a solid-water phantom. Results: For proton UHDR beams at 142.4 MeV, the maximum charge per spill is 4.96 ± 0.10 nC with a maximum spill length of 50 ms. This translates to an average beam current of approximately 100 nA during each spill. Using a 2 × 2 spot delivery pattern, the delivered dose per spill at 5 cm and 13.5 cm depth is 36.3 Gy (726.3 Gy/s) and 56.2 Gy (1124.0 Gy/s), respectively. Conclusions: The synchrotron-based proton therapy system has the capability to deliver pulsed proton UHDR PBS beams. The maximum deliverable dose and field size per pulse are limited by the spill length and extraction charge. Full article

Interest in the modification of zirconium-containing ceramics is rooted in their great prospects for application as materials for creating inert matrices of dispersed nuclear fuel, which can replace traditional fuel containing uranium dioxide, as well as increase the degree of its burnup. Moreover, among the variety of different types of ceramics offered, zirconium dioxide is the most promising, since it has higher thermal conductivity values compared to other types of ceramics, as well as low volumetric thermal expansion. Moreover, the key limitations in the application of these types of ceramics as materials for creating inert matrices are polymorphic transformations, which have a negative impact on changes in the properties of ceramics under external influences. The evaluation results of the impact of change in the ZrO₂ ceramics’ phase composition on the radiation damage resistance when subjected to irradiation with heavy ions, comparable in energy to fission fragments, are presented. The objects of study were samples of ZrO₂ ceramics doped with MgO, the variation in the concentration of which leads to an acceleration of the processes of polymorphic transformations during thermal sintering, as well as the formation of a ZrO₂/MgO-type structure with inclusions in the form of MgO grains. The results of the irradiation effect on the stability of the crystal structure of ceramics to deformation swelling due to the accumulation of deformation inclusions showed that ceramics with a monoclinic structure type are the least stable, for which, in the case of high irradiation fluences, the accumulation of deformation distortions leads to polymorphic transformations of the m—ZrO₂ → t—ZrO₂ type. During the evaluation of the irradiation effect on the change in mechanical properties and the softening degree, it was found that phase transformations of the m—ZrO₂ → t—ZrO₂ and t—ZrO₂ → c—ZrO₂ types lead to an increase in crack resistance by 1.5–2.0 times. Meanwhile, the formation of a structure of the ZrO₂/MgO type with inclusions in the form of MgO grains in the interboundary space results in a softening resistance growth by over 7-fold. During tests for determining thermophysical parameters, as well as maintaining stability to crystal structure thermal expansion during prolonged thermal exposure, it was found that phase transformations associated with polymorphic transformations of the t—ZrO₂ → c—ZrO₂ type led to the preservation of the stability of thermophysical properties, even in the case of high irradiation fluences. Full article

Ion bombardment is an important tool of materials processing, but usually leads to erosion of the surface and significant thickness reductions when thin layers are used. The growing use of polymer thin films in a variety of applications, from coatings and membranes to biomedical and electronic devices, calls for a deeper understanding of the thinning process induced by energetic ions espe-cially for very thin films. Here, thinning and surface morphology changes induced by high-energy ion bombardment in PMMA and PVC thin films were investigated, focusing on the role of the initial thickness of the films and the stopping power of the ions. We used thin films with initial thicknesses varying from 13 to 800 nm, and light and heavy ions as projectiles in the energy range of 2–2000 MeV, where the electronic stopping dominates. Thickness reductions as a function of fluence were monitored and thinning cross sections were extracted from curves. A supralinear scaling between the thinning cross sections and the electronic stopping power of the beams was observed, with a much enhanced thinning efficiency for the swift heavy ions. The scaling with the stopping power dE/dx is almost independent of the initial thickness of the films. At intermediate and large fluences, changes in the physicochemical properties of the irradiated polymers may modulate and decelerate the thinning process of the remaining film. The importance of this secondary process depends on the stopping power and the balance between erosion and the chemical transformations induced by the beam. We also observe a trend for the thinning efficiency to become larger in very thin films. Depending on the type of beam and polymer, this effect is more or less pronounced. PMMA films irradiated with 2 MeV H⁺ show the most systematic correlation between initial thickness and thinning cross sections, while in PVC films the initial thickness plays a minor role for all investigated beams. Full article

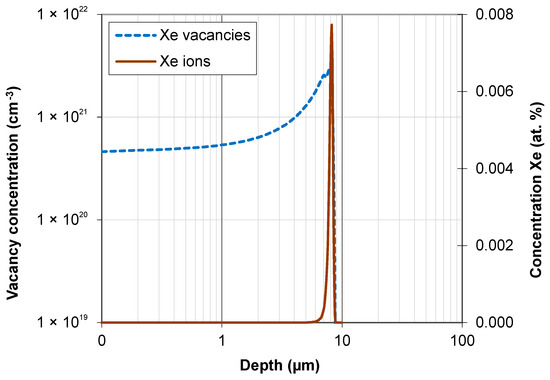

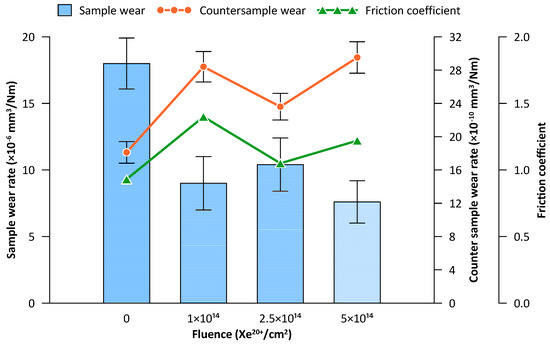

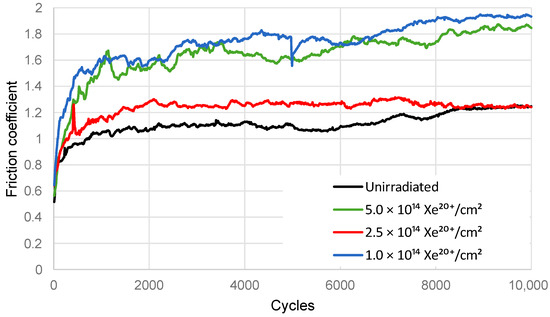

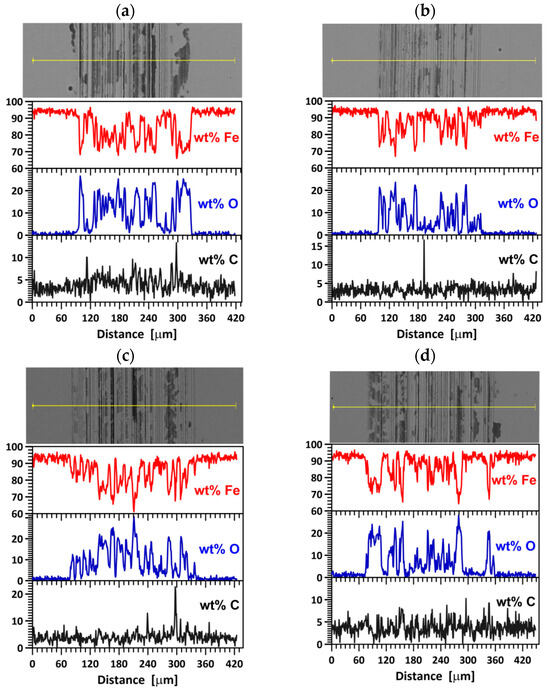

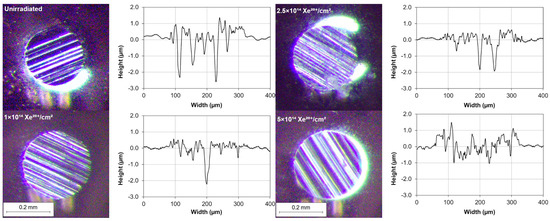

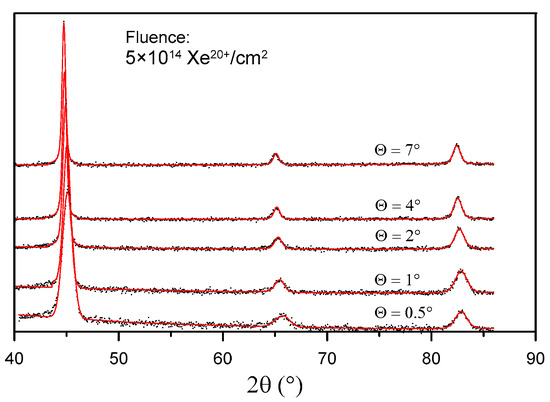

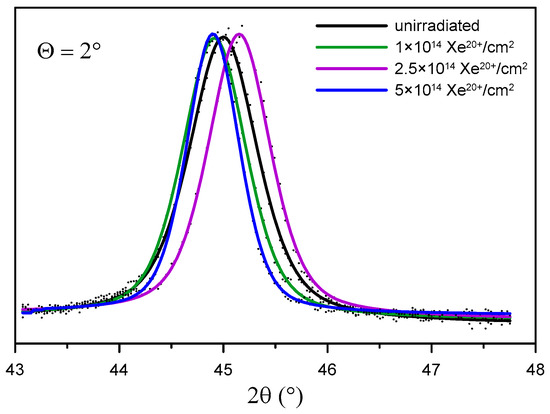

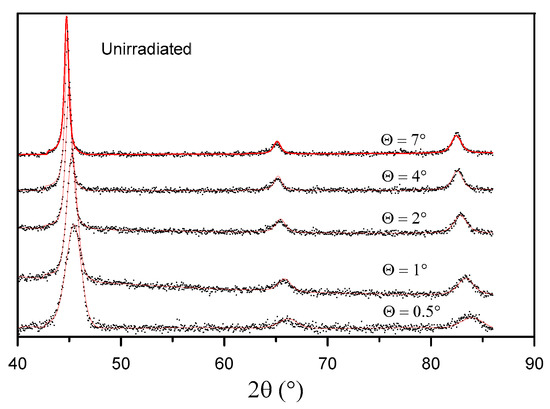

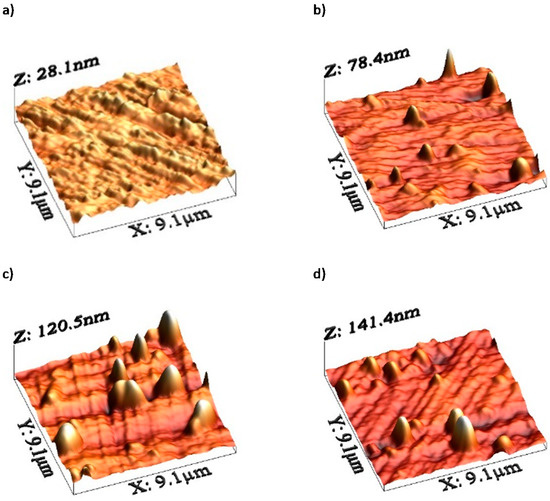

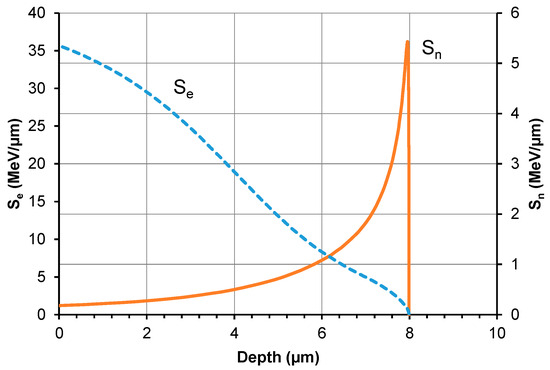

This is the first study ever to show the impact of high-energy 160 MeV xenon ion irradiation on the properties of 100Cr6 bearing steel. The projected range (R_p) of xenon ions is 8.2 µm. Fluence-dependent variations in the coefficient of friction and wear of the 100Cr6 steel material have been observed. These changes correlate with shifts in the crystal lattice constant and variations in the oxygen, carbon, and iron content in the wear track. Fluence-dependent changes in these parameters have been observed for the first time. Irradiation reduces stresses in the crystal lattice, leading to crystallite size increase. The modifications in the properties of 100Cr6 steel result from radiation-induced defects caused by electronic ion stopping. The degree of these modifications depends on the applied irradiation fluence. Furthermore, the use of a higher irradiation fluence value appears to mitigate the effects produced by a lower fluence. Full article
