Search Results (1,586)

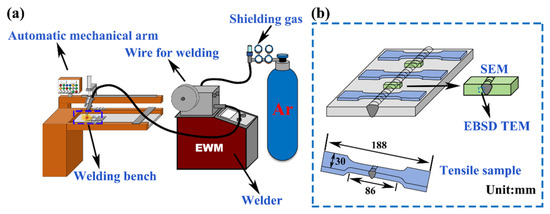

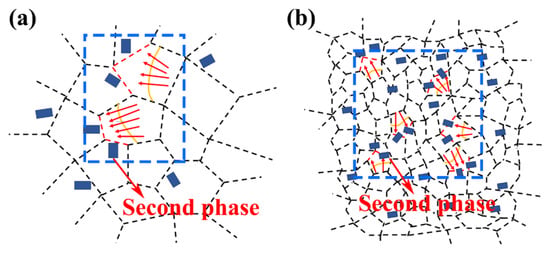

To address the insufficient strength of friction-stir-welded (FSW) ultra-high-strength Al–Cu–Li alloy joints, the effects of post-weld heat treatment (PWHT) on microstructural evolution and mechanical properties were systematically investigated. The as-welded joint showed a “W”-shaped microhardness profile, with the minimum value located in the thermo-mechanically affected zone (TMAZ), mainly caused by the dissolution of T₁ phases and precipitation of coarse AlCu, AlCuMg, and AlCuMn phases during welding. Direct artificial aging at 155 °C for 24 h failed to improve joint strength due to solute depletion induced by pre-existing coarse secondary phases. Solution treatment re-dissolved coarse precipitates into the matrix, and subsequent aging led to uniform precipitation dominated by T₁ and θ′ phases, with a consistent microhardness of ~155 HV across all zones. By introducing pre-stretching deformation after solution treatment, T₁ became the dominant strengthening phase in all regions, accompanied by a remarkable increase in both microhardness and tensile strength. With 3% pre-stretching, the microhardness reached 185 HV, and the ultimate tensile strength of the joint reached 600 MPa, corresponding to a joint efficiency as high as 95%, which is superior to most reported values for Al–Li alloy FSW joints. This study clarifies the precipitation evolution mechanism under tailored PWHT and provides an effective strategy for property regulation of high-performance Al–Cu–Li alloy FSW structures in aerospace applications. Full article

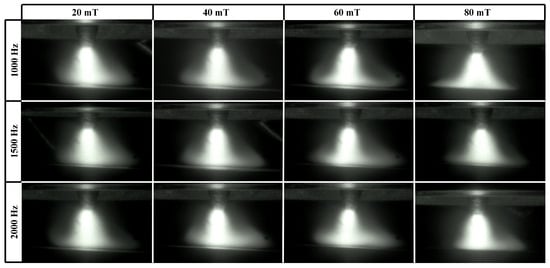

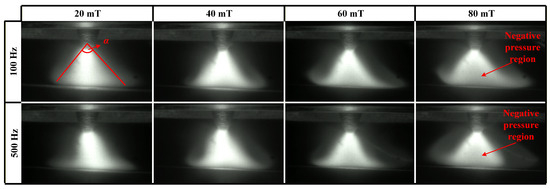

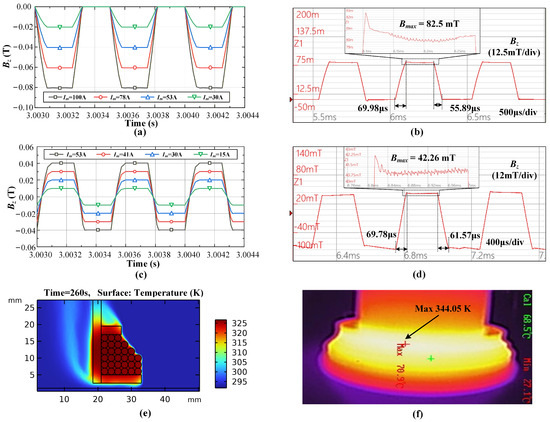

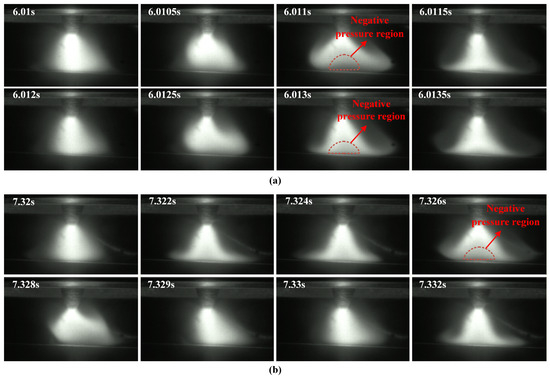

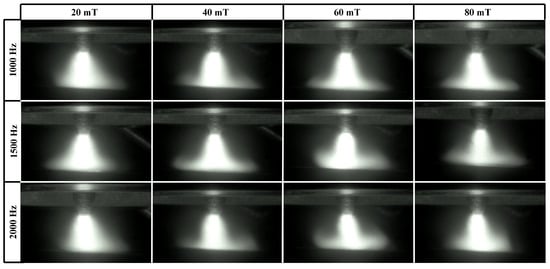

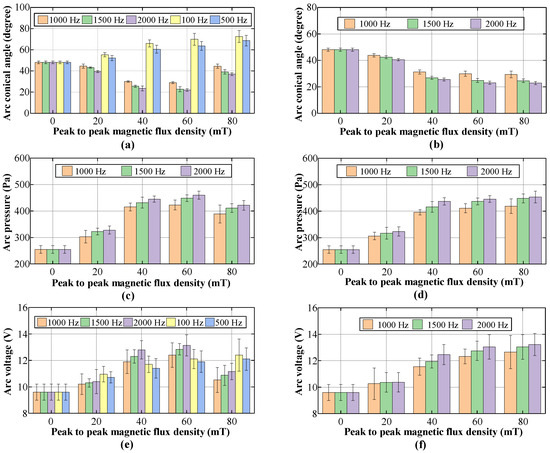

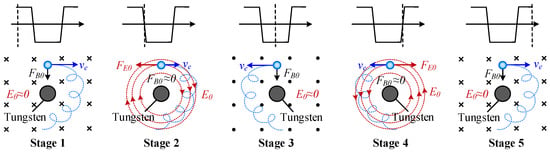

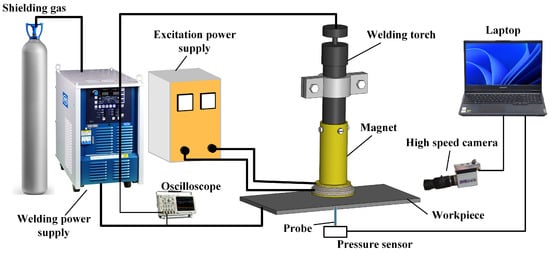

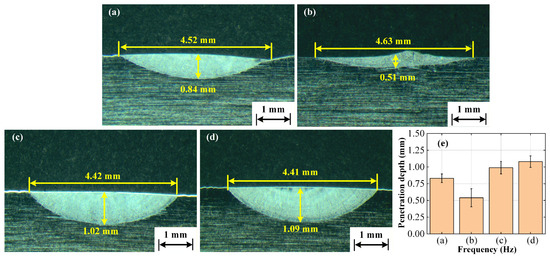

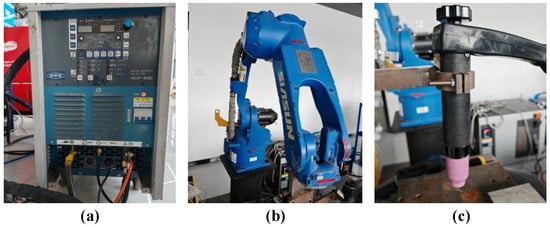

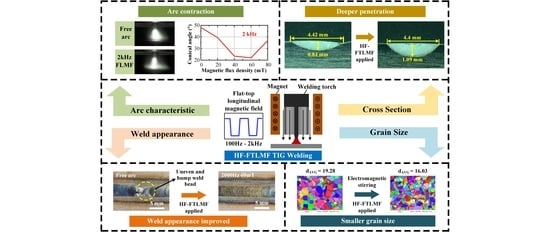

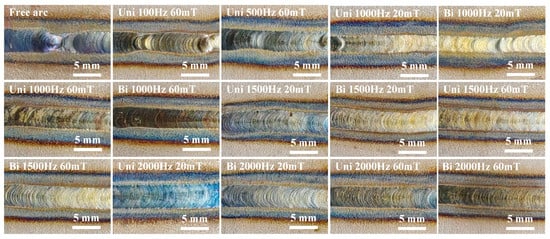

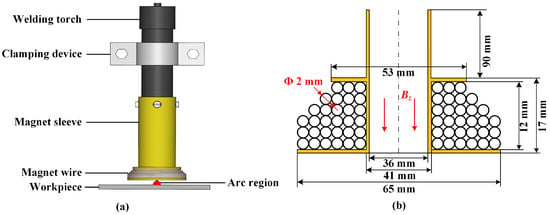

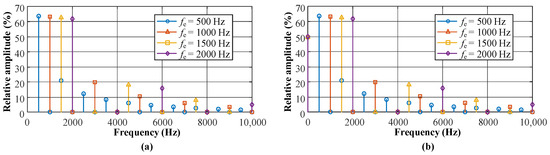

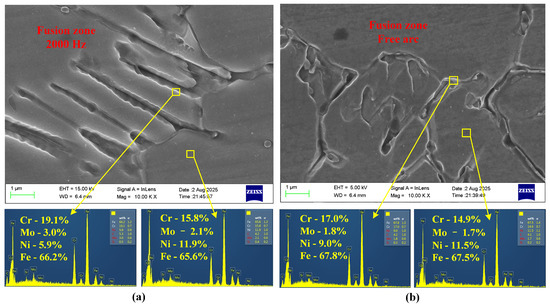

This study proposes a novel high-frequency flat-top longitudinal magnetic field-assisted tungsten inert gas (HF-FTLMF TIG) welding method to improve arc constriction and weld penetration. The effects of magnetic field intensity and frequency on arc morphology, weld appearance, and microstructure were systematically investigated. The results show that, compared with conventional TIG welding, when the frequency of the FTLMF exceeds 1000 Hz, the arc becomes noticeably constricted, the conical angle decreases, and the heat input becomes more concentrated. Under appropriate magnetic field conditions, the arc pressure increases from 251.3 Pa for the free arc to 452.9 Pa, and the weld penetration depth increases from 0.84 mm to 1.09 mm. In addition, HF-FTLMF reduces surface unevenness and improves weld uniformity. Compared with low-frequency FTLMF (<1000 Hz), HF-FTLMF exhibits more stable arc behavior and better weld formation. SEM and EDS results further indicate that the application of HF-FTLMF affects the fusion-zone microstructure and elemental redistribution, and a relatively finer microstructure was observed under the 2000 Hz condition. These findings suggest that HF-FTLMF provides an effective approach for regulating TIG arc behavior and improving weld formation through magnetic field assistance. Full article

Dissimilar 7075-T6 and 6061-T6 aluminum alloy joints were fabricated using pulsed metal inert gas (P-MIG) welding with ER5356 filler wire. The effects of welding current (224 A, 234 A, and 244 A) on macro-morphology, microstructure, mechanical properties, and corrosion behavior were systematically investigated. As welding current increased, the top and bottom reinforcements first increased and then decreased, reaching maximum values at 234 A, while the front weld width exhibited the opposite trend. The weld zone consisted of equiaxed and dendritic grains, with partial remelting of AlFeMnSi intermetallic compounds observed in the heat-affected zones. The microhardness and tensile strength of the joints followed a similar trend of first decreasing and then increasing with welding current, achieving a maximum tensile strength of 203.9 MPa at 244 A, corresponding to 89.5% of the 6061-T6 base metal strength. Corrosion resistance varied across regions depending on the evaluation method. In intergranular corrosion tests, the 7075-HAZ showed the highest susceptibility due to grain boundary segregation of Mg and Zn. In electrochemical tests, the WZ exhibited the poorest corrosion resistance. For the 7075-HAZ, optimal corrosion resistance was achieved at 234 A, attributed to a stable passive film and uniform precipitate distribution. These findings provide valuable guidance for optimizing P-MIG welding parameters for dissimilar 7075/6061 aluminum alloy joints. Full article

Picosecond laser drilling is characterized by a minimal heat-affected zone (HAZ) and superior surface quality, making it widely utilized for fabricating film-cooling holes in aeroengine turbine blades. However, maintaining consistent drilling quality remains a significant challenge. This study conducts picosecond laser trepanning drilling experiments on a GH4169 nickel-based superalloy to investigate the quality of inclined holes. Due to its excellent high-temperature resistance, creep resistance, and corrosion resistance, GH4169 is a primary material for turbine blades. A control variable method was employed to evaluate the effects of power ratio (60–95%), number of scanning passes (5–40), and defocus amount (−0.2 mm to 0.2 mm) on the quality of inclined holes with tilt angles of 7° and 15° and a sample thickness of 0.5 mm. Entrance diameter, exit diameter, and taper angle were utilized as the key quality indicators. The results indicate that due to the distribution of laser energy flux, both the geometric dimensions and taper angles of 15° inclined holes are significantly larger than those of 7° holes. As the power ratio increases, the entrance and exit diameters exhibit non-linear expansion; a “topographic stability window” is achieved at a 75% power ratio due to the equilibrium in energy coupling. An increase in the number of scanning passes leads to larger diameters; however, excessive scanning slows down the expansion of the exit diameter due to multiple reflection losses within the hole and the accumulation of slag, thereby intensifying taper evolution. The defocus amount exerts a bidirectional regulatory effect: positive defocusing increases the entrance diameter while decreasing the exit diameter, whereas negative defocusing facilitates the expansion of the exit. Optimal hole wall quality is observed at zero defocusing. This work provides data support for parameter optimization and the selection of inclination angles in subsequent laser machining of inclined holes. Full article

Additive manufacturing through a laser cladding has been shown to be an effective technology for the mitigation of wear and rolling contact fatigue (RCF) of railway track. Small-scale tests have consistently shown that creating a thin layer of premium material on the tribo-active surface of the railhead vastly reduces wear and suppresses the onset of RCF due to the ratcheting mechanism being almost eliminated in comparison to standard rail material. Cladding reduces material plastic flow by 60% which is a cause of insulated track joint failure. This paper reports results from the first full-scale trials of additively manufactured laser clad layers on railway rails by studying their mechanical properties and microstructure. This is a vital step in safely progressing this technology from lab scale to network application. Tested full-scale insulated block joint (IBJ) specimens, clad with martensitic stainless steel (MSS) and Stellite 6, were sectioned, polished and etched and the microstructures of the clad, heat-affected zone and parent rail materials were inspected using optical and scanning electron microscopy (SEM) (Hitachi TM3030 plus, Tokyo, Japan). Residual stress was also measured. Cladding with MSS and Stellite 6 showed high wear and RCF resistance after the tests. Material flow was reduced with the clad layer applied. No defects such as porosity or large precipitates were observed in the heat-affected zone (HAZ), particularly close to the rail surface at the clad end which could act as a point of weakness. Residual stress states varied between materials, MSS being compressive (−344 MPa average) and Stellite 6 being tensile (+391 MPa average) which could have an impact on the fatigue life of the clad. This finding matches previous work, indicating that MSS may be preferable in the field, where bending of rails can occur. Overall, the work showed that laser cladding can provide a good solution to lipping issues and wear problems of rail in IBJs. Analysis in this work confirmed that the HAZ where clad meets the bulk rail at the surface has good structural integrity; however, this needs to be a focus of attention in field application of these layers. Full article

This study investigates the influence of process parameters on dimensional accuracy and microhardness in fiber laser cutting of low-carbon steel. A full factorial design of experiments (DOE) with three factors—cutting speed, focal position, and assist gas pressure—was applied to evaluate their effects on dimensional deviations and microhardness in the heat-affected zone (HAZ). The results showed that focal position is the most significant factor affecting all evaluated dimensional responses, while cutting speed has a strong influence on circular and linear dimensions. The effect of assist gas pressure was found to be response-dependent, being insignificant for inner diameter deviation but significant for selected linear features and through interaction effects with focal position. Statistical analysis confirmed the presence of significant interaction effects between process parameters. Microhardness measurements revealed a substantial increase in hardness from the base material toward the cut edge, indicating microstructural transformations caused by rapid thermal cycles during laser cutting. While this increase in hardness may enhance wear resistance, it may also lead to increased brittleness and reduced toughness. The findings provide a detailed insight into the relationship between process parameters and dimensional accuracy, highlighting the importance of parameter optimization and interaction effects in contributing to improved quality of laser-cut components. Full article

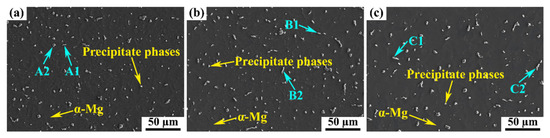

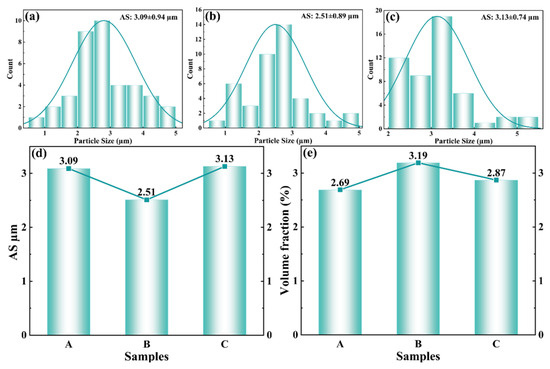

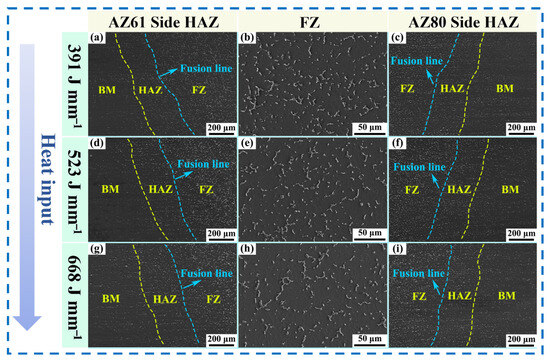

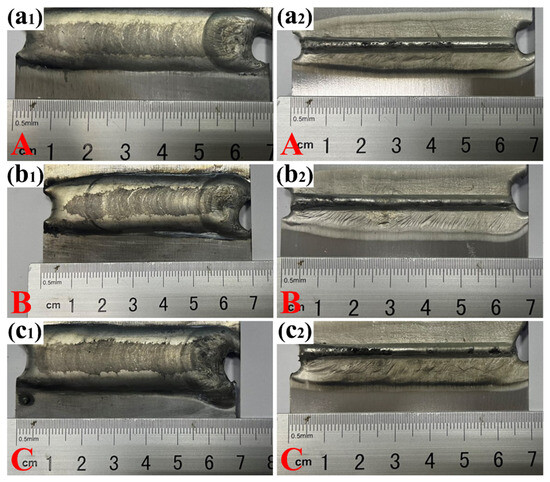

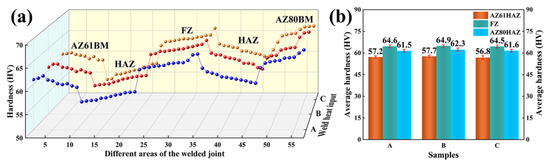

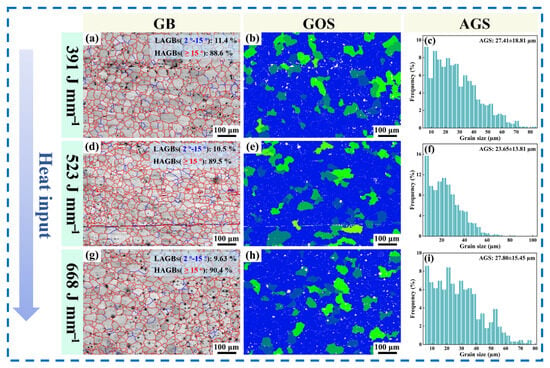

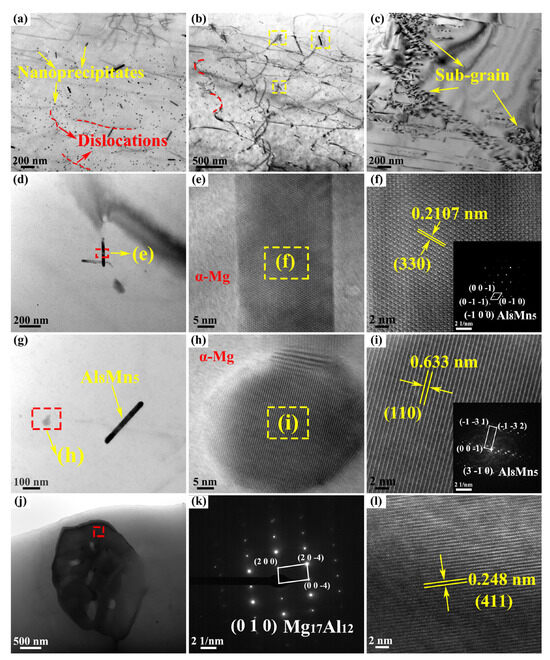

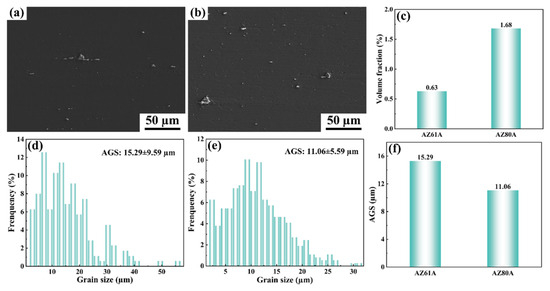

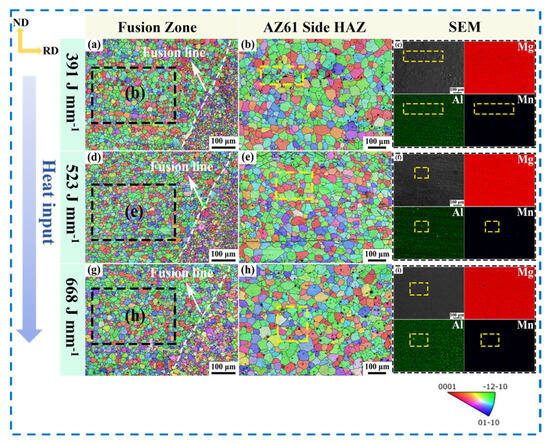

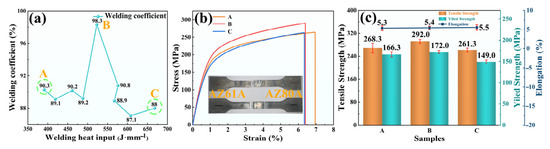

Welding is one of the key joining routes for expanding the engineering applications of dissimilar magnesium alloys. However, after experiencing rapid non-equilibrium heating and cooling cycles, the heat-affected zone (HAZ) of a welded joint tends to undergo grain coarsening as well as dissolution or agglomeration of precipitates, and therefore becomes the region most susceptible to failure. In this study, 3 mm thick sheets machined from AZ61A and AZ80A magnesium alloy hollow sections were joined by metal inert gas welding (MIG). Different ranges of welding heat input were obtained by combining multiple sets of welding parameters, in order to further tailor the HAZ of dissimilar magnesium alloy joints and achieve sound weld quality. The results showed that the joint exhibited the best overall mechanical performance at 523 J·mm⁻¹, with an ultimate tensile strength, yield strength, and elongation of 292 MPa, 172 MPa, and 5.4%, respectively. All fractures occurred in the HAZ on the AZ61A side. Under this condition, the second phases in the HAZ were more finely and uniformly dispersed, with a volume fraction of 3.19%, an average size of 2.51 μm, and a minimum average grain size of 23.65 μm. Full article

The reliable joining of ultra-thick aluminum alloy plates remains a critical technical challenge in modern industrial manufacturing, often hindered by defects such as porosity and excessive distortion associated with conventional fusion welding. The novelty of this work lies in the characterization of the intermediate layer overlapping zone in 110 mm ultra-thick plates, which has rarely been reported. The motivation is to overcome the limitations of single-pass FSW for thick plates, such as insufficient material flow and high tool forces, by adopting a sequential double-sided strategy. Furthermore, this technique may help moderate the through-thickness heat input variation, although no direct thermal measurements were made. The weld nugget zone consists of uniformly fine, recrystallized α-Al grains. In contrast, the heat-affected zone displays distinctly laminar grain structures. The overlapping regions within the intermediate layer, which undergo two thermal cycles, exhibit refined grain sizes. A well-defined interface is evident between the advancing-side weld nugget zone and the thermo-mechanically affected zone. The overall tensile strength of the FSW joint is approximately 81% of the base material, and the tensile specimen fractured at the interface between the thermo-mechanically affected zone and the heat-affected zone. Along the thickness of the weld joint, a “W”-shaped microhardness distribution is observed at the surface and subsurface, whereas the intermediate layer exhibits a distinct “V”-shaped profile. The lowest microhardness value is located in the intermediate layer overlapping area due to the insufficient heat input and limited grain growth in this region. In summary, under the specific welding parameters tested (130 rpm, 15 mm/min, 110 mm thick), double-sided friction stir welding produces defect-free joints in AA 5052-H32, suggesting its potential for thick-plate applications, offering a practical and effective solution for manufacturing high-performance aluminum alloy structures. Potential industrial applications include pressure vessels for chemical storage, ship hull structures, and heavy-duty transportation components where ultra-thick aluminum plates are required. Full article

This study investigates the influence of specific heat input and weld configuration on heat affected zone hardness and residual stress of S960MC high strength steel welds. In total, five types of weld samples were manufactured by Tungsten Inert Gas (TIG) autogenous welding and Metal Active Gas (MAG) butt welding to simulate the effect of increasing heat input and constraining the relative motion of welded parts during the heating and cooling phase. The obtained results show that the highest axial tensile residual stresses with magnitude above 900 MPa, combined with a hardness drop in a range from 13 up to 18%, occur mostly in the sub-critical heat affected zone, making it the critical zone of the weld. Increasing the heat input during welding does not have a simple correlation with generating more residual stresses and the trends obtained on the surface are different from results evaluated at a depth of 0.2 mm. Restraining the relative part motion during the welding affects mostly the tangential residual stresses, causing an increase in their tensile magnitude localized in the middle of the heat-affected zone while almost no influence on the axial residual stress component was recorded. Full article

Gold-enriched silica-listvenite rock from the Kaymaz Gold Deposit (KGD) was investigated to determine the effect of regional tectonism and Eocene granite intrusion on gold mineralization. The questions “is granite a heat–fluid source or a lithologic barrier?” and “how does regional tectonism affect gold mineralization?” remain unclear. This study aims to clarify these questions via field studies, core sample observations, petrography, ore microscopy, scanning electron microscopy (SEM), XRD, and fluid inclusion analyses; these methods were applied to samples collected from four different sites within the KGD (1—Damdamca, 2—Karakaya, 3—Mermerlik, and 4—Kızılağıl). The highest-grade gold mineralization is present in the listvenite rock in the fault-controlled contact zone between serpentinite and granite, whereas granite hosts minor gold and silver enrichments near the contact. The orientations of contacts are compatible with the NW-SE-trending Eskişehir fault zone in Karakaya and the NE-SW-trending tear faults in Damdamca. Listvenite is silica-rich and has high iron oxy-hydroxide content, while granite is argilized and silicified along the contact with listvenite. Native gold grains were found between the quartz minerals of listvenite and granite. The adsorption of gold by goethite ± lepidocrocite has been observed in the listvenite samples of Mermerlik. Chromite, Ni-sulfide minerals, pyrite, arsenopyrite, galena, native silver, acanthite, iodargyrite, and goethite ± lepidocrocite are the other detected ore minerals. Secondary Cr-Fe-Mn oxide minerals were detected in a granite sample via SEM analyses. The data indicates that listvenitization-causing fluid partially remobilized these metals along with Au and reprecipitated them in the granite during mineralization. The homogenization temperatures (Th) (°C) of fluid inclusions vary between 116 and 393 °C, and the Th (°C) distribution indicates multi-phase mineralization. The Th (°C) values of listvenite and silicified granite are quite similar, which indicates that the same hydrothermal fluid circulated in both lithologies. The low salinity values (1.2–5.4%) indicate that the hydrothermal fluid was derived predominantly from meteoric water. The liquid–vapor ratios of inclusions and quartz textures indicate non-boiling conditions. Gold enrichment in the KGD developed in relation to the circulation of hydrothermal fluids along the faults. The KGD shows typical fluid inclusions, alteration properties, and mineral paragenesis of low-sulfidation-type epithermal deposits. Our study data indicates that meteoric water-rich hydrothermal fluid circulated along the fault zones, dissolved Au and other related elements from the serpentinite, and reprecipitated in the listvenite-altered granite. Granite acts as an impermeable barrier, leading to the circulation of hydrothermal fluids through the contact. Supergene activities affect the mineralization in both Mermerlik and Kızılağıl. No evidence indicating the magmatic origin of gold mineralization was observed. Full article

Ensuring the integrity of weld seams in pipeline components is critical for the safe and reliable transportation of oil and natural gas. This paper presents a systematic failure investigation of a cracked weld in a reducer located at a natural gas transmission station in Western China, aiming to identify the failure mechanism and assess its implications for pipeline safety management. A comprehensive analysis was conducted using macroscopic examination, chemical composition analysis, mechanical property testing, metallographic observation, and microscopic fracture characterization. The results reveal that the heat-affected zone (HAZ) exhibited abnormally high hardness (up to 588 HV0.1), indicating insufficient toughness that made it susceptible to cracking. The base metal showed a high carbon equivalent (CEV), placing it in the “difficult-to-weld” category and increasing its sensitivity to improper welding thermal cycles. On-site investigation further identified significant deficiencies in welding process control, including inadequate preheating, improper interpass temperature management, and insufficient post-weld heat treatment (PWHT). These deficiencies allowed welding residual stresses to persist and failed to mitigate the hardened HAZ microstructure. The combination of poor material weldability and inadequate on-site welding practices ultimately led to brittle fracture under service conditions. This failure highlights a critical vulnerability in pipeline transportation infrastructure and underscores the necessity of strict adherence to qualified welding procedures for high-carbon-equivalent steels. The findings provide practical guidance for enhancing welding quality control and ensuring the long-term operational safety of natural gas pipeline systems. Full article

For the environment and the daily life of urban settlements, in the context of contemporary challenges, severe meteorological events rank second worldwide. Therefore, these events tend to become a real threat to human society and to specific economic activities. The main objective of this study is to analyze the spatio-temporal evolution of severe meteorological events in urban environments and to assess their relationship with atmospheric circulation regimes and urban thermal conditions. The analysis focuses on five types of severe events (significant atmospheric precipitation, hail, strong winds, tornadic structures, and cloud-to-ground lightning) recorded in 11 cities located in the historical region of Muntenia, Romania, over the period 2014–2024. The methodological framework is based on three complementary components. First, a new database was developed by integrating information from multiple sources, including the National Meteorological Administration (ANM), the European Severe Storms Laboratory (ESSL), international databases, and validated media reports, with spatio-temporal filtering and aggregation into synoptic episodes. Second, atmospheric circulation regimes were identified using ECMWF ERA5 reanalysis data, based on geopotential height anomalies at the 500 hPa level, allowing the classification of large-scale synoptic patterns. Third, urban thermal conditions were assessed using the ECMWF CERRA regional reanalysis dataset, which provides high-resolution air temperature data, enabling the analysis of urban–peri-urban thermal contrasts and the estimation of the urban heat island effect. The results highlight a total of 997 severe meteorological events, of which 253 (25.6%) were recorded in the analyzed urban areas, 85 (15.9%) in other towns, and 583 (58.5%) in rural areas. The analysis reveals pronounced interannual and intraseasonal variability, as well as distinct spatial clustering patterns, particularly in urban and peri-urban zones. Among the circulation regimes, the Zonal Regime exhibits the highest event rate, suggesting increased favorability for severe weather occurrence, while other regimes show weaker or even inhibitory effects. In addition, most severe events were associated with positive urban–peri-urban temperature contrasts, indicating an active contribution of the urban heat island effect. By combining observational data, synoptic-scale analysis, and urban-scale thermal assessment, this study provides an integrated regional perspective on severe meteorological events and contributes to the enrichment of data sources in the region, while improving the understanding of their dynamics in urban environments affected by data limitations. Full article

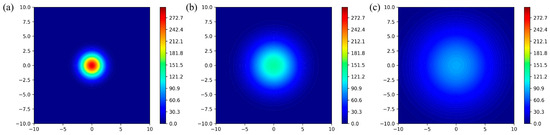

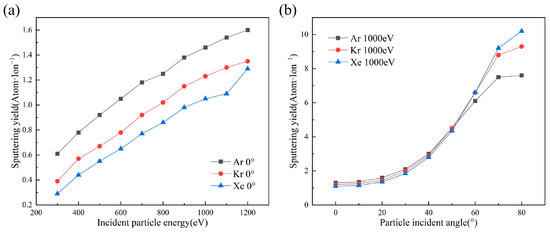

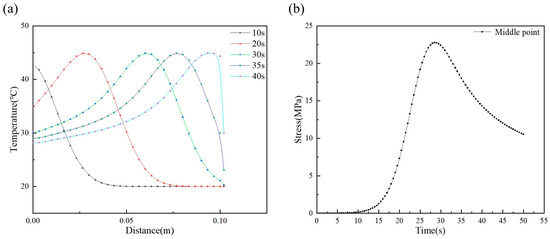

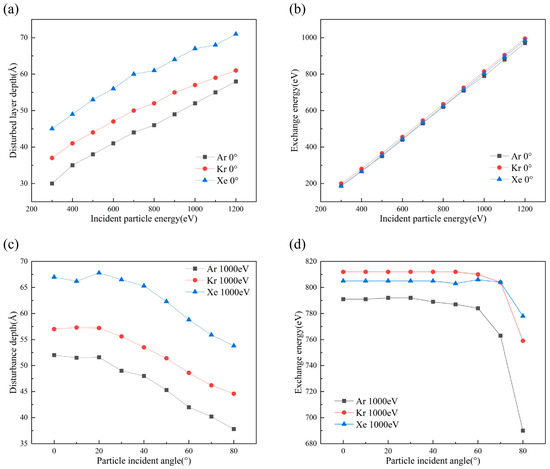

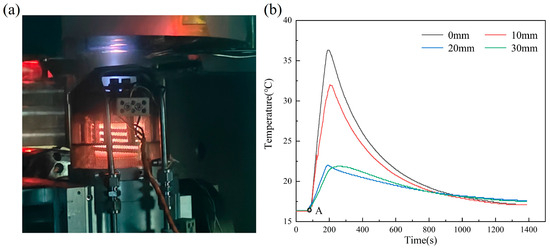

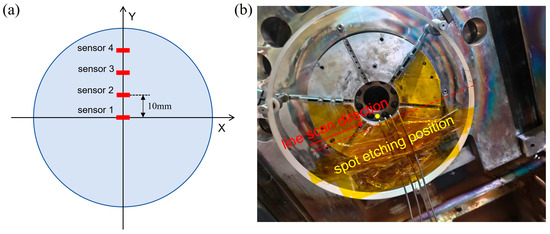

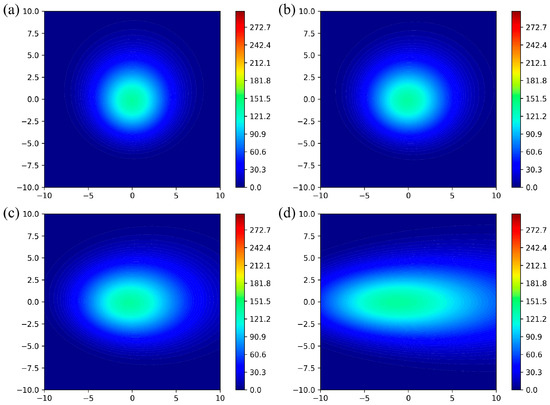

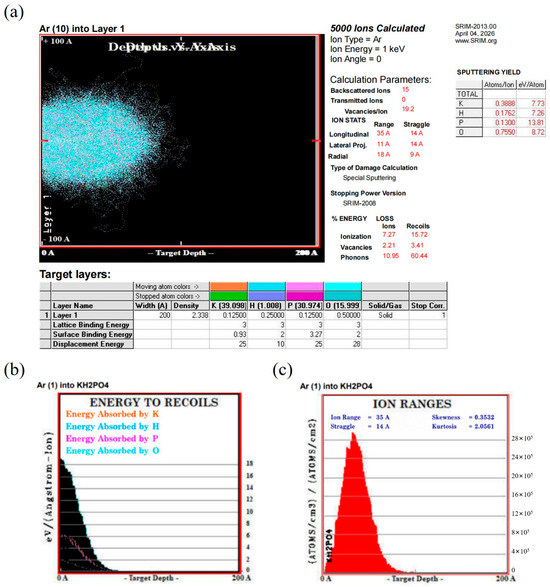

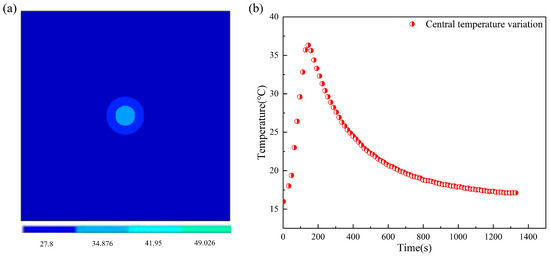

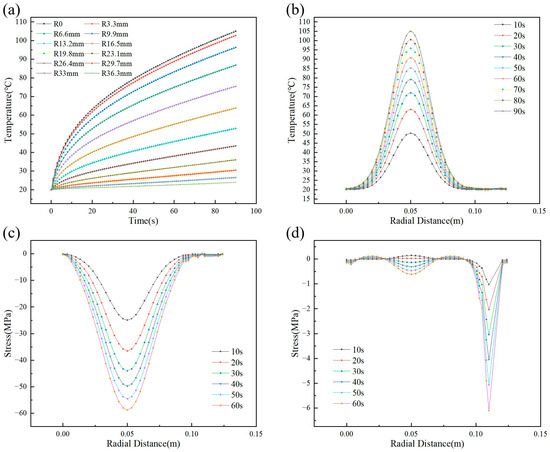

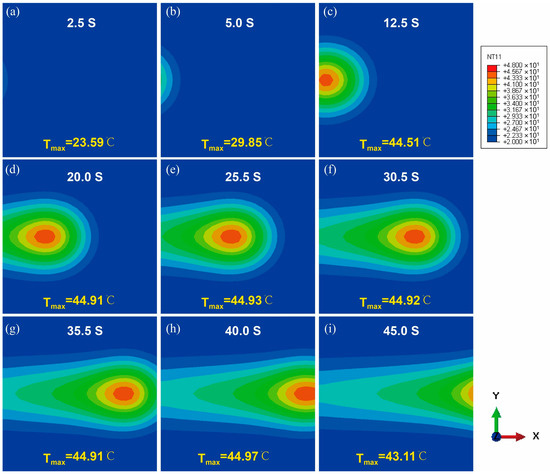

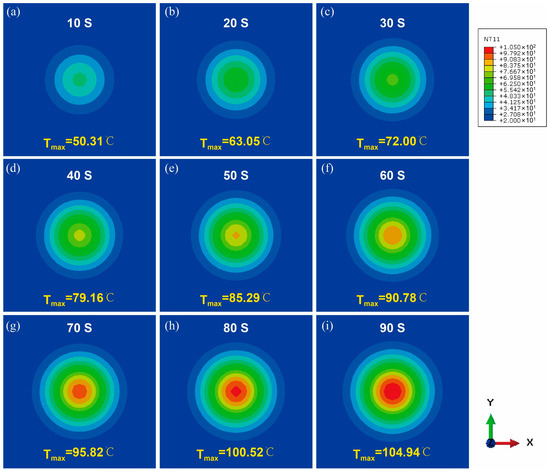

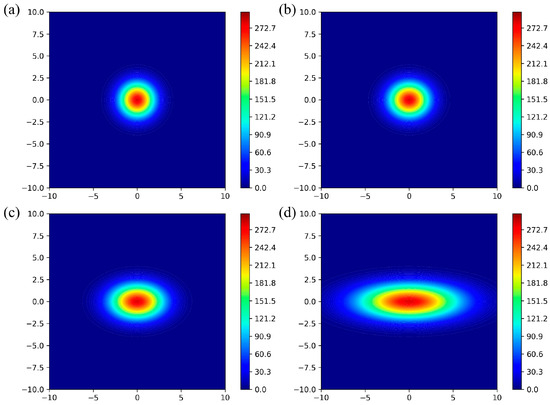

To address the issues of heat accumulation and potential thermal damage during radio-frequency (RF) ion beam machining of KDP crystals, an energy deposition model and a temperature field model were developed based on Sigmund’s sputtering theory, a Gaussian beam distribution model, and heat conduction theory. Combined with the Monte Carlo method, the effects of incident energy, incident angle, and ion species on the disturbed layer depth and sputtering yield were systematically investigated. Furthermore, the influences of beam divergence angle and deflection angle on the surface energy deposition density distribution were analyzed. On this basis, the evolution of the temperature field and thermal stress field in KDP crystals under both stationary and linearly moving Gaussian surface heat sources was numerically simulated. The results indicate that the proposed model can effectively characterize the thermal response during ion beam machining of KDP crystals. The disturbed layer depth, sputtering yield, and energy deposition density distribution exhibit pronounced sensitivity to processing parameters. Under a stationary heat source, significant local heat accumulation and stress concentration tend to occur on the material surface. In contrast, a moving heat source can mitigate excessive temperature rise at a single location to some extent, although it also produces a heat-affected zone extending along the scanning path. These findings provide a theoretical basis for the optimization of low-damage RF ion beam machining parameters for KDP crystals. Full article

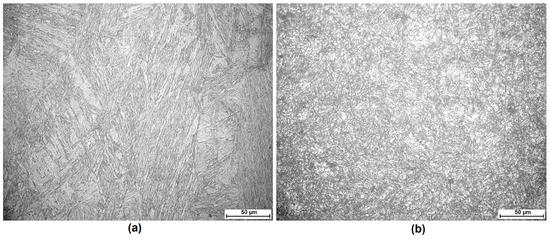

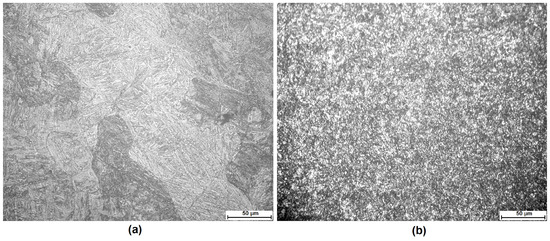

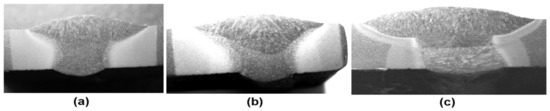

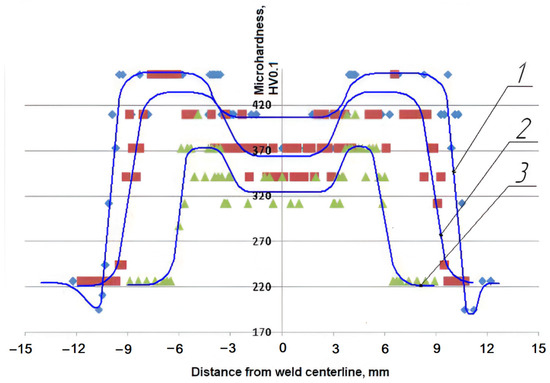

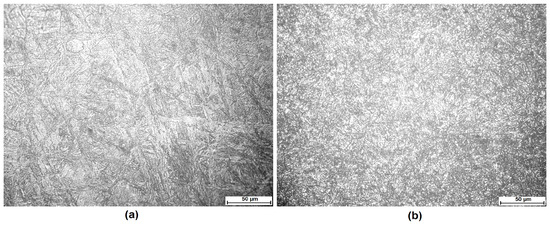

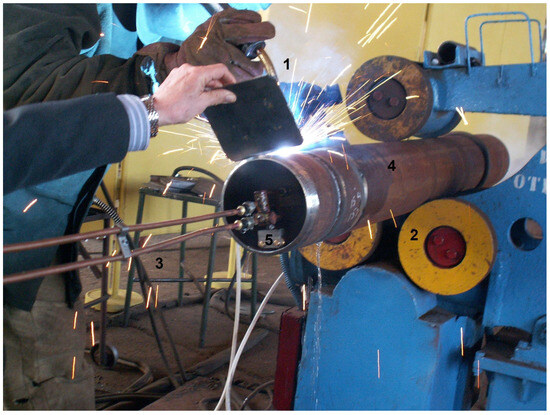

Martensitic chromium-molybdenum steels such as 15Kh5M are widely used in high-temperature oil and gas equipment, but their weldability is limited by high hardenability and susceptibility to cold cracking, which usually necessitate energy-intensive preheating. This study evaluates an alternative route based on the combination of root-pass mechanical vibration (50 Hz, ~1 mm amplitude) and post-pass water-air jet cooling during mechanized GMAW. Three welding variants were compared: conventional preheated welding, vibration-assisted welding without preheating, and hybrid thermo-vibrational welding with active cooling. Among the tested conditions, the hybrid route produced the narrowest heat-affected zone, reducing its width from about 7 mm to about 3 mm, which is consistent with a compressed thermal cycle. Microhardness in the heat-affected zone decreased from 380 to 440 HV in the preheated condition to 330–370 HV in the hybrid condition. Optical microscopy further indicated a finer and more homogeneous transformed microstructure in the hybrid case. Results indicate that simultaneous vibro-treatment and controlled cooling effectively mitigate harmful metallurgical effects typically induced by rapid cooling, enabling preheat-free fabrication of thick-walled components. The proposed hybrid approach may offer energy savings, shorter production cycles, and improved automation compatibility in field welding applications. Full article

While cost-effective austenitic stainless steels like AISI 304 are utilised in intermediate-temperature concentrated solar power (CSP) components, autogenous welding can compromise their structural integrity. This work investigates the corrosion behaviour of autogenous TIG-welded AISI 304 joints exposed to commercial molten solar salt at 550 °C for up to 1350 h under static conditions. Gravimetric and microstructural analyses revealed a stochastic bimodal breakaway oxidation mechanism. After an initial transient passivation regime (0–650 h) attributed to the formation of a protective Fe₃O₄/FeCr₂O₄ bi-layer, a sharp kinetic acceleration occurred. This localized breakdown was synergistically catalysed by trace chloride impurities, which triggered deep pitting along the microsegregated dendritic networks of the weld metal. Furthermore, due to severe X-ray attenuation under massive late-stage oxides, definitive proof of sensitisation was established using the standardised ASTM A262 Practice A topographic evaluation. The appearance of continuous ditch structures only in the heat-affected zone (HAZ) suggests severe intergranular anodic dissolution. This failure is thermodynamically driven by unmitigated residual tensile stresses, highlighting that the long-term reliability of these components is interpreted to be dictated by the localised, asymmetric breakdown of the weldment rather than uniform global oxidation. Full article
