The status of an optic–electric composite high-voltage submarine cable (referred to as submarine cable) can be monitored based on optical fiber-distributed sensing technology, and at the same time, no additional sensor is needed in the monitoring system. Currently, this technology is widely used in submarine cable monitoring systems. To estimate the temperatures of conductor and XLPE (cross-linked polyethylene) insulation of the submarine cable based on the ambient temperature and optical fiber temperature, the thermoelectric coupling field model of the 110 kV single-core submarine cable is established and validated. The thermoelectric coupling field models of the submarine cable with different values of ambient temperature and ampacity are built, and the influence of ambient temperature and ampacity on the temperatures of conductor, insulation and optical fiber is investigated. Furthermore, the relationship between the temperatures of the conductor and insulation and the ambient temperature and optical fiber temperature is obtained. Then, estimation formulas for temperatures of conductor and insulation of submarine cable according to ambient temperature and optical fiber temperature are obtained and preliminarily validated. This work lays the foundation for condition evaluation of the submarine cable insulation, life expectancy and maximum allowable ampacity estimation. Full article

For the installation of submarine cables at sites with significant elevation differences and non-excavation bases, the J-type conduit represents an emerging installation solution. This study focused on a typical AC submarine cable installed via J-type conduit trenchless installation. A coupled electromagnetic–thermal–fluid finite element model was established to investigate the effect of the burial depth, conduit material, and environmental temperature on the ampacity of the cable. The results indicate that the ampacity of the cable decreases as the burial depth increases due to the deteriorating heat dissipation capacity of the soil. Regarding the internal medium of the conduit, the cable demonstrates superior ampacity performance in muddy water. Additionally, J-type conduits fabricated from non-magnetic metallic materials such as copper and stainless steel exhibit significantly higher cable ampacity compared to polymeric materials like PE and PVC. As the soil’s temperature rises with the increasing environment temperature, its thermal conductivity efficiency decreases, consequently impairing cable heat dissipation and ampacity. Full article

It is difficult to consider factors such as wind speed, water flow velocity, and solar radiation when using the IEC 60287 standard to calculate the current-carrying capacity of shore power cables in port microgrids. Therefore, based on the equivalent thermal circuit model and heat balance equation, this research takes solar radiation as the heat source of the cable used in port microgrids and proposes a mathematical calculation method for the current-carrying capacity of shore power cables based on the Newton–Raphson method. The influence of wind and water speed, environmental temperature, and solar radiation on current-carrying capacity is compared and analyzed using this mathematical calculation method and simulation calculation method. Shore power cables exhibit higher ampacity in water than air due to water’s superior thermal conductivity. Maximum ampacity difference occurs at 0.17 m/s flow (26.8 A analytically) and 0.066 m/s flow (64.4 A simulation). Air-laid cables show amplified ambient temperature effects from solar radiation, while water-laid cables demonstrate near-linear ampacity variations (Δ40 °C: 0–40 °C temperature range). This research can provide a reference for the revision of the standard for calculating the current-carrying capacity of shore power cables and optimizing renewable-energy-integrated port power systems. Full article

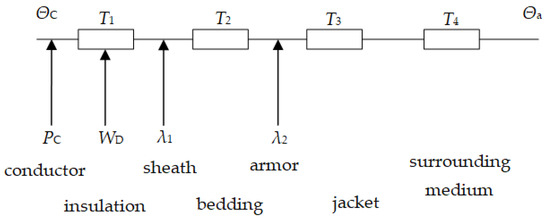

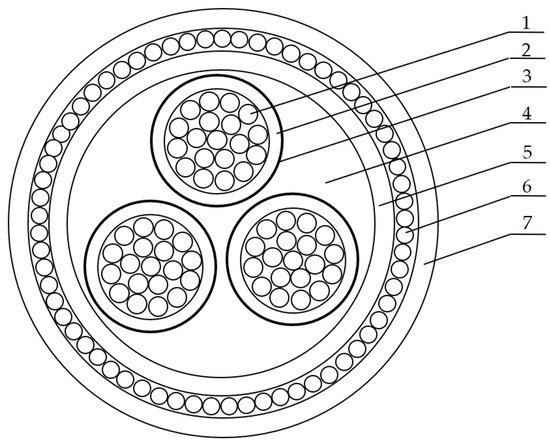

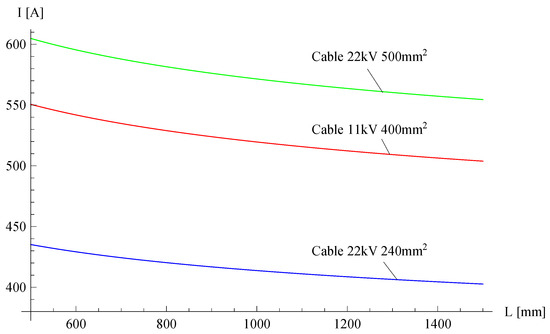

The maximum permissible load of underground power cables (known in U.S. engineering as “ampacity”) is a function of many parameters, in particular, the thermal resistivity of the native soil. If this resistivity is relatively high, thermal/stabilized backfill is applied, i.e., another material is placed around the cables, providing favourable conditions for heat transfer to the environment. It has a positive impact on the reliability of the power supply and favours the operational durability of the cables. In design practice, however, there is a difficult task—correct determination of the ampacity of the cable line depending on the thermal parameters and the geometry of the backfill. Therefore, this article presents the results of a numerical analysis to determine the ampacity of cable lines in which stabilized backfill is used. A new mathematical relationship is proposed that allows the correction of the ampacity of cable lines depending on their cross-section as well as the thermal and geometric parameters of the cable surroundings. Full article

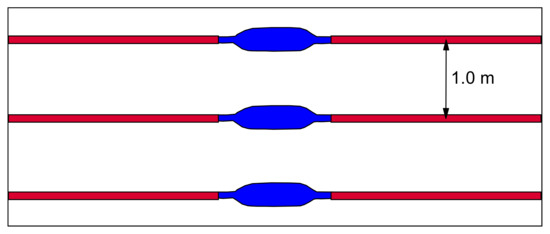

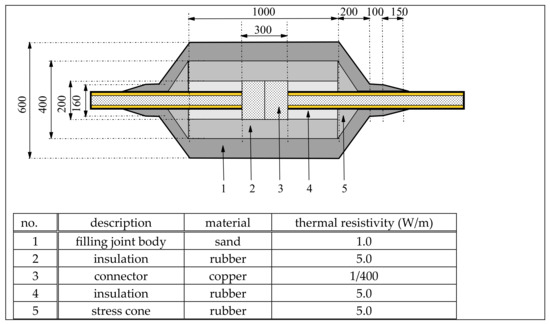

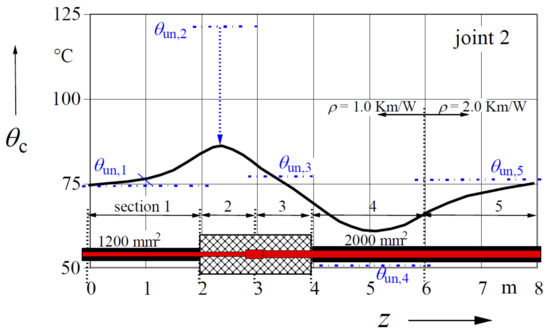

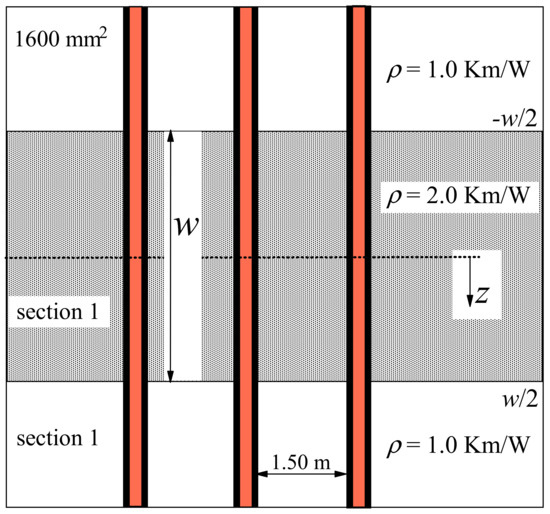

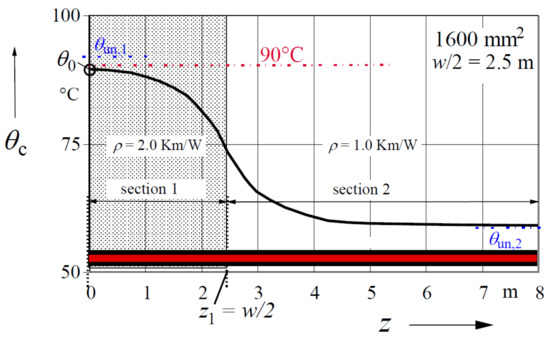

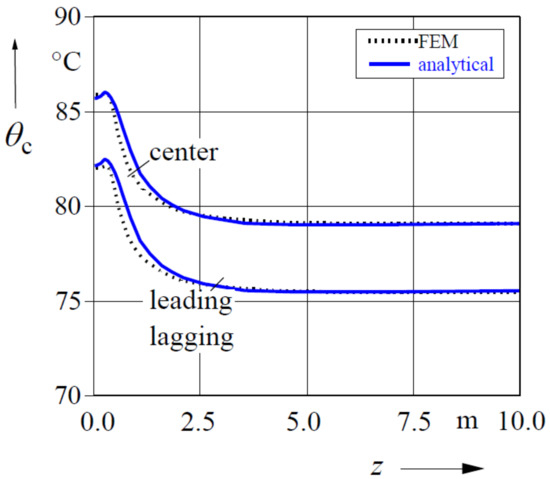

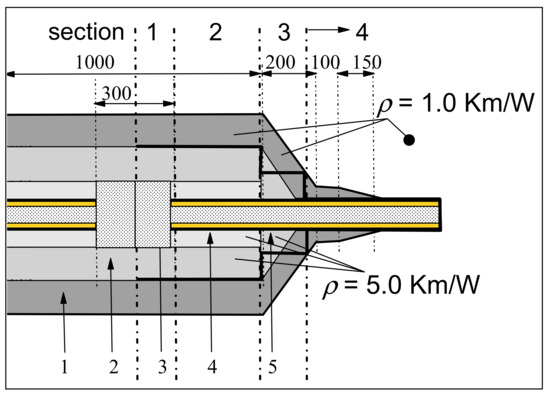

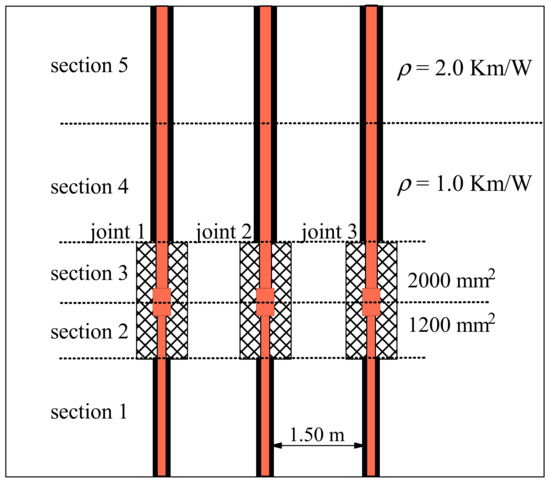

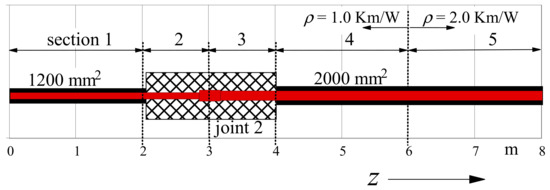

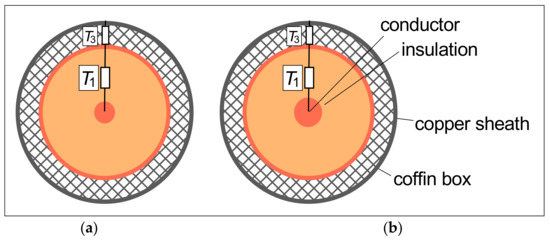

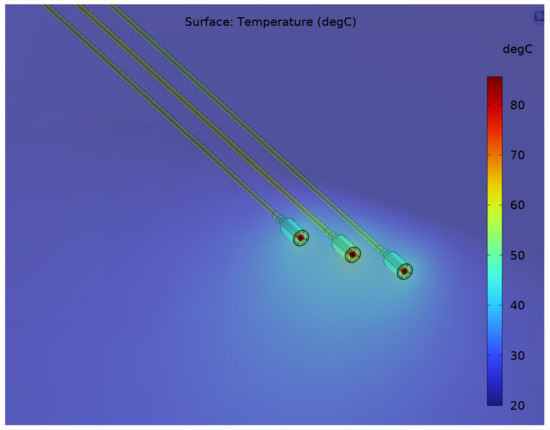

The paper addresses rare issue in cable ampacity calculations, namely the presence of discontinuities along the routes. One which occurs in almost all cable installations is the presence of joints. In a standard cable rating analysis, the joints are ignored, mostly because of difficulties in building analytical models that represent the heat transfer phenomena within them. However, they can be a limiting part of the cable rating and, therefore, there is a need to model them correctly. This paper introduces an analytical algorithm for cable rating calculations in the presence of discontinuities with an emphasis on cable joints. New developments are illustrated by several numerical examples. Full article

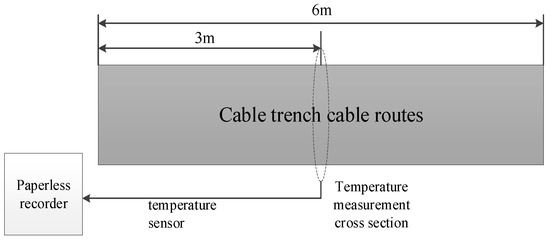

Due to the influence of many factors, distribution cables are often densely placed at the bottom of the cable trench. As a result, it is easy for distribution cables to become the thermal bottleneck of the whole transmission line. To address this dilemma, this paper establishes a finite element simulation model of a cable trench to analyze the hot spots of cables with different arrangements in the cable trench. Then, the model’s accuracy is verified based on real temperature rise experiments. For an arrangement with overheating risk, the ampacity improvement method of filling the cable trench with high-thermal-conductivity material was proposed, and the ampacity improvement effect under different filling ratios was assessed. Finally, combined with the analysis of economic benefit and cost, the method of determining the optimal filling ratio was used, and the impact resistance of the cables under the impact of new energy load was analyzed. The results indicate that, for the case of the optimal filling ratio, the cables in the dense cable trench showed superior impact resistance. The investigations in this paper make significant contributions to the promotion of the maximum utilization of cables. Full article

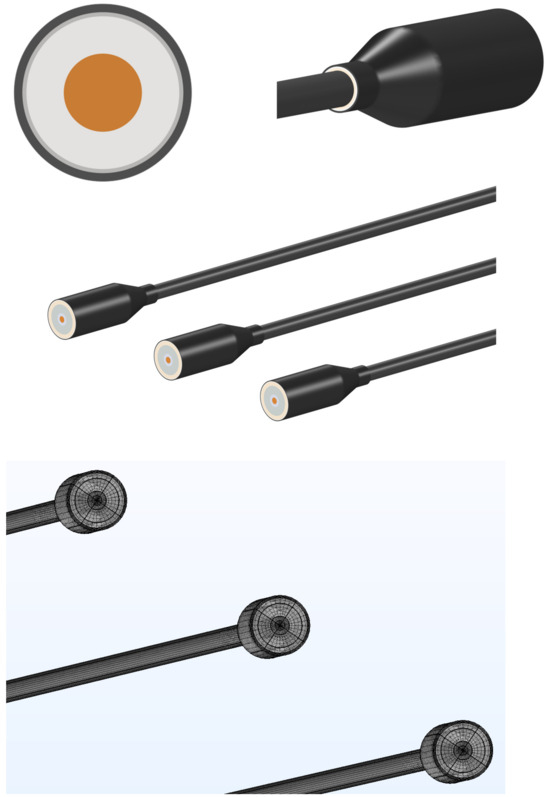

The development of power grids is hindered by the limited transmission capacity of cable equipment, necessitating the accurate prediction of dynamic ampacity for cable expansion. This study focuses on the 110 kV cable intermediate joint, employing radial and axial inversion techniques for real-time conductor temperature inversion. Utilizing the Prophet time series model, we predict environmental changes and propose a dynamic ampacity evaluation method for cable intermediate joints. Experimental validation confirms the model’s accuracy, with prediction errors under 10 K, demonstrating its potential for enhancing cable system reliability and power grid development. Full article

This paper quantifies and discusses the increase in induced voltage on a sheath due to changes in duct banks in terms of type and dimensions along an underground transmission line, guaranteeing the ampacity required for a project. The four most common duct banks in double-circuit underground transmission lines with phase transposition were considered in this study, along with two special cross-bonding techniques: continuous cross-bonding (CCB) and sectionalized cross-bonding (SCB). These techniques aim to reduce sheath currents and enhance the distribution of the induced voltage on the sheath. The analysis considers two distinct scenarios in which the profile of the induced voltage is calculated: the first one accounts for underground obstructions, intersections with important traffic avenues, and ground with high excavation costs that force changes in the duct bank dimensions and configuration, which is the most exact and realistic case. The second one solely considers one typical configuration of a duct bank along the route. This last scenario is normally applied to calculate the induced voltage when an underground transmission design is required. The results show that when installing cables at a greater depth, it is imperative to increase the distance between them to guarantee the ampacity. The induced voltage on the sheath will rise as the distance increases. Furthermore, the results reveal that instead of calculating the induced voltage by considering the scenario that is exact and most like a real case, it is enough to calculate following the second scenario and then add a scaling factor according to each duct bank configuration. Full article

This article addresses challenges in the design of underground high-voltage transmission lines, focusing on thermal management and cable ampacity determination. It introduces an innovative proposal that adjusts the dimensions of the backfill to enhance ampacity, contrasting with the conventional approach of increasing the core cable’s cross-sectional area. The methodology employs a particle swarm optimization (PSO) technique with adaptive penalization and restart strategies, implemented in MATLAB for parameter autoadaptation. The article emphasizes more efficient solutions than traditional PSO, showcasing improved convergence and precise results (success probability of 66.1%). While traditional PSO is 81% faster, the proposed PSO stands out for its accuracy. The inclusion of thermal backfill results in an 18.45% increase in cable ampacity, considering variations in soil thermal resistivity, backfill properties, and ambient temperature. Additionally, a sensitivity analysis was conducted, revealing conservative values that support the proposal’s robustness. This approach emerges as a crucial tool for underground installation, contributing to continuous ampacity improvement and highlighting its impact on decision making in energy systems. Full article

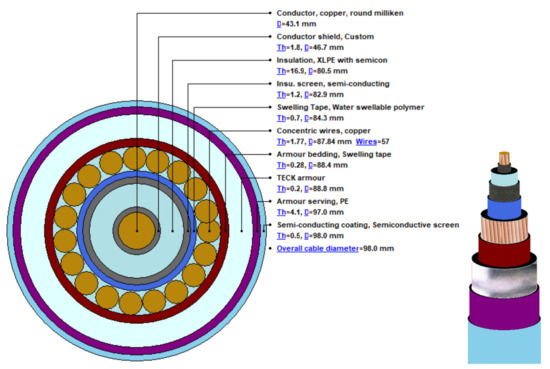

Underground cable installation in historical areas, natural protected areas, narrow streets, or residential areas with high traffic flows is very difficult due to both legal permits and the conditions of the work sites. The trefoil layout requires a smaller channel than the flat layout. However, the trefoil layout carries some risks, such as damage to the cables together in the event of short circuit faults and reduced ampacity in single-side-bonded systems. This study’s scope examines the current carrying capacities and thermal effects of directly buried underground cables in trefoil and vertical layouts using CYMCAP power cable analysis software. A field investigation was also carried out to verify the analysis results. The performance of the recommended method was evaluated by considering current and temperature measurements from the fieldwork and analysis. According to the studied cable design, the current carrying capacities of the cables in flat and vertical layouts are similar and higher than in the trefoil layout. However, it should be taken into consideration that these results will vary depending on a cable system’s design parameters. As a result, this article emphasizes that a vertical layout can be considered as a layout option in certain areas. Full article

Amid the growing demand for energy supply in modern cities, the enhancement of transmission capacity is receiving considerable attention. In this study, we propose a novel method of direct forced cooling in pipe-type transmission lines via an external air supply for reducing the cable temperature and enhancing the ampacity. We conducted numerical simulations using computationally efficient two-dimensional models and a reduced-length three-dimensional model for assessing the cooling efficiency, the distance required for temperature convergence, and the fan/pump capacity required for forced air cooling. We found a 26% increase in ampacity in the case of 5 m/s inlet air velocity into the pipe conduit. We also built and tested the experimental setup equipped with a 300 m length model transmission cable. Results of the forced air cooling experiments show good agreement with numerical simulations. To the best of our knowledge, this study demonstrates the first analysis and validation of direct cooling in pipe-type cables, presenting a promising path for efficient power management in modern metropolitan areas. Full article

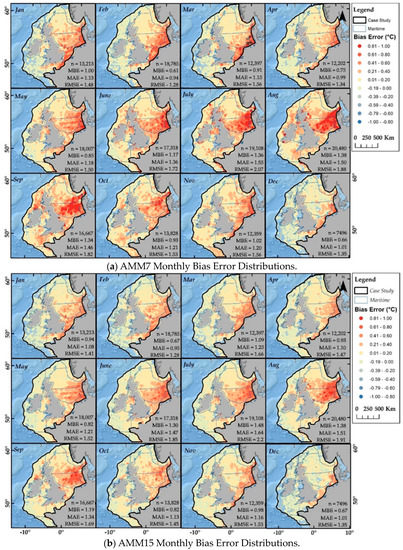

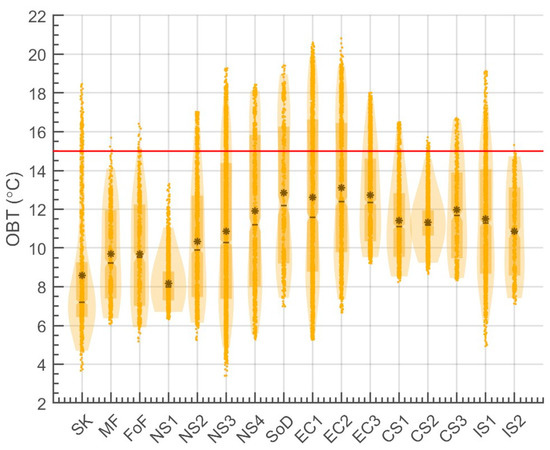

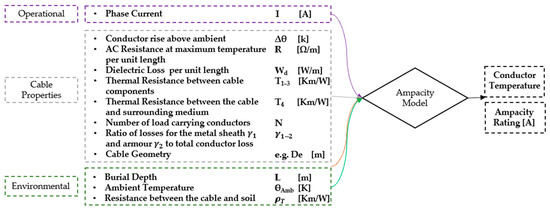

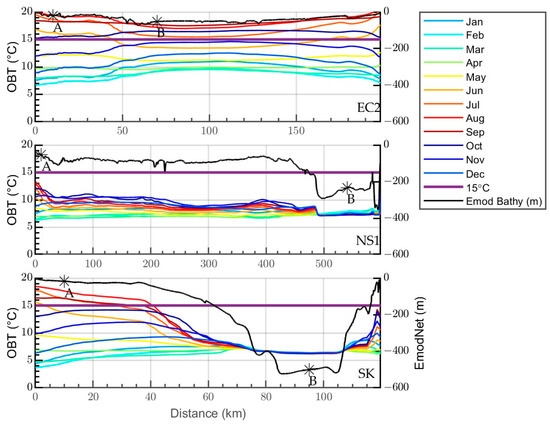

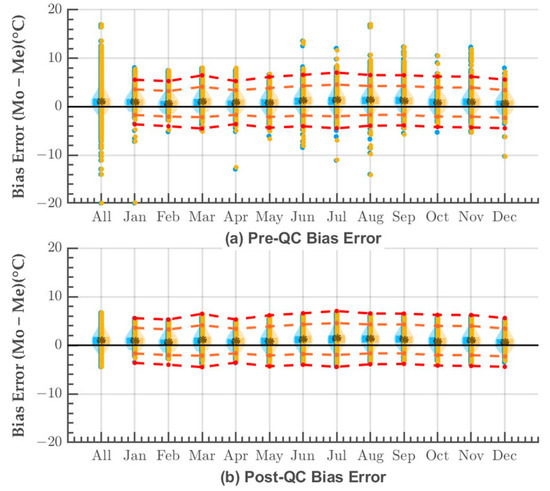

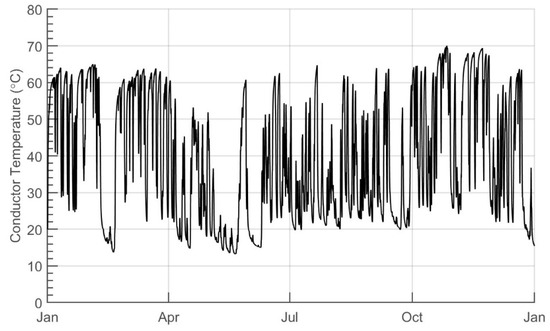

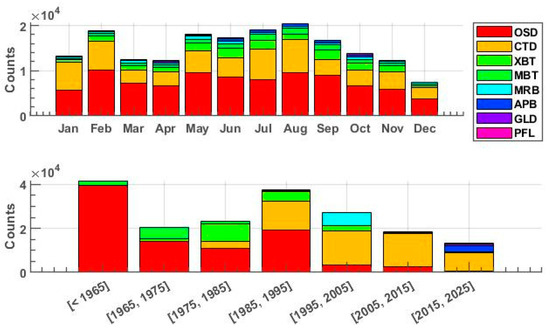

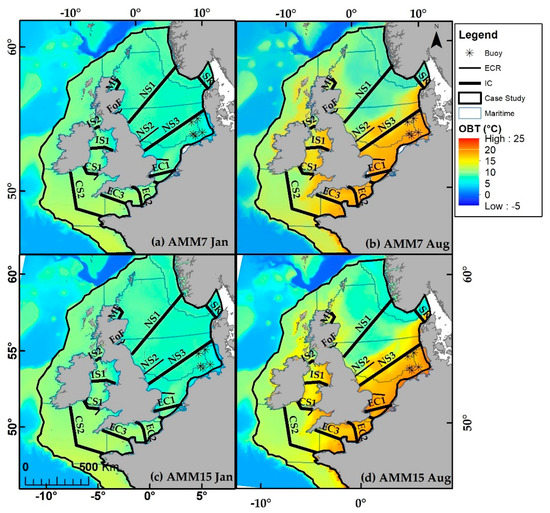

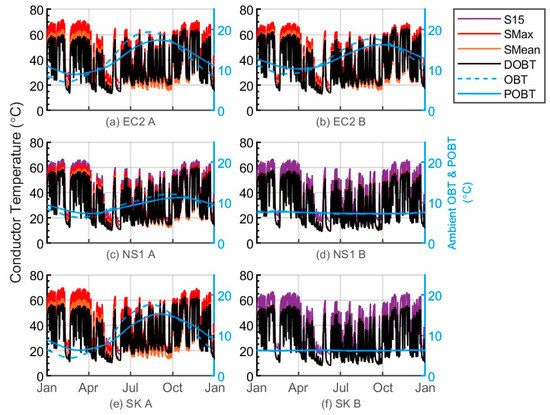

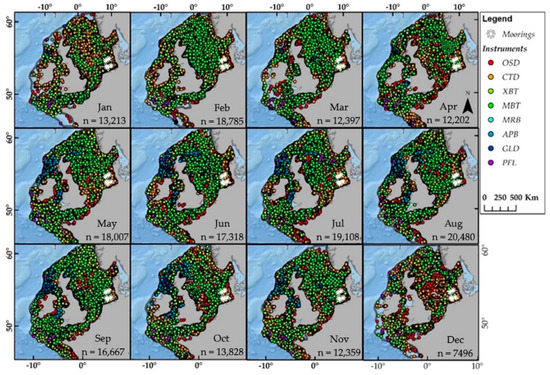

Determining reliable cable ampacities for marine High Voltage Cables is currently the subject of significant industry and academic reassessment in order to optimize (maximizing load while maintaining safe operating temperatures) design and reduce costs. Ampacity models can be elaborate, and inaccuracies are increasingly predicated on the uncertainty in environmental inputs. A stark example is the role of ambient temperature at cable depth, which, due to the scale of cables and the inaccessibility of the seafloor, is commonly estimated at 15 °C. Oceanographic models incorporating ocean bottom temperature are increasingly available, and they achieve coverage and spatiotemporal resolutions for cable applications without the requirement for project specific measurements. Here, a rudimental validation of the AMM15 and AMM7 mean monthly ocean bottom temperature models for the NW European Shelf indicates encouraging accuracies (MBE ≤ 1.48 °C; RMSE ≤ 2.2 °C). A series of cable case studies are used to demonstrate that cable ratings can change between −4.1% and +7.8% relative to ratings based on a common static (15 °C) ambient temperature value. Consideration of such variations can result in both significant ratings (and hence capital expenditure and operating costs) gains and/or the avoidance of cable overheating. Consequently, validated modelled ocean bottom temperatures are deemed sufficiently accurate, providing incomparable coverage and spatiotemporal resolutions of the whole annual temperature signal, thereby facilitating much more robust ambient temperatures and drastically improving ampacity estimates. Full article

The substitution of traditional copper power transmission cables with lightweight copper–carbon nanotube (Cu–CNT) composite fibers is critical for reducing the weight, fuel consumption, and CO₂ emissions of automobiles and aircrafts. Such a replacement will also allow for lowering the transmission power loss in copper cables resulting in a decrease in coal and gas consumption, and ultimately diminishing the carbon footprint. In this work, we created a lightweight Cu–CNT composite fiber through a multistep scalable process, including spinning, densification, functionalization, and double-layer copper deposition. The characterization and testing of the fabricated fiber included surface morphology, electrical conductivity, mechanical strength, crystallinity, and ampacity (current density). The electrical conductivity of the resultant composite fiber was measured to be 0.5 × 10⁶ S/m with an ampacity of 0.18 × 10⁵ A/cm². The copper-coated CNT fibers were 16 times lighter and 2.7 times stronger than copper wire, as they revealed a gravimetric density of 0.4 g/cm³ and a mechanical strength of 0.68 GPa, suggesting a great potential in future applications as lightweight power transmission cables. Full article

In electric vehicles, currents with high-frequency ripples flow in the power cabling system due to the switching operation of power converters. Inside the cables, a strong coupling between the thermal and electromagnetic phenomena exists, since the temperature and Alternating Current (AC) density distributions in the strands affect each other. Due to the different time scales of magnetic and heat flow problems, the computational cost of Finite Element Method (FEM) numeric solvers can be excessive. This paper derives a simple analytical model to calculate the total losses of a multi-stranded cable carrying a Direct Current (DC) affected by a high-frequency ripple. The expression of the equivalent AC cable resistance at a generic frequency and temperature is derived from the general treatment of multi-stranded multi-layer windings. When employed to predict the temperature evolution in the cable, the analytical model prevents the use of complex FEM models in which multiple heat flow and magnetic simulations have to be run iteratively. The results obtained for the heating curve of a 35 mm² stranded cable show that the derived model matches the output of the coupled FEM simulation with an error below 1%, whereas the simple DC loss model of the cable gives an error of 2.4%. While yielding high accuracy, the proposed model significantly reduces the computational burden of the thermal simulation by a factor of four with respect to the complete FEM routine. Full article

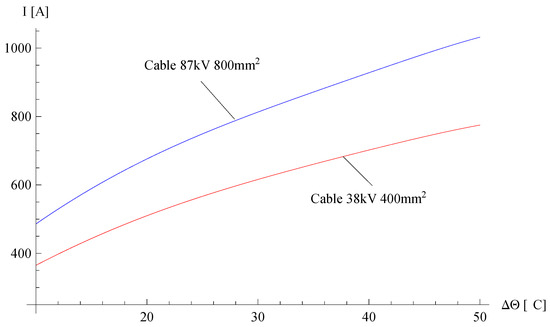

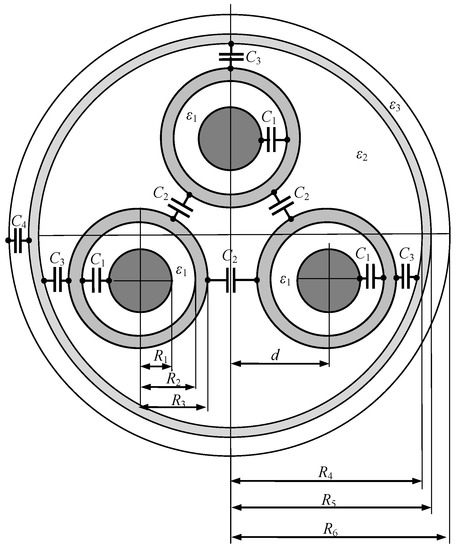

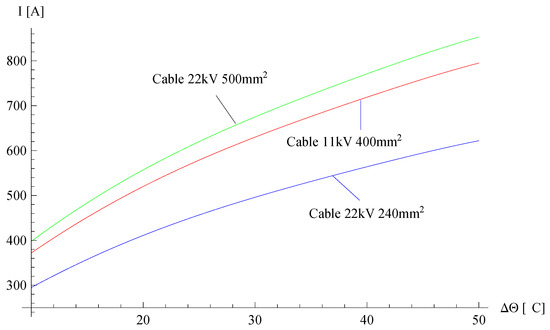

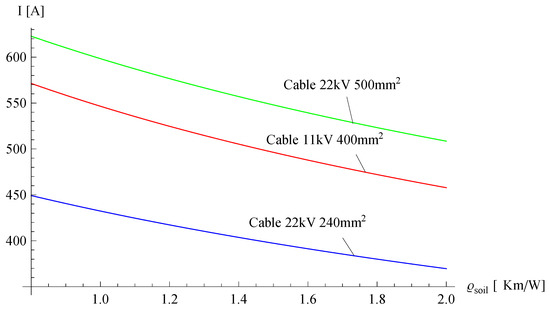

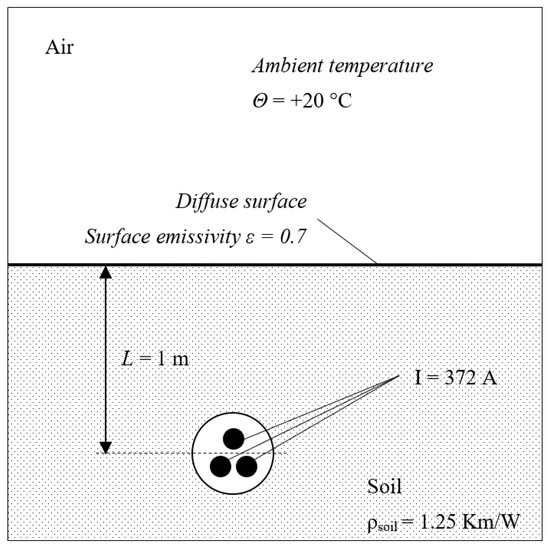

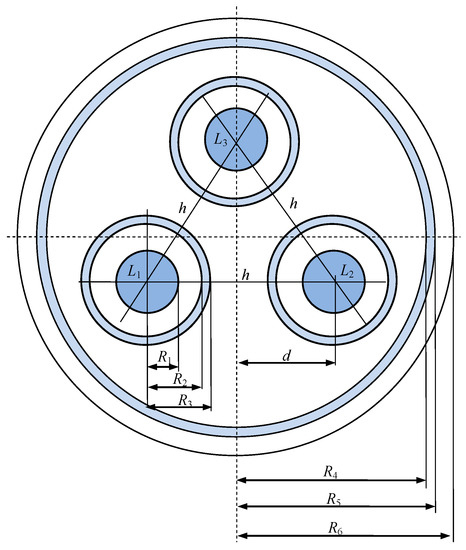

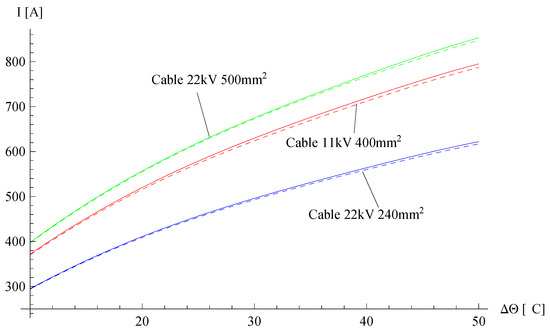

The continuous increase in the demand for electricity makes it necessary to modernize or build new transmission lines. This, in turn, results in research that is still being carried out on the optimal use of power cables. In the paper, an improved analytical method for the determination of the current rating of power cables was proposed. The method for determining the ampacity of the power cable presented in the IEC standard assumes that power losses in the phase conductors and screens are determined by taking into account skin and the proximity effects on the basis of tabulated coefficients. The methodology proposed in the paper is based on the method presented in the IEC standard, but the power losses in the conductive elements of the cable are determined analytically, which offers higher accuracy. In order to validate the analytical method proposed in this paper, numerical calculations based on the finite element method with very fine mesh were also performed. Exemplary calculations carried out for three types of cables with use of the proposed method, IEC standard and finite elements showed very good agreement in the results. The proposed method requires more computational effort, but it offers more accurate results than the IEC standard and can be used when higher accuracy is required. It can also serve as a reference point for simplified calculations. Full article
