Search Results (1,778)

Background: In the treatment of dentofacial deformities, miniplates and screws made of titanium and its alloys (Ti6Al4V) are currently used for osteosynthesis of bone segments, which is due to the high biocompatibility of these materials. Despite the unquestionable advantages of titanium implants, there is an ongoing discussion about their potential negative impact on the human body, both at the implantation site and systemically. This study aimed to assess the influence of titanium fixations (miniplates and screws) on the texture and to identify the texture features that vary in the surrounding bone tissue. Methods: The orthopantomograms were obtained from 20 patients who were treated at the Department of Maxillofacial and Plastic Surgery, University of Bialystok. Regions of Interest (ROIs) of bone tissue surrounding titanium fixations in the maxilla and mandible were annotated using separate masks and compared to healthy areas of the same structures in the same patients. The images were independently filtered using Mean, Median, and Laplacian Sharpening filters, followed by analysis of the texture parameters obtained through methods such as First-Order Statistics (FOS), the Gray-Level Co-occurrence Matrix (GLCM), Neighbouring Gray Tone Difference Matrix (NGTDM), Gray-Level Dependence Matrix (GLDM), Gray-Level Run Length Matrix (GLRLM), and Gray-Level Size Zone Matrix (GLSZM). Results: The results showed that FOS, GLCM, and GLDM provide the most informative features for quantitative assessment of the areas around titanium fixations, and that smoothing filters reduce measurement noise and artifacts. Conclusions: The findings confirm that texture analysis can support the diagnosis of structural alterations in the bone surrounding titanium fixations, in both the maxilla and mandible. Full article

Titanium-based bulk metallic glasses (BMGs) offer high strength, lower stiffness than Ti-6Al-4V, and superior corrosion resistance, but conventional Ti glass-forming systems often contain toxic Ni, Be, or Cu. This work investigates five novel Ti-based alloys free of these elements—Ti₄₂Zr₃₅Si₅Co_12.5Sn_2.5Ta₃, Ti₄₂Zr₄₀Ta₃Si₁₅, Ti₆₀Nb₁₅Zr₁₀Si₁₅, Ti₃₉Zr₃₂Si₂₉, and Ti_65.5Fe_22.5Si₁₂—synthesized by arc melting and suction casting. Single-track laser remelting using a selective laser melting (SLM) system was performed to simulate additive manufacturing and examine microstructural evolution, cracking behavior, mechanical properties, and cytocompatibility. All alloys solidified into fully crystalline α/β-Ti matrices with Ti/Zr silicides; no amorphous structures were obtained. Laser remelting refined the microstructure but did not induce glass formation, consistent with the known limited glass-forming ability of Cu/Ni/Be-free Ti systems. Cracking was observed at low laser energies but crack density decreased as laser energy increased. Cracks were eliminated above ~0.4 J/mm for most alloys. Ti₄₂Zr₃₅Si₅Co_12.5Sn_2.5Ta₃ exhibited the lowest stiffness (~125 GPa), while Ti₆₀Nb₁₅Zr₁₀Si₁₅ showed the highest due to silicide precipitation. Cytotoxicity tests (ISO 10993-5) confirmed all alloys to be non-toxic, with some extracts even enhancing fibroblast proliferation. This rapid laser-remelting approach enables cost-effective screening of Ti-based glass-forming alloys for additive manufacturing. Ti–Zr–Ta–Si systems demonstrated the most promising properties for further testing using the powder bed method. Full article

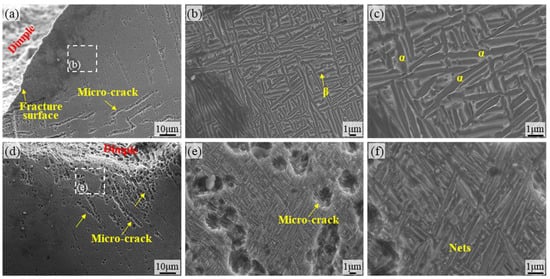

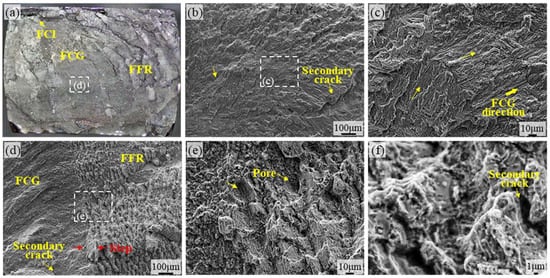

Additive manufacturing has huge development potential in the aerospace field. The hot-end components of aeroengines work in harsh environments, facing high temperatures and a demand for long service life. In this paper, high-cycle fatigue (HCF) tests of Ti6Al4V alloy at 400 °C by selective laser melting (SLM) under different stress ratios (−1, 0.1, 0.3, 0.5, and 0.8) were carried out, and the fracture surfaces were observed. The results show that the defects existing on the surface or subsurface are prone to become the origin of fatigue cracks. There is a large dispersion of the high-cycle fatigue life of the samples, especially at a low stress ratio. With the increase in the stress ratio, the fatigue failure area on the fracture surface gradually decreases, and the fracture surface gradually presents a mixed pattern of tensile endurance fracture and fatigue failure. Considering the influence of creep damage due to mean stress, models were established, respectively, for the fatigue behavior and time-related rupture behavior to predict fatigue life and conduct an assessment. Then, the two models were combined and the composite models were proposed using the linear damage law. Finally, the single fatigue model and rupture models, as well as the composite models, were evaluated, respectively, and compared with the actual fatigue life, and the best model was obtained for the high-cycle fatigue prediction of SLM Ti6Al4V at 400 °C. Full article

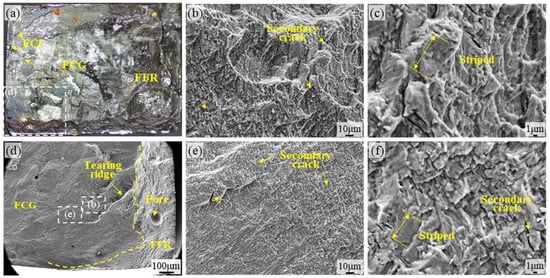

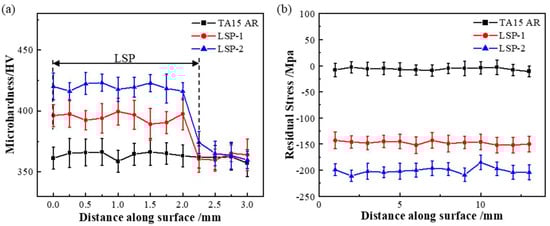

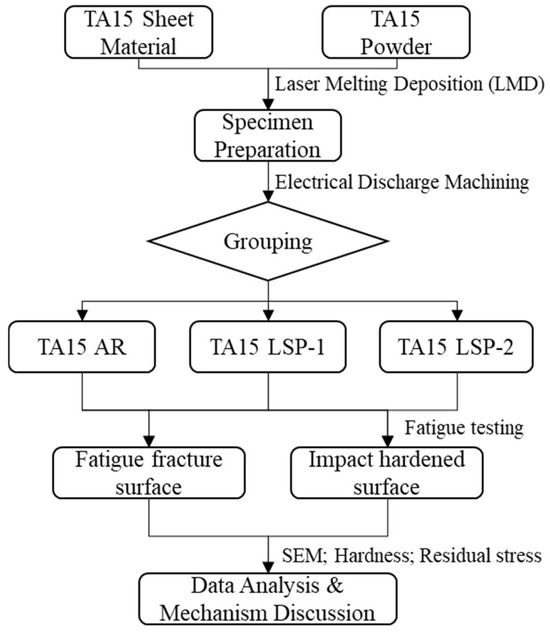

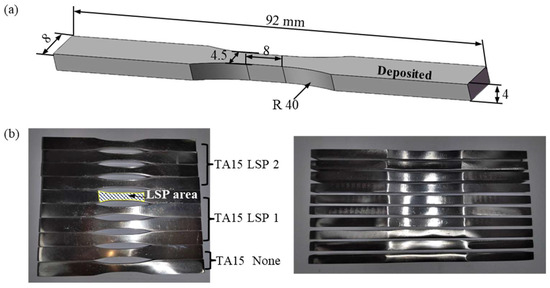

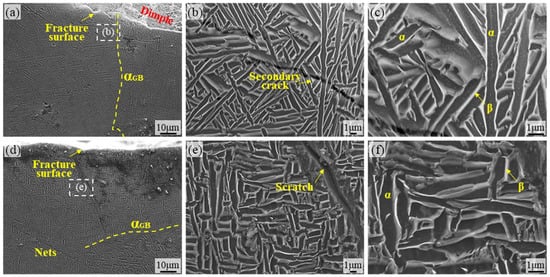

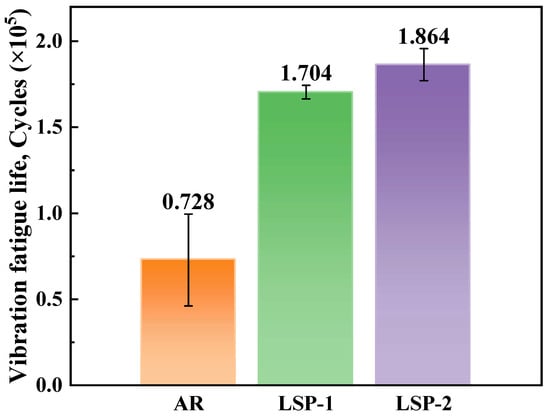

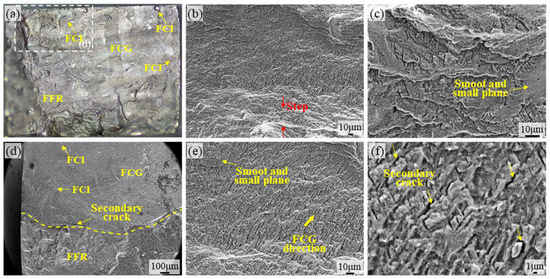

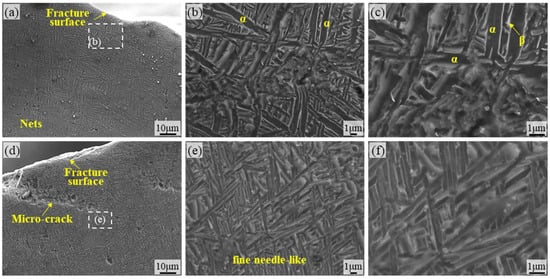

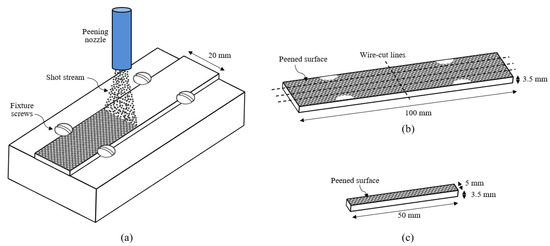

This study investigates the effects of multiple laser shock peening (LSP) treatments on the low-cycle fatigue performance and fracture mechanisms of laser-melted, additive-manufactured Ti-6.5Al-1Mo-1V-2Zr (TA15) titanium alloy. The primary objective is to systematically evaluate how different LSP impact numbers (0, 1, and 2 impacts) enhance fatigue life and alter fracture behavior. Low-cycle fatigue life was determined via tensile-compression fatigue testing. Microfracture morphology was examined using scanning electron microscopy (SEM), surface residual stresses were measured by X-ray diffraction (XRD), and microhardness tests were conducted concurrently. Results indicate that LSP significantly enhances fatigue life: fatigue life increased by 2.34 times and 2.56 times after one and two LSP impacts, respectively, compared to the untreated state. As impact cycles increased, the microhardness of the material surface rose by 8.51% and 14.53%, respectively, with residual compressive stresses reaching −145 MPa and −183 MPa. Concurrently, LSP-2 treatment formed a refined microstructure featuring coexisting lamellar α and acicular martensite in the surface layer. This strengthening effect is attributed to LSP-induced surface residual compressive stress, grain refinement, and the resulting migration of fatigue crack initiation from the surface to subsurface regions. These findings provide critical insights for optimizing fatigue-resistant designs of additively manufactured titanium alloy components. Full article

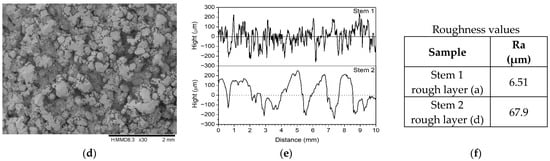

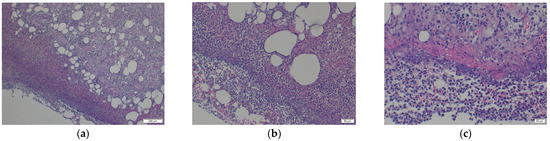

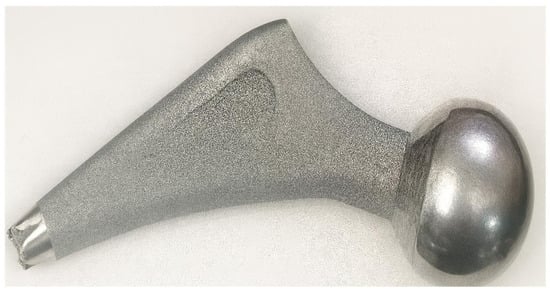

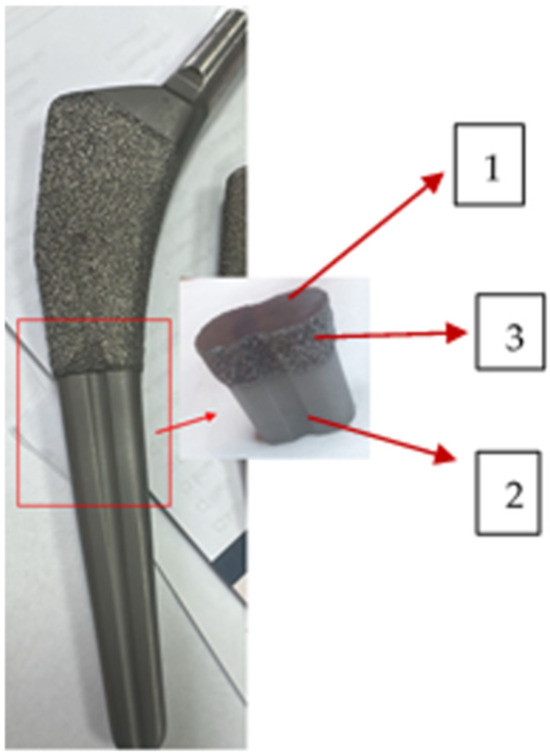

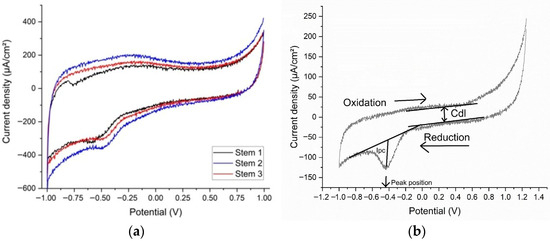

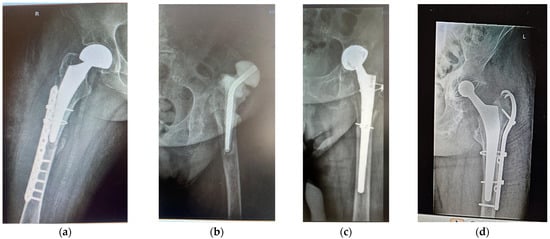

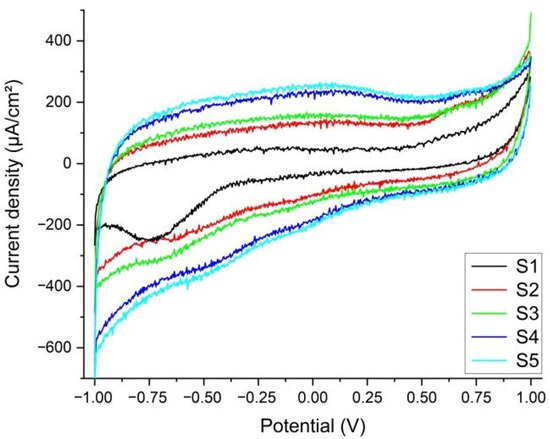

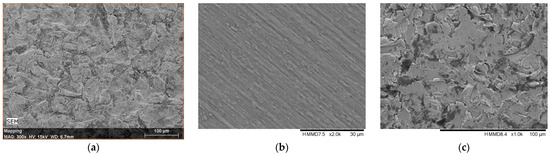

Background and Objectives: Organ dysfunctions affect the quality of bone and body fluids. This case report seeks links between the underlying conditions of three patients undergoing hip arthroplasty (HA) with uncemented implants, the quality of their bones, and their Ti-6Al-4V orthopaedic implants, on different time spans. Femoral stems are investigated. A brief review supports our findings. Materials and Methods: Cases: two women (F1 35+, F2 80+), and one man (M 65+), all having diabetes, dyslipidaemia, and kidney dysfunction. Samples: a segment of a broken 7-year-old stem, bone with a metallic layer, soft tissue, segments of one spare stem, and synthetic plasma enriched with glucose and urea according to the biochemistry tests of the respective patients. Vast studies show that cholesterol influences bone quality only. The stem pieces were ultrasonicated for 7 h at 37 °C in synthetic plasma. Scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDX), and profilometry investigated the Ti-alloy samples, electrochemistry analysed the post-sonication plasma, and histopathology examination was performed on the soft tissue remnants on the broken stem. Results: EDX show that all stem samples are Ti-6Al-4V with minute additions of other elements and hydroxyapatite (HAp) coating. SEM and profilometry analysis are consistent for the roughness in the outer layers of the stems. Electrochemistry on the bone fragment shows migration of vanadium during the 6 months since fracture to revision for M. Conclusions: Stems in altered synthetic plasma are affected by glucose and urea. Metal migration from the prostheses can occur through the chemical interactions between body fluids with abnormal biochemistry and the orthopaedic prostheses, favoured by cracks and concurring with wear following friction during usual movements. Cholesterol influences on the bone quality. Full article

Heterostructure (HS) refers to a class of structural materials composed of two or more different chemical components or crystal structures. Integration of Inconel 625 (IN625) nickel-based superalloy and Ti6Al4V (TC4) titanium alloy to a HS material offers a promising strategy to achieve graded thermo-mechanical properties, extended service temperature ranges, and significant weight reduction, which are highly desirable in aerospace applications. However, obtaining a better metallurgical bonding between the two alloys remains a critical challenge. In this study, laser directed energy deposition (L-DED) technology was employed to fabricate IN625/TC4 HS materials with a nonlinear gradient transition, following systematic investigations into the phase composition and crack sensitivity of IN625/TC4 gradient layers prepared from mixed powders of varying compositions. In addition, microstructure, phase distribution, and mechanical properties of HS materials at room temperature were characterized. The metallurgical defect-free IN625/TC4 HS material was successfully prepared, featuring a smooth transition of microstructure, reduced cracking sensitivity, and reliable metallurgical bonding. Furthermore, a novel design concept and illustrative reference for the L-DED fabrication of N625/TC4 HS material with excellent comprehensive performance was presented, while providing a theoretical metallurgical basis and data support for the potential applications of IN625/TC4 HS materials in the field of aerospace. Full article

In manufacturing processes, both material processing methods and the resulting microstructure play a fundamental role in determining material behavior during component fabrication and subsequent service conditions. Materials produced by additive manufacturing exhibit a unique microstructure due to the rapid heating and solidification cycles inherent to the process, distinguishing them from conventionally cast counterparts and leading to differences in mechanical and functional properties. This article presents problems related to the longitudinal turning of Ti6Al4V titanium alloy elements produced by the casting and powder laser sintering (DMLS) methods. The authors made an attempt to establish a procedure for determining the optimal parameters of finishing cutting while minimizing the specific cutting force, taking into account the criterion of machined surface quality. In the course of the experiments, the influence of the cutting data on the cutting force values, surface roughness parameters, and chip shape was examined. The material hardening state during machining and the variability of the specific cutting force as a function of the cross-sectional shape of the cutting layer were also tested. The authors presented a practical application of the proposed optimization algorithm. It was found that by changing the shape of the cross-section of the cutting layer, it was possible to carry out the turning process with significantly reduced specific cutting force (from 2300 N/mm² to 1950 N/mm²) without deteriorating the surface roughness. Full article

The machining of Ti-6Al-4V thin-walled parts is characterized by high cutting temperatures, significant force fluctuations, and complex thermomechanical coupling. Cryogenic Minimum Quantity Lubrication Technology (CMQL) uses bio-lubricant as the lubrication carrier, combined with the cooling characteristics of cryogenic temperature medium, showing good cooling and lubrication performance and environmental friendliness. However, the cooling and lubrication mechanism of different cryogenic media in synergy with bio-lubricants is still unclear. This paper establishes convective heat transfer coefficient and penetration models for cryogenic media in the cutting zone, based on the jet core theory and the continuum medium assumption. The model results show that cryogenic air has a higher heat transfer coefficient, while cryogenic CO₂ exhibits a better penetration ability in the cutting zone. Further milling experiments show that compared with cryogenic air, the average temperature rise, average cutting force and surface roughness of workpiece surface with cryogenic CO₂ as cryogenic medium are reduced by 23.6%, 32.8%, and 11.8%, respectively. It is considered that excellent permeability is the key to realize efficient cooling and lubrication in the cutting zone by Cryogenic CO₂ Minimum Quantity Lubrication Technology. This study provides a theoretical basis and technical reference for efficient precision machining of titanium alloy thin-walled parts. Full article

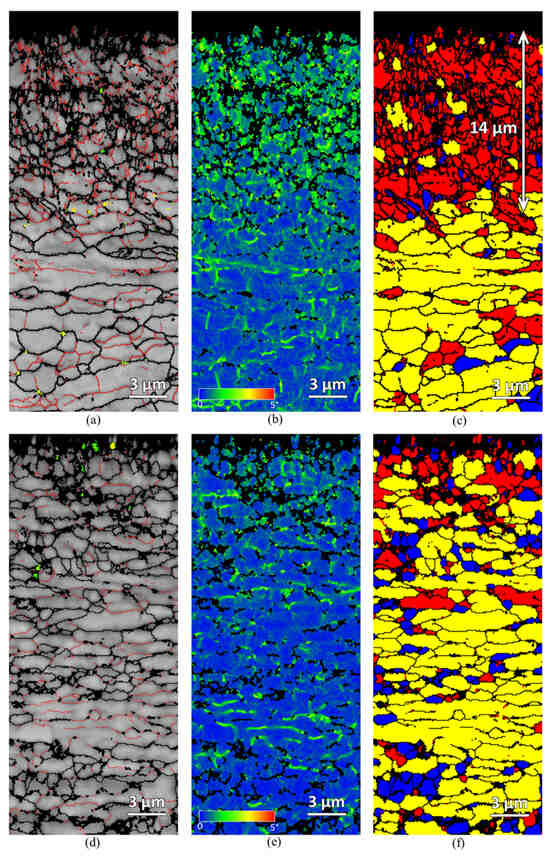

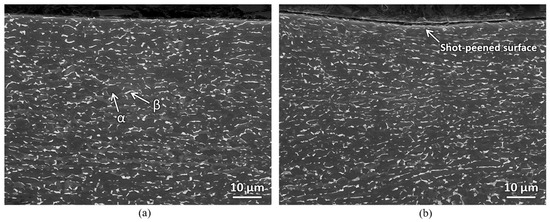

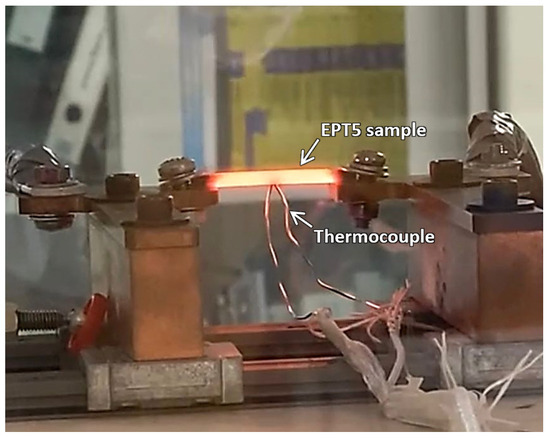

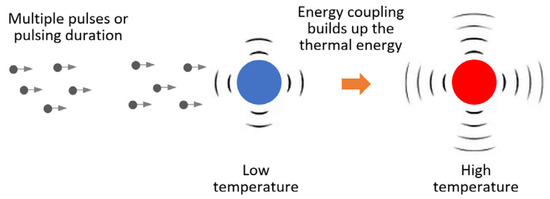

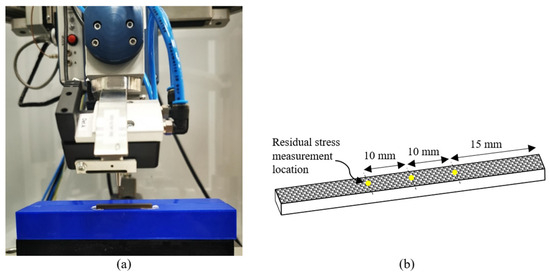

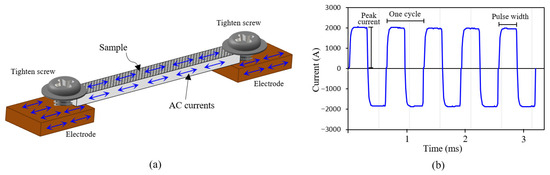

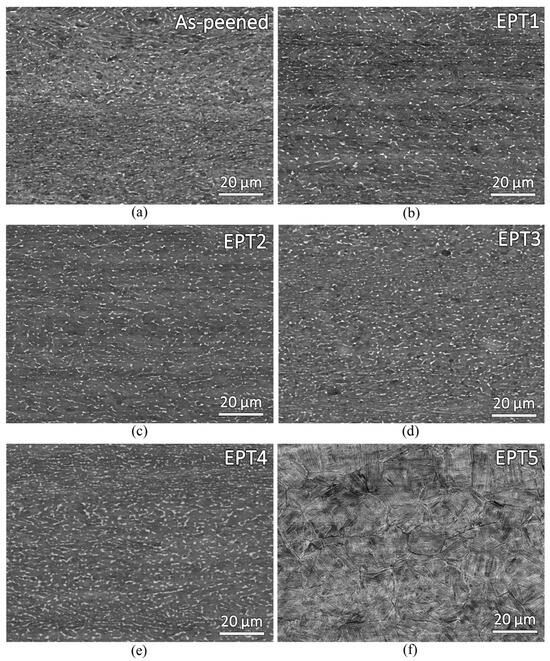

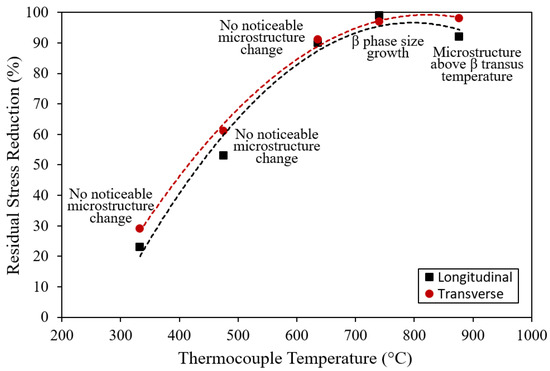

This study investigates the effectiveness and underlying mechanisms of electropulsing treatment (EPT) for rapid stress relief of Ti-6Al-4V titanium alloy. Stress relief is an essential step in manufacturing processes to ensure long component lifespan. Residual stress accumulation within a component is often undesirable, as it may lead to premature failures. Currently, the stress relief of titanium alloys is typically carried out using an annealing heat-treatment process in a vacuum furnace. However, this method is time-consuming, usually requiring several hours. In this paper, an alternative fast stress relief method by EPT was investigated. A controllable pulsing treatment using alternating high density pulsing current with short pulse width was carried out. Results showed that EPT is effective in relieving residual stress in Ti-6Al-4V alloy. Up to 90% of the surface residual stresses induced by shot peening were successfully relieved by EPT with a treatment duration of only 114 ms. Reductions of low-angle grain boundaries (2–10°), local misorientation, and deformed grains were observed, while no significant grain growth or phase transformation was found. The stress-relief mechanism of EPT is attributed to the combined effects of dislocation movement driven by electron wind force (EWF), dislocation creep at elevated temperatures, and dislocation glide due to local yielding of residual stress under high-temperature conditions. The temperature rise during EPT was identified as a significant factor enabling stress relaxation. Full article

Titanium alloys such as Ti-6Al-4V are widely used in aerospace and biomedical fields, but their poor wear resistance and high friction coefficient limit service performance. In this study, laser cladding with La₂O₃ addition was employed to enhance the surface properties of Ti-6Al-4V, and the underlying mechanisms were systematically investigated by combining experimental characterization with multiphysics simulations. XRD and SEM analyses revealed that La₂O₃ addition refined grains and promoted uniform phase distribution throughout the coating thickness, leading to good metallurgical bonding. The hardness was 2–3 times higher than that of the titanium alloy substrate when the content of 2–3 wt.% was of added La₂O₃, while the wear loss ratio was reduced to 0.021% and the average friction coefficient decreased to 0.421. These improvements were strongly supported by simulations: temperature field calculations demonstrated steep thermal gradients conducive to rapid solidification; velocity field analysis and recoil-pressure-driven flow revealed vigorous melt pool convection, which homogenized solute distribution and enhanced coating densification; phase evolution simulations confirmed the role of La₂O₃ in heterogeneous nucleation and dispersion strengthening. In summary, the combined results establish a mechanistic framework where thermal cycling, melt pool dynamics, and La₂O₃-induced nucleation act synergistically to optimize coating microstructure, hardness, and wear resistance. This integrated experimental–numerical approach provides not only quantitative improvements but also a generalizable strategy for tailoring surface performance in laser-based manufacturing. Full article

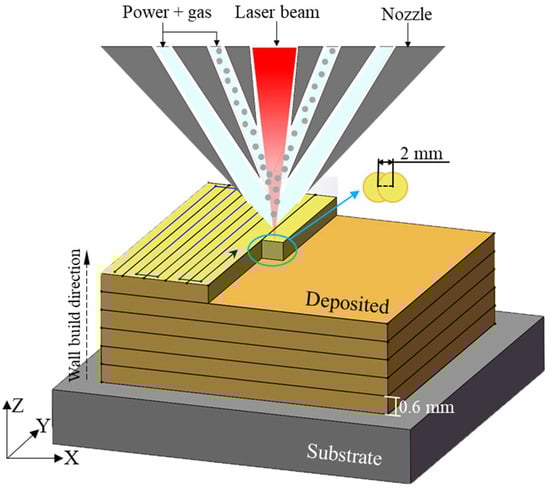

Although Directed Energy Deposition (DED) of Ti–6Al–4V has been widely explored for its mechanical performance, the combined influence of build orientation and surface position (upskin/downskin) on passive film kinetics and fluoride-induced degradation remains largely unexamined. This study addresses this gap by systematically investigating how processing direction and surface thermal history govern microstructure and corrosion behaviour in Laser-Based DED (LB-DED) Ti–6Al–4V. The alloy was fabricated in XY and XZ orientations, and both upskin and downskin surfaces were evaluated. Microstructural characterisation revealed strong anisotropy, with elongated prior-β grains and directional α + β colonies particularly prominent in the XZ orientation. Electrochemical testing in borate buffer showed stable passivity across all conditions, with XY surfaces forming the most compact oxide films. In a more aggressive 2.5% NaF saliva environment, substantial orientation-dependent degradation was observed: XY specimens maintained low corrosion currents and uniform passive layers, whereas XZ downskin exhibited unstable passivation and extensive micro-pitting. These findings demonstrate, for the first time, that the interplay between build orientation and surface position critically dictates passive film defect structure, stability, and fluoride-driven breakdown, providing new mechanistic insight into the corrosion behaviour of DED Ti–6Al–4V relevant to biomedical applications. Full article

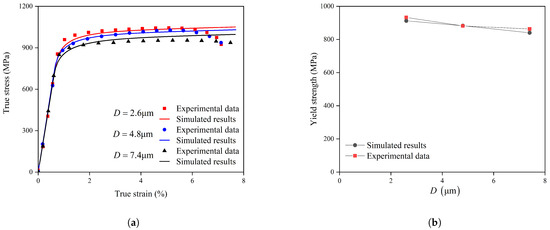

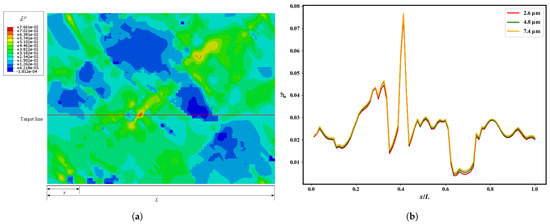

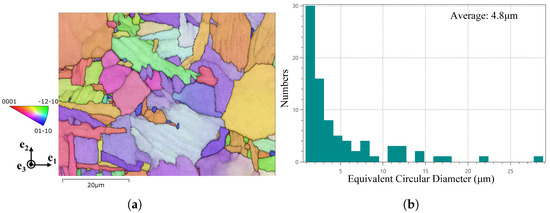

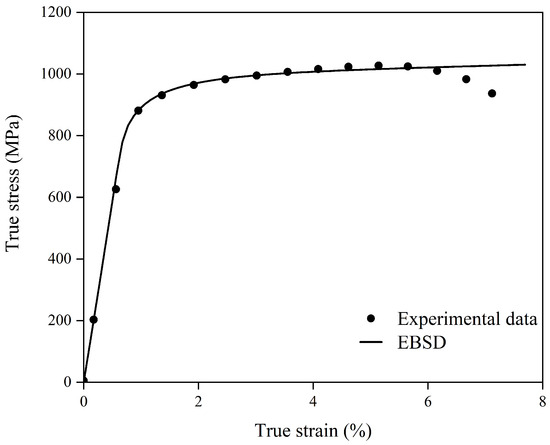

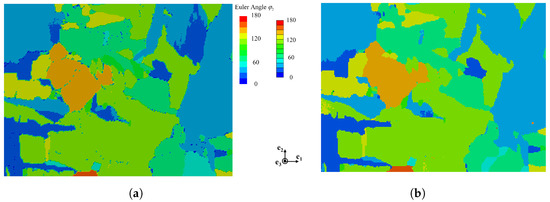

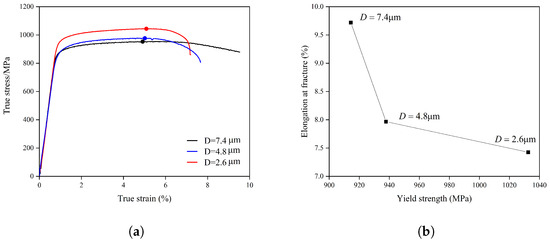

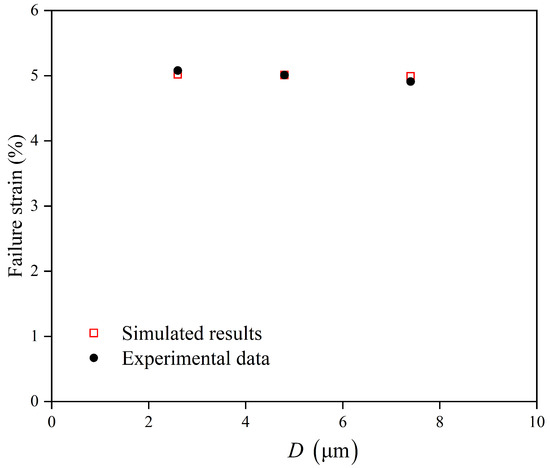

Ti-6Al-4V (TC4) alloy is widely used in aerospace and biomedical applications due to its excellent strength-to-weight ratio and corrosion resistance. Its plastic deformation behavior is strongly influenced by its microstructural characteristics, particularly grain size. In this study, a crystal plasticity model incorporating a Hall–Petch relationship was developed to simulate the plastic deformation of TC4, with explicit consideration of the effect of grain size on slip resistance. The model employs a thermally activated flow rule to describe the kinetics of slip systems, enabling accurate prediction of flow stress and strain hardening across different microstructural conditions. The model is calibrated and validated using experimental stress–strain data from uniaxial tensile tests on specimens with varying grain sizes. Simulation results demonstrate that the model successfully captures the grain-size-strengthening effect and predicts the corresponding evolution of local strain heterogeneity. Furthermore, a critical local equivalent plastic strain criterion was established, which effectively predicts the dependence of macroscopic failure strain on grain size. This work provides a physically based computational tool for optimizing TC4 processing parameters and predicting deformation under service conditions. Full article

In this work, two configurations of Ti/HAp functionally graded coatings were fabricated on Ti–6Al–4V alloy substrates using detonation spraying. The coatings differed in the number and sequence of Ti and hydroxyapatite (HAp) deposition cycles, resulting in distinct gradient architectures: Configuration 1 incorporated a sharper transition from the Ti-rich base to the HAp-rich surface, whereas Configuration 2 featured a smoother and more gradual compositional gradient. The microstructure and elemental distribution were examined by scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDS). Both configurations exhibited well-defined gradient layering, with titanium concentrated near the coating–substrate interface and an increased Ca and P content toward the upper bioceramic region. Raman spectroscopy confirmed the preservation of hydroxyapatite as the main phase, showing a characteristic 961 cm⁻¹ band. Adhesion strength measured according to ASTM C633-13 was 45.78 ± 4.4 MPa for Configuration 1 and 52.32 ± 6.7 MPa for Configuration 2, both significantly exceeding the minimum required 15 MPa. The findings demonstrate that detonation-sprayed Ti/HAp gradient coatings provide strong adhesion and stable bioceramic surfaces, making them promising for metal implant applications. Full article

Ti-6Al-4V alloy is a popular metal in engineering, utilized in aerospace and automotive industries because of its mechanical properties. However, Ti-6Al-4V’s poor tribological characteristics cause it to be susceptible to wear due to its low surface hardness and inadequate lubricity. In this study, thermal oxidation (TO) was performed on Ti-6Al-4V under specific conditions of 625 °C for various oxidation durations of 0.5, 1.5, 6, 24 and 96 h and the microstructure, friction, and wear behavior of TO-treated Ti-6Al-4V under dry and oil-lubricated sliding conditions were investigated. Characterization by XRD, SEM, and EDX confirms the development of oxide layers (OL) and oxygen diffusion zones (ODZ) of varying thicknesses. Tribological tests were conducted using a ball-on-disk configuration under a 5 N load against an Al₂O₃ counterface in both dry and 10W-40 oil-lubricated environments. Under dry conditions, extended oxidation times lead to a deterioration in friction and wear performance due to the increased brittleness and decreased adhesion of the thick OL, leading to brittle failure and interfacial delamination. In contrast, under oil lubrication conditions, all oxidized samples show stable, low-friction (~0.06) and minimal wear, dominated by boundary lubrication. The best performance is achieved at short oxidation durations, where a thin OL and a stable ODZ provide strong adhesion of the OL and high surface hardness. Wear rates up to three orders of magnitude lower than untreated Ti-6Al-4V are observed for short oxidation durations, where oxygen diffusion rather than thick oxide formation dominates the surface-hardening effect. SEM and EDX analyses confirmed the lack of tribofilms or additive-derived elements on the sliding surfaces, indicating that the improved performance results from the oxygen-enrichment in the subsurface and stable boundary lubrication, rather than chemical interactions with oil additives. Overall, oxidation duration is therefore essential to balance oxide growth and OL adhesion, ensuring superior lubricated wear resistance for titanium components. Full article

In this study, the asymmetrical rolling technique was employed to fabricate 75 μm-thick Ti-6Al-4V ultra-thin strips from the initial 0.45 mm sheet without intermediate annealing, aiming for applications in fuel cell bipolar plates. The rolled strips exhibited good surface quality without cracking. In order to enhance both the mechanical response and the shaping capability of Ti-6Al-4V strips produced by asymmetric rolling, the material was subjected to annealing at various temperatures, and the resulting changes in microstructural features and mechanical performance were systematically examined. The findings indicated that the cold-rolled Ti-6Al-4V exhibited a microstructure primarily composed of subgrains with an average size of approximately 0.41 μm, a feature that contributed to improved corrosion resistance and enhanced ductility after annealing. When the alloy was subjected to heat treatment within the range of 650–800 °C, it was observed that annealing temperatures below 700 °C favored microstructural changes governed predominantly by recovery processes and the onset of recrystallization. At 700 °C, the grains became equiaxed and uniformly distributed, and the dislocation density significantly decreased. The tensile strength reached 887 MPa, while the elongation increased to 13.7%, achieving an excellent strength-ductility balance. Once the annealing temperature rose above 700 °C, noticeable grain growth took place, accompanied by a more pronounced grain-size gradient and a renewed increase in dislocation density. Meanwhile, the dimples observed on the fracture surface became finer, collectively contributing to a decline in tensile elongation. The Ti-6Al-4V ultra-thin strip annealed at 700 °C was used for bipolar plate stamping, producing fine micro-channels with an aspect ratio of 0.43. Finally, TiN coating was applied to the surface, which significantly improved the corrosion resistance and reduced the interfacial contact resistance (ICR), meeting the performance requirements for bipolar plates. Full article
