Search Results (16)

We cross-linked unfractionated heparin (H) using epichlorohydrin (E), in the absence or presence of imidazole (I), using various ratios of H, E, and I substances. The objectives and goals were to use the reaction for the preparation of medical materials suitable for blood sample applications. Nuclear magnetic resonance indicated the involvement of an H-end sequence [H-(1→4)-β-D-GlcA-(1→3)-β-D-Gal-(1→3)-β-D-Gal-(1→4)-β-D-Xyl-α-Ser] in the linkage with the 2-hydroxypropyl bridge. The yields of the individual experiments were found to increase in the following ratios: 1H/1E/3I (24%) < 1H/1E/2I (32%) < 1H/3E (42%) < 1H/1E/1I (46%) < 1H/2E (64%) < 1H/1E (77%). According to size-exclusion chromatography with multiple-angle light scattering (SEC-MALS) analysis, the mass at the peak increased in the following order: H (9292 g/mol) < 1H/1E (9294 g/mol) < 1H/2E (9326 g/mol) < 1H/3E (9708 g/mol) < 1H/1E/2I (11,212 g/mol) < 1H/1E/3I (12,301 g/mol) < 1H/1E/1I (13,800 g/mol) and in the reverse order with the increase in amount of epichlorohydrin and imidazole, i.e., 1H/1E > 1H/2E > 1H/3E and 1H/1E/1I > 1H/1E/2I > 1H/1E/3I. X-ray diffraction revealed that all prepared films were amorphous. An evaluation of the surface morphology using atomic force microscopy (AFM) confirmed a relatively low films roughness (~0.9–3.6 nm). The surface reduced elastic modulus, determined by the PeakForce quantitative nanomechanical mapping (PF-QNM) technique, was found to increase by up to ~63% for films cross-linked with E in the absence of I when compared with the results for the H substrate. A negligible change in modulus was, however, observed for films cross-linked in the presence of I, or was even reduced by ~15% (1H/1E/3I) compared to that for the H substrate. This could be explained by the parallel cross-linking of H only with E within its serine end unit and in competition with only one nitrogen of I. According to the highest yield (77%) of 1H/1E, the preferred product is the following: H-(1→4)-β-D-GlcA-(1→3)-β-D-Gal-(1→3)-β-D-Gal-(1→4)-β-D-Xyl-α-Ser-CH₂-CH(OH)-CH₂-OH. For the 1H/1E/1I (46% yield), 1H/1E/2I (32%), and 1H/1E/3I (24%) products, the cross-linked motif was the same, and the difference represented the surplus amount of the imidazolium cation ionically bound to the heparin anionic groups. Full article

Cells of two molecular genetic types of breast cancer—hormone-dependent breast cancer (ZR-75 cell line) and triple-negative breast cancer (BT-20 cell line)—were studied using atomic force microscopy and an optical nanomotion detection method. Using the Peak Force QNM and Force Volume AFM modes, we revealed the unique patterns of the dependence of Young’s modulus on the indentation depth for two cancer cell lines that correlate with the features of the spatial organization of the actin cytoskeleton. Within a 200–300 nm layer just under the cell membrane, BT-20 cells are stiffer than ZR-75 cells, whereas in deeper cell regions, Young’s modulus of ZR-75 cells exceeds that of BT-20 cells. Two cancer cell lines also displayed a difference in cell nanomotion dynamics upon exposure to cytochalasin D, a potent actin polymerization inhibitor. The drug strongly modified the nanomotion pattern of BT-20 cells, whereas it had almost no effect on the ZR-75 cells. We are confident that nanomotion monitoring and measurement of the stiffness of cancer cells at various indentation depths deserve further studies to obtain effective predictive parameters for use in clinical practice. Full article

Improving the resolution and accuracy of the mechanical properties of organic-rich shale is very important. The results can reveal the mechanical properties of shale from micro scale and serve as a guide for the design of hydraulic fracture optimization parameters. This study introduced an advanced technique to obtain the mechanical properties of shale with high resolution (58.6 nm/pixel) by combining SEM, EDS, and Atomic Force Microscopy (AFM). To locate the target area in SEM and AFM accurately, a positioning technique that uses special distributions of pyrite was established. AFM PeakForce QNM mode was selected due to its advantages at capturing topography and mechanical properties in material. Results illustrated the ability of AFM to obtain the mechanical properties (modulus) of individual mineral components in shale, the detailed topography of crack, and mechanical properties of minerals in a specific area. In particular, the mechanical properties of minerals around crack explained the layered distribution of minerals around the fractures, and the cracks developed in the clay mineral layer was detected. This article demonstrates the great potential application of AFM in shale. Full article

Silica hollow spheres with a diameter of 100–300 nm and a shell thickness of $8\pm 2$ nm were synthesized using a self-templating amphiphilic polymeric precursor, i.e., poly(ethylene glycol)-substituted hyperbranched polyethoxysiloxane. Their elastic properties were addressed with a high-frequency AFM indentation method based on the PeakForce QNM (quantitative nanomechanical mapping) mode enabling simultaneous visualization of the surface morphology and high-resolution mapping of the mechanical properties. The factors affecting the accuracy of the mechanical measurements such as a local slope of the particle surface, deformation of the silica hollow particles by a solid substrate, shell thickness variation, and applied force range were analysed. The Young’s modulus of the shell material was evaluated as $E=26\pm 7$ GPa independent of the applied force in the elastic regime of deformations. Beyond the elastic regime, the buckling instability was observed revealing a non-linear force–deformation response with a hysteresis between the loading and unloading force–distance curves and irreversible deformation of the shell at high applied forces. Thus, it was demonstrated that PeakForce QNM mode can be used for quantitative measurements of the elastic properties of submicon-sized silica hollow particles with nano-size shell thickness, as well as for estimation of the buckling behaviour beyond the elastic regime of shell deformations. Full article

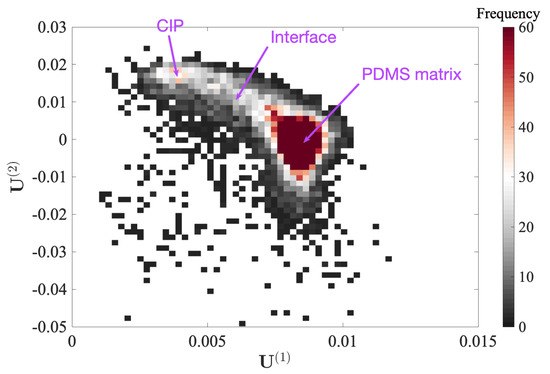

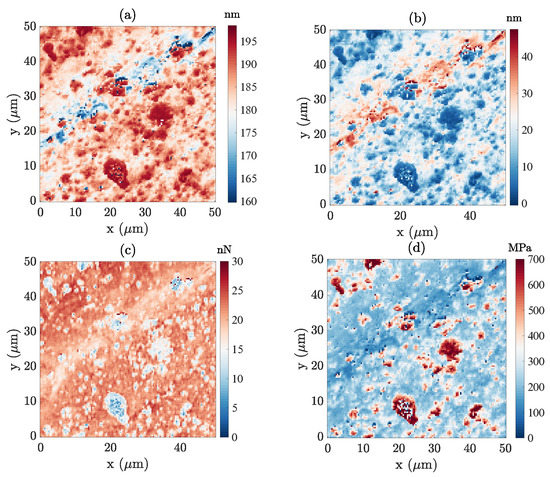

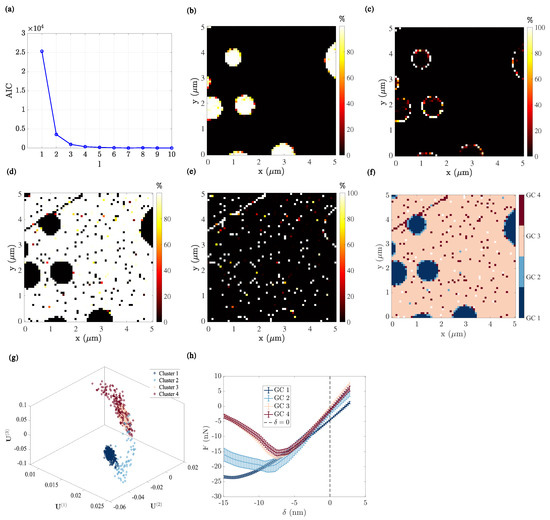

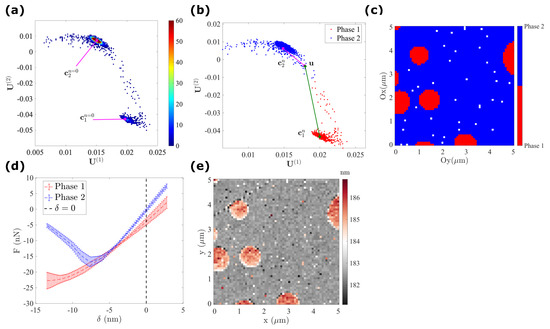

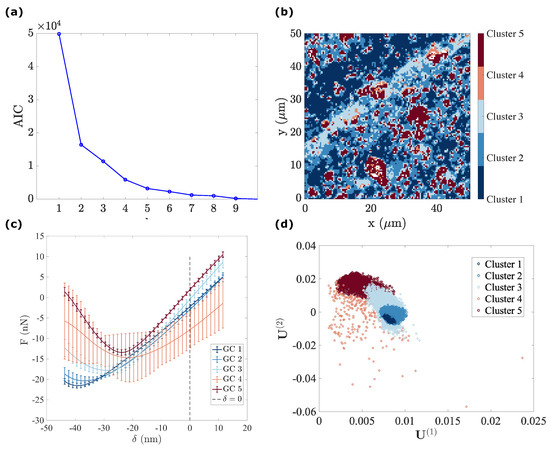

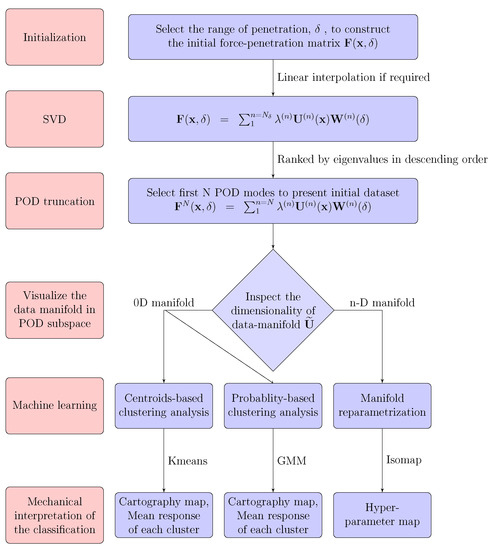

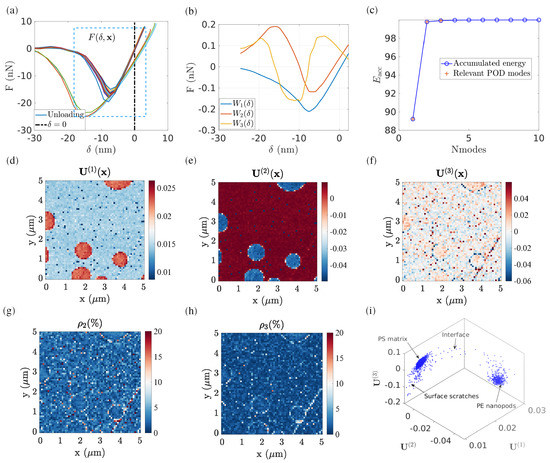

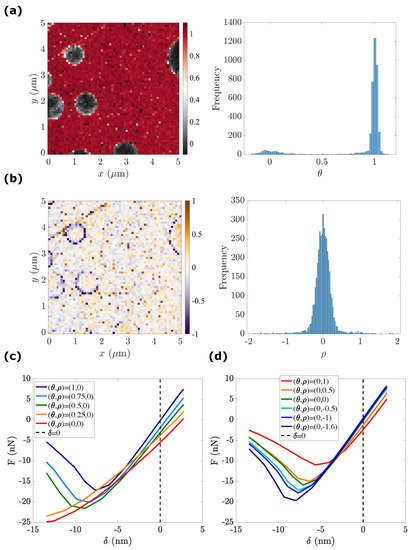

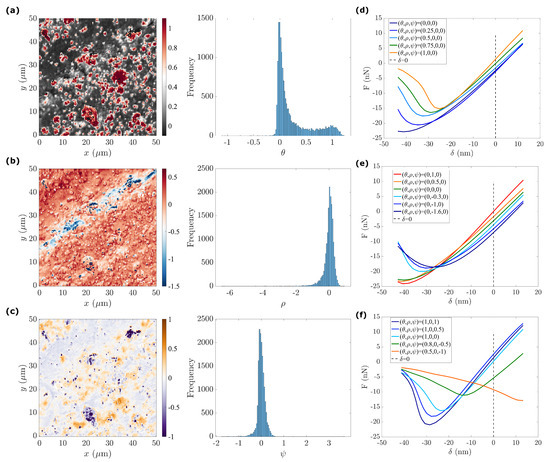

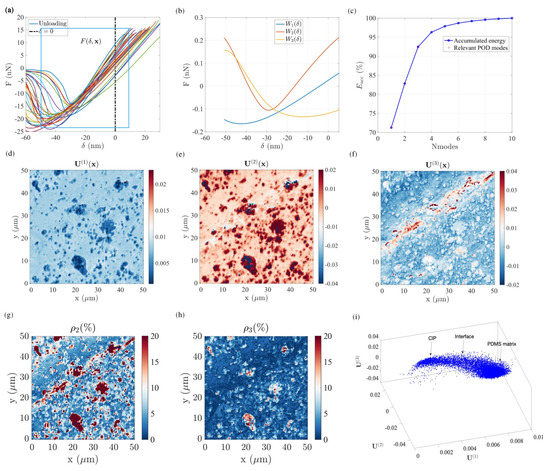

PeakForce quantitative nanomechanical AFM mode (PF-QNM) is a popular AFM technique designed to measure multiple mechanical features (e.g., adhesion, apparent modulus, etc.) simultaneously at the exact same spatial coordinates with a robust scanning frequency. This paper proposes compressing the initial high-dimensional dataset obtained from the PeakForce AFM mode into a subset of much lower dimensionality by a sequence of proper orthogonal decomposition (POD) reduction and subsequent machine learning on the low-dimensionality data. A substantial reduction in user dependency and subjectivity of the extracted results is obtained. The underlying parameters, or “state variables”, governing the mechanical response can be easily extracted from the latter using various machine learning techniques. Two samples are investigated to illustrate the proposed procedure (i) a polystyrene film with low-density polyethylene nano-pods and (ii) a PDMS film with carbon–iron particles. The heterogeneity of material, as well as the sharp variation in topography, make the segmentation challenging. Nonetheless, the underlying parameters describing the mechanical response naturally offer a compact representation allowing for a more straightforward interpretation of the high-dimensional force–indentation data in terms of the nature (and proportion) of phases, interfaces, or topography. Finally, those techniques come with a low processing time cost and do not require a prior mechanical model. Full article

Overcoming the short lifespan of current dental adhesives remains a significant clinical need. Adhesives rely on formation of the hybrid layer to adhere to dentin and penetrate within collagen fibrils. However, the ability of adhesives to achieve complete enclosure of demineralized collagen fibrils is recognized as currently unattainable. We developed a peptide-based approach enabling collagen intrafibrillar mineralization and tested our hypothesis on a type-I collagen-based platform. Peptide design incorporated collagen-binding and remineralization-mediating properties using the domain structure conservation approach. The structural changes from representative members of different peptide clusters were generated for each functional domain. Common signatures associated with secondary structure features and the related changes in the functional domain were investigated by attenuated total reflectance Fourier-transform infrared (ATR-FTIR) and circular dichroism (CD) spectroscopy, respectively. Assembly and remineralization properties of the peptides on the collagen platforms were studied using atomic force microscopy (AFM). Mechanical properties of the collagen fibrils remineralized by the peptide assemblies was studied using PeakForce-Quantitative Nanomechanics (PF-QNM)-AFM. The engineered peptide was demonstrated to offer a promising route for collagen intrafibrillar remineralization. This approach offers a collagen platform to develop multifunctional strategies that combine different bioactive peptides, polymerizable peptide monomers, and adhesive formulations as steps towards improving the long-term prospects of composite resins. Full article

The aim of the current work is twofold: to demonstrate the application of in situ non-invasive imaging by portable atomic force microscopy (AFM) on the surfaces of a violin and to integrate compositional and mechanical analysis at the nano scale level on model samples of varnished wood. These samples were prepared according to traditional recipes by an Italian lute-maker family well practised in the art. Samples of oil and spirit-based varnishes on maple wood, naturally and accelerated light aged, were studied. AFM was used to measure the nanomechanical properties of the model samples and established that the spirit-based varnish was stiffer than the oil-based. Synchrotron radiation micro- Fourier Transform Infra-red analysis of the layer structure revealed that stiffer spirit-based varnish showed less penetration into the wood than the oil-based. Further PeakForce Quantitative Nanomechanical Mapping (QNM) demonstrated a difference in adhesion values between the oil- and spirit-based samples. Full article

Plant fibres and especially flax can be distinguished from most synthetic fibres by their intricate shape and intrinsic porosity called lumen, which is usually assumed to be tubular. However, the real shape appears more complex and thus might induce stress concentrations influencing the fibre performance. This study proposes a novel representation of flax fibre lumen and its variations along the fibre, an interpretation of its origin and effect on flax fibre tensile properties. This investigation was conducted at the crossroads of complementary characterization techniques: optical and scanning electron microscopy (SEM), high-resolution X-ray microtomography (µCT) and mechanical tests at the cell-wall and fibre scale by atomic force microscopy (AFM) in Peak-Force Quantitative Nano-Mechanical property mapping (PF-QNM) mode and micromechanical tensile testing. Converging results highlight the difficulty of drawing a single geometric reference for the lumen. AFM and optical microscopy depict central cavities of different sizes and shapes. Porosity contents, varying from 0.4 to 7.2%, are estimated by high-resolution µCT. Furthermore, variations of lumen size are reported along the fibres. This intricate lumen shape might originate from the cell wall thickening and cell death but particular attention should also be paid to the effects of post mortem processes such as drying, retting and mechanical extraction of the fibre as well as sample preparation. Finally, SEM observation following tensile testing demonstrates the combined effect of geometrical inhomogeneities such as defects and intricate lumen porosity to drive the failure of the fibre. Full article

Under physiological conditions, the cornea is exposed to various enzymes, some of them have digestive actions, such as amylase and collagenase that may change the ultrastructure (collagen morphology) and sequentially change the mechanical response of the cornea and distort vision, such as in keratoconus. This study investigates the ultrastructure and nanomechanical properties of porcine cornea following incubation with α-amylase and collagenase. Atomic force microscopy (AFM) was used to capture nanoscale topographical details of stromal collagen fibrils (diameter and D-periodicity) and calculate their elastic modulus. Samples were incubated with varying concentrations of α-amylase and collagenase (crude and purified). Dimethylmethylene blue (DMMB) assay was utilised to detect depleted glycosaminoglycans (GAGs) following incubation with amylase. Collagen fibril diameters were decreased following incubation with amylase, but not D-periodicity. Elastic modulus was gradually decreased with enzyme concentration in amylase-treated samples. Elastic modulus, diameter, and D-periodicity were greatly reduced in collagenase-treated samples. The effect of crude collagenase on corneal samples was more pronounced than purified collagenase. Amylase was found to deplete GAGs from the samples. This enzymatic treatment may help in answering some questions related to keratoconus, and possibly be used to build an empirical animal model of keratoconic corneas with different progression levels. Full article

Starch films modified with additives are materials increasingly being used in the production of packaging. These types of biopolymers can, to a considerable degree, replace plastic, contributing to the reduction in both production and waste management costs. However, they should be characterised by specific mechanical and surface parameters which determine their application. In the presented work, the PeakForce Quantitative Nanomechanics Mapping (PFQNM) method was applied to analyse a starch-based biopolymer modified with two different kaolin clay contents (5% and 10%). The technique used facilitates the assessment of the correlation of Atomic Force Microscope AFM height parameters with nanomechanical ones which provide the definitions of mutual interactions and allow the possibility to analyse materials in respect of various details. The investigated material was mapped in the Derjaguin–Muller–Toporov (DMT) modulus, adhesion and height domains. The results obtained indicated the impact of additives on the determined parameters. Increases in the DMT modulus and the adhesion force, along with the kaolin content, were observed. The enhancement of starch films with kaolin clay also induced growth in the surface roughness parameters. Full article

In this paper, we present a study of tungsten disulfide (WS₂) two-dimensional (2D) crystals, grown on epitaxial Graphene. In particular, we have employed scanning electron microscopy (SEM) and µRaman spectroscopy combined with multifunctional scanning probe microscopy (SPM), operating in peak force–quantitative nano mechanical (PF-QNM), ultrasonic force microscopy (UFM) and electrostatic force microscopy (EFM) modes. This comparative approach provides a wealth of useful complementary information and allows one to cross-analyze on the nanoscale the morphological, mechanical, and electrostatic properties of the 2D heterostructures analyzed. Herein, we show that PF-QNM can accurately map surface properties, such as morphology and adhesion, and that UFM is exceptionally sensitive to a broader range of elastic properties, helping to uncover subsurface features located at the buried interfaces. All these data can be correlated with the local electrostatic properties obtained via EFM mapping of the surface potential, through the cantilever response at the first harmonic, and the dielectric permittivity, through the cantilever response at the second harmonic. In conclusion, we show that combining multi-parametric SPM with SEM and µRaman spectroscopy helps to identify single features of the WS₂/Graphene/SiC heterostructures analyzed, demonstrating that this is a powerful tool-set for the investigation of 2D materials stacks, a building block for new advanced nano-devices. Full article

In this study, different compatibilizing agents were used to analyze their influence on immiscible blends of polylactide (PLA) and biobased high-density polyethylene (bioPE) 80/20 (wt/wt). The compatibilizing agents used were polyethylene vinyl acetate (EVA) with a content of 33% of vinyl acetate, polyvinyl alcohol (PVA), and dicumyl peroxide (DPC). The influence of each compatibilizing agent on the mechanical, thermal, and microstructural properties of the PLA-bioPE blend was studied using different microscopic techniques (i.e., field emission electron microscopy (FESEM), transmission electron microscopy (TEM), and atomic force microscopy with PeakForce quantitative nanomechanical mapping (AFM-QNM)). Compatibilized PLA-bioPE blends showed an improvement in the ductile properties, with EVA being the compatibilizer that provided the highest elongation at break and the highest impact-absorbed energy (Charpy test). In addition, it was observed by means of the different microscopic techniques that the typical droplet-like structure is maintained, but the use of compatibilizers decreases the dimensions of the dispersed droplets, leading to improved interfacial adhesion, being more pronounced in the case of the EVA compatibilizer. Furthermore, the incorporation of the compatibilizers caused a very marked decrease in the crystallinity of the immiscible PLA-bioPE blend. Full article

Jute fibers (JFs) coated with multiwall carbon nanotubes (MWCNTs) have been introduced in a natural rubber (NR) matrix creating a three-dimensional (3D) electrically conductive percolated network. The JF-CNT endowed electrical conductivity and thermoelectric properties to the final composites. CNT networks fully covered the fiber surfaces as shown by the corresponding scanning electron microscopy (SEM) analysis. NR/JF-CNT composites, at 10, 20 and 30 phr (parts per hundred gram of rubber) have been manufactured using a two-roll mixing process. The highest value of electrical conductivity (σ) was 81 S/m for the 30 phr composite. Thermoelectric measurements revealed slight differences in the Seebeck coefficient (S), while the highest power factor (PF) was 1.80 × 10⁻² μW/m K⁻² for the 30 phr loading. The micromechanical properties and electrical response of the composite’s conductive interface have been studied in peak force tapping quantitative nanomechanical (PFT QNM) and conductive atomic force microscopy (c-AFM) mode. The JF-CNT create an electrically percolated network at all fiber loadings endowing electrical and thermoelectric properties to the NR matrix, considered thus as promising thermoelectric stretchable materials. Full article

Today, plant fibers are considered as an important new renewable resource that can compete with some synthetic fibers, such as glass, in fiber-reinforced composites. In previous works, it was noted that the pectin-enriched middle lamella (ML) is a weak point in the fiber bundles for plant fiber-reinforced composites. ML is strongly bonded to the primary walls of the cells to form a complex layer called the compound middle lamella (CML). In a composite, cracks preferentially propagate along and through this layer when a mechanical loading is applied. In this work, middle lamellae of several plant fibers of different origin (flax, hemp, jute, kenaf, nettle, and date palm leaf sheath), among the most used for composite reinforcement, are investigated by atomic force microscopy (AFM). The peak-force quantitative nanomechanical property mapping (PF-QNM) mode is used in order to estimate the indentation modulus of this layer. AFM PF-QNM confirmed its potential and suitability to mechanically characterize and compare the stiffness of small areas at the micro and nanoscale level, such as plant cell walls and middle lamellae. Our results suggest that the mean indentation modulus of ML is in the range from 6 GPa (date palm leaf sheath) to 16 GPa (hemp), depending on the plant considered. Moreover, local cell-wall layer architectures were finely evidenced and described. Full article

Corrosion resistance of steel has attracted substantial interest for manufacturing applications to reduce costs corresponding to part failures, unexpected maintenance, and shortening lifespan. Meanwhile, millions of tonnes of slag, non-recyclable glass, and automotive shredder residue (ASR) are discarded into landfills every year, polluting the environment. Combining these two major issues, we delivered an alternative solution to enhance corrosion resistance of high-C steel. In this research, utilisation of these wastes (which were chemically bonded into steel substrate) as sources for production of multi-hybrid layering—including the multi-phase ceramic layer, the carbide layer, and the selective diffusion layer—was successfully achieved by single step surface modification technology. High-resolution topographical imaging by SEM and chemical composition analysis in micron-volume by electron probe micro analyser (EPMA) were performed. Nano-characterisation by atomic force microscopy (AFM) using the PeakForce quantitative nanomechanical mapping (PF-QNM) method was conducted to define Young’s modulus value of each phase in detail. Results revealed improvement of corrosion resistance by 39% and a significantly increased hardness of 13.58 GPa. This integrated approach is prominent for economic and environmental sustainability, consolidating industry demands for more profits, producing durable, steel components in a cost effective way to reduce dependency on new resources, and minimising negative impacts to the environment from disposal of wastes to the landfills. Full article
