Search Results (42)

The corrosion behaviors of newly developed solder alloys with excellent mechanical properties, Sn-2.5 Ag-1.0 Bi-0.8 Cu-0.05 Ni (SABC25108N) and Sn-1.5 Bi-0.75 Cu-0.065 Ni (SBC15075N), are analyzed to supplement the corrosion behavior of the limited corrosion data in Pb- and Zn-free solder compositions. A potentiodynamic polarization test is conducted on these compositions in a NaCl electrolyte solution, the results of which are compared with those of conventional Sn-3.0 (wt%) Ag-0.5Cu and Sn-1.2Ag-0.5Cu-0.05Ni alloys. The results indicate that SBC15075N exhibits the lowest corrosion potential and highest corrosion current density, thus signifying the lowest corrosion resistance. By contrast, SABC25108N exhibits the lowest corrosion current density and highest corrosion resistance. Notably, SABC25108N shows a slower corrosion progression in the active state and exhibits the longest passive state. The difference in corrosion resistance is affected more significantly by the formation and distribution of the Ag₃Sn intermetallic compound phase owing to the high Ag content instead of by the presence of Bi or Ni. This uniform dispersion of Ag₃Sn IMC phases in the SABC25108N alloy effectively suppressed corrosion propagation along the grain boundaries and reduced the formation of corrosion products, such as Sn₃O(OH)₂Cl₂, thereby enhancing the overall corrosion resistance. These findings provide valuable insights into the optimal design of solder alloys and highlight the importance of incorporating sufficient Ag content into multicomponent compositions to improve corrosion resistance. Full article

This study investigates the microstructural changes and micromechanical responses of Pb-containing and Pb-free solder alloys subjected to various annealing conditions, with the goal of elucidating the relationship between microstructure evolution and micromechanical properties. Results indicate that grain size in SAC0307 and SAC305 significantly increases with annealing temperature, while that of Sn63Pb37 remains relatively stable. In Sn63Pb37, the Pb-rich phase coarsens and its area fraction increases with higher annealing temperatures, whereas in SAC0307, the intermetallic compounds (IMCs) phase coarsens but its area fraction decreases. Nano-indentation tests show that the hardness of Sn63Pb37 significantly increases with rising annealing temperature, whereas the hardness of SAC0307 decreases, and that of SAC305 remains relatively unchanged. These variations in these alloys induced by annealing are closely related to the changes in the hardness of individual phases within the grains. For Sn63Pb37, higher annealing temperatures increase the hardness of both the Sn matrix and Pb-rich phases, enhancing overall hardness. Conversely, in SAC0307, increased temperatures reduced the hardness of both the Sn matrix and IMCs phases, resulting in lower overall hardness. The differing trends in mechanical property of individual phases in three alloy are attributed to their distinct evolutions under annealing treatment. This study provides insights into the micromechanical behavior of solder alloys under annealing and offers guidance for optimizing their performance. Full article

Under the dual impetus of environmental regulations and reliability requirements, the Pb–free/Pb hybrid assembly process in aerospace-grade ball grid array (BGA) components has become an unavoidable industrial imperative. However, constrained process compatibility during single or multiple reflow protocols amplifies structural heterogeneity in solder joints and accelerates dynamic microstructural evolution, thereby elevating interfacial reliability risks at solder joint interfaces. This paper systematically investigated phase composition, grain dimensions, thickness evolution, and crystallographic orientation patterns of interfacial intermetallic compounds (IMCs) in hybrid micro-solder joints under multiple reflows, employing electron backscatter diffraction (EBSD), scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDX). The result shows that the first reflow induces prismatic Cu₆Sn₅ grain formation driven by Pb aggregation zones and elevated Cu concentration gradients. Surface-protruding fine grains significantly increase kernel average misorientation (KAMave) of 0.68° while minimizing crystallographic orientation preference density (PF_max) of 15.5. Higher aspect ratios correlate with elongated grain morphology, consequently elevating grain size of 5.3 μm and IMC thickness of 5.0 μm. Subsequent reflows fundamentally alter material dynamics: Pb redistribution transitions from clustered to randomized spatial configurations, while grains develop pronounced in-plane orientation preferences that reciprocally influence Sn crystal alignment. The second reflow produces scallop-type grains with minimized dimensions of 4.0 μm and a thickness of 2.1 μm, with a KAMave of 0.37° and PF_max of 20.5. The third reflow initiates uniform growth of scalloped grains of 7.0 μm with a stable population density, whereas the fifth reflow triggers a semicircular grain transformation of 9.1 μm through conspicuous coalescence mechanisms. This work elucidates multiple reflow IMC growth mechanisms in Pb–free/Pb hybrid solder joints, providing critical theoretical and practical insights for optimizing hybrid technologies and reliability management strategies in high-reliability aerospace electronics. Full article

As semiconductor packaging technologies face limitations, through-silicon via (TSV) technology has emerged as a key solution to extending Moore’s law by achieving high-density, high-performance microelectronics. TSV technology enables enhanced wiring density, signal speed, and power efficiency, and offers significant advantages over traditional wire-bonding techniques. However, achieving fine-pitch and high-density interconnects remains a challenge. Solder flip-chip microbumps have demonstrated their potential to improve interconnect reliability and performance. However, the environmental impact of lead-based solders necessitates a shift to lead-free alternatives. This review highlights the transition from Sn-Pb solders to lead-free options, such as Sn-Ag, Sn-Cu, Sn-Ag-Cu, Sn-Zn, and Bi- or In-based alloys, driven by regulatory and environmental considerations. Although lead-free solders address environmental concerns, their higher melting points pose challenges such as thermal stress and chip warping, which affect device reliability. To overcome these challenges, the development of low-melting-point solder alloys has gained momentum. This study examines advancements in low-temperature solder technologies and evaluates their potential for enhancing device reliability by mitigating thermal stress and ensuring long-term stability. Full article

Resistance Element Soldering (RES) is one of the new methods of joining dissimilar materials by resistance heating using an element. Sn60Pb40 solder, which has been used for decades in tin smithing and the electrical industry, has already been tested for joining galvanized steel sheet with thermoplastic using RES. However, legal restrictions are currently moving towards prohibiting the use of lead in mass production. For this reason, the possibility of replacing Sn60Pb40 solder with Sn91Zn9 lead-free solder was verified. The results showed that with an appropriate choice of flux and resistance heating conditions, it is possible to replace Sn60Pb40 solder with Sn91Zn9 solder when joining galvanized steel sheet with thermoplastic using RES. With a suitable heat input during soldering, good conditions were achieved for wetting the base material with molten solder with a sufficient volume of remelted solder in the core of the Cu/Sn91Zn9 bimetallic element. The strength of the soldered joint made at a heat input of 901 J was measured at the level of 94% of the strength of Sn91Zn9 solder. Full article

Soldering with Sn alloys has always been the essential assembly step of microelectronics. The conductive Sn whiskers, which can spontaneously grow from soldering surfaces, mean a considerable reliability risk for microelectronics due to possible short circuit formation between the leads of the components. Since their discovery in 1951, thousands of research studies have been conducted to unravel their growth mechanisms and find effective prevention methods against them. Till 2006, the Sn whisker problem was solved and partially forgotten due to the very effective whisker suppression effect of Pb alloying into the solder materials. The lead-free change gave new impetus to the problem, which was further enhanced by the application of new material systems, growing reliability requirements, and accelerating miniaturization in the 21st century. Our review would like to give an overview of the Sn whisker’s history from the beginning till the latest results, focusing on the suppression solutions by the modification of the solder alloy compositions. Recently, promising results have been reached by alloying Bi and In, which are metals that are the focus of low-temperature soldering, and by composite solders. Full article

This study proposes a Sn58Bi/SAC305 layered composite solder designed for low-temperature applications. By alternating high-melting SAC305 and low-melting Sn58Bi layers, the composite achieves a liquidus temperature of ~180 °C, comparable to traditional Sn-Pb solder. Synchrotron X-ray imaging reveals dynamic interfacial interactions, including partial dissolution of SAC305 into molten Sn58Bi and Bi diffusion, mitigating segregation and forming defect-free interfaces with cellular structures. The 7-layer composite exhibits a peak shear strength of 44.3 ± 0.8 MPa at 200 °C, surpassing single Sn58Bi (41.8 ± 1.1 MPa) and SAC305 (31.6 ± 1.4 MPa), attributed to the refined microstructure and uniform dispersion of Ag₃Sn phases. Fracture analysis indicates mixed ductile–brittle failure modes influenced by intermetallic compounds (IMCs). This work provides insights into the role of layered structures in controlling element diffusion and interfacial reactions, advancing the design of low-temperature lead-free solders. Full article

Intermetallic compounds (IMCs) growth can simultaneously bring about low-resistance electrical pathways and drastically reduce joint lifetime. Recently, incorporated trace nanoparticles into the free-Pb solder were found to promote the performance of the solder joints. Sn3Ag0.9Zn (SAZ) nano-composite solders were developed by doping 0.5 wt.% Al₂O₃ nanoparticles into the SAZ solder. The IMCs formation and growth behavior at the interfacial reactions between the SAZ-0.5Al₂O₃ nano-composite solder and the Cu substrate during soldering at temperatures ranging from 250 to 325 °C for 30 min were investigated. The results showed that after the addition of Al₂O₃ nanoparticles into the SAZ solder, the elongated-type IMCs layer changed into a prism-type IMCs layer, and Ag₃Sn nanoparticles were absorbed on the grain surface of the interfacial Cu₆Sn₅ phase, effectively suppressing the growth of the IMCs layers. The activation energies (Q) for the IMCs layers (Cu₆Sn₅ + Cu₃Sn) were determined to be 36.4 and 39.1 kJ/mol for the SAZ/Cu and SAZ-Al₂O₃/Cu solders, respectively. Full article

Throughout much of the 20th century, Sn–Pb solder dominated electronics. However, environmental and health concerns have driven the adoption of lead-free alternatives. Since 2006, legislation such as the European Union’s RoHS Directive has mandated lead-free solder in most electronic devices, prompting extensive research into high-performance substitutes. Lead-free solders offer advantages such as reduced environmental impact and improved reliability but replacing Sn–Pb presents challenges in areas like melting point and wetting ability. This transition is primarily motivated by a focus on protecting environmental and human health, while ensuring equal or even improved reliability. Research has explored lead-free solder’s mechanical properties, microstructure, wettability, and reliability. However, there is a notable lack of studies on its long-term performance and lifetime influence. To address this gap, mathematical models are used to predict intermetallic bond evolution from process conditions, validated with experimental tests. This study contributes by extending these models to predict bond evolution under typical operating conditions of devices and comparing the predictions with actual intermetallic thickness values found through metallographic sections. Full article

In this study, the CALPHAD approach was employed to model the thermodynamics of the Au-Ge-X (X = In, Sb, Si, Zn) ternary systems, leveraging experimental phase equilibria data and previous assessments of related binary subsystems. The solution phases were modeled as substitutional solutions, and their excess Gibbs energies were expressed using the Redlich–Kister polynomial. Owing to the unavailability of experimental data, the solubility of the third elements in the Au-In, Au-Sb, and Au-Zn binary intermetallic compounds was excluded from consideration. Additionally, stable ternary intermetallic compounds were not reported in the literature and, thus, were not taken into account in the present thermodynamic calculations. Calculations of liquidus projections, isothermal sections, and vertical sections for these ternary systems have been performed, aligning with existing experimental findings. These thermodynamic parameters form a vital basis for creating a comprehensive thermodynamic database for Au-Ge-based alloys, which is essential for the design and development of new high-temperature Pb-free solders. Full article

PbSn solders are used in semiconductor devices for aerospace or military purposes with high levels of reliability requirements. Microalloying has been widely adopted to improve the reliability for Pb-free solders, but its application in PbSn solders is scarce. In this article, the optimization of PbSn solder reliability with Ge microalloying was investigated using both experimental and calculation methods. Intermetallic compounds (IMC) growth and morphologies evolution during reliability tests were considered to be the main factors of device failure. Through first-principle calculation, the growth mechanism of interfacial Ni₃Sn₄ was discussed, including the formation of vacancies, the Ni-vacancies exchange diffusion and the dominant Ni diffusion along the [1 0 0] direction. The doping of Ge in the cell increased the exchange energy barrier and thus inhibited the IMC development and coarsening trend. In three reliability tests, only 0.013 wt% Ge microalloying in Pb60Sn40 was able to reduce IMC thickness by an increment of 22.6~38.7%. The proposed Ge microalloying method in traditional PbSn solder could yield a prospective candidate for highly reliable applications. Full article

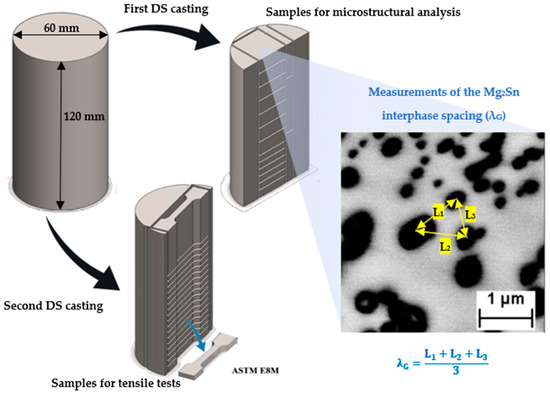

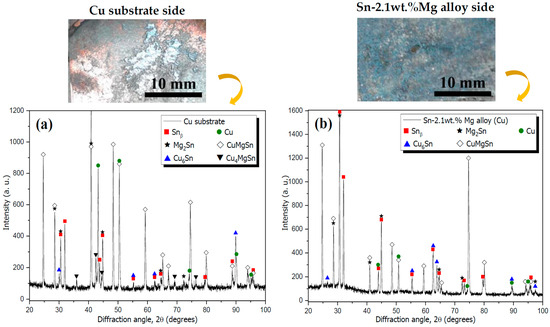

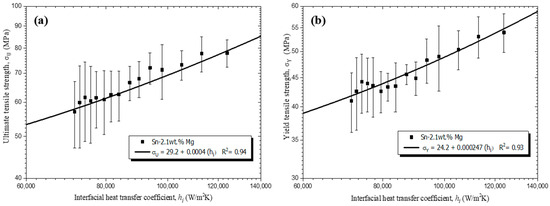

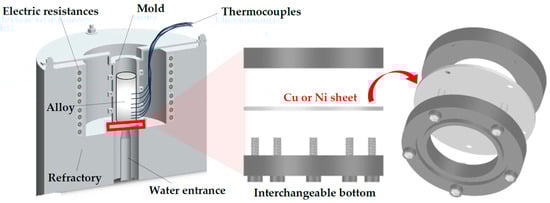

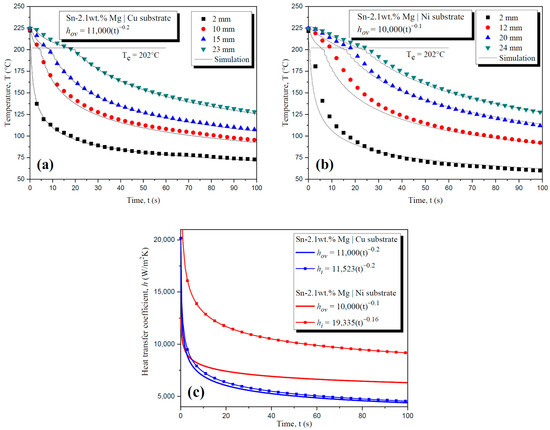

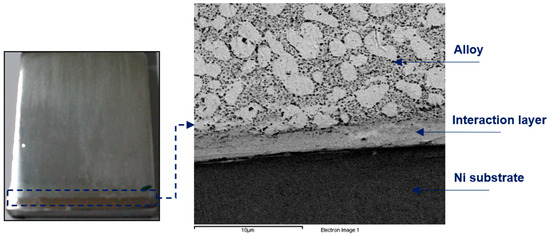

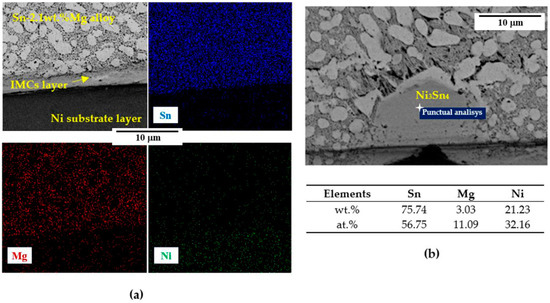

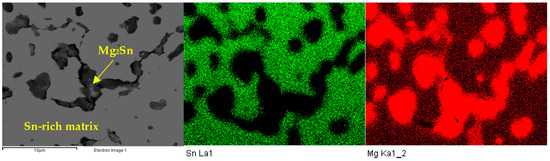

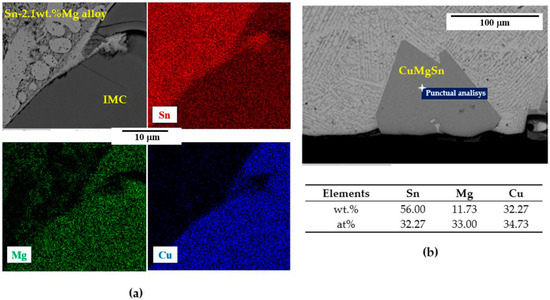

Sn-Mg alloys are potential Pb-free solder options. However, their mechanical strength and interfacial characteristics with electronic substrates remain barely understood. This study focuses on the interfacial heat transfer aspects, microstructure, and tensile strength of a Sn-2.1wt.%Mg alloy. Samples with various thermal histories were produced using a directional solidification apparatus. In these experiments, a Sn-2.1wt.%Mg alloy was solidified on Cu and Ni substrates, which are of interest in the electronics industry. Mathematical modeling was then employed, allowing for the determination of the overall and interfacial heat transfer coefficients (h_ov, and h_i, respectively). The results show that the Ni substrate exhibits higher interfacial thermal conductance with the Sn-2.1wt.%Mg alloy compared to the Cu substrate, as indicated by the higher h_i profiles. This fact occurs mainly due to their metallurgical interaction, resulting in a stronger bond with the presence of Sn-Ni-rich intermetallics at the interface. Finally, experimental equations based on the Hall–Petch relationship are proposed to describe how the refinement of the fibrous spacing of the Mg₂Sn interphase (λ_G) and an increase in h_i enhance both yield and ultimate tensile strengths. Full article

Conventional methods for producing porous metals involve the use of chemicals such as thickeners and foaming agents under high temperatures and pressures. However, these methods are costly and pose a risk of dust explosion. Thus, the objective of this research is to achieve the cost-effective and safe production of porous metals by introducing microbubbles generated by ultrasonic oscillation into the molten metal. One end of an ultrasonic horn was inserted into three different molten metals—white metal, Pb-free solder, and zinc—and microbubbles were generated at the horn end by the strong ultrasonic oscillation in the molten metals. The microbubbles that contained molten metal changed phase to porous metal through solidification, and the diameter, porosity, and stress–strain curve of the generated porous metals were measured. The results indicate that the porosity of white metal, Pb-free solder, and zinc foams reached 54%, 76%, and 48%, respectively, and these porous metals had many micropores less than 1 mm in diameter. It was also observed that the higher the melting point, the larger the pore diameter and the lower the porosity. Furthermore, in the case of white metal, a plateau region of large deformation at constant stress was observed in the stress–strain curve. Full article

The incorporation and doping of elements represent a widely used approach to enhance the solidity, integrity, and characteristics of pb-free solder joints. The present study summarizes the incorporation of indium and its impact on the mechanical aspects of the SAC105 pb-free solder alloy. To refine the mechanical impact of the solder alloy, the evaluation of samples were categorized into three groups: as-cast, low-thermal aged (at 125 °C), and high-thermal aged (at 180 °C). The tensile deformation data were obtained via the universal tensile machine (UTM). Investigational findings demonstrated the enhancement in mechanical characteristics, including ultimate tensile and yield strength of the solder alloy. The addition of 1 wt.% of indium to SAC105 led to a notable increase in ultimate tensile strength, rising from 29.6 MPa to 35.31 MPa, which corresponds to an approximate 19.30% increase over the initial value. Full article

Equation-Informed Neural Networks (EINNs) are developed as an efficient method for extracting the coefficients of constitutive equations. Subsequently, numerical Bayesian Inference (BI) iterations were applied to estimate the distribution of these coefficients, thereby further refining them. We could generate coefficients optimally aligned with the targeted application scenario by carefully adjusting pre-processing mapping parameters and identifying dataset preferences. Leveraging graphical representation techniques, the EINNs formulation is implemented in temperature- and strain-rate-dependent hyperbolic Garofalo, Anand, and Chaboche constitutive models to extract the corresponding coefficients for lead-free SAC305 solder material. The performance of the EINNs-based extracted coefficients, obtained from experimental results of SAC305 solder material, is comparable to existing studies. The methodology offers the dual advantage of providing the coefficients’ value and distribution against the training dataset. Full article
