Search Results (43)

This study examined the impact of storage and operational aging on the thermal stability, structural degradation, and electrical properties of styrene–butadiene rubber (SBR) compound by analyzing three distinct materials: a laboratory-stored sample, an operationally aged one, and an original unaged reference. Thermal degradation was analyzed through thermogravimetric analysis (TGA), which examined weight loss as a function of temperature and time at different heating rates. Results showed that the onset temperature and peak position in the 457 °C to 483 °C range remained stable. The activation energy (Ea) was determined using the Kissinger–Akahira–Sunose (KAS), Flynn–Wall–Ozawa (FWO), and Friedman methods, with the original unaged sample’s (OUS) Ea averaging 203.7 kJ/mol, decreasing to 163.47 kJ/mol in the laboratory-stored sample (LSS), and increasing to 224.18 kJ/mol in the operationally aged sample (OAS). The Toop equation was applied to estimate the thermal degradation lifetime at a 50% conversion rate. Since the material had been exposed to electricity, the evolution of electrical conductivity was studied and found to have remained stable after storage at around 0.070 S/cm. However, after operational aging, it showed a considerable increase in conductivity, to 0.321 S/cm. Scanning Electron Microscopy (SEM) was employed to analyze microstructural degradation and chemical changes, providing insights into the impact of aging on thermal stability and electrical properties. Full article

A nitroguanidine propellant containing 4,4′,6,6′-tetra(azido)hydrazo-1,3,5-triazine (TAHT) was designed by replacing part of the nitroguanidine (NGu) in the nitroguanidine (NGu) propellant with TAHT. Three samples of the NGu propellant were prepared with different amounts of TAHT. The amounts of TAHT were 0%, 15%, and 20%, respectively. The effect of TAHT on the thermal behavior of the NGu propellant was studied by differential scanning calorimetry (DSC) and thermogravimetric analysis (TG). The apparent activation energy ($E_a$) of the decomposition reaction of the propellant samples was calculated using the Kissinger equation and the Ozawa equation. The thermal decomposition process of TAHT was studied using thermogravimetric–mass spectrometric–infrared (TG-MS-FTIR) triple technology. The results show that a small amount of TAHT slightly improves the thermal stability of the NGu propellant. TAHT can significantly reduce the mass loss rate of the propellant. Adding 20% of TAHT can reduce the maximum mass loss rate of the NGu propellant by 27%. It inhibits the thermal decomposition of the propellant. The $E_a$ values of the propellant calculated using the Kissinger equation were 192.8, 174.7, and 169.4 kJ·mol⁻¹, respectively, while the activation energies calculated using the Ozawa method were 190.7, 173.5, and 168.5 kJ·mol⁻¹, respectively. The consistency between these results indicates that adding TAHT can significantly reduce the thermal decomposition rate of the NGu propellant. During thermal decomposition, TAHT will generate a polyazide compound, and a dicyanopolymer is formed. This polyazide compound rapidly forms on the surface of the propellant, which explains the inhibiting effect of TAHT on the NGu propellant. Full article

This paper investigates the combustion characteristics and pollutant emission patterns of the mixed combustion of lignite (L) and torrefied pine wood (TPW) under different blending ratios. Isothermal combustion experiments were conducted in a fixed bed reaction system at 800 °C, and pollutant emission concentrations were measured using a flue gas analyzer. Using scanning electron microscopy (SEM) and BET (nitrogen adsorption) experiments, it was found that torrefied pine wood (TPW) has a larger specific surface area and a more developed pore structure, which can facilitate more complete combustion of the sample. The results of the non-isothermal thermogravimetric analysis show that with the TPW blending ratio increase, the entire combustion process advances, and the ignition temperature, maximum peak temperature, and burnout temperature all show a decreasing trend. The kinetic equations of the combustion reaction process of mixed gas were calculated by Flynn–Wall–Ozawa (FWO) and Kissinger–Akahira–Sunose (KAS) kinetic equations. The results show that the blending of TPW reduces the activation energy of the combustion reaction of the mixed fuel. When the TPW blending ratio is 80%, the activation energy values of the mixed fuel are the lowest at 111.32 kJ/mol and 104.87 kJ/mol. The abundant alkali metal ions and porous structure in TPW reduce the conversion rates of N and S elements in the fuel to NO and SO₂, thus reducing the pollutant emissions from the mixed fuel. Full article

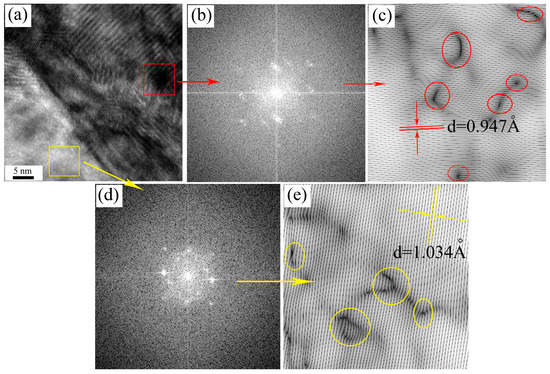

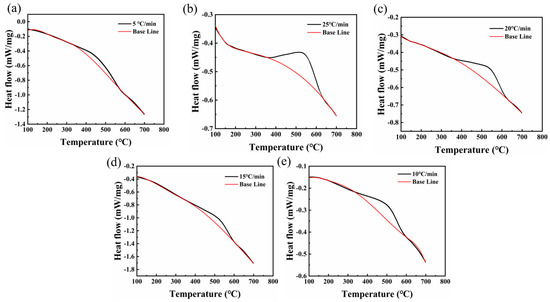

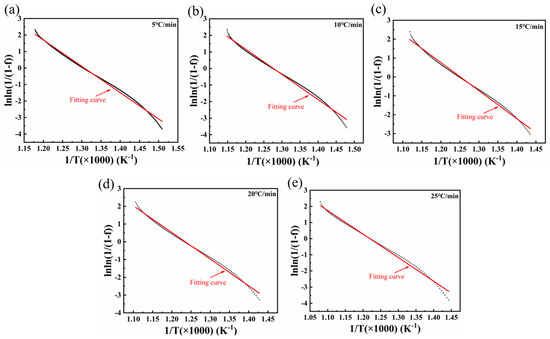

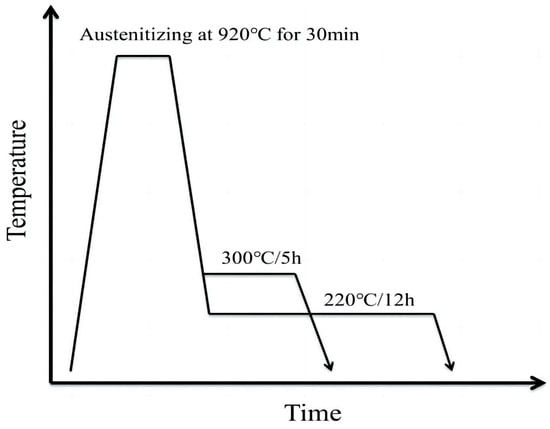

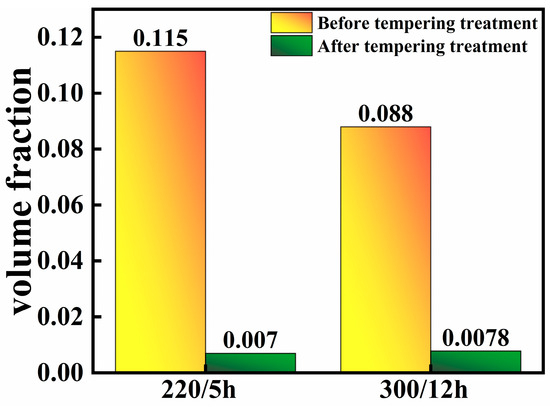

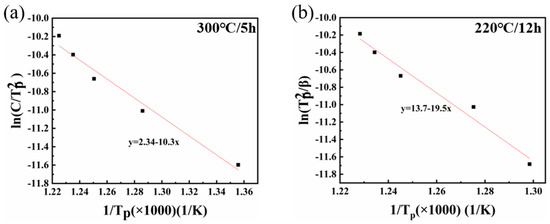

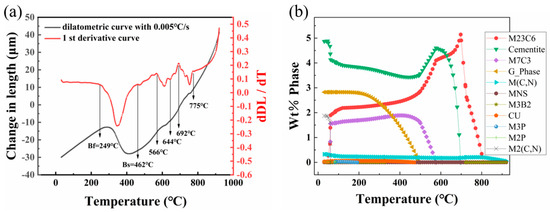

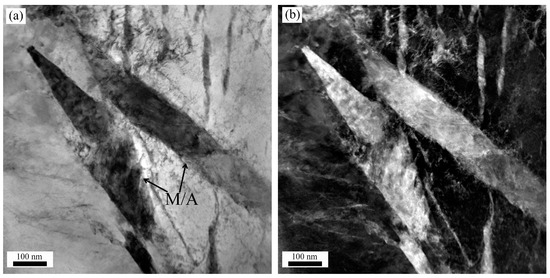

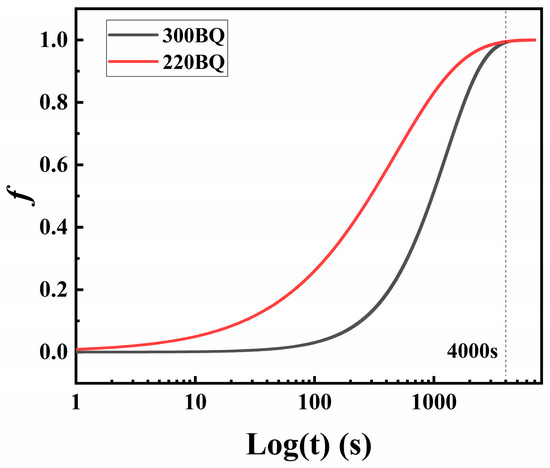

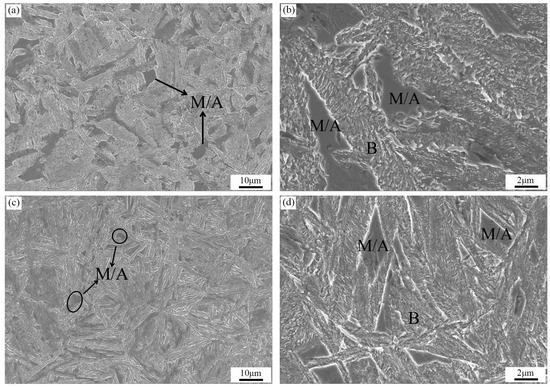

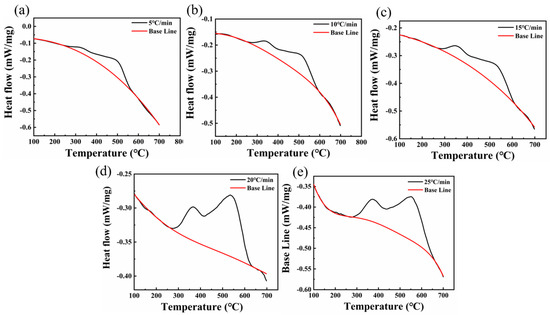

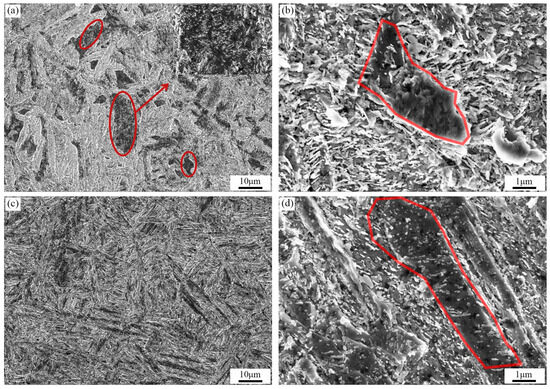

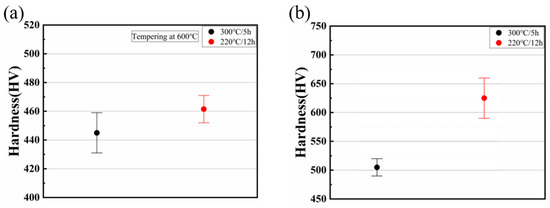

In this study, the decomposition of a martensite/austenite (M/A) microconstituent in bainitic steels was analyzed using differential scanning calorimetry (DSC) data in conjunction with Kissinger’s and Johnson–Mehl–Avrami–Kolmogorov (JMAK)’s formulas. In bainitic steel subjected to austempering heat treatment, the presence of an M/A microstructure adversely affects the mechanical properties. According to the kinetic equations derived, it is observed that after tempering the sample at 600 °C for 4000 s, the generation of each phase reaches its maximum. The SEM images taken before and after tempering reveal extensive decomposition of the M/A constituent in the microstructure. The proportion of the M/A microstructure decreased significantly from about 10% before tempering to less than 1% after. Additionally, the content of residual austenite also reduced nearly to zero. These observations are consistent with the predictions of the kinetic equations. Full article

The polar sulfonate groups in cationic dyeable polyester (CDP) lead to complex crystallization behavior, affecting CDP production’s stability. In this study, cationic dyeable polyesters (CDP) with different sulfonate group contents were prepared via one-step feeding of sodium isophthalic acid-5-sulfonate (SIPA), terephthalic acid (PTA), and ethylene glycol (EG). The non-isothermal crystallization behavior of these copolyesters was analyzed by differential scanning calorimetry (DSC). Results show that the crystallization temperature of the sample shifts to lower values with the increase in SIPA content. The relaxation behavior of the molecular chain is enhanced due to the ionic aggregation effect of sulfonate groups in CDP. Therefore, at low cooling rates (2.5 °C/min and 5 °C/min), some molecular chain segments in CDP are still too late to orderly stack into the lattice, forming metastable crystals, and melting double peaks appear on the melting curve after crystallization. When the cooling rate increases (10–20 °C/min), the limited region of sulfonate aggregation in CDP increases, resulting in more random chain segments, and a cold crystallization peak appears on the melting curve after crystallization. The non-isothermal crystallization behavior of all samples was fitted and analyzed by the Jeziorny equation, Ozawa equation, and Mo equation. The results indicate that the nucleation density and nucleation growth rate of CDP decrease with the increase in SIPA content. Meanwhile, analysis of the Kissinger equation reveals that the activation energy of non-isothermal crystallization decreases gradually with the increase in SIPA content, and the addition of SIPA makes CDP crystallization more difficult. Full article

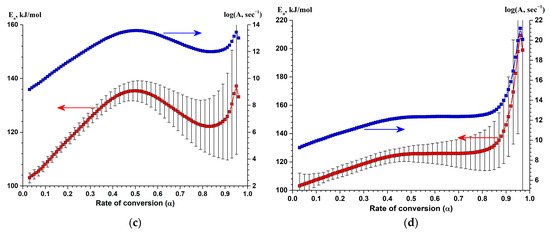

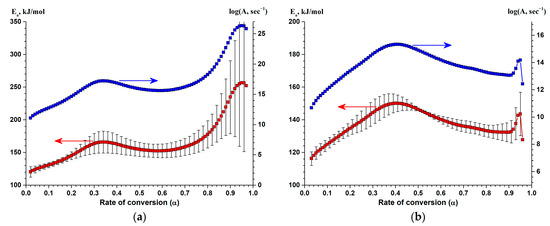

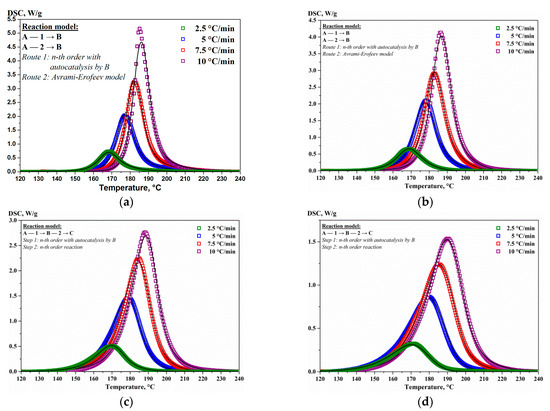

Based on a novel phenylacetylene capped polyimide (PI) with unique high-temperature resistance, its curing kinetics and thermal decomposition behavior were investigated. The curing mechanism and kinetics were studied by differential scanning calorimetry (DSC), and the activation energy (E_a) and pre-exponential factor (A) of the curing reaction were calculated based on the Kissinger equation, Ozawa equation, and Crane equation. According to the curve of conversion rate changing with temperature, the relationship between the dynamic reaction E_a and conversion rate (α) was calculated by the Friedman equation, Starink equation, and Ozawa–Flynn–Wall (O-F-W) equation, and the reaction E_a in different stages was compared with the results of molecular dynamics. Thermogravimetric analysis (TGA) and a scanning electron microscope (SEM) were used to analyze the thermal decomposition behavior of PI resins before and after curing. Temperatures at 5% and 20% mass loss (T_5%, T_20%), peak decomposition temperature (T_max), residual carbon rate (RW), and integral process decomposition temperature (IPDT) were used to compare the thermal stability of PI resins and cured PI resins. The results display that the cured PI has excellent thermal stability. The E_a of the thermal decomposition reaction was calculated by the Coats–Redfern method, and the thermal decomposition behavior was analyzed. The thermal decomposition reaction of PI resins at different temperatures was simulated by molecular dynamics, the initial thermal decomposition reaction was studied, and the pyrolysis mechanism was analyzed more comprehensively and intuitively. Full article

Numerous theoretical calculations have demonstrated that polynitrogen with an extending polymeric network is an ultrahigh-energy all-nitrogen material. Typical samples, such as cubic gauche polynitrogen (cg-N), have been synthesized, but the thermal performance of polynitrogen has not been unambiguously determined. Herein, macroscopic samples of polynitrogen were synthesized utilizing a coated substrate, and their thermal decomposition behavior was investigated. Polynitrogen with carbon nanotubes was produced using a plasma-enhanced chemical vapor deposition method and characterized using infrared, Raman, X-ray diffraction X-ray photoelectron spectroscopy and transmission electron microscope. The results showed that the structure of the deposited polynitrogen was consistent with that of cg-N and the amount of deposition product obtained with coated substrates increased significantly. Differential scanning calorimetry (DSC) at various heating rates and TG-DSC-FTIR-MS analyses were performed. The thermal decomposition temperature of cg-N was determined to be 429 °C. The apparent activation energy (E_a) of cg-N calculated by the Kissinger and Ozawa equations was 84.7 kJ/mol and 91.9 kJ/mol, respectively, with a pre-exponential constant (lnA_k) of 12.8 min⁻¹. In this study, cg-N was demonstrated to be an all-nitrogen material with good thermal stability and application potential to high-energy-density materials. Full article

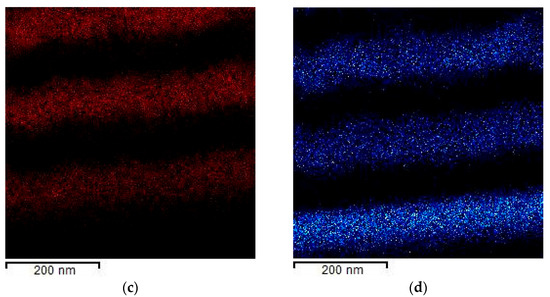

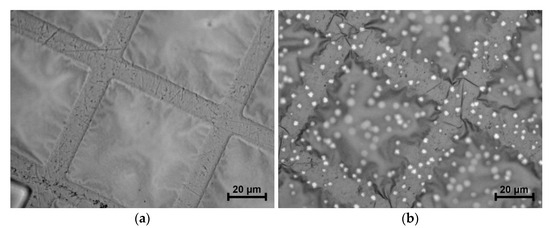

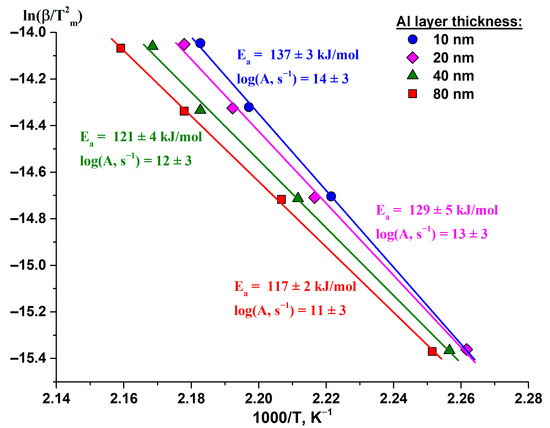

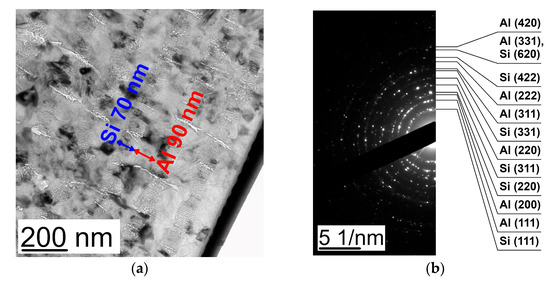

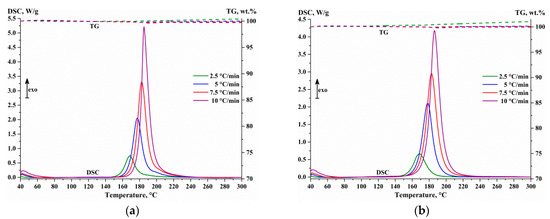

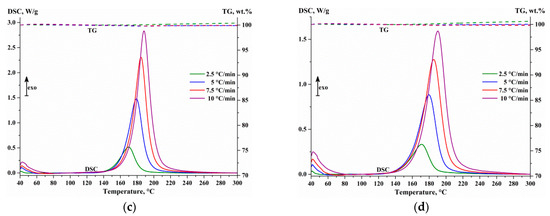

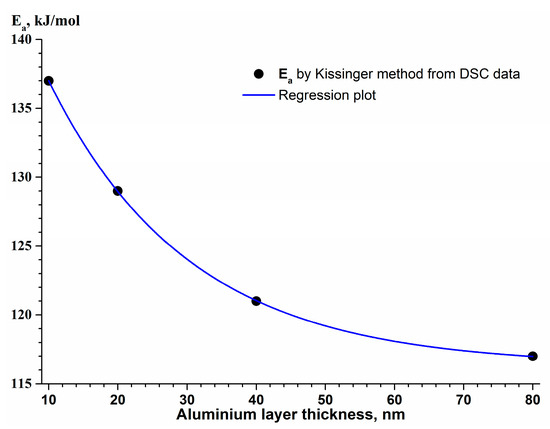

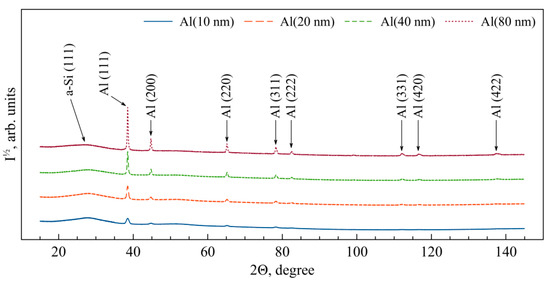

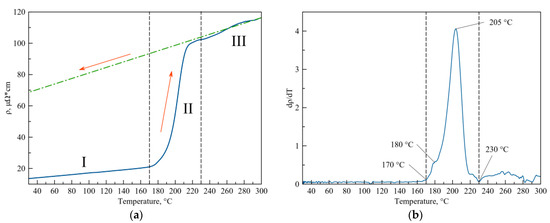

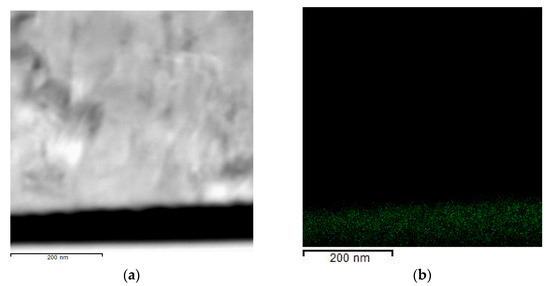

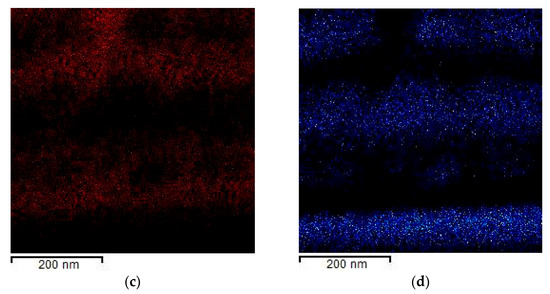

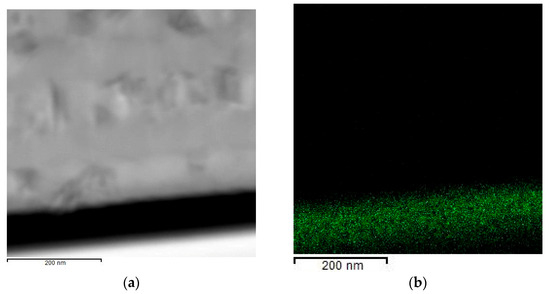

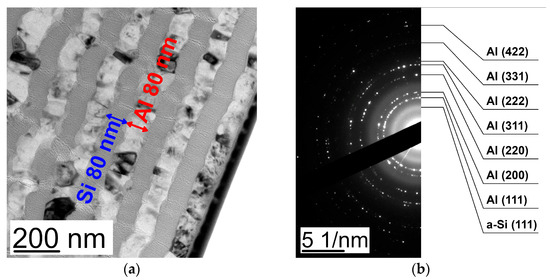

The effect of the aluminum layer on the kinetics and mechanism of aluminum-induced crystallization (AIC) of amorphous silicon (a-Si) in (Al/a-Si)_n multilayered films was studied using a complex of in situ methods (simultaneous thermal analysis, transmission electron microscopy, electron diffraction, and four-point probe resistance measurement) and ex situ methods (X-ray diffraction and optical microscopy). An increase in the thickness of the aluminum layer from 10 to 80 nm was found to result in a decrease in the value of the apparent activation energy E_a of silicon crystallization from 137 to 117 kJ/mol (as estimated by the Kissinger method) as well as an increase in the crystallization heat from 12.3 to 16.0 kJ/(mol Si). The detailed kinetic analysis showed that the change in the thickness of an individual Al layer could lead to a qualitative change in the mechanism of aluminum-induced silicon crystallization: with the thickness of Al ≤ 20 nm. The process followed two parallel routes described by the n-th order reaction equation with autocatalysis (Cn-X) and the Avrami–Erofeev equation (An): with an increase in the thickness of Al ≥ 40 nm, the process occurred in two consecutive steps. The first one can be described by the n-th order reaction equation with autocatalysis (Cn-X), and the second one can be described by the n-th order reaction equation (Fn). The change in the mechanism of amorphous silicon crystallization was assumed to be due to the influence of the degree of Al defects at the initial state on the kinetics of the crystallization process. Full article

Crystallization often occurs in the laser welding of amorphous alloys, reducing the properties of amorphous alloys. Therefore, the research in this thesis focuses on the experimental selection of suitable welding parameters to prevent crystallization of Zr-based amorphous alloys during the laser welding process. As such, it is necessary to simulate the temperature field curve of the welding area by computer and then determine the power and laser moving speed of laser welding. In this paper, the temperature field curve of the Zr_41.2Ti_13.8Cu_12.5Ni₁₀Be_22.5 (Vit1) amorphous alloy in laser welding is obtained by finite element analysis. The continuous heating curve (CHT) of Vit1 is fitted by the Vogel–Fulcher–Tammann (VFT) equation and the Kissinger equation. If the temperature field curve intersects with the CHT curve, crystallization occurs. The experiment results show that the VFT equation can be used to predict the crystallization of Vit1 better in laser welding. The temperature and welding time are increased by using a low welding speed. Therefore, the temperature of the weld zone cannot fall in time, resulting in the intersection of the temperature field curve and the CHT curve. Thus, crystallization can be avoided if the welding speed is controlled within a reasonable range, and the highest temperature is kept under the CHT curve. The combination of the CHT curve and the temperature field curve shows that the samples at 300 W-3 mm/s and 300 W-6 mm/s welding parameters all undergo crystallization, while the samples at 300 W-9 mm/s and 300 W-12 mm/s welding parameters do not undergo crystallization. Through the flexural test, it is found that the flexural strength of the welded interface is at its the maximum under 300 W-9 mm/s. Full article

The pyrolysis of polyethylene terephthalate (PET) is a well-known process for producing high fuel value. This paper aims to study the kinetics of PET pyrolysis reactions at 4 different heating rates (2, 5, 10, and 20 K min⁻¹) using thermogravimetric analysis (TGA) data. TGA data show only one kinetic reaction within the temperature ranges of 650 to 750 K. Five different model-free models, namely, the Freidman (FR), Flynn–Wall–Qzawa (FWO), Kissinger–Akahira–Sunose (KAS), Starink (STK), and distributed activation energy model (DAEM), were fitted to the experimental data to obtain the activation energy (E_a) and the pre-exponential factor (A₀) of the reaction kinetics. The Coats–Redfern (CR) model equation was fitted with the help of master plot (Criado’s) to identify the most convenient reaction mechanism for this system. E_a’s values were determined by the application of the five aforementioned models and were found to possess an average value of 212 kJ mol⁻¹. The mechanism of PET pyrolysis reaction was best described by first-order reaction kinetics; this was confirmed by the compensation. Further thermodynamic parameter analysis indicated that the reaction was endothermic in nature. Full article

Mg_77+xNi_20−xLa₃ (x = 0, 5, 10, 15) alloys were successfully prepared by the vacuum induction melting method. The structural characterizations of the alloys were performed by using X-ray diffraction and scanning electron microscope. The effects of nickel content on the microstructure and hydrogen storage kinetic of the as-cast alloys were investigated. The results showed that the alloys are composed of a primary phase of Mg₂Ni, lamella eutectic composites of Mg + Mg₂Ni, and some amount of LaMg₁₂ and La₂Mg₁₇. Nickel addition significantly improved the hydrogen-absorption kinetic performance of the alloy. At 683 K, Mg₇₇Ni₂₀La₃ alloy and Mg₈₂Ni₁₅La₃ alloy underwent hydrogen absorption and desorption reactions for 2 h, respectively, and their hydrogen absorption and desorption capacities were 4.16 wt.% and 4.1 wt.%, and 4.92 wt.% and 4.69 wt.%, respectively. Using the Kissinger equation, it was calculated that the activation energy values of Mg₇₇Ni₂₀La₃, Mg₈₂Ni₁₅La₃, Mg₈₇Ni₁₀La₃ and Mg₉₂Ni₅La₃ alloys were in the range of 68.5~75.2 kJ/mol, much lower than 150~160 kJ/mol of MgH₂. Full article

The increase in industrialization and development has tremendously diminished fossil fuel resources. Moreover, the excessive use of fossil fuels has resulted in the release of various toxic gases and an increase in global warming. Hence, necessitating the need to search for a renewable energy source. In this study, sesame waste biomass (SWB), which is abundantly available in Pakistan, has been used as feedstock for obtaining bio-oil using the pyrolysis technique. Pyrolysis was carried out using thermogravimetry and a pyrolysis chamber. Firstly, thermogravimetric analysis was performed on biomass with/without a laboratory synthesized catalyst Ni/Co/MCM-41 in nitrogen at different temperature programmed rates of 5, 10, 15, and 20 °C/min. A four-stage weight loss was observed that pointed toward the vaporization of water, and degradation of hemicelluloses, cellulose, and lignin. The kinetics parameters were determined using the Kissinger equation. The activation energy for the decomposition reaction of hemicelluloses, cellulose, and lignin, without catalyst, was observed as 133.02, 141.33, and 191.22 kJ/mol, respectively, however, with catalyst it was found as 91.45, 99.76, and 149.65 kJ/mol, respectively. In the catalyzed reaction the results showed the lowest activation energy, which is an indication of the fact that the catalyst is successful in reducing the activation energy to a sufficient level. As the TG/DTG showed active degradation between 200 and 400 °C, therefore, the waste sesame biomass over Ni-Co/MCM-41 was pyrolyzed within the same temperature range in the pyrolysis chamber. Temperature and time were optimized for maximum oil yield. A maximum oil yield of 38% was achieved at 330 °C and 20 min. The oil obtained was studied using GCMS. The physicochemical characteristics of the oil were assessed, and it was found that if the oil was upgraded properly, it could serve as a fuel for commercial use. Full article

Given its significant gravimetric hydrogen capacity advantage, lithium alanate (LiAlH₄) is regarded as a suitable material for solid-state hydrogen storage. Nevertheless, its outrageous decomposition temperature and slow sorption kinetics hinder its application as a solid-state hydrogen storage material. This research’s objective is to investigate how the addition of titanium silicate (TiSiO₄) altered the dehydrogenation behavior of LiAlH₄. The LiAlH₄–10 wt% TiSiO₄ composite dehydrogenation temperatures were lowered to 92 °C (first-step reaction) and 128 °C (second-step reaction). According to dehydrogenation kinetic analysis, the TiSiO₄-added LiAlH₄ composite was able to liberate more hydrogen (about 6.0 wt%) than the undoped LiAlH₄ composite (less than 1.0 wt%) at 90 °C for 2 h. After the addition of TiSiO₄, the activation energies for hydrogen to liberate from LiAlH₄ were lowered. Based on the Kissinger equation, the activation energies for hydrogen liberation for the two-step dehydrogenation of post-milled LiAlH₄ were 103 and 115 kJ/mol, respectively. After milling LiAlH₄ with 10 wt% TiSiO₄, the activation energies were reduced to 68 and 77 kJ/mol, respectively. Additionally, the scanning electron microscopy images demonstrated that the LiAlH₄ particles shrank and barely aggregated when 10 wt% of TiSiO₄ was added. According to the X-ray diffraction results, TiSiO₄ had a significant effect by lowering the decomposition temperature and increasing the rate of dehydrogenation of LiAlH₄ via the new active species of AlTi and Si-containing that formed during the heating process. Full article

In this paper, newly developed tellurium-based [(Ga₂Te₃)₃₄(SnTe)₆₆]_100-x-Sn_x amorphous alloys were prepared by the melt-spun method, with a linear velocity of 40 m/s and injection pressure of 20 kPa under an Ar atmosphere. The glass-forming region was identified in the range of x = 0 to 10 mol%. The glass transition temperature T_g and crystallization onset temperature T_c decreased monotonically with the increasing Sn content in the whole compositional range, resulting in the decrease in the stability criterion ΔT from 33 K (S2) to 23 K (S10). The crystallization kinetics were systematically investigated based on the differential scanning calorimeter (DSC) under non-isothermal conditions. The activation energies of the S8 amorphous sample determined by Kissinger and Ozawa equations were E_g (201.1~209.6 kJ/mol), E_c (188.7~198.3 kJ/mol), E_p1 (229.8~240.1 kJ/mol) and E_p2 (264.2~272.6 kJ/mol), respectively. The microscopic structure of the S8 amorphous sample and its annealed glass-ceramics were also analyzed by X-ray diffraction (XRD), transmission electron microscopy (TEM) and selected-area electron diffraction (SAED). The crystalline products were identified as having a SnTe phase (primary crystalline phase) and Ga₆SnTe₁₀ phase, thus providing a promising candidate for the development of high-performance thermoelectric glass-ceramic materials. Full article

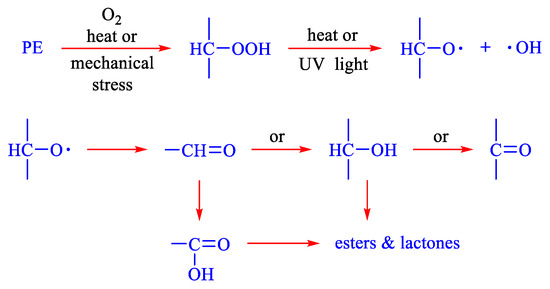

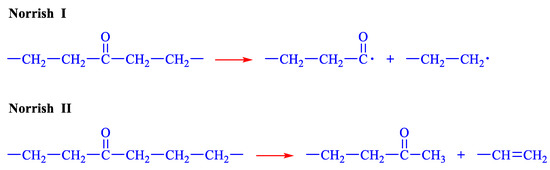

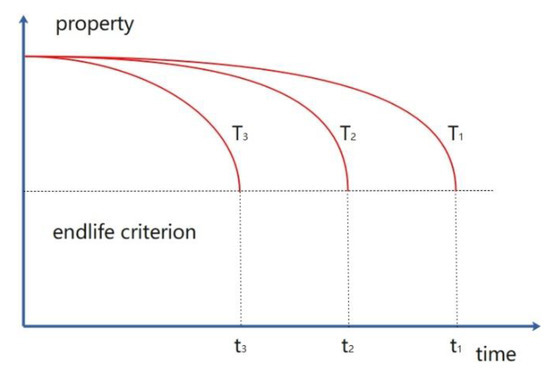

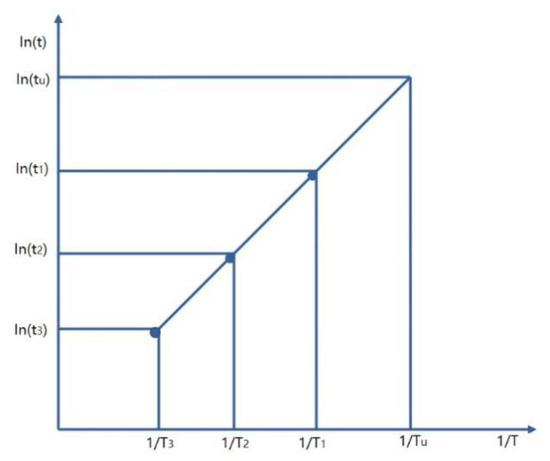

After around 50 years of development, the key substance known as polyethylene has been extremely influential in a variety of industries. This paper investigates how polyethylene materials have been used in the domains of water, packaging, and medicine to advance contemporary society in order to comprehend the physical and chemical alterations that polyethylene undergoes after being subjected to long-term environmental variables (e.g., temperature, light, pressure, microbiological factors, etc.). For the safe operation of polyethylene materials, it has always been of the utmost importance to evaluate polyethylene’s service life effectively. This paper reviews some of the most common literature journals on the influence of environmental factors on the degradation process of polyethylene materials and describes methods for predicting the lifetime of degradable polyethylene materials using accelerated aging tests. The Arrhenius equation, the Ozawa–Flynn–Wall (OFW) method, the Friedman method, the Coats–Redfern method, the Kissinger method and Kissinger–Akahira–Sunose (KAS) method, Augis and Bennett’s method, and Advanced Isoconversional methods are all discussed, as well as the future development of polyethylene. Full article
