Search Results (91)

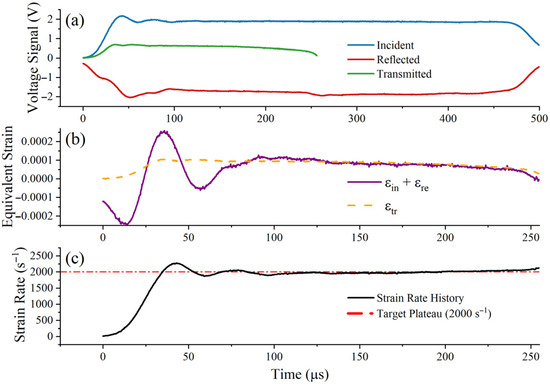

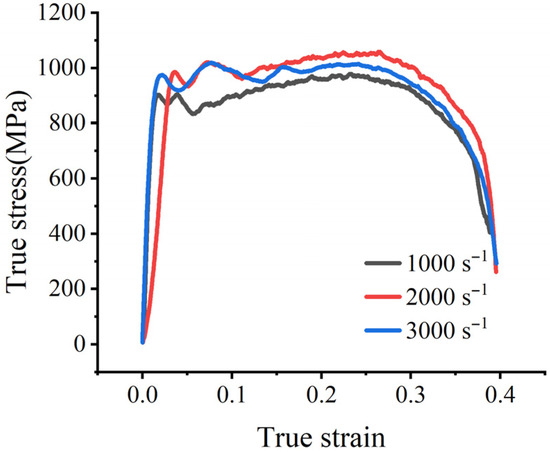

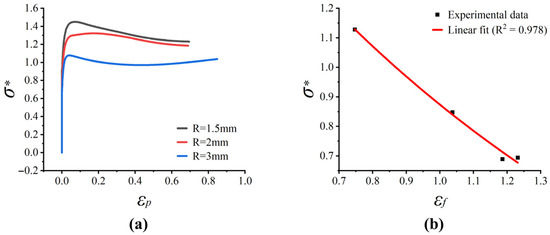

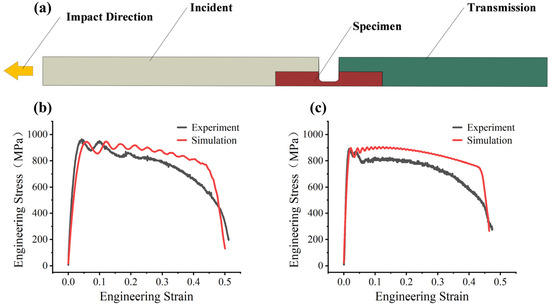

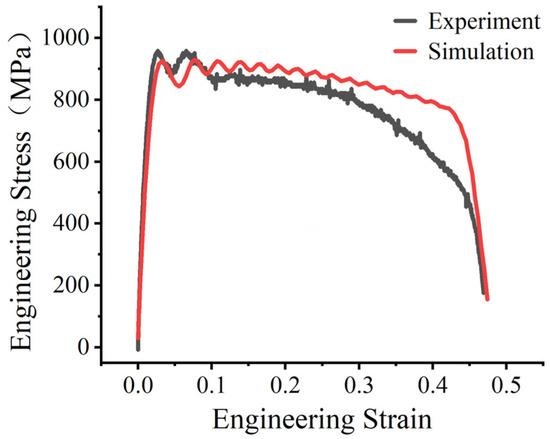

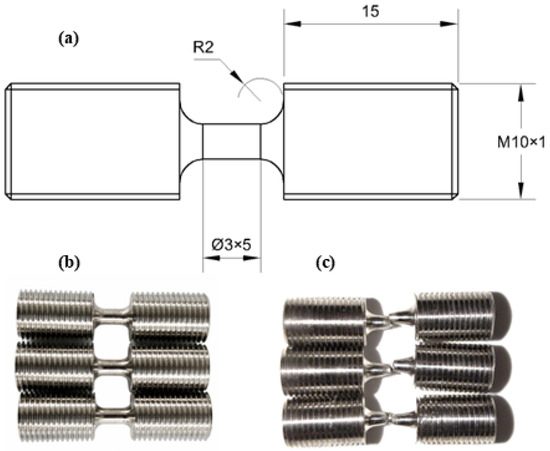

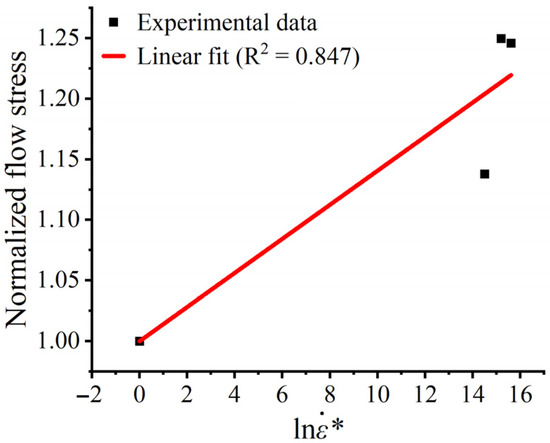

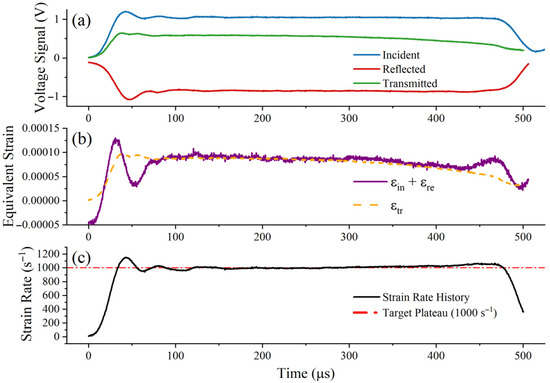

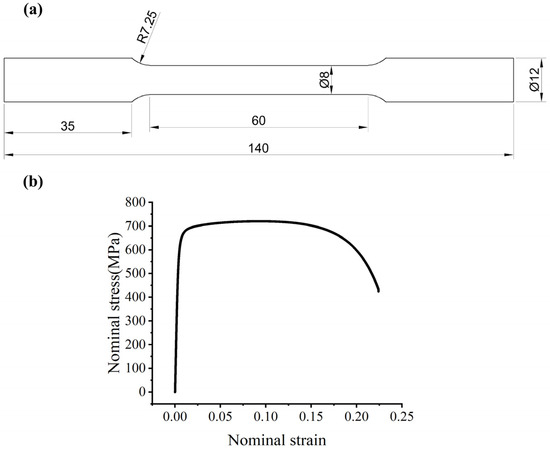

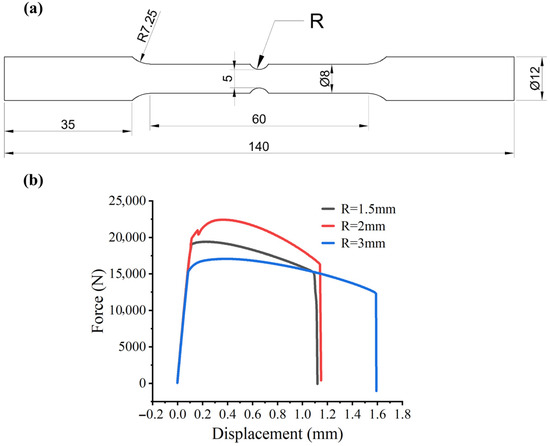

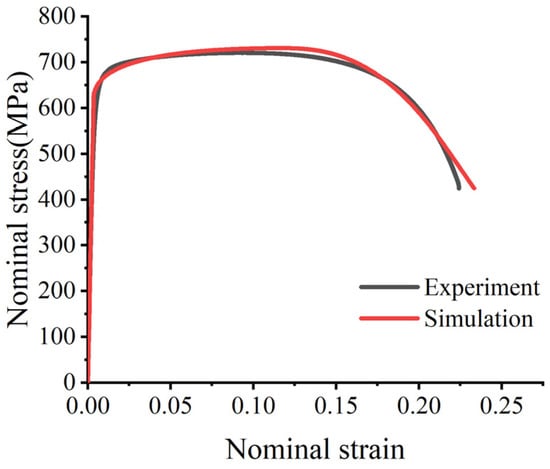

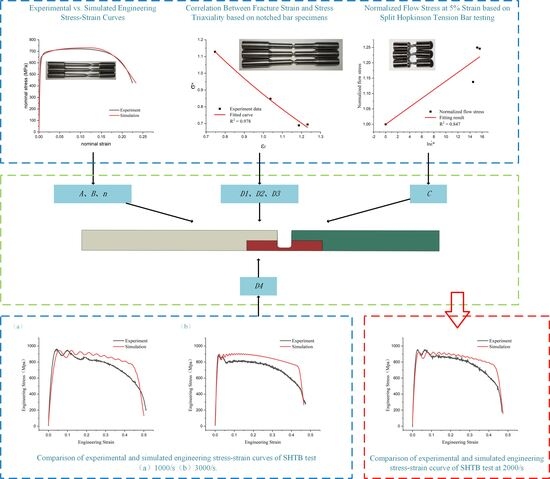

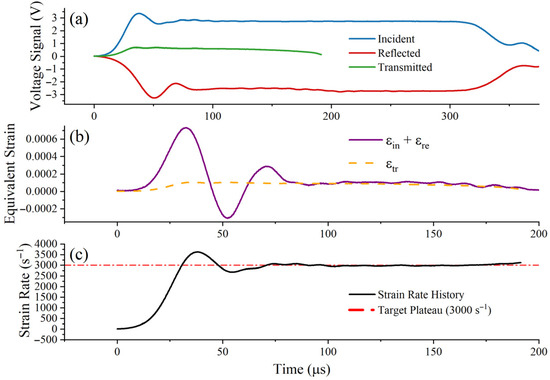

Accurate numerical simulation of Cr20Ni80 alloy processing relies on reliable constitutive and failure models. This study employs a comprehensive experimental–numerical approach to calibrate and validate the Johnson–Cook (J-C) parameters of Cr20Ni80 alloy under varying stress states and strain rates. Quasi-static tensile tests on smooth and notched specimens, alongside dynamic Split Hopkinson Tension Bar (SHTB) tests (1000–3000 s⁻¹), were conducted. Pulse-shaping technology was employed, and dynamic force balance was verified to ensure the physical validity of the high-strain-rate data. The constitutive parameters ($A=621.02 \mathrm{MPa}, B=543.20 \mathrm{MPa}, n=0.4564, C=0.0141$) were determined based on true stress–strain responses. Theoretical analysis confirms that the thermal softening effect caused by adiabatic heating can be neglected. Furthermore, the failure parameters ($D_1=-0.4300,{ D}_2=2.6405,{ D}_3=-0.7055$) were calibrated to capture the stress triaxiality effects ($R^2=0.978$). The parameter $D_4$ was iteratively calibrated using SHTB data from the 1000 s⁻¹ and 3000 s⁻¹ test conditions and validated using SHTB data from the 2000 s⁻¹ test condition. The engineering stress–strain curves obtained from simulations using the calibrated parameters showed good agreement with experimental results, confirming the reliability of the calibrated parameters. Full article

This study presents a comparative assessment of the Johnson–Cook (J-C) and Ductile Damage (DD) material models, evaluating their capability to replicate the tensile behavior and fracture development in ductile metals. Numerical models of AL6063-T4 aluminium and A36 steel dog-bone specimens with two different thicknesses were developed in ABAQUS to assess force–displacement response, stress–strain characteristics, and crack evolution under quasi-static loading. Results showed that specimen thickness directly doubled load capacity, while both models captured the overall elastic and plastic behavior of the materials. A key finding is that the DD model provided yield stresses closely matching the reference material values, whereas the J-C model exhibited higher apparent yields due to its intrinsic strain-rate sensitivity. Differences in damage behavior were also pronounced: the DD model better reproduced the gradual, inclined fracture path in aluminium, while the J-C model more accurately captured the strong necking-localization response characteristic of steel. Comparisons with experimentally tested specimens further supported these fracture tendencies. By analysing both materials under identical conditions, this work highlights the relative strengths and limitations of the two fracture formulations. The originality of the study lies in its systematic comparison across materials and thicknesses, providing clear guidance for selecting appropriate constitutive models in structural and computational mechanics research. Full article

Acrylonitrile Styrene Acrylate (ASA) is widely used in outdoor structural applications due to its favorable mechanical stability and weather resistance; however, its temperature-dependent plastic behavior remains insufficiently characterized for accurate numerical simulation. This study presents a non-standard method of calibrating the temperature-dependent Johnson–Cook (J-C) plasticity model for ASA in the practical operating temperature range below the glass transition temperature. Uniaxial tensile tests at constant strain rate 0.01 s⁻¹ were performed at −10 °C, +23 °C, and +65 °C to characterize the effect of temperature on the material’s plastic response. The J-C parameters $A$, $B$, and $n$ were identified for each temperature separately and globally using least-squares optimization implemented in MATLAB R2024b, showing good agreement with the experimental stress–strain curves. The calibrated parameters were subsequently implemented in Abaqus 2024 and validated through finite element simulations of the tensile tests. Numerical predictions demonstrated a very high correlation with the experimental data across all temperatures, confirming that the J-C model accurately captures the hardening behavior of ASA. The presented parameter set and calibration methodology provide a reliable basis for future simulation-driven design, forming analysis, and structural assessment of ASA components subjected to variable thermal conditions. Full article

This study presents a systematic numerical investigation into the ballistic performance of 7A52/7A62 aluminum alloy laminated plates with varying configurations. The dynamic mechanical behavior of the base alloys, 7A52 and 7A62, was first characterized experimentally, and the corresponding Johnson-Cook (J-C) constitutive parameters were calibrated. Using the calibrated J-C model, a series of numerical simulations were performed on several structural configurations, including single-layer (7A52-A, 7A62-B), double-layer (AB, BA), and four-layer laminates (ABAB, BAAB, ABBA, BABA). The results demonstrate that four-layer laminates exhibit markedly better ballistic performance than monolithic and double-layer plates. Among them, the ABAB stacking sequence—arranged in an alternating soft–hard–soft–hard pattern—shows the optimal performance, yielding a residual projectile velocity of only 256 m/s. This represents an approximately 27% reduction compared to the monolithic high-strength 7A62 plate. The overall ranking of ballistic performance is as follows: ABAB > BAAB > ABBA > BABA. Energy-based analysis further indicates that multi-interface delamination, coupled with plastic deformation and damage evolution, improves the energy-absorption efficiency of the laminated plates and thus enhances their ballistic resistance. This study offers valuable guidance for the lightweight design of laminated 7XXX-series aluminum alloy protective plates. Full article

With the growing requirements for multi-particle process simulation, improving computational accuracy, efficiency, and scalability has become a critical challenge. This study generally focused on comprehensive analyses of existing numerical methods for simulating particle–substrate interactions in gas–thermal spraying (including gas–dynamic spraying processes), covering both single-particle and multi-particle models to develop practical recommendations for the optimization of modern coating spraying processes. First of all, this paper systematically analyzes the key limitations of current approaches, including their inability to handle high deformations effectively or high computational complexity and their insufficient accuracy in dynamic scenarios. A comparative evaluation of four numerical methods (Lagrangian, Arbitrary Lagrangian–Eulerian (ALE), Coupled Eulerian–Lagrangian (CEL), and Smoothed Particle Hydrodynamics (SPH)) revealed their strengths and weaknesses in modeling of real gas–thermal spraying processes. Furthermore, this study identifies the limitations of the widely used Johnson–Cook (JC) constitutive model under extreme conditions. The authors considered the Zerilli–Armstrong (ZA), Mechanical Threshold Stress (MTS), and Preston–Tonks–Wallace (PTW) models as more realistic alternatives to the Jonson–Cook model. Finally, comparative analyses of theoretical and realistic deformation and defect-generation processes in gas–thermal coatings emphasize the critical need for fundamental changes in the simulation strategy for modern gas–thermal spraying processes. Full article

The accurate modelling of material removal mechanisms in grinding processes requires precise constitutive equations describing dynamic material behaviour under extreme strain rates and large deformations. This study presents a novel methodology for optimising the Johnson–Cook (J–C) constitutive model parameters for micro-grinding applications, addressing the limitations of conventional mechanical testing at strain rates exceeding 10⁵ s⁻¹. The research employed single abrasive grain micro-cutting experiments using a diamond Vickers indenter on aluminium alloy 7075-T6 specimens. High-resolution topographic measurements (130 nm lateral resolution) were used to analyse the scratch geometry and lateral material displacement patterns. Ten modified J–C model variants (A1–A10) were systematically evaluated through finite element simulations, focusing on parameters governing plastic strengthening (B, n) and strain rate sensitivity (C). Quantitative non-conformity criteria assessed agreement between experimental and simulated results for cross-sectional areas and geometric shapes of material pile-ups and grooves. These criteria enable an objective evaluation by comparing the pile-up height (h), width (l), and horizontal distance to the peak (d). The results demonstrate that conventional J–C parameters from Hopkinson bar testing exhibit significant discrepancies in grinding conditions, with unrealistic stress values (17,000 MPa). The optimised model A3 (A = 473 MPa, B = 80 MPa, n = 0.5, C = 0.001) achieved superior convergence, reducing the non-conformity criteria to Σk_A = 0.46 and Σk_K = 1.16, compared to 0.88 and 1.67 for the baseline model. Strain mapping revealed deformation values from ε = 0.8 to ε = 11 in lateral pile-up regions, confirming the necessity of constitutive models describing material behaviour across wide strain ranges. The methodology successfully identified optimal parameter combinations, with convergence errors of 1–14% and 7–60% on the left and right scratch sides, respectively. The approach provides a cost-effective alternative to expensive dynamic testing methods, with applicability extending to other ductile materials in precision manufacturing. Full article

Burrs are a significant machining defect affecting the quality of precision parts, and tool eccentricity may substantially influence milling burrs. Using AISI 304 stainless steel as the workpiece material, a three-dimensional thermo-mechanical coupled model for slot milling was constructed based on an explicit dynamics model. Combining the Johnson–Cook (J-C) constitutive model with the J-C shear failure criterion, simulations were conducted to obtain burr dimensions, cutting temperature distributions, and cutting force waveforms under different tool eccentricity directions and magnitudes. Results: As the eccentricity increases, the temperature of the top burr rises, and both the width of the top burr and the thickness of the exit side burr significantly increase. Under simulated conditions, the width of the top burr in down milling side increased by up to 70%. The burr dimensions under different eccentricity directions can differ by approximately 40%. Groove milling experiments revealed similar burr shapes between experimental and simulated results. Furthermore, the simulated cutting force waveforms aligned with those in the literature, indicating the reliability of the simulation outcomes. Based on these findings, it can be concluded that tool eccentricity significantly affects the dimensions of top burrs and exit side burrs. The width of top burrs and the thickness of exit side burrs are positively correlated with the tool eccentricity distance, while exit bottom burrs remain unaffected by eccentricity. These research results provide valuable reference for burr suppression in practical machining operations. Full article

High-pressure pipelines in nuclear power plants (NPPs) are prone to structural failures, and the study of their failure behavior is essential to analyze and minimize damage to the surrounding structures and components. The prediction of the extent of damage is also a key parameter when designing the surrounding structures. This prediction holds significant importance, since a substantial number of NPPs globally are approaching the 60-year mark in their operational lifespan. Consequently, it becomes imperative to formulate sophisticated methodologies for assessing damage behavior of structures and components under dynamic loading conditions with a more realistic representation of the behavior. This study investigates the damage response resulting from the pipe whip phenomenon in high-pressure pipelines of nuclear power plants through numerical simulations that incorporate damage models for both concrete and steel. The proposed modeling approach was also verified with the results of a ballistics impact study. The finite element modeling (FEM) of the pipe-on-wall-impact (POWI) scenario using ABAQUS helps to implement the damage models of Johnson–Cook (J–C) and Cowper–Symonds (C–S) to steel and the Concrete Damaged Plasticity (CDP) model to concrete using a damage-based approach to determine the extent of damage and failure possibilities. The maximum stresses of the pipe attained 450 MPa for the C–S model and 387 MPa for the J–C model, with the C–S model predicting higher stresses due to its high strain rate sensitivity at extreme loads. By incorporating the damage parameters for the POWI model, a better understanding of the mechanical behavior under impact conditions can be attained. Full article

Temperature and strain rate play a crucial role in determining the mechanical properties of metals. These critical parameters are typically assessed using the split Hopkinson pressure bar (SHPB) test. However, previous studies have seldom considered the coupled influence of temperature and strain rate on dynamic mechanical behavior, thereby reducing the accuracy of constitutive models. To accurately characterize the dynamic mechanical behavior of 34CrNi3MoA low-alloy steel, a new constitutive model combining temperature and strain rate was developed. Firstly, SHPB experiments under varying temperatures and strain rates were designed to obtain actual stress–strain curves. The results indicate that the mechanical properties of 34CrNi3MoA low-alloy steel are significantly influenced by both temperature and strain rate. True stress has a significant temperature-softening effect within the temperature range of 25 °C to 600 °C, while the flow stress in the yield stage increases with rising strain rate. Secondly, a novel constitutive model was established by integrating a correction function. The model comprises three components: a strain rate-strengthening function influenced by temperature, a temperature-softening function influenced by strain rate, and a strain-hardening correction function accounting for the coupling of temperature and strain rate. Comparing the mean relative error, the new model significantly improves accuracy compared to the original Johnson–Cook (J-C) model. Full article

This study analyzed the dynamic behavior of EN C45 structural steel under impulse loading generated by a pressure wave. The experiments were conducted on a special test rig using two load configurations: (I) direct contact of the load with the sample surface and (II) detonation at a distance of 30 mm. Depending on the loading conditions, the specimens were fragmented or developed extensive internal cracks and plastic deformations. To complement the experimental program, hybrid numerical simulations were performed using the finite element method (FEM), smoothed particles hydrodynamics (SPH), and coupled Euler–Lagrange (CEL) approach. A modified Johnson–Cook (JC) model was used to account for dynamic damage and cracks. Computed tomography (CT) and metallographic analyses provided detailed information on the formation of cracks in MnS inclusions, brittle cracks near the sample axis, and shear deformation zones away from the axis. These observations allowed direct correlation with the predicted numerical deformation and damage fields. The innovative nature of this work lies in the combination of three complementary computational techniques with computed tomography analysis and microstructure analysis, providing a comprehensive framework for describing and confirming the mechanisms of damage and fragmentation of structural steels under explosive loading. Full article

This paper, based on the Johnson–Cook damage model, investigates the damage mechanism of high-strength steel tailor welded blanks (TWBs) (Usibor1500P and Ductibor500) during the forming process. Initially, specimens with varying notch sizes were designed and fabricated to perform uniaxial tensile tests to determine their mechanical properties. Then, the deformation process of the notched specimens was simulated using finite element software, revealing the distribution and variation of stress triaxiality at the fracture surface. By combining both experimental and simulation data, the parameters of the Johnson–Cook (J–C) damage model were calibrated, and the effects of temperature, strain rate, and stress triaxiality on material fracture behavior were further analyzed. Based on finite element analysis, the relevant coefficients for stress triaxiality, strain rate, and temperature were systematically calibrated, successfully establishing a J–C fracture criterion for TWB welds, Usibor1500P, and Ductibor500 high-strength steels. Finally, the calibrated damage model was further validated through the Nakajima-type bulge test, and the simulated Forming Limit Diagram (FLD) closely matched the experimental data. The results show that the analysis based on the J–C damage model can effectively predict the fracture behavior of tailor welded blanks (TWB) during the forming process. This study provides reliable numerical predictions for the damage behavior of high-strength steel laser-customized welded sheets and offers a theoretical basis for engineering design and material performance optimization. Full article

The aim of this study was to analyse in detail the effect of varying the parameters of the Johnson–Cook (JC) material model on the results of a numerical simulation of the orthogonal turning process of the Ti6Al4V titanium alloy. The first step involved an experimental study, including the recording of cutting force components and temperature, as well as the measurement of chip geometry, which was used to validate the FEM simulation. This was followed by a sensitivity analysis of the JC model with respect to five parameters, namely A, B, C, m, and n, each modified independently by ±20%. The effects of these changes on cutting forces, cutting zone temperature, stresses, and chip geometry were evaluated. The results showed that parameters A, B, and m had the greatest influence on the physical quantities analysed, while C and n are of secondary importance. The analysis highlighted the need for precise calibration of the JC model parameters, especially when modelling machining processes involving difficult-to-machine materials. The results provided practical guidance for optimising the selection of constitutive parameters in machining simulations. Full article

Aerospace and marine engineering impose higher requirements on mechanical properties and lightweight design of materials. In this work, combining the high mechanical properties of FeCrNi medium entropy alloy (MEA) and the lightweight advantages of lattice structure, four types of high-performance FeCrNi MEA lattice structures (BCC, BCCZ, FCC, and FCCZ) were prepared by selective laser melting (SLM) technology, and their dynamic mechanical properties were systematically characterized via split Hopkinson pressure bar (SHPB) method. The results demonstrate that the FCCZ FeCrNi MEA lattice structure exhibits superior comprehensive performance among the four lattice structures, achieving the highest specific compressive strength of 59.1 MPa·g⁻¹·cm⁻³ and specific energy absorption of 26.3 J/g, significantly outperforming conventional lattice materials including 316L and AlSi10Mg alloys. Furthermore, the finite element simulation and Johnson-Cook (J-C) constitutive model of the dynamic compression process can effectively predict the microstructural evolution and mechanical response of lattice structure, providing critical theoretical guidance for optimizing the design of high-performance lattice structure materials. Full article

In the context of Al-Kharj city, which is steadily advancing as an industrial and manufacturing hub within Saudi Arabia, this study has significant relevance. The city’s focus on metal forming, fabrication, and materials engineering makes it crucial to optimize processes such as hot deformation of metallic alloys for various sectors, including aerospace, automotive, oil and gas, and structural applications. By assessing and comparing phenomenological and physical material models for nickel, aluminum, titanium, and iron-based alloys, this study aids Al-Kharj industries in advancing their process simulation and predictive performance. Thus, this study aims to evaluate the proposed phenomenological and physically based constitutive models for Ni-, Al-, Ti-, and Fe-based alloys to enhance the accuracy of high-temperature deformation simulations. Phenomenological models investigated include the Johnson–Cook (JC), Fields and Backofen (FB), and Khan–Huang–Liang (KHL) formulations, while the Zerilli–Armstrong (ZA) model represents the physical category. Additionally, various modifications to these models are explored. Model parameters are calibrated using the Levenberg–Marquardt algorithm to minimize mean square error. Performance is assessed through key statistical metrics, including the correlation coefficient (R), average absolute relative error (AARE), and root mean square error (RMSE). Of the 32 models analyzed, a modified version of the JC model delivers the highest accuracy across all alloys. Furthermore, four other modifications, one each for the JC and ZA models and two for the FB model, exhibit superior predictive capability for specific alloys. This makes this study valuable not just academically, but also as a practical resource to boost Al-Kharj’s industrial competitiveness and innovation capacity. Full article

The cold spray (CS) process has gained momentum as an additive manufacturing technology, due to its low processing temperatures. Computational modelling can accompany CS experiments to optimise deposition parameters, as well as predict coating properties and their final performance. A commonly used plasticity model is the Johnson–Cook (JC) model; however, its accuracy is limited at the high strain rates typical of cold spray. This study aims to assess the robustness of predictions using a modified JC model, particularly for two material systems of commercially pure titanium (CP-Ti) and Al6061-T6, and feedstock powders of two sizes and three morphologies. CP-Ti powders of spherical and irregular morphologies were sprayed onto CP-Ti substrates using a Titomic TKF1000 cold spray system. The cross-sectional splat profiles and flattening ratios were compared against smoothed particle hydrodynamics (SPH) simulations. The deposition process of particles was simulated using a modified JC model, implemented as an ABAQUS (2020) VUHARD user subroutine programme. The results showed that SPH simulations predicted the depth of impact, the splat profiles and the flattening ratios. Additionally, the simulations indicated that the impacting particle temperature remained below the melting point of CP-Ti throughout the process. Lastly, it was demonstrated that the irregular CP-Ti feedstock showed greater tendency of restitution than spherical feedstock. Full article
