Search Results (19)

Control of the friction process in stretch-forming conditions, when creating sheet metal, is essential for obtaining components of the quality required. This paper presents an approach to modelling the friction phenomenon at the rounded edges of stamping dies. The aim of the study is to compare the coefficient of friction (CoF) determined from numerous analytical models available in the literature. Experimental studies were conducted using self-developed bending under tension friction testing apparatus. The test material was low-carbon DC01 steel sheeting. Tests were conducted under lubricated conditions, using industrial oil intended for deep drawing operations. The surfaces of countersamples made of 145Cr6 substrate were modified using the ion implantation of Pb (IOPb) and electron beam melting processes. Variation in the CoF in BUT tests was related to continuous deformation-induced changes in surface topography and changes in the mechanical properties of sheet metal due to the work-hardening phenomenon. Under friction testing with a stationary countersample, the largest increase in average roughness (by 19%) was found for the DC01/IOPb friction pair. The friction process caused a significant decrease in kurtosis values. The results show that the difference between the highest and lowest CoF values, determined for the analytical models considered, was approximately 40%. Full article

The working conditions of tools during plastic working operations are determined by, among other things, temperature, loads, loading method, and processing speed. In sheet metal forming processes, additionally, lubricant and tool surface roughness play a key role in changing the surface topography of the drawpieces. This article presents the results of friction analysis on the edge of the punch in a deep drawing process using the bending under tension test. A DC04 steel sheet was used as the test material. The influence of various types of titanium nitride and titanium coatings applied on the surface of countersamples made of 145Cr6 cold-work tool steel was tested by means of high-intensity plasma pulses, magnetron sputtering, and electron pulse irradiation. The influence of the type of tool coating on the evolution of the coefficient of friction, the change in the sheet surface topography, and the temperature in the contact zone is presented in this paper. An increase in the coefficient of friction with sample elongation was observed. Countersamples modified with protective coatings provided a more stable coefficient value during the entire friction test compared to dry friction conditions. The electron pulse irradiated countersample provided the highest stability of the coefficient of friction in the entire range of sample elongation until fracture. The skewness Ssk of the sheet metal tested against the coated countersamples was characterized by negative value, which indicates a plateau-like shape of their surface. The highest temperature in the contact zone during friction with all types of countersamples was observed for the uncoated countersample. Full article

The aim of this article is to provide an analysis of the influence of the type of hard anti-wear coatings on the friction behaviour of DC01 deep-drawing steel sheets. DC01 steel sheets exhibit high formability, and they are widely used in sheet metal forming operations. The tribological properties of the tool surface, especially the coating used, determine the friction conditions in sheet metal forming. In order to carry out the research, this study developed and manufactured a special bending-under-tension (BUT) friction tribometer that models the friction phenomenon on the rounded edges of tools in the deep-drawing process. The rationale for building the tribotester was that there are no commercial tribotesters available that can be used to model the phenomenon of friction on the rounded edges of tools in sheet forming processes. The influence of the type of coating and sheet deformation on the coefficient of friction (CoF) and the change in the topography of the sheet surface were analysed. Countersamples with surfaces prepared using titanium + nitrogen ion implantation, nitrogen ion implantation and electron beam remelting were tested. The tests were carried out in conditions of dry friction and lubrication with oils with different kinematic viscosities. Under dry friction conditions, a clear increase in the CoF value, with the elongation of the samples for all analysed types of countersamples, was observed. Under lubricated conditions, the uncoated countersample showed the most favourable friction conditions. Furthermore, oil with a lower viscosity provided more favourable conditions for reducing the coefficient of friction. Within the entire range of sample elongation, the most favourable conditions for reducing the CoF were provided by uncoated samples and lubrication with S100+ oil. During the friction process, the average roughness decreased as a result of flattening the phenomenon. Under dry friction conditions, the value of the Sa parameter during the BUT test decreased by 20.3–30.2%, depending on the type of countersample. As a result of the friction process, the kurtosis and skewness increased and decreased, respectively, compared to as-received sheet metal. Full article

Friction is one of the main phenomena accompanying sheet metal forming methods, affecting the surface quality of products and the formability of the sheet metal. The most basic and cheapest way to reduce friction is to use lubricants, which should ensure the highest lubrication efficiency and at the same time be environmentally friendly. Due to the trend towards sustainable production, vegetable oils have been used in research as an alternative to petroleum-based lubricants. The analysis of friction in sheet metal forming requires an appropriate tribotester simulating the friction conditions in a specific area of the sheet metal being formed. Research has used a special strip drawing tribometer, enabling the determination the value of the coefficient of friction in the blankholder zone in the deep drawing process. Quantitative analysis of the friction phenomenon is necessary at the stage of designing the technological process and selecting technological parameters, including blankholder pressure. This article presents the results of friction testing of 1.0338 (DC04) steel sheets using a strip drawing test. The experimental tests involved pulling a strip of sheet metal between two countersamples with a rounded surface. The tests were carried out on countersamples with different levels of roughness for the range of contact pressures occurring in the blankholder zone in the deep drawing process (1.7–5 MPa). The values of the coefficient of friction determined under dry friction conditions were compared with the results for edible (corn, sunflower and rapeseed) and non-edible (Moringa, Karanja) vegetable lubricants. The tested oils are the most commonly used vegetable-based biolubricants in metal forming operations. Multi-layer artificial neural networks were used to determine the relationship between the value of the contact pressure, the roughness of the countersamples, the oil viscosity and density, and the value of the coefficient of friction. Rapeseed oil provided the best lubrication efficiency during friction testing for all of the tested samples, with an average surface roughness of Sa 0.44–1.34 μm. At the same time, as the roughness of the countersamples increased, a decrease in lubrication efficiency was observed. The lowest root mean squared error value was observed for the MLP-4-8-1 network trained with the quasi-Newton algorithm. Most of the analysed networks with different architectures trained using the various algorithms showed that the kinematic viscosity of the oil was the most important aspect in assessing the friction of the sheets tested. The influence of kinematic viscosity on the value of the coefficient of friction is strongly dependent on the surface roughness of the countersamples. Full article

This article presents the results of an analysis of the influence of friction process parameters on the coefficient of friction of steel sheets 1.0347 (DC03), 1.0338 (DC04) and 1.0312 (DC05). A special tribometer was designed and manufactured in order to simulate the friction phenomenon occurring in the blankholder area in deep drawing operations. Lubricant was supplied to the contact zone under pressure. The value of the coefficient of friction was determined under various contact pressures and lubrication conditions. Multi-layer artificial neural networks (ANNs) were used to predict the value of the coefficient of friction. The input parameters considered were the kinematic viscosity of lubricants, contact pressure, lubricant pressure, selected mechanical properties and basic surface roughness parameters of sheet metals. The value of the coefficient of friction of 1.0312 steel sheets was predicted based on the results of friction tests on 1.0347 and 1.0338 steel sheets. Many ANN models were built to find a neural network that will provide the best prediction performance. It was found that to ensure a high performance of ANN prediction, it is necessary to simultaneously take into account all the considered roughness parameters (Sa, Ssk and Sku). The predictive performance of the ‘best’ network was greater than R² = 0.98. The lubricant pressure had the greatest impact on the coefficient of friction. Increasing the value of this parameter reduces the value of the coefficient of friction. However, the greater the contact pressure, the smaller the beneficial effect of pressure-assisted lubrication. The third parameter of the friction process, the kinematic viscosity of the oil, exhibited the smallest impact on the coefficient of friction. Full article

Predicting changes in the surface roughness caused by friction allows the quality of the product and the suitability of the surface for final treatments of varnishing or painting to be assessed. The results of changes in the surface roughness of DC03 steel sheets after friction testing are presented in this paper. Strip drawing tests with a flat die and forced oil pressure lubrication were carried out. The experiments were conducted under various contact pressures and lubricant pressures, and lubrication was carried out using various oils intended for deep-drawing operations. Multilayer perceptrons (MLPs) were used to find relationships between friction process parameters and other parameters (Sa, Ssk and Sku). The following statistical measures of contact force were used as inputs in MLPs: the average value of contact force, standard deviation, kurtosis and skewness. Many analyses were carried out in order to find the best network. It was found that the lubricant pressure and lubricant viscosity most significantly affected the value of the roughness parameter, Sa, of the sheet metal after the friction process. Increasing the lubricant pressure reduced the average roughness parameter (Sa). In contrast, skewness (Ssk) increased with increasing lubrication pressure. The kurtosis (Sku) of the sheet surface after the friction process was the most affected by the value of contact force and lubricant pressure. Full article

This article presents the friction test results for cold-rolled low-carbon DC06 steel sheets, which are commonly processed into finished products using sheet metal forming methods. A strip drawing test with flat dies was used in the experimental tests. The strip-drawing test is used to model the friction phenomena in the flange area of the drawpiece. The tests were carried out using a tester that enabled lubrication with a pressurised lubricant. The friction tests were carried out at different nominal pressures, oil pressures, and friction conditions (dry friction and oil lubrication). Oils destined for deep-drawing operations were used as lubricants. Neural networks with radial base functions (RBFs) were used to explore the influence of individual friction parameters on the value of the coefficient of friction (COF). Under lubrication with both oils considered, the value of the COF increased with decreasing oil pressure. This confirms the correctness of the concept of the device for reducing friction in the flange area of the drawpiece. The developed concept of pressurised lubrication is most effective at relatively small nominal pressures of 2–4 MPa. This range of nominal pressures corresponds to the actual nip pressures when forming deep-drawing steel sheets. Under conditions of dry friction, the values obtained for the COF rise above 0.3, while under lubrication conditions, even without pressure-assisted lubrication, the COF does not exceed 0.2. As the nominal pressure increases, the effectiveness of the lubrication exponentially decreases. It was found that the Sq parameter carries the most information regarding the value of the COF. The RBF neural network with nine neurons in the hidden layer (RBF-8-9-1) and containing the Sq parameter as the input was characterised by an R² of 0.989 and an error of 0.000292 for the testing set. Full article

The use of numerical simulations for tool tryout and process control is becoming increasingly prevalent. In this work, the deep drawing process of a car inner door panel of DC06 mild steel is numerically analyzed and compared with industrial process results. Five batches of DC06 material were analyzed mechanically and tribologically. Diverse tribological models were developed based on experimental strip drawing tests, where a Coefficient of Friction (CoF) was obtained as a function of contact pressure, sliding velocity, and amount of lubricant. A topography analysis was defined to compare material batches and to replicate industrial tool conditions. The simulation was fed with three tribological models: constant (CoF 0.15), Filzek pressure and velocity dependent, and TriboForm with lubrication zones. Thinning, Forming Limit Diagram (FLD) and draw-in were used as indicators for the comparison. Using the industrial tool, both FLD and draw-in were measured and compared with the numerical models. The constant model predicted the most conservative strain state and also differed most from the experimental results. The P-v-dependent and TriboForm models more accurately predicted the experimental results. This work highlights the importance of considering more complex tribological models to feed numerical simulations to yield results closer to real process conditions. Full article

In the deep drawing process, the scatter of the friction coefficient between blank and tool interfaces as well as of the material properties between blank positions in the coil or between different coils significantly influences the part quality. These uncontrollable fluctuations increase the risk of waste. To avoid this problem, currently, the new era of Industry 4.0 aims at developing control algorithms able to in-line adjust process parameters and always meet the part quality requirements. Starting from this context, in this study a method for process control during the punch stroke is proposed. It assumes the blank draw-in in specific points as the control variable, while the blank holder force is adopted as an in-line adjustable process parameter. The approach was implemented for the deep drawing of a T-shaped component, using a blank in DC05 steel with a thickness of 0.75 mm. The results show that the measurement of blank draw-in is a representative index of the component quality, which in this study is evaluated in terms of formability (thinning) and cosmetic (surface deflections) defects. Once the optimal condition and the corresponding blank draw-in were identified, the feedback control algorithm was able to increase or reduce the blank holder force according to whether the recorded draw-in was higher or lower than the optimal one. Full article

Drawbeads are used when forming drawpieces with complex shapes to equalise the flow resistance of a material around the perimeter of the drawpiece or to change the state of stress in certain regions of the drawpiece. This article presents a special drawbead simulator for determining the value of the coefficient of friction on the drawbead. The aim of this paper is the application of artificial neural networks (ANNs) to understand the effect of the most important parameters of the friction process (sample orientation in relation to the rolling direction of the steel sheets, surface roughness of the counter-samples and lubrication conditions) on the coefficient of friction. The intention was to build a database for training ANNs. The friction coefficient was determined for low-carbon steel sheets with various drawability indices: drawing quality DQ, deep-drawing quality DDQ and extra deep-drawing quality EDDQ. Equivalents of the sheets tested in EN standards are DC01 (DQ), DC03 (DDQ) and DC04 (EDDQ). The tests were carried out under the conditions of dry friction and the sheet surface was lubricated with machine oil LAN46 and hydraulic oil LHL32, commonly used in sheet metal forming. Moreover, various specimen orientations (0° and 90°) in relation to the rolling direction of the steel sheets were investigated. Moreover, a wide range of surface roughness values of the counter-samples (Ra = 0.32 μm, 0.63 μm, 1.25 μm and 2.5 μm) were also considered. In general, the value of the coefficient of friction increased with increasing surface roughness of the counter-samples. In the case of LAN46 machine oil, the effectiveness of lubrication decreased with increasing mean roughness of the counter-samples Ra = 0.32–1.25 μm. With increasing drawing quality of the sheet metal, the effectiveness of lubrication increased, but only in the range of surface roughness of the counter-samples in which Ra = 0.32–1.25 μm. This study investigated different transfer functions and training algorithms to develop the best artificial neural network structure. Backpropagation in an MLP structure was used to build the structure. In addition, the COF was calculated using a parameter-based analytical equation. Garson partitioning weight was used to calculate the relative importance (RI) effect on coefficient of friction. The Bayesian regularization backpropagation (BRB)—Trainbr training algorithm, together with the radial basis normalized—Radbasn transfer function, scored best in predicting the coefficient of friction with R² values between 0.9318 and 0.9180 for the training and testing datasets, respectively. Full article

Lubrication is a basic and relatively effective way to reduce friction in sheet metal forming operations. The drive to eliminate synthetic and mineral oils, which are difficult to recycle, from the manufacturing process has opened up opportunities for the use of vegetable-based bio-lubricants. This article presents a comparison of the lubrication performance of two non-edible oils (karanja and moringa) with the most frequently tested edible oils (sunflower and rape-seed). Deep drawing quality low-carbon steel sheets DC04, commonly used in the automotive industry, were used as the test material. Friction tests were carried out under various lubricants and normal pressures in the range between 3 and 12 MPa using the strip drawing test. Furthermore, a study was also made of the effect of a change in the surface topography and the mechanical properties of the sheet metal due to plastic deformation resulting from friction. It was found that under the most favorable lubrication conditions (sample pre-strain 21%, nominal pressure 6 MPa), karanja oil reduced the coefficient of friction by approximately 33%. Both non-edible lubricants provided the best lubrication when testing samples pre-strained at 7% under the whole range of nominal pressures. It was also revealed that in the case of the smallest pre-straining of the specimens (7%), karanja oil was the most effective within nominal pressures of 3–6 MPa, while at higher pressures (9–12 MPa), the moringa oil lowered the value of the coefficient of friction to a greater extent. Full article

New manufacturing technologies, such as Sheet-Bulk Metal Forming, are facing the challenges of highly stressed tool surfaces which are limiting their service life. For this reason, the load-adapted design of surfaces and the subsurface region as well as the application of wear-resistant coatings for forming dies and molds made of high-speed steel has been subject to many research activities. Existing approaches in the form of grinding and conventional milling processes do not achieve the surface quality desired for the forming operations and therefore often require manual polishing strategies afterward. This might lead to an unfavorable constitution for subsequent PVD coating processes causing delamination effects or poor adhesion of the wear-resistant coatings. To overcome these restrictions, meso- and micromilling are presented as promising approaches to polishing strategies with varying grain sizes. The processed topographies are correlated with the tribological properties determined in an adapted ring compression test using the deep drawing steel DC04. Additionally, the influence of the roughness profile as well as the induced residual stresses in the subsurface region are examined with respect to their influence on the adhesion of a wear-resistant CrAlN PVD coating. The results prove the benefits of micromilling in terms of a reduced friction factor in the load spectrum of Sheet-Bulk Metal Forming as well as an improved coating adhesion in comparison to metallographic finishing strategies, which can be correlated to the processed roughness profile and induced compressive residual stresses in the subsurface region. Full article

The article presents the results of friction tests of a 0.8 mm-thick DC04 deep-drawing quality steel sheet. A special friction simulator was used in the tests, reflecting friction conditions occurring while pulling a sheet strip through a drawbead in sheet metal forming. The variable parameters in the experimental tests were as follows: surface roughness of countersamples, lubrication conditions, sample orientation in relation to the sheet rolling direction as well as the sample width and height of the drawbead. Due to many factors that affect the value of the coefficient of friction coefficient, artificial neural networks (ANNs) were used to build and analyse the friction model. Four training algorithms were used to train the ANNs: back propagation, conjugate gradients, quasi-Newton and Levenberg–Marquardt. It was found that for all analysed friction conditions and sheet strip widths, increasing the drawbead height increases the COF value. The chlorine-based Heavy Draw 1150 compound provides a more effective friction reduction compared to a LAN-46 machine oil. Full article

The erosion phenomenon has a significant influence on many metallic materials used in numerous industrial sectors. In this paper, we present the results of an analysis of the influence of abrasive impact erosion on surface and properties of DC03/1.0347, DC04/1.0338, DC05/1.0312, and DD14/1.0389 deep drawing steels. The chemical composition, static tensile tests, hardness tests, drawability tests, erosion tests, microstructure analysis, surface roughness, and hardness of the plates were investigated. The wear mechanisms and wear behavior of the investigated steels were also discussed. The results obtained in this study allowed the assessment of the microstructural changes in deep drawing steels under the influence of intense erosive impact. The obtained results indicate that the erosive impact may cause a significant grain refinement of the microstructure of the surfaces of the investigated materials. Moreover, large amounts of heat released during erosive impact may cause the material phase changes. This research expands the knowledge on specific mechanisms taking place during sandblasting and their influence on the properties of deep drawing steels and their wear behavior. Full article

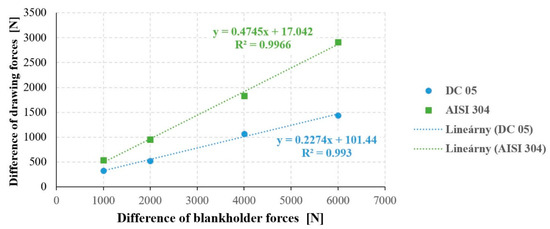

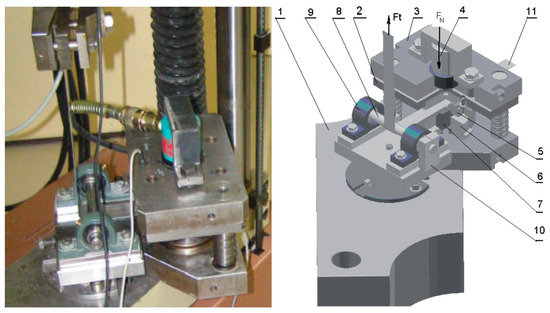

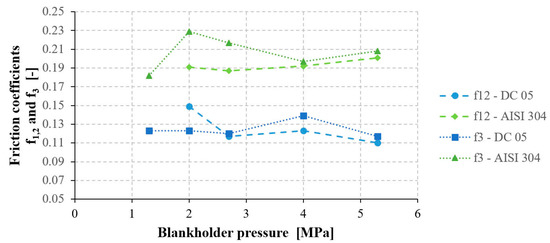

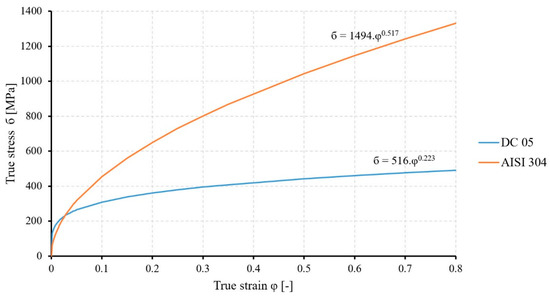

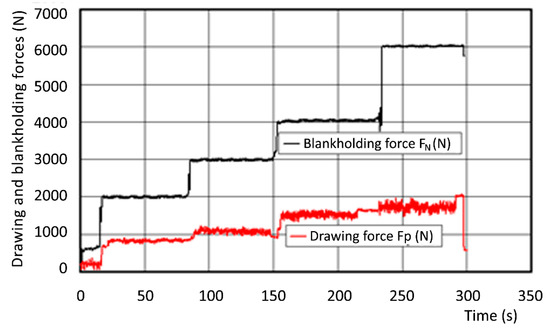

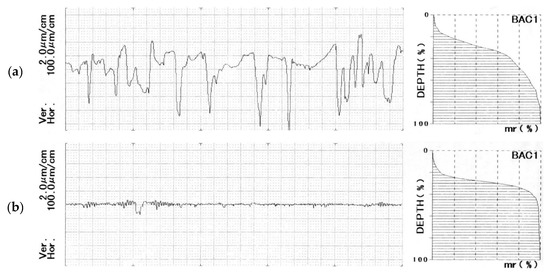

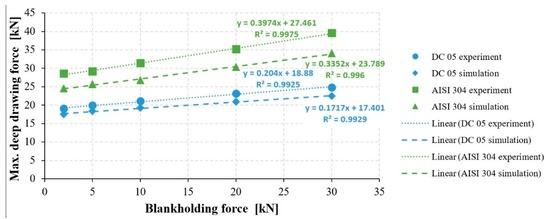

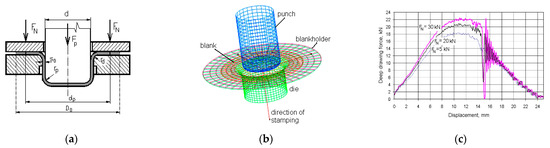

The friction coefficient in the simulation of stamping processes should be defined. Modern simulation software allows its definition as constant or its dependence on pressure or temperature. It is also useful in stamping processes to define different values in different regions, as it often reflects the nature of deformation process. This article deals with the regression and analytical models commonly used to determine the friction coefficients in specified areas of the stamping process. Analytical models were verified by an experimental strip drawing test under the same contact conditions. Steel sheets for the automotive industry were used in experiments and simulations—extra deep drawing quality DC 05 and austenitic stainless steel AISI 304. Friction coefficients were also evaluated when the cup test was performed. A regression model of drawing to the blankholding force was applied to the results. Conformity of friction coefficients when measured by cup tests and strip tests was confirmed. The values of the friction coefficient reached from the experiment were applied in FEM simulation software. Full article
