Search Results (16)

The problem of reducing electric power consumption is critical to ferrous metallurgy as it is a very energy-intensive industry. Significant energy savings can be achieved by increasing the efficiency of high-power electric drives of rolling mills. Experiments with the 5000 plate mill showed that the deterioration of energy efficiency can be caused by the misalignment of loads between the upper and lower roller main electric drive motors (upper main drive/UMD and lower main drive/LMD, respectively) caused by the misalignment of roller motor speeds. Experiments showed that when the speed misalignment reaches 5%, the motor torques differ by two times. Various UMD and LMD speeds can be set to bend the front end of the workpiece (form a “ski”). The installed load division controller (LDC) option fails to provide load alignment due to a low response rate and late startup. This article’s contribution consists of the development of a forced UMD and LMD speed and torque alignment method. To implement this method, a load-division controller with a switching structure has been developed. The authors also developed an efficiency and electric loss monitor and provided an experimental assessment of electric losses per one-pass and per sheet batch rolling cycle. The prospects of this research include the optimization of high-speed and high-load electric drive modes to reduce the energy costs of rolling and the development of an LDC based on fuzzy logic algorithms. Full article

The main purpose of this research is to develop an improved space vector pulse-width modulation (SVPWM) algorithm for three-level (3L) neutral point clamped (NPC) voltage source inverters (VSIs). The results of experiments conducted on the three-level power converter laboratory setup showed that the proposed SVPWM algorithm with a seven-stage switching sequence (SS) can reduce a VSI’s switching frequency by 43.48% compared to the SVPWM algorithm with the base SS. It also improves the neutral point (NP) voltage balance in the VSI DC link by 4.2% by controlling the duty factor of distributed base vectors in each SVPWM period based on phase load currents. It reduced the values of the 5th- and 7th-order harmonics of the VSI output voltage by 19% and 15.7%, respectively. The results show that the usage of the improved SVPWM algorithm helps increase the efficiency of a 3L NPC VSI by 0.6% and reduce the higher harmonics. The obtained results confirm the efficiency of the suggested algorithm and its great potential for power converters in industry. Full article

Implementing the IIoT concept in industry involves the development and implementation of online systems monitoring the technical state of electromechanical equipment. This is achieved through the use of digital twins and digital shadows (object state observers). The tasks of mastering new rolling profiles and optimizing plate mill rolling programs require improved methods for calculating equivalent motor currents and torques. Known methods are generally based on calculations using smoothed load diagrams, which are assumed to be identical for the upper and lower main drive (UMD and LMD) rolls. These methods do not consider the differences in actual loads (currents or torques) in steady rolling states. Experiments performed on the 5000 plate mill have shown that due to speed mismatches, the UMD and LMD torques differ three times or more. This causes overheating of the more heavily loaded motor, insulation life reduction, and premature failure. Therefore, the problem of developing and implementing techniques for monitoring the load and thermal regimes of motors using digital observers is relevant. The paper’s contribution is the first justification of the concept of object-oriented digital shadows. They are developed for specific classes of industrial units using open-source software. This research justifies a methodology for assessing motor load and temperature by processing arrays of motor currents or torques generated during rolling. An equivalent load observer and a temperature observer were proposed and implemented using Matlab-Simulink resources. The algorithm was implemented on the mill 5000 and tuned using an earlier-developed virtual commissioning methodology with digital twins. Thermal regimes were studied, proving that torque alignment ensures equal motor temperatures. The proposed considerations contribute to the development of the theory and practice for creating digital systems to monitor the technical condition of electromechanical and mechatronic systems and implementing the Industry 4.0 concept at industrial enterprises. Full article

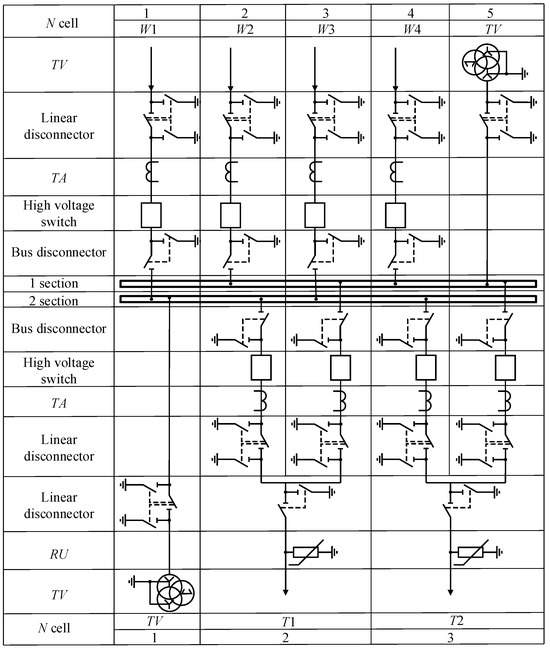

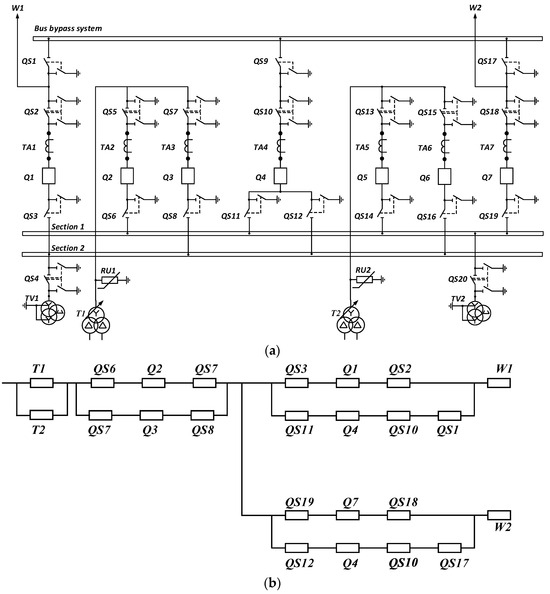

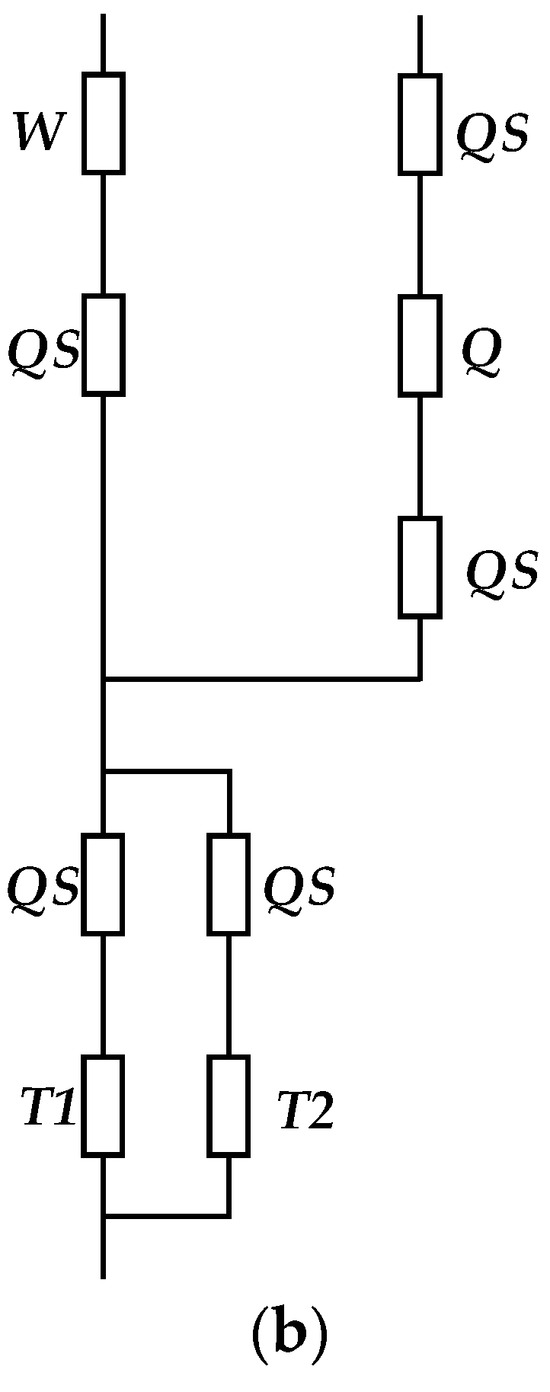

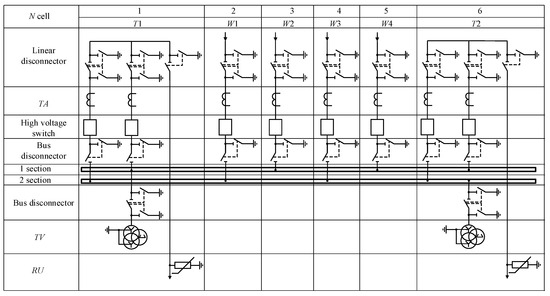

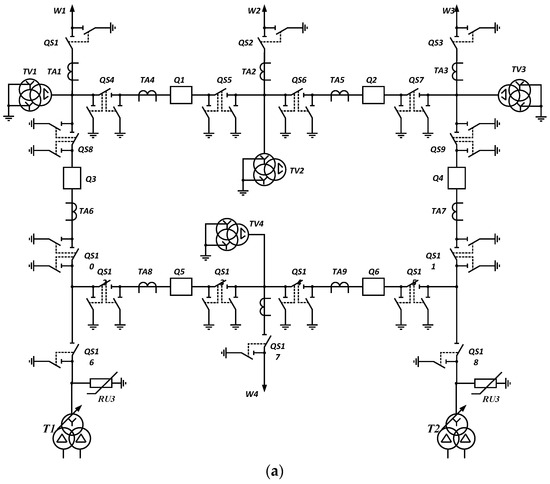

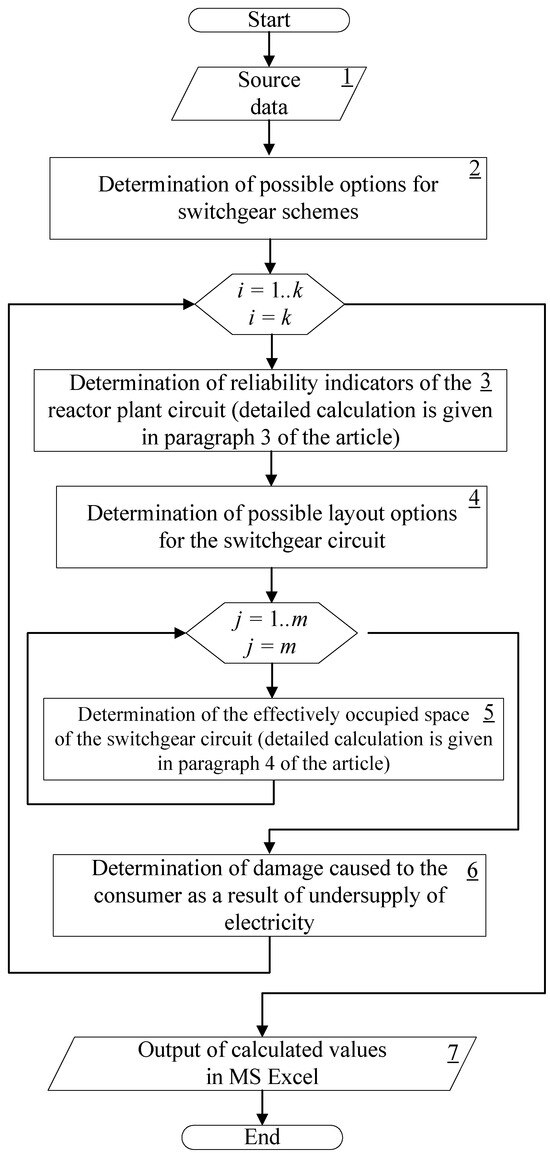

The basic requirements for the design of a switchgear for main 35–220 kV step-down substations are reliability and efficiency. Switchgear circuits are chosen depending on the number of supply and transit lines and transformers, the substation’s place in the power supply system, and the area that can be allocated under the substation construction. The substation switchgear’s reliability depends on the circuit type and the equipment to be installed. When designing, as a rule, standard substation switchgear circuit solutions are chosen with often unreasonably overstated reliability indicators and, as a consequence, capital costs. This paper explores the issues of automated choice of the best option for the 35–220 kV substation switchgear circuit, considering its structural reliability and additional costs for the area allocated under the electrical unit. A distinctive feature of the work is a comprehensive accounting of the reliability indicators of the substation and the influence of the layout of switchgear circuits as a whole on the performance indicators of future electrical installations. The developed technique is used at the pre-design stages and allows for reducing further capital, maintenance, and repair costs for electrical units by up to 14.5%. The developed approach is implemented in the original TER CAD software product. Full article

Creating digital twins of industrial equipment requires the development of adequate virtual models, and the calculation of their parameters is a complex scientific and practical problem. To configure and digitally commission automated drives, two-mass electromechanical system models are used. A promising area in which to implement such models is the development of digital shadows, namely drive position observers. Connecting virtual models for online data exchange predetermines the tightening of requirements for their parameter calculation accuracy. Therefore, developing accessible techniques for calculating electromechanical system coordinates is an urgent problem. These parameters are most accurately defined by experiments. The contribution of this paper is the proposition of a method for defining the two-mass system model parameters using the oscillograms obtained in the operating and emergency modes. The method is developed for the horizontal stand drives of a plate mill 5000 and is supported by numerical examples. The technique is universal and comprises calculating the rotating mass inertia torques, elastic stiffness and oscillation damping coefficients, and the time constants of the motor air gap torque control loop. The obtained results have been applied to the development of the elastic torque observer of the rolling stand’s electromechanical system. A satisfactory coordinate recovery accuracy has been approved for both open and closed angular gaps in mechanical joints. Recommendations are given for the use of the method in developing process parameter control algorithms based on automated drive position observers. This contributes to the development of the theory and practice of building digital control systems and the implementation of the Industry 4.0 concept in industrial companies. Full article

Implementing the concept of a “smart furnace transformer” should stipulate its information support throughout its life cycle. This requires improving techniques for estimating the transformer’s health and forecasting its remaining useful life (RUL). A brief review of the problem being solved has shown that the known RUL estimation techniques include processing the results of measuring the facility state parameters using various mathematical methods. Data processing techniques (deep learning, SOLA, etc.) are used, but there is no information on their application in online monitoring systems. Herewith, fast (shock) changes in the resource caused by the failures and subsequent recoveries of the facility’s health have not been considered. This reduces the RUL forecasting accuracy for the repairable equipment, including transformers. It is especially relevant to consider the impact of sudden state changes when it comes to furnace transformers due to a cumulative wear effect determined by their frequent connections to the grid (up to 100 times a day). The proposed approach is based on calculating the RUL by analytical dependencies, considering the failures and recoveries of the facility state. For the first time, an engineering RUL forecasting technique has been developed, based on the online diagnostic monitoring data results provided in the form of time series. The equipment’s relative failure tolerance index, calculated with analytical dependencies, has first been used in RUL forecasting. As a generalized indicator, a relative failure tolerance index considering the facility’s state change dynamics has been proposed. The application of the RUL forecasting technique based on the results of dissolved gas analysis of a ladle furnace unit’s transformer is demonstrated. The changes in the transformer state during the operation period from 2014 to 2022 have been studied. The RUL was calculated in the intensive aging interval; the winding dismantling results were demonstrated, which confirmed developing destructive processes in the insulation. The key practical result of the study is reducing accidents and increasing the service life of the arc and ladle furnace transformers. The techno-economic effect aims to ensure process continuity and increase the metallurgical enterprise’s output (we cannot quantify this effect since it depends on the performance of a particular enterprise). It is recommended to use the technique to forecast the RUL of repairable facilities equipped with online monitoring systems. Full article

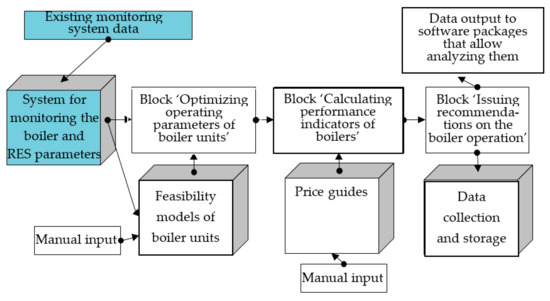

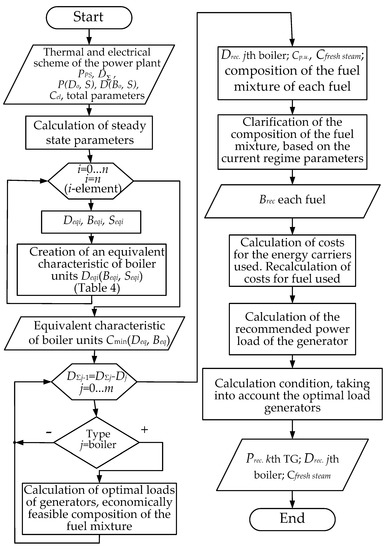

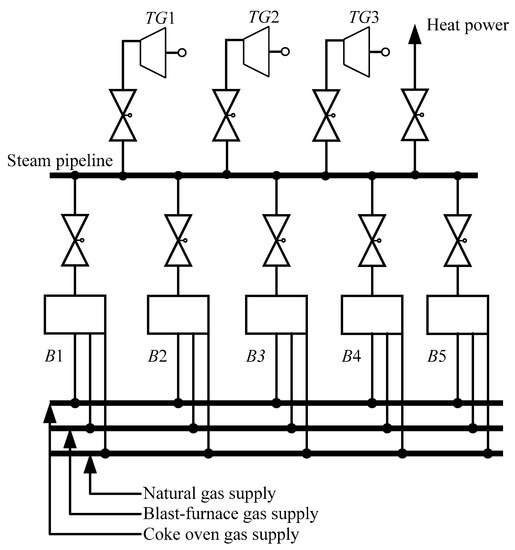

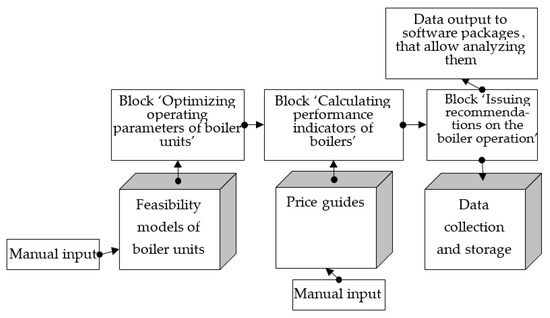

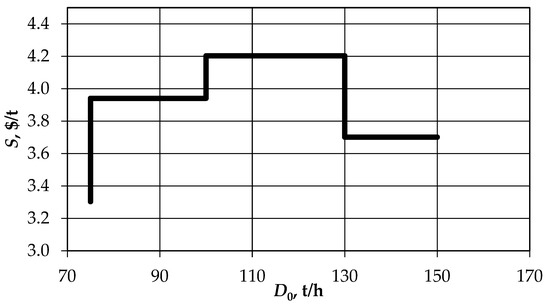

The free market forces energy-intensive industrial enterprises to continuously compete. A possible competitive advantage for such enterprises is reducing the finished products cost. This may be achieved by reducing the share of energy in this cost, including by rationalizing the use of energy resources. This study develops a system for the automated analysis and calculation of feasible boiler unit loads, defined according to the criterion of the minimum cost of live steam in a separate steam plant pipeline. The calculations consider the balance limit on the steam, the boiler unit’s wear and tear, performance specifications, and economic indicators of fuel consumption in the calculation. The software also defines the optimal fuel mix composition when forecasting the operating modes of the power plant boiler units in real-time mode. The calculation algorithm is based on the dynamic programming technique combined with the sequential equivalenting method, which ensures the convergence of calculations. When a steam plant model is developed, much attention is paid to the thermal scheme and technical and economic specifications of boiler units. In the system, the boiler models are set as a table containing the ratio between the boiler unit’s steam capacity and energy consumption while considering the cost of a ton of live steam with the specified parameters. The key economic effect of implementing the system is determined by reducing the fuel cost due to its rational redistribution between the power plant boiler units. Implementing the system allows the reduction of energy costs by 1.4%. Full article

Implementing digital technologies and digital twins (DT) in operating industrial units is one of the key problems in smart production. Metallurgical plants require a solution to implement in the rolling mill retrofitting. A conceptual approach to the virtual configuration of industrial mechatronic complexes based on object-oriented digital twins-prototypes and twins-instances of electromechanical and hydraulic systems is justified. Alternative options for virtual commissioning (VC) were considered, and the Hardware-In-The-Loop (HIL) option was adopted, involving the implementation of DTs in the hardware and software of a programmable logic controller (PLC). Virtual models were built, and control algorithms were tested in the Matlab Simulink software; the prospect of using Simscape domains was noted. The paper’s contribution is the description of a methodology for the development of object-oriented DTs, interlinked in the process, exemplified by a rolling mill coiler. The results of the control over the ‘virtual reeling’ mode are provided; the adequacy of real and virtual processes is confirmed. The problem of developing DTs for a coiler group, solved herein, is a fragment of a large-scale scientific and practical problem of developing DTAs (digital twin aggregates) for interconnected mechatronic rolling mill complexes. The developed VC methodology and proposed DTs are recommended for the commercial implementation in various industrial units. Developing frameworks of mechatronic systems and multi-domain DTE (Digital Twin Environment) applications are shown as prospects for future research. Full article

The strategic initiative aimed at building “digital metallurgy” implies the introduction of diagnostic monitoring systems to trace the technical condition of critical production units. This problem is relevant for rolling mills, which provide the output and determine the quality of products of metallurgical companies. Making up monitoring systems requires the development of digital shadows and coordinate observers, the direct measurement of which is either impossible or associated with numerous difficulties. These coordinates include the spindle torque applied by the spring-transmitting torque from the motor to the rolling stand rolls. The development and research are conducted by the example of the electromechanical systems of the horizontal stand at the plate mill 5000. The stand electric drive characteristics are given, and the emergency modes that cause mechanical equipment breakdowns are analyzed that. The relevance of analyzing transient torque processes in emergency modes has been accentuated. The paper points to the shortcomings of the system for elastic torque direct measurement, including low durability due to the harsh operating conditions of precision sensors. It also highlights the need to install the measuring equipment after each spindle. The disadvantage of the previously developed observer is the function of calculating the electric drive speed derivative. This causes a decrease in noise immunity and signal recovery accuracy. The contribution of this paper is building a digital elastic torque observer that has advantages over conventional technical solutions, based on the theoretical and experimental studies. The technique for virtual observer adjustment was developed and tested in the Matlab-Simulink software package. For the first time, a comprehensive analysis was conducted for spindle elastic torques in emergency modes that caused equipment damage. An algorithm was developed for an emergency shutdown of a stand electric drive in the worst-case mode of strip retraction between work and backup rolls, due to the overlap of the strip on the roll. Further, the algorithm was tested experimentally. The criteria for diagnosing pre-emergencies was then justified. An adaptive motor-braking rate controller was developed. The developed observer and emergency braking system are in operation at the mill 5000. Long experimental research proved the efficiency of dynamic load monitoring and the reduction in the number of equipment breakdowns. Full article

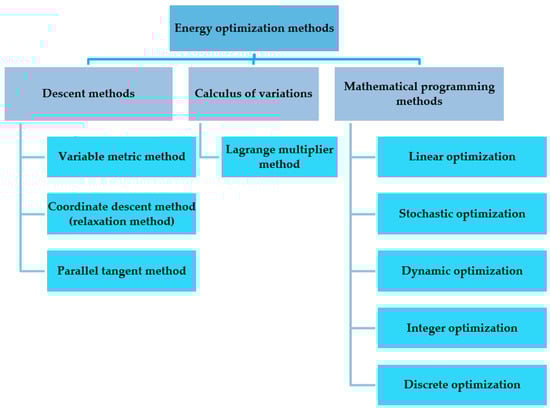

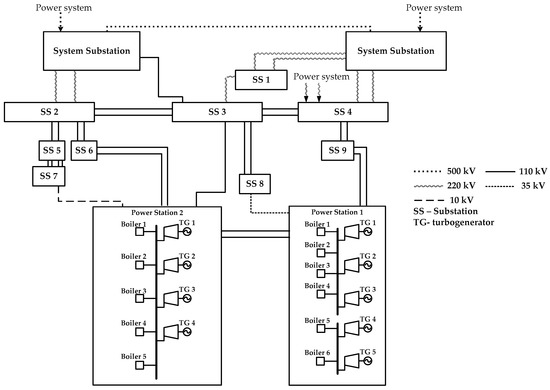

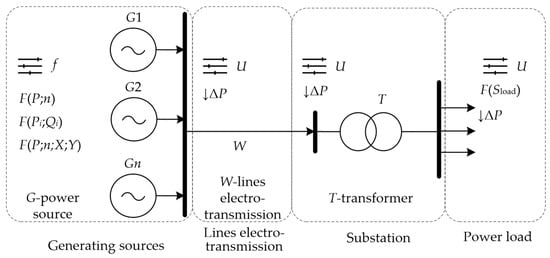

Continuously growing tariff rates for energy carriers required to generate electrical and thermal energy bring about the need to search for alternatives. Such alternatives are intended for the reduction in the electricity and heat net costs as well as the expenses for the operation and maintenance of system elements and damage from power outages or deteriorated power quality. A way to reduce electricity and heat costs is the introduction of distributed energy resources capable of operating on both conventional (natural gas) and alternative (solar and wind energy, biomass, etc.) fuels. The problem of reducing electricity and, in some cases, heat costs are solved by applying mathematical optimization techniques adapted to a specific element or system of the industry in question. When it comes to power industry facilities, optimization, as a rule, includes reducing active power losses by controlling the system mode or specific power unit parameters; planning generating equipment operating modes; defining the optimal equipment composition; improving the regime and structural reliability of grids; scheduling preventive maintenance of equipment; searching for effective power unit operating modes. Many of the problems listed are solved using direct enumeration techniques; modern technical tools allow quickly solving such local problems with a large number of source data. However, in the case of integrated control over the power system or its individual elements, optimization techniques are used that allow considering a lot of operating limitations and the target function multicriteriality. This paper provides an analytical review of optimization techniques adapted to solving problems of improving the efficiency of the power facility operating modes. The article is made on the basis of the research conducted by the authors in the area of optimization of operating modes for electric energy systems and grids. The authors drew conclusions on the applicability of mathematical optimization methods in the power energy area. While conducting the research, the authors relied on their expertise in the development and introduction of the method to optimize the operation modes of energy supply systems with heterogeneous energy sources. Full article

The key priority of metallurgical industry development is expanding the range and improving the quality of bar products and their major component, steel wire. Continuous wire rod mills with multi-roll passes have been developed and implemented over the past decades. These include mills with four-roll passes with mutually perpendicular rolls. The specific feature of mills with complex passes is the impossibility of conduct and the direct measurement of the workpiece dimensions in several directions during rolling. The paper studies the development of a system for indirect control over complex section geometry by adjusting the interstand space tension with simultaneous compensation for changes in rolling forces. The paper contribution is the first justification of a technique for the control over the indirect rolled product section on mills with multi-roll passes based on theoretical and experimental research. Analytical and experimental dependencies between the metal pressure on the rolls and the semifinished rolled product temperature, rolling speed, and single drawing have been obtained for various steel grades. The impact of process factors on the rolled product section geometry when rolling in stands with four-roll passes has first been studied. The automated control system implementing the proposed technique has passed pilot tests on a continuous five-stand mill. The processes occurring in closed-loop speed and torque control systems under controlling and disturbing effects have been experimentally studied. Implementing the proposed algorithms indirectly confirmed the reduced impact of tension and pressure on the section geometry. Full article

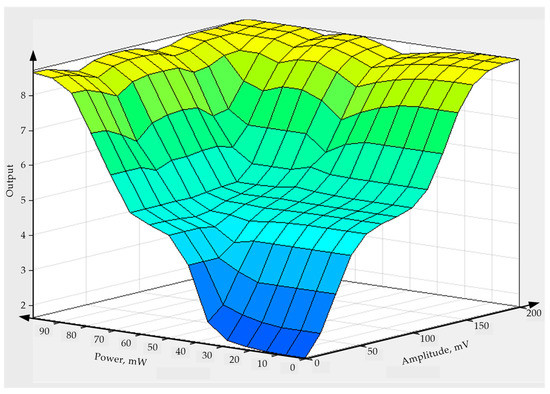

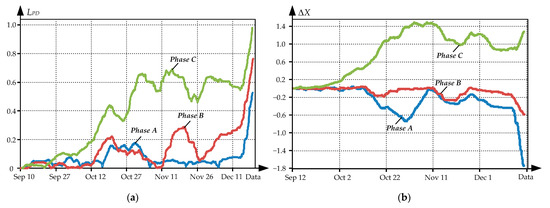

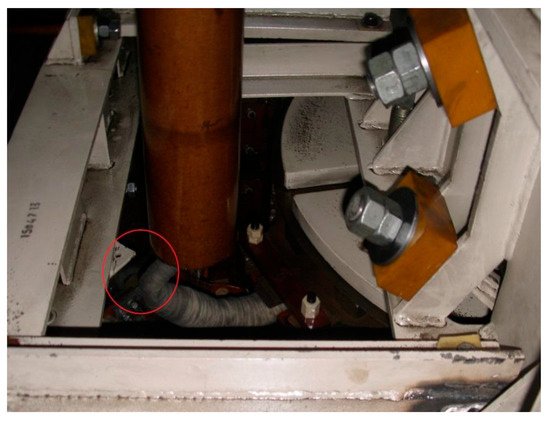

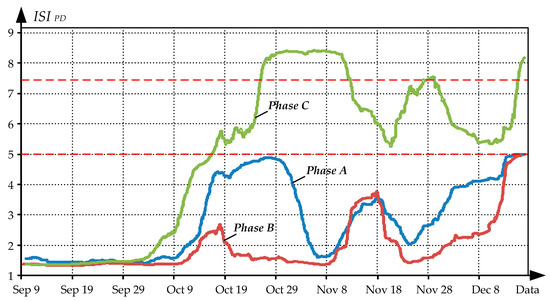

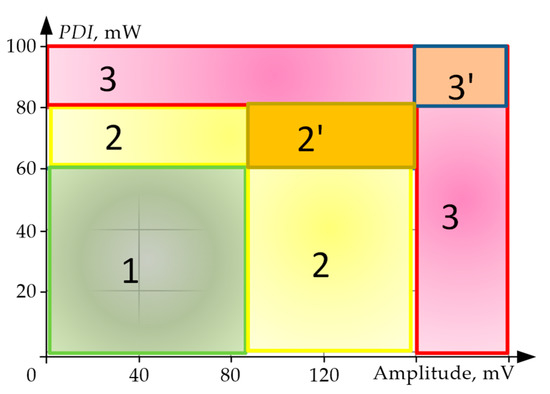

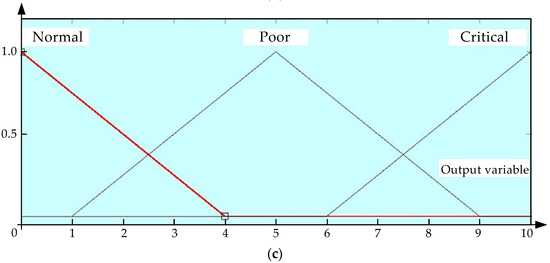

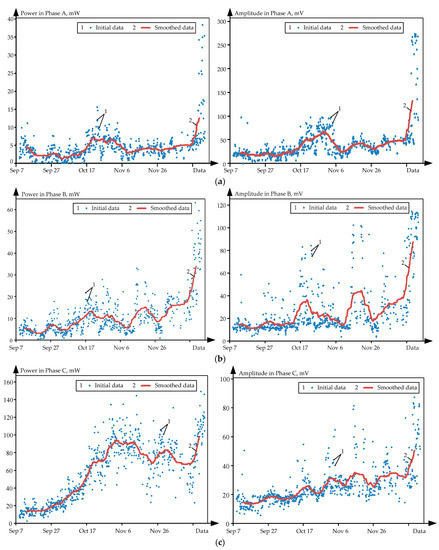

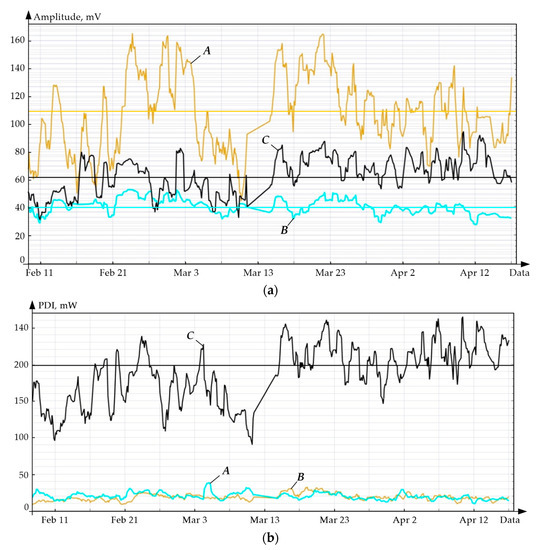

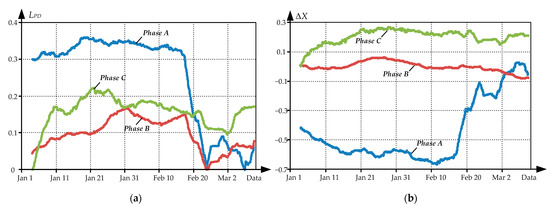

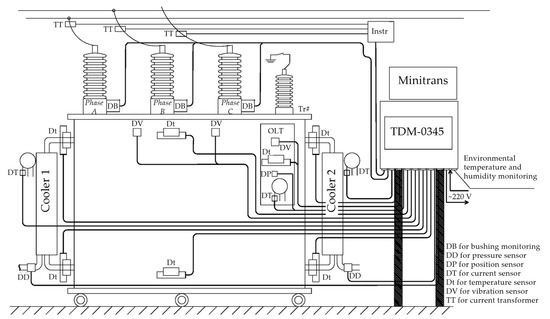

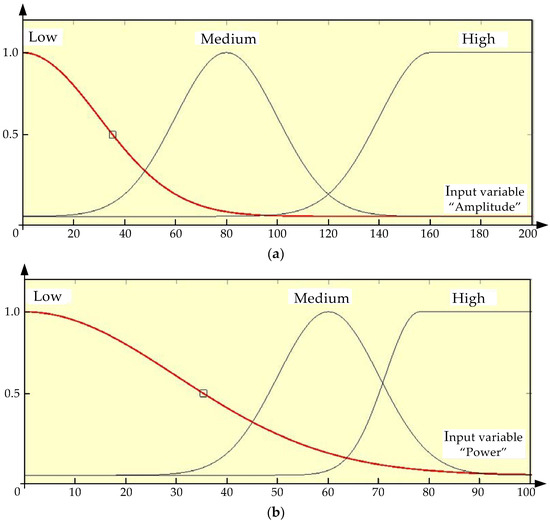

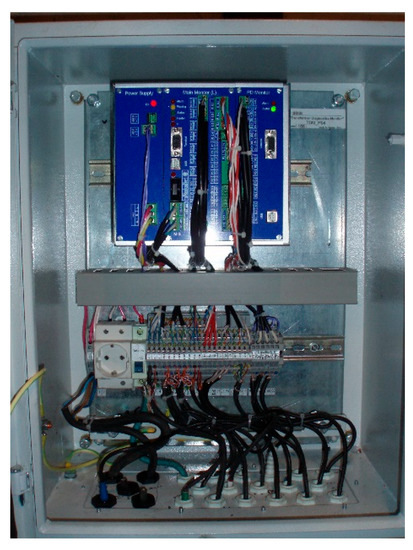

Implementation of the smart transformer concept is critical for the deployment of IIoT-based smart grids. Top manufacturers of power electrics develop and adopt online monitoring systems. Such systems become part of high-voltage grid and unit transformers. However, furnace transformers are a broad category that this change does not affect yet. At the same time, adoption of diagnostic systems for furnace transformers is relevant because they are a heavy-duty application with no redundancy. Creating any such system requires a well-founded mathematical analysis of the facility’s condition, carefully selected diagnostic parameters, and setpoints thereof, which serve as the condition categories. The goal hereof was to create an expert system to detect insulation breach and its expansion as well as to evaluate the risk it poses to the system; the core mechanism is mathematical processing of trends in partial discharge (PD). We ran tests on a 26-MVA transformer installed on a ladle furnace at a steelworks facility. The transformer is equipped with a versatile condition monitoring system that continually measures apparent charge and PD intensity. The objective is to identify the condition of the transformer and label it with one of the generally recognized categories: Normal, Poor, Critical. The contribution of this paper consists of the first ever validation of a single generalized metric that describes the condition of transformer insulation based on the online monitoring of the PD parameters. Fuzzy logic algorithms are used in mathematical processing. The proposal is to generalize the set of diagnostic variables to a single deterministic parameter: insulation state indicator. The paper provides an example of calculating it from the apparent charge and PD power readings. To measure the indicativeness of individual parameters for predicting further development of a defect, the authors developed a method for testing the diagnostic sensitivity of these parameters to changes in the condition. The method was tested using trends in readings sampled whilst the status was degrading from Normal to Critical. The paper also shows a practical example of defect localization. The recommendation is to broadly use the method in expert systems for high-voltage equipment monitoring. Full article

Development of control system based on digital twins of physical processes is a promising area of research in the rolling industry. Closed-loop control systems are developed to control the coordinates of two-mass electromechanical systems in order to limit the dynamic loads on the equipment of main rolling lines. These control systems are based on observers (digital shadows) that indirectly detect (reconstruct) the roll speed and the elastic torque of the shaft (spindle) in real time. Notably, observers are required to work fast in order to reconstruct transients attributable to shock (impact) loads. Literature review shows that the known observers, which use complex algorithms to compute coordinates, do not respond fast enough. The paper analyzes the kinematic diagram of Mill 5000, a plate rolling mill. It presents oscillograms that prove that the elastic torque does oscillate as the rolls grip the strip dynamically. The authors hereof have developed an observer that reconstructs the coordinates of the uncontrolled mass (the shaft) and the spindle torque from the parameters of the controlled mass, namely the torque and speed of the motor. The paper further rationalizes an approach that consists of simulating the processes on a model to further directly configure them on the object. The authors analyze the transients of the reconstructed two-mass system coordinates, which are associated with the rolls gripping the strip. The paper compares data against oscillograms recorded on the mill itself. The accuracy is satisfactory. The proposed observer has been used to developed a three-loop automatic speed control system for the uncontrolled mass. Controller configurations are substantiated. The paper shows coordinates obtained by simulation modeling as functions of time. It further presents experiments run on Mill 5000; the conclusions are that the amplitude and oscillations of the elastic torque drop significantly. The paper concludes with recommendations on industrial adoption of the observer and the novel electric drive coordinate control system. Study presented herein substantiates and implements a concept of developing algorithms that solve specific problems and are readily implementable on the existing equipment without need for additional computing devices. The contribution of the paper consists of stating and solving the problem of developing and testing an automatic elastic torque control system for the shaft of a heavy-duty rolling mill. This system has been implemented in the form of algorithms that run in the software of the existing industrial controllers (PLCs). It is simple and performs well. It does not need additional sensors or computers to be implemented, nor does it rely on complex computational algorithms. Such algorithms are based on computational tables that require a priori data on numerous process parameters. In our literature review, we have not come across any industrial implementation of such algorithms on hot-rolling mills. Full article

The quality of steelwork products depends on the geometric precision of flat products. Heavy-plate rolling mills produce plates for large-diameter pipes and for use in shipbuilding, mechanical engineering, and construction. This is why the precision requirements are so stringent. Today’s Mills 5000 produce flat products of up to 5 m in width; the operation of these units shows ‘camber’ defects and axial shift of the roll at the stand exit point. This induces greater loss of metal due to edge trimming and involves a higher risk of accidents. These defects mainly occur due to the asymmetry in the roll gap, which is in turn caused by their misalignment in rolling. As a result, the feed varies in gauge, and the strip moves unevenly. The paper’s key contribution consists in theoretical and experimental substantiation and development of a set of control methods intended to address roll-gap asymmetry. The methods effectively compensate for the asymmetry resulting from the “inherited” wedge, which preexists before the strip enters the stand. They also compensate for the “ongoing” roll misalignment that is caused by the difference in force on the opposite side of the stand during rolling. This comprehensive approach to addressing camber and axial displacement of the feed has not been found in other sources. This paper presents a RAC controller connection diagram that ensures that the roll gap is even across the feed. The paper notes the shortcomings of the design configuration of the controller and shows how it could be improved. The authors have developed a predictive roll-gap asymmetry adjustment method that compensates for the deviations in gauge during the inter-passage pauses. They have also developed a method to control gap misalignment during rolling. The paper showcases the feasibility of a proportional-derivative RAC. The methods have been tested by mathematical modeling and experimentally. The paper further shows oscillograms sampled at Mill 5000 after implementing the developed solutions. Tests confirm far better precision of the screw-down mechanisms on the opposite sides of the stand. This reduces the variation in gauge across the feed and thus curbs the camber defect. As a result, the geometry of the flat improves, and less metal is lost in trimming. The paper further discusses how the RAC controller interacts with the automatic gauge control system. The conclusion is that these systems do not interfere with each other. The developed systems have proceeded to pilot testing. Full article

The existing publications on the analysis of power quality indicators in modern electric power supply systems are void of a comprehensive approach to improving these indicators in power systems by implementing multipulse connections. To the authors’ knowledge, this paper is the first to analyze current harmonic distortions in an 18-pulse connection of three-level active front-ends (AFE) featuring a programmed PWM. Raw data were obtained from, and current quality was analyzed for the power circuit of the main electric drive actuating the rolls in the rolling stand of a plate mill. The key feature of such circuitry is that the synchronous motor of each work roll is connected to the grid with an 18-pulse connection that uses three phase-shift transformers, where the phase shifts are 0° (delta/delta), 20° (delta/polygon) and −20° (delta/polygon). The circuitry connects three frequency converters (FC) with the AFEs in parallel. Phase-shift transformers were found to periodically overheat in the process. When overheating occurred, a programmed PWM voltage waveform was applied where harmonics 17 and 19 were eliminated. The goal and objectives were to analyze why the transformer would overheat and to find out how the issue could be addressed. The authors developed a simulation model of the research object in order to assess power quality parameters. Simulation results obtained in Matlab/Simulink were used to estimate the total harmonic distortions (THD) and individual harmonic factors for up to the 50th secondary transformer winding and grid harmonic with four different programmed AFE PWM voltage waveforms. The results helped find the best such waveform to prevent phase-shift transformers from overheating; one with harmonics 5, 7, 17 and 19 eliminated. The experimental and mathematical modeling results in the paper were confirmed by positive effects after industrial implementation of the system. Research performed directly on the operating equipment has been classified by the company and is not publicly available. These results are highly versatile and could be used in similar research on other circuitries to ensure the electromagnetic compatibility of nonlinear power-consuming devices. Full article
