Simultaneous Detection and Quantification of Age-Dependent Dopamine Release

Abstract

Background: Dopamine (DA) is a key biomarker for neurodegenerative diseases such as Parkinson’s. However, detailed insights into how DA release in the brain changes with aging remain challenging. Integrating machine learning with DA sensing platforms has proven more effective in tracking age-dependent DA dynamics than using the sensing platforms alone. Method: This study presents a machine learning framework to automatically detect and quantify dopamine (DA) release using the near-infrared catecholamine nanosensors (nIRCats) dataset of acute mouse brain tissue across three age groups (4, 8.5, and 12 weeks), focusing on the dorsolateral (DLS) and dorsomedial striatum (DMS). 251 image frames from the dataset were analyzed to extract features for training a CatBoost regression model. To enhance speed while maintaining much of the predictive accuracy, the model was distilled into a kernelized Ridge regression model. Results: The model achieved validation Mean Squared Error (MSE) of 0.004 and R² value of 0.79. When the acceptable prediction range was expanded to include values within ±10% of the actual DA release and mouse age, model performance improved to a validation MSE of 0.001 and R² value of 0.97. Conclusions: These results demonstrate that the proposed approach can accurately and automatically predict spatial and age-dependent dopamine dynamics; a crucial requirement for optimizing deep brain stimulation therapies for neurodegenerative disorders such as Parkinson’s disease (PD) and depression.

1. Introduction

Neurotransmitters (NTs) such as dopamine (DA), serotonin (SE), and epinephrine (EP) are chemical messengers that play crucial roles in the transmission of signals across synapses in the nervous system. These molecules are essential for the regulation of numerous neurological and physiological processes, including mood, cognition, attention, learning, and autonomic functions [1,2,3,4,5,6]. Any disruption in the balance or signaling of these NTs can have profound effects on brain function and is often implicated in a wide range of neurological and psychiatric disorders.

Among the various neurotransmitters, DA is one of the most extensively studied due to its particularly critical involvement in a broad spectrum of brain activities. It plays a key role in motor control, motivation, reward processing, decision-making, and cognitive functioning. Abnormalities in DA synthesis, release, or receptor activity have been strongly linked to several major neurodegenerative and psychiatric conditions, including Parkinson’s disease, schizophrenia, and clinical depression [1,2,7,8]. Therefore, the accurate detection and monitoring of DA activity in the brain is a high priority in neuroscience research.

However, capturing the dynamics of DA in vivo remains a significant scientific challenge. DA is typically present in very low concentrations and exhibits highly transient and spatially localized release patterns. These factors, combined with the limitations of conventional detection methods such as low sensitivity, poor temporal resolution, and interference from other electroactive species make it difficult to obtain reliable and real-time measurements of DA signaling. The problem is further exacerbated in aging individuals, where neurodegeneration in dopaminergic pathways, particularly in the substantia nigra (the brain’s primary site of DA synthesis and release), leads to impaired signaling. This degeneration contributes to the progressive decline in cognitive and motor functions and increases vulnerability to age-related neurodegenerative diseases like Parkinson’s and Alzheimer’s [1,2,3].

To overcome these limitations, emerging imaging and sensing technologies have been developed. For instance, near-infrared catecholamine nanosensors represent a promising advancement, enabling real-time tracking of DA release with higher specificity and reduced invasiveness. Nonetheless, these technologies generate highly complex, high-dimensional datasets that are difficult to interpret using traditional data analysis methods. Consequently, there is a growing need for advanced analytical frameworks capable of extracting meaningful insights from such data.

Artificial intelligence (AI), and more specifically machine learning (ML), pattern recognition (PR), and deep learning (DL), has increasingly become an essential component in addressing this challenge. These computational tools offer significant advantages in automating the estimation of DA release and in enhancing the performance of electrochemical sensors traditionally used for NT detection [1,2,3,9,10,11,12,13,14,15,16,17]. By leveraging powerful statistical and computational techniques, ML and PR models can identify patterns and hidden structures in complex datasets, such as those generated by voltammetric and optical sensing technologies. In doing so, these methods facilitate more accurate and efficient interpretation of the temporal and spatial dynamics of neurotransmitter activity.

The ability of ML, PR, and DL algorithms to process and analyze large-scale, multidimensional data makes them particularly well-suited for studying the intricate behaviors of DA signaling networks. They not only improve detection accuracy but also enable researchers to uncover subtle alterations in neurotransmitter dynamics that might otherwise go unnoticed. Despite these advantages, the application of these techniques to the simultaneous detection and spatial localization of DA release in aging brains remains a relatively underexplored area. More research is needed to fully harness the potential of AI-driven methodologies in this context, particularly as the global population continues to age and the burden of neurodegenerative diseases increases [1,2,3].

1.1. Related Studies

Studies have applied classical machine learning [1,2,3,9] or deep learning [15,17,18,19] frameworks to either detect or quantify DA release in the brain. They all addressed these tasks separately and did not predict the ages of DA release sites corresponding to the ages of the species used for data collected in their studies.

Table 1. Summary of the related studies.

Study	Summary	Dataset	AI Model	Performances		Detection of Site of DA Release	Prediction of the Site’s Age
				DA Detection Accuracy	DA Quantification R2_Value
Ndumgouo et al. [1]	Simultaneously detected DA and SE, reducing complexity in complex mixtures	216 Voltammograms from DPV	Pattern recognition algorithms (PCR, PLSR)	✓ 97.41%	✓ 0.75	x	x
Sazonova et al. [2]	Simultaneously detected DA and SE in complex mixtures	216 Voltammograms from DPV	Pattern recognition algorithms (PCR, PLSR)	✓ 100%	✓ 0.97	x	x
Siamak et al. [3]	Identified DA release in two sites of mice brains	600 nIRCats image frames	Classical ML algorithms (SVM, RF)	✓ 86%	x	✓	x
Komoto et al. [9]	Directly observed a single NTs at a nanosecond scale	3004 Signal pulses from Amperometry	Classical ML algorithm (XGBoost, RF)	✓ 99%	x	✓	x
Kim et al. [15]	Detected and quantified DA in TH-positive dopaminergic neurons	96 immunohistochemical images	Deep learning (CNN)	✓ 78.07%	x	x	x
Zhang et al. [17]	Detected and quantified NTs at the synapses	3472 Multimodal dataset (electron microscopic images, light microscopy of in situ hybridization, and behavioral observation experiments)	Deep learning (ResNeXt-50).	✓ 98%	x	✓	x
Matsushita et al. [18]	Automatically detected phasic DA release	285 Images from FSCV	Classical ML algorithm (SVM)	✓ 95.96%	x	x	x
Matsushita et al. [19]	Automatically detected and quantified phasic DA release	1005 Images from FSCV	Classical ML algorithm (SVM) and deep learning (CNN)	✓ 97.82%	✓ Accuracy = 98.6%	✓	x
This study	Automatically detects dopamine (DA) release, localizes the release site, determines the age of the mice, and quantifies DA concentrations	251 nIRCats image frames	Classical ML algorithm (CatBoost) and distillation to KRR	✓ MSE = 0.001	✓ 0.97	✓	✓

Key: DPV (Differential Pulse Voltammetry), FSCV (Fast Scan Cyclic Voltammetry), PCR (Principal Component Regression), PLSR (Partial Least Square Regression), KRR (Kernel Ridge Regression), SVM (Support Vector Machines), RF (Random Forest), CatBoost (categorical boosting), XGBoost (Extreme Gradient Boosting), CNN (Convolutional Neural Network).

summarizes these studies and the performances of their proposed models.

1.2. Novelty

Our study introduces a novel ML framework that uses high-resolution nIRCat dataset to simultaneously detect, localize and quantify age-dependent DA in acute mice brains. This approach has the potential to advance understanding of age-related dopamine changes and could aid in developing treatments for disorders like Parkinson’s and depression using deep brain stimulation therapies. Figure 1 presents a flow diagram of this paper.

2. Materials

2.1. Equipment

4–12 weeks Male mice (BC6BA-Tg (HDexon1)62Gpb/3J) and female C57BL/6 mice from Jackson Labs were used for the study. Near-Infrared Catecholamine Nanosensors (nIRCat) manufactured as described in [3] captured and labeled DA release dynamics, forming the experimental dataset. DA release was evoked in acute brain slices using tungsten bipolar stimulation electrodes (TBSE). Data processing and analysis were coded in Python (versions 3.0 to 3.10), and the dataset was used to train and validate CatBoost and ridge regression models via GPU acceleration.

2.2. Data Collection

The mice were housed in cages under controlled conditions of twelve hours light/twelve hours dark cycles and regulated temperature. Our proposed ML framework aims to simultaneously predict DA release and the ages (4–12 weeks) of mice from two key brain regions, the DLS and DMS. 251 image frames were captured and labeled using the nIRCat system, as described elsewhere in [3,20]. These regions are the primary targets for DA release localization in this study. To induce DA release, electrical pulses with intensities of 0.1mA and 0.3 mA were generated by the TBSE and alternately applied to DMS and DLS in acute mouse brain slices. Alternating pulse strengths between these two brain regions enhanced dataset variability, mitigating model bias and overfitting. The 0.1–0.3 mA range was selected based on prior evidence demonstrating proportionate DA release in acute slices [21]. Hence, the proposed model will predict stimulation intensities corresponding to DA release quantities. A summary of the frame proportions, pulse strengths, and stimulated brain regions is provided in

Table 2. Summary of the dataset, including the distributions of the training (TR) and validation (VL) sets.

Mouse Age/Weeks	No. Animals	Brain Slices	Pulse Strength (mA)	DLS Stimulations			DMS Stimulations
				No.	TR	VL	No.	TR	VL
4	7	16	0.1	27	21	6	16	12	4
			0.3	25	20	5	16	12	4
8.5	9	20	0.1	32	25	7	22	18	4
			0.3	18	14	4	18	14	4
12	5	13	0.1	22	18	4	18	14	4
			0.3	22	18	4	15	12	3
Total	21	49		146	116	30	105	82	23

.

3. Methods

3.1. Data Processing

The initial step of the data processing was to detect and segment the DA release sites using MASK RCNN. These sites served as a baseline region of interest (ROI), computed by a moving average method. Each ROI was subtracted from the fluorescence trace to generate a time series of signal changes. Between the frames, the algorithm identified possible releases exceeding three standard deviations above the preset baseline noise and ROIs with such releases were marked significant, while inactive ROIs were excluded from further analysis. For each significant ROI, two exponential curves were fitted to determine onset and offset time constants. The features used to train the ML algorithm were then extracted from the ROI. Figure 2 presents a sample patch of a DA release and a time series response of the segmented patch.

3.2. Feature Engineering

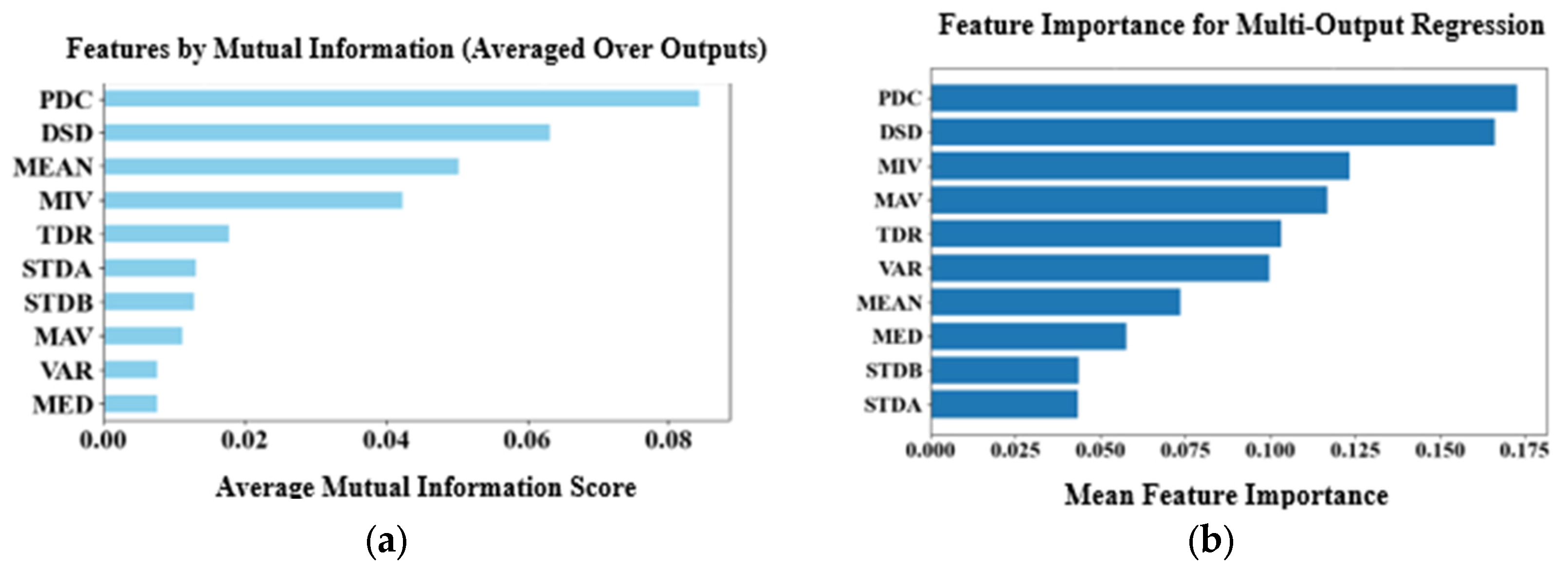

The process involved extracting, selecting, ranking, and normalizing time-domain features from time-series DA dynamics recorded in brain slices labeled with nIRCat, following electrical stimulation of the DLS and DMS. Ten features were extracted from each ROI, namely peak dopamine concentration (PDC), total dopamine release (TDR), dopamine signal decay or DA reuptake (DSD), mean (MEAN), variance (VAR), median (MED), maximum (MAV), minimum (MIV) and values representing two standard deviations above (STDA) and below (STDB) the mean. Principal Component Analysis (PCA) was first applied to reduce dimensionality of the dataset, retaining five components that explained 95% of the dataset’s variance. Based on this, the top five features were selected using the mutual information method, which is effective at capturing nonlinear relationships in high-dimensional datasets and identifying features with the strongest mutual information across multiple target variables. The selected features were then ranked by importance through training a Random Forest regressor wrapped in a Multi-Output-Regression to handle the multi-output regression task. Finally, the selected features were normalized using z-score standardization to ensure consistent scaling, aiding faster model convergence during training. Figure 3 shows the raw features ranked by importance. The proposed model was trained using both the selected feature set and the principal components. This is because principal components lack interpretability, as they do not reveal which original features contributed to each component, and they are computed without considering the target variables.

3.3. Experimental Implementation

In this work, we model the quantification of the DA release, and the prediction of the mice’s ages are regression problems. This is because the concentration or amount of dopamine release and the mice’s ages are continuous numerical values. Both regressions were incorporated in our proposed multivariate regression model.

3.3.1. Modeling the Multivariate Regression

We modeled the multiple linear dependencies between parameters as:

Y₁ = β₁₀ + β₁₁ X₁ + β₁₂ X₂ +…+ β_1P X_P + ϵ1

(1)

Y₂ = β₂₀ + β₂₁ X₁ + β₂₂ X₂ +…+ β_2P X_P + ϵ2

(2)

where Y represents the target variables corresponding to unknown DA release sites, which can be either the DLS or the DMS. For each sample Y₁ denotes the DA release quantities while Y₂ denotes the mice’s ages. These variables are recorded separately for DLS and DMS, such that Y₁ (DLS) and Y₂ (DLS) correspond to DA release and mouse age for the DLS site, while Y₁ (DMS) and Y₂ (DMS) correspond to the same at the DMS site. X_P (p ϵ [1, 10]) are the computed input features. β_i0 are the intercept term for the i-th output. β_ij are the weight coefficient for the j-th input variable in the i-th output equation. ϵ1, and ϵ2 are the sum of the error terms and noise for each output, assumed to be normally distributed. These materialized the multivariate dependencies as follows.

Y = XB + E

(3)

Here, the columns of Y represent the detection targets i.e., individual release sites Y (DLS) and Y (DMS), and the rows correspond to the prediction targets i.e., DA release and mice ages.

3.3.2. The Model

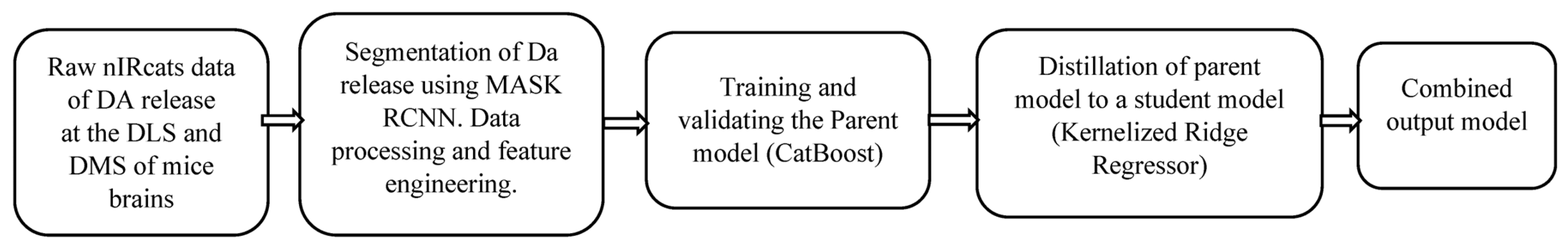

This process involved model selection, training, and refinement through hyperparameter tuning. The models evaluated were either inherently capable of handling multi-output regression or were adapted using the Multi-Output-Regression wrapper from the Scikit-learn library in Python. Support Vector Regressor and Gradient Boosting models (XGBoost, LightGBM, and CatBoost) required the wrapper, while the Gaussian Process Regressor could natively handle multivariate regression tasks. All models were initially trained on 80% of the full dataset, constituted of contributions from samples in each age group by stimulation strength and site, with exact numbers as described on Table 1. Among the models, CatBoost demonstrated the best performance and was selected using the optuna optimization framework. The selected CatBoost model was trained using three variations of the input data: (1) all raw features, (2) the top five principal components capturing 95% of the dataset’s explained variance, and (3) the top five features identified through feature importance ranking. For all the input data types, five-fold cross-validation was employed to compute the average model performance followed by hyperparameter fine-tuning using grid search and finally validating the optimized model on the remaining 20% of the full data set, constituted of contributions from samples in each age group per stimulation strength (Table 1).

Table 3. Initial results summary.

Input Data	Metric	Detected Target
		DLS		DMS
		Predicted Target
		DA Release	Mouse Age	DA Release	Mouse Age
Principal Components	MSE	0.006	6.638	0.006	8.541
	R2	0.54	0.695	0.499	0.58
Selected Features	MSE	0.005	5.58	0.004	5.557
	R2	0.65	0.74	0.64	0.72
All Features	MSE	0.004	3.961	0.004	4.245
	R2	0.73	0.82	0.74	0.79

presents the results of the average for 5-folds cross-validation performances for the input data types.

4. Results

4.1. Results from the Parent Model

These results were obtained prior to distilling the CatBoost model. The performance metrics used were the mean squared error (MSE) loss function and R-squared values (R²). MSE was used in the regression tasks of quantification to measure the average squared difference between true and predicted values. MSE offers several advantages, including differentiability and smoothness, which are essential for optimization via gradient descent algorithms. Additionally, it is computationally efficient, disproportionately penalizes larger errors, and facilitates straightforward algebraic solutions in regression analysis. R² is a widely used measure for the goodness of fit that indicates how well independent variables explain the variation in the dependent variables and has the advantage of being easily interpreted.

4.2. Results Improvement

The initial results in Table 3 are consistently low for all the input data types. To improve these results, a thresholding technique and model distillation were applied to improve generalization. Here, a threshold of ±10% around the true values for stimulation strengths and mice ages was applied, thereby expanding the confidence interval for the predictions, as supported by Sazanova et al. [2]. This was followed by model distillation, where knowledge distillation was applied to streamline the complex, nonlinear CatBoost (teacher model) into a kernelized ridge regression (student model) with Gaussian kernel to capture the nonlinear relationships in the multidimensional dataset with multi-output. This approach has the potential to not only reduce model complexity and improve interpretability but also results in a faster model that retains much of the predictive accuracy of the teacher model. Instead of training the student model directly on the true labels, the teacher model was pretrained and its hyperparameters froze. Knowledge was then transferred to the student model during training through the soft targets (the outputs of the teacher model) which provided richer information about class relationships. The student model was trained and tested using the 80:20 data split approach, using all raw data features, the top five principal component features and the top five selected features, consistent with the approach used for the teacher model as described in Section 3.3.2. As summarized in equation 4, the student model was trained using a combined loss function, i.e., the distillation loss, which measures the difference between the teacher’s and student’s soft predictions, and the student loss, which is the traditional loss computed using the true labels. This dual-objective training allows the student model to learn both from the teacher’s nuanced behavior and the original ground truth. Training iteration was done for 50 epochs before convergence to the validation results on

Table 4. Summary of distillation results.

Input Data	Metric	Detected Target
		DLS		DMS
		Predicted Target
		DA Release	Mouse Age	DA Release	Mouse Age
Principal Components	MSE	0.005	5.658	0.005	7.851
	R2	0.65	0.72	0.56	0.65
Selected Features	MSE	0.004	4.581	0.003	4.504
	R2	0.80	0.85	0.70	0.86
All Features	MSE	0.001	0.293	0.001	0.304
	R2	0.85	0.97	0.84	0.97

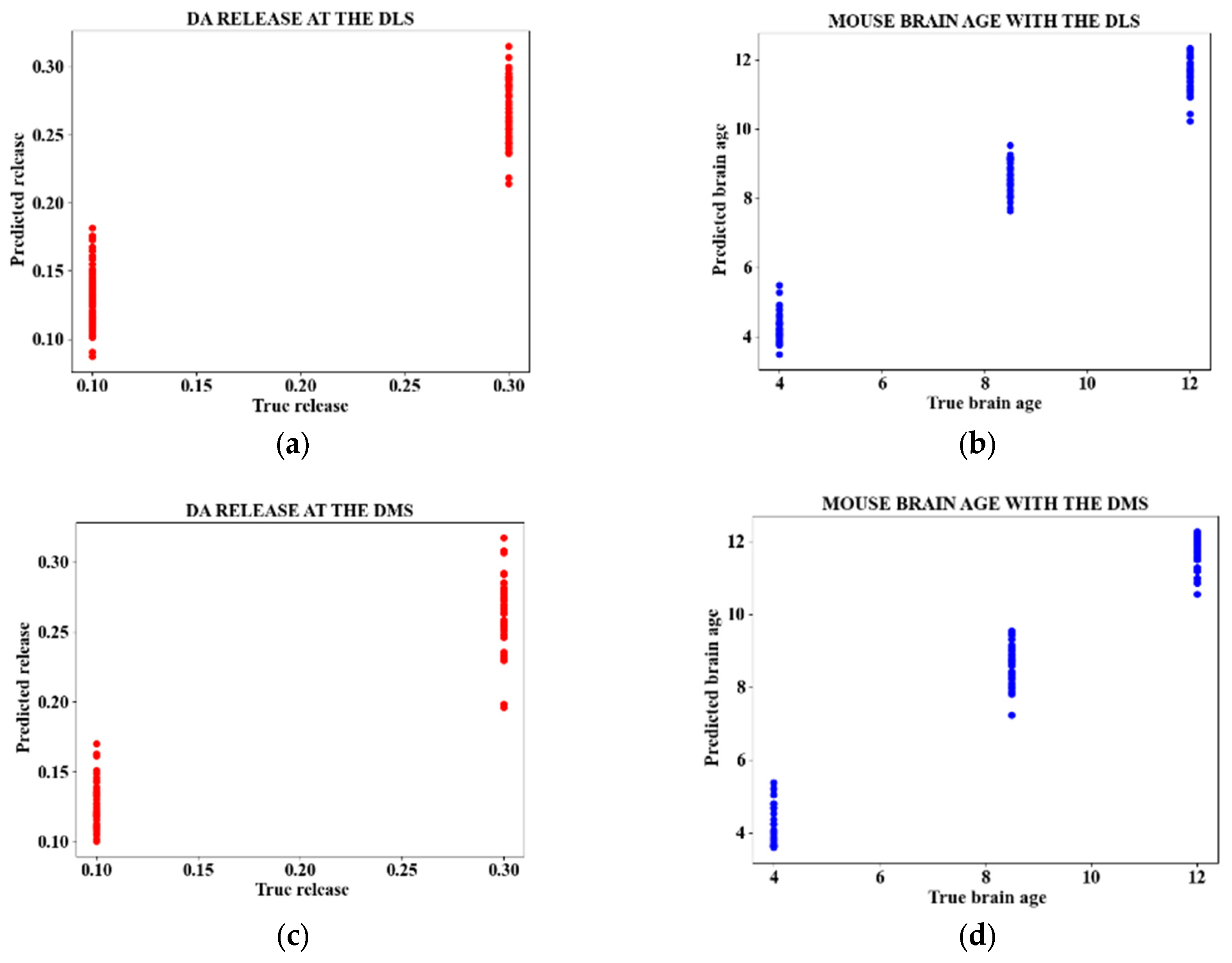

. The results present the corresponding performance results for the input data types after thresholding and model distillation with frozen pretrained teacher’s hyperparameters. Figure 4 presents sample plots for the predictions of DA release and mouse age for the DLS and DMS.

Total Loss = β · Student Loss + (1 − β) · Distillation Loss

(4)

where β ϵ [0, 1] is a balancing parameter between the student loss and distillation loss.

5. Validation

We evaluated our approach using the private dataset provided by Siamak et al. [3] and a publicly available dataset from Matsushita et al. [19]. The dataset from Siamak et al. [3] contained 600 nIRCats image frames, whereas the Matsushita et al. [19] dataset consisted of 1005 images generated via FSCV. Each dataset was split into training and validation subsets in an 80:20 ratio. The proposed approach was subsequently evaluated on both datasets using the same performance metrics (MSE and R-squared values) as summarized in

Table 5. Validation results.

Dataset	Input Data	Metric	Detected Target
			DLS		DMS
			Predicted Target
			DA Release	Mouse Age	DA Release	Mouse Age
Siamak et al. [3]	Principal Components	MSE	0.004	5.558	0.006	7.651
		R2	0.75	0.74	0.55	0.66
	Selected Features	MSE	0.004	4.481	0.003	4.404
		R2	0.78	0.83	0.69	0.84
	All Features	MSE	0.001	0.273	0.001	0.324
		R2	0.80	0.94	0.84	0.87
Matsushita et al. [19].	Principal Components	MSE	0.003	4.558	0.004	7.681
		R2	0.73	0.78	0.57	0.76
	Selected Features	MSE	0.003	4.495	0.003	4.004
		R2	0.81	0.83	0.73	0.85
	All Features	MSE	0.001	0.292	0.001	0.345
		R2	0.91	0.87	0.85	0.89

. These results are similar to those presented in Table 4, with minor discrepancies likely attributable to differences in the dataset types.

6. Discussion

In this study, we addressed a key challenge in real-time monitoring of DA dynamics: the simultaneous quantification of DA release and their correlation with brain tissue aging. We analyzed 251 image frames from two mouse brain regions (DLS and DMS) and extracted ten time-domain features to train a CatBoost regressor. This complex model was then distilled into a simpler ridge regressor for interpretability and efficiency. The model was trained using three data configurations: the complete set of raw features, a selected subset of features, and PCA components. The best performance was achieved using all raw features while the worst performance was obtained with PCA components. Model performance was equally superior for mouse age compared to DA release across the three input data types. To enhance the overall performance metrics, the acceptable prediction range was broadened to include values within ±10% of the actual DA release and mouse age giving an MSE of 0.001 and R² value of 0.97. While this approach improved overall accuracy, it also widened the prediction confidence interval, which reduced precision and increased the risk of misinterpretation. The CatBoost model was then distilled to a gaussian-kernelized ridge regression because of its nonlinear nature and high computational cost, which potentially limit its practical application. Despite these constraints, the results obtained lay a strong foundation for future research focused on the simultaneous detection and quantification of NT concentrations; an essential step toward optimizing deep brain stimulation treatments for neurodegenerative conditions like Parkinson’s disease (PD) and depression. However, several limitations remain: a small and imbalanced dataset was used, only two stimulation intensities were tested, just three age groups were examined, and analysis was restricted to two brain regions. These necessitate further research to validate the results.

7. Conclusions

This study presents a promising approach to real-time monitoring of dopamine dynamics by integrating machine learning techniques for simultaneous quantification of DA release and correlation with brain aging. Despite relying on a limited and imbalanced dataset, the use of a CatBoost model, later distilled to a simpler ridge regression, demonstrated that raw time-domain features yield the most accurate predictions for dopamine release and mouse age at two different brain sites (DLS and DMS). Expanding prediction tolerance for correct predictions improved accuracy but introduced trade-offs in precision. While the current work is constrained by limited stimulation intensities, age groups, and brain regions, it lays a valuable groundwork for future studies. Further research on more comprehensive datasets is crucial for refining the proposed machine learning framework, to enable its practical application in advanced therapies such as deep brain stimulation for conditions like Parkinson’s disease and depression.
