Comparative Performance Analysis of Fluoride-Decorated Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ as Cathode Materials for Li Batteries

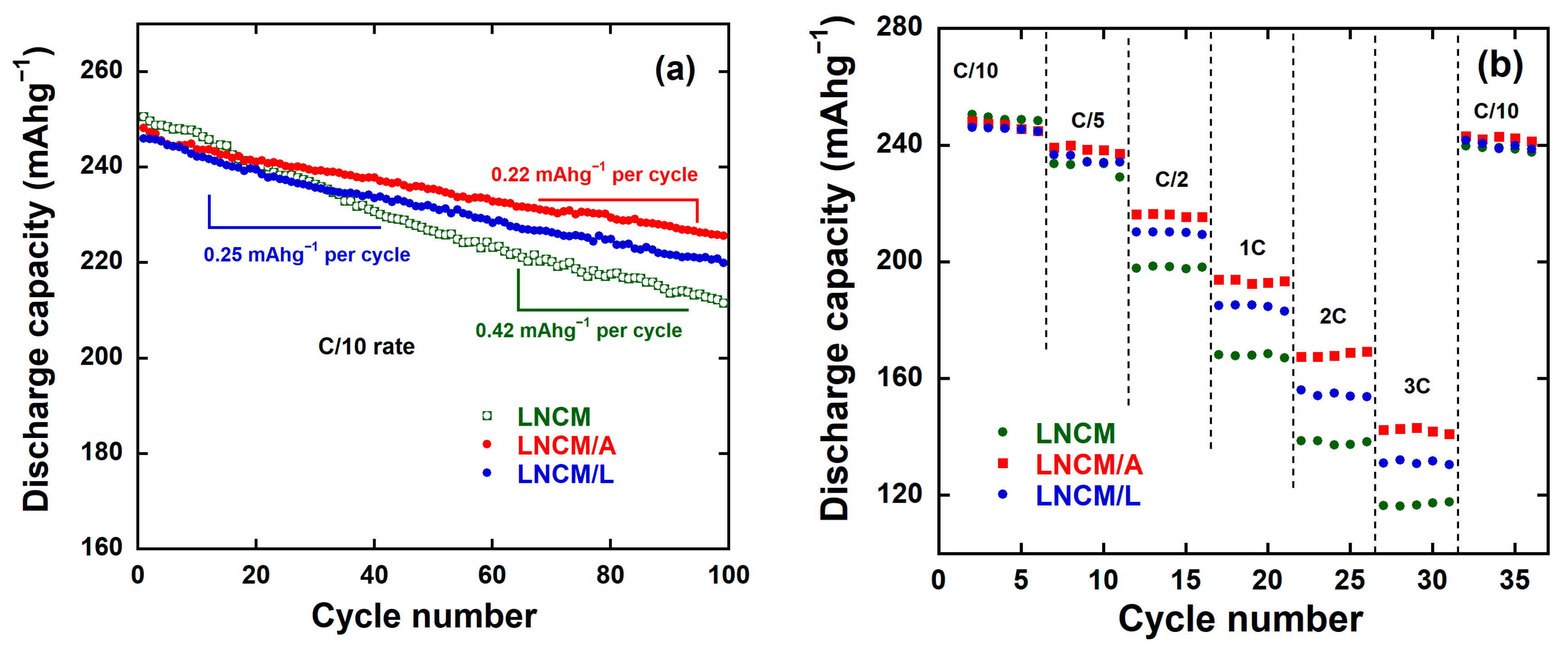

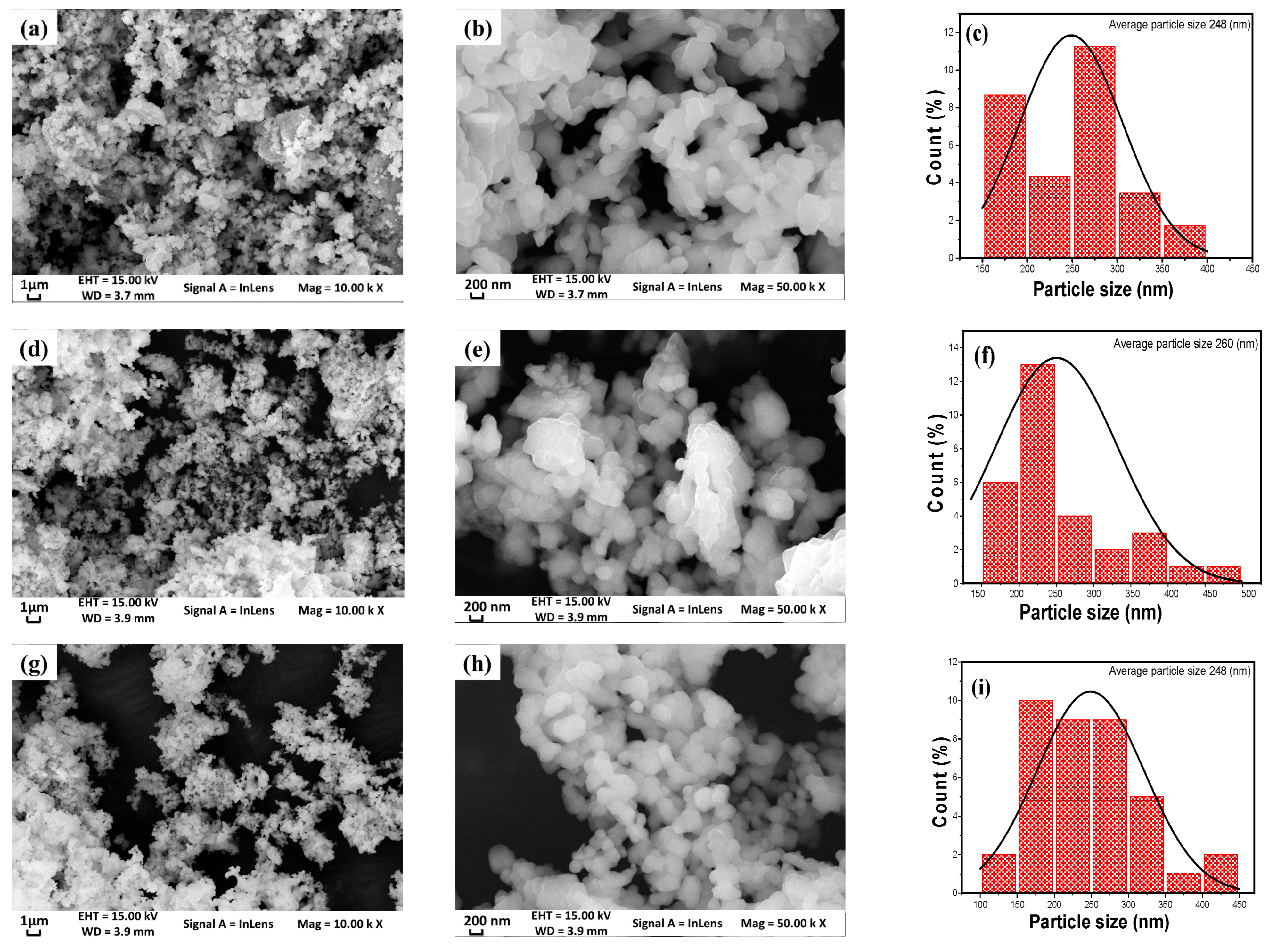

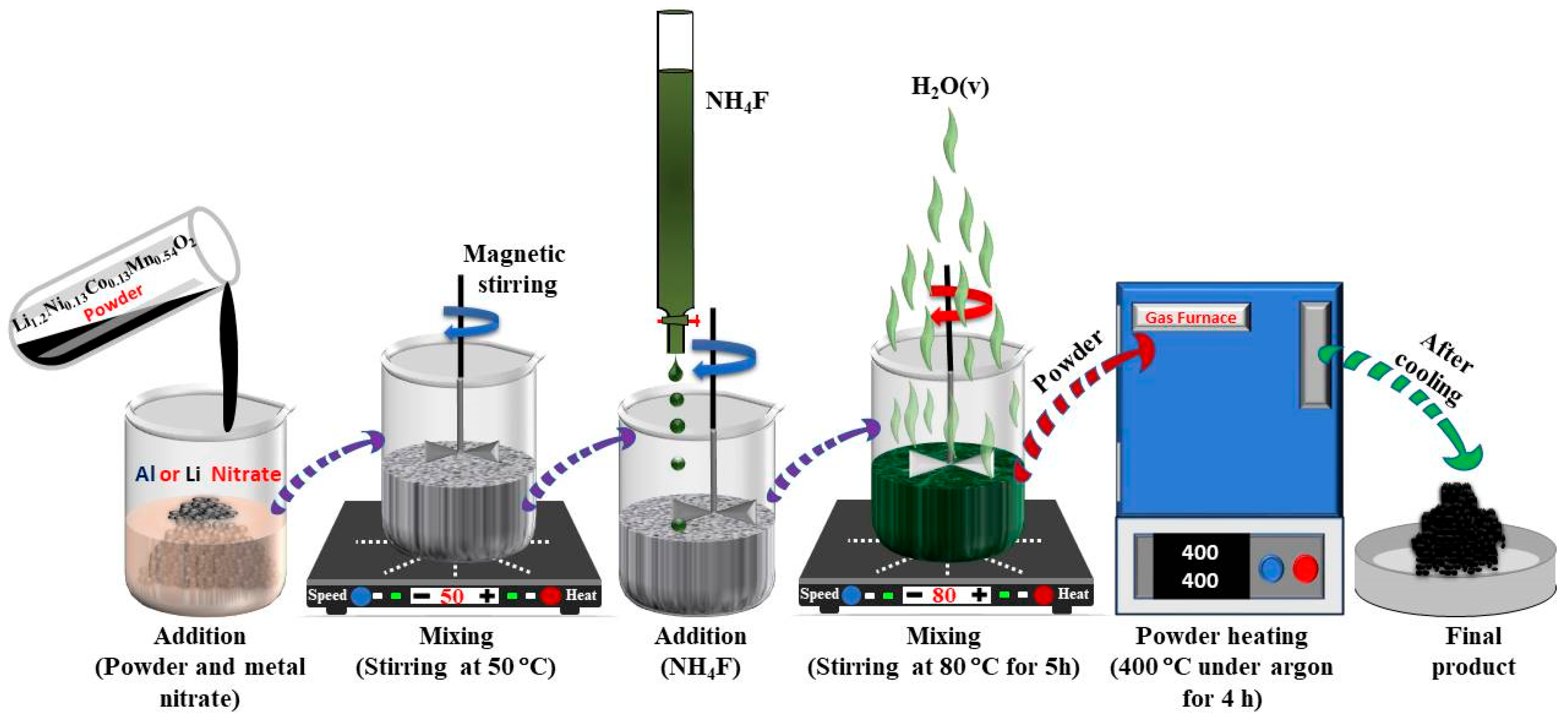

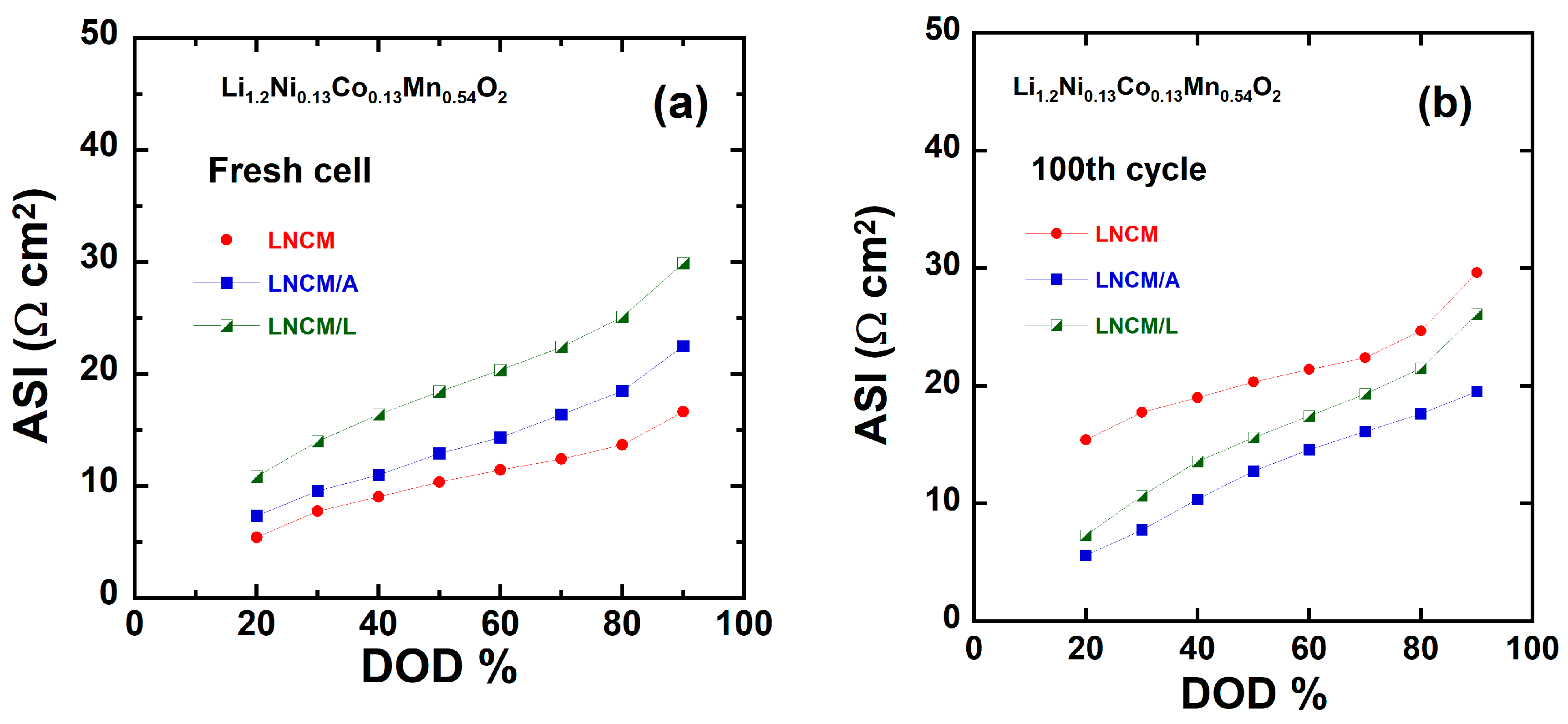

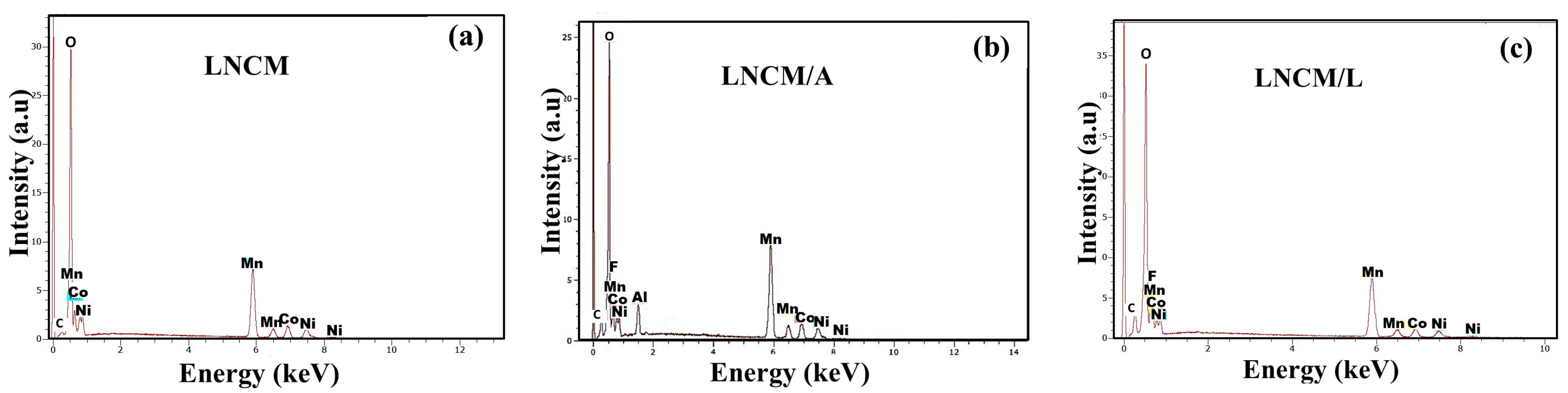

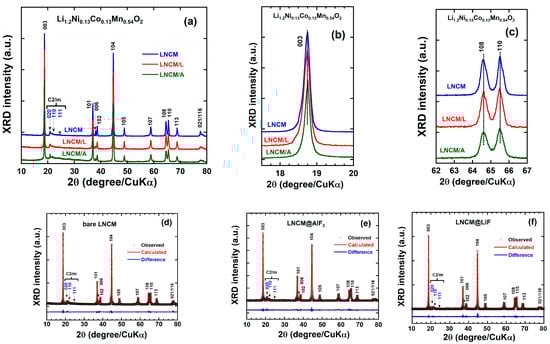

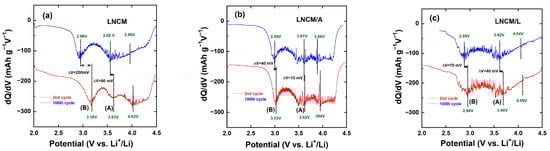

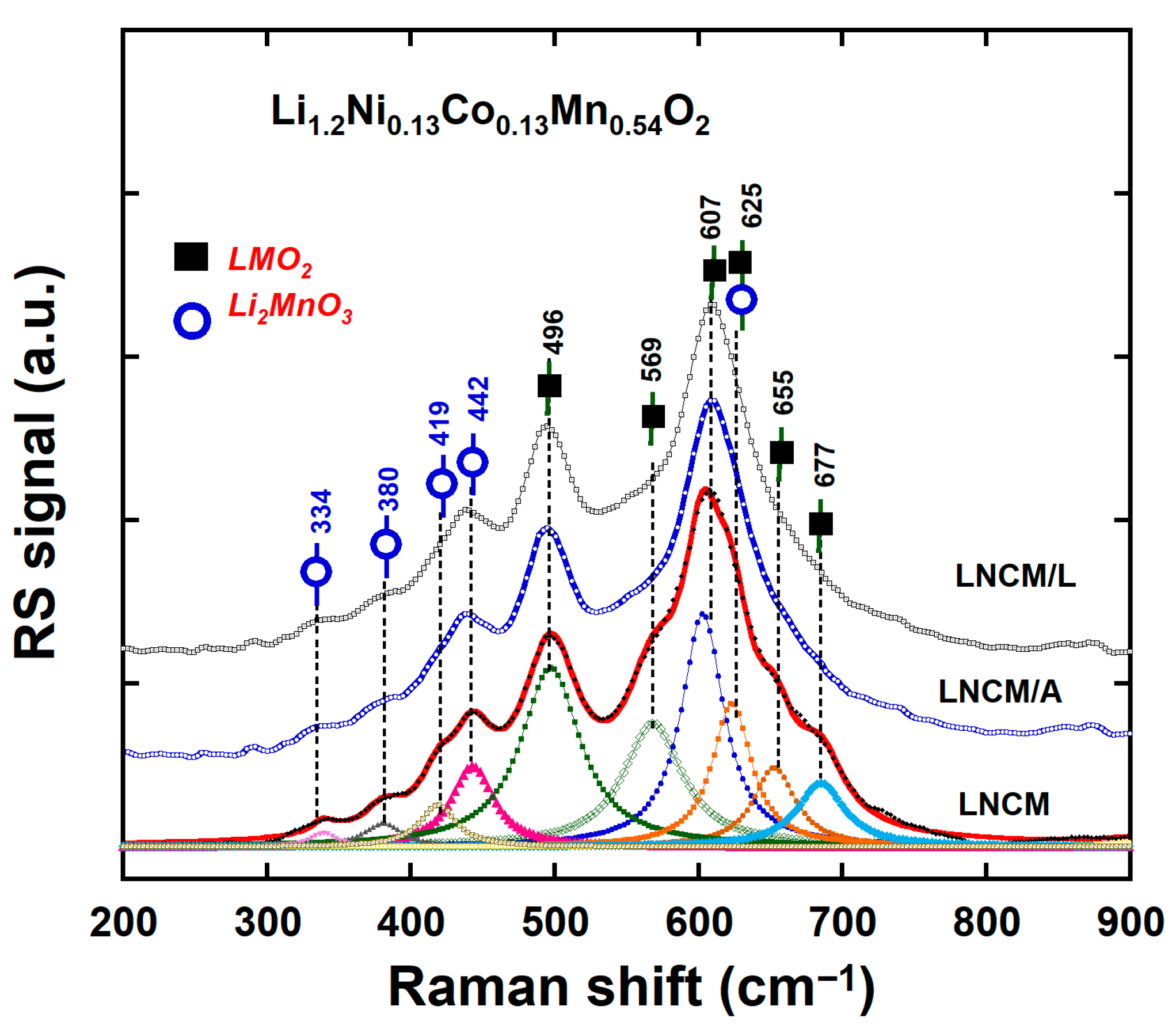

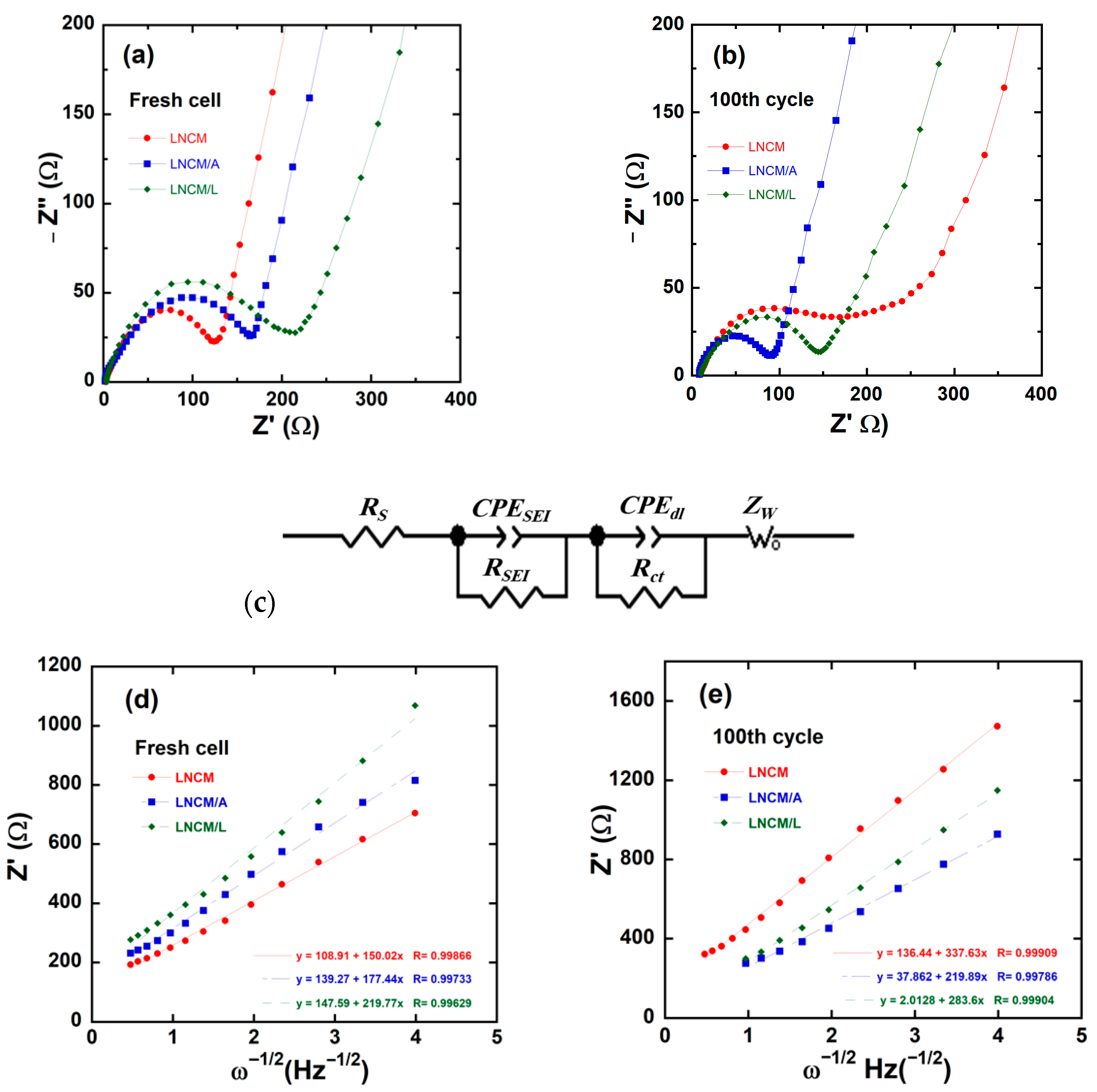

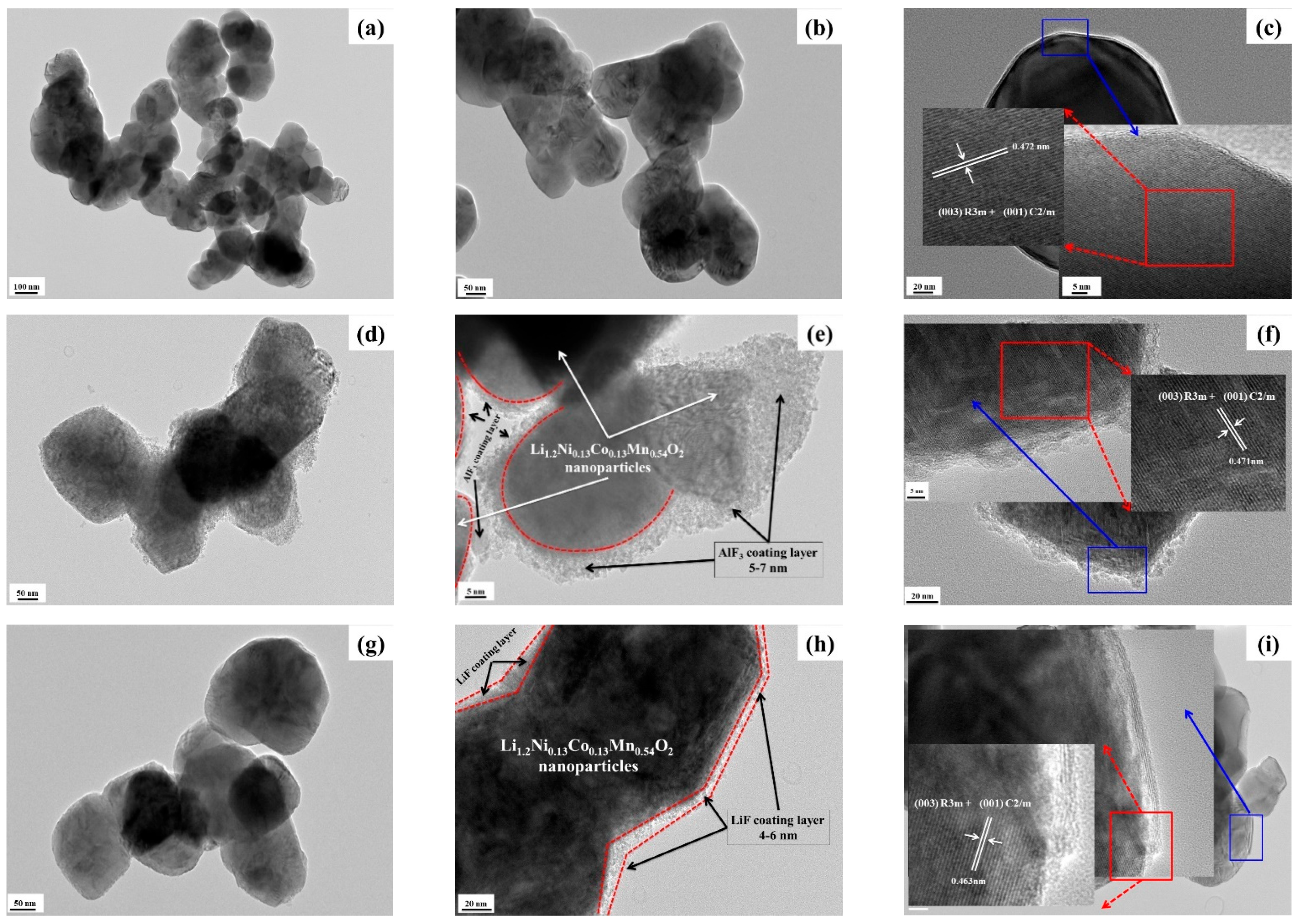

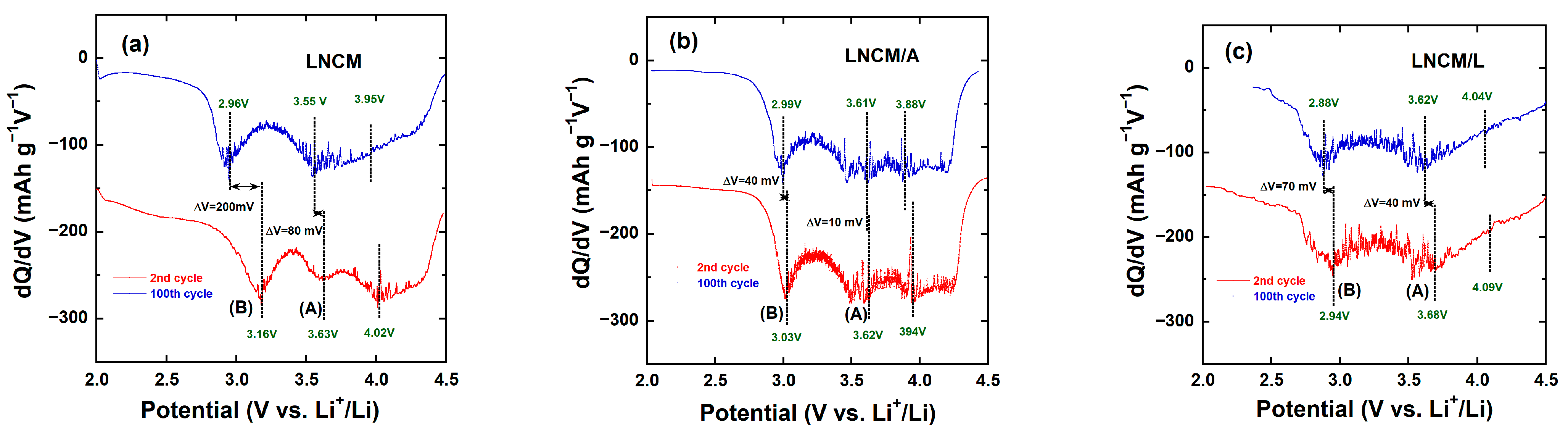

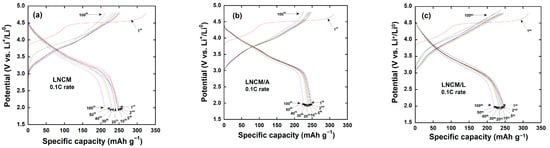

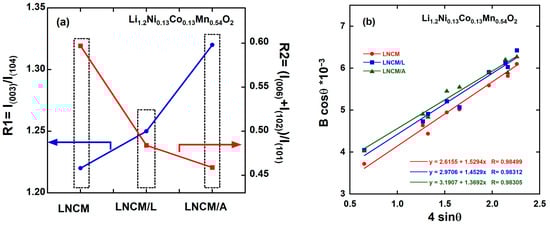

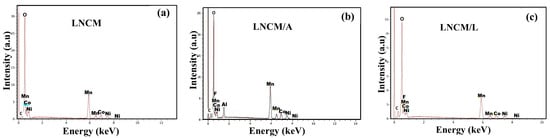

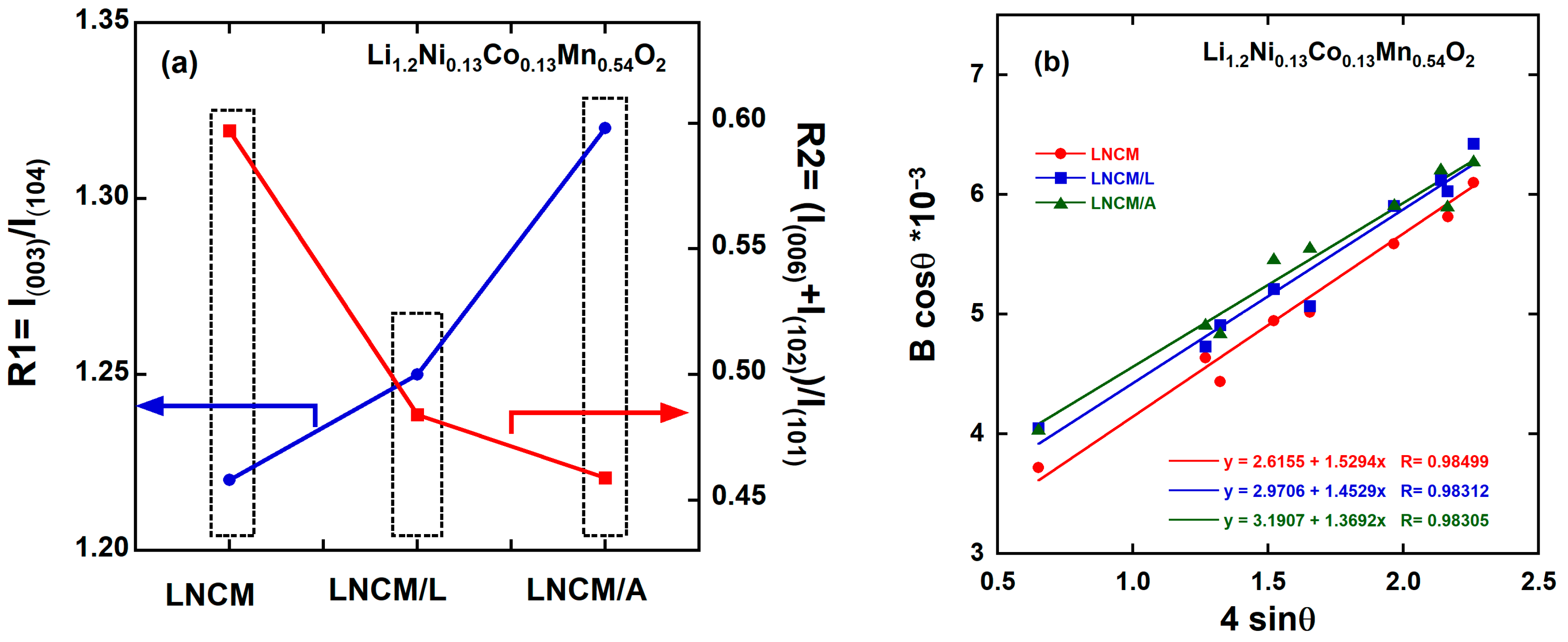

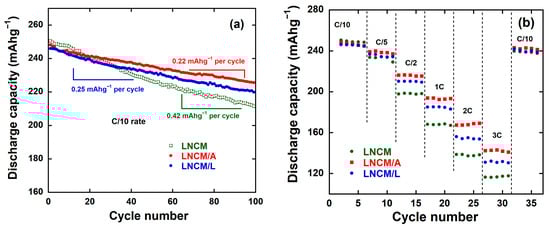

This work deals with the comparative analysis of fluoride coatings, i.e., 5 wt.% AlF₃ and LiF, applied as surface layer of Li-rich Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ (LNCM) layered oxides synthesized via facile and cost-effective sol–gel route. The detailed structural and morphological characterizations demonstrate that AlF₃ and LiF deposits have a pivotal role in enhancing the electrochemical properties of LNCM. These electrochemical properties include galvanostatic charge–discharge (GCD), differential capacity (dQ/dV), electrochemical impedance spectroscopy (EIS), and area-specific impedance (ASI). A much lower decay of the discharge capacity of 0.22 and 0.25 mAh g⁻¹ per cycle was obtained for AlF₃- and LiF-coated LMNC, respectively, after 100 charge/discharge cycles at 0.1 C compared with 0.42 mAh g⁻¹ per cycle for pristine LNCM. Results evidence the non-evolution of the charge transfer resistance, enhanced lithium-ion kinetics and stabilization of electrode/electrolyte interface during cycling.
