Linking Visual and Stress Wave Grading of Beech Wood from the Log to the Sawmill Product ^†

Abstract

The quality potential and possibilities of using beech logs and sawn wood was investigated. Twenty-seven beech logs, with a mean diameter of 48 cm, were cut from 10 trees from a Hacquetio epipactidis-Fagetum site in SE Slovenia. The trees were pre-selected according to the national 5-level quality scale for forest stand evaluation, using two trees per class. Beech logs were classified according to the EN 1316-1 and sawn afterwards into unedged boards of 35 mm nominal thickness. Altogether, 250 boards were visually graded according to the rules of the European Organisation of the Sawmill Industry (EOS). Longitudinal vibration of logs and boards with the determination of stress wave velocity by MTG timber grader was additionally included into the quality assessment. In the case of logs, we confirmed significance of the relationship between visually assessed log quality and stress wave velocity. The stress wave velocity in logs was also related to the stress wave velocity in boards, where it varied considerably, especially for low-graded material. In the case of sawn wood, the relationship between sawn wood grade and stress wave velocity was insignificant. The research confirmed the possibility of presorting of logs, visually or non-destructively, for better classification and utilization of sawn timber.

1. Introduction

In general, irregularities and defects reduce the value of roundwood and sawn timber. The identification of defects is important for the quality assessment and grading of logs and is generally done by measuring visible external indicators such as sweep and ovality of the log, injuries caused by biological pests and branch scars [1,2]. Other defects, such as the formation of red heartwood in beech, may be much more difficult to detect by visible external indicators [3]. One of the main defects in roundwood grading is knots, divided into healthy sound and dead knots, where a sound knot, unlike a dead knot, is intergrown with the surrounding wood [4,5].

The common beech (Fagus sylvatica L.) is one of the most important broadleaf species in Europe. The beech is used in various industrial applications such as veneer, plywood, furniture, particleboard, and paper pulp production, but recently there has also been interest in using this wood in the construction industry. There is still a debate about whether to simply peel beech logs or to additionally produce structural sawn timber. For veneer products like LVL, where there is a high degree of homogenization, grading by strength is not particularly important. However, for the production of glued laminated timber (GLT) and cross-laminated timber (CLT), the grading of raw material is of decisive importance [6]. Regardless of how this valuable forest resource is used, information on the appearance, location, and amount of defects is needed [7].

Defects in logs, as well as in thicker sawmilling assortments, can be detected using both destructive and non-destructive methods, and only the latter are useful in practice. Visual assessment, as one of the traditional non-destructive techniques, is cheap and only actually available in smaller production capacities, but it is subjective and depends on the human factor [8]. Modern X-ray technologies provide precise measurements and have a high detection capacity, but they are expensive and therefore not suitable for small and medium-sized sawmills [9]. Digital imaging methods based on computer software for analyzing digital images are easier to use and reduce subjectivity when assessing different wood characteristics [10]. Many acoustic methods are also used when using wood for construction purposes, especially for softwoods. Research confirms the positive correlation of the speed of sound with the length and orientation of the fibers and the density of the wood [11,12], while the presence of anomalies in the wood slows down the speed of sound [13,14].

In order to optimize the use of beech logs and sawn wood, and to extend it even further to timber construction in a solid form, this research examines the possibility of monitoring sawn timber quality using non-destructive methods. It will be examined whether the traditional visual classification of logs and sawn wood is related to the speed of sound in these sawmilling assortments.

2. Material and Methods

2.1. Sampling and Visual Grading of Logs

The study included a sample of ten beech trees from a site of Dinaric (Hacquetio-Fagetum) in SE Slovenia (45°57′5.5″ N, 15°16′20″ E; 390–460 m.a.s.l.) The individual trees differed significantly in quality after visual assessment and were selected on the basis of a national five-grade quality scale. After felling, the trees were cut into logs (n_L = 27), 2.5 to 6.5 m length (L_L), which were first evaluated according to quality [5] in 4 classes (A, B, C, D). To establish the size of defects at individual log, the European standard EN 1310 was used [15].

2.2. Determining the Stress Wave Velocity in Logs

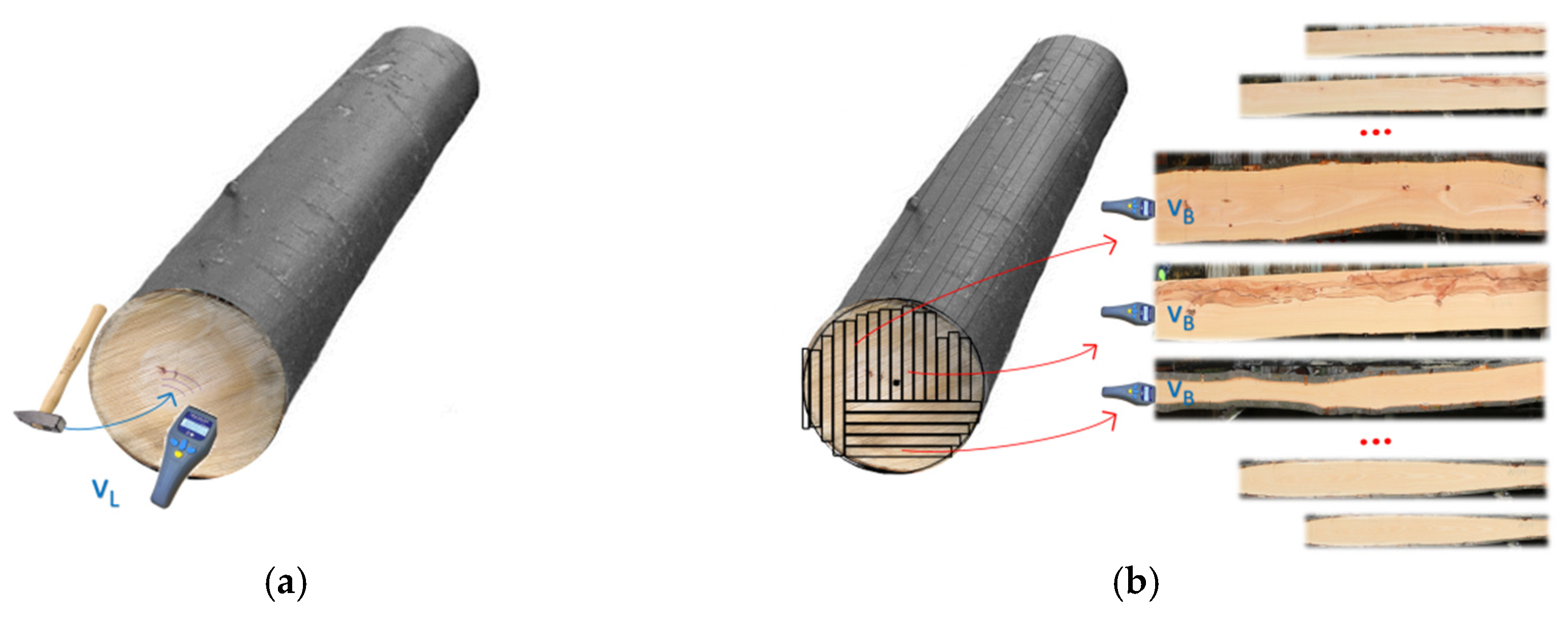

The individual log was analyzed after the visual assessment non-destructively by measuring the time of flight of sound along the log. We used a handheld MTG device (MTG—Mechanical Timber Grader; Brookhuis, Enschede, The Netherlands) and placed the device at the front end of the log and excited the log impulsively with a hammer blow (Figure 1). The measured natural frequency of the log (f_L) was used to determine the sound velocity in the longitudinal direction of the log (v_L; Equation (1)).

$$v_L=2f_L{L}_L$$

(1)

2.3. Sampling and Production of Sawn Timber, Visual Grading and Non-Destructive Testing

The selected logs were sawn in industrial band sawmill into unedged boards with a nominal thickness of 35 mm (n_B = 250), which were marked to allow the traceability of the sawn timber down to the individual log. Immediately after a board was sawn, we measured its width, taking into account half the width of any wane and length of the board (L_B) (Figure 1).

The quality of the sawn boards was evaluated according to the criteria of European Organisation of Sawmill Industry (EOS). According to the grading rules of EOS [16] we divided unedged sawn beech timber into 3 classes (EOS-A, EOS-B, EOS-C).

Finally, we used a handheld MTG device and placed the device at the front end of the sawn board and excited the board impulsively with a hammer blow. The measured natural frequency of the board (f_B) was used to determine the sound velocity in the longitudinal direction of the board (v_B; Equation (2)).

$$v_B=2f_B{L}_B$$

(2)

3. Results and Discussion

3.1. Visual Grading of Logs and Stress Wave Velocity

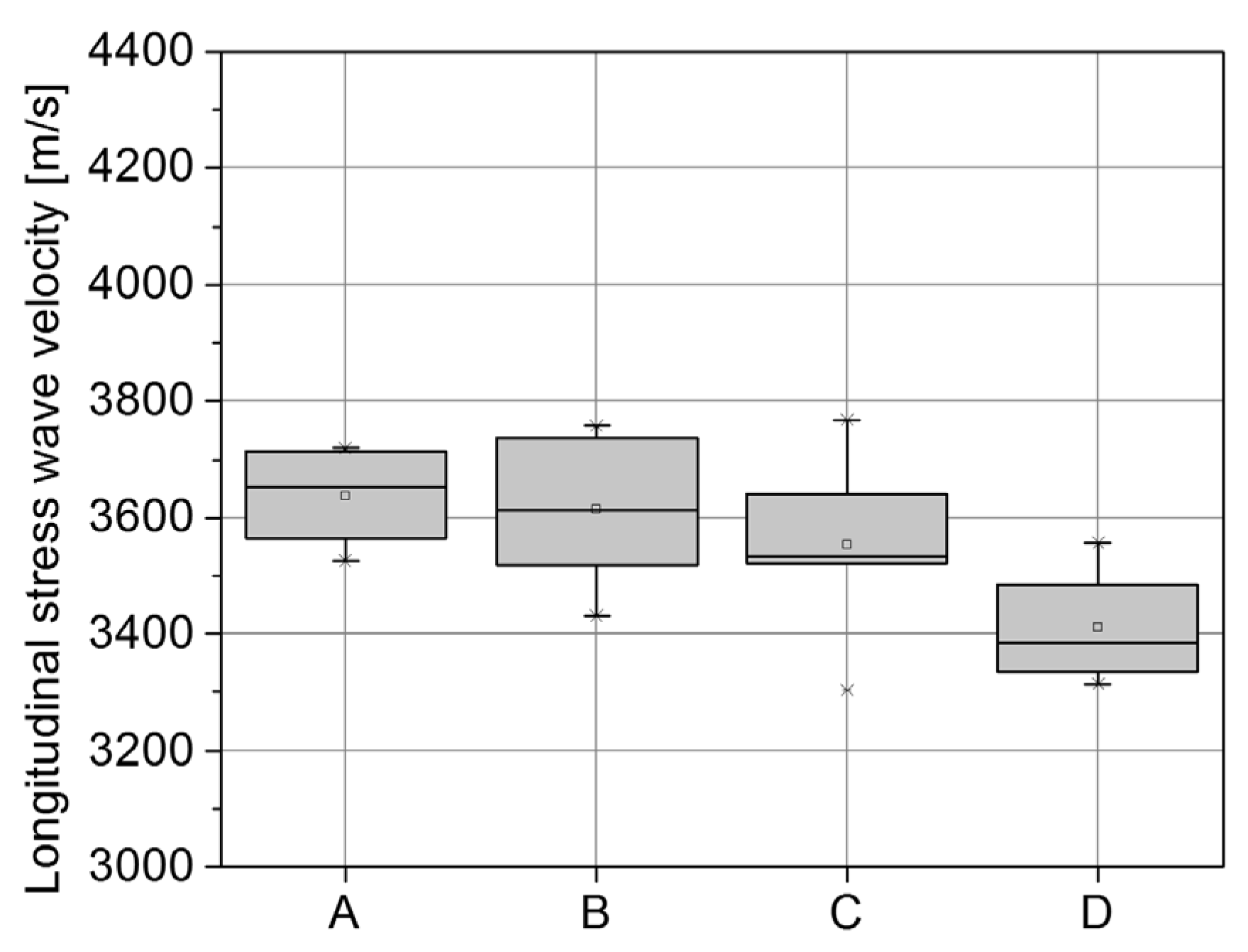

The longitudinal stress wave velocity in the logs generally decreased as the visual quality of the logs decreased. Mean values above 3500 m/s were confirmed in grades A–C (Class A: v_L = 3715 m/s, CV% = 10.2; Class B: v_L = 3615 m/s, CV% = 13.9; Class C: v_LC = 3595 m/s, CV% = 12.8; CV%—Coef. of variation), and significantly lower mean values in grade D logs (v_LD = 3360 m/s; CV % = 9.3) (Figure 2).

The results show that the visual grading of roundwood, which is influenced by the diameter, length of the grading assortment, number and size of knots, heart defects, spiral grain and curvature [1], is also related to the velocity of the stress waves in longitudinal direction. However, due to the considerable variability of measurements, we can only reliably distinguish the worst logs (grade D) from higher-quality logs in such non-destructive testing of round timber.

3.2. Visual Grading of Sawn Wood, Stress Wave Velocity and Dependence on Log Quality

We confirmed a comparable distribution of the logs by individual classes with the number and proportion of sawn boards in the total selection. The largest share of both logs and boards was in the 2nd quality class with about 2/3 share. The shares of roundwood and sawn wood of the 1st and 3rd quality class were up to 1/5, the rest was roundwood of the 4th quality class (

Table 1. Proportion and distribution of boards according to quality (EOS-A, EOS-B, EOC-C) [16] within an individual quality class of logs (A, B, C) [5].

Log Quality	Perc. of Logs (%)	No. of Boards	Perc. of Boards (%)	EOS-A (%)	EOS-B (%)	EOS-C (%)	Unsorted 1 (%)
A	8.3	39	15.5	15.2	66.7	15.2	3.0
B	66.7	174	69.5	12.2	52.0	33.8	2.0
C	20.8	32	12.7	3.7	51.9	42.4	2.0
D	4.2	1	2.3	0.0	38.0	60.0	2.0
Sum	100.0	250	100.0

¹ Boards that did not meet any quality grade.

). Otherwise, sawn boards from the 2nd quality class were similarly represented in the proportion (51.9–66.7%) in all quality classes of roundwood. Boards of the best quality (EOS-A) were only represented in a significant proportion of quality class A and B logs. With the decline in the quality class of roundwood, the share of boards of the 3rd quality class (EOS-C) increased significantly, up to approx. 40% share in C- and D-quality class of logs.

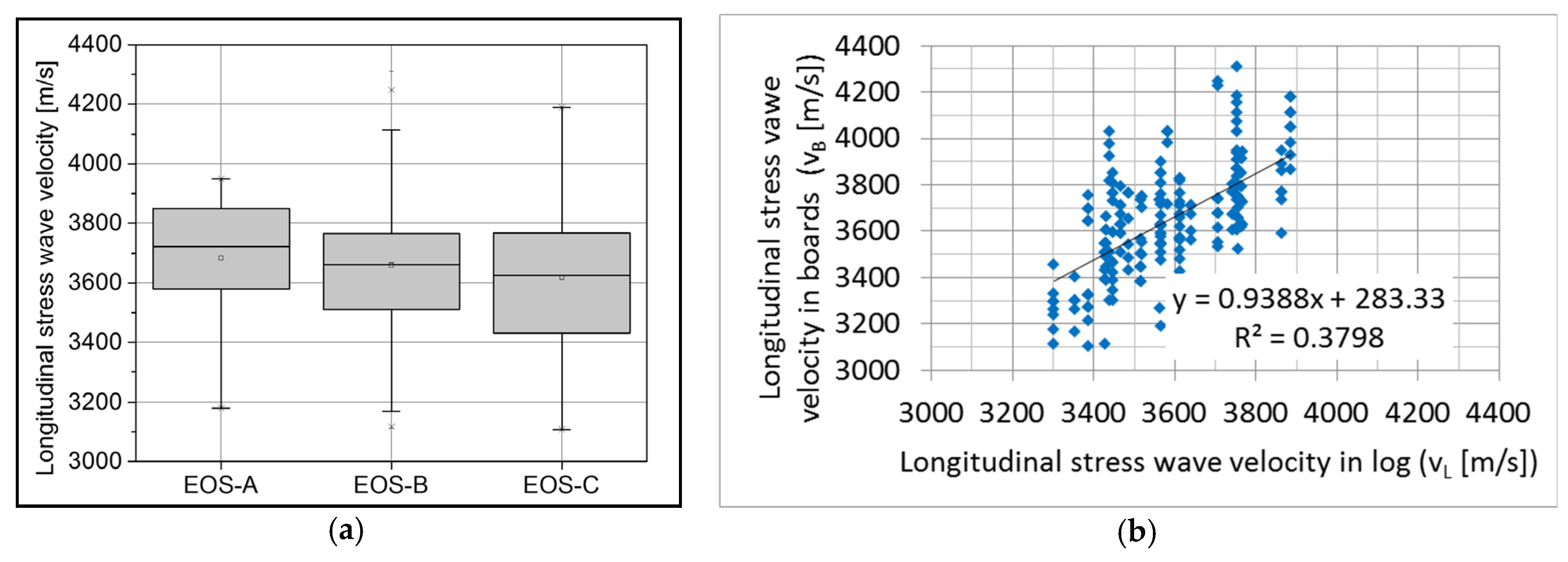

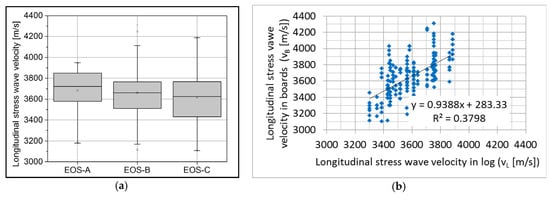

Similar to the logs, we confirmed the general trend of reducing the stress wave velocity for sawn boards by reducing the quality of the boards. The average sound velocity in boards of the class EOS-A was 3695 m/s (CV% = 6.9), in the class EOS-B 3650 m/s (CV% = 4.1) and in EOS-C 3605 m/s (CV% = 6.1). Otherwise, statistically significant differences between the quality classes of the boards were not confirmed (ANOVA, p ≥ 0.05) (Figure 3a). The measured sound velocities in the boards investigated are generally low, due to wet state testing, as previous research was mostly carried out on sawn beech structural elements made from air dried pre-sorted wood of higher quality [17]. However, research confirms the characteristic relationship between the dynamic mechanical properties, using longitudinal vibration, of wet and air-dried beech sawn timber [18].

It turned out that there is a weak positive correlation between the stress wave velocity in logs and the stress wave velocity in boards (Figure 3b; R² = 0.38). A lower scattering of the stress wave velocity in boards compared to the measured value in logs was confirmed at lower values, i.e., in the case of logs and sawn boards of poorer quality. When investigating the dynamic and mechanical properties of edged beech sawn wood and roundwood, taking into account the radial position in the log and the variation in density, an even stronger relationship was confirmed (R² = 0.69) [18].

Since practically the entire share of high-quality boards (EOS-A) is obtained from roundwood of quality classes A and B, it makes sense to use this roundwood as far as possible for products where a minimal number of anomalies is permitted. In this case, we have a small percentage of EOS-C sawn boards that could already be sorted out and can also be used for construction purposes, or where sufficient stiffness and thus the strength of the wood is required. At the same time, the research results also point to the applicability of grade C roundwood, which still reaches a high velocity of stress wave, for products with the required high stiffness and strength.

4. Conclusions

The study confirmed the significance of the relationship between the visually assessed beech log quality and stress wave velocity. Due to the measured lower sound velocity along logs of inferior quality, it is possible to pre-sort these logs for better classification and utilization of the sawn timber. The stress wave velocity in logs is also related to the stress wave velocity in boards, which varies considerably, especially with low-graded material. In the case of sawn wood, the relationship between sawn wood grade and stress wave velocity is not significant.

In the future, it would make sense to determine the sound velocity in the transverse direction when pre-sorting logs using NDT. It is also expected that the quality of sawn timber will be significantly influenced by the relative radial position in the log and the dimensions of the sawn timber.
