Development of Emission Factor Equations for Surface Mining Activities: The Case of the Stacker ^†

Abstract

In surface mines, various activities (e.g., excavations, loading and unloading of material, moving vehicles on unpaved haul roads, etc.) represent significant sources of fugitive dust. The estimation of dust generation from each individual source is a basic step in planning and implementation decision-making systems regarding the air quality of the surrounding area. Typically, this can be obtained by using emission factor or prediction-type equations. A detailed study was carried out at four surface lignite mines to determine PM emission factors and to develop the prediction-type equations of various surface mining activities. In this work, the data, method and results referring to the stacker, one of and the significant fugitive dust emissions source in mining operations are presented and analyzed.

1. Introduction

A key element of environmental protection in areas where surface mines operate is addressing problems generated by the fugitive dust emitted from various mining operations. In mine planning, an estimate of dust generation is necessary to check the likely level of air pollution in the mining area due to proposed project activities [1].

Typically, this can be estimated by using emission factors or prediction-type equations for the development of emission factors. The latest provide a superior estimation of dust formation in opencast mines [2,3,4]. Emission factors are also required as input data in air quality models, which are useful to predict the concentrations of pollutants in air quality management-integrated systems. So, the accurate emission factor estimation is one of the critical problems in forming a strategy to control fugitive dust emissions.

The U.S. Environmental Protection Agency (EPA) published a compilation of air pollution emission factors, usually referred as AP-42, and emission factors equations for open dust sources at western surface coal mines [5,6]. It has been demonstrated that application of the U.S. emission estimation methods to other regions could lead to results with large uncertainties due to differences in the nature of mining, site practices, and mitigation measures, as well as geological and climatic conditions. As a result, experimentally based derivation of emission factors appropriate to the area and the activities under study is necessary for a reliable calculation of fugitive dust emissions.

The Greek Public Power Corporation and specifically the Lignite Center of Western Macedonia (GPPC/LCWM) funded a project named “THEOFRASTOS” to provide accurate quantification and prediction of mining-related PM10 and PM2.5 emissions and dispersion, which is a key input to environmental impact assessments and regulatory policy decisions.

In the frame of this investigation, field measurements were conducted in the four major surface mines of Western Macedonia basin (mine of South field, mine of Kardia field, Mavropigi mine, Amyntaio mine), a lignite-bearing area in NW Greece. By using the reverse dispersion modeling (RDM) method and multiple regression analysis, emission factors were estimated, and emission factor equations were developed for selected mining activities. Finally, the total PM10 amount emitted from each individual mining activity, as well the total emitted by each mine for one year period, were computed [7,8]. A user-friendly emission software called “e-Theofrastos” was developed, calculating the mass of fugitive dust emission from the mining activities [9].

The findings are useful tools to predict air pollution before the commencement of any mining activity, and, thus, effective mitigating measures can be designed at the planning stage. The results have shown that, in the surface mining operations, the stackers, i.e., the large machines used in bulk material handling, are significant fugitive dust emissions sources. The development of an emission factor equation to calculate the PM10 emissions from this significant fugitive dust source in mining operations is presented and analyzed here.

2. Materials and Methods

Field monitoring, laboratory analysis, and modelling procedures used to derive reliable PMx emission factors. The methodology included the following:

• Mining details;
• Analysis of silt content;
• Moisture content determination;
• Measurement campaigns determining;
• PMx concentrations and meteorological magnitudes;
• Reverse dispersion modelling;
• Statistical data analysis;
• Emission factors evaluation;
• Development of emission factor equations;
• Validation of the equations;
• Development of s/w to calculate PM emissions.

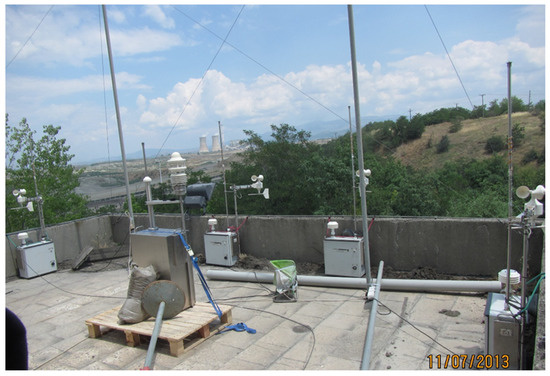

The measurements campaign carried out by using five PMx monitors (Grimm) and meteorological sensors (Figure 1), during the cold and warm period, helped to assess the influence of varying meteorological conditions on emission factors. The emission factors were derived by the application of upwind/downwind differences and the reverse dispersion modelling method (RDM), according to international standards [8,10].

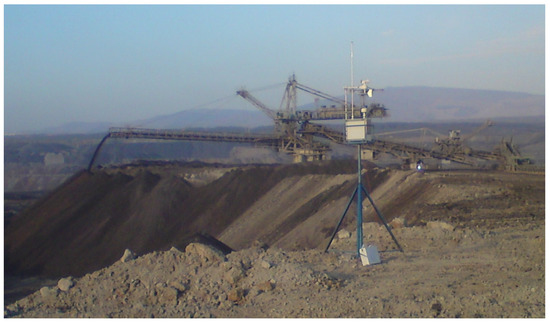

For the development of emission factor equation, the emission factor calculated for different mining activities, or the stacker in this case (Figure 2), along with the key influencing parameters for four mines, were statistically analyzed by:

• Independent variable selection, data segregation, and tabulation;
• Multiple linear regression analysis (MLR) utilizing the natural logarithm of the variables. MLR was repeated so that outlier values were rejected until p < 0.05 and R > 0.8 were achieved.

3. Results and Discussion

Table 1. Emission factors (ef) and the respective values of moisture content (M, %), silt content (s, %), and wind speed (u).

Mines	ef (Kg/t)	M (%)	s(%)	u(m/s)
Mine of South field	0.003769745	12.37	33.30	1.88
	0.004419243	17.06	9.23	1.57
	0.004419243	12.24	39.47	1.57
	0.003292687	17.63	3.43	3.40
	0.008677588	14.17	6.98	3.20
	0.009655968	17.42	0.67	4.70
Mavropigi mine	0.016907607	42.00	3.26	8.24
	0.016907607	39.62	1.21	8.24
	0.000367833	27.06	5.30	2.79
	0.000330507	29.89	6.98	2.98
	0.000385369	34.15	18.42	2.83
Amyntaio mine	0.038553538	13.57	1.33	4.24
	0.039790131	10.95	2.57	4.20
Mine of Kardia field	1.909399642	25.69	0.80	3.60
	1.076361360	16.08	6.70	1.70
	1.076361360	31.66	1.11	1.70
	0.000312244	20.10	0.04	2.10
	0.000312244	24.29	0.82	2.10
	0.003721373	24.10	0.11	3.00
	0.000486592	23.38	0.14	1.70

shows the emission factors values (as they were computed by the RDM method) and the respective values of the independent variables with possible influence to the emission factor (dependent variable) as they were measured in the field (wind speed, u m/s) or in the laboratory after the sampling material collection in the field (moisture content M %, silt content s, %).

Using a dependent variable (the natural logarithm of emission factor (ln ef)) and independent variables (the corresponding in moisture (ln M), silt content (ln s), and wind speed (ln u) values), the statistically significant relationship between ln ef and each of the three independent variables was examined.

The results indicated a relatively weak relationship between ln ef and ln s, so we should consider removing this independent variable from the model. MLR was carried out between ln ef (dependent variable) and the two independent variables (ln M and ln u). MLR was repeated, rejecting each time the outlier values reached p < 0.05 and R > 0.8. Finally, the following relation was established, representing the emission factor (in kg/t) of PM10 emissions due to stacker.

$$\begin{gathered} \mathrm{ef}=0.285\times \frac{{\mathrm{u}}^{3.627}}{{\mathrm{M}}^{2.924}}, \\ p \mathrm{value} < 0.05, {\mathrm{R}}^2 = 89.3\% \end{gathered}$$

Since the p value is less than 0.05, there is a statistically significant relationship between the variables at the 95.0% confidence level. The R-squared statistic indicates that the fitted model explains 89.3% of the variability in the dependent variable (ef).

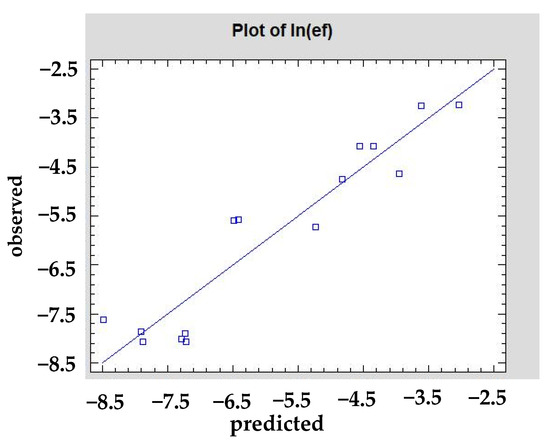

Figure 3 depicts the observed and predicted values in a graph.

Table 2. Test of normality of residuals.

			Tests of Normality
	Kolmogorov–Smirnov a			Shapiro–Wilk
	Statistic	df	Sig.	Statistic	df	Sig.
Unstandardized Residual	0.131	15	0.200 *	0.929	15	0.260

* This is a lower bound of the true significance. ^a Lilliefors Significance Correction.

demonstrates the unstandardized residual test of normality, indicating that unstandardized residuals follow normal distribution (Kolmogorov–Smirnov test: p > 0.2, and Shapiro–Wilk test: p = 0.26). Each such relation is provided to the end user with specific ranges of validity for the independent variables. In our case, its recommended range of application is 1.6 < u < 8.2 ms⁻¹, s < 39%, 11% < M < 42%.

4. Conclusions

The study in four surface lignite mines indicated that stackers are significant fugitive dust emission sources. A multiple linear regression model was developed by considering the major influencing parameters, the moisture content (M, %), silt content (s%), and the wind speed (u, m/s) to calculate PM10 emissions from this surface mining activity. The results shows that the model can be simplified by removing the independent variables s (silt content) from the model. The final model describes the relationship between PM10 the emission factor, and two independent variables (the moisture content (M, %) and the wind speed (u, m/s)). The equation of the fitted model is

$$\mathrm{ef}=0.285\times \frac{{\mathrm{u}}^{3.627}}{{\mathrm{M}}^{2.924}},$$

The p value in the ANOVA table was less than 0.05, meaning that there is a statistically significant relationship between the variables at the 95.0% confidence level. The R-squared statistic indicates that the model as fitted explains 89.3% of the variability in the dependent variable (ef). The developed model can be applied to estimate PM10 emissions from one significant emission source of a surface mine, in a range of validity for the independent variables. Furthermore, to predict the contribution of this source in the air pollution before the commencement of any mining project, effective mitigative measures and scenarios at the planning stage as well were designed.
