ZnFe₂O₄@dimethylglyoxime: Preparation and Catalyst Application in the Synthesis of 2-Amino-tetrahydro-4H-chromene-3-carbonitrile Derivatives ^†

Abstract

Hybrid materials constructed from two or more constituents provide new features and distinctive applications which not found in the single-part material. Spinel ferrites with the general formula of AB₂O₄, where A denotes divalent ions and B represents trivalent ions, appeared as efficient catalysts for the synthesis of organic compounds. These magnetic nanoparticles have both the Lewis acid and the Lewis base sites in their structure. In the present study, ZnFe₂O₄ was prepared and modified with dimethylglyoxime to obtain a magnetic ZnFe₂O₄@dimethylglyoxime hybrid catalyst. Dimethylglyoxime is a dibasic acid substance that has been used as a chelating agent for divalent metal ions due to containing two nitrogen atoms and hydroxyl groups. Surface modification of zinc ferrite with this dibasic acid substance produced a bifunctional hybrid catalyst with increased catalytic active sites. In the next step, a prepared catalyst was applied in the synthesis of 2-amino-tetrahydro-4H-chromene-3-carbonitrile derivatives by condensation of aromatic aldehydes, malononitrile and dimedone in ethanol at room temperature. The present method offers advantages such as simple procedure, mild reaction condition, short reaction times and retrievable catalyst.

1. Introduction

Magnetic catalysts with applicable advantages such as reusability and easy separation from the reaction mixture have attracted great attention [1]. For the production of heterogeneous magnetic catalysts, iron is generally more suitable due to its properties such as abundance in nature, low toxicity and availability [2]. Chemists have found that hybrid materials made from two or more components exhibited different properties than each component and synergistic effects, and so therefore the design and fabrication of hybrid materials is an effective approach in catalyst chemistry [3]. Ferrites are polycrystalline materials and are made of a large number of tiny crystals with different orientations [4]. Zinc ferrite has been widely used in diverse applications due to its magnetization properties, simple synthesis, low toxicity and good chemical stability [3,4,5]. Dimethylglyoxime is a dibasic acid substance that has been utilized for divalent ions owning to its special structure and the presence of chelating elements of nitrogen and hydroxyl [6,7]. MCRs are a significant approach in organic chemistry to construct a variety of biologically active compounds [8,9,10]. The tetrahydro-4H-chromene and its derivatives are important biologically active compounds because of significant medicinal properties such as being antispasmodic, anticoagulant and also their effective therapeutic effects in neurological diseases and cancer [11]. Continuing our research on MCRS and the heterocyclic compound, in the present work the modified ZnFe₂O₄ was prepared by a co-precipitation procedure in the presence of dimethylglyoxime as a dibasic acid substance to obtain a hybrid catalyst with more active sites and enhanced catalytic efficiency. The prepared ZnFe₂O₄@dimethylglyoxime composite was then used as a hybrid catalyst for the synthesis of 2-amino-tetrahydro-4H-chromene-3-carbonitrile derivatives via one-pot condensation of various aromatic aldehydes, malononitrile and dimedone (Scheme 1).

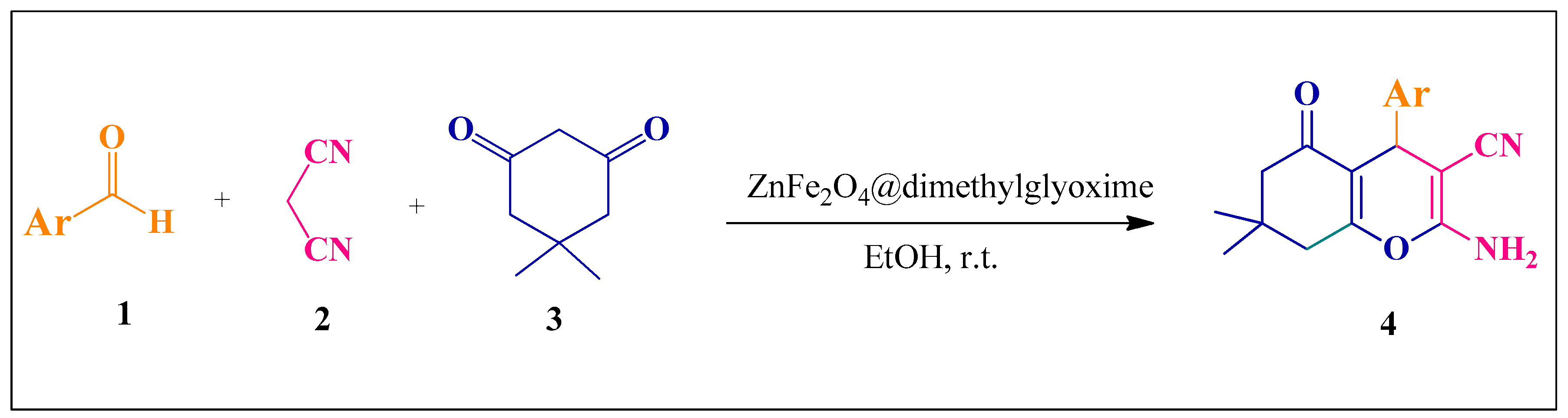

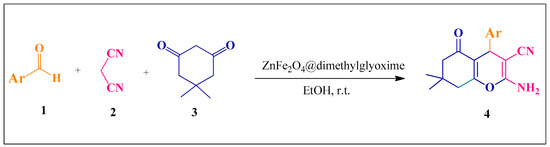

Scheme 1. The synthesis of 2-amino-tetrahydro-4H-chromene-3-carbonitrile derivatives.

2. Experimental

2.1. General

All consumed chemicals and solvents were purchased from Sigma Aldrich and Merck companies. Fourier transform infrared (FT-IR) spectra were recorded on a Shimadzu 8400 S spectrometer using KBr pellets. Elemental analysis of a prepared sample was carried out by energy-dispersive X-ray (EDX) analysis recorded on Numerix JEOL-JDX 8030 (30 kV, 20 mA). X-ray diffraction (XRD) pattern of the prepared catalyst was recorded on an X-ray diffractometer (Bruker D8 Advance). Melting points were measured with an electrothermal 9100 apparatus.

2.2. Preparation of the ZnFe₂O₄@dimethylglyoxime

The ZnFe₂O₄@dimethylglyoxime was prepared by co-precipitation of Zn²⁺ and Fe³⁺ aqueous solution in the presence of dimethylglyoxime under alkaline conditions. First, Zn(OAC)₂·2H₂O (1.6 mmol) and FeCl₃·6H₂O (3.2 mmol) were dissolved in 50 mL distilled water. Then dimethylglyoxime (4.5 mmol) was added to above solution and dispersed by ultrasonic at room temperature for 15 min. In the next step, NaOH (0.25 mmol) was dissolved in 50 mL of distilled water, then was added to the reaction mixture drop by drop. The reaction was completed at 90 °C after 1 hour. Finally, the resulting precipitate was separated with a magnet, washed with distilled water several times, and dried in an oven at 60 °C.

2.3. General Procedure for the Synthesis of 2-Amino-tetrahydro-4H-chromene-3-carbonitrile Derivatives Derivatives

The mixture of aromatic aldehyde (1.0 mmol), malononitrile (1.0 mmol), dimedone (1.0 mmol) and 0.01 g of ZnFe₂O₄@dimethylglyoxime catalyst was stirred in ethanol at room temperature. The completion of the reaction was monitored by thin layer chromatography. After completion of the reaction, the catalyst was separated with a magnet, washed with deionized water and dried. The pure product was then obtained by the crystallization of the crude precipitate in ethanol.

3. Results and Discussion

3.1. Characterization of Catalyst

The presence of constituent elements in the ZnFe₂O₄@dimethylglyoxime composition was studied by EDX analysis. The results of EDX analysis can be observed in Figure 1. The observed peaks are related to the presence of zinc, iron, nitrogen and oxygen, which indicate the existence of component elements in the prepared sample.

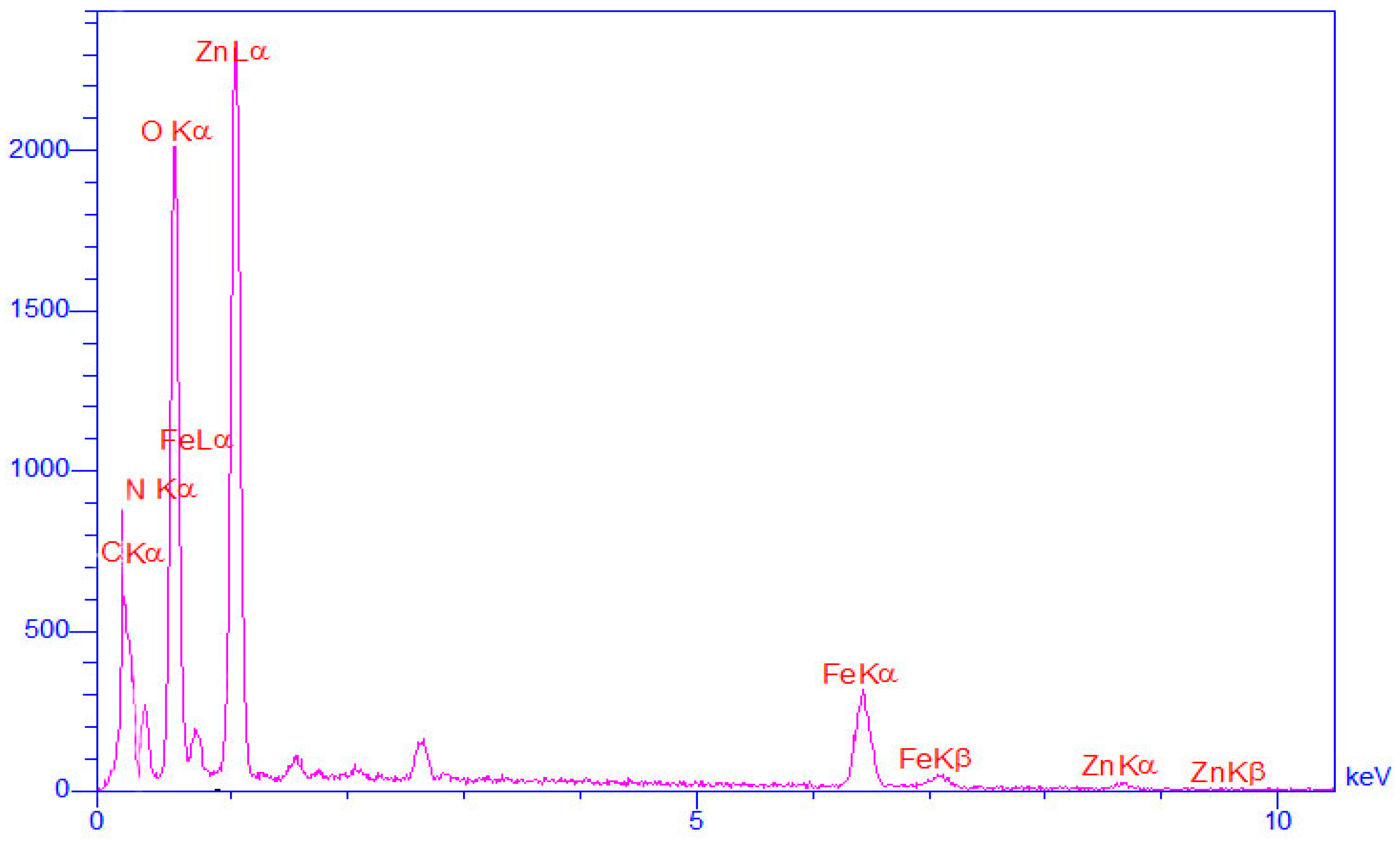

Figure 1. Energy-dispersive X-ray (EDX) analysis of the ZnFe₂O₄@dimethylglyoxime catalyst.

The XRD pattern of ZnFe₂O₄@dimethylglyoxime is shown in Figure 2, which is compared to the standard pattern of ZnFe₂O_4. As is observed, the standard pattern of ZnFe₂O₄ with card no. JCPDS, 00-022-1020 have characteristic diffraction peaks at 2θ = 18.19°, 29.92°, 35.26°, 42.85°, 56.81° and 62.21°. The prepared catalyst pattern showed similar diffraction peaks at 2θ = 17.40°, 30.13°, 35.23°, 57.1° and 62.22°, confirming the existence of crystalline nanoparticles in the catalyst composition. The average crystallite size in the hybrid nanocatalyst was determined to be about 42 nm based on the information of the characteristic diffraction peaks and using the Debye-Scherer equation.

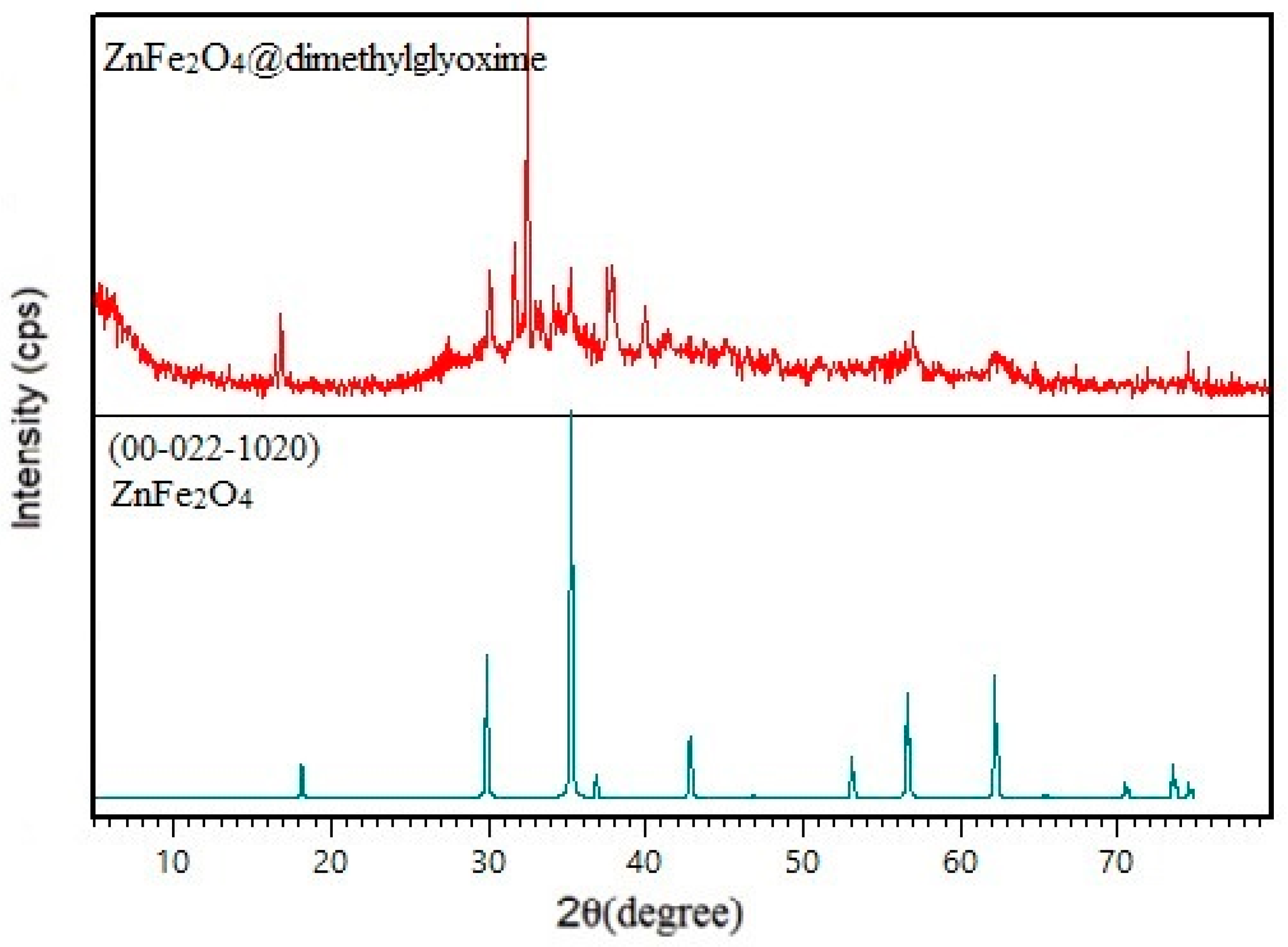

Figure 2. XRD pattern of ZnFe₂O₄@dimethylglyoxime catalyst.

The FT-IR analysis was used to identify the functional groups of the ZnFe₂O₄@dimethylglyoxime catalyst. Figure 3 showed the IR spectrum of ZnFe₂O₄@dimethylglyoxime hybrid catalysts in the range of 400–4400 cm⁻¹. The absorption at 415 cm⁻¹ is related to the stretching vibration of Zn-O, and the appearing absorption in the range of 520–550 cm⁻¹ is related to the stretching vibration of Fe-O [12]. The absorption bands at 1122 and 1050 cm⁻¹ are attributed to the symmetrical and asymmetrical stretching vibration of an N-O bond, respectively. A weak band in 1572 cm⁻¹ is ascribed to the starching vibration of C=N bond. The absorption band at 2936 cm⁻¹ is related to stretching vibration of the C–H bond, the adsorption related to the stretching vibrations of the hydroxyl groups in the dimethylglycoxime structure and the ZnFe₂O₄ surface appeared as an intensive band in the range of 3400–3600 cm⁻¹.

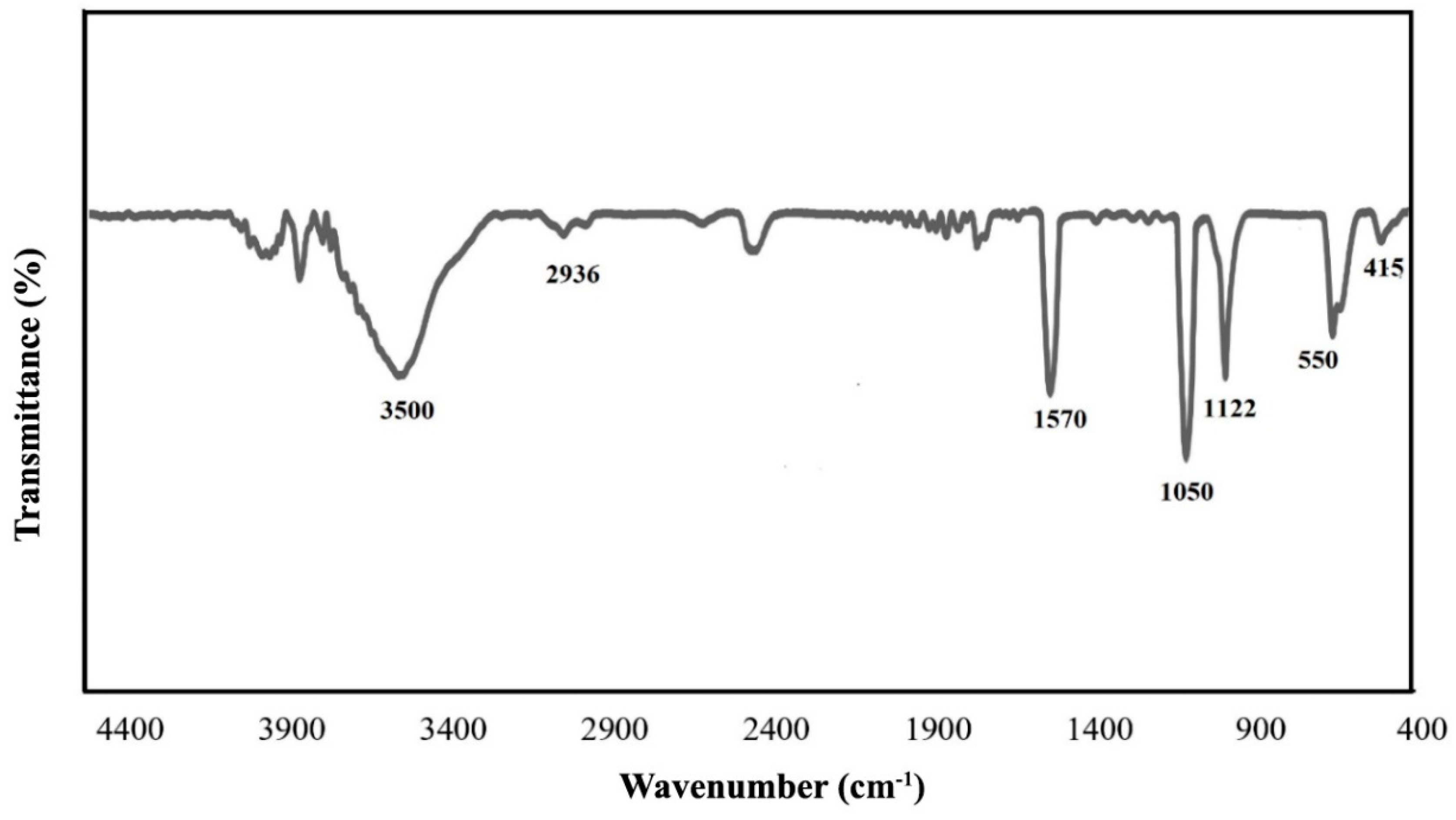

Figure 3. FTIR analysis of the ZnFe₂O₄@dimethylglyoxime catalyst.

3.2. Catalytic Application of ZnFe₂O₄@dimethylglyoxime in the Synthesis of 2-Amino-tetrahydro-4H-chromene-3-carbonitrile Derivatives

Synthesis of 2-amino-tetrahydro-4H-chromene-3-carbonitrile derivatives using some aromatic aldehydes was selected under optimal conditions to evaluate the efficiency of the prepared ZnFe₂O₄@dimethylglyoxime catalyst. As shown in Table 1, all tested aromatic aldehydes with electron drawing and electron donating groups produced high yield products in short reaction times.

Table 1. Synthesis of 2-amino-tetrahydro-4H-chromene-3-carbonitrile derivatives.

					Melting Point (°C)
Entry	Aryl	Product	Time (min)	Yield a (%)	Observed	Literature
1	4-NO2C6H4	4a	3	96	180–182	176–182 [9]
2	3,4,5-(MeO)3C6H4	4b	6	90	176–178	175–177 [9]
3	3-ClC6H4	4c	6	92	228–230	229–232 [9]
4	4-HOC6H4	4d	18	82	208–209	208–210 [9]
5	4-MeOC6H4	4e	10	88	216–218	217–220 [13]
6	2,4-Cl2C6H4	4f	5	94	119–120	118–120 [9]

^a Isolated yield.

4. Conclusions

ZnFe₂O₄@dimethylglyoxime is a recyclable, efficient and cost-effective hybrid catalyst which applied in the synthesis of 2-amino-tetrahydro-4H-chromene-3-carbonitrile derivatives. This procedure provides advantages such as high yield products in a short time, an easy workup for purification of a product and the reusability of the catalyst.
