A Practical Guide Paper on Bulk and PLD Thin-Film Metals Commonly Used as Photocathodes in RF and SRF Guns
Abstract
1. Introduction
2. Highlights on Metallic Photocathodes
Cu | Mg | Y | Pb | Nb | Ba | |
---|---|---|---|---|---|---|
WF (eV) | 4.6 [74] | 3.6 [9] | 3.1 [75] | 4.2 [76] | 4.3 [76] | 2.5 [77] |
QE (at 266 nm) Bulk | 2.0 × 10−5 * [78] | 7.6 × 10−4 [79] | 3.0 × 10−3 [79] | 7 × 10−5 [80] | 3.2 × 10−6 at 248 nm [81] | 7.6 × 10−4 at 248 nm [82] 1 × 10−3 at 337 nm [83] |
Thin film | 6.0 × 10−5 [84] | 1.8 × 10−3 [79] | 3.3 × 10−4 [79] | 8.0 × 10−5 [80] | NA | NA |
τob (years) [19] τotf (months) | No limit <1 [84] | ~1 2–3 [85] | <1 3–5 ** | >1 4–6 ** | No limit 3–5 ** | <<1 <1 ** |
τd (years) | No limit | >2 | >1 | >1 | No limit | ~1 |
τr (ps) | <<1 | <<1 | <<1 | <<1 | <<1 | <<1 |
Id (nA) | 53 at 14.6 MV/m [86] | 20 at 90 MV/m [84] | NA | 240 at 14.5 MV/m [87] | NA | NA |
εb (mm × mrad) | 0.6 [88,89] 0.35 [90] | 0.4 [91] 0.5 [92] | NA | 0.8 ** [39] | 0.6 [93] | NA |
εtf (mm × mrad) | NA | 0.85 [85] | 0.76 [94] | NA | NA | NA |
Pbg (Pa) | <10−7 | <10−8 | <10−8 | <10−6 | <10−6 | <10−8 |
Cu | Mg | Y | Pb | Nb | Ba | |
---|---|---|---|---|---|---|
δ (nm) λ (nm) | 14 280 [98] | 12 266 [99] | 18 266 [99] | 9 280 [100] | 11 400 [101] | NA |
nb (bulk) | 1.16 at 450 nm 0.15 at 600 nm [102] | 0.18 at 405 nm [96] 0.37 at 589 nm [102] | NA | 1.78 700 nm [103] | 2.52 at 405 nm 2.92 at 589 nm [104] | NA |
kb (bulk) | 2.4 at 450 nm 3.29 at 600 nm [102] | 3.57 at 405 nm [96] 4.42 at 589 nm [102] | NA | 3.57 at 700 nm [103] | 2.63 at 405 nm 2.87 at 589 nm [104] | NA |
* Rb (Φ = 0) % | 55 at 450 nm 95 at 600 nm | 97 at 405 nm 93 at 589 nm | 45 at 405 nm 53 at 578 nm | 65 at 700 nm | 48 at 405 nm 50 at 589 nm | 43 at 400 nm 53 578 nm [77] |
ntf | 0.87 at 450 nm 0.186 at 600 nm [102] | 0.52 at 405 nm 0.48 at 589 nm [105] | 0.8 at 405 nm 1.3 at 578 nm [106] | 1.68 at 700 nm [102] | NA | 0.82 at 405 nm 0.88 at 578 nm [102] |
ktf | 2.20 at 450 nm 2.98 at 600 nm [102] | 2.05 at 405 nm 3.71 at 589 nm [105] | 1.6 at 405 nm 2.4 at 578 nm [106] | 3.67 at 700 nm [102] | NA | 1.07 at 405 nm 1.52 at 578 nm [105] |
* Rtf (Φ = 0) % | 58 at 450 nm 93 at 600 nm | 68 at 405 nm 88 at 589 nm | 45 at 405 nm 53 at 578 nm | 67 at 700 nm | NA | 26 at 405 nm 40 at 578 nm |
Ra (nm) | 7.5 [107] | 3 [108] | 2 [109] | 14 [110] | 9 [111] | NA |
Cu | Mg | Y | Pb | Nb | Ba | |
---|---|---|---|---|---|---|
Tm (K) | 1358 | 923 | 1799 | 601 | 2750 | 1000 |
Te (K) | 2835 | 1363 | 3203 | 2022 | 5017 | 2118 |
ρ (g/cm3) | 8.92 | 1.74 | 4.47 | 11.34 | 8.57 | 3.51 |
Electronegativity (Pauling) [112] | 1.90 | 1.31 | 1.22 | 1.80 | 1.60 | 0.89 |
Chemical reactivity | VERY LOW | MEDIUM | MEDIUM | VERY LOW | LOW | VERY HIGH |
Ei (eV) | 7.19 | 7.12 | 5.94 | 6.41 | 6.99 | 8.69 |
ΔHf (kJ/mol) | 13.3 | 8.5 | 11.4 | 4.8 | 30.0 | 7.1 |
ΔHe (kJ/mol) | 300 | 128 | 363 | 179 | 690 | 142 |
σT [W/(m × K)] [112] | 400 | 156 | 17.2 | 35.3 | 53.7 | 18.0 |
C [J/(kg × K)] | 385 | 1020 | 300 | 129 | 265 | 204 |
DT (mm2/s) | 116.0 [106] | 87.9 * | 12.8 * | 23.0 [113] | 23.6 * | 25.1 * |
ρe (nΩ × m) [112] | 16.8 | 43.9 | 596 | 208 | 152 | 332 |
Ke (MS/m) | 59.5 | 22.7 | 1.7 | 4.8 | 6.6 | 3.0 |
Ne (×1022 cm−3) | 8.5 | 8.6 | 6.0 | 13.2 | 5.6 | 3.15 |
μe (cm2/(V × s) ** | 43.8 | 1.6 | 1.8 | 2.3 | 7.5 | 5.9 |
De *** (cm2/s) | 1.2 | 0.04 | 0.05 | 0.06 | 0.19 | 0.15 |
Electronic shell structure | [Ar] 3d104s1 | [Ar] 3d104s1 | [Kr] 5s24d1 | [Kr] 5s24d1 | [Kr] 5s14d4 | [Xe] 6s2 |

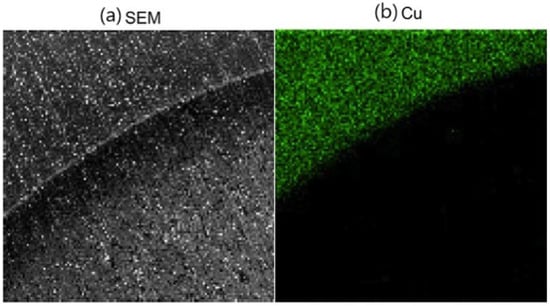

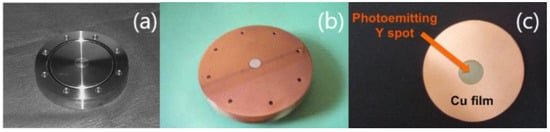

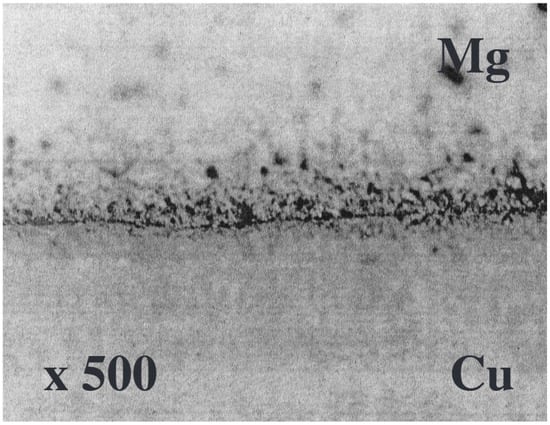

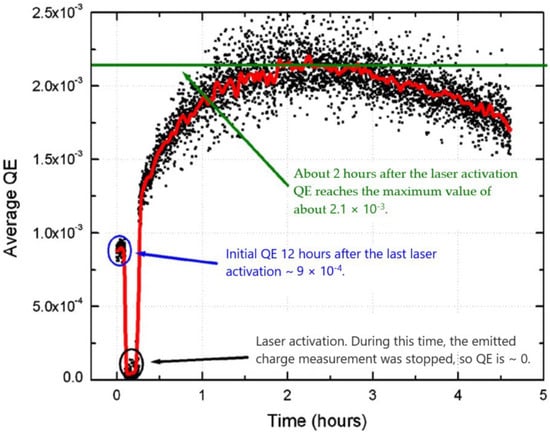

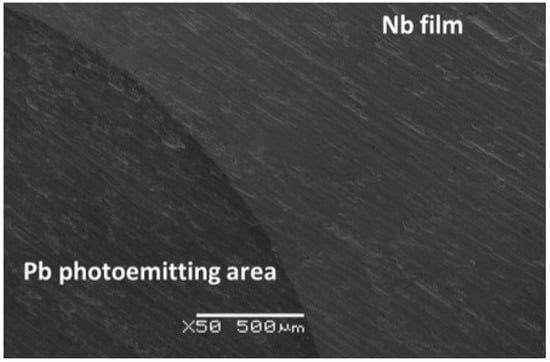

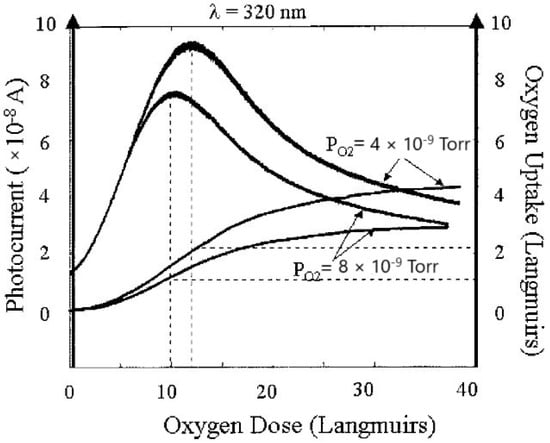

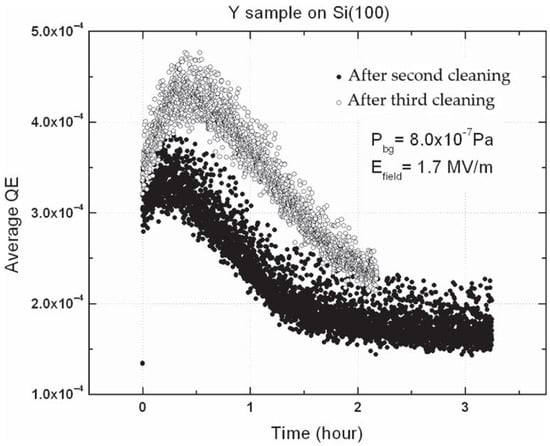

3. Main Factors That Influence the Photo-Emissive Properties of Metallic Photocathodes
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
EDX | Energy dispersive X-ray analysis |
ERL | Energy recovery linac |
FEL | Free-electron laser |
HV | High vacuum |
LCT | Laser cleaning treatment |
NA | Not available |
Nd:YAG | Neodinium-doped yttrium aluminum garnet |
PLD | Pulsed laser deposition |
RF | Radio frequency |
SEM | Scanning electron microscopy |
SRF | Superconductive radio frequency |
UEM/D | Ultrafast electron microscopy and diffraction |
UHV | Ultra-high vacuum |
Appendix A
Definition | Symbol |
---|---|
Boiling point | Te |
Dark current | Id |
Dark lifetime | τd |
Density | ρ |
Electrical conductivity | σe |
Electrical resistivity | ρe |
Electronegativity | χ |
Electron charge | e |
Electron diffusivity | De |
Electron mobility | μe |
Extinction coefficient for bulk | kb |
Extinction coefficient for thin films | ktf |
First ionization energy | Ei |
Latent heat of evaporation | ΔHe |
Latent heat of fusion | ΔHf |
Melting point | Tm |
Number density of free electrons | Ne |
Operational lifetime for bulk | τob |
Operational lifetime for thin film | τotf |
Optical penetration depth | δ |
Optical reflection coefficient for bulk | Rb |
Optical reflection coefficient for thin film | Rtf |
Quantum efficiency | QE |
Radiation wavelength | λ |
Recommended vacuum level in the gun system | Pbg |
Refractive index for bulk | nb |
Refractive index for thin film | ntf |
Response time | τr |
Roughness | Ra |
Thermal capacity | C |
Thermal emittance for bulk | εb |
Thermal emittance for thin film | εtf |
Thermal conductivity | σT |
Thermal diffusivity | DT |
Work function | WF |
References
- Barday, R.; Kamps, T.; Kugeler, O.; Neumann, A.; Schmeißer, M.; Voelker, J.; Smedley, J.; Sekutowicz, J.; Kneisel, P.; Nietubyc, R. Characterization of a Superconducting Lead Photocathode in a Superconducting Radio Frequency Gun Cavity. In Proceedings of the International Particle Accelerator Conference 2013, Shanghai, China, 12–17 May 2013; pp. 279–281. [Google Scholar]
- Hannon, F.; Andonian, G.; Harris, L. A Plasmonic Niobium Photocathode for Superconducting Radio Frequency Gun Applications. In Proceedings of the International Particle Accelerator Conference 2019, Melbourne, Australia, 19–24 May 2019; pp. 19–24. [Google Scholar]
- Mistry, S.; Cropper, M.; Valizadeh, R.; Jones, L.B.; Middleman, K.J.; Hannah, A.N.; Militsyn, B.L.; Noakes, T.C.Q. Preparation of Polycrystalline and Thin Film Metal Photocathodes for Normal Conducting Radio Frequency Guns. In Proceedings of the International Particle Accelerator Conference 2015, Richmond, VA, USA, 3–8 May 2015; pp. 1759–1761. [Google Scholar]
- Wang, E.; Litvinenko, V.N.; Pinayev, I.; Gaowei, M.; Skaritka, J.; Belomestnykh, S.; Ben-Zvi, I.; Brutus, J.C.; Jing, Y.; Biswas, J.; et al. Long lifetime of bialkali photocathodes operating in high gradient superconducting radio frequency gun. Sci. Rep. 2021, 11, 4477. [Google Scholar] [CrossRef]
- Zhou, F.; Brachmann, A.; Decker, F.J.; Emma, P.; Gilevich, S.; Iverson, R.; Stefan, P.; Turner, J. High-Brightness Electron Beam Evolution Following Laser-Based Cleaning of a Photocathode. Phys. Rev. Spec. Top.–Accel. Beams 2012, 15, 090703. [Google Scholar] [CrossRef]
- Tomas, C.; Girardeau-Montaut, J.P.; Afif, M.; Romand, M.; Charbonnier, M.; Girardeau-Montaut, C. Photoemission Monitored Cleaning of Pure and Implanted Tungsten Photocathodes by Picosecond Ultraviolet Laser. Appl. Surf. Sci. 1997, 109–110, 509–513. [Google Scholar] [CrossRef]
- Xiang, R.; Arnold, A.; Michel, P.; Murcek, J.; Teichert, J.; Lu, P.; Vennekate, H.; Patra, P. Improvement of Photoemission Efficiency of Magnesium Photocathodes. In Proceedings of the International Particle Accelerator Conference 2017, Copenhagen, Denmark, 14–19 May 2017; pp. 500–502. [Google Scholar]
- Schubert, S.G.; Barday, R.; Kamps, T.; Quast, T.; Siewert, F.; Varykhalov, A.; Nietubyc, R.; Smedley, J.; Weinberg, G. Investigation of Laser-Cleaning Process on Lead Photocathodes. In Proceedings of the International Particle Accelerator Conference 2012, New Orleans, LA, USA, 20–25 May 2012; pp. 1515–1517. [Google Scholar]
- Teichert, J.; Arnold, A.; Ciovati, G.; Deinert, J.-C.; Evtushenko, P.; Justus, M.; Klopf, J.M.; Kneisel, P.; Kovalev, S.; Kuntzsch, M.; et al. Successful User Operation of a Superconducting Radio Frequency Photoelectron Gun with Magnesium Cathodes. Phys. Rev. Accel. Beams 2021, 24, 033401. [Google Scholar] [CrossRef]
- Perrone, A.; Cultrera, L.; Pereira, A.; Rossi, M.; Cialdi, S.; Boscolo, I.; Tazzioli, F.; Vicario, C.; Gatti, G. Ablated Magnesium Films with a Graphite Cover as Photocathodes. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2005, 554, 220–225. [Google Scholar] [CrossRef]
- Assimos, J.A.; Trivich, D. The Photoelectric Threshold, Work Function, and Surface Barrier Potential of Single-Crystal Cuprous Oxide. Phys. Status Solidi A Appl. Mater. Sci. 1974, 26, 477. [Google Scholar] [CrossRef]
- Zhou, F.; Sheppard, J.C.; Vecchione, T.; Jongewaard, E.; Brachmann, A.; Corbett, J.; Ferreira, M.; Gilevich, S.; Lewan-dowski, J.; Vetter, S.; et al. Recent Photocathode Research and Development for the Linac Coherent Light Source Injector. In Proceedings of the Free-Electron Laser Conference 2014, Basel, Switzerland, 25–29 August 2014; pp. 769–773. [Google Scholar]
- Wang, Q.; Liu, J.; Li, Q.; Yang, J. Stability of Photocathodes: A Review on Principles, Design, and Strategies. ChemSusChem Chem. Sustain. Energy Mater. 2023, 16, e202300123. [Google Scholar] [CrossRef]
- Konomi, T.; Honda, Y.; Kako, E.; Kobayashi, Y.; Michizono, S.; Miyajima, T.; Sakai, H.; Umemori, K.; Yamaguchi, S.; Yamamoto, M. Development of High Intensity, High Brightness, CW SRF Gun with Bi-Alkali Photocathode. In Proceedings of the 19th International Conference on RF Superconductivity, Dresden, Germany, 14 August 2019; pp. 1219–1222. [Google Scholar]
- Benjamin, C. Novel Photocathodes for Next Generation Electron Sources. Ph.D. Thesis, University of Warwick, Coventry, UK, 2023. [Google Scholar]
- Le Pimpec, F.; Milne, C.J.; Hauri, C.P.; Ardana-Lamas, F. Quantum efficiency of technical metal photocathodes under laser irradiation of various wavelengths. Appl. Phys. A 2013, 112, 647–661. [Google Scholar] [CrossRef]
- Davis, P.; Eastman, W.; Lucas, D.; Poole, B.; Starenchev, T. Quantum Efficiency Measurements of a Copper Photocathode in a Radio Frequency Electron Gun. In Proceedings of the Particle Accelerator Conference 1993, Washington, DC, USA, 17–20 May 1993; Volume 4, pp. 2976–2978. [Google Scholar]
- Rosenzweig, J.B.; Cahill, A.; Dolgashev, V.; Emma, C.; Fukasawa, A.; Li, R.; Limborg, C.; Maxson, J.; Musumeci, P.; Nause, A.; et al. Next Generation High-Brightness Electron Beams from Ultrahigh Field Cryogenic Radio Frequency Photocathode Sources. Phys. Rev. Accel. Beams 2019, 22, 023403. [Google Scholar] [CrossRef]
- Xie, H. Overview of the semiconductor photocathode research in China. Micromachines 2021, 12, 1376. [Google Scholar] [CrossRef]
- Lorkiewicz, J.; Nietubyc, R.; Sekutowicz, J.; Barlak, M.; Kostin, D.; Kosińska, A.; Barday, R.; Xiang, R.; Mirowski, R.; Grabowski, W. Review and Present Status of Preparation of Thin Layer Lead Photocathodes for Electron Injectors of Superconducting Radio Frequency Linear Accelerators. In Proceedings of the Photonics Applications in Astronomy, Communications, Industry, and High-Energy Physics Experiments, Wilga, Poland, 25–31 May 2015; Proceedings Volume 9662, pp. 852–861. [Google Scholar]
- Perrone, A.; Aziz, M.R.; Gontad, F. Various Configurations for Improving the Efficiency of Metallic and Superconducting Photocathodes Prepared by Pulsed Laser Deposition: A Comparative Review. Materials 2024, 17, 5257. [Google Scholar] [CrossRef]
- Perrone, A.; D’Elia, M.; Gontad, F.; Di Giulio, M.; Maruccio, G.; Cola, A.; Stankova, N.E.; Kovacheva, D.G.; Broitman, E. Non-Conventional Photocathodes Based on Copper Thin Films Deposited on Yttrium Substrate by Sputtering. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2014, 752, 27–32. [Google Scholar] [CrossRef]
- Warren, M.; Akre, R.; Arthurs, M.; Biallas, G.; Edelen, A.; Gondarenko, A.; Helm, M.; Kincaid, P.; McGinnis, D.; Mueller, R.; et al. Development of Hybrid Superconducting Photocathodes on Niobium Using High Quantum Efficiency Coatings. In Proceedings of the 18th International Conference on Radio Frequency Superconductivity 2017, Lanzhou, China, 17–21 July 2017; pp. 205–209. [Google Scholar]
- Gatti, G.; Cultrera, L.; Tazzioli, F.; Vicario, C.; Fiori, A.; Perrone, A.; Ristoscu, C. Measurements of Quantum Efficiency of Magnesium Films Produced by Pulsed Laser Ablation Deposition for Application to High-Brightness Electron Sources. Int. J. Mod. Phys. A 2007, 22, 4051–4060. [Google Scholar] [CrossRef]
- Lorusso, A.; Gontad, F.; Caricato, A.P.; Chiadroni, E.; Broitman, E.; Perrone, A. Structural and Morphological Properties of Metallic Thin Films Grown by Pulsed Laser Deposition for Photocathode Application. Appl. Phys. A Mater. Sci. Process. 2016, 122, 162. [Google Scholar] [CrossRef]
- Li, R.K.; To, H.; Andonian, G.; Feng, J.; Polyakov, A.; Scoby, C.M.; Thompson, K.; Wan, W.; Padmore, H.A.; Musumeci, P. Surface-Plasmon Resonance-Enhanced Multiphoton Emission of High-Brightness Electron Beams from a Nanostructured Copper Cathode. Phys. Rev. Lett. 2013, 110, 074801. [Google Scholar] [CrossRef]
- Boscolo, I.; Michelato, P. Photocathodes: The State of the Art and Some Recent Developments. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2000, 445, 389–393. [Google Scholar] [CrossRef]
- Bamford, D.J.; Bakshi, M.H.; Deacon, D.A.G. The Search for Rugged, Efficient Photocathode Materials. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 1992, 318, 377–380. [Google Scholar] [CrossRef]
- Greaves, C.M.R. Metal Photocathodes for Free Electron Laser Applications. Ph.D. Thesis, University of California, Berkeley, CA, USA, 2012. [Google Scholar]
- Kong, S.H.; Kinross-Wright, J.; Nguyen, D.C.; Sheffield, R.L. Photocathodes for Free Electron Lasers. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 1995, 358, 272–275. [Google Scholar] [CrossRef]
- Prat, E.; Adli, E.; Abela, R.; Aiba, M.; Alarcon, A.; Alex, J.; Arbelo, Y.; Zimoch, E. A Compact and Cost-Effective Hard X-Ray Free-Electron Laser Driven by a High-Brightness and Low-Energy Electron Beam. Nat. Photonics 2020, 14, 748–754. [Google Scholar] [CrossRef]
- Huang, N.; Deng, H.; Liu, B.; Wang, D.; Zhao, Z. Features and Futures of X-Ray Free-Electron Lasers. Innov. Eur. J. Soc. Sci. Res. 2021, 2, 100097. [Google Scholar] [CrossRef]
- Schoenlein, R.W.; Leemans, W.P.; Chin, A.H.; Volfbeyn, P.; Glover, T.E.; Balling, P.; Zolotorev, M.; Kim, K.-J.; Chattopadhyay, S.; Shank, C.V. Femtosecond X-Ray Pulse Generation by Using a Low-Emittance Electron Beam and a High-Brightness Laser for Measurement Applications. Science 1996, 274, 236–238. [Google Scholar] [CrossRef]
- Asakawa, M.; Fujita, M.; Imasaki, K.; Yamanaka, C.; Nakai, S. Development of a Photocathode for Free-Electron Lasers. Rev. Laser Eng. 1995, 23, 55–67. [Google Scholar] [CrossRef]
- Xu, X.; Li, F.; Tsung, F.S.; Miller, K.; Yakimenko, V.; Hogan, M.J.; Joshi, C.; Mori, W.B. Generation of Ultrahigh-Brightness Pre-Bunched Beams from a Plasma Cathode for X-Ray Free-Electron Lasers. Nat. Commun. 2022, 13, 3364. [Google Scholar] [CrossRef]
- Decking, W.; Abeghyan, S.; Abramian, P.; Abramsky, A.; Aguirre, A.; Albrecht, C.; Alou, P.; Altarelli, M.; Altmann, P.; Amyan, K.; et al. A Megahertz-Repetition-Rate Hard X-Ray Free-Electron Laser Driven by a Superconducting Linear Accelerator. Nat. Photonics 2020, 14, 391–397. [Google Scholar] [CrossRef]
- Sobolev, E.; Zolotarev, S.; Giewekemeyer, K. Megahertz Single-Particle Imaging at the European X-Ray Free-Electron Laser. Commun. Phys. 2020, 3, 0362. [Google Scholar] [CrossRef]
- Khakhulin, D.; Otte, F.; Biednov, M.; Bömer, C.; Choi, T.-K.; Diez, M.; Galler, A.; Jiang, Y.; Kubicek, K.; Lima, F.A.; et al. Ultrafast X-Ray Photochemistry at the European X-Ray Free-Electron Laser: Capabilities of the Femtosecond X-Ray Experiments Instrument. Appl. Sci. 2020, 10, 995. [Google Scholar] [CrossRef]
- Dowell, D.H.; Bazarov, I.; Dunham, B.; Harkay, K.; Hernandez Garcia, C.; Legg, R.; Padmore, H.; Rao, T.; Smedley, J.; Wan, W. Cathode Research and Development for Future Light Sources. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2010, 622, 685–697. [Google Scholar] [CrossRef]
- Sabia, E.; Dipace, A.; Dattoli, G. Free Electron Laser Triggered Photocathode. In Proceedings of the FEL 2006, BESSY, Berlin, Germany, 27 August–1 September 2006. [Google Scholar]
- Bacci, A.; Alesini, D.; Antici, P.; Bellaveglia, M.; Boni, R.; Chiadroni, E.; Cianchi, A.; Curatolo, C.; Di Pirro, G.; Esposito, A.; et al. Electron Linear Accelerator Design to Drive Bright Compton Back-Scattering Gamma-Ray Sources. J. Appl. Phys. 2013, 113, 194508. [Google Scholar] [CrossRef]
- Hutton, A. Energy-Recovery Linacs for Energy-Efficient Particle Acceleration. Nat. Rev. Phys. 2023, 5, 708–716. [Google Scholar] [CrossRef]
- Rao, T.; Burrill, A.; Chang, X.Y.; Smedley, J.; Nishitani, T.; Garcia, C.H.; Poelker, M.; Seddon, E.; Hannon, F.E.; Sinclair, C.K. Photocathodes for Energy-Recovery Linacs. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2006, 557, 124–130. [Google Scholar] [CrossRef]
- Neil, G.R.; Bohn, C.L.; Benson, S.V.; Biallas, G.; Douglas, D.; Dylla, H.F.; Evans, R.; Fugitt, J.; Grippo, A.; Gubeli, J. Sustained Kilowatt Lasing in a Free-Electron Laser with Same-Cell Energy Recovery. Phys. Rev. Lett. 2000, 84, 662–665. [Google Scholar] [CrossRef]
- Hajima, R. Energy-Recovery Linacs for Light Sources. Rev. Accel. Sci. Technol. 2010, 3, 121–148. [Google Scholar] [CrossRef]
- Hug, F.; Aulenbacher, K.; Simon, D.; Stoll, C.P.; Thomas, S.D.W. Beam dynamics layot of the MESA ERL. In Proceedings of the 63rd ICFA Advanced Beam Dynamics Workshop on Energy Recovery Linac Technology (ERL2019), Berlin, Germany, 15–20 September 2019; pp. 28–33. [Google Scholar]
- Zhao, Z.T.; Wang, Z.; Feng, C.; Chen, S.; Cao, L. Energy-Recovery Linac-Based Fully Coherent Light Source. Sci. Rep. 2021, 11, 23875. [Google Scholar] [CrossRef]
- Nishimori, N.; Bazarov, I.; Dunham, B.; Grames, J.; Hernandez-Garcia, C.; Jones, L.; Militsyn, B.; Poelker, M.; Surles-Law, K.; Yamamoto, M. ERL09 Working Group 1 Summary: Direct Current Gun Technological Challenges. In Proceedings of the ERL09, Ithaca, NY, USA, 15–19 June 2009; pp. 6–23. [Google Scholar]
- Li, R.K.; Musumeci, P. Single-Shot Megaelectronvolt Transmission Electron Microscopy with Picosecond Temporal Resolution. Phys. Rev. Lett. 2014, 2, 024003. [Google Scholar]
- Musumeci, P.; Moody, J.T.; Scoby, C.M.; Gutierrez, M.S.; Westfall, M. Laser-Induced Melting of a Single-Crystal Gold Sample by Time-Resolved Ultrafast Relativistic Electron Diffraction. Appl. Phys. Lett. 2010, 97, 063502. [Google Scholar] [CrossRef]
- Francois, M.; Marocchino, A.; Chiadroni, E.; Ferrario, M.; Mostacci, A.; Musumeci, P.; Palumbo, L. Transformer Ratio Studies for Single Bunch Plasma Wakefield Acceleration. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2014, 740, 242–245. [Google Scholar]
- Xiang, R.; Teichert, J. Photocathodes for High Brightness Photo Injectors. Phys. Procedia 2015, 77, 58–65. [Google Scholar] [CrossRef]
- Filippetto, D.; Grames, J.; Hernandez-Garcia, C.; Karkare, S.; Piot, P.; Power, J.; Sun, Y.; Wang, E. Electron Sources for Accelerators. arXiv 2022, arXiv:2207.08875. [Google Scholar] [CrossRef]
- Perrone, A.; Aziz, M.R.; Vainos, N.A. The Influence of Laser Cleaning Treatment on the Quantum Efficiency of Common Metallic Photocathodes: An Overview. Materials 2025, 18, 690. [Google Scholar] [CrossRef]
- Schaber, J.; Xiang, R.; Gaponik, N. Review of Photocathodes for Electron Beam Sources in Particle Accelerators. J. Mater. Chem. C 2023, 11, 3162–3179. [Google Scholar] [CrossRef]
- Xiang, R.; Schaber, J. Review of Recent Progress on Advanced Photocathodes for Superconducting RF Guns. Micromachines 2022, 13, 1241. [Google Scholar] [CrossRef]
- Musumeci, P.; Cultrera, L.; Ferrario, M.; Filippetto, D.; Gatti, G.; Gutierrez, M.S.; Moody, J.T.; Moore, N.; Rosenzweig, J.B.; Scoby, C.M.; et al. Multiphoton Photoemission from a Copper Cathode Illuminated by Ultrashort Laser Pulses in an RF Photoinjector. Phys. Rev. Lett. 2010, 104, 084801. [Google Scholar] [CrossRef]
- Divall, M.C.; Prat, E.; Bettoni, S.; Vicario, C.; Trisorio, A.; Schietinger, T.; Hauri, C.P. Intrinsic Emittance Reduction of Copper Cathodes by Laser Wavelength Tuning in an RF Photoinjector. Phys. Rev. Spec. Top.–Accel. Beams 2015, 18, 033401. [Google Scholar] [CrossRef]
- Chiadroni, E.; Bacci, A.; Bellaveglia, M.; Boscolo, M.; Castellano, M.; Cultrera, L.; Lupi, S. The SPARC Linear Accelerator Based Terahertz Source. Appl. Phys. Lett. 2013, 102, 094101. [Google Scholar] [CrossRef]
- Yu, K.; Zhang, H.; Liu, Y.; Liu, Y. Study of normal spectral emissivity of copper during thermal oxidation at different temperatures and heating times. Int. J. Heat Mass Transf. 2019, 129, 1066–1074. [Google Scholar] [CrossRef]
- Hunderi, O.; Beaglehole, D. On the Reflectivity of Rough Metal Surfaces. Phys. Lett. A 1969, 29, 335–336. [Google Scholar] [CrossRef]
- Peiponen, K.E.; Tsuboi, T. Metal Surface Roughness and Optical Reflectance. Opt. Laser Technol. 1990, 22, 127–130. [Google Scholar] [CrossRef]
- Kasai, H.; Padama, A.A.B.; Chantaramolee, B.; Arevalo, R.L. Hydrogen and Hydrogen-Containing Molecules on Metal Surfaces. In Hydrogen in Metals V; Springer: Berlin/Heidelberg, Germany, 2020; pp. 31–72. [Google Scholar]
- Li, Z.; Huang, W. Reactivity of Hydrogen Species on Oxide Surfaces. Sci. China Chem. 2021, 64, 1076–1087. [Google Scholar] [CrossRef]
- Bungaro, C.; Noguera, C.; Ballone, P.; Kress, W. Early Oxidation Stages of Magnesium (0001): A Density Functional Study. Phys. Rev. Lett. 1997, 79, 4433–4436. [Google Scholar] [CrossRef]
- Liu, Y.; Li, F.; Tian, H.; Wang, G.; Wang, X. Influence of Ion Beam Surface Treatment on the Emission Performance of Photocathodes. Nanoscale Adv. 2022, 4, 3517–3523. [Google Scholar] [CrossRef]
- Pavlenko, V.; Liu, F.; Hoffbauer, M.A.; Moody, N.A.; Batista, E.R. Kinetics of alkali-based photocathode degradation. AIP Adv. 2016, 6, 115008. [Google Scholar] [CrossRef]
- Cashman, R.J.; Huxford, W.S. Photoelectric Properties of Pure and Gas-Contaminated Magnesium. Phys. Rev. 1935, 48, 734–740. [Google Scholar] [CrossRef]
- Christmann, K. Interaction of Hydrogen with Solid Surfaces. Surf. Sci. Rep. 1988, 9, 1–163. [Google Scholar] [CrossRef]
- Johansson, M.; Ostenfeld, C.W.; Chorkendorff, I. Adsorption of Hydrogen on Clean and Modified Magnesium Films. Phys. Rev. B 2006, 74, 193408. [Google Scholar] [CrossRef]
- Mistry, S.; Cropper, M.; Valizadeh, R.; Jones, L.B.; Middleman, K.J.; Hannah, A.N.; Militsyn, B.L.; Noakes, T.C.Q. A Comparison of Surface Properties of Metallic Thin Film Photocathodes. In Proceedings of the IPAC2016, Busan, Republic of Korea, 8–13 May 2016. [Google Scholar]
- Spicer, W.E.; Herrera-Gomez, A. Modern Theory and Applications of Photocathodes. In Proceedings of the SPIE Photodetectors and Power Meters Conference 1993, San Jose, CA, USA, 25–28 January 1993; Volume 2022, pp. 18–35. [Google Scholar]
- Fischer, J.; Srinivasan-Rao, T. Ultraviolet Photoemission Studies of Metal Photocathodes for Particle Accelerators. In Proceedings of the Fourth Workshop on Pulse Power Techniques for Future Accelerators, Erice, Italy, 5–9 March 1988. [Google Scholar]
- Scifo, J.; Lorusso, A.; Chiadroni, E.; Cinquegrana, P.; Dabagov, S.; Danailov, M.; Demidovich, A.; Ferrario, M.; Garzella, D.; Giribono, A.; et al. Photoemission Studies of Yttrium Photocathodes Using Visible Radiation. Phys. Rev. Spec. Top.–Accel. Beams 2020, 23, 123401. [Google Scholar] [CrossRef]
- Gontad, F.; Lorusso, A.; Klini, A.; Manousaki, A.; Perrone, A.; Fotakis, C. Growth of Polycrystalline Copper Films on Yttrium Substrates by Picosecond Pulsed Laser Deposition for Photocathode Applications. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2015, 799, 70–74. [Google Scholar] [CrossRef]
- Michaelson, H.B. The Work Function of the Elements and Its Periodicity. J. Appl. Phys. 1977, 48, 4729–4733. [Google Scholar] [CrossRef]
- Jamison, N.C.; Cashman, R.J. Photoelectric Properties of Barium and Calcium. Phys. Rev. 1936, 50, 624–631. [Google Scholar] [CrossRef]
- Lorusso, A.; Trovò, M.; Demidovich, A.; Cinquegrana, P.; Gontad, F.; Broitman, E.; Chiadroni, E.; Perrone, A. Pulsed Laser Deposition of Yttrium Photocathode Suitable for Use in Radio Frequency Guns. Appl. Phys. A Mater. Sci. Process. 2017, 123, 779. [Google Scholar] [CrossRef]
- Lorusso, A.; Perrone, A.; Gontad, F. Overview on development of metallic and superconducting photocathodes by the PLD technique for linear accelerator sources. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2019, 942, 162429. [Google Scholar] [CrossRef]
- Lorusso, A.; Gontad, F.; Broitman, E.; Chiadroni, E.; Perrone, A. Characterization of Lead Thin Films Prepared by the Nanosecond Pulsed Laser Deposition Technique for Photocathode Application. Thin Solid Film. 2015, 579, 50–56. [Google Scholar] [CrossRef]
- Hand, L.N.; Happek, U. Photoelectric Quantum Efficiency of Niobium for Wavelengths of 193 and 248 Nanometers. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 1996, 372, 335–338. [Google Scholar] [CrossRef]
- Van Loy, M.D.; Young, A.T.; Leung, K.N. Measurements of Barium Photocathode Quantum Yields at Four Excimer Laser Wavelengths. Appl. Phys. Lett. 1993, 63, 476–478. [Google Scholar] [CrossRef]
- Conde, M.E.; Chattopadhyay, S.; Kim, K.-J.; Kwon, S.-I.; Leung, K.-N. Electron Quantum Yields from a Barium Photocathode Illuminated with Polarized Light. In Proceedings of the Particle Accelerator Conference 1993, Washington, DC, USA, 17–20 May 1993; pp. 3042–3044. [Google Scholar]
- Noakes, T.C.Q.; Jones, L.B.; Jackson, F.; Jones, J.; Militsyn, B.L.; Angal-Kalinin, D.; Vick, A.; Valizadeh, R.; Hannah, A.N.; Middleman, K.J.; et al. Copper Photocathodes for the Modified 10 Hz Gun on the CLARA Accelerator. In Proceedings of the International Particle Accelerator Conference 2023, Venice, Italy, 7–12 May 2023. [Google Scholar]
- Cultrera, L.; Gatti, G.; Miglietta, P.; Tazzioli, F.; Perrone, A.; Moody, J.T.; Musumeci, P. Electron Emission Characterization of Magnesium Photocathode Grown by Pulsed Laser Deposition Within an S-Band Radio Frequency Gun. Phys. Rev. Spec. Top.–Accel. Beams 2009, 12, 043502. [Google Scholar] [CrossRef]
- Xiang, R.; Arnold, A.; Murcek, P.; Teichert, J.; Schaber, J. Metal and Semiconductor Photocathodes in Superconducting Radio Frequency Guns. In Proceedings of the 63rd ICFA Advanced Beam Dynamics Workshop on Energy Recovery Linacs ERL2019, Berlin, Germany, 15–20 September 2019. [Google Scholar]
- Xiang, R.; Arnold, A.; Kamps, T.; Lu, P.; Michel, P.; Murcek, P.; Vennekate, H.; Staats, G.; Teichert, J. Experimental Studies of Dark Current in a Superconducting Radio Frequency Photoinjector. Phys. Rev. Spec. Top.–Accel. Beams 2014, 17, 043401. [Google Scholar] [CrossRef]
- Graves, W.S.; DiMauro, L.F.; Heese, R.; Johnson, E.D.; Rose, J.; Rudati, J.; Shaftan, T.; Sheehy, B. Measurements of Thermal Emittance for a Copper Photocathode. In Proceedings of the Particle Accelerator Conference 2001, Chicago, IL, USA, 18–22 June 2001. [Google Scholar]
- Schmerge, J.F.; Castro, J.M.; Clendenin, J.E.; Dowell, D.H.; Gierman, S.M.; Hettel, R.O. Emittance and Quantum Efficiency Measurements from a One-and-Six-Tenths-Cell S-Band Photocathode RF Gun with Magnesium Cathode. In Proceedings of the 26th International Free Electron Laser Conference 2004, Trieste, Italy, 29 August–3 September 2004. [Google Scholar]
- Xiang, D.; Huang, W.H.; Du, Y.C.; Yan, L.X.; Li, R.K.; Tang, C.X.; Park, J. First-Principles Measurements of Thermal Emittance for Copper and Magnesium. In Proceedings of the Particle Accelerator Conference 2007, Albuquerque, NM, USA, 25–29 June 2007. [Google Scholar]
- Wang, X.J.; Babzien, M.; Malone, R.; Wu, Z. Magnesium Cathode and Its Thermal Emittance. In Proceedings of the Linear Accelerator Conference 2002, Gyeongju, Republic of Korea, 19–23 August 2002. [Google Scholar]
- Qian, H.J.; Murphy, J.B.; Shen, Y.; Tang, C.X.; Wang, X.J. Surface Photoemission in a High-Brightness Electron Beam Radio Frequency Gun. Appl. Phys. Lett. 2010, 97, 253504. [Google Scholar] [CrossRef]
- Hauri, C.P.; Ganter, R.; Le Pimpec, F.; Trisorio, A.; Ruchert, C.; Braun, H.H. Intrinsic Emittance Reduction of an Electron Beam from Metal Photocathodes. Phys. Rev. Lett. 2010, 104, 234802. [Google Scholar] [CrossRef]
- Scifo, J.; Alesini, D.; Anania, M.P.; Bellaveglia, M.; Bellucci, S.; Biagioni, A.; Villa, F. Nano-Machining, Surface Analysis, and Emittance Measurements of a Copper Photocathode at SPARC_LAB. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2018, 909, 233–238. [Google Scholar] [CrossRef]
- Hannah, A.N.; Conlon, J.; Militsyn, B.L.; Noakes, T.C.Q.; Jones, L.B.; Valizadeh, R.; Dhanak, V. Metal Photocathodes Preparation for Compact Linear Accelerator at Daresbury Laboratory. In Proceedings of the 9th International Particle Accelerator Conference (IPAC’18), Vancouver, BC, Canada, 29 April–4 May 2018; pp. 3865–3868. [Google Scholar]
- Akbi, M. A method for measuring the photoelectric work function of contact materials versus temperature. IEEE Trans. Compon. Packag. Manuf. Technol. 2014, 4, 1293–1302. [Google Scholar] [CrossRef]
- Dowell, D.H.; Schmerge, J.F. Quantum Efficiency and Thermal Emittance of Metal Photocathodes. Phys. Rev. Spec. Top.—Accel. Beams 2009, 12, 074201. [Google Scholar] [CrossRef]
- Hagemann, H.-J.; Gudat, W.; Kunz, C. Optical Constants from the Far Infrared to the X-Ray Region: Magnesium, Aluminum, Copper, Silver, Gold, Bismuth, Carbon, and Aluminum Oxide. J. Opt. Soc. Am. 1975, 65, 742–744. [Google Scholar] [CrossRef]
- Lorusso, A.; Gontad, F.; Solombrino, L.; Chiadroni, E.; Broitman, E.; Perrone, A. Tight Comparison of Magnesium and Yttrium Thin Film Photocathodes Obtained by the Pulsed Laser Deposition Technique. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2016, 836, 57–60. [Google Scholar] [CrossRef]
- Werner, W.S.M.; Glantschnig, K.; Ambrosch-Draxl, C. Optical Constants and Inelastic Electron-Scattering Data for Seventeen Elemental Metals. J. Phys. Chem. Ref. Data 2009, 38, 1013–1092. [Google Scholar] [CrossRef]
- Golovashkin, A.I.; Leksina, I.E.; Motulevich, G.P.; Shubin, A.A. The Optical Properties of Niobium. Sov. Phys. JETP 1969, 29, 27–34. [Google Scholar]
- Gray, D.E. (Ed.) American Institute of Physics Handbook, 3rd ed.; McGraw-Hill: New York, NY, USA, 1972. [Google Scholar]
- Golovashkin, A.I.; Motulevich, G.P. Optical Properties of Lead in the Visible and Infrared Spectral Ranges. Sov. Phys. JETP 1968, 26, 881–887. [Google Scholar]
- Weaver, J.H.; Lynch, D.W.; Olson, C.G. Optical Properties of Niobium from 0.1 to 36.4 Electronvolts. Phys. Rev. B 1971, 7, 4311–4318. [Google Scholar] [CrossRef]
- Haynes, W.M. (Ed.) CRC Handbook of Chemistry and Physics, 95th ed.; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
- Santjojo, D.J.; Aizawa, T.; Muraishi, S. Ellipsometric Characterization of Multilayered Thin Film Systems During Hydrogenation. Mater. Trans. 2007, 48, 1380–1386. [Google Scholar] [CrossRef]
- Kesarwani, R.; Dey, P.P.; Khare, A. Correlation between surface scaling behavior and surface plasmon resonance properties of semitransparent nanostructured Cu thin films deposited via PLD. RSC Adv. 2019, 9, 7967–7974. [Google Scholar] [CrossRef]
- Karst, J.; Hentschel, M.; Sterl, F.; Linnenbank, H.; Ubl, M.; Giessen, H. Optimizing magnesium thin films for optical switching applications: Rules and recipes. Opt. Mater. Express 2020, 10, 1346–1362. [Google Scholar] [CrossRef]
- Broitman, E.; Lorusso, A.; Perrone, A.; Karoutsos, V.; Vainos, N.A.; Gontad, F. Nanomechanical and Microtribological Properties of Yttrium Thin Films for Photocathode Engineering. J. Vac. Sci. Technol. A 2019, 37, 0315071–0315076. [Google Scholar] [CrossRef]
- Broitman, E.; Flores-Ruiz, F.J.; Di Giulio, M.; Gontad, F.; Lorusso, A.; Perrone, A. Microstructural, Nanomechanical and Microtribological Properties of Pb Thin Films Prepared by Pulsed Laser Deposition and Thermal Evaporation Techniques. J. Vac. Sci. Technol. A 2016, 34, 021505. [Google Scholar] [CrossRef]
- Gontad, F.; Lorusso, A.; Manousaki, A.; Klini, A.; Perrone, A. Morphology and Structure of Nb Thin Films Grown by Pulsed Laser Deposition at Different Substrate Temperatures. J. Mater. Sci. Technol. 2016, 32, 1192–1196. [Google Scholar] [CrossRef]
- Lide, D.R. (Ed.) CRC Handbook of Chemistry and Physics, 82nd ed.; CRC Press: Boca Raton, FL, USA, 2001. [Google Scholar]
- Salazar, A. On Thermal Diffusivity. Eur. J. Phys. 2003, 24, 351–358. [Google Scholar] [CrossRef]
- Jackson, F.; Cowie, L.S.; Furmaniak, M.; Goudket, P.; Militsyn, B.L.; McKenzie, J.W.; Noakes, T.C.Q. Characteristics of Dark Current from a S-Band RF Gun with Exchangeable Photocathode System. arXiv 2024, arXiv:2403.00700v3. [Google Scholar] [CrossRef]
- Benjamin, C.; Seddon, S.D.; Walker, M.; Jones, L.B.; Noakes, T.C.Q.; Bell, G.R. Towards Dark Current Suppression in Metallic Photocathodes by Selected-Area Oxidation. Heliyon 2024, 10, e31461. [Google Scholar] [CrossRef]
- Nilsson, A.; Pettersson, L.G.M. Adsorbate Electronic Structure and Bonding on Metal Surfaces. In Chemical Bonding at Surfaces and Interfaces; Nørskov, J.K., Ed.; Elsevier: Amsterdam, The Netherlands, 2008; pp. 57–142. [Google Scholar]
- Jenninger, B.; Chiggiato, P. Computer-Assisted Spectrometry Tutorial on Residual Gas Analyzer Interpretation of Spectra. In Proceedings of the CERN Accelerator School: Vacuum for Particle Accelerators, Glumslov, Sweden, 6–23 June 2017. [Google Scholar]
- Choi, E.H.; Lim, J.Y.; Kang, S.O.; Uhm, H.S. Measurement of Work Function at Magnesium Oxide Crystal Surface by the Gamma-Focused Ion Beam System. Jpn. J. Appl. Phys. 2002, 41, L1006. [Google Scholar] [CrossRef]
- Mongstad, T.; Thøgersen, A.; Subrahmanyam, A.; Karazhanov, S. The Electronic State of Thin Films of Yttrium, Yttrium Hydrides, and Yttrium Oxide. Sol. Energy Mater. Sol. Cells 2014, 128, 270–274. [Google Scholar] [CrossRef]
- Droubay, T.C.; Chambers, S.A.; Joly, A.G.; Hess, W.P.; Németh, K.; Harkay, K.C.; Spentzouris, L. Work Function Reduction by Barium Oxide: Growth of Crystalline Barium Oxide on Silver(001) and Silver(111) Surfaces. Phys. Rev. Lett. 2014, 112, 067601. [Google Scholar] [CrossRef]
- Yuan, Q.; Baum, A.W.; Pease, R.F.W.; Pianetta, P. Effect of Oxygen Adsorption on the Efficiency of Magnesium Photocathodes. J. Vac. Sci. Technol. B Microelectron. Nanometer-Scale Struct. Process. Meas. Phenom. 2003, 21, 2830–2833. [Google Scholar]
- Benjamin, C.; Churn, H.M.; Rehaag, T.J.; Jones, L.B.; Bell, G.R.; Noakes, T.C.Q. Photocathode Performance Characterization of Ultra-Thin Magnesium Oxide Films on Polycrystalline Copper. J. Phys. Conf. Ser. 2023, 2420, 012032. [Google Scholar] [CrossRef]
- Mishra, K.C.; Garner, R.; Schmidt, P.C. Model of Work Function of Tungsten Cathodes with Barium Oxide Coating. J. Appl. Phys. 2004, 95, 3069–3074. [Google Scholar] [CrossRef]
- Cultrera, L.; Grigorescu, S.; Gatti, G.; Miglietta, P.; Tazzioli, F.; Perrone, A. Photoelectron Emission from Yttrium Thin Films Prepared by Pulsed Laser Deposition. J. Nanosci. Nanotechnol. 2009, 9, 1585–1588. [Google Scholar] [CrossRef]
- Cultrera, L.; Gatti, G.; Miglietta, P.; Tazzioli, F.; Perrone, A. The Role of Adsorbed Gases on the Photoelectron Performance of Magnesium-Based Photocathodes. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2008, 587, 7–12. [Google Scholar] [CrossRef]
- Feng, C.; Zhang, Y.; Liu, J.; Qian, Y.; Zhang, J.; Zhao, J.; Shi, F.; Bai, X. Optimized chemical cleaning procedure for enhancing photoemission from GaAs photocathode. Mater. Sci. Semicond. Process. 2019, 91, 41–46. [Google Scholar] [CrossRef]
- Mistry, S. Preparation and Evaluation of Metal Surfaces for Use as Photocathodes. Doctoral Dissertation, Loughborough University, Loughborough, UK, 2018. [Google Scholar]
- Large, L.N.; Whitlock, W.S. Secondary Electron Emission from Clean Metal Surfaces Bombarded by Fast Hydrogen Ions. Proc. Phys. Soc. 1962, 79, 148. [Google Scholar] [CrossRef]
- Veal, T.D.; McConville, C.F. Controlled Oxide Removal for the Preparation of Damage-Free InAs(110) Surfaces. Appl. Phys. Lett. 2000, 77, 1665. [Google Scholar] [CrossRef]
- Taglauer, E. Surface Cleaning Using Sputtering. Appl. Phys. A 1990, 51, 238–251. [Google Scholar]
- Xiang, R. Robust Mg Cathodes in SRF Gun-II. In Proceedings of the European Workshop on Photocathodes for Particle Accelerator Applications (EWPAA 2019), Villigen, Switzerland, 11–13 September 2019. [Google Scholar]
- Owais, A.; Gepreel, M.A.H.; Ahmed, E. Effect of Thermal Treatment of Copper Anodes on Electrorefining Process. Hydrometallurgy 2015, 152, 55–60. [Google Scholar] [CrossRef]
- Cultrera, L.; Ristoscu, C.; Gatti, G.; Miglietta, P.; Tazzioli, F.; Perrone, A. Photoemission Characteristics of PLD Grown Mg Films under UV Laser Irradiation. J. Phys. D Appl. Phys. 2007, 40, 5965–5970. [Google Scholar] [CrossRef]
- Miglietta, P.; Cultrera, L.; Cojanu, C.; Papadopoulou, E.L.; Perrone, A. Magnesium-Based Photocathodes Prepared by Nanosecond, Picosecond and Femtosecond Pulsed Laser Deposition for High-Brightness Electron Beam Production. Appl. Surf. Sci. 2009, 255, 5228–5231. [Google Scholar] [CrossRef]
- Porshyn, V.; Serbun, P.; Bürger, H.; Soykarci, S.; Lützenkirchen-Hecht, D. Laser Treatment of Niobium Surfaces for Superconducting Radio Frequency Applications. In Proceedings of the International Particle Accelerator Conference 2018, Vancouver, BC, Canada, 29 April–4 May 2018; Volume 1067, p. 082011. [Google Scholar]
- Zhao, Q.; Srinivasan-Rao, T.; Cole, M. Tests of Niobium Cathode for the Superconducting Radio Frequency Gun. In Proceedings of the Particle Accelerator Conference 2003, Portland, OR, USA, 12–16 May 2003; Volume 3, pp. 2047–2049. [Google Scholar]
- Hao, G.; Zhang, Y.; Jin, M.; Feng, C.; Chen, X.; Chang, B. The effect of surface cleaning on quantum efficiency in AlGaN photocathode. Appl. Surf. Sci. 2015, 324, 590–593. [Google Scholar]
- Qian, H.J.; Li, C.; Du, Y.C.; Yan, L.X.; Hua, J.F.; Huang, W.H.; Tang, C.X. Experimental Investigation of Thermal Emittance Components of Copper Photocathode. Phys. Rev. Spec. Top.–Accel. Beams 2012, 15, 040102. [Google Scholar] [CrossRef]
- Iijima, H.; Uesaka, M.; Ueda, T.; Yoshii, K.; Muroya, Y.; Fukasawa, A.; Dobashi, K.; Washio, M.; Kashiwagi, S. High Charge Magnesium Photocathode Radio Frequency Gun in S-Band Linear Accelerator at the University of Tokyo. In Proceedings of the European Particle Accelerator Conference 2002, Paris, France, 3–7 June 2002; pp. 1771–1773. [Google Scholar]
- Nakajyo, T.; Yang, J.; Sakai, F.; Aoki, Y. Quantum Efficiencies of Magnesium Photocathode Under Illumination with Third and Fourth Harmonics of Nd:LiYF4 Laser Light in Radio Frequency Gun. Jpn. J. Appl. Phys. 2003, 42, 1470–1474. [Google Scholar] [CrossRef]
- Wang, X.J.; Rao, T.S.; Batchelor, K.; Ben-Zvi, I.; Fischer, J. Measurements on Photoelectrons from a Magnesium Cathode in a Microwave Electron Gun. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 1995, 356, 159–166. [Google Scholar] [CrossRef]
- Martinez-Calderon, M.; Groussin, B.; Bjelland, V.; Chevallay, E.; Himmerlich, M.; Lorenz, P.; Granados, E. Performance of Laser Patterned Copper Plasmonic Photocathodes. J. Phys. Conf. Ser. 2024, 2687, 032033. [Google Scholar] [CrossRef]
- Srinivasan-Rao, T.; Schill, J.; Ben-Zvi, I.; Woodle, M. Sputtered Magnesium as a Photocathode Material for Radio Frequency Injectors. Rev. Sci. Instrum. 1998, 69, 2292–2296. [Google Scholar] [CrossRef]
- Schiller, S.; Goedicke, K.; Reschke, J.; Kirchhoff, V.; Schneider, S.; Milde, F. Pulsed Magnetron Sputter Technology. Surf. Coat. Technol. 1993, 61, 331–337. [Google Scholar] [CrossRef]
- Mostafa, A.M. The Influence of Various Parameters on the Ablation and Deposition Mechanisms in Pulsed Laser Deposition. Plasmonic 2025, 20, 5627–5645. [Google Scholar] [CrossRef]
- Xiang, Y.; Chen, X.; Vlassak, J.J. The Mechanical Properties of Electroplated Copper Thin Films Measured by Means of the Bulge Test Technique. In Materials Research Society Symposium Proceedings; Materials Research Society: Warrendale, PA, USA, 2002; Volume 695. [Google Scholar]
- Pérez-Prado, T.; Vlassak, J.J. Microstructural Evolution in Electroplated Copper Thin Films. Scr. Mater. 2002, 47, 817–823. [Google Scholar] [CrossRef]
- Kelly, P.J.; Arnell, R.D. Magnetron Sputtering: A Review of Recent Developments and Applications. Vacuum 2000, 56, 159–172. [Google Scholar] [CrossRef]
- Perrone, A.; Gontad, F.; Lorusso, A.; Di Giulio, M.; Broitman, E.; Ferrario, M. Comparison of the Properties of Pb Thin Films Deposited on Nb Substrate Using Thermal Evaporation and Pulsed Laser Deposition Techniques. Nucl. Instrum. Methods Phys. Res. Sect. A 2013, 729, 451–455. [Google Scholar] [CrossRef]
- Girardeau-Montaut, J.P.; Afif, M.; Tomas, C.; Obaton, A.F.; Girardeau-Montaut, C.; Warda, K. Ultrafast Photoelectric Emission from New Solid Materials. Appl. Surf. Sci. 1996, 106, 451–456. [Google Scholar] [CrossRef]
- Garg, R.; Gonuguntla, S.; Sk, S.; Iqbal, M.S.; Dada, A.O.; Pal, U.; Ahmadipour, M. Sputtering Thin Films: Materials, Applications, Challenges and Future Directions. Adv. Colloid Interface Sci. 2024, 330, 103203. [Google Scholar] [CrossRef]
- De Giorgi, M.L.; Aziz, M.R.; Manousaki, A.; Perrone, A.; Klini, A. Sub-ps Pulsed Laser Deposition of Boron Films for Neutron Detector Applications. Materials 2023, 16, 1512. [Google Scholar] [CrossRef]
- Pelletier, J.; Anders, A. Plasma-Based Ion Implantation and Deposition: A Review of Physics, Technology, and Applications. IEEE Trans. Plasma Sci. 2005, 33, 1944–1959. [Google Scholar] [CrossRef]
- Gontad, F.; Lorusso, A.; Klini, A.; Broitman, E.; Perrone, A.; Fotakis, C. Fabrication of Niobium/Lead Structures through Ultrashort Pulsed Laser Deposition. J. Vac. Sci. Technol. A Vac. Surf. Film. 2016, 34, 041501. [Google Scholar] [CrossRef]
Mg | Before LCT | 5.0 × 10−4 | [134] |
---|---|---|---|
After 200 lpps * | 8.9 × 10−4 | [124] | |
After 300 lpps | 1.1 × 10−3 | [124] | |
After 400 lpps | 1.4 × 10−3 | [124] | |
After 500 1pps | 1.8 × 10−3 | [124] | |
Y | Before LCT | ~10−5 | [74] |
After 100 lpps | 1.2 × 10−4 | [74] | |
After 400 lpps | 2.8 × 10−4 | [74] | |
After 900 lpps | 3.3 × 10−4 | [74] | |
Pb | Before LCT | 3.0 × 10−5 | [80] |
After thousands lpps | 8.0 × 10−5 | [80] |
Mg Thin Film on Cu Back-Flange | Y Thin Film on Cu Back-Flange | Pb Thin Film on Nb Back-Flange | |
---|---|---|---|
Compatibility with a Cu RF gun | High | Medium | - |
Compatibility with a Nb SRF gun | - | - | High |
Mg Bulk Cathode with Cu-Mask | Y Bulk Cathode with Cu-Mask | Pb Bulk Cathode with Nb-Mask | |
---|---|---|---|
Compatibility with a Cu RF gun | Very high | High | - |
Compatibility with a Nb SRF gun | - | - | Very high |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Perrone, A.; Aziz, M.R.; Gontad, F.; Vainos, N.A.; Caricato, A.P. A Practical Guide Paper on Bulk and PLD Thin-Film Metals Commonly Used as Photocathodes in RF and SRF Guns. Chemistry 2025, 7, 123. https://doi.org/10.3390/chemistry7040123
Perrone A, Aziz MR, Gontad F, Vainos NA, Caricato AP. A Practical Guide Paper on Bulk and PLD Thin-Film Metals Commonly Used as Photocathodes in RF and SRF Guns. Chemistry. 2025; 7(4):123. https://doi.org/10.3390/chemistry7040123
Chicago/Turabian StylePerrone, Alessio, Muhammad Rizwan Aziz, Francisco Gontad, Nikolaos A. Vainos, and Anna Paola Caricato. 2025. "A Practical Guide Paper on Bulk and PLD Thin-Film Metals Commonly Used as Photocathodes in RF and SRF Guns" Chemistry 7, no. 4: 123. https://doi.org/10.3390/chemistry7040123
APA StylePerrone, A., Aziz, M. R., Gontad, F., Vainos, N. A., & Caricato, A. P. (2025). A Practical Guide Paper on Bulk and PLD Thin-Film Metals Commonly Used as Photocathodes in RF and SRF Guns. Chemistry, 7(4), 123. https://doi.org/10.3390/chemistry7040123
