Continuous Deoxygenation of Palmitic Acid, Methyl Palmitate, and Licuri Biodiesel over Granular Pd/C Catalysts in a Trickle-Bed Reactor

Abstract

Biofuels offer potential to mitigate climate change, increase energy security, and economically support farmers around the world. Licuri (Syagrus coronata) could be an important biofuel feedstock because its kernel (edible seed) has high energy content. This research investigates the optimal reaction conditions to convert fatty acids (FAs) and fatty acid methyl esters (FAMEs) (including licuri biodiesel) to hydrocarbons via deoxygenation in a trickle-bed reactor over granular Pd/C catalysts. Our results indicate that a 20 wt.% palmitic acid (PA) feed is optimum for continuous deoxygenation at 300 °C and 15 bar in 5% H₂/He because of decarboxylation inhibition at higher concentrations. Deoxygenation rates are higher for PA than for methyl palmitate (MP) because of the slow initial hydrogenolysis of the methoxy bond over Pd/C. The hydrocarbon product distributions from deoxygenation of licuri biodiesel were fully consistent with FA decarboxylation and decarbonylation. A lab-prepared 5 wt.% Pd/C catalyst with higher metal dispersion provided modestly higher hydrocarbon yields from licuri biodiesel than a commercial 1 wt.% Pd/C catalyst.

1. Introduction

Liquid biofuels have the potential to help mitigate climate change, provide energy security, and support farmers around the world. Many countries began researching alternatives to fossil fuel-based transportation fuels as a result of the OPEC oil embargo of the 1970s. Due to increasing population and global industrialization, the consumption of fossil fuels and demand for energy continues to increase. Alternative (renewable) energy resources are an option to mitigate fossil-fuel demand and help improve logistics. International air travel has expanded at a considerable rate in recent decades, but the commercial aviation industry aims to achieve carbon-neutral growth and reduce CO₂ emissions in 2050 by 50% relative to 2005. A set of metrics that include technological and operational improvements and replacement of petroleum jet fuel by renewable fuels are being evaluated [1]. Drop-in replacement fuels that do not require jet-engine modifications are the most desirable. Currently, there are five approved methods to produce bio-jet fuel for blending to jet fuel [1]. Synthetic paraffinic kerosene (SPK) from hydro-processed esters and fatty acids (HEFAs) is a leading candidate for a process that leverages existing catalytic technology. HEFA production typically comprises catalytic hydrodeoxygenation (HDO) of triglycerides, fatty acids, and esters by reaction with hydrogen (H₂) at high temperatures and pressures over sulfided CoMo or NiMo catalysts [2]. Because H₂ consumption (to form water) is inherent to the HDO process, it typically requires an external H₂ source.

Catalytic deoxygenation of fatty acids (FAs) to hydrocarbons occurs via three reaction pathways: (1) decarboxylation (DCX), (2) decarbonylation (DCN), and (3) HDO.

$${\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}-1}\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}\to {\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}}+{\mathrm{C}\mathrm{O}}_2$$

(1)

$${\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}-1}\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}+{\mathrm{H}}_2\to {\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}}+\mathrm{C}\mathrm{O}+{\mathrm{H}}_2\mathrm{O}$$

(2)

$${\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}-1}\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}+{3\mathrm{H}}_2\to {\mathrm{C}}_{\mathrm{n}}{\mathrm{H}}_{2\mathrm{n}+2}+{2\mathrm{H}}_2\mathrm{O}$$

(3)

where n is the FA chain length. The water–gas shift reaction (WGSR) must also be considered under typical reaction conditions:

$$\mathrm{C}\mathrm{O}+ {\mathrm{H}}_2\mathrm{O}\to {\mathrm{C}\mathrm{O}}_2+ {\mathrm{H}}_2$$

(4)

The DCX pathway (1) offers the advantage of very low H₂ consumption (zero, in principle) in comparison to DCN (2) and especially HDO (3). Our research has focused on DCX/DCN of FAs and their derivatives over carbon-supported Pd catalysts. Murzin and coworkers [3,4] were the first to report DCX of stearic acid to n-heptadecane over a Pd/C catalyst at 300 °C in the absence of H₂. Unfortunately, the Pd/C catalyst deactivates rapidly under these conditions because of build-up of carbonaceous residues, making a low gas-phase H₂ partial pressure necessary to maintain activity. Typically, ~5% H₂ at 15 bar is added to the gas phase to minimize hydrogen consumption and because the DCX pathway is inhibited at higher H₂ partial pressures [5]. CO, added either externally or generated in situ via DCN, has also been demonstrated to inhibit the DCN reaction [6].

Most of the FA deoxygenation experiments reported to date have involved semi-batch or fed-batch reactor operation [3,4,5,6,7,8]. Industrially, continuous fixed-bed reactors are more important and are used to evaluate catalyst properties over longer reaction times [9,10,11,12]. A trickle-bed reactor, where gas and liquid contact catalyst particles in a fixed bed, is an obvious choice for a continuous reactor for deoxygenation of FAs and fatty acid methyl esters (FAMEs). With cocurrent downflow, the liquid phase wets the catalyst surface and the gaseous phase is continuous. The desired effect is to provide three-phase contact between the solid catalyst, and liquid and gas phases. In previous work, Madsen et al. reported continuous deoxygenation of C18 fatty feedstocks, stearic acid, ethyl stearate, and tristearin in a trickle-bed reactor at 300 °C and 20 bar using a 2 wt.% Pd/Sibunit carbon catalyst and 5% H₂/Ar or Ar gas flow [12].

Licuri (Syagrus coronata) could become an important biofuel feedstock because its almond presents a high energetic potential (around 38 wt.% oil content) with high annual production capacity (around 4 tons per hectare) [13]. This Brazilian native palm has adapted well to drier regions and is very common in the Brazilian northeast semi-arid region. Its larger scale cultivation should bring benefits to that poor region, increasing economic and social development. The licuri oil fatty acid composition is almost completely inside the jet fuel hydrocarbon range. For this reason, licuri oil could be an important option as a renewable jet fuel feedstock [14].

The research reported herein sought to establish optimum reactor operating conditions to convert FAs and FAMEs (both reagent-grade and derived from licuri oil) into hydrocarbons in a continuous trickle-bed reactor using granular Pd/C catalysts. Reactor operating variables, including feed composition and concentration, were evaluated at constant weight hourly space velocity (WHSV). Commercial and lab-prepared granular Pd/C catalysts with 1 wt.% and 5 wt.% nominal Pd loadings, respectively, were tested and found to provide similar deoxygenation performance.

2. Experimental

2.1. Materials

A 1 wt.% (nominal) granular Pd/C catalyst (4–8 mesh) was purchased from Sigma-Aldrich. A granular activated carbon (4–8 mesh) was obtained from Calgon Carbon Corporation (OVC 4x8). Palladium (II) chloride, PdCl₂ (99.9%), was purchased from Sigma Aldrich. Palmitic acid (PA) (98%) was purchased from Fisher Scientific, and methyl palmitate (MP) (97%) was purchased from Sigma Aldrich. Licuri oil was obtained from northeastern Brazil and transesterified with methanol (99.8%, Sigma Aldrich, Burlington, MA, USA) [14]. Reagent-grade (99%) n-decane and n-dodecane were purchased from Fisher Scientific (Waltham, MA USA). Ultra-high purity (UHP) H₂ and He were purchased from Airgas National Welders (RTP, NC USA). Deionized (DI) water (18 MΩ-cm) was obtained from a Nanopure (Thermo Fisher Scientific, Waltham, MA, USA) unit.

2.2. Catalyst Preparation and Characterization

A 5 wt. % (nominal) granular Pd/C catalyst (4–8 mesh) was prepared using a modified incipient wetness method [15]. PdCl₂ (0.7 g) was dissolved in 4.125 molar HCl at 80 °C (4.4 mL). The pH of the solution was increased to approximately 6 by adding 1.5 g NaHCO₃. The solution was applied to the Calgon OVC 4–8 support (previously dried overnight at 40 °C), and the wet Pd-impregnated activated carbon was aged overnight. Subsequently, the resultant material was washed three times with 1.1 g NaHCO₃ in 30 mL DI water. The purpose of the bicarbonate washing steps was to remove residual chlorine and increase the surface pH of the final catalyst. The solid was rinsed with DI water between each bicarbonate wash. After the final wash, the solid was rinsed with ~250 mL DI water. The resultant catalyst was then dried at 40 °C in air overnight.

The catalysts were analyzed for Pd content by inductively coupled plasma–optical emission spectrometry (ICP-OES) at Galbraith Laboratories and characterized by CO pulse chemisorption using a Micromeritics AutoChem II 2920 instrument. Pd dispersion was calculated from CO uptake assuming a CO:Pd (surface atom) stoichiometric ratio of 1:1.5. Average Pd particle size (d_p) was estimated from fractional dispersion (D) as d_p (nm) = 1.1/D.

2.3. Trickle-Bed Reactor for Continuous Deoxygenation

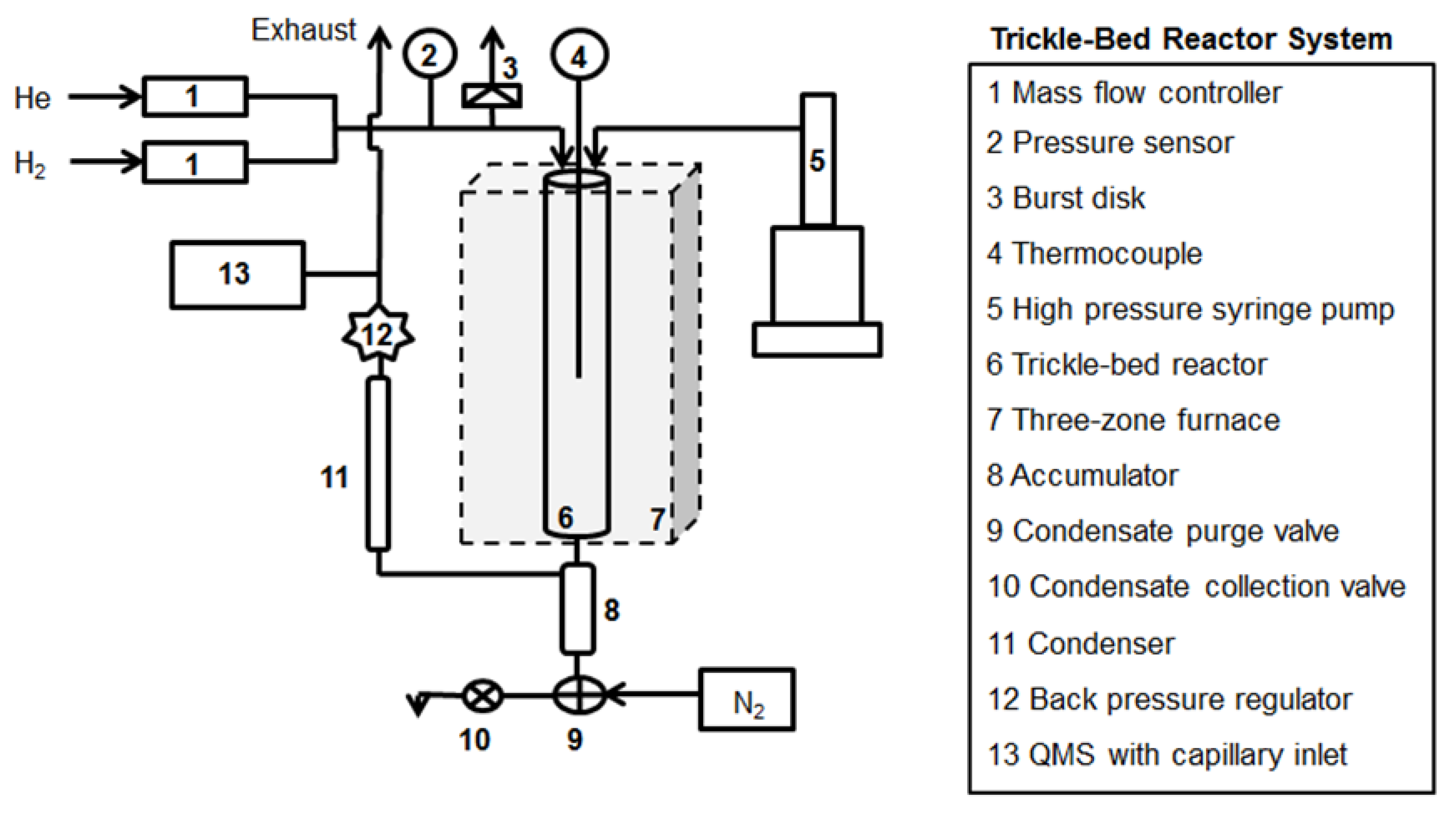

A schematic diagram of the trickle-bed reactor is shown in Figure 1. A 1-inch-inner-diameter 316 stainless steel (SS) tubular reactor was purchased from the Parr Instrument Company. The maximum working temperature and pressure for the reactor are 550 °C and 5000 psig. A Lindberg/Blue three-zone furnace and controllers were used to control the reactor temperature. The reactor temperature was monitored with a Type K thermocouple in a thermowell at the center of the reactor. The three-zone furnace was mounted on a custom-built frame made from 1-inch-square steel tube, and the tubular reactor was secured by two custom-built SS brackets bolted to the frame. Gas flow rates were controlled by two Brooks Instrument mass flow controllers (MFCs) with maximum flow rates of 1000 sccm (He) and 500 sccm (H₂). Gas and liquid flowed downward (cocurrently) through the tubular reactor into a liquid collection vessel (equipped with two three-way valves for sampling) and through a condenser and back-pressure regulator (BPR) to the exhaust. The composition of the effluent gas stream exiting the BPR was monitored using an on-line quadrupole mass spectrometer (QMS) with a heated capillary inlet system (vide infra). Liquid flow was controlled by an ISCO 260D high-pressure syringe pump. Upon entering the reactor, the liquid passed through the spiral grooves of an SS insert designed to preheat the feed.

A 15 g bed (~3 in. bed height) of granular Pd/C catalyst (4–8 mesh) was used. SS spool pieces with a total height of 12” were added to the bottom of the reactor to support the bed. Quartz wool was placed on top of the spools to ensure that the middle of the catalyst bed was at the center of the reactor tube. The syringe pump was loaded with feed mixture: FAs or FAMEs diluted with n-dodecane and connected to the reactor. The reactor was then purged with 1000 sccm 5% H₂/balance He at atmospheric pressure and heated to 300 °C at a rate of 5 °C/min. After 1 h, the reactor pressure was increased to 15 bar using the manual BPR. After the reactor was pressurized, the syringe pump was started and liquid reactants flowed into the reactor.

2.4. Product Sampling and Analysis

The effluent gas composition was measured by a Prisma QMS 200 equipped with a tungsten ionizer filament. The QMS data was recorded using the Pfeiffer Quadstar 32-bit software (DPS 101). The H₂ (m/z = 2), He (m/z = 4), CH₄ (m/z = 16), CO (m/z = 28), and CO₂ (m/z = 44) signals were monitored continuously. The signals were calibrated using a gas mixture (National Welders) composed of 1% CH₄, 5% H₂, 5% CO, 5% CO₂, and balance He.

Liquid samples were collected at 20 min intervals via condensate purge and collection valves. First, the purge valve was opened completely to allow the sample to flow into the collection volume. The purge valve was then closed and the collection valve was opened, allowing the sample to flow into the vial. Each vial was labeled with a number, reactant, and collection date. After the sample vial was filled, any remaining condensate was collected in a clean tare-weighed 250 mL beaker. Liquid samples were analyzed using a Shimadzu GC2010-Plus gas chromatograph (GC) equipped with an EconoCap EC-5 column and flame-ionization detector. The GC oven temperature program consisted of a 10 °C/min ramp from 120 to 300 °C and a hold at 300 °C for 7 min. GC samples were prepared by combining 500 µL of sample with 100 µL of n-decane in a Snap-It GC vial using Eppendorf Research micropipettes. Samples (0.05 μL) were injected at a temperature of 300 °C using a split ratio of 50:1 and a constant linear velocity of 30.3 cm/s. Sample composition was determined by a three-point calibration method for expected products, with n-decane as an internal standard.

FA (or FAME) conversion, n-alkane selectivity, and CO₂ selectivity were calculated from the average of the samples taken under steady-state operating conditions. The reaction conversion was the difference between the feed reactant concentration and unreacted reactants normalized to feed reactant concentration (Equation (5)). The n-alkane yield was calculated as the product concentration (e.g., C15) divided by the feed reactant concentration (Equation (6)). The n-alkane selectivity was calculated as the ratio of n-alkane yield to conversion (Equation (7)). CO₂ selectivity in the gas-phase products was evaluated from the QMS data as CO₂/(CO + CO₂) after correcting for CO₂ fragmentation.

$$Conversion \left(\%\right)={\displaystyle \frac{C_{feed}-C_{unr reactants}}{C_{feed}}}\ast 100$$

(5)

$$Yield \left(\%\right)={\displaystyle \frac{C_{product}}{C_{feed}}}\ast 100$$

(6)

$$Selectivity (\%)={\displaystyle \frac{yield}{conversion}}={\displaystyle \frac{C_{product}}{C_{feed}-C_{PA}}}$$

(7)

3. Results and Discussion

3.1. Catalyst Characterization

The ICP-OES and CO pulse chemisorption results for the commercial and lab-prepared catalysts are given in

Table 1. ICP-OES and CO pulse chemisorption results.

Catalyst	Pd Loading (wt. %)	Dispersion (%)	dp (nm)
1 wt. % Pd/C	0.783	17.2	6.4
5 wt. % Pd/C	3.90	25.3	4.4

. The ICP-OES loadings are lower than the nominal loadings, consistent with the presence of ~22% moisture. The catalysts had dispersions of 17–25%, consistent with average particle sizes of 6 to 4 nm. The lab-prepared 5 wt.% Pd/C catalyst was more highly dispersed than the commercial 1 wt.% Pd/C catalyst.

3.2. PA Deoxygenation: Reactor Operating Conditions and Catalyst Comparison

Deoxygenation experiments using PA in n-dodecane (C12) were performed to establish the operating conditions and compare the 1 and 5 wt.% Pd/C catalysts. To achieve efficient deoxygenation and inhibit catalyst deactivation, the reaction was conducted at 300 °C and 15 bar under 5% H₂/He [5]. Calgon activated carbon (AC) was tested under these conditions and gave only ~5% conversion for a 10 wt.% PA/C12 feed (

Table 2. Catalytic deoxygenation of PA/C12 at 300 °C, 15 bar, 5% H₂/He; WHSV 0.8 h⁻¹.

Catalyst	PA Feed Concentration (wt.%)	PA Conversion (%)	C15 Yield (%)	C15 Selectivity (%)	CO2 Selectivity (%)
AC a	10	5.4	5.1	91.6	—
1 wt.% Pd/C	10	86.2	80.6	94.4	83.1
1 wt.% Pd/C	20	95.1	86.7	91.3	81.6
1 wt.% Pd/C	50	87.4	76.7	87.7	75.1
5 wt.% Pd/C	20	96.6	87.4	90.5	81.5

^a Calgon activated carbon (AC) after standard pretreatment. Inlet flow rate: 0.5 mL/min.

). Typical GC results for continuous deoxygenation of 20 and 50 wt.% PA in C12 over the 1 wt.% Pd/C catalyst at equivalent weight hourly space velocities (WHSV = ~0.8 h⁻¹) are shown in Figure S1. To maintain constant WHSV, the reactor feed flow rate was decreased as the feed concentration was increased. This allowed the effect of feed concentration on conversion/selectivity to be investigated independent of reactant space velocity. At the higher liquid injection rate (1.25 mL/min), it was necessary to reload the syringe pump after ~3.3 h, resulting in a brief flow interruption (as indicated by the dashed feed line). The 20 wt.% PA condition was measured with fresh catalyst immediately after in situ reduction at 300 °C in 5% H₂/He. The 50 wt.% PA condition was run the next day after purging the catalyst in flowing He overnight. In the former case, very high (>95%) PA conversion was achieved with >90% C15 selectivity, consistent with deoxygenation via DCX and DCN (Table 2). Conversion and C15 selectivity were lower for 50 wt.% PA, indicating either catalyst deactivation [11] and/or inhibition of the DCX pathway at higher feed concentrations [6,7].

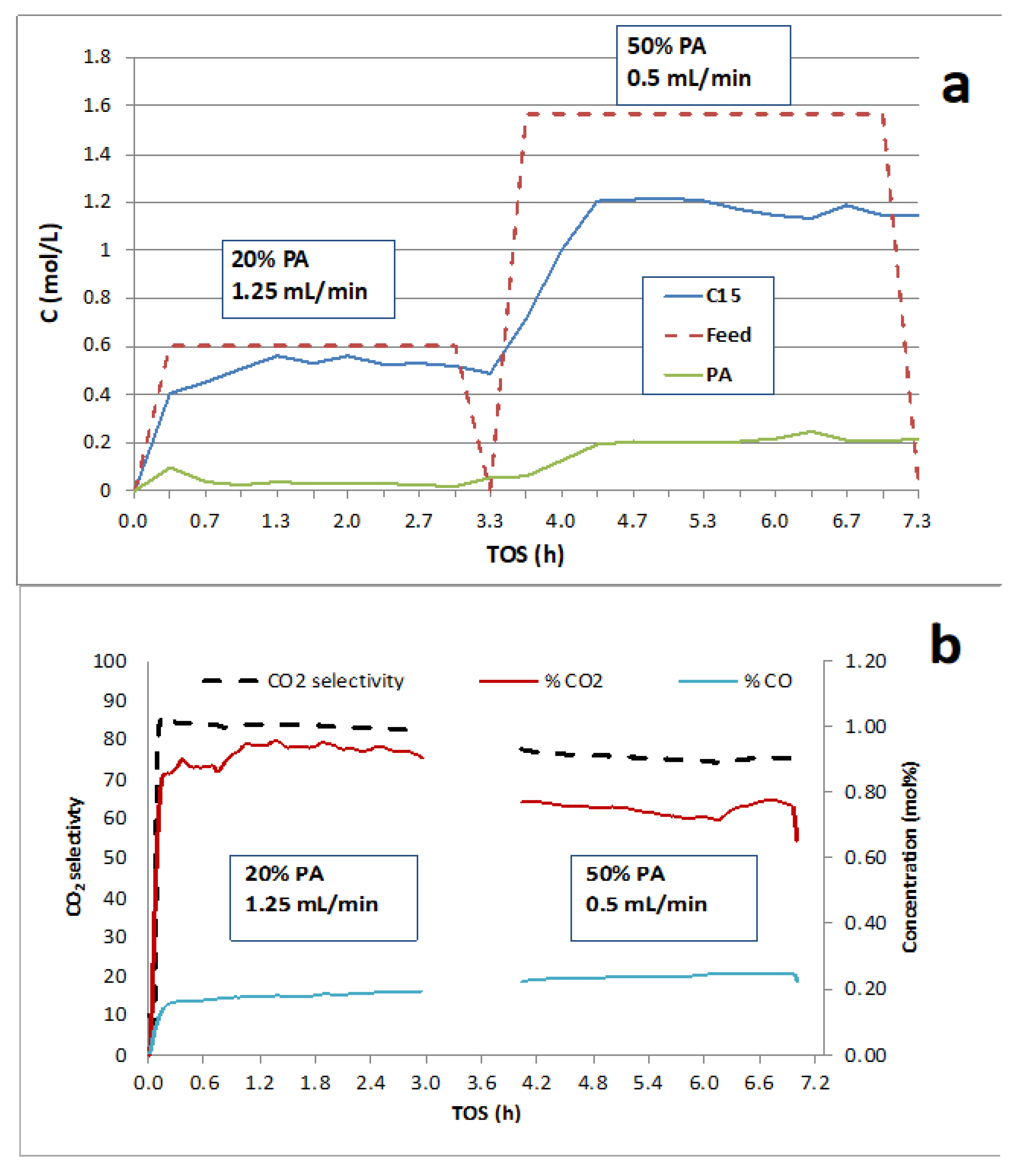

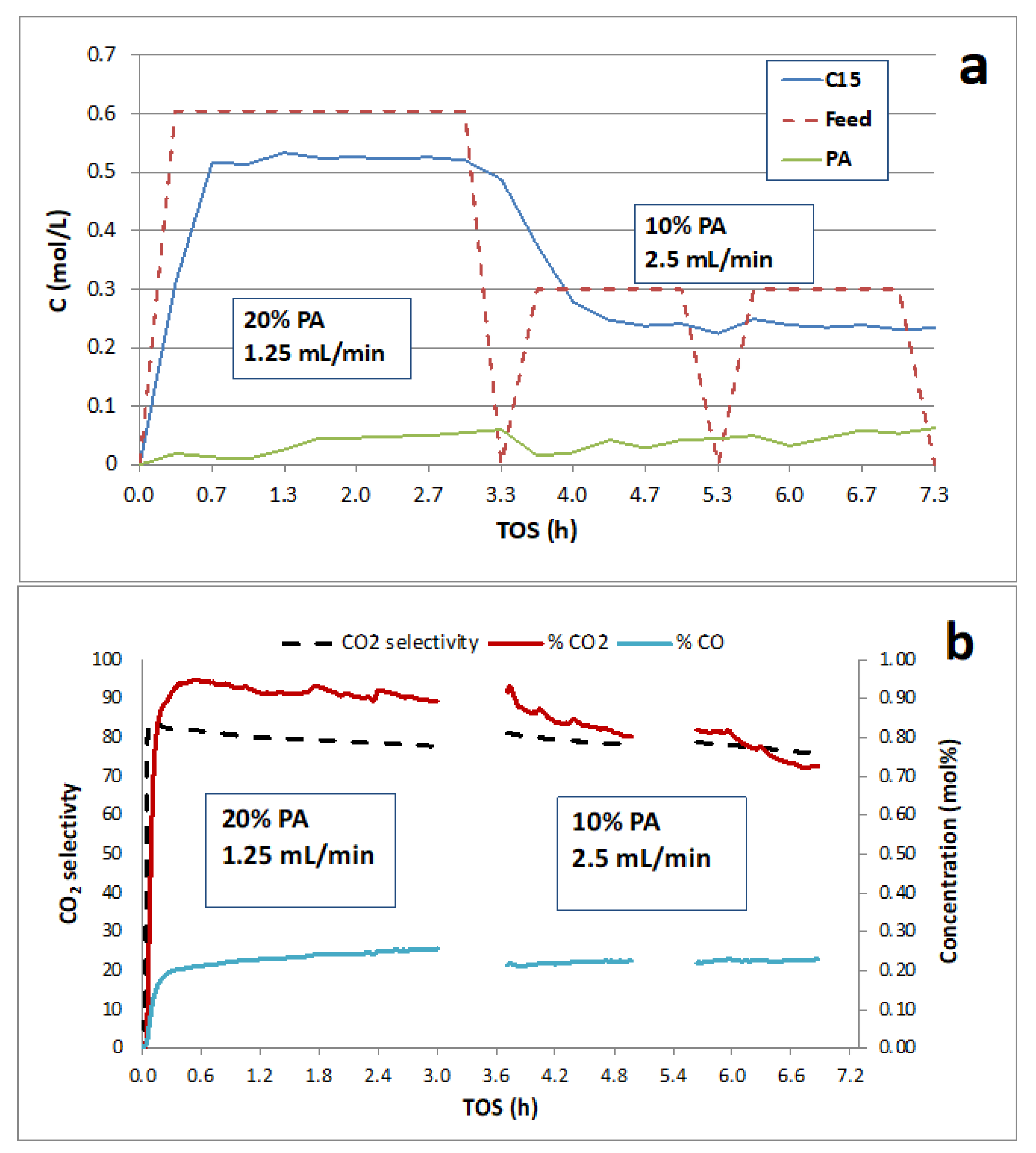

Figure 2 and Figure 3 illustrate the effects of dynamic switching of PA inlet concentrations on deoxygenation performance at constant WHSV (~0.8 h⁻¹). The CO and CO₂ concentrations (mol %) and CO₂ selectivities obtained from on-line QMS measurements are also shown. Typically, the CO₂ selectivities were >75%, indicating the DCX pathway was predominant. Decreasing the PA inlet concentration from 20 to 10 wt.% resulted in a decrease in PA conversion and C15 yield; however, C15 selectivity and CO₂ selectivity increased, at least initially, after the switch (Figure 2). CO₂ selectivity was ~80% and slowly decreased with time-on-stream (TOS) under both feed conditions, indicating deactivation of the DCX pathway. Figure 3 was obtained from an experimental run in which the initial feed contained 20 wt. % PA at a flow rate of 1.25 mL/min and was subsequently changed to 50 wt. % PA at 0.5 mL/min. Increasing the PA concentration to 50 wt.% at constant WHSV decreased PA conversion, C15 yield, and CO₂ selectivity (Table 2). We conclude that increasing or decreasing PA concentration from ~20 wt.% results in lower PA conversion and C15 yield at constant WHSV; however, CO₂ selectivity is slightly higher at 10 wt.% PA. Our results are consistent with earlier work by Madsen et al. [11], who investigated step changes in stearic acid feed concentration (in dodecane) in continuous deoxygenation over a 2% Pd/C catalyst in 5% H₂ at 300 °C and 20 bar. Madsen et al. achieved 95% conversion of 10% stearic acid in dodecane, but only 12% conversion of undiluted stearic acid. They speculated that in addition to CO₂ and CO byproducts, CH₄ was also formed; however, we did not detect CH₄ by on-line QMS in our experiments.

Figure S2 illustrates the deoxygenation of 20 wt.% PA at 300 °C and 15 bar under 5% H₂/He using the 5 wt.% Pd/C catalyst. The data evidence stable PA conversion >95% for over 6 h TOS with excellent C15 and CO₂ selectivity. The performance of the lab-prepared 5 wt.% Pd/C catalyst was indistinguishable from that of the commercial 1 wt.% Pd/C catalyst (Table 2); this is likely because of the very high PA conversions.

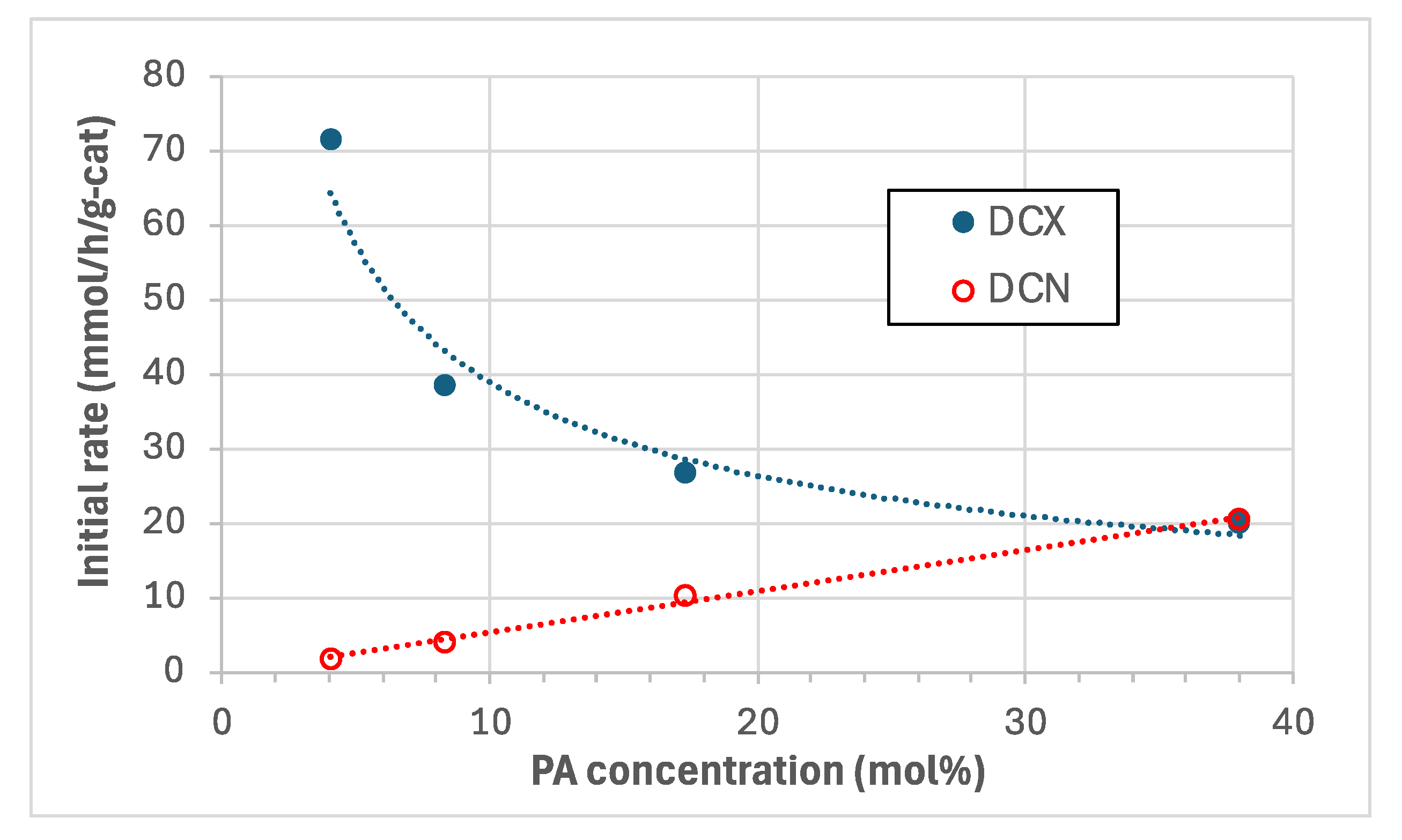

We infer that DCX inhibition by CO generated in situ by DCN (Equation (2)) is primarily responsible for the lower PA conversions, C15 yields, and CO₂ selectivities at higher PA inlet concentrations [6]. DCX inhibition at higher initial concentrations is illustrated in Figure 4 using the initial rates of DCX and DCN for PA measured by Ford et al. [7] in semi-batch PA deoxygenation experiments using a 5% Pd/C catalyst (Evonik E117) at 300 °C and 15 bar in 5% H₂/He. The initial DCN rate is linearly proportional to the molar PA concentration, evidencing first-order kinetics. In contrast, the initial DCX rate is inhibited at higher PA concentrations, with an inverse power-law exponent of 0.56, consistent with CO poisoning of the catalytic sites. A practical reactor design for a continuous deoxygenation given these reaction kinetics would employ recycle with a reactor inlet concentration of ~20 wt.% PA by returning a fraction of the hydrocarbon (C15) product to the reactor inlet as diluent.

3.3. Deoxygenation of MP and Licuri Biodiesel

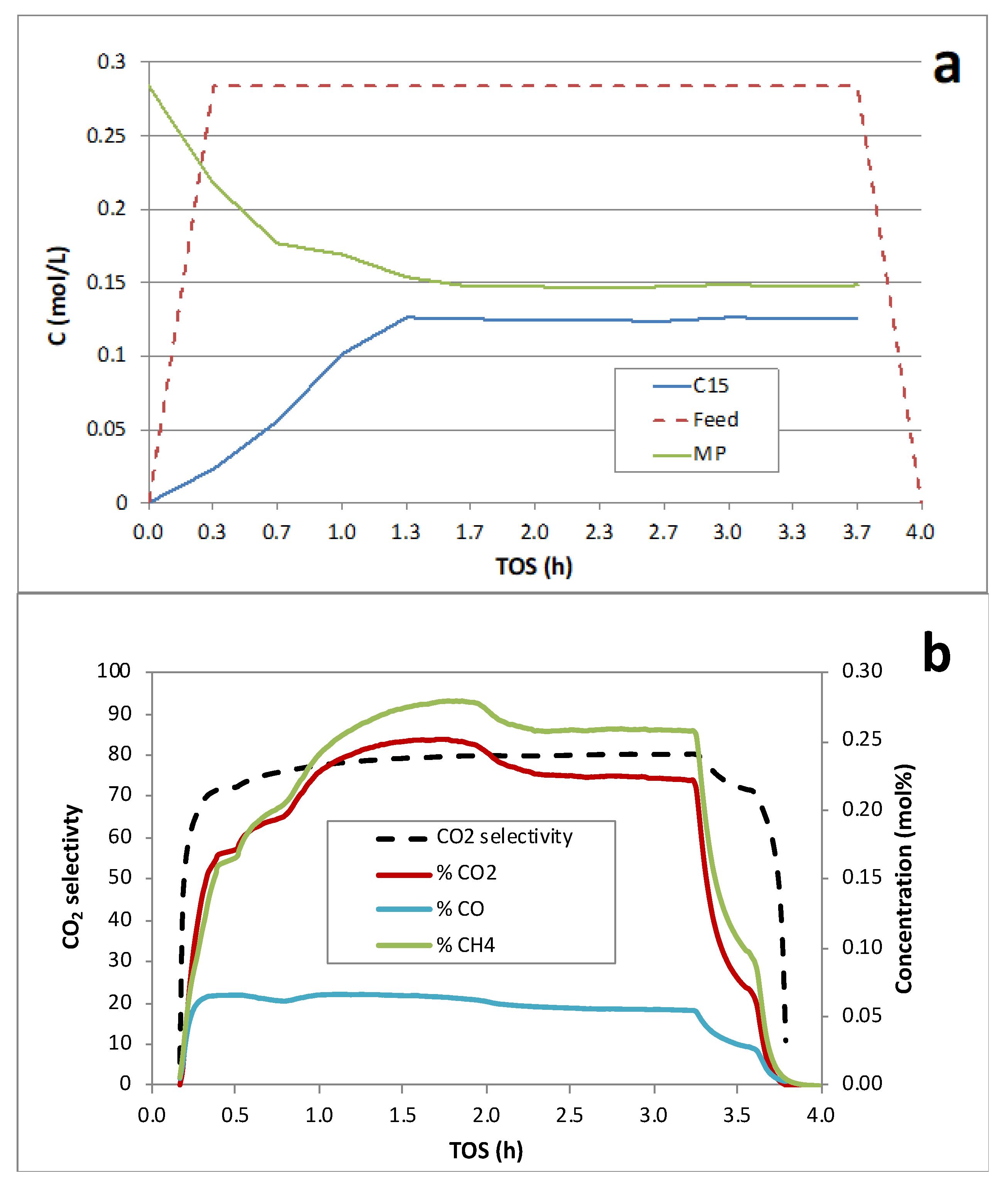

Figure 5 illustrates the continuous deoxygenation of 10 wt.% MP at 300 °C and 15 bar under 5% H₂/He over the 1 wt.% Pd/C catalyst. In this case, the approach to steady state was also slow, requiring ~1.5 h. Steady-state MP conversion was ~50% and C15 selectivity was >90% (

Table 3. Catalytic deoxygenation of MP and licuri biodiesel (FAME) at 10 wt.% in n-dodecane; 1.25 mL/min feed flow rate.

Catalyst	Feed	Conversion (%)	HC Yield (%)	HC Selectivity (%)	CO2 Selectivity (%)
1 wt.% Pd/C	MP	47.8	44.1	92.5	79.9
1 wt.% Pd/C	FAME	45.4	42.3	93.1	73.7
5 wt.% Pd/C	MP	55.7	51.0	91.8	70.6
5 wt.% Pd/C	FAME	57.0	52.4	92.0	70.1

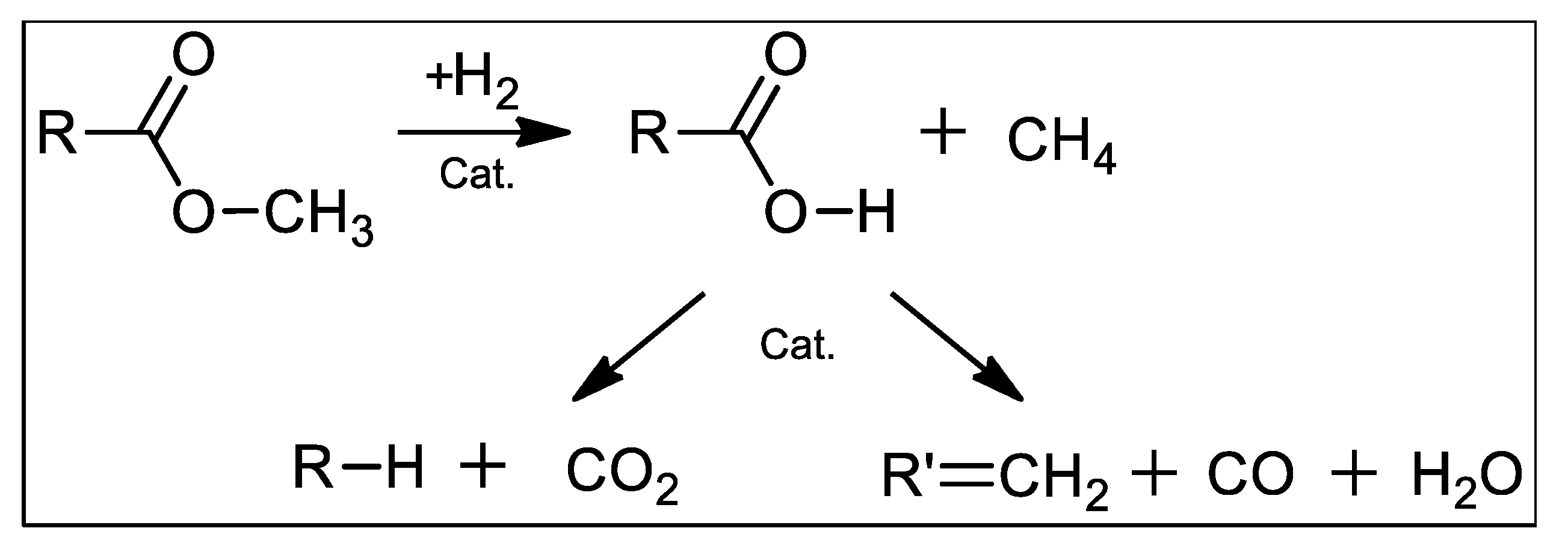

). The gas-phase products included CO₂, CO, and CH₄, as evidenced by QMS (Figure 5b). We infer that the methoxy group is cleaved via hydrogenolysis, producing PA and CH₄, and this is the slow step in the FAME deoxygenation pathway over Pd/C (Scheme 1) [3,16]. Subsequent DCX/DCN of PA results in C15 hydrocarbons, CO₂, and CO. Steady-state CO₂ selectivity was ~80%, indicating that DCX is predominant under these conditions. The liquid- and gas-phase products are consistent with the following overall stoichiometry:

$${\mathrm{C}}_{15}{\mathrm{H}}_{31}\mathrm{C}\mathrm{O}{\mathrm{O}\mathrm{C}\mathrm{H}}_3+{\mathrm{H}}_2\to {\mathrm{C}}_{15}{\mathrm{H}}_{32}+{\mathrm{C}\mathrm{H}}_4+{0.8\mathrm{C}\mathrm{O}}_2+0.2\mathrm{C}\mathrm{O}$$

(8)

Figure 6 illustrates the continuous deoxygenation of 10 wt.% MP at 300 °C and 15 bar under 5% H₂/He over the 5 wt.% Pd/C catalyst. Steady-state MP conversion was only ~55%; however, the approach to steady state was rapid in comparison to the 1 wt.% Pd/C catalyst. The steady-state C15 selectivities of the two catalysts are equivalent (Table 3). As expected, the gas-phase products included CO₂, CO, and CH₄ (Figure 6b), consistent with Scheme 1. The more rapid approach to steady state (compared to the 1 wt.% Pd/C catalyst) is consistent with the larger number of Pd active sites in the 5 wt.% catalyst. Their closely similar steady-state conversions, however, suggest that most of the additional active sites (especially small Pd particles) in the 5 wt.% Pd/C catalyst undergo rapid deactivation. Interestingly, there is a sharp initial peak (spike) in CO₂ concentration followed by a decline and then a slow asymptotic approach to steady state. A similar initial concentration spike, albeit it much less prominent, is observed for CO. In contrast, the generation of CH₄ is delayed relative to CO₂ and CO. We do not have a clear explanation for this initial DCX activity; however, the WGSR (Equation (4)) should also be considered. The steady-state CO₂ selectivity was ~70%, indicating a strong propensity for DCX under these conditions.

Biodiesel (99.5% ester content) was obtained from licuri oil via transesterification with methanol [14]. The licuri biodiesel composition (

Table 4. Licuri oil biodiesel composition [14].

FA Chain Length (n): Double Bonds (m)	mol %
C8:0	9.0
C10:0	6.8
C12:0	34.0
C14:0	16.4
C16:0	10.8
C18:0	5.3
C18:1	14.4
C18:2	3.3

) includes a broad range of FA chain lengths, with high saturated FA content. Oleic and linoleic acids are the main unsaturated compounds.

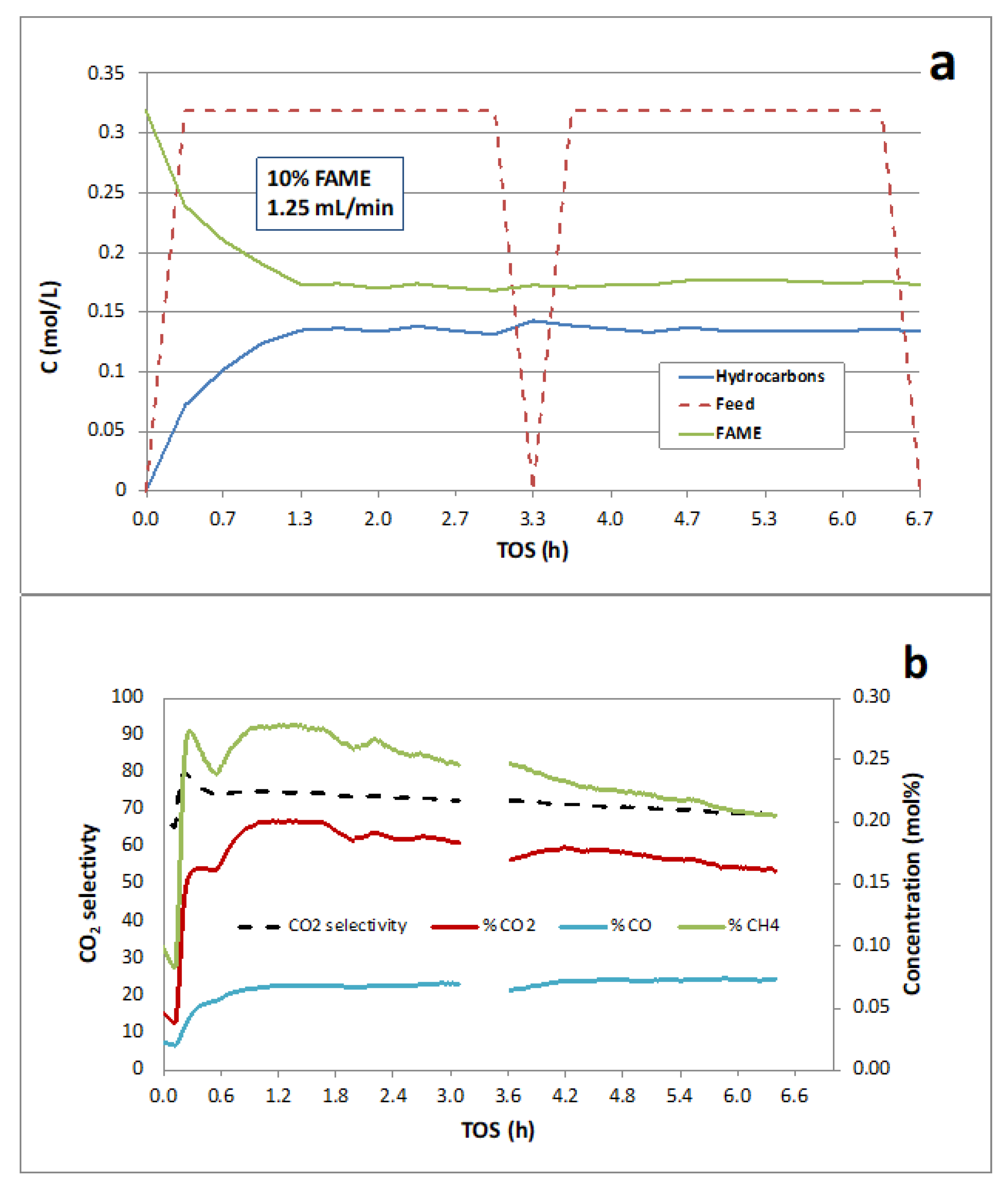

Continuous deoxygenation of 10 wt.% licuri biodiesel over the 1 wt.% Pd/C catalyst at 300 °C and 15 bar under 5% H₂/He is illustrated in Figure 7. The results are similar to those for 10 wt.% MP over 1 wt.% Pd/C, except that a distribution of hydrocarbons is produced based on DCX and DCN of the FA chains comprising licuri biodiesel. Again, ~1.5 h was required to achieve steady state. The overall conversion of FAMEs was ~45%, with >90% selectivity to hydrocarbons. Catalyst deactivation appeared to be minimal based on liquid-phase analysis during >6 h TOS. The gas-phase products (Figure 7b) are consistent with the reactions in Scheme 1, and CO₂ selectivity was >70%, indicating that the DCX pathway was predominant. The liquid- and gas-phase analyses are consistent with the following overall stoichiometry:

$${\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}-1}\mathrm{C}\mathrm{O}{\mathrm{O}\mathrm{C}\mathrm{H}}_3+{\mathrm{H}}_2\to {\mathrm{C}}_{\mathrm{n}-1}{\mathrm{H}}_{2\mathrm{n}}+{\mathrm{C}\mathrm{H}}_4+{0.7\mathrm{C}\mathrm{O}}_2+0.3\mathrm{C}\mathrm{O}$$

(9)

The gas-phase analysis (Figure 7b) shows peaks in the CH₄, CO₂, and CO concentrations prior to asymptotically approaching steady state. In contrast to the liquid-phase analysis, slow decay of the CH₄ and CO₂ (but not CO) signals is observed during the course of the >6 h run. This might be interpreted as indicating deactivation of the primary DCX pathway.

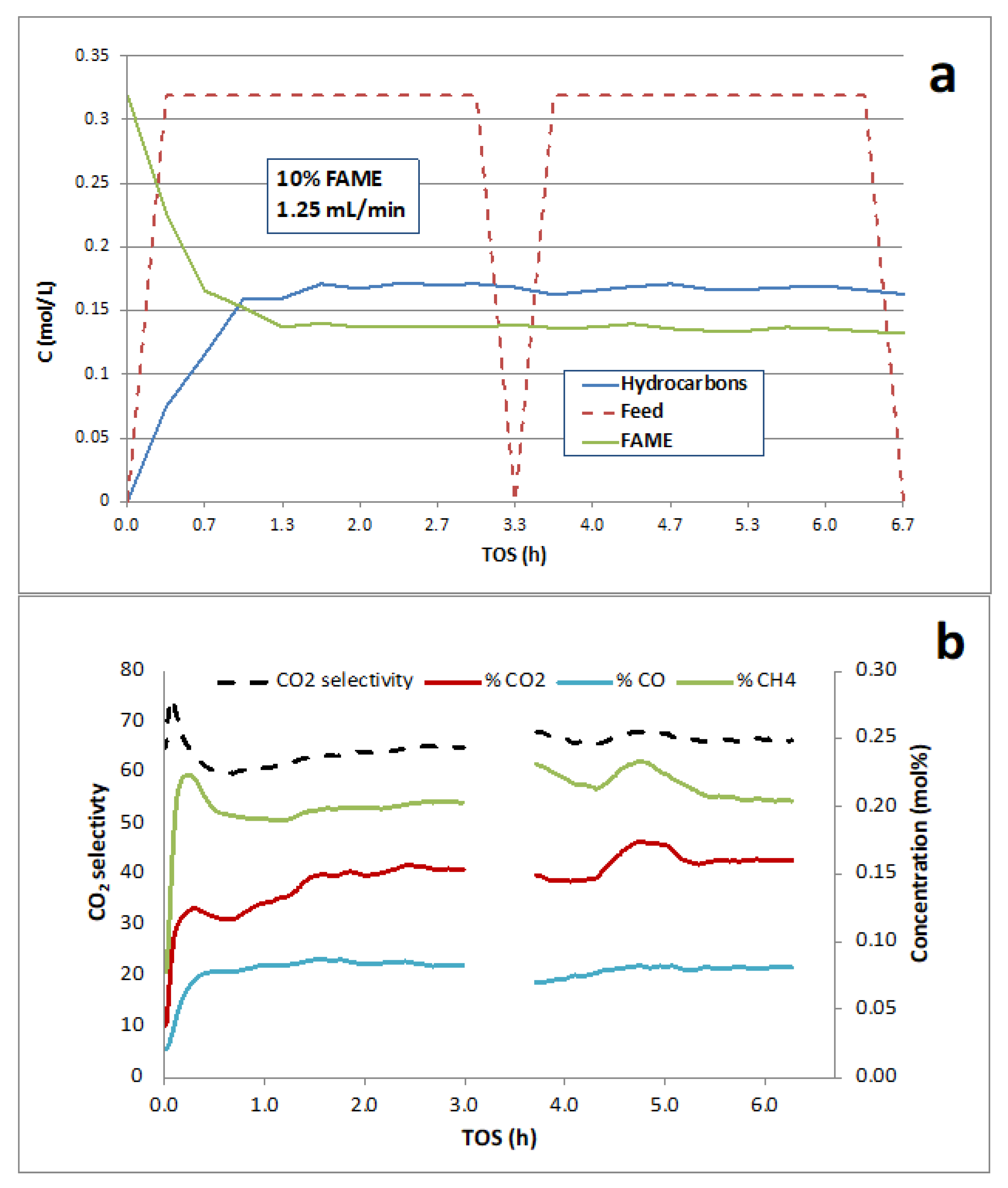

Continuous deoxygenation of 10 wt.% licuri biodiesel over the 5 wt.% Pd/C catalyst at 300 °C and 15 bar under 5% H₂/He is shown in Figure 8. The overall conversion of FAMEs was ~57%, with ~92% selectivity to hydrocarbons. The modestly higher performance of this catalyst is consistent with a higher density of Pd active sites. Catalyst deactivation appeared minimal based on liquid-phase analysis during >6 h TOS. The gas-phase products (Figure 8b) are consistent with Scheme 1, and CO₂ selectivity was ~70%. Initial peaks in the CH₄ and CO₂ concentrations are observed prior to reaching steady state. In this case, however, the gas-phase product signals are relatively stable and do not decline noticeably during the >6 h run.

The hydrocarbon product distributions (

Table 5. Hydrocarbon products from catalytic deoxygenation of licuri biodiesel.

Catalyst	n-Alkane Products (mol %)
	C7	C9	C11	C13	C15	C17
1 wt.% Pd/C	8.5	6.5	34.0	16.5	11.2	23.3
5 wt.% Pd/C	8.4	6.5	33.9	16.6	11.1	23.5

) obtained from deoxygenation of licuri biodiesel over the Pd/C catalysts comprise only odd-numbered n-alkanes, consistent with catalytic deoxygenation via DCX/DCN. Moreover, the hydrocarbon compositions closely reflect the licuri biodiesel FA composition (Table 4).

4. Conclusions

Scale-up of catalytic deoxygenation for biofuel production was demonstrated using a continuous trickle-bed reactor with granular Pd/C catalysts. Experimental runs at constant WHSV evidenced that 20 wt.% PA is the optimum feed concentration. At higher feed concentrations, the DCX pathway is inhibited by CO (from DCN), and lower feed concentrations are less efficient. The kinetics of MP deoxygenation are slower than PA deoxygenation because of rate-limiting hydrogenolysis of the methoxy bond generating CH₄ and PA. FAMEs derived from licuri oil were deoxygenated to hydrocarbons with similar efficiency to MP over 1 wt.% Pd/C. The hydrocarbon product distributions were consistent with DCX/DCN as the primary reaction pathways. Because the lab-prepared 5 wt.% Pd/C catalyst with higher metal dispersion gave only modestly better hydrocarbon yields, evaluating catalysts with even higher Pd loadings (>5 wt.%) does not seem warranted, especially given the cost of additional Pd.
