Article

LHC Search Strategy for Squarks in Higgsino-LSP Scenarios with Leptons and b-Jets in the Final State

1
Instituto de Física Teórica UAM-CSIC, C/Nicolás Cabrera 13-15, Campus de Cantoblanco, 28049 Madrid, Spain
2
IFLP, CONICET—Dpto. de Física, Universidad Nacional de La Plata, C.C. 67, La Plata 1900, Argentina
3
Department of Physics, University of Notre Dame, 225 Nieuwland Hall, Notre Dame, IN 46556, USA
4
Institut de Física d’Altes Energies (IFAE) and BIST, Campus UAB, Bellaterra, 08193 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Particles 2022, 5(3), 265-272; https://doi.org/10.3390/particles5030023
Submission received: 23 June 2022 / Revised: 10 July 2022 / Accepted: 15 July 2022 / Published: 19 July 2022
(This article belongs to the Special Issue Particles: Feature Papers)

Abstract

:
The higgsino Lightest Supersymmetric Particle (LSP) scenario opens up the possibility of decays of strongly produced particles to an intermediate neutralino, due to the Yukawa-suppressed direct decays to the higgsino. Those decays produce multijet signals with a Higgs or a Z boson being produced in the decay of the intermediate neutralino to the LSP. In this paper, we study the discovery prospects of squarks that produce b-jets and leptons in the final state. Our collider analysis provides signal significances at the 3 σ level for luminosities of 1 ab 1 , and at the 5 σ level if we project these results for 3 ab 1 .

1. Introduction

The hierarchy problem and the existence of dark matter (DM) are two of the strongest motivations to enlarge the Standard Model (SM) with low energy R-parity conserving supersymmetry (MSSM) [1,2,3,4,5]. One of the consequences is the stability of the LSP, and hence a possible DM candidate. One appealing possibility to avoid the constraints coming from direct detection experiments is to assume that the higgsino is the LSP [6], and its implementation in the MSSM as done in [7].
Building on the intuition and knowledge gained in our previous works [8,9,10] on the LHC phenomenology of MSSM scenarios with higgsino-LSP, and taking into account the large number of events that we could expect at 14 TeV and 300 fb 1 for the production of squark pairs [10], we consider in this work that the bino-like neutralino decays into the higgsino-LSP plus a leptonic Z boson as another interesting decay channel. This feature implies, on the one hand, the reduction of expected signal events; however, on the other hand, it will provide a better control of all backgrounds, especially for discarding the QCD multijet background.
We now summarize our previous work on related subjects. We have studied the gluino pair production with subsequent decays into the bino-like neutralino plus two jets, then decaying into the LSP plus the Higgs boson resulting in a final state of four light-jets, four b-jets and large amount of missing energy [8]. Another interesting signature for gluino pair production was presented in [9] with 4 j + 2 τ + E T miss final state. Finally, we studied the pair production of squark with decays resulting in 2 light-jets, two Higgs bosons (decaying into b b ¯ ) plus missing energy in the final state (also with the bino-like neutralino as intermediate state in the SUSY cascade) in [10].
This paper is organized as follows: in Section 2 we present the details of the event simulation and develop our search strategy by means of the characterization of the signal against the background, and Section 3 is devoted to the discussion of our main results and a summary of the most important conclusions.

2. Simulation and Collider Analysis

The signal and backgrounds were generated with MadGraph_aMC@NLO 2.8.1 [11] for a center-of-mass energy of s = 14 TeV. The events are showered and hadronized using PYTHIA 8.2 [12], and the detector effects are implemented with Delphes 3.3.3 [13]. We consider a working point for the efficiency of b-tagging of 0.75, with a rate of misidentification of 0.01 for light-jets and 0.1 for c-jets. The internal analysis codes and simulation input files are available upon request to authors.
The relevant signature for this work is represented in Figure 1, which corresponds to first-generation squark-pair production followed by the decay into a bino-like χ ˜ 3 0 plus a light jet. Then, one χ ˜ 3 0 decays into the higgsino-like LSP and the SM-like Higgs boson (decaying into b b ¯ ). To reduce the QCD backgrounds, we consider that the other χ ˜ 3 0 decays into the LSP plus a Z boson decaying into e + e or μ + μ pairs. We study the same supersymmetric spectra as in our previous work [10], which is not excluded by the validated analyses of CheckMATE 2.0.24 [14] (We have canvassed searches with higher luminosity and we have found no analysis that would exclude our spectrum). Within these higgsino-LSP MSSM scenarios, in which we vary M 1 from 600 to 800 GeV and fix M 2 = 3 TeV, M 3 = 2.2 TeV and μ = 0.5 TeV, one has BR( χ ˜ 3 0 χ ˜ 1 , 2 0 h )~BR( χ ˜ 3 0 χ ˜ 2 , 1 0 Z ) but the lower BR( Z l l + ) = 6.7% ( l = e , μ ) with respect to BR( h b b ¯ ) = 58% is compensated for by a cleaner final state than in our previous work, yielding to a complementary channel to these spectra. On the other hand, the production cross section of the signal is obtained from [15], in which NLO and NLL QCD corrections are included. We define two production cases corresponding to both p p u ˜ L u ˜ L and p p d ˜ L d ˜ L (Left case), and to p p u ˜ R u ˜ R (Right case).
Concerning the experimental bounds on our MSSM scenarios, we have not found any LHC search with the same final state and similar spectra. As far as we know, the most related analysis to our study would be [16,17]. However, in these works, it is assumed that there are only Higgs bosons in the electroweak production and with a massless gravitino. Moreover, for colored-particle production, no b-tagging is done, and it is assumed that the decay of the second neutralino is via a Z boson without Higgs bosons. Therefore, our proposed MSSM scenarios evade again such exclusion limits. In addition, our comparison with CheckMATE gives [18] as the most sensitive search (but very far from the exclusion) for its signal region S R I M L L 60 when looking for compressed supersymmetric spectra with leptons and missing transverse momentum in the final state (but no b-jets). Finally, supersymmetric signatures with leptons, b-jets, and missing energy are produced by top squarks; see for instance [19], thus they are not sensitive to our signature with Higgs and Z bosons.
The relevant backgrounds are t t ¯ +jets and t t ¯ production in association with a vector boson. The leptons coming from the Z-boson decay in the signature reject the presence of the QCD multijet background in this analysis. We then consider the following SM backgrounds: the fully leptonic decay of t t ¯ pair up to one additional light jet, t t ¯ lep + j (inc.); the hadronic decay of t t ¯ in association with a leptonic Z boson, t t ¯ had + Z ; the semileptonic decay of t t ¯ with a leptonic Z boson, t t ¯ semilep + Z ; and the semileptonic decay of t t ¯ in association with a leptonic W boson, t t ¯ semilep + W . The jet matching and merging is performed by the MLM algorithm [20,21] using xqcut = 20 for all generated samples and qcut equal to 50 and 250 for backgrounds and signal, respectively.
We demand two b-jets and two opposite-sign (OS) same-flavor leptons (electrons or muons) at reconstructed level:
Selection cuts : N b = 2 and N lep OS = 2 .
To optimize our background simulation, we display in Figure 2 the transverse momentum of the second leading lepton p T 2 n d l e p (left panel), the second leading b-jet p T 2 n d b (right panel) and, in Figure 3, the missing transverse energy E T miss over samples of signal and backgrounds without parton-level cuts. We conclude from these three distributions that the parton-level cuts of p T b > 25 GeV, p T l e p > 25 GeV and E T miss > 200 GeV applied to the background simulation reduce the large cross-sections and the event generation becomes more efficient. With this setup, the cross-sections of the t t ¯ lep + j (inc.), t t ¯ had + Z , t t ¯ semilep + Z , and t t ¯ semilep + W backgrounds are 1.1 × 10 3 , 19.42, 0.53 and 0.83 fb, respectively.
On the other hand, the invariant mass of a pair of OS leptons m l l and a pair of b-jets m b b are shown in the left and right panels of Figure 4. Then it is natural to demand values of these kinematical variables in a 10% window around the Z and Higgs boson mass, respectively.
Therefore, we applied at detector level the following cuts:
p T l e p > 25 GeV , p T b > 25 GeV and E T miss > 200 GeV ,
and
m l l m Z m Z < 0.1 and m b b m h m h < 0.1 .
We develop a search strategy for a luminosity of L = 1 ab 1 , corresponding to the high luminosity LHC phase (HL-LHC), and optimize our analysis for a benchmark with squark masses of 1 TeV for both Left and Right productions. After requiring Equations (1)–(3), the t t ¯ had + Z background disappears. To mostly reduce the backgrounds with leptons and missing transverse energy coming from the W boson, we resort to the transverse mass of the second leading lepton p 2 n d l e p and the missing momentum p T miss given by
m T 2 n d l e p m T ( p 2 n d l e p , p T miss ) = 2 p T 2 n d l e p E T miss ( 1 cos Δ ϕ ( p 2 n d l e p , p T miss ) ) .
We also consider the effective mass variable m eff corresponding to the scalar sum of the missing energy and the transverse momentum of all reconstructed objects. Figure 5 shows the distributions of these two variables after demand the cuts of Equations (1)–(3).
We can see from the left panel of Figure 5 that the t t ¯ lep + j (inc.) and t t ¯ semilep + W ± backgrounds have values below 220 GeV for this variable. From the effective mass distributions, we found that background peaks are below 1000 GeV while the signal have most of its events above this value.
To obtain an estimate of the LHC sensitivity to our SUSY signal, we use the following expression for the signal significance, including background systematic uncertainties [22,23]:
S = 2 ( B + S ) log ( S + B ) ( B + σ B 2 ) B 2 + ( S + B ) σ B 2 B 2 σ B 2 log 1 + σ B 2 S B ( B + σ B 2 ) ,
where S (B) is the number of signal (background) events and σ B = ( Δ B ) B , with Δ B being the relative systematic uncertainty chosen to be a conservative value of 30%.

3. Discussion and Summary

The resulting cut flows for both Left and Right signal cases are presented in Table 1 and Table 2, respectively, in which the different cuts that define our search strategy are listed. First we can observe that the selection cuts are very useful to drastically reduce the t t ¯ lep + j background, which is potentially the most problematic, and whose number of events drops by two orders of magnitude after these cuts, while the number of events of the rest of the backgrounds and signal are reduced by about one order of magnitude. The cuts of Equations (2)–(3) remove all t t ¯ had + Z background events and reduce two orders of magnitude of the rest, while the signal events decrease less than one order of magnitude. After the m T 2 n d l e p cut, only the t t ¯ semilep + Z background survives, and the signal is hardly affected. Finally, the m e f f cut helps to further reduce the t t ¯ semilep + Z background with little change in the number of final signal events. At the end, for a total integrated luminosity of L = 1 ab 1 , we expect signal significances of 4.02 σ and 2.61 σ for the Left and Right cases, respectively. If we project these results for a luminosity of 3 ab 1 , the significances would reach values of 6.65 σ and 4.37 σ , respectively, that one can consider at the discovery level of sensitivity. For this projection, we assume in a conservative way that the background rates scale as the cross section of the signal. In addition, the zeros in the last row of Table 1 and Table 2 must be interpreted as the projection of our vanishing simulated samples to L = 1 ab 1 .
The promising results in Table 1 and Table 2, for the higgsino-LSP MSSM benchmarks with squark masses of 1 TeV, encourage the extension of our analysis to other values of the parameter space of interest, defined in the plane [ M q ˜ , M χ ˜ 3 0 ].
We show in Figure 6 the contour lines in the plane [ M q ˜ , M χ ˜ 3 0 ] for q ˜ L (left panel) and u ˜ R (right panel) pair productions. The solid (dotted) lines correspond to a luminosity of L = 1 (3) ab 1 . The brown, red, and blue colors represent the values of 2 σ , 3 σ and 5 σ , respectively, for the signal significance, S . For the lowest luminosity of 1 ab 1 , we are able to obtain 2 σ significances, in the Left case, for virtually any M q ˜ L value within the range considered [850 GeV–1100 GeV] and bino mass values above ~650 GeV and below ~850 GeV. One would reach significances at the evidence level for values of M q ˜ L < 1050 GeV and M χ ˜ 3 0 between 700 GeV and 850 GeV. This same area defines the discovery-level sensitivity for L = 3 ab 1 in the Left case. Our search strategy, applied to the Right case, allows the obtaining of 2 σ significances for M u ˜ R 825 GeV and practically any value of M χ ˜ 3 0 for L = 1 ab 1 . Evidence-level significances are obtained in this case for M χ ˜ 3 0 800 GeV and M u ˜ R values between 950 GeV and 1000 GeV. These squark and bino mass values also delimit the discovery-level area in the Right case for L = 3 ab 1 .
To summarize, we have developed a search strategy for pairs of squarks at the HL-LHC, which both decay into bino neutralinos plus a jet. In turn, one of the binos decays into a Higgs boson plus the LSP, while the other decays into the LSP and a leptonic Z boson, which allows us to keep all backgrounds under control and to smoothly discard the QCD multijet background. Our collider analysis provides signal significances at the evidence level for luminosities of 1 ab 1 and at the discovery level if we project these results for 3 ab 1 . Together with our previous works [8,9,10], these complementary analyses represent a proof of principle of searches that are sensitive to spectra such that the gluino ([8,9]) or the first-generation squarks ([10] and this manuscript) do not directly decay to the LSP but to an intermediate electroweakino that produces Higgs or Z bosons in its subsequent decay. Therefore, those spectra would escape current experimental searches.

Author Contributions

Writing—review & editing, E.A., A.D., R.A.M. and M.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the “Atracción de Talento” program (Modalidad 1) of the Comunidad de Madrid (Spain) under grant number 2019-T1/TIC-14019; by the Spanish Research Agency (Agencia Estatal de Investigación) through the Grant IFT Centro de Excelencia Severo Ochoa No CEX2020-001007-S; by MCIN/AEI/10.13039/501100011033; by CONICET and ANPCyT (Argentina) under projects PICT 2017-2751 and PICT 2018-03682; by the National Science Foundation under grant PHY-2112540; by CONICET and ANPCyT under projects PICT 2016-0164, PICT 2017-2751 and PICT 2018-03682; by Spanish MINEICO under Grant FPA2017-88915-P; by the Catalan Government under Grant 2017SGR1069.

Data Availability Statement

Acknowledgments

The work of EA is partially supported by the “Atracción de Talento” program (Modalidad 1) of the Comunidad de Madrid (Spain) under the grant number 2019-T1/TIC-14019, by the Spanish Research Agency (Agencia Estatal de Investigación) through the Grant IFT Centro de Excelencia Severo Ochoa No CEX2020-001007-S, funded by MCIN/AEI/10.13039/501100011033, and by CONICET and ANPCyT (Argentina) under projects PICT 2017-2751 and PICT 2018-03682. The work of AD was partially supported by the National Science Foundation under grant PHY-2112540. The work of RM is supported by CONICET and ANPCyT under projects PICT 2016-0164, PICT 2017-2751 and PICT 2018-03682. The work of MQ is partly supported by Spanish MINEICO under Grant FPA2017-88915-P, and by the Catalan Government under Grant 2017SGR1069. IFAE is partially funded by the CERCA program of the Generalitat de Catalunya.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fayet, P. Supersymmetry and Weak, Electromagnetic and Strong Interactions. Phys. Lett. B 1976, 64, 159. [Google Scholar] [CrossRef]
  2. Fayet, P. Spontaneously Broken Supersymmetric Theories of Weak, Electromagnetic and Strong Interactions. Phys. Lett. B 1977, 69, 489. [Google Scholar] [CrossRef]
  3. Nilles, H.P. Supersymmetry, Supergravity and Particle Physics. Phys. Rept. 1984, 110, 1–162. [Google Scholar] [CrossRef]
  4. Haber, H.E.; Kane, G.L. The Search for Supersymmetry: Probing Physics Beyond the Standard Model. Phys. Rept. 1985, 117, 75–263. [Google Scholar] [CrossRef] [Green Version]
  5. Gunion, J.; Haber, H.E. Higgs Bosons in Supersymmetric Models. 1. Nucl. Phys. B 1993, 272, 1, Erratum: Nucl. Phys. B 1993, 402, 567–569. [Google Scholar] [CrossRef]
  6. Kowalska, K.; Sessolo, E.M. The discreet charm of higgsino dark matter—A pocket review. Adv. High Energy Phys. 2018, 2018, 6828560. [Google Scholar] [CrossRef] [Green Version]
  7. Delgado, A.; Quirós, M. Higgsino Dark Matter in the MSSM. Phys. Rev. D 2021, 103, 015024. [Google Scholar] [CrossRef]
  8. Arganda, E.; Delgado, A.; Morales, R.A.; Quirós, M. Novel Higgsino dark matter signal interpretation at the LHC. Phys. Rev. D 2021, 104, 055003. [Google Scholar] [CrossRef]
  9. Arganda, E.; Delgado, A.; Morales, R.A.; Quirós, M. Search strategy for gluinos at the LHC with a Higgs boson decaying into tau leptons. arXiv 2021, arXiv:2107.06034. [Google Scholar]
  10. Arganda, E.; Delgado, A.; Morales, R.A.; Quirós, M. Hunting Squarks in Higgsino LSP scenarios at the LHC. arXiv 2021, arXiv:2112.09198. [Google Scholar]
  11. Alwall, J.; Frederix, R.; Frixione, S.; Hirschi, V.; Maltoni, F.; Mattelaer, O.; Shao, H.S.; Stelzer, T.; Torrielli, P.; Zaro, M. The automated computation of tree-level and next-to-leading order differential cross sections, and their matching to parton shower simulations. JHEP 2014, 7, 79. [Google Scholar] [CrossRef] [Green Version]
  12. Sjöstrand, T.; Ask, S.; Christiansen, J.R.; Corke, R.; Desai, N.; Ilten, P.; Mrenna, S.; Prestel, S.; Rasmussen, C.O.; Skands, P.Z. An Introduction to PYTHIA 8.2. Comput. Phys. Commun. 2015, 191, 159–177. [Google Scholar] [CrossRef] [Green Version]
  13. de Favereau, J.; Delaere, C.; Demin, P.; Giammanco, A.; Lemaître, V.; Mertens, A.; Selvaggi, M. DELPHES 3, A modular framework for fast simulation of a generic collider experiment. JHEP 2014, 2, 057. [Google Scholar] [CrossRef] [Green Version]
  14. Dercks, D.; Desai, N.; Kim, J.S.; Rolbiecki, K.; Tattersall, J.; Weber, T. CheckMATE 2: From the model to the limit. Comput. Phys. Commun. 2017, 221, 383–418. [Google Scholar] [CrossRef] [Green Version]
  15. Borschensky, C.; Gecse, Z.; Kraemer, M.; van der Leeuw, R.; Kulesza, A.; Mangano, M.; Padhi, S.; Plehn, T.; Portell, X.; Sekmen, S. LHC SUSY Cross Section Working Group. 2020. Available online: https://twiki.cern.ch/twiki/bin/view/LHCPhysics/SUSYCrossSections (accessed on 20 May 2022).
  16. Sirunyan, A.M.; Tumasyan, A.; Adam, W.; Bergauer, T.; Dragicevic, M.; Escalante Del Valle, A.; Fruehwirth, R.; Jeitler, M.; Krammer, N.; Lechner, L.; et al. Search for supersymmetry in final states with two oppositely charged same-flavor leptons and missing transverse momentum in proton-proton collisions at s = 13 TeV. JHEP 2021, 4, 123. [Google Scholar] [CrossRef]
  17. ATLAS Collaboration. Searches for new phenomena in events with two leptons, jets, and missing transverse momentum in 139 fb−1 of s = 13 TeV pp collisions with the ATLAS detector. arXiv 2022, arXiv:2204.13072. [Google Scholar]
  18. Aaboud, M.; Aad, G.; Abbott, B.; Abdinov, O.; Abeloos, B.; Abidi, S.H.; AbouZeid, O.; Abraham, N.; Abramowicz, H.; Abreu, H.; et al. Search for electroweak production of supersymmetric states in scenarios with compressed mass spectra at s = 13 TeV with the ATLAS detector. Phys. Rev. D 2018, 97, 052010. [Google Scholar] [CrossRef] [Green Version]
  19. ATLAS Collaboration. Search for direct top squark pair production and dark matter production in final states with two leptons in s = 13 TeV pp collisions using 13.3 fb−1 of ATLAS data. ATLAS-CONF-2016-076 2016. Available online: https://cds.cern.ch/record/2206249/files/ATLAS-CONF-2016-076.pdf (accessed on 12 May 2022).
  20. Mangano, M. The So-Called MLM Prescription for ME/PS Matching. Fermilab ME/MC Tuning Workshop. 2002. Available online: http://www-cpd.fnal.gov/personal/mrenna/tuning/nov2002/mlm.pdf.gz (accessed on 1 June 2022).
  21. Mangano, M.L.; Moretti, M.; Piccinini, F.; Treccani, M. Matching matrix elements and shower evolution for top-quark production in hadronic collisions. JHEP 2007, 1, 13. [Google Scholar] [CrossRef]
  22. Cowan, G.; Cranmer, K.; Gross, E.; Vitells, O. Asymptotic formulae for likelihood-based tests of new physics. Eur. Phys. J. C 2013, 71, 1554, Erratum: Eur. Phys. J. C 2013, 73, 2501. [Google Scholar] [CrossRef] [Green Version]
  23. Cowan, G. Discovery Sensitivity for a Counting Experiment with Background Uncertainty; tech. rep.; Royal Holloway: London, UK, 2012; Available online: http://www.pp.rhul.ac.uk/~cowan/stat/medsig/medsigNote.pdf (accessed on 27 May 2022).

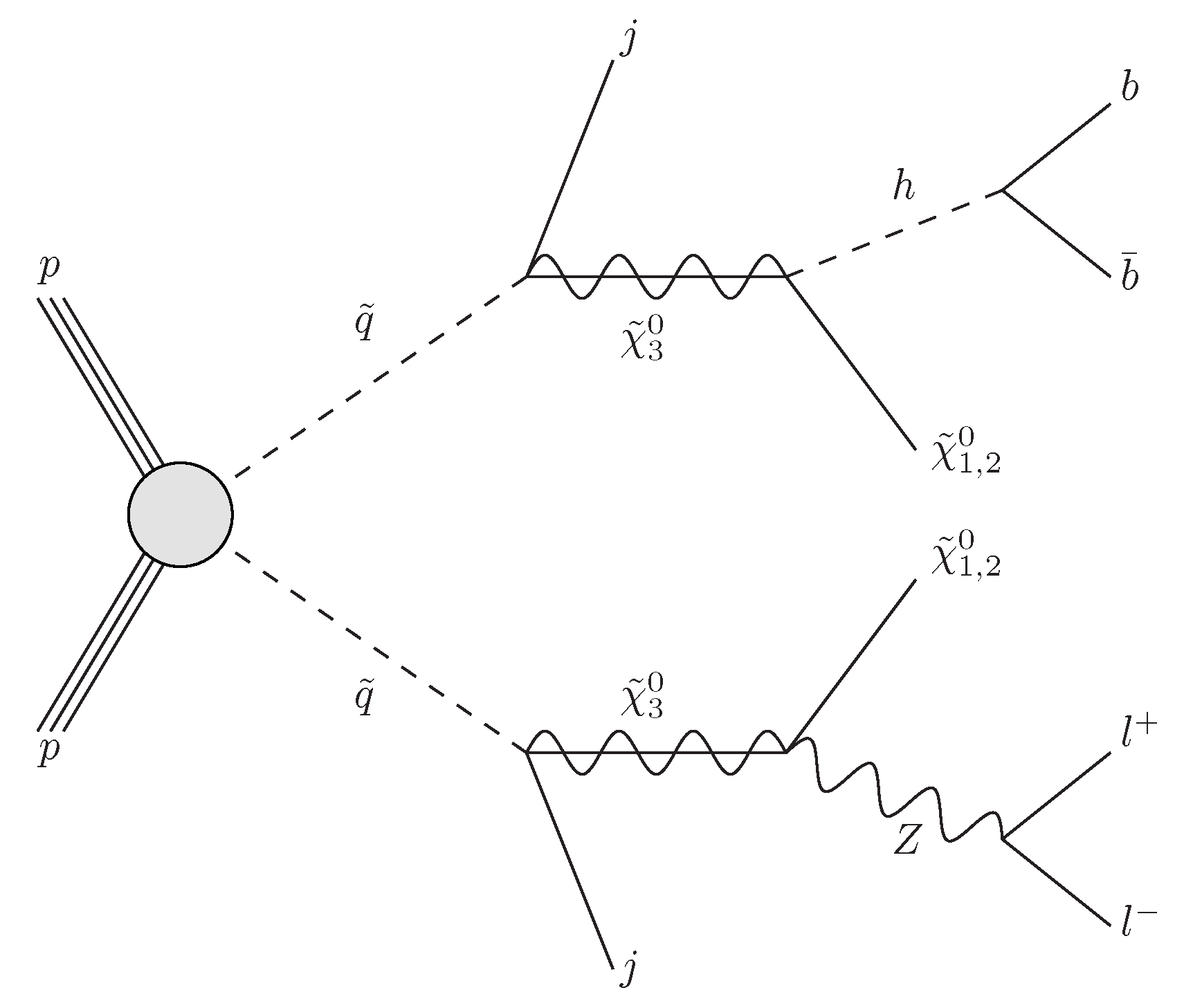

Figure 1. Representative Feynman diagram corresponding to our signature with 2 l + 2 b + 2 j + E T miss in the final state.
Figure 1. Representative Feynman diagram corresponding to our signature with 2 l + 2 b + 2 j + E T miss in the final state.
Particles 05 00023 g001

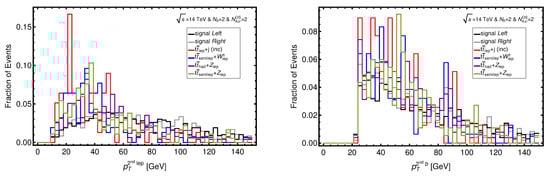

Figure 2. Distributions of transverse momentum of the second leading lepton p T 2 n d l e p (left panel) and second leading b-jet p T 2 n d b (right panel) over samples of signal and backgrounds without parton-level cuts.
Figure 2. Distributions of transverse momentum of the second leading lepton p T 2 n d l e p (left panel) and second leading b-jet p T 2 n d b (right panel) over samples of signal and backgrounds without parton-level cuts.
Particles 05 00023 g002
Figure 3. Distribution of missing energy E T miss over samples of signal and backgrounds without parton-level cuts.
Figure 3. Distribution of missing energy E T miss over samples of signal and backgrounds without parton-level cuts.
Particles 05 00023 g003

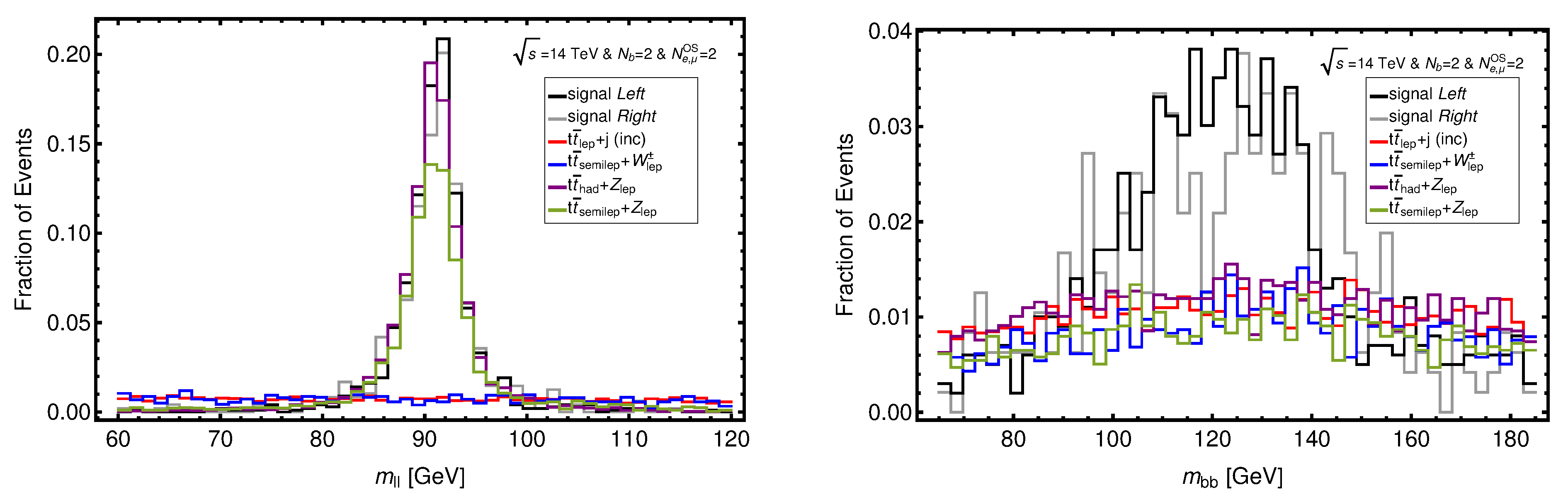

Figure 4. Distributions of the invariant mass of a pair of OS leptons m l l (left panel) and a pair of b-jets m b b (right panel) over samples of signal and backgrounds without parton-level cuts.
Figure 4. Distributions of the invariant mass of a pair of OS leptons m l l (left panel) and a pair of b-jets m b b (right panel) over samples of signal and backgrounds without parton-level cuts.
Particles 05 00023 g004

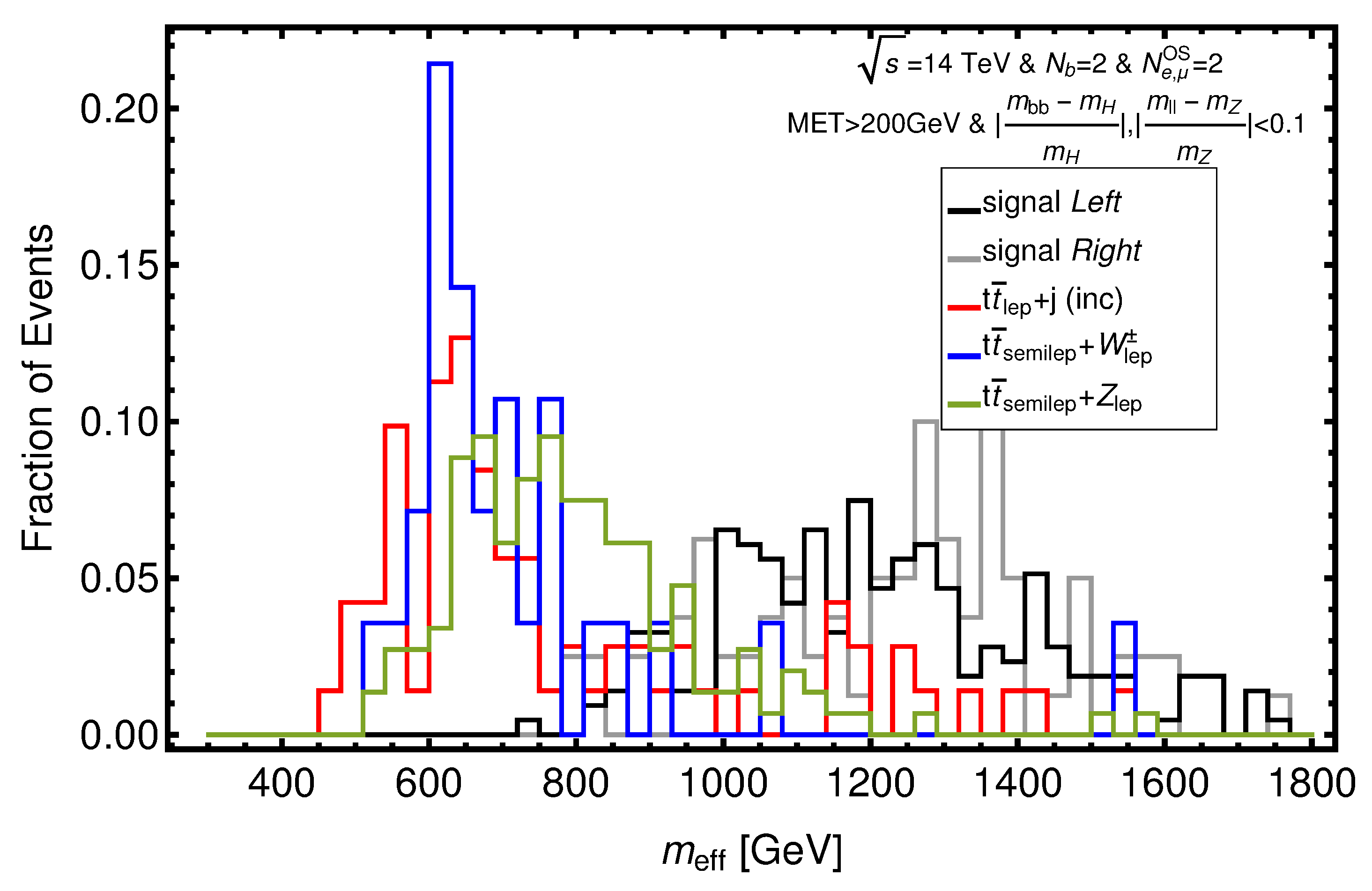

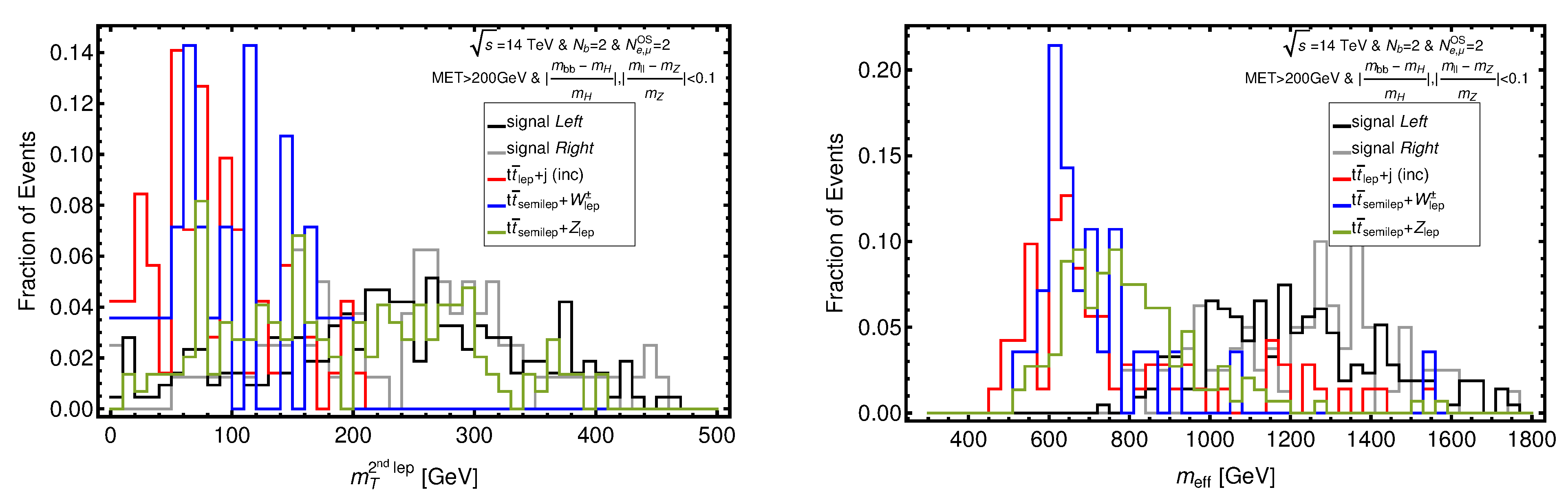

Figure 5. Distributions of the transverse mass of the second lepton m T 2 n d l e p (left) and the effective mass m eff (right), for signal and background after requiring two b-jets, two OS leptons and satisfying Equations (1)–(3).
Figure 5. Distributions of the transverse mass of the second lepton m T 2 n d l e p (left) and the effective mass m eff (right), for signal and background after requiring two b-jets, two OS leptons and satisfying Equations (1)–(3).
Particles 05 00023 g005

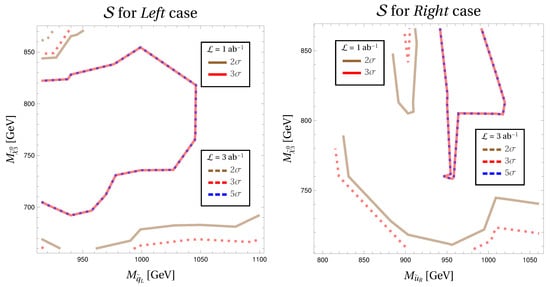

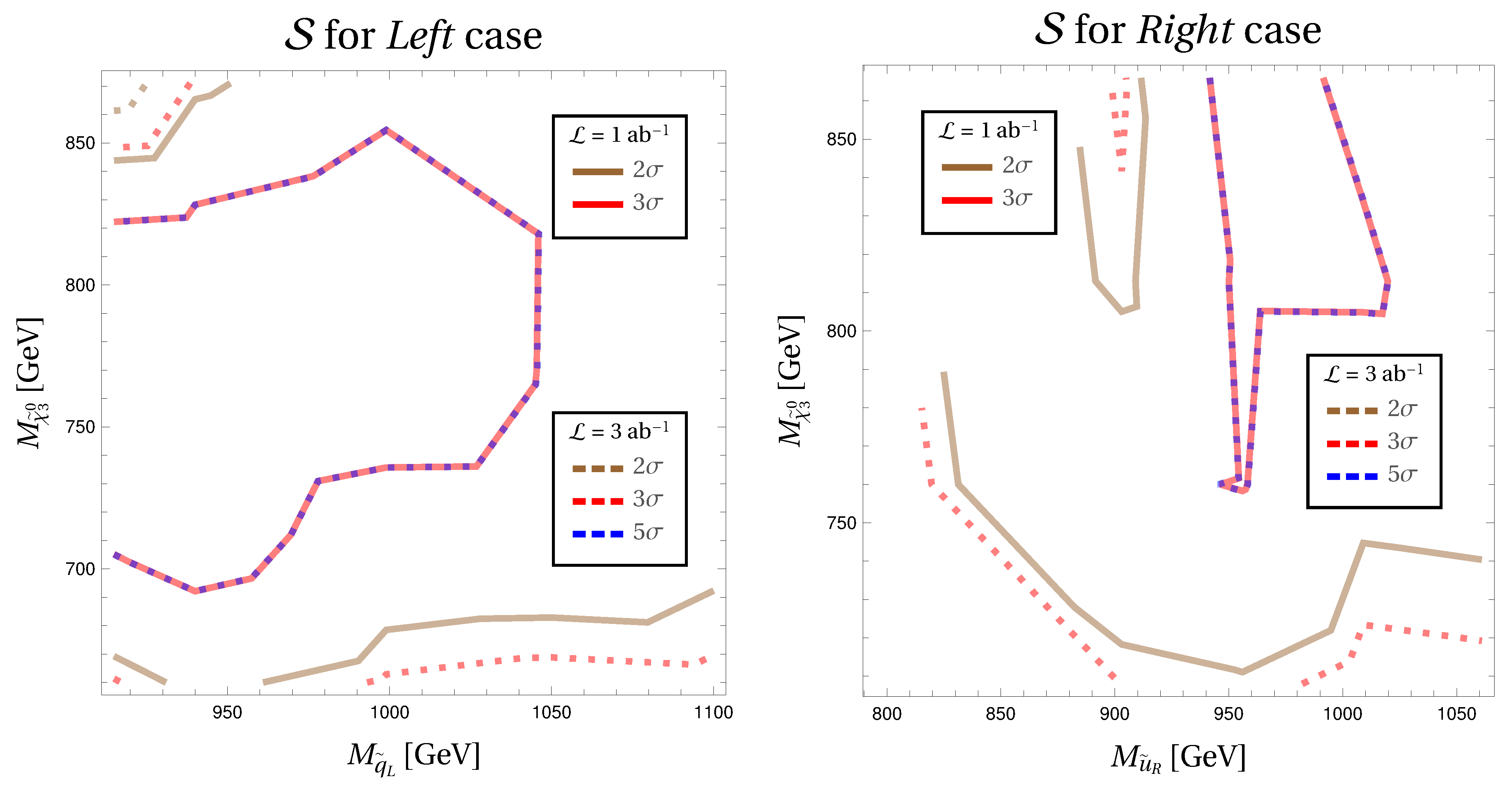

Figure 6. Contour lines in the plane [ M q ˜ , M χ ˜ 3 0 ] for q ˜ L (left) and u ˜ R (right) productions. Solid (dotted) lines correspond to L = 1 (3) ab 1 . The brown, red and blue colors are the S (background systematic uncertainty of 30%) with values of 2 σ , 3 σ and 5 σ , respectively.
Figure 6. Contour lines in the plane [ M q ˜ , M χ ˜ 3 0 ] for q ˜ L (left) and u ˜ R (right) productions. Solid (dotted) lines correspond to L = 1 (3) ab 1 . The brown, red and blue colors are the S (background systematic uncertainty of 30%) with values of 2 σ , 3 σ and 5 σ , respectively.
Particles 05 00023 g006
Table 1. Cut flow with L = 1 ab 1 corresponding to the Left case signal production. The last column is the significance with a systematic uncertainty in the background of 30%. The last row is the projection to L = 3 ab 1 .
Table 1. Cut flow with L = 1 ab 1 corresponding to the Left case signal production. The last column is the significance with a systematic uncertainty in the background of 30%. The last row is the projection to L = 3 ab 1 .
ProcessSignal t t ¯ lep + j (inc.) t t ¯ had + Z t t ¯ semilep + Z t t ¯ semilep + W ± S
Expected239 1.11 × 10 6 19,420530830 7 × 10 4
selection cut29.840,88821403839 2.3 × 10 3
cuts of Equations (2)–(3)5.920001.60.270.09
m T 2 n d l e p > 220 GeV3.7000.8602.61
m e f f > 1000 GeV3.4000.1104.02
L = 3 ab 1 10.2000.3306.65
Table 2. Cut flow with L = 1 ab 1 corresponding to the Right case signal production. The last column is the significance with a systematic uncertainty in the background of 30%. The last row is the projection to L = 3 ab 1 .
Table 2. Cut flow with L = 1 ab 1 corresponding to the Right case signal production. The last column is the significance with a systematic uncertainty in the background of 30%. The last row is the projection to L = 3 ab 1 .
ProcessSignal t t ¯ lep + j (inc.) t t ¯ had + Z t t ¯ semilep + Z t t ¯ semilep + W ± S
Expected195 1.11 × 10 6 19,420530830 5.7 × 10 4
selection cut23.440,88821403839 1.8 × 10 3
cuts of Equations (2)–(3)3.520001.60.270.06
m T 2 n d l e p > 220 GeV2.3000.8601.76
m e f f > 1000 GeV1.76000.1102.61
L = 3 ab 1 5.3000.3304.37
