Dielectric Properties of All-Organic Coatings: Comparison of PEDOT and PANI in Epoxy Matrices
Previous Article in Journal
The Effects of Geometry and Chemical Composition of Nanoparticles on The Fracture Toughness of iPP Nanocomposites
Open AccessArticle

Structure and Dielectric Properties of Electroactive Tetraaniline Grafted Non-Polar Elastomers

International Institute for Nanocomposites Manufacturing (IINM), WMG, University of Warwick, Coventry CV4 7AL, UK
*
Author to whom correspondence should be addressed.
J. Compos. Sci. 2020, 4(1), 25; https://doi.org/10.3390/jcs4010025
Received: 28 February 2020 / Revised: 6 March 2020 / Accepted: 7 March 2020 / Published: 10 March 2020

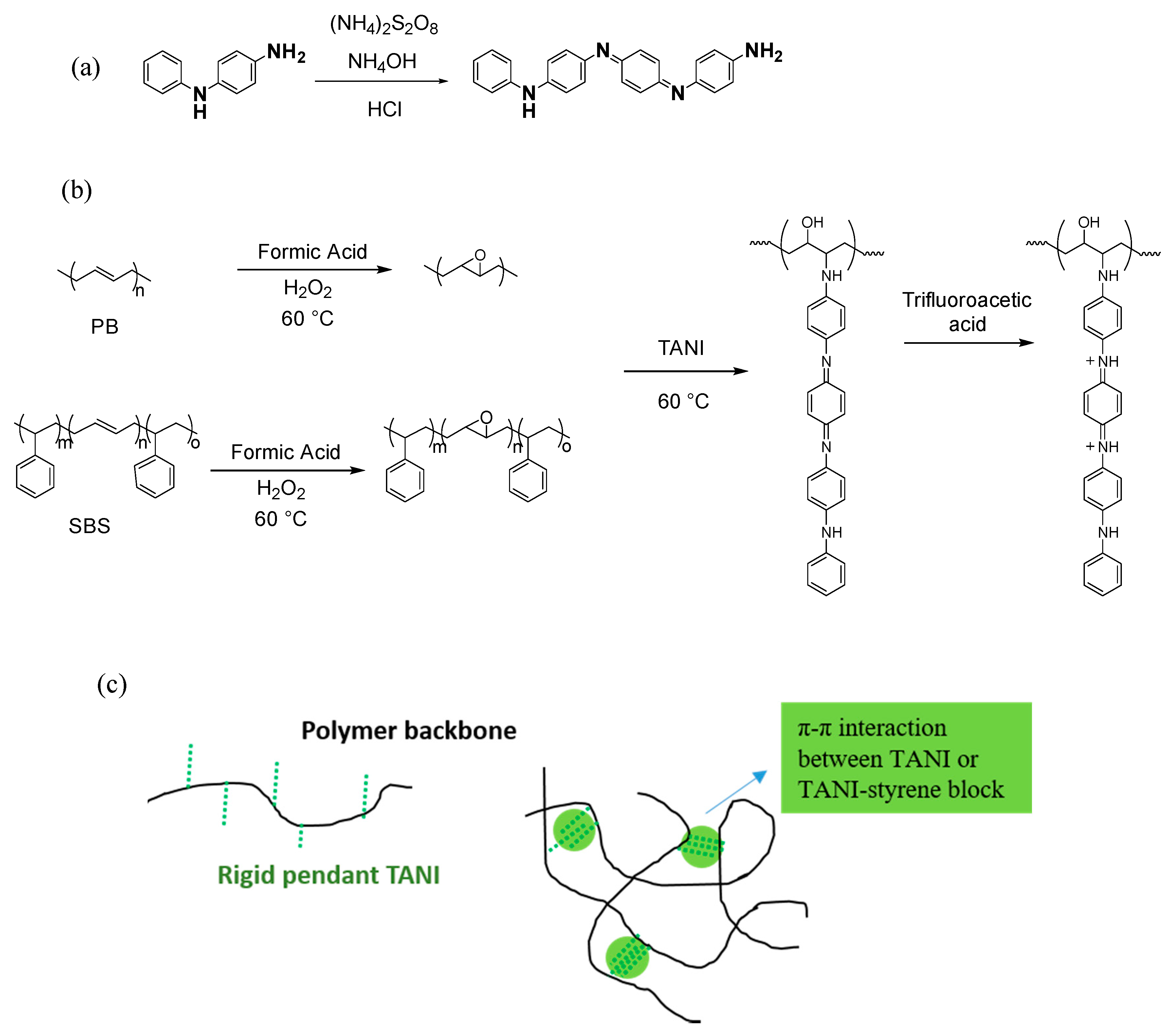

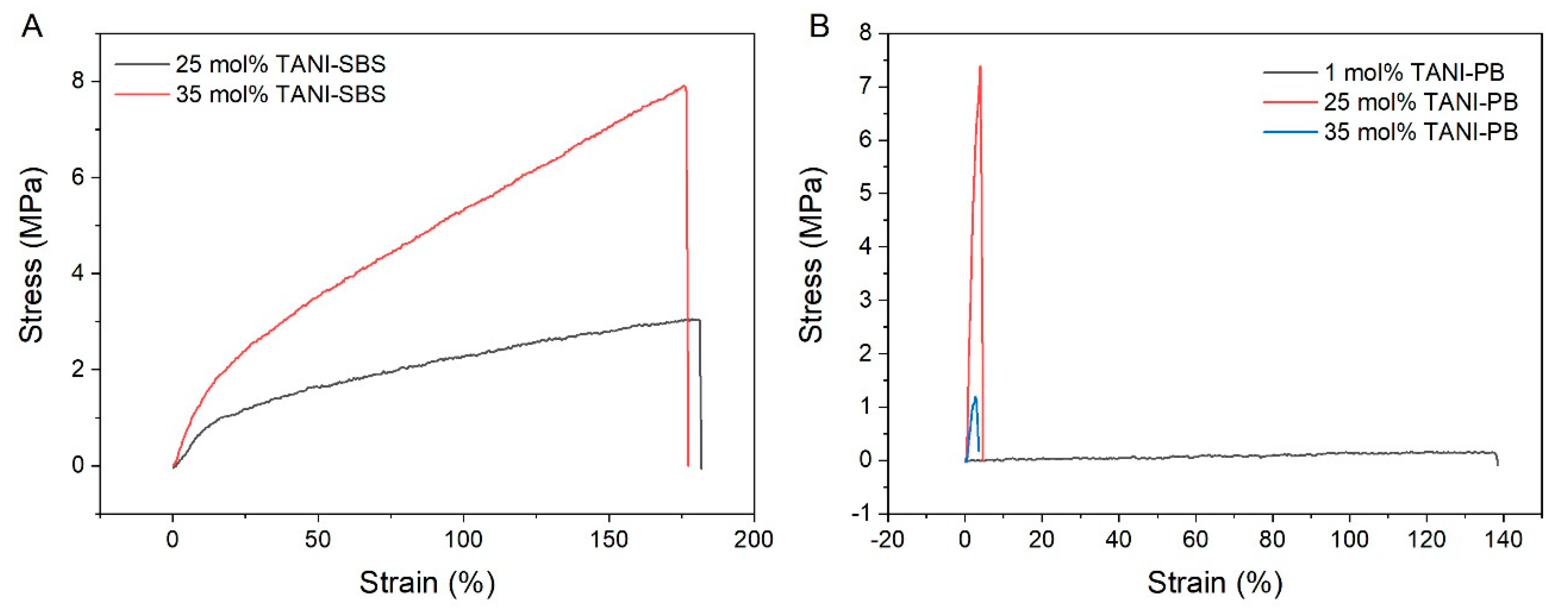

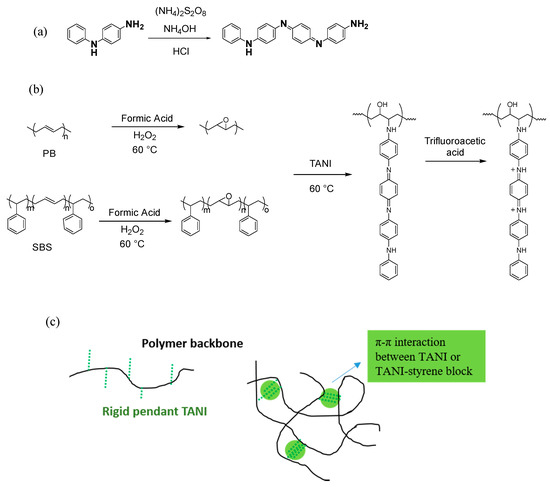

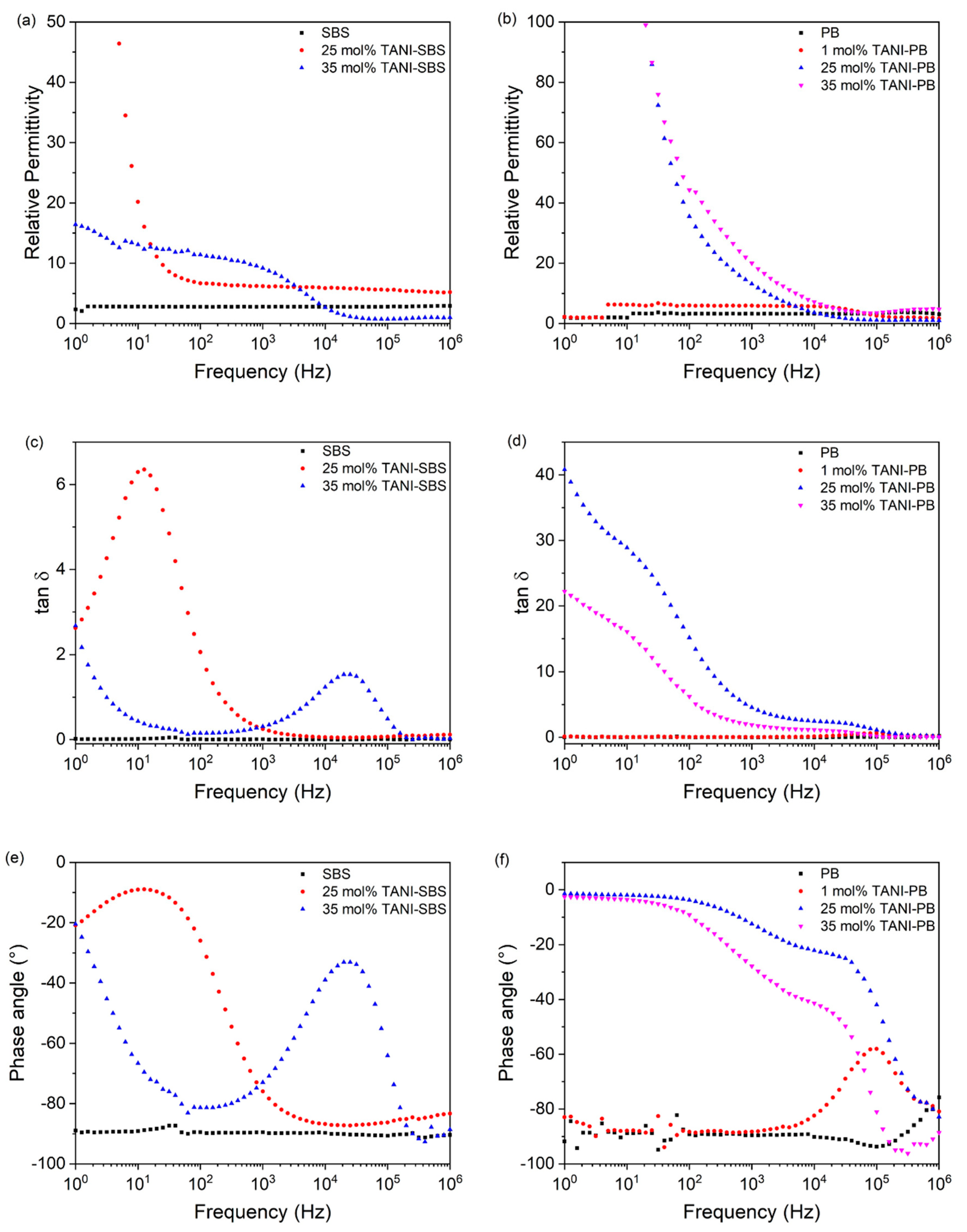

Intrinsic modification of polybutadiene and block copolymer styrene–butadiene–styrene with the electrically conducting emeraldine salt of tetraaniline (TANI) via a three-step grafting method, is reported in this work. Whilst the TANI oligomer grafted at a similar rate to both polybutadiene and styrene–butadiene–styrene under the same conditions, the resulting elastomers exhibited vastly different properties. 1 mol% TANI-PB exhibited an increased relative permittivity of 5.9, and a high strain at break of 156%, whilst 25 mol% TANI-SBS demonstrated a relative permittivity of 6.2 and a strain at break of 186%. The difference in the behaviour of the two polymers was due to the compatibilisation of TANI by styrene in SBS through π-π stacking, which prevented the formation of a conducting TANI network in SBS at. Without the styrene group, TANI-PB formed a phase separated structure with high levels of TANI grafting. Overall, it was concluded that the polymer chain structure, the morphology of the modified elastomers, and the degree of grafting of TANI, had the greatest effect on the mechanical and dielectric properties of the resultant elastomers. This work paves the way for an alternative approach to the extrinsic incorporation of conducting groups into unsaturated elastomers, and demonstrates dielectric elastomers with enhanced electrical properties for use in actuation devices and energy harvesting applications. View Full-Text
Keywords: tetraaniline; SBS; polybutadiene; dielectric elastomer; intrinsic modification; relative permittivity; grafting; electroactive; electromechanical; actuation tetraaniline; SBS; polybutadiene; dielectric elastomer; intrinsic modification; relative permittivity; grafting; electroactive; electromechanical; actuation
Show Figures

Figure 1

MDPI and ACS Style

Ellingford, C.; Pengchaicharoen, A.; Wemyss, A.M.; Wan, C. Structure and Dielectric Properties of Electroactive Tetraaniline Grafted Non-Polar Elastomers. J. Compos. Sci. 2020, 4, 25.
