Next Article in Journal
Metallurgical Analysis of Chip Forming Process when Machining High Strength Bainitic Steels
Previous Article in Journal
The Joint Properties of 5754 Aluminium Alloy by Friction Stir Spot Welding
Open AccessArticle

Investigation of Feedstock Preparation for Injection Molding of Oxide–Oxide Ceramic Composites

1
Karlsruhe Institute of Technology, Institute of Applied Materials (IAM-WK), 76344 Eggenstein-Leopoldshafen, Germany
2
University of Freiburg, Institute for Microsystem Technologies, 79110 Freiburg, Germany
*
Author to whom correspondence should be addressed.
J. Manuf. Mater. Process. 2019, 3(1), 9; https://doi.org/10.3390/jmmp3010009
Received: 28 October 2018 / Revised: 7 December 2018 / Accepted: 20 December 2018 / Published: 16 January 2019

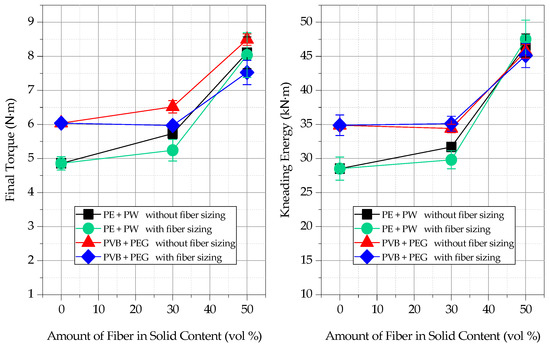

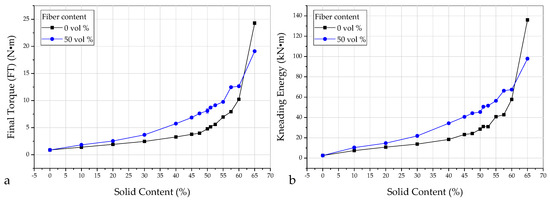

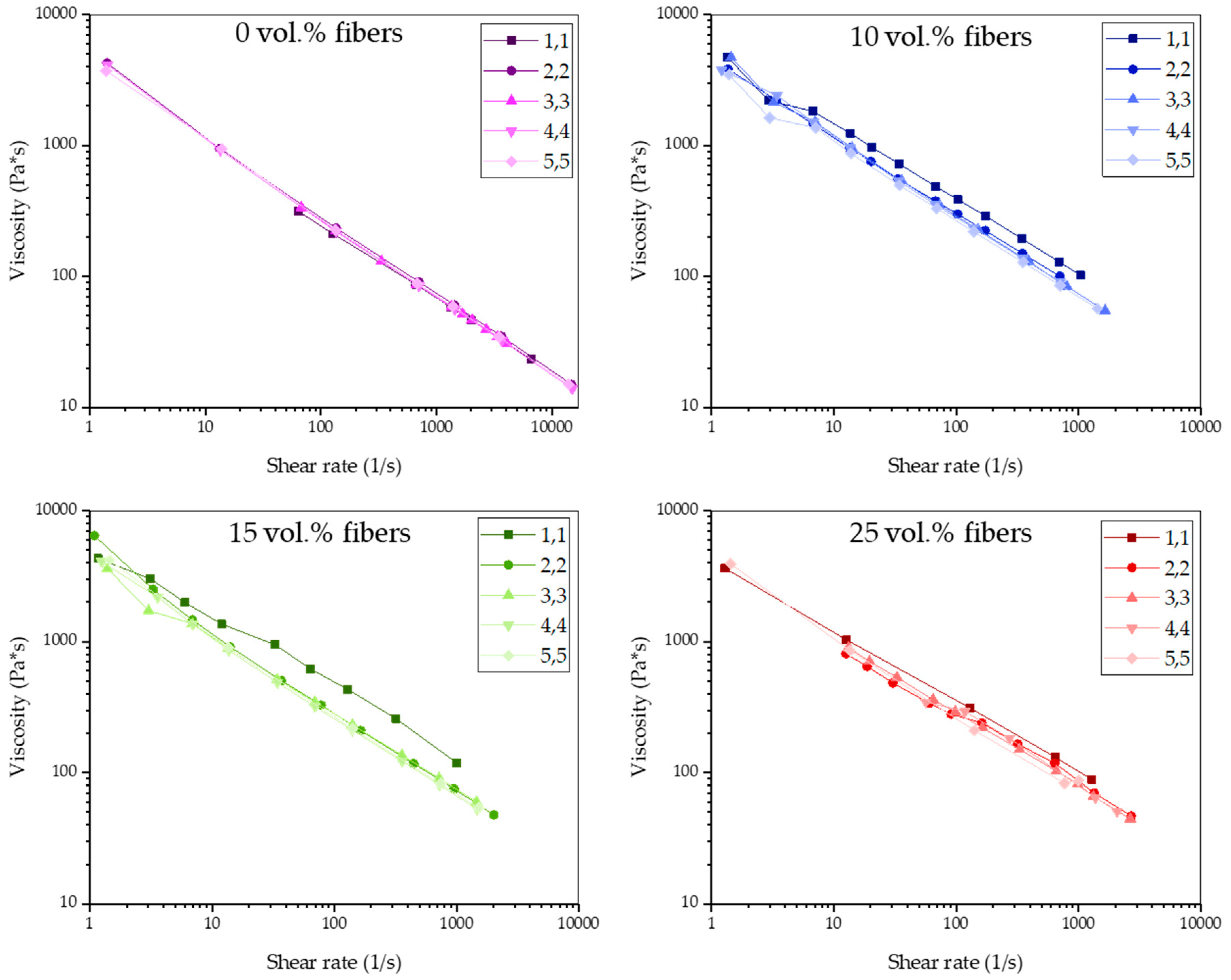

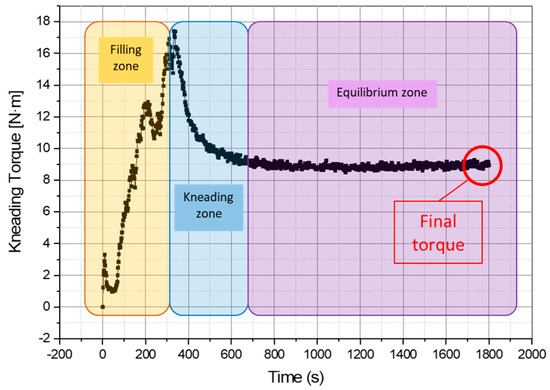

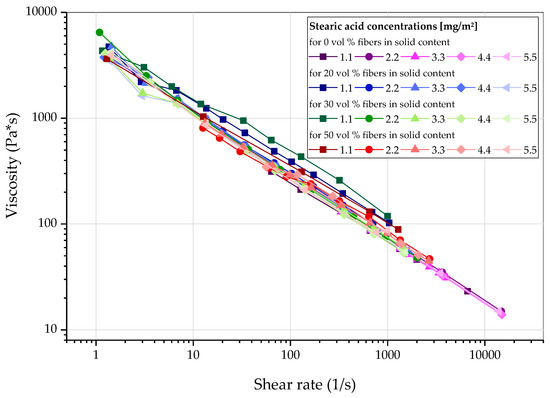

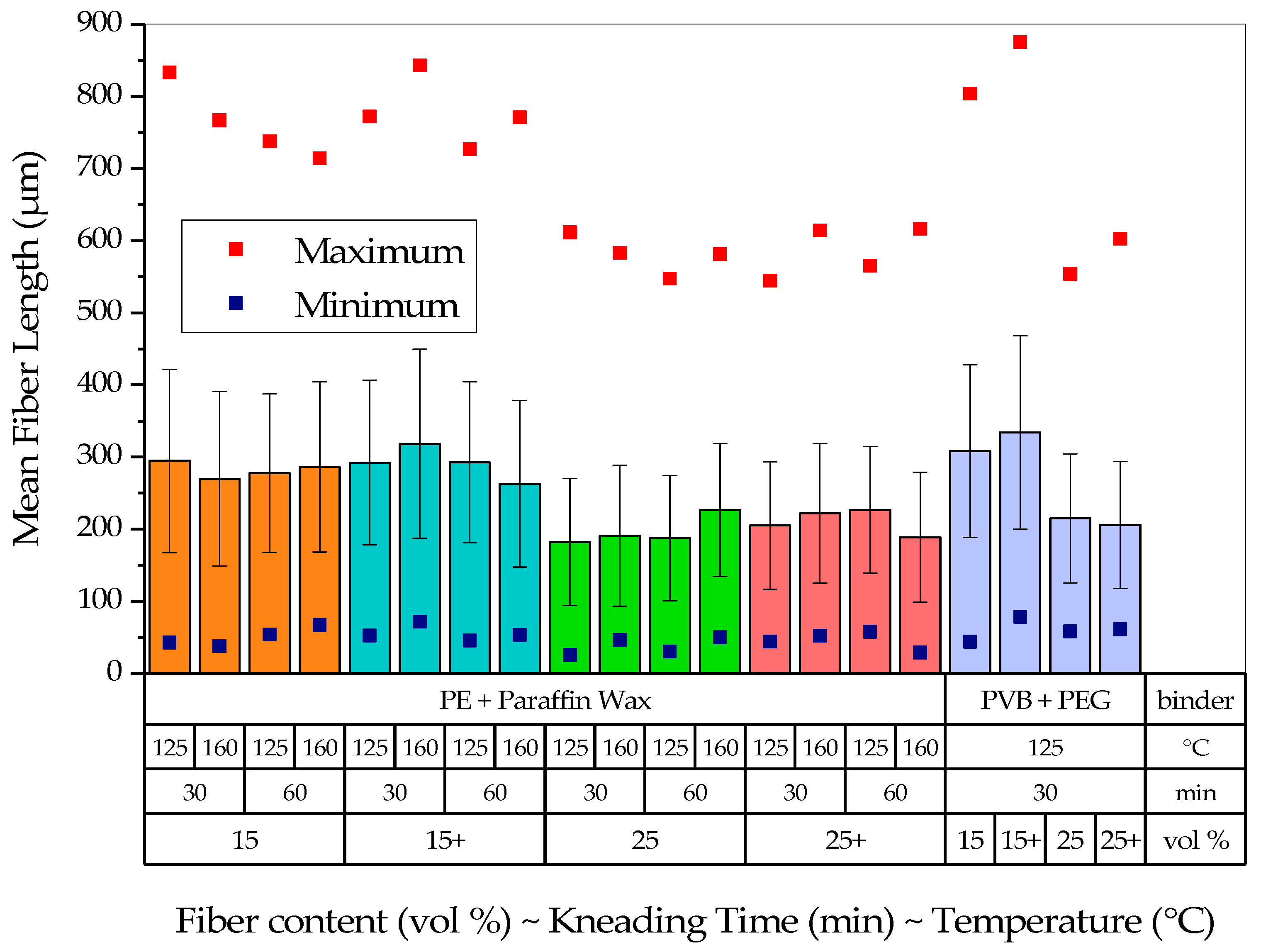

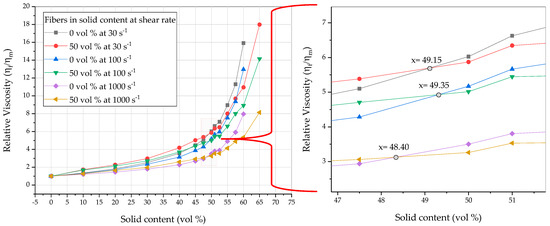

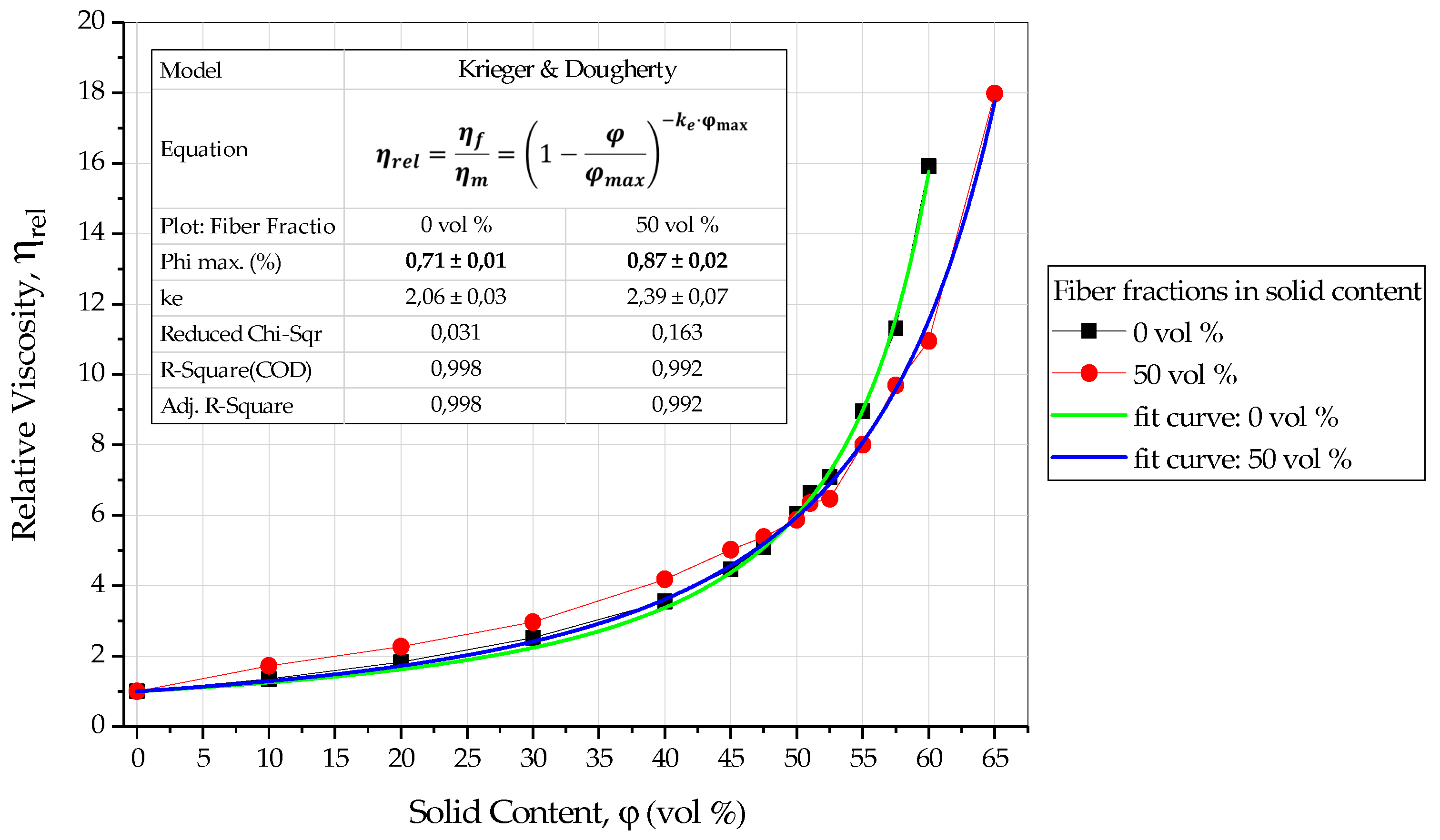

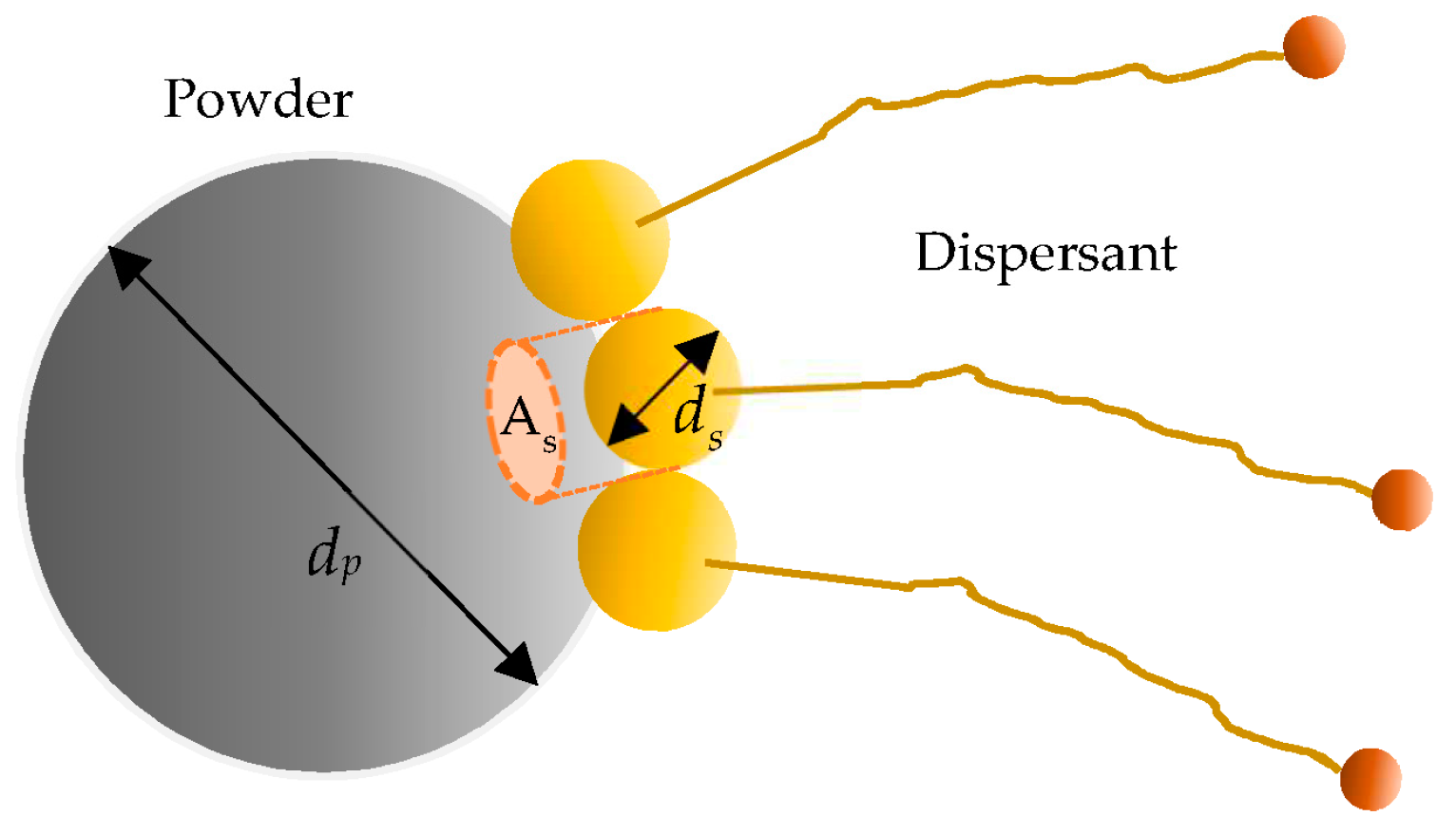

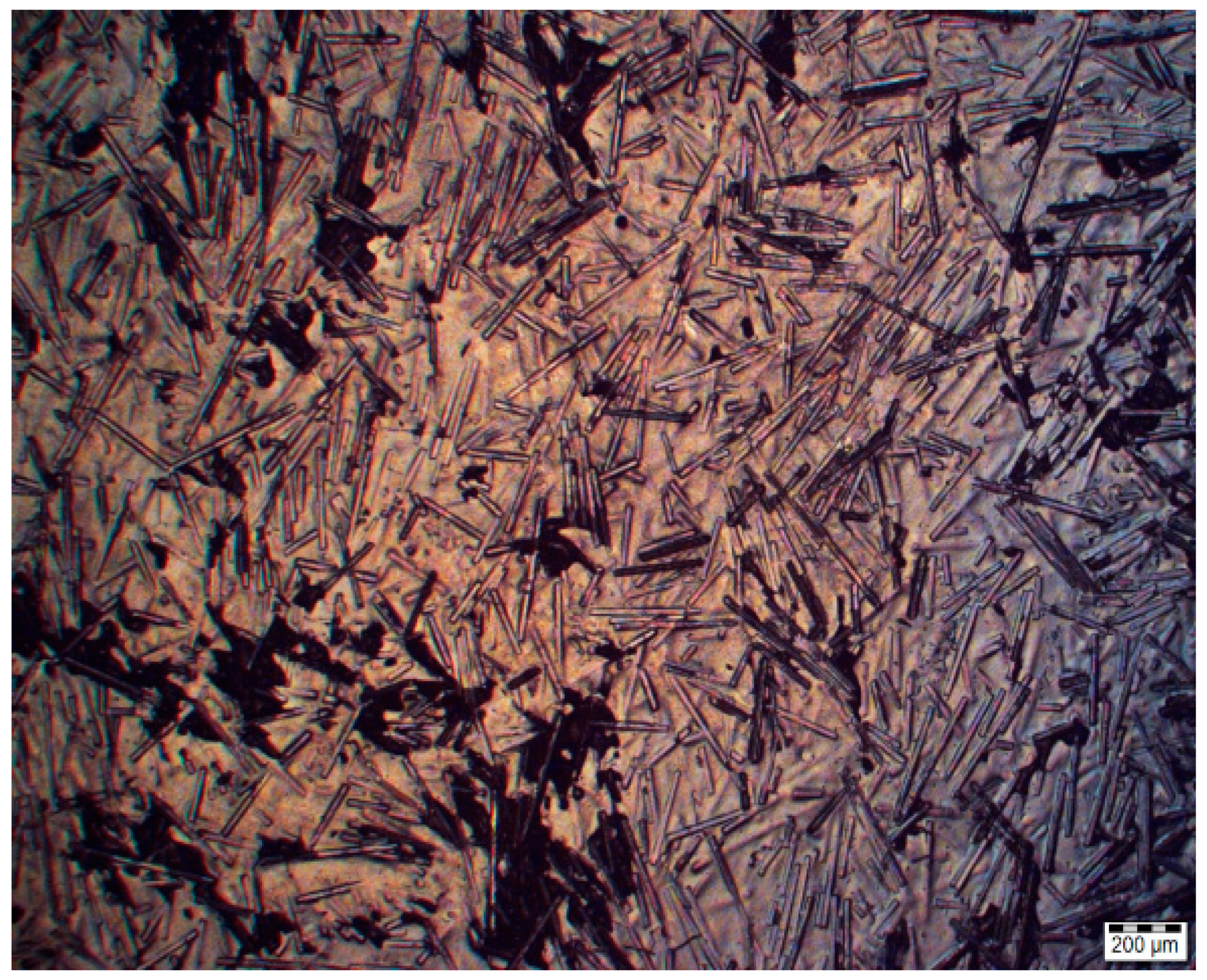

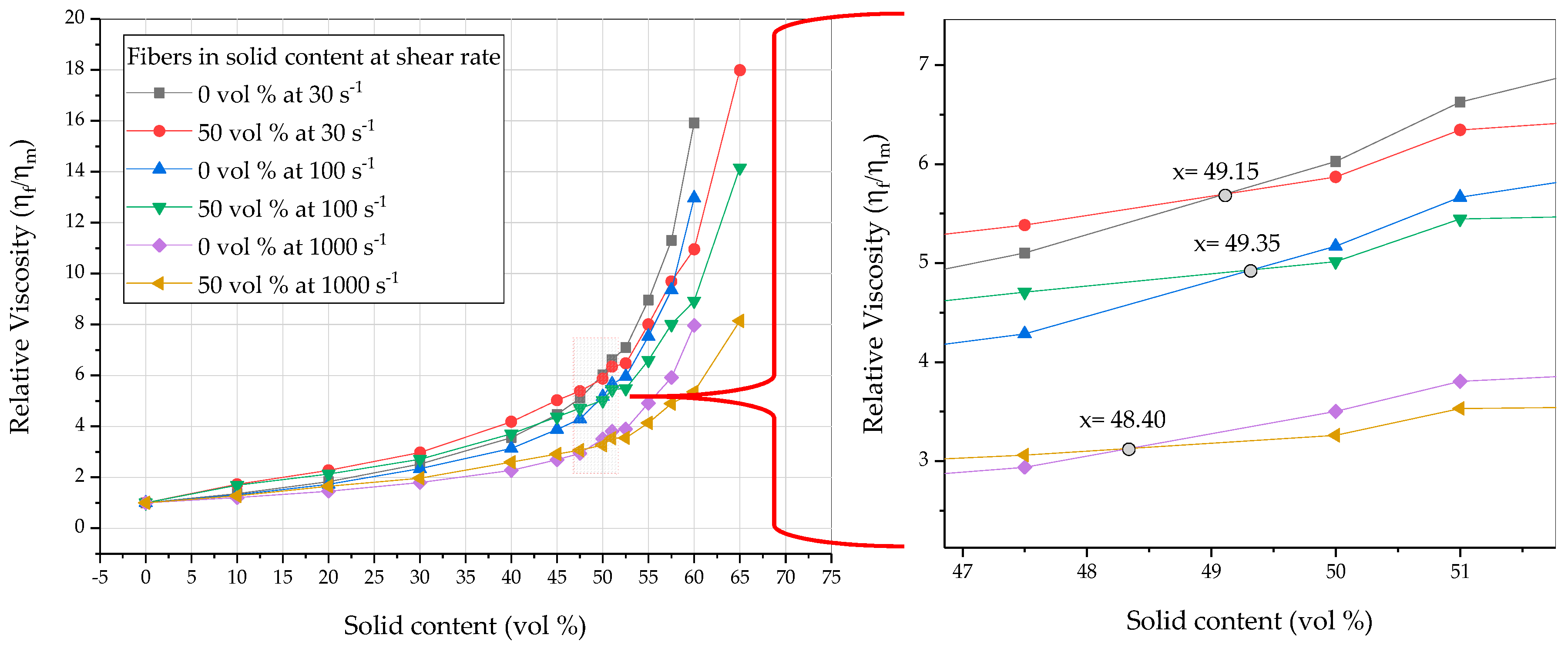

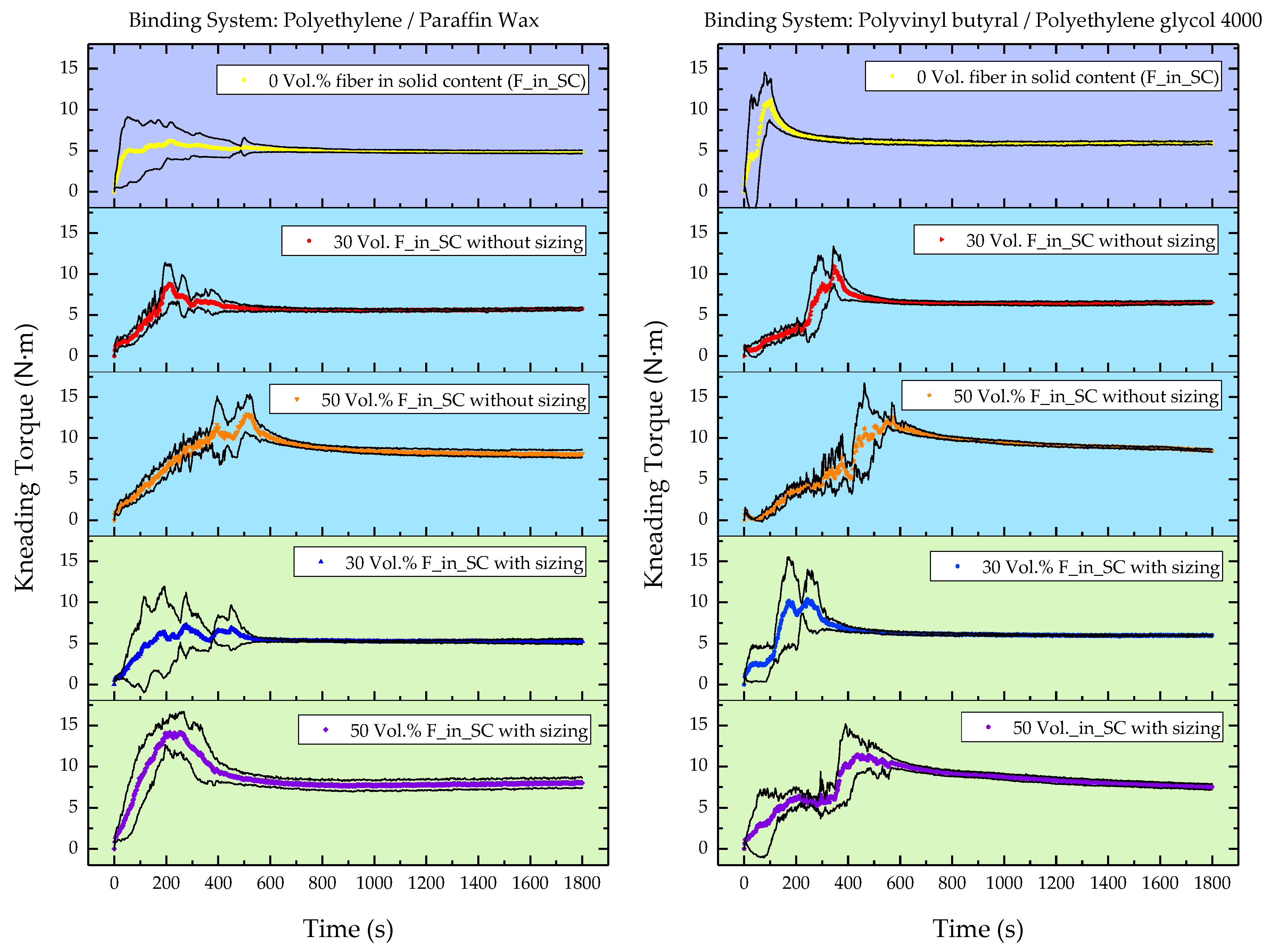

In this fundamental work, a series of experiments were performed to define the optimal amount of dispersant and solid content for feedstock with and without ceramic fibers (Nextel 610). Based on these fixed conditions, investigations were carried out to discover the effects of binder system, fiber sizing, and increasing fiber content on mixing and viscosity. In addition, the effects of kneading temperature and time, fiber sizing, and different binder systems on fiber length were investigated using a measuring mixer, high-pressure capillary rheometer, and microscopy. Stearic acid, as a dispersant, modified the particle surface and improved the rheological properties. Moreover, increasing the solid content in the feedstocks led to an exponential growth of final torque and relative viscosity, because of the increasing friction between particles. Paraffin wax (PW)- and polyethylene glycol (PEG)-based feedstocks showed different mixing behaviors and rheological results with increasing fiber, whereas PEG-based feedstocks had higher final torques and kneading energies without fibers, whilst PEG feedstocks displayed lower viscosities. Consequently, during kneading, the amount of fiber has been predominating over fiber length, and the effect of the binder, the kneading temperature, and time did not cause significant changes. View Full-Text
Keywords: powder injection molding; short fiber reinforcement; ceramic fiber; Nextel 610; kneading; stearic acid; solid content; fiber content powder injection molding; short fiber reinforcement; ceramic fiber; Nextel 610; kneading; stearic acid; solid content; fiber content

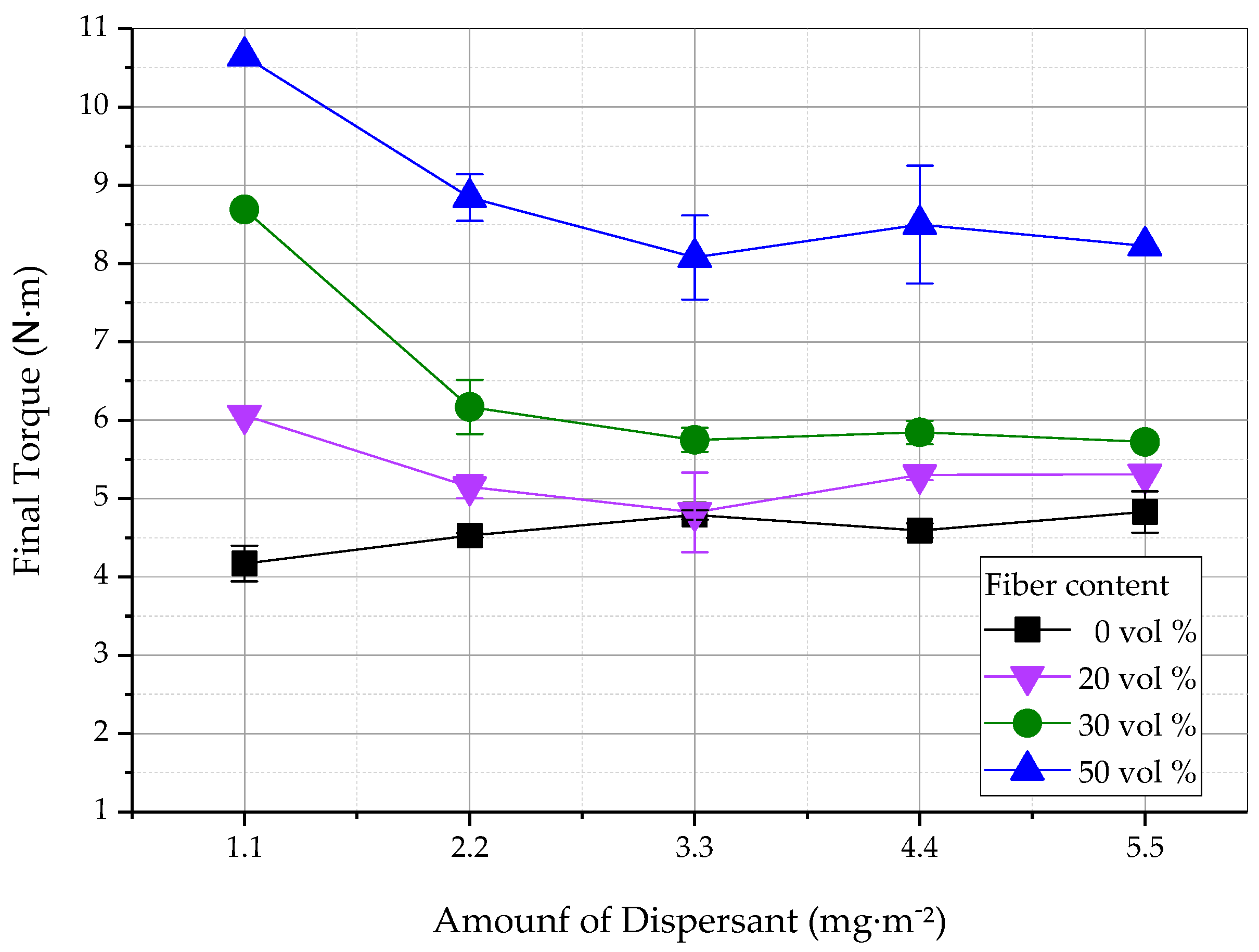

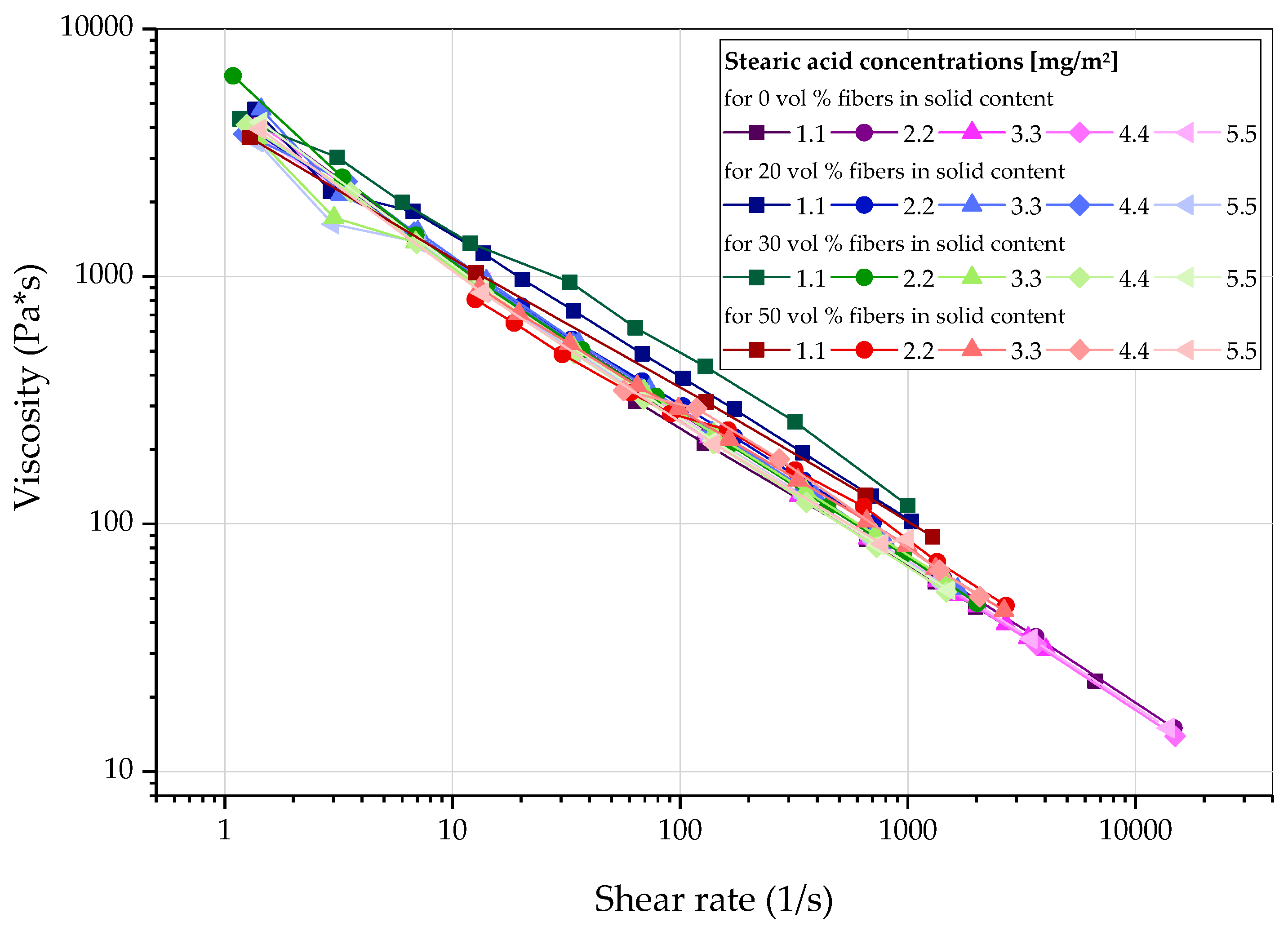

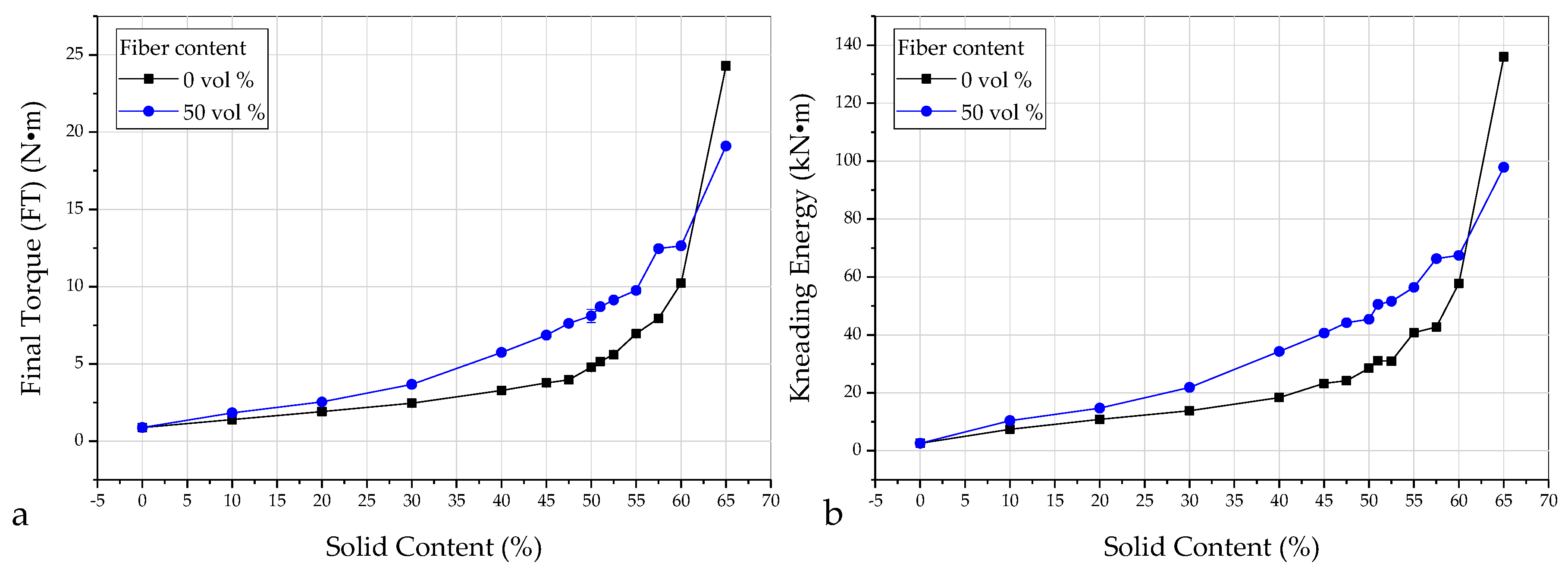

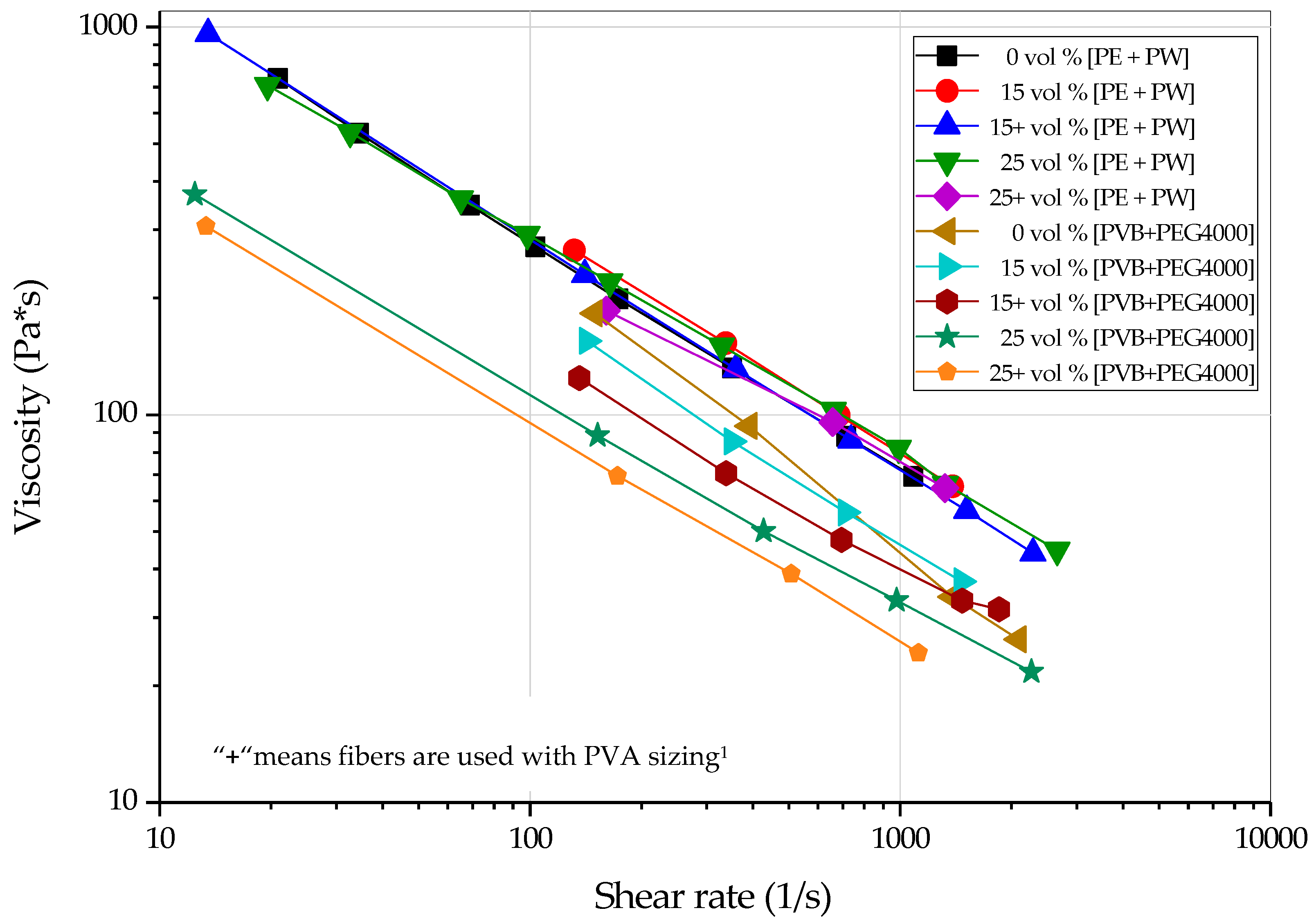

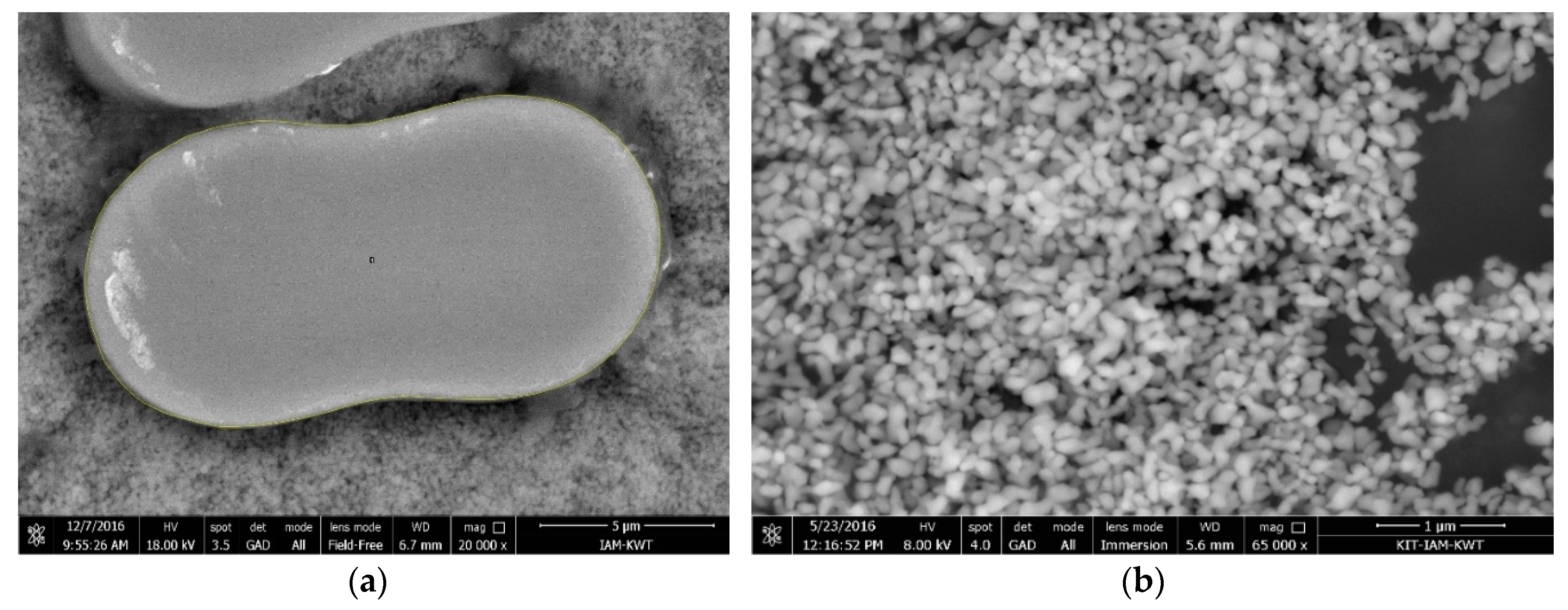

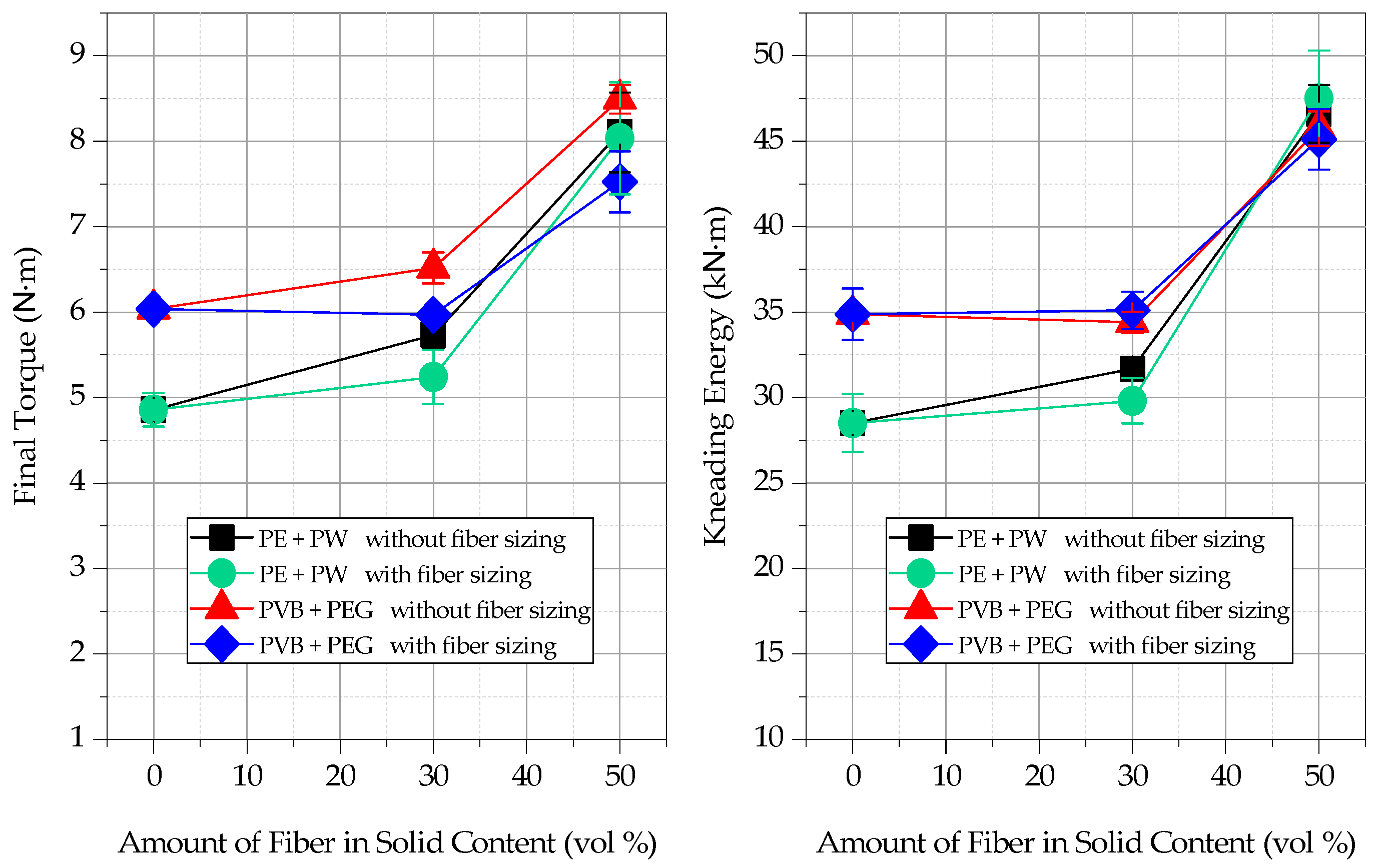

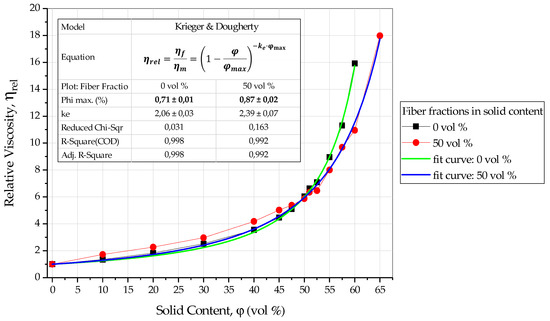

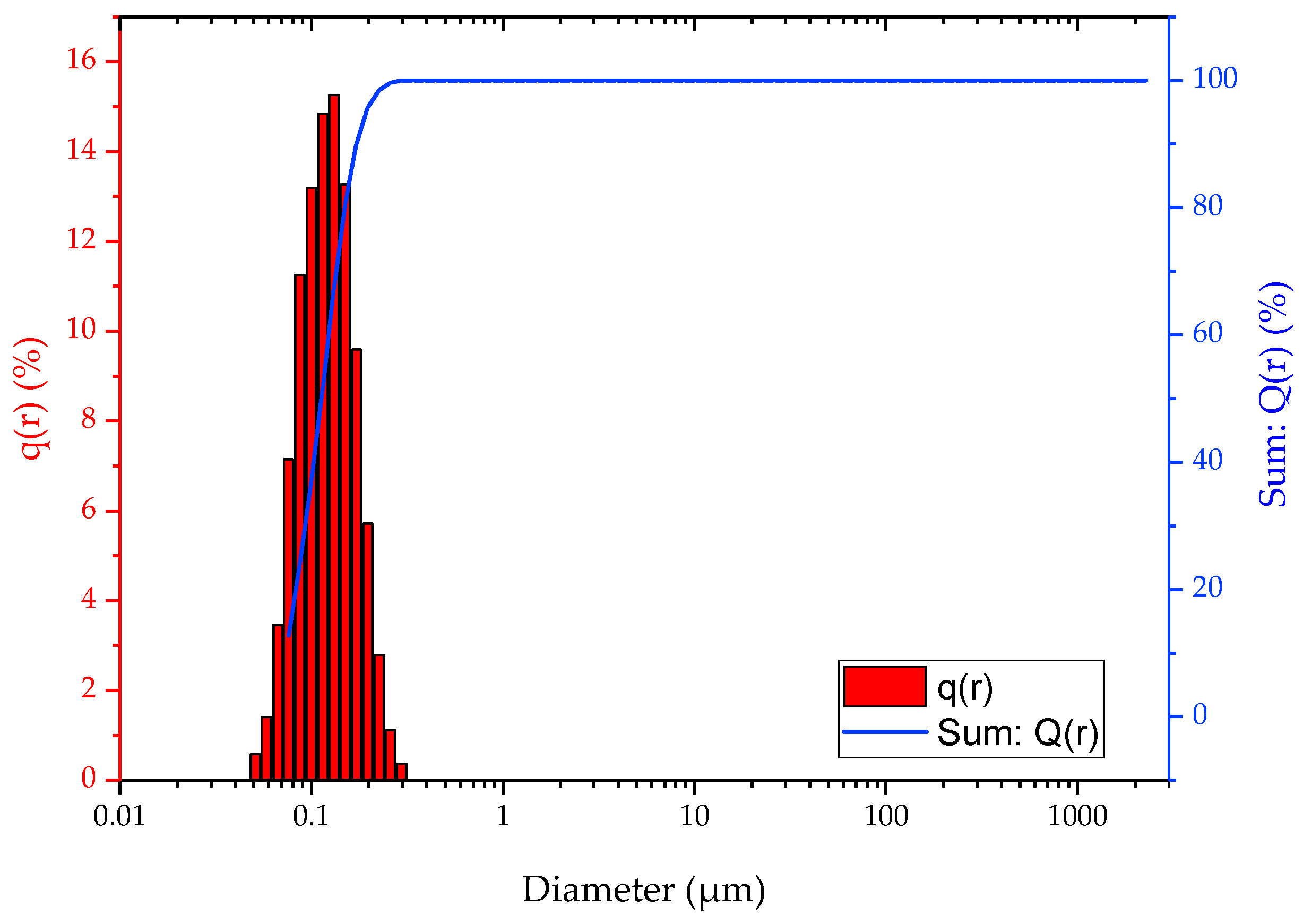

Show Figures

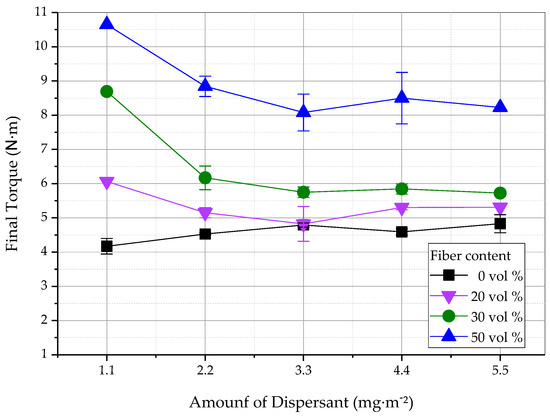

Figure 1

MDPI and ACS Style

Tülümen, H.M.; Hanemann, T.; Piotter, V.; Stenzel, D. Investigation of Feedstock Preparation for Injection Molding of Oxide–Oxide Ceramic Composites. J. Manuf. Mater. Process. 2019, 3, 9.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
