Open AccessArticle

Detecting Embankment Instability Using Measurable Track Geometry Data

Asset Research Consultancy Department, AECOM, Nottingham NG9 6RZ, UK
*
Author to whom correspondence should be addressed.
Infrastructures 2020, 5(3), 29; https://doi.org/10.3390/infrastructures5030029
Received: 15 February 2020 / Revised: 9 March 2020 / Accepted: 9 March 2020 / Published: 12 March 2020

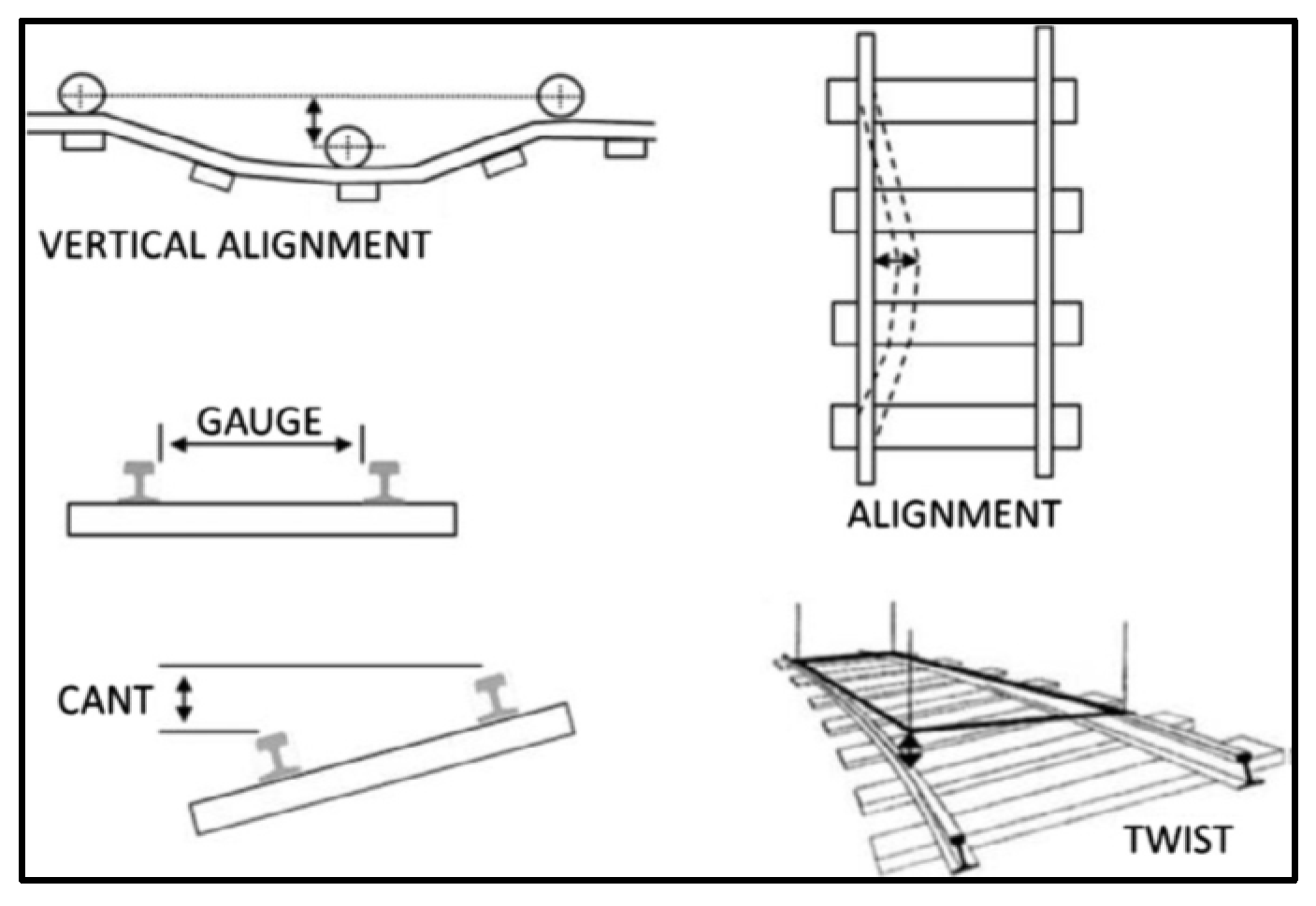

The British railway system is the oldest in the world. Most railway embankments are aged around 150 years old and the percentage of disruption reports that feature them is frequently higher than other types of railway infrastructure. Remarkable works have been done to understand embankment deterioration and develop asset modelling. Nevertheless, they do not represent a sufficient way of managing assets in detail. As a result, reactive approaches combined with proactive ones would improve the whole asset management scenario. To guarantee good system performance, geotechnical asset management (GAM) aims to reduce uncertainty through informed, data driven decisions and optimisation of resources. GAM approaches are cost sensitive. Thus, data driven approaches that utilize existing resources are highly prized. Track geometry data has been routinely collected by Network Rail, over many years, to identify track defects and subsequently plan track maintenance interventions. Additionally, in 2018 Network Rail commissioned AECOM to undertake a study, described in this paper, to investigate the use of track geometry data in the detection of embankment instabilities. In this study, track geometry data for over 1800 embankments were processed and parameters offering the best correlation with embankment movements were identified and used by an algorithm to generate an embankment instability metric. The study successfully demonstrated that the instability of railway embankments is clearly visible in track geometry data and the metric gives an indication of the worsening of track geometry, that is likely due to embankment instability. View Full-Text
Keywords: smart infrastructure; sustainability; resilience; land use optimisation; transport; geotechnical asset management; embankment degradation; railway track degradation; maintenance smart infrastructure; sustainability; resilience; land use optimisation; transport; geotechnical asset management; embankment degradation; railway track degradation; maintenance
Show Figures

Graphical abstract

MDPI and ACS Style

Kite, D.; Siino, G.; Audley, M. Detecting Embankment Instability Using Measurable Track Geometry Data. Infrastructures 2020, 5, 29.
