Design of Promising aza-BODIPYs for Bioimaging and Sensing

Abstract

The obtainment of new luminophores for molecular sensorics of biosystems is becoming one of the urgent tasks in the field of chemical synthesis. The solution to each practical problem imposes its own limitations in the design of new structures with practically useful properties. The relationship between the structure and spectral properties is still to be unveiled. Three aza-BODIPY complexes with substituents of different natures were studied using time-resolved and steady-state fluorescence and absorption spectroscopy. The solvatochromic properties of aza-BODIPYs were studied with the use of a combined polyparametric approach and analysis by chemoinformatics methods for the first time. It was found that red shift of aza-BODIPY dyes was due to the increase of their structural lability. Predictive and experimental methods showed that the investigated aza-BODIPYs exhibited a positive solvatochromic effect, in contrast to classic BODIPYs (bearing C in the meso-position of the dipyrromethene core), which represents the negative solvatochromic properties. Spectral maxima in the area of the therapeutic window, low and predictable solvatochromism, and the ability to fine-tune the spectral characteristics make the investigated aza-BODIPYs promising scaffolds for the construction of bioengineering devices. Generalizations on the aza-BODIPYs’ design patterns were made in accordance with further bioimaging applications.

1. Introduction

Today, clinical diagnostic methods based on fluorescence spectroscopy and molecular sensors are being actively developed. Scientists keep looking for new fluorescent molecules that can act as selective sensors to measure the intracellular and intercellular parameters of biological systems [1]. These compounds could be used for the qualitative and quantitative assessment of the ongoing biochemical processes [2]. Synthetic and biogenic luminophores are actively used as sensors and markers of biological processes and conditions [3,4]. They can also be used in the design of biomimetic materials [5,6,7] or smart materials [8,9,10,11], allowing one to explore and adapt their properties for a specific task. Spectral techniques allow one to track the localization of functional molecules [12], determining the characteristics of their molecular environment [13] and, in some cases, detailing the mechanisms of the processes occurring in the organism [14]. At the same time, the use of fluorophores requires, as a rule, fine-tuning of their spectral and photophysical characteristics [4,15]. The position of the absorption and emission bands is important. The most promising for sensing applications is the spectral range of 650–900 nm, the so-called “therapeutic window” [16], where the absorption and self-fluorescence of tissues and organs is minimal. In addition, compound design should ensure the selectivity (for sensor applications) or inertness (for labeling) of compounds to changes in the molecular environment due to the implementation of a limited number of mechanisms for intramolecular and intermolecular energy transfer [17].

Boron dipyrrin complexes (BODIPYs) are among the most promising synthetic fluorophores, which have intense fluorescent characteristics [18], are resistant to aggressive environmental factors [19,20], and can also be chemically modified to solve specific applied problems [21]. These compounds exhibit red–near-infrared fluorescence and are able to carry up to six desired substituents [22], realizing their potential as effective fluorescent sensors. The most studied at the moment are the compounds with the absorption and fluorescence maxima in the region of 480–530 nm, and some of the compounds are available for commercial purchase. However, the chemistry of BODIPY is actively developing, and every year, new compounds and groups of substances appear that are applicable to solve problems in medicine [23], sensorics, including biosensorics [24], and in the design of new optical energy converters [25,26,27]. The list of measured parameters is extensive and includes temperature [28], the viscosity [29] of intracellular and intercellular fluids, the shape and volume of organelles [30], the presence of heavy metal ions [31], and the acidity of the medium [32]. The study of these parameters is closely connected with solvent polarity and dye solvatochromism [33,34,35,36,37]. On the one hand, solvatochromic dyes are excellent environment-sensitive probes for polarity [38], viscosity [39], and molecular order [40]. On the other hand, solvatochromism may not be preferred in biological studies due to the non-uniformity of biological liquids, making it harder to isolate the target signal in a complex medium. The latter leads to the abundance of articles dedicated to qualitative, but not quantitative measurements. However, very few papers have studied the influence of the substituents on the solvatochromism of BODIPY dyes, and to our knowledge, none of them have been on aza-BODIPYs.

The use of aza-BODIPYs as components of sensing instruments is less widespread. At the same time, for applications in the field of bioengineering, medicine, and precise controlling systems, systemic information about new promising chemical compounds is important—the spectral properties and their effects when varying the solvate environment [41] and the possible toxic effect [42,43]. In this regard, within the framework of this work, several new boron dipyrrin luminophores were proposed, the spectral characteristics in a wide range of solvents are described, and a prognostic interpretation of the properties of the compounds is given. We hope that the results of this work will be of interest not only to chemists, but also to a wide range of researchers and engineers who consider aza-BODIPYs as promising components for the design of new sensors and molecular devices.

2. Materials and Methods

In this work, three aza-BODIPY dyes were studied, which were synthesized previously [44,45] and differ in their functional substituents along the periphery (Figure 1):

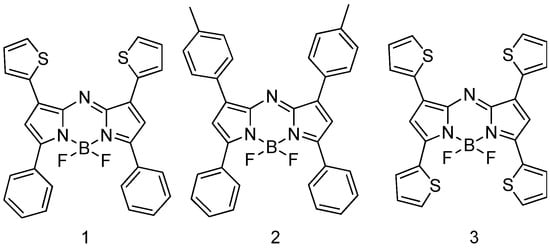

• 4,4-difluoro-1,7-diphenyl-3,5-dithienyl-4-boron-3a,4a,8-triaza-s-indacene (1);
• 4,4-difluoro-1,7-diphenyl-3,5-ditolyl-4-boron-3a,4a,8-triaza-s-indacene (2);
• 4,4-difluoro-1,3,5,7-tetrathienyl-4-boron-3a,4a,8-triaza-s-indacene (3).

aza-BODIPYs 1 and 3 were selected in order to understand the influence of the electron-donating substituents and their number on the photophysical properties of aza-BODIPYs. aza-BODIPY 2 was used as a reference compound, bearing ordinary aromatic substituents.

The measurements were carried out in organic solvents, using dilute solutions of compounds with a given concentration. The optical density at the absorption maximum did not exceed 0.1 in order to avoid the effects of aggregation and an internal filter. The measurements were carried out in quartz cuvettes with a thickness of the light-absorbing solution layer of 10 mm.

Electronic absorption spectra (EAS) were recorded in the range of 190–1100 nm on an Aquilon SF-104 spectrophotometer controlled by the UV-Win 5.1.0 software package.

Fluorescence spectra were obtained on a Cary Eclipse Varian-Agilent fluorescence spectrometer with the Cary Eclipse Scan Application 1.1 software.

The decay curves of the excited state of the molecules were obtained by counting single photons with the time correlation on a PicoQuant FluoTime 300 instrument with the EasyTau 2 software and a laser wavelength of 450 nm, 500 nm, or 600 nm. Additionally, the decay curves were measured using an optical setup assembled at the Hedley Gordon Single Molecule Laboratory, The University of Glasgow, Scotland.

All solvents used were chemically pure and produced by ChemMed (Moscow, Russia) and Sigma Aldrich (Moscow, Russia).

In order to correlate the photophysical properties of the aza-BODIPYs with the parameters of the solvate microenvironment, the method of linear regression analysis was used. When solving the equation with respect to one property of the system with known values of the set of solvent parameters, the equation has the form:

$$\mathrm{X}={\mathrm{X}}_0+\mathrm{a}·\mathrm{A}+\mathrm{b}·\mathrm{B}+\mathrm{c}·\mathrm{C}+\cdots ,$$

(1)

where:

• X is the physicochemical parameter of the compound in a given solvent;
• X₀ is the value of a given physical and chemical property in the gas phase or inert solvent;
• A, B, and C are independent parameters of the solvent, describing various mechanisms of interaction between the solvent and the solute;
• a, b, and c are coefficients characterizing the contribution from the parameters A, B, C of the solvent to the investigated property.

For the regression analysis, the sets of the Kamlet–Taft [46] and Catalan [47] parameters were used, the values of which varied from 0 to 1 (

Table 1. Parameters of individual organic solvents: a set of Catalan parameters (SP—polarity; SPP—polarizability; SA—acidity; SB—basicity); a set of Kamlet/Taft parameters (π—polarity/polarizability, α—proton-donor properties, β—electron-donor properties).

Solvent	Kamlet–Taft Parameters			Catalan Parameters
	π	Β	α	SP	SPP	SA	SB
Acetone	0.71	0.48	0.08	0.651	0.907	0.000	0.475
Benzene	0.59	0.10	0.00	0.793	0.270	0.000	0.124
Hexane	−0.08	0.00	0.00	0.616	0.000	0.000	0.056
Dimethyl sulfoxide	1.00	0.76	0.00	0.830	1.000	0.072	0.647
Dimethylformamide	0.88	0.69	0.00	0.759	0.977	0.031	0.613
Dichloromethane	0.82	0.00	0.30	0.761	0.769	0.040	0.178
Methanol	0.60	0.62	0.93	0.608	0.904	0.605	0.545
Propanol	0.52	0.90	0.78	0.658	0.748	0.367	0.782
Tetrachloromethane	0.28	0.00	0.00	0.768	0.000	0.000	0.044
Toluene	0.54	0.11	0.00	0.782	0.284	0.000	0.128
Chloroform	0.58	0.00	0.44	0.783	0.614	0.047	0.071
Cyclohexane	0.00	0.00	0.00	0.683	0.000	0.000	0.073
Ethanol	0.54	0.77	0.83	0.633	0.783	0.400	0.658
Ethyl acetate	0.55	0.45	0.00	0.656	0.603	0.000	0.542

).

For a systematic analysis of the solvatochromism of aza-BODIPYs, a new semi-empirical approach was used, developed by the senior researcher of the laboratory, Felix Telegin, which was based on the theories of Lippert–Mataga, Bilot–Kavski, Bakhshiev, Liptey, and their special cases [41]. The solvatochromic sensitivity of the dye to the microenvironment can be estimated from the equation for changing the position of absorption and fluorescence bands in a series of solvents:

$${\mathsf{\nu }}_{\mathrm{abs}}-{\mathsf{\nu }}_{\mathrm{fl}}=-\mathrm{A}\left({\mathsf{\nu }}_{\mathrm{abs}}+{\mathsf{\nu }}_{\mathrm{fl}}\right)+\mathrm{B},$$

(2)

where:

• ${\mathsf{\nu }}_{\mathrm{abs}}$ and ${\mathsf{\nu }}_{\mathrm{fl}}$ are maxima in the absorption and fluorescence spectra, expressed as wavenumbers, cm⁻¹;
• ${\mathsf{\nu }}_{\mathrm{abs}}-{\mathsf{\nu }}_{\mathrm{fl}}$ is Stokes’ shift, cm⁻¹;
• $\mathrm{A}$ is the sensitivity of the fluorophore to the polar environment;
• $\mathrm{B}$ is the free-term equation.

An experimental estimate of the coefficient A gives a relationship between the dipole moments in the ground (μ_g) and excited (μ_e) states:

$$\mathrm{A}\approx \frac{{\mathsf{\mu }}_{\mathrm{e}}-{\mathsf{\mu }}_{\mathrm{g}}}{{\mathsf{\mu }}_{\mathrm{e}}+{\mathsf{\mu }}_{\mathrm{g}}}.$$

(3)

However, it should be noted that the use of an equation that includes the difference in wavenumbers is not optimal, due to the doubling of the statistical error in comparison with the coefficients for individual absorption and fluorescence bands. It is preferable to use equations that are derived linear combinations of the original equality:

$${\mathsf{\nu }}_{\mathrm{abs}}=\frac{1-\mathrm{A}}{2}\left({\mathsf{\nu }}_{\mathrm{abs}}+{\mathsf{\nu }}_{\mathrm{fl}}\right)+\frac{\mathrm{B}}{2}={\mathrm{A}}_{\mathrm{abs}}\left({\mathsf{\nu }}_{\mathrm{abs}}+{\mathsf{\nu }}_{\mathrm{fl}}\right)+{\mathrm{B}}_{\mathrm{abs}},$$

(4)

$${\mathsf{\nu }}_{\mathrm{fl}}=\frac{1+\mathrm{A}}{2}\left({\mathsf{\nu }}_{\mathrm{abs}}+{\mathsf{\nu }}_{\mathrm{fl}}\right)-\frac{\mathrm{B}}{2}={\mathrm{A}}_{\mathrm{fl}}\left({\mathsf{\nu }}_{\mathrm{abs}}+{\mathsf{\nu }}_{\mathrm{fl}}\right)-{\mathrm{B}}_{\mathrm{fl}}.$$

(5)

The calculation of the ratio of the coefficients A_abs and A_fl allows us to determine the ratio of the dipole moments of the analyzed compounds more accurately:

$$\frac{{\mathrm{A}}_{\mathrm{abs}}}{{\mathrm{A}}_{\mathrm{fl}}}=\frac{1-\mathrm{A}}{1+\mathrm{A}}=\frac{{\mathsf{\mu }}_{\mathrm{g}}}{{\mathsf{\mu }}_{\mathrm{e}}}.$$

(6)

3. Results

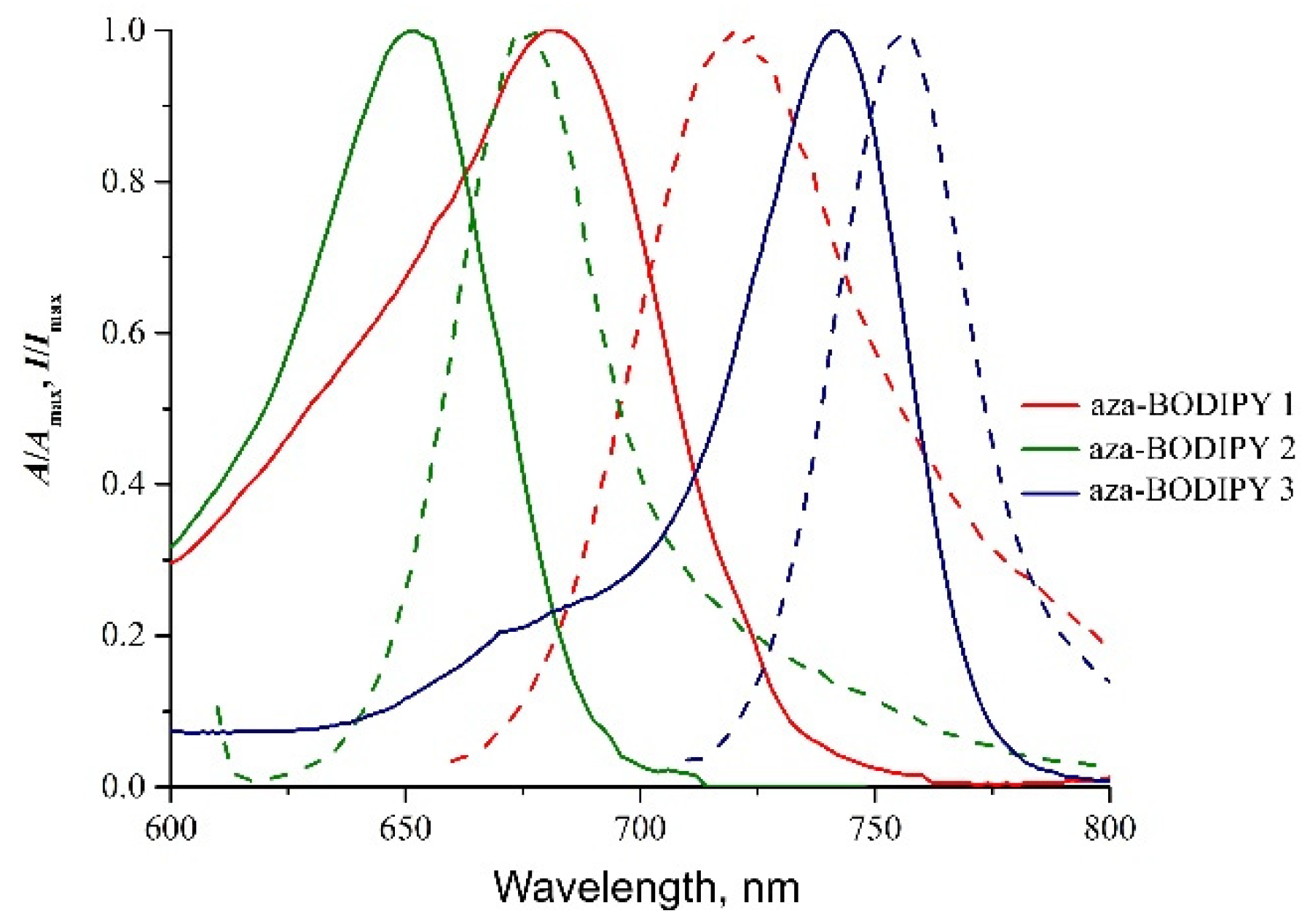

The spectral and photophysical properties of aza-BODIPYs 1–3 were studied in a number of solvents of different natures (Figure 2). Due to the low solubility of the studied compounds in water, this solvent was not included. The use of compounds in biosensorics will require DMSO as a co-solvent or the immobilization of aza-BODIPYs into micelles and/or functional materials [12,48]. Compared to classic BODIPYs, the aza-BODIPY 1–3’s electronic transitions were observed in the red and near-infrared (NIR) regions. The maxima of the absorption and fluorescence spectra were recorded in the ranges of 650–750 nm and 670–770 nm, respectively. It was shown that the introduction of thienyl into the 1,3,5,7-positions of the dipyrrin nucleus shifted the absorption and fluorescence maxima bathochromically: aza-BODIPY 2 (λ_abs = 652 nm, λ_fl = 675 nm) → dithienyl-aza-BODIPY 1 (λ_abs = 681 nm, λ_fl = 720 nm) → tetrathienyl-aza-BODIPY 3 (λ_abs = 742 nm, λ_fl = 758 nm). Accordingly, the position of the spectral maxima was greatly influenced by the substitution of nitrogen for the meso-carbon atom, the expansion of the conjugated system, and the introduction of alkyl or aromatic substituents into the α-, β-positions of the pyrrole rings of the dipyrrin.

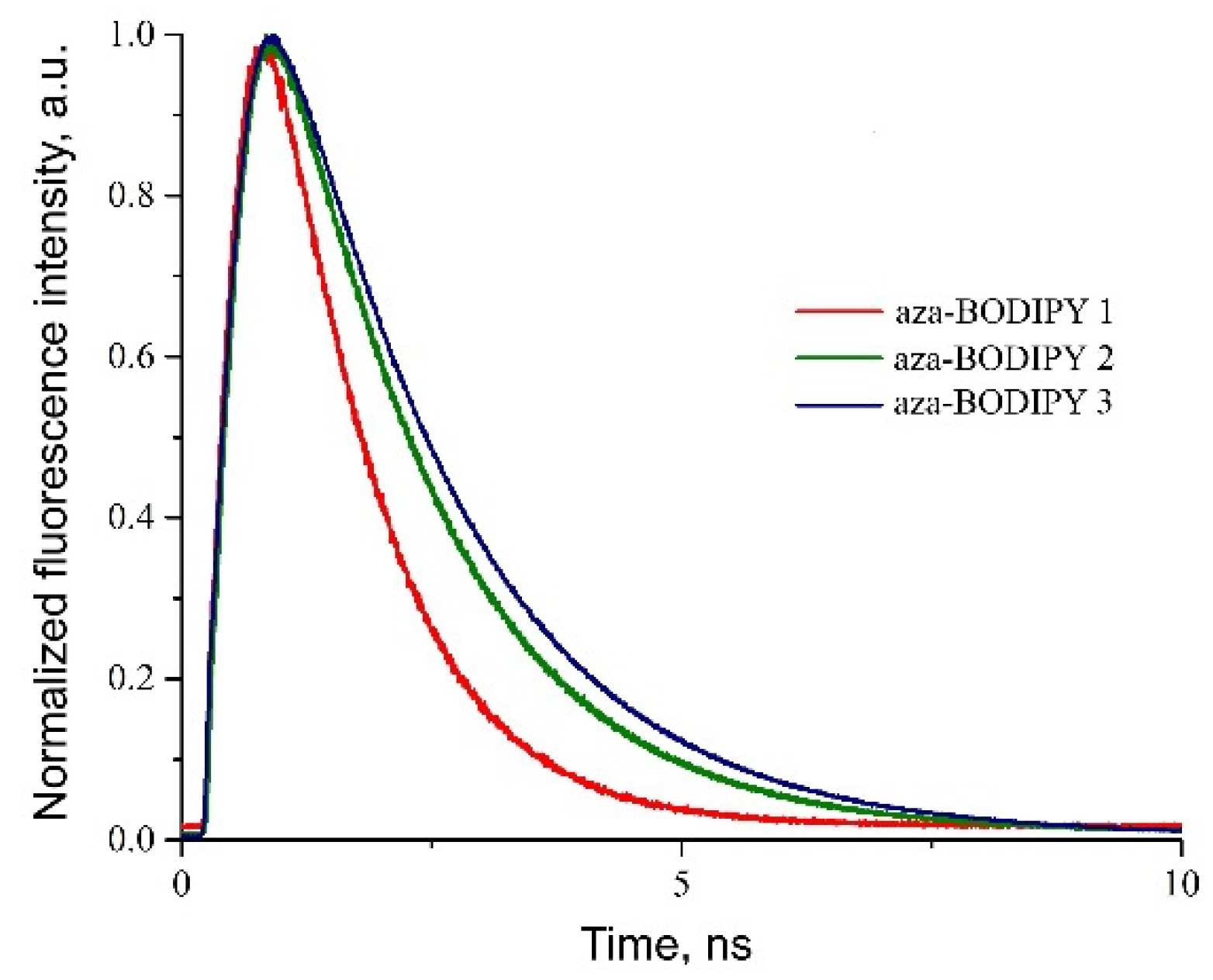

The fluorescence decay curves were recorded for the investigated compounds at the wavelength of the maximum fluorescence in various solvents (Figure 3). It was found that aza-BODIPY 1 had a narrower distribution compared to structural analogs 2 and 3.

The obtained fluorescence lifetimes were consistent with the literature (

Table 2. Spectral characteristics of aza-BODIPYs 1–3 in individual organic solvents: λ_abs—absorption maximum wavelength, nm; λ_fl—wavelength of fluorescence maximum, nm; Δλ—Stokes’ shift, nm; τ—fluorescence lifetime at 293 K, ns, Φ—fluorescence quantum yield. Fluorescence was excited at 600 nm.

aza-BODIPY 1
	λabs, nm	λfl, nm	Δλ, nm	τ, ns	Φ
Acetone	678.0	722.0	44.0	0.97	0.016
Benzene	684.0	719.0	35.0	0.97	0.028
Hexane	674.0	704.0	30.0	0.98	0.026
Dimethyl sulfoxide	693.0	733.0	40.0	1.07	0.015
Dimethylformamide	688.0	731.0	43.0	0.80	0.014
Dichloromethane	681.0	720.0	39.0	1.02	0.017
Methanol	678.0	717.0	39.0	0.64	0.030
Propanol	679.0	716.0	37.0	0.98	0.022
Tetrachloromethane	680.0	713.0	33.0	1.09	0.027
Toluene	685.0	717.0	32.0	1.05	0.030
Chloroform	682.0	717.0	35.0	1.08	0.025
Cyclohexane	674.0	709.0	35.0	0.73	0.024
Ethanol	678.0	718.0	40.0	1.06	0.020
aza-BODIPY 2
	λabs, nm	λfl, nm	Δλ, nm	τ, ns	Φ
Acetone	650.0	673.0	23.0	0.65	0.036
Benzene	656.0	678.0	22.0	1.39	0.085
Hexane	646.0	667.0	21.0	0.97	0.062
Dimethyl sulfoxide	662.0	686.0	24.0	0.91	0.050
Dimethylformamide	656.0	681.0	25.0	0.81	0.094
Dichloromethane	652.0	675.0	23.0	0.87	0.054
Methanol	648.0	672.0	24.0	0.67	0.101
Propanol	648.0	671.0	23.0	0.78	0.064
Tetrachloromethane	652.0	674.0	22.0	1.30	0.080
Toluene	656.0	679.0	23.0	1.61	0.096
Chloroform	654.0	675.0	21.0	1.71	0.116
Cyclohexane	648.0	670.0	22.0	1.02	0.068
aza-BODIPY 3
	λabs, nm	λfl, nm	Δλ, nm	τ, ns	Φ
Acetone	735.0	749.0	14.0	1.77	0.114
Benzene	743.0	759.0	16.0	1.97	0.291
Hexane	730.0	742.0	12.0	1.85	0.121
Dimethyl sulfoxide	753.0	768.0	15.0	1.79	0.086
Dimethylformamide	748.0	762.0	14.0	1.61	0.098
Dichloromethane	742.0	758.0	16.0	1.91	0.128
Methanol	739.0	751.0	12.0	1.18	0.091
Propanol	738.0	750.0	12.0	1.46	0.087
Tetrachloromethane	737.0	752.0	15.0	2.16	0.117
Toluene	743.0	757.0	14.0	1.83	0.143
Chloroform	741.0	756.0	15.0	1.99	0.102
Cyclohexane	731.0	744.0	13.0	1.68	0.153
Ethanol	739.0	751.0	12.0	1.34	0.093

). The aza-BODIPYs were characterized by rather low values of fluorescence quantum yields (φ): 0.10 for Compound 1 and 0.11 for Compound 3 (solvent: dichloromethane; comparison dye: rhodamine 101), and the fluorescence lifetimes were in the range of 1–2 ns [45,49,50,51].

Luminescence decay curves were obtained for all investigated compounds in solvents of different polarities at the wavelength of the fluorescence maximum (λ_fl, nm), as well as at longer wavelengths (λ_fl + 20 nm) and shorter wavelengths (λ_fl − 10 nm). Based on the data obtained, the values of the lifetimes of the excited state of the molecules were calculated (

Table 3. Fluorescence lifetimes of aza-BODIPYs 1–3, measured at different wavelengths in cyclohexane, methanol, and toluene: λ_det—detection wavelength, nm; τ—fluorescence lifetime at 293 K, ns.

	aza-BODIPY 1		aza-BODIPY 2		aza-BODIPY 3
	λdet, nm	τ, ns	λdet, nm	τ, ns	λdet, nm	τ, ns
Hexane	699.0	0.75	660.0	0.99	734.0	1.67
	709.0	0.73	670.0	1.02	744.0	1.68
	729.0	0.77	690.0	0.99	764.0	1.67
Methanol	707.0	0.64	662.0	0.67	741.0	1.19
	717.0	0.64	672.0	0.67	751.0	1.18
	737.0	0.64	692.0	0.68	771.0	1.20
Toluene	707.0	1.11	669.0	1.60	747.0	1.83
	717.0	1.05	679.0	1.61	757.0	1.83
	737.0	1.07	699.0	1.60	777.0	1.83

). For all the dyes, the absence of the dependence of the gradients of the curves and fluorescence lifetime on the detection wavelength is shown. Thus, the excitation of the studied molecules occurred not in a cascade manner, but through a single vertical transition, and significant geometric changes and intermolecular interactions of the excited state were not observed in comparison with the ground state.

The solvent nature affected the spectral properties of the compounds. For aza-BODIPYs 1–3, a positive solvatochromic effect was recorded, and the shift of the maxima in the spectra was about 15–20 nm, while for classic BODIPYs, this value usually reaches only 5–8 nm. The main reason that caused the solvatochromic effect, which manifested itself in both the hypsochromic and bathochromic displacement of the absorption maxima of the luminophore, as well as changes in the intensity of absorption and fluorescence, was the differences in the solvation of the compounds by the solvents (solvation only due to van der Waals interactions, the formation of hydrogen bonds, or the stabilization of the excited states of a solute).

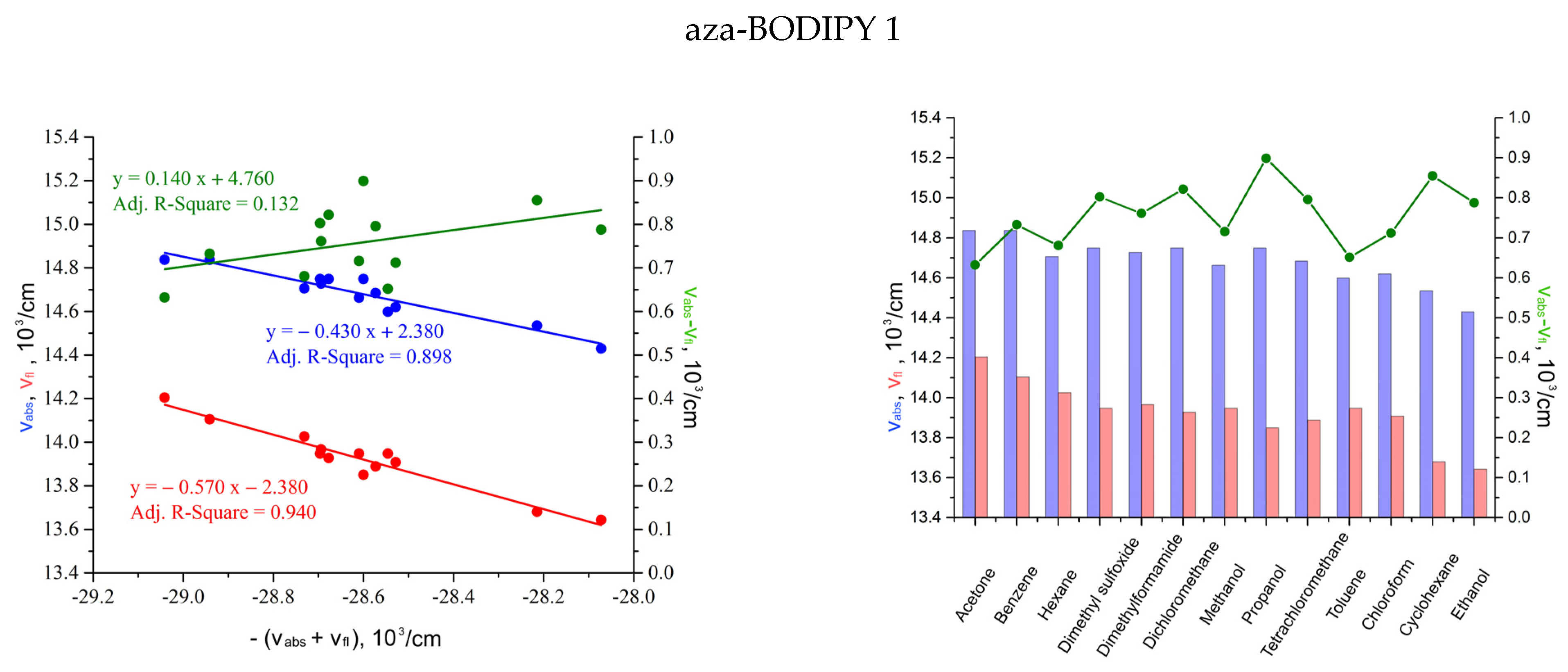

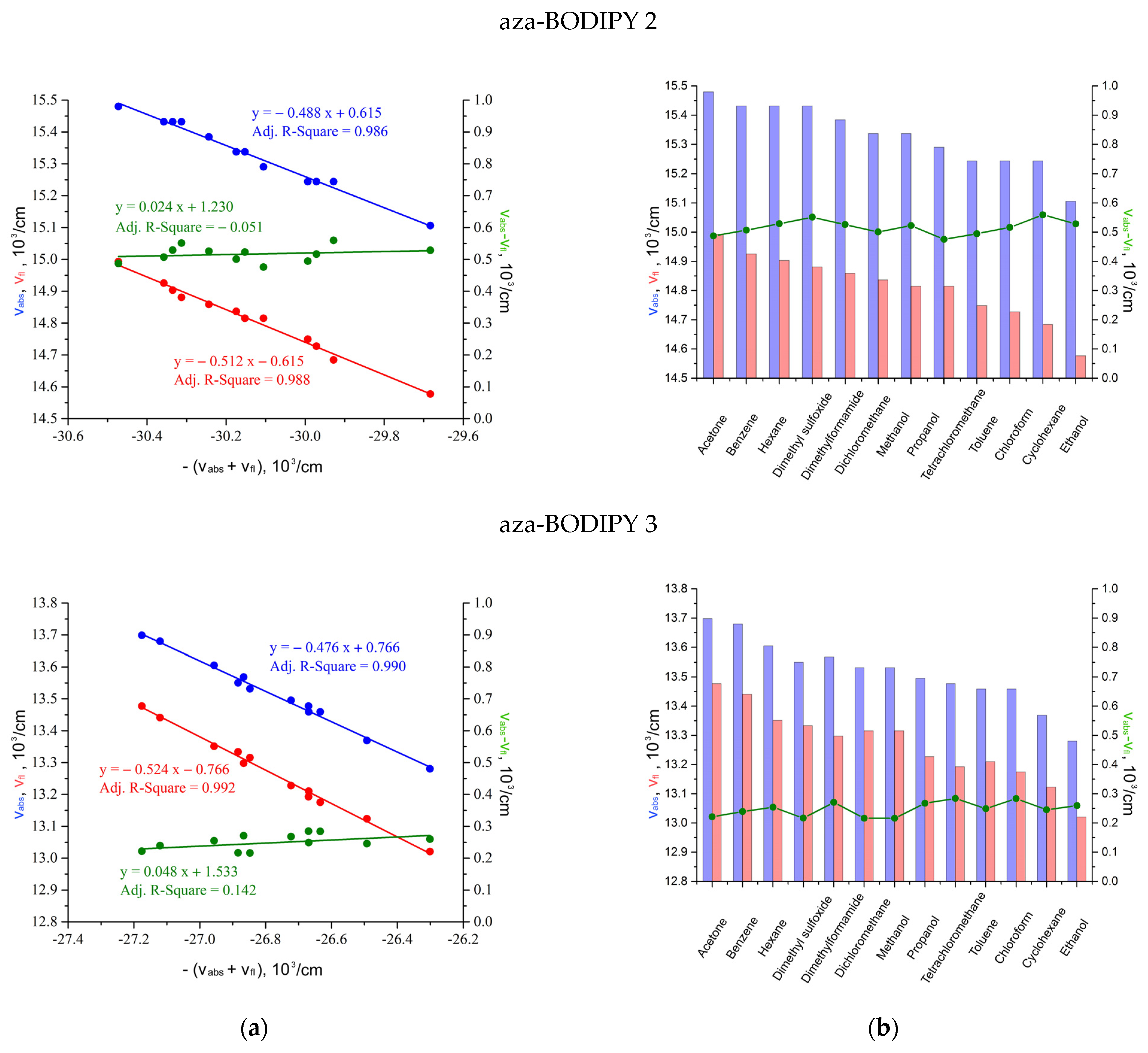

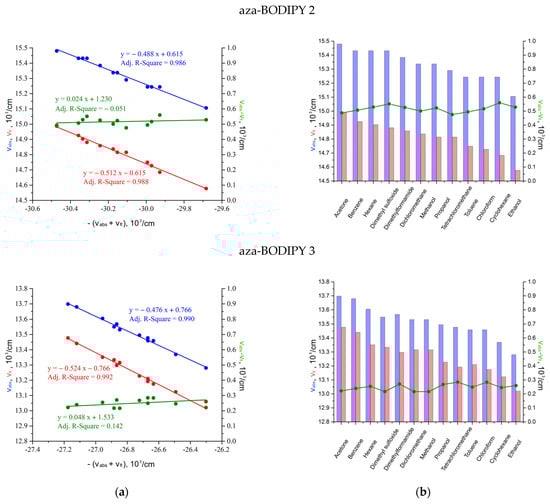

In more detail, the solvatochromism of the investigated compounds was assessed using a semiempirical approach according to Liptey’s theory (Figure 4). The analyzed aza-BODIPYs had insignificant solvatochromic sensitivity, which explains the low accuracy of determining the coefficient A. The transition to the coefficients for individual absorption and fluorescence bands A_abs and A_fl to estimate the ratio of dipole moments in the ground and excited states allowed us to reduce the error to 10% or less (

Table 4. Solvatochromic sensitivity parameters.

	${\mathbf{A}}_{\mathbf{a}\mathbf{b}\mathbf{s}}$	${\mathbf{A}}_{\mathbf{f}\mathbf{l}}$	$\mathbf{A}$	${\mathbf{A}}_{\mathbf{a}\mathbf{b}\mathbf{s}}/{\mathbf{A}}_{\mathbf{f}\mathbf{l}}$
aza-BODIPY 1	0.430 ± 0.042	0.570 ± 0.042	0.140 ± 0.083	0.755 ± 0.091
aza-BODIPY 2	0.488 ± 0.017	0.512 ± 0.017	0.024 ± 0.035	0.954 ± 0.047
aza-BODIPY 3	0.476 ± 0.014	0.524 ± 0.014	0.048 ± 0.028	0.908 ± 0.036

). The spectral characteristics of the absorption and fluorescence of the studied aza-BODIPYs showed a pronounced red shift, which manifested itself in a negative slope of the dependences ν_abs = f(−A_abs(ν_abs + ν_fl)) and ν_fl = f(−A_fl(ν_abs + ν_fl)), respectively. The cumulative synchronous change in these bands was accompanied by an almost constant Stokes’ shift, the values of which changed insignificantly with the change of the solvent. Nevertheless, for aza-BODIPYs 1–3, a weak positive solvatochromism was realized (A_abs/A_fl < 1).

The dependences of the lifetime of the excited state on the individual parameters of solvents: viscosity, dipole moment, normalized Dimroth–Reichardt parameter, or dielectric constant, were not linear, which means the predominant influence of the nature of the solvent and specific interactions on the photophysical characteristics. The correlation of the fluorescence lifetime values with the parameters of Catalan and Kamlet–Taft solvents by the linear regression method also showed low values of the approximation reliability, and the coefficients had an overestimated determination error (

Table 5. The value of the reliability of the approximation (R²) for the linear regression method of the values of the lifetime of the excited state in various solvents.

Kamlet–Taft Parameters’ Regression
	π	Β	α	R2
aza-BODIPY 1	0.133 ± 0.172	−0.106 ± 0.171	−0.034 ± 0.148	0.101
aza-BODIPY 2	0.248 ± 0.353	−0.755 ± 0.357	−0.006 ± 0.319	0.425
aza-BODIPY 3	0.238 ± 0.168	−0.494 ± 0.168	−0.332 ± 0.145	0.767
Catalan Parameters’ Regression
	SP	SPP	SA	SB	R2
aza-BODIPY 1	0.702 ± 0.762	−0.054 ± 0.206	−0.152 ± 0.342	0.097 ± 0.312	0.234
aza-BODIPY 2	3.126 ± 1.138	−0.211 ± 0.309	0.588 ± 0.516	−0.709 ± 0.471	0.743
aza-BODIPY 3	1.078 ± 0.628	−0.019 ± 0.170	−0.639 ± 0.282	−0.331 ± 0.257	0.860

).

4. Conclusions

The spectral properties of a number of aza-BODIPYs, complexes 1–3, differing in their natures and functional substituents at the periphery, were studied under the conditions of varying the nature of the individual solvent.

Using the studied compounds as an example, the relationship between the structure and spectral properties of aza-BODIPY dyes was shown. In particular, the substitution of nitrogen for the meso-carbon atom and the introduction of thienyl substituents into the structure led to a shift of the spectra to the near-infrared region and an increase in the Stokes’ shifts due to an increase in the geometric lability of the compounds.

The analysis of aza-BODIPY solvatochromism by a semiempirical approach according to Liptey’s theory showed that dyes have a low sensitivity to solvent polarity. Despite the fact that the absorption and fluorescence maxima had a pronounced redshift, the change in the Stokes’ shift was insignificant. Nevertheless, we can conclude that weak positive solvatochromism was realized for aza-BODIPYs 1–3.

The decay curves of the excited state of the compounds under study were recorded in a number of organic solvents by the method of time-resolved spectroscopy. It was shown that the curves of the decay of the excited state of molecules did not differ in gradient with a change in the detection wavelength, indicating the absence of significant changes in the geometry of the molecule in the ground and excited states and the implementation of one vertical transition upon excitation.

Thus, the proposed structures can be used as promising scaffolds in the design of optically active devices for sensing and bioimaging. They cover a wide spectrum of wavelengths from 600–750 nm, are inert to the nature of the solvation environment, and exhibit good fluorescence characteristics. The proposed structures are insoluble in water, but can be used in mixed water–dimethyl sulfoxide systems to increase solubility, which will also prevent their washout during long-term observations in cells. Increasing the solubility in water can also be considered as a promising direction for further studies of this group of compounds. Thus, the compounds, based on amino-phenyl-substituted dyes, pyridine-substituted dyes, and complexes with substituents bearing quaternated nitrogen, may be of interest in this regard.
