Review

Potential of 3D Printing for Heat Exchanger Heat Transfer Optimization—Sustainability Perspective

by
Beata Anwajler
Department of Energy Conversion Engineering, Faculty of Mechanical and Power Engineering, Wroclaw University of Science and Technology, 27 Wybrzeze Wyspianskiego Street, 50-370 Wroclaw, Poland
Inventions 2024, 9(3), 60; https://doi.org/10.3390/inventions9030060
Submission received: 27 March 2024 / Revised: 10 May 2024 / Accepted: 13 May 2024 / Published: 16 May 2024
(This article belongs to the Special Issue Innovations in Heat Exchangers)

Abstract

:
In just a few short years, the additive manufacturing (AM) technology known as 3D printing has experienced intense growth from a niche technology to a disruptive innovation that has captured the imagination of mainstream manufacturers and hobbyists alike. The purpose of this article is to introduce the use of 3D printing for specific applications, materials, and manufacturing processes that help to optimize heat transfer in heat exchangers, with an emphasis on sustainability. The ability to create complex geometries, customize designs, and use advanced materials provides opportunities for more efficient and stable heat transfer solutions. One of the key benefits of incremental technology is the potential reduction in material waste compared to traditional manufacturing methods. By optimizing the design and structure of heat transfer components, 3D printing enables lighter yet more efficient solutions and systems. The localized manufacturing of components, which reduces the need for intensive transportation and associated carbon emissions, can lead to reduced energy consumption and improved overall efficiency. The customization and flexibility of 3D printing enables the integration of heat transfer components into renewable energy systems. This article presents the key challenges to be addressed and the fundamental research needed to realize the full potential of incremental manufacturing technologies to optimize heat transfer in heat exchangers. It also presents a critical discussion and outlook for solving global energy challenges through innovative incremental manufacturing technologies in the heat exchanger sector.

1. Introduction

The growing energy intensity of national electricity systems is prompting the search for new ways to reduce electricity demand. Energy consumption and pollution are key global issues that require urgent action. Traditional energy sources such as coal, oil, and natural gas are limited and depleting. In addition, their extraction and combustion generate large amounts of greenhouse gases that contribute to climate change. As a result, urban development and technological progress are inextricably linked to appropriate energy management. Effective energy strategies and technological innovation play a key role in shaping a sustainable and future-oriented urban infrastructure. Sustainable energy strategies are approaches to energy management that consider the balance between accessibility, cost effectiveness and environmental impact [1,2]. Such strategies aim to provide sustainable energy access while minimizing negative environmental impacts. Investment in renewable technologies and the development of efficient energy storage systems are key. Improving energy efficiency in various sectors such as industry, transport, buildings, and households can significantly reduce global energy consumption. Finding solutions to global energy and environmental challenges requires international cooperation. Climate agreements, such as the Paris Agreement, are an important step towards global cooperation to reduce greenhouse gas emissions [3]. Educating and raising public awareness about the need to protect the environment and combat climate change is key to making lifestyles and consumption more sustainable. There is a growing interest in research on energy management and minimizing energy consumption [4].
Solving global energy and environmental problems requires an integrated approach in which governments, businesses, scientists, and the public work together to create sustainable and environmentally friendly solutions.
Sustainable development [5] is an approach to development that meets the needs of the present without compromising the ability of future generations to meet their own needs. This idea implies a balance between the social, economic, and environmental dimensions, taking into account social and global equity. The Sustainable Development Goals (SDGs) are a concrete expression of this concept. The SDGs are a set of 17 goals developed by the United Nations (UN) as part of Agenda 2030. These goals aim to solve global problems such as poverty, hunger, lack of education, inequality, environmental degradation, climate change, social injustice, and others. The answer to the growing challenges of natural resource depletion, climate change, and excessive waste is the circular economy model.

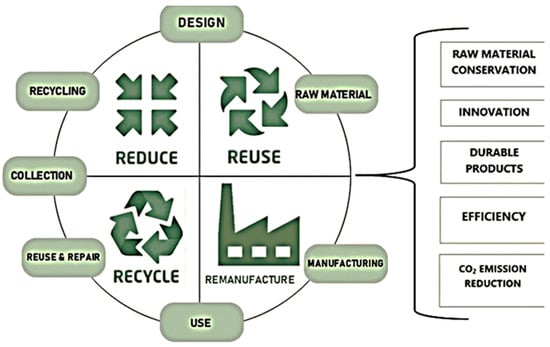

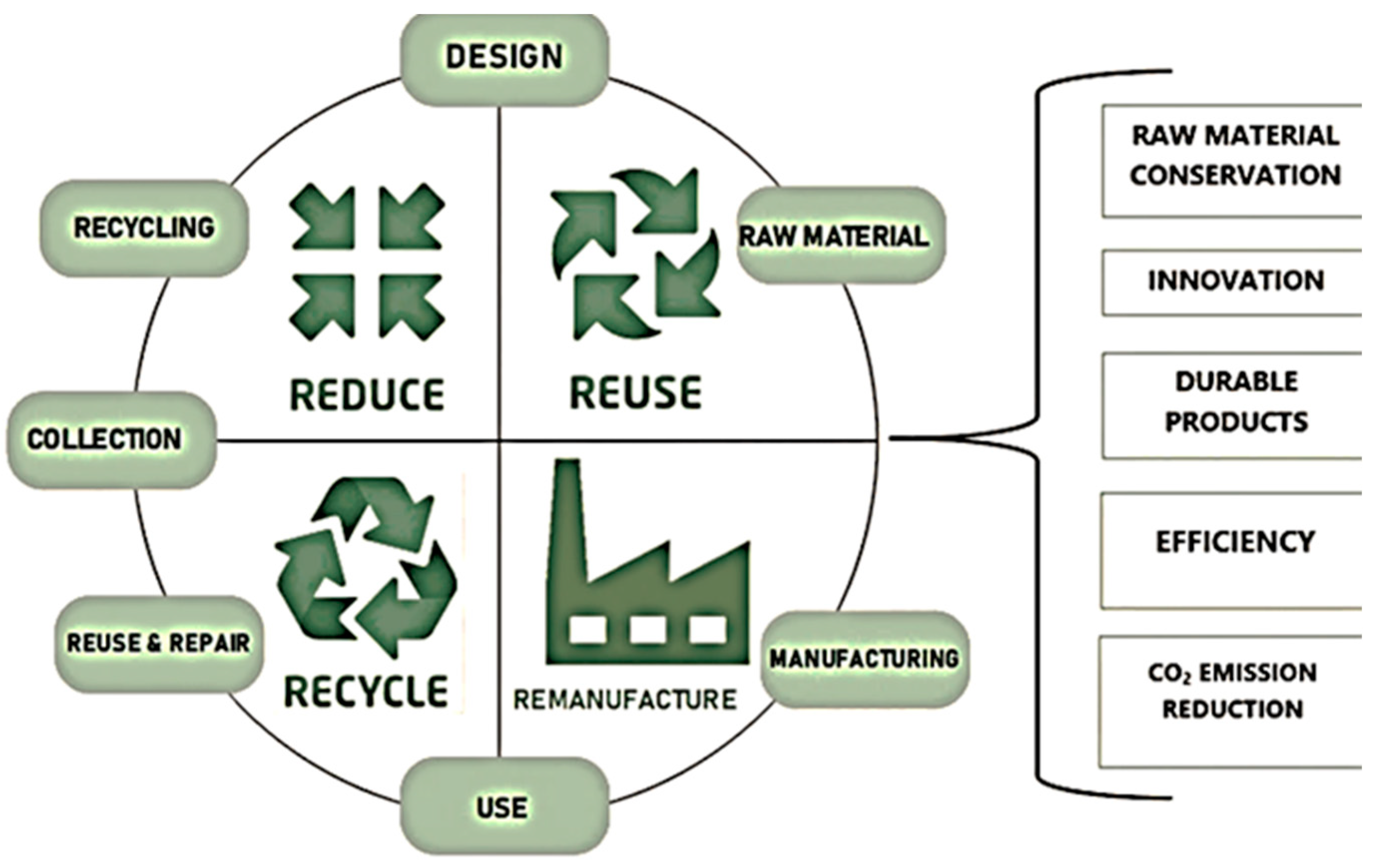

According to the circular economy model [6], the goal is to minimize waste and maximize resource use by keeping products, components, and materials in circulation for as long as possible. In contrast to the traditional linear economic model in which resources are extracted, processed, used, and discarded, the circular economy aims to maintain the value of resources through reuse, recycling, and reprocessing (Figure 1) [7]. Its main goal is to create a more efficient, sustainable, and resilient economic system. One of its key principles is to reduce the amount of waste generated by society. Instead of disposing of products after a single use, it encourages the design and manufacture of items with reuse in mind. The circular economy relies on recycling as a key process. Materials such as metal, glass, paper, and plastic are collected, recycled, and reused in the manufacturing process. It seeks to extend the life cycle of products through repairs, upgrades, and reuse. This supports the efforts to maintain the value of products for as long as possible. It is becoming necessary to implement the concept of sustainable development, the idea of which is the prudent use of resources, and in implementing this idea, energy should be managed prudently, including by reducing its consumption and improving the efficiency of its use.
In addition to object manufacturing techniques such as casting, cavity machining, and forming, the incremental technique, also known as additive technology, is of interest from the perspective of this article. This technique involves the application of successive layers of material to form the final finished object. Such techniques have been known about and used for centuries, for example in construction by applying successive layers of brick and mortar, but today, incremental techniques have also taken on a slightly different form. In this study, we discuss the incremental method of creating a model based on a geometry created in computer software and then manufactured using a numerically controlled machine. This process is also known as 3D printing, while the machines that produce the actual object are called 3D printers.
Additive manufacturing (AM) or printing (3D) is a transformative manufacturing process that enables the creation of three-dimensional objects using various processes and raw materials, typically building a product layer by layer [8,9]. AM can be applied to a variety of materials, such as polymers [10], ceramics [11], metals [12], concrete [13], soil [14] and tissues [15]. Three-dimensional printing is a collective term that encompasses several different technologies. According to ISO/ASTM 52900:2021 [16], there are seven different categories of AM processes (ISO/ASTM International, 2021). According to ISO/ASTM 52900:2021 [16], three categories of AM processes play an important role in this work. These include fused deposition modeling (FDM), selective laser sintering (SLS), and stereolithography (SLA). Stereolithography (SLA) has been characterized as an example of a technology that uses a liquid raw material, the fused deposition modeling (FDM) process of thermoplastics has been selected as an example of a technology that uses a solid build material, and laser powder sintering (SLS) has been discussed as an example of a technology that uses powders [17,18].
Additive manufacturing (AM) has many advantages over traditional manufacturing methods. Some of the key benefits of using additive manufacturing are as follows:
  • Greater availability. Three-dimensional printing can be performed virtually anywhere, as long as there is access to the right 3D printer and raw materials. This allows for more decentralized manufacturing, which is especially attractive to local businesses and communities [19,20].
  • Greater efficiency. Traditional manufacturing methods often waste materials due to the need for cutting and forming. Three-dimensional printing allows materials to be applied precisely in layers, minimizing waste. The 3D printing process can be faster than traditional manufacturing methods, resulting in shorter production cycles [21].
  • Shorter supply chains. AM makes it possible to reduce the need to transport products over long distances and streamline the supply chain by reducing the need for large inventories. Instead, parts can be produced on demand, minimizing inventory costs and waste. This is particularly beneficial for the maintenance of spare parts in the energy industry. Additive manufacturing is widely used in the production of components for renewable energy systems such as wind turbines and solar panels. This includes the manufacture of turbine blades, housing structures, and specialized components that improve the overall performance of renewable energy systems. Local manufacturing helps to reduce transportation-related greenhouse gas emissions [21].
  • Greater design freedom. Three-dimensional printing enables the creation of complex structures and geometries that are difficult or impossible to achieve with traditional manufacturing methods [22,23], thus providing a high degree of customization [24,25]. Lightweight components that can be used in a variety of energy applications, including aerospace, renewable energy, and transportation, thus contributing to improved energy efficiency, particularly in sectors such as aviation and electric vehicles.
  • The ability to easily print replacement parts [26]. Producing custom and complex components tailored to specific energy applications. This is particularly valuable for developing parts for energy systems with unique requirements.
  • Three-dimensional printing often has lower production costs per part, especially for low volumes [27]. Three-dimensional printing facilitates rapid and low-cost prototyping, allowing engineers to test and refine designs faster and more cost effectively than with traditional manufacturing methods. This supports the design and innovation process.
  • New materials with new or improved properties [28,29], such as improved material combinations [30], functionally graded materials [31], and also 4D-printed parts [31,32].
  • The potential of relevant open source technology [33].
Three-dimensional printing represents a new method for the fully automated incremental manufacturing of three-dimensional objects designed as digital files.

Designing for 3D Printing

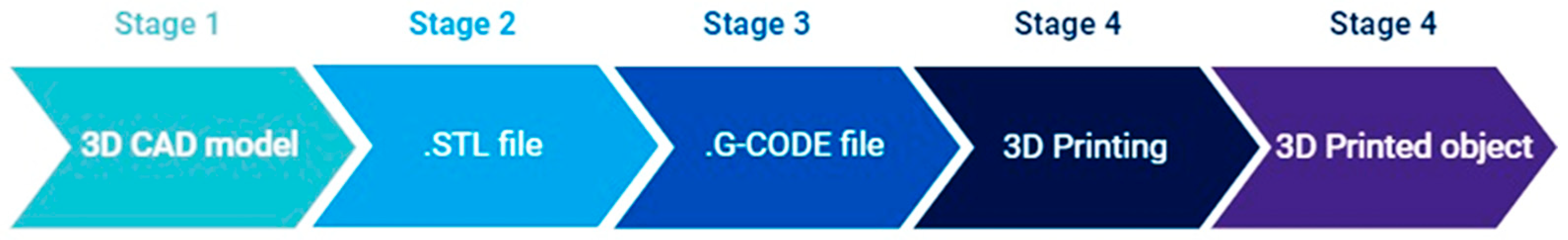

Additive technology allows for a seamless transition from a digital model to its physical form [34]. One of the main obstacles to the widespread adoption of additive manufacturing is the observed larger-than-expected shape difference between the final print and the intended design [35]. Every 3D-printed object begins as a virtual spatial model (Figure 2). Spatial manufacturing is an integral part of the vision of ‘digital manufacturing’, which is part of a broader industrial trend known as the ‘fourth industrial revolution’ or ‘Industry 4.0’.

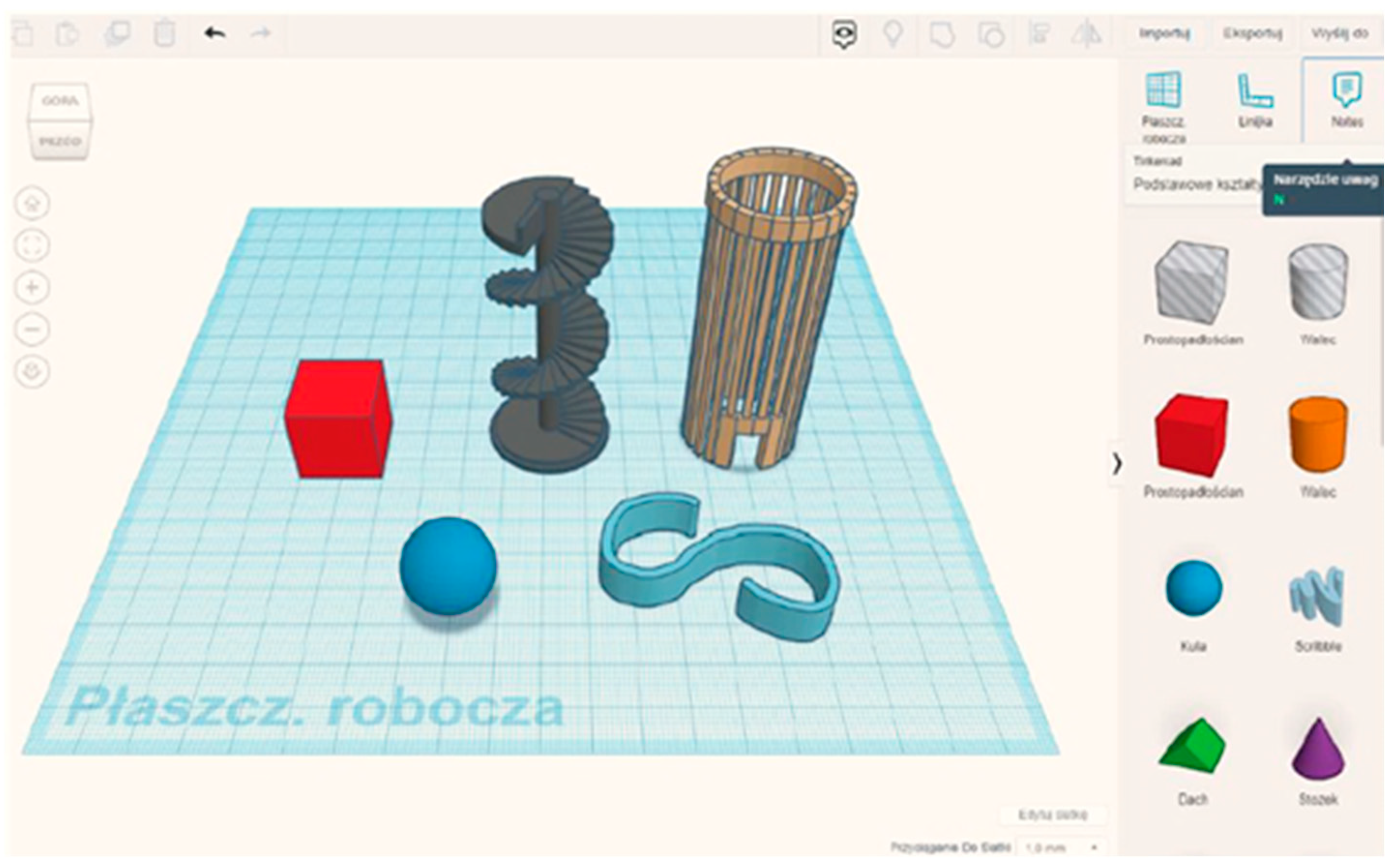

The spatial model of the object can be created in any 3D CAD software (Figure 3a) such as AutoCAD Inventor. The next step is to save the object as a mesh geometry (Figure 3b). A mesh geometry is characterized by the fact that it describes only the geometric relationships of the mesh, without information about its color, thickness, or even the unit of length used. The only information relevant to the surface mesh is the coordinates of the vertices of the triangles and the coordinates of the vectors normal to their surfaces [35]. Linear and angular tolerances are important mesh parameters. It is important to remember that a triangulated surface can only approximate the true shape of the surface it describes. Angular and linear tolerances determine the maximum deviation of the mesh from the original interpolated surface. Meshes with low tolerances take up little memory due to the small number of elements. However, these properties come at the cost of significant discrepancies between the generated mesh and the real object [35,36]. In this case, a spherical surface may appear more like a polyhedral surface. For this reason, the aim is to increase the resolution of the mesh to a point where the meshed nature of the wall structure becomes imperceptible due to the accuracy of the model printing technique [35]. Saving the object as a mesh geometry creates a file with an .stl extension. Files with the .stl extension can also be used in all 3D printing techniques. The finished mesh geometry file can be loaded in 3D CAM software, such as AutoCAD Inventor 2024 which is responsible for locating the object on the work surface and slicing the geometry into layers. The output of the software is a file containing G-code. It is a standard format for writing commands that can be read by the printer software. The G-code contains the sequence of commands that will be executed by the 3D printer’s tooling, although it is not a universal code as it varies from printer to printer. The final step is to load the finished G-code in the software that controls the movement of the printer’s actuators. This can be the laser mirror, the extruder head movement or the work surface [37]. The actual creation of the object rests on the shoulders of the 3D printer, with the process varying depending on the incremental technique used. The resulting physical model may require additional processing, such as smoothing edges or cutting off supports. The result is an object that can be used in any way (Figure 4).

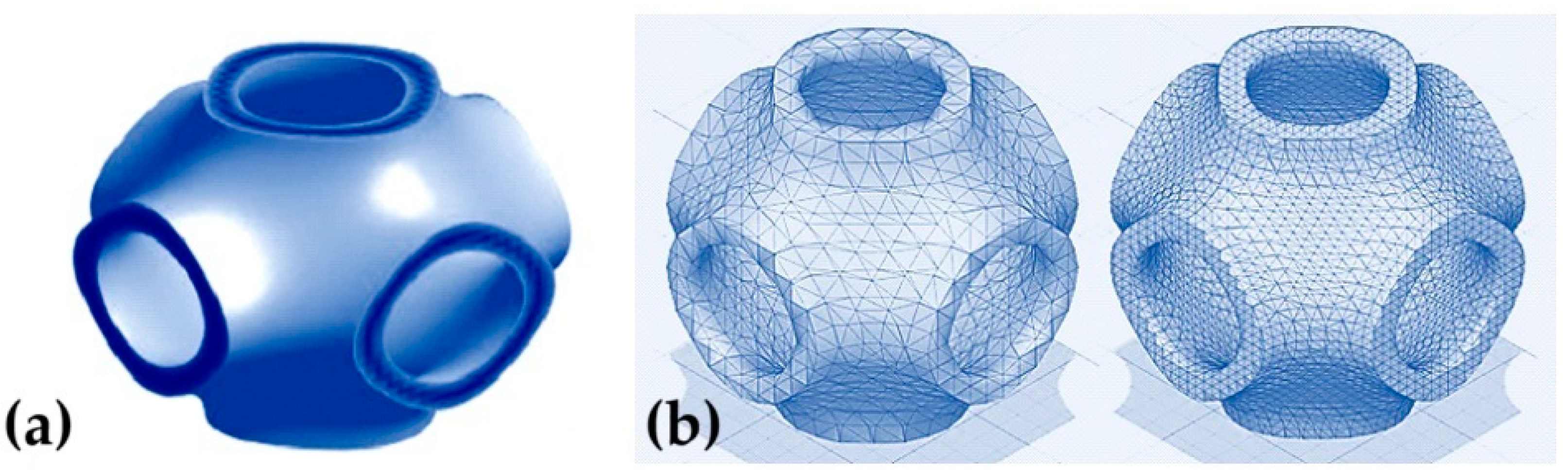

Referring to the grid resolution in Figure 3b, the effect of grid resolution is visualized. Two meshes were defined at two different resolutions. Note that the file size of the compacted grid is almost four times larger, so it is important to generate grids with a minimum acceptable resolution. In addition, the printing time is also increased. Conversely, for components with large dimensions, the increased production time may not be cost-effective [35]. To address this open challenge, researchers are developing a new collaborative framework that will enable the production of high-quality, large-scale components in a reasonable time. In their studies, the authors of [38,39,40,41,42] used several independent extrusion heads that collaborate to produce the same component. They described a three-dimensional (3D) printing structure that uses a series of mobile robots to apply concrete material to large, one-piece structures. In addition, Zhang et al. [42] used advanced and expensive sensors to prevent collisions between a group of AM machines. A new cutting strategy for the evolving 3D printing platform was proposed by McPherson and Zhou [43]. This involved the collaboration of several mobile MEX machines, where the printing task was split into fragments so that different mobile printers could simultaneously print parts without interfering with each other. In contrast, Bacciaglia and Ceruti [37] proposed an innovative and reproducible methodology for planning the toolpath of a gantry-based multi-head MEX frame, using only the information contained in a traditional G-code file, typical of a dependent multi-head FDM machine. This study describes a strategy for planning and partitioning a single toolpath data file generated by today’s standard slicing tools and adapting it to work in a multi-extruder FDM framework. This paper presents pseudocodes describing the innovative methodology and the results of virtual tests on two real large-scale components. By using such an architecture, a large-scale component can be efficiently manufactured at high production rates while maintaining satisfactory quality. Accordingly, the proposed G-code partitioning technique aims to output n separate files depending on the number of available extrusion heads: this is intended to significantly reduce the total printing time.
This article reviews and assesses the potential of 3D printing to optimize heat transfer from a sustainability perspective. This article then presents some key opportunities for heat transfer optimization from a sustainability perspective, the discussion of which has so far not been reflected in the available literature. Key challenges and fundamental research needed to realize the full potential of incremental manufacturing technology are presented. Ultimately, this review offers valuable insights and perspectives, contributing to the discussion on solving global energy challenges through innovative incremental manufacturing solutions.

2. The Promises of 3D Printing to Optimize Heat Transfer

2.1. Better/Worse Heat Transfer Due to Complex Geometries and Internal Structures

Today, 3D printing has become the most powerful technology for rapid design, prototyping, and manufacturing [32]. Three-dimensional printing allows the creation of intricate and complex structures that can maximize surface area and improve heat transfer performance. Custom designs, such as fins and meshes, can be optimized for specific heat dissipation requirements. Complex geometries and internal structures are among the key benefits of 3D printing technology. These features make it possible to create complex and customized designs that are difficult or impossible to achieve with traditional manufacturing methods. Let us take a closer look at complex geometries and internal structures in the context of 3D printing. These materials have a structure consisting of a matrix, which can be solid or flexible, and voids called pores. These porous structures can have different sizes, shapes, and arrangements, giving them different properties and applications [44]. The matrix, which is the solid part of the structure, surrounds and holds the pores. The matrix material can be plastic, metal, ceramic, or any other type of substance. The voids (pores) are areas within the structure that are not filled with matrix material and give the porous structure its characteristic properties. These voids may be isolated or interconnected to form a network of channels. These voids can be filled with various substances such as air, liquid, or phase change materials that can be in solid or liquid states. This saturation affects the thermal, mechanical, and conductivity properties of porous materials. Porous materials containing phase change materials (PCMs) in their structure can be used to store and release energy in thermal processes. Examples of applications for porous materials include thermal insulation, energy storage materials, filters, membranes, and structures for biomechanical purposes. In the field of heat exchangers, porous materials can be used to improve process efficiency, especially in flow control and thermal energy storage [45].

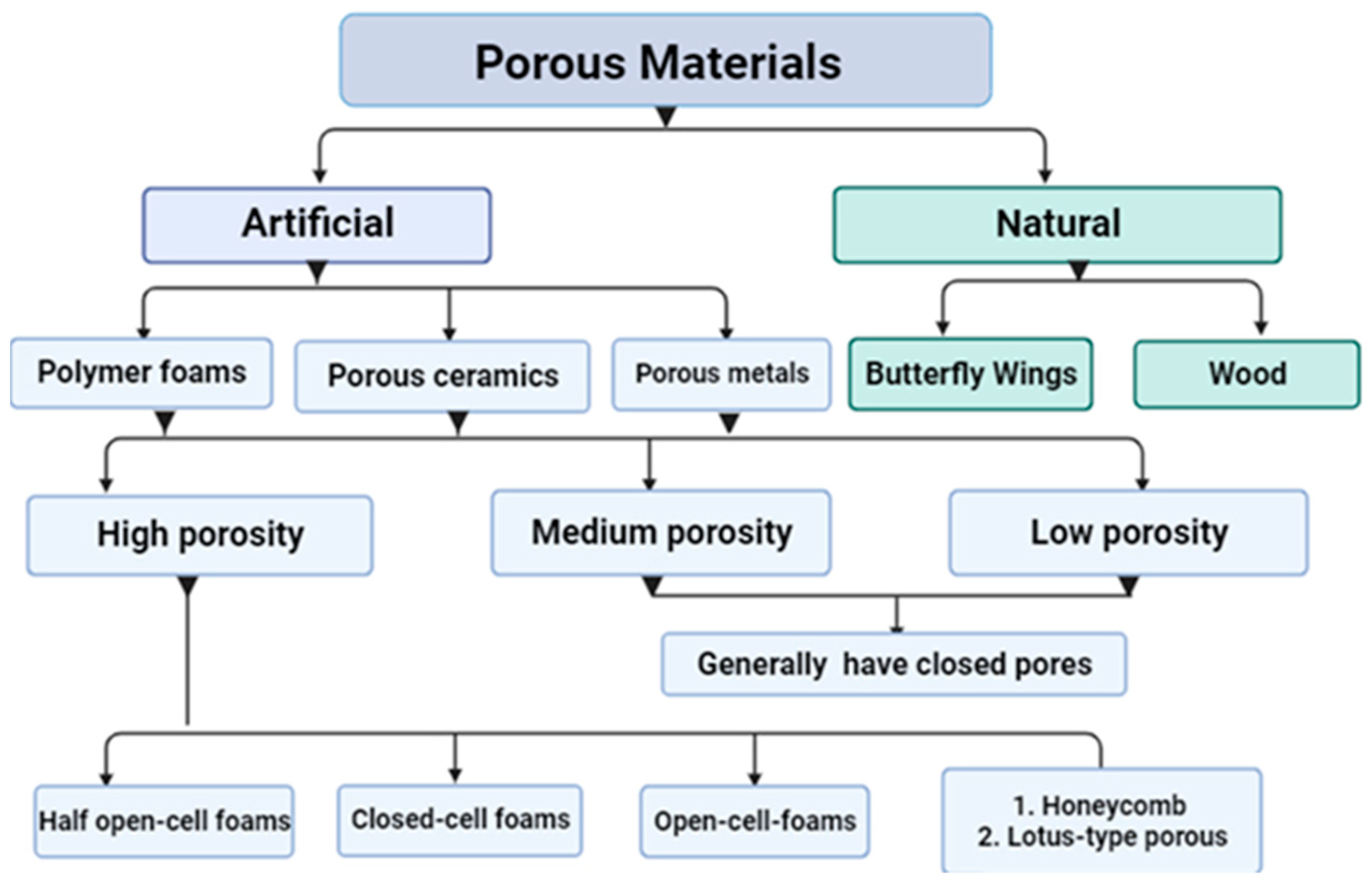

Porous materials can be classified in many ways based on their applications, properties, morphological parameters, materials, manufacturing methods, etc. Here, we base our discussion on the classification presented by [46,47] (Figure 5).

Complex Geometries for Better Heat Transfer

Additive manufacturing technology has led to significant innovations in several fields, including heat transfer applications. The capabilities of additive manufacturing (AM) make it possible to achieve complex geometries that would be difficult to achieve using conventional design techniques [49]. In this sense, researchers have taken advantage of this added complexity to explore and develop biomimetic designs inspired by knowledge of ecosystems, organisms, and biological structures [50]. Solutions based on biomimetic designs can provide better energy efficiency and reduce negative environmental impacts. The incorporation of biomimicry can be seen, for example, in the use of cellular or lattice structures, which generally not only have optimized properties of stiffness and lightness but also have good thermal and acoustic properties. An interesting discovery is the generation of spatial structures called minimal surfaces. Minimal surfaces are those that achieve the smallest possible surface area under given boundary conditions. Due to the action of surface tension forces and the desire of the system to seek the lowest energy state, the membrane will occupy the smallest surface out of an infinite number of possible surfaces under given boundary conditions. The structure in question, called a catenoid, represents a broad set of minimal surfaces. Triply periodic minimal surfaces (TPMS) structures represent a subset of minimal surfaces. They are characterized by shape repetition in all three directions along the length of the periodicity. TPMS structures are usually described by trigonometric functions, so it is easy to deduce that the repetition period of the structure depends on the type of function, e.g., for the sine, it will be of the length 2π. The above property makes it possible to duplicate a single block of the TPMS structure many times, while maintaining its continuity at the wall joints. Table 1 below lists some common periodic minimal surfaces, while Figure 6 shows the possibility of combining TPMS structures into larger objects while maintaining surface continuity [51].

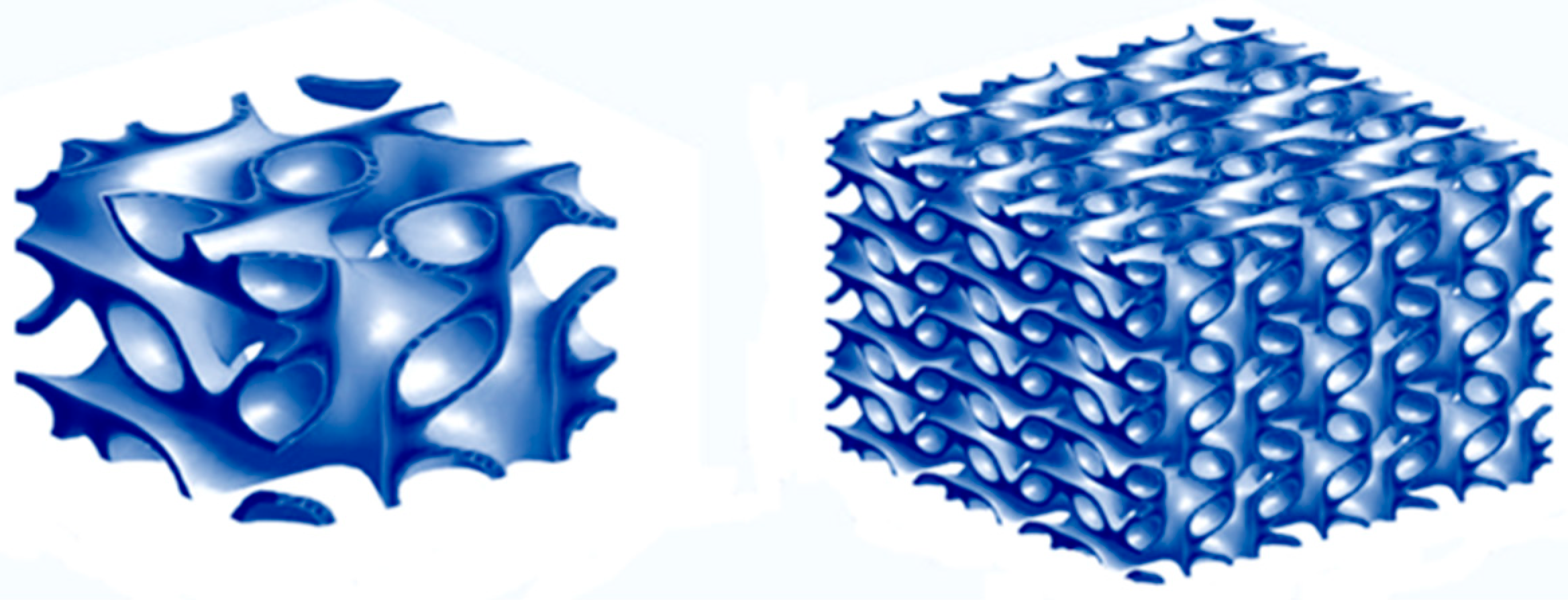

Previous studies of AM-made TPMS structures have shown that they have high stiffness, high energy absorption capacity, high strength, no edges, which eliminates areas where mechanical stress can occur, and low weight, all due to their high surface-to-volume ratio (they have localized cross-sectional porosity variation) [56]. Due to the three-dimensional periodicity of the gyroidal network structure, the core of the exchanger creates two identical channels to direct the flow of two separate fluids. As the fluids flow through these channels, heat is exchanged between them as they are in thermal communication. Creating TPMS geometries in CAD is challenging, but as technology advances, minimal surface strategies are becoming more common. There are still too few experimental studies in the available literature to provide an accurate picture of the full application of TPMS structures in heat exchangers. There are mainly numerical studies using CFD to estimate the flow resistance and the heat transfer coefficient when water flows through a channel filled with TPMS. However, these studies clearly show a large variation in the transfer coefficient compared to available heat exchangers with walls made using traditional methods [56,57].
The available literature describes an example CFD study in which Cheng et al. [58] designed an exchanger based on minimal surfaces belonging to the gyroid, primitive, diamond, and Schoen I-WP types. The flow was along a TPMS with the dimensions of 2.54 mm × 2.54 mm × 20.32 mm, for a structure porosity range of ε = 20% ÷ 80%. The researchers found that the higher the Re, the higher the flow resistance, with the lowest for flow along the primitive structure, followed by the gyroid and I-WP, and the highest (Re = 100, up to 36 times higher) for flow along the rhombic structure. Analogous to the flow resistance, the value of the Nu number increased successively for the primitive, gyroid, I-WP, and diamond structures. They also showed that the optimal structures were I-WP-based channels, where the thermal efficiency per unit flow resistance was 1.9 times higher than for the diamond channel, and demonstrated that increasing the TPMS porosity value had a positive effect on the Nu number. In another study, Khalil et al. [59] numerically and experimentally investigated forced convection in heat sinks with a structure based on triple periodic minimum surfaces (TPMS), i.e., diamond (D) or gyroidal (G), with a size of 10 mm and a porosity of 80%. Based on their research, they showed that the gyroidal plate structure has the lowest thermal resistance and the highest heat transfer coefficient due to the highest surface density. This work opens the door to designing novel heatsinks for 3D printing and testing their performance in thermal management systems. Another example of research in this field is the study by Raja et al. [60], who presented a water heater connected to a washing machine. This system comprised an electric heater placed in a specially shaped elbow with an internal TPMS (gyroid) structure. The use of the gyroid structure acted as an engineered heat transfer surface and a turbulator for the water flow. According to the authors, they achieved a high efficiency in the implemented design solution. Subsequently, Dixit et al. [61] carried out experimental studies and CFD simulations on a cross-flow heat exchanger based on the gyroid-type TPMS. The actual heat exchange surface consisted of 7 × 7 × 7 elementary structure cells with a side length of 4.6 mm and a relative density of 20% (porosity 80%). The authors showed that, depending on the Re, the value of the heat transfer coefficient was 120–160 W/(m2·K), while at the same time recording a 55% increase in the efficiency of the exchanger compared to an exchanger with equivalent thermodynamic properties. In addition, the researchers pointed out that the proposed solution was 90% smaller than a comparable heat exchanger. An example of a heat exchanger study using a TPMS gyroid structure is the work of Reynolds et al. [56], who showed that the gyroid heat exchanger achieved a Nusselt number 112% higher than that of a straight tube control with the same Reynolds number. In addition, it was shown that the overall performance improvement of the TPMS heat exchanger was about 13%. Fan et al. [53] used TPMS (primitive) to cool the battery. Experimental studies and computer simulations (CFD) showed that the maximum temperature of the battery was reduced by about 60 °C compared to water cooling in a conventional straight tube.
The limited number of experimental studies reported in the literature suggests the need for further experimental studies to better understand the heat transfer coefficients and fluid flow resistance in contact with TPMS. The optimization of designs with higher heat transfer coefficients requires consideration of the energy required to operate the equipment, which in turn requires flow under conditions of increased flow resistance. Of the many TPMS types available, only four have been subjected to CFD and experimental testing: primitive, gyroidal, diamond, and I-WP. The use of TPMS in heat transfer increases the average Nu value many times over circular or flat surface channels, but also increases the flow resistance. The flow rates in the channels based on TMPS depend, among other things, on the geometry of the TMPS and have the same geometrical parameters (dimensions, number of elementary minimum surface cells, relative density) and flow resistances; the lowest flow resistances were obtained for primitive TMPS, followed by gyroidal, I-WP, and diamond TMPS.
Further exemplary work describing the advantages of developing a working fluid-wall interface (not TPMS) produced by AD techniques has been published in the following papers: [62] (lattice structure); [63] (porous open cell aluminum foam); [64] (compact heat pipe); [65,66] (heat transfer from tetrahedral Kelvin foam to air); [67] (octet, D-cube, tetrahedral and cube); [68] (longitudinally ribbed tube); [69] (pin fin arrangements in annular channels); [70] (diaphragm); [71,72] (inserts that turbulence the flow of the medium in the tube); and [73] (study of the thermal conductivity of AlSi10Mg formed by melting powder with a bed and modified by heat treatment). The ability to create complex geometries and intricate internal structures using 3D printing has improved heat transfer performance in several important ways. First, the creation of complex surface structures, such as fins and microchannels, can significantly increase the surface area available for heat transfer [74]. An increased surface area allows for better heat dissipation or absorption, depending on the application [48]. Jha et al. [75] designed and tested a microchannel tubular heat exchanger, using high-density microgrooves (with fin widths of 100 µm), designed for absorption refrigeration applications. In both studies, a significant increase in the overall heat transfer coefficient to 10,000 W/(m2 K) was achieved, using water as the resident fluid. Andhare et al. [76] tested a flat plate heat exchanger with a microchannel collector designed for single-phase heat transfer, with equal water flow rates on both sides. As a result of the tests, the authors obtained a total heat transfer coefficient of up to 22,000 W/(m2 K), which is an extremely high value for single-phase heat transfer. Arie et al. [77] investigated an air–water heat exchanger made from titanium produced using a 3D direct laser metal sintering (DLMS) process. They found an increase in heat transfer of 15–50% compared to state-of-the-art heat exchangers equipped with corrugated fins. Tiwari et al. [74] presented the design and described the performance of a compact heat exchanger with a microchannel tube collector. This heat exchanger uses an improved commercially available tube, which has a ribbed structure on the outer surface and a spiral groove pattern (corrugation) inside the tube. Experimental single-phase tests showed an overall heat transfer coefficient of 22,000 W/(m2 K), and the shell side heat transfer coefficient was 45,000 W/(m2 K), with shell side and tube side water flow rates of 82 g/s and 806 g/s, respectively. The researchers showed that the heat transfer coefficient on the shell side was an order of magnitude higher than in the commonly used shell and tube and plate heat exchangers.
Recently, there has been a surge in research into regular metal meshes that can be additively manufactured due to their “potential” to provide multifunctional and tunable heat exchanger properties. Additively manufactured meshes, which differ significantly from commercially available meshes, can result in much higher heat transfer coefficients. Furthermore, the design freedom allows for different porosities to achieve higher effective thermal conductivity. The use of regular meshes in tubular heat exchangers, as wicks in heat pipes, as heat transfer enhancement elements in boiling heat transfer, and as transpiration cooling mechanisms for turbine blades as an alternative to conventional technologies is promising. The flexibility of 3D printing allows components to be tailored to specific heat transfer requirements. Designers can customize structures at the microscopic level to optimize thermal performance for a specific application [48]. For example, the studies by Ho et al. [78] and Ho and Leong [79] on a lattice structure consisting of a rhombo-octet unit cell topology in a rectangular block as well as a circular insert configuration showed that these lattices provide significantly higher thermal performance compared to open cell metal foams, conventional pin-fin heat sinks, and spiral inserts. Effective thermal conductivity values for rhombohedral unit cells with porosities of ~0.84–0.85 were measured to be about 5.5 times higher than those of stochastic aluminum metal foam samples with similar strut diameters. Broughton and Joshi [80] conducted a comparison of the performance of a mesh with a porosity of 0.865, additionally fabricated using DMLS with AlSi10Mg. They found that the regular mesh had a 60% higher heat transfer coefficient, with a ~66% higher pressure drop compared to stochastic metal foams. Liang et al. [54] analyzed the effect of different strut shapes, including circular, rectangular and elliptical, on heat transfer and pressure drop across the face. All strut shapes in cubic meshes had the same porosity (~0.92) and were made from epoxy resin using the SLA process. The round strut was shown to have the lowest heat transfer and pressure drop, but achieved the highest thermal-hydraulic performance. The heat transfer through the end wall in the single cell thickness configuration was three times higher than in the flat channel using FCC meshes. The elliptical and rectangular shapes provided approximately 27–31% and 25–26% higher heat transfer than the circular shape in FCC grids, due to the better mixing and flow acceleration. In conclusion, the optimization of strut shapes with similar cell topologies was shown to improve the performance of lattice heat exchangers.
Three-dimensional printing is particularly beneficial for heat flow optimization because of its ability to create complex structures and custom geometries. Table 2 shows some specific examples of how 3D printing has been adapted for heat flow optimization.
With the ability to customize 3D printing to meet specific design requirements, heat transfer can be optimized in a variety of applications, helping to improve energy efficiency and system performance.
In summary, 3D printing’s ability to create complex geometries and internal structures has revolutionized heat transfer applications, offering improved efficiency and customization across a wide range of industries. This technology continues to play a key role in the implementation of thermal management solutions for electronics, aerospace, power systems, and many other areas.

2.2. Selecting Materials

Choosing the right 3D printing materials to optimize heat flow is critical, as different materials have different thermal and mechanical properties. Table 3 shows some examples of materials commonly used in 3D printing that focus on improving heat flow.
When selecting materials for 3D printing, it is important to understand the requirements of the application and balance the thermal, mechanical, and performance properties. Different 3D printing technologies may require specific materials, so it is also important to consider the availability of suitable materials for a given printing technology. For heat transfer, metal additive manufacturing is a clear choice due to its higher thermal conductivity and temperature capabilities compared to plastics or polymers [34]. In most cases, the main challenge is to minimize metal oxidation, which can prevent layer adhesion due to lower wettability by liquid metals. As a result, metal printers require an inert atmosphere (usually argon), which contributes to their higher cost. The three most common types of 3D-printed metals (considering all applications) are steel/iron-based alloys, titanium/titanium-based alloys, and Inconel/nickel-based alloys [34]. Another developing trend is multi-material additive manufacturing (MM-AM). Powder bed-based SLM printing of composite materials mainly involves the use of two or more types of powders, where one of them acts as a continuous (matrix) phase, while the other acts as a dispersed (reinforcing) phase. [127,128]. More advanced multi-metal printing can be achieved by using deposition-based processes, for example in areas related to thermal management. Onuike et al. [129] combined IN718 with a copper alloy (GRCop-84), which increased the conductivity by about 300% compared to IN718 alone. Heer et al. [130] fabricated magnetic–non-magnetic bimetallic structures of graded composition using a laser-induced lattice shaping system (LENS). Their results confirm that non-magnetic SS316 can be gradually transformed into magnetic SS430L without the need for a weld.

2.3. Lightweight Design and Geometry Optimization

Lightweight design in 3D printing is particularly important for optimizing heat transfer, especially in cases where component weight affects system performance or in applications such as those related to aerospace, the automotive industry, or power generation. Designing components with open structures, such as lattice structures, allows for lightweight structures while maintaining a relatively high mechanical strength. Regular lattices fabricated using AM technology have received considerable attention from researchers in the biomedical and civil engineering fields [34,131]. Many previous studies have focused on understanding their mechanical response, flow permeability, and fluid-induced shear stress [131].
For example, Kamal and Rizza [132] described an example of an air cantilever that reportedly provides greater stiffness than its traditionally manufactured counterpart, while weighing 15% less. Another example can be found in the work of Bacellar et al. [133], who achieved up to a 50% reduction in size and pressure drop in an optimized air–fluid heat exchanger compared to a basic standard tube system through optimization. In another example, Alshare et al. [134] optimized the flow in an oil manifold to minimize energy loss using CFD numerical analysis; the resulting manifold, manufactured using 3D printing technology, weighed 84% less than the original base model, while reducing the pressure drop by 25%. In one example, Gutmann et al. [135] proposed a 316L reactor for difluoromethylation, where the reactor was wrapped around a serpentine heat exchanger core. Thus, in many industrial heat exchange applications, greater efficiency of the systems will be achieved by combining weight reduction, size reduction, and multitasking (integrated unit operations). In addition to reducing assembly costs, consolidation further increases the efficient use of materials. This means that more material is actively involved in heat transfer. This fact may justify the use of costly, high-performance metals to further improve performance. Additionally, the elimination of assembly will significantly reduce the risk of leaks and other potential failures.

2.4. Localized Production

Localized 3D printing production, especially in the context of heat flow optimization, can bring several benefits from both an economic and environmental perspective. Some of the aspects of localized 3D printing production in the context of heat flow optimization are as follows:
Local manufacturing allows components to be tailored to specific local infrastructure, climate, or specific industrial requirements that may affect heat flow optimization. It eliminates the need for long supply chains, which shortens component delivery times and reduces transportation costs, which is important for sustainability. Shorter transportation distances between manufacturing and application sites reduce the amount of transportation-related waste. Local manufacturing allows for the better customization of components to meet local needs, which can help to optimize heat transfer in specific climatic conditions. It also eliminates the need for the transportation of components over long distances, resulting in reduced logistics costs. It also contributes to better availability of local raw materials and the use of specific materials available in a given region. Local manufacturing makes it easier to comply with local standards and regulations, which is especially important in industries where safety and regulatory compliance are critical. All of this adds up to more sustainable production from an environmental perspective, as it reduces emissions associated with transportation over long distances and energy consumption. There is also the added benefit of stimulating local business and economic development, which is good for the community. Localized production allows for flexibility in adjusting production to meet current needs, which can be especially beneficial in situations where demand for certain components may fluctuate.
Localized 3D printing production in heat flow optimization is therefore a solution that takes into account both economic and environmental aspects while adapting production to specific local conditions.

2.5. Heat Exchangers Using 3D Printing Technology

With increasing environmental awareness and efforts to reduce energy consumption, new generations of heat exchangers need to be more energy-efficient [34]. Improving the efficiency of heat exchangers can help to reduce energy consumption in various sectors such as industry, transportation, and construction [45,74]. Incremental 3D printing (AM) opens up many possibilities for the design and manufacture of heat exchangers (HXs) [136]. Instead of a layout limited to the use of flat or tubular starting materials, heat exchangers can now be optimized to reflect their function and use in a specific environment [132]. Tooling complexity is no longer a limitation, but an advantage. Instead of brazing components, which results in rather inflexible standard components that are prone to leakage, AM finally allows us to create seamlessly integrated and customized solutions from monolithic material [34,131]. The unique advantages of HX with AM technology include optimized geometries with improved surfaces, controlled surface roughness, fully controlled and organized porous structures, and the elimination of welding or soldering [137]. On the other hand, there are several challenges that need to be addressed to fully realize the benefits of AM technology. The introduction of more efficient heat exchangers can benefit from reduced operating costs for heating, cooling, or power generation by using a biomimetic and mathematical approach with parametric modeling. This results in unprecedented configurations and pushes the boundaries of how we should think about heat exchangers today. Investments in new technologies can pay for themselves through lower energy bills and shorter payback periods [131,138,139,140,141]. There is a growing demand for advanced heat exchangers that meet the specific needs of various industries. HXs are widely used in the aerospace industry [142,143], the food industry [144], turbine technology [145], chemical processing plants [143], electronic equipment [143,145,146,147,148], nuclear power plants [149], solar energy receivers [149], waste heat recovery systems [74,150], building air conditioning [151], heat pipes [64,152,153], and so on. The application of heat exchangers thus ranges from miniature electronic microcircuits to large buildings [34,74]. Table 4 shows some concepts and applications of 3D printing in heat flow optimization related to heat exchangers.
Three-dimensional printing for heat flow optimization in heat exchangers and cooling systems opens up new design possibilities that can lead to more efficient and customized solutions compared to traditional manufacturing methods.

2.6. Integration with Renewable Energy Systems

The energy transition is one of the greatest challenges facing our society. To ensure a smooth transition to a sustainable future energy scenario, various technologies need to be developed and implemented. Among the most important options for energy generation are solar cells or windmills and chemical storage in batteries, supercapacitors, and hydrogen. New production methods based on additive manufacturing increase the potential to achieve the highly efficient and intelligent technologies needed to make clean energy technologies more competitive with fossil fuels. In this context, this roadmap highlights the enormous potential of 3D printing as a new way to fully automate the manufacture of energy devices designed as digital files [186]. Integrating 3D printing with renewable energy systems to optimize heat flow opens up a number of opportunities for designing efficient and sustainable solutions. Table 5 presents several concepts and applications of this integration.

3. Challenges of 3D Printing Technology in the Context of Sustainability

Three-dimensional printing plays an important role in several aspects of the energy sector. Three-dimensional manufacturing is an integral part of the vision of digital manufacturing, which is part of a wider industrial trend known as the fourth industrial revolution, or Industry 4.0. Three-dimensional printing is an inherently more sustainable process as it builds material layer by layer, reducing material waste and energy consumption [37,44,268]. Incremental manufacturing has evolved from a tool that was originally used for prototyping into a key technology for producing functional parts that are used in an increasingly wide range of fields, such as aerospace and medicine [35,36,269,270,271,272]. Leading aerospace sectors are using AM technology to produce wind tunnel models, UAVs, engine components, flight test parts, unmanned aerial vehicles, wall panels, metal structural components, and air ducts, illustrating just some of the many possibilities [37]. The design freedom offered by additive manufacturing allows engineers to explore innovative and optimized designs that may not be feasible using traditional manufacturing methods [265]. An example of this is the use of a TPSM gyroid structure in heat exchangers [61], where a Nusselt number 112% higher than the control of a simple tube at the same Reynolds number was achieved. A good example is also the air-to-water heat exchanger made from titanium, produced using the 3D direct laser metal sintering (DLMS) process, where an increase in heat transfer of 15–50% was observed compared to the latest heat exchangers equipped with corrugated fins [142]. This can lead to more efficient and effective energy systems. Additive technology enables the use of advanced materials, including high performance alloys and composites. This opens up new opportunities to create components with improved properties such as increased strength, heat resistance, or conductivity. Traditional manufacturing methods often generate significant amounts of waste [262,264]. Despite this, existing unresolved issues continue to prevent AM from becoming a mainstream manufacturing technique in an industrial context. The main limitations of 3D printing are mainly the anisotropic properties of the final product material, limited material resources, lengthy certification procedures (if any), high raw material prices, the cost of production in large quantities, and the lack of repeatability and reproducibility. In the traditional approach, large-scale objects are defined as those with at least one of the three dimensions exceeding 1 m [273].
Recent advances in adapting 3D printing for energy and environmental applications provide a competitive advantage by improving productivity and product flexibility and reducing costs, which will contribute to industry breakthroughs [274,275]. Methodologies such as continuous and high-speed printing have increased the speed and efficiency of 3D printing, enabling the rapid production of objects. It is also important to adjust printing parameters such as temperature, print speed, and fill density to reduce energy consumption and optimize the printing process. Modern technology has also enabled multi-material and multicolor printing, making it possible to create complex and practical designs in a single print. The use of hydropower and renewable electricity can temporarily reduce the environmental impact of the AM process in the pre-production and production stages until AM technology is developed to reduce energy consumption [274,276,277].
Additive technology has the potential to contribute to sustainable development in many areas through innovation, waste reduction, and the optimization of manufacturing processes. However, while it offers many potential sustainability benefits, there are still a number of challenges that could impact its development and effectiveness. Some of the key challenges that could impact the development of additive technology in the context of sustainability are as follows:
  • Many current 3D printing materials are based on plastics, which can cause pollution and are difficult to recycle. There is an urgent need to develop more sustainable materials, such as those that are biodegradable or based on renewable resources. Recycling processes for these materials must be made more efficient and widely available to minimize their negative impact on the environment.
  • The generation of excessive waste and energy consumption during the 3D printing process can be detrimental to sustainability. Research into new methods and technologies that minimize waste and energy consumption is essential.
  • Future research should focus on improving the sustainability of AM technology by developing lower-energy powder manufacturing technologies, analyzing the impact of key parameters (such as specific energy consumption, build rate, powder yield, etc.) on the life cycle assessment of the AM process, optimizing key parameters for an efficient result, and increasing the production speed of the AM process. This will also improve the economics of the AM process by reducing the cost of producing the required parts [277].
  • As 3D printing grows in popularity, there is a need to ensure the scalability of manufacturing processes and the availability of suitable raw materials. It is important to ensure that raw materials are ethical, sustainable and do not lead to the depletion of natural resources.
  • The use of 3D printing in some sectors, such as medicine or aerospace, may require compliance with strict safety standards and norms, posing a challenge for the technology.
  • Many people, both consumers and businesses, may not be aware of the potential benefits and challenges of 3D printing in the context of sustainability. Education and awareness are key to the sustainable adoption of 3D printing technology.
  • The lack of consistent standards and regulations for 3D printing can make it difficult to control the technology’s environmental impact. Establishing consistent standards for sustainable 3D printing is essential. Developing 3D printing with these challenges in mind can help to create more sustainable and environmentally friendly practices in the manufacturing industry. Separately, research into additive manufacturing applied to process/chemical engineering is a rapidly growing field. As technology advances and environmental awareness increases, it is expected that these challenges will be addressed and contribute to the further development of sustainable solutions in the field of 3D printing.

4. Conclusions

Three-dimensional printing can be a significant factor in optimizing heat transfer in a variety of applications, while contributing to sustainability. Incremental technology enables the creation of complex cooling structures and the production of coolers with custom shapes and sizes tailored to specific application needs that are difficult to achieve using traditional manufacturing methods. As a result, heat transfer performance can be optimized while minimizing material consumption, achieving very high compactness, in the order of 700 to even 5000 m2/m3.
Incremental technology enables the design of lightweight structures and the use of advanced high-thermal-conductivity materials (an example is the printing of MM-AM and the production of composites with increased conductivity of up to approximately 300%) adapted to the 3D printing process, which is particularly important in industries where weight is an issue (such as aerospace, e.g., an aerospace bracket with greater rigidity than its conventionally manufactured counterpart, while weighing 15% less). This helps to reduce energy and material consumption. Three-dimensional printing makes it possible to produce complex structures and designs without traditional material processing, minimizing waste. These processes can be more sustainable if raw materials are selected and processed according to sustainable principles. In the electronics sector, 3D printing can support the development of more efficient cooling systems, which is important for increasing the performance of electronic devices (15–65% increase in heat transfer compared to conventional heat exchangers). At the same time, it enables the production of custom heat exchangers tailored to specific applications. This increases the efficiency of heat exchange and minimizes energy loss. In the construction industry, 3D printing can be used to create smart structures that optimize heat exchange within buildings, improving energy efficiency. Currently, the main applications include prototyping, proof of concept, research/education/research and development, manufacturing, and the production of spare parts, more or less evenly distributed across various industries such as aerospace, technology, consumer goods, automotive, industrial goods, medical, and education. It is also clear that multidisciplinary and interdisciplinary collaboration, particularly between materials scientists, modelers, engineering practitioners, and 3D printing specialists, will be critical to delivering “next-generation” process engineering concepts.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

AMAdditive manufacturing
CADComputer-aided design
CAMComputer-aided manufacturing
CGDSCold gas dynamic spray
DMLSDirect metal laser sintering
FDMFused deposition modeling
LCMLithography-based ceramic manufacturing
LIGALithography, electroplating, and molding
LOMLaminated object manufacturing
LPBFLaser powder bed fusion
LPWLaser polymer welding
SLMSelective laser melting
SLSSelective laser sintering
UAMUltrasonic additive manufacturing
SLAStereolithography
DIWDirect inkjet writing
R2RRoll-to-roll
ILImprint lithography
EFFExtrusion free forming
DEDDirected energy deposition
