# Tunable Photonic Band Gaps in Two-Dimensional Bravais–Moiré Photonic Crystal Composed of High-Tc Superconductors

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Description of the System

#### 2.1. Theoretical Framework

#### 2.2. Simulation Settings

## 3. Results and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Liu, C.-L.; Zhang, H.-F.; Chen, Y.-Q. Enlarged the omnidirectional Bragg gap by one-dimensional superconductor-dielectric photonic crystals with ternary Thue-Morse aperiodic structure. Optik
**2013**, 124, 5811. [Google Scholar] [CrossRef] - Rahimi, H. Analysis of photonic spectra in Thue–Morse, Double-Period and Rudin-Shapiro quasirregular structures made of high temperature superconductors in visible range. Opt. Mater.
**2016**, 57, 264. [Google Scholar] [CrossRef] - Gómez-Urrea, H.A.; Escorcia-García, J.; Duque, C.A.; Mora-Ramos, M.E. Analysis of light propagation in quasiregular and hybrid Rudin–Shapiro one-dimensional photonic crystals with superconducting layers. Photonics Nanostruct.
**2017**, 1, 1–10. [Google Scholar] [CrossRef] - Trabelsi, Y. Output multichannel optical filter based on hybrid photonic quasicrystals containing a high-Tc superconductor. Photonics Nanostruct.
**2019**, 100, 724. [Google Scholar] [CrossRef] - Raymond Ooi, C.H.; Au Yeung, T.C.; Lim, T.-K.; Kam, C.H. Two-dimensional superconductor-dielectric photonic crystal. Proc. SPIE
**1999**, 3899, 278. [Google Scholar] [CrossRef] - Chen, Y.-B.; Zhang, C.; Zhu, Y.-Y.; Zhu, S.-N.; Ming, N.-B. Tunable photonic crystals with superconductor constituents. Mater. Lett.
**2002**, 55, 12. [Google Scholar] [CrossRef] - Takeda, H.; Yoshino, K. Tunable photonic band schemes in two-dimensional photonic crystals composed of copper oxide high-temperature superconductors. Phys. Rev. B
**2003**, 67, 245109. [Google Scholar] [CrossRef] - Cheng, C.; Xu, C.; Zhou, T.; Zhang, X.-F.; Xu, Y. Temperature dependent complex photonic band structures in two-dimensional photonic crystals composed of high-temperature superconductors. J. Phys. Condens. Matter
**2008**, 20, 275203. [Google Scholar] [CrossRef] - Berman, O.L.; Boyko, V.S.; Kezerashvili, R.Y.; Lozovik, Y.E. Monochromatic infrared wave propagation in 2D superconductor-dielectric photonic crystal. Laser Phys.
**2009**, 19, 2035–2040. [Google Scholar] [CrossRef] - Barvestani, J.; Rezaei, E.; Soltani Vala, A. Tunability of waveguide modes in two-dimensional photonic crystals based on superconducting materials. Opt. Commun.
**2013**, 297, 74. [Google Scholar] [CrossRef] - El-Naggar, S.A.; Elsayed, H.A.; Aly, A.H. Maximization of Photonic Bandgaps in Two-Dimensional Superconductor Photonic Crystals. J. Supercond. Nov. Magn.
**2014**, 27, 1615. [Google Scholar] [CrossRef] - Hashemi, R.; Barvestani, J. Superconducting Point Defect in a Two-Dimensional Photonic Crystal. J. Supercond. Nov. Magn.
**2014**, 27, 371. [Google Scholar] [CrossRef] - Liu, W.-G.; Pan, F.-M.; Cai, L.-W. Photonic band gap of superconductor-medium structure: Two-dimensional triangular lattice. Phys. C
**2014**, 500, 4. [Google Scholar] [CrossRef] - Aly, A.H.; Elsayed, H.A.; El-Naggar, S.A. The properties of cutoff frequency in two-dimensional superconductor photonic crystals. J. Mod. Opt.
**2014**, 61, 1064. [Google Scholar] [CrossRef] - Diaz-Valencia, B.F.; Calero, J.M. Photonic band gaps of a two-dimensional square lattice composed by superconducting hollow rods. Phys. C
**2014**, 505, 74. [Google Scholar] [CrossRef] - Zhang, H.F.; Liu, S. The Tunable Omnidirectional Reflector Based on Two-Dimensional Photonic Crystals With Superconductor Constituents. IEEE J. Sel. Top. Quantum Electron.
**2015**, 21. [Google Scholar] [CrossRef] - Diaz-Valencia, B.F.; Calero, J.M. Analysis of Photonic Band Gaps in a Two-Dimensional Triangular Lattice with Superconducting Hollow Rods. J. Low Temp. Phys.
**2017**, 186, 275. [Google Scholar] [CrossRef] - Zhang, H.-F. The Mie resonance and dispersion properties in the two-dimensional superconductor photonic crystals with fractal structure. Phys. C
**2018**, 550, 65. [Google Scholar] [CrossRef] - Elsayed, H.A. Photonic band gaps properties of two-dimensional ternary superconductor photonic crystals. Surf. Rev. Lett.
**2019**, 26, 1850152. [Google Scholar] [CrossRef] - Hao, J.J.; Ju, L.; Liu, Y.J.; Du, W.-C.; Gu, K.-D.; Yang, H.-W. Research on Transmission Characteristics of Two-Dimensional Superconducting Photonic Crystal in THz-Waves. Plasmonics
**2020**, 15, 1083. [Google Scholar] [CrossRef] - Fan, S.; Villeneuve, P.R.; Joannopoulos, J.D. Large omnidirectional band gaps in metallodielectric photonic crystals. Phys. Rev. B
**1996**, 54, 11245. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Halevi, P.; Ramos-Mendieta, F. Tunable Photonic Crystals with Semiconducting Constituents. Phys. Rev. Lett.
**2000**, 85, 1875. [Google Scholar] [CrossRef] [PubMed] - Wang, Y. Coupled-resonator optical waveguides in photonic crystals with Archimedean-like tilings. Europhys. Lett.
**2006**, 74, 261. [Google Scholar] [CrossRef] - Iliew, R.; Etrich, C.; Pertsch, T.; Lederer, F. Slow-light enhanced collinear second-harmonic generation in two dimensional photonic crystals. Phys. Rev. B
**2008**, 77, 115124. [Google Scholar] [CrossRef] - Olivier, S.; Smith, C.; Rattier, M.; Benisty, H.; Weisbuch, C.; Krauss, T.; Houdre, R.; Oesterle, U. Miniband transmission in a photonic crystal coupled-resonator optical waveguide. Opt. Lett.
**2001**, 26, 1019. [Google Scholar] [CrossRef] [PubMed] - Gómez-Urrea, H.A.; Cardona, J.G.; Caro-Lopera, F.J.; Mora-Ramos, M.E. Photonic band gaps and waveguide slow-light propagation in Bravais–Moiré two-dimensional photonic crystals. J. Opt.
**2023**, 25, 025101. [Google Scholar] [CrossRef] - David, S.; Chelnokov, A.; Lourtioz, J. Wide angularly isotropic photonic bandgaps obtained from two-dimensional photonic crystals with Archimedean-like tilings. Opt. Lett.
**2000**, 25, 1001. [Google Scholar] [CrossRef] - Ueda, K.; Dotera, T.; Gemma, T. Photonic band structure calculations of two- dimensional Archimedean tiling patterns. Phys. Rev. B
**2007**, 75, 195122. [Google Scholar] [CrossRef] [Green Version] - Jovanović, Đ.; Gajić, R.; Hingerl, K. Refraction and band isotropy in 2D square-like Archimedean photonic crystal lattices. Opt. Express
**2008**, 16, 4048. [Google Scholar] [CrossRef] - Balci, S.; Karabiyik, M.; Kocabas, A.; Kocabas, C.; Aydinli, A. Coupled plasmonic cavities on Moiré surfaces. Plasmonics
**2010**, 5, 429. [Google Scholar] [CrossRef] - Balci, S.; Kocabas, A.; Kocabas, C.; Aydinli, A. Localization of surface plasmon polaritons in hexagonal arrays of Moiré cavities. Appl. Phys. Lett.
**2011**, 98, 031101. [Google Scholar] [CrossRef] - Lubin, S.M.; Hryn, A.J.; Huntington, M.D.; Engel, C.J.; Odom, T.W. Quasiperiodic Moiré plasmonic crystals. ACS Nano
**2013**, 7, 11035. [Google Scholar] [CrossRef] [PubMed] - Gómez-Urrea, H.A.; Bareño-Silva, J.; Caro-Lopera, F.J.; Mora-Ramos, M.E. The influence of shape and orientation of scatters on the photonic band gap in two-dimensional Bravais-Moiré lattices. Photonics Nanostruct.
**2020**, 42, 100845. [Google Scholar] [CrossRef] - Gómez-Urrea, H.A.; Ospina-Medina, M.C.; Correa-Abad, J.D.; Mora-Ramos, M.E.; Caro-Lopera, F.J. Tunable band structure in 2D Bravais-Moiré photonic crystal lattices. Opt. Commun.
**2020**, 459, 125081. [Google Scholar] [CrossRef] - Nasidi, I.; Hao, R.; Chen, J.; Li, E.; Jin, S. Photonic Moiré lattice waveguide with a large slow light bandwidth and delay-bandwidth product. Appl. Opt.
**2022**, 61, 5776. [Google Scholar] [CrossRef] [PubMed] - Nasidi, I.; Hao, R.; Jin, S.; Li, E. Flat bands and quasi-bound states in the continuum in a photonic Moiré lattice. J. Opt. Soc. Am. B
**2022**, 40, 260. [Google Scholar] [CrossRef] - Nasidi, I.; Hao, R.; Jin, S.; Li, E. Inverse design of a photonic Moiré lattice waveguide towards improved slow light performances. Appl. Opt.
**2023**, 62, 2651. [Google Scholar] [CrossRef] - Lou, B.; Zhao, N.; Minkov, M.; Guo, C.; Orenstein, M.; Fan, S. Theory for Twisted Bilayer Photonic Crystal Slabs. Phys. Rev. Lett.
**2021**, 126, 136101. [Google Scholar] [CrossRef] - Dong, K.; Zhang, T.; Li, J.; Wang, Q.; Yang, F.; Rho, Y. Flat Bands in Magic-Angle Bilayer Photonic Crystals at Small Twists. Phys. Rev. Lett.
**2021**, 126, 223601. [Google Scholar] [CrossRef] - John SG, J.; Joannopoulos, D.; Winn, J.N.; Meade, R.D. Photonic Crystals: Molding the Flow of Light, 2nd ed.; Princeton University of Press: Princeton, NJ, USA, 2008. [Google Scholar]
- COMSOL. Multiphysics, v. 5.6; COMSOL AB: Stockholm, Sweden, 2021. [Google Scholar]
- COMSOL. Multiphysics Reference Guide; COMSOL: Stockholm, Sweden, 2012. [Google Scholar]
- COMSOL. Multiphysics Users Guide; COMSOL: Stockholm, Sweden, 2012. [Google Scholar]
- Norman, M.R.; Chubukov, A.V. High-frequency behavior of the infrared conductivity of cuprates. Phys. Rev. B
**2006**, 73, 140501. [Google Scholar] [CrossRef] [Green Version] - Lee, W.M.; Hui, P.M.; Stroud, D. Propagating photonic modes below the gap in a superconducting composite. Phys. Rev. B
**1995**, 51, 8634. [Google Scholar] [CrossRef] [PubMed]

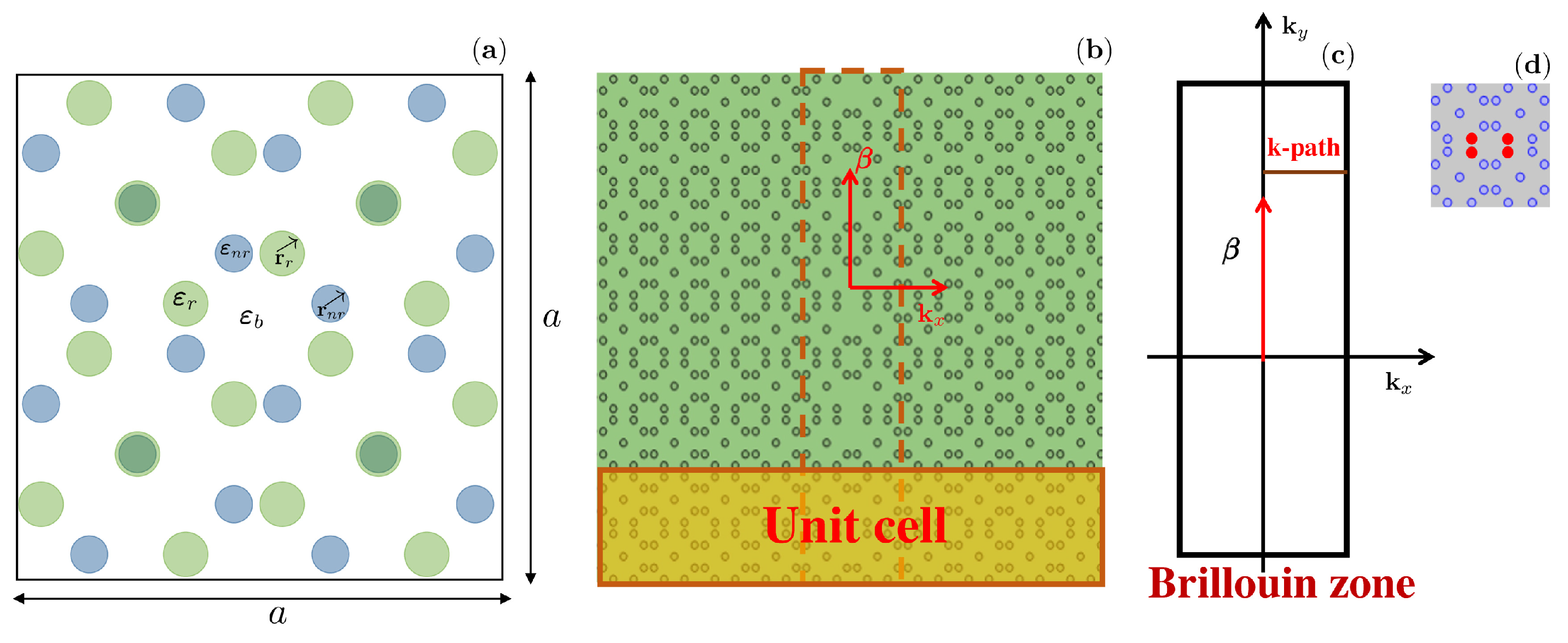

**Figure 1.**(Color online) (

**a**) Bravais–Moiré unit cell placed in regular position with commensurable rotation $\varphi =53.{13}^{\circ}$ with $r=3,s=1$ (BM-R3S1). (

**b**) Schematic diagram of the proposed waveguide. The unit cell utilized for the analysis is represented by the yellow rectangle with orange edges. The dashed rectangle indicates the direction along which the wave propagates inside the guide. $\beta $ is the propagation constant and ${k}_{x}$ is the x-component of the wavevector. (

**c**) Shows the Brillouin zone and the k-path in waveguide case. (

**d**) (in red) the cores removed from the unit cell in order to build the waveguide in (

**b**). In our model, the cylindrical active cores are assumed to be made of a high critical temperature $B{i}_{1.85}P{b}_{0.35}Sr{}_{2}C{a}_{2}C{u}_{3.1}{O}_{y}$ superconductor compound, and the background is air.

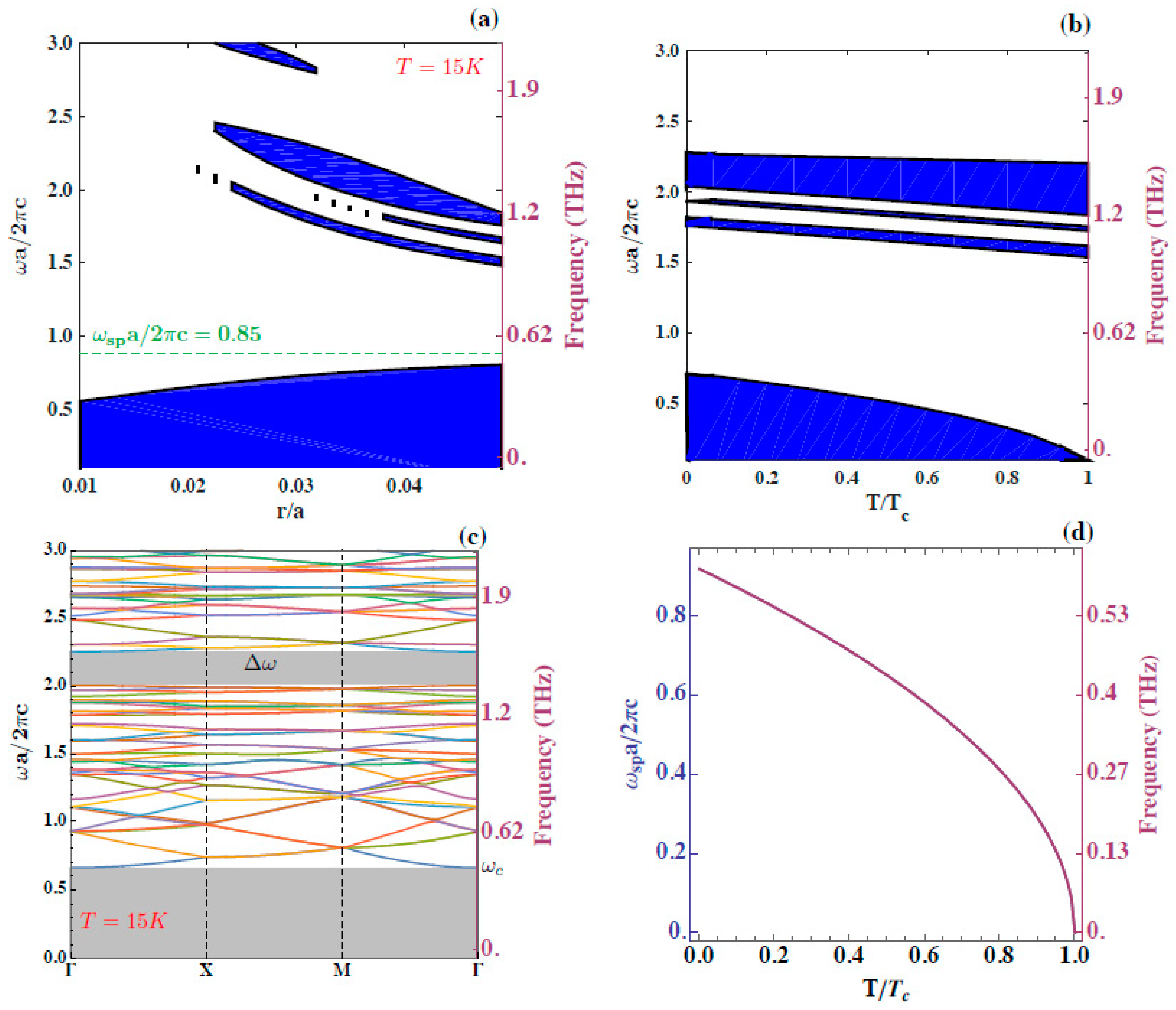

**Figure 2.**(Color online) (

**a**) Photonic gap mapping for TM modes in the BM-R3S1 structure with a lattice constant a, as depicted in Figure 1, for $T=15\phantom{\rule{0.166667em}{0ex}}$K. We choose this value of temperature for the sake of exemplifying. The radii of both rotated and unrotated cores are the same. (

**b**) The photonic gap mapping as a function of temperature for the value $r/a=0.0334$, at which the maximum gap is obtained in (

**a**). In this case, the maximum ($\Delta \omega =0.37$) appears for $T/{T}_{c}=1$. The lowest blue stripes represent the evolution of the cut-off frequency in each case. (

**c**) Dispersion relation for the same TM modes, corresponding to the filling fraction $r/a=0.0334$—associated to the widest photonic gap depicted in (

**a**), for $T=15\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}K$, $\Delta \omega =0.25$. Here, the cutoff frequency is ${\omega}_{c}a/2\pi c=0.67$. (

**d**) The plasma frequency of superconducting electrons ${\omega}_{sp}$ as a function of temperature.

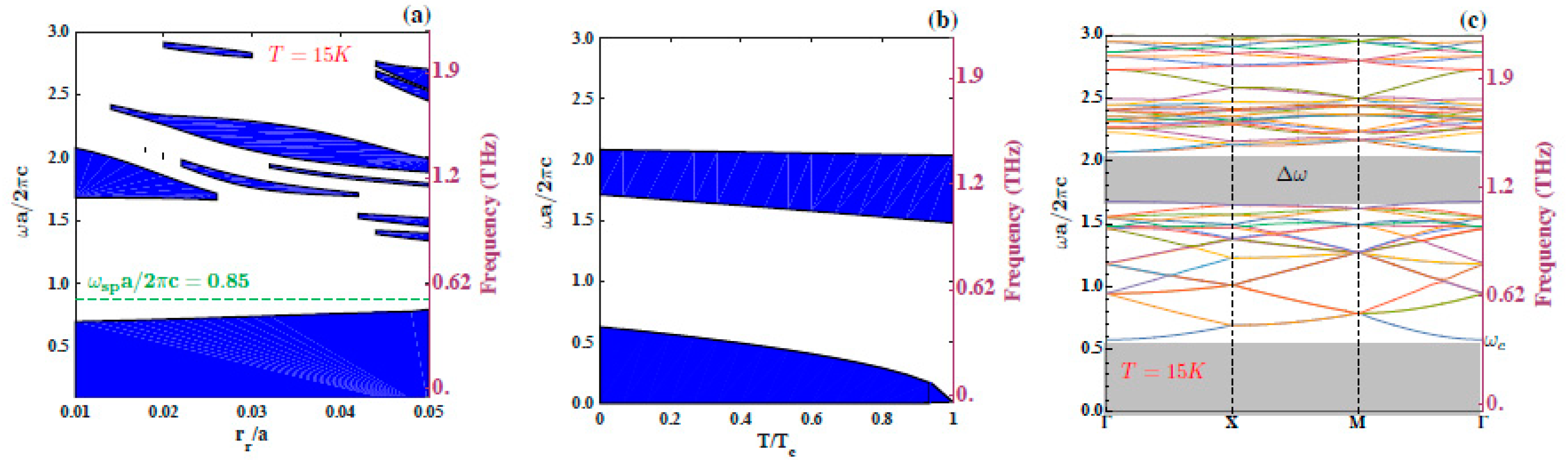

**Figure 3.**(Color online) (

**a**) The gap mapping of TM modes for the photonic crystal with a BM-R3S1 unit cell (Figure 1a) a fixed value of the radius of unrotated cylinder, ${r}_{nr}/a=0.0334$, is kept and the radius of rotated cores, ${r}_{r}$, changes (see explanation in text). (

**b**) Gap mapping as a function of temperature for the configuration of the maximum gap in (

**a**): ${r}_{nr}/a=0.0334$ and ${r}_{r}/a=0.01$. The maximum PBG ($\Delta \omega =0.55$) is obtained for $T/{T}_{c}=1$. (

**c**) Dispersion relation for the same TM modes, corresponding to the filling fraction ${r}_{nr}/a=0.0334$ and ${r}_{r}/a=0.01$—associated to the widest photonic gap depicted in (

**a**)—with $T=15\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}K$, $\Delta \omega =0.39$, is located between $\omega a/2\pi c=1.68$ and $\omega a/2\pi c=2.07$, and a cutoff frequency of ${\omega}_{c}a/2\pi c=0.58$. The bottom stripes in the plots associate with the cut-off frequency.

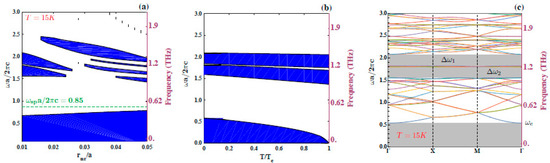

**Figure 4.**(Color online) (

**a**) The same as in Figure 3 but for the fixed value of rotated cores, ${r}_{r}/a=0.0334$, and fo the changing of unrotated ones. (

**b**) The gap mapping as a function of temperature, for the geometry at which the widest gap in (

**a**) appears: ${r}_{r}/a=0.0334$ and ${r}_{nr}/a=0.01$. Again, when $t={T}_{c}$ (i.e., when the maximum phonic gap is obtained $\Delta \omega =0.33$), then $T/{T}_{c}=1$ is obtained. (

**c**) Dispersion relation for the same TM modes, corresponding to the same filling fraction with ${r}_{r}/a=0.0334$ and ${r}_{nr}/a=0.01$, for $T=15\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}K$. There is a double gap with almost the same amplitudes: $\Delta {\omega}_{1}=0.26$, located between $\omega a/2\pi c=1.83$ and $\omega a/2\pi c=2.09$ and $\Delta {\omega}_{2}=0.24$, located between $\omega a/2\pi c=1.56$ and $\omega a/2\pi c=1.80$, as well as a cutoff frequency of ${\omega}_{c}a/2\pi c=0.55$. The bottom stripes correspond to the cut-off frequency.

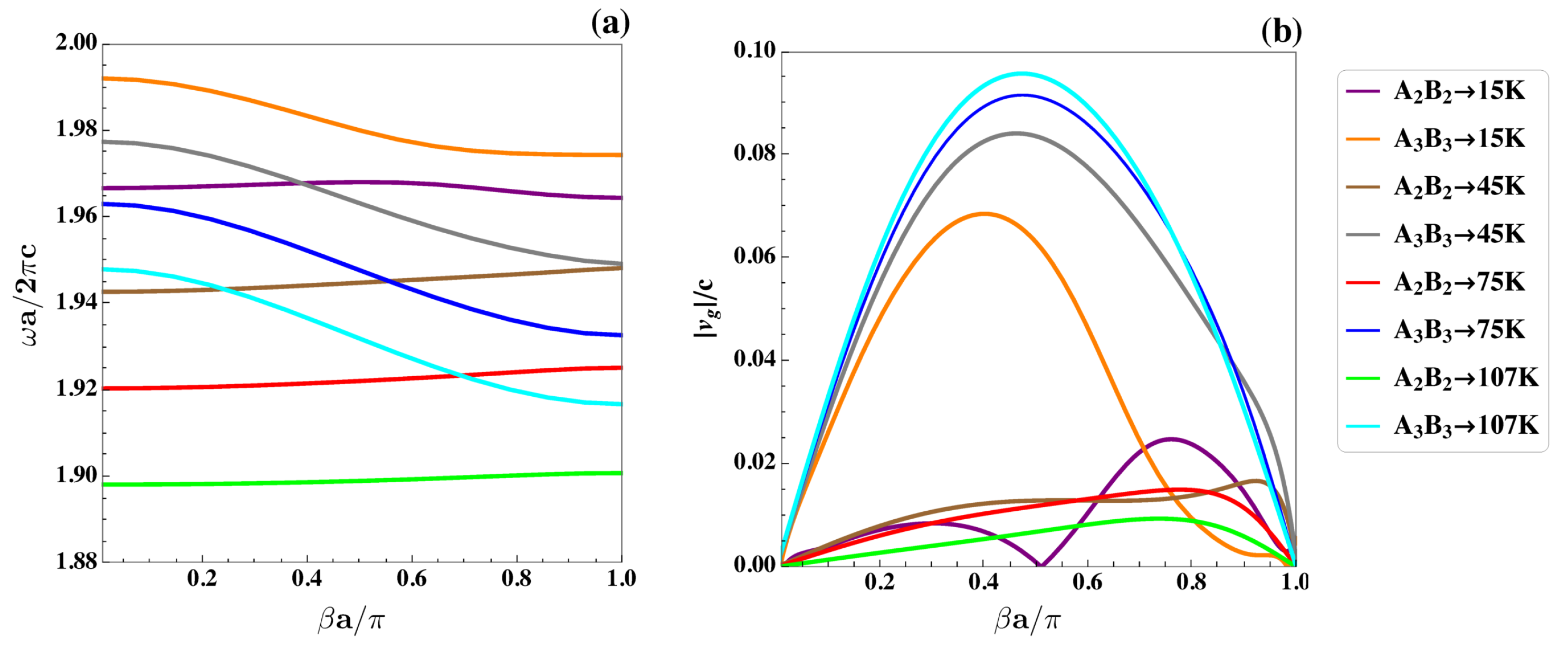

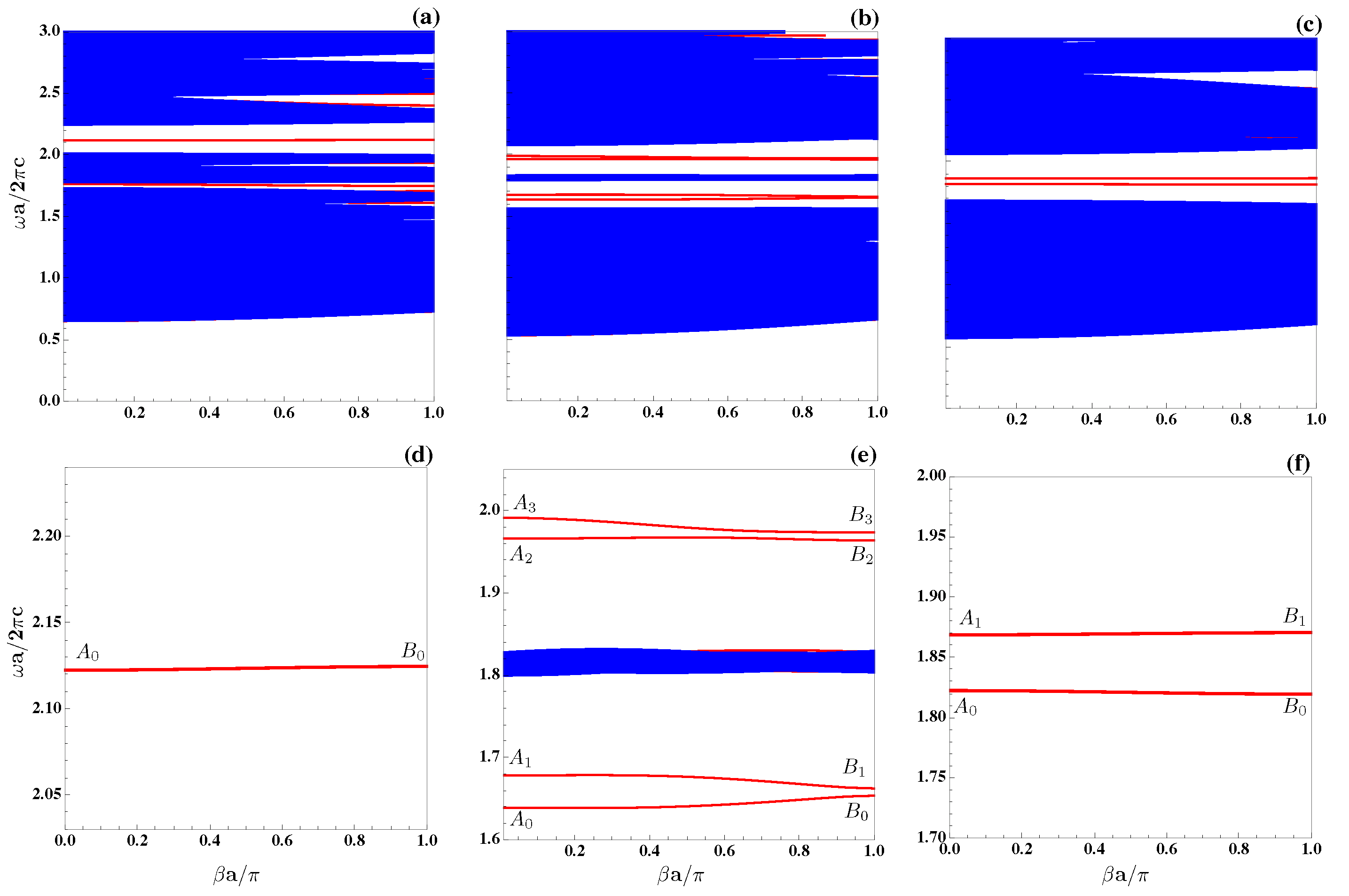

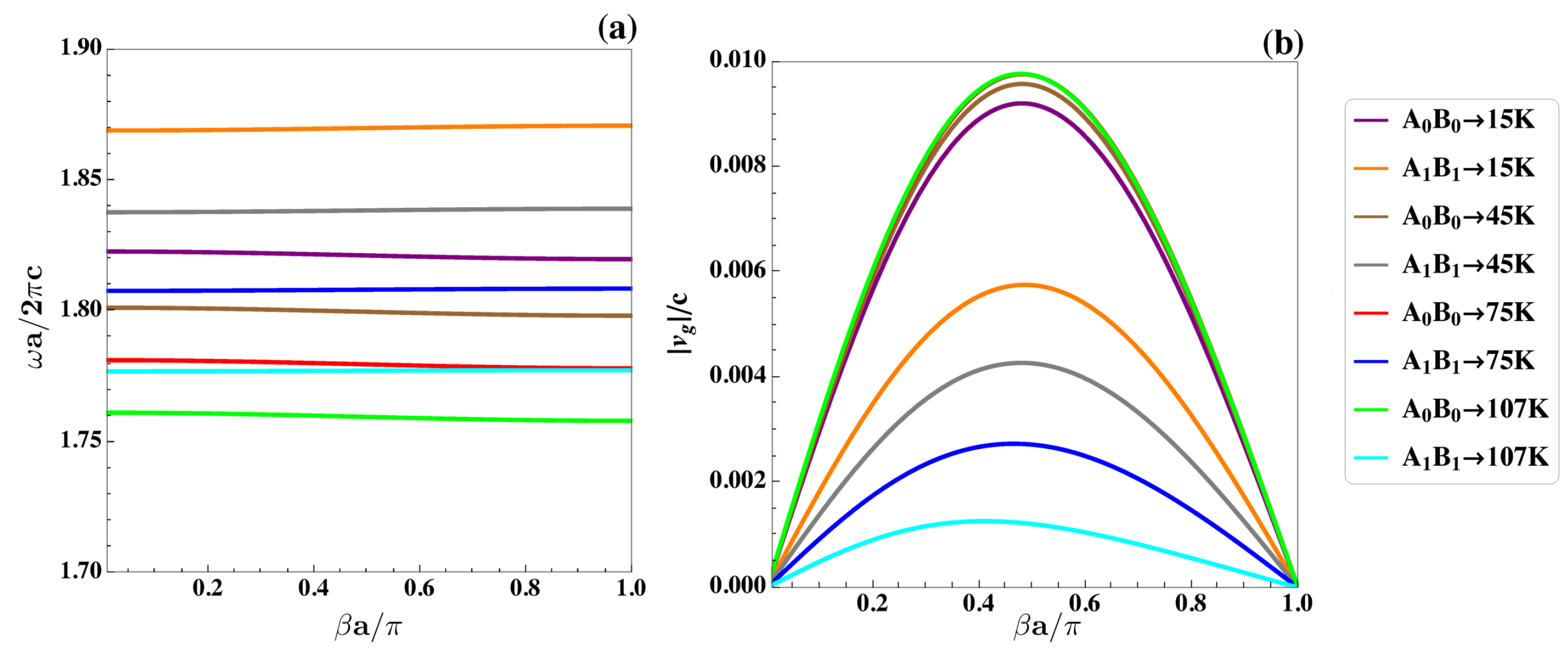

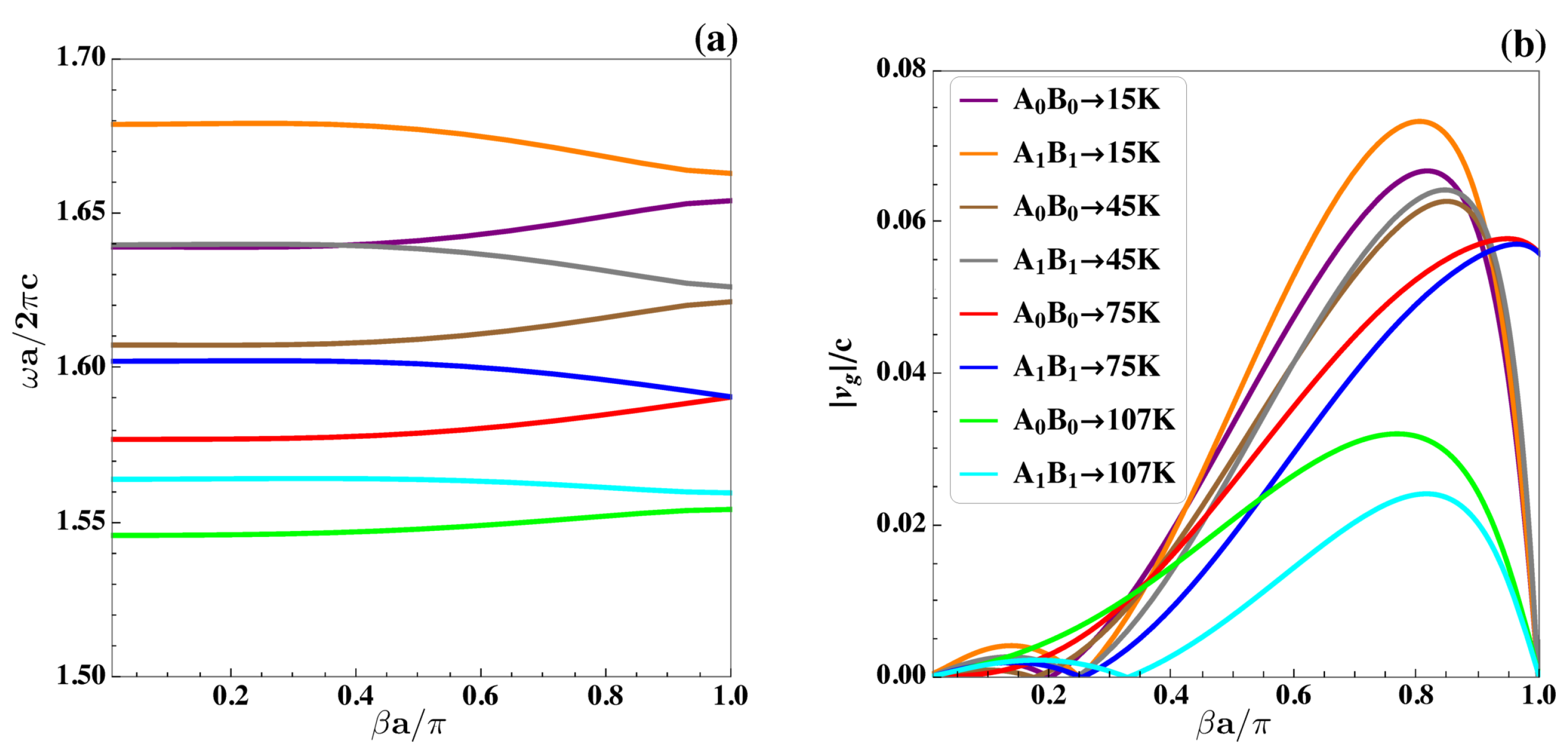

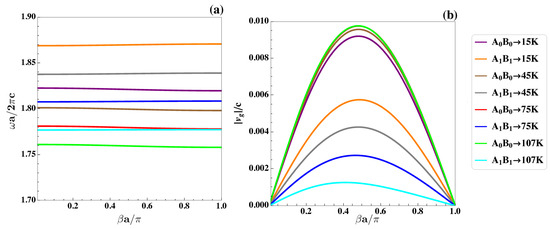

**Figure 5.**Light dispersion relations for the coupled resonator optical waveguide shown in Figure 1b (see text for the description). Red lines represent guided modes. $\beta a/\pi $ is the normalized propagation constant. (

**a**) Photonic unit cell parameters, taken to be the same used to generate Figure 2c. (

**b**) Produced with the same cell parameters used to generate Figure 3c. (

**c**) Cell parameters, in this case, are the same used to generate Figure 4c. Blue stripes correspond to continuum states, and (

**d**–

**f**) represent the enhanced views of PBG regions where guided modes of cases (

**a**–

**c**) respectively appear.

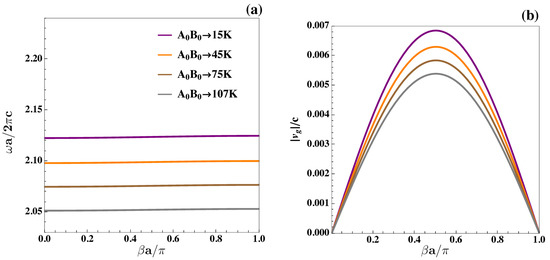

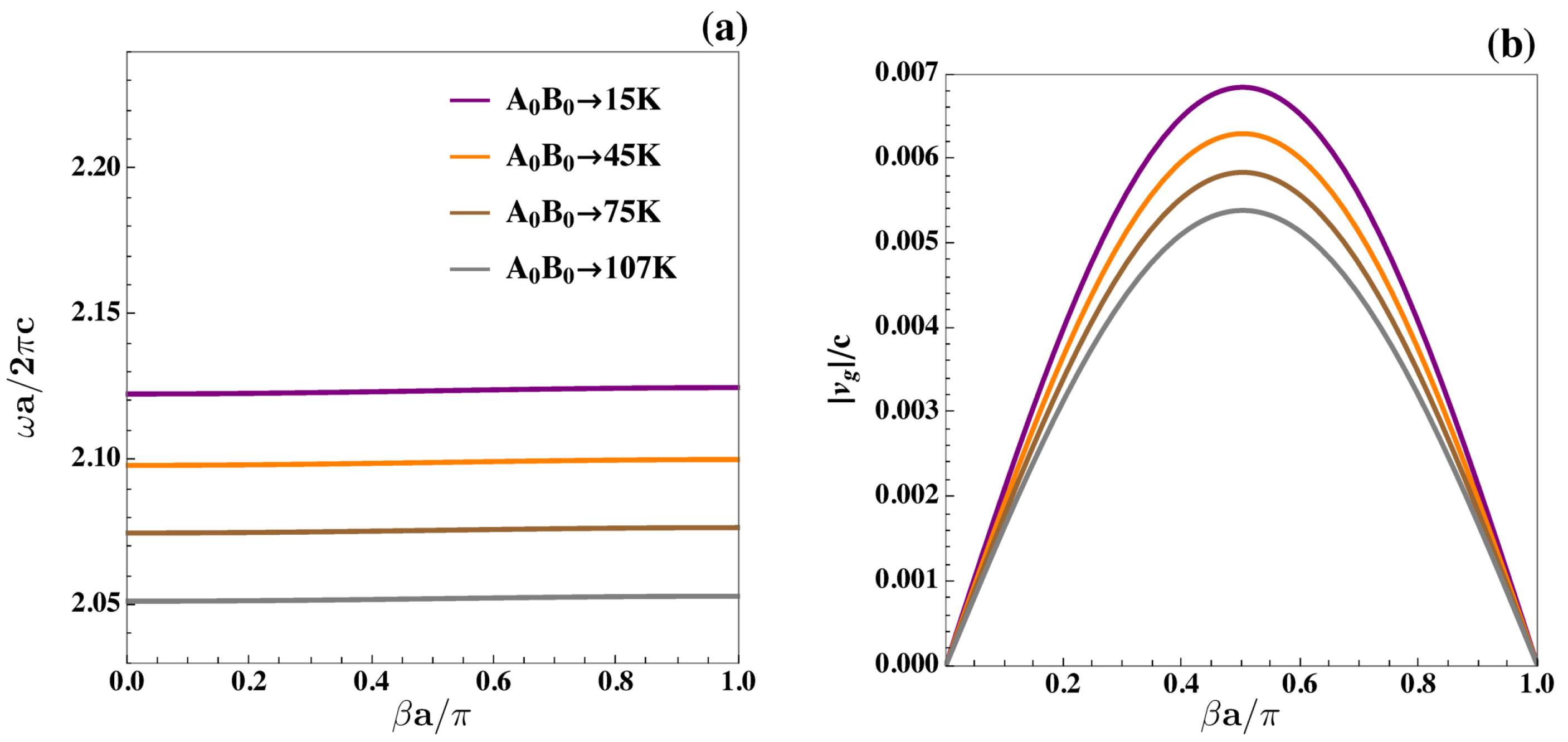

**Figure 6.**(
