# Observations on the Relationship between Crash Frequency and Traffic Flow

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Motivation

## 2. The Data

#### 2.1. The Crash Database

#### 2.2. The Distribution of the Crash Frequency

#### 2.3. The Traffic Flow Data

#### 2.4. Supplemental Traffic Flow Data

## 3. On Crashes and Cars

#### 3.1. The 2018 Data

#### 3.1.1. Weekly Curves of the Crash Rate

#### 3.1.2. A Remaining Pattern

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Abdulhafedh, A. Road Traffic Crash Data: An Overview on Sources, Problems, and Collection Methods. J. Transp. Technol.
**2017**, 7, 206–219. [Google Scholar] [CrossRef] [Green Version] - Lovelace, R. Reproducible Road Safety Research: An Exploration of the Shifting Spatial and Temporal Distribution of Car-Pedestrian Crashes. 2019. Available online: https://github.com/Robinlovelace/stats19-gisruk (accessed on 7 January 2021).
- Imprialou, M.; Quddus, M. Crash data quality for road safety research: Current state and future directions. Accid. Anal. Prev.
**2019**, 130, 84–90. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kamaluddin, N.; Andersen, C.S.; Larsen, M.K.; Meltofte, K.R.; Várhelyi, A. Self-reporting traffic crashes—A systematic literature review. Eur. Transp. Res. Rev.
**2018**, 10, 26. [Google Scholar] [CrossRef] - Hauer, E. Statistical Road Safety Modeling. Transp. Res. Rec.
**2004**, 1897, 81–87. [Google Scholar] [CrossRef] - Lord, D.; Mannering, F. The Statistical Analysis of Crash-Frequency Data: A Review and Assessment of Methodological Alternatives. Transp. Res. Part A Policy Pract.
**2010**, 44, 291–305. [Google Scholar] [CrossRef] [Green Version] - Hughes, B.; Newstead, S.; Anund, A.; Shu, C.; Falkmer, T. A review of models relevant to road safety. Accid. Anal. Prev.
**2015**, 74, 250–270. [Google Scholar] [CrossRef] [Green Version] - Mannering, F. Cross-Sectional Modelling. In Safe Mobility–Challenges, Methodology, and Solutions; Lord, D., Washington, S., Eds.; Emerald Publishing Limited: Bingley, UK, 2018; pp. 257–277. [Google Scholar]
- Ambros, J.; Jurewicz, C.; Turner, S.; Kieć, M. An international review of challenges and opportunities in development and use of crash prediction models. Eur. Transp. Res. Rev.
**2018**, 10, 35. [Google Scholar] [CrossRef] [Green Version] - Theofilatos, A. Incorporating real-time traffic and weather data to explore road accident likelihood and severity in urban arterials. J. Saf. Res.
**2017**, 61, 9–21. [Google Scholar] [CrossRef] - Petraki, V.; Ziakopoulos, A.; Yannis, G. Combined impact of road and traffic characteristic on driver behavior using smartphone sensor data. Accid. Anal. Prev.
**2020**, 144, 105657. [Google Scholar] [CrossRef] - Shi, Q.; Abdel-Aty, M. Big Data applications in real-time traffic operation and safety monitoring and improvement on urban expressways. Transp. Res. Part C Emerg. Technol.
**2015**, 58, 380–394. [Google Scholar] [CrossRef] - Wu, Y.; Abdel-Aty, M.; Lee, J. Crash risk analysis during fog conditions using real-time traffic data. Accid. Anal. Prev.
**2018**, 114, 4–11. [Google Scholar] [CrossRef] [PubMed] - Lord, D.; Manar, A.; Vizioli, A. Modeling crash-flow-density and crash-flow-V/C ratio relationships for rural and urban freeway segments. Accid. Anal. Prev.
**2005**, 37, 185–199. [Google Scholar] [CrossRef] [PubMed] - Imprialou, M.I.M.; Quddus, M.; Pitfield, D.E.; Lord, D. Re-visiting crash–speed relationships: A new perspective in crash modelling. Accid. Anal. Prev.
**2016**, 86, 173–185. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Jovanis, P.P.; Chang, H.L. Modeling the Relationship of Accidents to Miles Traveled. Transp. Res. Rec.
**1986**, 1068, 42–51. [Google Scholar] - Ceder, A. Relationships between road accidents and hourly traffic flow—II: Probabilistic approach. Accid. Anal. Prev.
**1982**, 14, 35–44. [Google Scholar] [CrossRef] - Ceder, A.; Livneh, M. Relationships between road accidents and hourly traffic flow—I: Analyses and interpretation. Accid. Anal. Prev.
**1982**, 14, 19–34. [Google Scholar] [CrossRef] - Høye, A.K.; Hesjevoll, I.S. Traffic volume and crashes and how crash and road characteristics affect their relationship—A meta-analysis. Accid. Anal. Prev.
**2020**, 145, 105668. [Google Scholar] [CrossRef] - Zhou, M.; Sisiopiku, V. Relationship Between Volume-to-Capacity Ratios and Accident Rates. Transp. Res. Rec.
**1997**, 1581, 47–52. [Google Scholar] [CrossRef] - Martin, J.L. Relationship between crash rate and hourly traffic flow on interurban motorways. Accid. Anal. Prev.
**2002**, 34, 619–629. [Google Scholar] [CrossRef] - Pöppel-Decker, M.; Schepers, A.; Koßmann, I. Grundlagen Streckenbezogener Unfallanalysen auf Bundesautobahnen; Technical Report M 153; Bundesanstalt für Straßenwesen (BASt): Bergisch Gladbach, Germany, 2003. (In German) [Google Scholar]
- Kononov, J.; Durso, C.; Reeves, D.; Allery, B. Relationship Between Traffic Density, Speed, and Safety and Its Implications for Setting Variable Speed Limits on Freeways. Transp. Res. Rec. J. Transp. Res. Board
**2012**, 2280, 1–9. [Google Scholar] [CrossRef] [Green Version] - Veh, A. Improvements to reduce traffic accidents. In Proceedings of the ASCE, Meeting of the Highway Division, New York, NY, USA, 1937; pp. 1775–1785. [Google Scholar]
- Theofilatos, A.; Yannis, G. A review of the effect of traffic and weather characteristics on road safety. Accid. Anal. Prev.
**2014**, 72, 244–256. [Google Scholar] [CrossRef] [PubMed] - Wang, C.; Quddus, M.A.; Ison, S.G. Impact of traffic congestion on road accidents: A spatial analysis of the M25 motorway in England. Accid. Anal. Prev.
**2009**, 41, 798–808. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Shefer, D.; Rietveld, P. Congestion and Safety on Highways: Towards an Analytical Model. Urban Stud.
**1997**, 34, 679–692. [Google Scholar] [CrossRef] - Noland, R.B.; Quddus, M.A. Congestion and safety: A spatial analysis of London. Transp. Res. Part A Policy Pract.
**2005**, 39, 737–754. [Google Scholar] [CrossRef] [Green Version] - Alsalhi, R.; Dixit, V.V.; Gayah, V.V. On the existence of network Macroscopic Safety Diagrams: Theory, simulation and empirical evidence. PLoS ONE
**2018**, 13, e0200541. [Google Scholar] [CrossRef] - Retallack, A.; Ostendorf, B. Relationship Between Traffic Volume and Accident Frequency at Intersections. Int. J. Environ. Res. Public Health
**2020**, 17, 1393. [Google Scholar] [CrossRef] [Green Version] - Elvik, R.; Erke, A.; Christensen, P. Elementary Units of Exposure. Transp. Res. Rec.
**2009**, 2103, 25–31. [Google Scholar] [CrossRef] [Green Version] - HERE. Traffic4Cast–Traffic Map Movie Forecasting. 2019. Available online: https://www.iarai.ac.at/traffic4cast/ (accessed on 7 January 2021).
- Follmer, R.; Gruschwitz, D. Mobility in Germany—Short Report. Technical Report, Fas, DLR, IVT and Infas 360 on Behalf of the Federal Ministry of Transport and Digital Infrastructure (BMVI) (FE no. 70.904/15). 2019. Available online: http://www.mobilitaet-in-deutschland.de/pdf/MiD2017_ShortReport.pdf (accessed on 27 May 2020).
- Cabrera-Arnau, C.; Prieto Curiel, R.; Bishop, S.R. Uncovering the behaviour of road accidents in urban areas. R. Soc. Open Sci.
**2020**, 7, 191739. [Google Scholar] [CrossRef] [Green Version] - R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2020. [Google Scholar]
- Cafiso, S.; Di Silvestro, G.; Persaud, B.; Begum, M. Revisiting variability of dispersion parameter of safety performance for two-lane rural roads. Transp. Res. Rec. J. Transp. Res. Board
**2010**, 2148, 38–46. [Google Scholar] [CrossRef] - Geroliminis, N.; Daganzo, C.F. Existence of urban-scale macroscopic fundamental diagrams: Some experimental findings. Transp. Res. Part B Methodol.
**2008**, 42, 759–770. [Google Scholar] [CrossRef] [Green Version] - BASt. Automatische Zählstellen 2018; Bundesanstalt für Straßenwesen (BASt): Bergisch Gladbach, Germany, 2018. (In German) [Google Scholar]
- DLR. Clearing House Transport; DLR: Cologne, Germany, 2018. [Google Scholar]
- Köhler, K. (DLR, Institute of Transport Research, Oberpfaffenhofen, Germany). Personal communication, 2020. [Google Scholar]
- Wood, S. Generalized Additive Models: An Introduction with R, 2nd ed.; Chapman and Hall/CRC: Boca Raton, FL, USA, 2017. [Google Scholar]
- Zhang, Y.; Xie, Y.; Li, L. Crash frequency analysis of different types of urban roadway segments using generalized additive model. J. Saf. Res.
**2012**, 43, 107–114. [Google Scholar] [CrossRef] [PubMed] - Folkard, S. Black Times: Temporal Determinants of Transport Safety. Accid. Anal. Prev.
**1997**, 29, 417–430. [Google Scholar] [CrossRef] - Åkerstedt, T.; Kecklund, G.; Hörte, L.G. Night Driving, Season, and the Risk of Highway Accidents. Sleep
**2001**, 24, 401–406. [Google Scholar] [CrossRef] [PubMed] - Regev, S.; Rolison, J.J.; Moutari, S. Crash risk by driver age, gender, and time of day using a new exposure methodology. J. Saf. Res.
**2018**, 66, 131–140. [Google Scholar] [CrossRef]

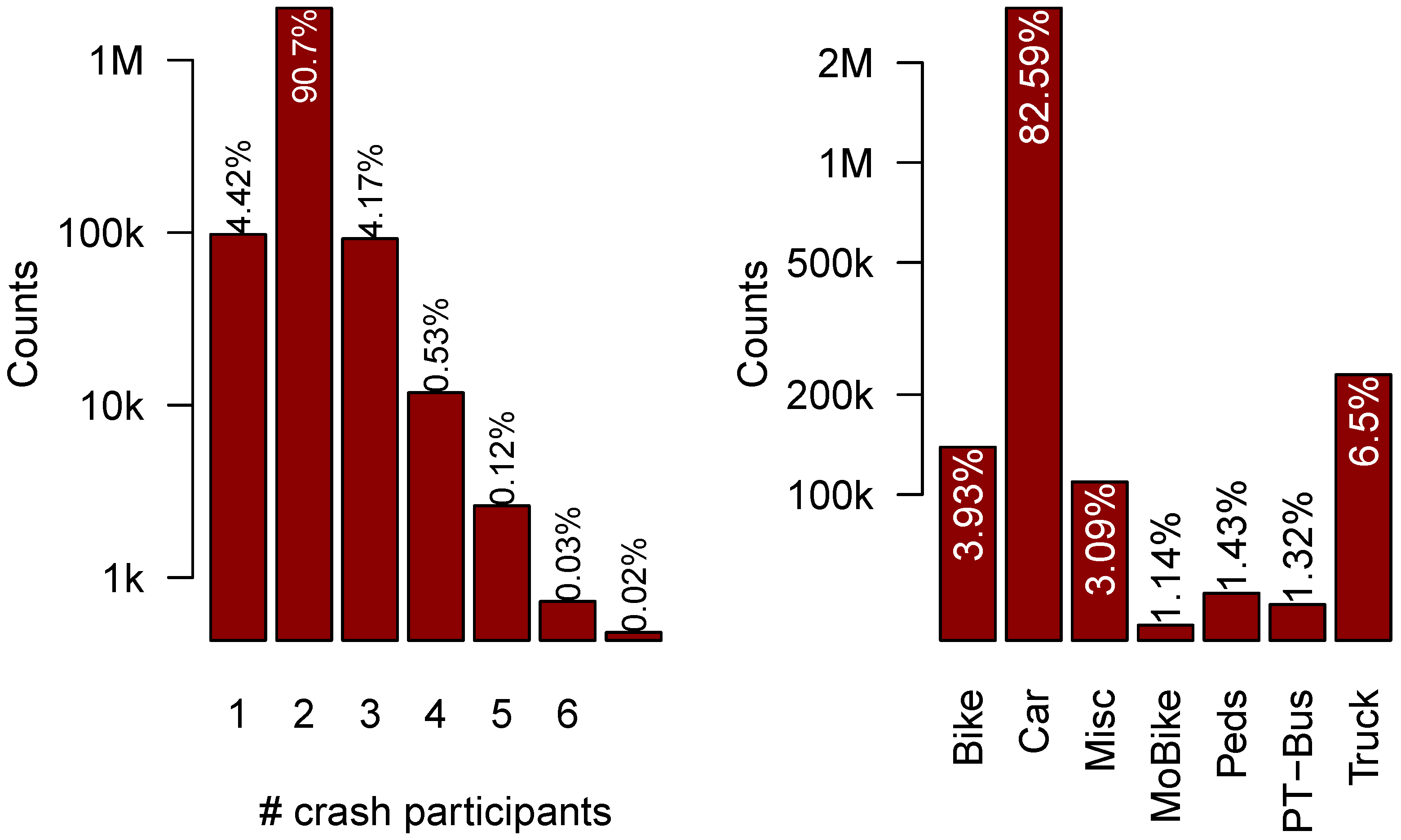

**Figure 1.**Distribution of the number of road users involved (

**left**), and the traffic shares (

**right**) in the Berlin crash data set. The Misc traffic mode is being used by the police to denote any traffic mode that cannot be assigned. The y-axis is logarithmic, the numbers on top of the bars are the percentages of the respective shares.

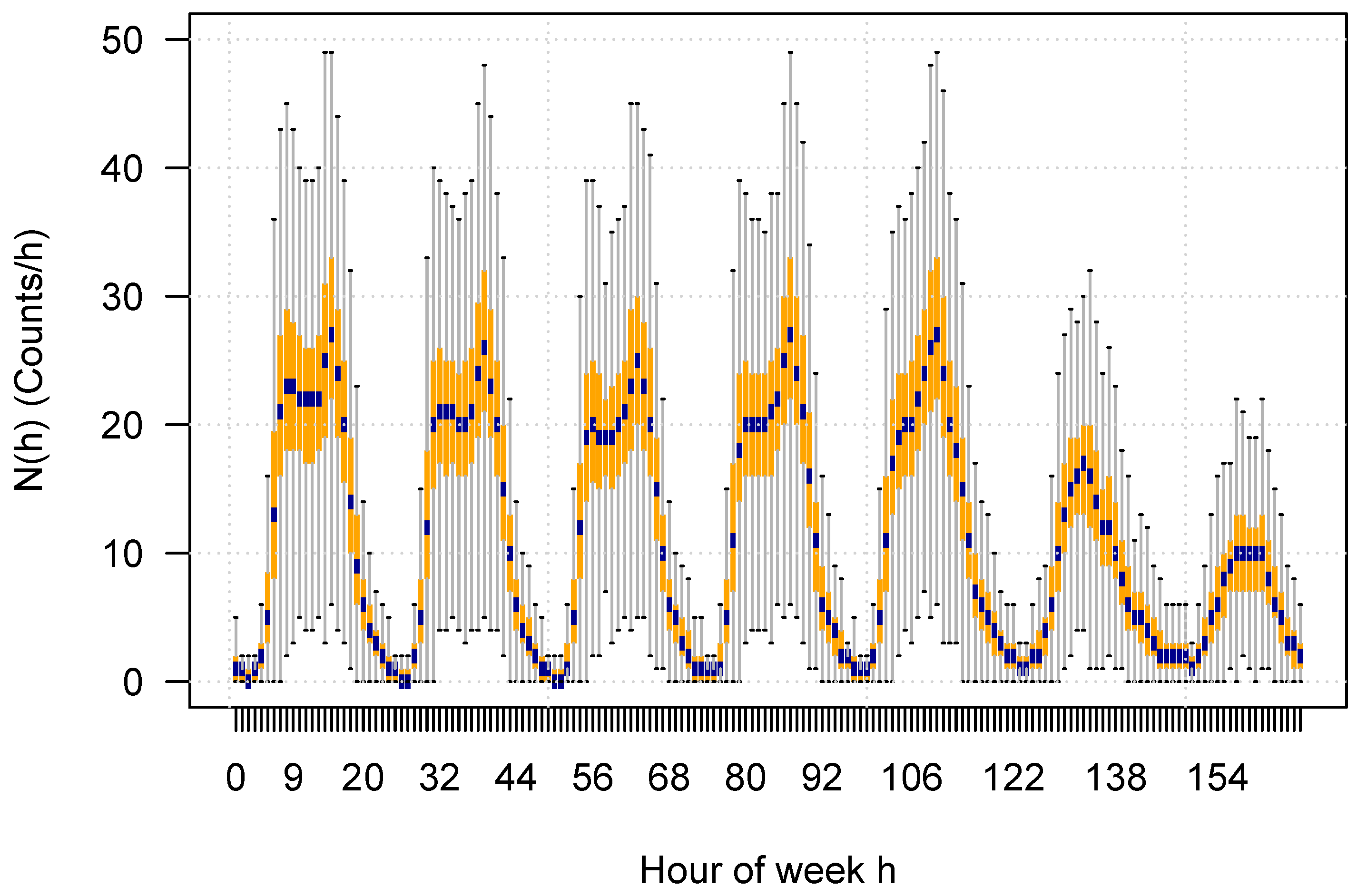

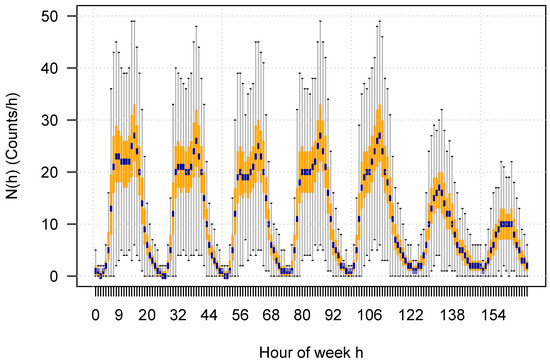

**Figure 2.**Box plot of the crash frequency per hour of the week. The blue bar is the median, the boxes are the 25- and 75-percentiles, the whiskers display the minimum and the maximum of the data.

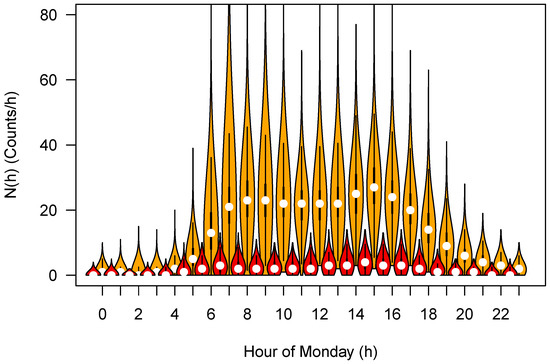

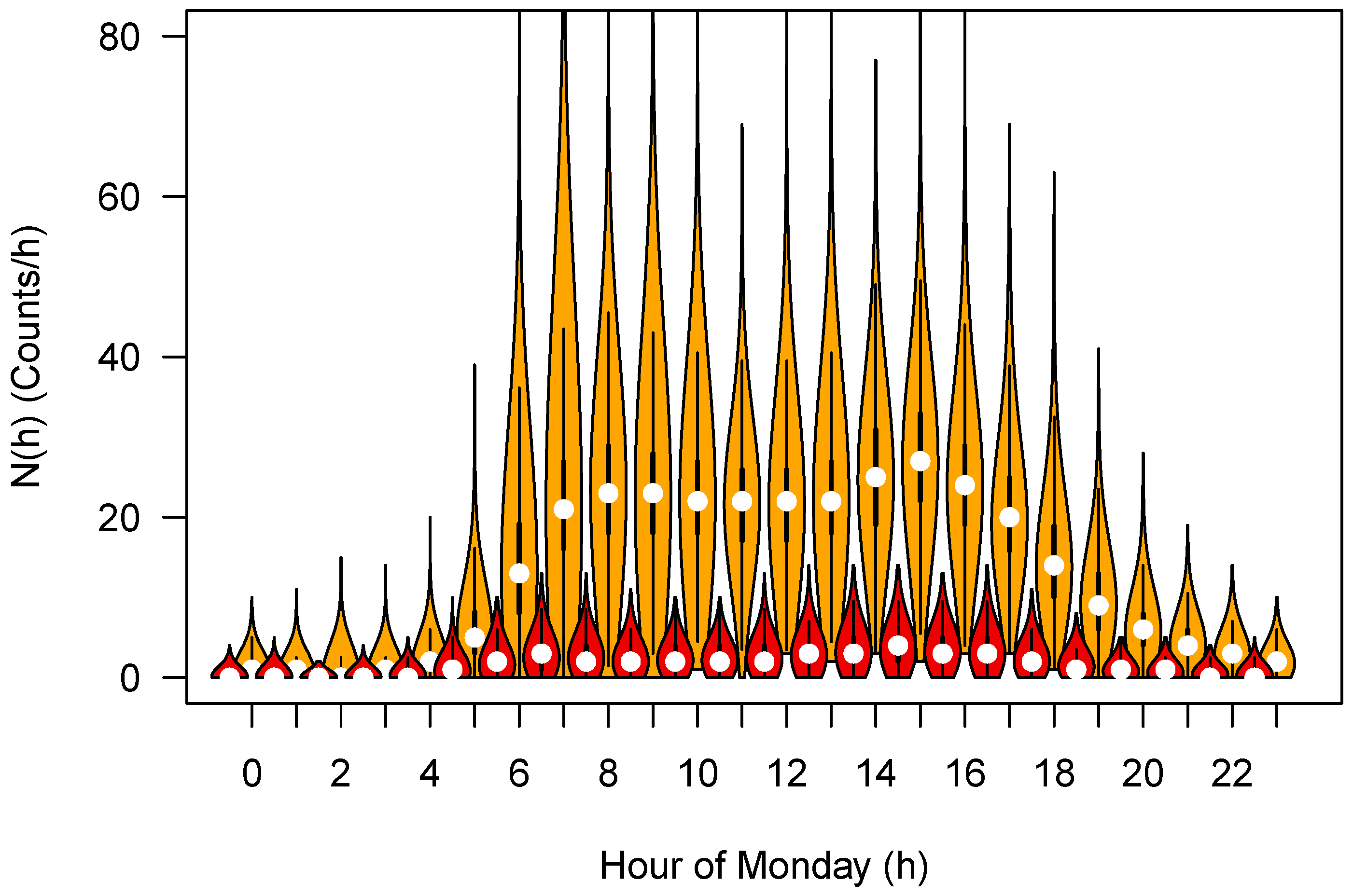

**Figure 3.**Distribution of the hourly crash counts as a function of the hour of the day on Mondays, displayed as a violin plot. The orange violins are for all crashes, the red ones for the severe crashes (which are shifted left by half an hour). The white circle is the median of the values.

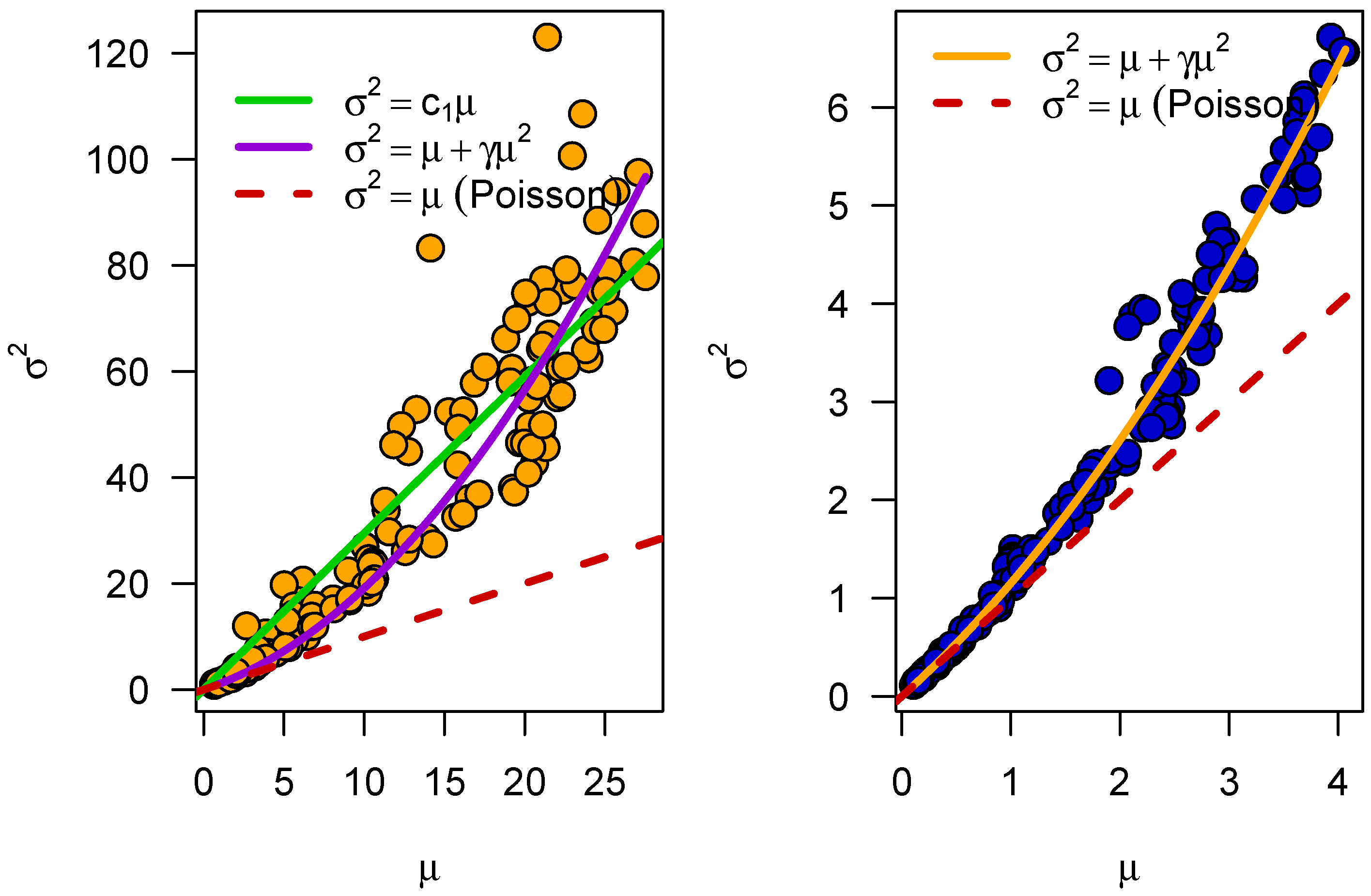

**Figure 4.**Variance versus mean for all crashes (

**left**) and the severe crashes (

**right**). For comparison, a linear relationship is fitted as well, and the theoretical Poisson result is also included (broken red lines).

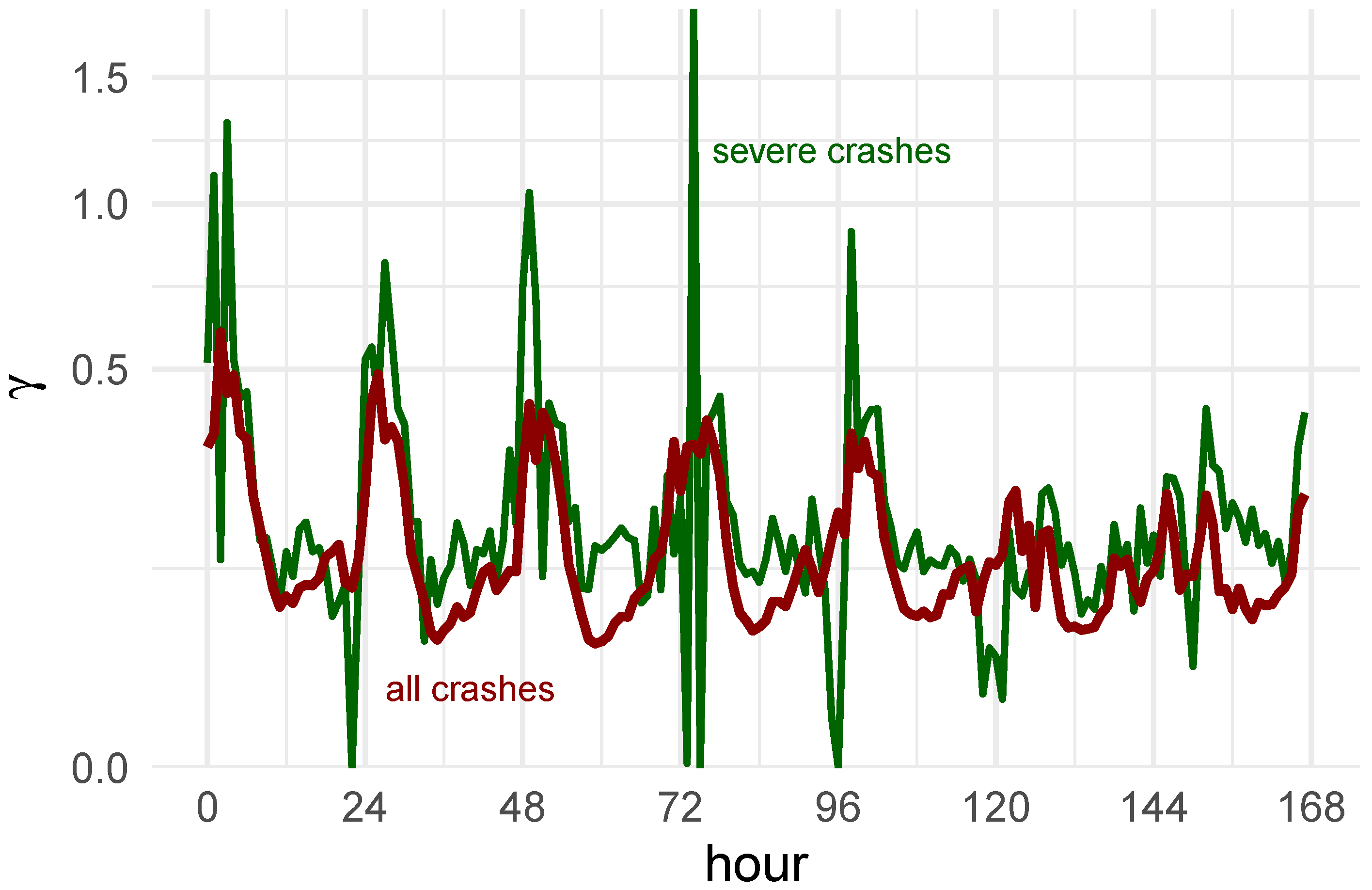

**Figure 5.**The parameter $\gamma $ as a function of hour of the week, for all crashes (dark-red) as well as for the severe crashes (dark-green). Whenever the fit has failed, $\gamma $ has been computed from $\gamma =({\sigma}^{2}-\mu )/{\mu}^{2}$. These curves are not smoothed.

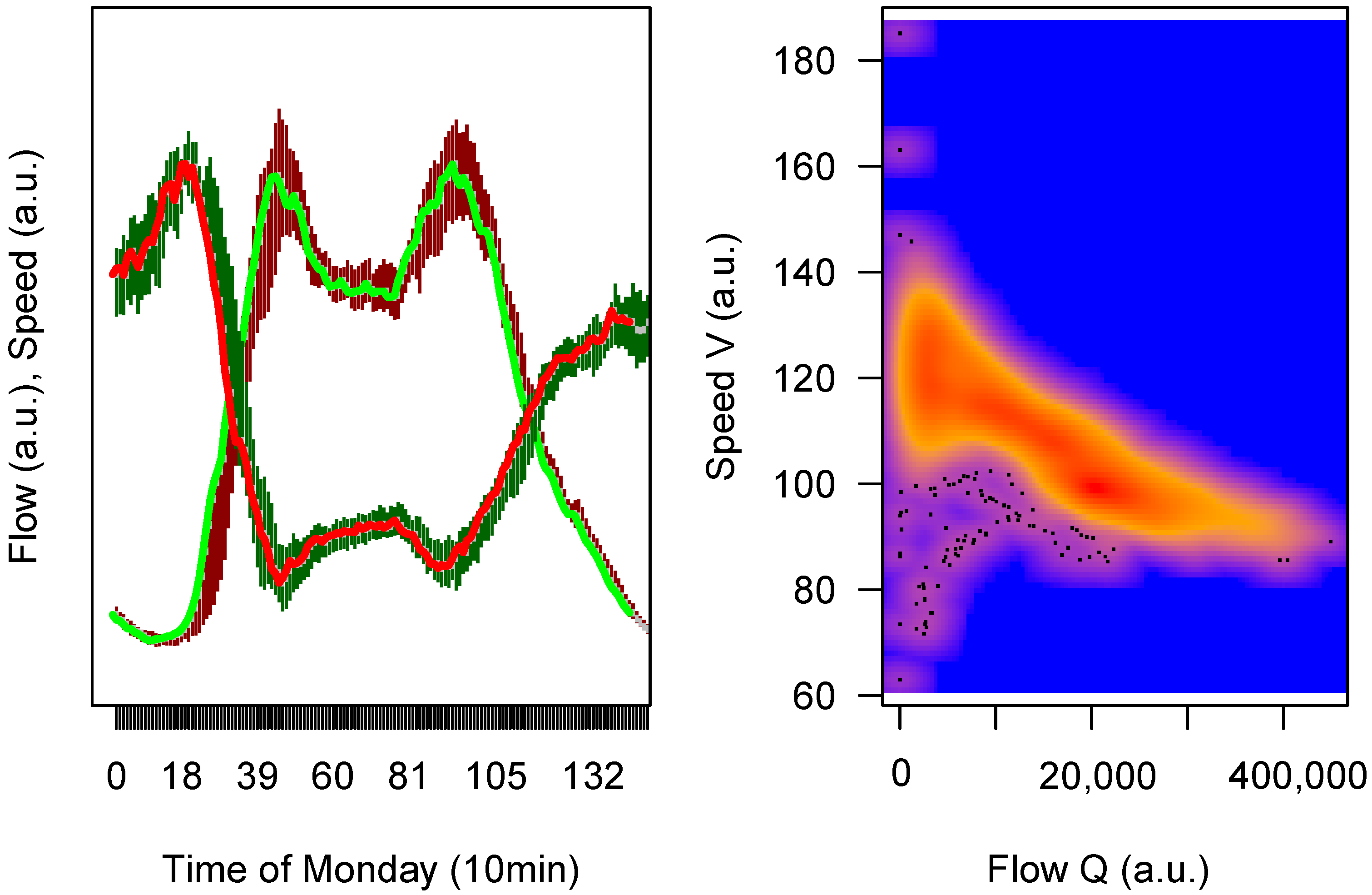

**Figure 7.**Zoom of the boxplot (

**left**), aggregation is now in 10 min intervals. The speeds have been added to the flow. In the (

**right**) panel, speed and flow are combined to a density plot, which is just the macroscopic fundamental diagram for the flow data (now in the data set’s native 5 min intervals).

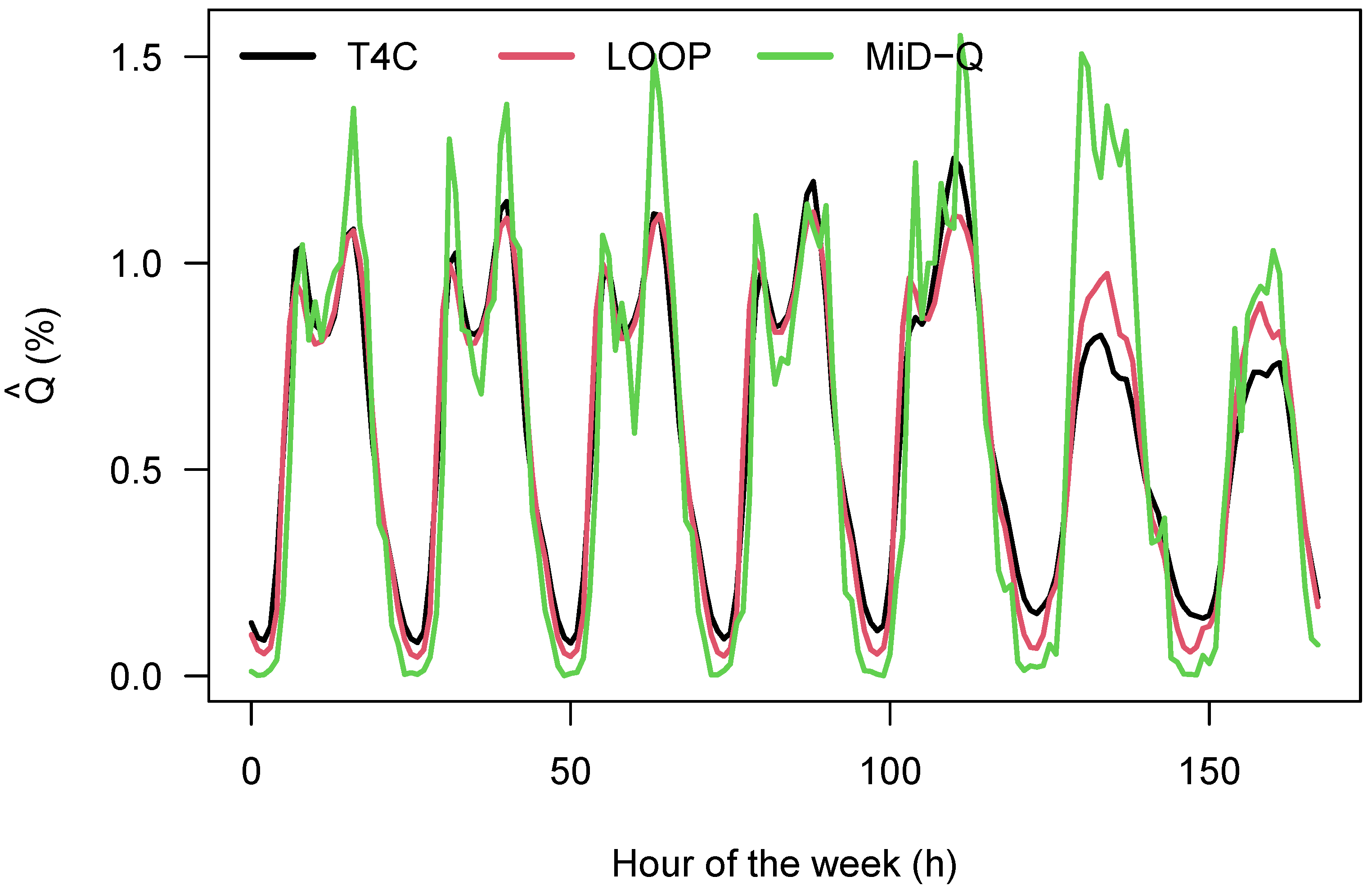

**Figure 8.**Comparison of the weekly flow pattern $\widehat{Q}\left(h\right)$ obtained from the T4C, the LOOP, and the MiD-Q data.

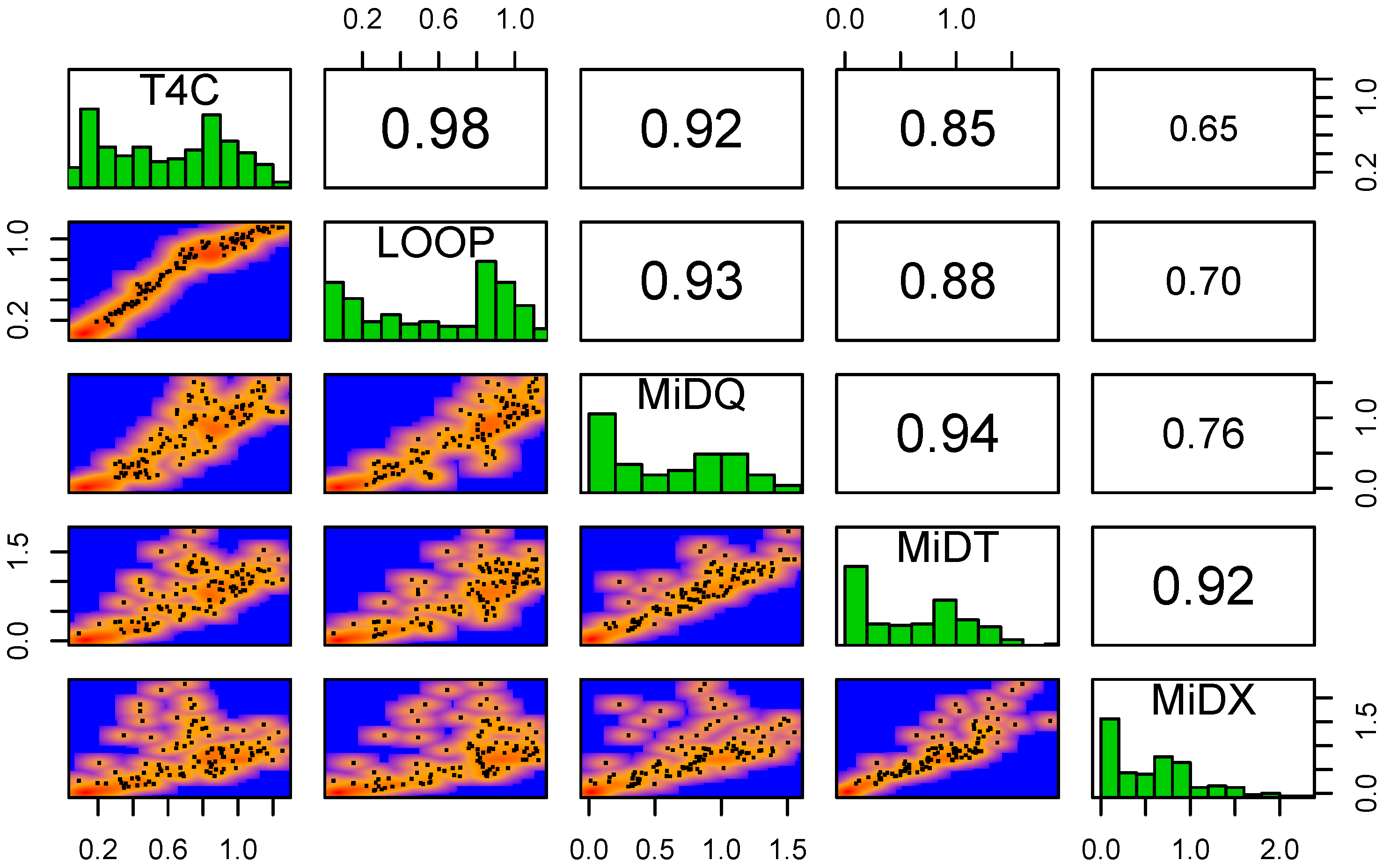

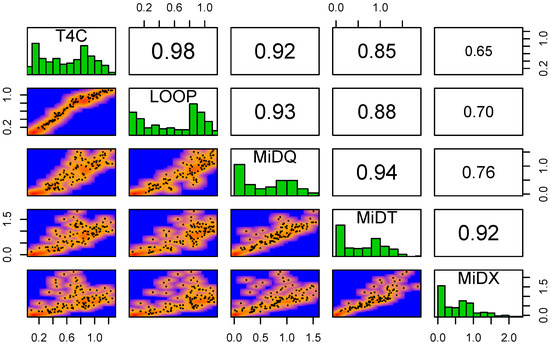

**Figure 9.**Pairwise comparison of five possible exposure values. The density plots display the measure on the right of each row on the y-axis versus the measure on the top of each column on the x-axis, giving more detailed information than just the correlation itself.

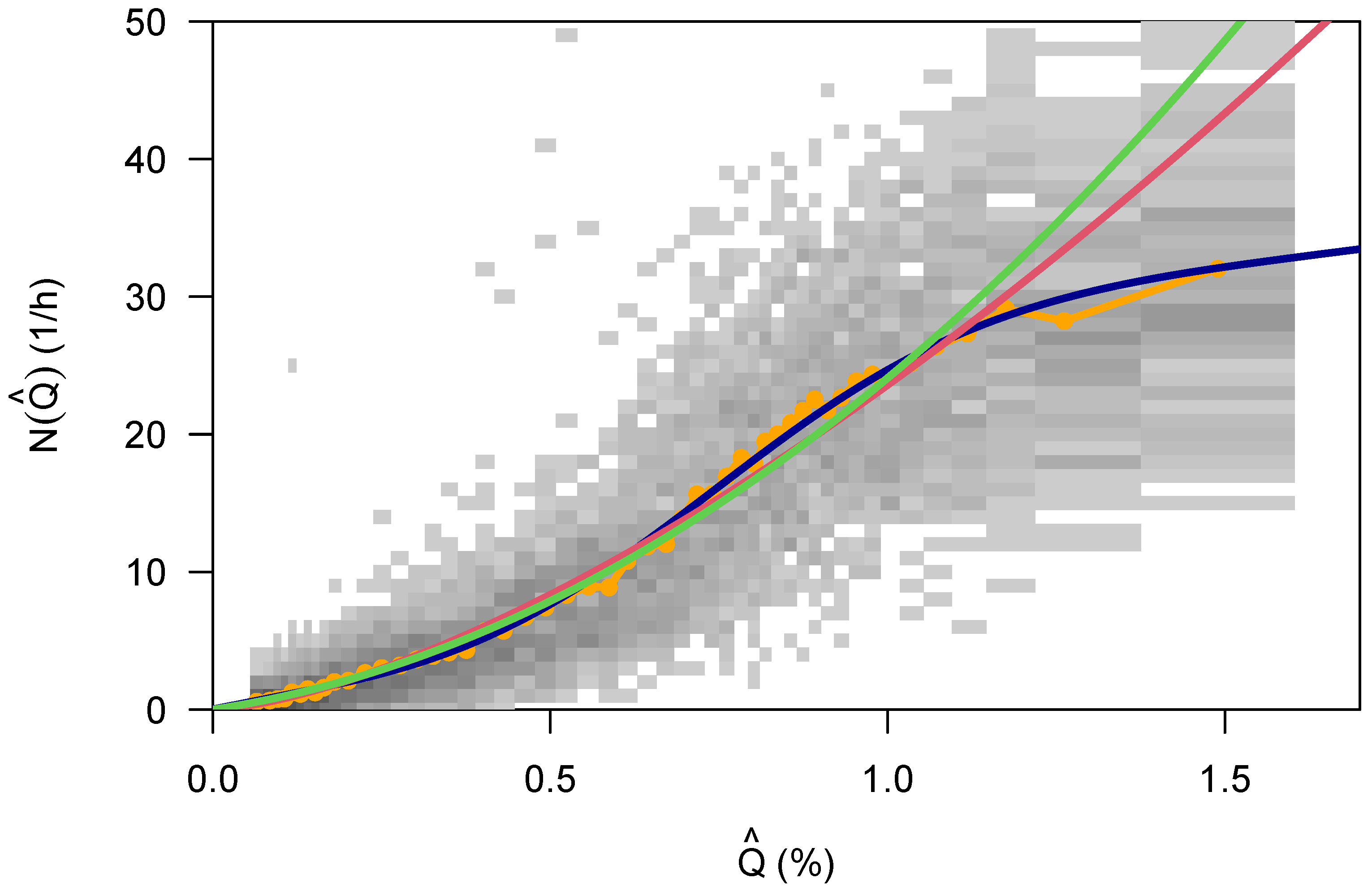

**Figure 10.**N versus $\widehat{Q}$ data, together with a line that connects the means computed from the data, and three different models: a gam (dark blue), a second-order polynomial model (green), and a power-law model ${Q}^{{\beta}_{1}}$ (red).

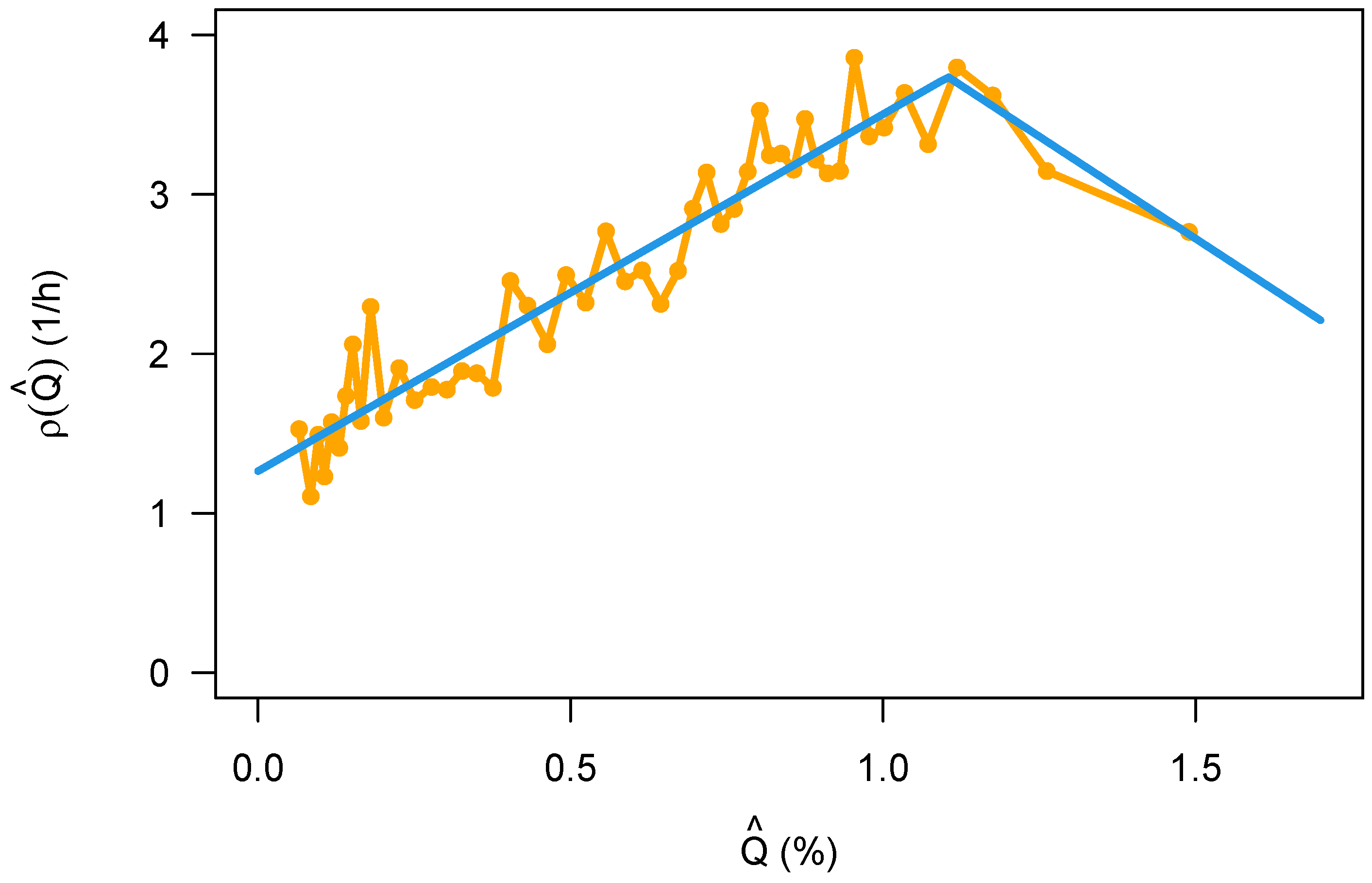

**Figure 12.**$\rho $ versus $\widehat{Q}$ for the severe crashes only, again with the mean values of the empirical data (orange) and the bi-linear model (blue) of Equation (9).

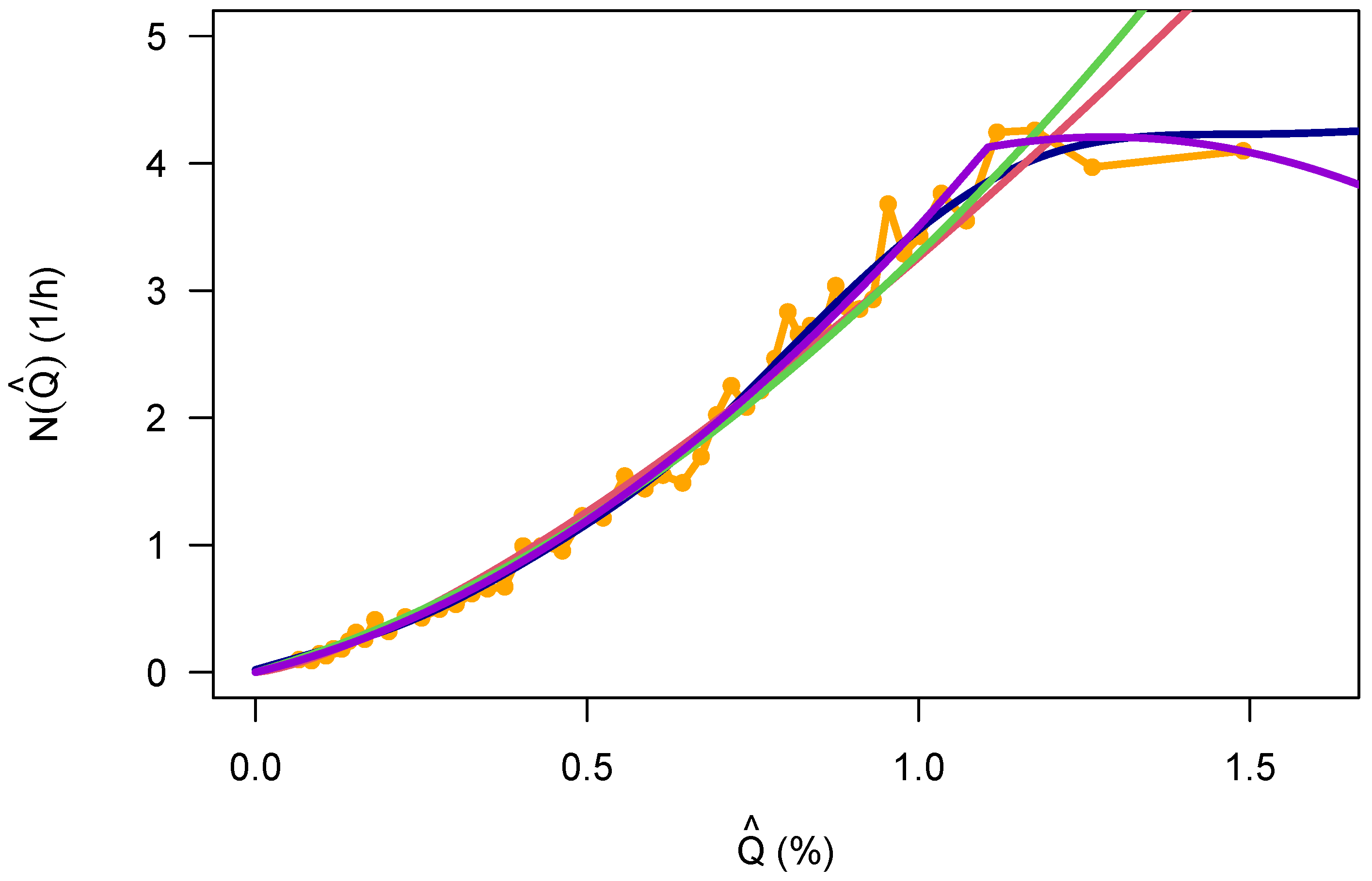

**Figure 13.**N versus Q for the severe crashes only, again with the empirical data and the four different models.

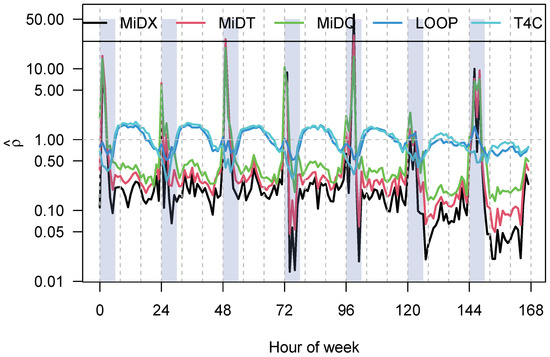

**Figure 14.**Risk index $\rho $ as a function of the hour of the week for the five different exposure variables. The blue rectangles indicate the hours between 0 a.m. and 6 a.m.

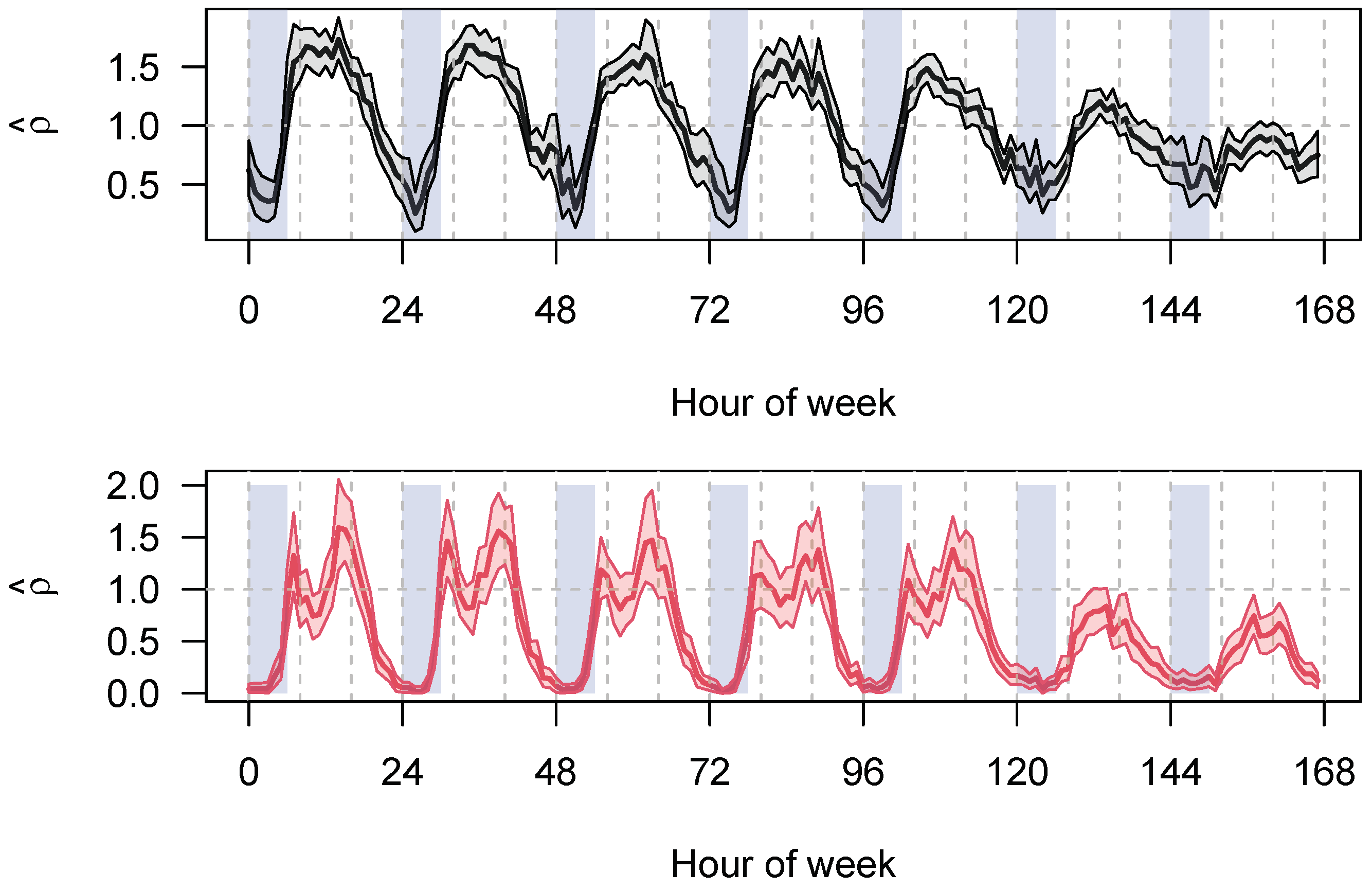

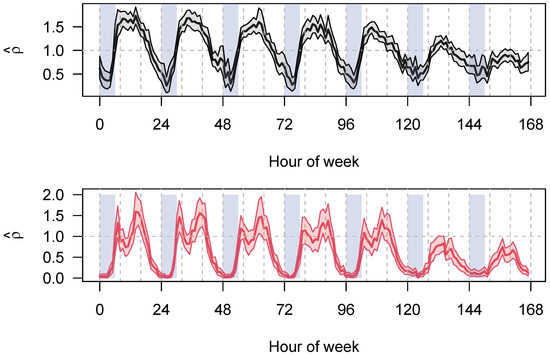

**Figure 15.**Risk index $\rho $ as a function of the hour of the week for all crashes (

**top**, black) and the severe crashes (

**bottom**, red). The blue rectangles indicate the hours between 0 a.m. and 6 a.m., the area around the curves is the 99% confidence interval of the mean. They have been computed by bootstrapping.

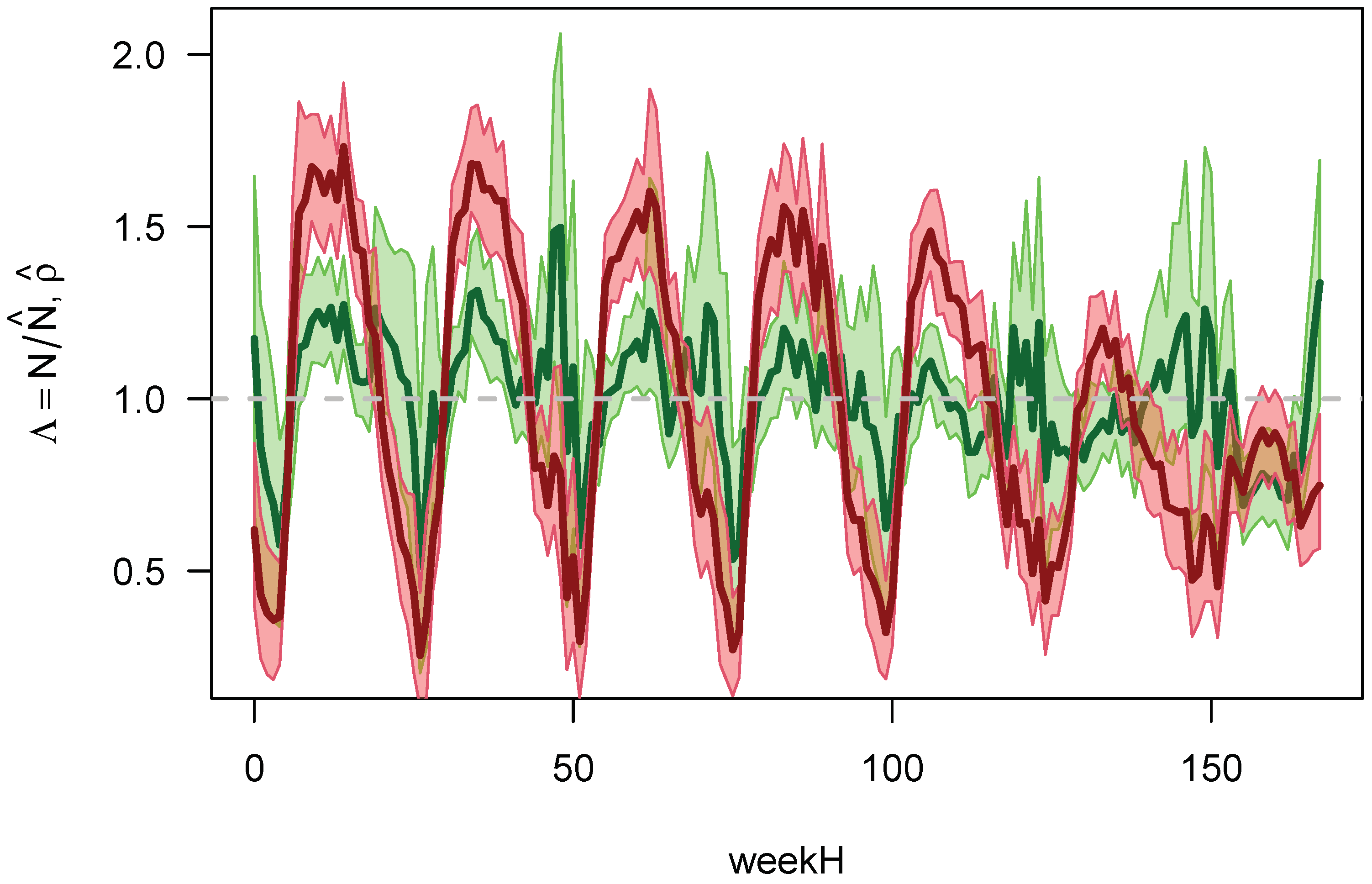

**Figure 16.**The prediction index ${\Lambda}$ (green) as a function of the hour of the week, together with the safety index $\widehat{\rho}$ (red). The shaded areas are the 99% confidence intervals of the mean values which have been computed by bootstrapping.

**Table 1.**Results of the fits of the three models displayed in Figure 10.

Model | Link | R Function | AIC | Parameters (All $\mathit{p}<2\times {10}^{-16}$) |
---|---|---|---|---|

power | log | gam | 35,129 | $23.57\phantom{\rule{0.166667em}{0ex}}{Q}^{1.50}$ |

polynomial | id | glm.nb | 35,186 | $7.43\phantom{\rule{0.166667em}{0ex}}Q+16.65\phantom{\rule{0.166667em}{0ex}}{Q}^{2}$ |

gam | id | gam | 34,821 | $12.25+2.99\phantom{\rule{0.166667em}{0ex}}s\left(Q\right)$ |
