# A Model-Based Optimization Framework for Iterative Digital Breast Tomosynthesis Image Reconstruction

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

#### 1.1. A Short Review on Iterative Methods for CT

#### 1.2. Aim and Contribution of the Paper

- We propose three different models inside a unique optimization framework, combining a data-fitting function (identified in the least squares function) and a regularization TV-like term. We solve the minimization problem with efficient iterative algorithms, converging to the global minimum of the problem, and we analyze and compare the results achieved from real noisy and large-size data sets. Two of these models have been presented in our previous works on low-sampled CT image reconstruction [26,27], but they were applied to small simulated data sets with different geometries (not limited angles). This optimization approach is new for DBT applications.
- We propose a user independent and computationally effortless rule to set and adapt the regularization parameter at each iteration of the algorithms.
- In order to assess our proposals, we implement the methods and test them on real large-size and noisy projection data from both a breast accreditation phantom and a human patient. We analyze the algorithms performance in recovering the breast tumor objects of interest (i.e., masses and microcalcifications clusters), by means of measures of merits and visual inspection, at different stages of the Iterative Reconstruction process. We analyze the volume via its recovered slices, both perpendicularly and along the Z direction (see Figure 1).

## 2. The Optimization Framework in a Model-Based Formulation

## 3. Iterative Optimization Methods

- a fast error decreasing in the initial algorithm execution, in order to obtain a good image in few iterations;
- a low computational cost per iteration (which is mainly determined by the number of matrix-vector products), to efficiently run the solver in short time;
- a limited request of memory, to solve real-size problems on commercially affordable hardware.

#### 3.1. Scaled Gradient Projection Algorithm

Algorithm 1 Scaled Gradient Projection algorithm (SGP) |

Input:$M,b,\lambda $- 1:
**Initialize:**${x}^{\left(0\right)}\ge 0,\phantom{\rule{4pt}{0ex}}\phantom{\rule{4pt}{0ex}}\gamma ,\sigma \in (0,1),\phantom{\rule{4pt}{0ex}}\phantom{\rule{4pt}{0ex}}0<{\alpha}_{min}\le {\alpha}_{max},$- 2:
- k = 0
- 3:
**while**not convergence**do**- 4:
- Compute ${g}^{\left(k\right)}=2({M}^{T}M{x}^{\left(k\right)}-{M}^{T}b)+\lambda \nabla T{V}_{\beta}\left({x}^{\left(k\right)}\right)$
- 5:
- Compute ${S}_{k}\in {S}_{{\rho}_{k}}$ as in (14)
- 6:
- Define ${\alpha}_{k}\in [{\alpha}_{min},{\alpha}_{max}]$ with alternate BB rules
- 7:
- ${d}^{\left(k\right)}={\mathcal{P}}_{+}\left(\right)open="("\; close=")">{x}^{\left(k\right)}-{\alpha}_{k}{S}_{k}{g}^{\left(k\right)}$
- 8:
- ${\eta}_{k}=1$
- 9:
**while**$f({x}^{\left(k\right)}+{\eta}_{k}{d}^{\left(k\right)})>f\left({x}^{\left(k\right)}\right)+\sigma {\eta}_{k}{\left({g}^{\left(k\right)}\right)}^{T}{d}^{\left(k\right)}$**do**- 10:
- ${\eta}_{k}=\gamma {\eta}_{k}$
- 11:
- ${x}^{(k+1)}={x}^{\left(k\right)}+{\eta}_{k}{d}^{\left(k\right)}$
- 12:
- k = k+1
Output:${x}^{\left(k\right)}$ |

#### 3.2. The Fixed Point Algorithm

Algorithm 2 Lagged diffusivity Fixed Point algorithm (FP) |

Input:$M,b,\lambda ,maxiter$- 1:
**Initialize:**${x}^{\left(0\right)}\ge 0$- 2:
**for**$k=0$ to $maxiter-1$**do**- 3:
- Compute ${g}^{\left(k\right)}=2({M}^{T}M{x}^{\left(k\right)}-{M}^{T}b)+\lambda \nabla T{V}_{\beta}\left({x}^{\left(k\right)}\right)$
- 4:
- Solve the linear system ${H}_{k}{d}^{\left(k\right)}=-{g}^{\left(k\right)}$, where ${H}_{k}={M}^{T}M+\lambda L\left({x}^{\left(k\right)}\right)$, with the Conjugate Gradient method.
- 5:
- ${x}^{(k+1)}={x}^{\left(k\right)}+{d}^{\left(k\right)}$
Output:${\mathcal{P}}_{+}\left({x}^{(k+1)}\right)$ |

#### 3.3. The Chambolle–Pock Algorithm

- compute ${y}^{(k+1)}$ as $pro{x}_{\sigma}\left[{F}^{*}\right]({y}^{\left(k\right)}+\sigma K{\overline{x}}^{\left(k\right)})$;
- compute ${x}^{(k+1)}$ as $pro{x}_{\tau}\left[G\right]({x}^{\left(k\right)}-\tau {K}^{T}{y}^{(k+1)})$;
- define ${\overline{x}}^{(k+1)}$ with an extrapolation step: ${\overline{x}}^{(k+1)}={x}^{(k+1)}+\theta ({x}^{(k+1)}-{x}^{\left(k\right)})$ and $\theta >0$.

Algorithm 3 Chambolle–Pock algorithm (CP) |

Input:: $M,b,\u03f5,maxiter$- 1:
**Compute:**$\mathsf{\Gamma}$ as an approximation of ${\parallel K\parallel}_{2}$- 2:
**Initialize:**$\tau =\sigma =\frac{1}{\mathsf{\Gamma}}>0$, $\theta \in [0,1]$- 3:
**Initialize:**${x}^{\left(0\right)}\in {\mathbb{R}}^{{N}_{v}}$$({x}^{\left(0\right)}\ge 0)$, ${\overline{x}}^{\left(0\right)}\in {\mathbb{R}}^{{N}_{v}},{y}^{\left(0\right)}\in {\mathbb{R}}^{{N}_{d}}$ and ${w}^{\left(0\right)}\in {\mathbb{R}}^{3\xb7{N}_{v}}$ to zeros-vectors- 4:
**for**$k=0$ to $maxiter-1$**do**- 5:
- ${\overline{y}}^{\left(k\right)}={y}^{\left(k\right)}+\sigma (M{\overline{x}}^{\left(k\right)}-b)$
- 6:
- ${y}^{(k+1)}=max(\parallel {\overline{y}}^{\left(k\right)}{\parallel}_{2}-\sigma \u03f5,0)\frac{{\overline{y}}^{\left(k\right)}}{\parallel {\overline{y}}^{\left(k\right)}{\parallel}_{2}}$
- 7:
- ${\overline{w}}^{\left(k\right)}={w}^{\left(k\right)}+\sigma ({\nabla}_{x};{\nabla}_{y};{\nabla}_{z}){\overline{x}}^{\left(k\right)}$
- 8:
- $\overline{\overline{{w}^{\left(k\right)}}}=\left(\right|{\overline{w}}^{\left(k\right)}|,|{\overline{w}}^{\left(k\right)}|,|{\overline{w}}^{\left(k\right)}\left|\right)$
- 9:
- ${w}^{(k+1)}={\overline{w}}^{\left(k\right)}.\ast (\lambda ./max(\lambda ,\overline{\overline{{w}^{\left(k\right)}}})$
- 10:
- ${x}^{(k+1)}={x}^{\left(k\right)}-\tau ({M}^{T}{y}^{(k+1)}+{({\nabla}_{x};{\nabla}_{y};{\nabla}_{z})}^{T}{w}^{(k+1)})$
- 11:
- ${x}^{(k+1)}={\mathcal{P}}_{+}\left({x}^{(k+1)}\right)$
- 12:
- ${\overline{x}}^{(k+1)}={x}^{(k+1)}+\theta ({x}^{(k+1)}-{x}^{\left(k\right)})$
Output:${x}^{(k+1)}$ |

#### 3.4. User-Independent Choice of the Regularization Parameter

- Set ${\lambda}_{0}=0$ to initialize the algorithm and run the first iteration (labeled with k = 0) to compute ${x}^{\left(1\right)}$;
- Set ${\lambda}_{1}=\frac{\sqrt{LS\left({x}^{\left(1\right)}\right)}}{TV\left({x}^{\left(1\right)}\right)}$ and use it to compute ${x}^{\left(2\right)}$;
- For each $k\ge 2$, set$${\lambda}_{k}=\frac{1}{k}{\lambda}_{1}$$

#### 3.5. The Projection Matrix Algorithm

## 4. Materials

#### 4.1. DBT System Configuration

#### 4.2. Data Sets

#### 4.3. Measure and Graphics of Merits

## 5. Numerical Results and Discussion

#### 5.1. Methods Comparison for Early Reconstructions

#### 5.2. SGP Algorithm Insights

#### 5.3. Experiments on a Human Data Set

#### 5.4. Experiments with a Variable Regularization Parameter

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Wu, T.; Stewart, A.; Stanton, M.; McCauley, T.; Phillips, W.; Kopans, D.B.; Moore, R.H.; Eberhard, J.W.; Opsahl-Ong, B.; Niklason, L.; et al. Tomographic mammography using a limited number of low-dose cone-beam projection images. Med. Phys.
**2003**, 30, 365–380. [Google Scholar] [CrossRef] [PubMed] - Andersson, I.; Ikeda, D.M.; Zackrisson, S.; Ruschin, M.; Svahn, T.; Timberg, P.; Tingberg, A. Breast tomosynthesis and digital mammography: A comparison of breast cancer visibility and BIRADS classification in a population of cancers with subtle mammographic findings. Eur. Radiol.
**2008**, 18, 2817–2825. [Google Scholar] [CrossRef] - Feldkamp, L.A.; Davis, L.C.; Kress, J.W. Practical cone-beam algorithm. J. Opt. Soc. Am. A
**1984**, 1, 612–619. [Google Scholar] [CrossRef][Green Version] - Wu, T.; Moore, R.H.; Rafferty, E.a.; Kopans, D.B. A comparison of reconstruction algorithms for breast tomosynthesis. Med. Phys.
**2004**, 31, 2636. [Google Scholar] [CrossRef] [PubMed] - Bliznakova, K.; Bliznakov, Z.; Buliev, I. Comparison of algorithms for out-of-plane artifacts removal in digital tomosynthesis reconstructions. Comput. Methods Progr. Biomed.
**2012**, 107, 75–83. [Google Scholar] [CrossRef] - Reiser, I.; Bian, J.; Nishikawa, R.M.; Sidky, E.Y.; Pan, X. Comparison of reconstruction algorithms for digital breast tomosynthesis. arXiv
**2009**, arXiv:0908.2610. [Google Scholar] - Beister, M.; Kolditz, D.; Kalender, W.A. Iterative reconstruction methods in X-ray CT. Phys. Med.
**2012**, 28, 94–108. [Google Scholar] [CrossRef] - Graff, C.; Sidky, E. Compressive sensing in medical imaging. Appl. Opt.
**2015**, 54, C23–C44. [Google Scholar] [CrossRef][Green Version] - Sidky, E.Y.; Kao, C.M.; Pan, X. Accurate image reconstruction from few-views and limited-angle data in divergent-beam CT. J. X Ray Sci. Technol.
**2009**, 14, 119–139. [Google Scholar] - Choi, K.; Wang, J.; Zhu, L.; Suh, T.S.; Boyd, S.P.; Xing, L. Compressed sensing based cone-beam computed tomography reconstruction with a first-order method. Med. Phys.
**2010**, 37, 5113–5125. [Google Scholar] [CrossRef][Green Version] - Ritschl, L.; Bergner, F.; Fleischmann, C.; Kachelrieß, M. Improved total variation-based CT image reconstruction applied to clinical data. Phys. Med. Biol.
**2011**, 56, 1545–1561. [Google Scholar] [CrossRef] [PubMed] - Luo, X.; Yu, W.; Wang, C. An image reconstruction method based on total variation and wavelet tight frame for limited-angle CT. IEEE Access
**2017**. [Google Scholar] [CrossRef] - Liu, L. Model-based Iterative Reconstruction: A Promising Algorithm for Today’s Computed Tomography Imaging. J. Med. Imaging Radiat. Sci.
**2014**, 45, 131–136. [Google Scholar] [CrossRef] [PubMed][Green Version] - Donoho, D. Compressed sensing. IEEE Trans. Inf. Theory
**2006**, 52, 1289–1306. [Google Scholar] [CrossRef] - Sidky, E.Y.; Kao, C.M.; Pan, X. Effect of the data constraint on few-view, fan-beam CT image reconstruction by TV minimization. In Proceedings of the 2006 IEEE Nuclear Science Symposium Conference Record, San Diego, CA, USA, 29 October–4 November 2006; pp. 2296–2298. [Google Scholar] [CrossRef]
- Sidky, E.Y.; Pan, X. Image reconstruction in circular cone-beam computed tomography by constrained, total-variation minimization. Phys. Med. Biol.
**2008**, 53, 4777–4807. [Google Scholar] [CrossRef][Green Version] - Sidky, E.Y.; Reiser, I.S.; Nishikawa, R.; Pan, X. Practical iterative image reconstruction in digital breast tomosynthesis by non-convex TpV optimization. In Proceedings of the SPIE Medical Imaging, San Diego, CA, USA, 16–21 February 2008; pp. 2–7. [Google Scholar]
- Sidky, E.Y.; Pan, X.; Reiser, I.S.; Nishikawa, R.M.; Moore, R.H.; Kopans, D.B. Enhanced imaging of microcalcifications in digital breast tomosynthesis through improved image-reconstruction algorithms. Med. Phys.
**2009**, 36, 4920. [Google Scholar] [CrossRef][Green Version] - Lu, Y.; Chan, H.P.; Wei, J.; Hadjiiski, L.M. Selective-diffusion regularization for enhancement of microcalcifications in digital breast tomosynthesis reconstruction. Med. Phys.
**2010**, 37, 6003. [Google Scholar] [CrossRef][Green Version] - Chen, Z.; Jin, X.; Li, L.; Wang, G. A limited-angle CT reconstruction method based on anisotropic TV minimization. Phys. Med. Biol.
**2013**, 58, 2119–2141. [Google Scholar] [CrossRef] - Ertas, M.; Yildirim, I.; Kamasak, M.; Akan, A. Digital breast tomosynthesis image reconstruction using 2D and 3D total variation minimization. BioMed. Eng. OnLine
**2013**, 12, 112. [Google Scholar] [CrossRef][Green Version] - Rose, S.; Andersen, M.S.; Sidky, E.Y.; Pan, X. Noise properties of CT images reconstructed by use of constrained total-variation, data-discrepancy minimization. Med. Phys.
**2015**, 42, 2690–2698. [Google Scholar] [CrossRef][Green Version] - Chen, G.H.; Tang, J.; Leng, S. Prior image constrained compressed sensing (PICCS). In Photons Plus Ultrasound: Imaging and Sensing 2008: The Ninth Conference on Biomedical Thermoacoustics, Optoacoustics, and Acousto-Optics; International Society for Optics and Photonics: San Jose, CA, USA, 2008; Volume 6856, p. 685618. [Google Scholar]
- Ramirez-Giraldo, J.; Trzasko, J.; Leng, S.; Yu, L.; Manduca, A.; McCollough, C.H. Nonconvex prior image constrained compressed sensing (NCPICCS): Theory and simulations on perfusion CT. Med. Phys.
**2011**, 38, 2157–2167. [Google Scholar] [CrossRef][Green Version] - Jensen, T.L.; Jørgensen, J.H.; Hansen, P.C.; Jensen, S.H. Implementation of an optimal first-order method for strongly convex total variation regularization. BIT Numer. Math.
**2012**, 52, 329–356. [Google Scholar] [CrossRef][Green Version] - Loli Piccolomini, E.; Morotti, E. A fast TV-based iterative algorithm for digital breast tomosynthesis image reconstruction. J. Algor. Computat. Technol.
**2016**, 10, 277–289. [Google Scholar] [CrossRef][Green Version] - Loli Piccolomini, E.; Coli, V.; Morotti, E.; Zanni, L. Reconstruction of 3D X-ray CT images from reduced sampling by a scaled gradient projection algorithm. Comput. Opt. Appl.
**2018**, 71, 171–191. [Google Scholar] [CrossRef][Green Version] - Niinimäki, K.; Lassas, M.; Hämäläinen, K.; Kallonen, A.; Kolehmainen, V.; Niemi, E.; Siltanen, S. Multiresolution Parameter Choice Method for Total Variation Regularized Tomography. SIAM J. Imaging Sci.
**2016**, 9, 938–974. [Google Scholar] [CrossRef][Green Version] - Epstein, C.L. Introduction to the Mathematics of Medical Imaging; SIAM: Philadelphia, PA, USA, 2007. [Google Scholar]
- Vogel, C.R. Computational Methods for Inverse Problems; SIAM: Philadelphia, PA, USA, 2002. [Google Scholar]
- Bonettini, S.; Porta, F.; Ruggiero, V. A variable metric inertial method for convex optimization. SIAM J. Sci. Comput
**2016**, 31, A2558–A2584. [Google Scholar] [CrossRef][Green Version] - Bonettini, S.; Prato, M. New convergence results for the scaled gradient projection method. Inverse Probl.
**2015**, 31, 1196–1211. [Google Scholar] [CrossRef][Green Version] - Vogel, C.R.; Oman, M.E. Fast, robust total variation-based reconstruction of noisy, blurred images. IEEE Trans. Image Process.
**1998**, 7, 813–824. [Google Scholar] [CrossRef][Green Version] - Hestenes, M.R.; Stiefel, E. Methods of conjugate gradients for solving linear systems. J. Res. Natl. Bur. Stand.
**1952**, 49, 409–436. [Google Scholar] [CrossRef] - Chan, T.F.; Mulet, P. On the convergence of the lagged diffusivity fixed point method in total variation image restoration. SIAM J. Numer. Anal.
**1999**, 36, 354–367. [Google Scholar] [CrossRef][Green Version] - Chambolle, A.; Pock, T. A First-Order Primal-Dual Algorithm for Convex Problems with Applications to Imaging. J. Math. Imaging Vis.
**2011**, 40, 120–145. [Google Scholar] [CrossRef][Green Version] - Sidky, E.; Chartrand, R.; Boone, J.; Pan, X. Constrained TpV-minimization for enhanced exploitation of gradient sparsity: Application to CT image reconstruction. IEEE J. Transl. Eng. Health Med.
**2014**, 2. [Google Scholar] [CrossRef] - Golub, G.H.; Van Loan, C.F. Matrix Computations; JHU Press: Baltimore, MD, USA, 2012; Volume 3. [Google Scholar]
- Lazzaro, D.; Piccolomini, E.L.; Zama, F. A nonconvex penalization algorithm with automatic choice of the regularization parameter in sparse imaging. Inverse Probl.
**2019**. [Google Scholar] [CrossRef] - De Man, B.; Basu, S. Distance-driven projection and backprojection in three dimensions. Phys. Med. Biol.
**2004**, 49, 2463. [Google Scholar] [CrossRef] [PubMed] - IMS Giotto Class. Available online: http://www.imsgiotto.com/ (accessed on 25 May 2020).
- Computerized Imaging Reference Systems. BR3D Breast Imaging Phantom, Model 020. Available online: https://www.cirsinc.com/products/a11/51/br3d-breast-imaging-phantom/ (accessed on 29 January 2021).

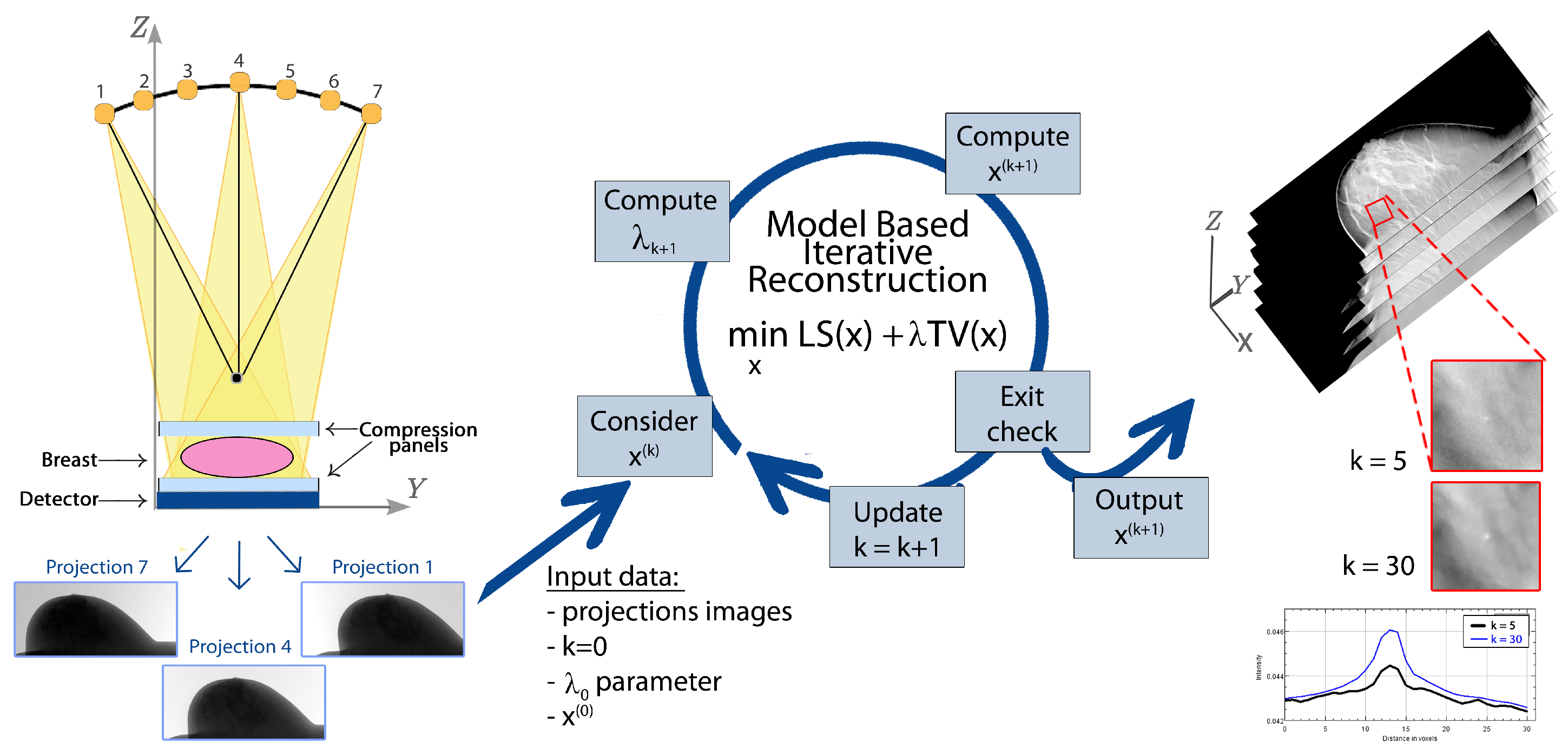

**Figure 1.**Scheme of the Digital Breast Tomosynthesis (DBT) reconstruction process. On the left, a draft of the frontal (coronal) section of a DBT system acquiring projection images of the breast; in the center, a chart representing the kth iteration of the algorithm computing the sequence ${\left\{{x}^{\left(k\right)}\right\}}_{k}$ of approximate solutions by solving the model-based minimization problem; on the right, the evaluation of reconstructed volumes by inspection of cancer objects of interest.

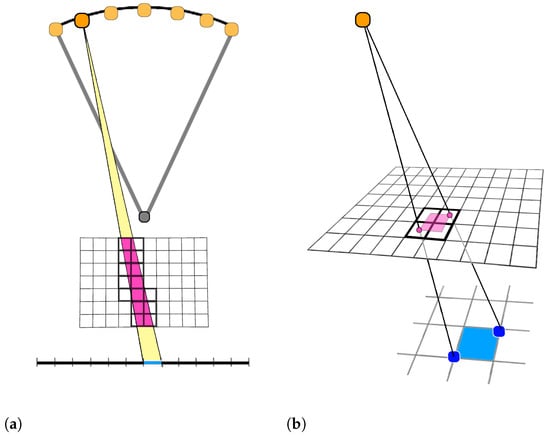

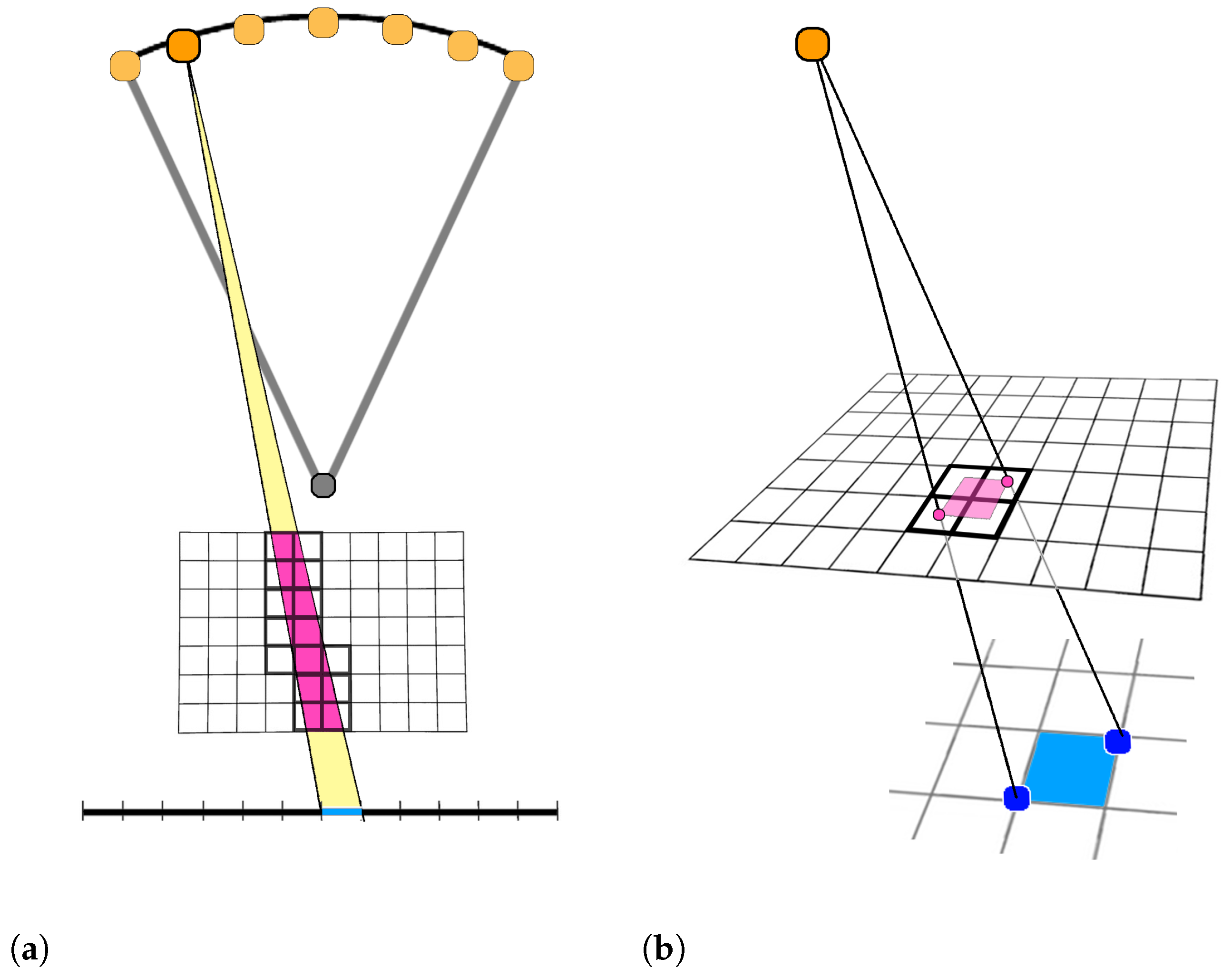

**Figure 2.**Schematic draw representing the Distance Driven approach to compute the system matrix. (

**a**) View on the $YZ$ plane of an X-ray projection onto a single pixel, from a fixed angle. The intersection of the X-ray beam with the volume is highlighted in magenta. (

**b**) The magenta area represents the backward projection of the blue recording unit onto a volume slice parallel to the $XY$ plane.

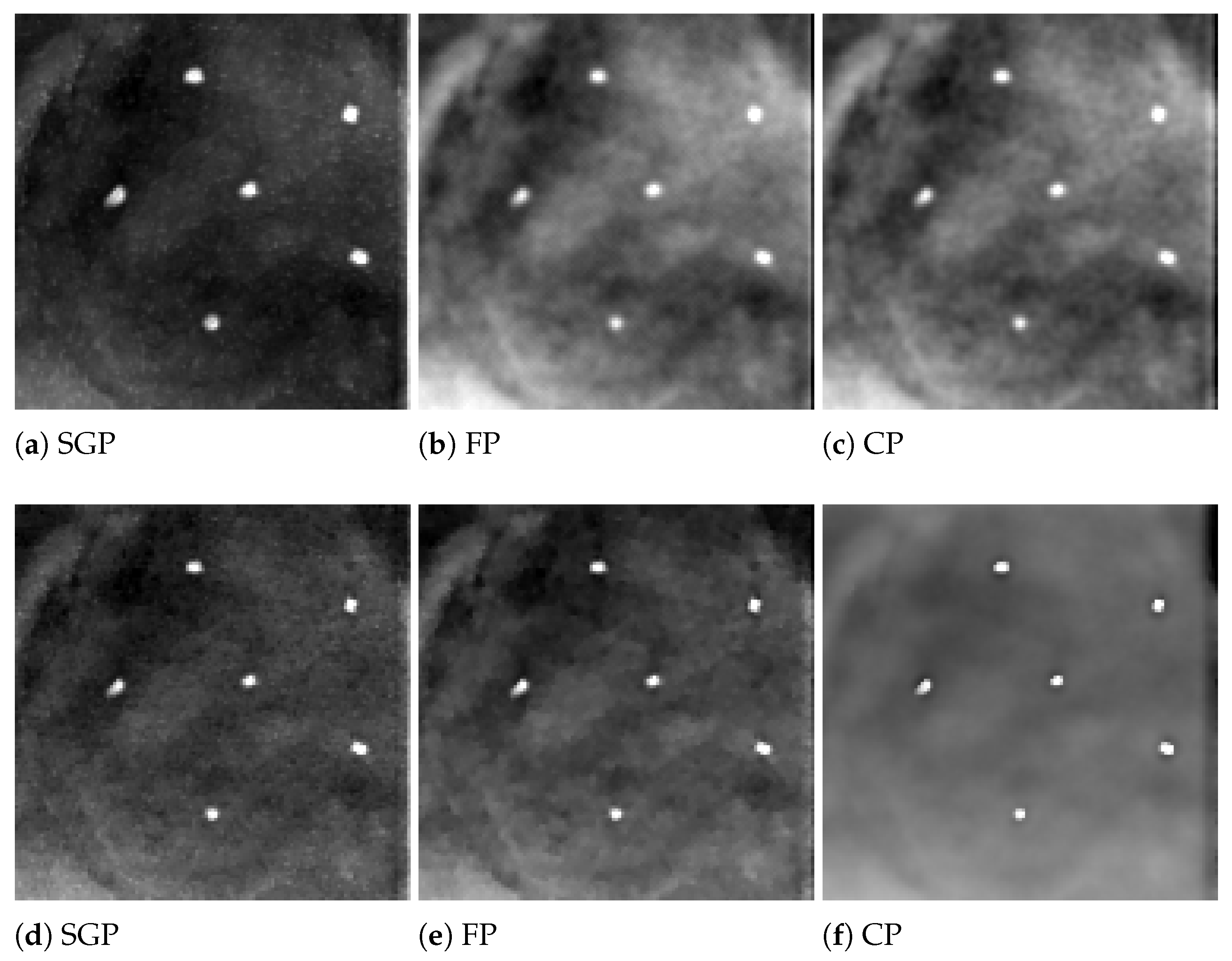

**Figure 3.**Reconstructions of microcalcification cluster number 3 in BR3D phantom obtained with Scaled Gradient Projection (SGP), Fixed Point (FP) and Chambolle–Pock (CP) methods. In the upper row, reconstructions in 5 iterations; in the bottom row, reconstructions in 15 iterations.

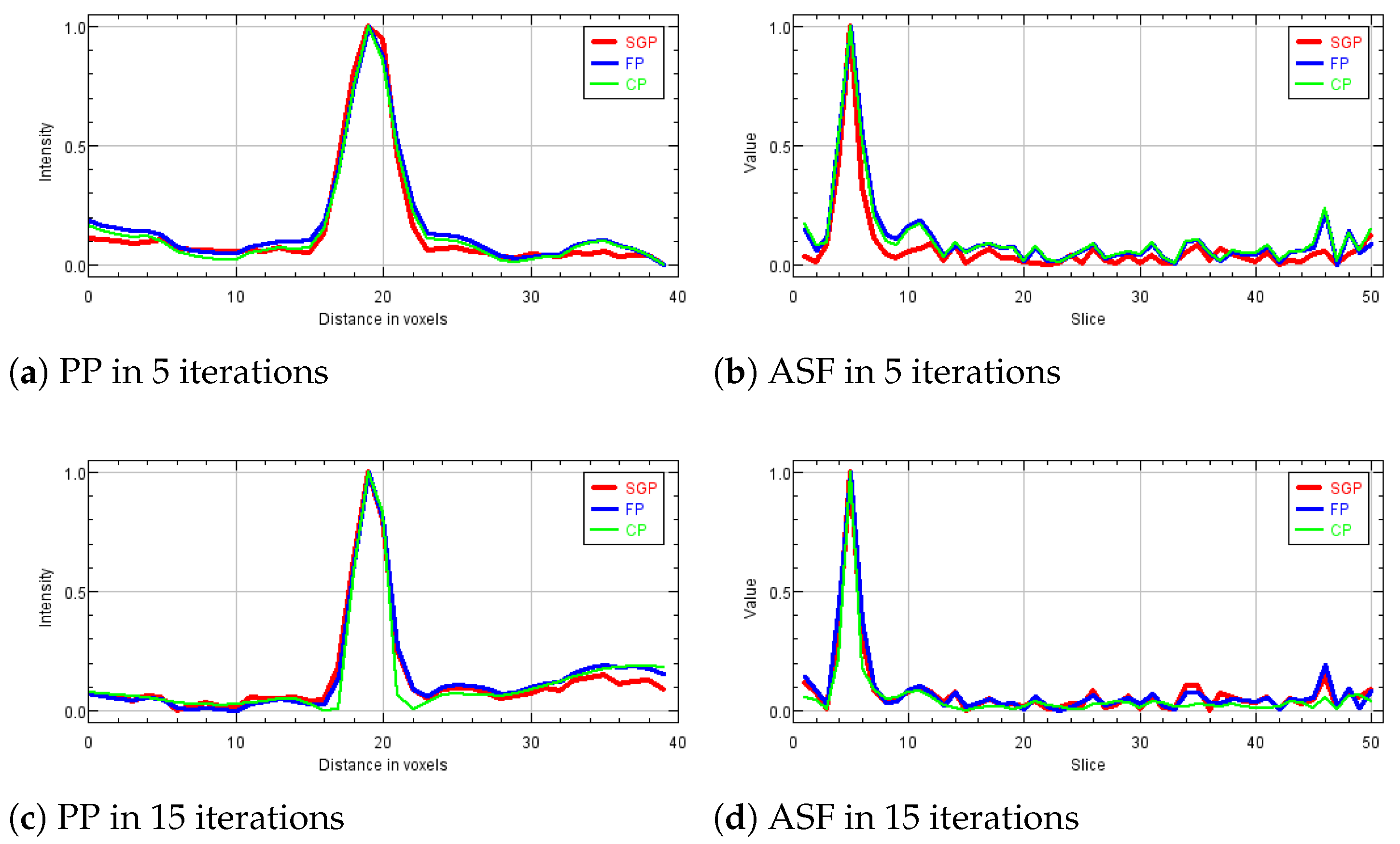

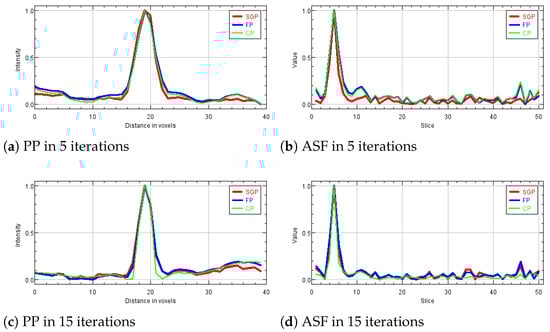

**Figure 4.**Plots of the Plane Profile on the left and of the Artifact Spread Function (ASF) vectors on the right, taken over one microcalcification of cluster number 3 in BR3D phantom obtained. In all the plots the red line corresponds to SGP method, the blue line to FP method and the green line to CP method.

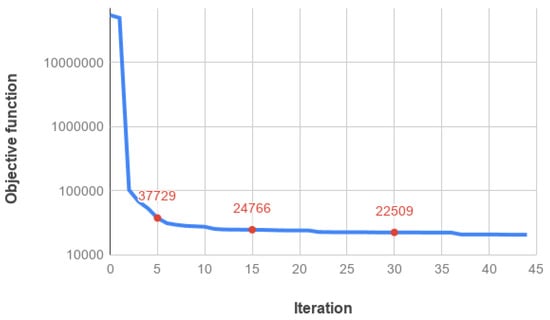

**Figure 5.**Objective function values vs. the iteration number for the SGP execution on the phantom test. The convergence has been reached after 44 iterations by satisfying condition (29). The red labels outline the function values at 5, 15 and 30 iterations.

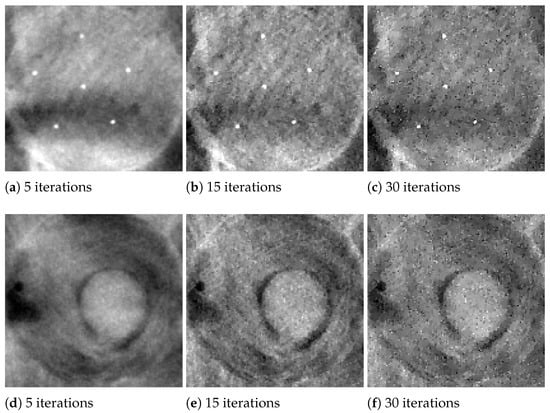

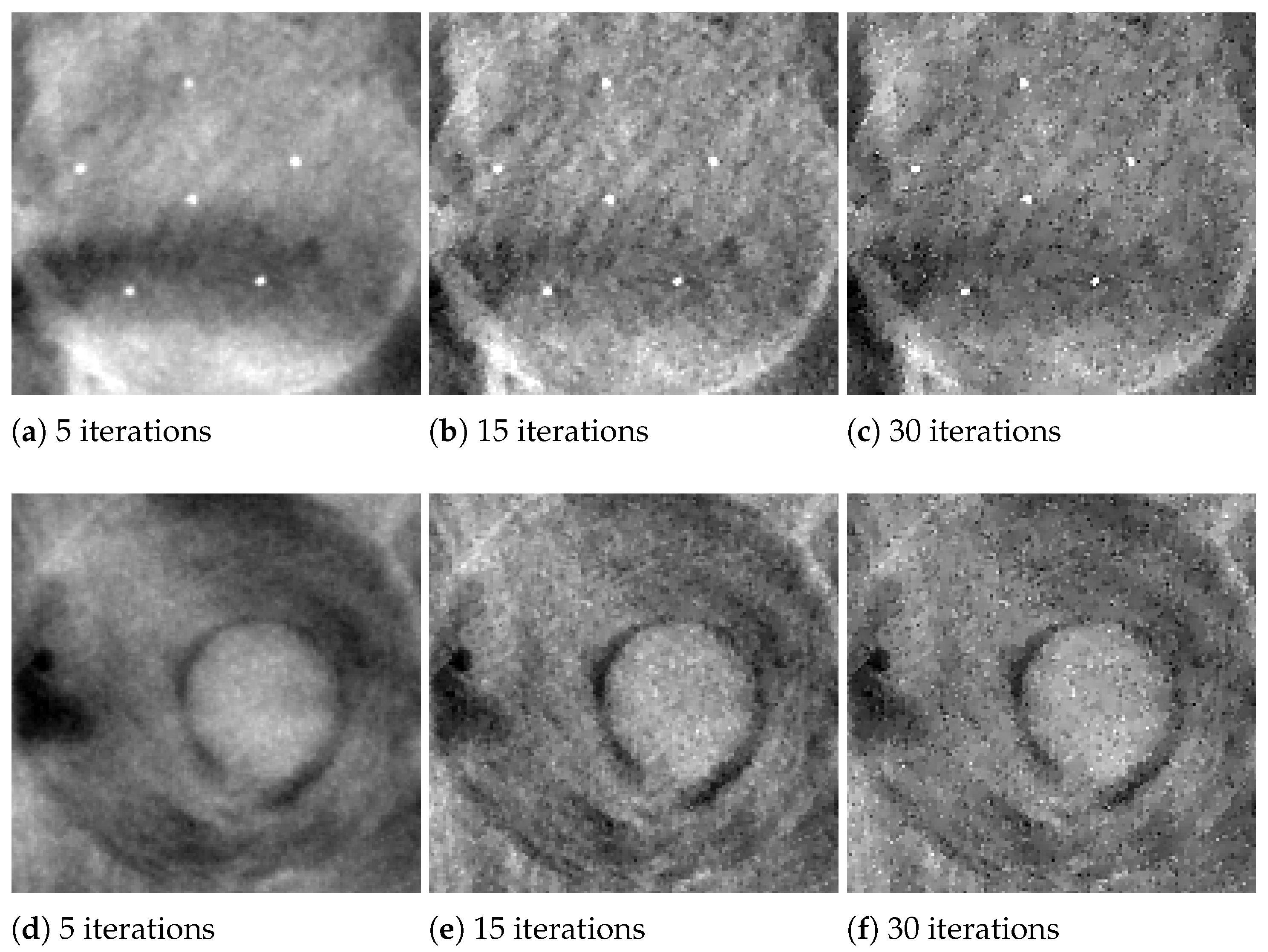

**Figure 6.**SGP results on BR3D phantom. (

**a**–

**c**) Reconstructions of MC cluster number 5 obtained after 5, 15 and 30 iterations. (

**d**–

**f**) Reconstructions of mass number 2 obtained after 5, 15 and 30 iterations.

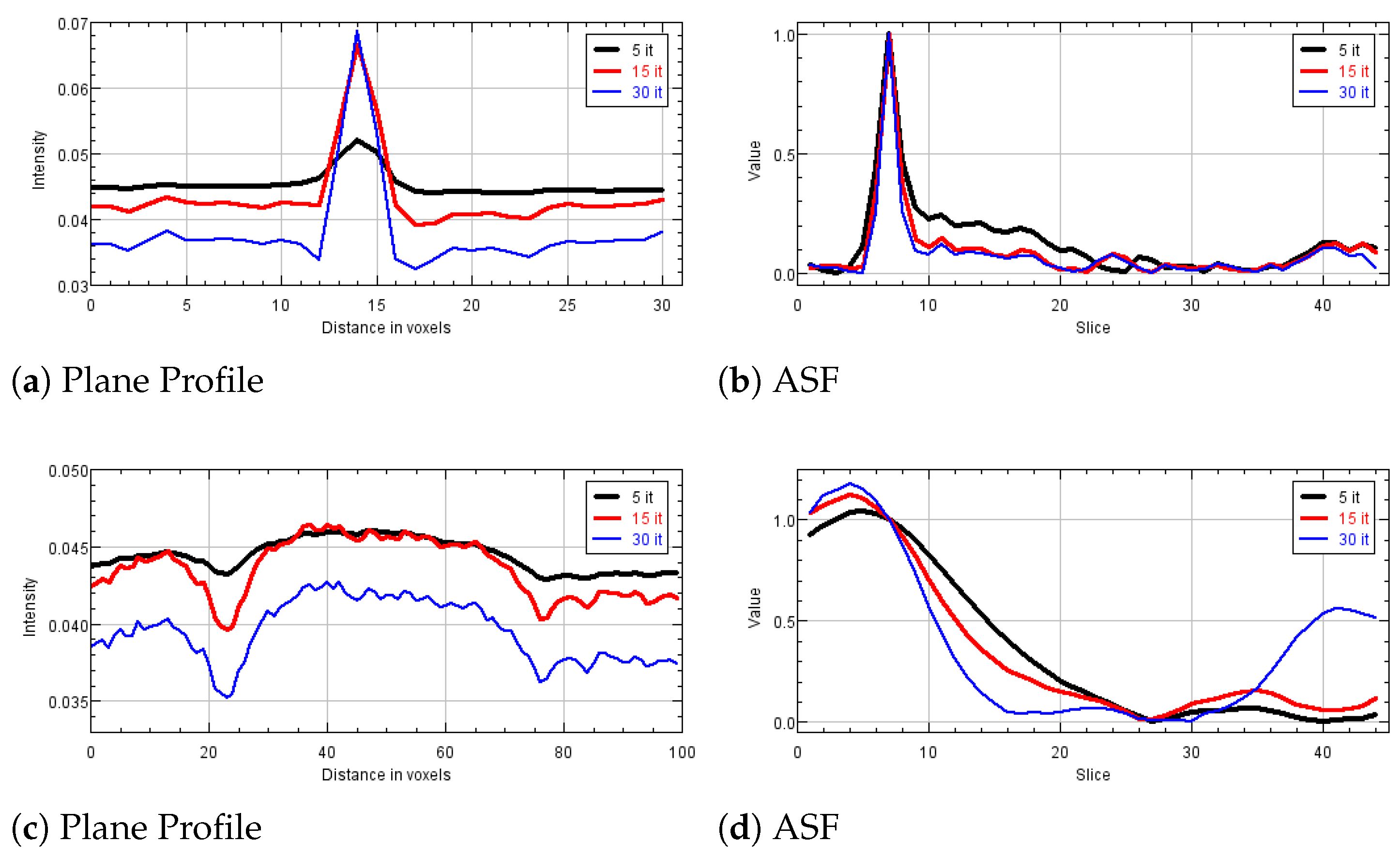

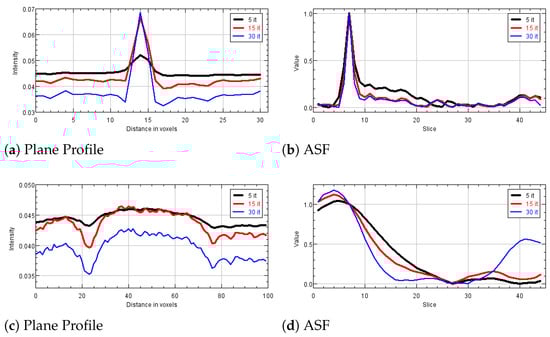

**Figure 7.**SGP results on BR3D phantom. Plots of the Plane Profile on the left and of the ASF vectors on the right, taken over one microcalcification of cluster 5 (

**upper row**) and over mass number 2 (

**bottom row**). In all the plots the black line corresponds to 5 iterations, red line to 15 iterations and blue line to 30 iterations.

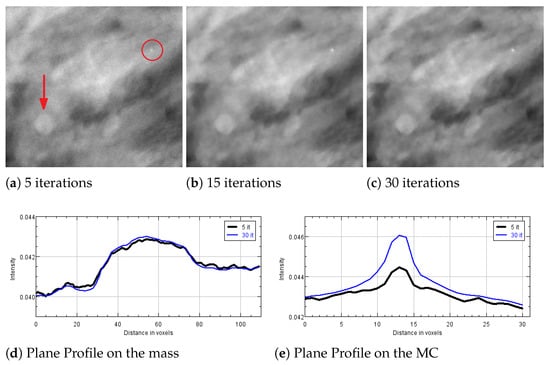

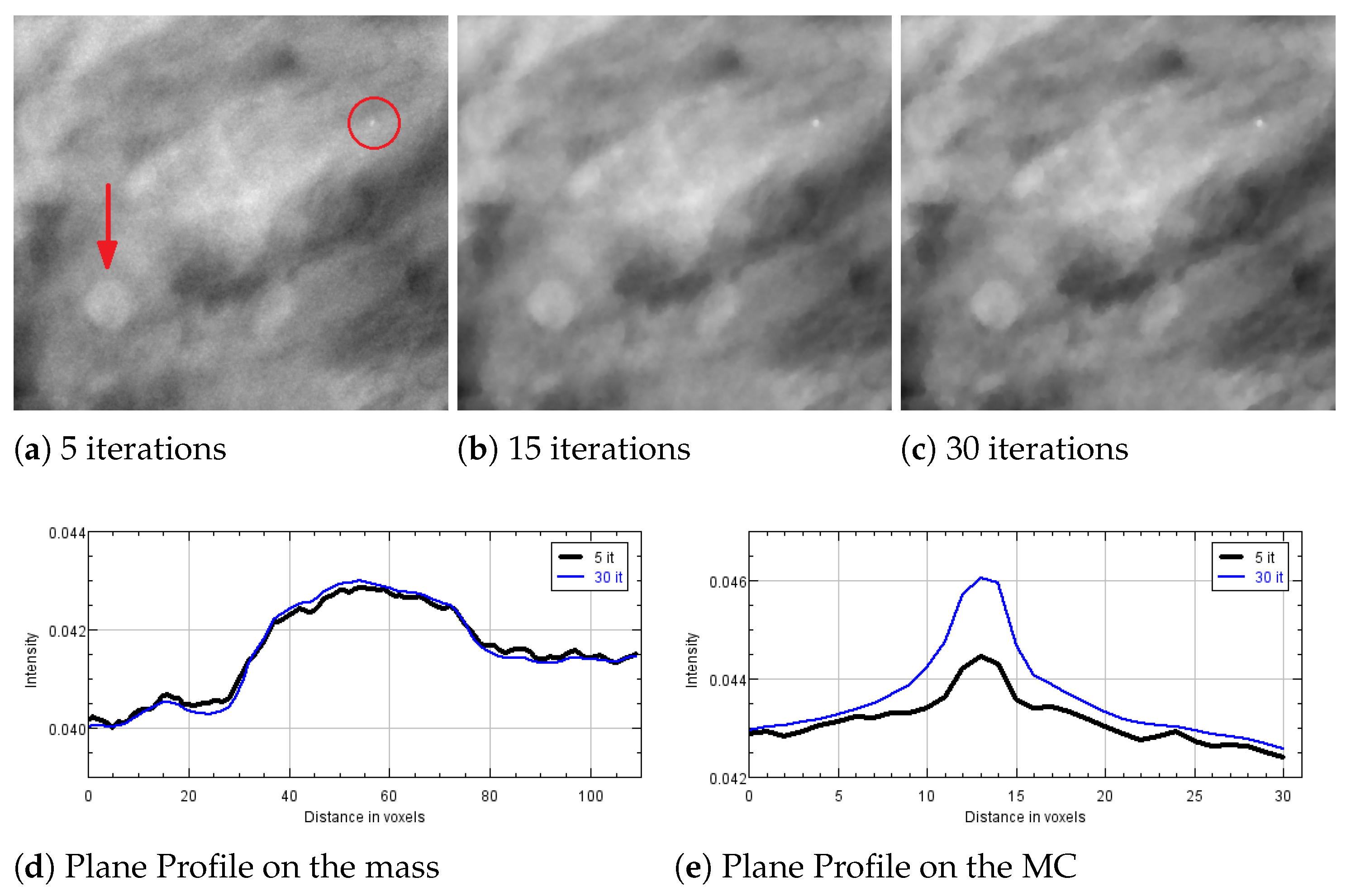

**Figure 8.**Results obtained after 5, 15 and 30 SGP iterations on a human breast data set. (

**a**–

**c**) Reconstructions of a 440 × 400 pixels region presenting both a spherical mass (pointed by the arrow) and a microcalficication (identified by the circle). (

**d**,

**e**) Plane profiles on the mass and on the microcalcification. In the plots: black line corresponds to 5 iterations and blue line to 30 iterations.

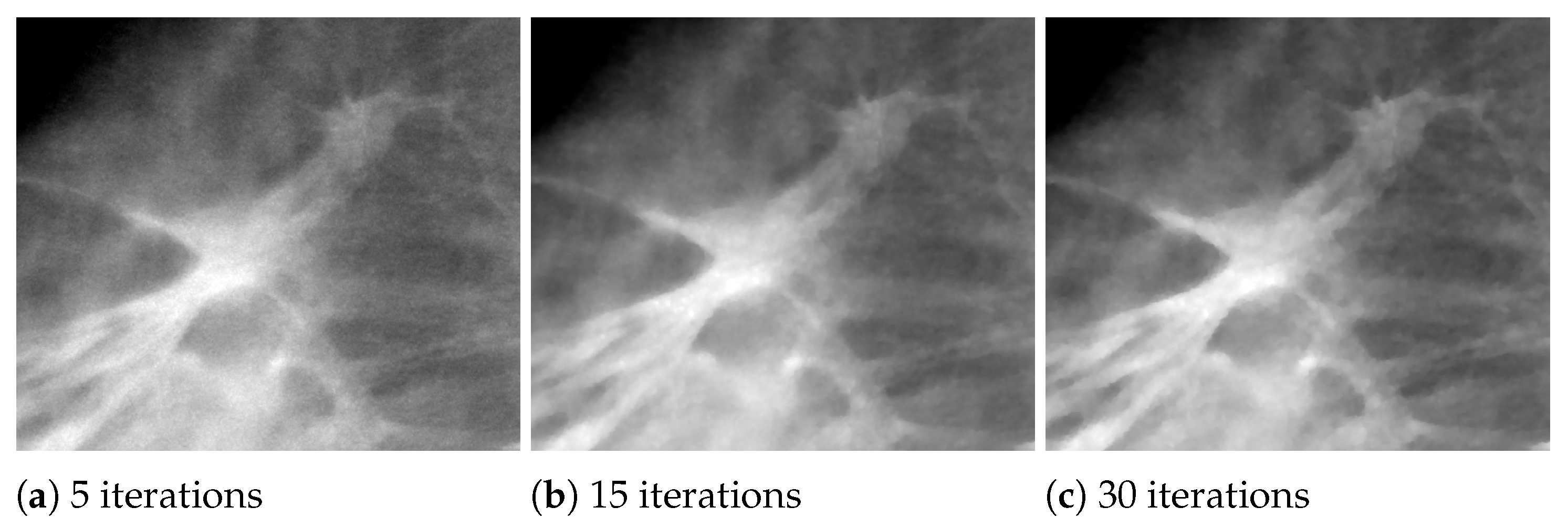

**Figure 9.**Results obtained after 5, 15 and 30 SGP iterations on a human breast data set. The reported 558 × 480 pixels crops present two speculated masses.

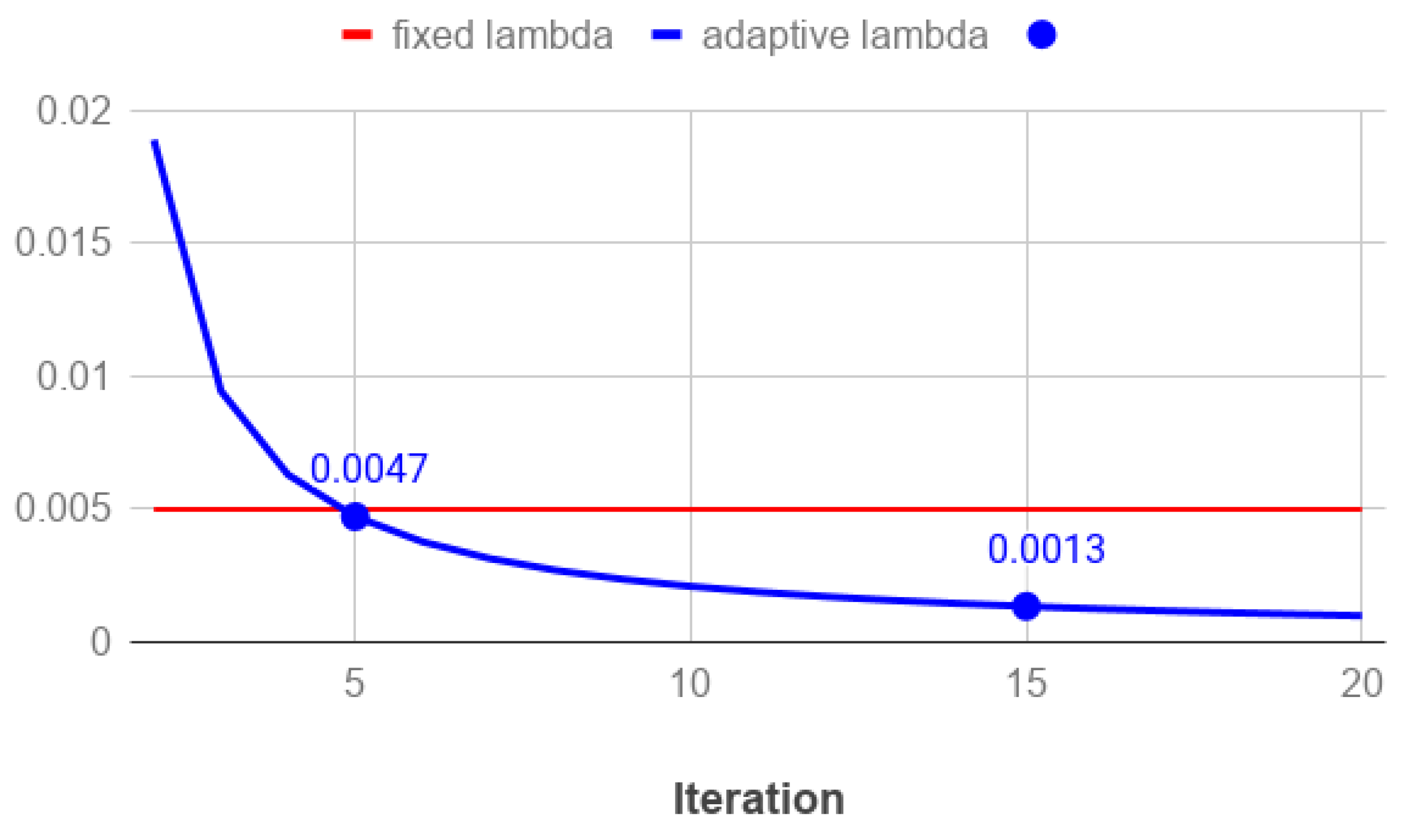

**Figure 10.**Plot of the set of values ${\lambda}_{k}$ versus the iteration k (blue line) in the SGP execution on the phantom test. The red straight line represents the constant value $\lambda =0.005$ used in SGP for the experiments presented in the previous sections.

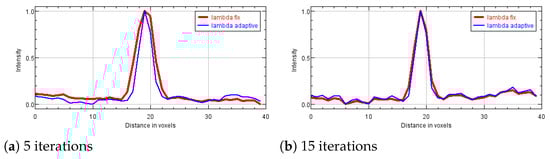

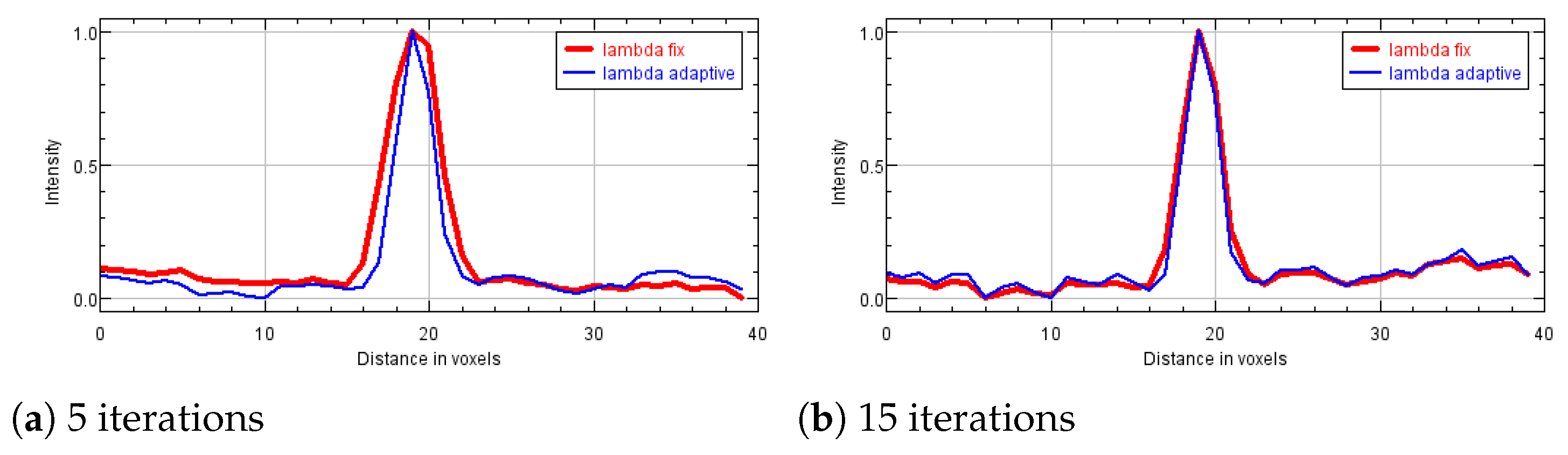

**Figure 11.**Plane Profiles on one microcalcification of cluster number 3 of the phantom, obtained with SGP with different regularization parameters, in 5 and 15 iterations. In all the plots the red line corresponds to fix parameter and the blue line to the adaptive choice of $\lambda $.

**Table 1.**Diameters of the microcalcifications (MC) and of the masses (MS) in the BR3D phantom as reported in [42]. Measures are in micrometers (m).

1 | 2 | 3 | 4 | 5 | 6 | |
---|---|---|---|---|---|---|

MC | 400 | 290 | 230 | 196 | 165 | 130 |

MS | 6300 | 4700 | 3900 | 3100 | 2300 | 1800 |

5 it. | 15 it. | 30 it. | |
---|---|---|---|

MC cluster 3 | 24.21 | 33.34 | 38.00 |

MC cluster 5 | 10.03 | 19.00 | 28.00 |

MC cluster 6 | 7.27 | 11.02 | 17.00 |

MS 2 | 0.82 | 1.07 | 1.66 |

MS 4 | 0.87 | 1.00 | 1.33 |

FWHM | w (µm) | |||||
---|---|---|---|---|---|---|

5 it. | 15 it. | 30 it. | 5 it. | 15 it. | 30 it. | |

MC cluster 3 | 4.77 | 3.32 | 2.70 | 430 | 299 | 243 |

MC cluster 5 | 3.52 | 2.65 | 2.32 | 317 | 238 | 209 |

MC cluster 6 | - | 2.05 | 1.52 | - | 185 | 137 |

**Table 4.**Valuexs of the of CNR and FWHM indices computed on the mass and the microcalcification observable in Figure 8a–c.

CNR | FWHM | |||||
---|---|---|---|---|---|---|

5 it. | 15 it. | 30 it. | 5 it. | 15 it. | 30 it. | |

MS | 0.239 | 0.381 | 0.558 | - | - | - |

MC | 8.78 | 16.59 | 16.49 | 8.57 | 7.81 | 7.29 |
