# Sparsity-Based Recovery of Three-Dimensional Photoacoustic Images from Compressed Single-Shot Optical Detection

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Optical Setup

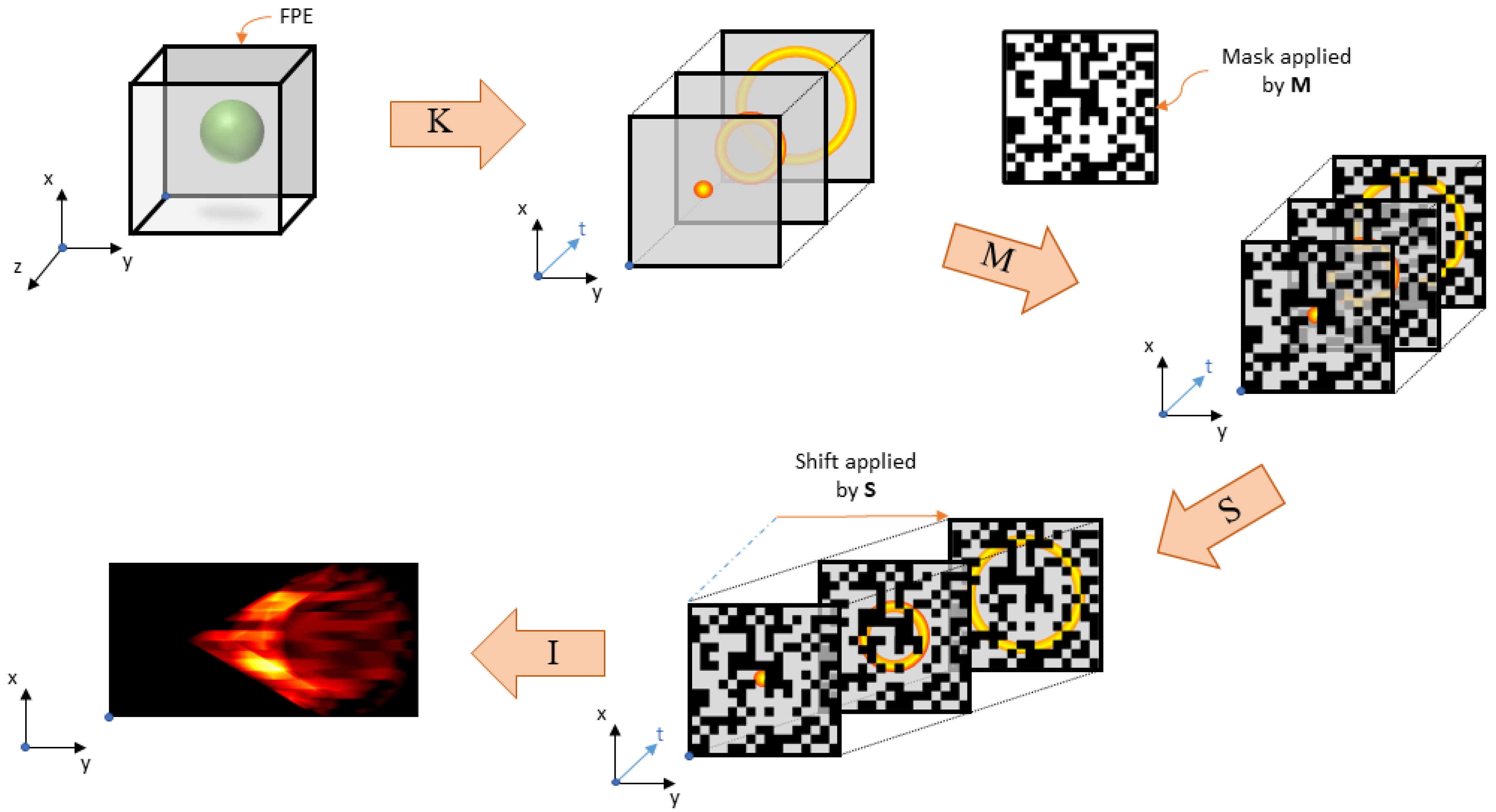

#### 2.2. Continuous Model

#### 2.3. Discrete Model

#### 2.4. Image Reconstruction via Compressed Sensing

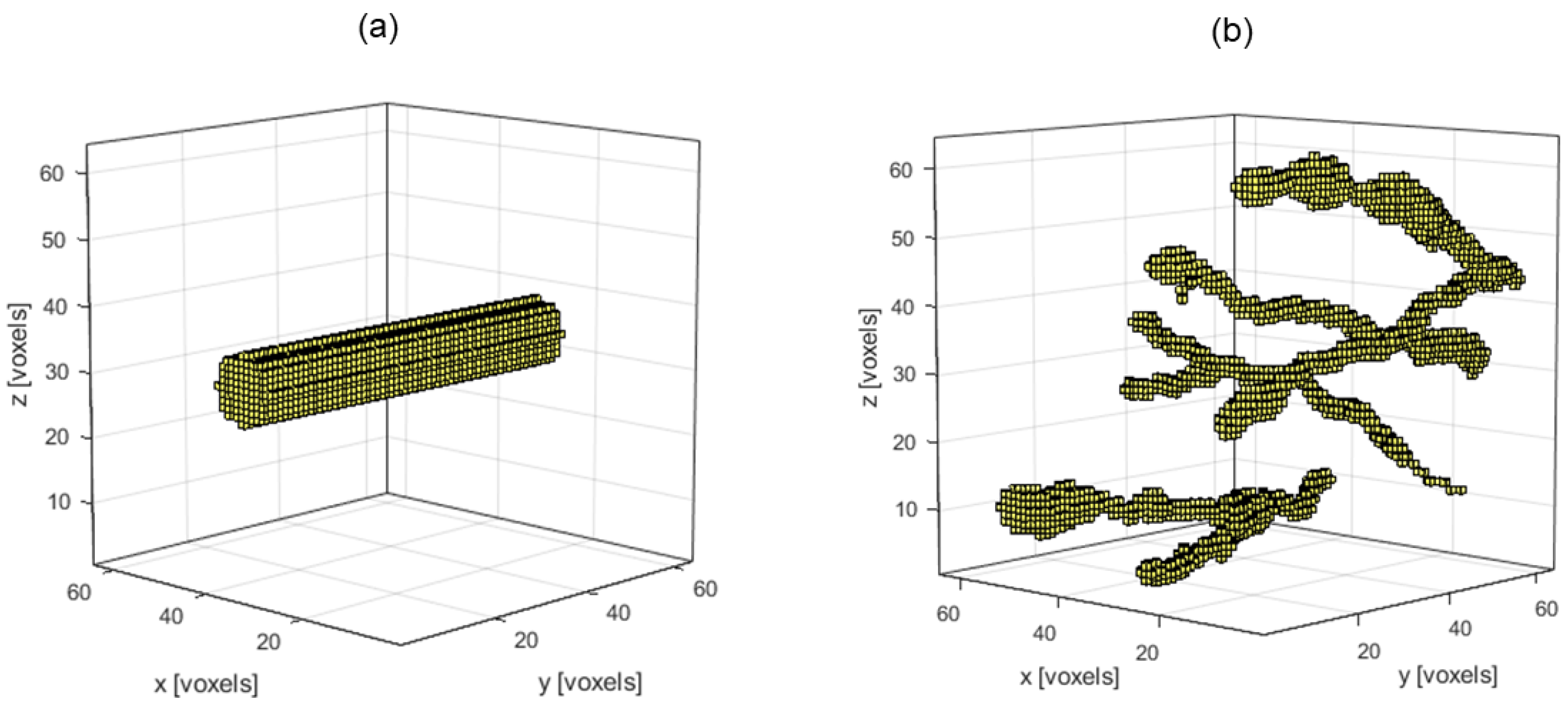

#### 2.5. Simulation Setup and Analysis

## 3. Results

#### 3.1. Baseline Test

#### 3.2. Simulated Experiments

## 4. Discussion

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

PA | photoacoustic |

FPE | Fabry–Pérot etalon |

DMD | digital micro-mirror device |

IPD | initial pressure distribution |

TwIST | Two-Step Iterative Shrinkage/Thresholding |

IST | iterative shrinkage/thresholding |

IRS | iterative reweighted shrinkage |

MSE | mean square error |

MS-SSIM | multi-scale structural similarity |

SNR | signal-to-noise ratio |

## References

- Xu, M.; Wang, L.V. Photoacoustic imaging in biomedicine. Rev. Sci. Instrum.
**2006**, 77, 041101. [Google Scholar] [CrossRef] [Green Version] - Mallidi, S.; Luke, G.P.; Emelianov, S. Photoacoustic imaging in cancer detection, diagnosis, and treatment guidance. Trends Biotechnol.
**2011**, 29, 213–221. [Google Scholar] [CrossRef] [Green Version] - Wang, X.; Pang, Y.; Ku, G.; Xie, X.; Stoica, G.; Wang, L.V. Noninvasive laser-induced photoacoustic tomography for structural and functional in vivo imaging of the brain. Nat. Biotechnol.
**2003**, 21, 803–806. [Google Scholar] [CrossRef] - Wang, L.V.; Hu, S. Photoacoustic tomography: In vivo imaging from organelles to organs. Science
**2012**, 335, 1458–1462. [Google Scholar] [CrossRef] [Green Version] - Cox, B.T.; Laufer, J.G.; Beard, P.C.; Arridge, S.R. Quantitative spectroscopic photoacoustic imaging: A review. J. Biomed. Opt.
**2012**, 17, 061202. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wang, L.V.; Yao, J. A practical guide to photoacoustic tomography in the life sciences. Nat. Methods
**2016**, 13, 627–638. [Google Scholar] [CrossRef] - Jeon, S.; Kim, J.; Lee, D.; Baik, J.W.; Kim, C. Review on practical photoacoustic microscopy. Photoacoustics
**2019**, 15, 100141. [Google Scholar] [CrossRef] [PubMed] - Beard, P.C.; Perennes, F.; Mills, T.N. Transduction mechanisms of the Fabry-Perot polymer film sensing concept for wideband ultrasound detection. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1999**, 46, 1575–1582. [Google Scholar] [CrossRef] [PubMed] - Zhang, E.; Laufer, J.; Beard, P. Backward-mode multiwavelength photoacoustic scanner using a planar Fabry-Perot polymer film ultrasound sensor for high-resolution three-dimensional imaging of biological tissues. Appl. Opt.
**2008**, 47, 561–577. [Google Scholar] [CrossRef] [PubMed] - Huynh, N.; Zhang, E.; Betcke, M.; Arridge, S.; Beard, P.; Cox, B. Single-pixel optical camera for video rate ultrasonic imaging. Optica
**2016**, 3, 26–29. [Google Scholar] [CrossRef] - Huynh, N.; Lucka, F.; Zhang, E.Z.; Betcke, M.M.; Arridge, S.R.; Beard, P.C.; Cox, B.T. Single-pixel camera photoacoustic tomography. J. Biomed. Opt.
**2019**, 24, 121907. [Google Scholar] [CrossRef] [PubMed] - Li, Y.; Li, L.; Zhu, L.; Maslov, K.; Shi, J.; Hu, P.; Bo, E.; Yao, J.; Liang, J.; Wang, L. Snapshot photoacoustic topography through an ergodic relay for high-throughput imaging of optical absorption. Nat. Photonics
**2020**, 14, 164–170. [Google Scholar] [CrossRef] [PubMed] - Qi, D.; Zhang, S.; Yang, C.; He, Y.; Cao, F.; Yao, J.; Ding, P.; Gao, L.; Jia, T.; Liang, J.; et al. Single-shot compressed ultrafast photography: A review. Adv. Photonics
**2020**, 2, 014003. [Google Scholar] [CrossRef] [Green Version] - Gao, L.; Liang, J.; Li, C.; Wang, L.V. Single-shot compressed ultrafast photography at one hundred billion frames per second. Nature
**2014**, 516, 74–77. [Google Scholar] [CrossRef] - Wang, P.; Liang, J.; Wang, L.V. Single-shot ultrafast imaging attaining 70 trillion frames per second. Nat. Commun.
**2020**, 11, 1–9. [Google Scholar] [CrossRef] - Liu, X.; Liu, J.; Jiang, C.; Vetrone, F.; Liang, J. Single-shot compressed optical-streaking ultra-high-speed photography. Opt. Lett.
**2019**, 44, 1387–1390. [Google Scholar] [CrossRef] [Green Version] - Pierce, A.D. Acoustics: An Introduction to Its Physical Principles and Applications, 3rd ed.; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar]
- Treeby, B.E.; Cox, B.T. k-Wave: MATLAB toolbox for the simulation and reconstruction of photoacoustic wave fields. J. Biomed. Opt.
**2010**, 15, 021314. [Google Scholar] [CrossRef] - Candès, E.J.; Romberg, J.; Tao, T. Robust uncertainty principles: Exact signal reconstruction from highly incomplete frequency information. IEEE Trans. Inf. Theory
**2006**, 52, 489–509. [Google Scholar] [CrossRef] [Green Version] - Donoho, D.L. Compressed sensing. IEEE Trans. Inf. Theory
**2006**, 52, 1289–1306. [Google Scholar] [CrossRef] - Guo, Z.; Li, C.; Song, L.; Wang, L.V. Compressed sensing in photoacoustic tomography in vivo. J. Biomed. Opt.
**2010**, 15, 021311. [Google Scholar] [CrossRef] [PubMed] - Arridge, S.; Beard, P.; Betcke, M.; Cox, B.; Huynh, N.; Lucka, F.; Ogunlade, O.; Zhang, E. Accelerated high-resolution photoacoustic tomography via compressed sensing. Phys. Med. Biol.
**2016**, 61, 8908–8940. [Google Scholar] [CrossRef] [PubMed] - Haltmeier, M.; Sandbichler, M.; Berer, T.; Bauer-Marschallinger, J.; Burgholzer, P.; Nguyen, L. A sparsification and reconstruction strategy for compressed sensing photoacoustic tomography. J. Acoust. Soc. Am.
**2018**, 143, 3838–3848. [Google Scholar] [CrossRef] - Betcke, M.M.; Cox, B.T.; Huynh, N.; Zhang, E.Z.; Beard, P.C.; Arridge, S.R. Acoustic wave field reconstruction from compressed measurements with application in photoacoustic tomography. IEEE Trans. Comput. Imaging
**2017**, 3, 710–721. [Google Scholar] [CrossRef] [Green Version] - Kutyniok, G. Theory and applications of compressed sensing. GAMM-Mitteilungen
**2013**, 36, 79–101. [Google Scholar] [CrossRef] [Green Version] - Draganic, A.; Orovic, I.; Stankovic, S. On some common compressive sensing recovery algorithms and applications-Review paper. arXiv
**2017**, arXiv:1705.05216. [Google Scholar] - Bioucas-Dias, J.M.; Figueiredo, M.A. A new TwIST: Two-step iterative shrinkage/thresholding algorithms for image restoration. IEEE Trans. Image Process.
**2007**, 16, 2992–3004. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Shang, R.; Archibald, R.; Gelb, A.; Luke, G.P. Sparsity-based photoacoustic image reconstruction with a linear array transducer and direct measurement of the forward model. J. Biomed. Opt.
**2018**, 24, 031015. [Google Scholar] [CrossRef] - Wang, Z.; Simoncelli, E.P.; Bovik, A.C. Multiscale structural similarity for image quality assessment. In Proceedings of the the Thrity-Seventh Asilomar Conference on Signals, Systems & Computers, Pacific Grove, CA, USA, 9–12 November 2003; Volume 2, pp. 1398–1402. [Google Scholar]
- Madsen, E.L.; Zagzebski, J.A.; Banjavie, R.A.; Jutila, R.E. Tissue mimicking materials for ultrasound phantoms. Med. Phys.
**1978**, 5, 391–394. [Google Scholar] [CrossRef]

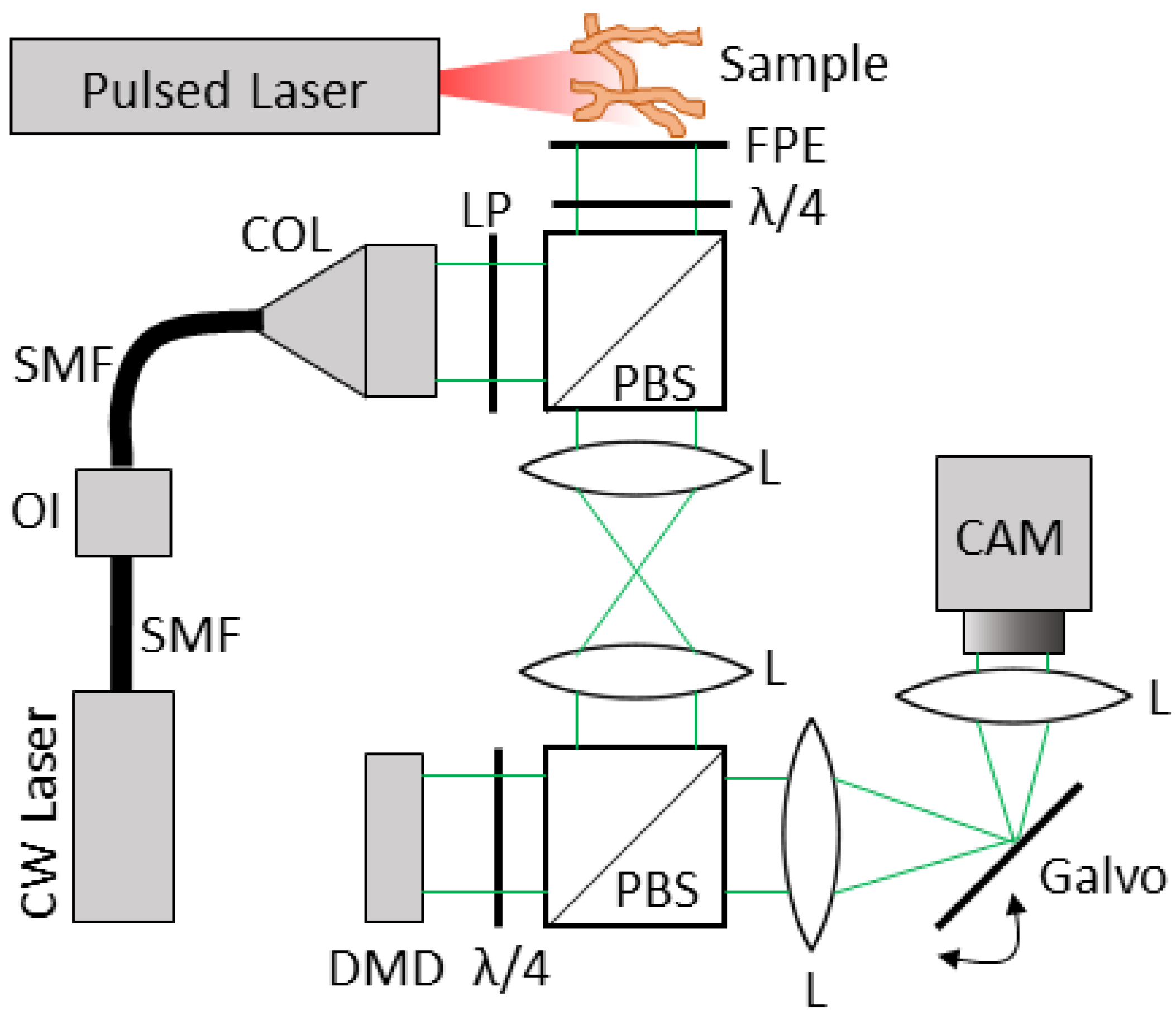

**Figure 1.**The proposed optical system. SMF = single-mode fiber, OI = optical isolator, COL = collimator, PBS = polarized beam splitter, $\lambda $/4 = quarter wave plate, L = lens, CAM = camera, DMD = digital micromirror device, LP = linear polarizer, FPE = Fabry–Pérot etalon.

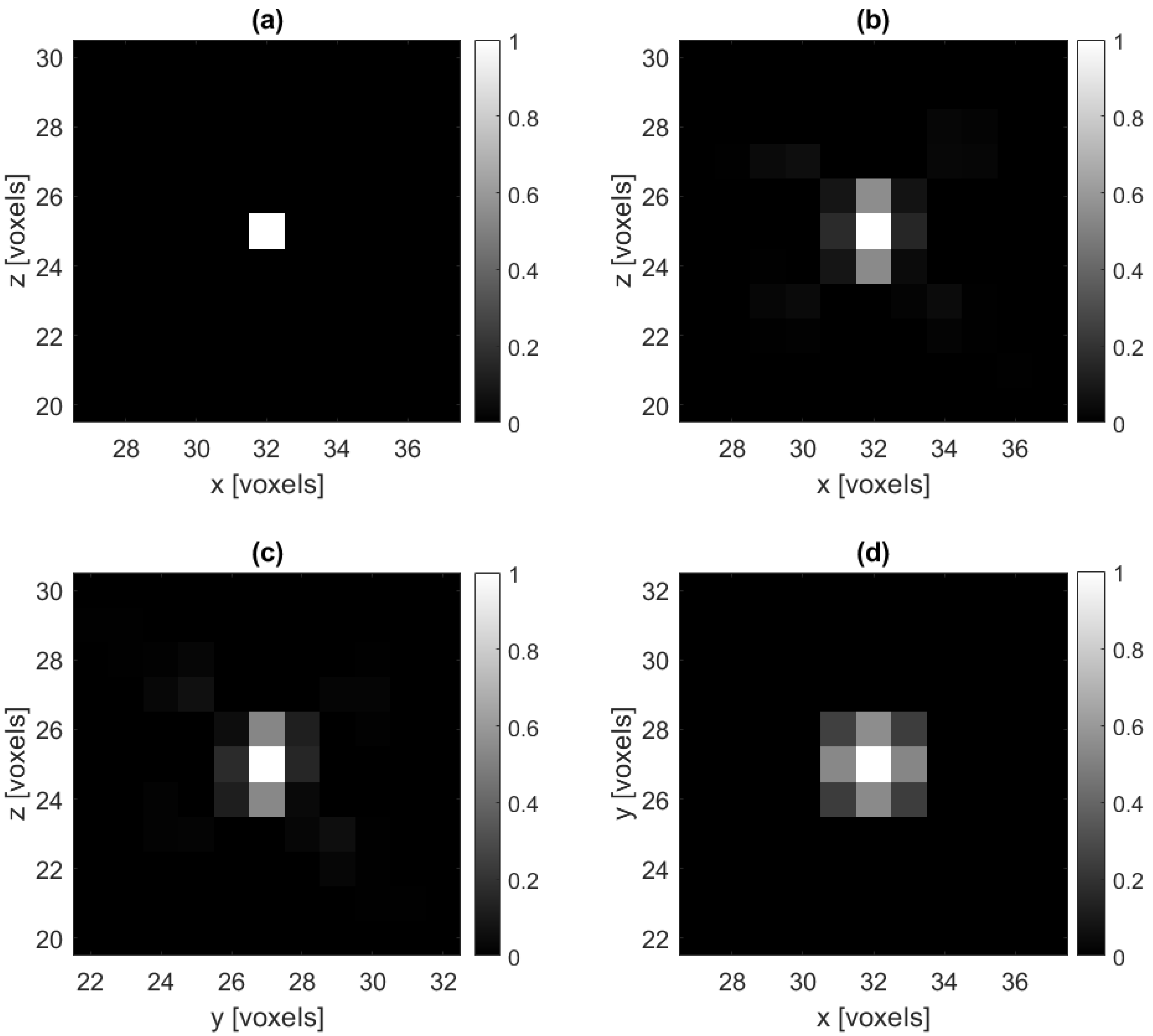

**Figure 3.**(

**a**) A cross-section of the ground truth impulse IPD and (

**b**–

**d**) cross-sections of a no-noise reconstruction of the impulse IPD. Here we use regularization parameter $\lambda =2.5\times {10}^{-4}$ in (6).

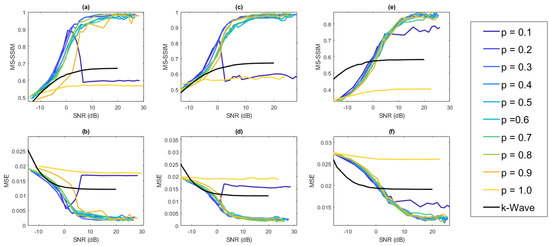

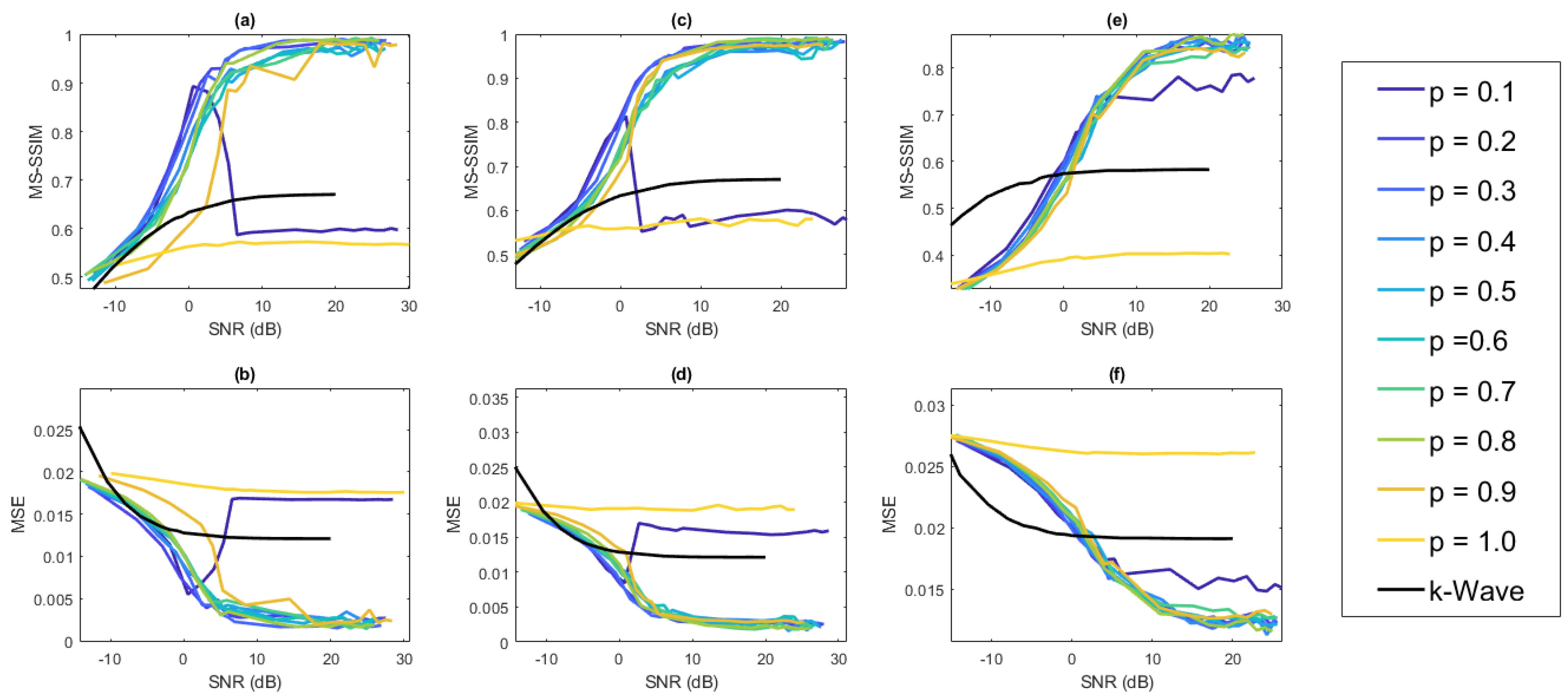

**Figure 5.**Average MS-SSIM (

**a**) and average MSE (

**b**) of a cylinder IPD with a radius of six perpendicular to the direction of shearing. Average MS-SSIM (

**c**) and average MSE (

**d**) of a cylinder IPD with a radius of 6 h parallel to the direction of shearing. Average MS-SSIM (

**e**) and average MSE (

**f**) of a vessel IPD with ten vessels present. Each point is averaged over five trials for each SNR value considered and is plotted against the SNR value used to calculate the additive Gaussian noise.

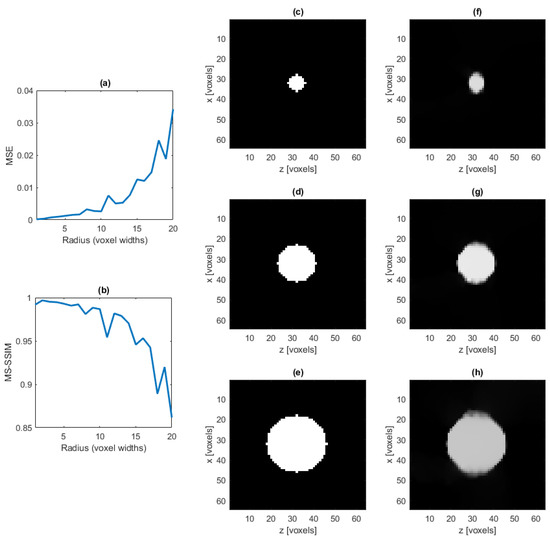

**Figure 6.**Average MSE (

**a**) and average MS-SSIM (

**b**) of the reconstructed cylinder IPD with varying radius, averaged over five trials for each radius value considered. A cross section of the ground truth cylinder with radius of five (

**c**), ten (

**d**) and fifteen (

**e**) voxel widths and a cross section of the reconstruction of the same cylinder, respectively, (

**f**–

**h**). Each cylinder considered is orthogonal to the $xz$-plane.

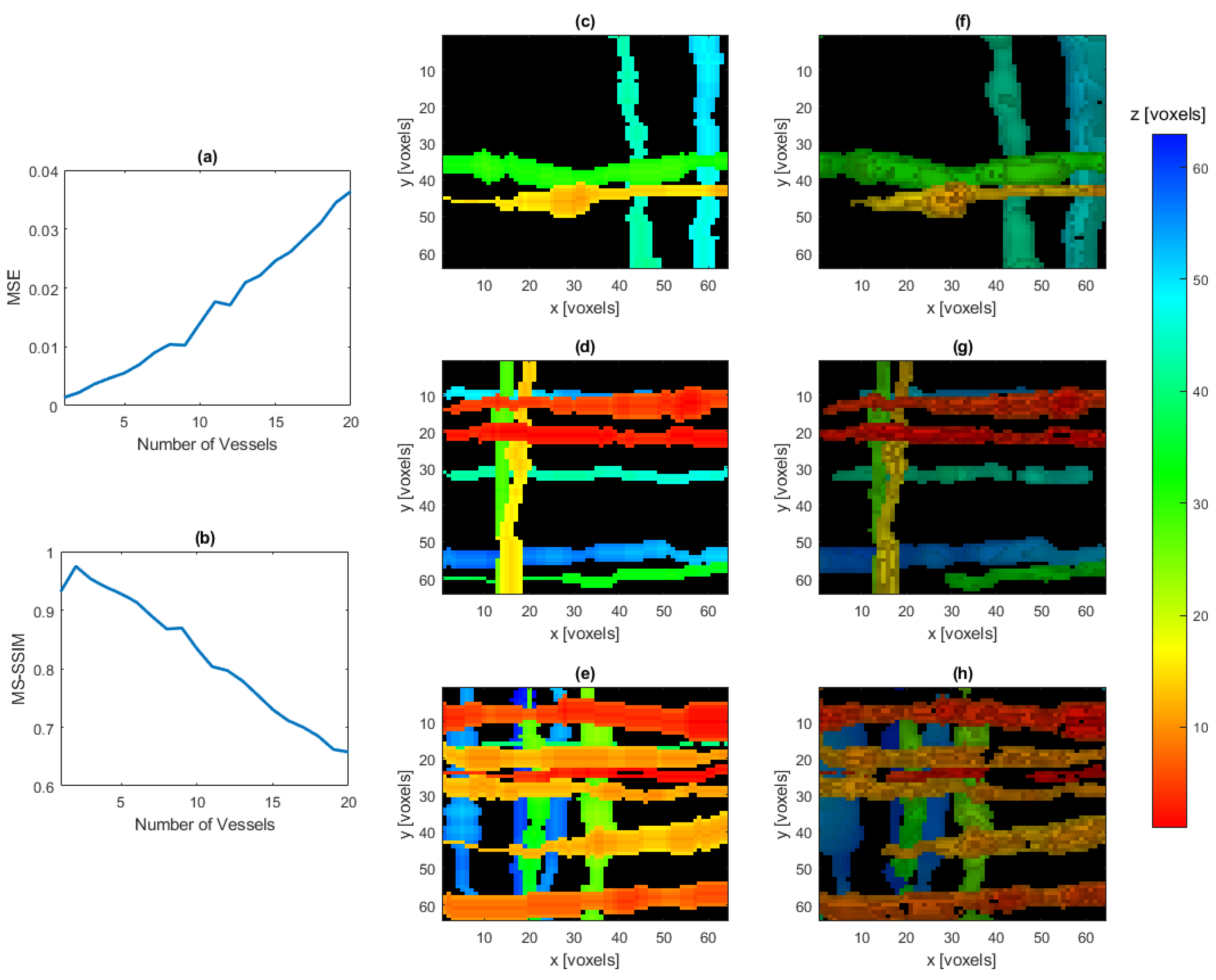

**Figure 7.**Average MSE (

**a**) and average MS-SSIM (

**b**) of the reconstructed vessel IPDs with a varying number of vessels present, averaged over twenty IPDs for each number of vessels considered. Ground truth projection onto the xy-plane of a four vessel IPD (

**c**), eight vessel IPD (

**d**), and twelve vessel IPD (

**e**), and the reconstruction of the same IPDs, respectively, (

**f**–

**h**). In images (

**c**–

**h**), hue represents depth in the z-dimension, with the colorbar indicating pixel lengths away from the FPE, while intensity is proportional the value of the voxels after being thresholded at 0.15.

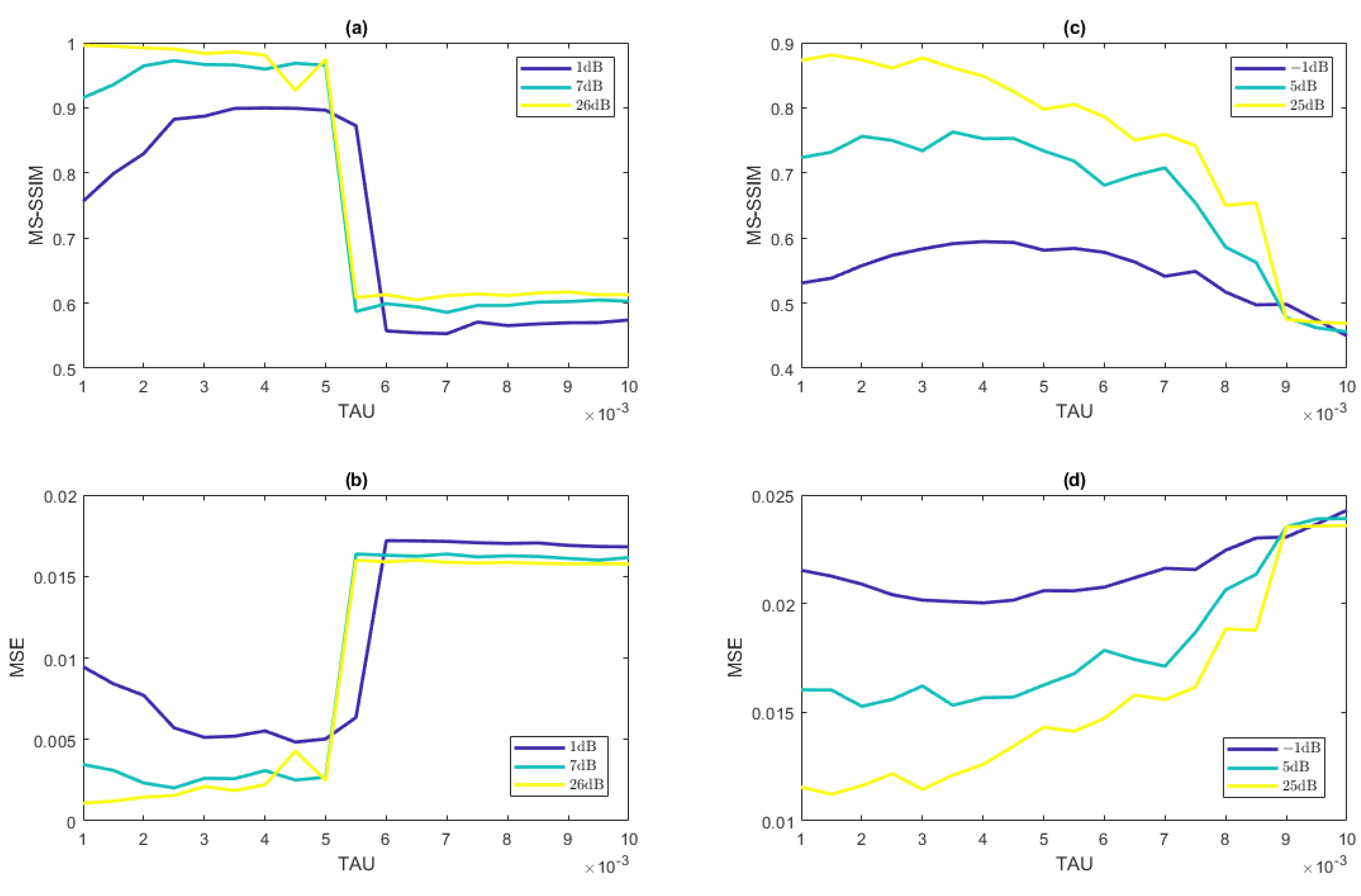

**Figure 8.**Average MSE (
