Open AccessArticle
J. Imaging 2018, 4(10), 110; https://doi.org/10.3390/jimaging4100110

Hyperspectral Imaging Using Laser Excitation for Fast Raman and Fluorescence Hyperspectral Imaging for Sorting and Quality Control Applications

1
Department Chemical Surface and Reaction Technology, Fraunhofer Institute for Material and Beam Technology (IWS) Dresden, Winterbergstr. 28, 01277 Dresden, Germany
2
Chair for Electrochemistry, Technische Universitaet Dresden, Zellescher Weg 19, 01069 Dresden, Germany
*
Author to whom correspondence should be addressed.
Received: 24 August 2018 / Revised: 14 September 2018 / Accepted: 19 September 2018 / Published: 21 September 2018
(This article belongs to the Special Issue The Future of Hyperspectral Imaging)
Full-Text   |   PDF [3041 KB, uploaded 21 September 2018]   |

Abstract

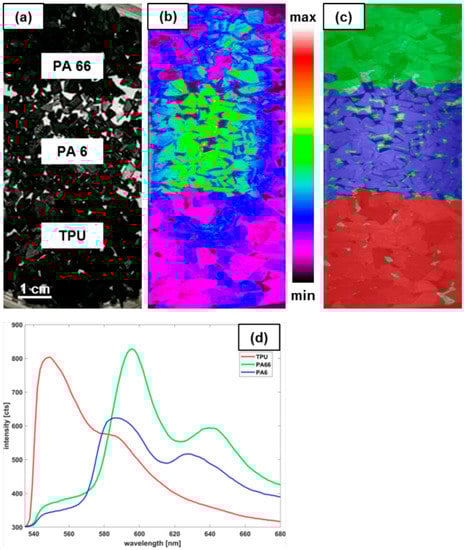

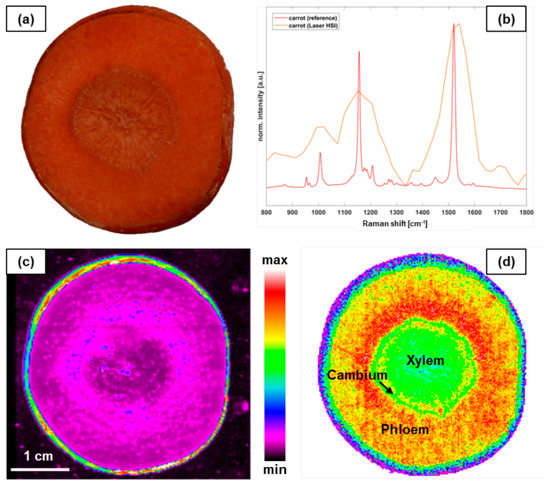

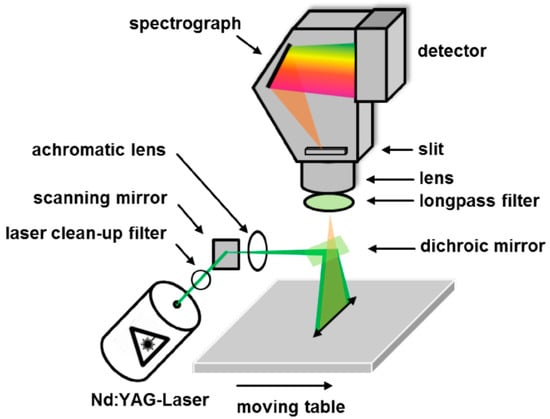

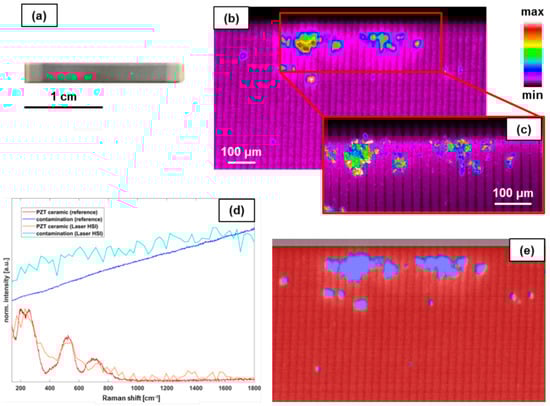

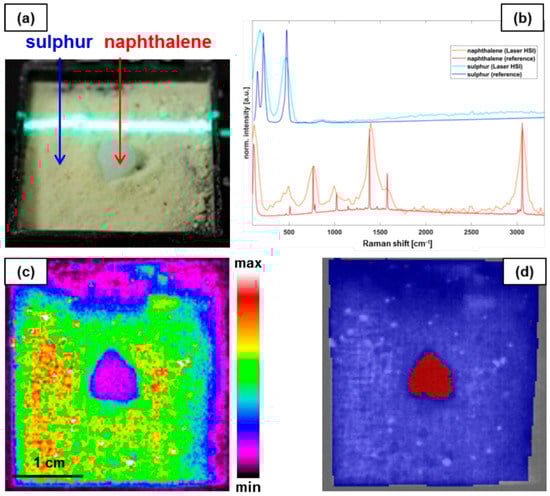

A hyperspectral measurement system for the fast and large area measurement of Raman and fluorescence signals was developed, characterized and tested. This laser hyperspectral imaging system (Laser-HSI) can be used for sorting tasks and for continuous quality monitoring. The system uses a 532 nm Nd:YAG laser and a standard pushbroom HSI camera. Depending on the lens selected, it is possible to cover large areas (e.g., field of view (FOV) = 386 mm) or to achieve high spatial resolutions (e.g., 0.02 mm). The developed Laser-HSI was used for four exemplary experiments: (a) the measurement and classification of a mixture of sulphur and naphthalene; (b) the measurement of carotenoid distribution in a carrot slice; (c) the classification of black polymer particles; and, (d) the localization of impurities on a lead zirconate titanate (PZT) piezoelectric actuator. It could be shown that the measurement data obtained were in good agreement with reference measurements taken with a high-resolution Raman microscope. Furthermore, the suitability of the measurements for classification using machine learning algorithms was also demonstrated. The developed Laser-HSI could be used in the future for complex quality control or sorting tasks where conventional HSI systems fail. View Full-Text
Keywords: hyperspectral imaging; Raman; fluorescence; sorting; quality control; black polymers; PZT; classification; machine learning hyperspectral imaging; Raman; fluorescence; sorting; quality control; black polymers; PZT; classification; machine learning
