Application of Lolium multiflorum as an Efficient Raw Material in the Production of Adsorbent for Removal of Methylene Blue

Abstract

In this study, ryegrass straw agricultural residue (Lolium multiflorum L.) was employed as an adsorbent material to remove methylene blue (MB) dye from aqueous solutions. Four adsorbents were produced using phosphoric acid and pyrolysis as activating agents. The samples were analyzed with TGA, FTIR, SEM, and XRD techniques. A rapid adsorption of the MB was obtained with the ryegrass treated with 40% H₃PO₄, reaching equilibrium in 2 min. Moreover, a maximum adsorption capacity of 80.79 mg g⁻¹ and a removal efficiency of 99% were achieved. The results demonstrate a good performance of adsorbents from ryegrass for removing dye contaminants, such as methylene blue, from the aqueous solutions.

1. Introduction

Environmental pollution has reached a level of potential threat not only due to the environmental problems observed in the last years but also due to the health of the entire population [1,2]. Currently, water pollution is considered one of the main factors that affect the environment, and textile dyes are known as the world’s most significant source of water pollution contaminants due to their release into water resources [3]. During the dyeing process in textile industries, a large fraction of the dye does not react with the cellulose fibers; therefore, about 20% of all dye used is discarded in effluents [4]. These residues are composed of non-biodegradable and recalcitrant molecules [5]. Several studies have focused on the treatment of colored effluents contaminated with methylene blue (MB) cationic dye [6,7,8,9] due to their complex degradation mechanism and high toxicity. Human exposure to MB dye can cause numerous health issues, such as vomiting, cyanosis, jaundice, shock, and tissue necrosis [10]. In addition, when present in water bodies the MB hinders the penetration of light, decreasing oxygen levels and harming the entire aquatic ecosystem, which can generate several carcinogenic and mutagenic problems in this biota [11,12].

Numerous techniques regarding the treatment of textile wastewater have already been reported, such as physical oxidation, biological degradation, cavitation, photocatalytic oxidation, and adsorption [5]. Among them, adsorption has emerged as being an extremely effective technique in effluent treatment due to its simplicity and the high percentage of removal of contaminants [13]. Even with it being a considerably inexpensive process, the main restriction of using adsorption in the treatment of effluents is the cost of the production of the adsorbent [14,15,16]. Thus, studies have their main focus on the search for alternative adsorbent materials [17,18,19,20,21,22,23]. In this sense, the use of agricultural waste can be an effective alternative due to its abundance and low cost. Thus, it is considered an eco-friendly and sustainable resource [24,25]. Accordingly, Chahm et al. [8] and Ma [26] produced adsorbents from the waste of Rapanea ferrugínea using H₂SO₄ and wheat straw using KOH and ZnCl₂, respectively.

The Lolium multiflorum L. (LM), commonly known as ryegrass, is mostly used in subtropical regions. However, the south of Brazil is responsible for producing 5 to 8 tons per hectare that has no destination nor use [27,28].

In a previous work carried out by part of our team, LM was treated with NaOH for the production of activated carbon. Furthermore, in the investigation regarding the adsorption of MB dye, the best result reached 67 mg g⁻¹ of maximum adsorption capacity for the LM treated with NaOH [28]. However, due to the abundance of Ryegrass biomass, we believe that other forms of activation should be studied. Hence, this work aims to add value to the agricultural waste of LM, proposing a sustainable use of it as an adsorbent and a raw material for activated carbon production. The adsorbents were produced using H₃PO₄ and pyrolysis as activating agents and were investigated through TGA, DRX, and BET. The adsorption of the MB dye was analyzed using the mathematical models of kinetic and isotherm.

2. Materials and Methods

2.1. Preparation and Characterization of the Adsorbents

The dried LM straw was kindly supplied by EMBRAPA. The collected material was ground (Marconi, model Croton) and sieved in an electromagnetic sieve shaker (Bertel, model 4830, Brazil) to obtain particles with a size <2 mm.

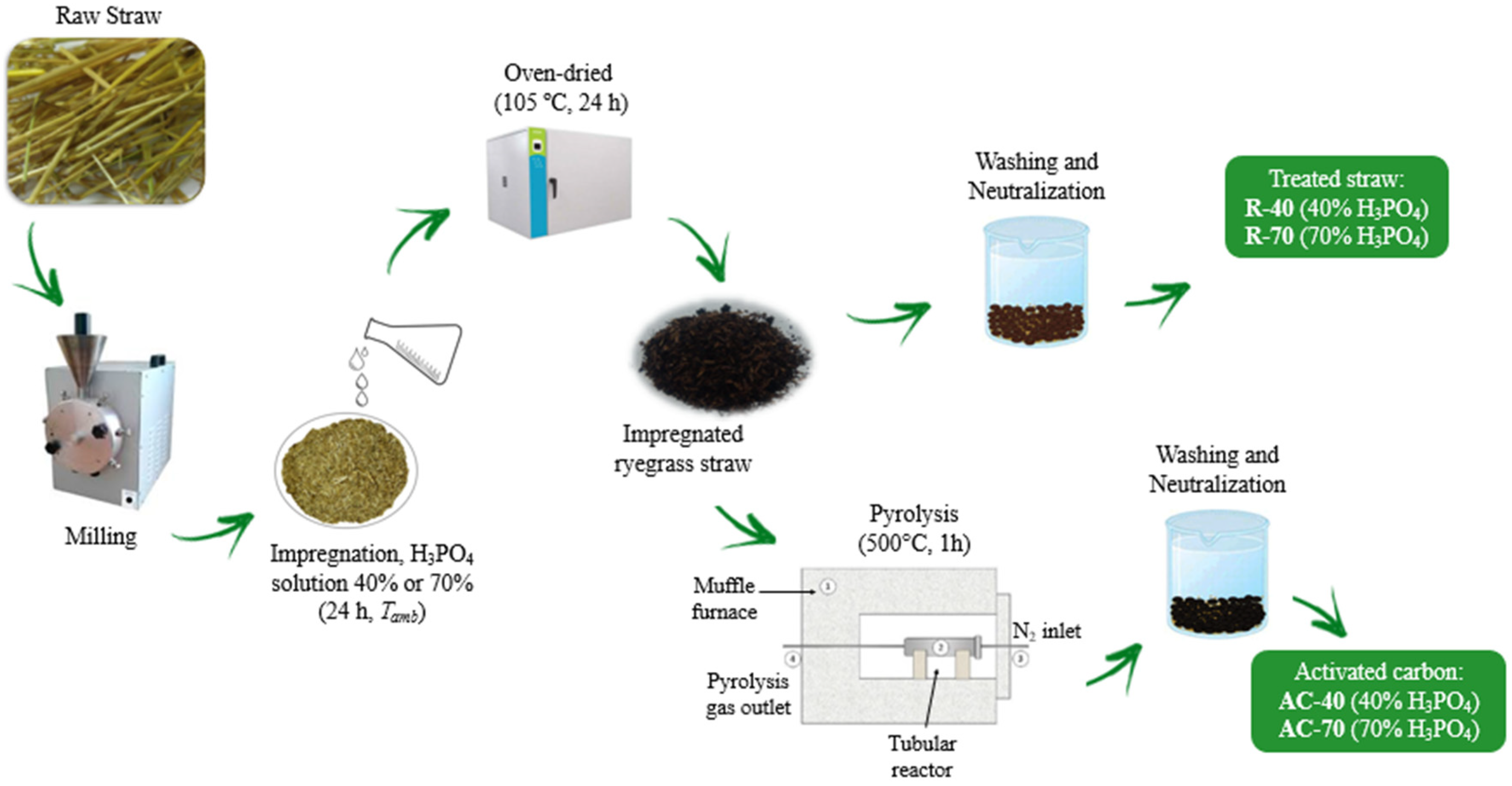

The chemical activation of the adsorbents was performed in a 1:1 ratio (w/w) of H₃PO₄ and LM. The samples were impregnated with H₃PO₄ solution at a concentration of 40% or 70% and then oven-dried (Nova Ética, model 109-1, Brazil) at 105 °C for 24 h. To obtain the activated carbons, a pyrolysis of the chemically activated samples was carried out in a stainless-steel reactor at 550 °C for 1 h (heating rate of 3 °C min⁻¹) under an N₂ atmosphere. Finally, all samples were washed with a sodium hydroxide solution until reaching a neutral pH. Figure 1 describes the methods and conditions used to synthesize each adsorbent.

LM, R-40, R-70, AC-40, and AC-70 samples were characterized by the particle size diameter (d_ps), obtained by sieving with Tyler sieves 9 to 270. The real densities (ρ_r) were obtained by a helium gas pycnometer (ULTRAPYC 1200e, Quantachrome Instruments, Boynton Beach, FL, USA), and the bulk densities (ρ_b) by a test tube. The porosity of the particle bed (ε) was determined by Equation 1 using ρ_b (kg·m⁻³) and ρ_r (kg·m⁻³), and the moisture (Ubu), ashes’ contents (C_Z), volatile material (Mv), and fixed carbon (CF), were determined using AOAC [29] and ASTM [30,31,32] methodologies.

$$ԑ=1-\frac{{\rho }_b}{{\rho }_r}$$

(1)

BET (Brunauer—Emmet—Teller) and BJH (Barret—Joyner—Halenda) were used to obtain the physical structure characteristics of the activated carbons (Quantachrome Instrument, NOVA 4200e, USA). The values for the yield (Y) of the activated carbons were obtained using Equation (2), where m_i and m_f correspond to the initial and final adsorbent mass (g), respectively.

$$Y(\%)=\frac{m_f}{m_i}100$$

(2)

X-ray diffraction (XRD, Rigaku ULTIMA IV, Tokyo, Japan) was performed to infer the crystalline structures by scanning step over the range of 10–70° using Bragg-Brentano geometry. The crystallinity index (I_c) was calculated according to Equation (3) [33], where I_cr is the intensity of the crystalline peak and I_am is the intensity of the amorphous phase.

$$I_C=\frac{I_{cr}-I_{am}}{I_{cr}}100$$

(3)

The thermogravimetric analysis (TGA, Shimadzu, model TGA 50, Tokyo, Japan) was performed in N₂ gas.

2.2. Adsorption Experiments

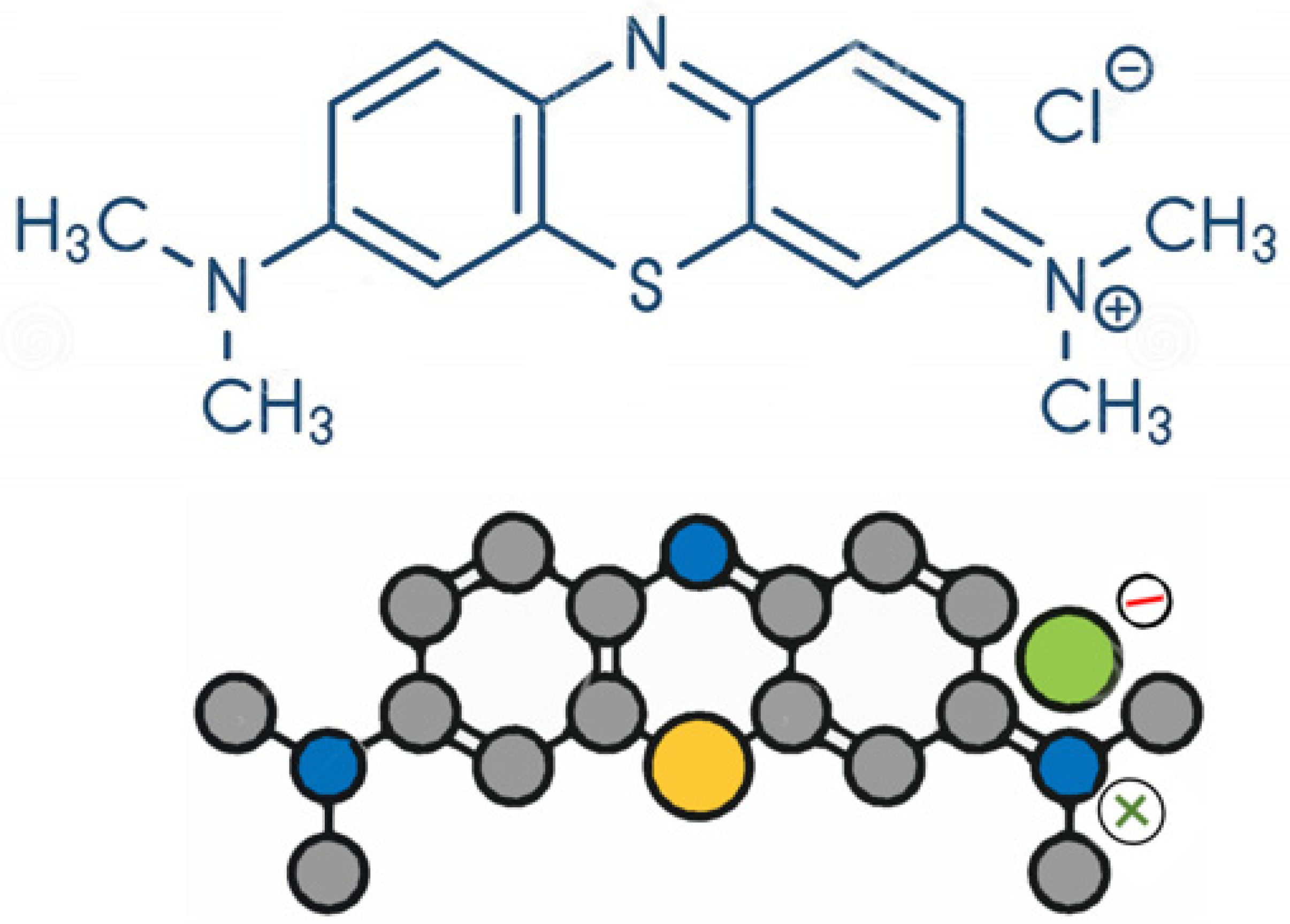

The molecular structural model of the MB dye is shown in Figure 2. The MB solution (25–1000 mg L⁻¹) was added to a 4–20 g L⁻¹ of adsorbent dosage, the operating range conditions that were obtained from preliminary trials. The mixtures of adsorbent-adsorbate were agitated in a shaker (NOVA ÉTICA, model 109-1) at 120 rpm, between 1 and 120 min. The samples were centrifuged for 15 min to separate the adsorbents from the MB solution. The MB solution was quantified at a maximum wavelength of 660 nm. The capacity of adsorption and removal efficiency were calculated using Equations (4) and (5), respectively.

$$Q=\frac{C_i-C_f}{M}V$$

(4)

$$\mathrm{E}=\frac{C_i-C_f}{C_i}100$$

(5)

where C_i is the initial concentration (mg L⁻¹); C_f, the final concentration (mg L⁻¹); M, the mass of adsorbent (g); and V, the volume of solution (L).

The pseudo-first-order [34], pseudo-second-order [35], and Avrami [36] models were used to analyze the kinetic data. The expressions of the models were shown in Equations (6)–(8), respectively.

$$q_t=q_e(1-e^{{-k}_{1}t})$$

(6)

$$q_t=\frac{k_2{q}_e^{2}t}{1+k_2{q}_{e}t}$$

(7)

$$q_t=q_e(1-e^{{{(-k}_{av}t)}^{n_{av}}})$$

(8)

where q_t and q_e is the quantity of adsorbate in the adsorbent (mg g⁻¹); t is the time of contact (min); k₁ is the pseudo-first-order constant (min⁻¹); k₂ is the pseudo-second-order constant (g mg⁻¹ min⁻¹); K_id is the intra-particle constant (g mg⁻¹ min^−1/2); K_av (1 min⁻¹) and n_av are the Avrami constants; and C is related to diffusion resistance (mg g⁻¹).

The data of equilibrium isotherms were fitted to the mathematical models Langmuir [37], Freundlich [38], Sips [39], and Tóth [40], presented in Equations (9)–(12).

$$q_e=\frac{q_{max}{K}_L{C}_e}{1+K_L{C}_e}$$

(9)

$$q_e=K_F{C}_e^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$n$}\right.}$$

(10)

$$q_e=\frac{q_{max}(K_s{C_e)}^m}{1+(K_s{C_e)}^m}$$

(11)

$$q_e=\frac{q_{max}b{C}_e}{{(1+{\left(b{C}_e\right)}^d)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$d$}\right.}}$$

(12)

where q_e is the amount of MB in the adsorbent at equilibrium (mg g⁻¹); q_max is the maximum MB adsorbed per unit mass of the adsorbent (mg g⁻¹); K_L is the Langmuir constant of the rate of adsorption (K mg⁻¹); K_F is the Freundlich constant [(mg L⁻¹) (mg L⁻¹)^−1/n]; K_S is the constant of Sips model (L mg⁻¹); b is the constant of Tóth model (mg L⁻¹); and m, n, and d are the parameters characterizing the system heterogeneity.

The analysis of the variance (ANOVA) was evaluated for all the models and the statistical values were studied at a level of confidence of 95% for each adjustment.

All the theoretical model parameters were defined through nonlinear regression using the quasi-Newton method. The models were checked by using the Chi-square (X²) and average relative error (ARE) according to Equations (13) and (14), respectively.

$$ARE=\frac{100}{nn}\sum \frac{q_{exp}-q_{pred}}{q_{exp}}$$

(13)

$$X^2=\sum \frac{{{(q}_{exp}-q_{pred})}^2}{nn-NN}$$

(14)

where q_exp are the experimental values; q_pred is the value of the model; nn is the experiment number observed; and NN is the number of the parameters in the model.

3. Results

3.1. Characterization of Lolium multiflorum and Adsorbents

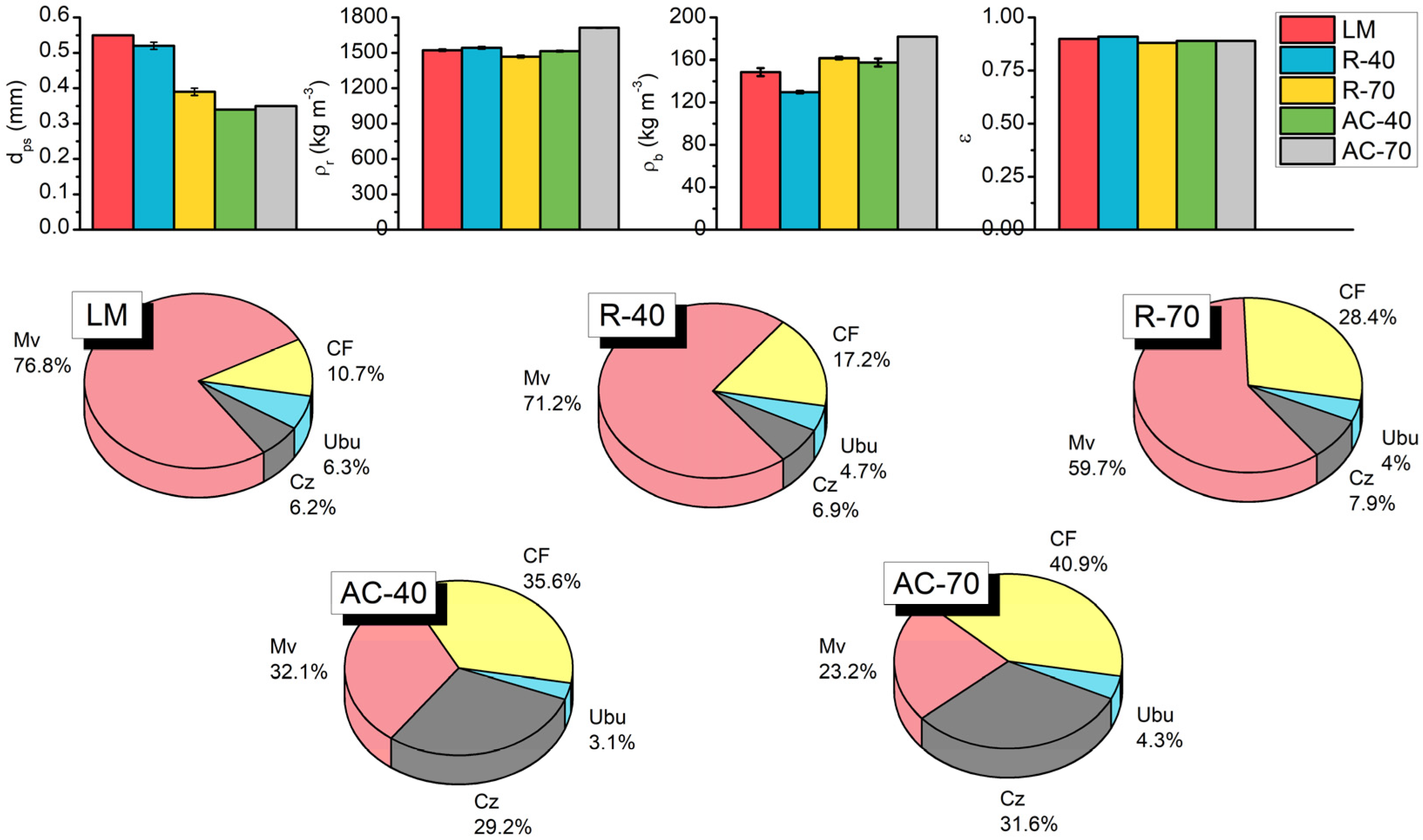

The results of the physical characterizations of the LM, R-40, R-70, AC-40, and AC-70 samples are shown in Figure 3. The values of d_ps for the R-40 and R-70 were smaller than the LM, suggesting the dehydration of the raw material and structure changes after the chemical treatment. Furthermore, the AC-70 exhibits higher ρ_r than the R-70, which indicates the formation of pores, resulting from the effective thermal activation of the material. Both ACs showed Ubu lower than 5%, which is in accordance with the commercial activated carbons [41]. Thus, the increase in Cz can be attributed to the presence of inorganics after the chemical and thermal activation [42,43].

The R-40 and R-70 samples presented lower values of Mv than the LM, which might be attributed to the degradation caused by the H₃PO₄ activation [43]. After pyrolysis, the AC-40 and AC-70 presented another decrease in Mv values and an increase in CF, indicating the carbonization of volatile materials [44], which is in agreement with the physical characteristics obtained for activated carbons (

Table 1. Textural characteristics and yield of AC-40 and AC-70.

Adsorbents	SBET (m2 g−1)	PV (cm3 g−1)	PD (nm)	Y (%)
AC-40	14.50	0.0252	3.73	47.60
AC-70	68.28	0.0603	3.25	50.33

).

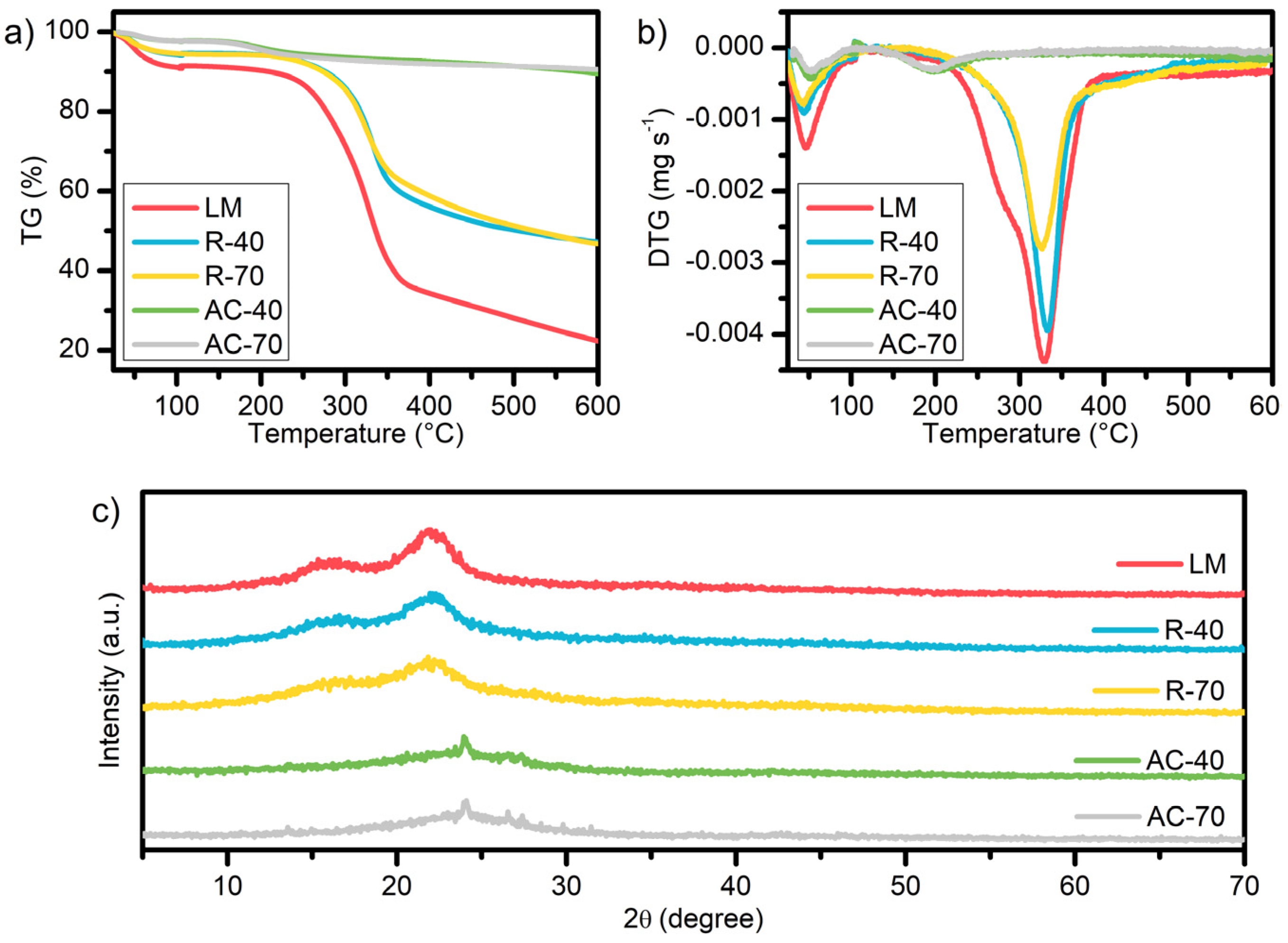

Figure 4a, b shows the TGA profiles of the LM, R-40, R-70, AC-40, and AC-70. All samples display a weight loss for the temperatures inferior to 100 °C related to the evaporation of moisture [45]. The LM sample presented a weight loss of 63% in the range between 235 and 370 °C, which is related to the degradation of hemicellulose (235–315 °C), cellulose (315–370 °C), and lignin (100–900 °C) [46]. This result agrees with the DTG peak at 278 °C and 330 °C. In the profile of the R-40 and R-70, the decomposition of cellulose was noticed in the range between 257 and 350 °C. Moreover, the less pronounced peak of cellulose and the absence of a hemicellulose shoulder in the DTG curves suggests that the chemical treatment with H₃PO₄ catalyzes the hydrolysis of glucose bonds [47,48].

The weight loss of 6.6% at 197 °C for the AC-40 and AC-70 can be assigned to the volatiles related to H₃PO₄ chemical activation [49]. The absence of lignin and hemicellulose peaks in the DTG, associated with the superior thermal stability of the ACs, confirms the efficiency of pyrolysis in the production of adsorbent materials.

The XRD patterns of the LM, R-40, R-70, AC-40, and AC-70 are shown in Figure 4c. The values of the crystallinity index were 39.70% and 35.43% for the R-40 and R-70, respectively. The LM showed a crystallinity index of 48.70%. The crystallinity reduction of the R-40 and R-70 can be attributed to the chemical reaction involving cellulose, since the acid diffuses into the internal and external layers of the fiber, providing the breakdown of the intramolecular and intermolecular bonds with the phosphate groups [50].

The XRD patterns of the R-40 and R-70 indicate the presence of cellulose in the peaks around 10–25 °C. This decrease in the R-40 and R-70 in relation to the LM is due to the breaking of the crystalline chains and the widening of the amorphous structure, converting the crystalline cellulose into amorphous cellulose. The non-appearance of the crystallinity of cellulose in the AC-40 and AC-70 can be assigned to the reduction in the stretching hydrogen bonds and their disorganization as an amorphous structure after the pyrolysis [50]. The AC-40 and AC-70 have a predominantly amorphous structure despite presenting a peak at 26°, which indicates a crystallinity of SiO₂ [51,52]. The increase in the amorphous structure of the AC-40 and AC-70 shows that pyrolysis was effective in carbonizing the R-40 and R-70, causing a disorder in the crystalline structure and consequently creating empty spaces for the adsorption of the MB dye [53].

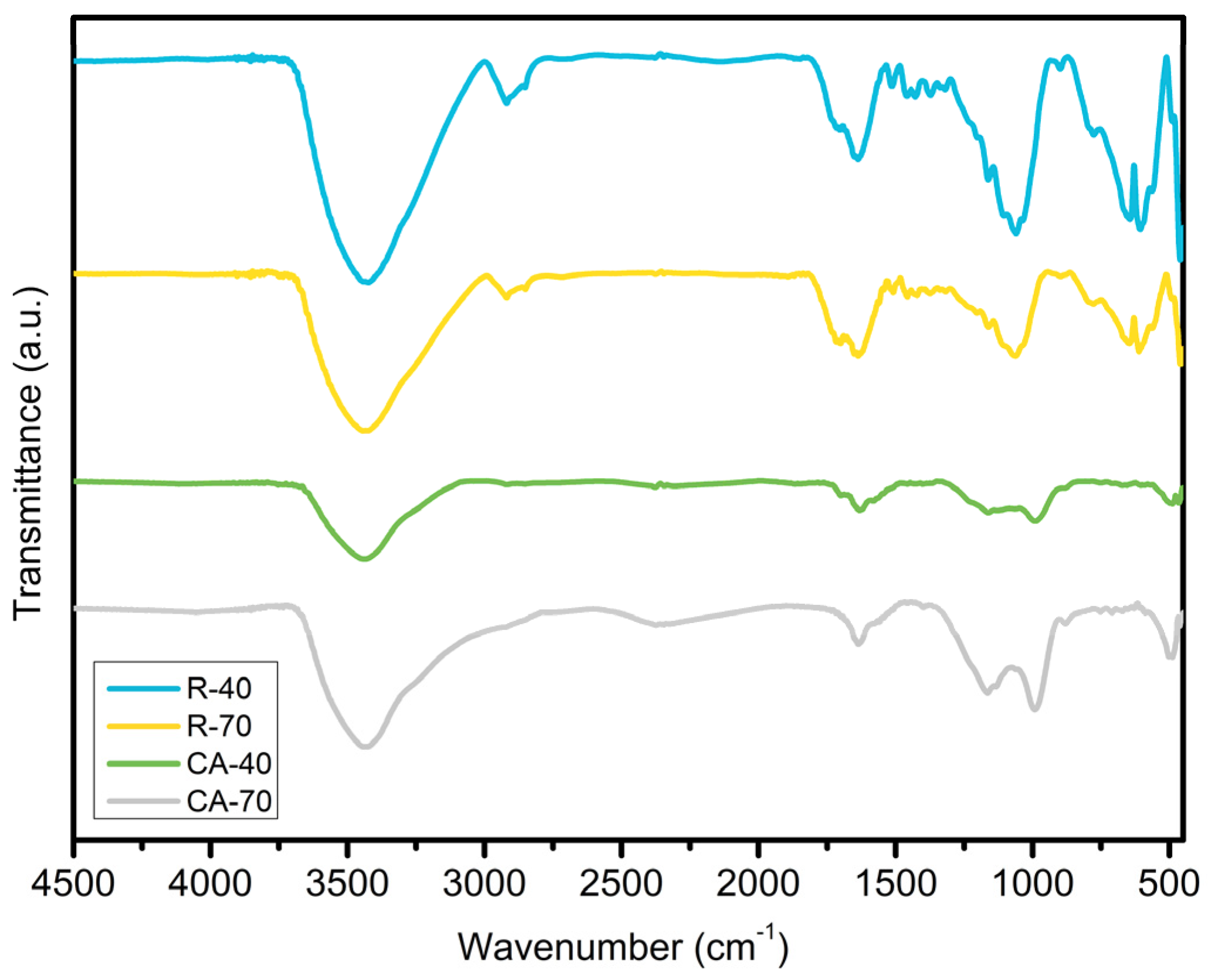

Figure 5 shows the FTIR spectrum of the adsorbents R-40 (a), R-70 (b), AC-40 (c), and AC-70 (d). All samples have similar absorption bands, related to the lignocellulosic constituents. In general, these bands are expected since they are often found in agricultural residues that are composed of hemicellulose, lignin, cellulose, proteins, hydrocarbons, lipids, simple sugars, and amide [54]. The band at approximately 3000–3700 cm⁻¹ is attributed to the stretching of O-H bonds (phenols, alcohols, and carboxylic acids) and the stretching of the -NH amine groups of the lignin [55]. The two bands at 2913–2923 and 2849 cm⁻¹ are related to the symmetric and asymmetric stretching of the -CH₃ and -CH₂ groups or the –C–OH group [56,57]. In both activated carbons, there was a decrease in the intensity of these peaks, suggesting a lower amount of these groups on the surface compared to the treated samples. The band around 1717 cm⁻¹ is characteristic of the C=O stretching of the esters, ketones, and carboxylic groups of the hemicellulose and lignin [56,58,59,60] followed by the C=C bond stretching in aromatic rings around 1637 cm⁻¹ [56]. The intense absorption band at 1060 cm⁻¹ is attributed to the C-O-C of the β–glycosidic linkages stretch of the lignocellulosic compounds [58,61] The peaks around 610 cm⁻¹ corresponds to the C-H group of the aliphatic and aromatic or the C-N groups [62,63,64]. In general, all the bands were more intense in the sample treated with acid at the lower concentration. This suggests that the higher concentration of the phosphoric acid used in the treatments causes a change in the groups present on the surface of the adsorbents that are visualized by the displacement of some absorption bands in the activated carbons.

The morphology of the samples was investigated by SEM and Figure 6 shows the images of the R-40, R-70, AC-40, and AC-70 adsorbents at 200× magnification. It is observed that there is a degradation of the fibrous structures caused by the acid and a significant difference between the treated samples and the activated carbons. Among the treated samples, the R-70 showed the appearance of cavities, which were intensified by the pyrolysis process. The sample AC-70 presented a rougher surface with irregularities in the structure. It is also noticed that there is a decrease in the particle size of the sample when comparing the treated samples with the produced activated carbons.

Table 1 shows the textural characteristics of the activated carbons. The increase in surface area (S_BET) and pore volume (P_v) of the AC-70 suggests the efficiency of H₃PO₄ activation and pyrolysis [43,65]. The pore diameter (P_D) values obtained for the AC-40 and AC-70 were 3.73 nm and 3.25 nm, respectively, which implies that both adsorbents can be applied in the removal of the MB molecule (0.59 × 1.38 nm) [49,66]. The high yield percentage (Y) of the AC-40 and AC-70 is related to the creation of phosphate film, which can protect the internal carbon structure, preventing the material from being excessively carbonized and limiting the formation of tar during pyrolysis [46].

3.2. Adsorption Experiments

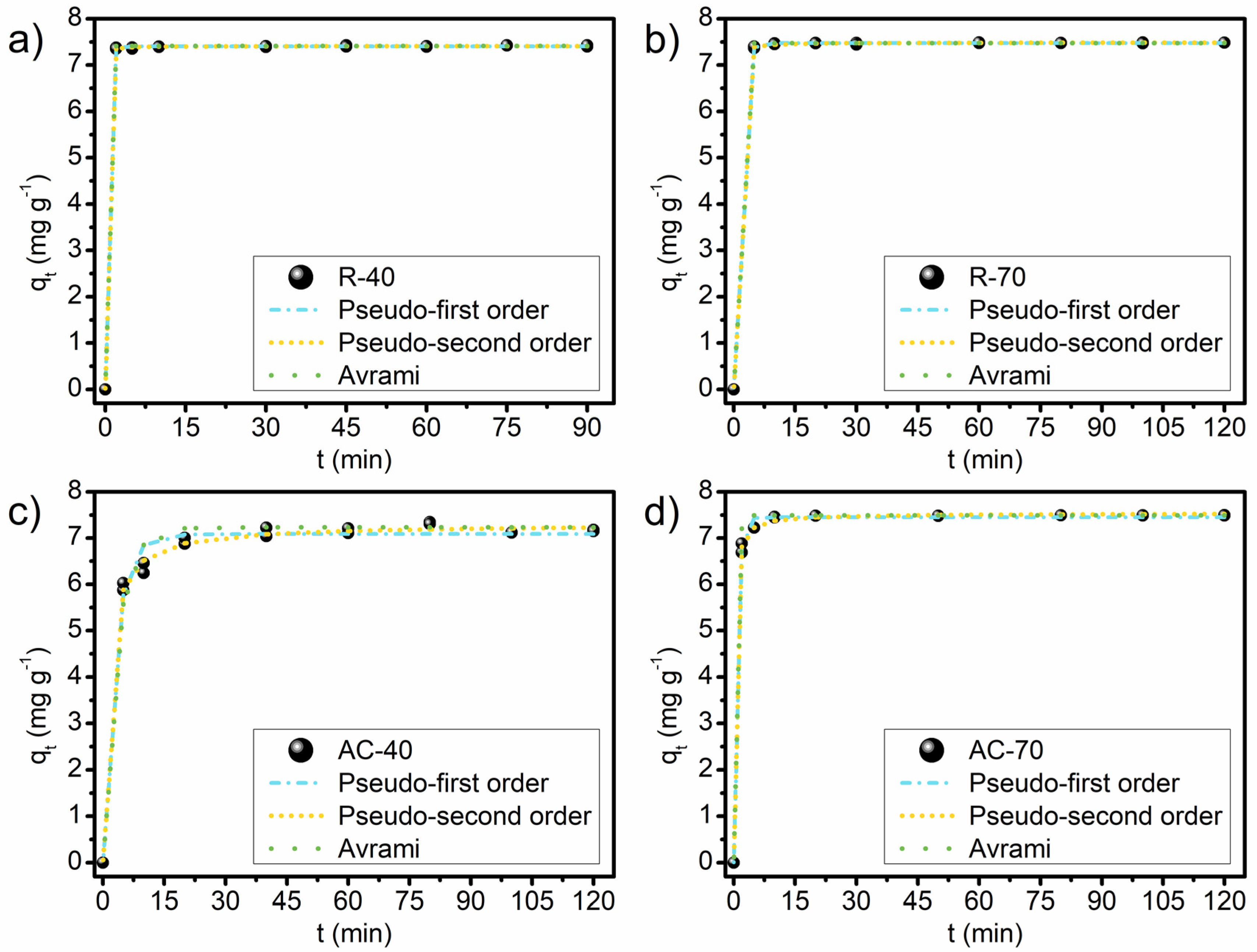

The kinetic adjustment of the experimental data was obtained for the Pseudo-first-order, Pseudo-second-order, and Avrami models. The faster adsorption was detected in the first moments of contact between the adsorbents and the MB molecules (Figure 7). A rapid adsorption is an important feature of adsorbents for practical application in wastewater treatment [67,68]. The kinetic results indicate that the increase of contact time between the solid and liquid phases increases MB adsorption. The R-40, R-70, AC-40, and AC-70 reached the equilibrium in 2, 5, 20, and 10 min, respectively. The increase in the equilibrium time for the activated carbon can be attributed to structural characteristics, such as the average pore diameter after pyrolysis. The mass transfer in the pores of the adsorbents is generally controlled by their size [67]; i.e., the larger the pore size, the smaller the contribution of resistance to the intraparticle diffusion in the control of adsorption kinetics [67]. Table S1 shows the parameters obtained through the application of the kinetic models for the experimental data.

Pseudo-first-order, Pseudo-second-order, and Avrami models showed higher correlation coefficients (R²) and lower values for ARE and X² for all adsorbents. The Pseudo-first-order model indicates that the adsorption of MB occurs predominantly through physical mechanisms [69,70]. The empty sites are proportional to the occupancy rate of the adsorption sites [71].

The Pseudo-second-order model suggests that electrons are shared or exchanged between the surface of the adsorbents and the MB molecules [72]. This indicates that the interaction of the surface of the R-40, R-70, AC-40, and AC-70 with the MB molecules occurs due to the delocalized electrons on the basal planes of the adsorbent and the free electrons of the aromatic rings of the MB molecules [73]. In this study, the Avrami model is adequate to describe all the kinetic experimental data, assuming multiple kinetic orders during the process. The Avrami exponent (n) is a fractional number related to the possible changes in the adsorption mechanism during the process [74]. The adsorption mechanism could follow multiple kinetic orders that are changed during the adsorption process [75]. A better interpretation of the adsorption mechanisms can be obtained in the plots of q_t versus t^1/2 (Figure 8). All the adsorbents showed a multilinearity of the lines. This implies that the adsorption process involves more than one kinetic stage, which is in agreement with the good fit obtained with the Avrami kinetic model [72,76]. The R-40 and R-70 exhibited two stages: the first can be attributed to instant adsorption, with the mass transfer of the dye to the surface of the adsorbent particles [77]; the second stage can be defined as the final stage of equilibrium. For these adsorbents, it is observed that the resistance to intraparticle diffusion is practically non-existent and the dye is adsorbed on the external surface. The AC-40 and AC-70 showed three stages of kinetic mechanisms: external adsorption, gradual diffusion within the pores, and the equilibrium stage. In the equilibrium stage, the diffusion within the particles decreases due to extremely low concentrations (less than 3 mg L⁻¹) of the adsorbate in the solution [75,76,78].

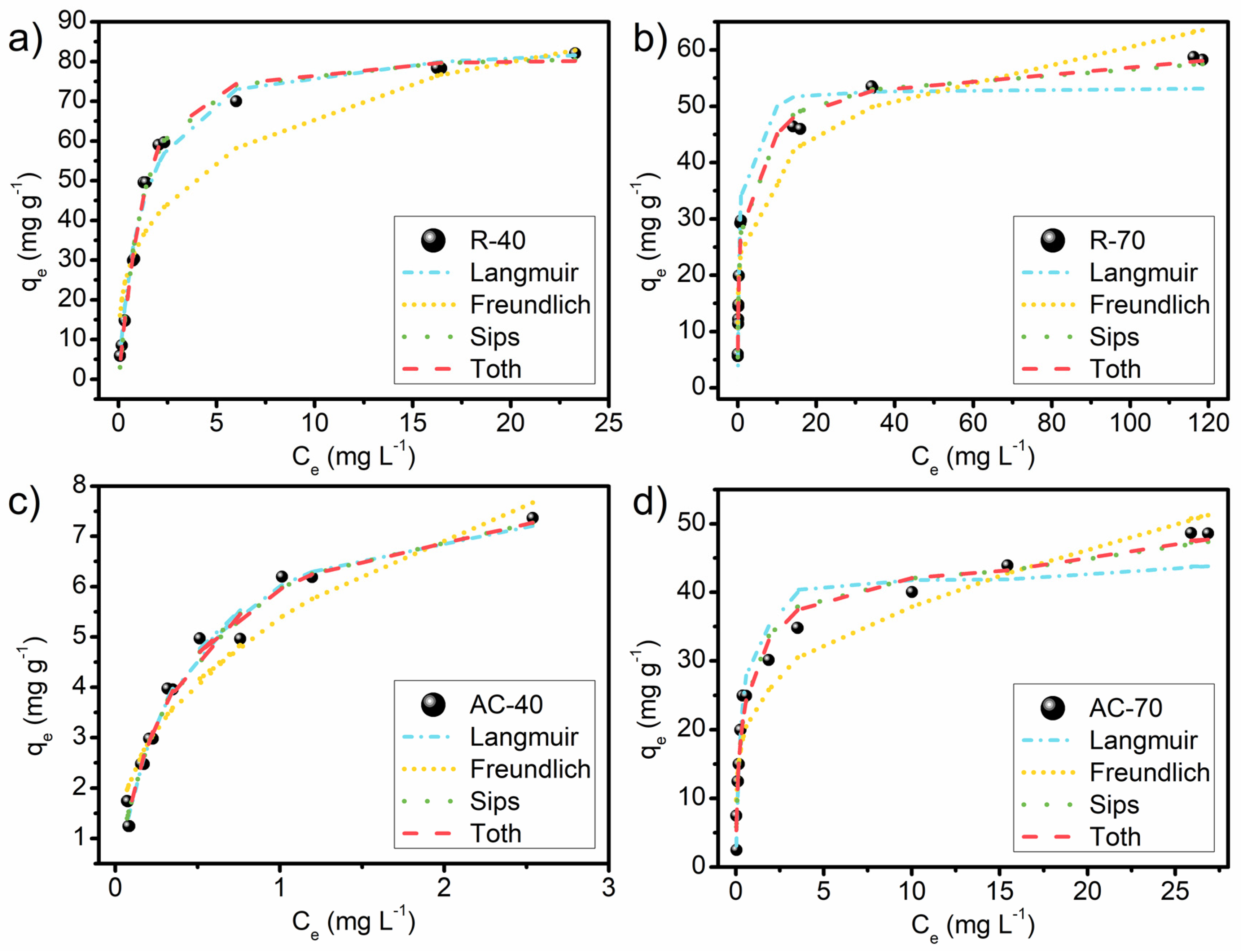

The results of the adsorption equilibrium data of the MB dye for the R-40, R-70, AC-40, and AC-70 at 25 °C are shown in Figure 9, and the adjustments of Langmuir, Freundlich, Sips, and Tóth models are presented in Table S2. The shape of the equilibrium curves indicates a favorable adsorption process from all adsorbents; i.e., the increase of the adsorption capacity and the increase of the adsorbate concentration are proportionate. This behavior occurs when the adsorbent-adsorbate interaction has a great affinity [28,69]. The profile of the curve of the AC-40 and R-40 can be also classified as a Langmuir type (L) [79]. The L type initially tends to curve downwards due to a decrease in the availability of active sites, indicating that the molecules are adsorbed on the surface of the adsorbent. For the AC-70 and R-70, the shape of the curve can be classified as a High-affinity type (H) due to an initial vertical part of the isotherm curve, suggesting that adsorption is high even at low initial MB concentrations.

Table S2 describes that the best adjustment of the experimental data occurred with the Tóth model for all the adsorbent materials. This is verified by the highest values of R² and lowest values of X² and ARE. The d values being close to one for the R-40 and AC-40 indicate that MB adsorption is highly homogeneous [80]. For the R-70 and AC-70, the d values were not close to one, implying a heterogeneous adsorption [81]. This can be explained by the larger amount of H₃PO₄ used in the samples of the R-70 and AC-70. The b values obtained for the R-70 and AC-70 were 20.96 and 7.55, higher than the R-40 (b = 0.60) and AC-40 (b = 2.85), which indicates a better affinity with the MB molecules. Regarding the b values obtained in the literature from the MB adsorption, it is worth mentioning the zeolite 13× [80]; the activated carbon from Delonix regia [74]; and the zeolite from rice husk ash [82] that obtained 0.93, 0.06, and 0.47 respectively. This corroborates the interpretation of the high affinity between the MB molecules and the adsorbents produced from the LM.

The AC-40, AC-70, and R-70 also presented significant adjustments with the Sips model and the m values (m < 1), demonstrating the increase of heterogeneity from the R-70 and AC-70, in agreement with the d values obtained by the Tóth model. Concerning the AC-40, aside from having the adjustments mentioned above, the great fit of the Langmuir model suggests that it can also be used to describe its adsorption process in accordance with the d values. This model proposes that the MB dye molecules form an adsorbate monolayer on the material surface, filling the pores [67,72,83]. In most cases, more than one model can explain the adsorption process [84].

Table 2. Comparison of different adsorbents for removal of MB dye.

Adsorbents from Biomass	Chemical Activation	C0 (mg L−1)	Temperature (°C)	Contact Time (h)	mads/Vsol (g L−1)	pH	qmax (mg g−1)
R-40	H3PO4	25–360	25	2	4	7	80.79
R-70	H3PO4	25–360	25	2	4	7	70.21
AC-40	H3PO4	25–150	25	2	20	7	8.20
AC-70	H3PO4	50–1000	25	2	20	7	53.32
LM [28]	-	150	-	2	4–32	7	28.70
LM + NaOH [28]	NaOH	150	-	1	4–32		67.19
Carica papaya wood [85]	-	10–50	-	2.3	2	10	32.25
Coconut shell [86]	H2SO4	25–200	30	3	1	8	50.60
AC—Corncob [87]	H3PO4	300–1500	-	5	2	-	112.00
Mango seedkernel poder [88]	H2SO4	100	30	0.5	4	8	58.08
Mucuma beans [89]	HCl + HNO3	100	25	-	5	5	19.28
Mucuma beans [89]	NaOH	100	25	-	5	7,8	19.93
Orange tree sawdust [90]	NaOH	40–100	20	3	1	6	78.74
Parthenium hysterophorus [91]	H3PO4	50–250	26	1.5	4	7	88.49
Parthenium hysterophorus [91]	H2SO4	50–250	26	1.5	4	7	39.68
Seed husk of Timbaúva [92]	-	10–50	25	-	20	-	3.62
Sugarcane Bagasse [93]	-	10–50	30	1.5	1.5	6	1.83
Waste fruits of Rapanea ferrugínea [8]	H2SO4	20–120	25	2	1.2	7	33.00
AC- waste of sunflower oil [94]	H2SO4	0–250	25	24	2	6	16.43
AC- Coconut fiber [95]	ZnCl2	60–100	30	1.6	5	8	15.49
AC- Apricot stones [96]	H3PO4 + HNO3	5–100	25	2	0.1	5	36.68

AC = Activated Carbon.

shows a comparison of the q_max values of the adsorption of the MB dye for the adsorbents obtained in this work with the values similar studies reported. The values of q_max for the R-40, R-70, AC-70, and AC-40 were 80.79 mg g⁻¹, 70.21 mg g⁻¹, 53.32 mg g⁻¹, and 8.2 mg g⁻¹, respectively. For all adsorbents, the dye removal efficiency was about 99%. These results suggest that the LM was efficient in MB wastewater treatment. Moreover, these results are in agreement with the previous study where the LM activated with NaOH obtained a q_max of 67.19 mg g⁻¹, compared to the 28.8 mg g⁻¹ for the LM without treatment [28]. The higher q_max for the LM adsorbent activated with H₃PO₄ agrees with other reports, as can be seen in Table 2.

Moreover, the lower values of q_max obtained for the AC-40 and AC-70 may be related to the carbon pores not being completely unobstructed and being less accessible than the surfaces of the R-40 and R-70. This result indicates a substantial increase in the adsorption of MB when the LM was treated with H₃PO₄. The highest value of the maximum capacity of adsorption in this work was reached with the R-40 sample, confirming that even in smaller percentages H₃PO₄ is efficient for the chemical activation of the LM. It is important to mention that the non-use of pyrolysis in the production process of the LM adsorbent reduces energy costs, and, consequently, financial costs. The adsorbent R-40 proved to be an excellent low-cost adsorbent for removing the MB dye in aqueous solutions, in addition to being a great option for using LM straw agricultural waste.

3.3. Adsorption Mechanism

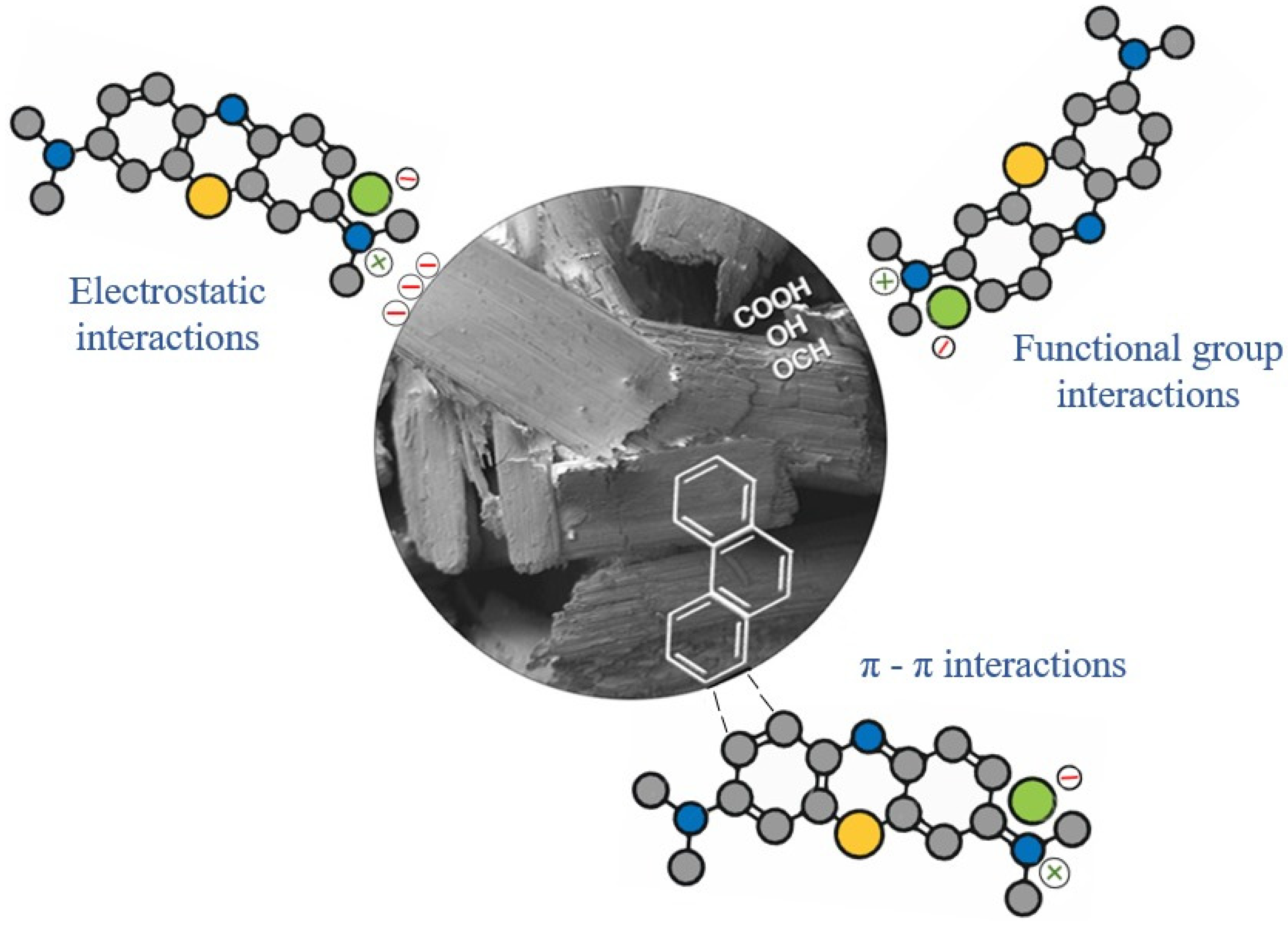

The adsorption process is very complex and can involve more than one mechanism. For this mechanism, it is important to understand the basic principles of the adsorption process [97]. Figure 10 suggests the mechanisms that may be involved in the adsorption of MB using treated ryegrass straw (R-40, R-70) and activated carbons (AC-40, AC-70). In Figure 10, the possible interactions that occur between the MB molecules (cationic dye) and the adsorbents produced can be observed. Three types of interactions are proposed: electrostatic, π-π bonds, and interactions with the functional groups present on the surface of the adsorbents [56,98]. Electrostatic interactions can occur with the attraction between the cations of the MB and the surface of the adsorbent when the adsorbent has a negative charge. This is one of the main mechanisms reported for the adsorption of MB by bioadsorbents [99,100]. π-π interactions can occur due to the presence of the aromatic rings of lignin in the structures of the adsorbents and MB.

From the FTIR analysis, some functional groups present in the adsorbents (-OH, -COOH, C=O, -OCH₃) were found to be derived from the main biomass component (cellulose, hemicellulose, and lignin). These groups may have interacted with hydrogen bonds as well as Van der Waals forces [56,100]. Among the functional groups, it was observed that the adsorbent with the highest amount of OH groups on the surface (R-40) showed the best adsorption capacity of the MB dye. This suggests that the predominant mechanism in this study was the interaction between the functional groups. The OH group interaction has already been observed in other studies. Cusioli et al. [100] reported the interaction of the OH group by hydrogen bonding between the aromatic N of MB and the H of the hydroxyl group for the adsorption of MB on soybean hulls. Al-Ghouti and Sweleh [98] and Manna et al. [101] stated that both hydrogen bonds, mainly those involving -OH groups, and electrostatic interactions play an important role in the MB adsorption by lignocellulosic materials.

4. Conclusions

The H₃PO₄ was efficient in the chemical activation of the LM straw, causing the degradation of hemicellulose and cellulose. Pyrolysis was effective in the production of activated carbons, producing the AC-40 and AC-70 with a predominantly amorphous structure and with a S_BET of 14.5 m² g⁻¹ and 68.2 m² g⁻¹, respectively. All the adsorbents have a good interaction with the MB molecule, reaching the equilibrium time in less than 20 min and with a removal efficiency of about 99%. The best kinetic adjustment for the adsorption of the MB dye was obtained from the Avrami model, showing that the kinetic experimental data assumes multiple kinetic orders during the adsorption process. The Tóth model showed the best isotherm adjustment for all the adsorbents produced. Chemical activation with 40% H₃PO₄ in the LM straw showed the highest adsorption capacity (80.79 mg g⁻¹) of the MB dye. The good and fast performances of the materials produced in this work suggests that ryegrass is an excellent precursor for the adsorbent materials to be applied in the treatment of colored effluents contaminated with MB.
