Next Article in Journal
Plasma Oxidation Printing into DLC and Graphite for Surface Functionalization
Previous Article in Journal
Novel Tubular Carbon Membranes Prepared from Natural Rattans
Article Menu

Export Article

Open AccessArticle

Rice Husk-Derived High Surface Area Nanoporous Carbon Materials with Excellent Iodine and Methylene Blue Adsorption Properties

1
International Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science (NIMS), 1-1 Namiki, Ibaraki Tsukuba 305-0044, Japan
2
Amrit Science Campus, Tribhuvan University, Kathmandu 44613, Nepal
3
Graduate School of Frontier Sciences, The University of Tokyo, Kashiwa, Chiba 277-0827, Japan
*
Author to whom correspondence should be addressed.
Received: 26 January 2019 / Revised: 16 February 2019 / Accepted: 19 February 2019 / Published: 22 February 2019
  |
PDF [2519 KB, uploaded 22 February 2019]
  |

Abstract

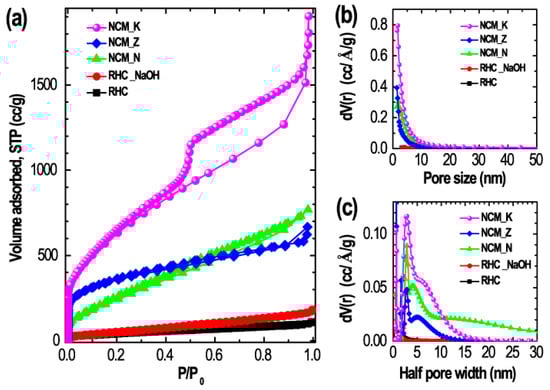

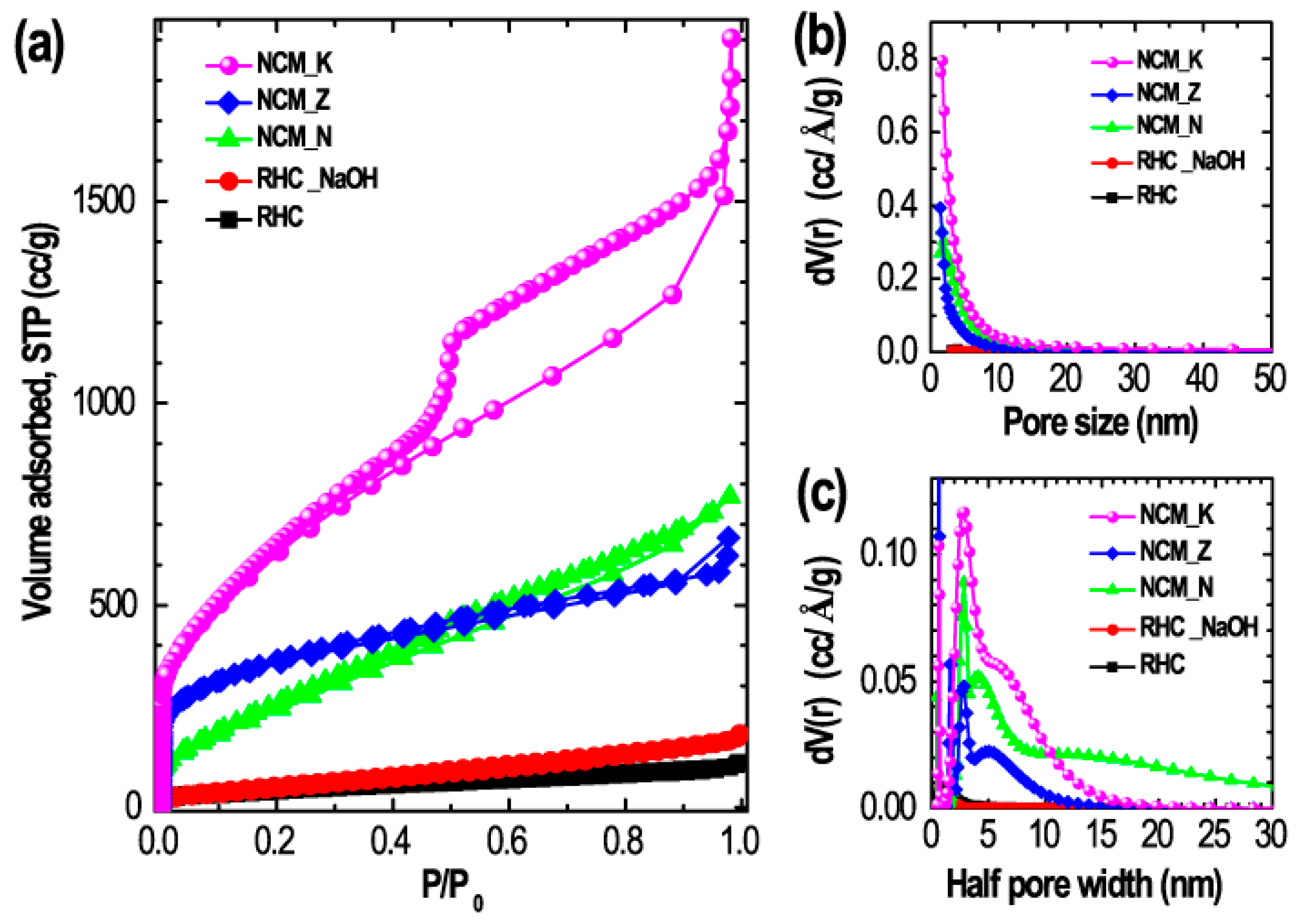

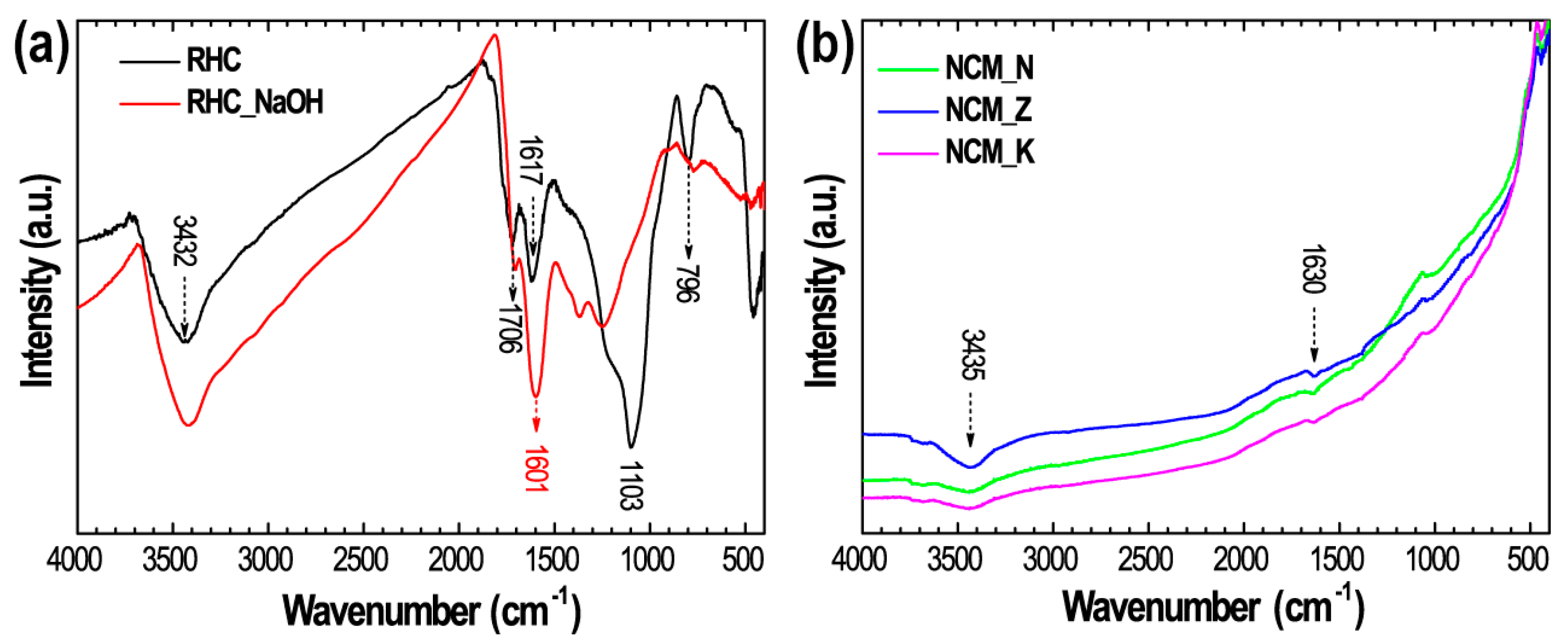

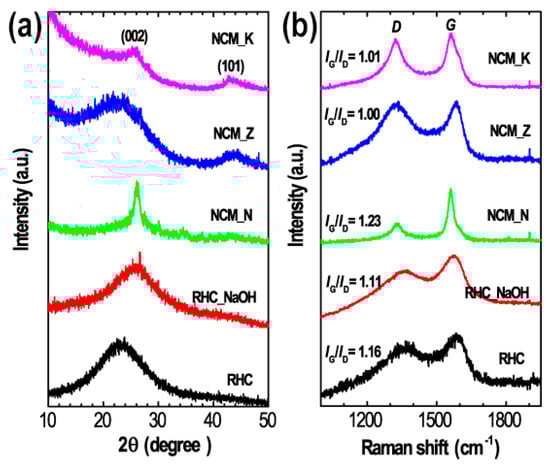

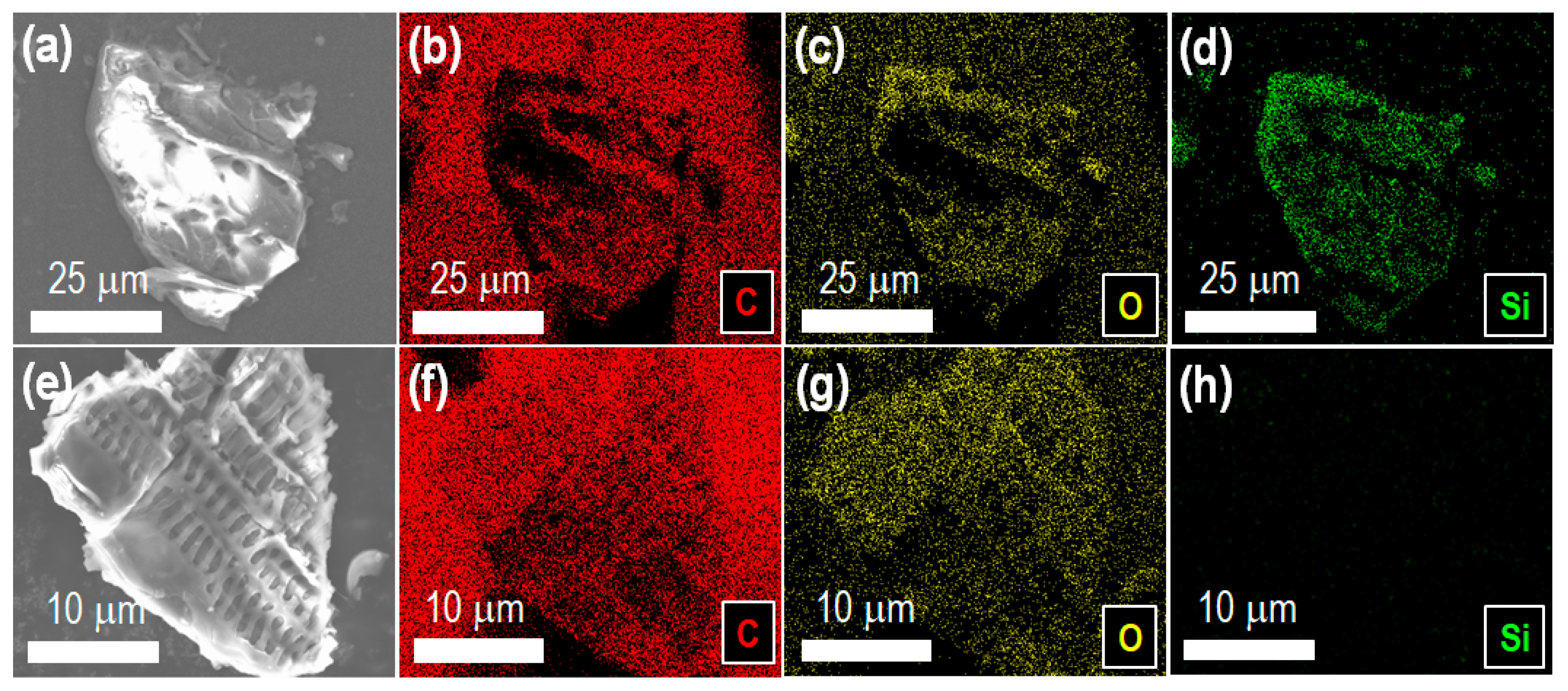

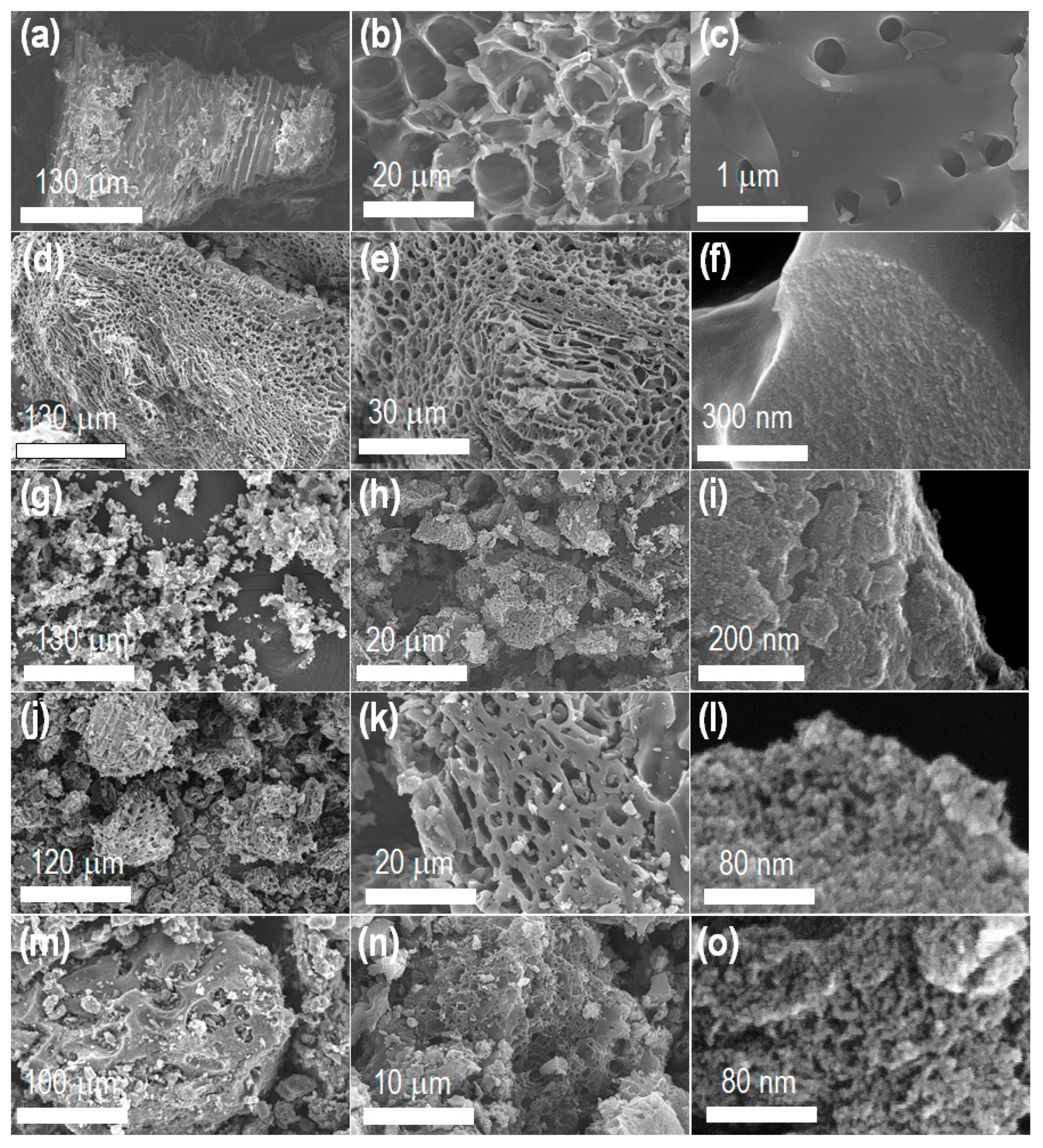

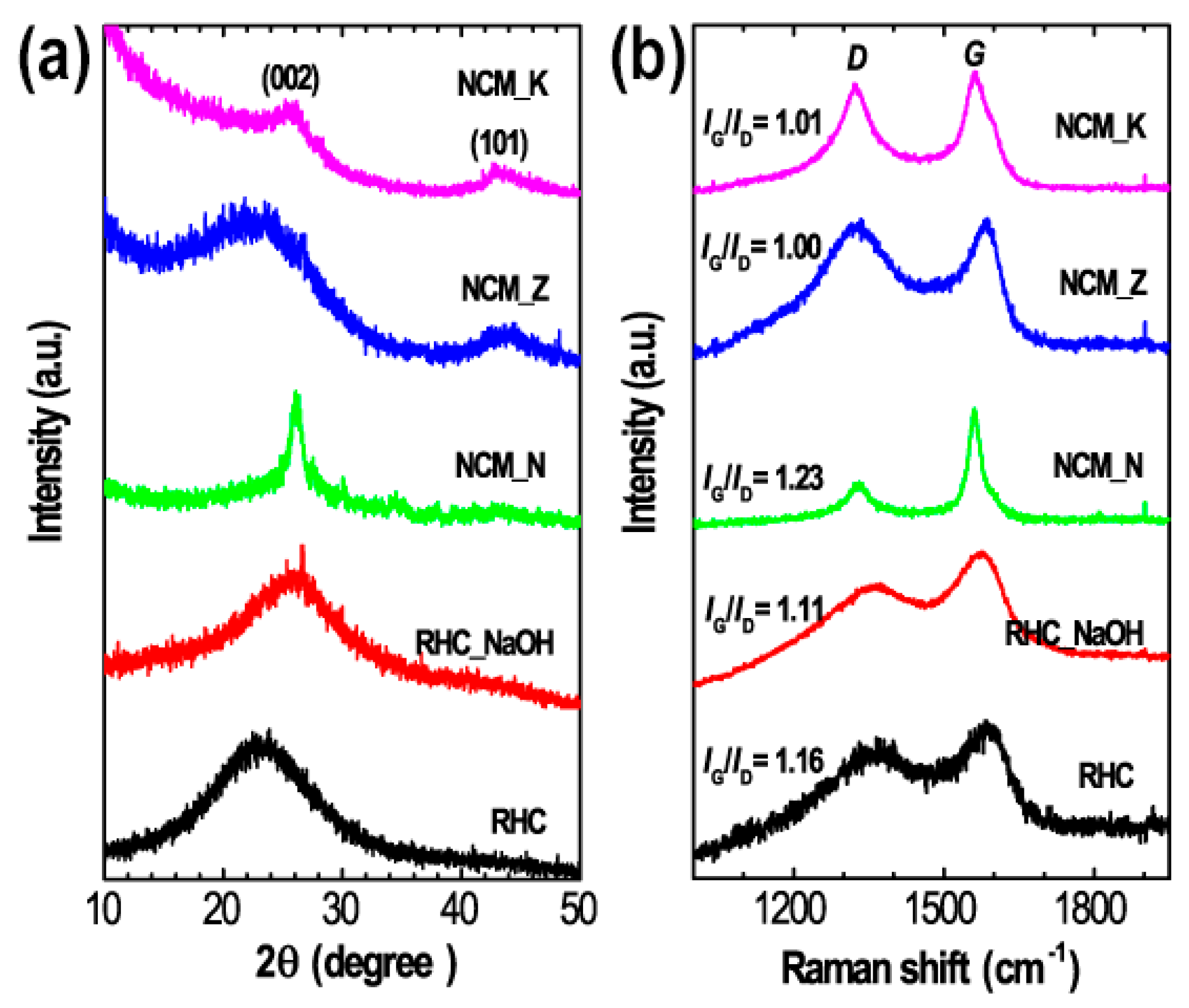

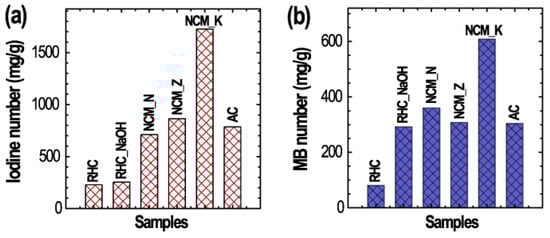

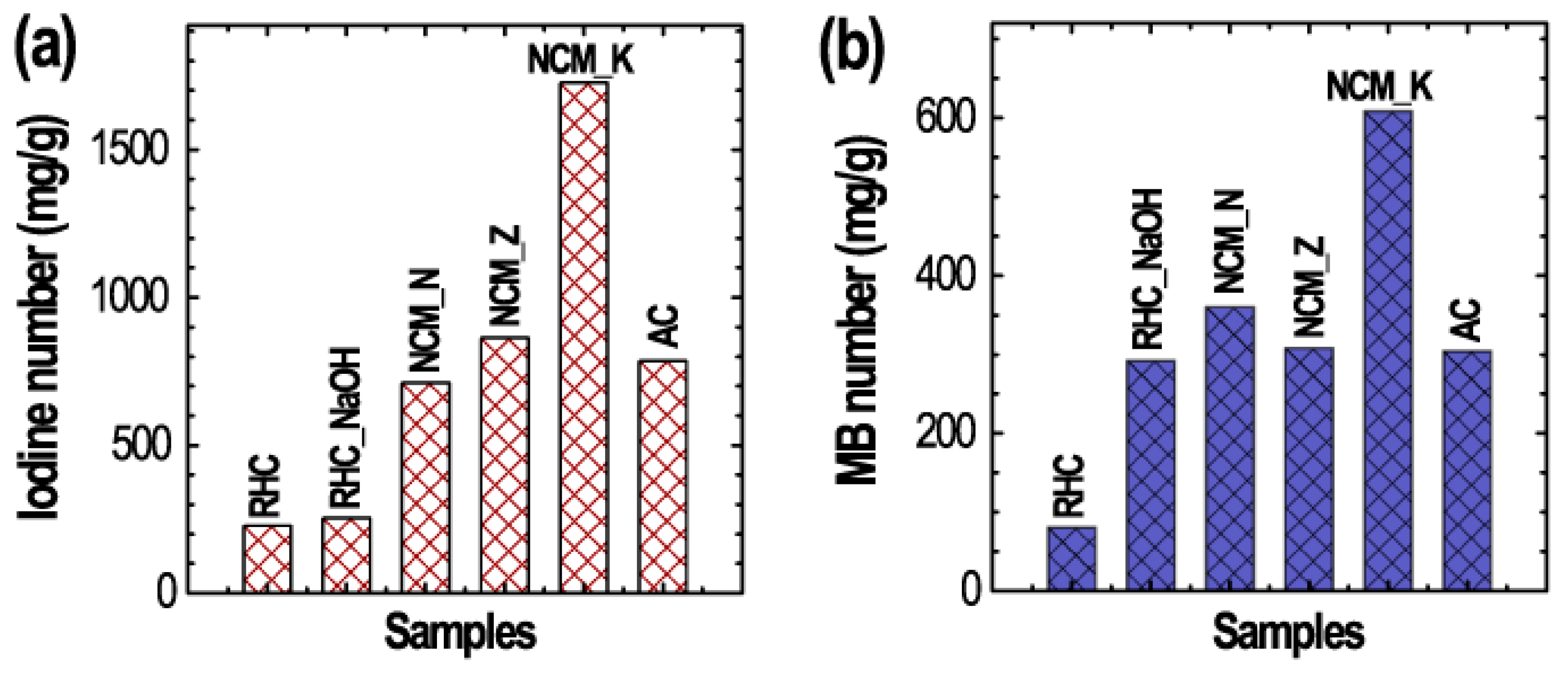

Iodine and methylene blue adsorption properties of the high surface area nanoporous carbon materials derived from agro-waste and rice husk is reported. Rice husk was pre-carbonized at 300 °C in air followed by leaching out the silica nanoparticles by extraction with sodium hydroxide solution. The silica-free rice husk char was mixed with chemical activating agents sodium hydroxide (NaOH), zinc chloride (ZnCl2), and potassium hydroxide (KOH) separately at a mixing ratio of 1:1 (wt%) and carbonized at 900 °C under a constant flow of nitrogen. The prepared carbon materials were characterized by scanning electron microscopy (SEM), Fourier transformed-infrared spectroscopy (FT-IR), powder X-ray diffraction (pXRD), and Raman scattering. Due to the presence of bimodal micro- and mesopore structures, KOH activated samples showed high specific surface area ca. 2342 m2/g and large pore volume ca. 2.94 cm3/g. Oxygenated surface functional groups (hydroxyl, carbonyl, and carboxyl) were commonly observed in all of the samples and were essentially non-crystalline porous particle size of different sizes (<200 μm). Adsorption study revealed that KOH activated samples could be excellent material for the iodine and methylene blue adsorption from aqueous phase. Iodine and methylene blue number were ca. 1726 mg/g and 608 mg/g, respectively. The observed excellent iodine and methylene blue adsorption properties can be attributed to the well-developed micro- and mesopore structure in the carbon material. This study demonstrates that the agricultural waste, rice husk, and derived nanoporous carbon materials would be excellent adsorbent materials in water purifications. View Full-Text
Keywords: rice husk; nanoporous carbon materials; chemical activation; iodine adsorption; methylene blue adsorption rice husk; nanoporous carbon materials; chemical activation; iodine adsorption; methylene blue adsorption
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Shrestha, L.K.; Thapa, M.; Shrestha, R.G.; Maji, S.; Pradhananga, R.R.; Ariga, K. Rice Husk-Derived High Surface Area Nanoporous Carbon Materials with Excellent Iodine and Methylene Blue Adsorption Properties. C 2019, 5, 10.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
C EISSN 2311-5629 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
