# An Analytical Solution for Unsteady Laminar Flow in Tubes with a Tapered Wall Thickness

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results

## 4. Summary and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

## References

- Lowe, M.J.; Cawley, P. Long Range Guided Wave Inspection Usage—Current Commercial Capabilities and Research Directions; Department of Mechanical Engineering, Imperial College London: London, UK, 2006; pp. 1–40. [Google Scholar]
- Tennyson, R.C.; Morison, W.D.; Miesner, T. Pipeline Integrity Assessment Using Fiber Optic Sensors. In Pipelines 2005: Optimizing Pipeline Design, Operations and Maintenance in Today’s Economy, Proceedings of the ASCE Pipeline Division Specialty Conference (Pipelines 2005), Houston, TX, USA, 21–24 August 2005; American Society of Civil Engineers: Reston, VA, USA, 2005; pp. 803–817. [Google Scholar]
- Kishawy, H.A.; Gabbar, H.A. Review of pipeline integrity management practices. Int. J. Press. Vessel. Pip.
**2010**, 87, 373–380. [Google Scholar] [CrossRef] - Ghidaoui, M.S.; Zhao, M.; McInnis, D.A.; Axworthy, D.H. A Review of Water Hammer Theory and Practice. Appl. Mech. Rev.
**2005**, 58, 49–76. [Google Scholar] [CrossRef] - Montgolfier, J.-M. Note sur le bélier hydraulique: Et sur la maniere d’en calculer les effets. J. Mines
**1803**, 13, 42–51. [Google Scholar] - Whitehurst, J. Account of a machine for raising water, executed at Oulton, in Cheshire, in 1772. In a letter from Mr. John Whitehurst to Dr. Franklin. Philos. Trans. (1683–1775)
**1775**, 65, 277–279. [Google Scholar] - Young, B.W. Design of Hydraulic Ram Pump Systems. Proc. Inst. Mech. Eng. Part A J. Power Energy
**1995**, 209, 313–322. [Google Scholar] [CrossRef] - Pan, M.; Johnston, N.; Robertson, J.; Plummer, A.; Hillis, A.; Yang, H. Experimental Investigation of a Switched Inertance Hydraulic System With a High-Speed Rotary Valve. J. Dyn. Syst. Meas. Control.
**2015**, 137, 121003. [Google Scholar] [CrossRef] - Yudell, A.C.; Van de Ven, J.D. Soft switching in switched inertance hydraulic circuits. Fluid Power Sys. Tech.
**2016**, 50060, V001T01A040. [Google Scholar] - Yuan, C.; Pan, M.; Plummer, A. A Review of Switched Inertance Hydraulic Converter Technology. BATH/ASME 2018 Symp. Fluid Power Motion Control
**2018**, 51968, V001T01A013. [Google Scholar] [CrossRef] - Wiens, T.K. Analysis and Mitigation of Valve Switching Losses in Switched Inertance Converters. ASME/BATH 2015 Symp. Fluid Power Motion Control
**2015**. [Google Scholar] [CrossRef] - Johnston, N.; Pan, M.; Kudzma, S.; Wang, P. Use of Pipeline Wave Propagation Model for Measuring Unsteady Flow Rate. J. Fluids Eng.
**2014**, 136, 031203. [Google Scholar] [CrossRef] - Johnston, D.N. Efficient methods for numerical modelling of laminar friction in fluid lines. J. Dyn. Syst. Meas. Control Trans. ASME
**2006**, 128, 829–834. [Google Scholar] [CrossRef] - Wiens, T.; Der Buhs, J.V.; Der Buhs, J.W.V. Transmission Line Modeling of Laminar Liquid Wave Propagation in Tapered Tubes. J. Fluids Eng.
**2019**, 141, 101103. [Google Scholar] [CrossRef] - Krus, P.; Weddfelt, K.; Palmberg, J.-O. Fast Pipeline Models for Simulation of Hydraulic Systems. J. Dyn. Syst. Meas. Control.
**1994**, 116, 132–136. [Google Scholar] [CrossRef] - Muto, T.; Kinoshita, Y.; Yoneda, R. Dynamic Response of Tapered Fluid Lines: 1st Report, Transfer Matrix and Frequency Response. Bull. JSME
**1981**, 24, 809–815. [Google Scholar] [CrossRef] [Green Version] - Tahmeen, M.; Muto, T.; Yamada, H. Simulation of Dynamic Responses of Tapered Fluid Lines. JSME Int. J. Ser. B
**2001**, 44, 247–254. [Google Scholar] [CrossRef] [Green Version] - D’Souza, A.F.; Oldenburger, R. Dynamic Response of Fluid Lines. J. Basic Eng.
**1964**, 86, 589–598. [Google Scholar] [CrossRef] - Zielke, W. Frequency-Dependent Friction in Transient Pipe Flow. J. Basic Eng.
**1968**, 90, 109–115. [Google Scholar] [CrossRef] - Johnston, D.N. Numerical modelling of unsteady turbulent flow in smooth-walled pipes. Proc. Inst. Mech. Eng. Part C: J. Mech. Eng. Sci.
**2011**, 225, 1601–1613. [Google Scholar] [CrossRef] [Green Version] - Goodson, R.E.; Leonard, R.G. A Survey of Modeling Techniques for Fluid Line Transients. J. Basic Eng.
**1972**, 94, 474–482. [Google Scholar] [CrossRef] - Sutera, S.P.; Skalak, R. The history of Poiseuille’s law. Annu. Rev. Fluid Mech.
**1993**, 25, 1–20. [Google Scholar] [CrossRef] - Williams, T. The Circuit Designer’s Companion; Elsevier: Amsterdam, The Netherlands, 2004. [Google Scholar]
- Olver, F.W.J.; Olde Daalhuis, A.B.; Lozier, D.W.; Schneider, B.I.; Boisvert, R.F.; Clark, C.W.; Miller, B.R.; Saunders, B.V.; Cohl, H.S.; McClain, M.A. (Eds.) NIST Digital Library of Mathematical Functions. Available online: https://dlmf.nist.gov/ (accessed on 22 April 2021).
- Shcherbakov, M.V.; Brebels, A.; Shcherbakova, N.L.; Tyukov, A.P.; Janovsky, T.A.; Kamaev, V.A.E. A survey of forecast error measures. World Appl. Sci. J.
**2013**, 24, 171–176. [Google Scholar]

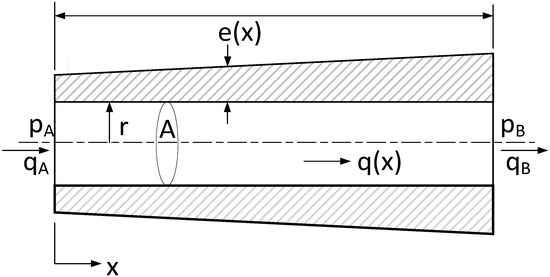

**Figure 1.**Flow through a circular tube with varying wall thickness and, consequently, varying wave propagation velocity. (Wall thickness and diameter are exaggerated.)

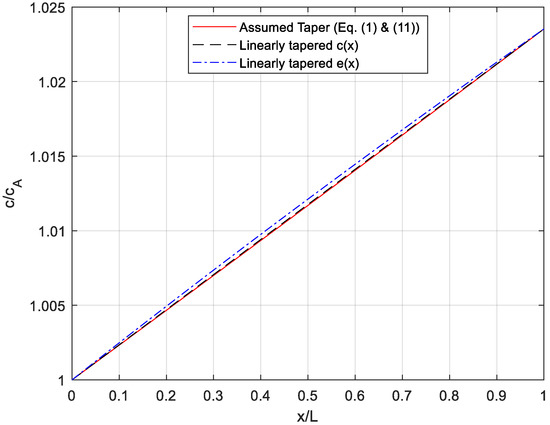

**Figure 2.**The wave speed profile assumed in Equation (11) results in a wave speed that approximates both the case where the wave speed varies linearly and the case where the tube’s wall thickness varies linearly, as long as the variation in wave speed is small relative to its absolute value. (This example was calculated for E = 200 GPa and K = 1 GPa).

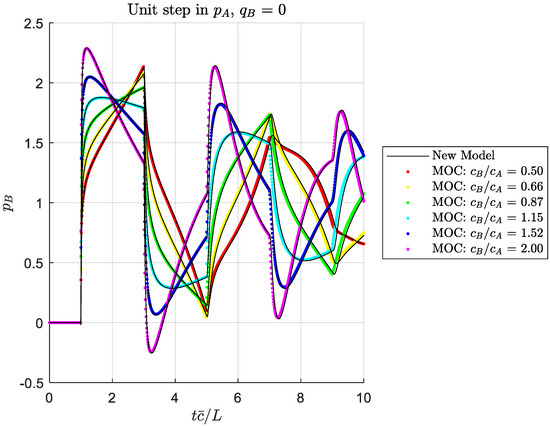

**Figure 3.**Outlet pressure response to a unit step in inlet pressure, for a closed exit, showing effect of taper ratio.

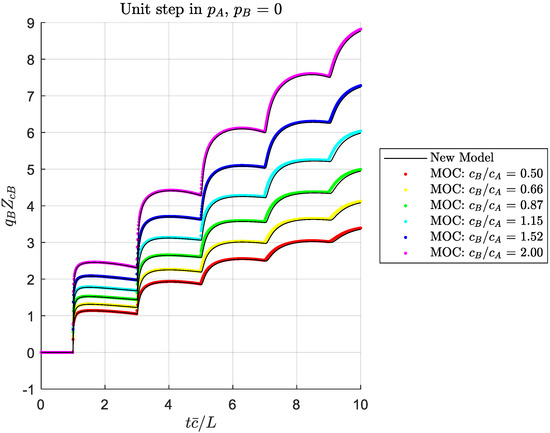

**Figure 4.**Outlet flow response to a unit step in inlet pressure, for an open exit, showing effect of taper ratio.

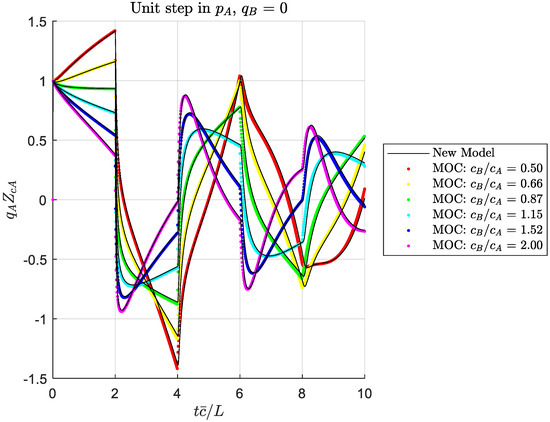

**Figure 5.**Inlet flow response to a unit step in inlet pressure, for a closed exit, showing effect of taper ratio.

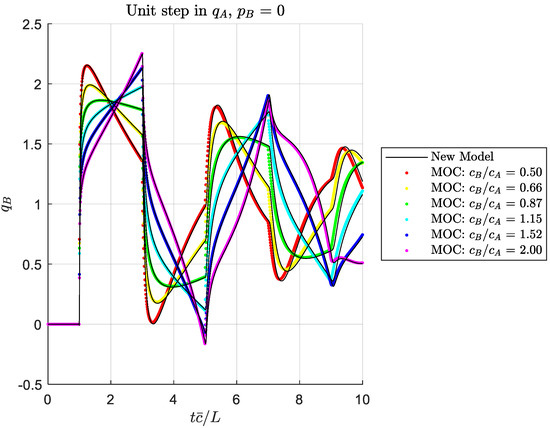

**Figure 6.**Outlet flow response to a unit step in inlet flow, for an open exit, showing effect of taper ratio.

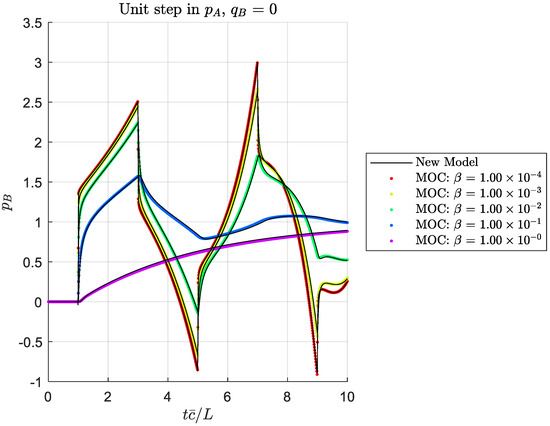

**Figure 7.**Outlet pressure response to a unit step in inlet pressure for a closed exit, showing the effect of dissipation number (for $\frac{{c}_{B}}{{c}_{A}}=0.5$).

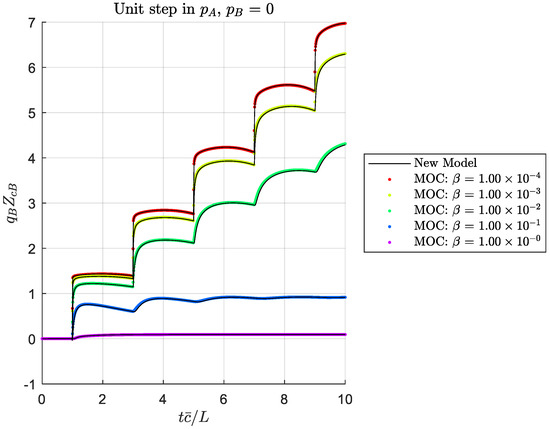

**Figure 8.**Outlet flow response to a unit step in inlet pressure for an open exit, showing the effect of dissipation number (for $\frac{{c}_{B}}{{c}_{A}}=0.5$).

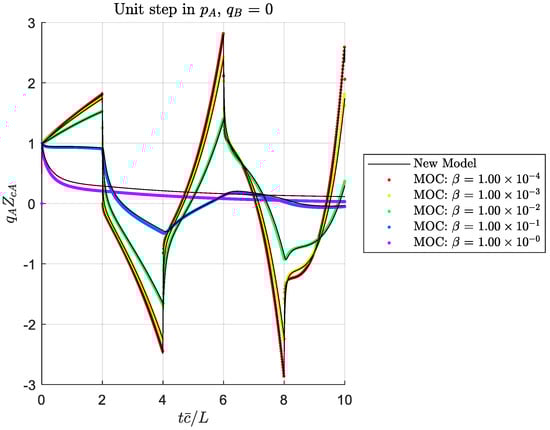

**Figure 9.**Inlet flow response to a unit step in inlet pressure for a closed exit, showing the effect of dissipation number (for $\frac{{c}_{B}}{{c}_{A}}=0.5$).

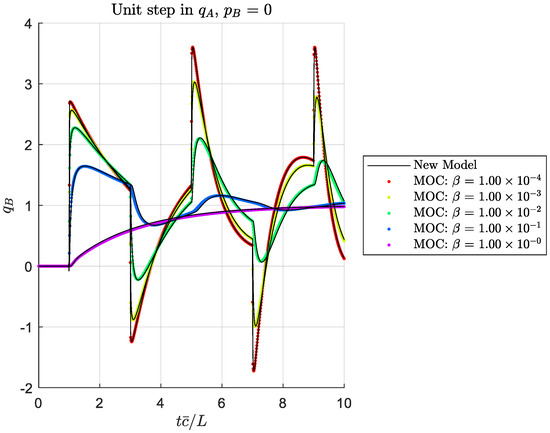

**Figure 10.**Outlet flow response to a unit step in inlet flow for an open exit, showing the effect of dissipation number (for $\frac{{c}_{B}}{{c}_{A}}=0.5$).

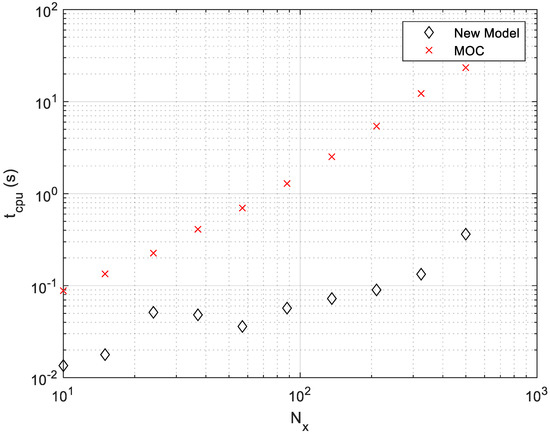

**Figure 11.**Computation time required to calculate a sample solution, as the time resolution is varied. For the MOC case, ${N}_{x}$ corresponds to the number of spatial grid points. For the frequency-domain case, the frequency points were selected to give the same time resolution as the MOC case.

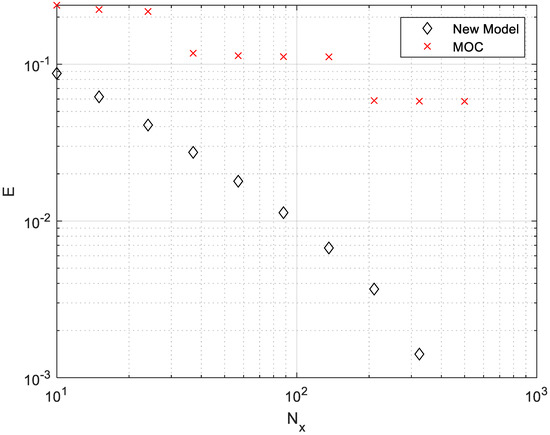

**Figure 12.**Normalized error for the same data as Figure 11.
