# A Hybrid Approach for Model Order Reduction of Barotropic Quasi-Geostrophic Turbulence

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Full Order Model (FOM)

#### 2.1. Quasi-Geostrophic (QG) Ocean Model

#### 2.2. Numerical Schemes

## 3. Galerkin Projection Based Reduced-Order Model (ROM-GP)

- POD basis construction:
- *
- Construct a data correlation matrix of the fluctuating part, $\mathbf{A}=\left[{\alpha}_{ij}\right]$ from the snapshots where ${\alpha}_{ij}={\int}_{\mathsf{\Omega}}{\omega}^{\prime}(x,y,{t}_{i}){\omega}^{\prime}(x,y,{t}_{j})dxdy$. Here, i and j refer to the snapshot indices.
- *
- Compute the optimal POD basis functions by solving $\mathbf{A}\mathsf{\Gamma}=\mathsf{\Gamma}\mathsf{\Lambda},$ where $\mathsf{\Lambda}=\mathrm{diag}[{\lambda}_{1},\dots ,{\lambda}_{Q}]$ is the diagonal eigenvalue matrix and $\mathsf{\Gamma}=[{\gamma}^{1},\dots ,{\gamma}^{N}]$ refers to right eigenvector matrix whose columns are eigenvectors of $\mathbf{A}$. In general, most of the subroutines for solving above eigenvalue equation give $\mathsf{\Gamma}$ with all of the eigenvectors normalized to unity.
- *
- Using the eigenvalues ${\lambda}_{1}\ge {\lambda}_{2}\ge \dots \ge {\lambda}_{N}$ stored in a descending order in the diagonal matrix, $\mathsf{\Lambda}$, define the orthogonal POD basis functions for the vorticity field as$$\begin{array}{c}\hfill {\varphi}_{k}(x,y)=\frac{1}{\sqrt{{\lambda}_{k}}}\sum _{n=1}^{N}{\gamma}_{n}^{k}{\omega}^{\prime}(x,y,{t}_{n}),\end{array}$$
- *
- Obtain the kth mode for the stream function, ${\phi}_{k}(x,y)$, utilizing the linear dependence between stream function and vorticity given by Equation (6): ${\nabla}^{2}{\phi}_{k}=-{\varphi}_{k}$.
- *
- Span the fluctuating component of the field variables into the POD modes by doing the separation of variable as$$\begin{array}{c}\hfill {\omega}^{\prime}(x,y,t)=\sum _{k=1}^{N}{a}_{k}\left(t\right){\varphi}_{k}(x,y),\end{array}$$$$\begin{array}{c}\hfill {\psi}^{\prime}(x,y,t)=\sum _{k=1}^{N}{a}_{k}\left(t\right){\phi}_{k}(x,y),\end{array}$$
- *
- Retain R modes where $R<<N$, such that these R largest energy containing modes correspond to the largest eigenvalues (${\lambda}_{1},{\lambda}_{2},\dots ,{\lambda}_{R}$). The resulting full expression for the field variables can be written as$$\begin{array}{c}\hfill \omega (x,y,t)=\overline{\omega}(x,y)+\sum _{k=1}^{R}{a}_{k}\left(t\right){\varphi}_{k}(x,y),\end{array}$$$$\begin{array}{c}\hfill \psi (x,y,t)=\overline{\psi}(x,y)+\sum _{k=1}^{R}{a}_{k}\left(t\right){\phi}_{k}(x,y).\end{array}$$

- Galerkin projection to obtain ROM:
- *
- Perform an orthogonal Galerkin projection by multiplying the governing equation with the POD basis functions and integrating over the domain $\mathsf{\Omega}$ [74], which yields the following dynamical system for ${a}_{k}$:$$\begin{array}{c}\hfill \frac{d{a}_{k}}{dt}={\zeta}_{k}+\sum _{i=1}^{R}{\eta}_{k}^{i}{a}_{i}+\sum _{i=1}^{R}\sum _{j=1}^{R}{\chi}_{k}^{ij}{a}_{i}{a}_{j},\end{array}$$$$\begin{array}{cc}\hfill {\zeta}_{k}& =\langle \frac{1}{\mathrm{Re}}{\nabla}^{2}\overline{\omega}+\frac{1}{\mathrm{Ro}}sin\left(\pi y\right)+\frac{1}{\mathrm{Ro}}\frac{\partial \overline{\psi}}{\partial x}-J(\overline{\omega},\overline{\psi}),{\varphi}_{k}\rangle ,\hfill \\ \hfill {\eta}_{k}^{i}& =\langle \frac{1}{\mathrm{Re}}{\nabla}^{2}{\varphi}_{i}+\frac{1}{\mathrm{Ro}}\frac{\partial {\phi}_{i}}{\partial x}-J(\overline{\omega},{\phi}_{i})-J({\varphi}_{i},\overline{\psi}),{\varphi}_{k}\rangle ,\hfill \\ \hfill {\chi}_{k}^{ij}& =\langle -J({\varphi}_{i},{\phi}_{j}),{\varphi}_{k}\rangle .\hfill \end{array}$$

## 4. Artificial Neural Network Based Non-Intrusive Reduced-Order Model (ROM-ANN)

## 5. Hybrid Modeling (ROM-GP + ROM-ANN) Based Reduced-Order Model (ROM-H)

**Step 1****(offline):**- Generate a set of basis functions ${\varphi}_{k}$ for $k=1,2,3,\dots ,R$ from the snapshot data obtained from FOM.
**Step 2****(offline):**- Apply Galerkin projection to compute the coefficients required for ROM-GP.
**Step 3****(offline):**- Train the ELM network using the resolved ROM-GP coefficients and true projections datasets.
**Step 4****(online):**- Compute ${a}_{k}$ by solving the following ordinary differential equations in reduced-order space:$$\begin{array}{c}\hfill \frac{d{a}_{k}}{dt}=(1-\eta ){r}_{k}^{\mathrm{GP}}+\eta {r}_{k}^{\mathrm{ANN}},\end{array}$$
**Step 5****(offline):**- Obtain the full order solution by transferring data from reduced-order space by using Equation (20) as a post-processing task if needed.

## 6. Numerical Results

#### 6.1. Case Setup Specifications for FOM Simulations

#### 6.2. Analysis of the Standard ROM-GP Method

#### 6.3. Assessments of the Prediction Performance of ROM-GP, ROM-ANN, ROM-H

#### 6.4. Sensitivity Analysis with Respect to ELM Neurons

#### 6.5. Time Series Evolution and Out-of-Sample Forecasting

## 7. Summary

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Sagaut, P. Large Eddy Simulation for Incompressible Flows: An Introduction; Springer Science & Business Media: Berlin, Germany, 2006. [Google Scholar]
- Wilcox, D.C. Turbulence Modeling for CFD; DCW Industries: La Canada Flintridge, CA, USA, 1998. [Google Scholar]
- Durbin, P.A. Some recent developments in turbulence closure modeling. Ann. Rev. Fluid Mech.
**2018**, 50, 77–103. [Google Scholar] [CrossRef] - Duraisamy, K.; Iaccarino, G.; Xiao, H. Turbulence modeling in the age of data. arXiv, 2018; arXiv:1804.00183. [Google Scholar]
- Munk, W.H. On the wind-driven ocean circulation. J. Meteorol.
**1950**, 7, 80–93. [Google Scholar] [CrossRef] - Pelc, R.; Fujita, R.M. Renewable energy from the ocean. Mar. Policy
**2002**, 26, 471–479. [Google Scholar] [CrossRef] - Esteban, M.; Leary, D. Current developments and future prospects of offshore wind and ocean energy. Appl. Energy
**2012**, 90, 128–136. [Google Scholar] [CrossRef] - McWilliams, J.C. Fundamentals of Geophysical Fluid Dynamics; Cambridge University Press: New York, NY, USA, 2006. [Google Scholar]
- Berloff, P. Dynamically consistent parameterization of mesoscale eddies. Part I: Simple model. Ocean Model.
**2015**, 87, 1–19. [Google Scholar] [CrossRef] - San, O.; Staples, A.E.; Wang, Z.; Iliescu, T. Approximate deconvolution large eddy simulation of a barotropic ocean circulation model. Ocean Model.
**2011**, 40, 120–132. [Google Scholar] [CrossRef] - Berloff, P. Dynamically consistent parameterization of mesoscale eddies—Part II: Eddy fluxes and diffusivity from transient impulses. Fluids
**2016**, 1, 22. [Google Scholar] [CrossRef] - Miller, R.N. Numerical Modeling of Ocean Circulation; Cambridge University Press: New York, NY, USA, 2007. [Google Scholar]
- Kondrashov, D.; Chekroun, M.D.; Berloff, P. Multiscale Stuart–Landau emulators: Application to wind-driven ocean gyres. Fluids
**2018**, 3, 21. [Google Scholar] [CrossRef] - Lynch, P. The origins of computer weather prediction and climate modeling. J. Comput. Phys.
**2008**, 227, 3431–3444. [Google Scholar] [CrossRef] - Laurie, J.; Bouchet, F. Computation of rare transitions in the barotropic quasi-geostrophic equations. New J. Phys.
**2015**, 17, 015009. [Google Scholar] [CrossRef] - Rowley, C.W.; Dawson, S.T. Model reduction for flow analysis and control. Ann. Rev. Fluid Mech.
**2017**, 49, 387–417. [Google Scholar] [CrossRef] - Taira, K.; Brunton, S.L.; Dawson, S.T.; Rowley, C.W.; Colonius, T.; McKeon, B.J.; Schmidt, O.T.; Gordeyev, S.; Theofilis, V.; Ukeiley, L.S. Modal analysis of fluid flows: An overview. AIAA J.
**2017**, 55, 4013–4041. [Google Scholar] [CrossRef] - Ito, K.; Ravindran, S. A reduced-order method for simulation and control of fluid flows. J. Comput. Phys.
**1998**, 143, 403–425. [Google Scholar] [CrossRef] - Lucia, D.J.; Beran, P.S.; Silva, W.A. Reduced-order modeling: New approaches for computational physics. Prog. Aerosp. Sci.
**2004**, 40, 51–117. [Google Scholar] [CrossRef] - Brenner, T.A.; Fontenot, R.L.; Cizmas, P.G.; O’Brien, T.J.; Breault, R.W. A reduced-order model for heat transfer in multiphase flow and practical aspects of the proper orthogonal decomposition. Comput. Chem. Eng.
**2012**, 43, 68–80. [Google Scholar] [CrossRef] - Iollo, A.; Lanteri, S.; Désidéri, J.A. Stability properties of POD–Galerkin approximations for the compressible Navier–Stokes equations. Theor. Comput. Fluid Dyn.
**2000**, 13, 377–396. [Google Scholar] [CrossRef] - Freno, B.A.; Cizmas, P.G. A proper orthogonal decomposition method for nonlinear flows with deforming meshes. Int. J. Heat Fluid Flow
**2014**, 50, 145–159. [Google Scholar] [CrossRef] - San, O.; Iliescu, T. A stabilized proper orthogonal decomposition reduced-order model for large scale quasigeostrophic ocean circulation. Adv. Comput. Math.
**2015**, 41, 1289–1319. [Google Scholar] [CrossRef][Green Version] - Behzad, F.; Helenbrook, B.T.; Ahmadi, G. On the sensitivity and accuracy of proper-orthogonal-decomposition-based reduced order models for Burgers equation. Comput. Fluids
**2015**, 106, 19–32. [Google Scholar] [CrossRef] - Cizmas, P.G.; Richardson, B.R.; Brenner, T.A.; O’Brien, T.J.; Breault, R.W. Acceleration techniques for reduced-order models based on proper orthogonal decomposition. J. Comput. Phys.
**2008**, 227, 7791–7812. [Google Scholar] [CrossRef] - Bistrian, D.; Navon, I. An improved algorithm for the shallow water equations model reduction: Dynamic Mode Decomposition vs. POD. Int. J. Numer. Methods Fluids
**2015**, 78, 552–580. [Google Scholar] [CrossRef] - Behzad, F.; Helenbrook, B.T.; Ahmadi, G. Multilevel Algorithm for Obtaining the Proper Orthogonal Decomposition. AIAA J.
**2018**. [Google Scholar] [CrossRef] - Bistrian, D.A.; Navon, I.M. Randomized dynamic mode decomposition for nonintrusive reduced order modelling. Int. J. Numer. Methods Eng.
**2017**, 112, 3–25. [Google Scholar] [CrossRef][Green Version] - Gautier, N.; Aider, J.L.; Duriez, T.; Noack, B.; Segond, M.; Abel, M. Closed-loop separation control using machine learning. J. Fluid Mech.
**2015**, 770, 442–457. [Google Scholar] [CrossRef][Green Version] - Lee, C.; Kim, J.; Babcock, D.; Goodman, R. Application of neural networks to turbulence control for drag reduction. Phys. Fluids
**1997**, 9, 1740–1747. [Google Scholar] [CrossRef] - Gamahara, M.; Hattori, Y. Searching for turbulence models by artificial neural network. Phys. Rev. Fluids
**2017**, 2, 054604. [Google Scholar] [CrossRef] - Duraisamy, K.; Zhang, Z.J.; Singh, A.P. New approaches in turbulence and transition modeling using data-driven techniques. In Proceedings of the 53rd AIAA Aerospace Sciences Meeting, Kissimmee, FL, USA, 5–9 January 2015; p. 1284. [Google Scholar]
- Maulik, R.; San, O. A neural network approach for the blind deconvolution of turbulent flows. J. Fluid Mech.
**2017**, 831, 151–181. [Google Scholar] [CrossRef][Green Version] - San, O.; Maulik, R. Extreme learning machine for reduced order modeling of turbulent geophysical flows. Phys. Rev. E
**2018**, 97, 042322. [Google Scholar] [CrossRef] [PubMed][Green Version] - Wu, J.L.; Xiao, H.; Paterson, E. Physics-informed machine learning approach for augmenting turbulence models: A comprehensive framework. Phys. Rev. Fluids
**2018**, 3, 074602. [Google Scholar] [CrossRef] - Moosavi, A.; Stefanescu, R.; Sandu, A. Efficient construction of local parametric reduced order models using machine learning techniques. arXiv, 2015; arXiv:1511.02909. [Google Scholar]
- Huang, G.B.; Zhu, Q.Y.; Siew, C.K. Extreme learning machine: Theory and applications. Neurocomputing
**2006**, 70, 489–501. [Google Scholar] [CrossRef][Green Version] - Huang, G.B.; Chen, L. Convex incremental extreme learning machine. Neurocomputing
**2007**, 70, 3056–3062. [Google Scholar] [CrossRef] - Xiang, J.; Westerlund, M.; Sovilj, D.; Pulkkis, G. Using extreme learning machine for intrusion detection in a big data environment. In Proceedings of the 2014 Workshop on Artificial Intelligent and Security Workshop, Scottsdale, AZ, USA, 3–7 November 2014; pp. 73–82. [Google Scholar]
- Williams, M.O.; Schmid, P.J.; Kutz, J.N. Hybrid reduced-order integration with proper orthogonal decomposition and dynamic mode decomposition. Multiscale Model. Simul.
**2013**, 11, 522–544. [Google Scholar] [CrossRef] - Xie, X.; Mohebujjaman, M.; Rebholz, L.; Iliescu, T. Data-driven filtered reduced order modeling of fluid flows. SIAM J. Sci. Comput.
**2018**, 40, B834–B857. [Google Scholar] [CrossRef] - Mohebujjaman, M.; Rebholz, L.; Iliescu, T. Physically-constrained data-driven, filtered reduced order modeling of fluid flows. arXiv, 2018; arXiv:1806.0035. [Google Scholar]
- Wan, Z.Y.; Vlachas, P.; Koumoutsakos, P.; Sapsis, T. Data-assisted reduced-order modeling of extreme events in complex dynamical systems. PLoS ONE
**2018**, 13, e0197704. [Google Scholar] [CrossRef] [PubMed] - Pathak, J.; Wikner, A.; Fussell, R.; Chandra, S.; Hunt, B.R.; Girvan, M.; Ott, E. Hybrid forecasting of chaotic processes: Using machine learning in conjunction with a knowledge-based model. Chao Interdiscip. J. Nonlinear Sci.
**2018**, 28, 041101. [Google Scholar] [CrossRef][Green Version] - Siedler, G.; Griffies, S.M.; Gould, J.; Church, J.A. Ocean Circulation and Climate: A 21st Century Perspective; Academic Press: Cambridge, MA, USA, 2013; Volume 103. [Google Scholar]
- Byrne, D.; Münnich, M.; Frenger, I.; Gruber, N. Mesoscale atmosphere ocean coupling enhances the transfer of wind energy into the ocean. Nat. Commun.
**2016**, 7, ncomms11867. [Google Scholar] [CrossRef] [PubMed][Green Version] - Holland, W.R. The role of mesoscale eddies in the general circulation of the ocean—Numerical experiments using a wind-driven quasi-geostrophic model. J. Phys. Oceanogr.
**1978**, 8, 363–392. [Google Scholar] [CrossRef] - Hogg, A.M.C.; Dewar, W.K.; Berloff, P.; Kravtsov, S.; Hutchinson, D.K. The effects of mesoscale ocean–atmosphere coupling on the large-scale ocean circulation. J. Clim.
**2009**, 22, 4066–4082. [Google Scholar] [CrossRef] - Hua, B.; Haidvogel, D. Numerical simulations of the vertical structure of quasi-geostrophic turbulence. J. Atmos. Sci.
**1986**, 43, 2923–2936. [Google Scholar] [CrossRef] - Ghil, M.; Chekroun, M.D.; Simonnet, E. Climate dynamics and fluid mechanics: Natural variability and related uncertainties. Phys. D Nonlinear Phenom.
**2008**, 237, 2111–2126. [Google Scholar] [CrossRef][Green Version] - Charney, J.G.; Fjörtoft, R.; Neumann, J.V. Numerical integration of the barotropic vorticity equation. Tellus
**1950**, 2, 237–254. [Google Scholar] [CrossRef] - Bouchet, F.; Simonnet, E. Random changes of flow topology in two-dimensional and geophysical turbulence. Phys. Rev. Lett.
**2009**, 102, 094504. [Google Scholar] [CrossRef] [PubMed] - Cushman-Roisin, B.; Beckers, J.M. Introduction to Geophysical Fluid Dynamics: Physical and Numerical Aspects; Academic Press: Waltham, MA, USA, 2011. [Google Scholar]
- Majda, A.; Wang, X. Nonlinear Dynamics and Statistical Theories for Basic Geophysical Flows; Cambridge University Press: New York, NY, USA, 2006. [Google Scholar]
- Vallis, G.K. Atmospheric and Oceanic Fluid Dynamics; Cambridge University Press: New York, NY, USA, 2017. [Google Scholar]
- Greatbatch, R.J.; Nadiga, B.T. Four-gyre circulation in a barotropic model with double-gyre wind forcing. J. Phys. Oceanogr.
**2000**, 30, 1461–1471. [Google Scholar] [CrossRef] - Nadiga, B.T.; Margolin, L.G. Dispersive–dissipative eddy parameterization in a barotropic model. J. Phys. Oceanogr.
**2001**, 31, 2525–2531. [Google Scholar] [CrossRef] - San, O. Numerical assessments of ocean energy extraction from western boundary currents using a quasi-geostrophic ocean circulation model. Int. J. Mar. Energy
**2016**, 16, 12–29. [Google Scholar] [CrossRef][Green Version] - San, O.; Staples, A.E. An efficient coarse grid projection method for quasigeostrophic models of large-scale ocean circulation. Int. J. Multiscale Comput. Eng.
**2013**, 11, 463–495. [Google Scholar] [CrossRef] - Özgökmen, T.M.; Chassignet, E.P. Emergence of inertial gyres in a two-layer quasigeostrophic ocean model. J. Phys. Oceanogr.
**1998**, 28, 461–484. [Google Scholar] [CrossRef] - Holm, D.D.; Nadiga, B.T. Modeling mesoscale turbulence in the barotropic double-gyre circulation. J. Phys. Oceanogr.
**2003**, 33, 2355–2365. [Google Scholar] [CrossRef] - Medjo, T.T. Numerical simulations of a two-layer quasi-geostrophic equation of the ocean. SIAM J. Numer. Anal.
**2000**, 37, 2005–2022. [Google Scholar] [CrossRef] - Arakawa, A. Computational design for long-term numerical integration of the equations of fluid motion: Two-dimensional incompressible flow. Part I. J. Comput. Phys.
**1966**, 1, 119–143. [Google Scholar] [CrossRef] - Gottlieb, S.; Shu, C.W. Total variation diminishing Runge–Kutta schemes. Math. Comput. Am. Math. Soc.
**1998**, 67, 73–85. [Google Scholar] [CrossRef] - Wedi, N.P. Increasing horizontal resolution in numerical weather prediction and climate simulations: Illusion or panacea? Philos. Trans. R. Soc. A
**2014**, 372, 20130289. [Google Scholar] [CrossRef] [PubMed] - Brunton, S.L.; Noack, B.R. Closed-loop turbulence control: Progress and challenges. Appl. Mech. Rev.
**2015**, 67, 050801. [Google Scholar] [CrossRef] - Navon, I.M.; Zou, X.; Derber, J.; Sela, J. Variational data assimilation with an adiabatic version of the NMC spectral model. Mon. Weather Rev.
**1992**, 120, 1433–1446. [Google Scholar] [CrossRef] - Kalnay, E. Atmospheric Modeling, Data Assimilation and Predictability; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
- Holmes, P.; Lumley, J.L.; Berkooz, G.; Rowley, C.W. Turbulence, Coherent Structures, Dynamical Systems and Symmetry; Cambridge University Press: New York, NY, USA, 2012. [Google Scholar]
- Lumley, J.L. Stochastic Tools in Turbulence; Academic Press: New York, NY, USA, 1970. [Google Scholar]
- Kosambi, D.D. Statistics in function space. In D D Kosambi; Ramaswamy, R., Ed.; Springer: New Delhi, India, 2016; pp. 115–123. [Google Scholar]
- Sirovich, L. Turbulence and the dynamics of coherent structures. I. Coherent structures. Q. Appl. Math.
**1987**, 45, 561–571. [Google Scholar] [CrossRef][Green Version] - Noack, B.R.; Afanasiev, K.; Morzński, M.; Tadmor, G.; Thiele, F. A hierarchy of low-dimensional models for the transient and post-transient cylinder wake. J. Fluid Mech.
**2003**, 497, 335–363. [Google Scholar] [CrossRef] - Rapún, M.L.; Vega, J.M. Reduced order models based on local POD plus Galerkin projection. J. Comput. Phys.
**2010**, 229, 3046–3063. [Google Scholar] [CrossRef][Green Version] - Hoffman, J.D.; Frankel, S. Numerical Methods for Engineers and Scientists; CRC Press: Boca Raton, FL, USA, 2001. [Google Scholar]
- Hagan, M.T.; Demuth, H.B.; Beale, M.H.; De Jesús, O. Neural Network Design; Pws Pub.: Boston, MA, USA, 1996; Volume 20. [Google Scholar]
- Jang, J.S.R.; Sun, C.T.; Mizutani, E. Neuro-fuzzy and soft computing; a computational approach to learning and machine intelligence. IEEE Trans. Autom. Control
**1997**, 42, 1482–1484. [Google Scholar] [CrossRef] - Hornik, K.; Stinchcombe, M.; White, H. Multilayer feedforward networks are universal approximators. Neural Netw.
**1989**, 2, 359–366. [Google Scholar] [CrossRef] - Lapedes, A.S.; Farber, R.M. How neural nets work. In Neural Information Processing Systems; Springer: Berlin, Germany, 1988; pp. 442–456. [Google Scholar]
- Huang, G.B.; Wang, D.H.; Lan, Y. Extreme learning machines: A survey. Int. J. Mach. Learn. Cybern.
**2011**, 2, 107–122. [Google Scholar] [CrossRef] - Zhou, H.; Soh, Y.C.; Jiang, C.; Wu, X. Compressed representation learning for fluid field reconstruction from sparse sensor observations. In Proceedings of the 2015 International Joint Conference on Neural Networks (IJCNN), Killarney, Ireland, 12–16 July 2015. [Google Scholar]
- Kasun, L.L.C.; Zhou, H.; Huang, G.B.; Vong, C.M. Representational learning with extreme learning machine for big data. IEEE Intell. Syst.
**2013**, 28, 31–34. [Google Scholar] - Cordier, L.; El Majd, B.A.; Favier, J. Calibration of POD reduced-order models using Tikhonov regularization. Int. J. Numer. Methods Fluids
**2010**, 63, 269–296. [Google Scholar] [CrossRef][Green Version] - Cancelliere, R.; Deluca, R.; Gai, M.; Gallinari, P.; Rubini, L. An analysis of numerical issues in neural training by pseudoinversion. Comput. Appl. Math.
**2017**, 36, 599–609. [Google Scholar] [CrossRef] - Huang, G.B.; Babri, H.A. Upper bounds on the number of hidden neurons in feedforward networks with arbitrary bounded nonlinear activation functions. IEEE Trans. Neural Netw.
**1998**, 9, 224–229. [Google Scholar] [CrossRef] [PubMed] - Sun, Z.L.; Choi, T.M.; Au, K.F.; Yu, Y. Sales forecasting using extreme learning machine with applications in fashion retailing. Decis. Support Syst.
**2008**, 46, 411–419. [Google Scholar] [CrossRef] - Wright, S.; Nocedal, J. Numerical Optimization; Springer Science: Berlin, Germany, 1999; Volume 35, p. 7. [Google Scholar]
- Lin, C.J.; Weng, R.C.; Keerthi, S.S. Trust region newton method for logistic regression. J. Mach. Learn. Res.
**2008**, 9, 627–650. [Google Scholar] - Cushman-Roisin, B.; Manga, M. Introduction to Geophysical Fluid Dynamics. Pure Appl. Geophys.
**1995**, 144, 177–178. [Google Scholar] - Cummins, P.F. Inertial gyres in decaying and forced geostrophic turbulence. J. Mar. Res.
**1992**, 50, 545–566. [Google Scholar] [CrossRef] - Östh, J.; Noack, B.R.; Krajnović, S.; Barros, D.; Borée, J. On the need for a nonlinear subscale turbulence term in POD models as exemplified for a high-Reynolds-number flow over an Ahmed body. J. Fluid Mech.
**2014**, 747, 518–544. [Google Scholar] [CrossRef][Green Version] - Wang, Z.; Akhtar, I.; Borggaard, J.; Iliescu, T. Proper orthogonal decomposition closure models for turbulent flows: A numerical comparison. Comput. Methods Appl. Mech. Eng.
**2012**, 237, 10–26. [Google Scholar] [CrossRef][Green Version] - San, O.; Iliescu, T. Proper orthogonal decomposition closure models for fluid flows: Burgers equation. Int. J. Numer. Anal. Model. Ser. B
**2014**, 5, 217–237. [Google Scholar] - Giere, S.; Iliescu, T.; John, V.; Wells, D. SUPG reduced order models for convection-dominated convection–diffusion–reaction equations. Comput. Methods Appl. Mech. Eng.
**2015**, 289, 454–474. [Google Scholar] [CrossRef] - Montano, J.; Palmer, A. Numeric sensitivity analysis applied to feedforward neural networks. Neural Comput. Appl.
**2003**, 12, 119–125. [Google Scholar] [CrossRef]

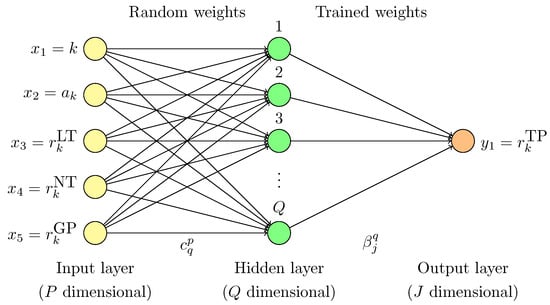

**Figure 1.**Schematic representation of the extreme learning machine (ELM) neural network architecture utilized for the data-driven reduced-order modeling framework in this study.

**Figure 2.**A schematic representation of the two distinct modeling approaches: (

**a**) physics-based modeling approach; and (

**b**) data-driven modeling approach.

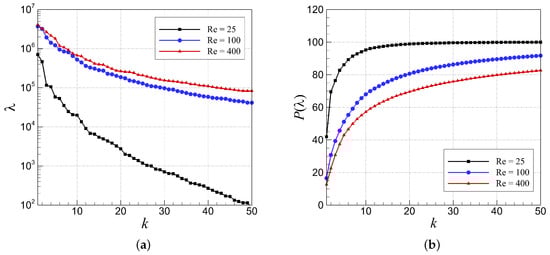

**Figure 3.**Proper orthogonal decomposition (POD) analysis by using 900 equally distributed snapshots for Re $=25,100,400$: (

**a**) Eigenvalue spectrum of the correlation matrix, $\mathbf{A}$; and (

**b**) Eigenvalue percentage energy accumulation with respect to modal index.

**Figure 4.**Contour plots of some illustrative examples of POD basis functions for Re $=100$ generated by the method of snapshots: (

**a**) ${\phi}_{1}(x,y)$; (

**b**) ${\phi}_{10}(x,y)$; (

**c**) ${\phi}_{20}(x,y)$; (

**d**) ${\phi}_{30}(x,y)$; and (

**e**) ${\phi}_{40}(x,y)$.

**Figure 5.**Mean stream function contour plots between $t=15$ and $t=60$ obtained by reference FOM and standard ROM-GP simulations for Re $=25$: (

**a**) ${\psi}_{\mathrm{FOM}}$ at a resolution of $128\times 256$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=10$ modes; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=20$ modes; (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=30$ modes; and (

**e**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=40$ modes. Note that a stable and well-estimated solution can be found using $R=10$ modes and adding more modes might yield worse solutions due to a possible over-fitting as occurred in $R=30$ case.

**Figure 6.**Mean stream function contour plots between $t=15$ and $t=60$ obtained by reference FOM and standard ROM-GP simulations for Re $=100$: (

**a**) ${\psi}_{\mathrm{FOM}}$ at a resolution of $128\times 256$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=10$ modes; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=20$ modes; (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=30$ modes; and (

**e**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=40$ modes. Note that a stable and well-estimated solution can be found within $R=30$ or 40 modes for this case.

**Figure 7.**Mean stream function contour plots between $t=15$ and $t=60$ obtained by reference FOM and standard ROM-GP simulations for Re $=400$: (

**a**) ${\psi}_{\mathrm{FOM}}$ at a resolution of $128\times 256$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=10$ modes; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=20$ modes; (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=30$ modes; and (

**e**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$ with $R=40$ modes. Note that a stable and well-estimated solution can be found within $R=40$ modes for this case.

**Figure 8.**Time series evolution of the first modal coefficient, ${a}_{1}\left(t\right)$ between $t=15$ and $t=60$ for FOM projection and standard ROM-GP with varying Re (Re $=25,100,400$) and POD modes ($R=10,20,30,40$). $R=20$ modes for Re = 100, and $R=30$ modes for Re = 400.

**Figure 9.**Time series evolution of the tenth modal coefficient, ${a}_{10}\left(t\right)$ between $t=15$ and $t=60$ for FOM projection and standard ROM-GP with varying Re (Re $=25,100,400$) and POD modes ($R=10,20,30,40$).

**Figure 10.**Mean stream function contour plots between $t=15$ and $t=60$ obtained by reference FOM and different ROM simulations for Re $=25$ and $R=10$ modes: (

**a**) ${\psi}_{\mathrm{FOM}}$ at a resolution of $128\times 256$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{ANN}}$; and (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{H}}$. This figure clearly illustrates that all models have captured the two-gyre circulation pattern successfully.

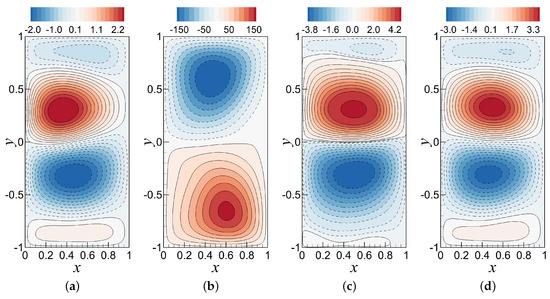

**Figure 11.**Mean stream function contour plots between $t=15$ and $t=60$ obtained by reference FOM and different ROM simulations for Re $=100$ and $R=10$ modes: (

**a**) ${\psi}_{\mathrm{FOM}}$ at a resolution of $128\times 256$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{ANN}}$; and (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{H}}$. The figure shows that ROM-ANN and ROM-H have captured the four-gyre circulation pattern similar to the FOM solution while ROM-GP has shown an unphysical two-gyre pattern.

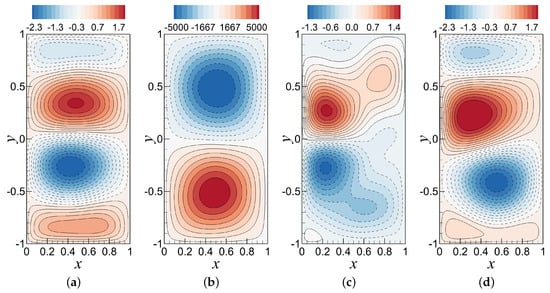

**Figure 12.**Mean stream function contour plots between $t=15$ and $t=60$ obtained by reference FOM and different ROM simulations for Re $=400$ and $R=10$ modes: (

**a**) ${\psi}_{\mathrm{FOM}}$ at a resolution of $128\times 256$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{ANN}}$; and (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{H}}$. Note that only the proposed ROM-H model has successfully captured the four-gyre circulation.

**Figure 13.**Time series evolution of the first modal coefficient, ${a}_{1}\left(t\right)$, between $t=15$ and $t=60$ for FOM projection and different ROM approaches (ROM-GP, ROM-ANN, and ROM-H) with varying Re (Re $=25,100,400$) and POD modes ($R=10,20,30,40$).

**Figure 14.**Time series evolution of the tenth modal coefficient, ${a}_{10}\left(t\right)$, between $t=15$ and $t=60$ for FOM projection and different ROM approaches (ROM-GP, ROM-ANN, and ROM-H) with varying Re (Re $=25,100,400$) and POD modes ($R=10,20,30,40$).

**Figure 15.**Sensitivity analysis with respect to the number of neurons in ELM of fully non-intrusive ROM-ANN approach using mean stream function contour plots ($R=10$ and Re $=100$): (

**a**) ${\psi}_{\mathrm{FOM}}$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{ANN}}$ with $Q=20$ neurons; (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{ANN}}$ with $Q=40$ neurons; and (

**e**) ${\psi}_{\mathrm{ROM}-\mathrm{ANN}}$ with $Q=80$ neurons.

**Figure 16.**Sensitivity analysis with respect to the number of neurons in ELM of ROM-H approach using mean stream function contour plots ($R=10$ and Re $=100$): (

**a**) ${\psi}_{\mathrm{FOM}}$; (

**b**) ${\psi}_{\mathrm{ROM}-\mathrm{GP}}$; (

**c**) ${\psi}_{\mathrm{ROM}-\mathrm{H}}$ with $Q=20$ neurons; (

**d**) ${\psi}_{\mathrm{ROM}-\mathrm{H}}$ with $Q=40$ neurons; and (

**e**) ${\psi}_{\mathrm{ROM}-\mathrm{H}}$ with $Q=80$ neurons.

**Figure 17.**Sensitivity analysis with respect to the number of ELM neurons of fully non-intrusive ROM-ANN approach using time series of the first modal coefficient, ${a}_{1}\left(t\right)$ for Re $=25,100,400$ and $Q=20,40,80$.

**Figure 18.**Sensitivity analysis with respect to the number of ELM neurons of fully non-intrusive ROM-ANN approach using time series of the tenth modal coefficient, ${a}_{10}\left(t\right)$ for Re $=25,100,400$ and $Q=20,40,80$.

**Figure 19.**Sensitivity analysis with respect to the number of ELM neurons of ROM-H approach using time series of the first modal coefficient, ${a}_{1}\left(t\right)$ for Re $=25,100,400$ and $Q=20,40,80$.

**Figure 20.**Sensitivity analysis with respect to the number of ELM neurons of ROM-H approach using time series of the tenth modal coefficient, ${a}_{10}\left(t\right)$ for Re $=25,100,400$ and $Q=20,40,80$.

**Figure 21.**Forecasting of temporal mode evolution of ${a}_{1}\left(t\right)$ for Re $=25$. Note that ROMs are trained by the data snapshots obtained between $t=15$ and $t=60$.

**Figure 22.**Forecasting of temporal mode evolution of ${a}_{1}\left(t\right)$ for Re $=100$. Note that all ROMs are trained by the data snapshots obtained between $t=15$ and $t=60$. Although the ROM-GP approach provides reasonable (physical) results at the beginning (i.e., $t<18$), the error then is amplified exponentially.

**Figure 23.**Forecasting of temporal mode evolution of ${a}_{1}\left(t\right)$ for Re $=400$. Note that all ROMs are trained by the data snapshots obtained between $t=15$ and $t=60$. Although the ROM-GP approach provides reasonable (physical) results at the beginning (i.e., $t<18$), the error is then amplified exponentially.

**Figure 24.**Time series evolution of the first temporal coefficient ${a}_{1}\left(t\right)$ for the out-of-sample forecast by FOM and different ROM approaches (ROM-GP, ROM-ANN, and ROM-H) using $R=10$ POD modes. Predictive performance is shown for Re $=200$ while the training has been performed using the data generated at Re $=100$.

**Figure 25.**Out-of-sample forecast of mean stream function by: (

**a**) FOM; (

**b**) ROM-GP; (

**c**) ROM-ANN; and (

**d**) ROM-H using $R=10$ POD modes. Predictive performance is shown for Re $=200$ while the training has been performed using the data generated at Re $=100$. This figure clearly illustrates that the ROM-H model has successfully predicted the FOM solution while the ROM-GP model prediction is unphysical and the ROM-ANN prediction is not as accurate as the ROM-H prediction.

**Figure 26.**Time series evolution of the first temporal coefficient ${a}_{1}\left(t\right)$ for the out-of-sample forecast by FOM and different ROM approaches (ROM-GP, ROM-ANN, and ROM-H) using $R=10$ POD modes. Predictive performance is shown for Re $=200$ while the training has been performed using the data generated at Re $=400$.

**Figure 27.**Out-of-sample forecast of mean stream function by: (

**a**) FOM; (

**b**) ROM-GP; (

**c**) ROM-ANN; and (

**d**) ROM-H using $R=10$ POD modes. Predictive performance is shown for Re $=200$ while the training has been performed using the data generated at Re $=400$. Similar to the previous results, this figure also shows that the ROM-H prediction is better than the other two model predictions.

Approaches | Comments |
---|---|

Fully non-intrusive models | Data-based modeling; data could be generated by experimental measurements (observational data) or high-fidelity numerical simulations (synthetic data); no need to know the underlying physical system or model (no need to have access to a full order model generating data). |

Semi non-intrusive models | It is a mixed approach with offline intrusive and online non-intrusive models; in addition to snapshot data, we should have access to the high-fidelity model to generate our surrogate model (ROM); after built, ROM stays on a reduced subspace, and we do not need to have access to a high-fidelity model during ROM computations; we often use a projection approach (with truncation) to obtain a dense low-order system. |

Intrusive models | We need to have access to some parts (or whole) of a high-fidelity model during online ROM computations; sparse sampling or interpolation approaches might be incorporated; multilevel, multigrid, adaptive mesh refinement and dynamic time stepping approaches to accelerate high-fidelity simulations can be considered in this category. |

Coarse-grained models | It is a special case of intrusive modeling; reduction approach might utilize a similar high-fidelity model with a reduced computational complexity (i.e., fewer grid points in LES or RANS approaches); they often need a closure model to compensate the effects of truncated scales; closure effects can be embedded into numerics as well. |

Physics-Based Modeling (ROM-GP) | Data-Driven Modeling (ROM-ANN) | ||
---|---|---|---|

+ | Solid foundation based on physics, first principles and reasoning (high interpretability) | − | Thus far, most of the algorithms have worked as black boxes (low interpretability) |

− | Difficult to assimilate very long-term historical/ archival data into the computational models | + | Takes into account long-term historical/archival data and experiences |

− | Sensitive and susceptible to numerical instability due to a range of reasons (boundary conditions, uncertainties in the input parameters and meshing) | + | Once the model is trained, it is very stable for making predictions |

+ | Errors/uncertainties can be bounded and estimated | − | Not quite possible to bound errors/uncertainties |

+ | Less biases | − | Bias in data is reflected in the prediction |

+ | Generalizes well to new problems with similar physics | − | Poor generalization on unseen problems |

**Table 3.**The computational CPU time in seconds required for ROM simulations between $t=15$ and $t=60$. Note that the FOM simulation is 4.82 h and offline POD basis generation takes about 23.38 min. The offline training time for ANN is less than one second due to the extremely fast ELM approach.

$\mathit{R}=10$ | $\mathit{R}=20$ | $\mathit{R}=30$ | $\mathit{R}=40$ | |
---|---|---|---|---|

Pre-computing time for the inner products | 1.06 | 4.37 | 11.10 | 22.93 |

ROM-GP simulation time | 5.56 | 41.51 | 153.68 | 380.54 |

ROM-ANN simulation time | 16.41 | 96.73 | 209.16 | 428.51 |

ROM-H simulation time | 21.29 | 92.67 | 273.70 | 496.32 |

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Rahman, S.M.; San, O.; Rasheed, A.
A Hybrid Approach for Model Order Reduction of Barotropic Quasi-Geostrophic Turbulence. *Fluids* **2018**, *3*, 86.
https://doi.org/10.3390/fluids3040086

**AMA Style**

Rahman SM, San O, Rasheed A.
A Hybrid Approach for Model Order Reduction of Barotropic Quasi-Geostrophic Turbulence. *Fluids*. 2018; 3(4):86.
https://doi.org/10.3390/fluids3040086

**Chicago/Turabian Style**

Rahman, Sk. Mashfiqur, Omer San, and Adil Rasheed.
2018. "A Hybrid Approach for Model Order Reduction of Barotropic Quasi-Geostrophic Turbulence" *Fluids* 3, no. 4: 86.
https://doi.org/10.3390/fluids3040086
