Hydrogels, Oleogels and Bigels as Edible Coatings of Sardine Fillets and Delivery Systems of Rosemary Extract

by
Aikaterini Kanelaki
,
Konstantina Zampouni
,
Ioannis Mourtzinos
and
Eugenios Katsanidis
*
Department of Food Science and Technology, School of Agriculture, Faculty of Agriculture, Forestry and Natural Environment, Aristotle University of Thessaloniki, 54124 Thessaloniki, Greece
*
Author to whom correspondence should be addressed.
Gels 2022, 8(10), 660; https://doi.org/10.3390/gels8100660
Submission received: 30 September 2022 / Revised: 11 October 2022 / Accepted: 14 October 2022 / Published: 16 October 2022
(This article belongs to the Special Issue Application of Oleogel and Oleogel-Based Systems in Foods: Effective Strategies to Satisfy People's Demands for Nutrition and Health)
Browse Figures
Versions Notes

Abstract

:
Edible coatings provide an alternative way to reduce packaging requirements and extend the shelf life of foods by delaying oxidation and microbial spoilage. Hydrogels, oleogels and bigels were applied as coatings on fresh sardine fillets. The effectiveness of these coatings as delivery systems of rosemary extract (RE) was also evaluated. Three groups of sardine fillet treatments were prepared: (i) the control (C), which comprised sardine fillets without coating, (ii) sardine fillets with plain hydrogel (H), oleogel (O) or bigel (BG) coatings, and (iii) sardine fillets with RE incorporated into the H, O and BG coatings. The different treatments were evaluated for lipid oxidation (TBA test), total volatile basic nitrogen (TVB-N) and microbiological growth during cold storage at 4 °C. Results showed that hydrogel, oleogel and bigel coatings delayed oxidation. The incorporation of RE into coatings significantly retarded lipid oxidation but did not affect the proliferation of microorganisms during storage. When RE was incorporated in the oleogel phase of the bigel coating, it produced significantly lower TVB-N values compared to the control and BG treatments. The incorporation of RE into the oleogel phase of the bigel coating may be a promising method of maintaining the storage quality of the sardine fillets stored at refrigerated temperatures.

1. Introduction

Sardina pilchardus, commonly known as European pilchard, is one of the most commercially exploited fish species, with significant nutritional and economic importance. It is rich in polyunsaturated fatty acids, mainly omega-3 fatty acids, and comprises an excellent source of high biological value proteins, minerals and vitamins for human consumption [1]. However, owing to the great amount of omega-3 and omega-6 fatty acids, sardines are highly susceptible to oxidation [2], resulting in degradation of organoleptic characteristics, loss of nutritional value and shortening of shelf life. During storage, fresh sardines are particularly vulnerable to deterioration due to the combined effect of the metabolic activity of microorganisms and the enzymatic processes [3]. Therefore, degradation of sardine quality occurs rapidly throughout handling and storage periods, leading to limited shelf life.
Edible coatings present an effective and environmentally friendly alternative to enhance quality and extend food preservation during refrigerated storage. Coatings can be prepared from various compounds, such as carbohydrates (starch, cellulose, alginates), proteins (gelatin, whey protein, casein, zein) and lipids (waxes, oils, fats) [4]. Therefore, systems such as hydrogels, oleogels or the combination of them, as bigels, could be used as edible coatings. The process of coating includes the direct immersion of the food in a liquid solution [5]. Edible coatings can act as a barrier to the ingress of oxygen and water in food, resulting in slowing oxidation reactions and retaining moisture [6]. Various edible coatings have been studied for the preservation of fishery products during refrigerated storage, such as chitosan coatings on Indian oil sardine (Sardinella longiceps) [7], chitosan-gelatin coatings on shrimp (Litopenaeus vannamei) [8], and sodium alginate or whey protein coatings on rainbow trout (Oncorhynchus mykiss) fillets [9,10]. The formation of a barrier between atmospheric oxygen and food products can retard the oxidation process and extend the shelf-life of foods. Thereby, the application of an edible coating could be effective, especially during the storage of fishery products, as it could delay microbial growth and oxidative deterioration [11]. The application of whey protein-based coatings, for example, has been reported to inhibit lipid oxidation in Atlantic salmon (Salmo salar) fillets [12]. Regarding microbial stability, the spoilage of fishery products mainly takes place due to the growth of Gram-negative, psychotropic bacteria [13]. Pseudomonas spp. is considered the most important psychotropic microorganism, causing fish spoilage when stored under aerobic low temperatures [14].
Hydrogels are three-dimensional, hydrophilic macromolecular networks formed by interactions among the polymeric chains of a gelling agent, retaining large amounts of water [15]. In addition, most hydrogels are characterized as reversible, with the capability to alter their rheological properties due to changes in external conditions (temperature, pH, ionic solution strength, etc.) [16]. Gelatin is an ideal coating material due to its gelling ability and resistance to dehydration, light and oxygen [17].
Oleogels are three-dimensional, anhydrous, viscoelastic gels developed through the addition of low molecular weight or polymeric structures in edible oils, leading to the structuring of the continuous phase of the system [18]. Waxes, fatty acids and alcohols, lecithin, monoglycerides (MGs) and a mixture of phytosterols with oryzanol [19] or MGs [20] have been used as low molecular weight oleogelators [21]. Studies have demonstrated that structured oil could efficiently replace animal fat in foods [22,23,24,25,26]. Oleogel and oleogel-based systems have great potential as delivery vehicles of lipophilic bioactive compounds [21,27].
Bigels (hybrid gels) are biphasic systems where both the lipid and the aqueous phase are structured in the form of oleogel and hydrogel, respectively [28]. Technically, bigels resemble emulsions that include a gel network in both their aqueous and lipid phases, but they confer better physicochemical stability over time compared to plain emulsions [29]. Bigels are structured through the dispersion of one phase into the other, mostly forming oleogel-in-hydrogel bigel systems [30]. The fact that bigels consist of two structured phases provides the advantage of the controlled delivery of both hydrophilic and lipophilic bioactive substances [31]. In addition, their relatively easy preparation methods [32], spreadability [31], extended shelf-life, and the stability for 6–12 months at room temperature [33] give these systems the opportunity to be utilized as edible coatings for foods. Currently, some food-grade bigels have been used as potential fat substitutes in food products [34,35].
Increasing consumer demands for safer, high-quality food products with prolonged shelf lives have led the food industry to the broad use of chemical preservatives, ensuring the microbiological and oxidative stability of perishable foods. However, the use of synthetic preservatives has raised concerns regarding potential health risks [36,37,38]. A new trend in the food industry, called green consumerism, aims to develop alternative methods of food preservation and is more focused on using natural ingredients [39]. Specifically, essential oils and plant extracts attract interest as prospective preservatives due to their low toxicity, high bioaccessibility and wide acceptance by consumers [40]. The functionality of natural extracts and essential oils relies on inhibiting the growth of microorganisms (food safety) and controlling the natural spoilage processes (food preservation) [41]. In general terms, incorporating plant extracts into edible coatings could delay or prevent food deterioration, by controlling lipid oxidation or microbial growth. Thus, edible coatings enriched with plant extracts could be an approach to enhance the quality and extend the shelf life of perishable foods, such as sardine fillets.
Rosemary (Rosmarinus officinalis, L.) is a common aromatic herb, approved as a natural food antioxidant in the EU primarily due to its high concentration of antioxidant compounds, such as rosmarinic acid, carnosol and carnosic acid [42]. Rosmarinic acid is a more hydrophilic substance compared to carnosol and carnosic acid, which are more soluble in hydrophobic solvents [43]. The antioxidant activity is achieved by donating hydrogen atoms or electrons, which scavenge the free radicles. The rosmarinic acid exhibits strong antioxidant activity due to its structure, which is comprised of two phenolic rings [44]. In addition, the carnosic acid and carnosol, typically found in rosemary extracts, protect against oxidation progress by stabilizing the hydroperoxides [45]. Specifically, these phenolic compounds inhibit the decomposition of hydroperoxides into active forms, such as malonaldehyde, and create a complex with Fe2+, ensuring the prevention of hydroxyl radical formation [46]. Sarabi et al. (2017) reported the antioxidant effect of RE on coated fried Escolar (Lipidocybium flavobrumium) fish fillets during frozen storage [47]. Peiretti et al. (2012) investigated the effects of rosemary oil (RO) on the oxidative stability of minced rainbow trout at 4 °C and found that treatments enriched with RO had lower TBARS values than the control [48]. Furthermore, ice containing RE improves the oxidative stability and extension of the shelf life of sardine (Sardinella aurita) [49]. Moreover, various microorganisms are also vulnerable to the activity of rosemary oil, as it contributes to the increased permeability of the microbial cell membrane [50]. According to Klančnik et al. (2009), the antimicrobial activity could be affected by the concentration and the chemical nature of the phenolic compounds in RE [51]. The antimicrobial activity of extracts is mainly attributed to phenolic compounds, which can disrupt the bacteria’s cell wall and penetrate the cell, leading to protein denaturation, cell membrane destruction and cell death. Considering the above, the antimicrobial activity of extracts is expected to be lower against Gram-negative bacteria because the additional outer membrane of Gram-negative bacteria surrounds their cell wall, restricting the diffusion of hydrophobic compounds through the membrane and reducing the effect of the antimicrobial compounds [52]. The direct application of rosemary extract in fish flesh was effective in delaying lipid oxidation of gilt-head sea bream (Sparus aurata) and salmon (Salmo salar) fillets [53,54].
To the best of our knowledge, the application of gelatin hydrogels, sunflower oil oleogels, and bigels with or without rosemary extract for the preservation of the quality of sardine fillets has not been studied to date. Thus, the objective of the present study was to evaluate the efficacy of hydrogels, oleogels, and bigels as edible coatings and potential delivery systems of rosemary extract by examining the chemical and microbiological attributes of coated sardine fillets during refrigerated storage.

2. Results and Discussion

2.1. Evaluation of Gels as Edible Coatings

2.1.1. Thiobarbituric Acid (TBA) Analysis

Changes in TBARs of the sardine fillets throughout the storage period are shown in Figure 1. Initial TBARs were found to be 1.55–2.35 mg MDA/kg. Control treatment (C) had the highest TBARs during storage compared to coated treatments (p < 0.05). TBARs of C increased faster compared to H, O and BG treatments. The oxidation process followed an increasing course in all the sardine treatments up to 4th day, but lower values were observed for the coated fillets (H, O and BG). The application of the different edible coatings on sardine fillets showed statistically significant inhibition of lipid oxidation (p < 0.05). Treatment O exhibited the lowest TBARs during the storage time, which were recorded as 12.01 ± 2.88 mg MDA/kg on 4th day. The data illustrated in Figure 1 indicate that the oleogel coating was effective in retarding the production of secondary lipid oxidation products in sardine fillets by acting as a barrier to oxygen permeation and slowing oxygen diffusion into the fish. In addition, the bigel (containing 80% hydrogel and 20% oleogel phase) was a much more effective oxygen barrier that the plain hydrogel coating (H), which exhibited the least effectiveness against lipid oxidation.
Thiobarbituric acid values (TBARs) provide a measure of the concentration of secondary lipid oxidation products due to the auto-oxidation of peroxides to aldehydes and ketones [55]. Mendes et al. (2008) reported that the partial dehydration process of the fish and the oxidation of unsaturated fatty acids contributed to the increase in TBARs under chilled storage [56]. The edible coatings, in addition to providing a barrier to oxygen permeation, also prevented dehydration of the fillet surface, thus protecting the sardine fillets from oxidative deterioration.

2.1.2. Microbiological Analysis

The changes in psychotropic counts (PTC), Enterobacteriaceae and Pseudomonas spp. of sardine fillets during the refrigerated storage are shown in Table 1. The initial low microbial counts indicated that the fish were of good microbiological quality. The PTC of all the examined treatments increased gradually, as the storage temperature was optimal for these bacteria to proliferate [57]. The hydrogel coating (H) resulted in lower (p < 0.05) microbial counts than C and other coated treatments (O and BG) throughout the storage period (Table 1). Control and coated treatments reached 8–9 log (CFU/g) in PTC on the seventh day of storage.
During the storage period, the counts of Pseudomonas spp. showed an increasing trend for C and coated treatments (H, O and BG) (Table 1). The increase was significantly lower (p < 0.05) for H treatments compared to C. The observed antimicrobial activity of gelatin hydrogel could be related to the oligopeptide chains derived from the hydrolysis of collagen for the formation of gelatin and the presence of side-chain amino groups [58]. Analogous antimicrobial properties have also been reported for other hydrolyzed muscle proteins [59]. The population of Pseudomonas spp. of the C, H, O and BG treatments reached 9.83, 9.25, 9.40 and 9.74 log (CFU/g), on 7th day, respectively.
Enterobacteriaceae bacteria constitute an indicator of the deterioration of the hygienic conditions of fish. The application of coatings affected Enterobacteriaceae’s growth (p < 0.05). Initial Enterobacteriaceae counts were about 1.9–2.5 log (CFU/g). After seven days of refrigerated storage, Enterobacteriaceae reached approximately 8.5 log (CFU/g) for uncoated and BG sardine fillets. Generally, the hydrogel and oleogel coatings showed some antimicrobial activity against this microorganism. The H treatment exhibited the lowest Enterobacteriaceae counts up to the fifth day of refrigerated storage, in agreement with the previous observations for PTC and Pseudomonas spp.

2.2. Evaluation of Gels as Delivery Systems of Rosemary Extract

2.2.1. Thiobarbituric Acid (TBA) Analysis

TBARs of C and treatments with RE during storage at 4 °C are shown in Figure 2. MDA measurements showed that the initial oxidation of the sardine fillets was low on 0 day. It was found that incorporating RE in edible coatings affected TBARs development (p < 0.05). There was a progressive increase of lipid oxidation in C and the treatments with the RE-enriched coatings throughout storage. However, significantly lower (p < 0.05) TBARs were found for HR, OR, BGHR and BGOR treatments in comparison with the C treatments. Moreover, lower oxidation levels were measured in coated treatments enriched with RE (HR, OR, BGHR and BGOR) compared to the coated treatments without RE (H, O, BG). Results support that incorporating RE in different types of coatings can retard the oxidative deterioration of the refrigerated sardine fillets.
It has been established by several researchers that the incorporation of phenolic compounds into protein-based coatings may lead to the formation of hydrogen bonds between phenols and protein functional groups, resulting in the improvement of the mechanical attributes and water barrier properties of these type of coatings [60]. Thereby, the incorporation of the phenolic-rich RE in HR, is likely to enhance the barrier properties of the gelatin-based coating, delaying the oxidation deterioration of the fillets.
For the evaluation of the functionality of RE in the different phases (aqueous or lipid), the extract was incorporated into either the hydrogel or the oleogel phase of the bigel coatings. The TBARs of the sardine fillets with bigel coatings were significantly lower than the control samples (p < 0.05) and the RE showed a strong antioxidant activity (Figure 3). Even though the oxidation levels of the BGOR treatment were lower in absolute values than the BGHR treatment after the second day of storage, these differences were not statistically significant (p > 0.05). Therefore, the incorporation of RE into the oleogel or the bigel inhibited the lipid oxidation of sardine fillets in a comparable manner. The main active ingredient of the RE is rosmarinic acid, a water-soluble compound that would tend to partition into the aqueous phase of the bigel, even when the RE was incorporated into the lipid phase. Apart from rosmarinic acid, rosemary extracts also contain less polar ingredients, like carnosol (a phenolic diterpene) [61], that can be found in a propylene glycol extract [62]. When the RE is added in a complex matrix such as a bigel, the less polar ingredients could be transferred to the lipid fraction and a part of rosmarinic acid could partition into the aqueous phase of the bigel during mixing. It should be noted that the two phases of the bigel are mixed together when they are in a molten state, facilitating the partitioning process. The antioxidant activity of RE probably depends on the polarity of the edible coatings, as the coatings with a lipid phase seemed to be more efficient as delivery and controlled release systems of the RE. The better performance of the OR, BGHR and BGOR treatments compared to the HR could also be attributed to the better oxygen barrier properties of these gels compared to the gelatin hydrogel (H), as discussed in the previous section. Furthermore, these results could be associated with the fact that the diffusion rate of RE is slower in the oleogel system resulting in a gradual release of the antioxidant compound throughout the whole experiment [63].

2.2.2. Microbiological Analysis

As previously observed in the other treatments, the psychotropic counts (PTC), Pseudomonas spp. and Enterobacteriaceae of sardine fillets increased progressively with the storage time for HR, OR, BGHR and BGOR. The initial PTC of sardine fillets was 2.90–3.77 log (CFU/g) on day 0. On day 7, the PTC of C, HR, OR, BGHR and BGOR treatment reached 9.86, 8.00, 9.00, 9.42 and 9.15 log (CFU/g), respectively (Table 1). Lower final PTC of sardine fillets were observed for HR treatment compared to C and other coated treatments, while in the early days of storage, lower values were observed in bigel-coated treatments. Refrigerated storage resulted in an increase in Pseudomonas spp. and Enterobacteriaceae of the fillets with RE coating (Table 1). Even though the RE treatments had lower microbial counts than the plain coatings, these differences were not statistically significant (p > 0.05). It has been reported that the incorporation of 1.5% rosemary extract in refrigerated Nile tilapia (Oreochromis niloticus) fillets had no protective effect against Pseudomonas spp. [39].

2.2.3. Total Volatile Basic Nitrogen (TVB-N)

Small-sized molecules, such as volatile nitrogenous compounds, biogenic amines and organic acids, are produced by the metabolism of basic spoilage microorganisms in fresh fish and serve as spoilage indicators. Specifically, total volatile basic nitrogen (TVB-N) represents many different nitrogenous compounds, such as ammonia and primary, secondary and tertiary amines, formed by enzymatic action, and is widely used as an important indicator of fish and seafood deterioration [64,65]. According to Connel (1995), the concentration of TVB-N in a fresh fish is typically between 5–20 mg TVB-N/100 g, while the acceptability limit is 30–35 mg TVB-N/100 g of fish flesh [66]. The TVB-N determination revealed significant differences between the control and bigel treatments. TVB-N concentrations of the various treatments are shown in Figure 4.
On the fourth day of storage, the TVBN values of C, BG, BGHR and BGOR were 26.6, 14.7, 10.5 and 7.7 mg/100 g, respectively. The bigel coatings significantly delayed TVB-N formation compared to the control (C) (Figure 4) (p < 0.05). According to the results, the TVB-N content of all treatments gradually increased during storage, but the level of 30 mg/100 g was exceeded only in treatment C, at the end of the storage period. The BGHR and BGOR treatments reached significantly lower TVB-N values of 14.0 mg/100 g and 9.1 mg/100 g in comparison to C treatments (p < 0.05). Based on the TVB-N results, it can be concluded that the RE has a more intense effect on inhibiting the TVN-N production when added in the oleogel phase of the bigel (BGOR). Similar studies reported that fish fillets coated with edible films containing extracts or essential oils in multiple concentrations showed lower TVB-N values than non-coated samples stored under refrigeration [67]. Based on these observations, it can be concluded that, even if the composition of BGHR and BGOR is identical, the incorporation phase of RE plays an essential role in the functionality of the edible coating.

3. Conclusions

Hydrogels, oleogels, and bigels were applied as edible coatings of sardine fillets. The edible coatings had a significant effect on inhibiting sardine fillets oxidation, while they offered a marginal benefit in microbial growth control. These gel systems were also evaluated for their functionality as delivery systems of rosemary extract. Sardine fillet spoilage, as indicated by lipid oxidation and TVB-N levels, was further limited when rosemary extract was added into the edible coatings. Bigels offered good functionality as delivery systems of rosemary extract. Delivery system functionality can be differentiated, depending on the polarity of the bioactive compounds and whether the bioactive compounds are solubilized in the aqueous or the lipid phase of the bigels. The efficiency of RE increased when it was incorporated in the oleogel phase of bigel, inhibiting the oxidative changes and the production of TVB-N of the coated fillets. Gels used as edible coatings could extend the shelf life of fishery products, regarding the lipid oxidation process. Bigels in particular can be used as coatings and potential delivery systems of bioactive substances in sardine fillets during cold storage.

4. Materials and Methods

4.1. Sardine Fillet Preparation

Sardines were purchased fresh from the local fish market (Nea Mihaniona, Greece) and transferred to the laboratory in a cooled box covered with crushed ice within 30 min. Upon arrival, each fish was eviscerated, filleted by hand, and carefully washed with cold water. Two fillets were obtained from each fish after removing the head and bones. The weight of each sardine fillet was approximately 8 g.

4.2. Preparation of Coating Solution and Treatment of Fish Fillets

To prepare the gelatin hydrogel, 10% w/w gelatin from bovine and porcine bones (Type A Gelatin, Sigma-Aldrich, Germany) was hydrated under constant stirring in distilled water at room temperature for 10 min. Then, the gelatin suspension was heated at 80 °C for 10 min until gelatin was fully dissolved.
For oleogel preparation, sunflower oil (Minerva S.A., Metamorphosis, Greece) was heated at 90–95 °C, and then 15% w/w monoglycerides (MGs, HARI 95 distilled monoglycerides Rikevita SDN BHD-Malaysia) were added to the hot sunflower oil as structurants. The mixture was continuously stirred at 90–95 °C for 60 min [23].
Bigels were prepared by slowly incorporating the molten sunflower oil oleogel into the gelatin hydrogel at 70 °C at a 20:80 ratio, under constant stirring for 15 min, using a magnetic stirrer at 300 rpm. The concentrations and the mixing ratio of hydrogels and oleogels were selected so that the coatings remained fluid at a temperature (45 °C) that did not affect the viability of the natural microflora of the sardine fillets.
A commercially produced rosemary extract (RE) (AquaROX, Vitiva, Slovenia) was incorporated at a concentration of 2% into the individual gels (at 50 °C) under constant stirring. The commercial rosemary extract (RE) solution consisted of 90% propylene glycol and 10% rosemary extract, with rosmarinic acid as the main active ingredient, according to manufacturer’s specifications. The same concentration of propylene glycol (2%) was added to all other coatings (gels) that did not contain the extract, to ensure the greatest possible uniformity among coatings.
Sardine fillets were randomly separated into three groups. The first group of fillets was untreated and uncoated, and was used as the control treatment (C). A part of the second group of fillets was coated by dipping in gelatin hydrogel (H), another in sunflower oil oleogel (O) and another in bigel (BG). The direct coating was applied by immersion of the sardine fillets in each type of gel for approximately 10 s at 45 °C and the excess coating was drained for 2 s before the fillets were stored. Additionally, sardine fillets were also coated with gels containing 2% RE as a potential antioxidant and antimicrobial agent. Four different sardine fillets treatments were obtained, one with RE into the oleogel (OR), one into the hydrogel (HR), one in the hydrogel phase of bigel (BGHR) and another into the oleogel phase of bigel (BGOR). Finally, all treatments were stored in sterile, plastic petri dishes at 4 °C for seven days. The different coating formulations and their respective composition is shown in Table 2.

4.3. Chemical Analysis

4.3.1. Thiobarbituric Acid (TBA) Analysis

The TBA (2-thiobarbituric acid) test is a valuable chemical index of lipid oxidation, measuring malonaldehyde (MDA), a secondary lipid oxidation product. For the test, 10 g of each treatment of sardine fillets were mixed with 25 mL of deionized water, and the mixture was homogenized for 1–2 min using Ultra Turrax T18 basic (IKA Works Inc. Wilmington, NC, USA) at 14.000 rpm. Then, each sample was transferred into the distillation flask and 5 mL HCl 2N and 3–4 drops of silicone anti-foaming solution (Sigma-Aldrich, St. Louis, MO, USA) were added. Each sample was steam-distilled on a distillation unit (UDK 127, VELP Scientifica, Usmate, Italy) until 50 mL of distillate was collected. A 5 mL aliquot of the distillate was transferred into a test tube, and 5 mL of 0.02 M TBA solution was added. All samples were heated in a water bath for 35 min and then cooled with cold tap water. The absorbance at 532 nm (A532) was determined against a blank containing 5 mL of deionized water instead of the distillate, with a spectrophotometer (Shimadzu UV-1700, Europe GmbH, Duisburg, Germany). All analyses were performed in duplicate and the results were expressed as TBARs (mg MDA per kg sardine fillets). Analyses were performed when dip-coating of sardine fillets took place and on the first, second, third and fourth days of storage.

4.3.2. Total Volatile Basic Nitrogen (TVB-N)

To determine total volatile basic nitrogen (TVB-N), the official EU method 95/149/EC (EC, 1995) was used. Briefly, 10 g of fish fillet were homogenized with 90 mL of 0.6 M perchloric acid (Chem-Lab NV, Zedelgem, Belgium) using an Ultra-Turrax homogenizer (IKA, Staufen, Germany). Then, the homogenate was filtered through Whatman No. 2 filter paper, and 50 mL of the filtrate was transferred into a distillation flask. The filtrate was made alkaline by the addition of 6.5 mL of 20% NaOH solution. A few drops of phenolphthalein and silicon anti-foaming agent were added to the flask to ensure sufficient alkalinization and prevent excessive foaming, respectively. Steam distillation was performed on a distillation unit (UDK 127, VELP Scientifica, Usmate, Italy) until 100 mL of distillate were collected in a flask containing 100 mL of 3 % aqueous solution of boric acid and Tashiro mixed indicator (2 g methyl-red and 1 g methylene-blue dissolved in 1000 mL 95% ethanol). TVB-N was determined by titrating the distillate with 0.01 N HCl. TVBN levels on the day the dip-coating of sardine fillets took place and on the fourth and seventh day of storage, in duplicate.

4.4. Microbiological Analysis

Twenty-five grams of each fish treatment was aseptically transferred into sterile stomacher bags with 225 mL of sterile Ringer solution (Ringer Solution ¼ Strength, Lab M., Limited, Lancashire, UK). The mixture was homogenized in a stomacher mixer (BagMixer 400, Interscience, St. Nom, France) for 120 s, and further appropriate dilutions were prepared for the following microorganism counts: (i) psychrotrophic counts (PTC) on Plate Count Agar (PCA, Lab M) incubated at 10 °C for seven days, (ii) Pseudomonas spp. on Pseudomonas Agar Base (PAB, Lab M) supplemented with cephaloridine-fucidin-cetrimide (CFC, Lab M) incubated at 25 °C for 48 h, (iii) Enterobacteriaceae on Violet Red Bile Glucose Agar (VRBGA, Lab M), incubated at 37 °C for 24 h. All microbiological counts were performed in duplicate, and the results were expressed as the log of the number of colony-forming units per g (log (CFU/g)). Microbiological analyses were conducted on the 0, first, third, fifth and seventh day of storage.

4.5. Statistical Analysis

All experiments were replicated twice and duplicate determinations were performed for each analysis. All the results, expressed as mean ± standard deviation, were analyzed by ANOVA, using the general linear model, at the significance level of 0.05. Differences among the samples were identified using Tukey’s multiple range test. All statistical analyses were performed using the Minitab 16 statistical software (Minitab, Inc., State College, PA, USA).

Author Contributions

Conceptualization, E.K. and A.K.; methodology, A.K., K.Z. and I.M.; investigation, A.K. and K.Z.; resources, E.K.; writing—original draft preparation, A.K. and K.Z.; writing—review and editing, K.Z., E.K. and I.M.; supervision, E.K.; project administration, E.K.; funding acquisition, E.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hellenic Foundation for Research and Innovation (H.F.R.I.) under the “First Call for H.F.R.I. Research Projects to support Faculty members and Researchers and the procurement of high-cost research equipment grant”, project number 3601.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Šimat, V.; Hamed, I.; Petričević, S.; Bogdanović, T. Seasonal changes in free amino acid and fatty acid compositions of sardines, Sardina Pilchardus (Walbaum, 1792): Implications for nutrition. Foods 2020, 9, 867. [Google Scholar] [CrossRef] [PubMed]
  2. Çoban, Ö.E.; Can, Ö.P. The effect of active packaging film containing rosemary extract on the quality of smoked rainbow trout (Oncorhynchus mykiss). J. Aquat. Food Prod. Technol. 2013, 22, 361–370. [Google Scholar] [CrossRef]
  3. González-Fandos, E.; Villarino-Rodrıguez, A.; Garcıa-Linares, M.C.; Garcıa-Arias, M.T.; García-Fernández, M.C. Microbiological safety and sensory characteristics of salmon slices processed by the sous vide method. Food Control 2005, 16, 77–85. [Google Scholar] [CrossRef]
  4. Hosseini, S.F.; Rezaei, M.; Zandi, M.; Ghavi, F.F. Effect of fish gelatin coating enriched with oregano essential oil on the quality of refrigerated rainbow trout fillet. J. Aquat. Food Prod. Technol. 2016, 25, 835–842. [Google Scholar] [CrossRef]
  5. Suhag, R.; Kumar, N.; Petkoska, A.T.; Upadhyay, A. Film formation and deposition methods of edible coating on food products: A review. Int. Food Res. J. 2020, 136, 109582. [Google Scholar] [CrossRef]
  6. Gennadios, A.; Hanna, M.A.; Kurth, L.B. Application of edible coatings on meats, poultry and seafoods: A review. LWT-Food Sci. Technol. 1997, 30, 337–350. [Google Scholar] [CrossRef]
  7. Mohan, C.O.; Ravishankar, C.N.; Lalitha, K.V.; Gopal, T.S. Effect of chitosan edible coating on the quality of double filleted Indian oil sardine (Sardinella longiceps) during chilled storage. Food Hydrocoll. 2012, 26, 167–174. [Google Scholar] [CrossRef]
  8. Bazargani-Gilani, B. Activating sodium alginate-based edible coating using a dietary supplement for increasing the shelf life of rainbow trout fillet during refrigerated storage (4 ± 1 C). J. Food Saf. 2018, 38, e12395. [Google Scholar] [CrossRef] [Green Version]
  9. Farajzadeh, F.; Motamedzadegan, A.; Shahidi, S.A.; Hamzeh, S. The effect of chitosan-gelatin coating on the quality of shrimp (Litopenaeus vannamei) under refrigerated condition. Food Control 2016, 67, 163–170. [Google Scholar] [CrossRef]
  10. Yıldız, P.O.; Yangılar, F. Effects of different whey protein concentrate coating on selected properties of rainbow trout (Oncorhynchus mykiss) during cold storage (4 °C). Int. J. Food Prop. 2016, 19, 2007–2015. [Google Scholar] [CrossRef]
  11. Arfat, Y.A.; Benjakul, S.; Vongkamjan, K.; Sumpavapol, P.; Yarnpakdee, S. Shelf-life extension of refrigerated sea bass slices wrapped with fish protein isolate/fish skin gelatin-ZnO nanocomposite film incorporated with basil leaf essential oil. J. Food Sci. Technol. 2015, 52, 6182–6193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Rodriguez-Turienzo, L.; Cobos, A.; Moreno, V.; Caride, A.; Vieites, J.M.; Diaz, O. Whey protein-based coatings on frozen Atlantic salmon (Salmo salar): Influence of the plasticiser and the moment of coating on quality preservation. Food Chem. 2011, 128, 187–194. [Google Scholar] [CrossRef]
  13. Sallam, K.I. Antimicrobial and antioxidant effects of sodium acetate, sodium lactate, and sodium citrate in refrigerated sliced salmon. Food Control 2007, 18, 566–575. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Gram, L.; Huss, H.H. Microbiological spoilage of fish and fish products. Int. J. Food Microbiol. 1996, 33, 121–137. [Google Scholar] [CrossRef]
  15. Ahmed, E.M. Hydrogel: Preparation, characterization, and applications: A review. J. Adv. Res. 2015, 6, 105–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Caló, E.; Khutoryanskiy, V.V. Biomedical applications of hydrogels: A review of patents and commercial products. Eur. Polym. J. 2015, 65, 252–267. [Google Scholar] [CrossRef] [Green Version]
  17. Feng, X.; Ng, V.K.; Mikš-Krajnik, M.; Yang, H. Effects of fish gelatin and tea polyphenol coating on the spoilage and degradation of myofibril in fish fillet during cold storage. Food Bioprocess Technol. 2017, 10, 89–102. [Google Scholar] [CrossRef]
  18. Co, E.D.; Marangoni, A.G. Organogels: An alternative edible oil-structuring method. J. Am. Oil Chem. Soc. 2012, 89, 749–780. [Google Scholar] [CrossRef]
  19. Moschakis, T.; Panagiotopoulou, E.; Katsanidis, E. Sunflower oil organogels and organogel-in-water emulsions (part I): Microstructure and mechanical properties. LWT-Food Sci. Technol. 2016, 73, 153–161. [Google Scholar] [CrossRef]
  20. Zampouni, K.; Soniadis, A.; Moschakis, T.; Biliaderis, C.G.; Lazaridou, A.; Katsanidis, E. Crystalline microstructure and physicochemical properties of olive oil oleogels formulated with monoglycerides and phytosterols. LWT-Food Sci. Technol. 2022, 154, 112815. [Google Scholar] [CrossRef]
  21. Zhao, W.; Wei, Z.; Xue, C. Recent advances on food-grade oleogels: Fabrication, application and research trends. Crit. Rev. Food Sci. Nutr. 2022, 62, 7659–7676. [Google Scholar] [CrossRef] [PubMed]
  22. Demirkesen, I.; Mert, B. Recent developments of oleogel utilizations in bakery products. Crit. Rev. Food Sci. Nutr. 2020, 60, 2460–2479. [Google Scholar] [CrossRef]
  23. Kouzounis, D.; Lazaridou, A.; Katsanidis, E. Partial replacement of animal fat by oleogels structured with monoglycerides and phytosterols in frankfurter sausages. Meat Sci. 2017, 130, 38–46. [Google Scholar] [CrossRef]
  24. Martins, A.J.; Lorenzo, J.M.; Franco, D.; Pateiro, M.; Domínguez, R.; Munekata, P.E.; Pastrana, L.M.; Vicente, A.A.; Cunha, R.L.; Cerqueira, M.A. Characterization of enriched meat-based pâté manufactured with oleogels as fat substitutes. Gels 2020, 6, 17. [Google Scholar] [CrossRef]
  25. Panagiotopoulou, E.; Moschakis, T.; Katsanidis, E. Sunflower oil organogels and organogel-in-water emulsions (part II): Implementation in frankfurter sausages. LWT-Food Sci. Technol. 2016, 73, 351–356. [Google Scholar] [CrossRef]
  26. Zampouni, K.; Soniadis, A.; Dimakopoulou-Papazoglou, D.; Moschakis, T.; Biliaderis, C.G.; Katsanidis, E. Modified fermented sausages with olive oil oleogel and NaCl–KCl substitution for improved nutritional quality. LWT-Food Sci. Technol. 2022, 158, 113172. [Google Scholar] [CrossRef]
  27. Pinto, T.C.; Martins, A.J.; Pastrana, L.; Pereira, M.C.; Cerqueira, M.A. Oleogel-based systems for the delivery of bioactive compounds in foods. Gels 2021, 7, 86. [Google Scholar] [CrossRef]
  28. Shakeel, A.; Lupi, F.R.; Gabriele, D.; Baldino, N.; De Cindio, B. Bigels: A unique class of materials for drug delivery applications. Soft Mater. 2018, 16, 77–93. [Google Scholar] [CrossRef]
  29. Kodela, S.P.; Pandey, P.M.; Nayak, S.K.; Uvanesh, K.; Anis, A.; Pal, K. Novel agar–stearyl alcohol oleogel-based bigels as structured delivery vehicles. Int. J. Polym. Mater. 2017, 66, 669–678. [Google Scholar] [CrossRef]
  30. Shakeel, A.; Farooq, U.; Iqbal, T.; Yasin, S.; Lupi, F.R.; Gabriele, D. Key characteristics and modelling of bigels systems: A review. Mater. Sci. Eng. C 2019, 97, 932–953. [Google Scholar] [CrossRef]
  31. Behera, B.; Sagiri, S.S.; Pal, K.; Pramanik, K.; Rana, U.A.; Shakir, I.; Anis, A. Sunflower oil and protein-based novel bigels as matrices for drug delivery applications—Characterization and in vitro antimicrobial efficiency. Polym. Plast. Technol. Eng. 2015, 54, 837–850. [Google Scholar] [CrossRef]
  32. Rehman, K.; Amin, M.C.I.M.; Zulfakar, M.H. Development and physical characterization of polymer-fish oil bigel (hydrogel/oleogel) system as a transdermal drug delivery vehicle. J. Oleo. Sci. 2014, 63, 961–970. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sagiri, S.S.; Singh, V.K.; Kulanthaivel, S.; Banerjee, I.; Basak, P.; Battachrya, M.K.; Pal, K. Stearate organogel–gelatin hydrogel based bigels: Physicochemical, thermal, mechanical characterizations and in vitro drug delivery applications. J. Mech. Behav. Biomed. Mater. 2015, 43, 1–17. [Google Scholar] [CrossRef] [PubMed]
  34. Ghiasi, F.; Golmakani, M.T. Fabrication and characterization of a novel biphasic system based on starch and ethylcellulose as an alternative fat replacer in a model food system. Innov. Food Sci. Emerg. Technol. 2022, 78, 103028. [Google Scholar] [CrossRef]
  35. Quilaqueo, M.; Iturra, N.; Contardo, I.; Millao, S.; Morales, E.; Rubilar, M. Food-Grade Bigels with Potential to Replace Saturated and Trans Fats in Cookies. Gels 2022, 8, 445. [Google Scholar] [CrossRef] [PubMed]
  36. Mpountoukas, P.; Vantarakis, A.; Sivridis, E.; Lialiaris, T. Cytogenetic study in cultured human lymphocytes treated with three commonly used preservatives. Food Chem. Toxicol. 2008, 46, 2390–2393. [Google Scholar] [CrossRef] [PubMed]
  37. Mamur, S.; Yüzbaşıoğlu, D.; Ünal, F.; Aksoy, H. Genotoxicity of food preservative sodium sorbate in human lymphocytes in vitro. Cytotechnology 2012, 64, 553–562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Lennerz, B.S.; Vafai, S.B.; Delaney, N.F.; Clish, C.B.; Deik, A.A.; Pierce, K.A.; Ludwig, V.K.; Mootha, V.K. Effects of sodium benzoate, a widely used food preservative, on glucose homeostasis and metabolic profiles in humans. Mol. Genet. Metab. 2015, 114, 73–79. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Khalafalla, F.A.; Ali, F.H.; Hassan, A.R.H. Quality improvement and shelf-life extension of refrigerated Nile tilapia (Oreochromis niloticus) fillets using natural herbs. Beni-Suef Univ. J. Basic Appl. Sci. 2015, 4, 33–40. [Google Scholar] [CrossRef] [Green Version]
  40. Burt, S. Essential oils: Their antibacterial properties and potential applications in foods—A review. Int. J. Food Microbiol. 2004, 94, 223–253. [Google Scholar] [CrossRef]
  41. Martínez-Graciá, C.; González-Bermúdez, C.A.; Cabellero-Valcárcel, A.M.; Santaella-Pascual, M.; Frontela-Saseta, C. Use of herbs and spices for food preservation: Advantages and limitations. Curr. Opin. Food Sci. 2015, 6, 38–43. [Google Scholar] [CrossRef]
  42. Moreno, S.; Scheyer, T.; Romano, C.S.; Vojnov, A.A. Antioxidant and antimicrobial activities of rosemary extracts linked to their polyphenol composition. Free Radic. Res. 2006, 40, 223–231. [Google Scholar] [CrossRef] [PubMed]
  43. Xie, J.; VanAlstyne, P.; Uhlir, A.; Yang, X. A review on rosemary as a natural antioxidation solution. Eur. J. Lipid Sci. Technol. 2017, 119, 1600439. [Google Scholar] [CrossRef]
  44. Cao, H.; Cheng, W.X.; Li, C.; Pan, X.L.; Xie, X.G.; Li, T.H. DFT study on the antioxidant activity of rosmarinic acid. THEODJ. 2005, 719, 177–183. [Google Scholar] [CrossRef]
  45. Fernández-López, J.; Sevilla, L.; Sayas-Barberá, E.; Navarro, C.; Marin, F.; Pérez-Alvarez, J.A. Evaluation of the antioxidant potential of hyssop (Hyssopus officinalis L.) and rosemary (Rosmarinus officinalis L.) extracts in cooked pork meat. J. Food Sci. 2003, 68, 660–664. [Google Scholar] [CrossRef]
  46. Wellwood, C.R.; Cole, R.A. Relevance of carnosic acid concentrations to the selection of rosemary, Rosmarinus officinalis (L.), accessions for optimization of antioxidant yield. J. Agric. Food Chem. 2004, 52, 6101–6107. [Google Scholar] [CrossRef]
  47. Sarabi, M.; Keramat, J.; Kadivar, M. Antioxidant effect of rosemary extract and BHT on the quality of coated fried Escolar (Lipidocybium flavobrunium) fish fillets during frozen storage. Int. Food Res. J. 2017, 24, 525. [Google Scholar]
  48. Peiretti, P.G.; Gai, F.; Ortoffi, M.; Aigotti, R.; Medana, C. Effects of rosemary oil (Rosmarinus officinalis) on the shelf-life of minced rainbow trout (Oncorhynchus mykiss) during refrigerated storage. Foods 2012, 1, 28–39. [Google Scholar] [CrossRef]
  49. Özyurt, G.; Kuley, E.; Balikçi, E.; Kaçar, Ç.; Gökdogan, S.; Etyemez, M.; Özogul, F. Effect of the icing with rosemary extract on the oxidative stability and biogenic amine formation in sardine (Sardinella aurita) during chilled storage. Food Bioproc. Technol. 2012, 5, 2777–2786. [Google Scholar] [CrossRef]
  50. Djeddi, S.; Bouchenah, N.; Settar, I.; Skaltsa, H.D. Composition and antimicrobial activity of the essential oil of Rosmarinus officinalis from Algeria. Chem. Nat. Compd. 2007, 43, 487–490. [Google Scholar] [CrossRef]
  51. Klančnik, A.; Guzej, B.; Kolar, M.H.; Abramovič, H.; Možina, S.S. In vitro antimicrobial and antioxidant activity of commercial rosemary extract formulations. J. Food Prot. 2009, 72, 1744–1752. [Google Scholar] [CrossRef] [PubMed]
  52. Oussalah, M.; Caillet, S.; Lacroix, M. Mechanism of action of Spanish oregano, Chinese cinnamon, and savory essential oils against cell membranes and walls of Escherichia coli O157: H7 and Listeria monocytogenes. J. Food Prot. 2006, 69, 1046–1055. [Google Scholar] [CrossRef] [PubMed]
  53. Giménez, B.; Roncalés, P.; Beltrán, J.A. The effects of natural antioxidants and lighting conditions on the quality characteristics of gilt-head sea bream fillets (Sparus aurata) packaged in a modified atmosphere. J. Sci. Food Agric. 2004, 84, 1053–1060. [Google Scholar] [CrossRef]
  54. Giménez, B.; Roncalés, P.; Beltrán, J.A. The effects of natural antioxidants and lighting conditions on the quality of salmon (Salmo salar) fillets packaged in modified atmosphere. J. Sci. Food Agric. 2005, 85, 1033–1040. [Google Scholar] [CrossRef]
  55. Fernández, J.; Pérez-Álvarez, J.A.; Fernández-López, J.A. Thiobarbituric acid test for monitoring lipid oxidation in meat. Food Chem. 1997, 59, 345–353. [Google Scholar] [CrossRef]
  56. Mendes, R.; Pestana, C.; Gonçalves, A. The effects of soluble gas stabilisation on the quality of packed sardine fillets (Sardina pilchardus) stored in air, VP and MAP. Int. J. Food Sci. Technol. 2008, 43, 2000–2009. [Google Scholar] [CrossRef]
  57. Pothakos, V.; Samapundo, S.; Devlieghere, F. Total mesophilic counts underestimate in many cases the contamination levels of psychrotrophic lactic acid bacteria (LAB) in chilled-stored food products at the end of their shelf-life. Food Microbiol. 2012, 32, 437–443. [Google Scholar] [CrossRef]
  58. Pereda, M.; Ponce, A.G.; Marcovich, N.E.; Ruseckaite, R.A.; Martucci, J.F. Chitosan-gelatin composites and bi-layer films with potential antimicrobial activity. Food Hydrocoll. 2011, 25, 1372–1381. [Google Scholar] [CrossRef]
  59. Di Bernardini, R.; Harnedy, P.; Bolton, D.; Kerry, J.; O’Neill, E.; Mullen, A.M.; Hayes, M. Antioxidant and antimicrobial peptidic hydrolysates from muscle protein sources and by-products. Food Chem. 2011, 124, 1296–1307. [Google Scholar] [CrossRef]
  60. Gómez-Estaca, J.; De Lacey, A.L.; López-Caballero, M.E.; Gómez-Guillén, M.C.; Montero, P. Biodegradable gelatin–chitosan films incorporated with essential oils as antimicrobial agents for fish preservation. Food Microbiol. 2010, 27, 889–896. [Google Scholar] [CrossRef]
  61. Sharma, Y.; Velamuri, R.; Fagan, J.; Schaefer, J. Full-spectrum analysis of bioactive compounds in rosemary (Rosmarinus officinalis L.) as influenced by different extraction methods. Molecules 2020, 25, 4599. [Google Scholar] [CrossRef]
  62. Yamane, M.A.; Williams, A.C.; Barry, B.W. Terpene penetration enhancers in propylene glycol/water co-solvent systems: Effectiveness and mechanism of action. J. Pharm. Pharmacol. 1995, 47, 978–989. [Google Scholar] [CrossRef]
  63. Calligaris, S.; Da Pieve, S.; Arrighetti, G.; Barba, L. Effect of the structure of monoglyceride–oil–water gels on aroma partition. Int. Food Res. J. 2010, 43, 671–677. [Google Scholar] [CrossRef]
  64. Fan, W.; Sun, J.; Chen, Y.; Qiu, J.; Zhang, Y.; Chi, Y. Effects of chitosan coating on quality and shelf life of silver carp during frozen storage. Food Chem. 2009, 115, 66–70. [Google Scholar] [CrossRef]
  65. Homayounpour, P.; Jalali, H.; Shariatifar, N.; Amanlou, M.; Khanjari, A. Protective effect of nanochitosan incorporated with free/nanoliposome Cumin (Cuminum cyminum L.) aqueous extract on sardine fish. J. Aquat. Food Prod. Technol. 2020, 29, 949–961. [Google Scholar] [CrossRef]
  66. Connell, J.J. Control of Fish Quality, 4th ed.; Fishing News Books Limited: London, UK, 1995; p. 245. [Google Scholar]
  67. Ahmad, M.; Benjakul, S.; Sumpavapol, P.; Nirmal, N.P. Quality changes of sea bass slices wrapped with gelatin film incorporated with lemongrass essential oil. Int. J. Food Microbiol. 2012, 155, 171–178. [Google Scholar] [CrossRef]
Gels 08 00660 g001 550

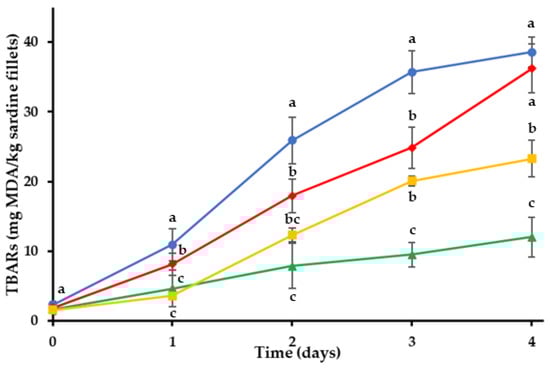

Figure 1. Oxidation values of sardine fillets with edible coatings during storage at 4 °C. (●) C: control-uncoated fillets; (♦) H: hydrogel coating; (▲) O: oleogel coating; (■) BG: bigel coating. a–c Different letters in the same day indicate significant differences (p < 0.05).
Figure 1. Oxidation values of sardine fillets with edible coatings during storage at 4 °C. (●) C: control-uncoated fillets; (♦) H: hydrogel coating; (▲) O: oleogel coating; (■) BG: bigel coating. a–c Different letters in the same day indicate significant differences (p < 0.05).
Gels 08 00660 g001
Gels 08 00660 g002 550

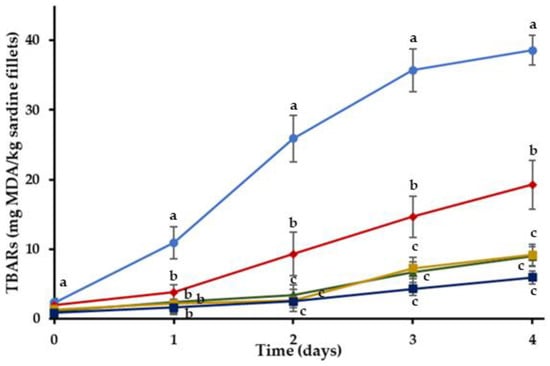

Figure 2. Oxidation values of sardine fillets with incorporated RE coating during storage at 4 °C. (●) C: control-uncoated fillets; (♦) HR: hydrogel coating with RE; (▲) OR: oleogel coating with RE; (■) BGHR: bigel coating with added RE in the aqueous phase; (■) BGOR: bigel coating with added RE in the lipid phase. a–c Different letters in the same day indicate significant differences (p < 0.05).
Figure 2. Oxidation values of sardine fillets with incorporated RE coating during storage at 4 °C. (●) C: control-uncoated fillets; (♦) HR: hydrogel coating with RE; (▲) OR: oleogel coating with RE; (■) BGHR: bigel coating with added RE in the aqueous phase; (■) BGOR: bigel coating with added RE in the lipid phase. a–c Different letters in the same day indicate significant differences (p < 0.05).
Gels 08 00660 g002
Gels 08 00660 g003 550

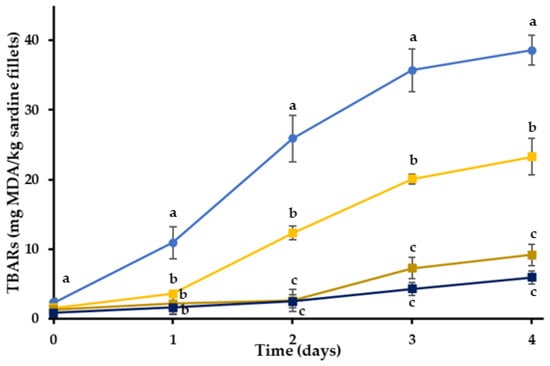

Figure 3. Oxidation values of sardine fillets with or without incorporated RE coating during storage at 4 °C. (●) C: control-uncoated fillets; (■) BG: bigel coating; (■) BGHR: bigel coating with added RE in the aqueous phase; (■) BGOR: bigel coating with added RE in the lipid phase. a–c Different letters in the same day indicate significant differences (p < 0.05).
Figure 3. Oxidation values of sardine fillets with or without incorporated RE coating during storage at 4 °C. (●) C: control-uncoated fillets; (■) BG: bigel coating; (■) BGHR: bigel coating with added RE in the aqueous phase; (■) BGOR: bigel coating with added RE in the lipid phase. a–c Different letters in the same day indicate significant differences (p < 0.05).
Gels 08 00660 g003
Gels 08 00660 g004 550

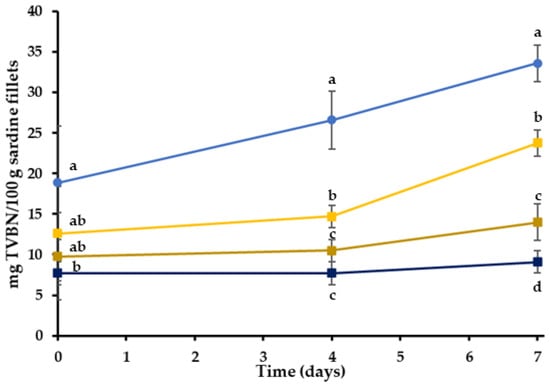

Figure 4. Total volatile basic nitrogen (TVBN) in the treatment during chilled storage (4 °C). Results have been expressed as mg of TVBN per 100 g of sardine fillets. (●) C: control-uncoated fillets; (■) BG: bigel coating; (■) BGHR: bigel coating with added RE in the aqueous phase; (■) BGOR: bigel coating with added RE in the lipid phase. a–d Different letters in the same day indicate significant differences (p < 0.05).
Figure 4. Total volatile basic nitrogen (TVBN) in the treatment during chilled storage (4 °C). Results have been expressed as mg of TVBN per 100 g of sardine fillets. (●) C: control-uncoated fillets; (■) BG: bigel coating; (■) BGHR: bigel coating with added RE in the aqueous phase; (■) BGOR: bigel coating with added RE in the lipid phase. a–d Different letters in the same day indicate significant differences (p < 0.05).
Gels 08 00660 g004
Table
Table 1. Microbiological characteristics of sardine fillets coated with or without RE during storage at 4 °C.
Table 1. Microbiological characteristics of sardine fillets coated with or without RE during storage at 4 °C.
Gels as Edible Coating Gels as Edible Coating and Delivery System
DaysCHOBGHRORBGHRBGOR
0 3.77 ± 0.54a3.40 ± 0.08a3.79 ± 0.06a3.25 ± 0.15a3.27 ± 0.05a3.70 ± 0.14a2.92 ± 0.2 5a2.90 ± 0.26a
Psychrotrophic 1 4.74 ± 1.13a4.32 ± 0.07ab6.12 ± 0.03a3.30 ± 0.11b4.20 ± 0.18ab5.87 ± 0.07a3.27 ± 0.11b3.22 ± 0.12b
Bacteria 3 7.12 ± 0.82a5.00 ± 0.02b7.40 ± 0.11a6.74 ± 0.05a5.04 ± 0.05b7.42 ± 0.06a6.53 ± 0.08a6.12 ± 0.19ab
log (CFU/g) 5 8.50 ± 0.07ab7.02 ± 0.07c9.13 ± 0.06a8.13 ± 0.11abc7.03 ± 0.00c8.97 ± 0.03a8.03 ± 0.02abc7.66 ± 0.07bc
7 9.86 ± 0.22a8.32 ± 0.01d9.15 ± 0.06c9.64 ± 0.06ab8.00 ± 0.03d9.00 ± 0.02c9.42 ± 0.11bc9.15 ± 0.16c
0 3.63 ± 0.10a3.22 ± 0.02cd3.43 ± 0.02abc3.55 ± 0.07ab3.13 ± 0.02cd3.34 ± 0.06bcd3.29 ± 0.12cd3.10 ± 0.10cd
Pseudomonas spp. 1 4.45 ± 0.47a3.47 ± 0.05b3.95 ± 0.06ab3.95 ± 0.02ab3.15 ± 0.04b3.84 ± 0.07ab3.82 ± 0.03b3.72 ± 0.06b
log (CFU/g) 3 6.94 ± 0.67a5.22 ± 0.12b7.36 ± 0.11a6.51 ± 0.11a5.29 ± 0.07b7.24 ± 0.01a6.39 ± 0.06ab6.20 ± 0.07ab
5 8.28 ± 0.74abc7.19 ± 0.11d9.19 ± 0.09a7.89 ± 0.04bcd7.09 ± 0.02d8.71 ± 0.15ab7.43 ± 0.04cd7.19 ± 0.07d
7 9.83 ± 0.18a9.25 ± 0.04bc9.40 ± 0.11bc9.74 ± 0.05a9.19 ± 0.06bc9.04 ± 0.08c9.46 ± 0.04b9.27 ± 0.05bc
0 2.48 ± 0.41a1.92 ± 0.11ab2.46 ± 0.06ab2.52 ± 0.09a1.69 ± 0.12b2.22 ± 0.15ab2.39 ± 0.06ab2.21 ± 0.08ab
Enterobacteriaceae 1 3.26 ± 0.74a2.45 ± 0.03a3.74 ± 0.09a2.94 ± 0.03a2.33 ± 0.07a3.56 ± 0.08a2.84 ± 0.06a2.75 ± 0.08a
log (CFU/g) 3 5.93 ± 0.52a4.40 ± 0.11bc4.58 ± 0.02bc5.30 ± 0.12ab4.38 ± 0.01bc4.30 ± 0.06c5.11 ± 0.06bc4.91 ± 0.05bc
5 6.96 ± 0.86ab6.52 ± 0.01abc7.75 ± 0.04a5.92 ± 0.26bc6.48 ± 0.02abc7.69 ± 0.02a5.23 ± 0.08c5.00 ± 0.04c
7 8.40 ± 0.30a7.59 ± 0.03b7.17 ± 0.01bc8.57 ± 0.06a7.42 ± 0.08b6.72 ± 0.01c8.43 ± 0.04a8.19 ± 0.08a
Values represent means ± standard error. a–d Different letters in the same row indicate significant differences (p < 0.05). C: control-uncoated fillets; H: hydrogel coating; O: oleogel coating; BG: bigel coating; HR: hydrogel coating with RE; OR: oleogel coating with RE; BHRG: coating with added RE in aqueous phase; BGOR: bigel coating with added RE in lipid phase.
Table
Table 2. Composition and coding of the different gel coatings of the refrigerated sardine fillets.
Table 2. Composition and coding of the different gel coatings of the refrigerated sardine fillets.
CodingComposition of CoatingsTotal RE * in the Coating
C No coating0%
H Hydrogel: 10% w/w gelatin in H2O0%
O Oleogel: 15% w/w monoglycerides in sunflower oil0%
BG 20% oleogel + 80% hydrogel0%
HR Hydrogel: 10% w/w gelatin in H2O2%
OR Oleogel: 15% w/w monoglycerides in sunflower oil2%
BGHR 20% oleogel + 80% hydrogel2% (added in the aqueous phase)
BGOR 20% oleogel + 80% hydrogel2% (added the lipid phase)
* RE = rosemary extract.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kanelaki, A.; Zampouni, K.; Mourtzinos, I.; Katsanidis, E. Hydrogels, Oleogels and Bigels as Edible Coatings of Sardine Fillets and Delivery Systems of Rosemary Extract. Gels 2022, 8, 660. https://doi.org/10.3390/gels8100660

AMA Style

Kanelaki A, Zampouni K, Mourtzinos I, Katsanidis E. Hydrogels, Oleogels and Bigels as Edible Coatings of Sardine Fillets and Delivery Systems of Rosemary Extract. Gels. 2022; 8(10):660. https://doi.org/10.3390/gels8100660

Chicago/Turabian Style

Kanelaki, Aikaterini, Konstantina Zampouni, Ioannis Mourtzinos, and Eugenios Katsanidis. 2022. "Hydrogels, Oleogels and Bigels as Edible Coatings of Sardine Fillets and Delivery Systems of Rosemary Extract" Gels 8, no. 10: 660. https://doi.org/10.3390/gels8100660

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
