# Design and Validation of a Reduced Switching Components Step-Up Multilevel Inverter (RSCS-MLI)

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

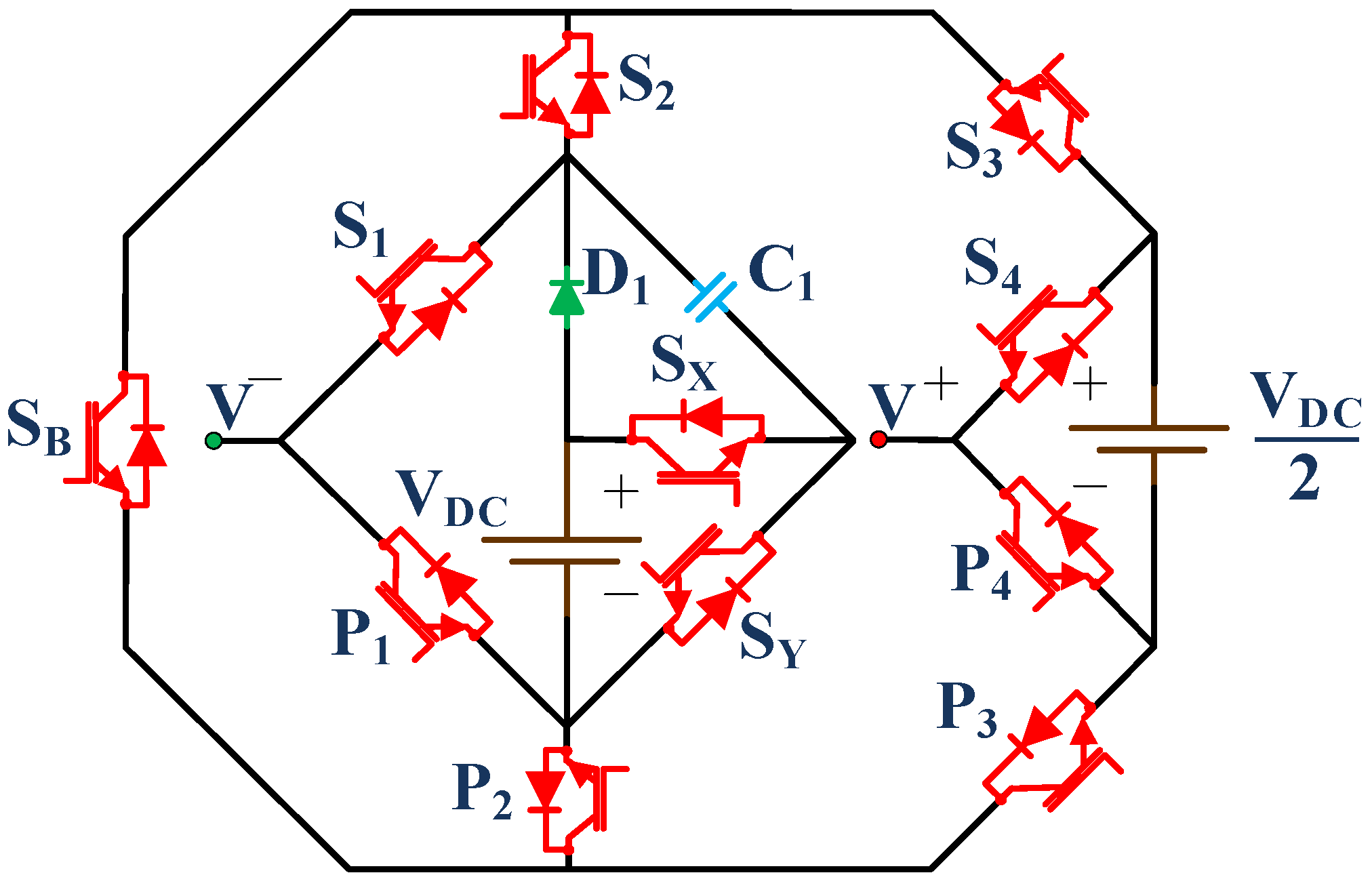

## 2. Proposed RSCS-MLI Circuit

#### 2.1. Description and Operation

_{1}, S

_{2}, S

_{3}, S

_{4}, P

_{1}, P

_{2}, P

_{3}, P4, S

_{X}, S

_{Y}and S

_{B}. The ratio of magnitudes of the dc sources used here is 2:1 i.e., the magnitudes of dc sources are V

_{DC}and V

_{DC}/2. The 11-levels can be generated by the circuit in which five are positive (+0.5 V

_{DC}, +V

_{DC}, +1.5 V

_{DC}, +2 V

_{DC}and +2.5 V

_{DC}), five are negative levels (−0.5 V

_{DC}, −V

_{DC}, −1.5 V

_{DC}, −2 V

_{DC}and −2.5 V

_{DC}) and a zero voltage level i.e., V

_{o}= 0. The stress on the switches S

_{x}, S

_{1}, S

_{2}, P

_{1}, P

_{2}and S

_{B}is equal to the input voltage whereas the switches S

_{3}, P

_{3}, P

_{4}and S

_{4}have blocking voltage of 0.5 V

_{DC}. The floating capacitor’s voltage is maintained at V

_{DC}.

**Zero level (0 V):**The zero states can be achieved either by turning on the switches S

_{1}, S

_{2}, S

_{3}, S

_{4}or P

_{1}, P

_{2}, P

_{3}, P

_{4}. The capacitor starts charging with the path VDC, D1, C1, SY during the zero level and settles at the voltage V

_{DC}. There is no necessity of an h-bridge to change the polarity as it is an inherent feature of the topology.

**First level (+V**The first level follows the path as P

_{DC}/2):_{1}, S

_{Y}, C

_{1}, S

_{2}, S

_{3}, −V

_{DC}/2, and P

_{4}. This result in formation of first level with voltage level 0.5 V

_{DC}. The capacitor’s voltage remains settled at V

_{DC.}

**Second level (+V**For the second level with voltage magnitude of V

_{DC}):_{DC}, the switches which remain in conduction are P

_{1}, S

_{Y}, C

_{1}, S

_{2}, S

_{3}, and S

_{4}. In this mode, no changes are observed in the capacitor voltage.

**Third level (+3 V**In this level, the output is produced by the additive nature of the V

_{DC}/2):_{DC}, capacitor C

_{1}, and the −V

_{DC}/2. The conduction path is P

_{1}, V

_{DC}, S

_{X}, C

_{1}, S

_{2}, S

_{3}, −V

_{DC}/2, and P

_{4}. The capacitor starts discharging in this mode. The output of this level is 1.5V

_{DC}.

**Fourth level (+2 V**This level is obtained by following the path as P

_{DC}):_{1}, V

_{DC}, S

_{X}, C

_{1}, S

_{2}, S

_{3}, and S

_{4}. The output of this level is 2 V

_{DC}which is achieved with the help of capacitor C

_{1}.

**Fifth level (+5 V**In this level the switch SB, conducts for the first time, helping in producing the fifth level whose output is 2.5 V

_{DC}/2):_{DC}. The conduction path is as P

_{1}, V

_{DC}, S

_{X}, C

_{1}, S

_{2}, S

_{B}, P

_{3}, +V

_{DC}/2, and S

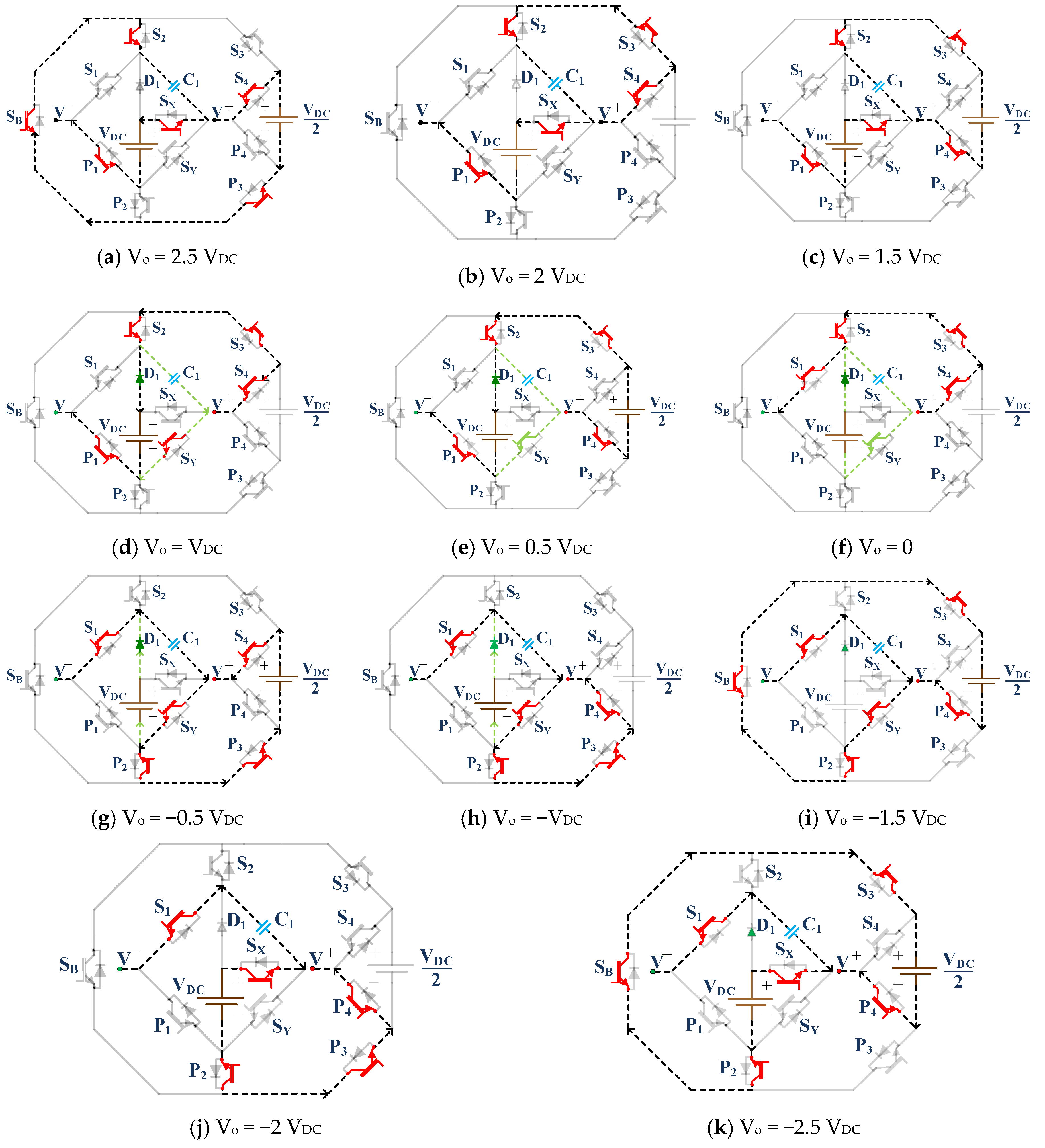

_{4}. Similarly, the negative levels are achieved as according to those given in the Table 1. Figure 2 shows the conduction diagram for the various output voltage levels.

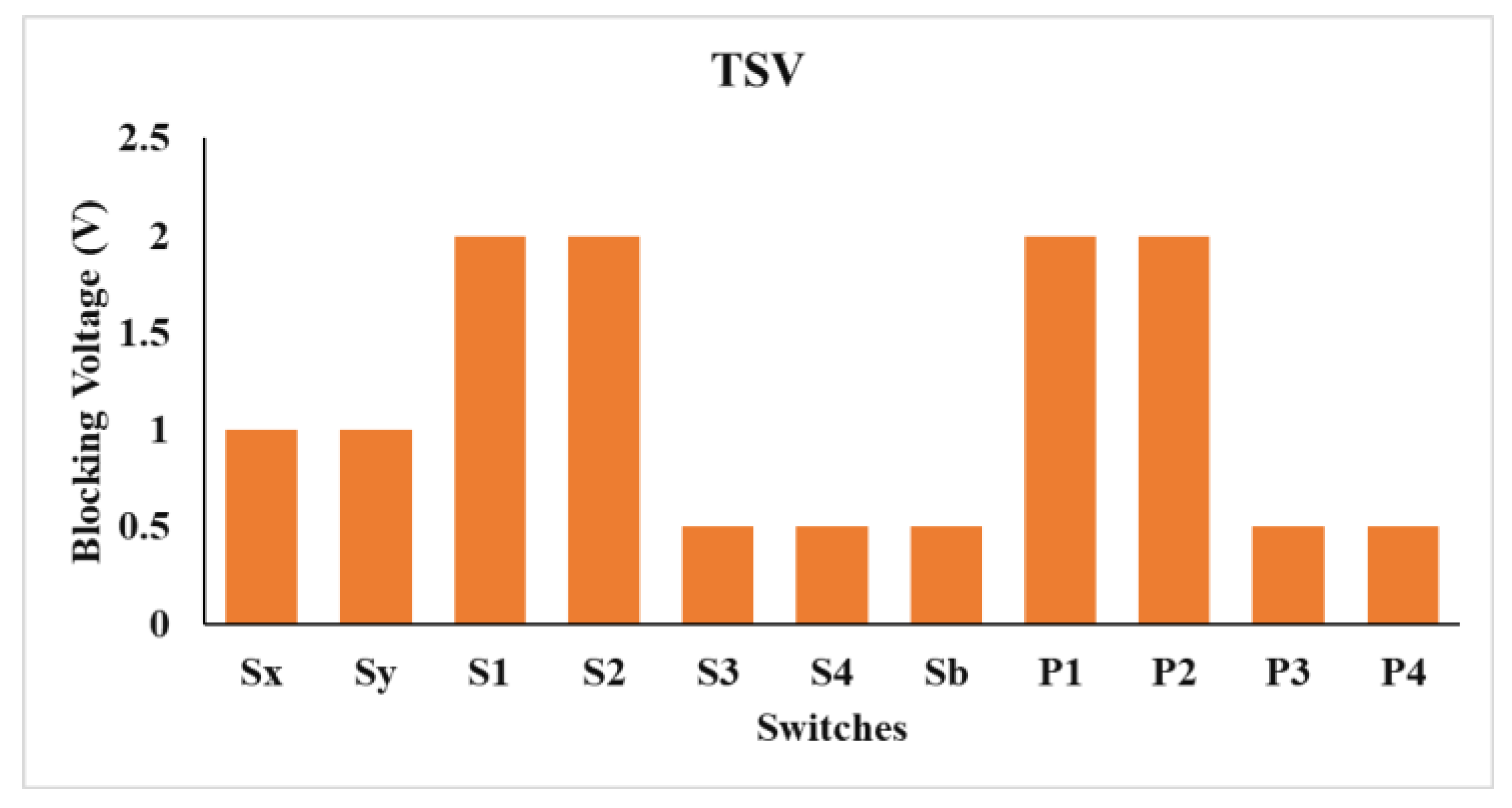

#### 2.2. Total Standing Voltage

_{S1}+ V

_{S2}+ V

_{S3}+ V

_{S4}+ V

_{P1}+ V

_{P2}+ V

_{P3}+ V

_{P4}+ V

_{SB}+ V

_{Sx}+ V

_{Sy}+ V

_{Sb}= (2 + 2 + 0.5+ 0.5 + 2 + 2 + 0.5 + 0.5 + 1 + 1 + 0.5 + 0.5) V

_{DC}= 12.5 V

_{DC}

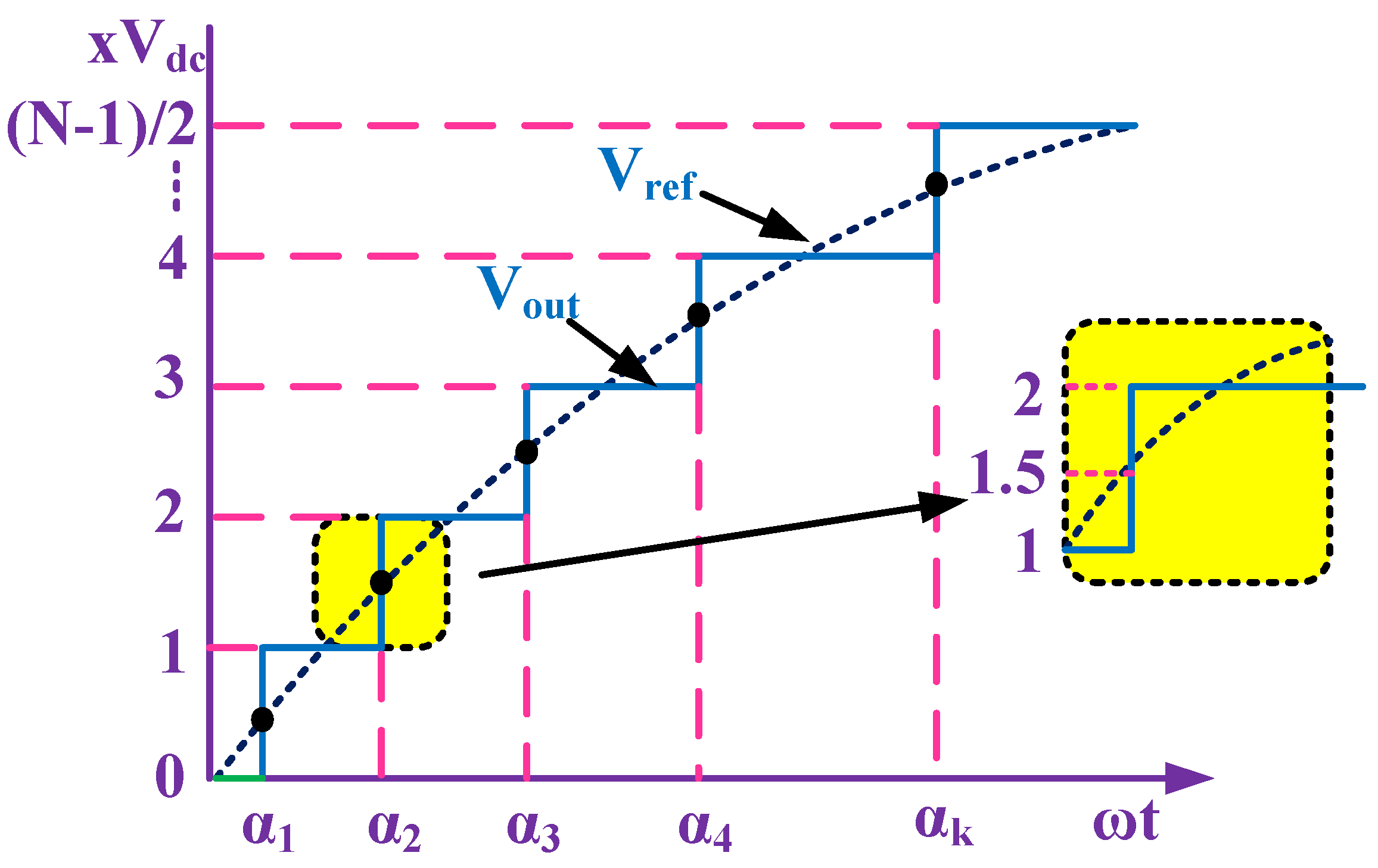

## 3. Modulation Technique

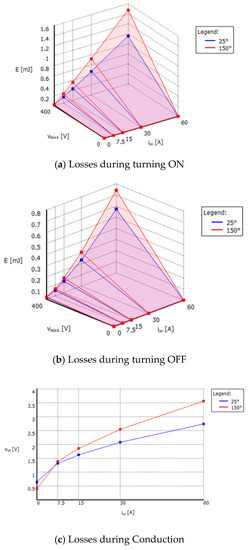

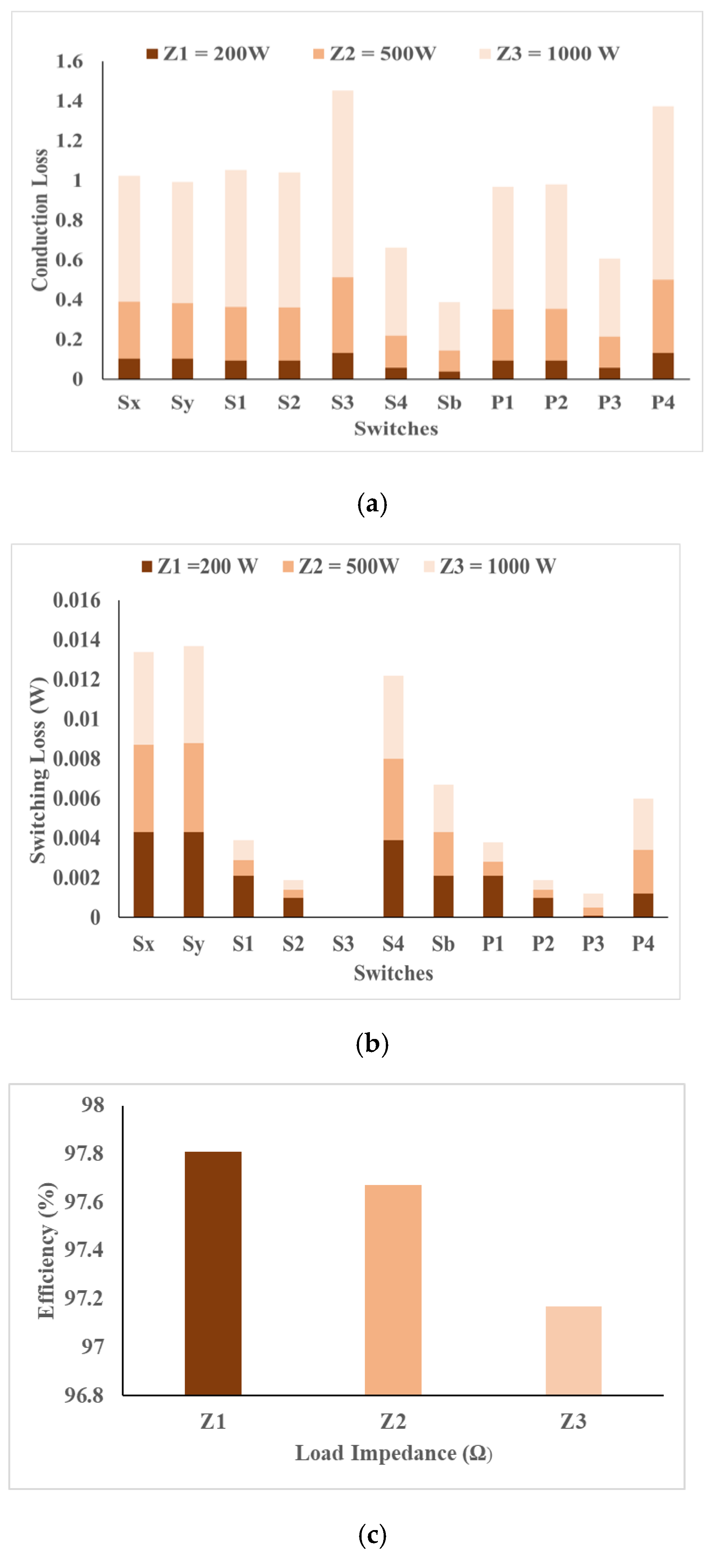

## 4. Power Loss Analysis

#### 4.1. Conduction Losses

_{ON}is the current flowing through the switches during conduction, R

_{Internal}is the internal resistance of the switch.

#### 4.2. Switching Losses

_{OFF,n}and E

_{ON,n}—turn off and turn on energy loss for the n switch at time t

_{OFF}and t

_{ON}, respectively. Mathematically, the power loss occurs when the switch changes its state from OFF to ON is give as:

_{ON}, I

_{ON}, T

_{ON}and V

_{OFF}, I

_{OFF}, T

_{OFF}are the respective parameters for the ON and OFF state of the switch. f

_{OUTPUT}is output voltage frequency.

_{1}= 200 W (400 Ω), Z

_{2}= 500 W (150 Ω + 70 mH), and Z

_{3}= 1 kW (60 + 100 mH) are analyzed. The reason for low loss in switches is the low switching frequency. Conduction and switching losses are obtained for these loads for different switches and are placed in Figure 6a,b, respectively. The efficiency vs load plot is shown in Figure 6c. At load 200 W (400 Ω), maximum efficiency of 97.81% is obtained.

## 5. Comparison with Different Topologies

_{switch}), diodes (N

_{diodes}), dc sources (N

_{source}), capacitors (N

_{cap}), and levels (N

_{L}). The additional parameters taken are N

_{T}, which is the sum of N

_{switch}and N

_{diode,}and N

_{L}/N

_{T}i.e., the ratio of N

_{L}and N

_{T}. Table 2 is a comparative analysis of the other topologies with the proposed topologies. In comparison with other topologies, the presented topology requires less DC sources which ultimately will reduce the size of the proposed MLI and make it economic except for the topology present in the [10]. However, this topology requires a higher number of diodes and capacitors, which tends to elevate the cost of the whole system. For the topology present in the [18], the parameter N

_{source}is the same as our topology, but N

_{switch}and N

_{cap}is more. In [19,20] N

_{source}and N

_{diode}are both high. Additionally, in [20], N

_{switch}is also higher than our proposed topology. The ratio N

_{L}/N

_{T}for the proposed topology is better than [10,18,19,25], which shows that the topology presented in this work stands better than the mentioned topologies.

## 6. Results and Analysis

#### 6.1. Simulation Outcomes

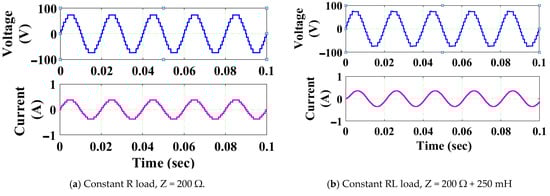

#### 6.1.1. Constant R and RL Load

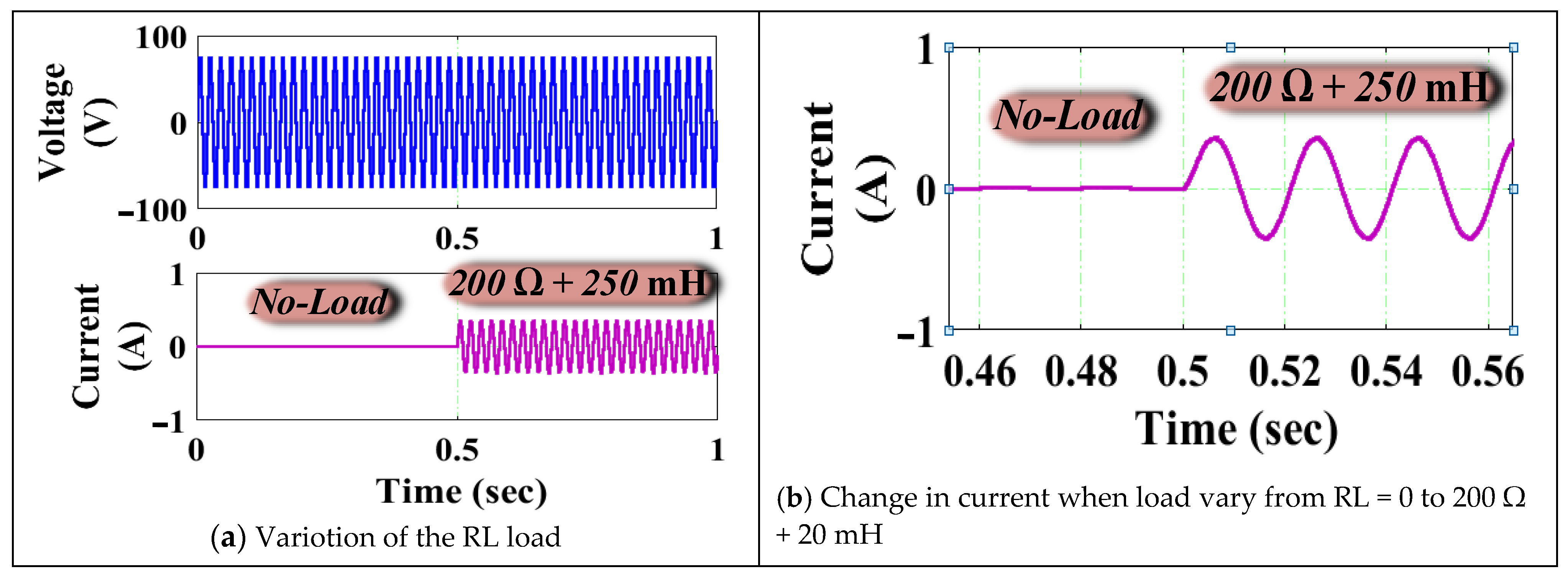

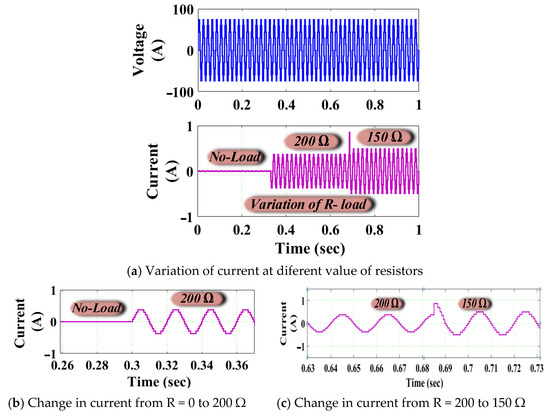

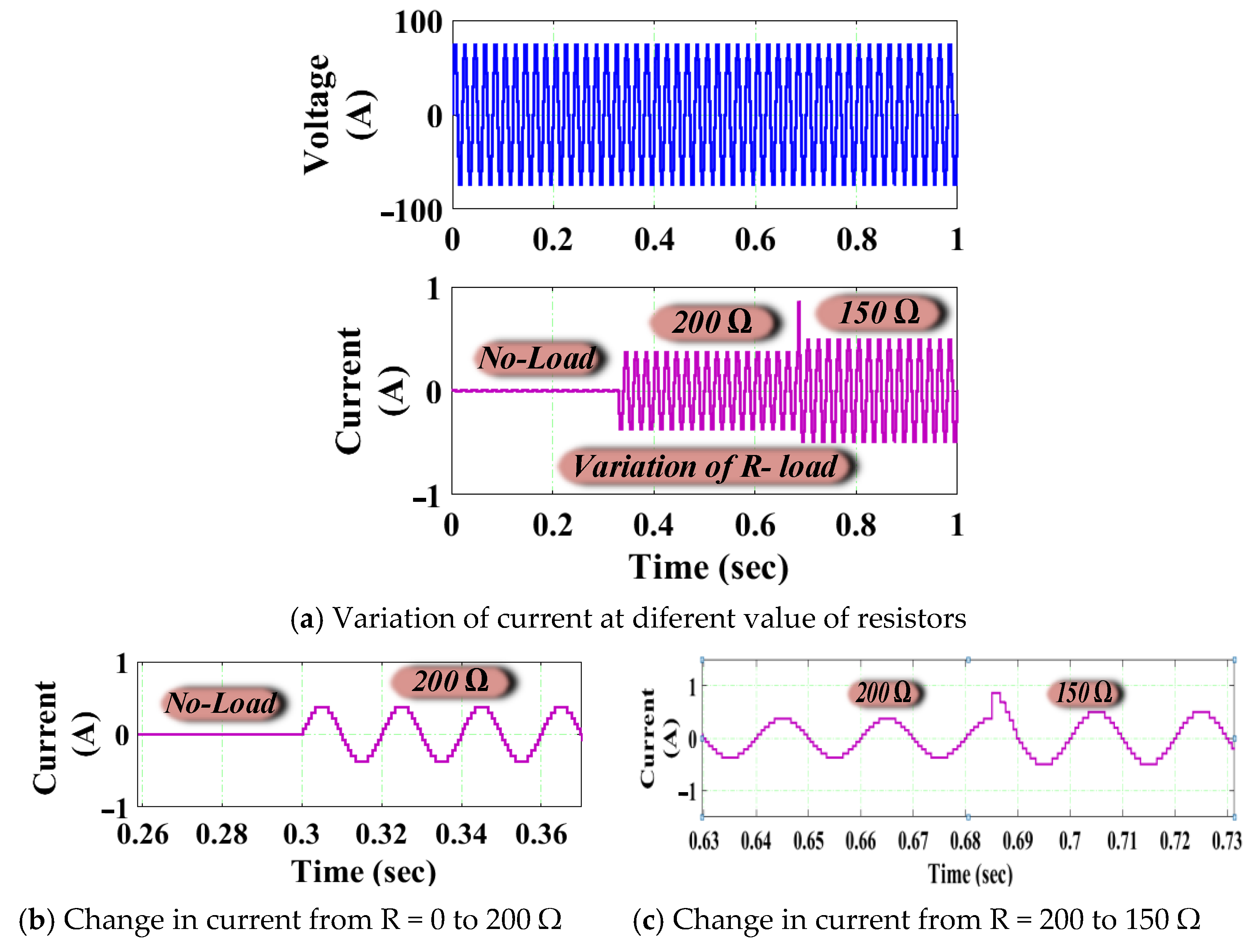

#### 6.1.2. Variable R and RL Load

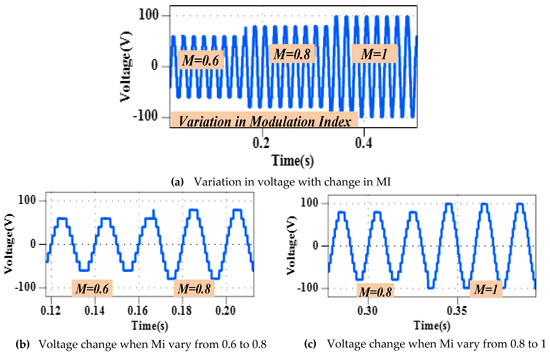

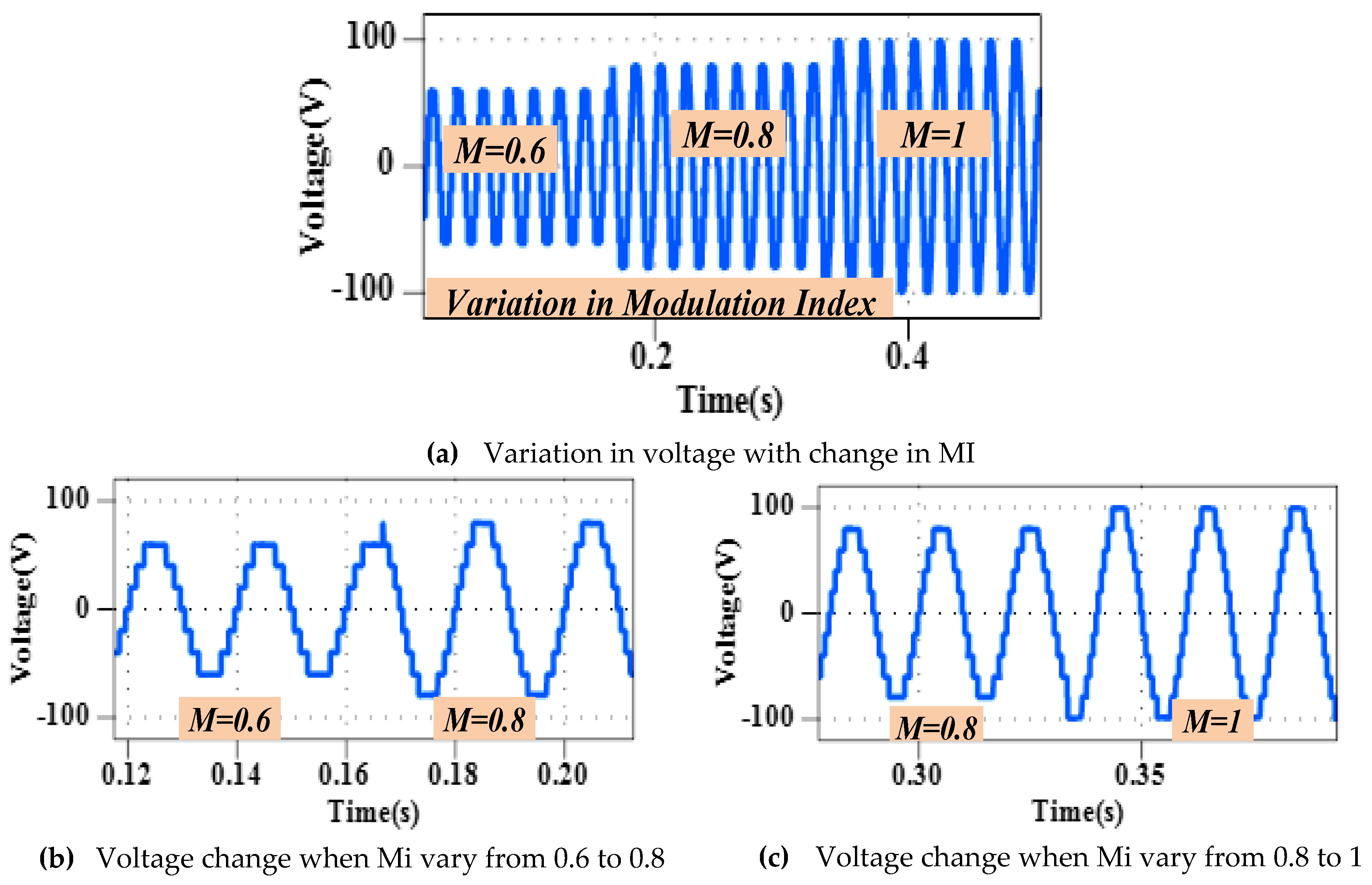

#### 6.1.3. Variation in Modulation Index

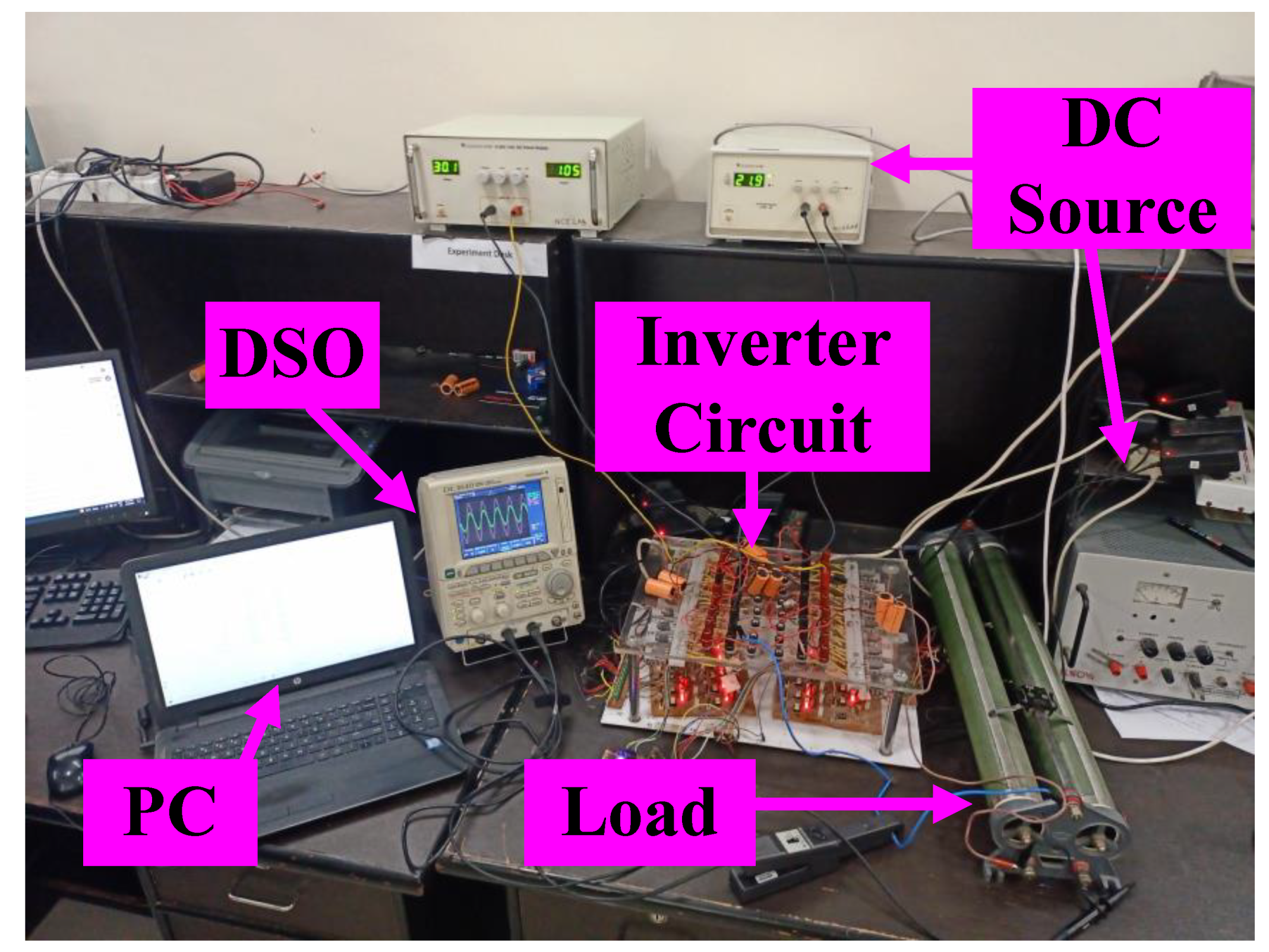

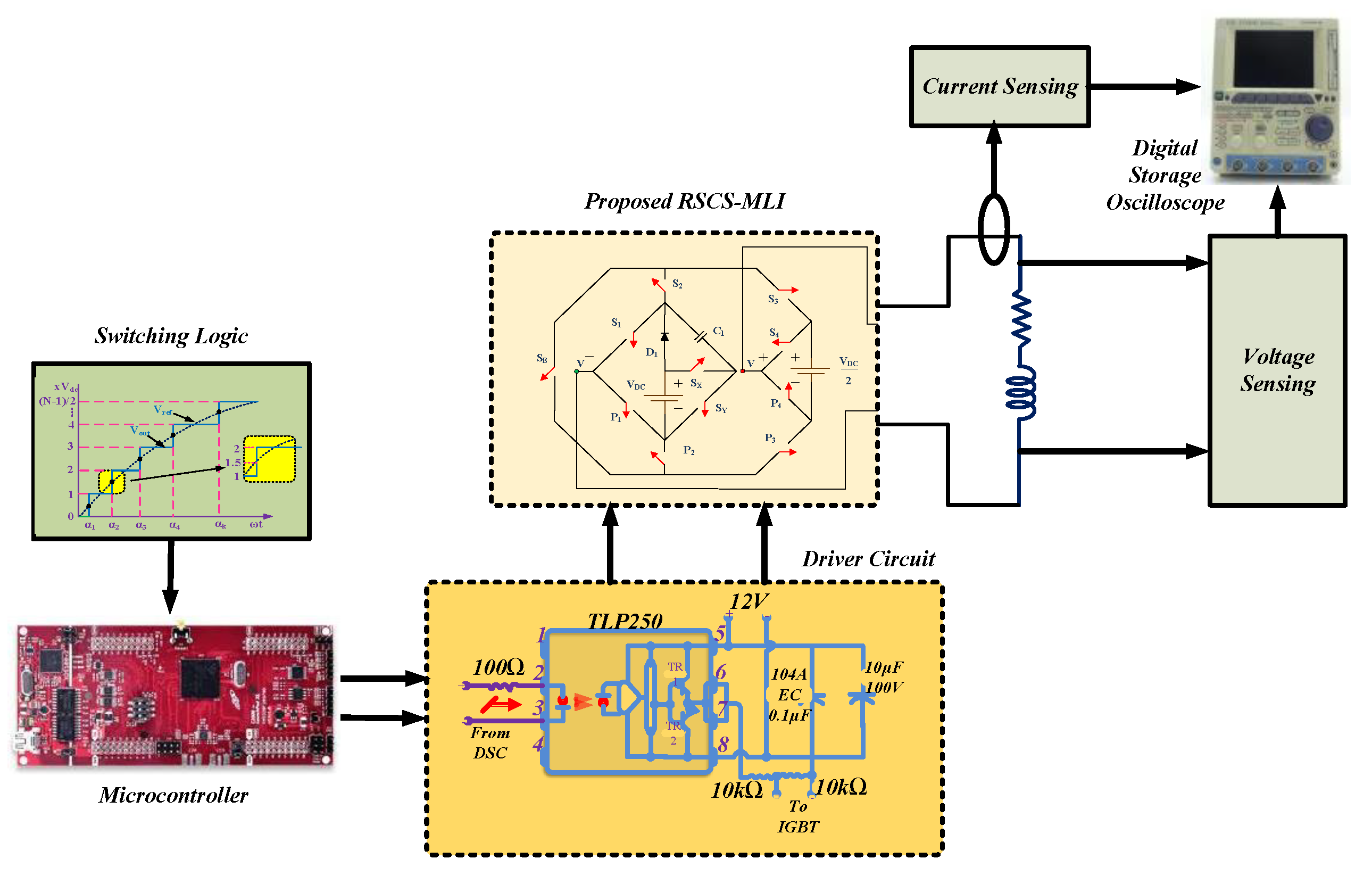

#### 6.2. Hardware Implementation

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Kumari, M.; Siddique, M.D.; Sarwar, A.; Mekhilef, S.; Tariq, M. A twice boost nine-level switched-capacitor multilevel (2B-9L-SCMLI) inverter with self-voltage balancing capability. Int. J. Circ. Theor. Appl.
**2021**, 49, 1–15. [Google Scholar] [CrossRef] - Sarwer, Z.; Siddique, M.D.; Iqbal, A.; Sarwar, A.; Mekhilef, S. An improved asymmetrical multilevel inverter topology with reduced semiconductor device count. Int. Trans. Electr. Energ. Syst.
**2020**, 30, e12587. [Google Scholar] [CrossRef] - Beig, A.R.; Ranganathan, V.T. Influence of placement of small space vectors on the performance of PWM techniques for three level inverters. In Proceedings of the IECON’03 29th Annual Conference of the IEEE Industrial Electronics Society, Roanoke, VA, USA, 2–6 November 2003; Volume 3, pp. 2764–2770. [Google Scholar] [CrossRef] [Green Version]
- Sathik, M.J.; Krishnasamy, V. An assessment of recent multilevel inverter topologies with reduced power electronics components for renewable applications. Renew. Sustain. Energy Rev.
**2017**, 82, 3379–3399. [Google Scholar] - Prabaharan, N.; Palanisamy, K. A comprehensive review on reduced switch multilevel inverter topologies, modulation techniques and applications. Renew. Sustain. Energy Rev.
**2017**, 76, 1248–1282. [Google Scholar] [CrossRef] - Kumari, M.; Siddique, M.D.; Sarwar, A.; Tariq, M.; Mekhilef, S.; Iqbal, A. Recent trends and review on switched-capacitor-based single-stage boost multilevel inverter. Int. Trans. Electr. Energ. Syst.
**2021**, 31, e12730. [Google Scholar] [CrossRef] - Ounejjar, Y.; Al-Haddad, K.; Dessaint, L.A. A novel six-band hysteresis control for the packed U cells seven-level converter: Experimental validation. IEEE Trans. Ind. Electron.
**2012**, 59, 3808–3816. [Google Scholar] [CrossRef] - Siddique, M.D.; Mekhilef, S.; Rawa, M.; Wahyudie, A.; Chokaev, B.; Salamov, I. Extended Multilevel Inverter Topology with Reduced Switch Count and Voltage Stress. IEEE Access
**2020**, 8, 201835–201846. [Google Scholar] [CrossRef] - Siddique, M.D.; Mekhilef, S.; Shah, N.M.; Memon, M.A. Optimal Design of a New Cascaded Multilevel Inverter Topology with Reduced Switch Count. IEEE Access
**2019**, 7, 24498–24510. [Google Scholar] [CrossRef] - Priyadarshi, A.; Kar, P.K.; Karanki, S.B. A Single Source Transformer-Less Boost Multilevel Inverter Topology with Self-Voltage Balancing. IEEE Trans. Ind. Appl.
**2020**, 56, 3954–3965. [Google Scholar] [CrossRef] - Prasanth, S.R.; John, M.; Rao, S. 11-Level Multilevel Inverter with Reduced Number of Switches using Level Shift Modulation. Int. J. Mod. Trends Sci. Technol.
**2017**, 3, 53–58. [Google Scholar] - Ganesan, R.G.; Shankar, R.; Bhaskar, M.; Narayanan, K. Switched Capacitor Based Multilevel Boost Inverter for Smart Grid Applications. In Proceedings of the 2019 IEEE Innovative Smart Grid Technologies-Asia (ISGT Asia), Chengdu, China, 21–24 May 2019; pp. 3902–3907. [Google Scholar] [CrossRef]
- Arif, M.S.B.; Mustafa, U.; Siddique, M.D.; Ahmad, S.; Iqba, A.; Ashique, R.H.; Ayob, S.b. An improved asymmetrical multi-level inverter topology with boosted output voltage and reduced components count. IET Power Electron.
**2021**, 14, 1–15. [Google Scholar] [CrossRef] - Vasudevamurthy, S.; Somashekara, G. Simulation of 11-level Inverter with Reduced Number of Power Switches for R and RL load. IJAREEIE
**2017**, 6, 3458–3467. [Google Scholar] - Khan, M.N.H.; Forouzesh, M.; Siwakoti, Y.P.; Li, L.; Blaabjerg, F. Switched Capacitor Integrated (2n + 1)-Level Step-Up Single-Phase Inverter. IEEE Trans. Power Electron.
**2020**, 35, 8248–8260. [Google Scholar] [CrossRef] - Sarwer, Z.; Sarwar, A.; Zaid, M.; Tariq, M.; Ali, M.; Arif, M.S.B. A switched capacitor multilevel inverter with self voltage balancing capability. In Proceedings of the 2020 IEEE International Conference on Power Electronics, Drives and Energy Systems (PEDES), Jaipur, India, 16–19 December 2020. [Google Scholar]
- Sarwer, Z.; Siddique, M.D.; Iqbal, A.; Sarwar, A.; Rahman, K.; Mekhilef, S. Seven-level switched-capacitor based multilevel inverter with lesser number of power electronic components and reduced voltage stress. In Proceedings of the 2020 IEEE International Conference on Power Electronics, Drives and Energy Systems (PEDES), Jaipur, India, 16–19 December 2020. [Google Scholar]
- Mahdavi, A.; Abbaszadeh, K.; Mardakheh, N.A. A Boost Switched-Capacitor Multilevel Inverter with Self-Balance and Inductive-load Ability. In Proceedings of the 2020 11th Power Electronics, Drive Systems, and Technologies Conference (PEDSTC), Tehran, Iran, 4–6 February 2020. [Google Scholar]
- Kumar, A.R.; Thangavelusamy, D. A modified nearest level modulation scheme for symmetric and asymmetric configurations of cascaded H-bridge inverter. Int. J. Electr. Eng. Educ.
**2019**, 32, 471–481. [Google Scholar] [CrossRef] - Samadaei, E.; Kaviani, M.; Bertilsson, K. A 13-levels module (K-Type) with two DC sources for multilevel inverters. IEEE Trans. Ind. Electron.
**2019**, 66, 5186–5196. [Google Scholar] [CrossRef] - Barzegarkhoo, R.; Moradzadeh, M.; Zamiri, E.; Kojabadi, H.M.; Blaabjerg, F. A New Boost Switched-Capacitor Multilevel Converter with Reduced Circuit Devices. IEEE Trans. Power Electron.
**2018**, 33, 6738–6754. [Google Scholar] [CrossRef] - Arun, N.M.; Noel, M. Crisscross switched multilevel inverter using cascaded semi-half-bridge cells. IET Power Electron.
**2018**, 11, 23–32. [Google Scholar] [CrossRef] [Green Version] - Mokhberdoran, A.; Ajami, A. Symmetric and asymmetric design and implementation of new cascaded multilevel inverter topology. IEEE Trans. Power Electron.
**2014**, 29, 6712–6724. [Google Scholar] [CrossRef] - Hussain, M.R.; Sarwar, A.; Siddique, M.D.; Mekhilef, S.; Ahmad, S.; Sharaf, M.; Zaindin, M.; Firdausi, M. A Novel Switched-Capacitor Multilevel Inverter Topology for Energy Storage and Smart Grid Applications. Electronics
**2020**, 9, 1703. [Google Scholar] [CrossRef] - Siddique, M.D.; Iqbal, A.; Sathik, M.J.; Mekhilef, S.; Almakhles, D.J. Design and implementation of a new unity gain nine-level active neutral point clamped multilevel inverter topology. IET Power Electron.
**2020**, 13, 3204–3208. [Google Scholar] [CrossRef] - Arif, M.S.B.; Mustafa, U.; Ayob, S.B.M.; Rodriguez, J.; Nadeem, A.; Abdelrahem, M. Asymmetrical 17-level Inverter Topology with Reduced Total Standing Voltage and Device Count. IEEE Access
**2021**, 9, 69710–69723. [Google Scholar] [CrossRef]

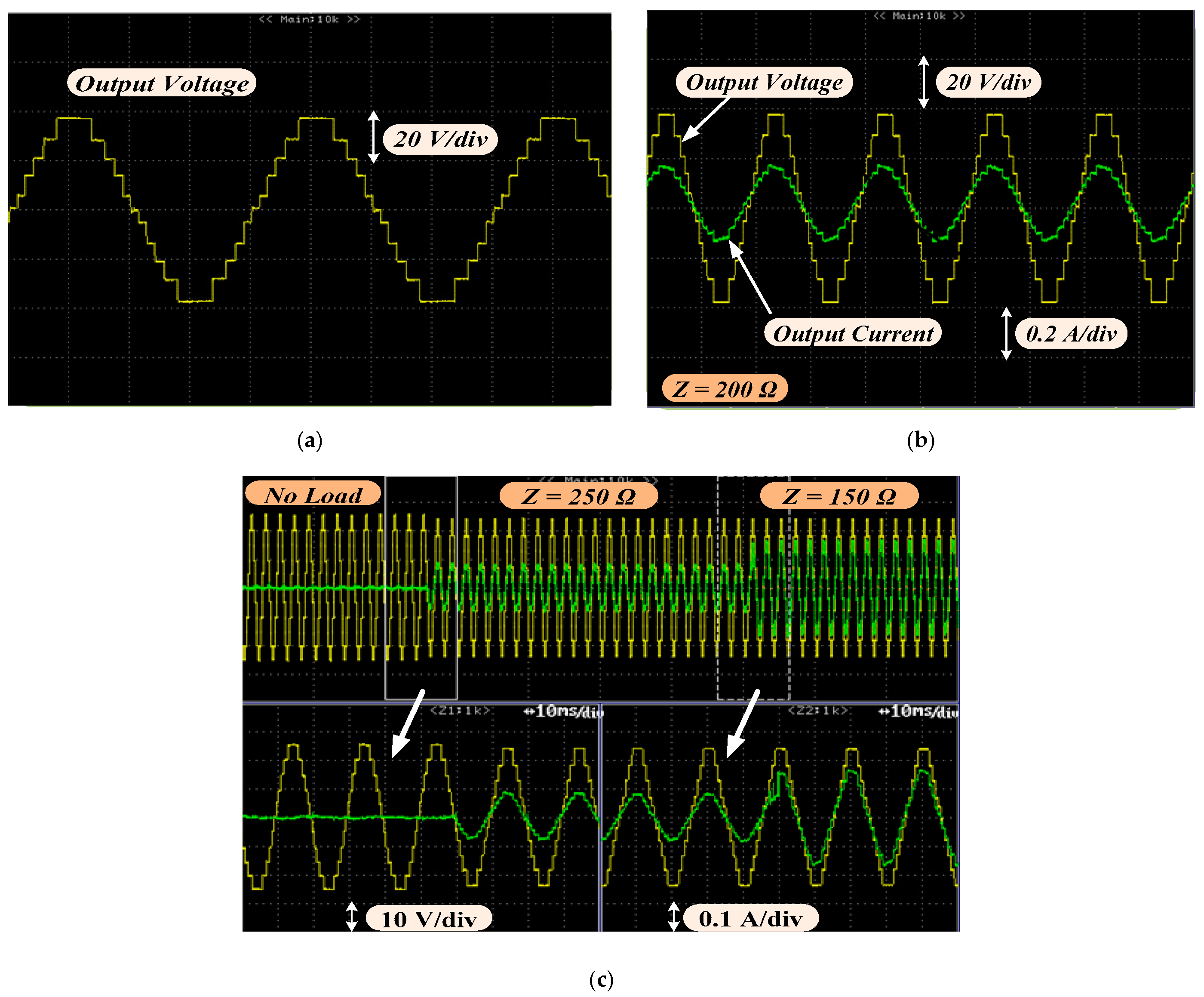

**Figure 13.**Hardware results of the proposed topology (

**a**) Output Voltage (

**b**) Voltage and current waveform for resistive load (

**c**) Variation of the Current waveform for change in the R-Load.

V_{o} | S_{X} | S_{1} | S_{2} | S_{3} | S_{4} | S_{B} | S_{Y} | P_{1} | P_{2} | P_{3} | P_{4} | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

Positive Voltage Levels | 2.5 V_{DC} | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 1 | 0 | 1 | 0 |

2 V_{DC} | 1 | 0 | 1 | 1 | 1 | 0 | 0 | 1 | 0 | 0 | 0 | |

1.5 V_{DC} | 1 | 0 | 1 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | |

V_{DC} | 0 | 0 | 1 | 1 | 1 | 0 | 1 | 1 | 0 | 0 | 0 | |

0.5 V_{DC} | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | |

Zero Voltage Level | 0 | 0 | 1 | 1 | 1 | 1 | 0 | 1 | 0 | 0 | 0 | 0 |

Negative Voltage Levels | −0.5 V_{DC} | 0 | 1 | 0 | 0 | 1 | 0 | 1 | 0 | 1 | 1 | 0 |

−V_{DC} | 0 | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 | 1 | |

−1.5 V_{DC} | 0 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 1 | 0 | 1 | |

−2 V_{DC} | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | |

−2.5 V_{DC} | 1 | 1 | 0 | 1 | 0 | 1 | 0 | 0 | 1 | 0 | 1 |

Topology | N_{switch} | N_{diode} | N_{T} | N_{L}/N_{T} | N_{source} | N_{cap} | N_{L} | TSV_{P.U.} |
---|---|---|---|---|---|---|---|---|

[8] | 8 | 0 | 8 | 1.4 | 3 | 0 | 11 | 9.6 |

[9] | 8 | 0 | 8 | 1.4 | 3 | 0 | 11 | 5.6 |

[10] | 10 | 9 | 19 | 0.6 | 1 | 9 | 11 | 8 |

[18] | 12 | 1 | 13 | 0.8 | 2 | 2 | 11 | 6.4 |

[19] | 11 | 5 | 16 | 0.7 | 5 | 0 | 11 | 5 |

[20] | 14 | 0 | 14 | 0.9 | 2 | 2 | 13 | 6.33 |

[25] | 10 | 4 | 14 | 0.6 | 1 | 4 | 9 | 7 |

Proposed | 11 | 1 | 12 | 0.9 | 2 | 1 | 11 | 5 |

Components | Specification |
---|---|

DC voltage source (2) | 20V, 40V |

Fundamental frequency | 50 Hz |

Capacitor | 3000 µF |

Load | R = 100 Ω, 200 Ω, L = 250 mH |
