Processes 2018, 6(8), 113; https://doi.org/10.3390/pr6080113

Numerical Simulation of Hydraulic Fracture Propagation in Coal Seams with Discontinuous Natural Fracture Networks

1,2
,
1,3,* and 1,3,*
1
School of Energy Science and Engineering, Henan Polytechnic University, Jiaozuo 454000, China
2
Department of Mining and Materials Engineering, McGill University, Montreal, QC H3A 0E8, Canada
3
State and Local Joint Engineering Laboratory for Gas Drainage & Ground Control of Deep Mines, Henan Polytechnic University, Jiaozuo 454000, China
*
Authors to whom correspondence should be addressed.
Received: 29 June 2018 / Revised: 28 July 2018 / Accepted: 30 July 2018 / Published: 1 August 2018
(This article belongs to the Special Issue Fluid Flow in Fractured Porous Media)
Full-Text   |   PDF [7717 KB, uploaded 1 August 2018]   |

Abstract

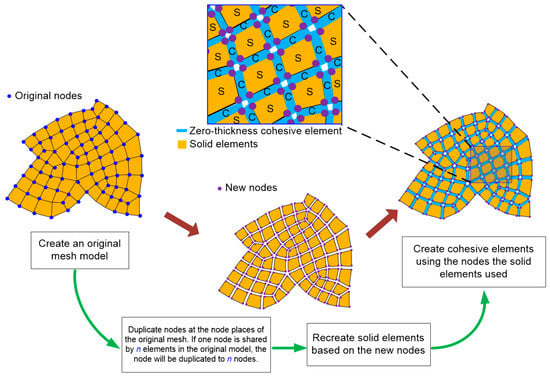

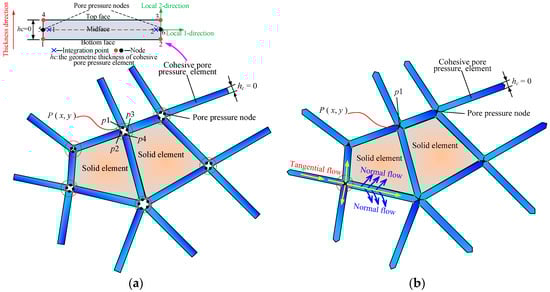

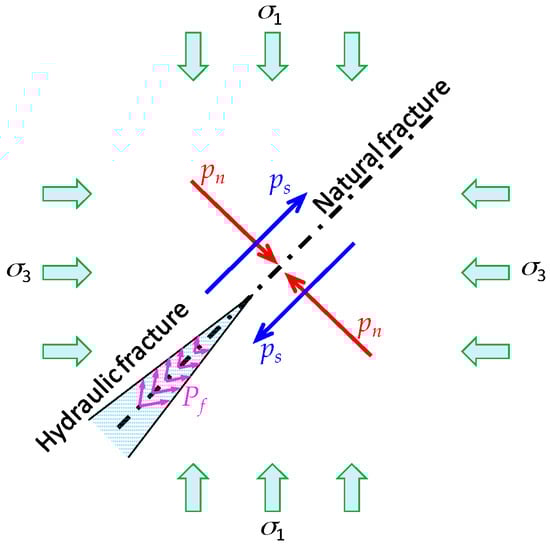

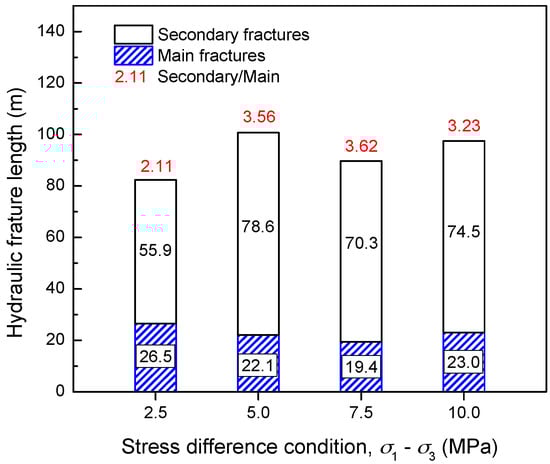

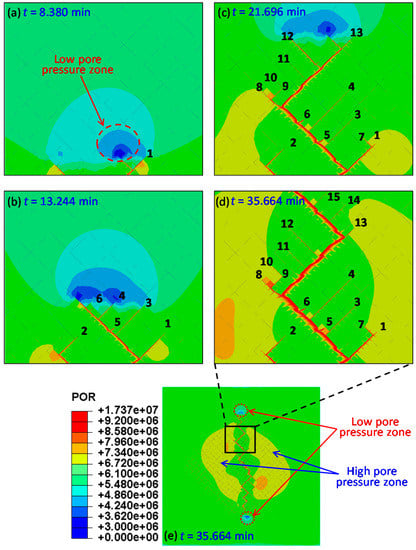

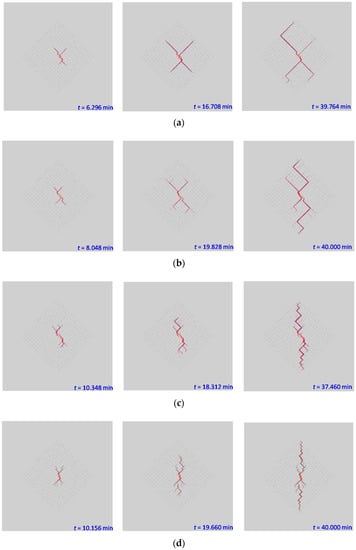

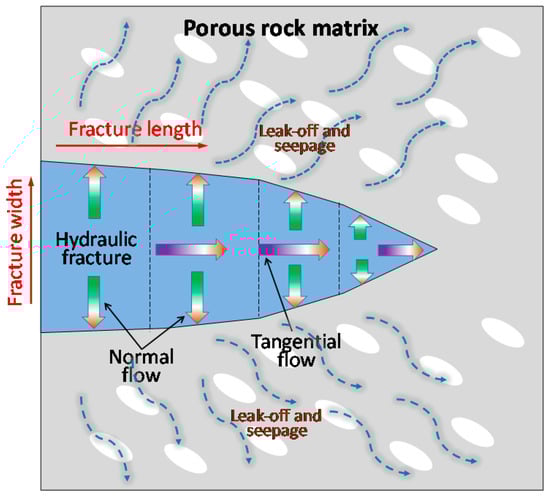

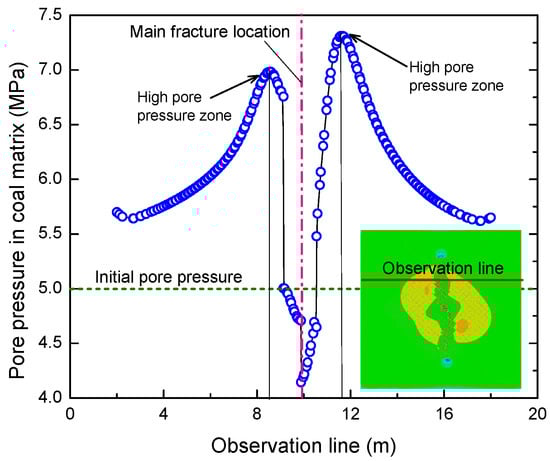

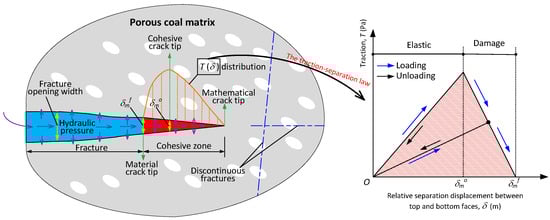

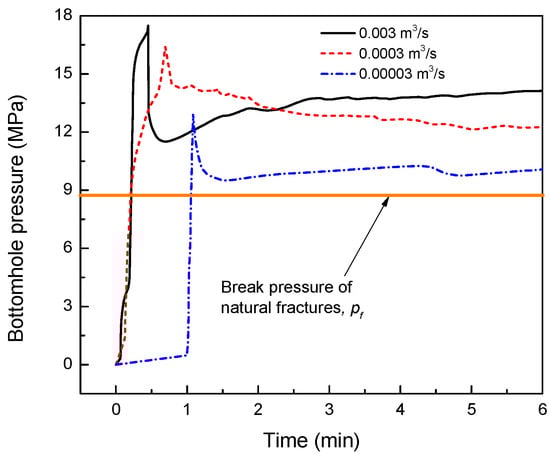

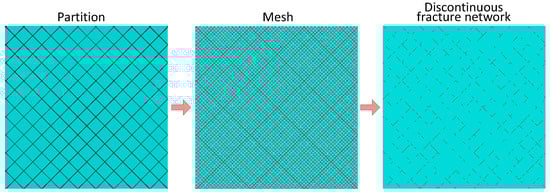

To investigate the mechanism of hydraulic fracture propagation in coal seams with discontinuous natural fractures, an innovative finite element meshing scheme for modeling hydraulic fracturing was proposed. Hydraulic fracture propagation and interaction with discontinuous natural fracture networks in coal seams were modeled based on the cohesive element method. The hydraulic fracture network characteristics, the growth process of the secondary hydraulic fractures, the pore pressure distribution and the variation of bottomhole pressure were analyzed. The improved cohesive element method, which considers the leak-off and seepage behaviors of fracturing liquid, is capable of modeling hydraulic fracturing in naturally fractured formations. The results indicate that under high stress difference conditions, the hydraulic fracture network is spindle-shaped, and shows a multi-level branch structure. The ratio of secondary fracture total length to main fracture total length was 2.11~3.62, suggesting that the secondary fractures are an important part of the hydraulic fracture network in coal seams. In deep coal seams, the break pressure of discontinuous natural fractures mainly depends on the in-situ stress field and the direction of natural fractures. The mechanism of hydraulic fracture propagation in deep coal seams is significantly different from that in hard and tight rock layers. View Full-Text
Keywords: hydraulic fracture network; cohesive element method; coal seams; fracture propagation; discontinuous natural fracture; secondary fracture hydraulic fracture network; cohesive element method; coal seams; fracture propagation; discontinuous natural fracture; secondary fracture
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
