Design of a Novel Transition-Based Deadlock Recovery Policy for Flexible Manufacturing Systems

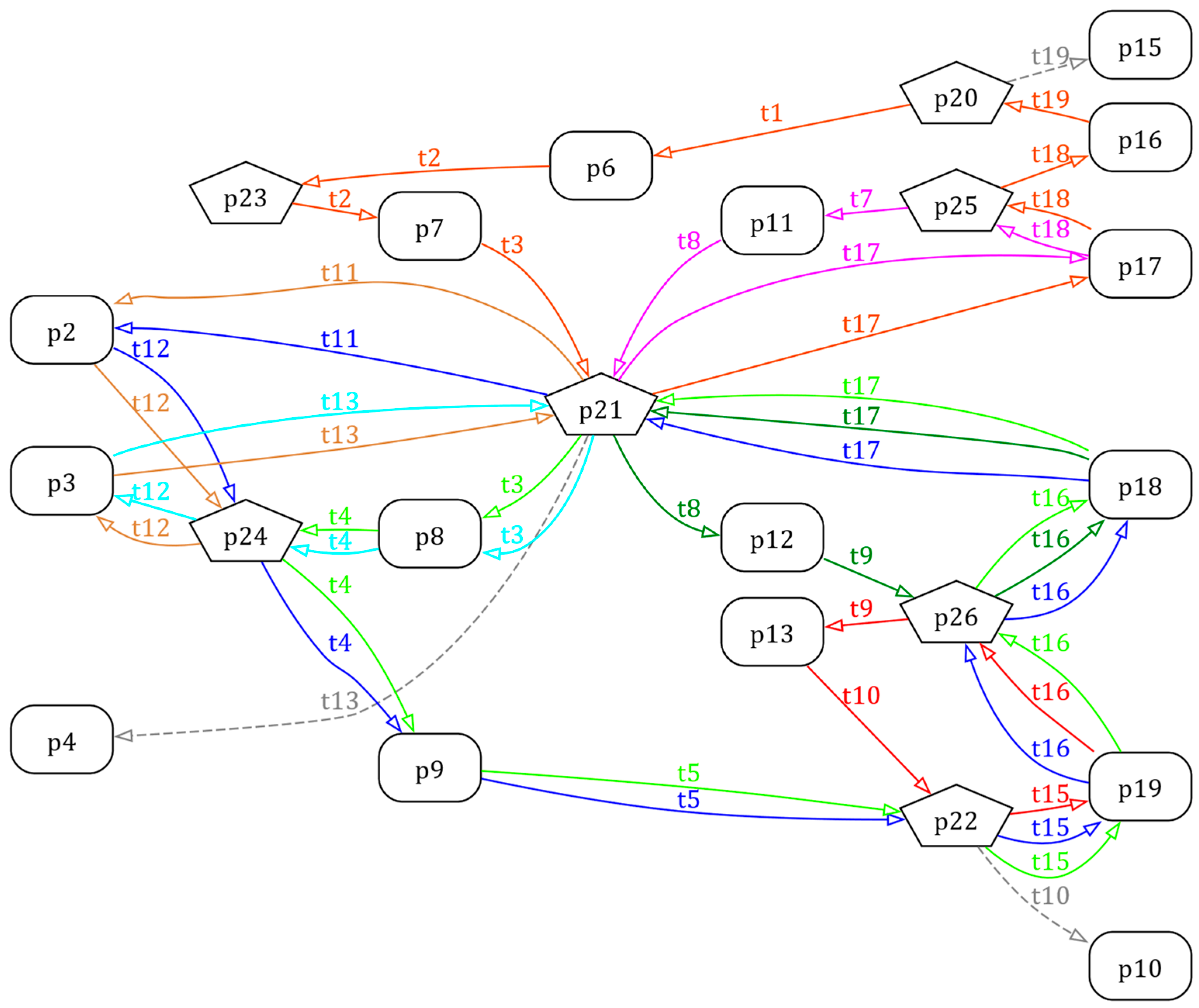

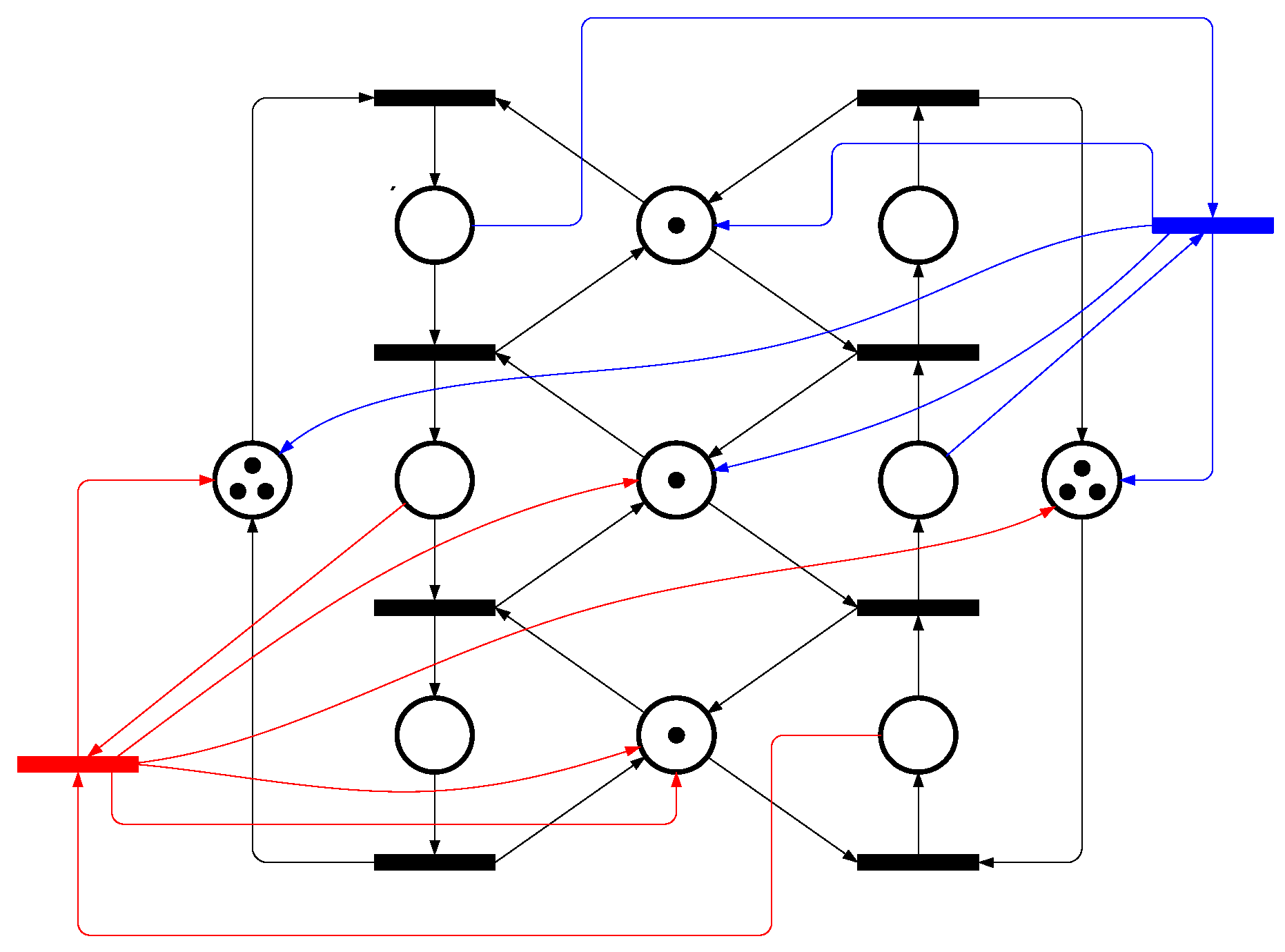

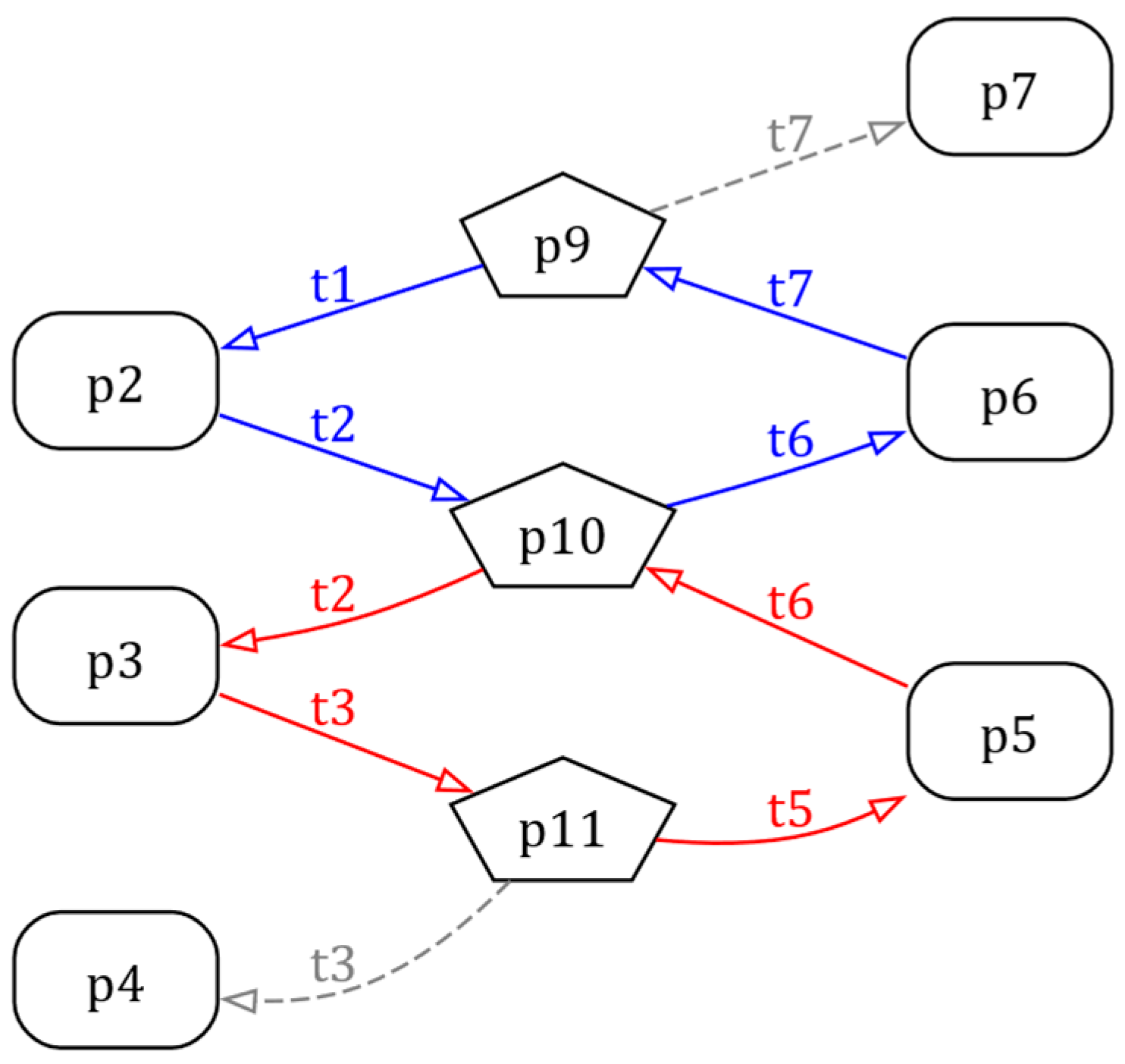

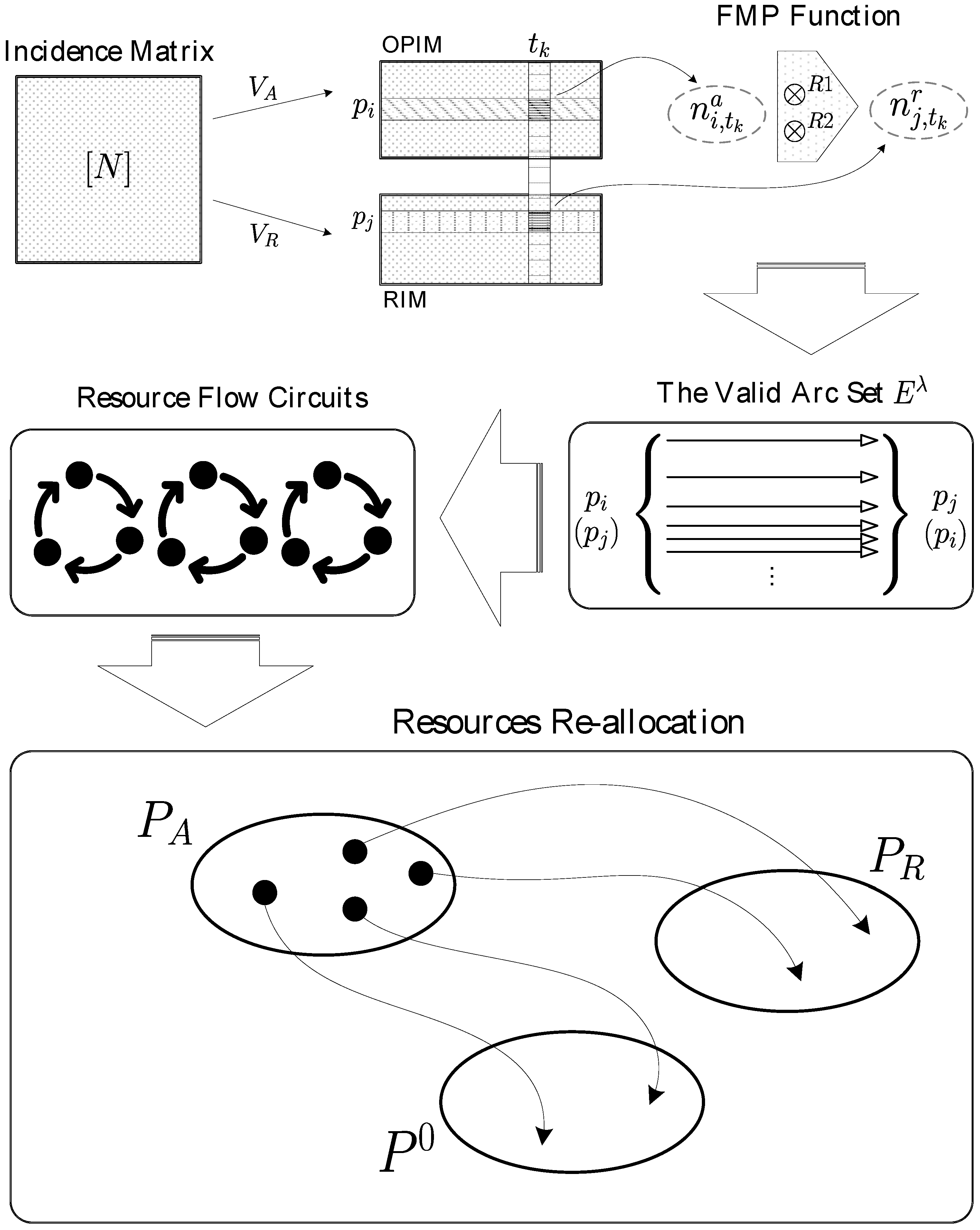

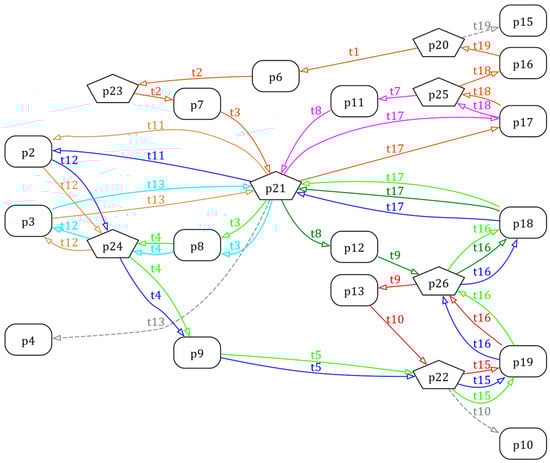

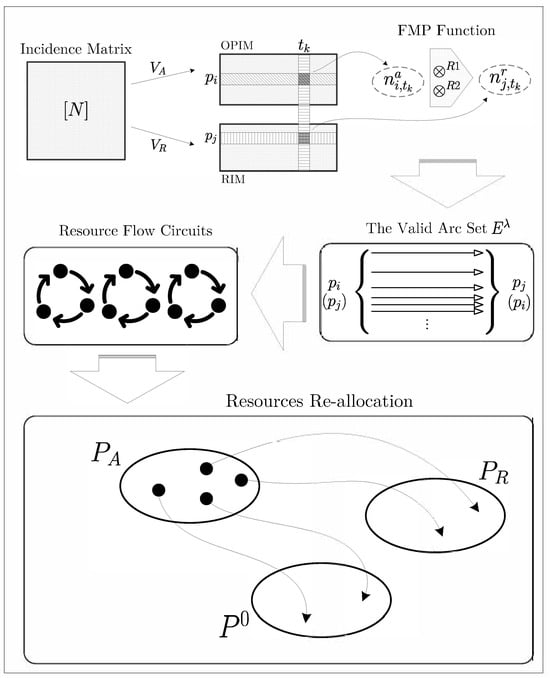

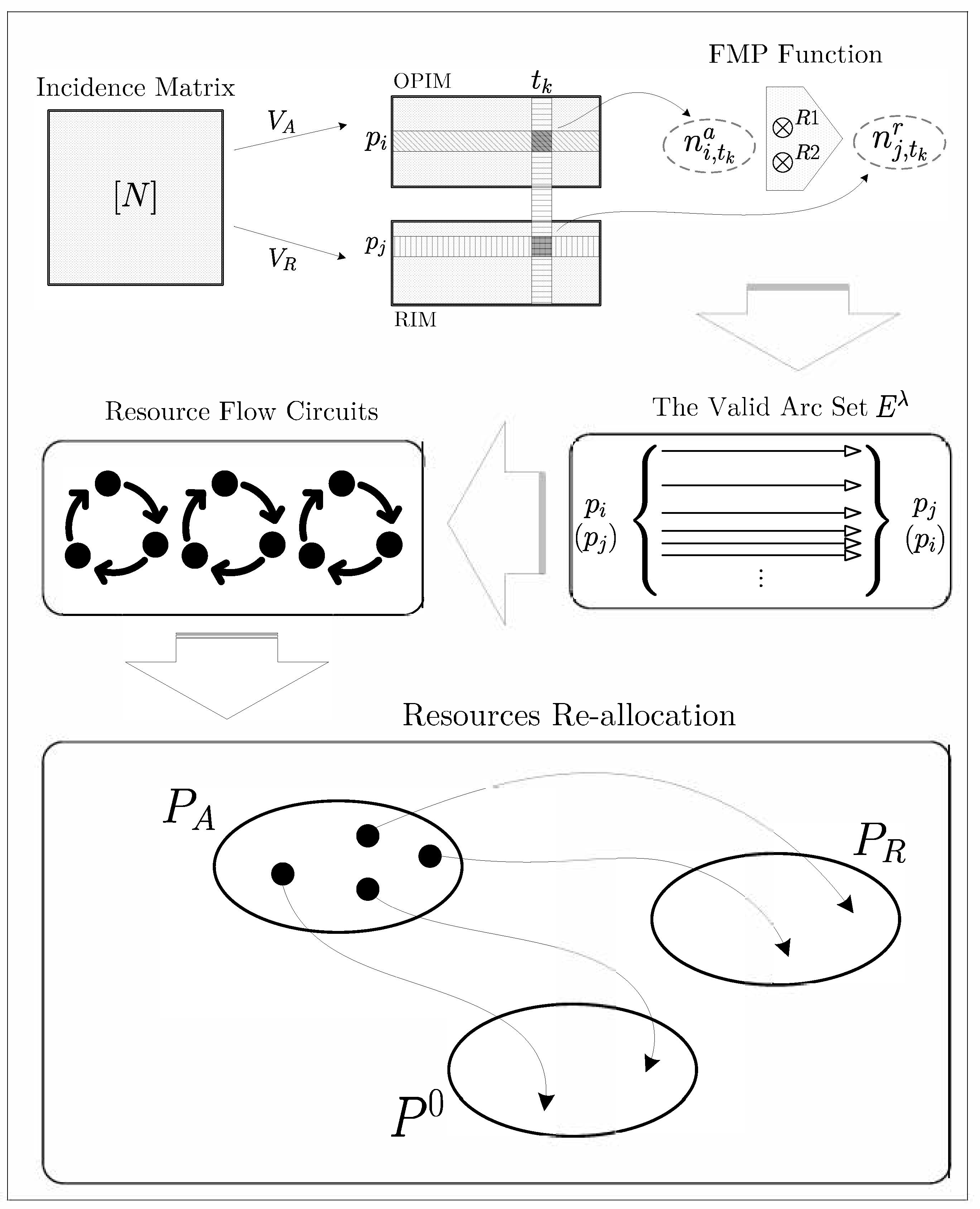

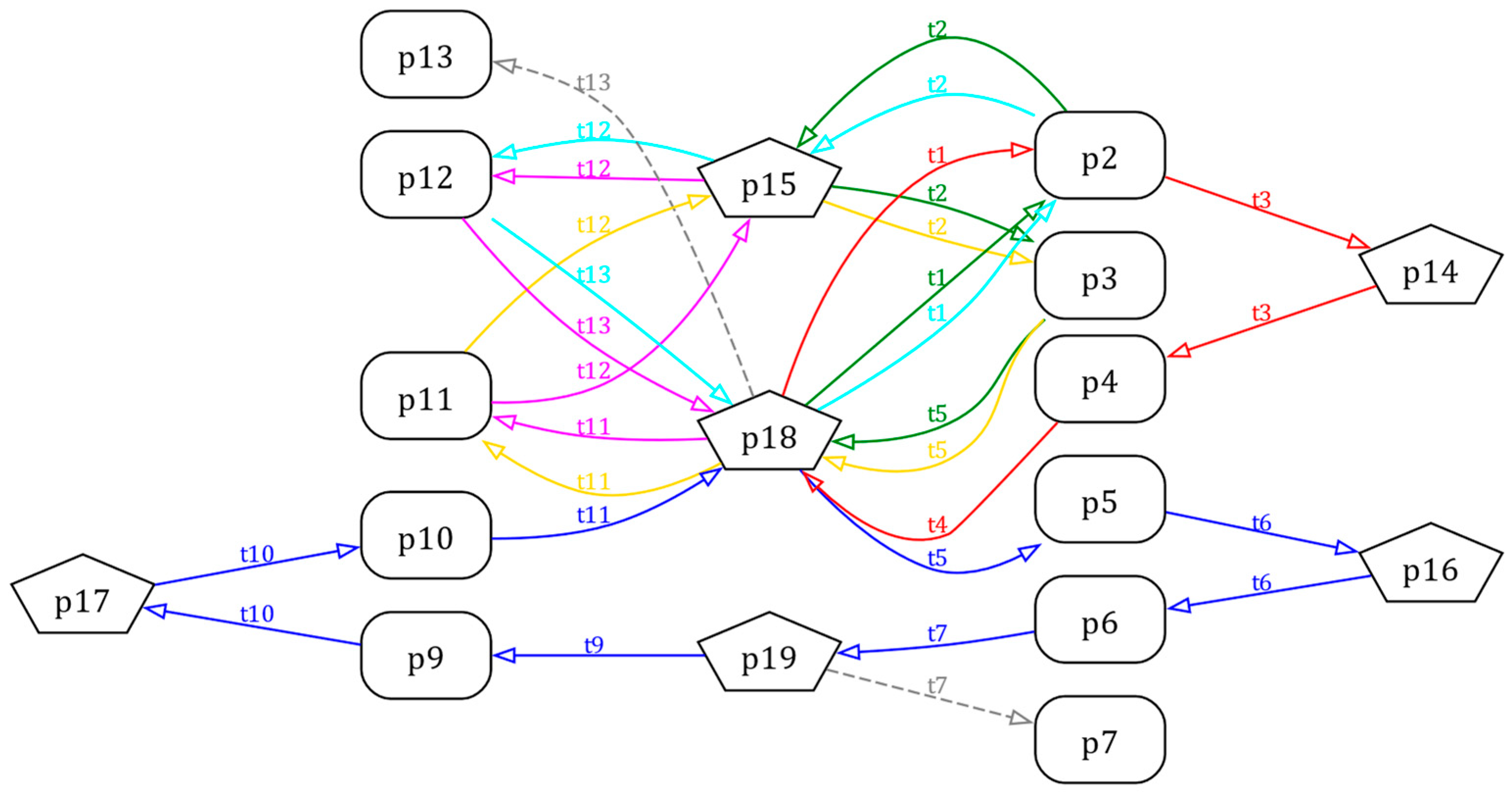

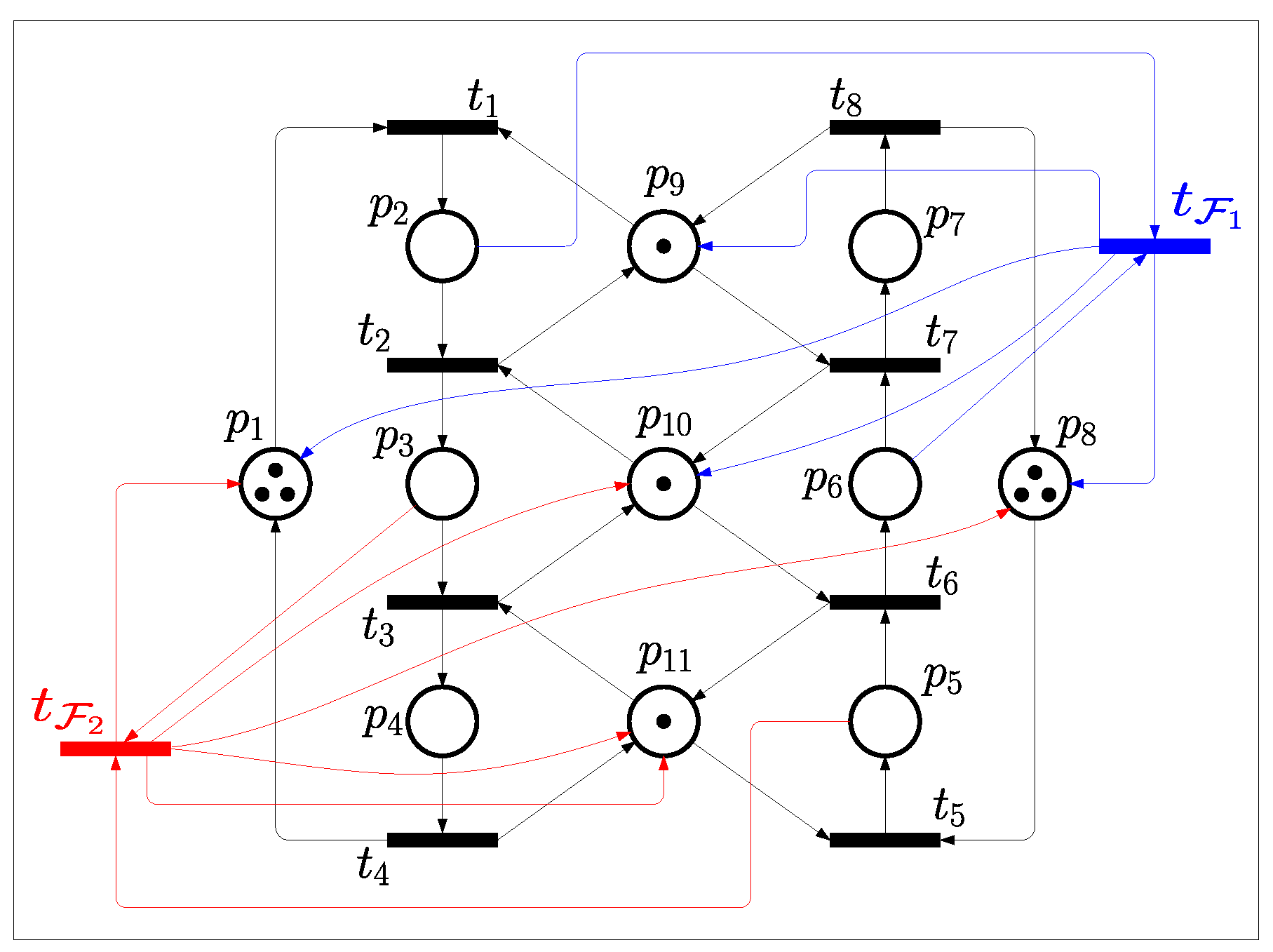

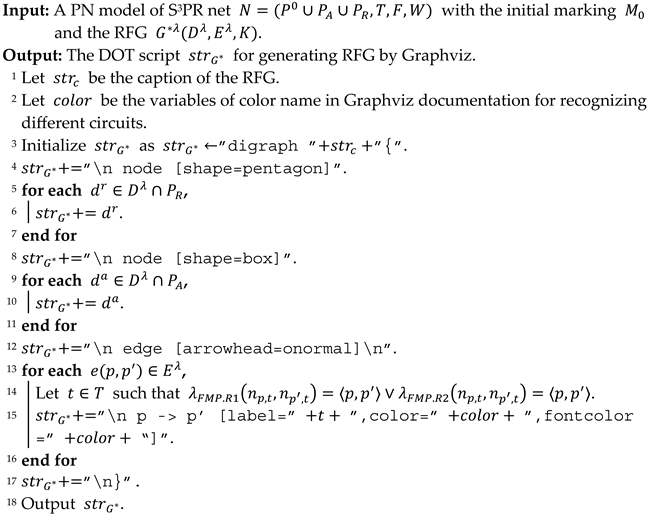

In the domain of application of PN theory, the system deadlock problem of a flexible manufacturing system (FMS) is a thorny problem that needs to be solved urgently. All the research has the same objective of designing optimal controllers with maximal permissiveness and liveness. Plenty of the past literature used deadlock prevention as the main control strategy that is implemented by control places. However, these methods usually forbid undesirable system states from being reached, while reducing the system’s liveness. This study employed the resource flow graph (RFG)-based method to achieve a deadlock recovery policy that can maintain maximal permissiveness by adding control transitions (CTs). Also, we improved the current definition of RFG and developed a systematic approach for generating the corresponding RFG, which is based on flow mirroring pair (FMP) functions and the software Graphviz 12.2.1. Furthermore, this study proposed an automatic method that forms DOT script for generating Graphviz images, which is convincingly demonstrated in this study to enhance the execution efficiency and recognition of circular waiting situations.
