Synthesis, Hydration Processes and Ionic Conductivity of Novel Gadolinium-Doped Ceramic Materials Based on Layered Perovskite BaLa₂In₂O₇ for Electrochemical Purposes

Abstract

The search for novel highly effective materials with target properties for different electrochemical purposes is active for now. Ceramic materials with high levels of ionic conductivity can be applied as electrolytic materials in solid oxide fuel cells and in electrolyzers. Layered perovskites are a novel class of ionic conductors demonstrating almost-pure proton transportation at mid-temperatures. Gadolinium-doped ceramic materials based on layered perovskite BaLa₂In₂O₇ were obtained and investigated for the first time in this study. The effect of the dopant concentrations on the hydration processes and on ionic conductivity was revealed. It was shown that compositions 0 ≤ x ≤ 0.15 of BaLa_2–xGd_xIn₂O₇ exhibited proton conductivity when under wet air and at mid-temperatures (lower than ~450 °C). Gadolinium doping led to an increase in the conductivity values up to an order of magnitude of ~0.5. The protonic conductivity of the most conductive composition BaLa_1.85Gd_0.15In₂O₇ was 2.7∙10⁻⁶ S/cm at 400 °C under wet air. The rare earth doping of layered perovskites is a prospective approach for the design of ceramics for electrochemical devices for energy applications.

1. Introduction

The search of novel highly effective materials with target properties for different electrochemical purposes is active for now. One of the main goals of modern humanity is the creation of highly effective, low-cost, eco-friendly and safe energy sources [1,2,3]. Hydrogen energy perfectly satisfies these characteristics, and its development is now a very high priority [4,5,6,7]. For full function in hydrogen energy systems, the creation of devices for the production, storage and transportation of hydrogen is required [8,9,10]. Devices such as protonic ceramic electrolysis cells and protonic ceramic fuel cells use electrochemical technologies to obtain hydrogen and for clean energy production [11,12,13,14,15,16]. Ceramic materials with a high level of ionic conductivity can be applied as electrolytic materials in solid oxide fuel cells and in electrolyzers [17,18,19,20,21,22,23]. The proton-conducting materials used for these purposes must have a high chemical resistance to carbon dioxide and water vapor and must exhibit high values of proton conductivity at the same time. Achieving a combination of all these characteristics in one material is a difficult task, so the material search continues.

Hexagonal perovskites [24,25] and layered perovskites [26,27] have been studied as proton-conducting materials in recent years. Layered perovskites may be represented by the formula AA’_nB_nO_3n+1, where A is a bivalent metal (alkali-earth metal), A’ is a trivalent metal (rare-earth metal) and B is a trivalent metal (indium, scandium) with a smaller ionic radius compared with the radius of the A’ cation. The protonic conductivities of these materials, such as BaNdInO₄ [28,29,30,31,32], SrLaInO₄ [33,34,35,36,37], BaNdScO₄ [38], BaLaInO₄, is realized due to the possibility of dissociative water intercalation into the interlayer space of the layered structure. The monolayer barium-lanthanum indate BaLaInO₄ was described as a nearly pure proton conductor below 400 °C, and an increase in the conductivity values up to 1.5 orders of magnitude caused by heterovalent [39,40,41,42] and isovalent [43,44,45,46] doping was revealed. The two-layer composition BaLa₂In₂O₇ of this homologous series AA’_nB_nO_3n+1 was also described as a protonic conductor [47]. The possibility of water uptake was proved, and the use of the acceptor-doping strategy made it possible to significantly increase the proton conductivity [48,49,50]. However, the isovalent-doping strategy for the modification of the structure and transportation properties has not been applied to the two-layer perovskite BaLa₂In₂O₇ yet. In this work, gadolinium-doped ceramic materials based on the layered perovskite BaLa₂In₂O₇ were obtained and investigated for the first time. The effect of the dopant concentrations on the hydration processes and on ionic conductivity was revealed.

2. Materials and Methods

The samples of BaLa_2–xGd_xIn₂O₇ were synthesized using solid state method. The starting reagents BaCO₃, La₂O₃, In₂O₃ and Gd₂O₃ were used. The final temperature of calcination was 1300 °C.

The XRD investigations were performed using a Bruker D8 Advance Cu K_α diffractometer (step of 0.01°, scanning rate of 0.5°/min). The thermogravimetry (TG) was performed using STA 409 PC NETZSCH analyzer. The heating of initially hydrated samples was performed in the temperature range of 40–1100 °C at the rate of 10 °C/min under a flow of dry Ar. The hydrated samples were obtained during slow cooling (1 °C/min) from 1100 to 150 °C under a flow of wet Ar.

The electrical conductivity was measured using impedance spectrometer Z-1000P, Elins, RF. The investigations were performed from 1000 to 200 °C with 1°/min cooling rate under dry air or dry Ar conditions. The dry gas (air or Ar) was produced by circulating the gas through P₂O₅ (pH₂O = 3.5·10⁻⁵ atm). The wet gas (air or Ar) was obtained by bubbling the gas at room temperature first through distilled water and then through saturated solution of KBr (pH₂O = 2·10⁻² atm).

3. Results

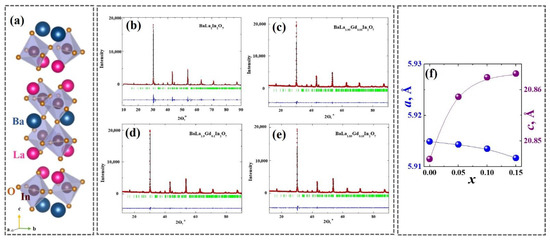

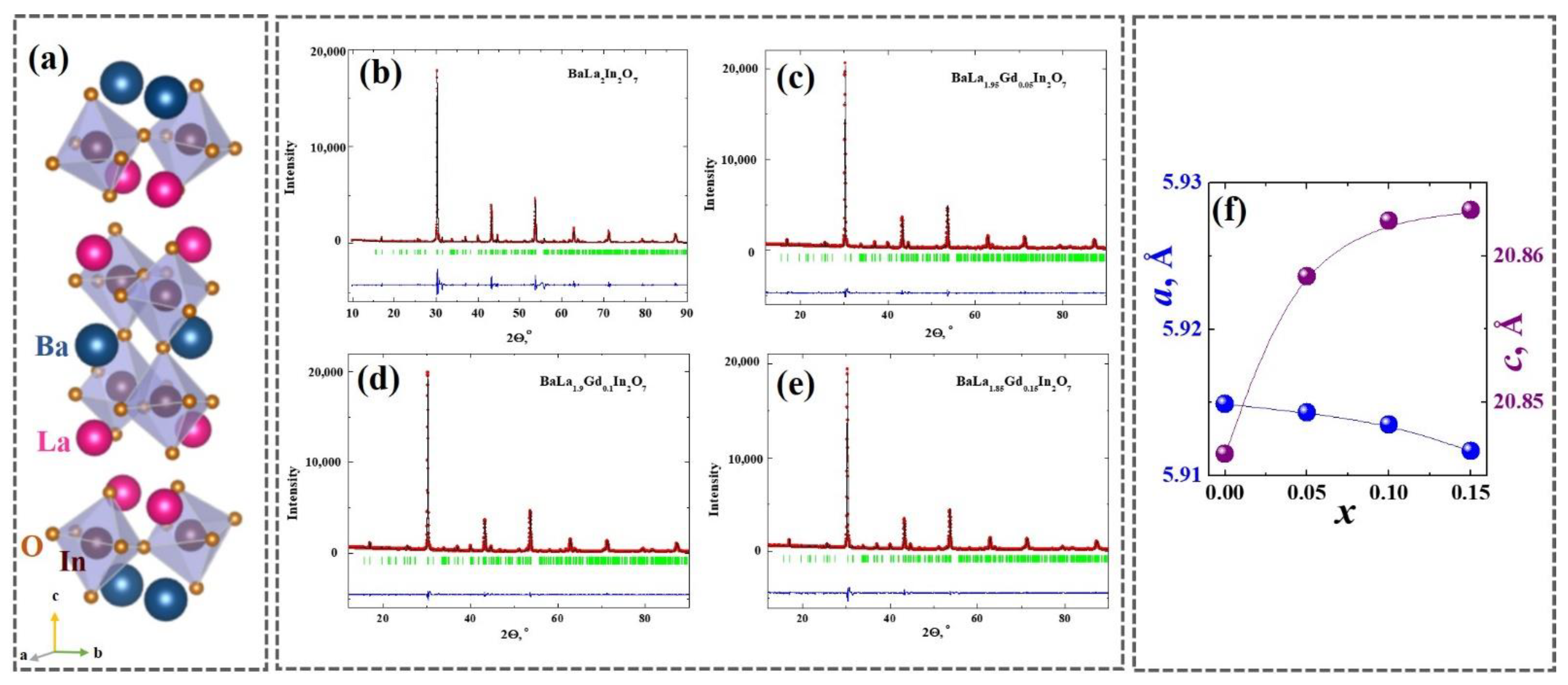

The phase attestation of the solid solution of BaLa_2–xGd_xIn₂O₇ was performed using the XRD method. It was shown that the compositions at the dopant concentrations 0 ≤ x ≤ 0.15 were in a single phase and were isostructural to the matrix composition BaLa₂In₂O₇ (Figure 1a). The samples from the solid solution’s homogeneity region had a tetragonal symmetry and belonged to the space group P4₂/mnm. The XRD-patterns of the obtained compositions are presented in Figure 1b–d.

Table 1. The lattice parameters and unit cell volumes of investigated compositions of BaLa_2–xGd_xIn₂O₇.

Composition	a, Å	c, Å	V, Å3
BaLa2In2O7	5.914(9)	20.846(5)	729.33(6)
BaLa1.95Gd0.05In2O7	5.914(3)	20.858(6)	729.61(1)
BaLa1.9Gd0.1In2O7	5.913(5)	20.862(4)	729.54(7)
BaLa1.85Gd0.15In2O7	5.911(7)	20.863(1)	729.00(0)

contains the lattice parameters and unit cell volumes of the compositions.

As can be seen, the introduction of an ion with a slightly smaller ionic radius ($r_{{\mathrm{La}}^{3+}}$ = 1.216 Å; $r_{{\mathrm{Gd}}^{3+}}$ = 1.107 Å [51]) led to a decrease in lattice parameter a but also to an increase in lattice parameter c (Figure 1e). Therefore, the unit cell volume almost did not change. It was obvious that the reason for these changes was the interatomic distance during doping, which is not only the difference in the ionic radii of the ions but also the difference in their electronegativity. The electronegativities of lanthanum and gadolinium were different (${\mathsf{\chi }}_{\mathrm{La}}$ = 1.10; ${\mathsf{\chi }}_{\mathrm{Gd}}$ = 1.20 [52]), which caused the occurrence of additional repulsion effects between these cations when in the same crystallographic positions of the crystal lattice. This could be probable because of the increase in the c lattice parameter during doping. It should be noted that the same increase in the lattice parameters during gadolinium doping occurred for the monolayer composition BaLaInO₄ [45].

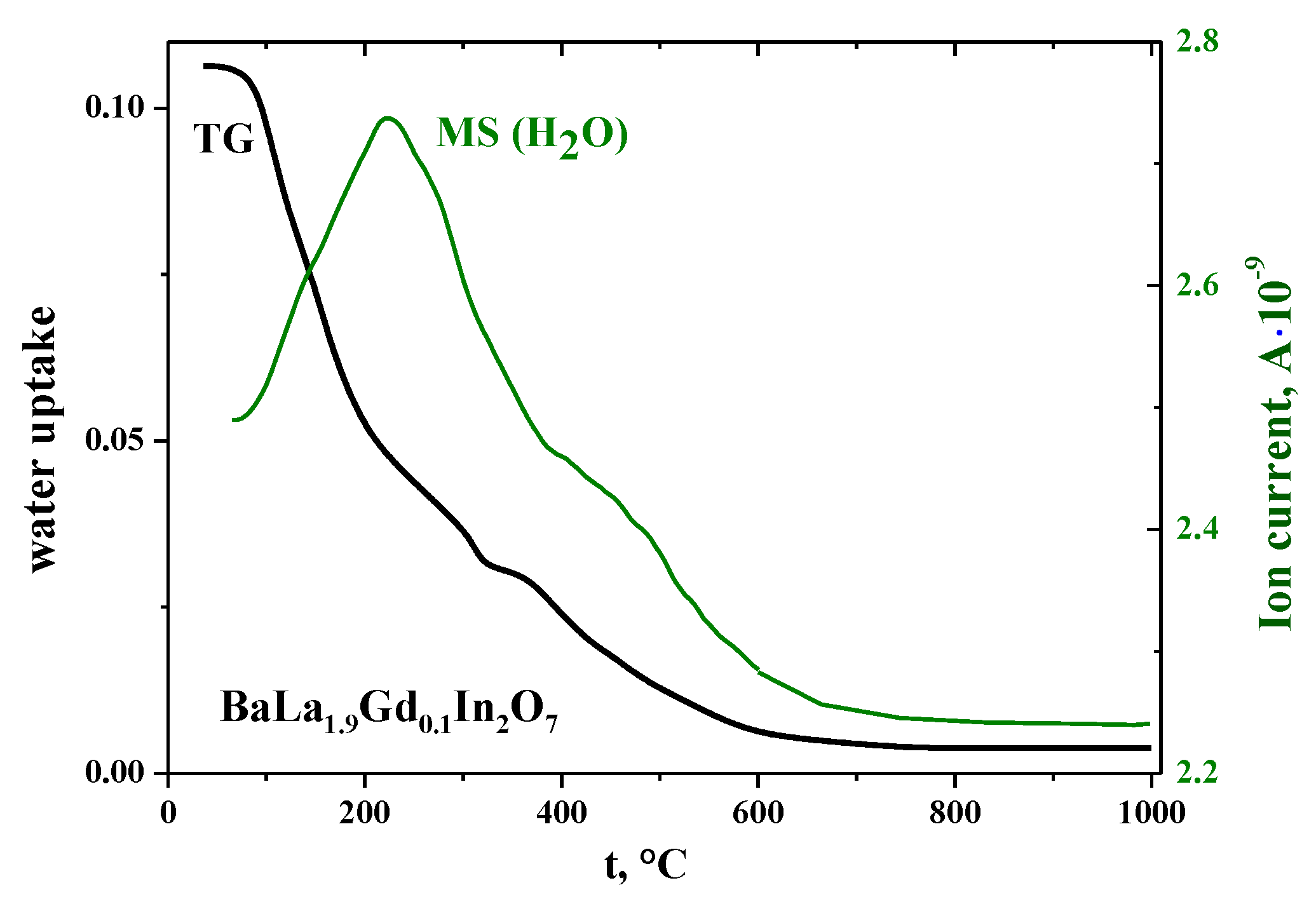

The possibility of water uptake from the gas phase was investigated using the thermogravimetry (TG) method. The TG-curves for all of the investigated samples had the same shape, and the results for the composition BaLa_1.9Gd_0.1In₂O₇ are presented in Figure 2 as an example. Water loss occurred in several steps and ended at 600–700 °C. The mass spectroscopy (MS) results (the green line in Figure 2) confirmed the TG-data. The values of the water uptake of the doped compositions were in the range 0.10–0.13 mol per formula unit, which was comparable to the water uptake of the undoped composition (0.17 mol [47]).

We could suppose that very small changes in the unit cell volume that occurred during doping caused these small changes in the water uptake. Despite the relatively small water uptake, the possibility for the dissociative incorporation of water into the crystal lattice of the gadolinium-doped compositions indicated the possibility of protonic transport. The interaction of the investigated compositions with water molecules can be described as:

$${\mathrm{BaLa}}_{2–\mathrm{x}}{\mathrm{Gd}}_{\mathrm{x}}{\mathrm{In}}_2{\mathrm{O}}_7+\frac{\mathrm{y}}{2}{\mathrm{H}}_2\mathrm{O}\to {\mathrm{BaLa}}_{2–\mathrm{x}}{\mathrm{Gd}}_{\mathrm{x}}{\mathrm{In}}_2{\mathrm{O}}_{7-\frac{\mathrm{y}}{2}}{(\mathrm{OH})}_{\mathrm{y}}$$

(1)

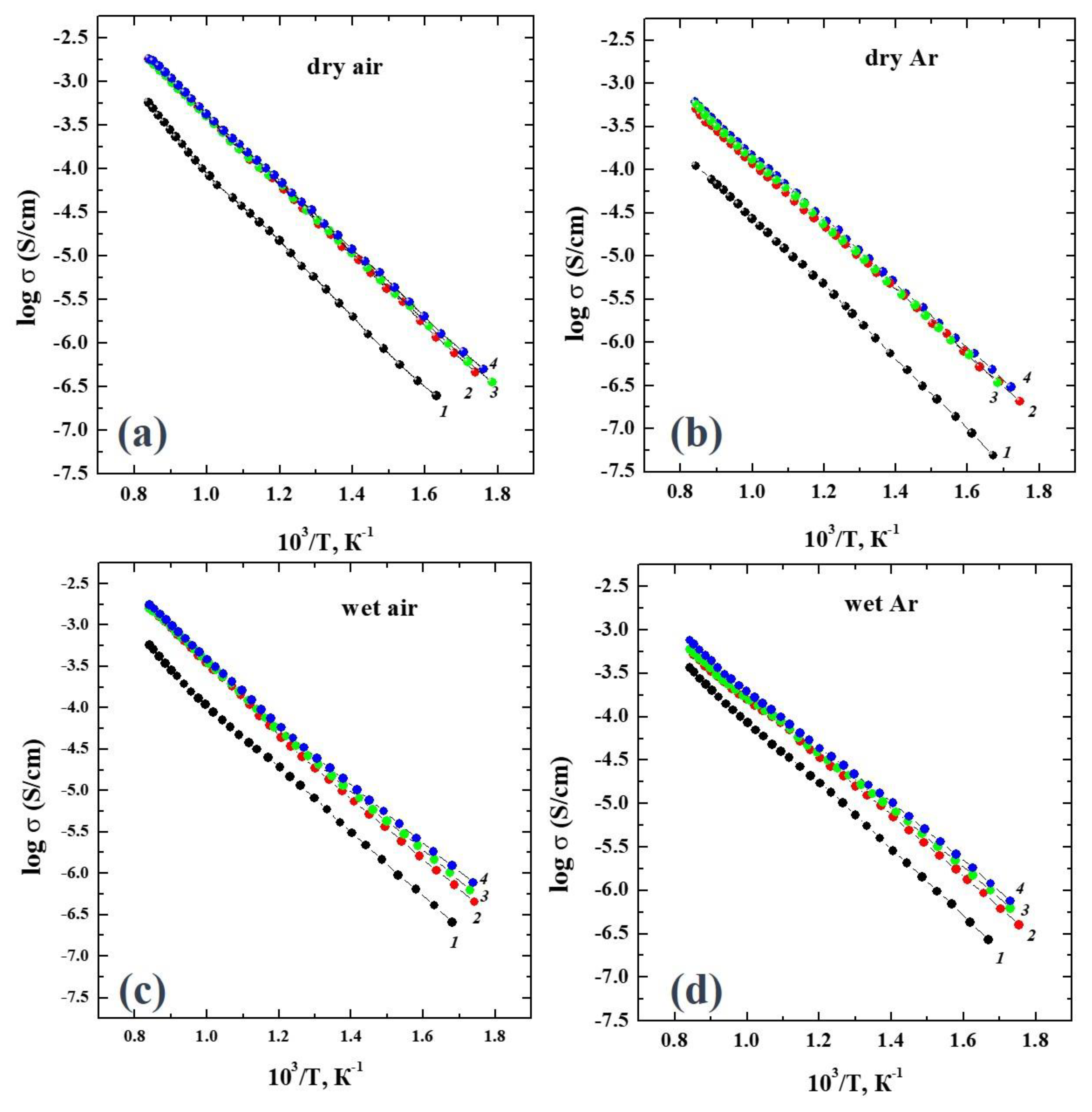

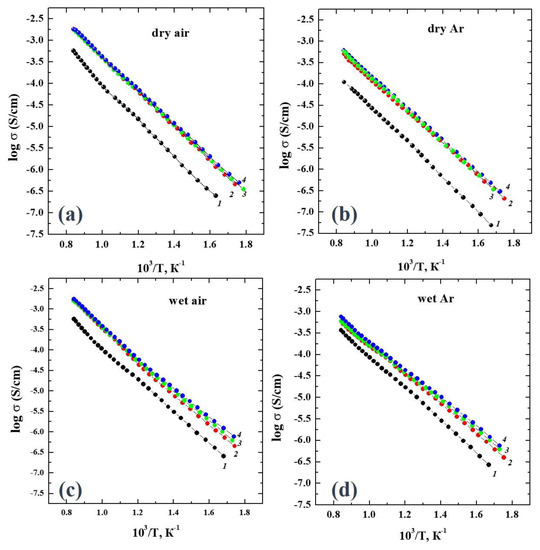

The electrical conductivity values were obtained using the impedance spectroscopy method in the atmospheres with controlled humidity (pH₂O) and an oxygen partial pressure (pO₂). Figure 3 represents the temperature dependencies of the conductivities obtained under dry air (Figure 3a), dry Ar (Figure 3b), wet air (Figure 3c) and wet Ar (Figure 3d).

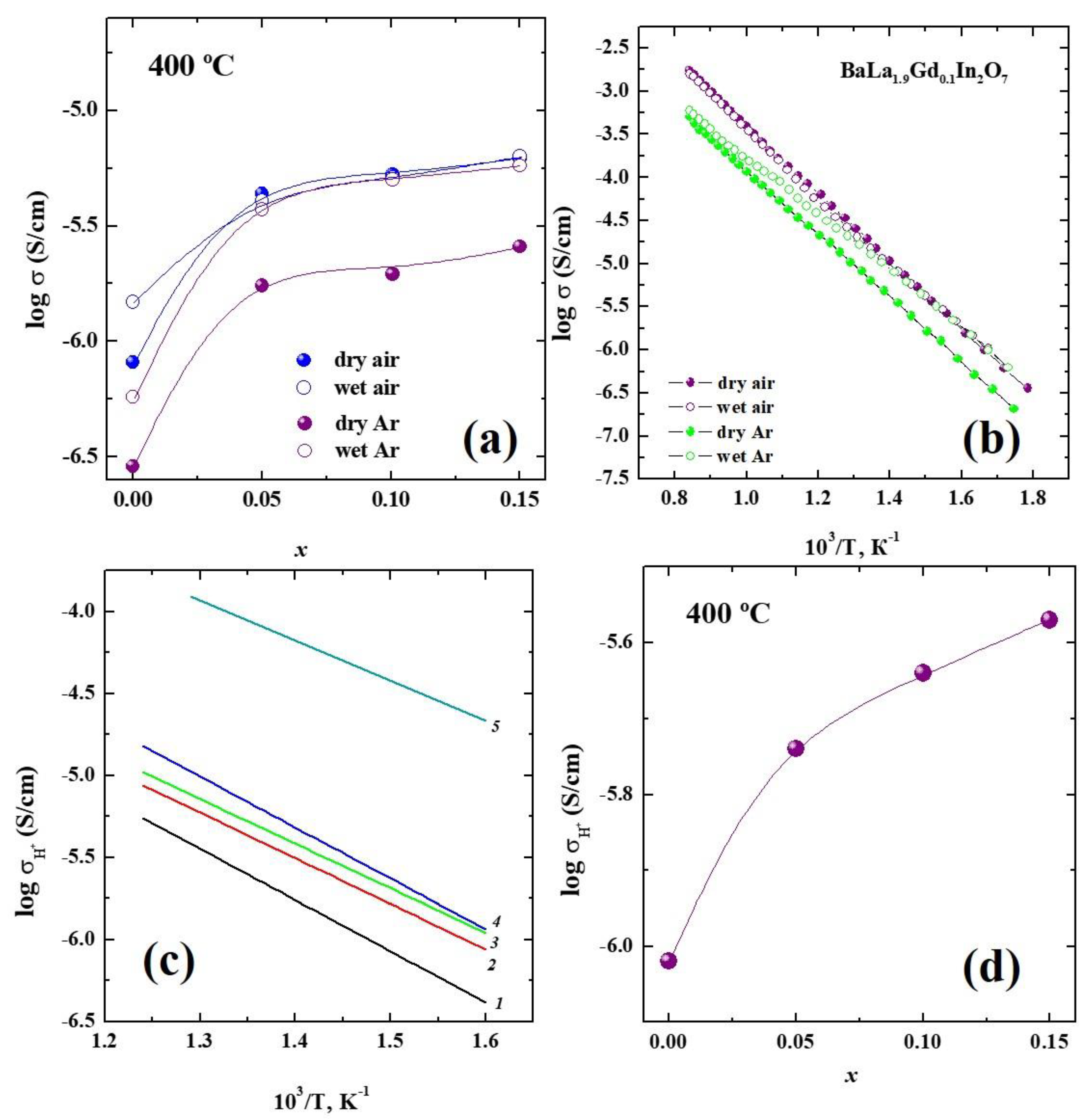

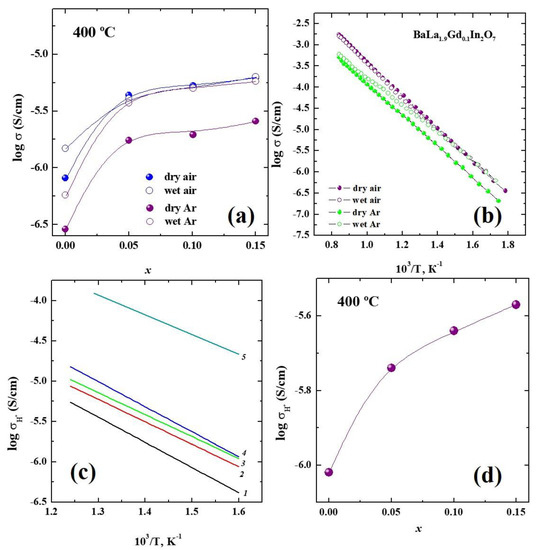

As can be seen, an increase in the gadolinium concentration led to an increase in the electrical conductivity regardless of the values of pH₂O and pO₂. The concentration dependencies (Figure 4a) were well illustrated with this regularity. The effect of the changes in the pH₂O and pO₂ on the conductivity values at the same dopant concentrations is presented in Figure 4b. The values obtained under dry Ar (pO₂ ~ 10⁻⁵ atm) were lower than those obtained under dry air (pO₂ = 0.21 atm), which indicated the mixed oxygen-hole nature of the conductivity. The effect of the humidity changes was more visible in the Ar atmosphere, where the conductivity values under wet conditions (pH₂O = 2·10⁻² atm) were significantly increased compared with those under dry conditions (pH₂O = 3.5·10⁻⁵ atm). This indicated the appearance of a proton contribution to the conductivity.

The protonic conductivity can be calculated as the differences between the ionic conductivities under wet and dry conditions, i.e., between conductivities obtained under wet and dry Ar. The temperature dependencies of the protonic conductivities of the BaLa_2–xGd_xIn₂O₇ compositions are presented in Figure 4c. Doping led to an increase in the conductivity values (Figure 4d) up to an order of magnitude of ~ 0.5 for the mostly conductive composition BaLa_1.85Gd_0.15In₂O₇. In general, this increase in the electrical conductivity values was due to the increase in the concentration of the current carriers and their mobility. In the case of oxygen-ionic conductivity, the concentration of the oxygen point defects did not change during the gadolinium doping of the lanthanum sublattice (isovalent doping). However, the oxygen-ionic conductivity values (the conductivities obtained under dry Ar) increased with the increase of the dopant concentrations. The most reasonable cause was the increase in the oxygen mobility with the increase of the gadolinium content. The lattice parameter c increased, which indicated the increase in the interlayer space in the crystal structure, so the free migration volume increased, which could facilitate ion transportation, i.e., the increase in the oxygen mobility. In the case of the protonic conductivity, the water uptake (i.e., the proton concentration) was almost the same for all the compositions of BaLa_2–xGd_xIn₂O₇; thus, the main reason for the protonic conductivity increase during doping was the increase in the proton mobility. Due to the fact that proton transportation is carried out by the jumping of protons onto oxygen atoms, an increase in the oxygen mobility should have led to the increase in the protonic mobility.

The comparison of the protonic conductivities of the investigated composition obtained by isovalent doping and of the acceptor-doped composition BaLa_1.7Ba_0.3In₂O_6.85 is presented in Figure 4c. The composition BaLa_1.7Ba_0.3In₂O_6.85 was chosen as the most proton-conductive compound obtained by the heterovalent doping of the matrix composition BaLa₂In₂O₇ [48]. As can be seen, the protonic conductivity values for the acceptor-doped composition were higher than those for the isovalent-doped compositions by about one order of magnitude. Because the values of the water uptake for the acceptor-doped (~0.2 mol) and isovalent-doped (~0.13 mol) compositions were comparable to each other, we could suggest that the different proton mobilities were the most reasonable explanation for the significant difference in the protonic conductivity values. The lattice parameter c (20.954(9) Å) and the unit cell volume (743.50(2) ų) of the acceptor-doped composition BaLa_1.7Ba_0.3In₂O_6.85 were much larger than those of the isovalent-doped composition BaLa_1.85Gd_0.15In₂O₇ (20.863(1) Å and 729.00(0) ų). Obviously, this increase provided the facilitation of proton transportation, which led to the increase in the protonic mobility and the conductivity. We suggested that choosing the isovalent dopant with a larger ionic radius than lanthanum would increase the conductivity more significantly.

Summarizing all the obtained results, we could say that the isovalent-doping strategy of the layered perovskite BaLa₂In₂O₇ was a successful way to improve the proton conductivity. Gadolinium doping led to an increase in the lattice parameter c, which led to an increase in the ionic transportation in the layered structure. The protonic conductivity increased with the increasing dopant content. The protonic conductivity of the most conductive composition BaLa_1.85Gd_0.15In₂O₇ was 2.7∙10⁻⁶ S/cm at 400 °C under wet air.

4. Conclusions

The isovalent-doping strategy for the modification of the structure and transportation properties of the two-layer perovskite BaLa₂In₂O₇ was applied for the first time. The gadolinium-doped ceramic materials BaLa_2–xGd_xIn₂O₇ were obtained and investigated. The effect of the dopant concentrations on the hydration processes and the ionic conductivity was revealed. It was shown that all of the compositions exhibited proton conductivity under wet air and at mid-temperatures (lower than ~450 °C). Gadolinium doping led to an increase in the conductivity values up to an order of magnitude of ~0.5. The protonic conductivity of the most conductive composition BaLa_1.85Gd_0.15In₂O₇ was 2.7·10⁻⁶ S/cm at 400 °C under wet air. The rare earth doping of layered perovskites is a prospective approach for the design of ceramics for electrochemical devices for energy applications.
