Graphdiyne-Templated Platinum Nanoparticles as a Novel Platform for the Electrochemical Determination of Bisphenol AF

Abstract

This work constructed an ultrasensitive electrochemical bisphenol AF (BPAF) sensor using ultra-stable graphdiyne-templated platinum nanoparticles (PtNPs@GDY) as a sensing platform. PtNPs@GDY nanocomposite was synthesized by a chemical reduction method, and the preparation process was simple and rapid. GDY, with its natural porous structure, was used as substrate to stabilize PtNPs. Due to the high adsorption ability of GDY, it can prevent PtNPs from aggregation and inactivation. Transmission electron microscopy (TEM), high-resolution TEM (HRTEM) and Energy-dispersive X-ray spectroscopy (EDS) were used to characterize the microstructure and morphologies of the materials. Cyclic voltammetry (CV), Electrochemical impedance spectroscopy (EIS) and differential pulse voltammetry (DPV) were employed to investigate the electrochemical properties of the material and the performance of the sensor. At an optimized condition, the sensor exhibited excellent catalytic activities towards BPAF. The linear ranges were from 0.4 to 15.4 μM and 35.4 to 775.4 μM. The limit of detection was 0.09 μM. In addition, the electrochemical sensor showed good reproducibility, stability and anti-interference.

1. Introduction

Bisphenol AF (1,1,1,3,3,3-hexafluoro-2,2-bis(4-hydroxyphenyl) propane, BPAF) is a homologue of bisphenol A (BPA) in which the methyl groups are perfluorinated [1]. It is mainly used as crosslinking agent of fluorine rubber, which can give rubber products good compression resistance, chemical corrosion resistance and thermal stability [2]. BPAF can also be used as monomer to synthesize special fluorine-containing polyimide, fluorine-containing polyamide, fluorine-containing polyester, fluorine-containing polycarbonate and other fluorine-containing polymers, which can be used as gas separation membranes, dielectric coatings, optical fiber sheaths, photocell substrates and binders [3]. Therefore, it has been widely used in microelectronics, optics, space technology and other fields [4]. BPA has been proven to be an endocrine-disrupting compound. As a homologue of BPA, BPAF may also become endocrine disruptors in humans and wild animals by binding with hormone receptors. Because the -CF₃ of BPAF may be much more electronegative and reactive than the -CH of BPA. It has been reported that in vitro, the binding efficiency of BPAF with estrogen receptor-α (ER α) is about 20 times that of BPA, and the binding efficiency of BPAF with ER β is about 50 times that of BPA, which indicates that BPAF appears to shift endocrine action toward greater toxicity [2,5]. Therefore, the detection of trace BPAF is very important and necessary.

At present, there are many studies in the literature about the detection of BPA [6,7,8,9], but few for BPAF. High-performance liquid chromatography (HPLC) and ultra-high-pressure liquid chromatography-electrospray tandem mass spectrometry (LC-MS/MS) are the most widely used methods in the actual sample detection of BPAF [10,11]. Although these methods display high accuracy, good reproducibility and a reliable capacity for qualitative analysis, they require complex sample pretreatments and expensive instruments. Electrochemical methods have attracted great interest among environmental researchers because of their low cost, miniaturization, rapid reaction, high sensitivity and selectivity with simple sample pre-treatments [12,13,14]. Recently, an electrochemical method for the detection of BPAF was reported [14]. It is based on a carboxy-functionalized multi-walled carbon nanotubes (COOH-MWCNTs)-modified glassy carbon electrode (GCE).

As we all know, the core of electrochemical detection is the construction of working electrodes, and the key to improving the performance of the modified electrode lies in the design of the interface between the target and the electrode and the construction of efficient electron transport. Nowadays, various nanomaterials have been used to construct electrochemical sensors and improve the performance of the sensors. However, there are still challenges in improving the sensitivity and stability of the sensors.

Graphdiyne (GDY) is a new allotrope of 2D carbon nanostructure as a big network of diacetylenic linkages, with the configurations composed by six carbon hexagons (6C-hexagon) like graphene and eighteen carbon hexagons (18C-hexagon) [15]. GDY has good conductivity and semiconducting behavior. Because of its unique structure and properties, GDY has been widely used in various fields, such as catalysis and battery and energy storage [16,17,18]. Recently, it has been reported that GDY possesses adequate sp-hybridized carbon that may coordinate with metal atoms and dock them on the surface of GDY [19].

In this work, an ultra-stable GDY-templated platinum nanoparticle (PtNPs@GDY) was prepared. The preparation process was simple and rapid. GDY with natural porous structure was used as substrate to stabilize PtNPs. Due to the high adsorption ability of GDY, it can prevent PtNPs from aggregation and inactivation, which will lead to catalytic activity increasing. The electrochemical sensor based on PtNPs@GDY displayed good selectivity and sensitivity for the determination of BPAF.

2. Materials and Methods

2.1. Reagents and Apparatus

GDY was purchased from Pioneer Nanotechnology Co. (Nanjing, China), H₂PtCl₆, NaBH₄, Na₂HPO₄, KH₂PO₄, H₃PO₄, CC, HQ, RC and BPAF were bought from Aladdin Chemical Reagents Co. Ltd. (Shanghai, China). All reagents involved are analytical grade and are used without further purification. Phosphate buffer (PB) solution with various pH were prepared by using the stock solution of 0.1 M Na₂HPO₄, 0.1 M NaH₂PO₄, and the supporting electrolyte was 0.1 M KCl. The experimental water is the deionized water.

All electrochemical experiments were carried out on a CHI 660E electrochemical workstation (Chenhua Instruments Co., Shanghai, China), which contained a three-electrode system; a working electrode (bare or modified electrode), a reference electrode (saturated calomel electrode, saturated with KCl) and an auxiliary electrode (a platinum wire). The surface morphologies of composites were characterized using a high-resolution transmission electron microscopy (HRTEM, FEI Talos F200X, USA) and energy-dispersive X-ray spectroscopy (EDS, FEI Talos F200X, Super X, USA).

2.2. Synthesis of PtNPs@GDY

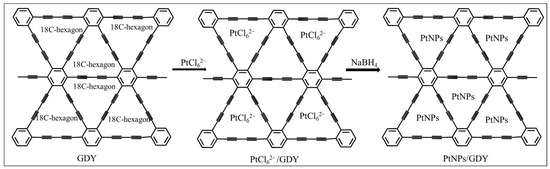

Firstly, 5 mg GDY powder was dissolved in water and processed by sonification for 10 min. Then, 0.5 mL H₂PtCl₆ aqueous solution (m:m, 1%) was added dropwise into 1 mL GDY suspension under vigorous stirring in an ice bath for 10 min. The resulting product was collected and washed with pure water by centrifugation to remove the excess H₂PtCl₆. The product was PtCl₆²⁻@GDY. Finally, 0.5 mL NaBH₄ aqueous solution (10 mg/mL) was rapidly added to 1 mL PtCl₆²⁻@GDY suspension. The whole process was still carried out under the condition of ice bath and continuous stirring. After centrifugation, the excess NaBH₄ was removed, and the product was obtained PtNPs@GDY. The illustration of the synthesis steps was shown in Scheme 1.

2.3. Fabrication of the Modified Electrodes

GCE (3 mm in diameter) was polished to a mirror surface with 0.05 mm and 0.3 mm alumina slurry. After ultrasonic treatment with water, ethanol and water for 5 min, the obtained electrode was used as a bare GCE. Then, 5 mL homogeneous suspensions of PtNPs@GDY (1 mg/mL) was dropped onto the bare GCE surface and dried in air (used as PtNPs@GDY/GCE). Other contrast-modified electrodes were prepared by the same method.

3. Results and Discussion

3.1. Characterization of PtNPs@GDY

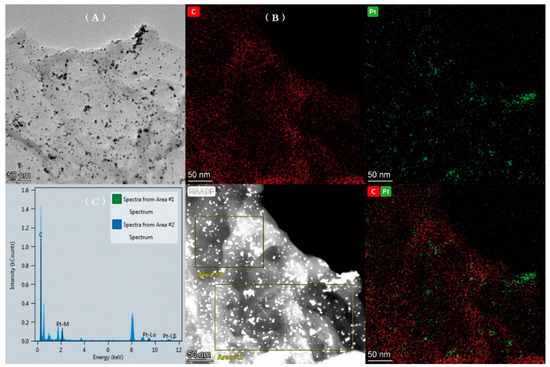

The morphology of the prepared PtNPs@GDY was characterized by TEM. As shown in Figure 1A, there were many nanoparticles uniformly loaded on the GDY sheets, which revealed that platinum ions were successfully reduced to platinum nanoparticles by sodium borohydride. Figure 1B presents the elemental mapping images of PtNPs@GDY, which showed the homogeneous spatial distribution of Pt and C elements on the GDY. The EDS measurement further proved the existence of Pt and C atoms (Figure 1C).

3.2. Electrochemical Behaviors of the Different Modified Electrodes

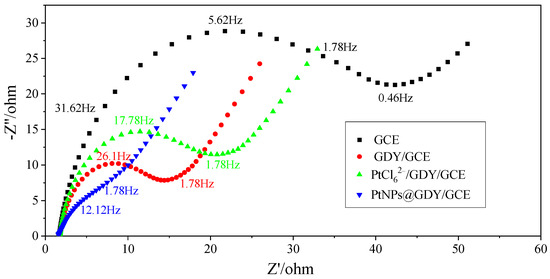

Electrochemical impedance spectroscopy (EIS) is a common and effective method to characterize the electrochemical performance of the modified electrode in the process of construction. According to the Nyquist diagram, the impedance diagram consists of a linear part, which represents the process of finite diffusion, and a semicircle part, which represents the resistance of electron transfer (the greater the diameter of the semicircle, the greater the resistance) [20,21,22]. The electrode-modification materials were characterized by EIS measurements carried out in the presence of K₃[Fe(CN)₆]/K₄[Fe(CN)₆] (5.0 mM) and KCl (0.1 M) (Figure 2). The amplitude of the perturbing signal is 0.005 V, and the frequency range is from 0.1 Hz to 100,000 Hz. DC potential is 0.15 V. It can be seen that the bare GCE had a small charge transfer resistance and, after modification with GDY, the semicircle significantly reduced, suggesting that GDY promoted the transfer of electrons on the electrode surface. After adsorption of PtCl₆²⁻, the diameter of the curves increased because electron transfer was retarded between the redox probe and the electrochemical layer. When the PtCl₆²⁻/GDY was reduced to PtNPs@GDY by NaHB₄, the diameter of the semicircle decreases significantly, implying that the PtNPs@GDY promoted the charge transfer between the redox pair and electrode surface.

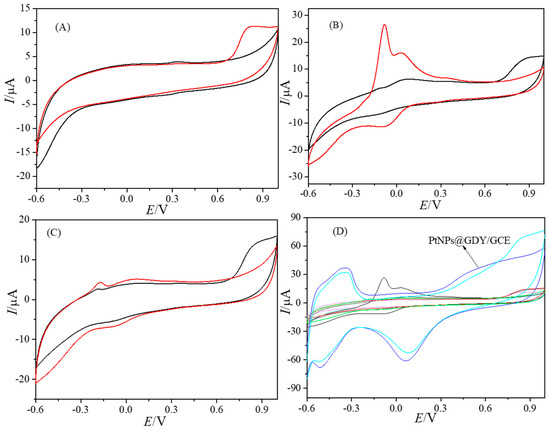

Figure 3 showed CVs of the bare GCE (A), GDY/GCE (B), PtCl₆²⁻/GDY/GCE (C), PtNPs@GDY/GCE and the above three modified electrodes (D) in 0.1 M PB with and without 0.5 μM BPAF. The results showed that BPAF had a response at about 0.75 V on all electrodes including bare GCE but, at the same concentration, the response on the PtNPs@GDY/GCE was the largest and most obvious.

3.3. Effect of pH and Scan Rate

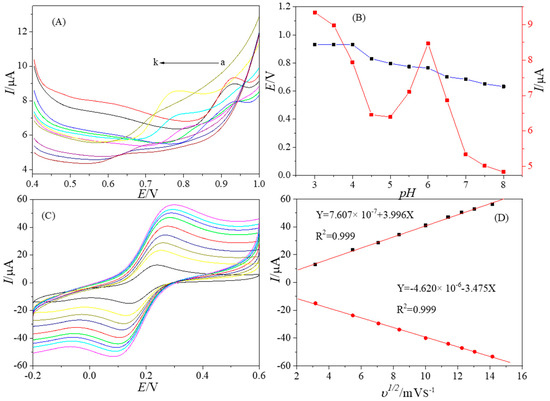

The optimal pH value was investigated by differential pulse voltammetry (DPV) technique in the range of 3.0 to 8.0 (Figure 4A). The relationship between peak currents, peak potentials and pH values was shown in Figure 4B. The results showed that with the increasing of pH, the peak potential decreased gradually, and the peak current first decreased and then increased, reaching a peak at 6.0. Therefore, pH 6.0 PB was selected as the conductive liquid in the following experiments.

Figure 4C showed the CVs of PtNPs@GDY/GCE in 5 mM K₃[Fe(CN₆)] solution with 0.1 M KCl at different scan rates. The relationship between peak currents and the scan rates was shown in Figure 4D. It can be seen that the peak current is proportional to the square root of the sweep speed (I_p = 0.7607 × 10⁻⁶ + 3.996 υ ^1/2, R² = 0.999). The effective surface area of the modified electrode can be calculated by using the Randles–Sevcik equation [23]:

$${\mathit{I}}_{\mathit{p}}\mathbf{=}\mathbf{2.69}\mathbf{\times }{\mathbf{10}}^{\mathbf{5}}\mathit{A}{\mathit{D}}^{\mathbf{1}\mathbf{/}\mathbf{2}}{\mathit{n}}^{\mathbf{3}\mathbf{/}\mathbf{2}}{\mathit{v}}^{\mathbf{1}\mathbf{/}\mathbf{2}}\mathit{c}$$

(1)

where I_p is the peak currents (A), A is the effective surface area (cm²), D (6.67 × 10⁻⁶ cm² s⁻¹) is the diffusion coefficient of K₃[Fe(CN₆)], n is the number of electron transfer (n = 1), u is the scan rate (V/s) and c is the bulk concentration of K₃[Fe(CN₆)](mol/cm³). The effective surface area is 1.15 cm².

3.4. DPV Determination of BPAF

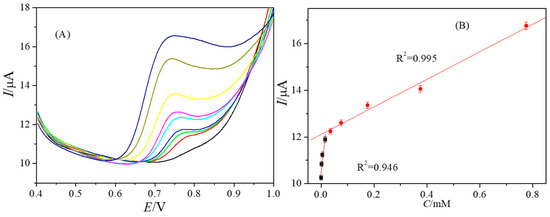

Under the optimum conditions, the response of the PtNPs@GDY/GCE to BPAF was studied by the DPV method (Figure 5A). The results showed that the peak current increased with the increase of the concentration of BPAF and showed a two-stage linear relationship (Figure 5B). The linear equations were Ip = 1.05 × 10⁻⁵ + 0.098C (R² = 0.946) and Ip = 1.21 × 10⁻⁵ + 0.0059C (R² = 0.995) with the linear range of 0.4–15.4 μM and 35.4–775.4 μM. According to the formula LOD = 3 S/m [24]. Where S is the standard deviation of peak current, m is the slope of linear equation. The LOD was 0.09 μM. The oxidation mechanism for BPAF can refer to the report of Wang [1] and Chan [25].

3.5. Interference, Stability and Practical Application

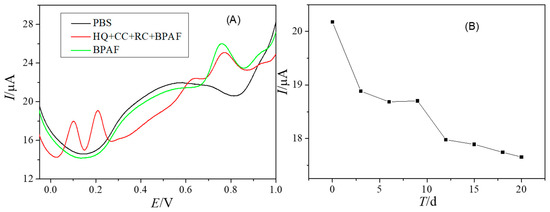

Anti-interference ability is an important parameter to evaluate the performance of electrochemical sensors. In this work, some phenolic compounds and inorganic ions were used to detect their effects on the sensor response signal. It can be seen from Figure 6A that catechol (CC), hydroquinone (HQ) and Resorcinol (RC) were oxidized on PtNPs@GDY/GCE at about 0.1 V, 0.25 V and 0.65 V, respectively. The oxidation peak potential difference and peak current between these substances showed that they had no obvious interference with BPAF; 500-fold Na⁺, K⁺, Cl⁻, SO₄²⁻, NO₃⁻ and PO₄³⁻ also had no interference on the determination of BPAF. These experiments revealed that the PtNPs@GDY/GCE has good selectivity for BPAF.

After the modified electrode was prepared, it was placed in the refrigerator at 4 °C for 20 days. During this period, 0.5 μM BPAF was tested by DPV every 3 days. The results showed that the peak current remained between 87.5% and 93.6% of the original peak current (Figure 6B). This indicated that the modified electrode had good stability.

In order to test the potential of the modified electrode in practical application, we used DPV and standard addition method to test the recovery of BPAF in river water (from Liucang river, Bijie, Guizhou, China). The data obtained were listed in

Table 1. Determination of BPAF in river water (n = 3).

Samples	Added (μM)	Found (μM)	Recovery (%)	RSD (%)
River water	0	0	-	-
	5.0	9.25	85.0	2.3
	10.0	19.03	90.3	1.5
	20.0	43.66	118.3	4.2
	30.0	58.75	95.8	2.6

. It can be seen that the recoveries ranged from 85% to 118.3%, indicating that the PtNPs@GDY/GCE can be applied to determine BPAF in real samples.

4. Conclusions

In this work, a graphdiyne-templated platinum (PtNPs@GDY) nanocomposite was prepared and used to construct a sensitive electrochemical BPAF sensor. The preparation of PtNPs@GDY and the construction of the sensor are very simple and fast. GDY, with its natural porous structure and high adsorption capacity, can prevent the aggregation and deactivation of PtNPs. In addition to their respective good catalytic performance, the large specific surface area and adsorption performance of GDY and the high conductivity of PtNPs give the PtNPs@GDY/GCE not only excellent catalytic performance, but also excellent selectivity and stability. The recovery experiment also shows that the PtNPs@GDY/GCE has the potential to detect BPAF in real samples.
