# Comparing COSTATIS and Generalized Procrustes Analysis with Multi-Way Public Education Expenditure Data

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

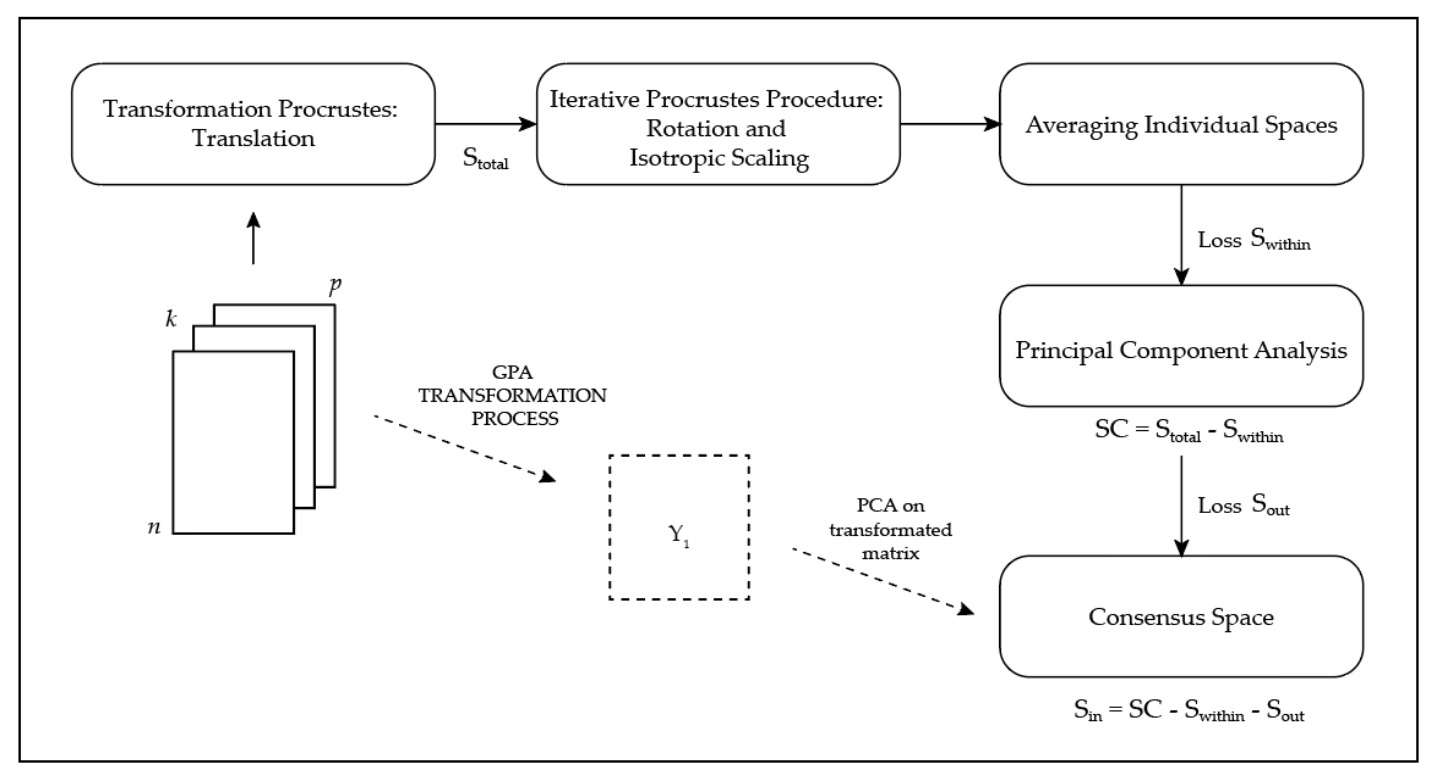

## 2. Generalized Procrustes Analysis

## 3. COSTATIS

- 1.
- First, a variant of STATIS-like analyses [19,21] performed to identify the stable structure in a k-table. In this paper, a STATIS has been carried out, allowing the use of public education expenditure in two sets of countries with different economic characteristics. In this case, the method consists in performing two STATIS analyses: one on k-tables of high economic level countries, and another on the k-tables of low economic level countries that measure sets of variables collected on the same observations. The result is the mean table of maximum inertia, which represents the ‘‘compromise’’ and captures the similarities among the k individual tables constituting the k-table.

- A.
- The first stage consists to compare the structure s of the K matrices to each other and to come up with a so-called inter-structure. This can be summarized as follows:
- (1)
- Calculate the K variance–covariance matrices as:$${\mathrm{W}}_{t}={\mathrm{X}}_{\mathrm{t}}{\mathrm{Q}}_{\mathrm{t}}{\mathrm{X}}_{\mathrm{t}}^{\ast}$$
_{t}and all ${\mathrm{X}}_{\mathrm{t}}$ matrices of X have the same number of variables; ${\mathrm{X}}_{\mathrm{t}}^{\ast}$ is the transposed matrix of ${\mathrm{X}}_{\mathrm{t}}$ and ${\mathrm{Q}}_{{\mathrm{t}}_{i}}$ is the identity matrix of dimension J × J. In this study, all matrices had the same number of attributes, J_{i}= J for each k, and the same weight was given to all the individuals/simples.Each matrix ${\mathrm{X}}_{k}$ defines implicitly a structure for the individuals, which depends on their respective positions as defined by the distances between each pair of individuals: - (2)
- Calculate the matrix of RV coefficient:$$RV\left({W}_{k},{W}_{{k}^{\prime}}\right)=\frac{Tr\left({W}_{k}D{W}_{{k}^{\prime}}D\right)}{\sqrt{Tr{\left({W}_{k}D\right)}^{2}{\left({W}_{{k}^{\prime}}D\right)}^{2}}}$$The RV coefficients are non-negative and ranges from 0 to 1.
- (3)
- Perform PCA of the RV matrix $\left[\mathbf{S},\mathbf{V},\mathbf{S}\right]=\mathrm{SVD}\left(\mathbf{R}\mathbf{V}\right)$, SVD is the singular value decomposition version of PCA.$${\mathrm{a}}_{\mathrm{k}}=\raisebox{1ex}{${S}_{1}$}\!\left/ \!\raisebox{-1ex}{$\sum \mathrm{k}$}\right.=1K{S}_{1}$$${S}_{1}$ (K × 1) is the first column vector of the matrix
**S**

- B.
- The second step of the method is the determination of the intra-structure, that is, the search for a common structure to the structures corresponding to the K instants.
- (1)
- Calculate the compromise among tables as:$$W=\sum \mathrm{k}=1{K}_{{\mathrm{a}}_{\mathrm{k}}}{W}_{\mathrm{k}}$$
- (2)
- Perform PCA of W:$$\left[\mathbf{L},\mathbf{V},\mathbf{L}\right]=\mathrm{SVD}\left(\mathbf{W}\right)$$
- (3)
- Display the compromise score plot.

- C.
- The third step of the method is the development of the observations’ trajectories. The trajectories show which individuals or observations account for the distances observed among the objects ${\mathbf{W}}_{\mathrm{k}}$ in the inter-structure step.
- 2.
- The second stage is a co-inertia analysis, which is performed on analysis of the compromises of these two STATIS (or variants) to describe the co-structure between the stable part of high economic level countries data and the stable part of low economic level countries data. The COIA summarizes as well as possible the squared covariances between public expenditure on education in the two sets of countries [2].

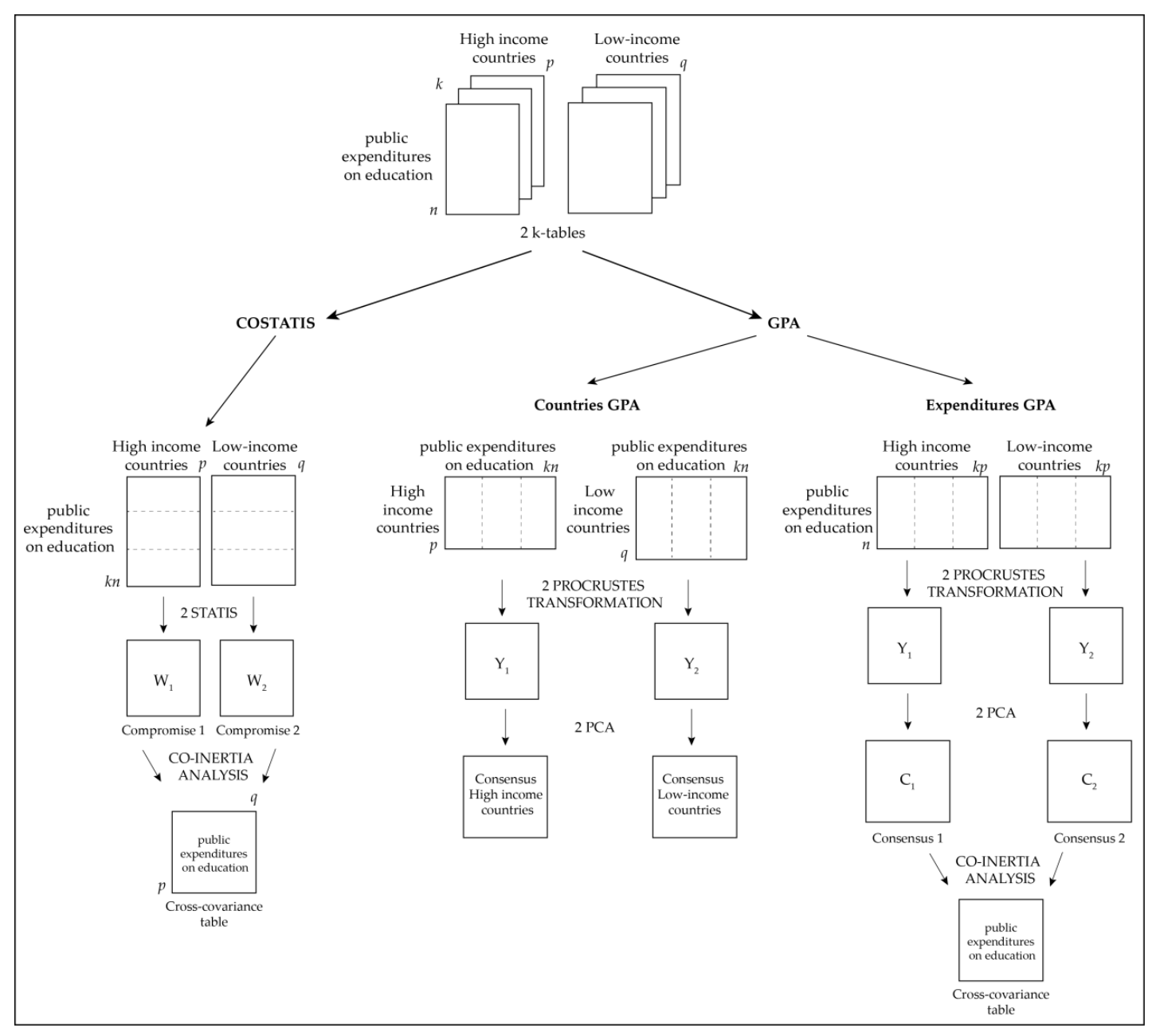

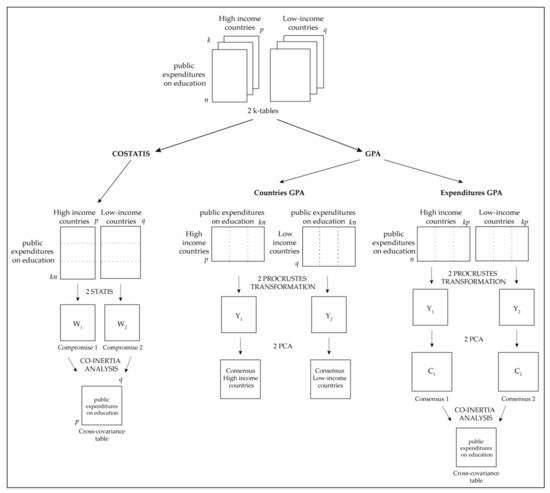

## 4. GPA versus COSTATIS

**X**and

**Y**, is the sum of squared covariances:

**X**and

**Y**. ${D}_{J\ast}$ and ${D}_{J\ast \ast}$ are two hyperspace matrices of the first and second matrix, respectively. Additionally, ${D}_{I}$ is the diagonal of matrix (I × I) of matrices’ rows weights, where ${D}_{I}=Diag({w}_{1},\dots ,{w}_{I})$.

## 5. Case Study

#### 5.1. Data

- Group 1 consists of countries with a nominal GDP above USD 300 million: Austria, Ireland, Italy, Norway, Poland, Spain, Sweden, Switzerland and the United Kingdom.
- Additionally, group 2 consists of countries with a nominal GDP of less than USD 300 million: Cyprus, Czechia, Finland, Hungary, Iceland, Lithuania, Portugal, Romania, Slovakia and Slovenia.

#### 5.2. Procedure

## 6. COSTATIS Results

## 7. GPA Results

## 8. Discussion and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Dutu, R.; Sicari, P. Public Spending Efficiency in the OECD: Benchmarking health care, education and general administration. OECD Econ. Dep. Work. Pap.
**2016**. [Google Scholar] [CrossRef] - Thioulouse, J. Simultaneous analysis of a sequence of paired ecological tables: A comparison of several methods. Ann. Appl. Stat.
**2011**, 5, 2300–2325. [Google Scholar] [CrossRef] [Green Version] - Gower, J.C. Generalized procrustes analysis. Psychometrika
**1975**, 40, 33–51. [Google Scholar] [CrossRef] - R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2019. [Google Scholar]
- Des Plantes, L. Structuration des Tableaux à Trois Indices de la Statistique: Théorie et Application d’une Méthode D’analyse Conjointe; University of Montpellier: Montpellier, France, 1976. [Google Scholar]
- Lavit, C. Analyse Conjointe de Tableaux Quantitatifs; Masson: Paris, France, 1988. [Google Scholar]
- Escoufier, Y. Le traitement des variables vectorielles. Biometrics
**1973**, 29, 751–760. [Google Scholar] [CrossRef] - Doléc, S.; Chessel, D. Co-inertia analysis: An alternative method for studying species—Environment relationships. Freshw. Biol.
**1994**, 31, 277–294. [Google Scholar] [CrossRef] - Slimani, N.; Guilbert, E.; El Ayni, F.; Jrad, A.; Boumaiza, M.; Thioulouse, J. The use of STATICO and COSTATIS, two exploratory three-ways analysis methods: An application to the ecology of aquatic heteroptera in the Medjerda watershed (Tunisia). Environ. Ecol. Stat.
**2017**, 24, 269–295. [Google Scholar] [CrossRef] - Ladhar, C.; Tastard, E.; Casse, N.; Denis, F.; Ayadi, H. Strong and stable environmental structuring of the zooplankton communities in interconnected salt ponds. Hydrobiologia
**2015**, 743, 1–13. [Google Scholar] [CrossRef] - Santos, A.D.; da Silva, N.T.; Castela, G. A COSTATIS approach to business sustainability in turbulent environments from 2008 to 2014. Int. J. Qual. Res.
**2019**, 13, 887–900. [Google Scholar] [CrossRef] - Meyners, M. Methods to analyse sensory profiling data—A comparison. Food Qual. Prefer.
**2003**, 14, 507–514. [Google Scholar] [CrossRef] [Green Version] - Osis, S.T.; Hettinga, B.A.; Macdonald, S.L.; Ferber, R. A novel method to evaluate error in anatomical marker placement using a modified generalized Procrustes analysis. Comput. Methods Biomech. Biomed. Eng.
**2015**, 18, 1108–1116. [Google Scholar] [CrossRef] - Peters, J.R.; Campbell, R.M.; Balasubramanian, S. Characterization of the age-dependent shape of the pediatric thoracic spine and vertebrae using generalized procrustes analysis. J. Biomech.
**2017**, 63, 32–40. [Google Scholar] [CrossRef] - Morand, E.; Pagès, J. Procrustes multiple factor analysis to analyse the overall perception of food products. Food Qual. Prefer.
**2006**, 17, 36–42. [Google Scholar] [CrossRef] - Zuliani, P.; Bramardi, S.J.; Lavalle, A.; Defacio, R. Caracterización de poblaciones nativas de maíz mediante análisis de procrustes generalizado y análisis factorial múltiple. Rev. Fac. Cienc. Agrar.
**2012**, 44, 49–64. [Google Scholar] - Kristof, W.; Wingersky, B. A generalization of the orthogonal Procrustes rotation procedure to more than two matrices. Proc. Ann. Conv. Am. Psychol. Assoc.
**1971**, 6, 89–90. [Google Scholar] - Dray, S.; Chessel, D.; Thioulouse, J. Co-intertia and the linking of ecological data tables. Ecology
**2003**, 84, 3078–3089. [Google Scholar] [CrossRef] [Green Version] - Thioulouse, J.; Chessel, D. Les analyses multitableaux en écologie factorielle. I. De la typologie d’état à la typologie de fonctionnement par l’analyse triadique. Acta Oecologica Oecologia Gen.
**1987**, 8, 463–480. [Google Scholar] - Kroonenberg, P.M. The analysis of multiple tables in factorial ecology: III. Three- mode principal component analysis: “Analyse triadique complete. Acta Oecologica Oecologia Gen.
**1989**, 10, 245–256. [Google Scholar] - Jaffrenou, P.A. Sur l’analyse des familles finies de variables vectorielles. In Bases Algébriques et Application à la Description Statistique; Université Claude Bernard: Lyon, France, 1978. [Google Scholar]
- Thioulouse, J.; Simier, M.; Chesse, D. Simultaneous Analysis of a Sequence of Paired Ecological Tables. Ecology
**2004**, 85, 272–283. [Google Scholar] [CrossRef] - IMF World Economic Outlook Databases. Available online: https://www.imf.org/en/Publications/SPROLLs/world-economic-outlook-databases#sort=%40imfdatedescending (accessed on 25 June 2019).
- Dray, S.; Dufour, A.B. The ade4 package: Implementing the duality diagram for ecologists. J. Stat. Softw.
**2007**, 22, 1–20. [Google Scholar] [CrossRef] [Green Version] - Husson, F.; Josse, J.; Le, S.; Maintainer, J.M. Package “FactoMineR” Title Multivariate Exploratory Data Analysis and Data Mining; R Foundation for Statistical Computing: Vienna, Austria, 2020. [Google Scholar]
- Francisco Varela, A. Business Insider España. 2020. Available online: https://www.businessinsider.es/gasto-salarios-publicos-espana-comparativa-otros-paises-europa-845113 (accessed on 1 May 2020).
- Halásková, M.; Halásková, R. Public expenditures in areas of public sector: Analysis and evaluation in eu countries. Sci. Pap. Univ. Pardubice Ser. D Fac. Econ. Adm.
**2017**, 24, 39–50. [Google Scholar] - Castro Fernández, F.D.; González Mínguez, J.M. La composición del gasto público en Europa y el crecimiento a largo plazo. Bol. Econ.
**2008**, 1, 89–102. [Google Scholar] - Morales, M.; Fortes, I.A.; Rueda, A.G. El gasto público en educación en los países de la OCDE: Condicionantes económicos e institucionales. eXtoikos
**2011**, 4, 37–45. [Google Scholar] - Neira, I.; Guisán, M.C.; Rodríguez, X.A. Análisis cuantitativo del gasto en educación en Europa. In Economic Development; Faculty of Economics and Business: Amsterdam, The Netherlands, 1992. [Google Scholar]
- Delgado, J.P. The Evolution of the Oecd Countries after the 2008 Financial Crisis; Universidade Nova de Lisboa: Lisbon, Portugal, 2019. [Google Scholar]
- Rodríguez-Rosa, M.; Gallego-Ávarez, I.; Galindo-Villardón, M.P.V.-G.M.P. Are Social, Economic and Environmental Well-Being Equally Important in all Countries Around the World? A Study by Income Levels. Soc. Indic. Res.
**2017**, 131, 543–565. [Google Scholar] [CrossRef] - Egido, J.; Galindo, P. Dynamic Biplot: Evolution of the Economic Freedom in the European Union. Br. J. Appl. Sci. Technol.
**2015**, 11, 1–13. [Google Scholar] [CrossRef]

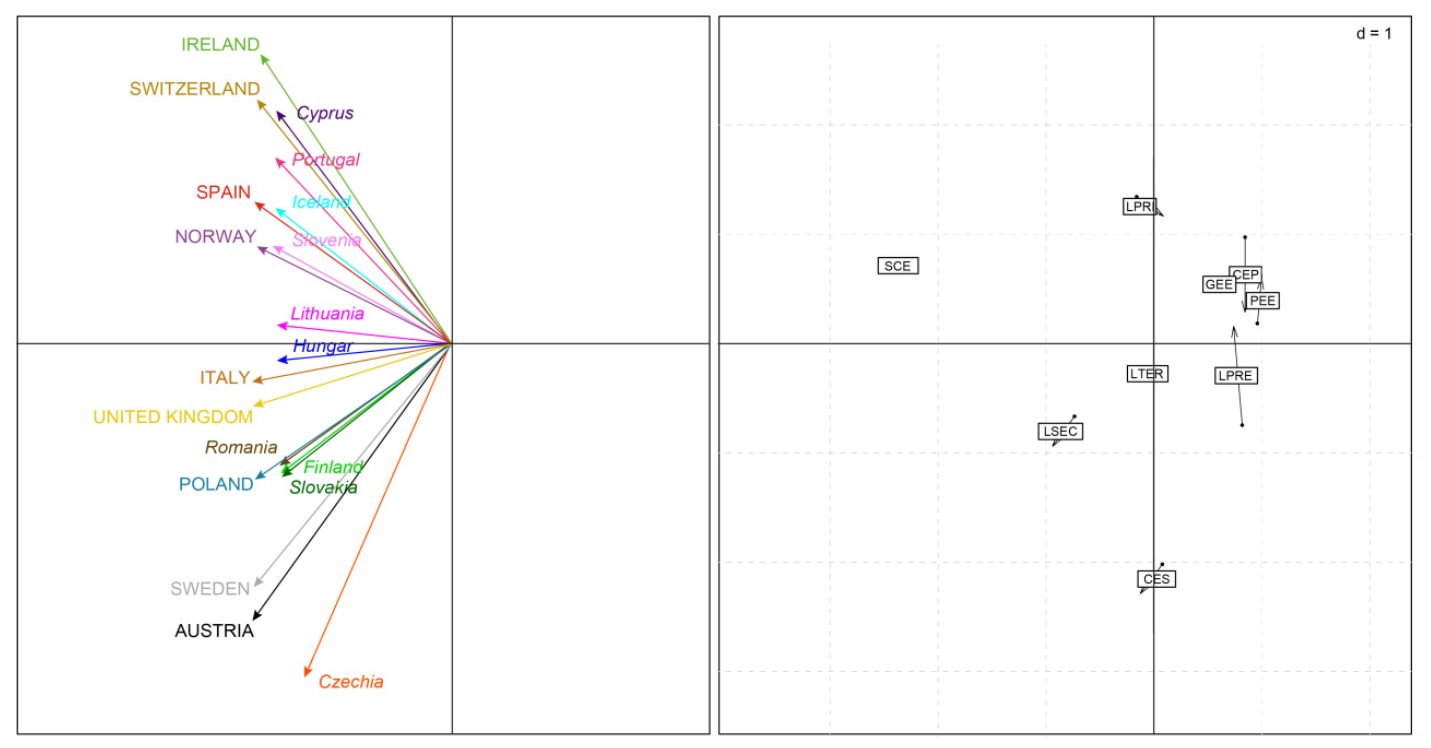

**Figure 3.**Graphs resulting from COSTATIS method: Euclidean representation of high and low-income countries’ compromises (

**left**) and co-inertia analysis graph of the two compromises (

**right**). The scale is given by the value d.

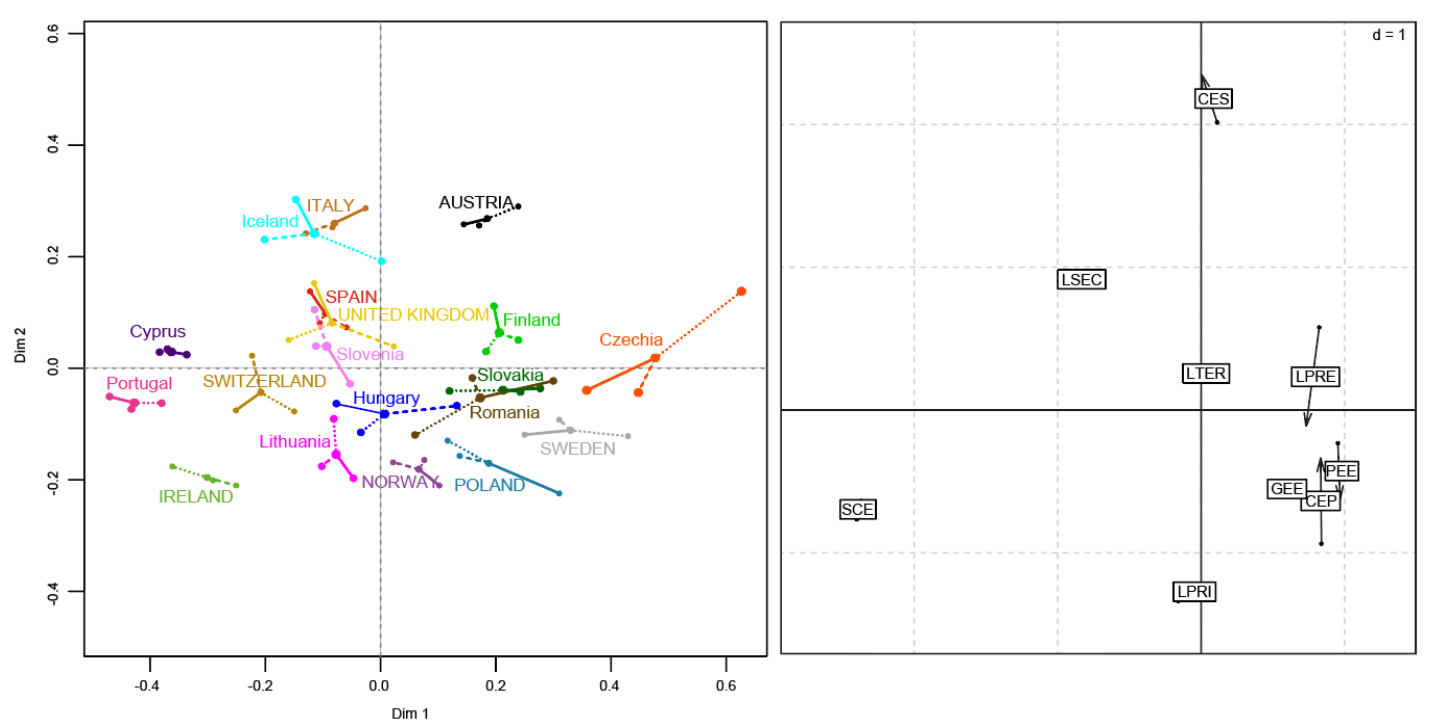

**Figure 4.**Graphs resulting from GPA method: Representation of high and low-income countries’ compromises and their trajectories (

**left**) and co-inertia analysis graph of the two expenditure compromises (

**right**). The scale is given by the value d.

Code | Type of Expenditure |
---|---|

SCE | All staff compensation as % of total expenditure in public institutions (%) |

CEP | Capital expenditure as % of total expenditure in public institutions (%) |

CES | Current expenditure other than staff compensation as % of total expenditure in public institutions (%) |

LPRE | Expenditure by level of education: pre-primary (as % of government expenditure) |

LPRI | Expenditure by level of education: primary (as % of government expenditure) |

LSEC | Expenditure by level of education: secondary (as % of government expenditure) |

LTER | Expenditure by level of education: tertiary (as % of government expenditure) |

GEE | Government expenditure on education (% of government expenditure) |

PEE | Public expenditure on education (% of GDP) |

Countries with High Nominal GDP | Countries with Low Nominal GDP | ||||||
---|---|---|---|---|---|---|---|

Group 1 | Sum of squares within by country | Group 2 | Sum of squares within by country | ||||

SSfit | Ssresidual | SStotal | SSfit | Ssresidual | SStotal | ||

Austria | 13.695 | 0.502 | 14.197 | Cyprus | 14.885 | 0.265 | 15.151 |

Ireland | 14.074 | 0.850 | 14.924 | Czechia | 23.805 | 2.284 | 26.089 |

Italy | 9.400 | 1.023 | 10.422 | Finland | 7.219 | 0.445 | 7.665 |

Norway | 8.622 | 0.407 | 9.030 | Hungary | 2.204 | 0.995 | 3.198 |

Poland | 10.764 | 1.617 | 12.381 | Iceland | 7.915 | 1.142 | 9.057 |

Spain | 5.528 | 0.555 | 6.082 | Lithuania | 3.673 | 0.557 | 4.230 |

Sweden | 12.597 | 0.836 | 13.434 | Portugal | 19.597 | 0.430 | 20.026 |

Switzerland | 7.325 | 0.661 | 7.986 | Romania | 4.545 | 1.456 | 6.001 |

United Kingdom | 8.304 | 3.240 | 11.544 | Slovakia | 5.240 | 1.305 | 6.545 |

Slovenia | 1.384 | 0.654 | 2.038 | ||||

sum | 90.309 | 9.691 | 100.000 | sum | 90.467 | 9.533 | 100.000 |

Expenditure | Sum of squares within by type of expenditure | Expenditure | Sum of squares within by type of expenditure | ||||

SSfit | Ssresidual | SStotal | SSfit | Ssresidual | SStotal | ||

SCE | 61.997 | 0.039 | 62.036 | SCE | 58.188 | 0.012 | 58.200 |

CEP | 7.700 | 0.021 | 7.722 | CEP | 7.319 | 0.021 | 7.340 |

CES | 0.786 | 0.056 | 0.842 | CES | 3.268 | 0.202 | 3.470 |

LPRE | 7.653 | 0.071 | 7.724 | LPRE | 5.799 | 0.035 | 5.834 |

LPRI | 0.934 | 0.024 | 0.958 | LPRI | 1.131 | 0.019 | 1.150 |

LSEC | 6.423 | 0.155 | 6.577 | LSEC | 9.362 | 0.198 | 9.560 |

LTER | 0.400 | 0.027 | 0.427 | LTER | 0.439 | 0.067 | 0.506 |

GEE | 3.882 | 0.026 | 3.908 | GEE | 3.990 | 0.027 | 4.018 |

PEE | 9.792 | 0.014 | 9.806 | PEE | 9.911 | 0.013 | 9.923 |

sum | 99.568 | 0.432 | 100.000 | sum | 99.407 | 0.593 | 100.000 |
