# Efficient Methods for Parameter Estimation of Ordinary and Partial Differential Equation Models of Viral Hepatitis Kinetics

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Development of Mathematical Models

#### 2.1.1. The Standard Biphasic Model

#### 2.1.2. The Multiscale HCV Model

#### 2.2. Data Description

#### 2.3. Solving the Model Equations

#### 2.4. Parameter Estimation

#### 2.4.1. Preliminaries

#### 2.4.2. Optimization by a Constrained Version of Nonlinear Least Squares (Gauss–Newton Method)

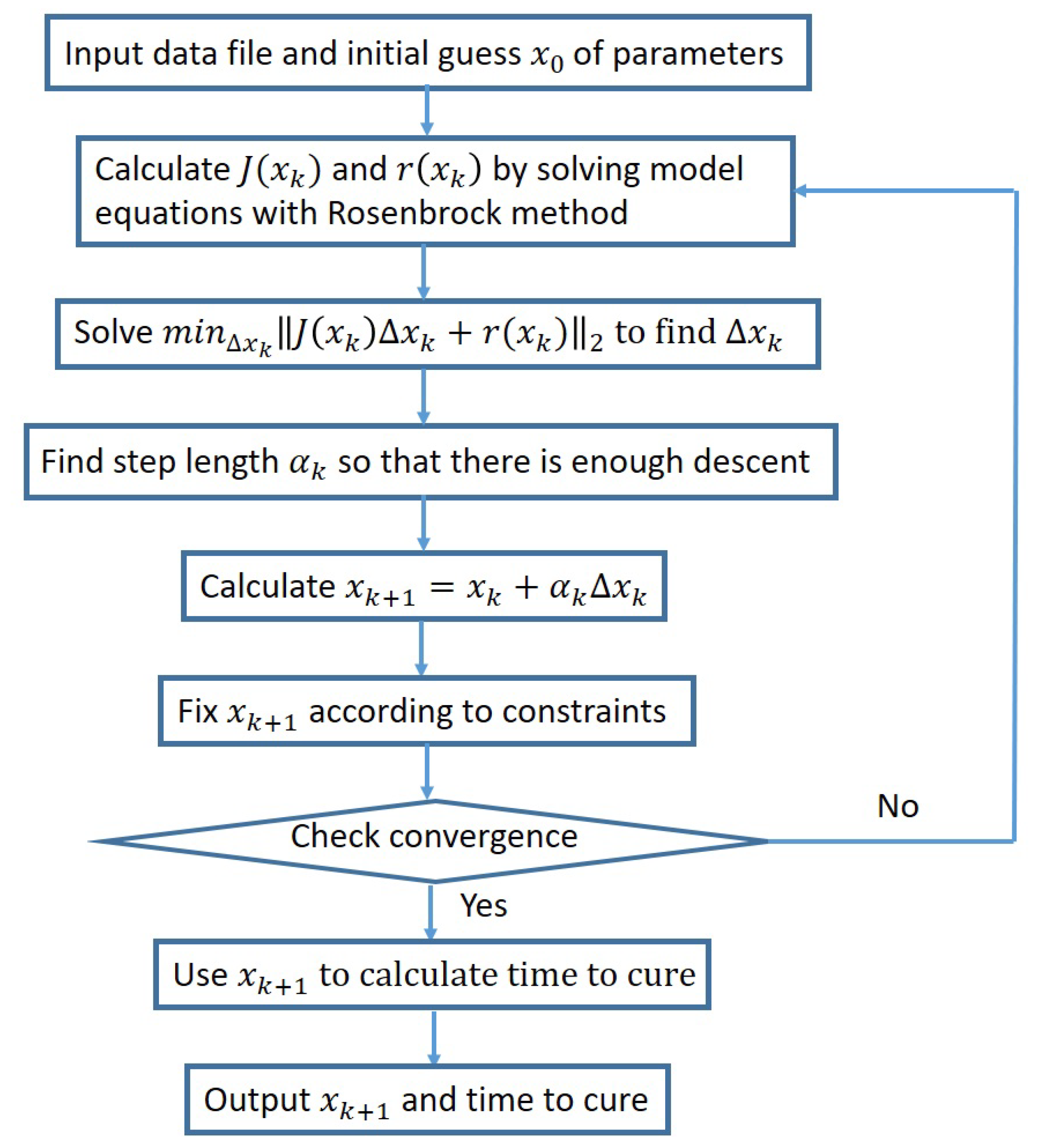

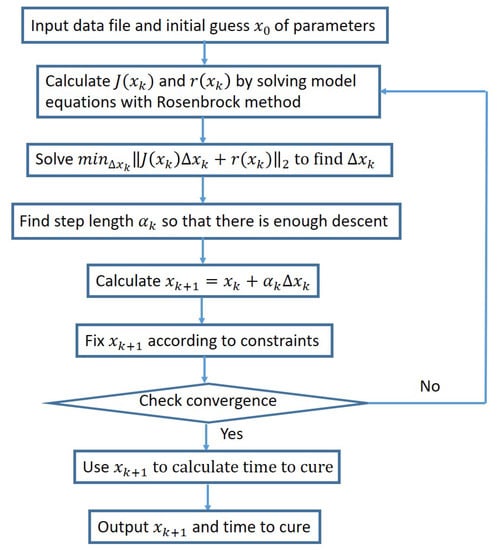

- Start with an initial guess ${x}_{0}$ and iterate for $k=0,1,2,\dots $
- Solve $mi{n}_{\mathsf{\Delta}{x}_{k}}{\parallel J\left({x}_{k}\right)\mathsf{\Delta}{x}_{k}+r\left({x}_{k}\right)\parallel}_{2}$ to compute the correction $\mathsf{\Delta}{x}_{k}$.
- Choose a step length ${\alpha}_{k}$ so that there is enough descent.
- Calculate the new iterate ${x}_{k+1}={x}_{k}+{\alpha}_{k}\mathsf{\Delta}{x}_{k}$.
- Check for convergence.

#### 2.4.3. Optimization by Derivative-Free Methods (COBYLA Method)

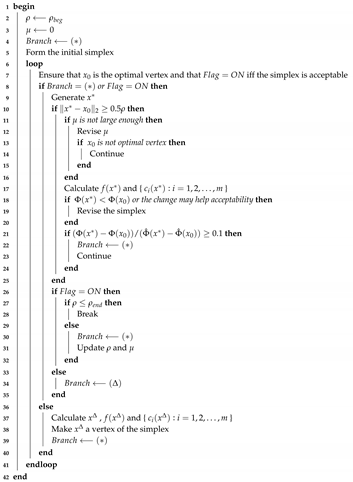

Algorithm 1: COBYLA method. |

#### 2.5. Method Scope and Other Approaches

#### 2.5.1. Parameters Change When Transforming a PDE Multiscale Model to a System of ODEs

#### 2.5.2. Problematic Issues in Strategies Relying on Canned Methods

## 3. Results

`scipy.optimize.curve_fit`method, which is a Python implementation of a simple Levenberg–Marquardt scheme as a canned method. The next column to the right are the values obtained previously by the use of Levenberg–Marquardt along with the numerical method to solve the model equations as outlined in [57]. In the left columns are the values obtained by our new efficient methods. The small differences assure us that the significant efficiency achieved, thereby making our simulator a practical and useful tool, did not result in less accuracy.

## 4. Discussion

## 5. Conclusions and Future Work

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Details of the COBYLA Method

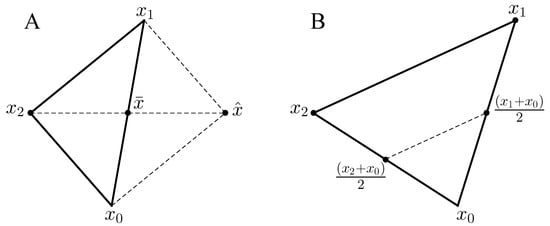

**Figure A1.**Illustration of the original simplex method. The points ${x}_{0},{x}_{1}$, and ${x}_{2}$ form the initial simplex. (

**A**) The point $\overline{x}$ is the midpoint of the line joining ${x}_{0}$ and ${x}_{1}$, and $\widehat{x}$ is the reflection of ${x}_{2}$ through this line. If $f\left(\widehat{x}\right)<f\left({x}_{1}\right)$, ${x}_{2}$ is replaced by $\widehat{x}$, shifting the location of the simplex. (

**B**) If $f\left(\widehat{x}\right)\ge f\left({x}_{1}\right)$, ${x}_{2}$ is replaced with $(1/2)({x}_{2}+{x}_{0})$ and ${x}_{1}$ is replaced with $(1/2)({x}_{1}+{x}_{0})$, reducing the volume of the simplex.

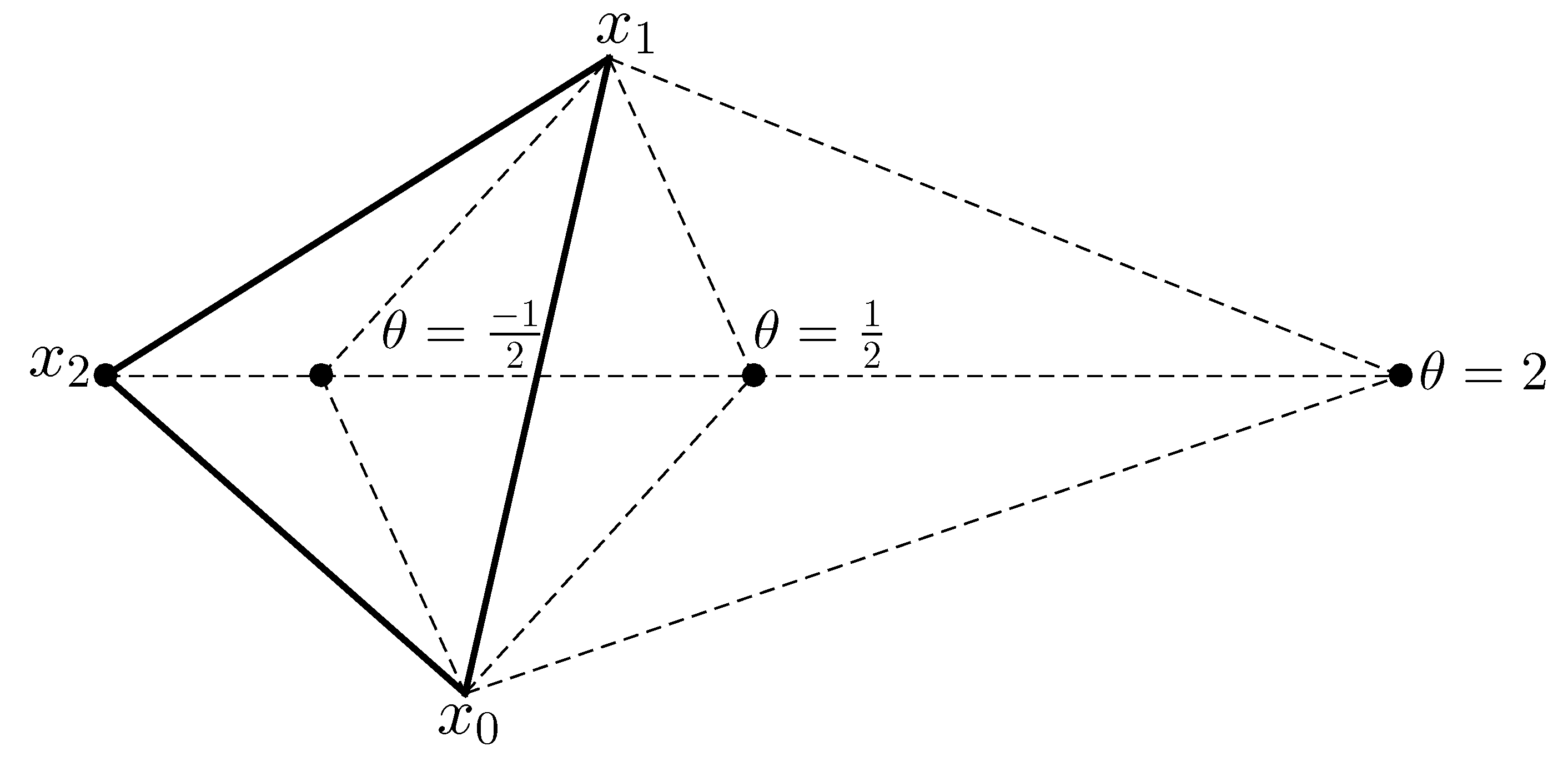

**Figure A2.**Illustration of the Nelder–Mead method. The points ${x}_{0},{x}_{1}$ and ${x}_{2}$ form the initial simplex. The vertex ${x}_{2}$ is replaced with a vertex of the form ${x}_{\mathrm{new}}=\overline{x}+\theta (\overline{x}-{x}_{2})$. If $f\left(\widehat{x}\right)<f\left({x}_{0}\right)$, $\theta =2$, if $f\left({x}_{0}\right)\le f\left(\widehat{x}\right)<f\left({x}_{n-1}\right)$, $\theta =1/2$, and if $f\left({x}_{n-1}\right)\le f\left(\widehat{x}\right)$, $\theta =-1/2$.

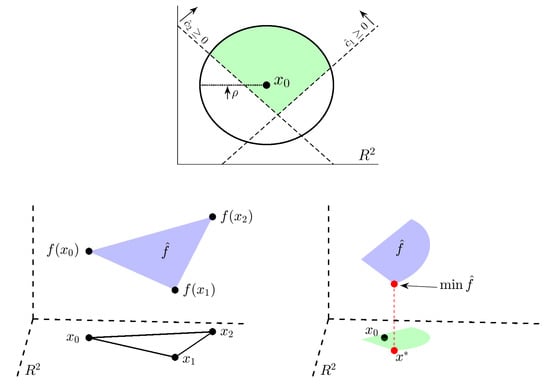

**Figure A3.**Minimization of $\widehat{f}$ The candidate vertex ${x}^{*}$ is computed by minimizing $\widehat{f}\left(x\right)$ subject to the constraints ${\widehat{c}}_{1},{\widehat{c}}_{2}\ge 0$ within the trust region $\left|\right|x-{x}_{0}{\left|\right|}_{2}\le \rho $. (top) The region of optimization (green) is the intersection of the trust region $\left|\right|x-{x}_{0}{\left|\right|}_{2}\le \rho $ with the half planes defined by the affine constraints ${\widehat{c}}_{1}\ge 0$ and ${\widehat{c}}_{2}\ge 0$. (bottom left) The function, $\widehat{f}$, to be minimized is represented graphically by the plane (blue) passing through points $({x}_{0},f\left({x}_{0}\right)),({x}_{1},f\left({x}_{1}\right)),({x}_{2},f\left({x}_{2}\right))$. (bottom right) The vertex ${x}^{*}$ is defined to be the point within the region of optimization (green) at which $\widehat{f}$ (blue) is minimized.

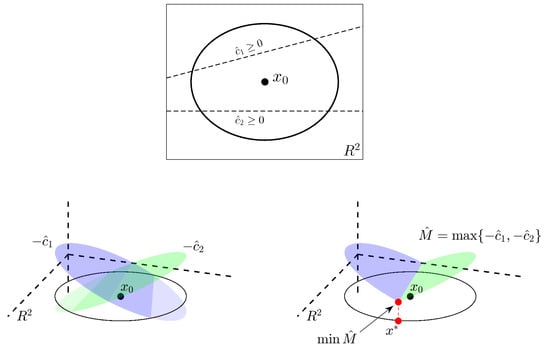

**Figure A4.**Minimization of $\widehat{M}$ Should the constraints ${\widehat{c}}_{i}\left(x\right)\ge 0$ be inconsistent with one another within the trust region $\left|\right|x-{x}_{0}{\left|\right|}_{2}\le \rho $, the candidate vertex ${x}^{*}$ is chosen to minimize $\widehat{M}:=max\{-{\widehat{c}}_{i}\left(x\right):i=1,\dots ,m\}$. (top) The constraints ${\widehat{c}}_{1}\left(x\right)\ge 0$ and ${\widehat{c}}_{2}\left(x\right)\ge 0$ are inconsistent within the region $\left|\right|x-{x}_{0}{\left|\right|}_{2}\le \rho $. (bottom left) Graphs of the affine functions $-{\widehat{c}}_{1}\left(x\right)$ (blue) and $-{\widehat{c}}_{2}\left(x\right)$ (green). (bottom right) The vertex ${x}^{*}$ is defined to be the point within the trust region (black circle) at which $\widehat{M}$ is minimized.

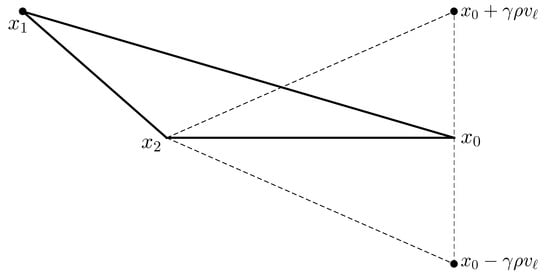

**Figure A5.**Illustration of the new vector ${x}^{\mathsf{\Delta}}$, generated to improve the shape of the simplex. The vertex ${x}_{1}$ is replaced with either ${x}^{\mathsf{\Delta}}={x}_{0}+\gamma \rho {v}_{\ell}$ or ${x}^{\mathsf{\Delta}}={x}_{0}-\gamma \rho {v}_{\ell}$, whichever point results in a smaller value of $\widehat{\Phi}$.

## Appendix B. Parameter Estimation in the Biphasic Model

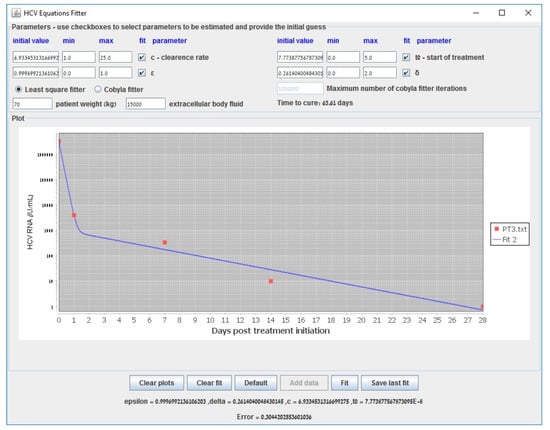

**Figure A6.**Biphasic model fitting example with data taken from [36] of a patient who was treated with mavyret. The LSF method (default) is recommended for use.

**Figure A7.**Biphasic model fitting example with data taken from [36] of a patient who was treated with epclusa. In this particular case, COBYLA was selected instead of LSF and succeeded to yield a fit.

## Appendix C. Parameter Estimation in the Multiscale Model

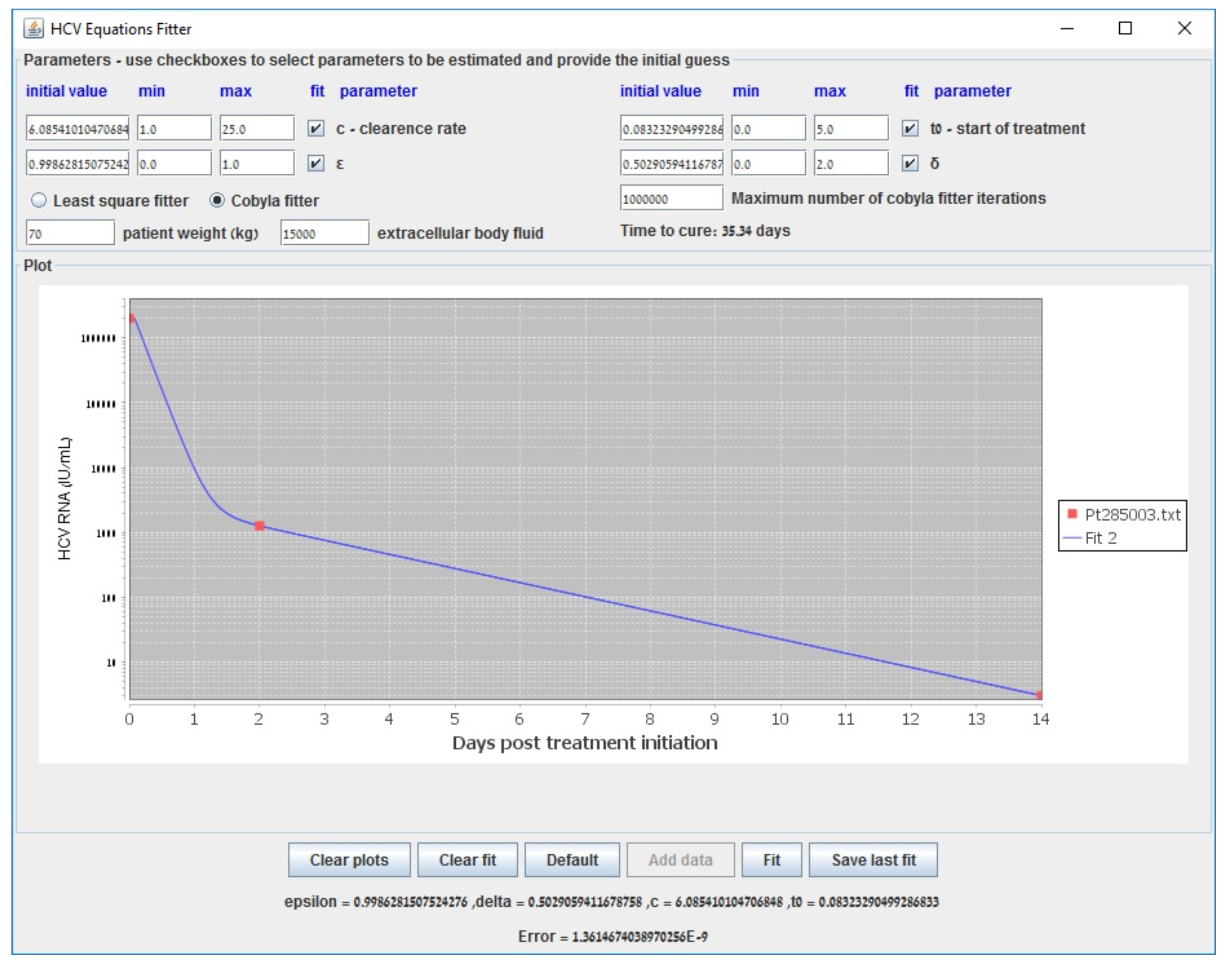

**Figure A8.**Fitting the parameters c and $\rho $ of the multiscale model to generated data points using the LSF method.

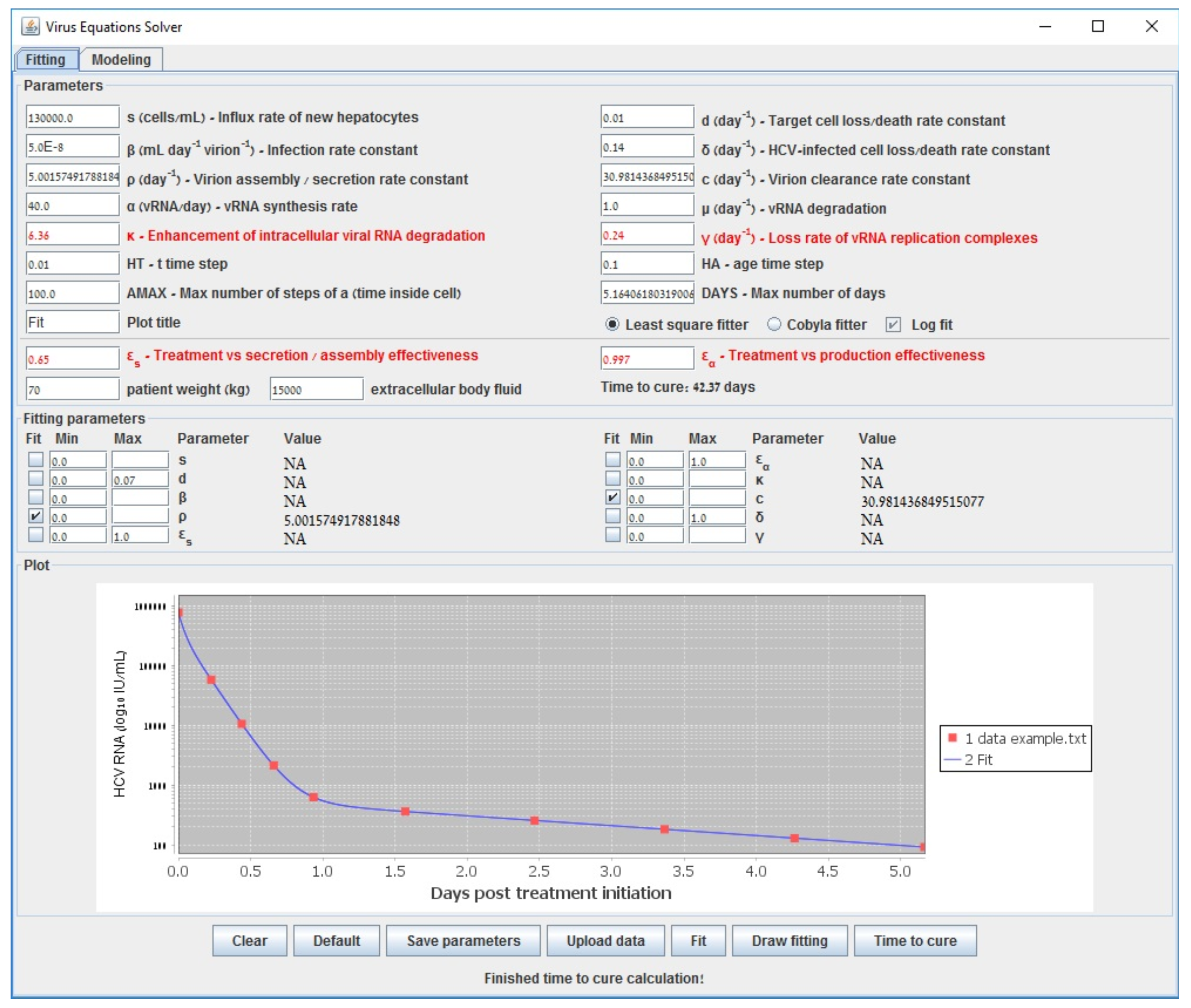

**Figure A9.**Fitting the parameters c and $\rho $ of the multiscale model to generated data points using the COBYLA method.

## References

- World Health Organization. Global Hepatitis Report 2017: Web Annex A: Estimations of Worldwide Prevalence of Chronic Hepatitis B Virus Infection: A Systematic Review of Data Published between 1965 and 2017; Technical Report; World Health Organization: Geneva, Switzerland, 2018. [Google Scholar]
- Gilman, C.; Heller, T.; Koh, C. Chronic hepatitis delta: A state-of-the-art review and new therapies. World J. Gastroenterol.
**2019**, 25, 4580. [Google Scholar] [CrossRef] [PubMed] - Blach, S.; Zeuzem, S.; Manns, M.; Altraif, I.; Duberg, A.S.; Muljono, D.H.; Waked, I.; Alavian, S.M.; Lee, M.H.; Negro, F.; et al. Global prevalence and genotype distribution of hepatitis C virus infection in 2015: A modelling study. Lancet Gastroenterol. Hepatol.
**2017**, 2, 161–176. [Google Scholar] [CrossRef] [Green Version] - Stanaway, J.D.; Flaxman, A.D.; Naghavi, M.; Fitzmaurice, C.; Vos, T.; Abubakar, I.; Abu-Raddad, L.J.; Assadi, R.; Bhala, N.; Cowie, B.; et al. The global burden of viral hepatitis from 1990 to 2013: Findings from the Global Burden of Disease Study 2013. Lancet
**2016**, 388, 1081–1088. [Google Scholar] [CrossRef] [Green Version] - Foreman, K.J.; Marquez, N.; Dolgert, A.; Fukutaki, K.; Fullman, N.; McGaughey, M.; Pletcher, M.A.; Smith, A.E.; Tang, K.; Yuan, C.W.; et al. Forecasting life expectancy, years of life lost, and all-cause and cause-specific mortality for 250 causes of death: Reference and alternative scenarios for 2016–2040 for 195 countries and territories. Lancet
**2018**, 392, 2052–2090. [Google Scholar] [CrossRef] [Green Version] - Ciupe, S.M. Modeling the dynamics of hepatitis B infection, immunity, and drug therapy. Immunol. Rev.
**2018**, 285, 38–54. [Google Scholar] [CrossRef] [PubMed] - Means, S.; Ali, M.A.; Ho, H.; Heffernan, J. Mathematical Modeling for Hepatitis B Virus: Would Spatial Effects Play a Role and How to Model It? Front. Physiol.
**2020**, 11, 146. [Google Scholar] [CrossRef] - Dahari, H.; Major, M.; Zhang, X.; Mihalik, K.; Rice, C.M.; Perelson, A.S.; Feinstone, S.M.; Neumann, A.U. Mathematical modeling of primary hepatitis C infection: Noncytolytic clearance and early blockage of virion production. Gastroenterology
**2005**, 128, 1056–1066. [Google Scholar] [CrossRef] - Dahari, H.; Layden-Almer, J.E.; Kallwitz, E.; Ribeiro, R.M.; Cotler, S.J.; Layden, T.J.; Perelson, A.S. A mathematical model of hepatitis C virus dynamics in patients with high baseline viral loads or advanced liver disease. Gastroenterology
**2009**, 136, 1402–1409. [Google Scholar] [CrossRef] [Green Version] - Goyal, A.; Murray, J.M. Dynamics of in vivo hepatitis D virus infection. J. Theor. Biol.
**2016**, 398, 9–19. [Google Scholar] [CrossRef] - Goyal, A.; Ribeiro, R.M.; Perelson, A.S. The role of infected cell proliferation in the clearance of acute HBV infection in humans. Viruses
**2017**, 9, 350. [Google Scholar] [CrossRef] [Green Version] - Neumann, A.U.; Phillips, S.; Levine, I.; Ijaz, S.; Dahari, H.; Eren, R.; Dagan, S.; Naoumov, N.V. Novel mechanism of antibodies to hepatitis B virus in blocking viral particle release from cells. Hepatology
**2010**, 52, 875–885. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dahari, H.; de Araujo, E.S.A.; Haagmans, B.L.; Layden, T.J.; Cotler, S.J.; Barone, A.A.; Neumann, A.U. Pharmacodynamics of PEG-IFN-α-2a in HIV/HCV co-infected patients: Implications for treatment outcomes. J. Hepatol.
**2010**, 53, 460–467. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dahari, H.; Ribeiro, R.M.; Perelson, A.S. Triphasic decline of hepatitis C virus RNA during antiviral therapy. Hepatology
**2007**, 46, 16–21. [Google Scholar] [CrossRef] [PubMed] - Dahari, H.; Lo, A.; Ribeiro, R.M.; Perelson, A.S. Modeling hepatitis C virus dynamics: Liver regeneration and critical drug efficacy. J. Theor. Biol.
**2007**, 247, 371–381. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dahari, H.; Shudo, E.; Ribeiro, R.M.; Perelson, A.S. Modeling complex decay profiles of hepatitis B virus during antiviral therapy. Hepatology
**2009**, 49, 32–38. [Google Scholar] [CrossRef] [PubMed] - Koh, C.; Dubey, P.; Han, M.A.T.; Walter, P.J.; Garraffo, H.M.; Surana, P.; Southall, N.T.; Borochov, N.; Uprichard, S.L.; Cotler, S.J.; et al. A randomized, proof-of-concept clinical trial on repurposing chlorcyclizine for the treatment of chronic hepatitis C. Antivir. Res.
**2019**, 163, 149–155. [Google Scholar] [CrossRef] - Dubey, P.; Koh, C.; Surana, P.; Uprichard, S.L.; Han, M.A.T.; Fryzek, N.; Kapuria, D.; Etzion, O.; Takyar, V.K.; Rotman, Y.; et al. Modeling hepatitis delta virus dynamics during ritonavir boosted lonafarnib treatment-the LOWR HDV-3 study. Hepatology
**2017**, 66, 21A. [Google Scholar] - Pawlotsky, J.M.; Dahari, H.; Neumann, A.U.; Hezode, C.; Germanidis, G.; Lonjon, I.; Castera, L.; Dhumeaux, D. Antiviral action of ribavirin in chronic hepatitis C. Gastroenterology
**2004**, 126, 703–714. [Google Scholar] [CrossRef] - Neumann, A.U.; Lam, N.P.; Dahari, H.; Davidian, M.; Wiley, T.E.; Mika, B.P.; Perelson, A.S.; Layden, T.J. Differences in viral dynamics between genotypes 1 and 2 of hepatitis C virus. J. Infect. Dis.
**2000**, 182, 28–35. [Google Scholar] [CrossRef] - Dahari, H.; Shudo, E.; Ribeiro, R.M.; Perelson, A.S. Mathematical modeling of HCV infection and treatment. Methods Mol. Biol.
**2009**, 510, 439–453. [Google Scholar] - DebRoy, S.; Hiraga, N.; Imamura, M.; Hayes, C.N.; Akamatsu, S.; Canini, L.; Perelson, A.S.; Pohl, R.T.; Persiani, S.; Uprichard, S.L.; et al. hepatitis C virus dynamics and cellular gene expression in uPA-SCID chimeric mice with humanized livers during intravenous silibinin monotherapy. J. Viral Hepat.
**2016**, 23, 708–717. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Canini, L.; DebRoy, S.; Mariño, Z.; Conway, J.M.; Crespo, G.; Navasa, M.; D’Amato, M.; Ferenci, P.; Cotler, S.J.; Forns, X.; et al. Severity of liver disease affects HCV kinetics in patients treated with intravenous silibinin monotherapy. Antivir. Ther.
**2015**, 20, 149. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Goyal, A.; Lurie, Y.; Meissner, E.G.; Major, M.; Sansone, N.; Uprichard, S.L.; Cotler, S.J.; Dahari, H. Modeling HCV cure after an ultra-short duration of therapy with direct acting agents. Antivir. Res.
**2017**, 144, 281–285. [Google Scholar] [CrossRef] [PubMed] - Dahari, H.; Shteingart, S.; Gafanovich, I.; Cotler, S.J.; D’Amato, M.; Pohl, R.T.; Weiss, G.; Ashkenazi, Y.J.; Tichler, T.; Goldin, E.; et al. Sustained virological response with intravenous silibinin: Individualized IFN-free therapy via real-time modelling of HCV kinetics. Liver Int.
**2015**, 35, 289–294. [Google Scholar] [CrossRef] [Green Version] - Neumann, A.U.; Lam, N.P.; Dahari, H.; Gretch, D.R.; Wiley, T.E.; Layden, T.J.; Perelson, A.S. Hepatitis C viral dynamics in vivo and the antiviral efficacy of interferon-α therapy. Science
**1998**, 282, 103–107. [Google Scholar] [CrossRef] [PubMed] - Guedj, J.; Dahari, H.; Pohl, R.T.; Ferenci, P.; Perelson, A.S. Understanding silibinin’s modes of action against HCV using viral kinetic modeling. J. Hepatol.
**2012**, 56, 1019–1024. [Google Scholar] [CrossRef] [Green Version] - Lewin, S.R.; Ribeiro, R.M.; Walters, T.; Lau, G.K.; Bowden, S.; Locarnini, S.; Perelson, A.S. Analysis of hepatitis B viral load decline under potent therapy: Complex decay profiles observed. Hepatology
**2001**, 34, 1012–1020. [Google Scholar] [CrossRef] - Ribeiro, R.M.; Germanidis, G.; Powers, K.A.; Pellegrin, B.; Nikolaidis, P.; Perelson, A.S.; Pawlotsky, J.M. hepatitis B virus kinetics under antiviral therapy sheds light on differences in hepatitis B e antigen positive and negative infections. J. Infect. Dis.
**2010**, 202, 1309–1318. [Google Scholar] [CrossRef] - Nowak, M.A.; Bonhoeffer, S.; Hill, A.M.; Boehme, R.; Thomas, H.C.; McDade, H. Viral dynamics in hepatitis B virus infection. Proc. Natl. Acad. Sci. USA
**1996**, 93, 4398–4402. [Google Scholar] [CrossRef] [Green Version] - Tsiang, M.; Rooney, J.F.; Toole, J.J.; Gibbs, C.S. Biphasic clearance kinetics of hepatitis B virus from patients during adefovir dipivoxil therapy. Hepatology
**1999**, 29, 1863–1869. [Google Scholar] [CrossRef] - Canini, L.; Koh, C.; Cotler, S.J.; Uprichard, S.L.; Winters, M.A.; Han, M.A.T.; Kleiner, D.E.; Idilman, R.; Yurdaydin, C.; Glenn, J.S.; et al. Pharmacokinetics and pharmacodynamics modeling of lonafarnib in patients with chronic hepatitis delta virus infection. Hepatol. Commun.
**2017**, 1, 288–292. [Google Scholar] [CrossRef] [PubMed] - Koh, C.; Canini, L.; Dahari, H.; Zhao, X.; Uprichard, S.L.; Haynes-Williams, V.; Winters, M.A.; Subramanya, G.; Cooper, S.L.; Pinto, P.; et al. Oral prenylation inhibition with lonafarnib in chronic hepatitis D infection: A proof-of-concept randomised, double-blind, placebo-controlled phase 2A trial. Lancet Infect. Dis.
**2015**, 15, 1167–1174. [Google Scholar] [CrossRef] [Green Version] - Guedj, J.; Rotman, Y.; Cotler, S.J.; Koh, C.; Schmid, P.; Albrecht, J.; Haynes-Williams, V.; Liang, T.J.; Hoofnagle, J.H.; Heller, T.; et al. Understanding early serum hepatitis D virus and hepatitis B surface antigen kinetics during pegylated interferon-alpha therapy via mathematical modeling. Hepatology
**2014**, 60, 1902–1910. [Google Scholar] [CrossRef] [PubMed] - Shekhtman, L.; Cotler, S.J.; Hershkovich, L.; Uprichard, S.L.; Bazinet, M.; Pantea, V.; Cebotarescu, V.; Cojuhari, L.; Jimbei, P.; Krawczyk, A.; et al. Modelling hepatitis D virus RNA and HBsAg dynamics during nucleic acid polymer monotherapy suggest rapid turnover of HBsAg. Sci. Rep.
**2020**, 10, 1–7. [Google Scholar] [CrossRef] - Etzion, O.; Dahari, H.; Yardeni, D.; Issachar, A.; Nevo-Shor, A.; Naftaly-Cohen, M.; Uprichard, S.L.; Arbib, O.S.; Munteanu, D.; Braun, M.; et al. Response-Guided Therapy with Direct-Acting Antivirals Shortens Treatment Duration in 50% of HCV Treated Patients. Hepatology
**2018**, 68, 1469A–1470A. [Google Scholar] - Dahari, H.; Canini, L.; Graw, F.; Uprichard, S.L.; Araújo, E.S.; Penaranda, G.; Coquet, E.; Chiche, L.; Riso, A.; Renou, C.; et al. HCV kinetic and modeling analyses indicate similar time to cure among sofosbuvir combination regimens with daclatasvir, simeprevir or ledipasvir. J. Hepatol.
**2016**, 64, 1232–1239. [Google Scholar] [CrossRef] [Green Version] - Canini, L.; Imamura, M.; Kawakami, Y.; Uprichard, S.L.; Cotler, S.J.; Dahari, H.; Chayama, K. HCV kinetic and modeling analyses project shorter durations to cure under combined therapy with daclatasvir and asunaprevir in chronic HCV-infected patients. PLoS ONE
**2017**, 12, e0187409. [Google Scholar] [CrossRef] - Gambato, M.; Canini, L.; Lens, S.; Graw, F.; Perpiñan, E.; Londoño, M.C.; Uprichard, S.L.; Mariño, Z.; Reverter, E.; Bartres, C.; et al. Early HCV viral kinetics under DAAs may optimize duration of therapy in patients with compensated cirrhosis. Liver Int.
**2019**, 39, 826–834. [Google Scholar] [CrossRef] - Sandmann, L.; Manns, M.P.; Maasoumy, B. Utility of viral kinetics in HCV therapy—It is not over until it is over? Liver Int.
**2019**, 39, 815–817. [Google Scholar] [CrossRef] [Green Version] - Deng, B.; Lou, S.; Dubey, P.; Etzion, O.; Chayam, K.; Uprichard, S.; Sulkowski, M.; Cotler, S.; Dahari, H. Modeling time to cure after short-duration treatment for chronic HCV with daclatasvir, asunaprevir, beclabuvir and sofosbuvir: The FOURward study. J. Viral Hepat.
**2018**, 25, 58. [Google Scholar] - Dahari, H.; Sainz, B.; Perelson, A.S.; Uprichard, S.L. Modeling subgenomic hepatitis C virus RNA kinetics during treatment with alpha interferon. J. Virol.
**2009**, 83, 6383–6390. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dahari, H.; Ribeiro, R.M.; Rice, C.M.; Perelson, A.S. Mathematical modeling of subgenomic hepatitis C virus replication in Huh-7 cells. J. Virol.
**2007**, 81, 750–760. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Murray, J.M.; Goyal, A. In silico single cell dynamics of hepatitis B virus infection and clearance. J. Theor. Biol.
**2015**, 366, 91–102. [Google Scholar] [CrossRef] [PubMed] - Murray, J.M.; Wieland, S.F.; Purcell, R.H.; Chisari, F.V. Dynamics of hepatitis B virus clearance in chimpanzees. Proc. Natl. Acad. Sci. USA
**2005**, 102, 17780–17785. [Google Scholar] [CrossRef] [Green Version] - Packer, A.; Forde, J.; Hews, S.; Kuang, Y. Mathematical models of the interrelated dynamics of hepatitis D and B. Math. Biosci.
**2014**, 247, 38–46. [Google Scholar] [CrossRef] - Guedj, J.; Dahari, H.; Rong, L.; Sansone, N.D.; Nettles, R.E.; Cotler, S.J.; Layden, T.J.; Uprichard, S.L.; Perelson, A.S. Modeling shows that the NS5A inhibitor daclatasvir has two modes of action and yields a shorter estimate of the hepatitis C virus half-life. Proc. Natl. Acad. Sci. USA
**2013**, 110, 3991–3996. [Google Scholar] [CrossRef] [Green Version] - Rong, L.; Guedj, J.; Dahari, H.; Coffield, D.J.J.; Levi, M.; Smith, P.; Perelson, A.S. Analysis of hepatitis C virus decline during treatment with the protease inhibitor danoprevir using a multiscale model. PLoS Comput. Biol.
**2013**, 9, e1002959. [Google Scholar] [CrossRef] - Rong, L.; Perelson, A.S. Mathematical analysis of multiscale models for hepatitis C virus dynamics under therapy with direct-acting antiviral agents. Math. Biosci.
**2013**, 245, 22–30. [Google Scholar] [CrossRef] [Green Version] - Quintela, B.M.; Conway, J.M.; Hyman, J.M.; Guedj, J.; dos Santos, R.W.; Lobosco, M.; Perelson, A.S. A New Age-Structured Multiscale Model of the Hepatitis C Virus Life-Cycle During Infection and Therapy with Direct-Acting Antiviral Agents. Front. Microbiol.
**2018**, 9, 601. [Google Scholar] [CrossRef] [Green Version] - Guedj, J.; Neumann, A.U. Understanding hepatitis C viral dynamics with direct-acting antiviral agents due to the interplay between intracellular replication and cellular infection dynamics. J. Theor. Biol.
**2010**, 267, 330–340. [Google Scholar] [CrossRef] - Weickert, J.; ter Haar Romeny, B.; Viergever, M. Efficient and reliable schemes for nonlinear diffusion filtering. IEEE Trans. Imag. Proc.
**1998**, 7, 398–410. [Google Scholar] [CrossRef] [Green Version] - Barash, D.; Israeli, M.; Kimmel, R. An Accurate Operator Splitting Scheme for Nonlinear Diffusion Filtering. In Proceedings of the 3rd International Conference on ScaleSpace and Morphology, Vancouver, BC, Canada, 7–8 July 2001; pp. 281–289. [Google Scholar]
- Barash, D. Nonlinear Diffusion Filtering on Extended Neighborhood. Appl. Num. Math.
**2005**, 52, 1–11. [Google Scholar] [CrossRef] - Reinharz, V.; Churkin, A.; Dahari, H.; Barash, D. A Robust and Efficient Numerical Method for RNA-mediated Viral Dynamics. Front. Appl. Math. Stat.
**2017**, 3, 20. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Reinharz, V.; Dahari, H.; Barash, D. Numerical schemes for solving and optimizing multiscale models with age of hepatitis C virus dynamics. Math. Biosci.
**2018**, 300, 1–13. [Google Scholar] [CrossRef] - Reinharz, V.; Churkin, A.; Lewkiewicz, S.; Dahari, H.; Barash, D. A Parameter Estimation Method for Multiscale Models of hepatitis C Virus Dynamics. Bull. Math. Biol.
**2019**, 81, 3675–3721. [Google Scholar] [CrossRef] [PubMed] - Levenberg, K. A method for the solution of certain nonlinear problems in least squares. Q. Appl. Math.
**1944**, 2, 164–168. [Google Scholar] [CrossRef] [Green Version] - Marquardt, D.W. An algorithm for least-squares estimation of nonlinear parameters. J. Soc. Ind. Appl. Math.
**1963**, 11, 431–441. [Google Scholar] [CrossRef] - Kitagawa, K.; Nakaoka, S.; Asai, Y.; Watashi, K.; Iwami, S. A PDE Multiscale Model of hepatitis C virus infection can be transformed to a system of ODEs. J. Theor. Biol.
**2018**, 448, 80–85. [Google Scholar] [CrossRef] - Powell, M.J.D. A View of Algorithms for Optimization Without Derivatives. Math. Today
**2007**, 43, 170–174. [Google Scholar] - Rohatgi, A. WebPlotDigitizer: Web Based Tool to Extract Data from Plots, Images, and Maps. V 4.1. 2018. Available online: https://automeris.io/WebPlotDigitizer (accessed on 22 August 2020).
- Quarteroni, A.; Valli, A. Springer Series in Computational Mathematics, 1994; Springer: Berlin/Heidelberg, Germany, 1994. [Google Scholar]
- Knabner, P.; Angermann, L. Numerical Methods for Elliptic and Parabolic Partial Differential Equations: An Applications-Oriented Introduction; Springer: Berlin/Heidelberg, Germany, 2004. [Google Scholar]
- Powell, M.J.D. A Direct Search Optimization Method That Models Objective and Constraint Functions by Linear Interpolation. In Advances in Optimization and Numerical Analysis. Mathematics and its Applications; Gomez, S., Hennart, J., Eds.; Springer: Dordrecht, The Netherlands, 1994; Volume 275. [Google Scholar]
- Bastian, P.; Heimann, F.; Marnach, S. Generic implementation of finite element methods in the distributed and unified numerics environment (DUNE). Kybernetika
**2010**, 46, 294–315. [Google Scholar] - Flemisch, B.; Darcis, M.; Erbertseder, K.; Faigle, B.; Lauser, A.; Mosthaf, K.; Müthing, S.; Nuske, P.; Tatomir, A.; Wolff, M.; et al. DuMux: DUNE for multi-{phase, component, scale, physics,…} flow and transport in porous media. Adv. Water Resour.
**2011**, 34, 1102–1112. [Google Scholar] [CrossRef] - Vogel, A.; Reiter, S.; Rupp, M.; Nägel, A.; Wittum, G. UG 4: A novel flexible software system for simulating PDE based models on high performance computers. Comput. Vis. Sci.
**2013**, 16, 165–179. [Google Scholar] [CrossRef] - Spendley, W.; Hext, G.R.; Himsworth, F.R. Sequential Application of Simplex Designs in Optimisation and Evolutionary Operation. Technometrics
**1962**, 4, 441–461. [Google Scholar] [CrossRef] - Nelder, J.; Mead, R. A Simplex Method for Function Minimization. Comput. J.
**1965**, 7, 308–313. [Google Scholar] [CrossRef] - Dasgupta, S.; Imamura, M.; Gorstein, E.; Nakahara, T.; Tsuge, M.; Churkin, A.; Yardeni, D.; Etzion, O.; Uprichard, S.L.; Barash, D.; et al. Modeling-Based Response-Guided Glecaprevir-Pibrentasvir Therapy for Chronic Hepatitis C to Identify Patients for Ultrashort Treatment Duration. J. Infect. Dis.
**2020**, jiaa219. [Google Scholar] [CrossRef] [PubMed] - Gorstein, E.; Martinello, M.; Churkin, A.; Dasgupta, S.; Walsh, K.; Applegate, T.; Yardeni, D.; Etzion, O.; Uprichard, S.L.; Barash, D.; et al. Modeling based response guided therapy in subjects with recent hepatitis C infection. Antivir. Res.
**2020**. [Google Scholar] [CrossRef]

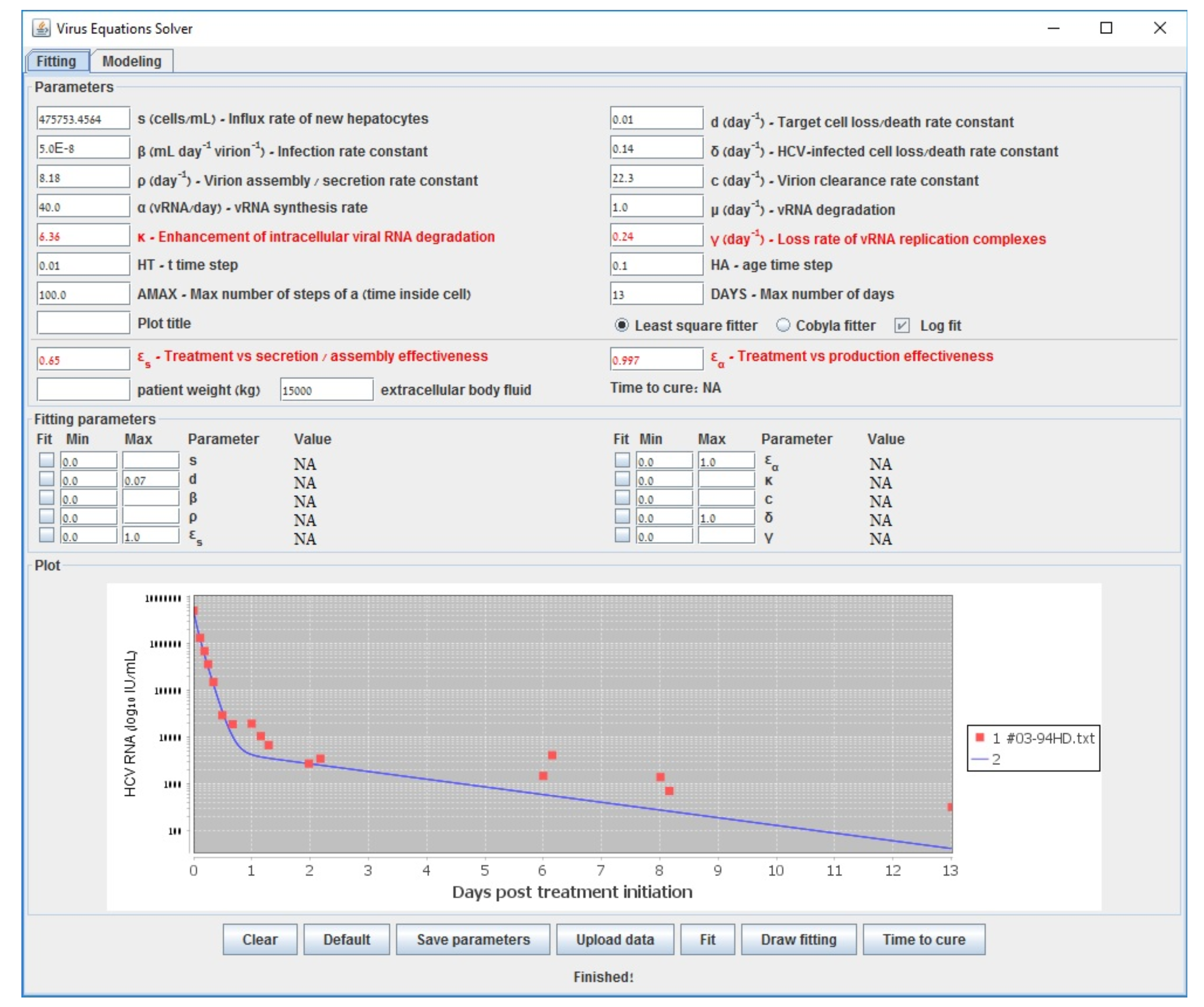

**Figure 2.**Start fit that emanates from data of a patient reported in [48]. The fitting curve corresponds to default parameters before fitting with our methods. The multiscale model is used.

**Figure 3.**End fit using Gauss–Newton (LSF) that emanates from data of a patient reported in [48].

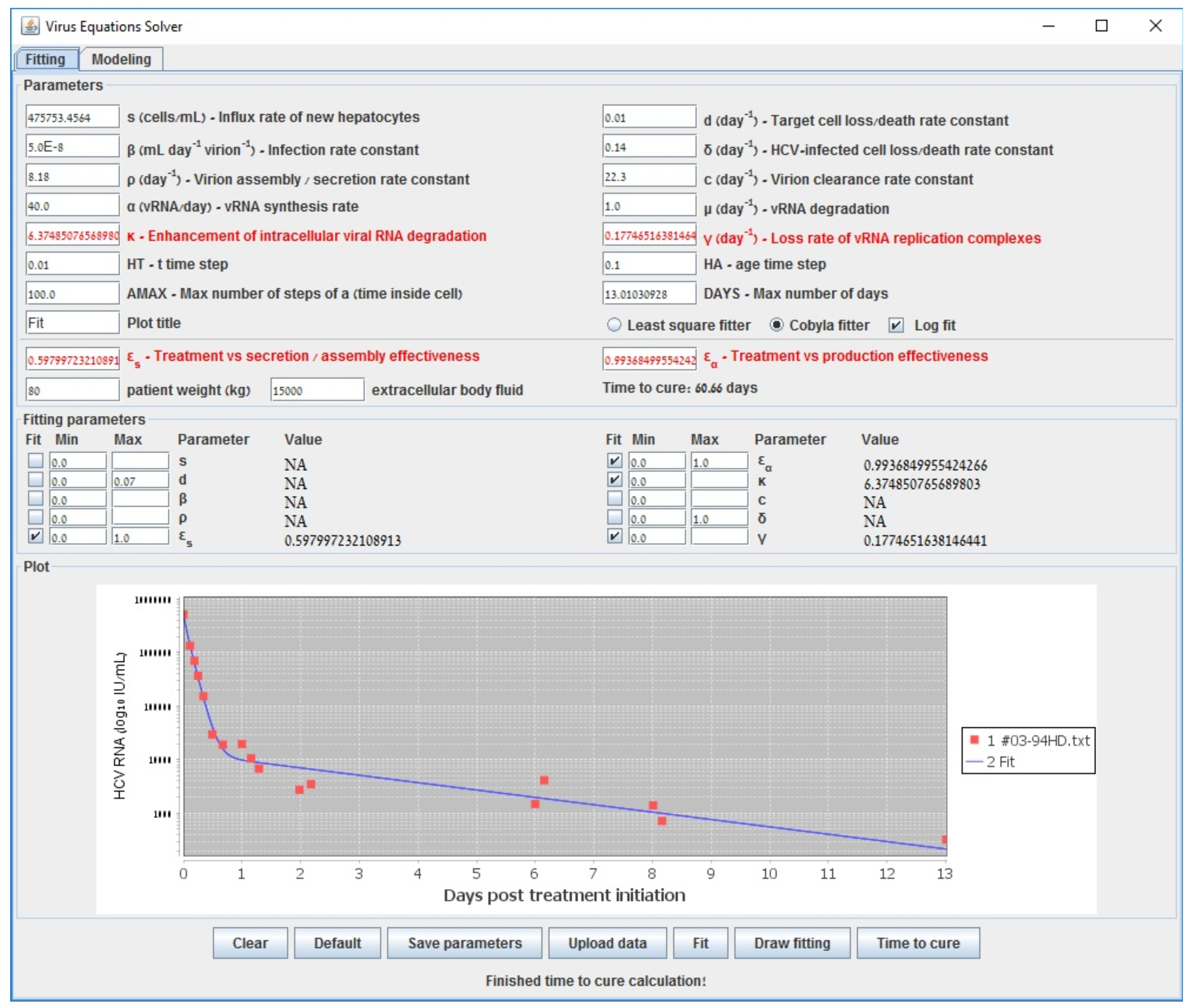

**Figure 4.**End fit using COBLYA that emanates from data of a patient reported in [48].

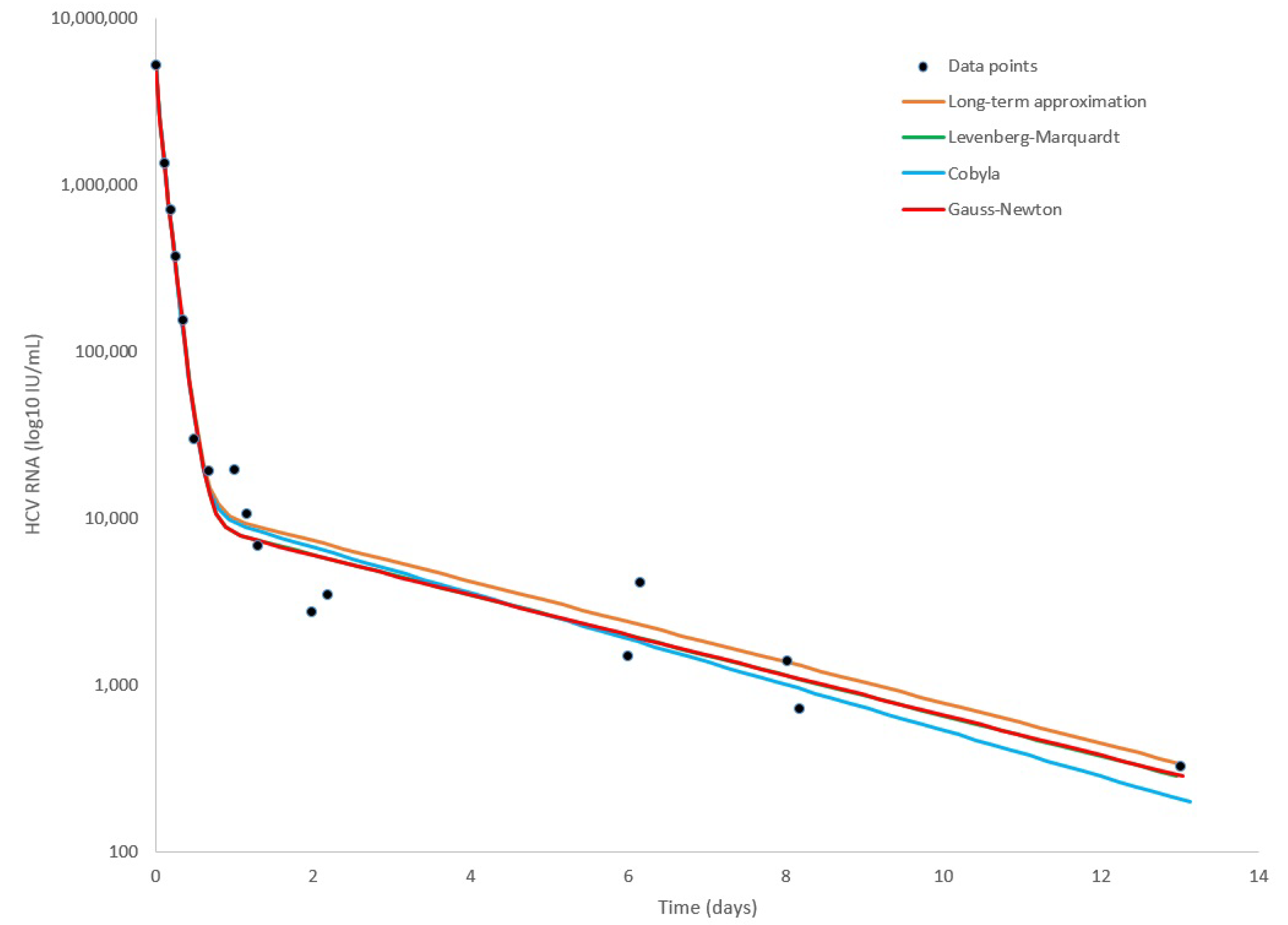

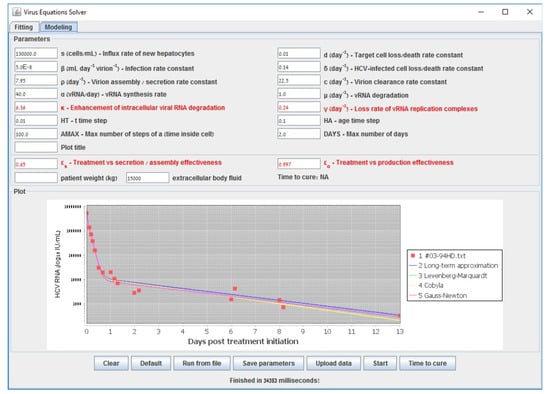

**Figure 5.**Comparison between the line fits of different methods inside the simulator window for the retrieved data points of patient HD that was reported in [48].

**Figure 6.**Comparison between the line fits of different methods for the retrieved data points of patient HD that was reported in [48].

s ($\mathrm{cells}/m{L}^{-1}$) | Influx rate of new hepatocytes |

d (${\mathrm{d}}^{-1}$) | Target cell loss/death rate constant |

$\beta $ ($\mathrm{m}\mathrm{L}{\mathrm{d}}^{-1}{\mathrm{virion}}^{-1}$) | Infection rate constant |

$\delta $ (${\mathrm{d}}^{-1}$) | HCV-infected cell loss/death rate constant |

$\rho $ (${\mathrm{d}}^{-1}$) | Virion assembly/secretion rate constant |

c (${\mathrm{d}}^{-1}$) | Virion clearance rate constant |

$\alpha $ (vRNA${\mathrm{d}}^{-1}$) | vRNA synthesis rate |

$\mu $ (${\mathrm{d}}^{-1}$) | vRNA degradation |

$\kappa $ | Enhancement of intracellular viral RNA degradation |

$\gamma $ (${\mathrm{d}}^{-1}$) | Loss rate of vRNA replication complexes |

${\epsilon}_{s}$ | Treatment vs. secretion/assembly effectiveness |

${\epsilon}_{\alpha}$ | Treatment vs. production effectiveness |

**Table 2.**Default parameters that are used herein. Parameter s comes from Equation (9), taking $\overline{V}$ as the max Virions value.

$\alpha $ | 40 d^{−1} | $\beta $ | $5\times {10}^{-8}$ d^{−1} |

c | $22.3$ d^{−1} | $\delta $ | $0.14$ d^{−1} |

$\mu $ | 1 d^{−1} | d | $0.01$ d^{−1} |

$\rho $ | $8.18$ d^{−1} | s | $\left(\right)open="("\; close=")">\overline{V}\beta c+dc$$\mathrm{cells}$/$\mathrm{m}$$\mathrm{L}$ |

**Table 3.**Values of the parameters when fitted to the patient digitized data. The rightmost column has the values when the retrieved data points are fitted to the long-term approximation as in [57]. The left columns contain the fitted parameter values by our efficient methods. Except for the rightmost column, all methods are combined with the Rosenbrock numerical scheme. The fixed parameters have the values shown in Table 2. Run-time comparison is reported in seconds in the last row.

Gauss–Newton (LSF) | COBYLA | Levenberg–Marquardt | Long-Term | |
---|---|---|---|---|

${\epsilon}_{s}$ | 0.609 | 0.598 | 0.602 | 0.6000 |

${\epsilon}_{\alpha}$ | 0.995 | 0.994 | 0.995 | 0.994 |

$\kappa $ | 6.210 | 6.375 | 6.219 | 6.160 |

$\gamma $ (d^{−1}) | 0.137 | 0.177 | 0.139 | 0.140 |

accuracy (sum error${}^{2}$) | 0.538 | 0.582 | 0.538 | 0.587 |

run-time (s) | 194 | 3698 | 70118 | <1 |
