Some Modified Mann-Type Inertial Forward–Backward Iterative Methods for Monotone Inclusion Problems

Abstract

In this paper, we propose three variants of Mann-type inertial forward–backward iterative methods for approximating the minimum-norm solution of the monotone inclusion problem and the fixed points of nonexpansive mappings. In the first two methods, we compute the Mann-type iteration together with the inertial extrapolation and fixed-point iteration in the initiation of the process, while the last method computes only the Mann-type iteration with inertial extrapolation at the start of the process. We establish the strong convergence results for each method with appropriate assumptions and discuss some applications of the presented methods. Finally, we present numerical examples in both finite- and infinite-dimensional Hilbert spaces to demonstrate their efficiency. A comparative analysis with existing methods is also provided.

1. Introduction

Throughout this work, we denote the real Hilbert space by $\mathrm{\Xi }$ and let $\mathbb{D}\ne \mathrm{\varnothing }$ represent a closed and convex subset of $\mathrm{\Xi }$. The strong convergence of a sequence $\left\{w_m\right\}$ to w is written as $w_m\to w$, while weak convergence is denoted by $w_k\rightharpoonup w$.

One of the central themes in nonlinear analysis is the fixed point problem (FPP). This problem serves as a unifying framework for a wide range of applications, including finance, network analysis, and optimization; see, e.g., [1,2,3,4] and the references therein.

Formally, given a nonexpansive mapping $S:\mathrm{\Xi }\to \mathrm{\Xi }$, the fixed point problem is stated as follows:

$$\begin{array}{c}\hfill \mathrm{Find}\sigma \in \mathrm{\Xi },\mathrm{so}\mathrm{that}S\left(\sigma \right)=\sigma .\end{array}$$

In recent years, numerous approaches have been developed to address the fixed point problem. Among them, Mann’s iterative technique [5] has served as a fundamental source of motivation for many schemes designed to approximate fixed points. Given an initial point $w_0\in \mathbb{D}$, the iteration is defined by the following:

$$w_{m+1}=p_m{w}_m+(1-p_m)S{w}_m,m\ge 0,$$

(1)

where $\left\{p_m\right\}$ is a sequence of control parameters. Under suitable conditions on $\left\{p_m\right\}$, the sequence $\left\{w_m\right\}$ converges weakly to a fixed point $\sigma$ of S. Building upon this foundation, several extensions have been proposed to enhance convergence properties and improve flexibility. One notable generalization is the following iterative scheme:

$$w_{m+1}=(1-p_m-q_m)w_m+q_{m}S{w}_m,$$

(2)

which introduces two control parameters, $p_m$ and $q_m$, along with the sequence $\left\{S{w}_m\right\}$. This formulation not only broadens the scope of Mann’s iteration but also allows for acceleration, improved stability, and strong convergence in contexts where the classical method guarantees only weak convergence. As a result, it has become a cornerstone in the study of fixed point problems, variational inequalities, and convex optimization.

Another important problem in nonlinear analysis is the monotone inclusion problem (MIP). Let $W:\mathrm{\Xi }\to \mathrm{\Xi }$ be a single-valued operator and $Z:\mathrm{\Xi }\to 2^{\mathrm{\Xi }}$ a multi-valued operator. We consider the the following inclusion problem:

$$\mathrm{Find}\sigma \in \mathrm{\Xi },\mathrm{such}\mathrm{that}0\in (W+Z)\sigma .$$

(3)

This framework is fundamental, as it encompasses a wide range of problems such as convex programming, image processing, split feasibility problems, and minimization problems (see, e.g., [6,7,8,9]).

Due to the importance and wide applicability of problem (3), many researchers have proposed iterative methods for its solution (see, e.g., [10,11,12,13,14,15,16,17] and the references therein). Among them, one of the most popular schemes is the well-known forward–backward splitting method (FBM), introduced independently by Passty [16] and Lion et al. [14]. The method can be described as follows. Starting from an arbitrary initial point $w_0\in \mathrm{\Xi }$, and given the current iterate $w_n$, the next iterate is generated according to the update rule

$$w_{m+1}={(I+{\delta }_{m}Z)}^{-1}(I-{\delta }_{m}W)\left(w_m\right),$$

where $I:\mathrm{\Xi }\to \mathrm{\Xi }$ denotes the identity operator, ${(·)}^{-1}$ represents the inverse operator, ${\delta }_m>0$, and W and Z are as defined above, with their domains satisfying $\mathrm{Dom}\left(Z\right)\subseteq \mathrm{Dom}\left(W\right)$.

In recent years, the design of fast iterative algorithms has received considerable attention, particularly those based on inertial methods, which arise from discrete approximations of second-order dissipative dynamical systems. A variety of accelerated schemes have been proposed using inertial techniques (see, e.g., [18,19,20,21,22,23] and the references therein). A common feature of such algorithms is that each new iterate is generated as a combination of the two preceding ones. Although this modification is minor, it significantly improves the overall performance of the methods.

In this context, Lorenz and Pock [24] introduced the inertial forward–backward algorithm for solving monotone inclusions:

$$\begin{array}{c}\hfill \left\{\begin{array}{cc}{u}_m\hfill & =w_m+e_m(w_m-w_{m-1}),\hfill \\ w_{m+1}\hfill & ={(I+{\delta }_{m}W)}^{-1}(I-{\delta }_m\mathrm{Z})u_m,\hfill \end{array}\right.\end{array}$$

where $\left\{e_n\right\}$ is a sequence of inertial parameters, $\left\{{\delta }_m\right\}$ is a sequence of positive step sizes, I denotes the identity operator, and W and Z are as defined above. In the past few decades, the convergence properties and various modifications of this method have been extensively investigated in the literature; see, e.g., [17,25,26,27,28,29,30] and the references therein. In their recent work, Tang et al. [31] proposed a class of inertial methods and established their convergence properties for solving variational inclusion problems. Subsequently, Tang and Gibali [32] extended this line of research by introducing a resolvent-free scheme aimed at approximating the minimum-norm solution of (MIP).

Motivated by the work discussed above, we suggest three modified Mann-type inertial forward–backward iterative methods for approximating a common solution of (MIP) and (FPP). Two algorithms are designed in such a way that the Mann-type iterative step is computed jointly with the inertial extrapolation and fixed-point iteration at the beginning of the iterative process, while the third algorithm computes the Mann-type iteration with the inertial extrapolation. Our methods are easily implemented and provide us with fast convergence in comparison to the previous related work. Some theoretical applications are also presented, and some numerical examples are discussed to show the effectiveness and efficiency of the suggested methods.

The remainder of this paper is organized as follows. In Section 2, we recall some basic definitions and preliminary results. In Section 3, we introduce three modified Mann-type inertial forward–backward methods and establish the strong convergence theorems. Some theoretical applications are also discussed in Section 4. Furthermore, in Section 5, we provide two numerical examples in infinite-dimensional spaces as well as in a finite-dimensional setting, which illustrate the performance of the algorithms and offer a preliminary computational comparison with related methods. Finally, concluding remarks are given in Section 6.

2. Preliminaries

For all $\varphi ,\phi ,$ and $\eta$ in Hilbert space $\mathrm{\Xi }$, $m_1,m_2,m_3\in [0,1]$ such that $m_1+m_2+m_3=1$, the following equality and inequality hold in Hilbert space $\mathrm{\Xi }$, for more details, see [33,34].

(a)

$$\begin{gathered} \parallel m_1\varphi +m_2\phi +m_3{\eta \parallel }^2=m_1{\parallel \varphi \parallel }^2+m_2{\parallel \phi \parallel }^2+m_3{\parallel \eta \parallel }^2-m_1{m}_2{\parallel \varphi -\phi \parallel }^2 \\ -m_2{m}_3{\parallel \phi -\eta \parallel }^2-m_3{m}_1{\parallel \eta -\varphi \parallel }^2 \end{gathered}$$.

(b)

${\parallel \varphi \pm \phi \parallel }^2={\parallel \varphi \parallel }^2\pm 2\langle \varphi ,\phi \rangle +{\parallel \phi \parallel }^2\le {\parallel \varphi \parallel }^2\pm 2\langle \phi ,\varphi +\phi \rangle$.

Definition 1.

A mapping $S:\mathrm{\Xi }\to \mathrm{\Xi }$ is called

(a)

averaged, if $S=(1-p)I+ph,\forall p\in (0,1)$, where $h:\mathrm{\Xi }\to \mathrm{\Xi }$ is a nonexpansive and I is identity mapping;

(b)

η-Lipschitzian, if $\parallel S\left(\varphi \right)-S\left(\phi \right)\parallel \le \eta \parallel \varphi -\phi \parallel ,\forall \varphi ,\phi \in \mathrm{\Xi },\eta >0$;

(c)

contraction, if $\parallel S\left(\varphi \right)-S\left(\phi \right)\parallel \le \theta \parallel \varphi -\phi \parallel ,\forall \varphi ,\phi \in \mathrm{\Xi },\theta \in (0,1)$;

(d)

nonexpansive, if $\parallel S\left(\varphi \right)-S\left(\phi \right)\parallel \le \parallel \varphi -\phi \parallel ,\forall \varphi ,\phi \in \mathrm{\Xi }$;

(e)

firmly nonexpansive, if ${\parallel S\left(\varphi \right)-S\left(\phi \right)\parallel }^2\le \langle \varphi -\phi ,S\left(\varphi \right)-S\left(\phi \right)\rangle ,\forall \varphi ,\phi \in \mathrm{\Xi }$;

(f)

ς-inverse strongly monotone (ς-ism), if $\exists \varsigma >0$ so that

$$\langle S\left(\varphi \right)-S\left(\phi \right),\varphi -\phi \rangle \ge {\varsigma \parallel S\left(\varphi \right)-S\left(\phi \right)\parallel }^2,\forall \varphi ,\phi \in \mathrm{\Xi };$$

(g)

monotone, if

$$\langle S\left(\varphi \right)-S\left(\phi \right),\varphi -\phi \rangle \ge 0,\forall \varphi ,\phi \in \mathrm{\Xi }.$$

Definition 2

([33]). A set-valued mapping $Z:\mathrm{\Xi }\to 2^{\mathrm{\Xi }}$ is called

(a)

monotone, if $\langle \eta -\zeta ,\varphi -\phi \rangle \ge 0,\forall \eta ,\zeta ,\in H,\varphi \in Z\left(\eta \right),\phi \in Z\left(\zeta \right)$;

(b)

$Graph\left(Z\right)=\left\{\right(\eta ,\varphi )\in \mathrm{\Xi }\times \mathrm{\Xi }:\phi \in Z(\eta \left)\right\}$;

(c)

maximal monotone, if Z is monotone and $(I+\delta Z)\left(\mathrm{\Xi }\right)=\mathrm{\Xi },\delta >0$.

The resolvent of Z is defined by $J_{\delta }^Z={[I+\delta Z]}^{-1},\delta >0$, where I is the identity operator.

Definition 3

([33]). The metric projection of Ξ onto $\mathbb{D}$ is a mapping which assigns each value point $\eta \in \mathrm{\Xi }$ to a unique nearest point in $\mathbb{D}$, that is

$$\begin{array}{c}\hfill \parallel \varphi -P_{\mathbb{D}}\varphi \parallel \le \parallel \varphi -\phi \parallel ,\forall \phi \in \mathbb{D}.\end{array}$$

Some properties of $P_{\mathbb{D}}$ are summarized as follows:

$$\begin{array}{c}\hfill \langle \varphi -\phi ,P_{\mathbb{D}}\varphi -P_{\mathbb{D}}\phi \rangle \ge {\parallel P_{\mathbb{D}}\varphi -P_{\mathbb{D}}\phi \parallel }^2,\varphi ,\phi \in \mathbb{H},\end{array}$$

and

$$\begin{array}{c}\hfill \langle \varphi -P_{\mathbb{D}}\phi ,\phi -P_{\mathbb{D}}\varphi \rangle \le 0,\forall \varphi \in \mathbb{H},\phi \in \mathbb{D}.\end{array}$$

For the details of following remarks, please see [33,35].

Remark 1.

(a)

Every ς-ism mapping is monotone and ${\displaystyle \frac{1}{\varsigma }}$-Lipschitzian.

(b)

Every averaged mapping is nonexpansive but the converse need not be true, in general.

(c)

S is firmly nonexpansive if $I-S$ is firmly nonexpansive.

(d)

If $h_1$ and $h_2$ are averaged then $h_1\circ h_2$ is averaged.

Remark 2.

(a)

If Z is maximal monotone mapping then $J_{\delta }^Z$ is single-valued, nonexpansive, and firmly nonexpansive.

(b)

$J_{\delta }^Z$ is firmly nonexpansive if and only if

$$\begin{array}{c}\hfill \parallel J_{\delta }^Z\varphi -J_{\delta }^Z{\phi \parallel }^2\le {\parallel \varphi -\phi \parallel }^2-{\parallel (I-J_{\delta }^Z)\varphi -(I-J_{\delta }^Z)\phi \parallel }^2,\mathrm{for}\mathrm{all}\varphi ,\phi \in \mathrm{\Xi }.\end{array}$$

(c)

The operator $I-J_{\delta }^Z$ is nonexpansive and so it is demiclosed at zero.

(d)

σ solves $\left(\mathrm{MIP}\right)$ ⇔ $\sigma =J_{\delta }^Z(I-\delta W)\sigma$.

Lemma 1

([36]). Suppose $\mathrm{\varnothing }\ne \mathbb{D}\subseteq \mathrm{\Xi }$ and $S:\mathbb{D}\to \mathbb{D}$ is nonexpansive mapping with the properties

(a)

$\mathrm{Fix}\left(S\right)\ne \mathrm{\varnothing }$,

(b)

the sequence $\left\{w_m\right\}\rightharpoonup \sigma$ and $\underset{m\to \infty }{\lim }\parallel S{w}_m-w_m\parallel =0$.

Then $S\sigma =\sigma$.

Lemma 2

([4]). If $\left\{w_m\right\}$ is a sequence of non-negative real numbers for which

$$w_{m+1}\le (1-p_m)w_m+p_m{q}_m,m\ge 0,$$

where $\left\{p_m\right\}\in (0,1)$ and $\left\{q_m\right\}$ is a sequence of real numbers satisfying

(a)

$\underset{m\to \infty }{\lim }{p}_m=0,\mathrm{and}{\displaystyle \sum _{m=1}^{\infty }}{p}_m=\infty$,

(b)

$\lim \underset{m\to \infty }{\sup }{q}_m\le 0$.

Then $\underset{m\to \infty }{\lim }{w}_m=0$.

Lemma 3

([37]). Let $\left\{w_m\right\}$ be a sequence in Hilbert space Ξ for which a closed and convex subset $\mathbb{D}\ne \mathrm{\varnothing }$ of Ξ exists such that

(a)

$\underset{m\to \infty }{\lim }\parallel w_m-\varphi \parallel$ exists for every $\varphi \in \mathbb{D}$,

(b)

any weak cluster point of $\left\{w_m\right\}$ falls within $\mathbb{D}$.

Then there exists $\varphi \in \mathbb{D}$ satisfying $w_m\rightharpoonup \varphi$.

Lemma 4

([38]). Let $\left\{w_m\right\}$ be a sequence of real numbers that does not decrease at infinity in the sense that one can find a subsequence $\left\{w_{m_k}\right\}$ of $\left\{w_m\right\}$ satisfying $w_{m_k}<w_{m_{k+1}}$ for all $m\ge 0$. Also consider the sequence of integers ${\left\{\mathsf{\Gamma }\left(m\right)\right\}}_{m\ge m_0}$ defined by

$$\begin{array}{c}\hfill \mathrm{\Gamma }\left(m\right)=\max \{n\le m:w_m\le w_{m+1}\}.\end{array}$$

Then ${\left\{\mathrm{\Gamma }\left(m\right)\right\}}_{m\ge m_0}$ is a nondecreasing sequence verifying ${\lim }_{m\to \infty }\mathrm{\Gamma }\left(m\right)=\infty$ and $\forall m\ge m_0$,

$$\begin{array}{c}\hfill \max \{w_{\mathrm{\Gamma }\left(m\right)},w_{\left(m\right)}\}\le w_{\mathrm{\Gamma }\left(m\right)+1}.\end{array}$$

3. Main Contribution

The solution sets of (MIP) and (FPP) are indicated by $\mathrm{\Phi }$ and $\mathrm{\Omega }$, correspondingly. To ensure the convergence of the proposed methods, we consider some assumptions, which are listed below: $\left({\mathbf{A}}_{\mathbf{1}}\right)$ $W:\mathrm{\Xi }\to \mathrm{\Xi }$ such that W is $\varsigma$-inverse strongly monotone operator;

$\left({\mathbf{A}}_{\mathbf{2}}\right)$ $Z:\mathrm{\Xi }\to 2^{\mathrm{\Xi }}$ is a maximal monotone operator;

$\left({\mathbf{A}}_{\mathbf{3}}\right)$ $S:\mathrm{\Xi }\to \mathrm{\Xi }$ is nonexpansive;

$\left({\mathbf{A}}_{\mathbf{4}}\right)$ $p_m,q_m\in (0,1)$ so that $\underset{k\to \infty }{\lim }{p}_m=0$, ${\displaystyle \sum _{m=1}^{\infty }}{p}_m=\infty$ and $\inf q_m(1-p_m-q_m)>0$;

$\left({\mathbf{A}}_{\mathbf{5}}\right)$ ${\tau }_m$ be a positive sequence such that ${\displaystyle \sum _{m=1}^{\infty }}{\tau }_m<\infty$ and $\underset{k\to \infty }{\lim }{\displaystyle \frac{{\tau }_m}{p_m}}=0$;

$\left({\mathbf{A}}_{\mathbf{6}}\right)$ The common solution set of (MIP) and (FPP) is express by $\mathrm{\Phi }\cap \mathrm{\Omega }$ and $\mathrm{\Phi }\cap \mathrm{\Omega }\ne \mathrm{\varnothing }$.

Remark 3.

If $w_{m+1}=w_m=v_m=u_m$ in Algorithm 1, then from (7), we get

$$\begin{array}{ccc}\hfill w_k& =& J_{{\delta }_m}^Z(w_m-{\delta }_{m}W{w}_m)={(I+{\delta }_{m}Z)}^{-1}(w_m-{\delta }_{m}W{w}_m)\hfill \end{array}$$

which implies that

$$\begin{array}{ccc}\hfill (w_m-{\delta }_{m}W{w}_m)& \in & w_m+{\delta }_{m}Z{w}_m,\hfill \\ \hfill 0& \in & {\delta }_{m}W{w}_m+{\delta }_{m}Z{w}_m,\hfill \\ \hfill 0& \in & (W+Z)\left(w_m\right).\hfill \end{array}$$

Furthermore, from (5), we get $w_m=(1-p_m-q_m)w_m+q_{m}S\left(w_m\right)$, which is the Mann-type iteration method. Hence, the sequence $\left\{w_m\right\}$ converge strongly to the fixed point of S.

Algorithm 1 Modified Mann-type inertial forward-backward iterative method-1

Choose $e\in [0,1)$ and $0<\overline{\delta }<{\delta }_m<2\varsigma$ are given. Pick the initial points $w_0$ and $w_1$. Iterative Step: For $m\ge 1$ and iterates $w_m$, $w_{m-1}$, select $0<e_m<{\overline{e}}_m$, where $$\begin{array}{c}\hfill {\overline{e}}_m=\left\{\begin{array}{c}\min \left\{{\displaystyle \frac{{\tau }_m}{\parallel w_m-w_{m-1}\parallel }},e\right\},\mathrm{if}{w}_m\ne w_{m-1},\hfill \\ e,\mathrm{otherwise}.\hfill \end{array}\right.\end{array}$$ (4) Compute $$\begin{array}{ccc}\hfill u_m& =& (1-p_m-q_m)w_m+q_m[S\left(w_m\right)+e_m(w_m-w_{m-1})],\hfill \end{array}$$ (5) $$\begin{array}{ccc}\hfill v_m& =& J_{{\delta }_m}^Z(u_m-{\delta }_{m}W{u}_m),\hfill \end{array}$$ (6) $$\begin{array}{ccc}\hfill w_{m+1}& =& J_{{\delta }_m}^Z(v_m-{\delta }_{m}W{v}_m).\hfill \end{array}$$ (7) If $w_{m+1}=v_m=w_m=u_m$ then exit, or else, assign $m=m+1$ and back to the computation.

Remark 4.

From (4), we have $e_m\parallel w_m-w_{m-1}\parallel \le {\tau }_m$ or ${\displaystyle \frac{e_m\parallel w_m-w_{m-1}\parallel }{p_m}}\le {\displaystyle \frac{{\tau }_m}{p_m}}$. Keeping in mind $\left(A_4\right)$, and taking the limit $m\to \infty$, we obtain $\underset{m\to \infty }{\lim }{\displaystyle \frac{e_m\parallel w_m-w_{m-1}\parallel }{p_m}}=0$. Hence, there exists constant $L_1$ such that ${\displaystyle \frac{e_m\parallel w_m-w_{m-1}\parallel }{p_m}}\le L_1$ or $e_m\parallel w_m-w_{m-1}\parallel \le L_1{p}_m$.

Theorem 1.

If the assumptions $\left(A_1\right)$–$\left(A_6\right)$ hold. Then the sequence $\left\{w_m\right\}$ induced by Algorithm 1, converge to $w\in \mathrm{\Phi }\cap \mathrm{\Omega }$ such that $\parallel w\parallel = \min \{\parallel z\parallel :z\in \mathrm{\Phi }\cap \mathrm{\Omega }\}$.

Proof.

Let $\sigma \in \mathrm{\Phi }\cap \mathrm{\Omega }$. It is given that W is $\varsigma$-ism. Then in view of Remark 2(b) and inequality (b), we have

$$\begin{array}{cc}\hfill & {\parallel v_m-\sigma \parallel }^2={\parallel J_{{\delta }_m}^Z(u_m-{\delta }_{m}W{u}_m)-\sigma \parallel }^2\hfill \\ \le & {\parallel u_m-{\delta }_{m}W{u}_m-\sigma +{\delta }_{m}W\sigma \parallel }^2-{\parallel (I-J_{{\delta }_m}^Z)(u_m-{\delta }_{m}W{u}_m)-(I-J_{{\delta }_m}^Z)(\sigma -{\delta }_{m}W\sigma )\parallel }^2\hfill \\ =& {\parallel u_m-\sigma -{\delta }_m(W{u}_m-W\sigma )\parallel }^2-{\parallel u_m-v_m-{\delta }_m(W{u}_m-W\sigma )\parallel }^2\hfill \\ \le & {\parallel u_m-\sigma \parallel }^2-2{\delta }_m\langle W{u}_m-W\sigma ,u_m-\sigma \rangle -{\parallel u_m-v_m\parallel }^2+2{\delta }_m\langle W{u}_m-W\sigma ,u_m-v_m\rangle \hfill \\ \le & {\parallel u_m-\sigma \parallel }^2-2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma \parallel }^2-{\parallel u_m-v_m\parallel }^2+2{\delta }_m\langle W{u}_m-B\sigma ,u_m-v_m\rangle .\hfill \end{array}$$

(8)

Furthermore, we have

$$\begin{array}{c}\hfill {\parallel W{u}_m-W\sigma -{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2={\parallel W{u}_m-W\sigma \parallel }^2+{\parallel {\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2-{\displaystyle \frac{1}{\varsigma }}〈W{u}_m-W\sigma ,u_m-v_m〉\end{array}$$

or

$$\begin{array}{ccc}\hfill -2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma \parallel }^2+2{\delta }_m〈W{u}_m-W\sigma ,u_m-v_m〉& =& -2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma -{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2\hfill \\ & & +2{\delta }_m\varsigma {\parallel {\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2.\hfill \end{array}$$

(9)

By using (8) and (9), we get

$$\begin{array}{ccc}\hfill {\parallel v_m-\sigma \parallel }^2& \le & {\parallel u_m-\sigma \parallel }^2-2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma -{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2-\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right){\parallel u_m-v_m\parallel }^2\hfill \end{array}$$

(10)

$$\begin{array}{ccc}\hfill & \le & {\parallel u_m-\sigma \parallel }^2.\hfill \end{array}$$

(11)

Since $J_{{\delta }_m}^Z(I-{\delta }_{m}W)$ is averaged hence nonexpansive. From (7), (9) and (11), it follows that

$$\begin{array}{ccc}\hfill {\parallel w_{m+1}-\sigma \parallel }^2& =& {\parallel J_{{\delta }_m}^Z(v_m-{\delta }_{m}W{v}_m)-\sigma \parallel }^2\hfill \\ & =& {\parallel J_{{\delta }_m}^Z(I-{\delta }_{m}W)v_m-J_{{\delta }_m}^Z(I-{\delta }_{m}W)\sigma \parallel }^2\hfill \\ \hfill & \le & {\parallel v_m-\sigma \parallel }^2\hfill \\ \hfill & \le & {\parallel u_m-\sigma \parallel }^2-2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma -{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2\hfill \end{array}$$

(12)

$$\begin{array}{ccc}& & -\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right){\parallel u_m-v_m\parallel }^2\hfill \end{array}$$

(13)

$$\begin{array}{ccc}\hfill & \le & {\parallel u_m-\sigma \parallel }^2.\hfill \end{array}$$

(14)

Let $x_m=S{w}_m+e_m(w_m-w_{m-1})$ and S is nonexpansive, then we have

$$\begin{array}{ccc}\hfill \parallel x_m-\sigma \parallel & =& \parallel S{w}_m+e_m(w_m-w_{m-1})-\sigma \parallel \hfill \\ & \le & \parallel S{w}_m-\sigma \parallel +e_m\parallel w_m-w_{m-1}\parallel \hfill \\ & \le & \parallel w_m-\sigma \parallel +e_m\parallel w_m-w_{m-1}\parallel ,\hfill \end{array}$$

(15)

and using (5), (14) and Remark 4, we have

$$\begin{array}{ccc}\hfill \parallel u_m-\sigma \parallel & \le & \parallel (1-p_m-q_m)w_n+q_m{x}_m-\sigma \parallel \hfill \\ & \le & \parallel (1-p_m-q_m)(w_m-\sigma )+q_m(x_m-\sigma )+p_m(-\sigma )\parallel \hfill \\ & \le & (1-p_m-q_m)\parallel w_m-\sigma \parallel +q_m\parallel x_m-\sigma \parallel +p_m\parallel \sigma \parallel \hfill \\ & \le & \parallel (1-p_m-q_m)\parallel w_m-\sigma \parallel +q_m\left[\parallel w_m-\sigma \parallel +e_m\parallel w_m-w_{m-1}\parallel \right]+p_m\parallel \sigma \parallel \hfill \\ & \le & \parallel (1-p_m)\parallel w_m-\sigma \parallel +p_m\left[\parallel \sigma \parallel +{\displaystyle \frac{e_m\parallel w_m-w_{m-1}\parallel }{p_m}}\right]\hfill \\ & \le & \max \left\{\parallel w_m-\sigma \parallel ,\parallel \sigma \parallel +L_1\right\}\hfill \\ & \le & \max \left\{\parallel u_{m-1}-\sigma \parallel ,\parallel \sigma \parallel +L_1\right\}\hfill \\ & ⋮& \hfill \\ & \le & \max \left\{\parallel u_0-\sigma \parallel ,|\sigma \parallel +L_1\right\},\hfill \end{array}$$

where ${\displaystyle \frac{e_m\parallel w_m-w_{m-1}\parallel }{p_m}}\le L_1$, which implies that $\left\{u_m\right\}$ is bounded. Hence, $\left\{v_m\right\}$, $\left\{x_m\right\}$ and $\left\{w_m\right\}$ is also bounded. Since $\left\{x_m\right\}$ is bounded there exists a $L_2>0$ such that $\parallel x_m-\sigma \parallel \le L_2$, then we have

$$\begin{array}{ccc}\hfill {\parallel x_m-\sigma \parallel }^2& =& {\parallel S\left(w_m\right)+e_m(w_m-w_{m-1})-\sigma \parallel }^2\hfill \\ & \le & {\parallel S\left(w_m\right)-\sigma \parallel }^2+2e_m\langle w_m-w_{m-1},x_m-\sigma \rangle \hfill \\ & \le & {\parallel S\left(w_m\right)-\sigma \parallel }^2+2e_m\parallel w_m-w_{m-1}\parallel \parallel x_m-\sigma \parallel \hfill \\ & \le & {\parallel w_m-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel .\hfill \end{array}$$

(16)

Now, we estimate

$$\begin{array}{ccc}\hfill {\parallel u_m-\sigma \parallel }^2& \le & {\parallel (1-p_m-q_m)w_n+q_m{x}_m-\sigma \parallel }^2\hfill \\ & =& \parallel (1-p_m-q_m)(w_m-\sigma )+q_m(x_m-\sigma )+p_m(-\sigma ){\parallel }^2\hfill \\ & =& (1-p_m-q_m)\parallel w_m{-\sigma \parallel }^2+q_m\parallel x_m{-\sigma \parallel }^2+p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-x_m\parallel }^2\hfill \\ & \le & (1-p_m-q_m)\parallel w_m{-\sigma \parallel }^2+q_m\left(\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel \right)+p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-x_m\parallel }^2\hfill \\ & \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel +p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-x_m\parallel }^2.\hfill \end{array}$$

(17)

By using (13) and (17), we obtain

$$\begin{array}{ccc}\hfill {\parallel w_{m+1}-\sigma \parallel }^2& \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel +p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-x_m\parallel }^2\hfill \\ & & -2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma -{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2-\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right){\parallel u_m-v_m\parallel }^2.\hfill \end{array}$$

(18)

There are two feasible cases:

Case I: If $\{\parallel w_m-\sigma \parallel \}$ is monotonically decreasing, which guarantees the existence of a number $L_3$ such that $\parallel w_{m+1}-\sigma \parallel \le \parallel w_m-\sigma \parallel$ for all $m\ge L_3$. Hence, boundedness of $\{\parallel w_m-\sigma \parallel \}$ implies that $\{\parallel w_m-\sigma \parallel \}$ is convergent. Therefore, using (18), we have

$$\begin{array}{ccc}\hfill & & 2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma +{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2+\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right)\parallel u_m-v_m{\parallel }^2+q_m(1-p_m-q_m){\parallel w_m-x_m\parallel }^2\hfill \\ & \le & {\parallel w_k-\sigma \parallel }^2-\parallel w_{m+1}{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel +p_m\left({\parallel \sigma \parallel }^2-{\parallel w_{m+1}-\sigma \parallel }^2\right).\hfill \end{array}$$

(19)

By taking limit $m\to \infty$, we get

$$\begin{array}{c}\hfill \underset{m\to \infty }{\lim }\parallel u_m-v_m\parallel =0.\end{array}$$

(20)

and

$$\begin{array}{c}\hfill \underset{m\to \infty }{\lim }\parallel w_m-x_m\parallel =0.\end{array}$$

(21)

Taking into account (20), (21) and $x_m=S{w}_m+e_m(w_m-w_{m-1})$, we have $\parallel x_m-S{w}_m\parallel =e_m\parallel w_m-w_{m-1}\parallel \to 0$. From (5), by using $u_m-w_m=q_m(x_m-w_m)-p_m{w}_m$, we have $\parallel u_m-w_m\parallel \le q_m\parallel x_m-w_m\parallel +p_m\parallel w_m\parallel \to 0$. Now, we can easily evaluate that $\parallel v_m-w_m\parallel \to 0$ and

$$\begin{array}{c}\hfill \underset{m\to \infty }{\lim }\parallel S{w}_k-w_m\parallel =0,\underset{m\to \infty }{\lim }\parallel w_{m+1}-v_m\parallel =0,\end{array}$$

(22)

and hence,

$$\begin{array}{c}\hfill \underset{m\to \infty }{\lim }\parallel w_{m+1}-w_m\parallel \le \parallel w_{m+1}-v_m\parallel +\parallel v_m-u_m\parallel +\parallel u_m-w_m\parallel \to 0.\end{array}$$

(23)

Boundedness of $\left\{w_m\right\}$ guarantees the existence of a subsequence $\left\{w_{m_k}\right\}$ converging weakly to $\overline{\sigma }$. It follows that $\left\{u_{m_k}\right\}$ and $\left\{v_{m_k}\right\}$ also converge weakly to $\overline{\sigma }$. Implementing Lemma 1 to (22), we infer that $\overline{\sigma }\in Fix\left(S\right)$. By (6), we have

$$\begin{array}{c}\hfill {\displaystyle \frac{u_m-v_m}{{\delta }_m}}-(W{u}_m-W{v}_m)\in (W+Z)\left(v_m\right),\end{array}$$

(24)

where $\parallel u_m-v_m\parallel \to 0$, ${\delta }_m$ is bounded, and W is $\zeta$-ism and hence ${\displaystyle \frac{1}{\zeta }}$-Lipschitz continuous. Keeping in mind $W+Z$ is maximal monotone and its graph is weakly strongly closed, taking the limit on the subsequence $\left\{w_{m_k}\right\}$ of $\left\{w_m\right\}$, which converge weakly to $\overline{\sigma }$. We conclude $0\in (W+Z)\left(\overline{\sigma }\right)$, i.e., $\overline{\sigma }\in \mathrm{\Phi }$. Thus, $\overline{\sigma }\in \mathrm{\Phi }\cap \mathrm{\Omega }$.

To conclude, we drive the strong convergence of the sequence $\left\{w_m\right\}$. Let $U_m=(1-q_m)w_m+q_m{x}_m$, then $u_n=(1-p_m)U_m-p_m{q}_m(w_n-x_n)$, then using (16), we estimate

$$\begin{array}{ccc}\hfill {\parallel U_m-\sigma \parallel }^2& =& {\parallel (1-q_m)w_m+q_m{x}_m-\sigma \parallel }^2\hfill \\ & \le & (1-q_m)\parallel w_m{-\sigma \parallel }^2+q_m{\parallel x_m-\sigma \parallel }^2\hfill \\ & \le & (1-q_m){\parallel w_m-\sigma \parallel }^2+q_m\left(\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel \right)\hfill \\ & \le & {\parallel w_m-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel ,\hfill \end{array}$$

and

$$\begin{array}{ccc}\hfill {\parallel u_m-\sigma \parallel }^2& =& {\parallel (1-p_m)U_m-p_m{q}_m(w_m-x_m)-\sigma \parallel }^2\hfill \\ & \le & {\parallel (1-p_m)(U_m-\sigma )-p_m{q}_m(w_m-x_m)-p_m\sigma \parallel }^2\hfill \\ & \le & (1-p_m){\parallel U_m-\sigma \parallel }^2-2〈p_m{q}_m(w_m-x_m)+p_m\sigma ,u_m-\sigma 〉\hfill \\ & \le & (1-p_m)\left(\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel \right)\hfill \\ & & -2〈p_m{q}_m(w_m-x_m)+p_m\sigma ,u_m-\sigma 〉\hfill \\ & \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel \hfill \\ & & -2〈p_m{q}_m(w_m-x_m)+p_m\sigma ,u_m-\sigma 〉\hfill \\ & \le & (1-p_m){\parallel w_m-\sigma \parallel }^2-2p_m[〈q_m(w_m-x_m)+\sigma ,u_m-\sigma 〉\hfill \\ & & +{\displaystyle \frac{L_2{e}_m\parallel w_m-w_{m-1}\parallel }{p_m}}].\hfill \end{array}$$

(25)

From (14) and (25), we have

$$\begin{array}{ccc}\hfill {\parallel w_{m+1}-\sigma \parallel }^2& \le & (1-p_m){\parallel w_m-\sigma \parallel }^2-2p_m[〈q_m(w_m-x_m),u_m-\sigma 〉+\langle \sigma ,u_m-\sigma \rangle \hfill \\ & & +{\displaystyle \frac{L_2{e}_m\parallel w_m-w_{m-1}\parallel }{p_m}}],\hfill \end{array}$$

(26)

from the property of projection operator, we have

$$\begin{array}{c}\hfill \lim \underset{m\to \infty }{inf}\langle \sigma ,u_m-\sigma \rangle \ge \underset{\overline{\sigma }\in \mathrm{\Phi }\cap \mathrm{\Omega }}{min}\langle \sigma ,\overline{\sigma }-\sigma \rangle \ge 0.\end{array}$$

(27)

Employing Lemma 2, we get $\parallel w_m-\sigma \parallel \to 0$, we conclude that the sequence $\left\{w_m\right\}$ converge strongly to $\sigma =P_{\mathrm{\Phi }\cap \mathrm{\Omega }}\left(0\right)$. Again, from the property of metric projection, we have

$$\begin{array}{c}\hfill \langle \sigma ,\overline{\sigma }-\sigma \rangle \ge 0,\forall \sigma \in \mathrm{\Phi }\cap \mathrm{\Omega },\end{array}$$

(28)

that is $\langle \sigma ,\overline{\sigma }\rangle \ge {\parallel \sigma \parallel }^2$, i.e., $\parallel \sigma \parallel \le \parallel \overline{\sigma }\parallel$, which implies that $\sigma$ is the minimum norm solution in $\mathrm{\Phi }\cap \mathrm{\Omega }$.

Case II: If Case I is not true, then $\mathrm{\Gamma }:\mathbb{N}:\to \mathbb{N}$ for all $m\ge m_0$ defined by $\mathrm{\Gamma }\left(m\right)=\max \{m\in \mathbb{N}:m\ge k:\parallel w_m-\sigma \parallel \le \parallel w_{m+1}-\sigma \parallel \}$ is an increasing and $\underset{m\to \infty }{\lim }\mathrm{\Gamma }\left(m\right)\to \infty$ and

$$\begin{array}{c}\hfill 0\le \parallel w_{\mathrm{\Gamma }\left(m\right)}-\sigma \parallel \le \parallel w_{\mathrm{\Gamma }\left(m\right)+1}-\sigma \parallel ,\forall m\ge m_0.\end{array}$$

(29)

By using (18), we have

$$\begin{array}{ccc}\hfill & & 2{\delta }_{\mathrm{\Gamma }\left(m\right)}\varsigma {\parallel W{u}_{\mathrm{\Gamma }\left(m\right)}-W\sigma +{\displaystyle \frac{u_{\mathrm{\Gamma }\left(m\right)}-v_m}{2\varsigma }}\parallel }^2+\left({\displaystyle \frac{2\varsigma -{\delta }_{\mathrm{\Gamma }\left(m\right)}}{2\varsigma }}\right){\parallel u_{\mathrm{\Gamma }\left(m\right)}-v_{\mathrm{\Gamma }\left(m\right)}\parallel }^2\hfill \\ & & +q_{\mathrm{\Gamma }\left(m\right)}(1-p_{\mathrm{\Gamma }\left(k\right)}-q_{\mathrm{\Gamma }\left(k\right)}){\parallel w_{\mathrm{\Gamma }\left(k\right)}-x_{\mathrm{\Gamma }\left(k\right)}\parallel }^2\hfill \\ & \le & 2L_2{e}_m\parallel w_{\mathrm{\Gamma }\left(m\right)}-w_{\mathrm{\Gamma }\left(m\right)-1}\parallel +q_{\mathrm{\Gamma }\left(m\right)}\left({\parallel \sigma \parallel }^2-{\parallel w_{\mathrm{\Gamma }\left(m\right)+1}-\sigma \parallel }^2\right).\hfill \end{array}$$

By taking limit $m\to \infty$, we get

$$\begin{array}{c}\hfill \parallel u_{\mathrm{\Gamma }\left(m\right)}-v_{\mathrm{\Gamma }\left(m\right)}\parallel \to 0,\parallel w_{\mathrm{\Gamma }\left(m\right)}-x_{\mathrm{\Gamma }\left(m\right)}\parallel \to 0.\end{array}$$

(30)

Following the similar steps used in the justification of Case I, we arrive at $\parallel w_{\mathrm{\Gamma }\left(m\right)}-u_{\mathrm{\Gamma }\left(m\right)}\parallel \to 0$ and $\parallel w_{\mathrm{\Gamma }\left(m\right)}-v_{\mathrm{\Gamma }\left(m\right)}\parallel \to 0$, $\parallel S\left(w_{\mathrm{\Gamma }\left(m\right)}\right)-w_{\mathrm{\Gamma }\left(m\right)}\parallel \to 0$, as $m\to \infty$. From (26) and (30), we get

$$\begin{array}{c}\hfill 0\le \parallel w_{\mathrm{\Gamma }\left(m\right)}-\sigma \parallel \le -2\left[〈q_m(w_m-x_m),u_m-\sigma 〉+\langle \sigma ,u_m-\sigma \rangle +{\displaystyle \frac{L_2{e}_m\parallel w_m-w_{m-1}\parallel }{p_m}}\right].\end{array}$$

By taking limit $m\to \infty$, we get $\parallel w_{\mathrm{\Gamma }\left(m\right)}-\sigma \parallel \to 0$. By Lemma 4, we have

$$\begin{array}{c}\hfill 0\le \parallel w_m-\sigma \parallel \le \max \{\parallel w_m-\sigma \parallel ,\parallel w_{\mathrm{\Gamma }\left(m\right)}-\sigma \parallel \}\le \parallel w_{\mathrm{\Gamma }\left(m\right)+1}-\sigma \parallel .\end{array}$$

It follows that $\parallel w_m-\sigma \parallel \to 0$, as $m\to \infty$. This establishes the result.    □

An alternative and slightly modified version of Algorithm 1 is presented below.

Theorem 2.

Suppose that the assumptions $\left({\mathrm{A}}_1\right)$–$\left({\mathrm{A}}_6\right)$ are valid. Then the sequence $\left\{w_m\right\}$ induced by Algorithm 2, converge to $w\in \mathrm{\Phi }\cap \mathrm{\Omega }$ such that $\parallel w\parallel =\min \{\parallel z\parallel :z\in \mathrm{\Phi }\cap \mathrm{\Omega }\}$.

Algorithm 2 Modified Mann-type inertial forward-backward iterative method-2

Choose $e\in [0,1)$ and $0<\overline{\delta }<{\delta }_m<2\varsigma$ are given. Pick the initial points $w_0$ and $w_1$. Iterative Step: For $m\ge 1$ and iterates $w_m$, $w_{m-1}$, select $0<e_m<{\overline{e}}_m$, where $$\begin{array}{c}\hfill {\overline{e}}_m=\left\{\begin{array}{c}\min \left\{{\displaystyle \frac{{\tau }_m}{\parallel w_m-w_{m-1}\parallel }},e\right\},\mathrm{if}{w}_m\ne w_{m-1},\hfill \\ e,\mathrm{otherwise}.\hfill \end{array}\right.\end{array}$$ Compute $$\begin{array}{ccc}\hfill u_m& =& (1-p_m-q_m)w_m+q_{m}S{w}_m+e_m(w_m-w_{m-1}),\hfill \end{array}$$ (31) $$\begin{array}{ccc}\hfill v_m& =& J_{{\delta }_m}^Z(u_m-{\delta }_{m}W{u}_m),\hfill \end{array}$$ (32) $$\begin{array}{ccc}\hfill w_{m+1}& =& J_{{\delta }_m}^Z(v_m-{\delta }_{m}W{v}_m).\hfill \end{array}$$ (33) If $w_{m+1}=v_m=w_m=u_m$ then exit, or else, assign $m=m+1$ and back to the computation.

Proof.

First, we show that the sequence $\left\{u_m\right\}$, $\left\{v_m\right\}$, and $\left\{w_m\right\}$ are bounded. From (31) and Remark 4, it follows that

$$\begin{array}{ccc}\hfill \parallel u_m-\sigma \parallel & =& \parallel (1-p_m-q_m)w_m+q_{m}S{w}_m+e_m(w_m-w_{m-1})-\sigma \parallel \hfill \\ & =& \parallel (1-p_m-q_m)(w_m-\sigma )+q_m(S{w}_m-\sigma )+p_m(-\sigma )+e_m(w_m-w_{m-1})\parallel \hfill \\ & \le & (1-p_m-q_m)\parallel w_m-\sigma \parallel +q_m\parallel S{w}_m-\sigma \parallel +p_m\parallel -\sigma \parallel +e_m\parallel w_m-w_{m-1}\parallel \hfill \\ & \le & (1-p_m)\parallel w_m-\sigma \parallel +p_m\left\{\parallel \sigma \parallel +{\displaystyle \frac{e_m\parallel w_m-w_{m-1})\parallel }{p_m}}\right\}\hfill \\ & \le & (1-p_m)\parallel w_m-\sigma \parallel +p_m\left\{\parallel \sigma \parallel +L_1\right\}\hfill \\ & \le & (1-p_m)\parallel u_{m-1}-\sigma \parallel +p_m\left\{\parallel \sigma \parallel +L_1\right\}\hfill \\ & \le & \max \left\{\parallel u_{m-1}-\sigma \parallel ,\parallel \sigma \parallel +L_1\right\}\hfill \\ & ⋮& \hfill \\ & \le & \max \left\{\parallel u_0-\sigma \parallel ,\parallel \sigma \parallel +L_1\right\},\hfill \end{array}$$

(34)

which implies that $\left\{u_m\right\}$ is bounded. In view of (11) and (12), we infer that $\left\{v_m\right\}$ and $\left\{w_m\right\}$ are also bounded. Let $l_m=(1-p_m-q_m)w_m+q_{m}S{w}_m$, then we have

$$\begin{array}{ccc}\hfill {\parallel u_m-\sigma \parallel }^2& =& {\parallel l_m+e_m(w_m-w_{m-1})-\sigma \parallel }^2\hfill \\ & \le & {\parallel l_m-\sigma \parallel }^2+2〈u_m-\sigma ,e_m(w_m-w_{m-1})〉\hfill \\ & \le & {\parallel l_m-\sigma \parallel }^2+2\parallel u_m-\sigma \parallel e_m\parallel w_m-w_{m-1}\parallel \hfill \\ & =& \parallel l_m{-\sigma \parallel }^2+2L_4{e}_m\parallel w_m-w_{m-1}\parallel .\hfill \end{array}$$

(35)

also

$$\begin{array}{ccc}\hfill {\parallel l_m-\sigma \parallel }^2& =& {\parallel (1-p_m-q_m)w_m+q_{m}S{w}_m-\sigma \parallel }^2\hfill \\ & \le & \parallel (1-p_m-q_m)(w_m-\sigma )+q_m(S{w}_m-\sigma )+p_m(-\sigma ){\parallel }^2\hfill \\ & \le & (1-p_m-q_m)\parallel w_m{-\sigma \parallel }^2+q_m\parallel S{w}_m{-\sigma \parallel }^2+p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-S{w}_m\parallel }^2.\hfill \\ & \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+p_m{\parallel \sigma \parallel }^2-q_m(1-p_m-q_m){\parallel w_m-S{w}_m\parallel }^2.\hfill \end{array}$$

(36)

From (35) and (36), we get

$$\begin{array}{ccc}\hfill {\parallel u_m-\sigma \parallel }^2& =& \le (1-p_m){\parallel w_m-\sigma \parallel }^2+p_m{\parallel \sigma \parallel }^2-q_m(1-p_m-q_m){\parallel w_m-S{w}_m\parallel }^2\hfill \\ & & +2L_4{e}_m\parallel w_m-w_{m-1}\parallel .\hfill \end{array}$$

(37)

By using (13) and (37), we obtain

$$\begin{array}{ccc}\hfill {\parallel w_{m+1}-\sigma \parallel }^2& \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+2L_4{e}_m\parallel w_m-w_{m-1}\parallel +p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-S{w}_m\parallel }^2-2{\delta }_m\varsigma {\parallel W{u}_m-W\sigma -{\displaystyle \frac{u_m-v_m}{2\varsigma }}\parallel }^2\hfill \\ & & -\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right){\parallel u_m-v_m\parallel }^2.\hfill \end{array}$$

Considering the Case I as in the proof of Theorem 1, we obtain:

$$\begin{array}{c}\hfill \underset{m\to \infty }{\lim }\parallel u_m-v_m\parallel =0,\underset{m\to \infty }{\lim }\parallel w_m-S{w}_m\parallel =0.\end{array}$$

Following the same procedure in the proof of Theorem 1, one can obtain complete proof.    □

Another, modification of algorithm 1 is presented below.

Theorem 3.

If the assumptions $\left(A_1\right)–\left(A_6\right)$ hold. Then the sequence $\left\{w_m\right\}$ induced by Algorithm 3, converge to $w\in \mathrm{\Phi }\cap \mathrm{\Omega }$ such that $\parallel w\parallel =\min \{\parallel z\parallel :z\in \mathrm{\Phi }\cap \mathrm{\Omega }\}$.

Algorithm 3 Modified Mann-type inertial forward-backward iterative method-3

Choose $e\in [0,1)$ and $0<\overline{\delta }<{\delta }_m<2\varsigma$ are given. Pick the initial points $w_0$ and $w_1$. Iterative Step: For $m\ge 1$ and iterates $w_m$, $w_{m-1}$, select $0<e_m<{\overline{e}}_m$, where $$\begin{array}{c}\hfill {\overline{e}}_m=\left\{\begin{array}{c}\min \left\{{\displaystyle \frac{{\tau }_m}{\parallel w_m-w_{m-1}\parallel }},e\right\},\mathrm{if}{w}_m\ne w_{m-1},\hfill \\ e,\mathrm{otherwise}.\hfill \end{array}\right.\end{array}$$ Compute $$\begin{array}{ccc}\hfill u_m& =& (1-p_m-q_m)w_m+q_m[w_m+e_m(w_m-w_{m-1})],\hfill \end{array}$$ (38) $$\begin{array}{ccc}\hfill v_m& =& J_{{\delta }_m}^Z(u_m-{\delta }_{m}W{u}_m),\hfill \end{array}$$ (39) $$\begin{array}{ccc}\hfill w_{m+1}& =& S{J}_{{\delta }_m}^Z(v_m-{\delta }_{m}W{v}_m).\hfill \end{array}$$ (40) If $w_{m+1}=v_m=w_m=u_m$ then exit, or else, assign $m=m+1$ and back to the computation.

Proof.

Take $\sigma \in \mathrm{\Phi }\cap \mathrm{\Omega }$ and replacing S by identity operator I in (5), we get that $\left\{u_m\right\},\left\{v_m\right\}$ and $\left\{w_m\right\}$ are bounded. Denote $y_m=w_m+e_m(w_m-w_{m-1})$, then using the similar steps as in (17), we get

$$\begin{array}{ccc}\hfill {\parallel u_m-\sigma \parallel }^2& \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel +p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-y_m\parallel }^2.\hfill \end{array}$$

(41)

Denote $z_m=J_{{\delta }_m}^Z(I-{\delta }_{m}W)v_m$, then from (40) and using the same steps used in (10), it can be concluded that

$$\begin{array}{ccc}\hfill {\parallel z_m-\sigma \parallel }^2& \le & {\parallel u_m-\sigma \parallel }^2-2{\delta }_m\varsigma {\parallel W{v}_m-W\sigma -{\displaystyle \frac{v_m-u_m}{2\varsigma }}\parallel }^2\hfill \\ & & -\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right){\parallel v_m-u_m\parallel }^2.\hfill \end{array}$$

(42)

In view of (40)–(42), we get

$$\begin{array}{ccc}\hfill & & {\parallel w_{m+1}-\sigma \parallel }^2\le \parallel S{z}_m{-\sigma \parallel }^2\le {\parallel z_m-\sigma \parallel }^2\hfill \\ & \le & (1-p_m)\parallel w_m{-\sigma \parallel }^2+2L_2{e}_m\parallel w_m-w_{m-1}\parallel +p_m{\parallel \sigma \parallel }^2\hfill \\ & & -q_m(1-p_m-q_m){\parallel w_m-y_m\parallel }^2-2{\delta }_m\varsigma {\parallel W{v}_m-W\sigma -{\displaystyle \frac{v_m-u_m}{2\varsigma }}\parallel }^2\hfill \\ & & -\left({\displaystyle \frac{2\varsigma -{\delta }_m}{2\varsigma }}\right){\parallel v_m-u_m\parallel }^2,\hfill \end{array}$$

(43)

Considering the Case(I) as in the derivation of Theorem 1, we achieve

$$\begin{array}{c}\hfill \parallel u_m-v_m\parallel \to 0,\parallel w_m-y_m\parallel \to 0,m\to \infty ,\end{array}$$

(44)

and hence

$$\begin{array}{ccc}\hfill \parallel u_m-y_m\parallel & =& \parallel (1-p_m-q_m)w_m+q_m{y}_m-y_m\parallel \hfill \\ & \le & (1-p_m)\parallel w_m-y_m\parallel +p_m\parallel w_m\parallel \to 0.\hfill \end{array}$$

(45)

Hence, as $m\to \infty$, we get

$$\begin{array}{c}\hfill \parallel z_m-v_m\parallel \le \parallel v_m-u_m\parallel \to 0.\end{array}$$

(46)

It is not difficult to show that

$$\begin{array}{c}\hfill \parallel w_{m+1}-w_m\parallel \to 0,\mathrm{as}m\to \infty .\end{array}$$

(47)

Employing (44)–(47), by taking $m\to \infty$, we get

$$\begin{array}{ccc}\hfill & & \parallel S{z}_m-z_m\parallel =\parallel w_{m+1}-z_m\parallel \hfill \\ & \le & \parallel w_{m+1}-w_m\parallel +\parallel w_m-y_m\parallel +\parallel y_m-u_m\parallel +\parallel u_m-v_m\parallel +\parallel v_m-z_m\parallel \to 0.\hfill \end{array}$$

Since $\overline{\sigma }\in {\omega }_w\left(w_m\right)$ and $\left\{w_m\right\}$ is bounded, which guarantees the existence of a subsequence $w_{m_k}$ and $w_{m_k}\rightharpoonup \overline{\sigma }$, and so is the sequence $\left\{z_{m_k}\right\}$. Thus, applying Lemma 2, we obtain $\overline{\sigma }\in \mathrm{\Omega }$. The remainder of the proof can be completed by proceeding with the same steps as in the proof of Theorem 1. □

4. Theoretical Applications

Some theoretical applications of proposed algorithms are discussed below for solving variational inequality convex minimization problems in conjunction with the fixed point problem.

4.1. The Variational Inequality Problem

The variational inequality problem (VIP) for the operator $W:\mathrm{\Xi }\to \mathrm{\Xi }$, is to find $\phi \in \mathbb{D}$ such that

$$\begin{array}{c}\hfill \langle W\left(\varphi \right),\varphi -\phi \rangle \ge 0\forall \varphi \in \mathbb{D},\end{array}$$

where W is ${\displaystyle \frac{1}{\varsigma }}$-ism. Let ${\mathrm{\Phi }}_1$ be the solution set of the above defined (VIP). We know that solving (VIP) is a special case of solving (MIP). In fact, the projection operator is the resolvent of the normal cone. Then, by replacing $J_{{\delta }_m}^Z$ by the projection $P_{\mathbb{D}}$ in Algorithms 1–3, we can obtain the three iterative methods and their convergence theorems to approximate the common solution of (VIP) and (FPP).

4.2. The Convex Optimisation Problem

Let $V_1,V_2:\mathrm{\Xi }\to \mathrm{\Xi }$ are two proper, convex and lower-continuous function such that $V_2$ is differentiable and $\varsigma$-Lipschitz continuous. The convex minimization problem (COP) for $V_1$ and $V_2$ is to find $\varphi \in \mathrm{\Xi }$ such that

$$\begin{array}{c}\hfill V_1\left(\varphi \right)+V_2\left(\varphi \right)\le V_1\left(\phi \right)+V_2\left(\phi \right),\forall \phi \in \mathrm{\Xi }.\end{array}$$

Let the solution set of (COP) be symbolized by ${\mathrm{\Phi }}_2$. The (COP) is equivalent to determine $\varphi \in \mathrm{\Xi }$ satisfying

$$\begin{array}{c}\hfill 0\in \nabla V_1\left(\varphi \right)+\partial V_2\left(\varphi \right)\end{array}$$

where $\nabla V_1$ is the gradient of $V_1$ and $\partial V_2$ is the sub-differential of $V_2$. We are aware that every $\varsigma$-Lipschitz continuous function is ${\displaystyle \frac{1}{\varsigma }}$-ism and $\partial V_2$ is maximal monotone. Thus, by replacing $W=\nabla V_1$ and $Z=\partial V_2$ in Algorithms 1–3, we can obtain the three iterative methods and their convergence theorems to approximate the common solution of (COP) and (FPP).

5. Numerical Experiments

Example 1.

(Finite dimensional) Let $\mathrm{\Xi }={\mathbb{R}}^3$ denote the Hilbert space equipped with the standard inner product and norm. We define the operators, W and Z, and the mapping S as follows:

$$W({\eta }_1,{\eta }_2,{\eta }_3)=\left({\eta }_1,2{\eta }_2,3{\eta }_2\right),Z({\eta }_1,{\eta }_2,{\eta }_3)=\left({\eta }_1,2{\eta }_2,{\eta }_3\right),S({\eta }_1,{\eta }_2,{\eta }_3)=(\frac{{\eta }_1}{2},\frac{{\eta }_2}{2},\frac{{\eta }_3}{2}).$$

It can be verified that the operator W is ς-ism, with $\varsigma =\frac{1}{3}$, Z is maximal monotone, and S is nonexpansive. We choose ${\tau }_m=\frac{1}{{(m+25)}^2}$, ${\delta }_n=\frac{2}{3}-\frac{1}{(m+10)}\in (0,\frac{2}{3})$ and $\delta =\frac{2}{3}$. For numerical computation, we d select $e_m$ randomly from the interval $(0,{\overline{e}}_m)$, where

$$\begin{array}{c}\hfill {\overline{e}}_m=\left\{\begin{array}{c}\min \left\{{\displaystyle \frac{1}{{(m+25)}^2\parallel w_m-w_{m-1}\parallel }},e\right\},\mathrm{if}{w}_m\ne w_{m-1},\hfill \\ e,\mathrm{otherwise}\hfill \end{array}\right.\end{array}$$

We choose the parameters $p_m$, $q_m$, e, and the initial point under the following three different cases:

Case (a): $w_0=(10,70,-19),w_1=(19,-33,24);p_m={\displaystyle \frac{1}{m+25}},q_m={\displaystyle \frac{1}{8}}-{\displaystyle \frac{1}{m+25}},e=0.25$

Case (b): $w_0=(1;5;3),w_1=(2,4,7);p_m={\displaystyle \frac{1}{k+100}},q_m={\displaystyle \frac{1}{6}}-{\displaystyle \frac{1}{m+100}},e=0.35$

Case (c): $w_0=(1/3,5/7,3/2),w_1=(1/2;4/5;7/9);p_m={\displaystyle \frac{1}{m+1}},q_m={\displaystyle \frac{1}{2}}-{\displaystyle \frac{1}{m+1}},e=0.75$

We study the convergence of the proposed three schemes, together with Algorithm 10 of [32] and Algorithm 3.3 of [31], and present their numerical performance in

Table 1. Numerical results of all the algorithms with different initial values and parameters.

Case		Algorithm 1	Algorithm 2		Algorithm 3		Algorithm 3.3 [31]		Algorithm 10 [32]
	Iter.	CPU (s)	Iter.	CPU (s)	Iter.	CPU (s)	Iter.	CPU (s)	Iter.	CPU (s)
(a)	19	1.18 × 10−5	21	1.12 × 10−5	18	1.19 × 10−5	29	2.1 × 10−5	>100	4.7 × 10−6
(b)	16	1.33 × 10−5	22	1.34 × 10−5	19	1.3 × 10−5	32	2.4 × 10−5	>100	1.95 × 10−5
(c)	16	1.15 × 10−5	20	1.17 × 10−5	21	1.34 × 10−5	39	2.15 × 10−5	>100	5.2 × 10−6

. The algorithms are terminated when $\parallel w_{m+1}-w_m\parallel <{10}^{-20}$.

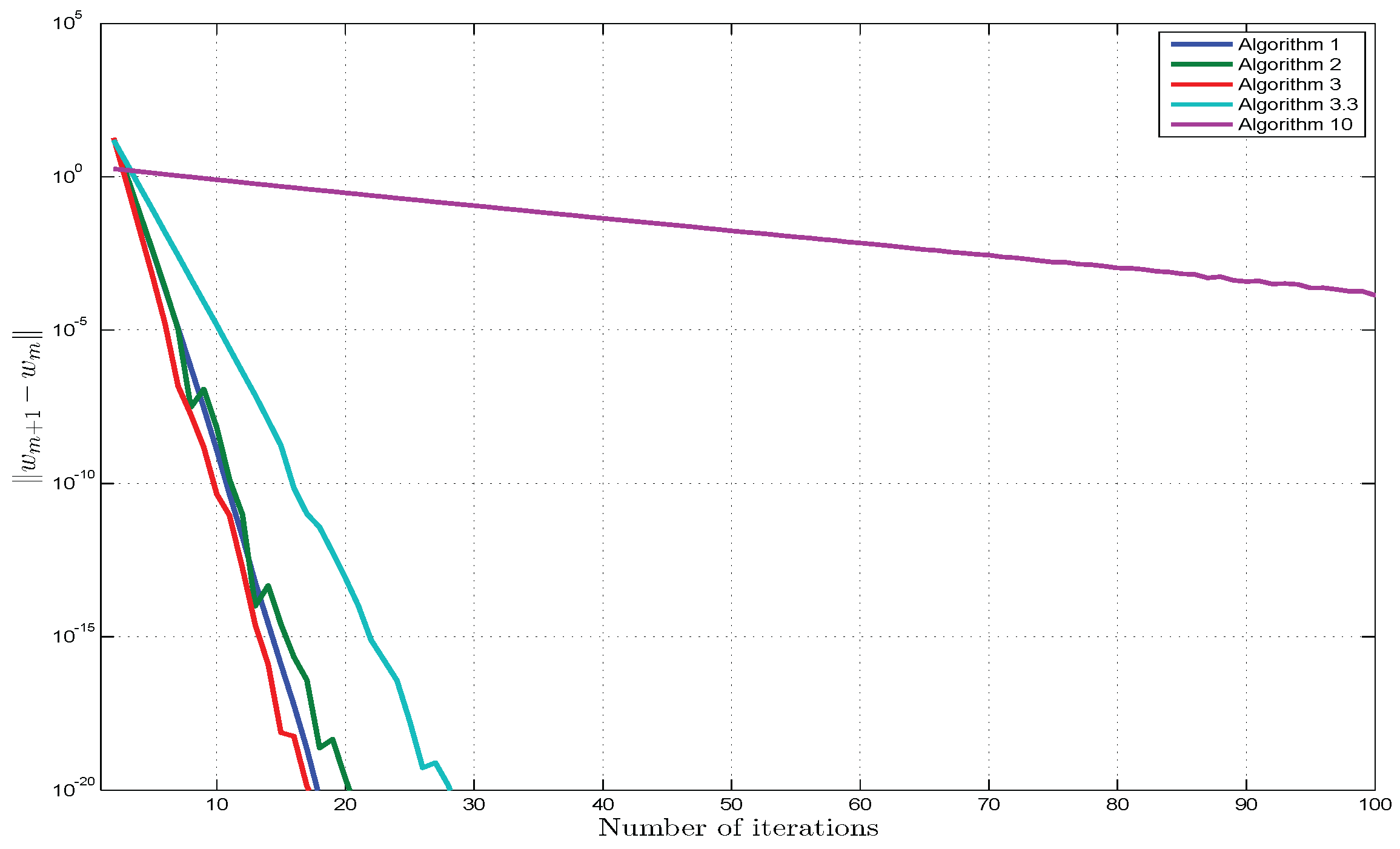

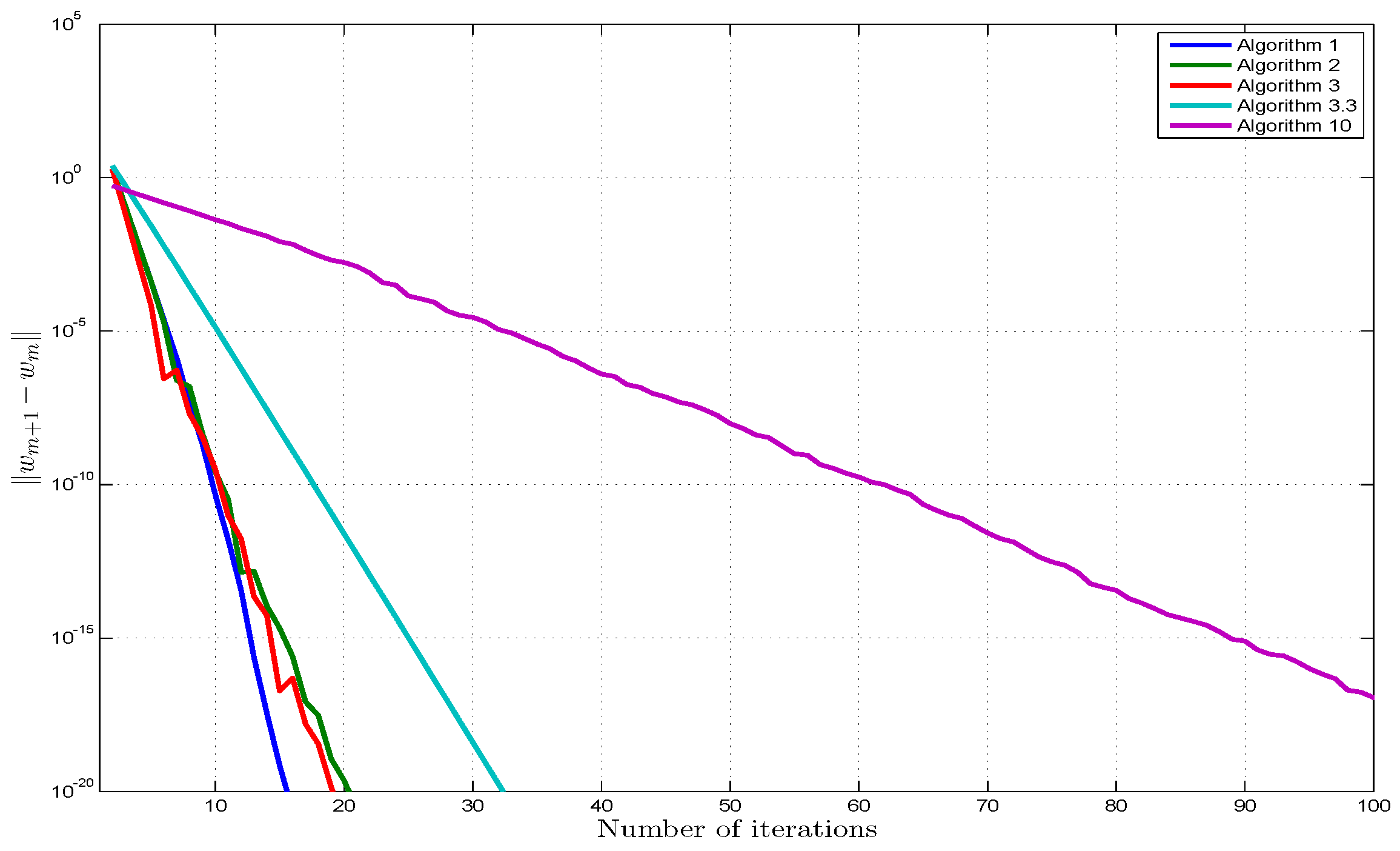

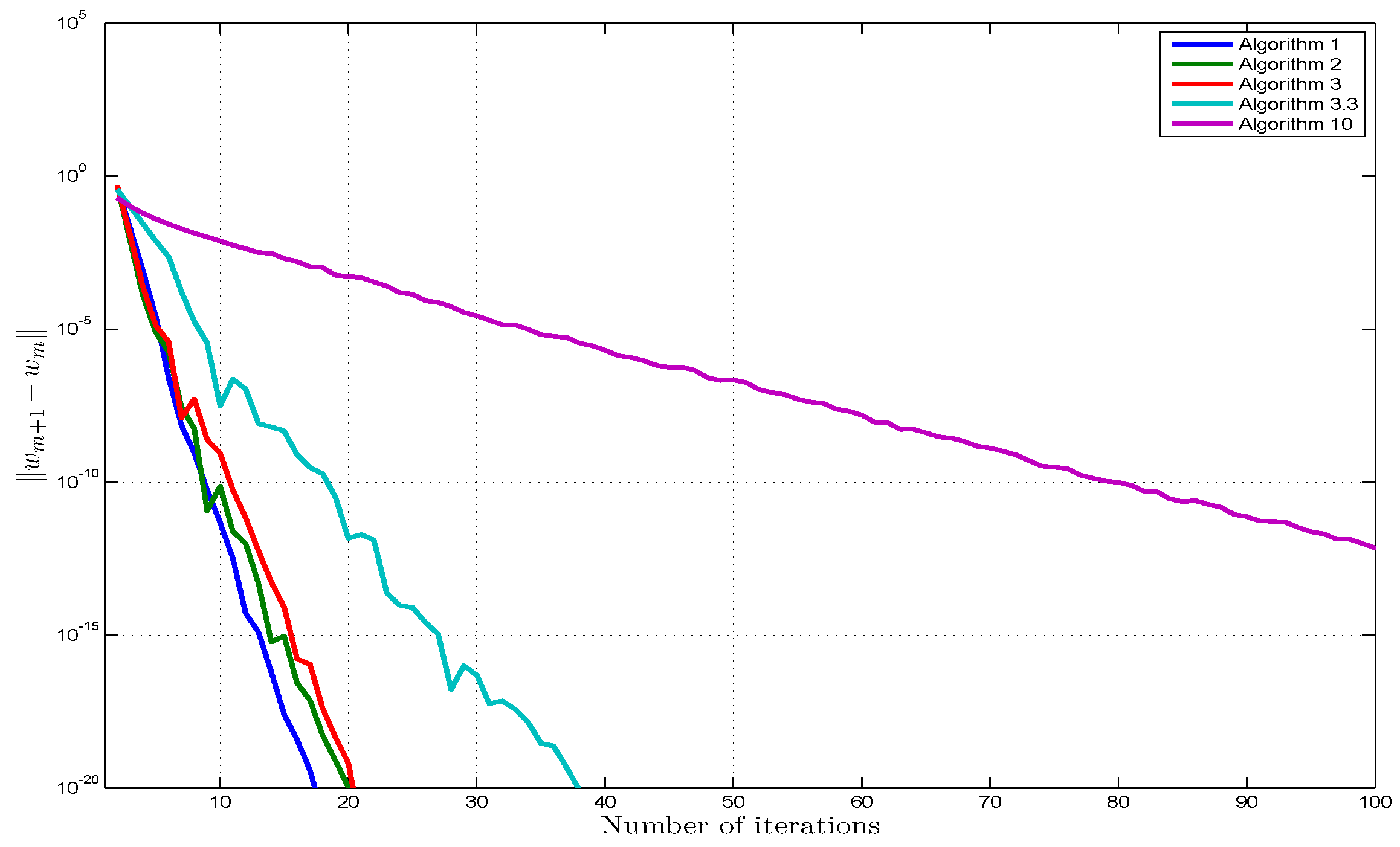

It is evident that our algorithms are effective and can be simply executed. The convergence of $\left\{w_m\right\}$ to $\left\{0\right\}=\mathrm{\Phi }\cap \mathrm{\Omega }$ are shown in Figure 1, Figure 2 and Figure 3 with varying values giving in Cases (a)–(c). It is noted that our algorithms approach toward the solution in fewer steps and less time taken by the CPU in comparison to Algorithm 3.3 of [31], while our algorithms are fast in respect of the number of iterations with respect to Algorithm 10 of [32].

Example 2.

(Infinite dimensional) Let $\mathrm{\Xi }=l_2:=\left\{\varphi :=({\varphi }_1,{\varphi }_2,{\varphi }_3,\dots ,{\varphi }_m,\dots ),{\varphi }_m\in \mathbb{R}:{\displaystyle \sum _{m=1}^{\infty }}{\left|{\varphi }_m\right|}^2<\infty \right\}$, with inner product $\langle \varphi ,\psi \rangle ={\displaystyle \sum _{m=1}^{\infty }}{\varphi }_m{\psi }_m$ and the norm $\parallel \varphi \parallel ={\left({\displaystyle \sum _{m=1}^{\infty }}{\left|{\varphi }_m\right|}^2\right)}^{1/2}$. The mappings W, Z and S are expressed by

$$\begin{array}{c}\hfill W\left(\varphi \right):={\displaystyle \frac{\varphi }{5}};Z\left(\varphi \right):={\displaystyle \frac{\varphi }{3}};S\left(\varphi \right):={\displaystyle \frac{\varphi }{2}},\forall \varphi \in l_2.\end{array}$$

Clearly, W is 5-ism, Z is maximal monotone and S is nonexpansive. We choose ${\tau }_m=\frac{1}{{(m+10)}^2}$, ${\delta }_m={\displaystyle \frac{1}{2}}-{\displaystyle \frac{1}{m+25}}$, $\delta ={\displaystyle \frac{1}{2}}$, and $e_m$ is randomly selected from $(0,{\overline{e}}_m)$, where

$$\begin{array}{c}\hfill {\overline{e}}_m=\left\{\begin{array}{c}\min \left\{{\displaystyle \frac{1}{{(m+10)}^2\parallel w_m-w_{m-1}\parallel }},e\right\},\mathrm{if}{w}_m\ne w_{m-1},\hfill \\ e,\mathrm{otherwise}.\hfill \end{array}\right.\end{array}$$

and the $p_m,q_m$, e and the initial values which are given below:

Case (a′): $w_0={\left\{{\displaystyle \frac{{(-1)}^m}{m+1}}\right\}}_{m=1}^{\infty },w_1=\left\{\begin{array}{c}0,ifmisodd,\hfill \\ {\displaystyle \frac{1}{{(m+1)}^2}},otherwise,\hfill \end{array}\right.$, $p_m={\displaystyle \frac{1}{m+25}},q_m={\displaystyle \frac{1}{7}}-{\displaystyle \frac{1}{m+25}},e=0.25$

Case (b′): $w_0={\left\{{\displaystyle \frac{1}{m+1}}\right\}}_{m=1}^{\infty },w_1={\left\{{\displaystyle \frac{1}{{(m+1)}^2}}\right\}}_{m=1}^{\infty }$, $p_m={\displaystyle \frac{1}{m+100}},q_m={\displaystyle \frac{1}{5}}-{\displaystyle \frac{1}{m+100}},e=0.35$

Case (c′): $w_0={\left\{{\displaystyle \frac{{(-1)}^m}{m+1}}\right\}}_{m=1}^{\infty },w_1=\left\{\begin{array}{c}0,ifmisodd,\hfill \\ {\displaystyle \frac{1}{{(m+1)}^2}},otherwise,\hfill \end{array}\right.$$p_m={\displaystyle \frac{1}{m+1}},q_m={\displaystyle \frac{1}{3}}-{\displaystyle \frac{1}{m+1}},e=0.65$

We study the convergence of the proposed three schemes, together with Algorithm 10 of [32] and Algorithm 3.3 of [31], and present their numerical performance in

Table 2. Numerical results of all the algorithms with different initial values and parameters.

Case		Algorithm 1	Algorithm 2		Algorithm 3		Algorithm 3.3 [31]		Algorithm 10 [32]
	Iter.	CPU (s)	Iter.	CPU (s)	Iter.	CPU (s)	Iter.	CPU (s)	Iter.	CPU (s)
(a′)	41	1.38 × 10−5	39	1.31 × 10−5	20	1.31 × 10−5	70	2.17 × 10−5	>100	8.6 × 10−6
(b′)	56	1.56 × 10−5	37	1.37 × 10−5	24	1.41 × 10−5	65	2.62 × 10−5	>100	5.7 × 10−6
(c′)	41	1.34 × 10−5	40	1.33 × 10−5	28	1.29 × 10−5	42	2.21 × 10−5	>100	8.3 × 10−6

. The algorithms are terminated when $\parallel w_{m+1}-w_m\parallel <{10}^{-20}$.

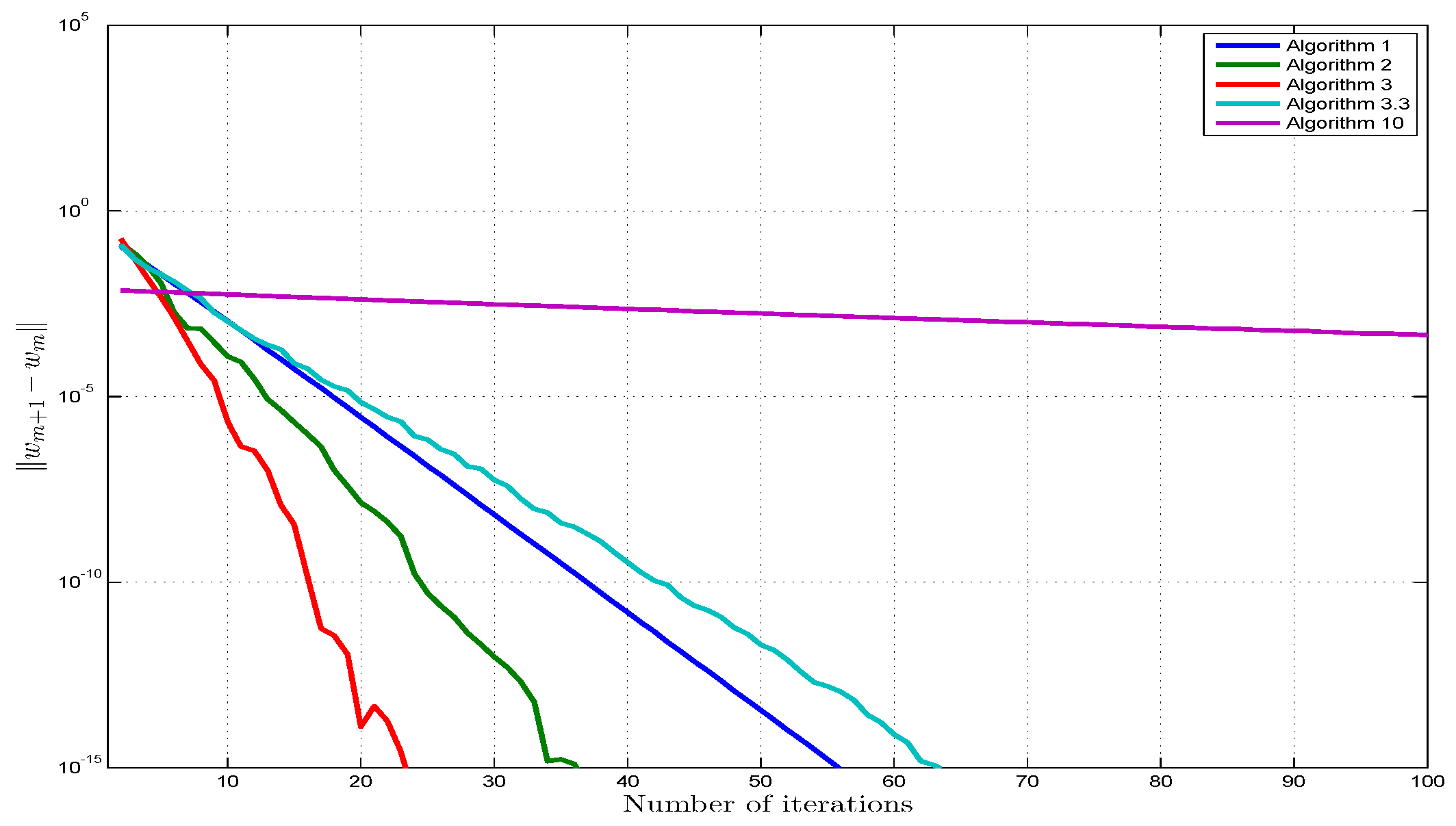

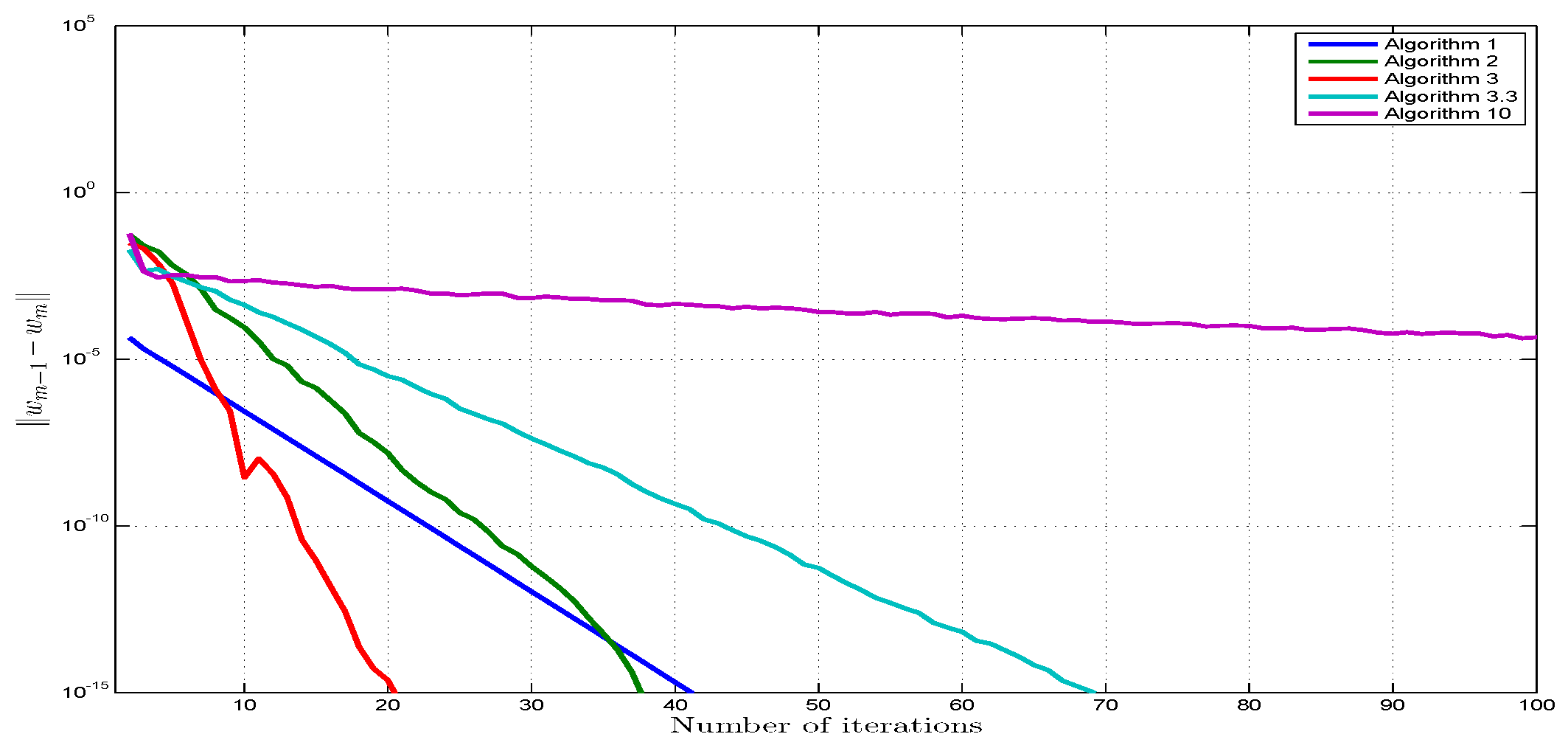

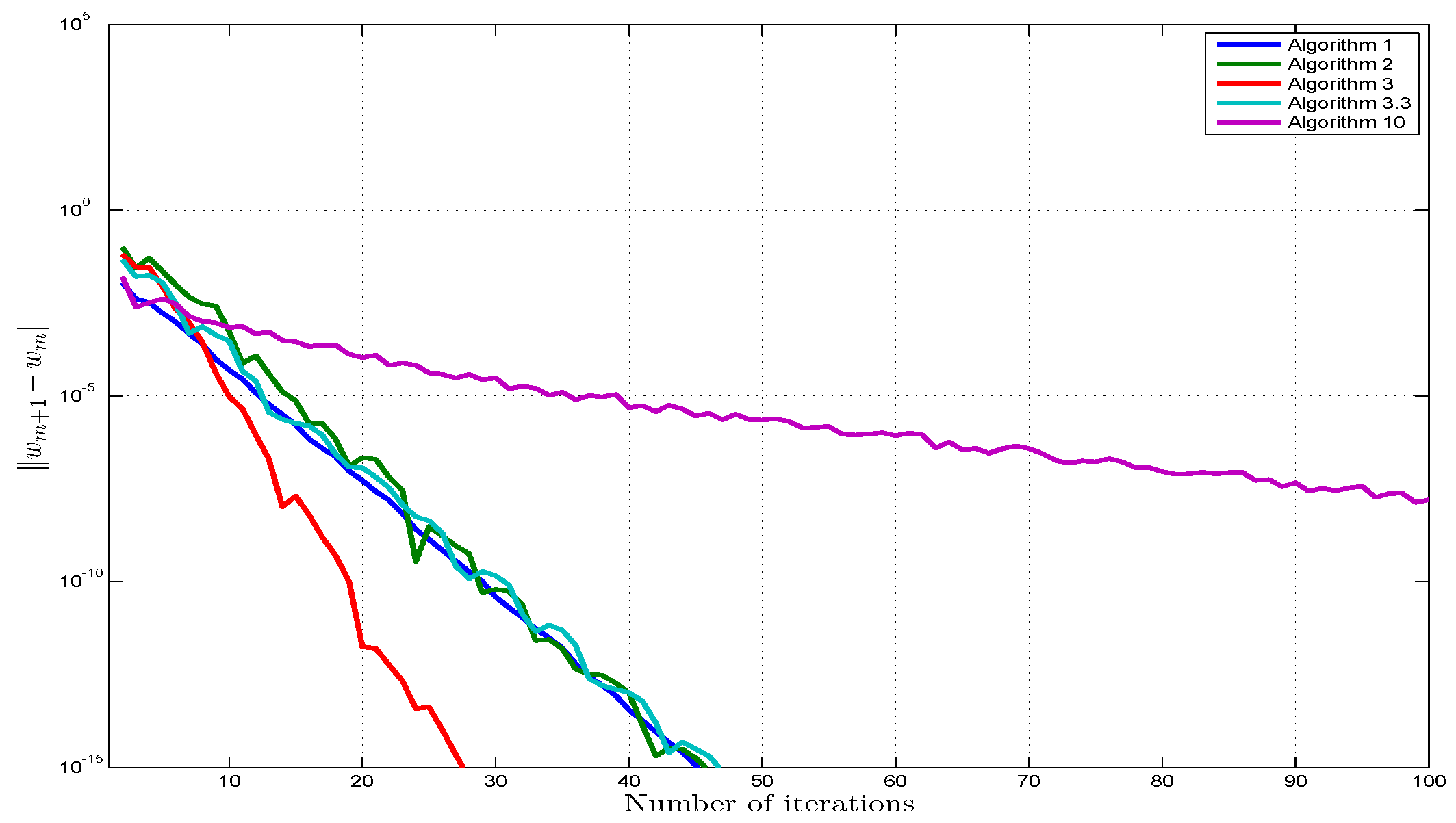

It is evident that our algorithms are effective and can be simply executed. The convergence of $\left\{w_m\right\}$ to $\left\{0\right\}=\mathrm{\Phi }\cap \mathrm{\Omega }$ are shown in Figure 4, Figure 5 and Figure 6 with varying values giving in Cases (a′)–(c′). It is noted that our algorithms approach toward the solution in fewer steps and less time taken by the CPU in comparison to Algorithm 3.3 of [31], while our algorithms are fast in respect of the number of iterations with respect to Algorithm 10 of [32].

6. Conclusions

In this study, we introduce three accelerated modifications of forward–backward iterative algorithms for approximating a common solution of the monotone inclusion problem (MIP) and the fixed-point problem (FPP). The proposed schemes are structured such that Mann-type iterations are incorporated at the initial stage, in conjunction with fixed point iterations and an extrapolation component. These methods are not only easy to implement but also achieve faster convergence in comparison to the existing approaches, as confirmed by numerical experiments. In addition, we demonstrated the applicability of proposed methods to solve variational inequality and convex optimization problems. Future research directions include a detailed investigation of the convergence rates of the proposed algorithms in comparison with other established methods for solving (MIP) and (FPP).
