New (3+1)-Dimensional Kadomtsev–Petviashvili–Sawada– Kotera–Ramani Equation: Multiple-Soliton and Lump Solutions

Abstract

In this investigation, a novel (3+1)-dimensional Lax integrable Kadomtsev–Petviashvili–Sawada–Kotera–Ramani equation is constructed and analyzed analytically. The Painlevé integrability for the mentioned model is examined. The bilinear form is applied for investigating multiple-soliton solutions. Moreover, we employ the positive quadratic function method to create a class of lump solutions using distinct parameters values. The current study serves as a guide to explain many nonlinear phenomena that arise in numerous scientific domains, such as fluid mechanics; physics of plasmas, oceans, and seas; and so on.

1. Introduction

Over the previous few decades, studying higher-dimensional integrable differential equations has gained immense research interest due to its significance in solitary wave theory [1,2]. These equations have exerted considerable effects supporting the developments of scientific areas. Nonlinear integrable models appear in many scientific disciplines, such as mathematical physics, plasma physics, fluid mechanics, nonlinear optics, ocean waves, tsunamis, fluid dynamics, electrical engineering, atmospheric science, matter-wave pulses in Bose–Einstein condensates, and solitary wave (SW) theory [3,4,5,6,7,8,9,10]. A nonlinear system becomes integrable if it belongs to one of the integrable senses, namely the Liouville integrable sense, Painlevé integrable sense, Lax integrable sense, infinite symmetry integrable sense, etc. It is known that the idea of integrability has no one definition; in discussing the integrability of any system, it is necessary to specify the integrability sense of the examined system [11,12,13,14,15,16,17,18,19]. The mathematical or physical properties of higher-dimensional integrable models have attracted a considerable number of research investigations. This is due to the fact that the integrability phenomenon is an essential characteristic that led to several scientific applications [20,21,22,23,24,25,26,27].

This has led to investing a significant amount of research being conducted to explicitly introduce extensions to integrable hierarchies. Thus, this led to the introduction of some extensions of known integrable models. We can study several important results in SW theory thanks to the integrable extensions of the well-known models in higher dimensions [27,28,29]. Due to the existence of the Lax pair or Painlevé property, the integrable models become completely solvable. The combinations of two or more components of an integrable hierarchy have recently attracted some useful works that led to new integrable systems with reliable results.

Lately, various theoretical proposals to form linear structures or combinations of two or more arbitrary integrable members of a specific hierarchy have been introduced [3,4,5,6,7,8,9,10,11,12,13,14]. For example, the Burgers equation was combined with the STO equation to form an integrable linear system that led to kink solutions and molecule solutions [5,6,7]. Other works of combining the standard KdV equation with any of the fifth-order KdV equations were given in [3,4,5,6,7,8,9,10] and some of the references therein. In [3], a linear combination of the standard KdV equation and the fifth–order Sawada–Kotera equation, a member of the KdV hierarchy [3,4,5], was proposed as

$$u_t+a{(3u^2+u_{xx})}_x+b{(15u^3+15u{u}_{xx}+u_{xxxx})}_x=0,$$

(1)

called the KdV–SK–R equation. Hirota and Ito [4] utilized this equation to explain the resonances of solitons in a one-dimensional space. In Equation (1), for $b=0$, the KdV equation is recovered. However, for $a=0$, the fifth-order Sawada–Kotera equation is recovered.

Using the same sense of the KdV–SK–R Equation (1), the authors in Ref. [4] developed a new Lax integrable equation given as

$$u_{xt}+{(3u^2+u_{xx})}_{xx}+{(15u^3+15u{u}_{xx}+u_{xxxx})}_{xx}+\sigma u_{yy}=0,$$

(2)

which will be called Kadomtsev–Petviashvili–Sawada–Kotera–Ramani (KP–SK–R) equation. Also, this equation can be reduced to Equation (1) for $\sigma =0$. Also, in Ref. [4], the Lax pair was constructed to confirm its Lax integrability; by introducing the potential function, an infinite number of conservation laws are introduced. Additionally, this equation was applied to characterize the solitons’ resonances in a two-dimensional space. Motivated by the above scientific applications and many other, the aim of this paper is to present a study on integrability of a (3+1)-dimensional extension of the KP–SK–R Equation (2) that takes the sixth-order form

$$\begin{array}{c}{u}_{xt}+a{(3u^2+u_{xx})}_{xx}+{(15u^3+15u{u}_{xx}+u_{xxxx})}_{xx}+{\alpha }_1{u}_{yy}+{\alpha }_2{u}_{zz}\hfill \\ +{\beta }_1{u}_{xy}+{\beta }_2{u}_{yz}+{\beta }_3{u}_{xz}=0.\hfill \end{array}$$

(3)

The nonlinear integrable equations have been thoroughly investigated aiming to achieve more new results. Researchers were interested to derive many scientific solutions, such as multiple-soliton solutions, breather solutions, kink solutions, lump solutions, rogue wave (RW) solutions, and many others. Numerous helpful discoveries were made that aided in the investigation of certain fresh physical characteristics of various applications. The essential characteristics of lump solutions (LSs), which are sometimes called rational function (RF) solutions, in physics and many other nonlinear disciplines have attracted the attention of several scholars in recent years. Lumps differ from solitons because of their locality with higher amplitude and rapididity [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19]. The lump solution (LS), a form of RF solution, has received a lot of interest in the domains of mathematical physics and science [3,4,5,6,7,8,9,10,11,12,13,14,15,16]. Lumps are a type of RF solution and are localized in all space directions, whereas solitons are exponentially localized in particular directions [3,4,5,6,7,8,9,10,11,12,13,14,15,16]. However, rogue waves (RWs) are localized in both space-time, emerge out of nowhere, and vanish without leaving any trace. Lump waves appear in many nonlinear systems, such as oceanography, shallow water waves, nonlinear optical fibers, and biophysics. Studying the extended integrable equations significantly improves SW theory and sheds more light on the physical significance of the obtained solutions. To find multiple-soliton solutions and LSs, the Hirota bilinear form is an effective technique to achieve this purpose.

The SW solutions for several nonlinear models have been obtained using some effective analytical techniques, including the inverse scattering method, the Hirota method, Darboux transformation technique, and Painlevé expansion method. One of the best methods for creating soliton solutions using the dependent variable transformation and conventional parameter stretching is Hirota’s bilinear method.

In this article, we will first demonstrate that the new constructed (3+1)-dimensional Lax integrable KP–SK–R model (3) fails the complete Painlevé integrability. After that we will derive multiple-soliton solutions that play an important role in revealing qualitative and quantitative features of nonlinear scientific via using the simplified Hirota’s scheme [3,4,5,6,7,8,9,10,11,12]. Additionally, a class of LSs for this novel equation can be established using various values of the utilized parameters.

2. Formulation of a New (3+1)-Dimensional KP–SK–R Equation

Based on the literature works, the following new extended KP–SK–R equation is constructed

$$\begin{array}{c}{u}_{xt}+{(3u^2+u_{xx})}_{xx}+{(15u^3+15u{u}_{xx}+u_{xxxx})}_{xx}+{\alpha }_1{u}_{yy}+{\alpha }_2{u}_{zz}\hfill \\ +{\beta }_1{u}_{xy}+{\beta }_2{u}_{yz}+{\beta }_3{u}_{xz}=0,\hfill \end{array}$$

(4)

where ${\alpha }_i,i=1,2$, and ${\beta }_j;j=1,2,3$ are non-zero arbitrary parameters; and $u\equiv u(x,y,z,t)$. Moreover, the extended KP–SK–R Equation (4) includes four additional terms, namely ${\alpha }_2{u}_{zz}$, ${\beta }_1{u}_{xy}$, ${\beta }_2{u}_{yz}$, and ${\beta }_3{u}_{xz}$ when compared with Equation (2). Following [4], the newly extended Equation (4) is Lax integrable.

3. Painlevé Analysis to a Related Equation

Numerous important characteristics, including the Hamiltonian structure, the Lax pair, an infinite number of conservation laws, and an infinite number of symmetries, can describe the integrability of different nonlinear evolution equations. In this investigation, we aim to study the Painlevé integrability of Equation (4). To do this, we adhere to the Painlevé analysis described in Refs. [3,4,5,6,7,8,9,10] and some references therein.

Painlevé Analysis

Painlevé integrability of nonlinear PDEs can be examined using Painlevé analysis. It is important to know that the meaning of Painlevé integrability of nonlinear PDEs is that the solution is single-valued in the vicinity of a movable singularity manifold. Weiss, Tabor, and Carnevale (WTC) [7] developed an algorithm ( WTC method) to study the compatibility criteria for Painlevé integrability.

It is assumed that the solution to Equation (4) is a Laurent expansion about a singular manifold $\psi \equiv \psi (x,y,z,t)$ as

$$u=\sum _{k=0}^{\infty }{u}_k{\psi }^{k-\gamma }.$$

(5)

For applying the Painlevé test, you must first (i) compute the leading order and coefficients, (ii) identify the resonant points, and then (iii) check the compatibility conditions. We shall investigate each idea in the sections that follow [6,7,8,9,10,11,12,13,14,15,16,17,18,19].

(i)

Leading order behavior and coefficients:

To obtain the leading order behavior and coefficients, the following ansatz is considered

$$u=u_0{\varphi }^{\alpha },$$

(6)

in Equation (4) to obtain the following two distinct cases:

$$\left(i\right)\alpha =-2,u_0=-2{\varphi }_x,\left(ii\right)\alpha =-2,u_0=-4{\varphi }_x.$$

(7)

(ii)

Resonant points:

Our goal is to identify the resonant points, or the values of j at which arbitrary functions can be introduced into the Laurent series

$$u=\sum _{j=0}^{\infty }{u}_j{\varphi }^{j+k},$$

(8)

and it is single-valued, close to the singularity manifold $\varphi$. To accomplish this goal, we use

$$u=u_0{\varphi }^{-1}+u_j{\varphi }^{j-1},$$

(9)

in Equation (4), following the WTC analysis [5], and balancing the most dominant terms, we finally obtain:

(i)

The principal branch: $k=-1,2,3,6,7,10$;

(ii)

The secondary branch: $k=-2,-1,5,6,7,12$.

where each branch includes six resonance points due to the sixth-order of the linear structure of Equation (4).

(iii)

Verifying compatibility conditions

We refer to the works in Refs. [3,4,5,6,7,8,9,10,11,12,13,14,15,16] to confirm the compatibility conditions. The resonance at $k=-1$ relates to the arbitrariness of singular manifold $\psi =0$ for the principal branch (i). Moreover, the Painlevé compatibility, while working for levels $2,3,6,$ and 7, fails at level 10.

For the secondary branch, the Painlevé compatibility, while working for levels 6 and 7, fails for levels 5 and 12. Based on this, we conclude that the KP–SK–R (4) does not pass the Painlevé test, and presumably, it is not Painlevé integrable.

As stated earlier, the newly extended Equation (4) is Lax integrable as confirmed in Ref. [4]. Using the results in [3,4,5,6,7], we will pursue our work to determine multiple-soliton solutions and a variety of LSs.

4. Multiple-Soliton Solutions

Here, we plan to obtain the dispersion relation (DR) and multiple-soliton solutions for the KP–SK–R Equation (4) and hence obtain the phase shifts (Phs) of the soliton interaction. To achieve that, we insert the following solution into the linear parts of Equation (4)

$$u_i=e^{{\theta }_i},$$

(10)

in order to obtain the following DR:

$$c_i=\frac{k_i^6+k_i^4+{\alpha }_1{r}_i^2+{\alpha }_2{s}_i^2+{\beta }_1{k}_i{r}_i+{\beta }_2{r}_i{s}_i+{\beta }_3{k}_i{s}_i}{k_i},$$

(11)

with phase variables ${\theta }_i=R_i-c_{i}t$ where $R_i=k_{i}x+r_{i}y+s_{i}z$, where $i=1,2,\dots ,N$. Accordingly, we obtain

$${\theta }_i=k_{i}x+r_{i}y+s_{i}z-\frac{k_i^6+k_i^4+{\alpha }_1{r}_i^2+{\alpha }_2{s}_i^2+{\beta }_1{k}_i{r}_i+{\beta }_2{r}_i{s}_i+{\beta }_3{k}_i{s}_i}{k_i}t,$$

(12)

where $i=1,2,\dots ,N$. Using the following transformation:

$$u_i=2{(ln{f}_i)}_{xx},$$

(13)

in Equation (4) to obtain multiple-soliton solutions. Here, $f_i\equiv f_i(x,y,z,t)$ gives the auxiliary function, where $i=1,2,3,\dots$ corresponding to, one-, two, three-solitons and so on.

Now, to obtain the one-soliton solution, the following value is considered

$$f_1=1+e^{{\theta }_1},$$

(14)

where ${\theta }_1$ can be obtained from Equation (12) for $i=1$. Accordingly, the following one-soliton solution is obtained

$$u_1=\frac{2k{{}_1}^2{e}^{k_{1}x+r_{1}y+s_{1}z-\frac{k_1^6+k_1^4+{\alpha }_1{r}_1^2+{\alpha }_2{s}_1^2+{\beta }_1{k}_1{r}_1+{\beta }_2{r}_1{s}_1+{\beta }_3{k}_1{s}_1}{k_1}t}}{{(1+e^{{\theta }_1})}^2}.$$

(15)

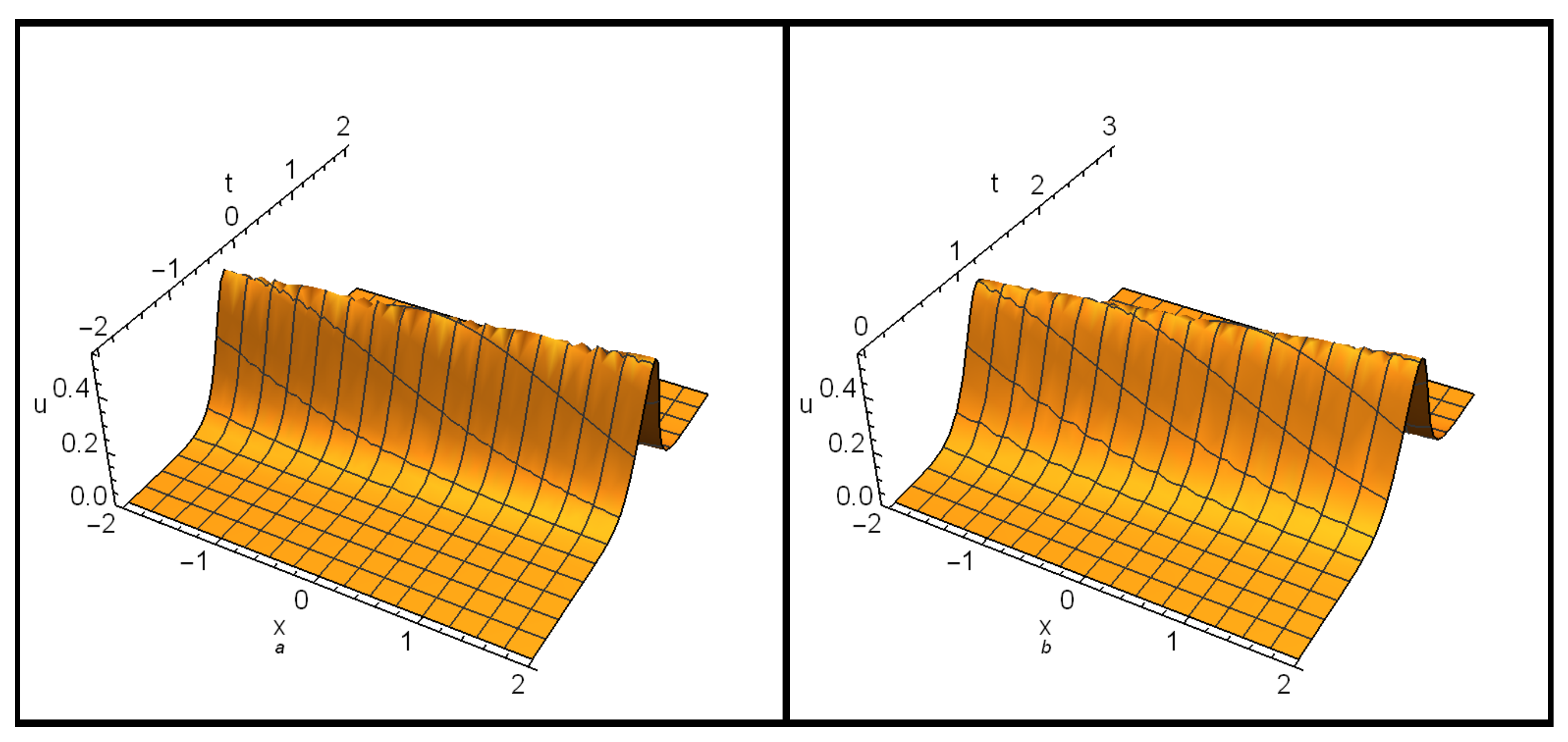

The profile of one-soliton solution (15) is illustrated in Figure 1 for $(k_1,r_1,s_1)=(1,1,1)$ and $({\alpha }_1,{\alpha }_2,{\beta }_1,{\beta }_3,{\beta }_3)=(2,2,0.1,0.1,0.1)$. Here, Figure 1a for $(y,z)=(0,0)$ and Figure 1b for $(y,z)=(5,5)$.

Figure 1. One-soliton solution (15) is plotted in $(x,t)$-plane for (a) $(y,z)=(0,0)$ and (b) $(y,z)=(5,5)$.

To obtain two-soliton solutions, the following function $f_2$ is introduced

$$\begin{array}{ccc}\hfill f_2& =& f_1+e^{{\theta }_2}+a_{12}{e}^{{\theta }_1+{\theta }_2},\hfill \end{array}$$

(16)

where $a_{12}$ denotes the Phs. To estimate the value of $a_{12}$, we insert Equation (16) into Equation (4) to obtain

$$\begin{array}{cc}\hfill & a_{12}=\hfill \\ \hfill & \frac{-k_1^2{k}_2^2{(k_1-k_2)}^2(5k_1^2-5k_1{k}_2+5k_2^2+3)+{\alpha }_1{(k_1{r}_2-k_2{r}_1)}^2+{\alpha }_2{(k_1{s}_2-k_2{s}_1)}^2+{\beta }_2(k_1{s}_2-k_2{s}_1)(k_1{r}_2-k_2{r}_1)}{-k_1^2{k}_2^2{(k_1+k_2)}^2(5k_1^2+5k_1{k}_2+5k_2^2+3)+{\alpha }_1{(k_1{r}_2-k_2{r}_1)}^2+{\alpha }_2{(k_1{s}_2-k_2{s}_1)}^2+{\beta }_2(k_{1}s2-k_2{s}_1)(k_1{r}_2-k_2{r}_1)},\hfill \end{array}$$

(17)

which can be generalized as

$$\begin{array}{cc}\hfill & a_{ij}=\hfill \\ \hfill & \frac{-k_i^2{k}_j^2{(k_i-k_j)}^2(5k_i^2-5k_i{k}_j+5k_j^2+3)+{\alpha }_1{(k_i{r}_j-k_j{r}_i)}^2+{\alpha }_2{(k_i{s}_j-k_j{s}_i)}^2+{\beta }_2(k_i{s}_j-k_j{s}_1)(k_i{r}_j-k_j{r}_i)}{-k_i^2{k}_j^2{(k_i+k_j)}^2(5k_i^2+5k_i{k}_j+5k_j^2+3)+{\alpha }_1{(k_i{r}_j-k_j{r}_i)}^2+{\alpha }_2{(k_i{s}_j-k_j{s}_i)}^2+{\beta }_2(k_i{s}_j-k_j{s}_i)(k_i{r}_j-k_j{r}_i)},\hfill \end{array}$$

(18)

where $1\le i<j\le 3.$

It is clear that the Phs (18) depends on the parameters ${\alpha }_1,{\alpha }_2$, ${\beta }_2$, $k_n,r_n,$ and $s_n,n=1,2,3$ but does not depend on ${\beta }_1$ and ${\beta }_3$. By inserting Equations (17) and (16) into Equation (13), we obtain the two-soliton solutions.

The profile of the two-soliton solution according to Equations (13) and (16) is illustrated in Figure 2 for $(k_1,r_1,s_1)=(1,1,1)$, $(k_2,r_2,s_2)=(0.4,0.4,0.4)$, and $({\alpha }_1,{\alpha }_2,{\beta }_1,{\beta }_3,{\beta }_3)=(2,2,0.1,0.1,0.1)$. Here, Figure 2a for $(y,z)=(0,0)$ and Figure 2b for $(y,z)=(5,5)$.

Figure 2. Two-soliton solution according to Equations (13) and (16) is plotted in $(x,t)$-plane for (a) $(y,z)=(0,0)$ and (b) $(y,z)=(5,5)$.

To obtain the three-soliton solutions, the following value to $f_3$

$$f_3=f_2+e^{{\theta }_3}+a_{13}{e}^{{\theta }_1+{\theta }_3}+a_{23}{e}^{{\theta }_2+{\theta }_3}+a_{12}{a}_{23}{a}_{13}{e}^{{\theta }_1+{\theta }_2+{\theta }_3}.$$

(19)

By inserting Equation (19) into Equation (13), we obtain the three-soliton solutions. Remember that we can obtain N-soliton solutions for finite N, where $N\ge 1$.

5. Lump Solutions (LSs)

When surface tension dominates the shallow water surface, as in plasma and optical media, LSs are typically created. The generalized positive quadratic function can be used as the foundation for a symbolic computation method to analyze LSs. Here, for deriving a class of LSs for arbitrary values of the parameters, we firstly transform Equation (4) to the bilinear equation in operators form

$$\left(D_x{D}_t+D_x^6+D_x^4+{\alpha }_1{D}_y^2+{\alpha }_2{D}_z^2+|{\beta }_1{D}_x{D}_y+{\beta }_2{D}_y{D}_z+{\beta }_3{D}_x{D}_z\right)f·f=0.$$

(20)

Here, $D_t,D_x,D_y,$ and $D_z$ represent the Hirota’s bilinear derivative operators. To simplify computational tasks, we consider ${\alpha }_1=\alpha =-1,{\beta }_1={\beta }_2={\beta }_3=1$. Accordingly, Equation (20) transforms to

$$\begin{array}{cc}\hfill & (f{f}_{xt}-f_x{f}_t)+(f{f}_{xxxxxx}-6f_x{f}_{xxxxx}+15f_{xxxx}{f}_{xx}-10{\left(f_{xxx}\right)}^2)\hfill \\ \hfill & +(f{f}_{xxxx}-4f_{xxx}{f}_x+3{\left(f_{xx}\right)}^2)-(f{f}_{yy}-{\left(f_y\right)}^2)\hfill \\ \hfill & +(f{f}_{yy}-f_y{f}_y)+(f{f}_{zz}-f_z{f}_z)+(f{f}_{xy}-f_x{f}_y)+(f{f}_{yz}-f_y{f}_z)+(f{f}_{xz}-f_x{f}_z)=0,\hfill \end{array}$$

(21)

obtained upon using

$$u=2{(lnf)}_{xx}.$$

(22)

The following presumptions are made in order to obtain the quadratic soliton solutions for Equation (4)

$$\begin{array}{ccc}\hfill G& =& Ax+By+Cz+Dt+E,\hfill \\ \hfill f& =& g^2+h^2+a_{11}.\hfill \end{array}$$

(23)

where $G={[g,h]}^T$ and the coefficients $A={[a_1,a_6]}^T$, $B={[a_2,a_7]}^T$, $C={[a_3,a_8]}^T$, $D={[a_4,a_9]}^T$, $E={[a_5,a_{1}0]}^T$, and $"T"$ represents the matrix transpose. Here, $a_j,1\le j\le 11$ are undermined real parameters. Plugging Equation (23) into Equation (21), we obtain a polynomial in ($x,y,z,t$) variables. To obtain the values of $a_j$, we construct a system with the coefficients of $x,y,z,t,xt,yt,zt,xz,xy,yz,x^2,y^2,z^2,t^2,$ and the constant terms. The following particular sets of restricting equations on the different parameters are generated by solving the resulting system using Maple; other sets may also be derived.

Case 1.

Using a new set of parameters, we may determine another LS and find

$$\begin{array}{cc}\hfill & a_i=a_i\&i=1,2,3,5,6,8,\hfill \\ \hfill & a_4=-\frac{a_1(a_1^2+a_6^2)(a_2+a_3)-a_2(a_1^2+a_6^2)(a_2-a_3)-a_1^2(a_3^2-a_8^2)-2a_1{a}_3{a}_6{a}_8}{a_1(a_1^2+a_6^2)},a_1\ne 0,\hfill \\ \hfill & a_7=\frac{a_2{a}_6}{a_1},a_1\ne 0,\hfill \\ \hfill & a_9=-\frac{a_1^3*a_2(a_6+a_8)-a_1^2{a}_6\left(a_2^2\right]-a_3^2)+a_1^2*a_6{a}_8(a_6-a_8)+a_6^3{a}_2(a_1-a_2)+a_1^3{a}_8(a_1-2a_3)+a_1{a}_2{a}_6^2{a}_8}{a_1^2(a_1^2+a_6^2)},a_1\ne 0,\hfill \\ \hfill & a_{10}=\frac{a_5{a}_6}{a_1},\hfill \\ \hfill & a_7=\frac{-a_1^2+a_6{a}_8+\sqrt{a_1^4-6a_1^2{a}_6{a}_8-4a_1^2{a}_6{a}_9-3a_6^2{a}_8^2}}{2a_6},\hfill \\ \hfill & a_{11}=\frac{3{(a_1^2+a_6^2)}^3}{{(a_1{a}_8-a_3{a}_6)}^2},\hfill \end{array}$$

(24)

where $a_{11}>0$, which must fulfill the following determinant condition

$$\Delta =\left|\begin{array}{cc}{a}_1& a_3\\ a_6& a_8\end{array}\right|\ne 0,$$

(25)

to ensure a well-defined function f, its positivity, and the localization of u in all space directions, respectively. By substituting Equation (24) into Equation (23), the resulting parameters (24) will generate a class of positive quadratic function (PQF) solutions. According to these values and by using $u=2{\left(lnf\right)}_{x}x$, then Equation (4) will yield a first class of LSs as shown below.

For example, by selecting

$$a_i=i\&i=1,2,3,5,6,8,$$

(26)

and using (24), we obtain

$$a_4=-\frac{1}{2},a_7=2,a_9=-\frac{1}{2},a_{10}=1,a_{11}=24,$$

(27)

which will give the LS

$$u=\frac{S_1}{S_2},$$

(28)

with

$$\begin{array}{cc}\hfill & S_1=-16t^2+(64x+128y+96z+64)t-64x^2+(-256y-192z-128)x\hfill \\ \hfill & -256y^2+(-384z-256)y-128z^2-192z+704,\hfill \\ \hfill & S_2=(t^2+(-4x-8y-6z-4)t+4x^2+(16y+12z+8)x\hfill \\ \hfill & +16y^2+(24z+16)y+10z^2{+12z+52)}^2.\hfill \end{array}$$

Keep in mind that the derived LSs $u\to 0$ if and only if $g^2+h^2\to \infty$.

Case 2.

In this case, we use

$$\begin{array}{cc}\hfill & a_i=a_i\&i=1,3,6,7,8,10,\hfill \\ \hfill & a_2=\frac{a_1{a}_7}{a_6},a_6\ne 0,\hfill \\ \hfill & a_4=-\frac{a_1^2(a_6+a_7)(a_1{a}_7+a_3{a}_6)+a_1{a}_6^2{a}_7(a_6+a_7)+a_6^2{a}_8(a_1{a}_8-2a_3{a}_6)+a_3{a}_6^3(a_6+a_7)-a_1{a}_3^2{a}_6^2}{a_6^2(a_1^2+a_6^2)},\hfill \\ \hfill & a_5=\frac{a_1{a}_{10}}{a_6},\hfill \\ \hfill & a_9=-\frac{a_1^2(a_7+a_8)(a_6+a_7)+a_6^2(a_3^2+a_7^2)+a_6^3(a_7+a_8)+a_6^2{a}_8(a_7-a_8)+2a_1{a}_3{a}_6{a}_8}{a_6^2(a_1^2+a_6^2)},\hfill \\ \hfill & a_{11}=\frac{3{(a_1^2+a_6^2)}^3}{{(a_1{a}_8-a_3{a}_6)}^2},a_{11}>0,\hfill \end{array}$$

(29)

which must fulfill the following condition

$$\Delta =\left|\begin{array}{cc}{a}_1& a_2\\ a_6& a_7\end{array}\right|\ne 0,$$

(30)

to ensure a well-defined function f, its positivity, and the localization of u in all space directions, respectively. By substituting Equation (29) into Equation (23), the resulting parameters (29) will generate a class of PQF solutions. According to these values and by using $u=2{\left(lnf\right)}_{x}x$, then Equation (4) will yield a first class of LSs as shown below.

$$u=\frac{4(a_1^2+a_6^2)f-8{(a_{1}g+a_{6}h)}^2}{f^2},$$

(31)

where $f,g,$ and h are defined in Equation (23). Keep in mind that the derived LSs $u\to 0$ if and only if $g^2+h^2\to \infty$.

Case 3.

We use a fresh set of parameters to find another LS, which we have as

$$\begin{array}{cc}\hfill & a_i=a_i\&i=1,6,8,9,10,\hfill \\ \hfill & a_2=-\frac{-a_1^2+a_6{a}_8+\sqrt{a_1^4-6a_1^2{a}_6{a}_8-4a_1^2{a}_6{a}_9-3a_6^2{a}_8^2}}{2a_1},a_1\ne 0,\hfill \\ \hfill & a_3=-\frac{a_6{a}_8}{a_1},\hfill \\ \hfill & a_4=-\frac{(a_1^2+a_6^2)\sqrt{a_1^4-6(a_8+\frac{2}{3}{a}_9)a_6{a}_1^2-3a_6^2{a}_8^2}-a_1^4-a_6(a_6-3a_8-2a_9)a_1^2+3a_6^3{a}_8}{2a_1{a}_6^2},a_6\ne 0,\hfill \\ \hfill & a_5=\frac{a_1{a}_{10}}{a_6},\hfill \\ \hfill & a_7=\frac{-a_1^2+a_6{a}_8+\sqrt{a_1^4-6a_1^2{a}_6{a}_8-4a_1^2{a}_6{a}_9-3a_6^2{a}_8^2}}{2a_6},\hfill \\ \hfill & a_{11}=\frac{6a_6^2(a_1^2+a_6^2)}{-a_1^2+3a_6{a}_8+a_6{a}_9+\sqrt{a_1^4-6a_1^2{a}_6{a}_8-4a_1^2{a}_6{a}_9-3a_6^2{a}_8^2}},\hfill \end{array}$$

(32)

where $a_{11}>0$ upon proper selections of the parameters, which needs to satisfy the determinant condition. Following the same methodology that was used in the upper part, and by using $u=2{\left(lnf\right)}_{x}x$, then Equation (4) will yield a first class of LSs as shown below

For example, by selecting

$$a_1=1,a_6=-1,a_8=2,a_9=6,a_{10}=2,$$

(33)

and using (32), we obtain

$$a_2=-2,a_2=2,a_4=-8,a_5=-2,a_7=-1,a_{11}=\frac{6}{7},$$

(34)

which will give the LS

$$u=\frac{W_1}{W_2},$$

(35)

with

$$\begin{array}{cc}\hfill & W_1=-9408t^2+(2744x+392y-784z-5488)t\hfill \\ \hfill & -196x^2+196y^2-784yz+784z^2+784x-700,\hfill \\ \hfill & W_2=(350t^2-98tx+14ty-28tz+7x^2+7y^2\hfill \\ \hfill & -28yz+28z^2{+196t-28x+31)}^2.\hfill \end{array}$$

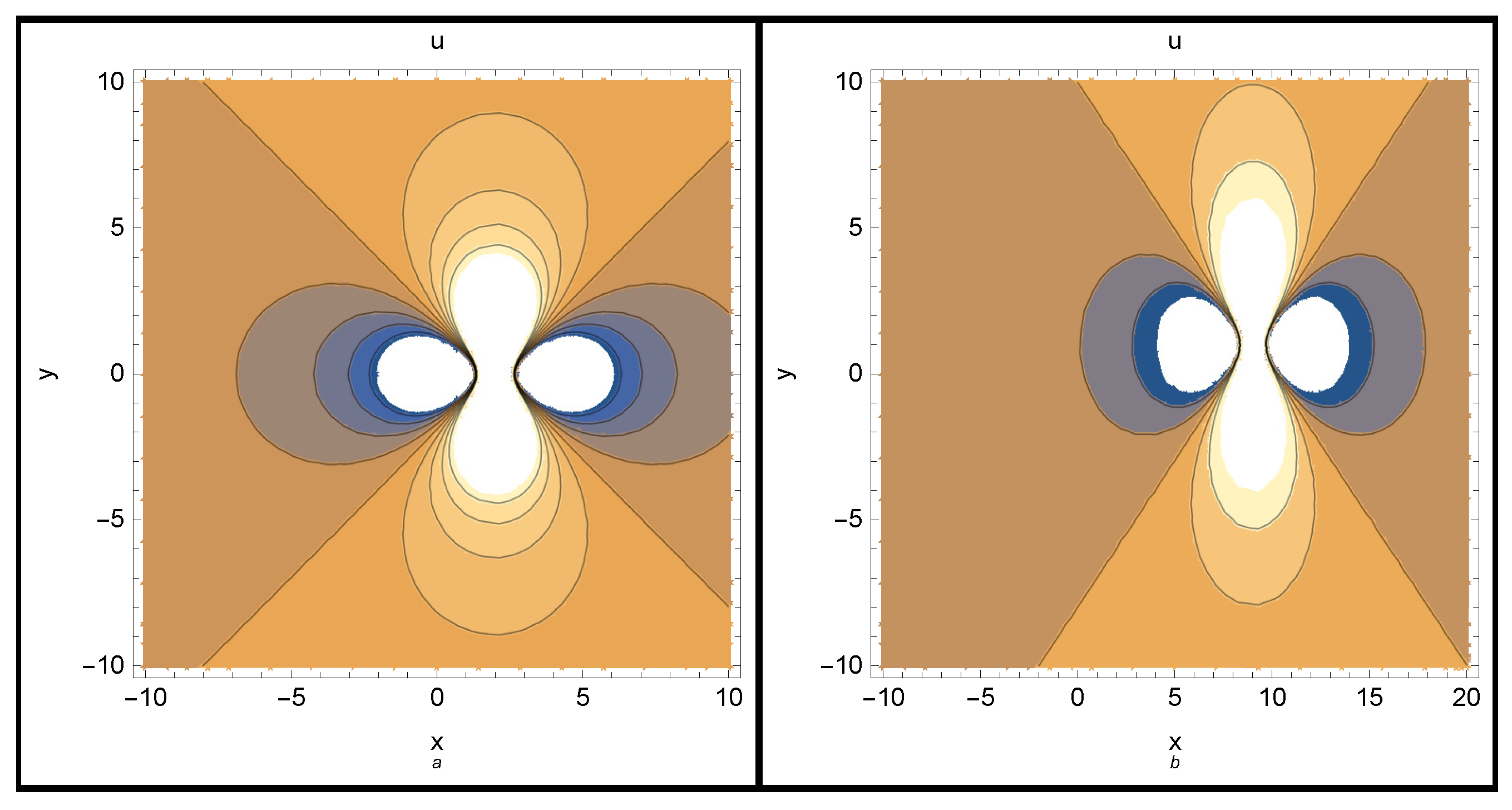

The profile of lump solution (35) is illustrated in Figure 3a and Figure 3b for $(t,z)=(0,0)$ and $(t,z)=(1,1)$, respectively.

Figure 3. Lump solution (35) is plotted in $(x,y)$-plane for (a) $(t,z)=(0,0)$ and (b) $(t,z)=(1,1)$.

6. Conclusions

This work aims to explore novel multiple-soliton solutions as well as lump solutions by first developing a new (3+1)-dimensional KP-SK-R equation to portray more dispersion effects in nonlinear science. The newly developed model is obtained by adding four more linear terms to the model proposed in [2]. The Painlevé analysis technique was utilized to prove that this new model fails the Painlevé integrability, but it is Lax integrable, as confirmed in Ref. [2]. In order to display various soliton solutions for the evaluation of phase shifts and dispersion relations, the Hirota approach was used. Using Hirota’s bilinear operator with the help of Maple software, we obtained a class of lump solutions for the bilinear form of the proposed model. Other cases of lump solutions can be provided in a similar fashion. This confirms the criteria that integrability falls in distinct senses such as Liouville integrable sense, Painlevé integrable sense, Lax integrable sense, and infinite symmetry integrable sense. In recent years, fractional calculus has played an important role in a deep understanding of many natural phenomena [30,31,32,33]. Therefore, many methods in the literature used in analyzing fractional differential equations can be applied to analyze the current model in its fractional form.
