Evaluating UAM–Wildlife Collision Prevention Efficacy with Fast-Time Simulations

Abstract

Urban Air Mobility (UAM) promises to reduce ground traffic and journey times by using electric vertical take-off and landing (eVTOL) aircraft for short, low-altitude flights, especially in urban environments. However, low-flying aircraft are at particularly high risk of collisions with wildlife, such as birds. This study builds on previous research into UAM collision avoidance systems (UAM-CAS) by implementing one such system in the BlueSky open-source air traffic simulator and evaluating its efficacy in reducing bird strikes. Several modifications were made to the original UAM-CAS framework to improve performance. Realistic UAM flight plans were developed and combined with real-world bird movement datasets representing typical birds in sustained flight from all seasons, recorded by an avian radar at Leeuwarden Air Base. Fast-time simulations were conducted in the BlueSky Open Air Traffic Simulator using the UAM flight plan, the bird datasets, and the UAM-CAS algorithm. Results demonstrated that, under modelling assumptions, the UAM-CAS reduced bird strikes by 62%, with an average delay per flight of 15 s, whereas 27% of the remaining strikes occurred with birds outside the system’s design scope. A small number of flights faced substantially longer delays, indicating some operational impacts. Based on the findings, specific avenues for future research to improve UAM-CAS performance are suggested.

1. Introduction

Urban Air Mobility (UAM) is emerging as a promising new method of transportation, whereby electric vertical take-off and landing (eVTOL) aircraft provide services such as air taxis and medical transportation in urban areas. Several companies have secured USD 100 million of funding [1,2,3], and are making progress towards regulatory-type certification for their UAM aircraft [4,5]. While offering potential benefits, such as reduced ground congestion and faster transit times [6], there is reason for concern regarding the risk of wildlife strikes with UAM aircraft [7,8].

Operating altitudes of UAM aircraft are expected to be no more than 4000 ft above ground level (AGL) [9]. Wildlife strikes, and more specifically, bird strikes in commercial aviation, are more likely at lower altitudes (more than 95% of aircraft collisions with animals involve birds). Figure 1 shows that, from 1990 to 2023 in the United States, 91% of bird strikes in commercial aviation occurred at or below 3500 ft altitude AGL [10]. Furthermore, birds are more likely to initiate escape responses to louder and larger incoming aircraft [11]. UAM aircraft are quieter and smaller than conventional aircraft, so birds are less likely to initiate adequate escape responses, further increasing strike probability.

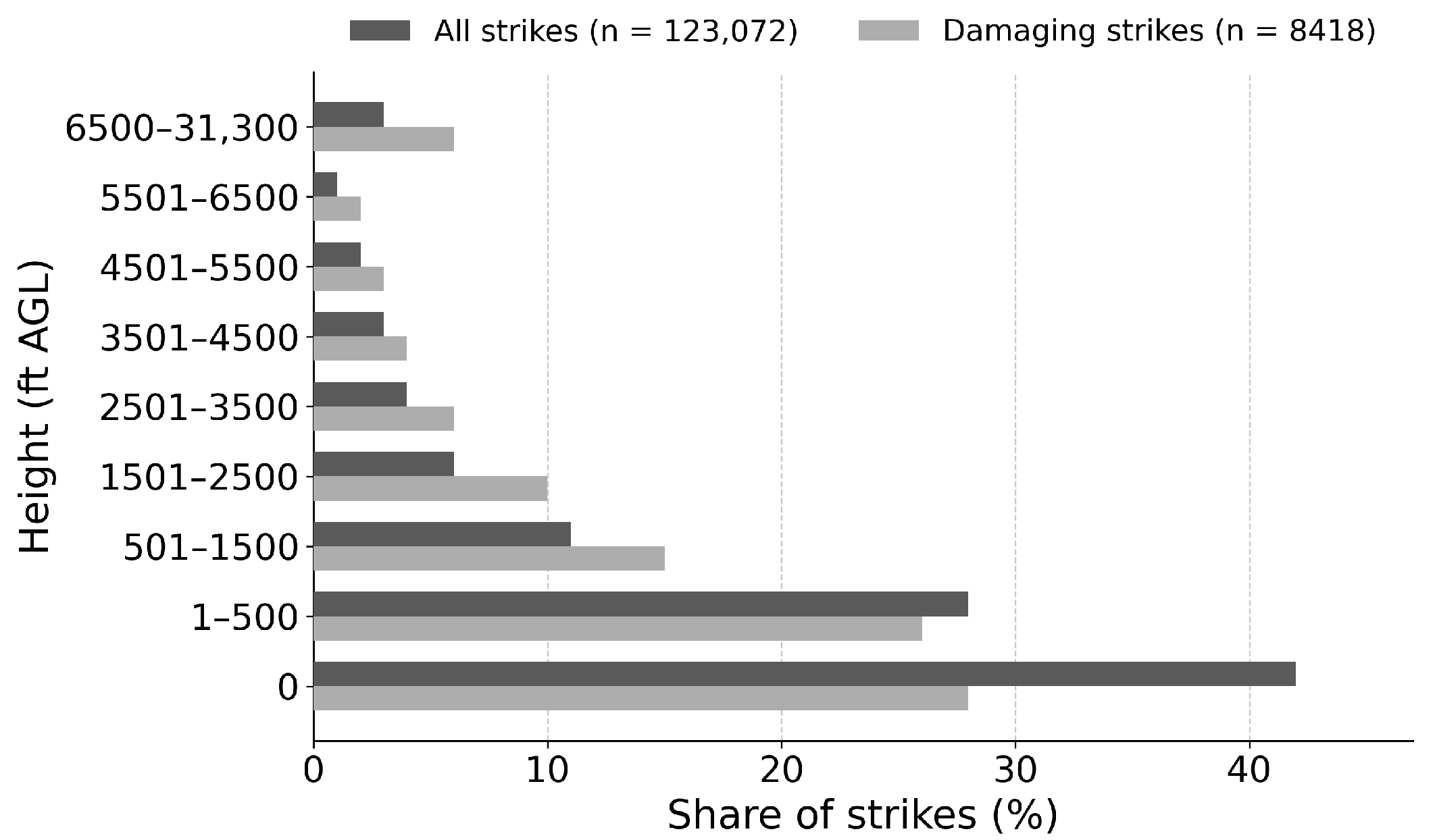

Figure 1. Bird strikes and damaging bird strikes to commercial transport aircraft, reported to the Federal Aviation Administration (FAA) between 1990 and 2023. Data sourced from Dolbeer et al. [10].

In addition, the regulatory requirements for bird impact resistance of UAM aircraft, stipulated by the European Aviation Safety Agency (EASA) [12], are lower than those of fixed-wing aircraft, and many bird species exceed these proposed requirements [8]. Therefore, the outcome of a strike is more likely to cause damage, if not a critical failure. In the context of UAM operations, there is an increased risk to people and infrastructure on the ground should a critical bird strike occur [13]. These two factors suggest an even further increased risk of bird strikes, compared to current commercial transport aircraft, caused by an increase in both the likelihood and severity of bird strikes. Hence, for UAM to become operationally viable and safe, the bird-strike risk must be reduced.

Wildlife Hazard Management (WHM), as required by the Civil Aviation Authorities (CAAs) [14], is targeted at reducing wildlife hazards at aerodromes. While this has been demonstrated to successfully reduce strikes within aerodrome boundaries, the number of strikes is still increasing beyond the aerodrome fence due to missing off-aerodrome measures [15]. This is especially critical in the context of UAM operations. UAM will involve numerous, dispersed vertiports with flight paths traversing urban areas between them. Relying solely on mitigative bird control measures for such widespread operations would be an unreasonable burden. Therefore, a sufficient reduction in UAM bird-strike risk will likely necessitate a combination of strategies, including mitigative bird-control measures around vertiports, and also real-time detection and avoidance systems between UAM aircraft and birds, such as those outlined in [7,8]. This study focuses on the latter method of reducing bird-strike risk for UAM aircraft.

Previous research [16] proposed a concept for a UAM Collision Avoidance System (UAM-CAS), which extends concepts for conventional conflict detection and resolution with non-cooperative airspace users [17] by considering birds as potential Non-Cooperative Airspace Members (NCOAMs). It features a hierarchical, rules-based approach with concentric envelopes around the UAM aircraft, which are dynamically calculated depending on the relative speed between the UAM aircraft and a bird. The presence of birds in these envelopes results in delayed take-offs in a strategic pre-flight phase, automated avoidance actions in a tactical phase during flight, and requests for the pilot to take over as an emergency response, should the automation fail to resolve the conflict. In [16], the open air traffic simulator BlueSky [18] was used to simulate a UAM flight plan with intruders manually placed at set positions along the route. Their results demonstrated substantially increased separation between the UAM aircraft and NCOAMs, with bearable airborne time delays typically under 10% of total flight time.

Our study builds upon [16] by enhancing the existing BlueSky UAM-CAS implementation to work with any flight plan in any geographic location. The aim is to study the collision–prevention efficacy of the UAM-CAS concept for a realistic UAM air taxi flight plan in combination with real-world bird data collected by avian radar.

Section 2 describes the methods used in this study, including the simulation environment, bird dataset, flight plan, and UAM-CAS implementation. Section 3 presents and discusses results, covering validation against historical strike trends, effects of UAM-CAS on envelope incursion rates, and delays. Section 4 concludes with key findings, limitations, and directions for future work.

2. Methods

2.1. Simulation Environment: BlueSky

BlueSky is an Open data Air Traffic Simulator tool [18], which served as the simulation platform for this study. BlueSky is open-source, Python-based, and designed for modularity, allowing for the development and integration of custom modules. It has previously been enhanced with modules to represent bird movement and to detect collisions between aircraft and birds [19]. Its existing capabilities for simulating air traffic, and its previous use in bird-strike research [16,19,20] made it a compelling choice. The existing implementation of UAM-CAS, which consisted of a hardcoded flight plan and manually positioned intruders, was rewritten. A key high-level addition to its functionality is the ability to work with large bird dataset input files, which can contain bird movement data at any geographic location. Further changes to UAM-CAS in this study are discussed in Section 2.3.

2.2. Bird Dataset and Flight Plan

For this study, a large real-world bird movement dataset was available. This consists of data sourced from a Robin MAX avian radar at Leeuwarden Air Base, the Netherlands [21]. The radar provides three-dimensional tracks for identified targets, which were filtered for the classifications of small, medium, and large birds, as well as flocks, each with at least 20 recorded positions, as described in [20]. The data was then transferred into the format of a so-called Bird Movement Plan (BMP), which is a CSV file that serves as input to the fast-time simulation in BlueSky. Each line of a BMP represents data on one recorded bird or flock. The data consists of time, bird ID, latitude, longitude, altitude, weight category, flock or individual bird, number of birds, heading, speed, as well as a second bird ID. A difference in the two IDs indicates the end of the track. Therefore, detections belonging to the same bird/flock can be reconstructed into a track from the data.

It was found that some bird detections show high-speed and/or uncharacteristic bird behaviour. Data points exhibiting vertical speed exceeding 5 m s⁻¹ or horizontal speed exceeding 20 m s⁻¹ were excluded from envelope calculations due to the complexity of avoidance for such birds. Such birds will be performing high-speed dives or other erratic behaviour, and such speeds are not typical in sustained flight for birds in the European region [22]. These limits mean that 0.31% of bird IDs had their entire track excluded from envelope calculations. In total, 97.88% of bird IDs contained at least one data point that exceeded these limits; it is these individual data points in the track (not the entire bird track) that were excluded from the envelope calculations. A total of 1.81% of bird IDs remained under the speed limits for all data points, meaning that none of their data points were excluded from the envelope calculations. The percentage of raw data points excluded across all input BMPs was 44.62%. Therefore, the vast majority of birds are included in the simulation, with individual data points within their tracks excluded from envelope calculations. This serves to smooth out bird tracks and to focus on bird behaviour that is more likely to represent the net movement of the bird over its track, which is more useful for the calculation of safety envelopes with simple avoidance manoeuvres. Avoiding consideration of these excluded data points in envelope calculations can be considered in future work, and is discussed further in Section 4.2.

To represent bird movement across all seasons, one dataset of one week per month of the year 2023 was selected. For each month, weeks with the lowest average rainfall, as reported by the Royal Netherlands Meteorological Institute (KNMI) [23], were selected to maximise the radar’s detection capabilities. Due to increased rainfall in July, two weeks of June were selected instead to obtain a complete dataset of 12 weeks, or 84 days. Figure 2 shows the spatial distribution of one of these BMPs.

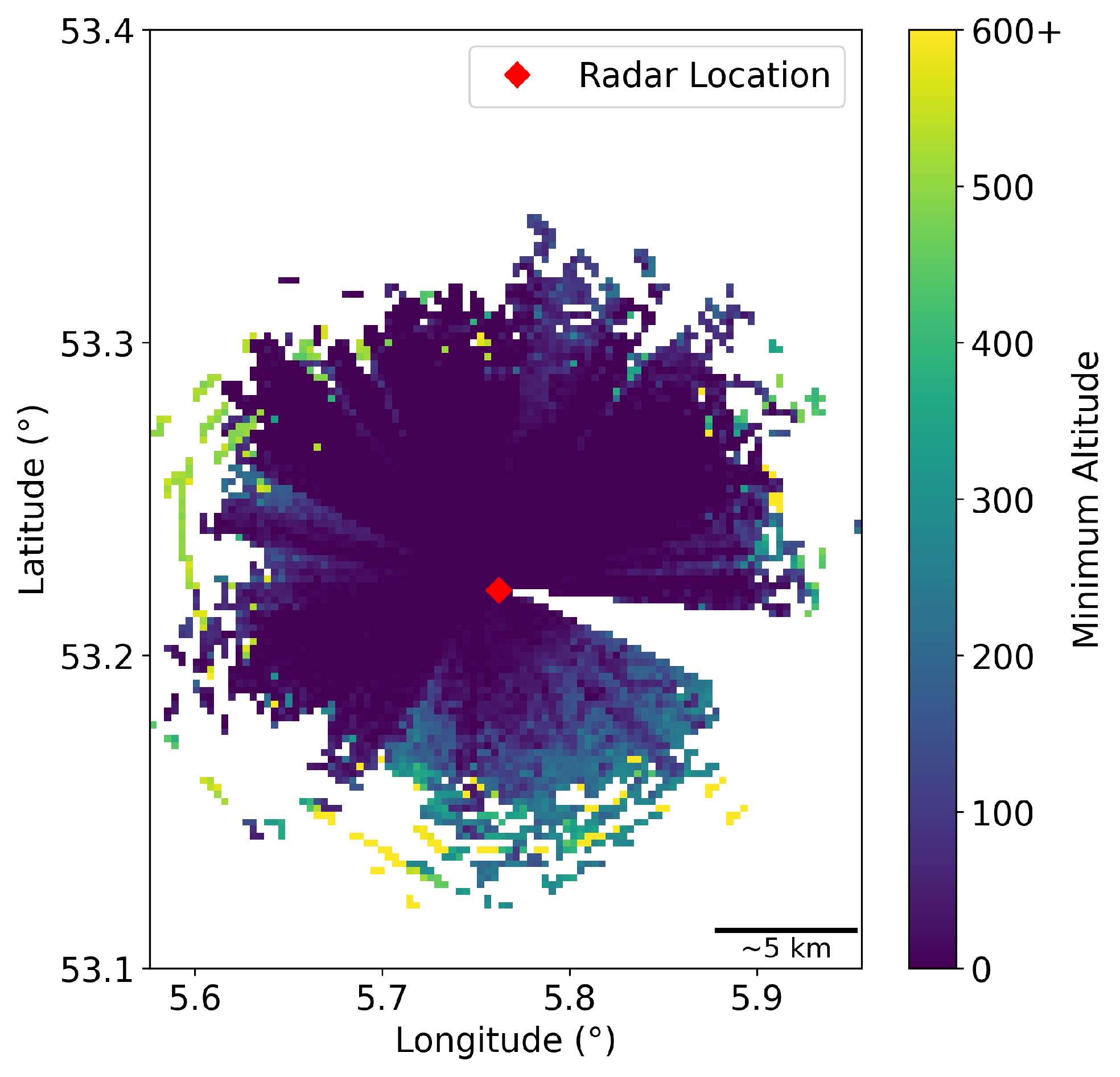

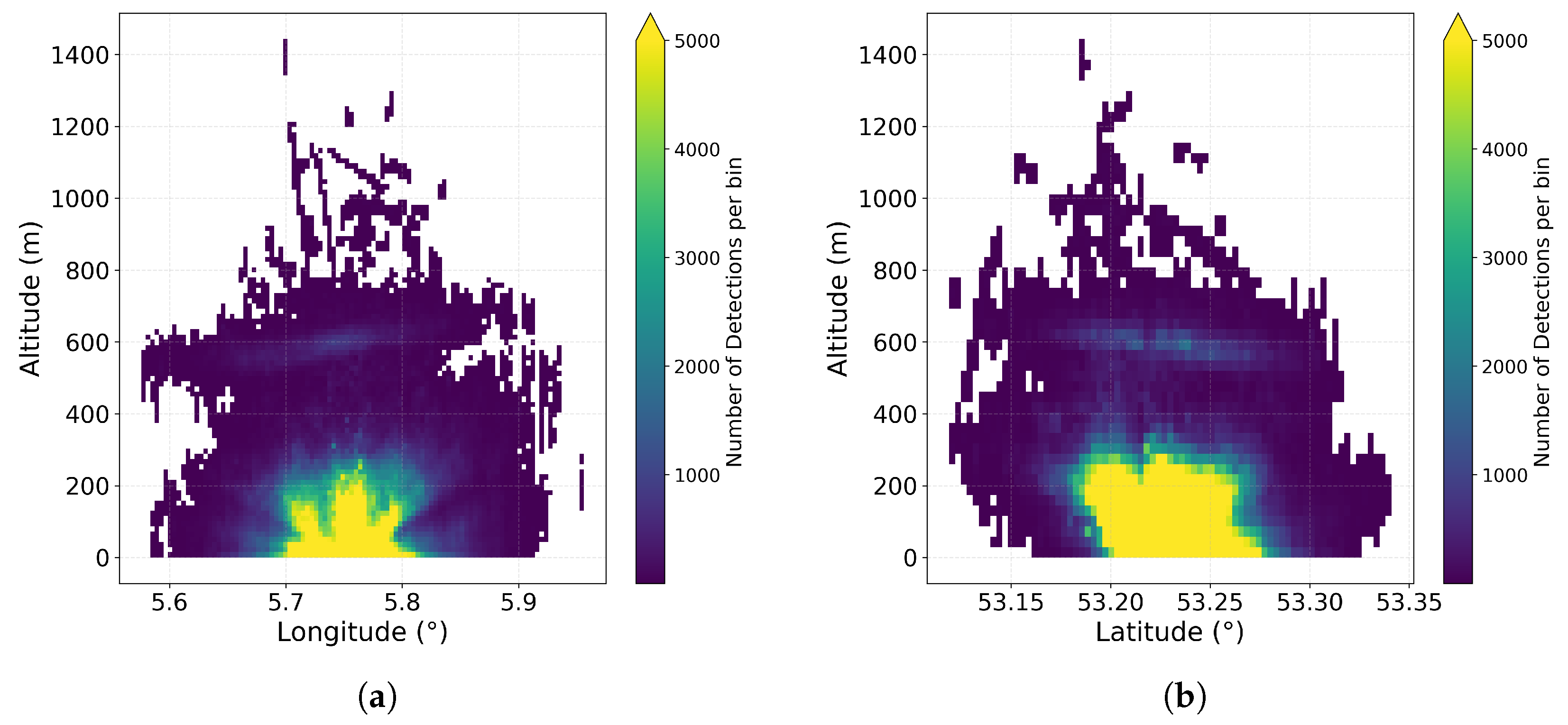

Figure 2. Minimum altitude heatmap of bird data in one BMP of the dataset recorded on 24 January 2023. The region is discretised into a 100 × 100 mesh, and the minimum altitude bird in each bin is recorded.

As seen in Figure 2, there is a central concentration of bird data, which becomes sparser as the distance from the radar increases. This observation aligns with the weakening of the radar signal as the distance increases. There is a missing region of data to the South–East; this is due to an antenna obstructing the radar, so the radar was switched off in the corresponding azimuthal directions [24].

In addition, there are radial directions seen in Figure 2, for which the minimum altitude of detected birds is substantially higher than all other directions. It was verified that these shadowing observations are consistent across all 84 BMPs.

To ensure a realistic UAM flight profile, an air taxi route was developed for real-life applicability of the study, aiming to route the path through areas of the bird dataset containing adequate bird coverage—that is, avoiding regions of radar shadowing and passing near the centre of the radar where coverage is known to be higher. Since Leeuwarden Air Base is a military air base, a civil air taxi service may be unrealistic in this area. As such, a real-world use case between Eindhoven Airport and Eindhoven Central Railway Station, also in the Netherlands, was developed, with the route designed to follow transport corridors and avoid densely populated areas, consistent with social acceptance guidelines [25]. The 2D top-down view of the Eindhoven flight plan is shown in Figure 3. The altitude profile is set with a cruise altitude of 300 m, with 60% of the flight at cruise, and with a linear ascent and descent.

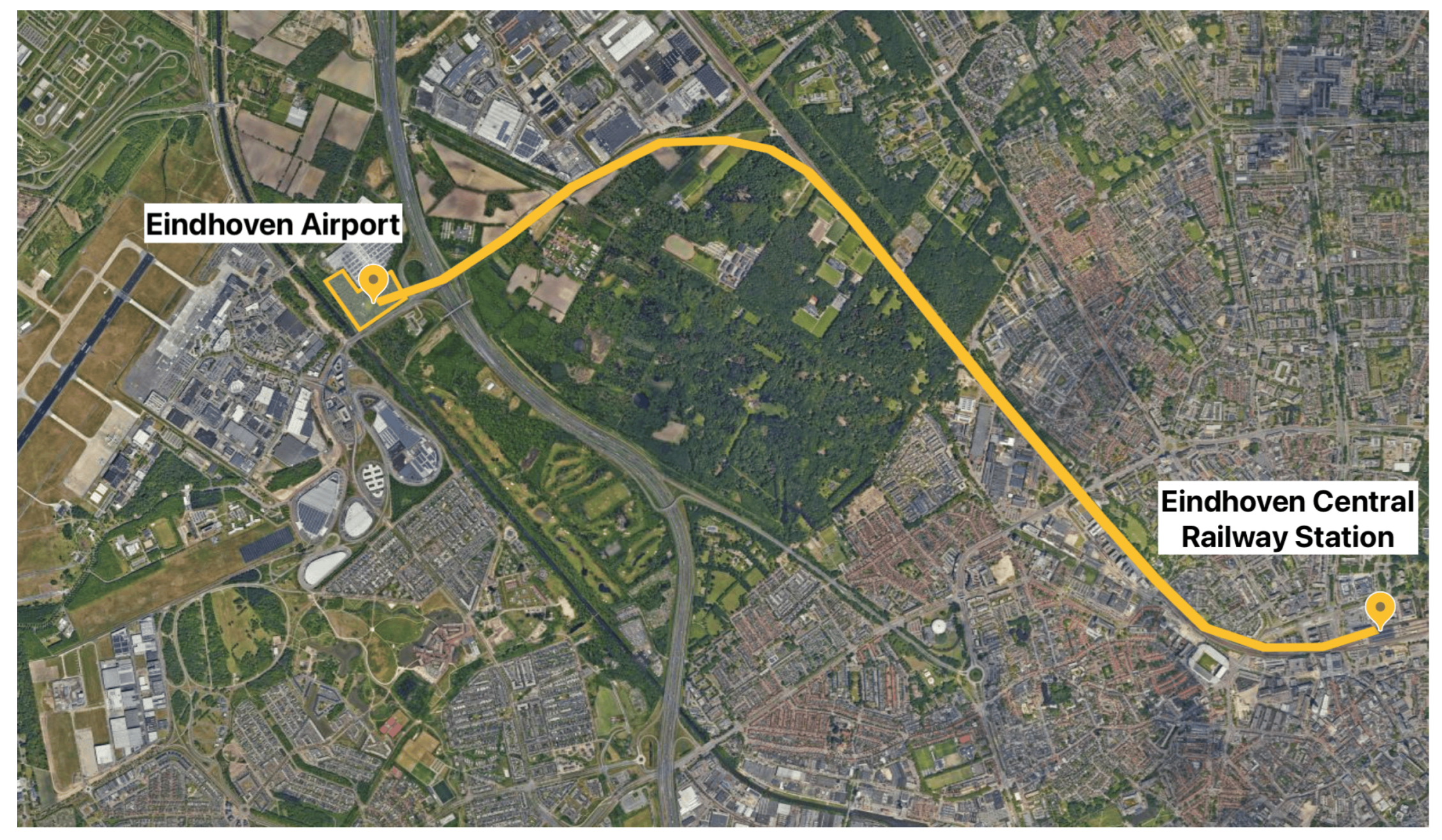

Figure 3. Two-dimensional top-down UAM air taxi route between Eindhoven Airport and Eindhoven Central Railway Station. Satellite map data in the background sourced from [26].

In order to use the Eindhoven flight plan in conjunction with the Leeuwarden bird dataset, the flight plan coordinates were transferred, yielding a new set of translated coordinates. To perform this translation, an Equirectangular approximation method was used, the details of which are described in Appendix A. In the end, this method of translation resulted in a very small error in the flight plan ground length of around 0.62 m between the Eindhoven and Leeuwarden flight plans, which, for the original 6.59 km ground length, represents a negligible deviation of approximately 0.0094%.

The positioning of the flight plan was performed to avoid areas of radar shadowing, which must be avoided to prevent a lack of bird data in the simulations. In addition, side views (such as those seen in Appendix B) of the bird data were used to assist in positioning the flight plan through high-concentration bird data regions. Considering these requirements, the flight plan was overlaid onto the bird data, as shown in Figure 4.

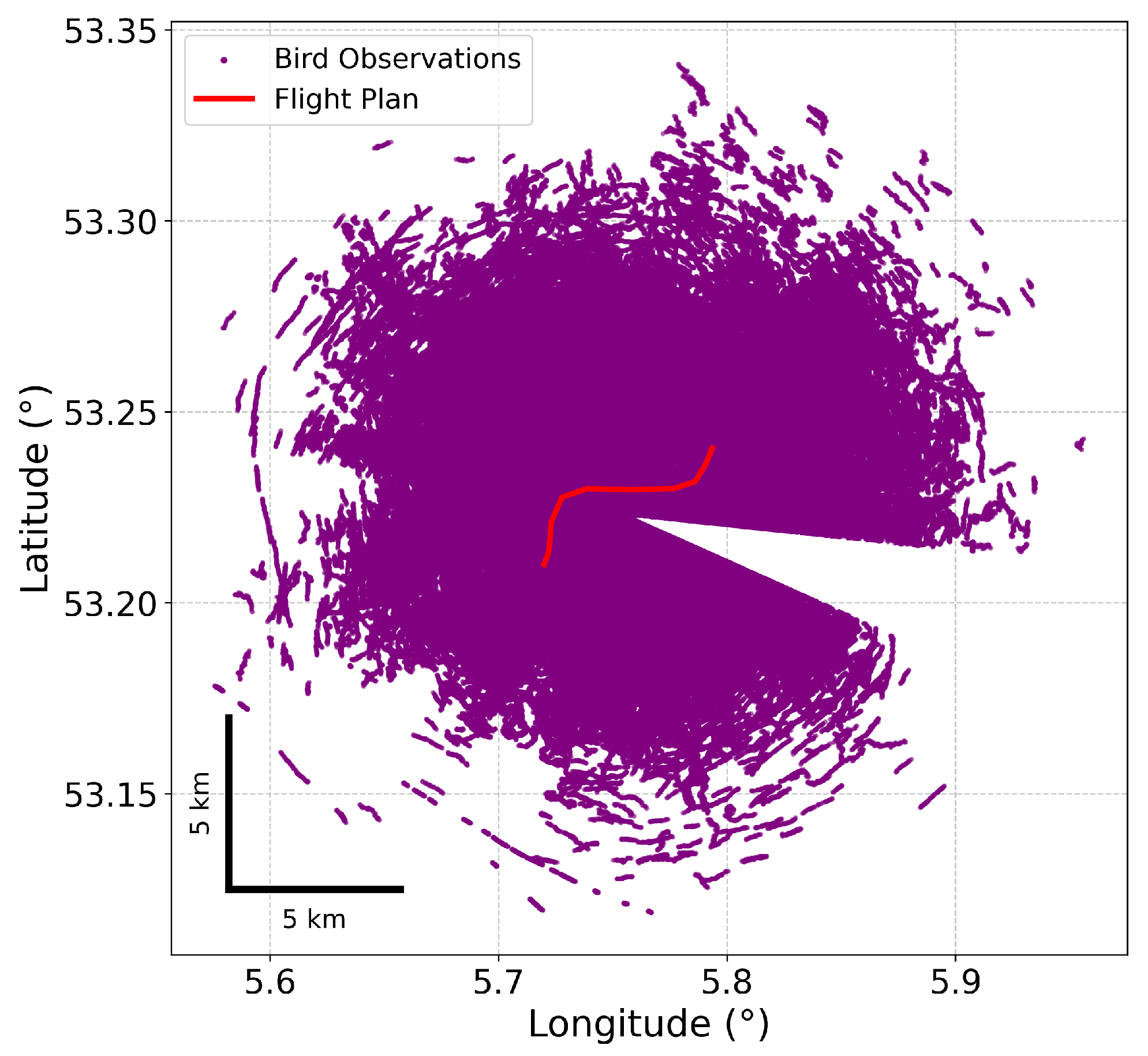

Figure 4. Two-dimensional top-down view of the final flight plan overlaid onto one BMP of the dataset recorded on 24 January 2023. Each bird observation point represents an entry in the BMP file (a single radar detection).

2.3. UAM-CAS Implementation

To evaluate the efficacy of the UAM Collision Avoidance System (UAM-CAS), as conceptualised by Panchal et al. [16], modification of the existing BlueSky bird plugin was required to dynamically calculate safety envelopes and execute the corresponding avoidance manoeuvres. Moreover, a logging strategy to collect the required data from the simulations was implemented. This section details the implementation of UAM-CAS into BlueSky, covering the safety envelope calculations and the three primary avoidance strategies: strategic, tactical, and emergency avoidance.

2.3.1. UAM-CAS

The UAM-CAS concept, as outlined by Panchal et al., proposes a hierarchical, rule-based approach to collision avoidance, divided into strategic (pre-flight), tactical (in-flight automated), and emergency (in-flight human intervention) phases. At the heart of UAM-CAS are three concentric safety envelopes with respect to a UAM aircraft and a bird: caution (outermost), warning, and collision (innermost). These are illustrated in Figure 5. The concept suggests different safety envelope arrangements for forward and vertical flights: intersecting circles meeting at a common point for forward flight, and concentric circles for vertical flight. However, in this study, the envelopes are arranged as concentric circles for all phases of flight to facilitate simulations. As discussed in Section 2.3.3, a frontal angle filter is applied to the envelopes for bird detection. Therefore, the envelope arrangement in this study is geometrically similar to that illustrated in Figure 5, so any effects due to the envelope geometry in this study compared to that suggested in Figure 5 are likely to be minimal.

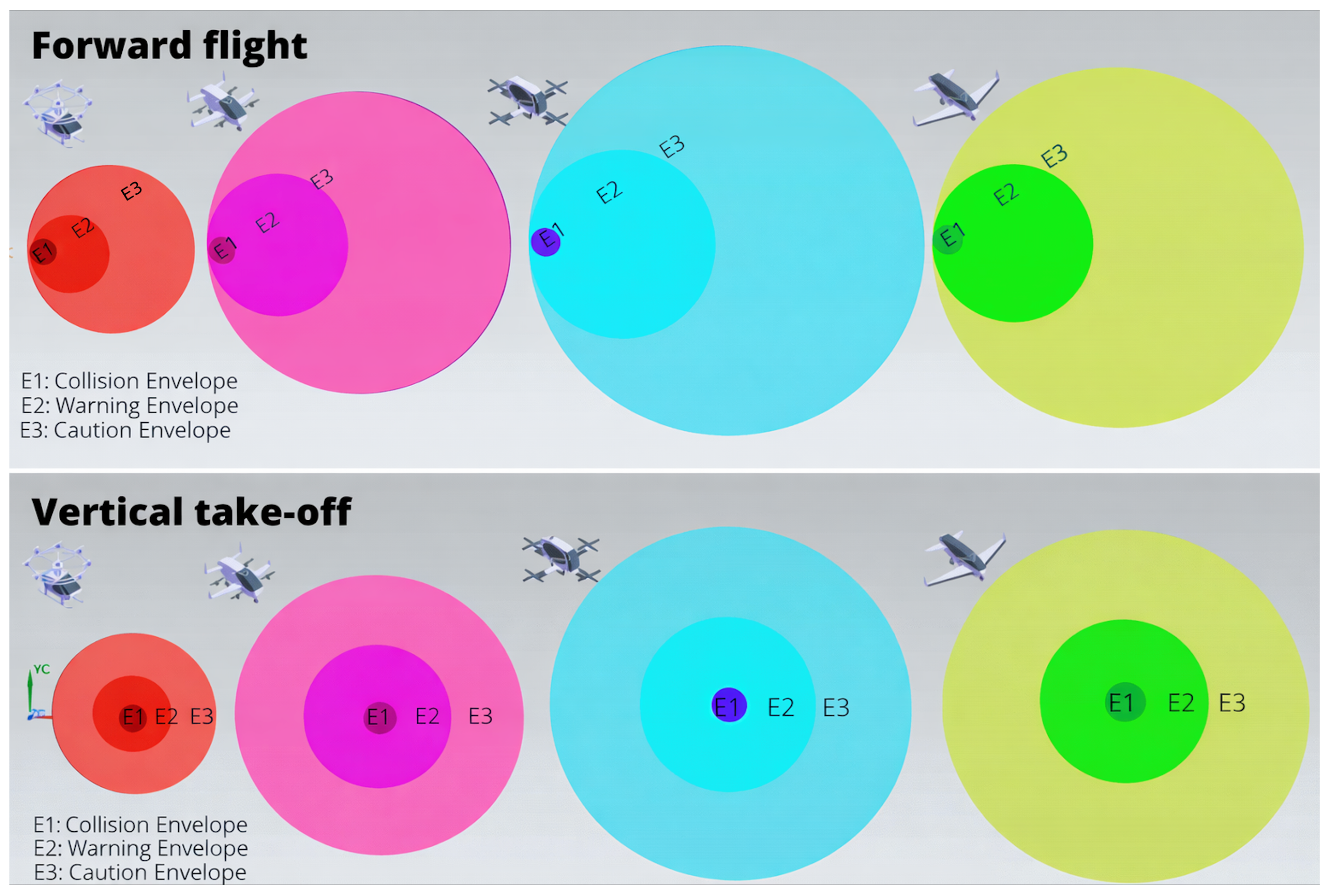

Figure 5. Collision, warning and caution envelopes for various configurations in forward and vertical flight, source: [27], used with permission.

2.3.2. Safety Envelopes

While strategic collision avoidance depends on bird presence in the initial flight path segment (cf. Section 2.3.4), tactical collision takes place when one of the safety envelopes around the aircraft is intruded upon. The safety envelope dimensions are functions of several factors:

• UAM configuration (dimensions and cruise speed). To understand the influence of UAM configuration on collision rates and the efficacy of the proposed UAM-CAS in reducing them, it is important to consider the differentiating factors between each of the UAM configurations. In this study, these are considered to be the cruise speed and physical dimensions of the UAM aircraft, which are presented in Table 1. Four UAM aircraft configurations (multicopter, liftcruise, vectored thrust, tilt rotor) were adopted from the previous study [16], which found that avoidance capabilities can vary substantially between these four common UAM aircraft configurations. In this study, the horizontal dimensions ($L_{\max }$) and cruise speeds of the four UAM configurations are adopted from [16], which sources values from current UAM aircraft in development. These values are shown in Table 1. The vertical dimension ($H_{\max }$) was taken as 2.3 m for all four UAM aircraft configurations, by averaging over the vertical dimensions of two UAM aircraft available in the literature [28,29].
  Table 1. UAM Configurations.

  UAM	Horizontal	Vertical	Cruise	Non UAM-CAS
  Configuration	Dimension (m)	Dimension (m)	Speed (knots)	Flight Time (s)
  Multicopter	12	2.3	48	280.67
  Liftcruise	14	2.3	130	248.42
  Vectored Thrust	14	2.3	134	247.85
  Tilt Rotor	14	2.3	174	243.64

• The relative horizontal and vertical speeds between the UAM aircraft and the bird. Calculation of these values was implemented in the BlueSky bird plugin. The UAM-CAS avoidance logic, which currently consists of simple actions such as stopping and hovering, was found to react excessively and/or inappropriately to high-speed and uncharacteristic bird behaviour. As such, data points exhibiting vertical speed exceeding 5 m s⁻¹ or horizontal speed exceeding 20 m s⁻¹ are excluded from envelope calculations, as discussed in Section 2.2. Avenues to improve UAM-CAS to overcome this are discussed in Section 4.2.
• System ($T_0$) and pilot reaction times ($T_{\mathrm{p}}$) to the presence of a bird. $T_0$ is the autonomous system’s reaction time, counted from $E_3$ (caution envelope) incursion to the initiation of the automated tactical manoeuvre. $T_{\mathrm{p}}$ is the pilot’s reaction time counted from $E_2$ (warning envelope) incursion to pilot action [16]. These were set in Panchal et al.’s study to be $T_0=15 \mathrm{s}$ and $T_{\mathrm{p}}=12.5 \mathrm{s}$ [16]. The system reaction time ($T_0$) used in [16] was found to be highly conservative, leading to a high number of potentially unnecessary avoidance manoeuvres in preliminary simulations. Hence, $T_0$ was reduced to 5 s for this study. $T_{\mathrm{p}}=12.5 \mathrm{s}$ was sourced from previous research [30]; however, in this study, $T_{\mathrm{p}}$ was set to 5 s. Its reduction is justified by the expectation that the pilot would receive advanced warning of an intruder once the caution envelope is intruded. The reductions of $T_0$ and $T_{\mathrm{p}}$ in this study align with reductions in reaction times derived by Peinecke et al. [31] due to automated systems eliminating pilot latency.

Equations (1)–(6) provide an overview of the spatial dimensions of the safety envelopes.

Caution Envelope:

$$\begin{array}{cc}\hfill E_{3\mathrm{H}}& =E_{2\mathrm{H}}+(T_0·v_{\mathrm{h},\mathrm{rel}})\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill E_{3\mathrm{V}}& =E_{2\mathrm{V}}+(T_0·v_{\mathrm{v},\mathrm{rel}})\hfill \end{array}$$

(2)

Warning Envelope:

$$\begin{array}{cc}\hfill E_{2\mathrm{H}}& =E_{1\mathrm{H}}+(T_{\mathrm{p}}·v_{h,\mathrm{rel}})\hfill \end{array}$$

(3)

$$\begin{array}{cc}\hfill E_{2\mathrm{V}}& =E_{1\mathrm{V}}+(T_{\mathrm{p}}·v_{v,\mathrm{rel}})\hfill \end{array}$$

(4)

Collision Envelope:

$$\begin{array}{cc}\hfill E_{1\mathrm{H}}& =L_{\max }\hfill \end{array}$$

(5)

$$\begin{array}{cc}\hfill E_{1\mathrm{V}}& =H_{\max }\hfill \end{array}$$

(6)

where $E_{k\mathrm{H}}$, $E_{k\mathrm{V}}$ are the horizontal and vertical envelope dimensions, respectively, with $k\in \{1,2,3\}$ denoting the collision, warning, and caution envelopes, respectively. $L_{max}$ and $H_{max}$ are the aircraft’s horizontal and vertical dimensions, and, $v_{h,\mathrm{rel}}$ and $v_{v,\mathrm{rel}}$ are the relative horizontal and vertical speeds, respectively, between an aircraft and a bird.

2.3.3. Bird Detection Logic

Within the simulation, intrusion by any bird into one of the safety envelopes is tested at every time step in the simulation as follows.

• Distance Check: The horizontal and vertical distances between the UAM aircraft and each bird were calculated. These distances were then compared against the dynamically computed dimensions of the three envelopes for that specific aircraft-bird pair.
• Frontal Angle Check: For the caution and warning envelopes, an additional frontal angular filter was applied. Only birds within a specified frontal arc relative to the UAM’s heading were considered for triggering tactical or warning alerts to prevent unnecessary reactions to birds that are abeam or behind the aircraft. This angle was set to ±40 for the caution envelope and ±70 for the warning envelope.

If both conditions were met for any bird, an avoidance manoeuvre, as described in the next section, was initiated.

2.3.4. Collision Avoidance

The collision avoidance in the strategic and tactical phase, as designed by [16], was adapted as follows to facilitate their fully automated simulation in fast-time.

• Strategic avoidance
  • Original concept: Departure is delayed by five minutes if birds are detected close to the take-off area and their movement is classified as critical.
  • Implementation in this study: Strategic avoidance is activated if birds are detected within a “strategic envelope” at the time of departure. This strategic envelope was introduced in this study as a cylindrical 3D space along a certain distance of the initial leg of the flight plan. This yields two parameters that define the strategic envelope, namely a cylindrical length and cross-sectional radius. These were set at 500 m and 100 m, respectively, as an initial assumption to enable simulation.
    In addition, a strategic avoidance delay parameter of 30 s was used. This specifies the amount of time to wait after a delayed take-off due to a strategic envelope intrusion before trying to take off again. If birds still intrude the strategic envelope after this delay, the bird plugin restarts the logic by initiating strategic avoidance again. The chosen delay parameter of 30 s is shorter than the five minutes of the original concept, to balance safety with service regularity.
• Tactical avoidance
  • Original concept: An automated “hover and descend” tactical manoeuvre is initiated when an intruder enters the outermost caution envelope.
  • Implementation in this study: Similarly to the original concept, an automated tactical manoeuvre is initiated when an intruder enters the outermost caution envelope. The length of time for which to maintain the hover manoeuvre was set at 20 s. Several changes were made to the original concept to better suit it for real-world bird data.
    First, it was identified in test runs that with the default tactical avoidance action of hover and descent, the aircraft may inadvertently descend towards birds that are below the aircraft. To improve this behaviour, if at the point of detection in the caution envelope, the bird is above the UAM aircraft in altitude, then the UAM aircraft will hover and descend. If the bird is below, the UAM aircraft will hover and ascend.
    Second, if the UAM aircraft is in the ascent or descent phase and tactical avoidance is initiated, it hovers at its current altitude rather than ascending or descending. This maintains predictability and pilot control authority during these critical flight phases.
    Third, a tactical avoidance delay period is introduced. Upon the tactical avoidance action completing and the aircraft resuming its flight plan, the caution envelope is monitored for 10 s. If any bird is detected during this window, tactical avoidance is considered unsuccessful, and emergency avoidance is triggered.
• Emergency avoidance
  • Original concept: If the automated tactical avoidance manoeuvre is unsuccessful in resolving the conflict, resulting in an intrusion of the warning envelope, the human pilot must take over to resolve the conflict in the emergency avoidance phase.
  • Implementation in this study: To model the human intervention as a deterministic procedure in a simulation is challenging and beyond the scope of this study. As such, emergency avoidance is applied in this study by assuming the human always successfully resolves the conflict. This is implemented by clearing the aircraft from the simulation and starting the next scheduled flight.
    In the case of bird(s) intruding on the warning envelope, if the aforementioned definition of emergency avoidance were implemented, no bird would reach the collision envelope, so collisions would drop to zero. As such, emergency avoidance was not implemented in this case. Therefore, the number of collisions in the simulations is expected to be larger than in reality.
    Emergency avoidance in this study is triggered if, within 10 s of resuming the flight plan after tactical avoidance, bird(s) enter the warning envelope. In this case, emergency avoidance was implemented. The assumption of successful resolution in this case was deemed justified because, immediately following tactical avoidance, the UAM aircraft would be travelling at low speeds, and the pilot would have heightened awareness of nearby birds through both visual observation and assistance from automated detection systems. However, in reality, successful resolution may not occur 100% of the time. Hence, this modelling assumption, as with others, applies an upper bound on the collision safety metrics reported in this study.

2.4. Simulation Set-Up

Simulations were set up to cover all four UAM configurations (multicopter, lift cruise, tilt rotor, and vectored thrust) across each of the 84 BMP files. Each of the combinations was simulated once with unimpeded flight and once with an activated UAM-CAS. This resulted in a total of 4 (UAM types) × 84 (BMPs) × 2 (UAM-CAS states) = 672 simulation runs. UAM aircraft were programmed to continuously execute the flight plan. Upon reaching its destination, the aircraft is automatically deleted and then immediately re-created to fly the same route in reverse. This reciprocal flight pattern continues for the entire 24-h duration of the active Bird Movement Plan (BMP) file. Shell/batch (.sh/.bat) scripts, which execute the full set of simulation runs sequentially, were created to automate the running of simulations. Simulations were run concurrently on up to five machines: three Linux machines provided by Imperial College’s Department of Aeronautics, a virtual machine provided by Imperial College’s Azure Virtual Desktop service, and an Apple MacBook Air (M1, 16 GB RAM). Each 24-h simulation took approximately one hour to run on each machine.

2.5. Simulation Outputs

The efficacy of UAM-CAS is quantified by considering its effect on UAM safety and the resulting operational impact. To this end, the following parameters were evaluated in this study.

Envelope incursion rates into the collision, warning, and caution envelopes. Collision envelope incursions yield a measurement of the number of collisions. Warning envelope incursions yield a measurement of how often human intervention is requested. Caution envelope incursions yield a measurement of how often automated tactical avoidance is initiated. Rates rather than absolute numbers were selected since an overestimate of strikes due to missing bird behaviour in the simulation is expected.

Closest points of approach (CPA) is a key metric used in the Traffic Alert and Collision Avoidance System (TCAS), which aims to prevent mid-air collisions between aircraft [32]. A higher CPA indicates better safety in the context of aircraft in (potential) conflict. Hence, the CPA between UAM aircraft and birds is used as another measure of the effects of UAM-CAS on safety.

Delays as a result of UAM-CAS activation quantify the operational impact of UAM-CAS. Delays are split into delays on the ground due to strategic avoidance and delays in the air due to tactical avoidance.

It was anticipated, prior to running simulations, that the activation of UAM-CAS would lead to an overall increase in safety, via a reduction in envelope incursion rates and CPA. Operational delays were anticipated as a trade-off for safety benefits. It was expected that envelope incursion rates may be larger than in reality, for the following reasons:

• The reaction of birds to aircraft due to their movement and noise [11] was not modelled. Indeed, in the study by Metz on an Air Traffic Control bird advisory system for current commercial aviation [20], it was found that there was a threefold overestimate of bird strikes, which was partly attributed to not modelling the reaction of birds to aircraft.
• Some collisions that occur in the simulation may not occur in reality due to the pilot’s response to birds that enter the warning envelope, which was not modelled in this study.

2.6. Significance of UAM Configuration on Collision Rates

Chi-square tests were performed to investigate whether there were significant pairwise differences in collision rates between the different UAM configurations for the baseline (non-UAM-CAS) simulations. Level 1 chi-square analysis of 2 (collision: yes/no) × 4 (UAM configuration) was conducted to reveal whether there were any differing collision rates overall. In case of a significant result, level 2 chi-square analysis would be used to investigate which pairwise combination(s) of UAM configurations had differing collision rates. A Bonferroni correction was applied to compensate for the multiple hypotheses arising from testing each pairwise combination.

2.7. Validation of Baseline Simulation and Collision Trends

To bring the simulation results into context, the bird-strike rates, as observed in this study, were compared to bird-strike counts from Leeuwarden Air Base. Monthly bird-strike rates were available for the period from 2000 to 2022 [33].

It is hypothesised that the simulation’s bird-strike ratios and Leeuwarden Air Base’s bird-strike ratios contain some seasonal correlation. Due to the following aspects, a moderate correlation is expected the most. It is important to note that a very strong correlation would not be expected due to the following reasons:

• The Leeuwarden Air Base bird-strike data is related to typical movements at Leeuwarden Air Base, which involve military aircraft that have significantly different flight profiles from those of a UAM air taxi service.
• The simulation is performed using 84 days of bird data in the year 2023, whereas the Leeuwarden Air Base bird-strike data is collected over the period from 2000 to 2022. Hence, the sample size of the simulation results is relatively small.
• The simulation dataset contains a radar blind spot. (cf. Section 2.2)
• The Leeuwarden Air Base bird-strike data does not include reliable data on the year 2023 because the runway was closed for part of that year [33].

Results of this validation are presented in the next Section 3.1.

3. Results and Discussion

The goal of this study was to evaluate the efficacy of the UAM-CAS concept to prevent bird strikes to UAM aircraft. After a comparison to real bird-strike data of Leeuwarden airbase, the results showing the effects of the algorithm on safety and delays are presented.

3.1. Validation

Figure 6 presents the real-world and simulation strike ratios, respectively.

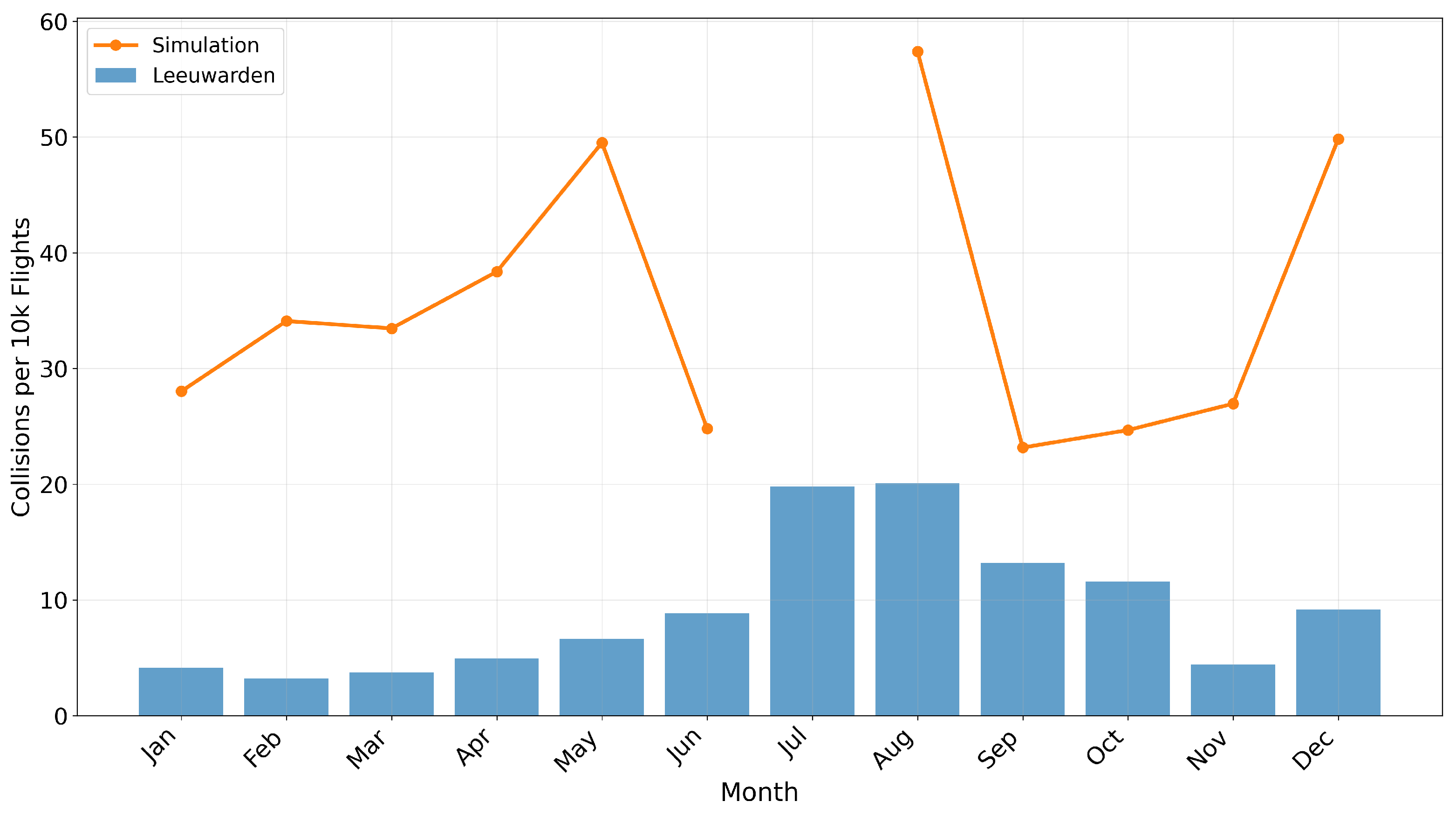

Figure 6. Simulation: Average number of incursions into the collision envelope (i.e., the number of collisions), without UAM-CAS, by month. The lack of July data is explained in Section 2.2. Leeuwarden: Average reported monthly bird strikes per 10,000 flight movements at Leeuwarden Air Base from 2000 to 2022 [33].

It can be seen that there is a general increase for both datasets from the winter months to the summer months, and then a decrease from the summer months to the winter months. The peak in August is reflected in both datasets; however, there are areas of inconsistency, such as the bird-strike ratio in November. This is considerably lower than the surrounding months in the Leeuwarden Air Base dataset, whereas this trough is not reflected in the simulation’s bird-strike ratios.

The Pearson correlation coefficient between the two datasets is $r=0.36$, which indicates moderate correlation. This provides some validation that the simulation captures fundamental aspects of bird activity and their interaction with UAM aircraft at Leeuwarden Air Base. The absolute collision rate in the simulation was higher than in the historical data, which is expected considering that the simulation neither models the natural repelling effect of airport noise and activity (cf., e.g., [34,35,36]) on birds, nor considers bird behaviour.

3.2. Envelope Incursion Rates

Figure 7, Figure 8 and Figure 9 show box and whisker plots of the number of incursions per 10,000 flights into the collision, warning, and caution envelopes, respectively, averaged across all simulation runs, for each UAM configuration, with and without UAM-CAS.

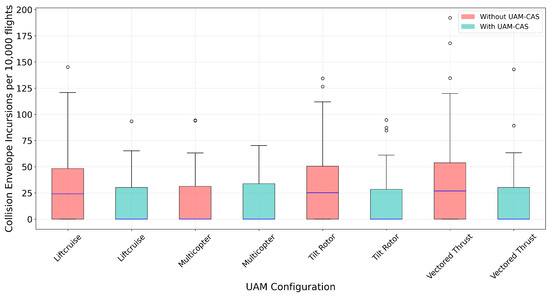

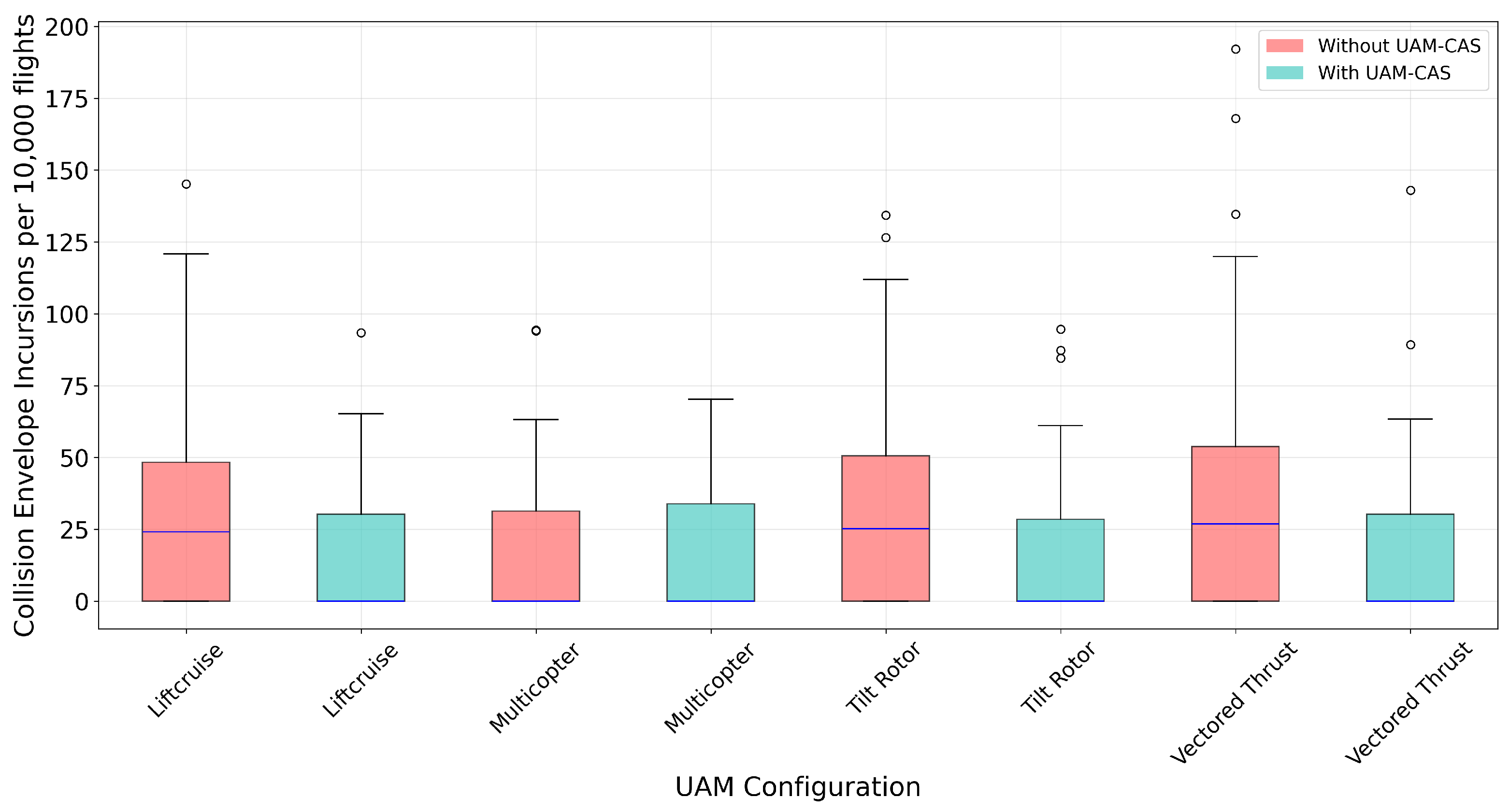

Figure 7. Distribution of bird incursions into the collision envelope (i.e., actual collisions) for each UAM configuration, per 10,000 flights. Across all configurations: $n_{\mathrm{Collision}\mathrm{incursions}, \mathrm{non}-\mathrm{UAM}-\mathrm{CAS}} = 412$, $n_{\mathrm{Collision}\mathrm{incursions}, \mathrm{UAM}-\mathrm{CAS}} = 143$.

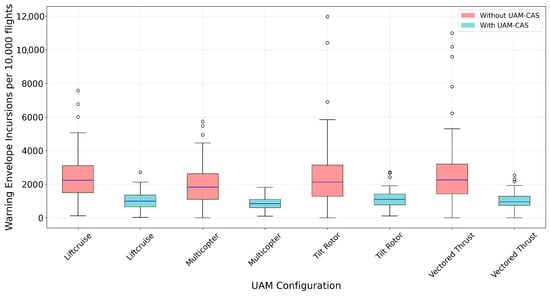

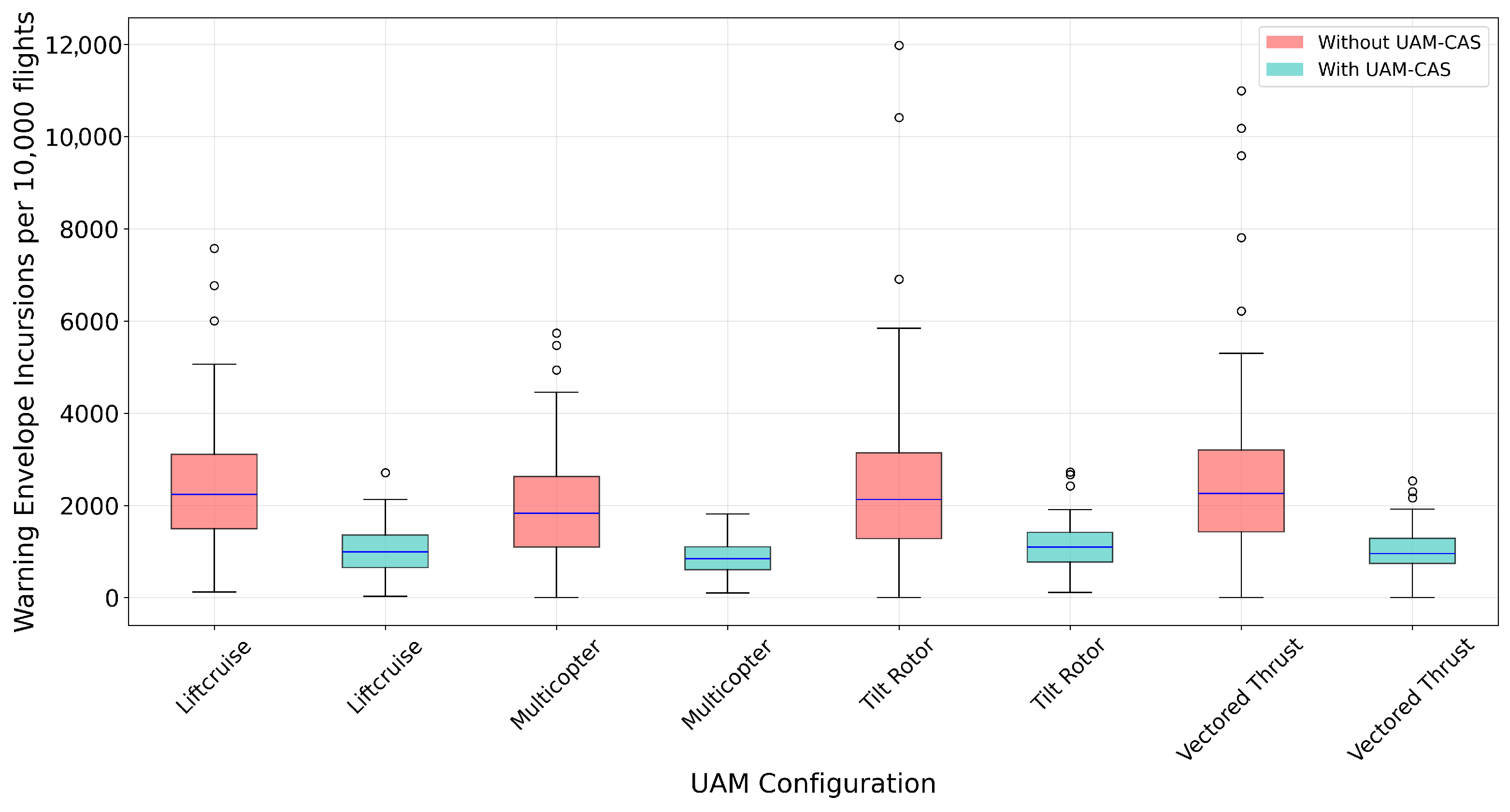

Figure 8. Distribution of bird incursions into the warning envelope for each UAM configuration per 10,000 flights. Across all configurations: $n_{\mathrm{Warning}\mathrm{incursions} \mathrm{non}-\mathrm{UAM}-\mathrm{CAS}}$ = 30,413, $n_{\mathrm{Warning}\mathrm{incursions} \mathrm{UAM}-\mathrm{CAS}}$ = 10,858.

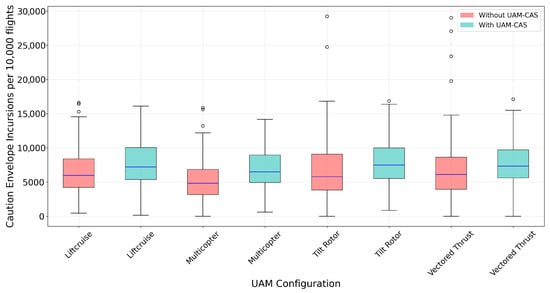

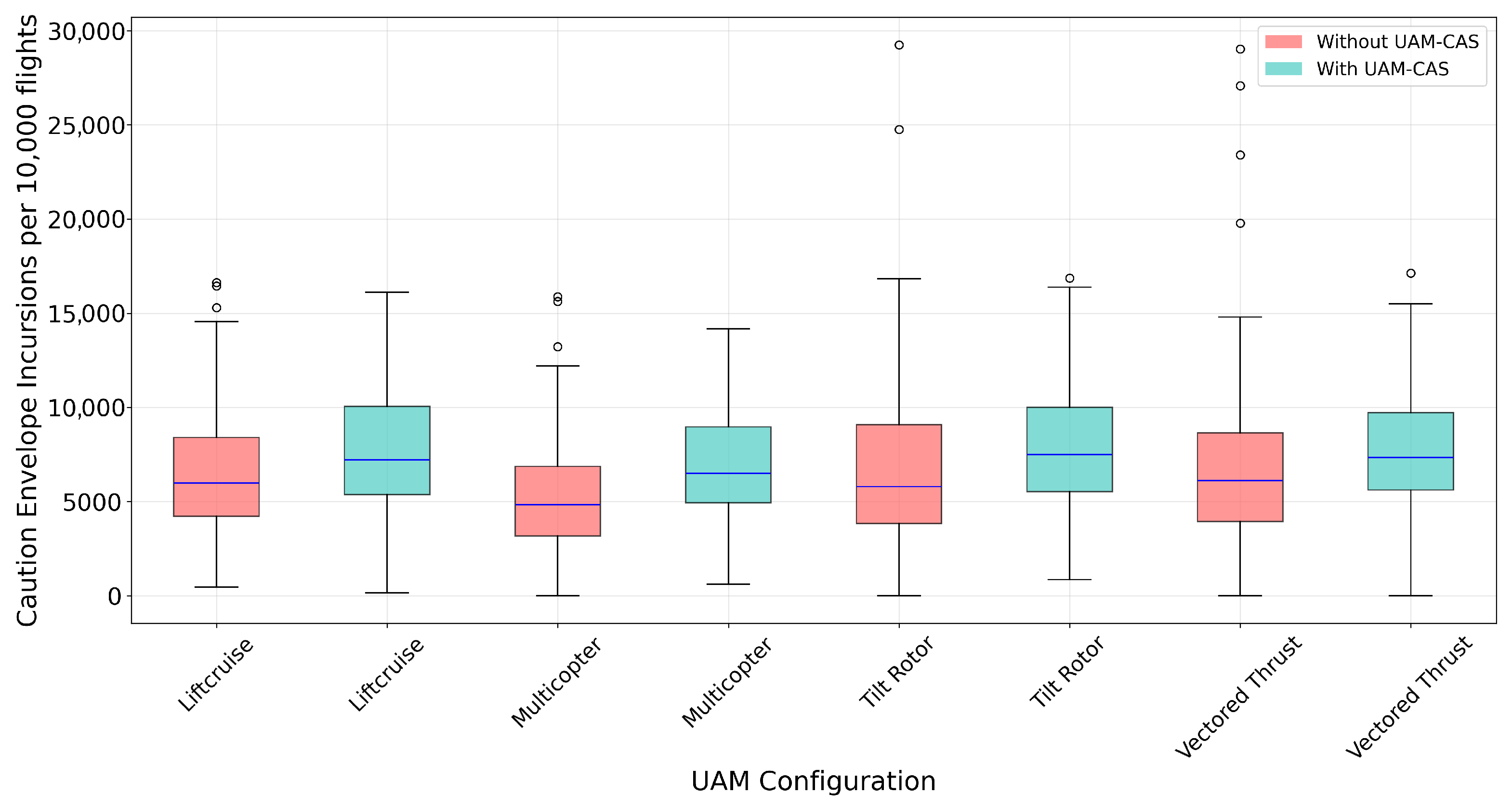

Figure 9. Distribution of bird incursions into the caution envelope for each UAM configuration per 10,000 flights. Across all configurations: $n_{\mathrm{Caution}\mathrm{incursions} \mathrm{non}-\mathrm{UAM}-\mathrm{CAS}}$ = 82,753, $n_{\mathrm{Caution}\mathrm{incursions} \mathrm{UAM}-\mathrm{CAS}}$ = 81,177.

It was hypothesised that the number of collisions occurring without UAM-CAS should simply depend on the aircraft configuration. In Figure 7, it is seen that, as expected, the multicopter configuration, which has the smallest dimensions, experiences the smallest collision rates at 25.66 per 10,000 flights. The lift cruise, tilt rotor, and vectored thrust configurations share identical dimensions. Hence, they would be expected to experience similar collision rates. However, the collision rate for the vectored thrust configuration is ∼21.7% higher than the lift cruise configuration. The level 1 chi-square test revealed a difference between observed and expected collision frequencies (${\chi }^2$[3, N = 118,611] = 9.82, p = 0.020). Therefore, level 2 testing was performed for each pair of configurations. Differences were found only between the multicopter and vectored thrust configurations (Table 2). Note that, due to the small number of collisions, the statistical power for inter-configuration collisions comparison is weak; we discuss this further in Section 4.2.

Table 2. Results of level 2 (pairwise comparison of UAM aircraft configurations) chi-square tests for configuration. Bonferroni correction for all level 2 pairs: $\alpha =0.0083$. Significant comparison(s) marked in bold.

Pair	${\mathit{\chi }}^2$	p
Multicopter vs. Lift Cruise	2.81	0.0937
Multicopter vs. Tilt Rotor	6.50	0.0108
Multicopter vs. Vectored Thrust	8.69	0.0032
Lift Cruise vs. Tilt Rotor	1.12	0.2896
Lift Cruise vs. Vectored Thrust	2.27	0.1315
Tilt Rotor vs. Vectored Thrust	0.17	0.6806

When evaluating the flight characteristics of the UAM configurations (cf. Table 1), it becomes evident that they travel at, even if slightly, different cruising speeds. While all UAM aircraft are initialised at the same time at the start of each simulation, this leads to increasingly different flight times, as flights are performed continuously throughout the day. The effect further increases as soon as aircraft have to perform avoidance manoeuvres once UAM-CAS is active. Hence, with increasing daytime, the different configurations increasingly encounter various bird activities. Analysis of the bird data revealed peak activities of bird data at certain times of day. Figure 10 (right axis) shows the distribution of bird detections, averaged across all 84 BMPs, with dusk and dawn windows presented for Leeuwarden. As seen, on average across all BMPs, there are peaks in bird activity during the dusk and dawn windows. Because there are only 168 exposures to each BMP file for a given UAM configuration, an aircraft may, by chance, traverse a high-activity bird peak, while another aircraft may, due to differences in their progress along the route (e.g., due to prior avoidance action, differing cruise speeds), entirely avoid high-activity bird peaks. As such, the limited interaction of the UAM aircraft with the bird data may be insufficient to capture enough data.

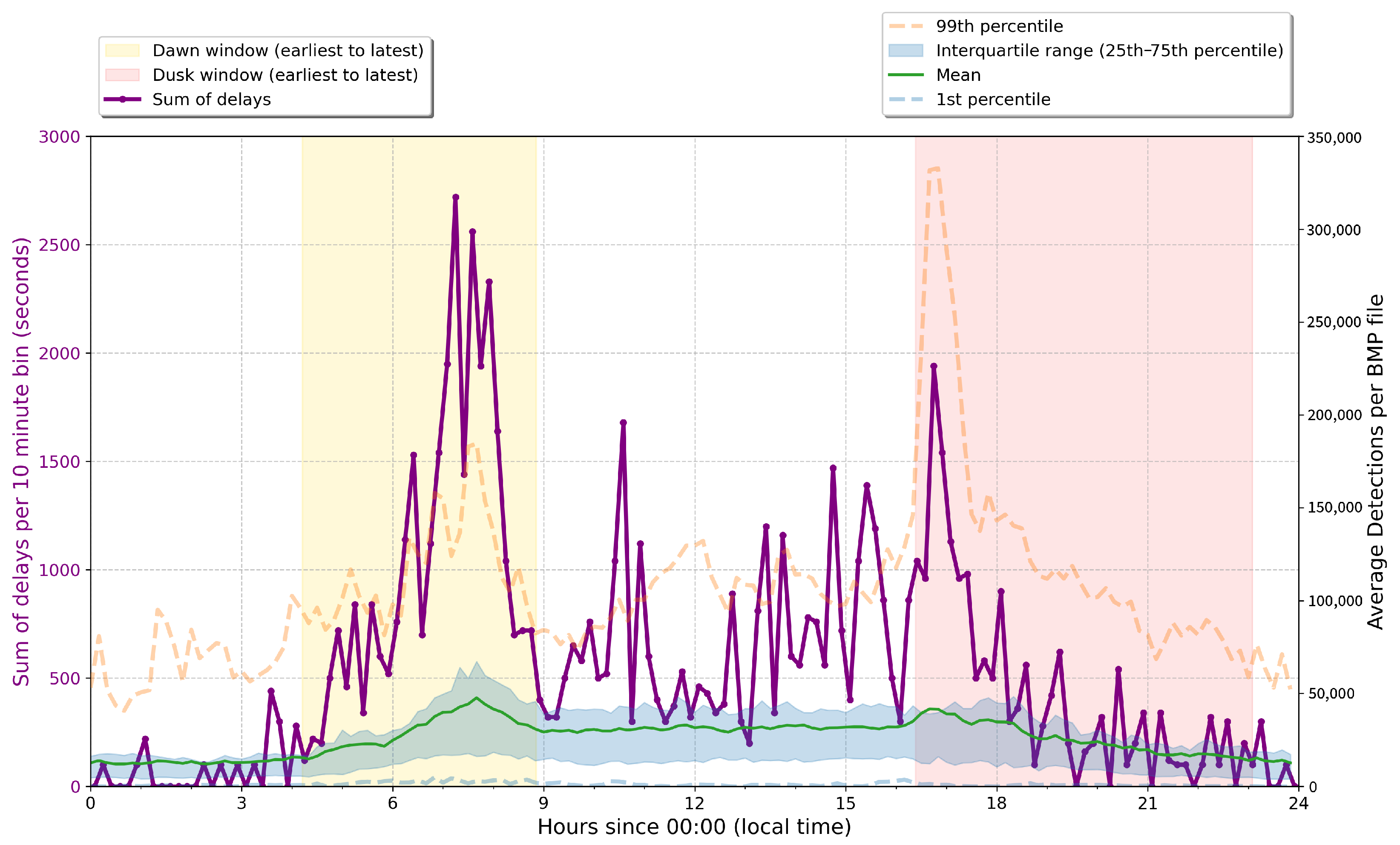

Figure 10. Left axis: Sum of the delay of all flights in 10-min bins. Right axis: Distribution of radar bird detections, averaged across the 84 BMPs, binned into 10-min intervals. Dawn and dusk windows are presented for Leeuwarden.

The activation of UAM-CAS reduced collision and warning envelope incursions, but increased caution envelope incursions, as seen in Figure 7, Figure 8, and Figure 9, respectively. The average collision envelope incursion reduction was 62%. When only considering birds excluded from envelope calculations due to excessive speed, this reduction is 49%, and for birds included in envelope calculations due to nominal speed, this reduction is 66%. The average warning envelope incursion reduction was 61%. The average caution envelope incursion increase was 10%.

In addition, Figure 8 and Figure 9 show that, when UAM-CAS is active, the number of caution envelope incursions that escalate to a warning envelope incursion is decreased. Caution envelope incursions are, across all configurations, 174% more likely to escalate to warning envelope incursions when UAM-CAS is inactive. This shows that UAM-CAS resolves many potential conflicts detected in the caution envelope and substantially reduces the need for human intervention to resolve conflicts.

The observed increase in caution envelope incursion rates is likely a consequence of the simulation methodology. When UAM-CAS initiates an avoidance manoeuvre, such as descending and hovering, it does so in response to bird presence, inherently stopping the aircraft in a region of heightened bird activity. Unlike simulations without UAM-CAS, where the aircraft continues its flight path, the UAM remains in this area of high bird activity. Because the current simulation methodology does not model bird reactions to aircraft, birds that might otherwise disperse from a hovering UAM aircraft in reality may, in the simulation, continue on paths that lead to caution envelope incursions. It is therefore anticipated that this simulated increase in caution envelope incursions during avoidance actions would not occur (or be less pronounced) in real-world operations, where birds would react to the aircraft’s noise, presence, and movement. For this reason, we do not interpret the simulated increase in caution envelope incursions as a safety performance measure, but instead as an artefact of the simulation methodology.

3.3. Closest Points of Approach

To provide further insight into the effect of UAM-CAS on aircraft-bird separation, Figure 11 shows the average minimum closest point of approach (CPA) of a bird from the UAM aircraft, for each UAM configuration with and without UAM-CAS. Each value is calculated by averaging—across all simulation runs for a given UAM configuration and UAM-CAS status—the minimum distance recorded between all birds and the UAM aircraft. A consistent increase in the average minimum CPA is observed across all UAM configurations when UAM-CAS is active, providing further evidence of increased safety.

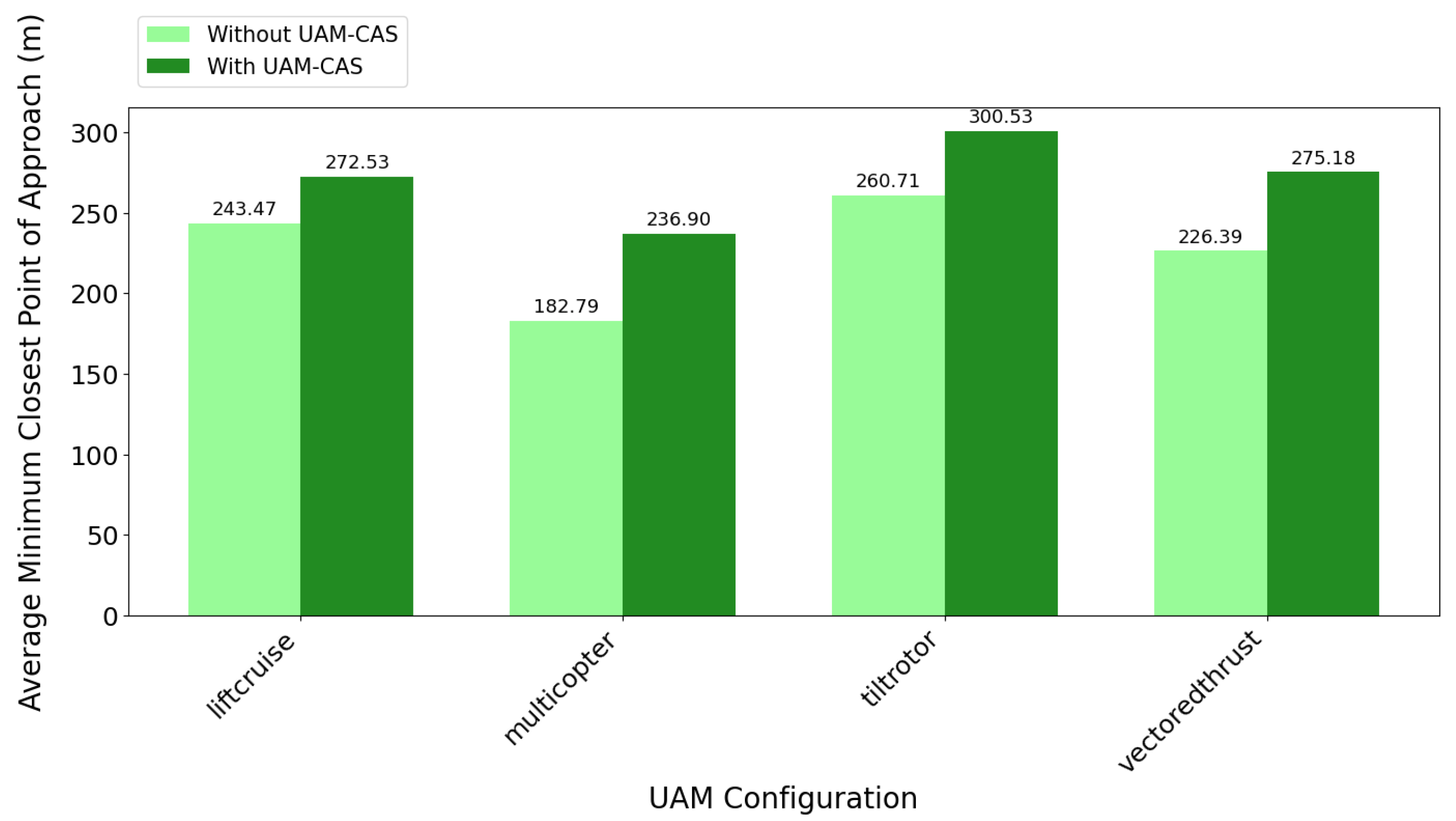

Figure 11. Minimum closest point of approach of birds that enter any of the aircraft’s envelopes from the UAM aircraft, averaged over all simulation runs.

3.4. Delays

The discussed safety benefits of UAM-CAS are inevitably accompanied by operational flight delays. These two factors need to be balanced. Figure 12 shows the average delay per flight incurred due to UAM-CAS activation for each UAM configuration. In all cases, strategic delays (on the ground delays) constituted the majority (>90%) of the average total delay. For context, the average flight times for these configurations without UAM-CAS are presented in Table 1. Compared to the average flight times of 244–281 s (Table 1), these delays are small (all <7.5% of their total non-UAM-CAS flight time), and are likely acceptable from an operational standpoint, especially given the >55% reduction in collisions. However, even small delays might become more challenging with increasing traffic density. For example, if one hovering UAM aircraft blocks a UAM corridor, it can involuntarily impose delays on UAM aircraft following the same route. Hence, an additional study to analyse the effects of the UAM-CAS on densely used transportation networks is recommended.

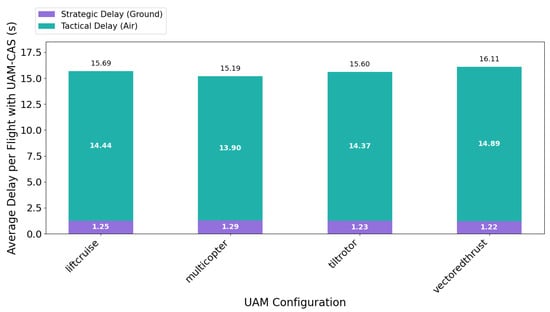

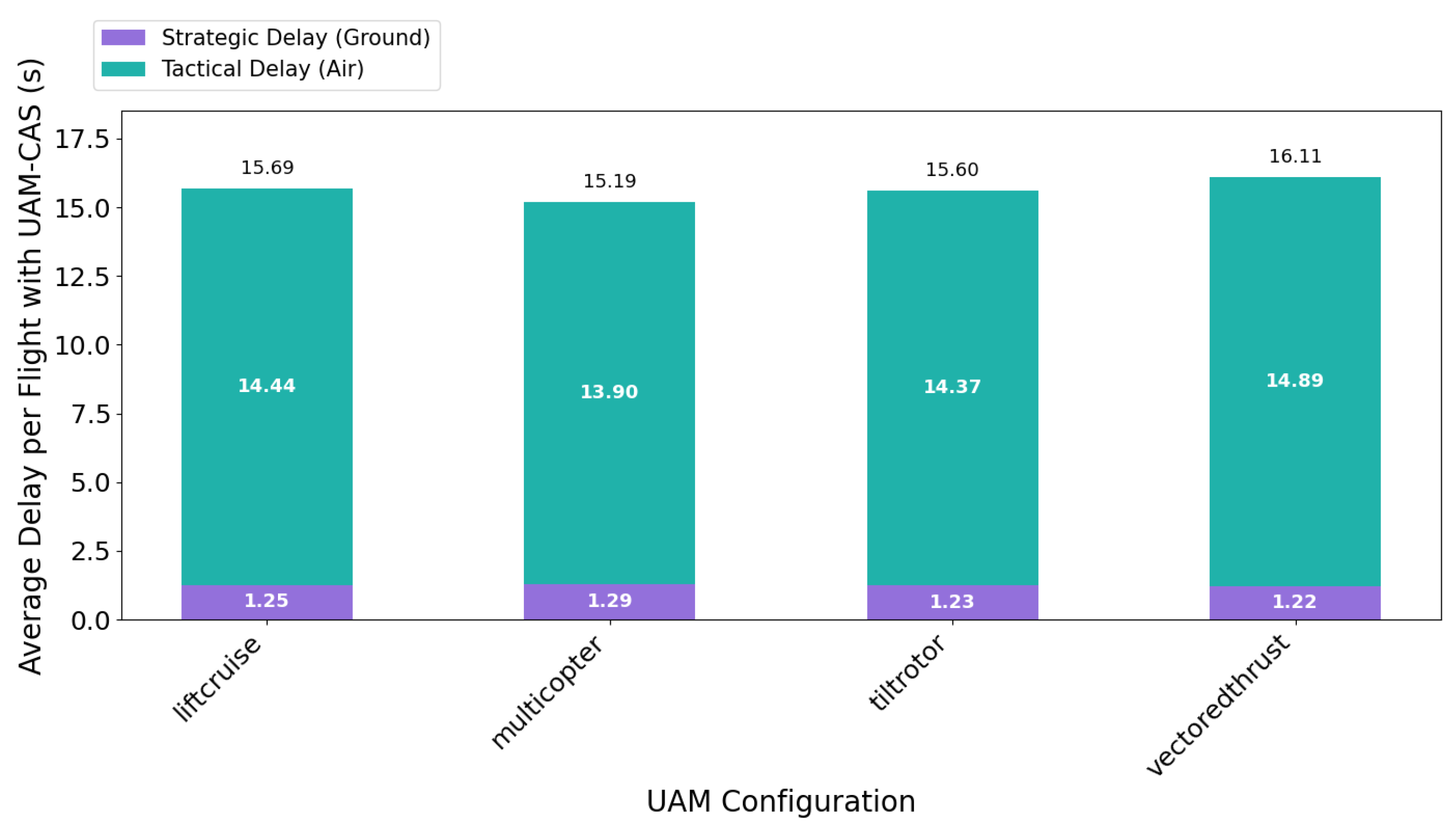

Figure 12. Average UAM-CAS flight delay for each UAM configuration.

While average delays provide a general overview, they can mask occurrences of much longer delays in individual flights. Indeed, as seen in Figure 10, delays were highly variable, with local delay peaks throughout the day and two global delay peaks in the dawn and dusk windows. These show a correlation with bird detections in the simulation.

This suggests that, while averaged across all flights, the delays are small, there are certain bird prevalence conditions that may lead to a small number of flights facing substantial delays, sometimes even doubling the flight time compared to when UAM-CAS is deactivated.

Despite these additional delays at peak times, Figure 13 shows that across all simulations, collisions tend to occur more frequently around these peak times. This may suggest that there is little scope to reduce the sensitivity of UAM-CAS, and thus delays at peak delay times, because the number of collisions is already highest during these times.

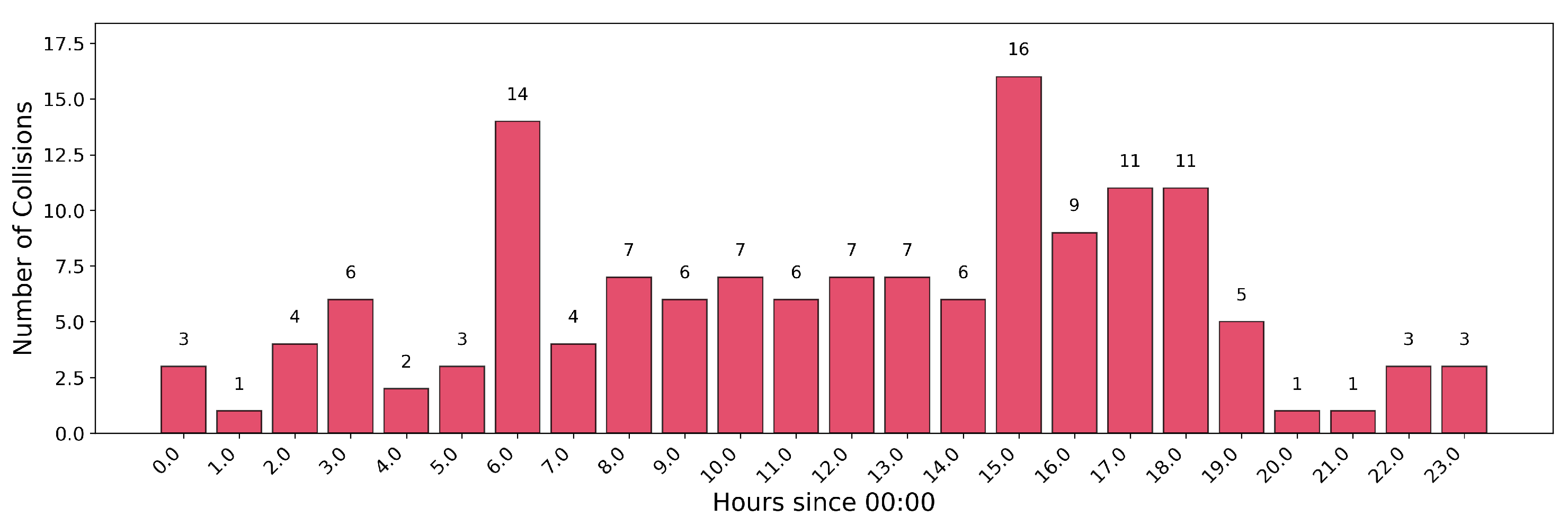

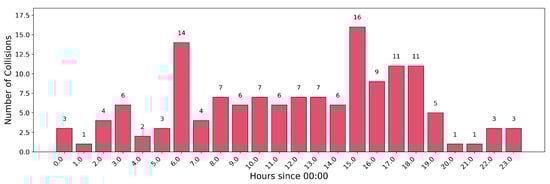

Figure 13. Number of collisions across all UAM-CAS activated simulations, binned into hourly bins. $n_{\mathrm{Collisions}\mathrm{UAM}-\mathrm{CAS}}=143$.

It is important to note that the remaining number of collisions across the entirety of the UAM-CAS simulations of this study was 143. With this small sample size, the reliability of conclusions regarding distributions with time, such as those suggested by Figure 13, should be taken with caution. This is consistent with the rarity of bird-strike events, and with the intended effect of UAM-CAS to reduce collisions. At the same time, limitations of the study, such as the lack of modelling of bird reactions to aircraft, likely increased the number of collisions compared to that expected in reality. These limitations are discussed further in Section 4.2.

4. Conclusions

4.1. Key Outcomes

Within this study, a previously proposed UAM-CAS concept was adapted for use in fast-time simulations, and real-world bird movement data was used to evaluate its efficacy in bird-strike prevention.

The simulation results demonstrated that the implementation of UAM-CAS led to an increase in safety in UAM operations. Specifically, under the assumptions used in this study (including always-successful emergency pilot response in the tactical resumption phase, no bird reaction modelling, perfect bird detection, and typical birds in sustained flight), collisions were reduced by an average of 62%. When only considering birds excluded from envelope calculations due to excessive speed, this reduction is 49%, and for birds included in envelope calculations due to nominal speed, this reduction is 66%. These figures indicate a direct increase in safety. Incursions into the warning envelope, and therefore the need for human intervention to resolve conflicts, were reduced by an average of 61%. The average minimum closest point of approach of birds from the UAM aircraft increased by an average of 20%, further demonstrating increased safety. Incursions into the outermost caution envelope increased by an average of 10%, likely due to the UAM aircraft initiating avoidance manoeuvres and temporarily hovering in areas of bird activity. It is anticipated that, should real-world bird reactions to aircraft be implemented, this increase would not occur or be less pronounced since most birds aim at avoiding collisions with aircraft [37].

Operationally, the use of UAM-CAS caused average flight delays of approximately 1.25 s for in-flight tactical avoidance and 14.4 s for on-the-ground strategic avoidance. Compared to the baseline flight times ranging from 244 s to 281 s, these delays are generally modest (less than 7.5% of total flight time) and likely acceptable from an operational standpoint, especially considering the substantial safety benefits. However, the analysis also revealed that a small percentage of flights (∼1%) experienced substantially longer delays (over 100 s), particularly during periods of peak bird activity. If the UAM-CAS system, as tested in this study, were to be used, it may be prudent to consider the times of peak activities of birds already when scheduling flights, such as, e.g., already performed at some Australian airports for commercial flights [38,39]. Although not solving the issue of delays, it is preferable from a safety and energy-consumption perspective to keep delays (a) schedulable and (b) on the ground rather than in the air. Furthermore, given the historical seasonal trends in bird strikes, such as those indicated in the data from this study in Figure 6 and, more generally, in aviation [40], strategic flight planning and scheduling should take into account these trends, using techniques such as those described in [7].

A key outcome of this study is the development of an adaptable simulation environment for UAM-CAS. The implementation of UAM-CAS was designed to be geographically independent, capable of utilising any bird dataset in BMP format from any location, unlike previous geographically specific implementations [16]. This is a valuable tool for continued future research into UAM-CAS.

4.2. Limitations and Future Work

This study assumed perfect and instantaneous detection of all birds in the simulation by the UAM aircraft. In reality, sensors will have a defined capability in bird detection. In this study, the largest envelope size of a UAM configuration, and therefore the assumed aircraft–bird distance detection capability, was 1111 m. If, in reality, sensors cannot achieve this, a limit should be applied on the birds that the UAM-CAS algorithm can take action upon. If sensors cannot detect birds as early as their entry into the caution envelope, then UAM-CAS would have less time to react to birds, which may reduce the overall effectiveness of UAM-CAS. To the contrary, if sensors can provide the necessary coverage to detect birds as early as their entry into the caution envelope, then the results of this study apply.

In reality, birds react to aircraft due to their movement and noise [11]. Bird reactions were not modelled in this simulation. It was hypothesised, in the discussion, that the increase in caution envelope incursions was due to the lack of bird reaction in the simulation. In this study, the four UAM configurations had differing cruise speeds (from 48 to 174 knots). It would be expected that the overestimate of bird strikes would be more significant for the lower cruise speed configurations, because bird avoidance reactions would be more effective when they have more time to react to an incoming aircraft [41,42]. In addition, it is likely that simulating bird reactions would reduce the rate of collisions and warnings across all aspects of the results. Indeed, in the study by Metz into an Air Traffic Control bird advisory system for current commercial aviation [20], it was found that there was a threefold overestimate of bird strikes, which was partly attributed to not modelling the reaction of birds to aircraft. Future studies should implement bird reactions into simulations. Reactions may include changes in the heading, altitude, and speed of birds based on factors like proximity to the UAM aircraft and the noise signature and size of the specific UAM aircraft configuration.

In addition to bird reactions, this study did not consider other ornithological factors such as the differing weights between bird species and varying bird behaviour in different urban environments. Such ornithological factors are important to consider for the real-world design and deployment of UAM-CAS. For example, the effects of bird–aircraft collisions vary from causing superficial damage to critical damage, depending on the kinetic energy of the collision, which depends on the bird’s weight (and relative bird-aircraft speed). This would allow for greater understanding of safety benefits, for example, whether UAM-CAS is more or less effective at preventing high-energy (more damaging) collisions.

In the original UAM-CAS concept [16], the action defined for bird presence in the warning envelope was for the pilot to intervene and resolve the conflict, as UAM-CAS was deemed unable to resolve the conflict. Pilot intervention was not modelled in this study, and in the case of emergency avoidance after tactical avoidance resumption, it was assumed to be 100% successful. Pilot intervention should be implemented, for example, by implementing standard aviation right-of-way rules, should a bird be present in the warning envelope. Further studies could integrate human-in-the-loop simulations for warning envelope incursions, further increasing the applicability of the simulation results. Taken together with the assumptions of perfect bird detection and the absence of bird reaction modelling, this means that the results, such as the 62% reduction in collisions reported here, should be interpreted as an upper bound for operational performance.

In this study, 84 days’ worth of bird data across the year 2023 was available as input to simulations. Bird strikes are rare events, and as such, the simulations with UAM-CAS yielded a total of 143 collisions across all configurations and BMPs. This is a relatively small number in the context of performing statistical analysis, such as extracting trends, such as the time of day or the months of the year when more collisions occurred. Either a larger bird dataset should be used, or a Monte Carlo simulation could be used to randomise flight plans, thus capturing more of the existing bird data in the simulations, so that further analysis can be performed. The bird dataset could also be expanded to include multiple years, to allow for the detection or confirmation of cyclic trends in seasonal bird movements. This would allow for (1) stronger confirmation, or otherwise, of the seasonal trend validation between the simulation and Leeuwarden data (cf. Section 3.1), thus providing stronger validation, or otherwise, that the simulation captures fundamental aspects of bird activity and their interaction with UAM aircraft at Leeuwarden Air Base; (2) testing the performance of different parametrisations of UAM-CAS across the seasons, to determine whether different parametrisations may be necessary as seasons, and therefore bird movement behaviour, change. Such parametrisations can also be made considering the different ornithological factors. For example, urban aviation ecology may present much different bird movement behaviour compared to rural aviation ecology, and therefore necessitate accordingly tuned UAM-CAS parametrisations.

In addition, strategies should be devised to decouple the results of each UAM configuration from the effect of different cruise speeds, causing a given configuration to encounter or skip peaks in bird activity. This could be performed, for example, by running additional simulations with offsets in the start time.

Several parameters in this study (e.g., UAM aircraft dimensions, system and pilot reaction times, strategic envelope size, strategic avoidance delay duration, tactical avoidance hover duration, frontal angles) were based on estimations or limited available data. The impact of such parameters requires further investigation. The effect of variation in these parameters on the results should be studied by re-running simulations across various sets of parameter values. It may be the case that a selection of differing parameters may yield substantially better UAM-CAS performance in terms of safety improvement and delay reduction. In addition, further differentiating parameters between UAM aircraft configurations—such as engine/prop exposure, frontal area, and others—may lead to more significant pairwise differences in collision rates than those found in this study (Table 2).

As explained in the methodology, to prevent reactions to high-speed and/or uncharacteristic bird behaviour, birds with vertical speed exceeding 5 m s⁻¹ or horizontal speed exceeding 20 m s⁻¹ were ignored in envelope calculations. In the final results, on average across all simulations, the percentage of collisions that resulted from birds that were excluded from envelope calculations due to excessive speed was 27.3% or 39 collisions out of a total of 143 collisions. The tactical avoidance manoeuvre is relatively simple (ascend or descend and stop for a period of time) and not suited to avoid such high-speed birds. An investigation should be made into the effect of alternative avoidance manoeuvres. Rather than abrupt stops, flight path adjustments could be made based on the bird’s position and current trajectory, which would allow the flight to still progress, thus reducing delays. Such manoeuvres could also take advantage of bird-trajectory prediction methods, allowing for more “intelligent” decision-making. This could provide suitable avoidance action not just for the case of high-speed birds, but also improve avoidance efficacy more generally. In addition, the operational feasibility of such manoeuvres should be taken into account. The current ’hover in place’ manoeuvres may be unrealistic in dense UAM operations, from both an energy-usage standpoint, and due to blockage of the flight path. A first step to addressing these aspects in future studies is devising multi-aircraft simulations that capture inter-aircraft conflicts and capacity impacts.
