Analysis of Influencing Factors on the Feasible Operating Range of a Triple-Bypass Adaptive Variable Cycle Engine Compression System

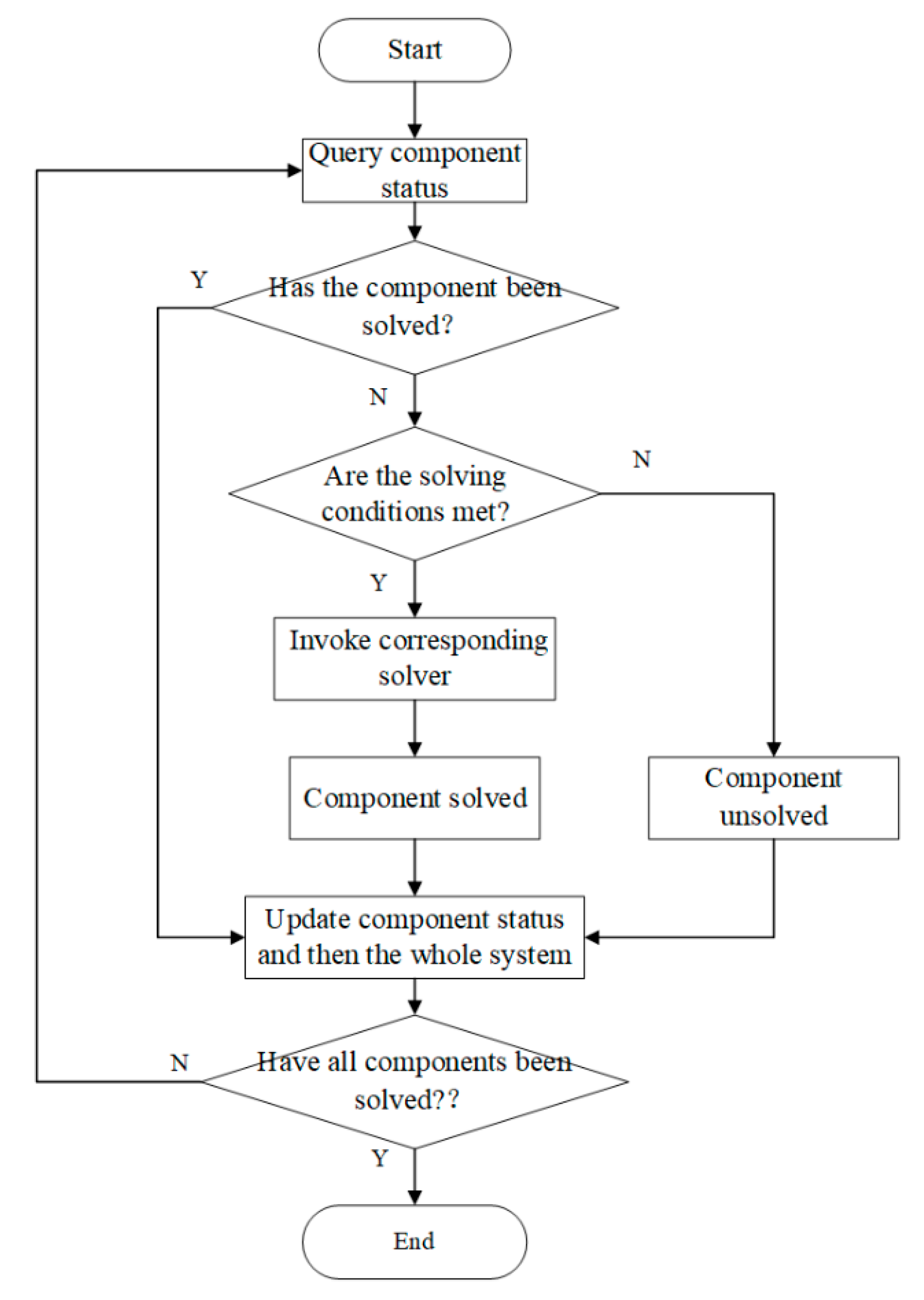

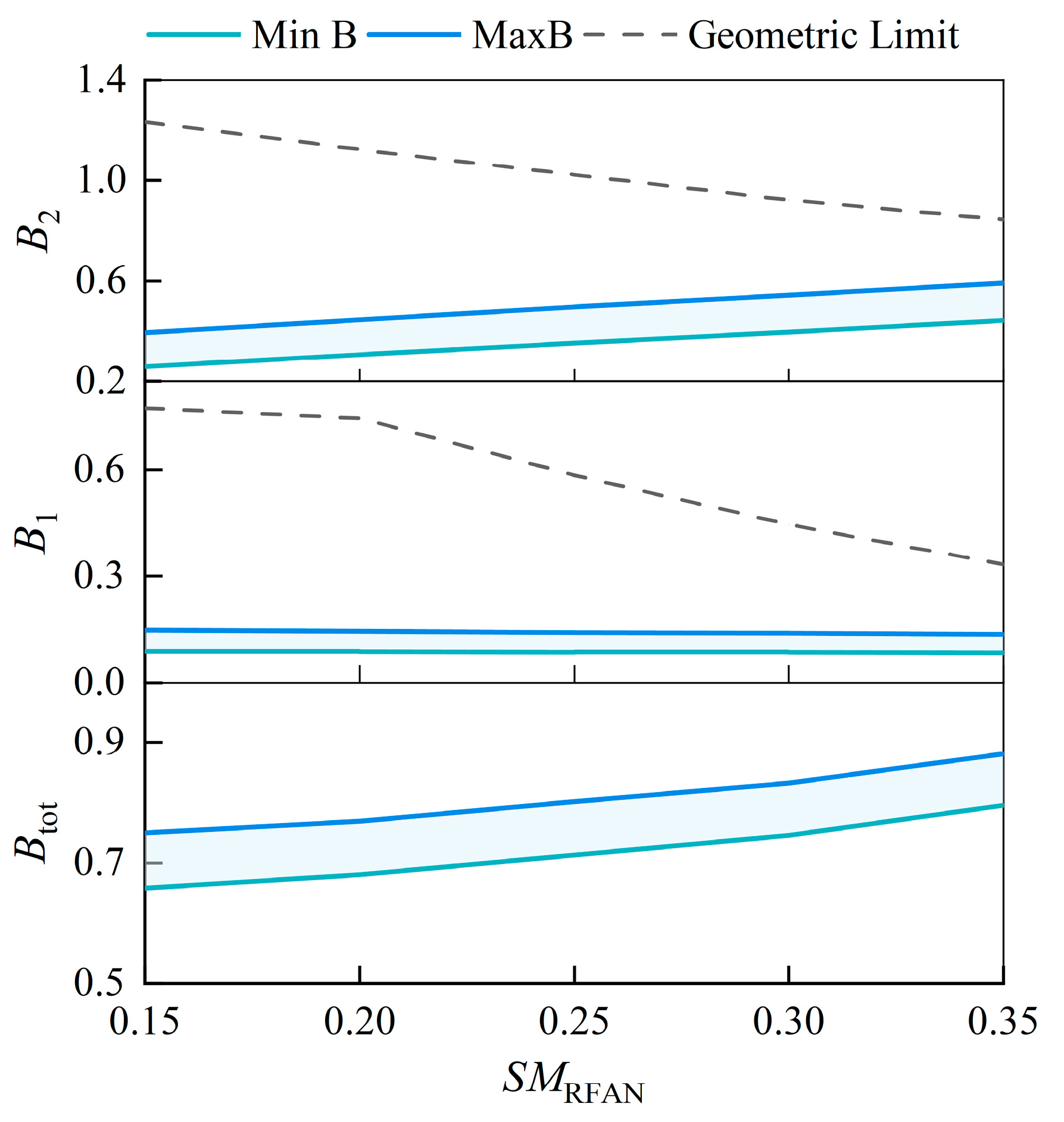

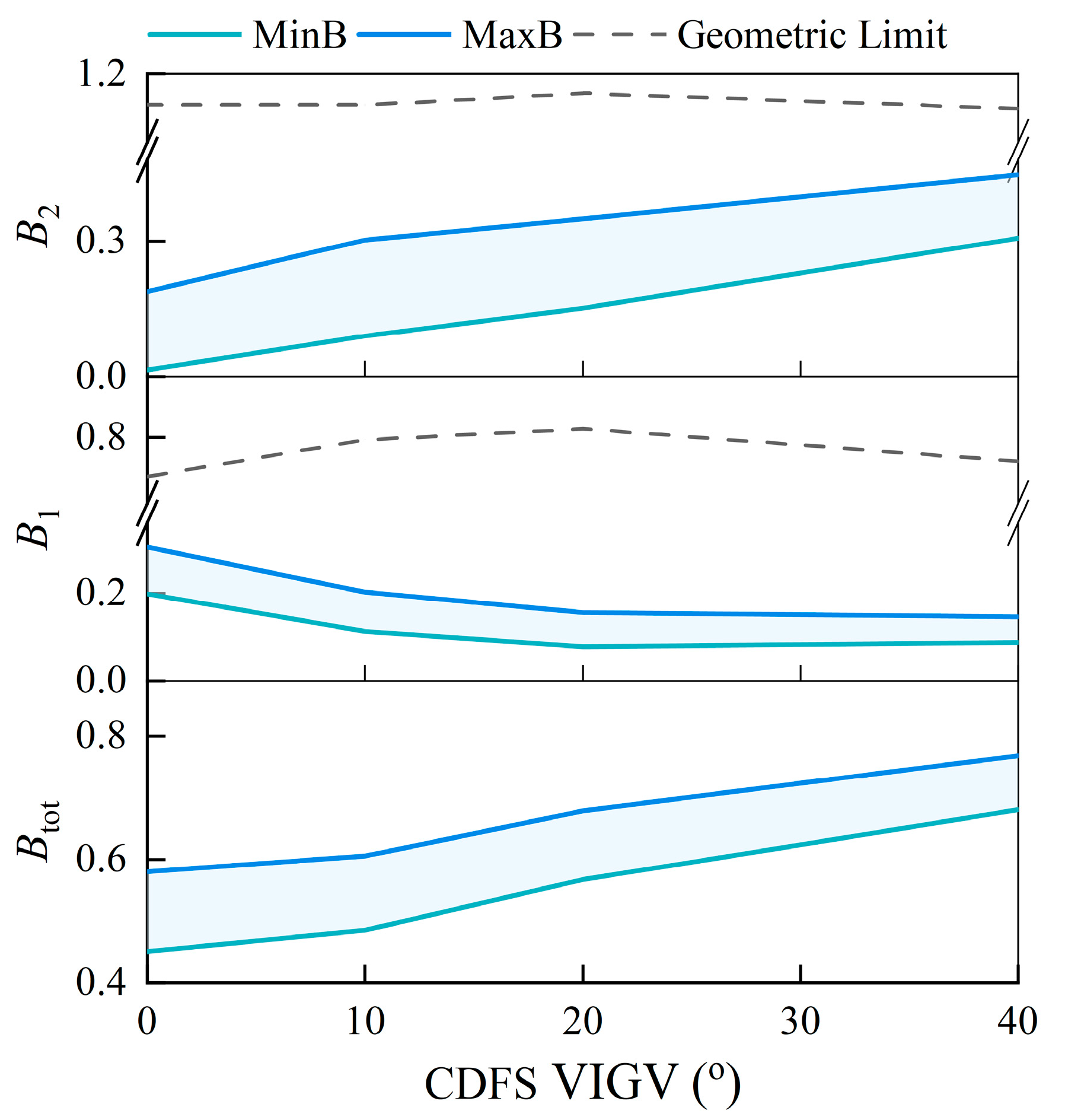

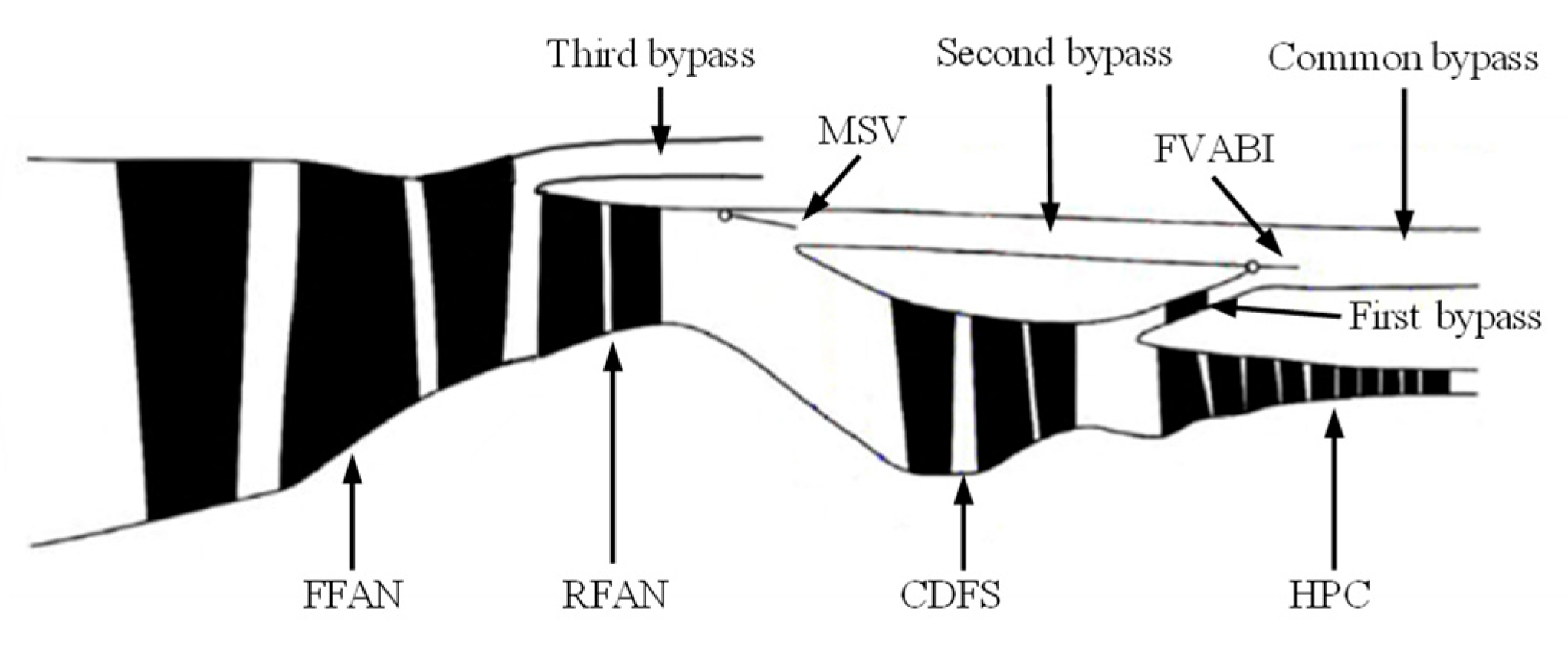

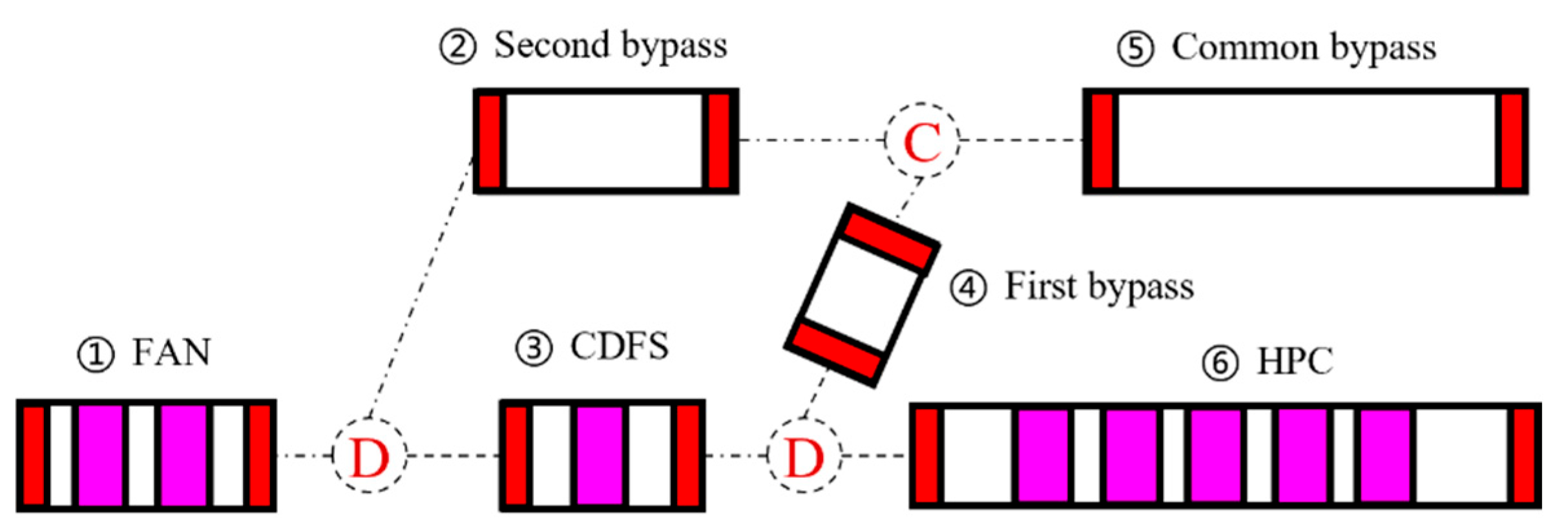

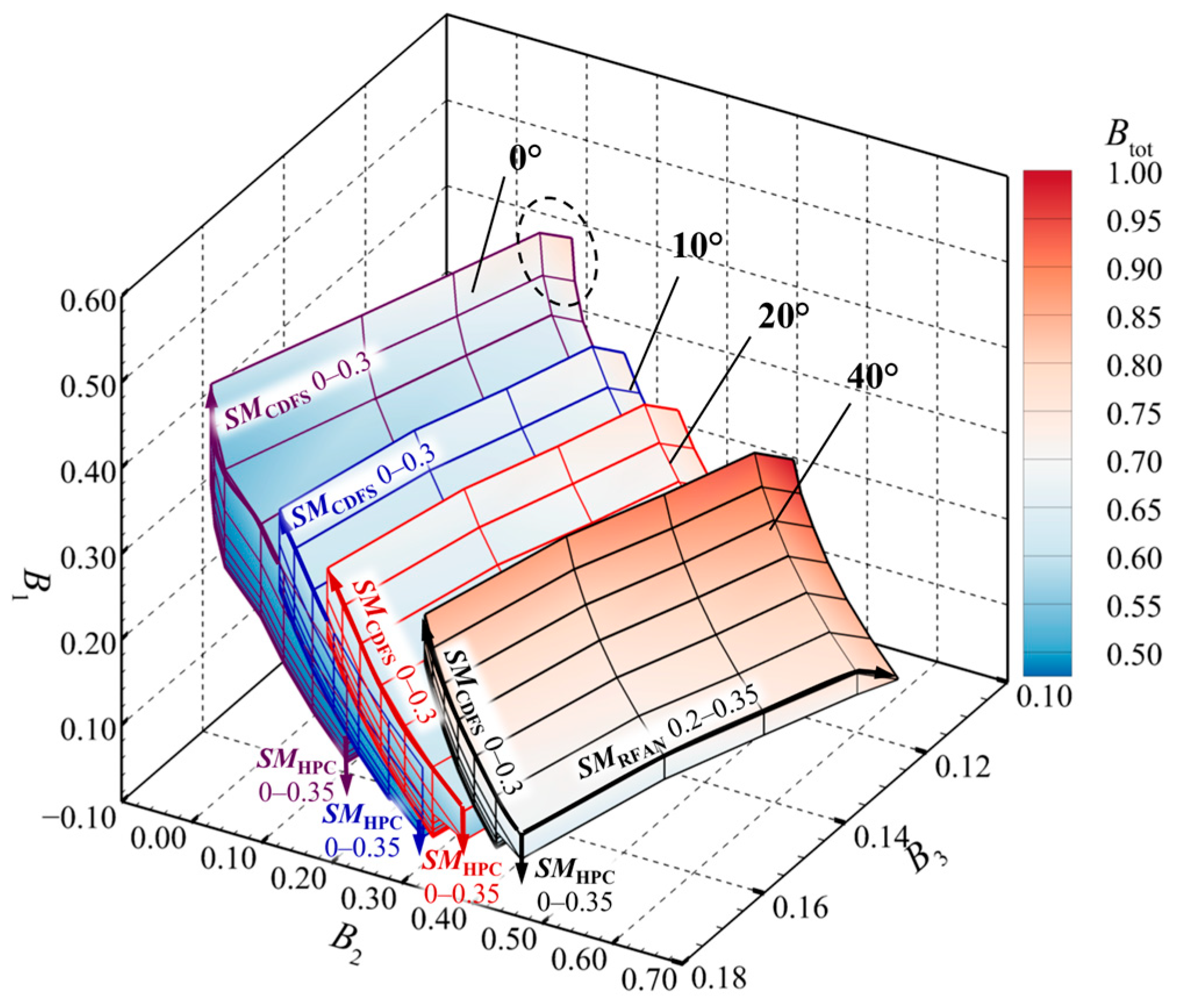

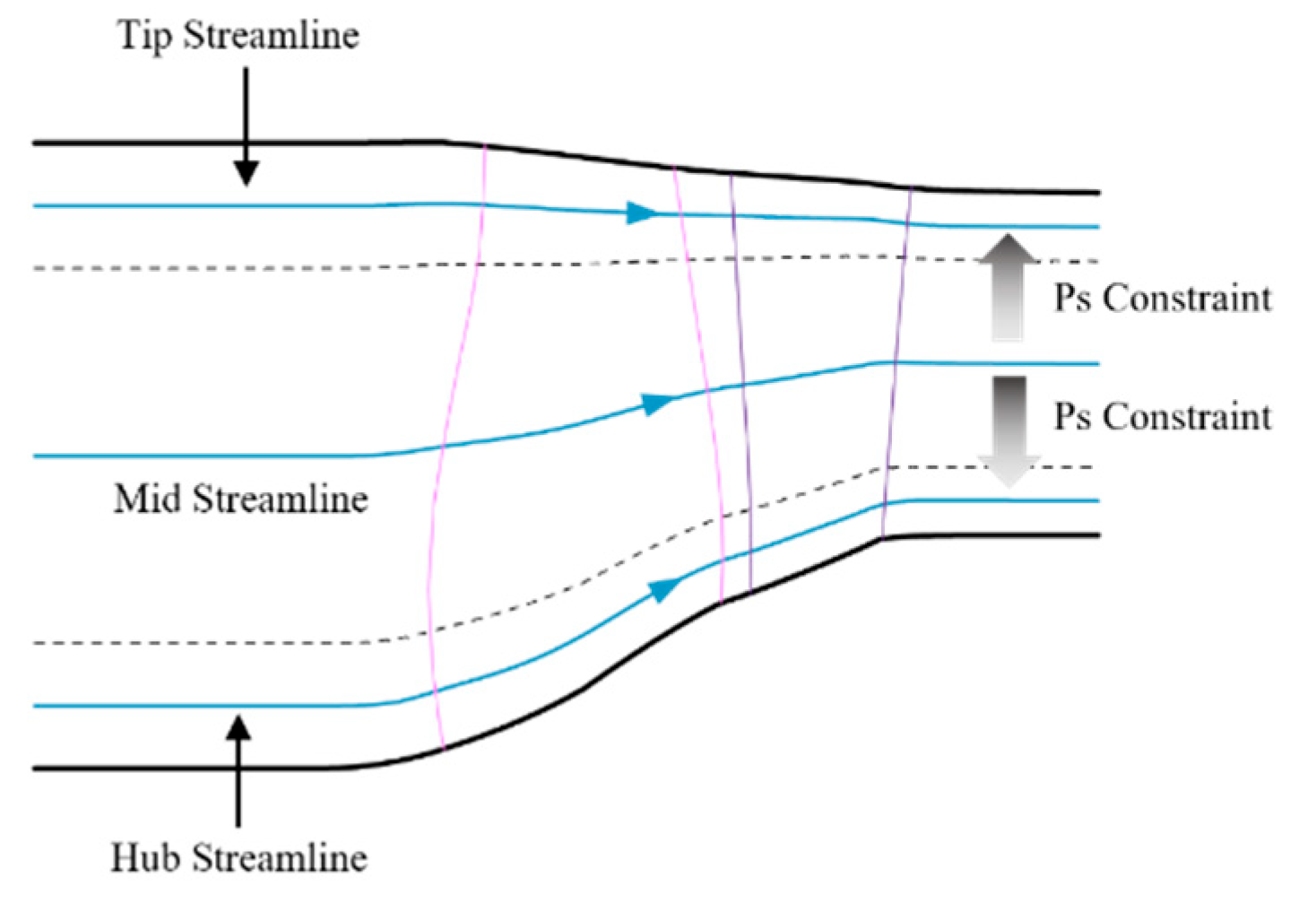

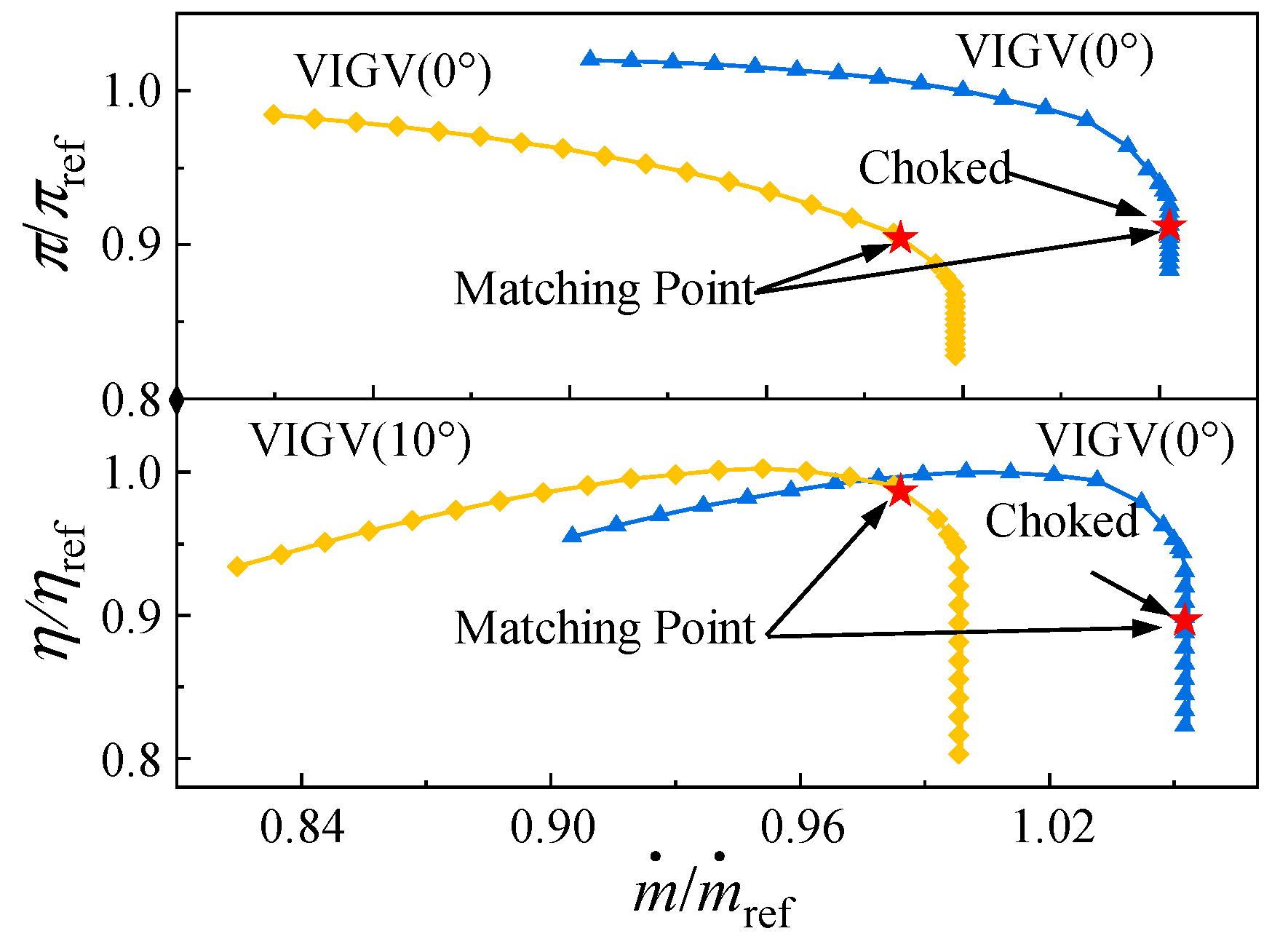

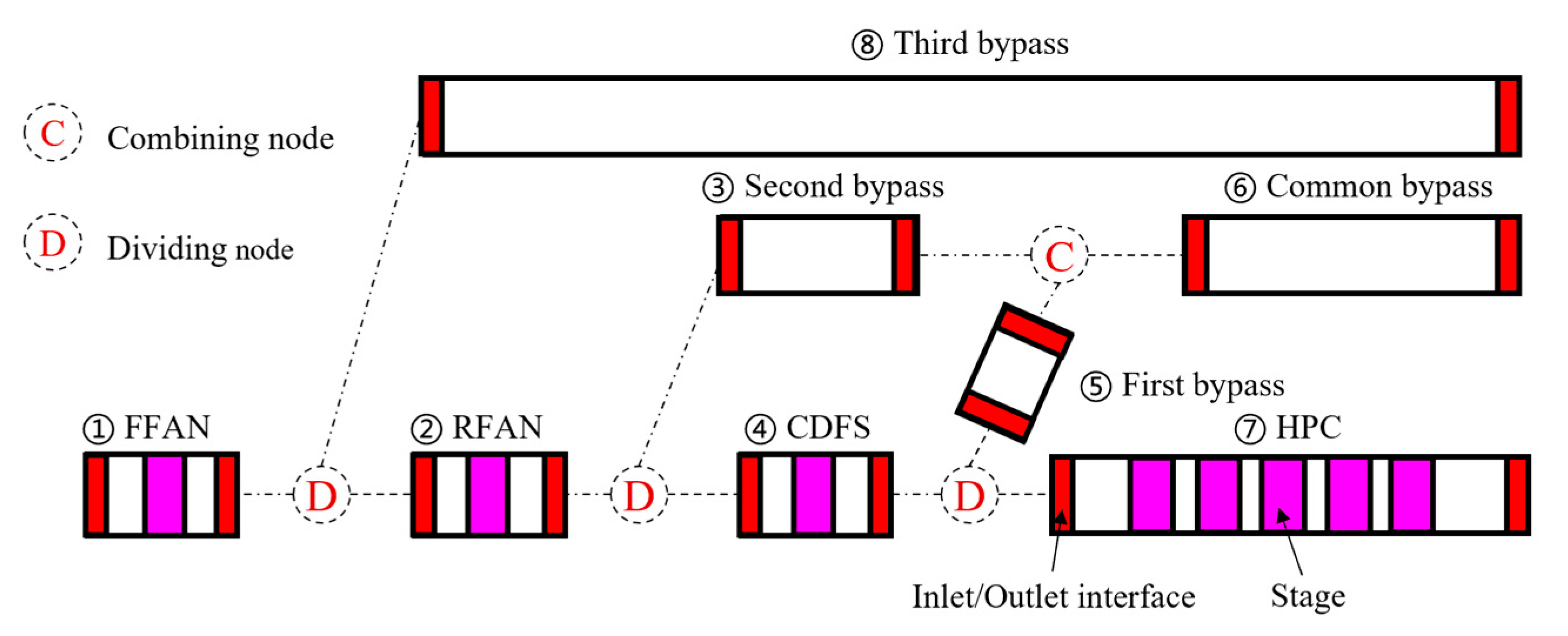

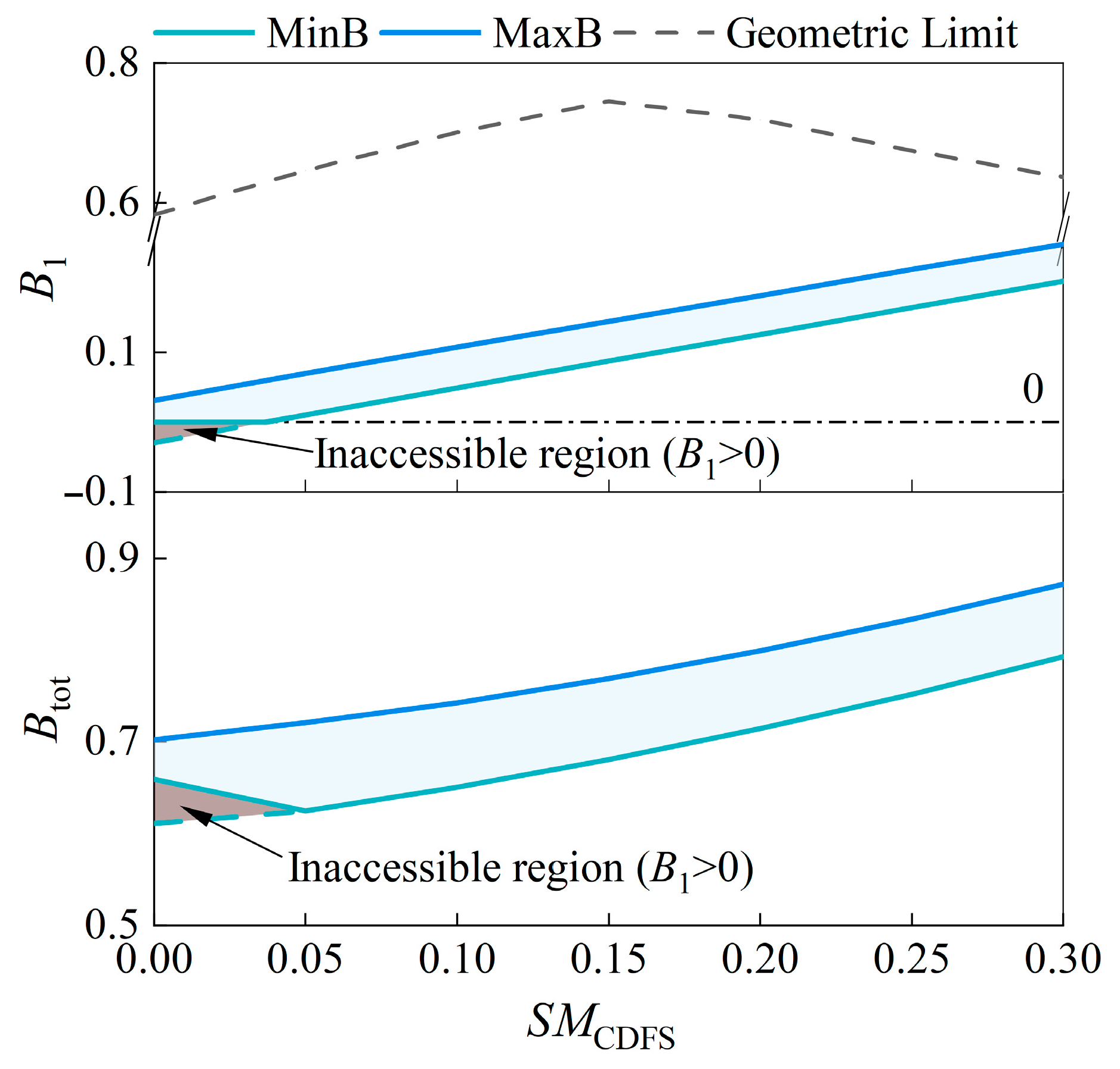

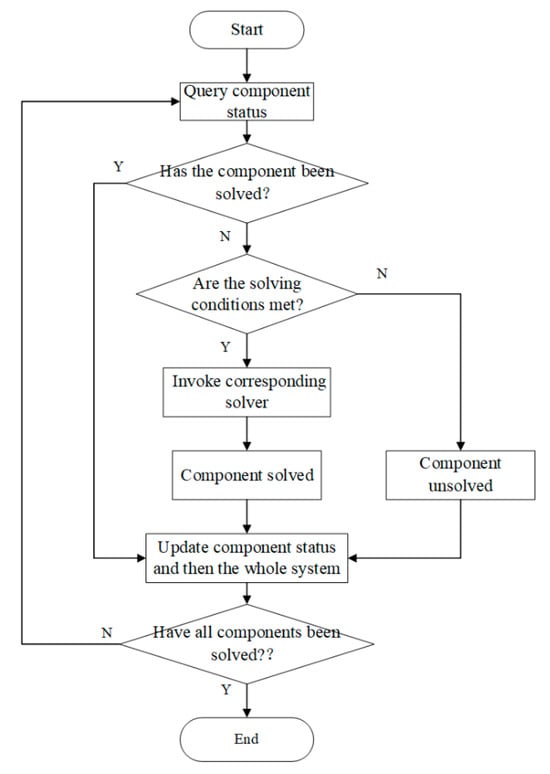

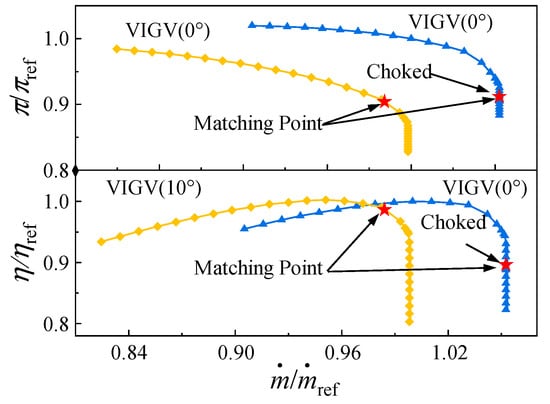

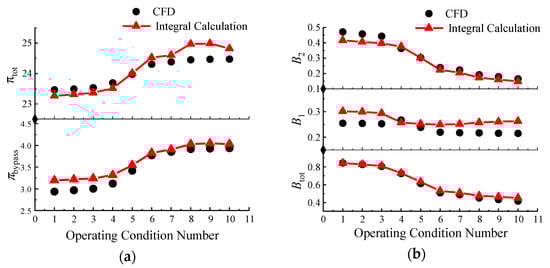

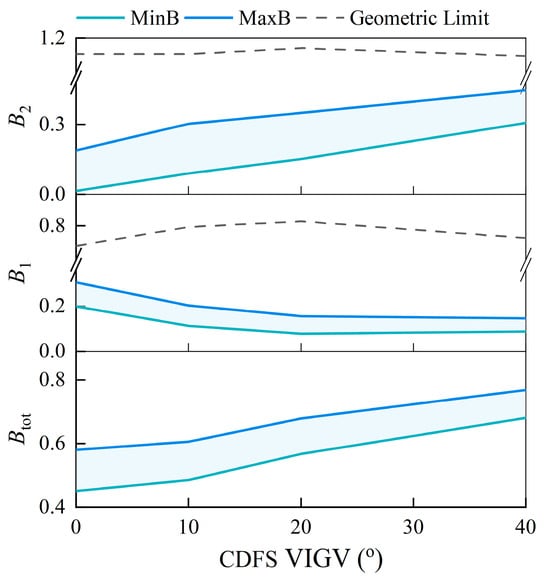

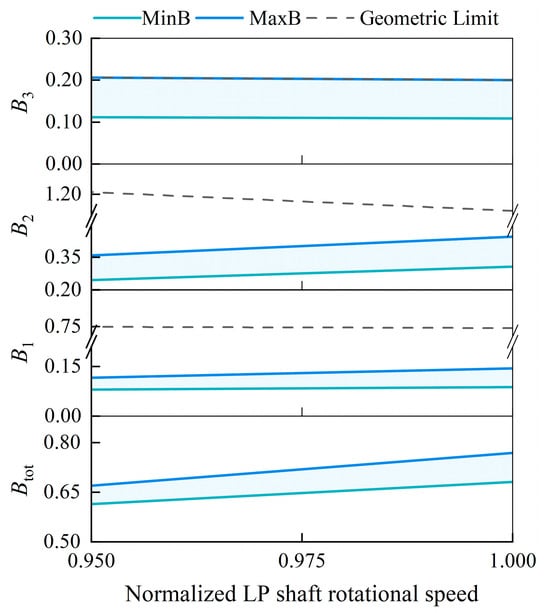

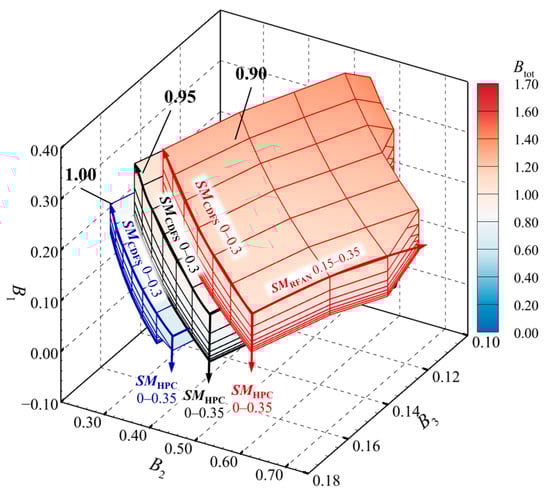

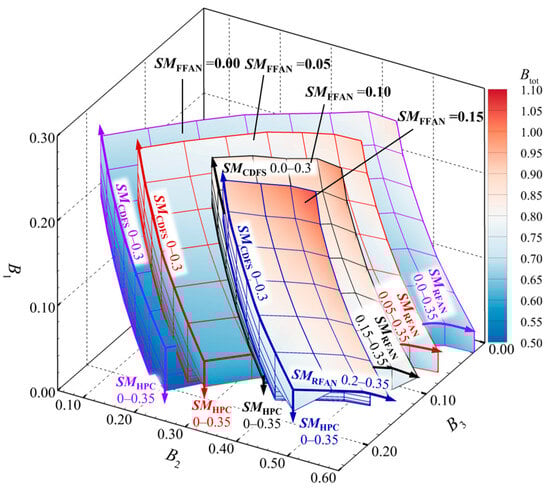

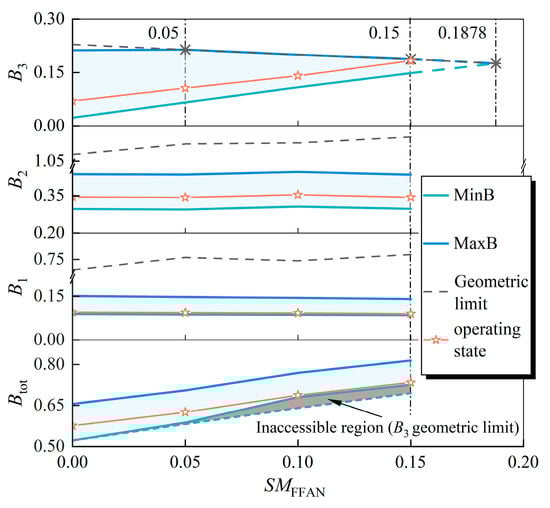

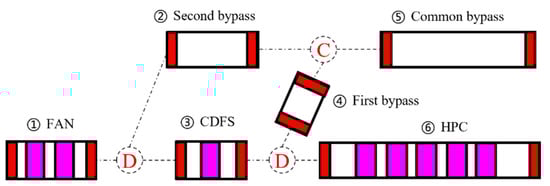

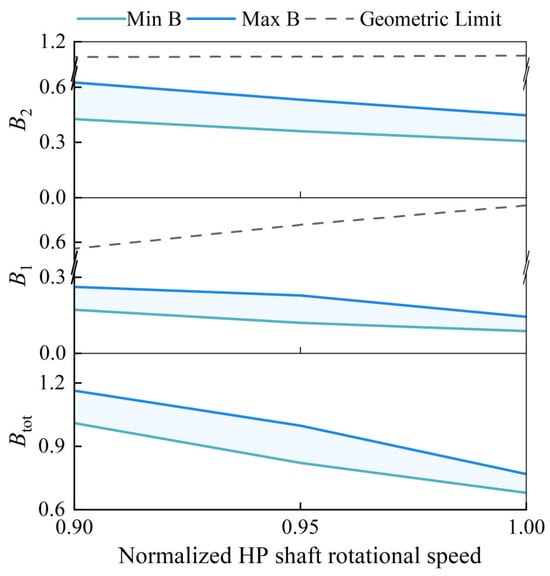

The operation range of the adaptive cycle engine (ACE) compression system is constrained by both the compression components and the bypass ducts, resulting in intricate matching mechanisms. Conventional analysis methods struggle to adequately evaluate the feasible operating range or the coupled constraints between components. This study employs an integrated hybrid-dimensional approach, combining zero-dimensional bypass analysis with one-dimensional/quasi-two-dimensional component analysis, to systematically investigate the matching effects of a triple-bypass compression system. The influence of key matching parameters, including the compression component operating points, high-pressure (HP) and low-pressure (LP) shaft speeds, and the core-driven fan stage (CDFS) variable inlet guide vane (VIGV) angles, is investigated. Results indicate that compression component matching primarily influences adjacent downstream bypass ratios, while HP/LP shaft speeds and the CDFS VIGV angle predominantly regulate the first and second bypass ratios. The feasible operating envelope is determined by the superimposed effects of these control parameters. To maximize the total bypass ratio, optimal operation requires increasing the front fan stall margin, elevating LP shaft speed, reducing HP shaft speed, and implementing partial CDFS VIGV closure to enhance pre-swirl. These findings provide critical guidance for control logic refinement and design optimization in advanced variable-cycle compression systems.
